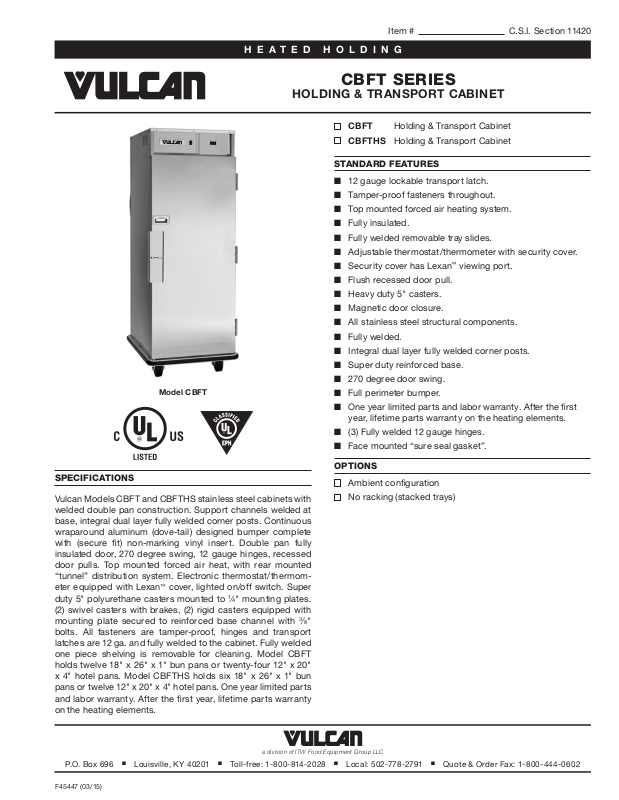

Vulcan CBFT User Manual
Model CBFT
Item # C.S.I. Section 11420
HEATED HOLDING
CBFT SERIES
HOLDING & TRANSPORT CABINET
CBFT Holding & Transport Cabinet
CBFTHS Holding & Transport Cabinet
STANDARD FEATURES
■ 12 gauge lockable transport latch.
■ Tamper-proof fasteners throughout.
■ Top mounted forced air heating system.
■ Fully insulated.
■ Fully welded removable tray slides.
■ Adjustable thermostat/thermometer with security cover.
■ Security cover has Lexan™ viewing port.
■ Flush recessed door pull.
■ Heavy duty 5" casters.
■ Magnetic door closure.
■ All stainless steel structural components.
■ Fully welded.
■ Integral dual layer fully welded corner posts.
■ Super duty reinforced base.
■ 270 degree door swing.
■ Full perimeter bumper.
■ One year limited parts and labor warranty. After the rst
year, lifetime parts warranty on the heating elements.
■ (3) Fully welded 12 gauge hinges.
■ Face mounted “sure seal gasket”.
OPTIONS
SPECIFICATIONS
Vulcan Models CBFT and CBFTHS stainless steel cabinets with
welded double pan construction. Support channels welded at
base, integral dual layer fully welded corner posts. Continuous
wraparound aluminum (dove-tail) designed bumper complete
with (secure t) non-marking vinyl insert. Double pan fully
insulated door, 270 degree swing, 12 gauge hinges, recessed
door pulls. Top mounted forced air heat, with rear mounted
“tunnel” distribution system. Electronic thermostat/thermometer equipped with Lexan™ cover, lighted on/off switch. Super
duty 5" polyurethane casters mounted to 1⁄4" mounting plates.
(2) swivel casters with brakes, (2) rigid casters equipped with
mounting plate secured to reinforced base channel with 3⁄8"
bolts. All fasteners are tamper-proof, hinges and transport
latches are 12 ga. and fully welded to the cabinet. Fully welded
one piece shelving is removable for cleaning. Model CBFT
holds twelve 18" x 26" x 1" bun pans or twenty-four 12" x 20"
x 4" hotel pans. Model CBFTHS holds six 18" x 26" x 1" bun
pans or twelve 12" x 20" x 4" hotel pans. One year limited parts
and labor warranty. After the rst year, lifetime parts warranty
on the heating elements.
a divisi on of IT W Food Equ ipment Group LLC
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
Ambient conguration
No racking (stacked trays)
F45447 (03/15)
HEATED HOLDING
CBFT SERIES
HOLDING & TRANSPORT CABINET
H
W W
MODEL
CBFT 28" W x 341⁄2" D x 72" H
CBFTHS 28" W x 341⁄2" D x 45" H
DIMENSIONS
EXTERIOR VO LT S WAT T S LBS KG
H
CAPACI T Y
12 bun
24 (4" bulk)
6 bun
12 (4" bulk)
W
ELECTRICAL
120 1,000
120 1,000
NEMA
115v 8'
5-15P
115v 8'
5-15P
SHIPPING WEIGHTS
525 238
375 170
a divisi on of IT W Food Equ ipment Group LLC
P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: 1-800-444-0602
F45447 (03/15)
NOTE: In line w ith its policy to co ntinua lly imp rove its pr oduct s, Vulca n reser ves the right to c hange materia ls and sp ecic ation s withou t notice.
