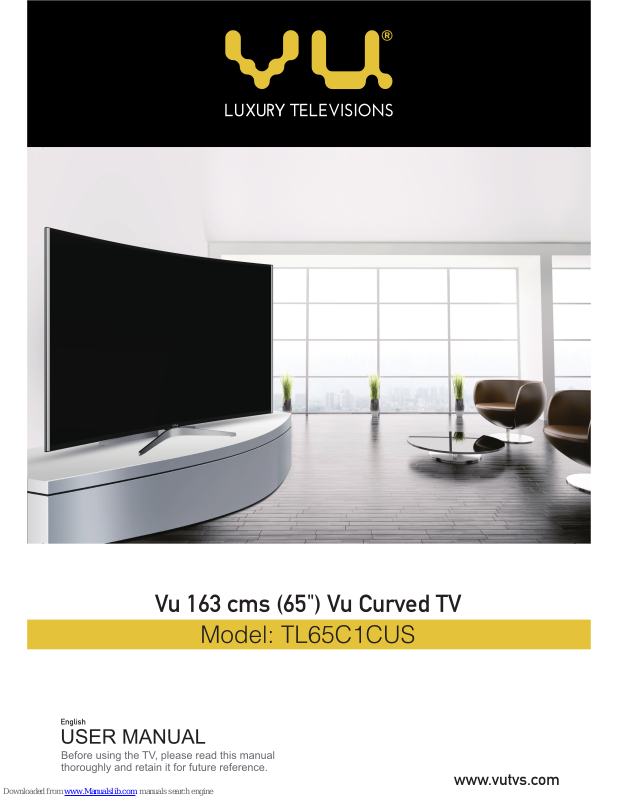

VU TL65C1CUS User Manual

2

Table of Contents

Chapter 1: Introduction

Precautions ............................................................... 3

Product .................................................................... 3

Power and Plug ....................................................... 3

Power Cord and Signal Cable ................................. 3

Use Environment ..................................................... 3

Cleaning................................................................... 3

Hanging the TV Set on the Wall...............................3

Important Information............................................... 3

Buttons on the TV ..................................................... 4

Sockets ...................................................................... 5

Remote Control Functions ...................................... 6

Chapter 2: General Operation

Switching on ............................................................. 7

Switching off ............................................................. 7

Network Connection ................................................. 8

Initial Setup ............................................................... 9

Step 1 Select your language ................................... 9

Step 2 Agree the disclaimer .....................................9

Step 3 Set up the network ....................................... 9

Step 4 Select your country....................................... 9

Step 5 Set up the time ............................................. 9

Step 6 All Done ........................................................ 9

Chapter 3: Homepage Operation

Using Homepage - TV ............................................ 10

TV Window ............................................................ 10

Input Source .......................................................... 10

Using Homepage - Apps ........................................ 11

App Store ............................................................... 11

Pre-installed Apps .................................................. 11

Chapter 4: Menu Operation

Using Quick Access Menu ..................................... 12

Picture Preset ........................................................ 12

Sound Preset ......................................................... 12

T-Link ..................................................................... 12

Time Shift ............................................................... 12

PVR ...................................................................... 13

Schedule List ......................................................... 13

Settings .................................................................. 13

Using System Settings ........................................... 14

Picture.................................................................... 14

Sound .................................................................... 14

Channel ................................................................. 15

Network.................................................................. 16

System ................................................................... 17

Applications ........................................................... 18

Chapter 5: Other Information

Problems & Solutions ............................................ 19

Troubleshooting .....................................................20

3

IntroductionChapter 1

• Keep the set away from direct sunlight.

• The apparatus shall not be exposed to dripping or

splashing and no objects lled with liquids, such as
vases, shall be placed on the apparatus.

• Do not use the set in dusty environments.

• Operating Temperature: 5°C to 35°C (41°F to 95°F)

Operating Humidity: 20% to 80%, non-condensing

Storage Temperature: -15°C to 45°C (5°F to 113°F)

Storage Humidity: 10% to 90%, non-condensing

Cleaning

• Dust the set by wiping the screen and the cabinet with

a soft, clean cloth or some special liquid cleaner.

• Do not apply excessive force to the screen when
cleaning.

• Do not use water or other chemical cleaner to clean
the screen as this may damage the surface of the TV
screen.

Hanging the TV Set on the Wall

Warning: This operation requires two people.

To ensure a safe installation, observe the following

safety notes:

• Check that the wall can support the weight of the TV
set and wall mount assembly.

• Follow the mounting instructions provided with the
wall mount.

• The TV set must be installed on a vertical wall.

• Make sure to use only screws suitable for the material
of the wall.

• Make sure that the TV set cables are placed so that
there is no danger of tripping over them.

All other safety instructions about our TV sets are
also applicable here. (Note: Certain TV model is not
designed to be mounted to the wall.)

Important Information

If a television is not positioned in a sufciently stable
location, it can be potentially hazardous due to falling.
Many injuries, particularly to children, can be avoided by

taking simple precautions such as:

• Using cabinets or stands recommended by the
manufacturer of the television.

• Only using furniture that can safely support the
television.

• Ensuring the television is not overhanging the edge of
the supporting furniture.

• Not placing the television on tall furniture (for example,
cupboards or bookcases) without anchoring both the
furniture and the television to a suitable support.

• Not standing the television on cloth or other materials
placed between the television and supporting furniture.

• Educating children about the dangers of climbing on
furniture to reach the television or its controls.

Precautions

Read all of the instructions before operating the set.
Keep these instructions well for future use.

Product

• Do not block or cover the ventilation openings on the
back cover.

• Do not push objects of any kind into this unit through
the cabinet slots as they could touch the current

carrying parts or short-circuit parts, resulting in re,
electric shock, or damage to the unit.

• Do not attempt to open the cabinet as this may cause
damage. There are no parts inside you can service by

yourself. Refer all servicing to qualied personnel.

• Do not touch the screen surface with ngers as this
may scratch or mar the TV screen.

• Do not impact the TV screen with hard pressure as
this may damage the TV screen severely.

Power and Plug

• Unplug the set under the following conditions:

- If the set will not be used for a long period of time.

- If the power cord or the power outlet/plug is
damaged.

- Follow the instructions to install and adjust the
product. Adjust those controls that are covered in
these operating instructions as improper adjustment
of other controls may result in damage. If this

happens, unplug the set and refer to the service

personnel.

- If the set is subject to impact or has been dropped
and the cabinet has been damaged.

• Where the mains plug or an appliance coupler is used

as disconnect device, the disconnect device shall

remain readily operable.

(*Where an all-pole mains switch is used as the

disconnect device, the switch shall remain readily

operable.)

Power Cord and Signal Cable

• Do not allow anything to rest on or roll over the power
cord and the signal cable.

• Protect the power cord and the signal cable from
being trampled.

• Do not overload the power cord or the power outlet.

• Do not expose the power cord and the signal cable to
moisture.

Use Environment

• Do not place the set on an unstable cart, stand, or
table.

• Place the set on a place that allows good ventilation.

• Do not use the set near damp, and cold areas. Protect
the set from overheating.

4

1.

Press to turn the TV on from the standby mode.

Short press within 2 seconds, it acts like OK button
on the remote to conrm your selection in menu

mode or to display channel list in TV mode.

Long press for more than 2 seconds, the NAV menu
will display on the screen. Without the remote, the

NAV menu are shorcuts to Source, Menu, Home,
Back and Standby. And the shortcuts may vary

depending on models.

To exit the NAV menu, highlight

and then press

to conrm.

2.

Scans up/down through the channel list. In menu
mode, they act like the UP/DOWN direction buttons
on the remote and adjust menu controls.

3.

Increases/decreases the volume. In menu mode,

they act like the RIGHT/LEFT direction buttons on the
remote and adjust menu controls.

On-screen NAV menu

OR

Buttons on the TV

Note: The product colour and shape may vary depending on the model. Figures are provided for reference only.

Introduction

5

Introduction

Sockets

Note: The location and names of the sockets on the TV may vary according to TV model, and not all sockets
available on all models.

LAN

This socket can be used to connect to external modem or network access

equipment.

SPDIF socket (output)

This socket can be used to connect a compatible digital audio receiver.

HDMI1/HDMI2/HDMI3 socket (input)

The HDMI (High-Denition Multimedia Interface) socket lets you connect a
device, such as a Blu-ray player, with a HDMI output for best picture quality.

It also provides an uncompressed digital connection that carries both video
and audio data by way of an integrated mini-plug cable.

Note: Only HDMI sockets with the MHL identication will support the MHL
function, MHL stands for Mobile High-denition Link, and allows you to link

an MHL-capable mobile device to the television.

USB 2.0/USB 3.0 socket (input)

This socket can be used to connect a USB device.

ANTENNA/CABLE IN socket (input)

This socket can be used to connect the outside aerial or cable network.

VGA IN socket (input)

This socket can be used to connect a computer.
Note: VGA IN shares the same audio sockets with AV IN.

Y

P

B

PR

component sockets (input)

These Y

P

B

PR

sockets can be used to connect a device that has component

video sockets, such as a DVD player. The component sockets can
recognize if the device you're connecting to is Y

P

B

PR

compatible. The

component sockets provide excellent picture quality because the video is

separated into three separate parts.

AV RCA audio + video sockets (input)

The AV IN sockets can be used to connect a range of equipment, including
video recorders, camcorders, decoders, satellite receivers, DVD players, or

games consoles. The VIDEO socket provides composite video connection.

Note: AV IN shares video (Y/VIDEO) and audio sockets with Y

P

B

PR

.

RCA AUDIO OUT sockets

Use an RCA audio cable to connect your TV to a compatible audio
receiver.

Common Interface socket

This socket can be used to watch encrypted digital TV channels by inserting
a common interface module and a card provided by a digital TV service
operator.

LAN

HDMI 1 (MHL)

or HDMI 2 (ARC)

or HDMI 3

VGA IN

ANTENNA/CABLE IN

USB 2.0

or

USB 3.0

SPDIF

COMMON

INTERFACE

AUDIO

OUT

R

L

PR

PB

Y/VIDEO

COMPONENT
IN (Y

PB

PR)

VGA/

AUDIO IN

AV

IN

R

L

7

Chapter 2 General Operation

Switching on

Follow the instructions on this page on how to switch on your TV set
and the remote control before going on to following pages describing
how to use the channel set-up procedure.

1. Insert two AAA batteries in the remote control.

Precautions on using batteries:

- Only use the battery types specied.

- Make sure you use the correct polarity.

- Do not mix new and used batteries.

- Do not use rechargeable batteries.

- Do not expose batteries to excessive heat such as sunshine,
re or the like, throw them in a re, recharge them or try to open
them, as this could cause them to leak or explode.

- Remove the batteries from the remote control if you are not using
it for a long period of time.

2. Connect the power cable FIRST to the television, THEN to a mains

socket. (Note: If the power cable is connected to the television,
please only connect the power cable to the mains socket.)

Your TV set should only be connected to an AC supply. It must not
be connected to a DC supply. If the plug is detached from the ca-

ble, do not, under any circumstances, connect it to a mains socket,

as there is a risk of electric shock.
Note: The gures are for representation only, the location of power

socket of the television may differ depending on the model.

3. Connect an outside aerial to the ANTENNA IN socket at the back
of the TV set.

The aerial socket (75 OHM - VHF / UHF / cable) can be used for

connecting an external aerial or other equipment tted.

Note: If you want to receive the signal from your cable or cable
box, please connect a coaxial cable to the CABLE IN socket at the
back of the TV set.

4. When powered on, the TV will be turned on directly or be in

standby mode.

If the power indicator lights up, the TV set is in standby mode.

Press the

button on the remote control or on the TV set to turn

on the TV.

Switching off

• To put the TV set into standby mode, press the button on the
remote control. The TV set remains powered up, but with low

energy consumption.

• To switch off the TV set, unplug the mains socket from the mains
outlet.
