Model:LED-32K160M
Model:LED-32K160M
Be sure to disconnect the AC power cord before installing a stand or wall-mount brackets.
Carefully place your TV facedown on a soft,cushioned surface to prevent damage to the TV or
scratching to the screen.
Product image is only for reference,actual product
may vary in appearance:
Accessories List
Installing the Stand
User Manual × 1 Quick Setup Guide × 1 Remote Control × 1 Battery × 2
The TV screen is very fragile,and must be protected at all times when removing the base stand.Be
sure that no hard or sharp object,or anything that could scratch or damage the screen,come into
contact with it.DO NOT exert pressure on the front of the TV at any time because the screen could
crack.
For tabletop use,the TV must be attached to the provided stand as shown on this page.
1 2
Remote Sensor
Receive remote signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
Remote Indicator Red light up in standby mode. Blue light up in power on mode.
STANDBY/ SOURCE
Press for a few seconds to turn on the TV or put the TV in standby mode.
/Touch to select among the different signal sources.
1. Attach the stand to the TV set as shown in the picture. Use the 4 screws to fix the stand tightly.
If you need to use the Wall-mount Bracket, please refer to the below information.
Remote Sensor
Remote Indicator
STANDBY /
32″ Screws: (ST4 × 12F) × 4
32″ Screws: (ST4 × 12F) × 4
200 × 100
M6
3 4

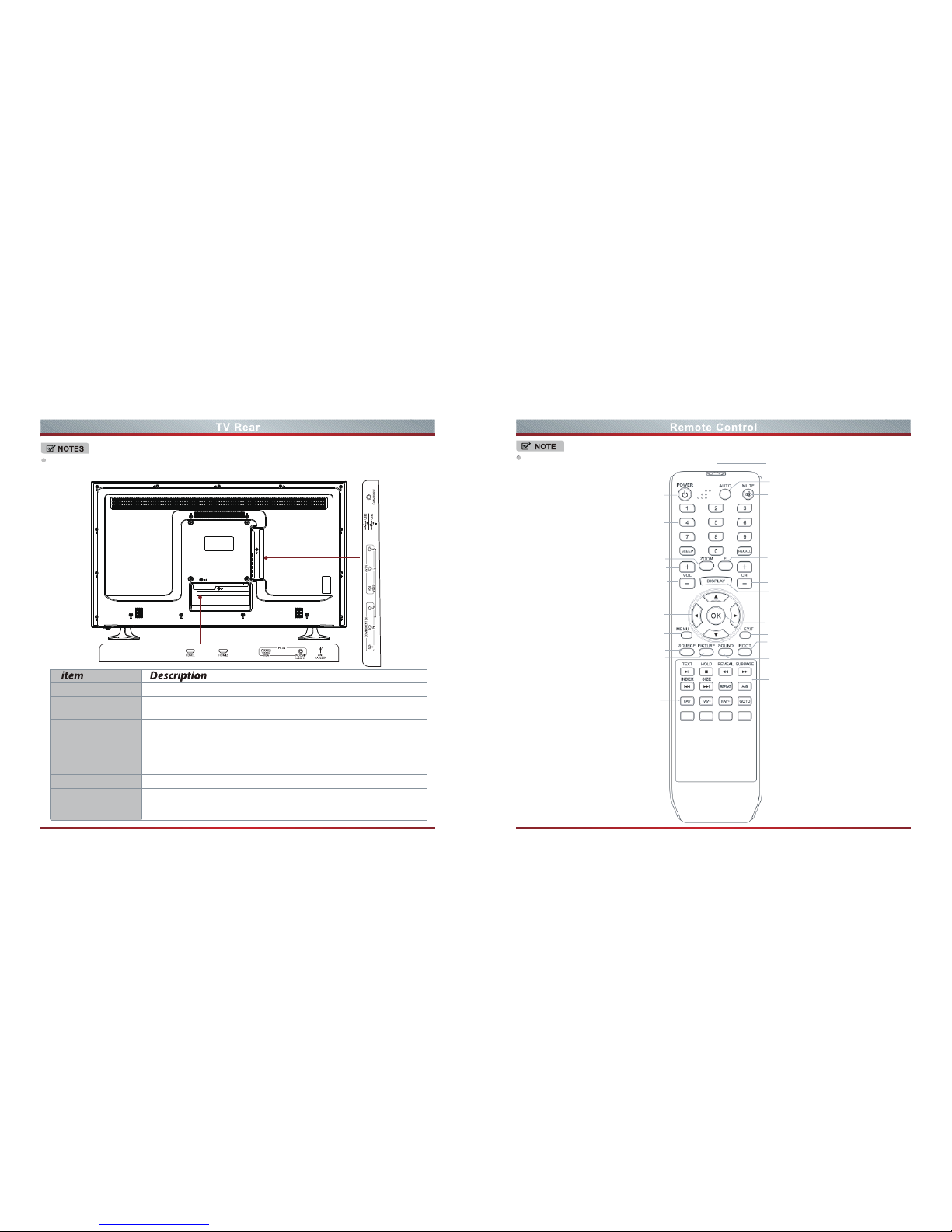

Power on/off
Decrease volume
FAV button
Increase volume
▲/
▲
/▲/
▲
Move Up/Down/Left/Right
or adjust settings
Go to the previous channel
Display the information banner
Confirm selections
Mute button
Zoom button
Close the menu
Next channel
Freeze
Select sound mode
Back to the initial page
(DMP Mode Only)
Select picture mode
Previous channel
Select input source
Remote sensor
Direct channel selection
Menu button
Player button
sleep timer button
Auto adjust button
FOR ILLUSTRATION ONLY.
Connect an antenna or cable TV to this jack.
HDMI (High-Definition Multimedia Interface)provides uncompressed video
data and digital audio data.Support: 480i\480p\576i\576p\720p\1080i\1080p
Connect to the composite video and audio (L/R) output jacks on external
video devices.
Connect to headphone for private listening.
Connect to a DVD player, Digital Set-Top-Box, or other A/V devices with
component (YPBPR) video and audio output jacks. Component audio Jack
share AV IN audio Jack.Support: 480i\480p\576i\576p\720p\1080i\1080p
Connect to a PC or other devices with a VGA interface.
Video , MP3, Jpeg play.
ANT CABLE
HDMI
COMP
AV IN
VGA / PC AUDIO IN
HEADPHONE
USB
DC 5V 0.5A(MAX)
Powering up or down the TV requires several seconds of processing time.Do not rapidly turn the TV
on/off as abnormal operation may occur.
5

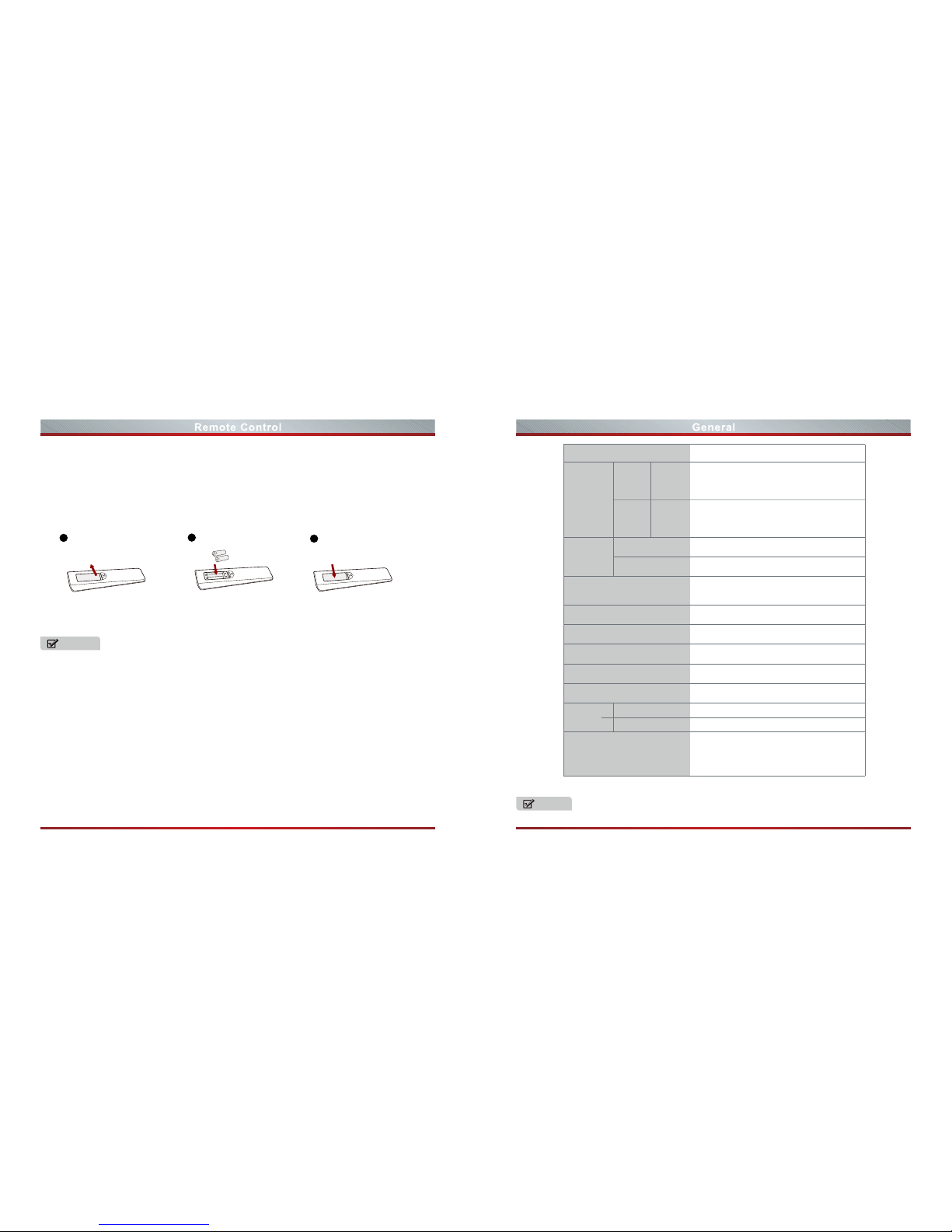

1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Be sure to match the (+) and ( - ) ends of the batteries with the (+)
and ( - ) ends indicated in the battery compartment.
3. Close the battery compartment cover.
1
Gently lift up
Change the batteries
2
Insert the batteries
3
Gently push down
NOTES
1. Dispose of your batteries in a designated disposal area. Do not throw the batteries into fire.
2. Do not mix battery types or combine used batteries with new ones.
3. Remove depleted batteries immediately to prevent battery acid from leaking into the battery
compartment.
4. If you do not intend to use the remote control for a long time, remove the batteries.
5. Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.
6. Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth.
If chemicals touch your skin, wash immediately.
6
Features, appearance and specifications are subject to change without notice.
NOTE
Dimension
With
Stand
Model Name
Width 733 mm
Height 477 mm
180 mm
733 mm
434 mm
89 mm
Depth
Width
Height
Depth
Without
Stand
Weight
NET 4.9 kg
GROSS 6.3 kg
Active Screen Size
(Diagonal)
32 inches
Screen resolution 1366 × 768
Audio power 6 W + 6 W
Power consumption 50 W
LED-32K160M
Power supply
USB supply
100-240 V ~ 50 / 60 Hz
DC 5V, Max 500 mA
Receiving
systems
RF PAL I B/G D/K, SECAM B/G D/K
AV PAL,NTSC
Environmental
conditions
Tempera ture : 5°C~ 45°C
Humidity: 20%-80% RH
Atmospheric pressure: 86 kPa - 106kPa
Attention： Excessive sound pressure from earphones and headphones can cause hearing loss.
