User’s manual
TR02-2013/TR05-2013/ TR06-2013/TR07-2013/ TR08-2013
DECT 6.0 accessory handset for use with VTech models TR1-2013/TR16-2013/TR17-2013/ TR2-2013/TR26-2013/TR27-2013
Congratulations
on purchasing your new VTech product. Before using this telephone, please read
Important safety instructions on page 5 of this manual.
This manual has instructions on how to set up and register your new handset. For abridged instructions on using the handset, see the Abridged user’s manual
that came with your telephone base.
You may also view or download the online User’s manual for a full set of installation and operation instructions at www.vtechphones.com.
In Canada, visit www.vtechcanada.com.
Compatible with Hearing Aid T-Coil
T
TIA-1083
Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines.
Register online to get an additional 3-month warranty! Visit www.vtechphones.com.
Registration
Register your product online for enhanced warranty support.
Product news
Learn about the latest VTech products.
BC
Parts checklist
Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary.

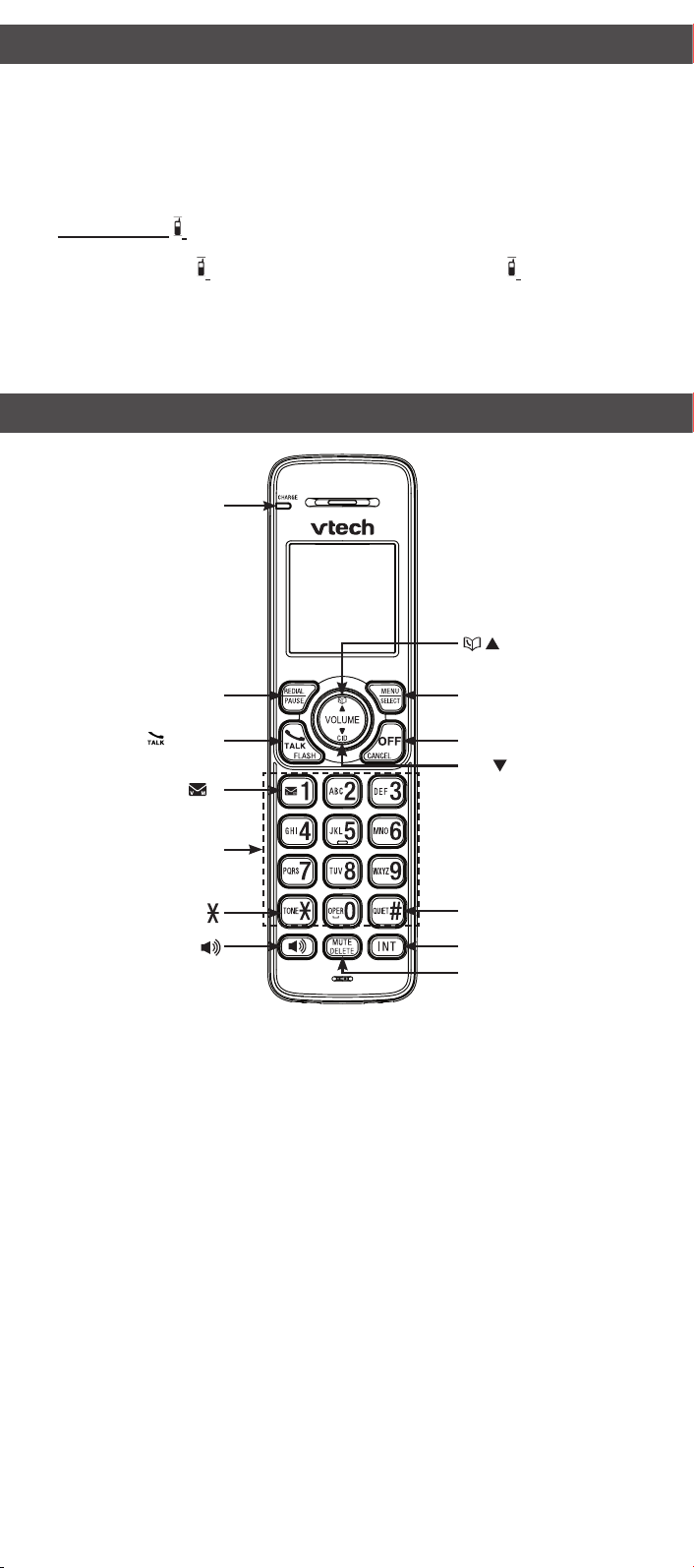

Handset
THIS SIDE UP / CE CÔTÉ VERS LE HAUT Battery Pack / Bloc-piles : (2.4V Ni-MH) WARNING / AVERTISSEMENT : DO NOT BURN OR PUNCTURE BATTERIES. NE PAS INCINÉRER OU PERCER LES PILES. Made in China / Fabriqué en chine
Handset battery
Handset |
and |
Handset battery |
|
charger |
|
compartment cover |
|
|
|
|
|
|
|
|
|
|
User’s manual |
|
|
|
|
|
|
User’s manual
Battery installation
Install the battery as shown below.
. Plug the battery connector securely into the socket.
. Place the battery with the label THIS SIDE UP facing up and
the wires inside the battery compartment.
THIS SIDE UP / CE CÔTÉ VERS LEHAUT |
|
CR1232 |
THIS SIDE UP / CE CÔTÉ VERSHAUTLE |
Battery Pack / Bloc-piles : (2.4V Ni-MH) WARNING / AVERTISSEMENT : DO NOT BURN OR PUNCTURE BATTERIES. |
NE PAS INCINÉRER OU PERCER LES PILES. |
CR1232 |
Battery Pack / Bloc-piles : (2.4V Ni-MH) WARNING / AVERTISSEMENT : DO NOT BURN OR PUNCTURE BATTERIES. NE PAS INCINÉRER OU PERCER LES PILES. |
Made in China / Fabriqué en chine |
Made in China / Fabriqué enchine |
3.Slide the battery compartment cover towards the center of the handset until it clicks into place.
. Place the handset in the telephone base or charger to charge.
CHARGE light remains on when charging.
the handset will not be used for a long time, |
the battery |
prevent possible leakage. |
|
•To purchase a replacement battery, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or
call 1 (800) 267-7377.
Battery charging
Once you have installed the battery, the screen indicates the battery status (see below).
•For best performance, keep the handset in the telephone base or charger
Battery indicators |
Battery status |
Action |
||||||||
|
|
|
|
|
|
|
|
|
|
|
The screen is blank, or |
The battery has no or very little |
Charge without interruption |
||||||||
displays Put in charger |
charge. The handset cannot |
(at least 30 minutes). |
||||||||
and |
|
|
|
flashes. |
be used. |
|
||||
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
The screen displays |
The battery has enough charge |
Charge without interruption |
||||||||
Low battery and |
|
|
|
flashes. |
to be used for a short time. |
(about 30 minutes). |
||||
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
The screen displays |
The battery is charged. |
To keep the battery |
||||||||
HANDSET X. |
|
charged, place it in the |
||||||||
|
|
|
|
|
|
|
|
|
|
telephone base or charger |
|
|
|
|
|
|
|
|
|
|
when not in use. |
|
|
|
|
|
|
|
|
|
|
|
When the battery is fully charged, you can expect the following performance:
Operation |
Operating time |
|
|
While in use (talking*) |
Up to 7 hours |
|
|
While in speakerphone mode (talking*) |
Up to 3.5 hours |
|
|
While not in use (standby**) |
Up to 5 days |
|
|
*Operating times vary depending on your actual use and the age of the battery.
**Handset is not charging or in use.
Add and register a handset
This telephone system accommodates up to five handsets. Each new handset must be registered with the telephone base before use. Additional handsets registered to the telephone base are assigned numbers in the sequential order.
When first purchased and properly charged, each expansion handset shows To register HS... and ...see manual alternately. Charge the handset before
registering it to the telephone base.
To register a handset:
. Place the new/non-registered handset in the telephone base.
Do not
.
2.After about 10 seconds, the handset displays Registering... When the registration process completes, the handset displays Registered and you hear a beep. The registration process takes about 90 seconds to complete.
