Important Safety Instructions
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury to persons, including
the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub, kitchen
sink, or swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided
for ventilation. To protect it from overheating, these openings must not be
blocked by placing the product on the bed, sofa, rug, or other similar surface.
This product should never be placed near or over a radiator or heat register.
This product should not be placed in a built-in installation where proper
ventilation is not provided.
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this product
where the cord will be abused by persons walking on it.
9. Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could result
in a risk of fire or electric shock. Never spill liquid of any kind on the product.
10. To reduce the risk of electric shock, do not disassemble this product, but
take it to an authorized service facility. Opening or removing cabinet parts
other than specified access doors may expose you to dangerous voltages
or other risks. Incorrect reassembling can cause electric shock when the
appliance is subsequently used.
11. Do not overload wall outlets and extension cords as this can result in the
risk of fire or electric shock.
0
1
Important Safety Instructions
12. Unplug this product from the wall outlet and refer servicing to an authorized
service facility under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions, because improper adjustment of other controls
may result in damage and will often require extensive work by an
authorized technician to restore the product to normal operation.
E. If the product has been dropped and the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lighting.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
SA VE THESE INSTRUCTIONS
2
Introduction
The QW2432 is an advanced cordless telephone that operates in the 2.4GHz
frequency range. Your QW2432 is capable of supporting up to a maximum of
4 Handsets. Using additional Handsets, up to three people can be conferenced
on a call (2 Handsets and the Base Speakerphone), or two extensions can be
conferenced on a call, while two other extensions can be talking internally, using
the Intercom feature.
This manual is designed to familiarize you with the QW2432 cordless telephone.
To order additional Handsets (model QW2422) or headsets, call Qwest at
800-244-1111.
IMPORTANT
Please record the Base ID#(BS ID) printed on the underside of the 2432 Base
in the space below. Please be certain to include all 15 digits/characters.
Base ID#
2
3
Parts Check List
1. Base Unit
2. Handset
3. AC Power Adapter
4. Telephone Cord
QW2432
5. Battery Pack
6. Wall Mounting Bracket
7. Belt Clip
8. Owner's Manual
OWNER’S MANUAL
4
The Handset Layout
1
2
3
9
4
5
6
10
11
7
8
12
13
14
15
1. Antenna
2. Message Waiting Indicator
3. Earpiece
4. Headset Jack (2.5mm)
5. Scroll Keys
6. On (Flash)
7. Dialing Key (0-9)
8. Handsfree Speakerphone
4
9. LCD Display
10. Select
11. Off (Clear)
12. Battery Compartment
13. Intercom
14. Services Key
15. Microphone
5
The Base Unit Layout
Phone Cord Jack
AC Power Jack
Message Waiting Indicator
Page/Intercom Key
In Use Indicator
Power Indicator
Charge Indicator
Mute Key
Volume Keys
QW2432
Dialing Keys (0-9)
Hold Key
Flash Key
Redial Key
Messages Key
3-Way Calling Key
Cancel Call Waiting Key
Speakerphone Key
Charging Contacts
6
Setup
Plug the AC power adapter into an electrical outlet, and the DC connector into
the back of the base unit.
To AC outlet
To telephone
socket outlet
AC adapter
To telephone
jack
Connecting to phone line
Plug one end of the telephone line cord into the jack on the back of the base
unit. Plug the other end of this cord into the wall jack.
Checking for dial tone
After the battery is charged press ON on the Handset. The Phone icon
will appear on the handset display, and you will hear dial tone. If not, see In
Case of Difficulty.
Tone/Pulse selection
See BASE SETTINGS for details.
CAUTION: Use only the Qwest power supply provided with your Qwest
Unit.
IMPORTANT:
For best performance the QW2432
Should be installed as follows:
In an elevated location, in the center of
the room, with no obstructions nearby.
In a location that is away from other
electrical appliances such as microwave
ovens, personal computers, or
televisions.
Getting Started
6
7
Installation of Battery Pack in Handset
Follow the steps below:
1
3
Getting Started
2
The original Handset that is shipped with your QW2432 system will be
automatically registered to the Base. This Handset is HANDSET 1.
1. Remove the battery cover by
pressing on the indent and sliding
downward.
2. Place the new battery pack in the
handset with the metal contacts
aligned with the charge contacts
in the battery compartment.
3. Replace the battery cover by
sliding it upwards.
4. If the new battery pack is not
already charged, place the
handset in the base unit, or a
remote charging stand, and allow
it to charge for 12 hours. After
initial charge, a maintenance
charge of 8 hours should be
sufficient.
As you register additional Handsets to the system, they will be assigned extension
numbers in the following order: HANDSET 2, HANDSET 3, and finally HANDSET
4.
Whenever a Handset battery pack is installed, the Handset will automatically
begin SEARCHING FOR BASE (if previously registered), or it will prompt you
to ENTER BASE ID to register the new Handset.
8
Spare Battery Charger/Power Backup Function
The QW2432 can use a the spare battery in the Base Unit to provide operational
backup in the event of a power failure. With a fully charged battery pack in the
spare battery charger, you will still be able to place and receive calls from the
Handset for up to 5 hours.
The spare battery pack can also be used to replace a drained handset battery,
ensuring uninterrupted use.
A spare battery can be purchased from most retail stores that carry
electronic equipment.
NOTE :
When using the QW2432 during Power Backup mode, audio quality may be
compromised due to reduced Power availability.
1. Open the spare battery charger
by pressing the release button,
located on the right-hand side of
the Base Unit. A drawer will open
to reveal the spare battery
compartment.
2. Place a battery pack in the
1
drawer with the charge contacts
facing up and to the left.
3. Push the drawer closed.
The spare battery takes 24 hours to
fully charge a drained battery.
Getting Started
BATTERY
CAUTION: TO
CAUTION: TO
INSTALL
THIS
REDUCE RISK OF FIRE,
REDUCE RISK OF FIRE,
SIDE UP
USE ONLY VTECH
QW2432
USE ONLY VTECH
80-5017-00-00
80-5017-00-00
3
2
8
9
Charging Of Handset Battery Pack
The Handset of your QW2432 cordless telephone is powered by a rechargeable
battery pack. It charges automatically whenever the Handset is in the Base Unit.
You should charge the battery pack for 12 hours when you first receive
your phone. You'll know the battery pack needs charging when:
• The low battery message is displayed :
Getting Started
• The handset seems completely
dead, the LCD is completely
clear and does not activate when
you press the keys.
CAUTION: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS
BY BATTERY, READ AND FOLLOW THESE INSTRUCTIONS.
1. Use only the approprlate type and size battery pack specified in the
instruction manual provided for this product.
2. Do not dispose of the battery pack in a fire. The cell may explode. Check
with State and local codes for possible special disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is corrosive
and may cause damage to the eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling battery in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this product
only in accordance with the instructions and limitations specified in the
instruction manual.
6. Observe proper polarity orientation between the battery pack and battery
charger.
10
Wall Mounting
The Wall Mount bracket is designed for
use on standard Wall Mount plates only.
1. Line up the tabs on the wall
mount adapter with the holes on
1
the back of the base unit. Snap
the wall mount bracket firmly in
place.
Getting Started
2. Plug the AC adapter into an
electrical outlet, and the DC
connector to the back of the base
unit. If the handset battery pack
has not been charged previously,
place the handset in the base
unit cradle, and allow it to charge
for 12 hours.
3. Connect the telephone line cord
to the jack on the back of the
base unit, and the other end to
the wall jack.
4. Mount the base unit on the wall.
Position the base unit so the
mounting studs will fit into the
holes on the wall mount bracket.
Slide base unit down on the
mounting studs until it locks into
place.
10
2
3
11
Registration and Operation
Registration and Operation of the QW2422 Accessory Handset
Your QW2432 system can operate up to 4 Handsets.
The accessory Handset consists of the following:
Getting Started
Setup of the QW2422 Accessory
Handset
1. Plug the AC power adapter into
1
an electrical outlet.
2. Remove the Handset battery
cover by pressing on the indent
and sliding downward.
3. Place the new battery pack in the
Handset, with the metal contacts
aligned with the charge contacts
3
in the battery compartment.
4. Replace the battery cover by
sliding it upward.
5. Place the Handset in the Charge
Cradle, and allow it to charge for
5
12 hours. After the initial charge,
a maintenance charge of 8 hours
should be sufficient.
12
Enter Base ID Code
1. After charging the Handset,
remove it from its Charge Cradle,
the screen will display:
Registration and Operation
Getting Started
2. Press
3. Press
NEW
, then enter the 15
digit Base Unit ID code, located
on the underside of the Base
Unit.
OK
. The Handset will
display: PLEASE WAIT!!
4. Wait approximately 15 seconds.
The Handset will display:
FOUND BASE V14
If the Handset displays: BASE
BUSY TRY LATER, this
indicates that the system is in
use. Wait until the Base Unit is
in the idle (on hook) mode, and
repeat step 2 to 4.
Congratulations! You can now enjoy
the benefits of your multi-Handset
system.
12
13
Handset Icons
Handset and Base Indicators
Icon
Basic Operation
M
H
Description
Line In Use indicator
On steady with no number next to it when a parallel set is
in use.
On steady with one or more numbers next to it, indicating which
extensions are using the line. For example, 12 indicates
that Handset 1 and Handset 2 are on an outside call.
Intercom indicator
On steady with the extension numbers currently on an
intercom call. For example, 02 indicates that the Base and
Handset 2 are on an intercom call.
Battery indicator
Cycles (Low, Medium, and High) when Handset battery is
charging.
Flashes when a low battery condition is detected.
Mute indicator
On steady when the Handset microphone is muted.
Hold indicator
On steady when the line is on hold.
Handset Registration indicator
is searching for a Base unit.
is displayed when a Handset is either not registered, or
14
Handset LEDs
Handset and Base Indicators
LED
Message
Waiting
Base LEDS
LED
Message
Waiting
Power
Line In Use
Charging
Mute
Speakerphone
Description
• Flashes to indicate that you have new messages in your
voicemail. Service must be subscribed to through your local
telephone company.
Description
• Flashes to indicate that you have new messages in your
voicemail. Service must be subscribed to through your local
telephone company
• Lights when base unit is receiving power from wall outlet
• Flashes when unit is in Power Backup mode.
• Lights when line is being used by a handset of the QW2432
system.
• Flashes when another telephone on the same line (parallel
extension) is in use.
• Flashes following ringing cadence during ringing.
• Lights whenever the handset is placed in the base unit
charging cradle.
• Lights when base microphone is muted.
• Flashes when HOLD function is activated.
• Lights when base speakerphone is in use.
Basic Operation
14
15
Soft Menu Functions
The QW2432 has an advanced
design that uses a menu structure and
soft keys to access all of the built-in
features.
Example of the idle mode display:
RDL (Redial)
Press RDL to display the last 5 telephone numbers dialed. The number on top
line is the most recent number dialed.
• Use the
• To dial the number, you can simply press the ON or
scroll keys to select the desired number.
HANDSFREE
MENU
With the Handset in the idle (OFF) mode, press the MENU key to access the
following options:
Basic Operation
• CALLS LOG (CALLER ID)
• HANDSET SETTINGS
• RANGER EXTENDER
• REGISTER
Use the scroll keys to select the desired option, then press OK.
key.
16
From the idle (OFF) mode, press
MENU
, use the scroll
keys to select CALLS LOG, then press
OK
. The Caller ID information of the
most recently received call will be
displayed.
To scroll to other records, use the
scroll keys.
Calls Log (Caller ID)
To dial the number displayed, you can
simply press the
key.
You can also press the
access the following options ( DEL,
OPT#, SAVE):
DEL : Select this option to delete THIS or ALL records in Caller ID memory.
OPT# : Select this option to display up to four possible dialing strings of the
SAVE Select this option to save the displayed Caller ID record into Speed
Caller ID - Call Waiting ID
Your QW2432 is capable of displaying the name and/or number of the party calling
before you answer the phone (Caller ID). It is also capable of displaying Caller ID
information in conjunction with a Call Waiting alert signal (Call Waiting Caller ID). With
Call Waiting Caller ID, the Caller ID data is displayed so you can decide whether to
answer the incoming call, or continue with your current conversation.
ON
or
HANDSFREE
CID
key to
number stored in Caller ID memory. If a number is provided in the
Caller ID data, the possible options to choose from will be either 7,
8, 10, or 11 digits. For example, if the original number in Caller ID
menory was 808-880-8808, then the display options will be:
Use the UP and DOWN
keys to make selection, and
then press
HANDSFREE
number.
Dial Memory. Only Caller ID records with telephone numbers can be
saved into Speed Dial Memory. If you need to modify the number
after saving, see TO EDIT A NUMBER.
DIAL, ON
to dial the
or
Basic Operation
16
NOTES ABOUT CALLER ID & CALL WAITING CALLER ID
These are subscription services, provided by most regional telephone service
providers. You must subscribe to these services to get the benefits of these
features. If you do not subscribe to Caller ID services, you can still use your
QW2432 and the other features it offers.
Due to regional incompatibilities, Caller ID information may not be available
for every call you receive. In addition, the calling party may intentionally block
their name and phone number from being sent.
17
Handset Settings
From the Handset Settings menu you can select the following options to modify:
• RINGER VOLUME
Select this option to adjust the ringer volume. Use the
keys to adjust the volume up or down. A Handset will display a graphic
indicator of the selected volume setting. Press OK to confirm your selection
and return to the Handset Settings menu.
• RINGER MELODY
Select this option to adjust the ringer melody or tone. Use the
scroll keys to select from the six available tones. Press OK to confirm your
selection and return to the Handset Settings menu.
• LOW BATT TONE
Select this option to turn the Low Battery warning tone ON or OFF. Press
the OFF or ON soft keys, to make your selection. Press
your selection and return to the Handset Settings menu. When set to ON,
the Handset will emit a warning tone when a Low Battery condition is
Basic Operation
detected.
• RANGE TONE
Select this option to turn the Out of Range warning tone ON or OFF. Press
the OFF or ON soft keys, to make your selection. Press OK to confirm
your selection and return to the Handset Settings menu. When set to ON,
the Handset will emit a warning tone whenever the Handset is taken out
of range of the Base.
• KEYPAD TONE
Select this option to turn the Keypad tones ON or OFF. Press the OFF
or ON soft keys, to make your selection. Press
and return to the Handset Settings menu. When set to ON, the Handset
will emit a beep whenever a key is pressed.
• CONTRAST
OK
to confirm
OK
to confirm your selection
scroll
Select this option to adjust the contrast level of the Handset display. Use
the
will automatically adjust as you make your selection. Press OK to confirm
your selection and return to the Handset Settings menu.
• LANGUAGE
Select this option to change the display from English to Spanish. Use the
your choice.
scroll keys to make your selection. The handset display
scroll keys to select language, then press OK to confirm
18

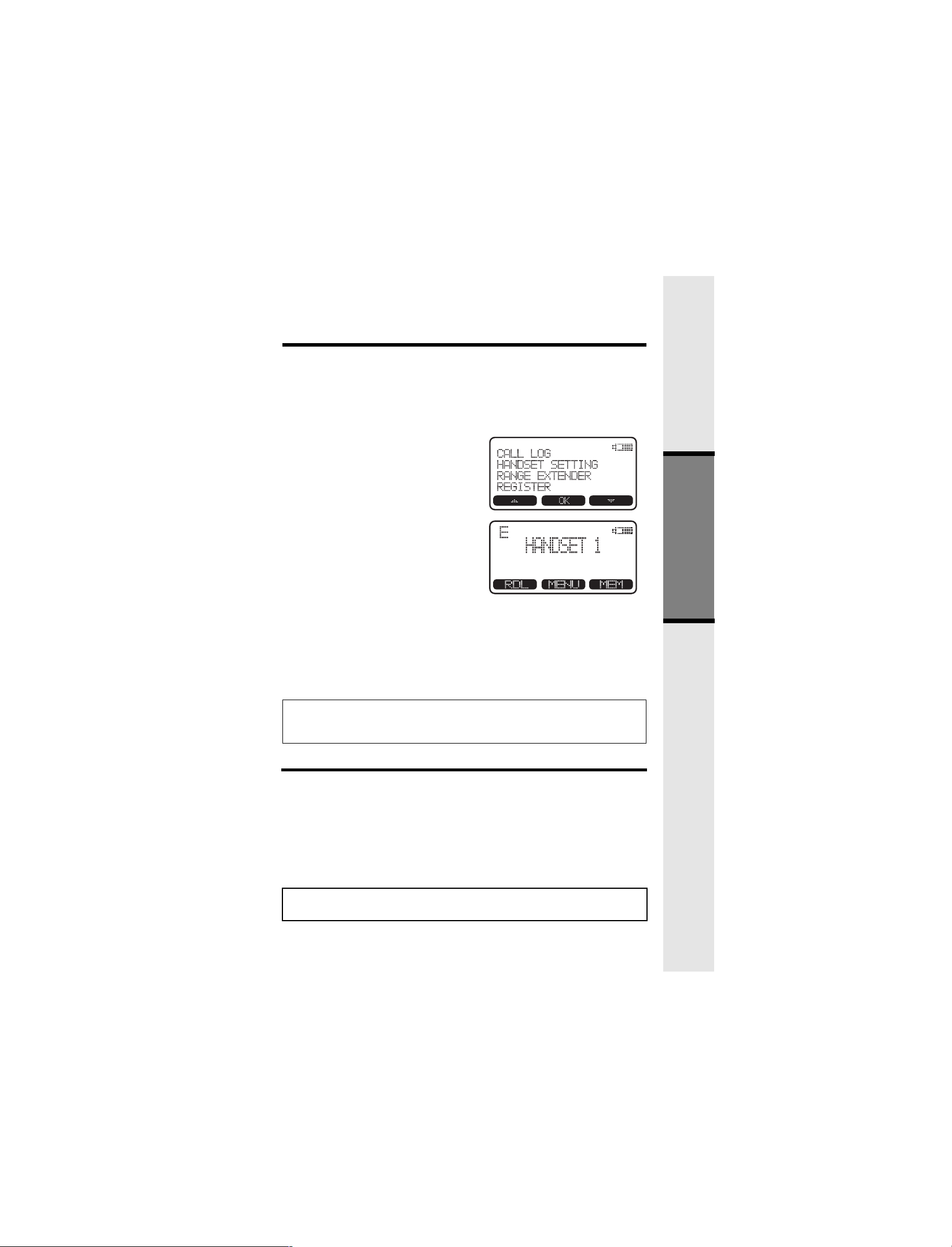

Range Extender
Your QW2432 has an enhanced feature that is designed to improve performance. If you
are using your QW2432 in an area with excessive interference, or you require a moderate increase in operating range. the Range Extender feature can help to improve both
the sound quality and range. Actual range will depend on your environment.
To select the Range Extender setting, follow the procedure listed below:
• In the idle(OFF) mode, press MENU
and use the scroll keys to select
RANGE EXTENDER, then press OK.
• There are 3 option settings in the
RANGE EXTENDER menu:
1. Select OFF to disable RANGE
EXTENDER
2. Select ON to enable RANGE
EXTENDER. An "E" icon will
appear in the upper left corner of
Handset display, indicating that
RANGE EXTENDER is ON.
3. Select AUTO to allow your
QW2432 to automatically
monitor the signal strength between the handset and base unit, and
activate whenever necessary. With this option selected, your QW2432
may occassionally enable or disable the RANGE EXTENDER feature.
When RANGE EXTENDER is enabled, an "E" icon will appear in
the upper left corner of the Handset display.
• Use the scroll keys to select the desired setting, and then press OK to
confirm the selection.
Note: When Range Extender mode is enabled, your QW2432 will consume
more battery power. That means the standby and talk time of your Handset
will be shorter.
Basic Operation
18
Register
Use this option to register a Handset to the QW2432 Base. You can register
a total of four Handsets to the QW2432 Base. This process is activated
automatically whenever a new handset is powered up in range of the QW2432
Base.
You will be prompted to enter the 15-digit Base ID code printed on the underside
of the base unit. After entering this code, press OK. The Handset will display
SEARCHING FOR BASE, and then FOUND BASE V14 when the process is
complete.
Note : B
ase ID codes are 15 digits long and can include the following characters:
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, , or #.
*
19
MEM (Memory)
The QW2432 can store up to 50 names/numbers in memory. Each memory
location can hold up to 32 digits and up to 16 characters for the name.
When prompted to ENTER NAME, use the digit keys to 'spell' the name. Each
press of a particular key causes characters to be displayed in the following order:
Number Key
Basic Operation
Characters (in order)
1
2
3
4
5
6
7
8
9
0
*
#
& ' , . 1
A B C a b c 2
D E F d e f 3
G H I g h i 4
J K L j k l 5
M N O m n o 6
P Q R S p q r s 7
T U V t u v 8
W X Y Z w x y z 9
0
*
#
20
To Store a Number/Name:
• Starting from the idle screen,
enter the number you want to
store in memory.
• Be sure to include long distance
codes and pauses (using the
PAUSE
Press the
• You will then be prompted to
ENTER NAME Use the digit
keys to 'spell' the name. If you
make a mistake, press the
softkey. To enter a space press
SAVE
softkey) if necessary.
MEM
softkey.
CLR
. When finished, press
.
MEM (Memory)
Basic Operation
20
• If there is space available in
memory, the number/name will
be saved and the Handset will
return to idle mode.
• If the memory is full the Handset
will display PHONEBOOK IS
FULL and exit to the idle screen
without saving the entry.
21

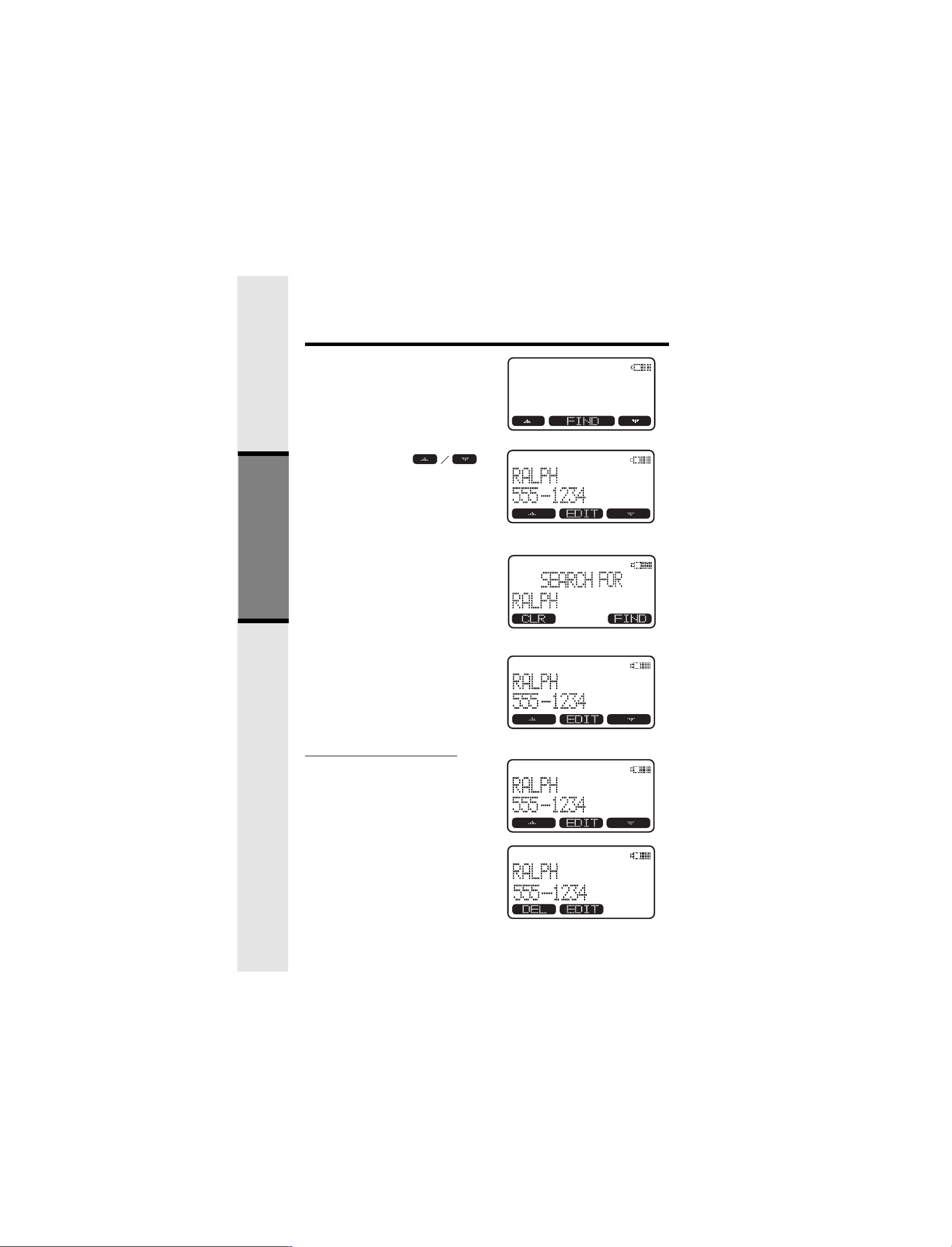

To Search For and Dial a Number/
Name:
• Starting from the idle screen,
press the MEM softkey to review
memory contents.
• Using the
softkeys scroll through the
memory contents in alphabetical
order.
• Or, you can press the FIND
softkey, enter the first few
chararcters of the name and
Basic Operation
then press FIND to search. If you
make a mistake, press CLR
softkey. The closest match, in
alphabetical order, will be
displayed.
MEM (Memory)
• Once you find the entry you
want, simply press ON or
HANDSFREE to dial the number.
To Delete a Number/Name:
• Using the steps from 1 to 3 in To
Search For and Dial a Number/
Name, locate the entry you want
to delete.
• Press the EDIT softkey. The
Handset will display:
22
MEM (Memory)
• Press the
Handset will display:
• To delete the displayed records,
press
press
• To confirm the deletion of
records, press
without deleting press NO.
DEL
softkey. The
THIS
. To delete all records,
ALL
.
YES
ALL
. To exit
To Edit a Name or a Number
• Using the steps from 1 to 3 in To
Search For and Dial a Number/
Name, locate the entry you want
to edit.
• Press the EDIT softkey twice.
Then choose NAME or NUM
• Using the softkey move
the cursor to the character you
want to edit and then enter the
corrections as needed. Press
MORE access DEL, BACK and
PAUSE (when edit a name,
SPACE) function. When finished
SAVE
press the
without saving press
softkey. To exit
OFF
.
Basic Operation
22
• When finished the handset will
display the edited entry.
23
Base Settings
The QW2432 Base unit has several settings that can be adjusted according
to your preference and system requirements.
Select Base Ringer Melody:
• The phone must be off.
• Press the star key three times ( ). The Base will emit a happy
tone and the Power and Line In Use LEDs will flash rapidly.
• Press the 1,2,3,4,5, or 6 keys to select the Ringer Melody. After each key
press, the Base will emit a 1-second preview of the selected ringer.
• To save the selected ringer (and exit) press # .
• To exit without saving press .
Select Tone / Pulse:
• The phone must be off.
• Press the star key three times ( ). The Base will emit a happy
Basic Operation
tone and the Power and Line In Use LEDs will flash rapidly.
• Press the 7 key to toggle between TONE and PULSE dialing mode. The
Line In Use LED will toggle ON when TONE is selected and OFF when
PULSE is selected.
• To save the TONE/PULSE selection (and exit) press # .
• To exit without saving press .
***
*
***
*
Select Base Ringer Volume and OFF:
• The phone must be off.
• Press the star key three times ( ). The Base will emit a happy
tone and the Power and Line In Use LEDs will flash rapidly.
• Press the volume up and down keys (
Ringer volume. After each press of the volume keys, the Base will emit
the selected Ringer and volume setting for one second.
• To turn the Base ringer OFF, press the volume down key (
no ringer preview is played.
• To save the Ringer Volume selection (and exit) press # .
• To exit without saving press .
***
) to adjust the Base
) until
*
24
Handset and Base Operation
Making Calls
From the Handset
• Press ON (or, HANDSFREE to
use the Handset Speakerphone
feature).Dial the phone number.
-OR-
• Dial the phone number first; then
press ON (or HANDSFREE).
• Press
Answering Calls
From the Handset
OFF
to end your call.
24
• Press any key except
the softkey.
• Press
OFF
to end your call.
OFF
and
Making Calls
From the Base Unit
• Press
• Press
SPEAKERPHONE
the phone number.
SPEAKERPHONE
your call.
. Dial
to end
Answering Calls
From the Base Unit
Redial from Base Unit
• Press
• Press
• Pressing
redial memory.
• Hold down the REDIAL key for more than 2 seconds to erase the contents
in redial memory. This is to prevent the accidental dialing of the number
stored in redial memory.
REDIAL
will immediately dial the last number in the base unit
25
SPEAKERPHONE
SPEAKERPHONE
your call.
.
to end
Advanced Operations

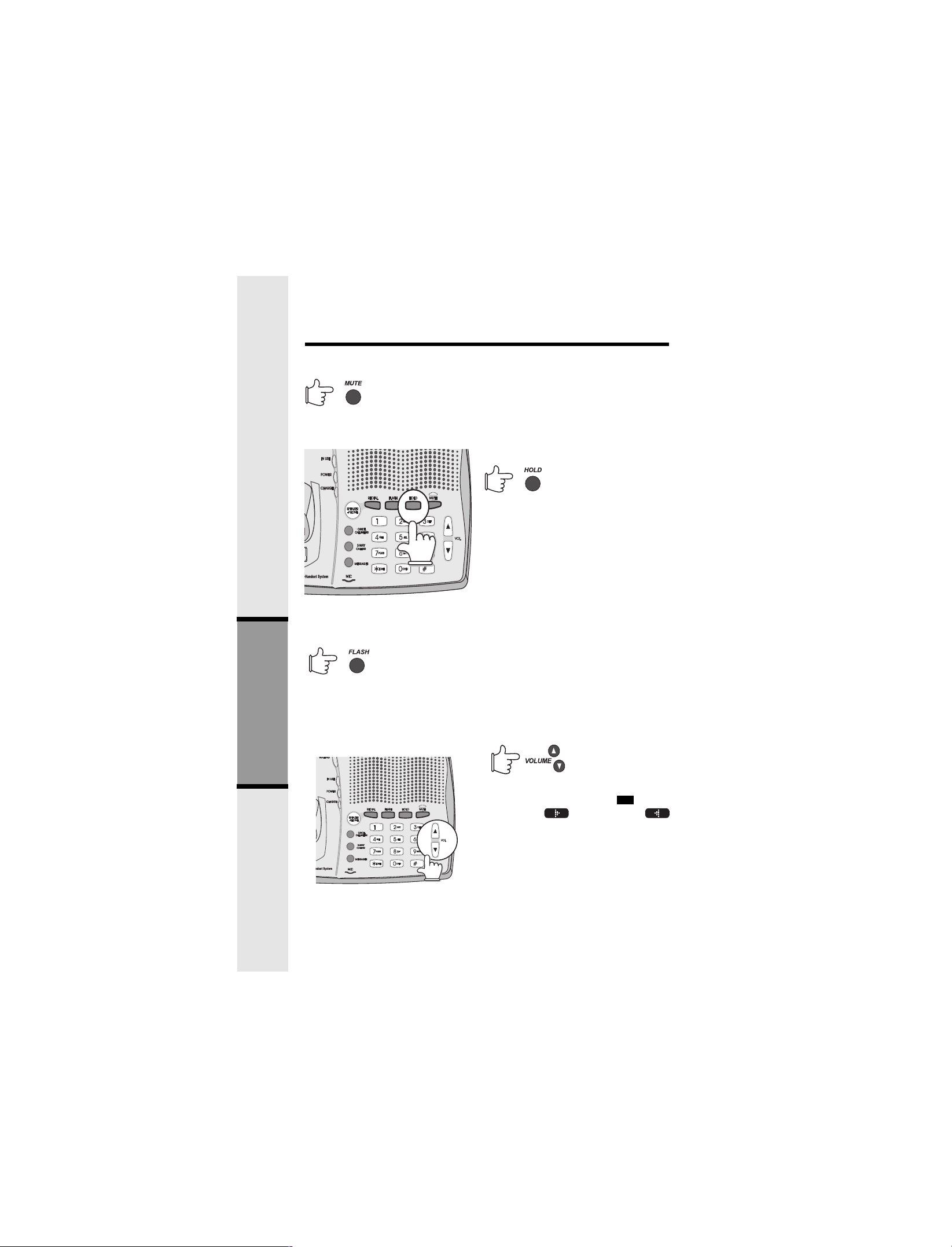

Mute Function
Handset and Base Operation
During an active call pressing either the
MUTE
key on the Base (when in speakerphone mode), will disable the
microphone. Press
MUTE
key again to return to normal 2-way conversation.
MUTE
soft key on the Handset or the
Hold Function
From the Handset :
• Press the HOLD soft key to place
a call on hold. To return to the call
press the ON or
l
Flash Function
You can use your QW2432 with services such as Call Waiting. Simply
press the
in speakerphone mode) to FLASH the line.
ON
key on the Handset or the
From the Base :
• During an active call, press the
HOLD
key to place a call on hold.
The SPEAKERPHONE LED will
flash to indicate a call is on hold.
• To return to the call press either
HOLD
or SPEAKERPHONE.
FLASH
key on the Base (when
HANDSFREE
Volume Control
key.
Advanced Operations
From the Handset:
During an active call press the VOL soft key,
then use the
soft keys to adjust the earpiece volume.
From the Base:
During an active call simply press the
Volume UP or DOWN keys to adjust the
speakerphone volume. You will hear a
special tone when you reach the highest
or lowest setting.
26
UP and DOWN
Handset and Base Operation
Page/Intercom
From Base to ALL Handsets :
• To page all Handsets from the
Base press the PAGE/
INTERCOM key. This will cause
all Handsets linked with this
Base to ring.
• Each Handset will display
GLOBAL CALL FROM BASE.
• Any Handset can then answer
the PAGE, and enter INTERCOM
mode with the Base by pressing
the INTERCOM key.
• To end an intercom call, press
OFF on the Handset or PAGE/
From Base to a particular Handset :
• Press the Base PAGE/INTERCOM key, then press the number of the
Handset you want to call (e.g. INTERCOM 2).
• Handset 2 can then answer the intercom call by pressing INTERCOM key.
• To end an intercom call press OFF on the Handset or PAGE/INTERCOM
on the Base.
INTERCOM on the Base.
26
From Handset to Base :
• Press the INTERCOM key followed by 0.
• The Base will ring once and then automatically enter INTERCOM mode.
• To end an intercom call press OFF on the Handset or PAGE/INTERCOM
on the Base.
From Handset to Handset :
• Press the INTERCOM key
followed by the number of the
other Handset you wish to call
(e.g. INTERCOM 3).
• Handset 3 can then answer the
intercom call by pressing the
INTERCOM key.
• To end the intercom call press
OFF on either Handset.
All Call from Handset
• Press the INTERCOM key followed by the . All registered Handsets
and the Base will ring.
• Any Handset or the Base can answer by pressing INTERCOM.
• To end the intercom call press OFF on Handset, or press PAGE/
INTERCOM on Base.
27
*
Advanced Operations
Handset and Base Operation
Handsfree Speakerphone Operation
Your QW2432 handset has a built-in handsfree speakerphone. This feature
allows you to stand the Handset upright on a table or desktop and have handsfree
conversations. For more information, refer to MAKING CALLS in HANDSET
AND BASE OPERATION.
Base Speakerphone Operation
The Base of your QW2432 is equipped with a full duplex speakerphone. This
is a very useful feature for handsfree conversations or conference calls at the
base unit. For more information, refer to MAKING CALLS in HANDSET AND
BASE OPERATION.

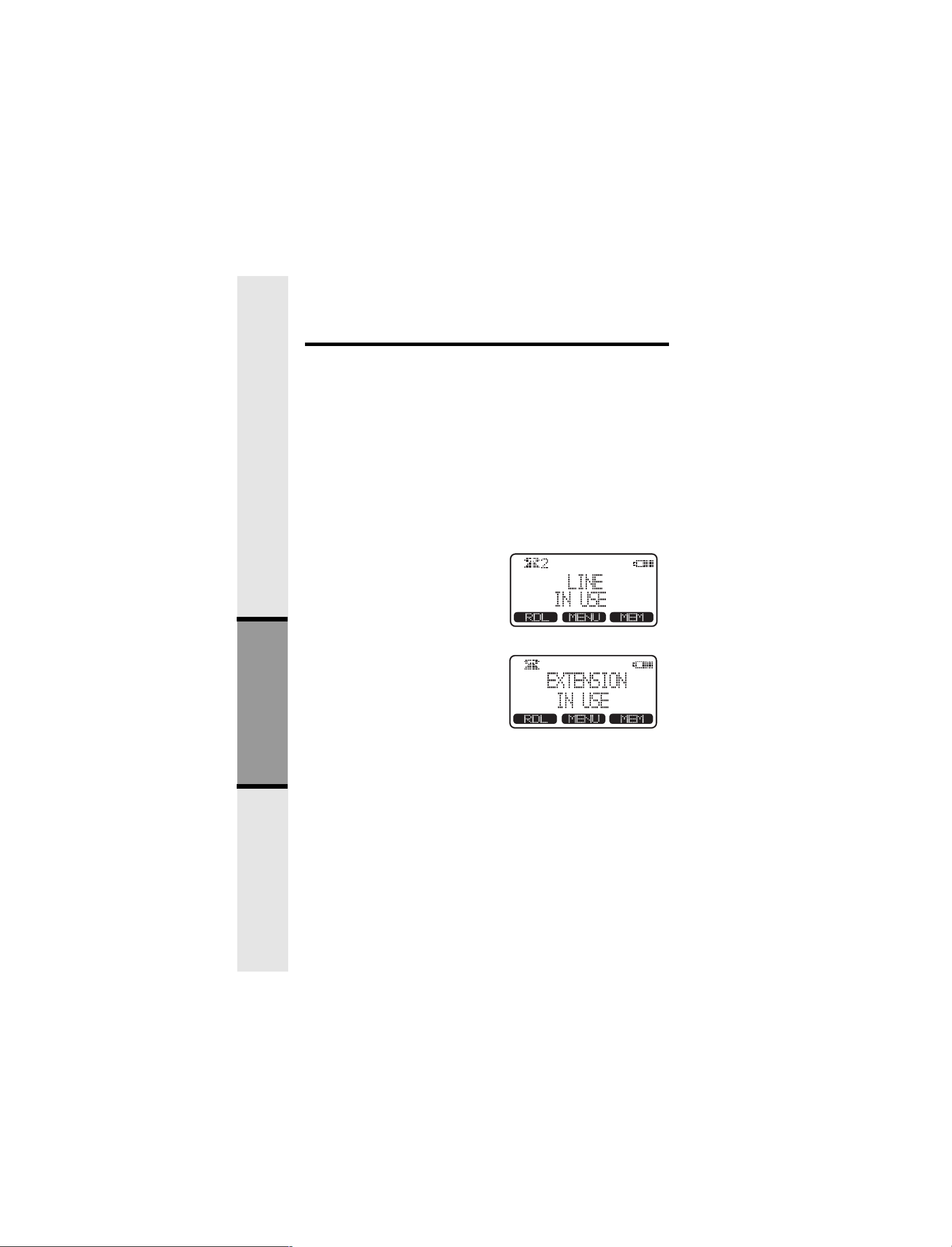

Line in Use Indication
On the Handset :
When the telephone line is currently
being used by a system Handset or
the QW2432 Base, a status message
similar to this will display on idle
Handset(s):
When the telephone line is currently
being used by a parallel set (a
telephone device other than the
QW2432 on the same line); the phone
icon will remain on steadily, and
EXTENSION IN USE will be displayed.
On the Base :
When a system Handset or a
QW2432 Base is currently being used,
Advanced Operations
the LINE IN USE LED on the base will
illuminate steadily. When a parallel set is currently being used, the LINE IN USE
LED on the base will flash.
Low Battery Indication
When a low battery is detected, the Battery icon will flash and a warning beep
is played. The status message LOW BATTERY will also be displayed when
the Handset is in idle mode. To prevent an unexpected call drop, a drained
Handset battery should be replaced by a fully charged spare battery.
28
Handset and Base Operation
Message Waiting Indication
The QW2432 is compatible with optional voicemail service provided by some
local telephone companies. If you subscribe to this service, and you have new,
unplayed messages in your voicemail, a Visual Message Waiting Indicator
(VMWI) signal is transmitted by your local telephone company.
The QW2432 will detect a VMWI signal and activate a the Message Waiting
light on the Base and the Message Waiting light on the Handset.
After you check your messages, the Message Waiting indicators will automatically
turn off.
Please note that whenver new, unplayed messages are stored in your voicemail,
the local Telephone Company will continue to send a VMWI signal.
Conference Calling
The QW2432 is capable of supporting conference calls with up to two registered
Handsets, and the Base unit.
To enter a conference call, simply access the line with two or more extensions
by pressing ON (or HANDSFREE) on the Handset or SPEAKERPHONE on the
Base.
28
The phone icon and two or more extension numbers will be displayed in
the upper left corner of the Handset.
Transferring Calls
You can transfer calls on the QW2432 system from the Base to Handset, Handset
to Handset, or Handset to Base.
Blind Transfer
You can directly transfer any active call to another system extension without
notification by doing the following steps:
• Handset or Base must be on an active call.
• Press the
or Base (0) that you wish to transfer the call to.
• When the other extension answers, the call will automatically be connected
to the other extension.
• An unanswered call will ring back to the originating Handset/Base if not
answered within 30 seconds. And if still not answered within 30, the call
will automatically be end.
INTERCOM
key followed by the number of the Handset (1,2,3,4)
29
Advanced Operations
Handset and Base Operation
Announced Transfer:
You can perform an announced transfer (call and advise another extension) of
an active call by doing the following steps:
• Handset or Base must be on an active call.
• Place the active call on HOLD.
• Press the INTERCOM key followed by the number of the Handset (1,2,3,4)
or Base (0) that you wish to transfer the call to.
• When the other extension answers the intercom call, explain they have
an active call waiting.
• Either extensions press OFF to end the intercom call.
• The other extension presses ON (or HANDSFREE) on the Handset, or
SPEAKERPHONE on the Base to pick up the call on hold.
Advanced Operations
30
Network Service Features
Additional Base Features
CANCEL CALL WAITING will deactivate Call Waiting before placing an important
call. Press this key before dialing. During that call, there will be no interruption
from Call Waiting. After you hang up, Call Waiting will be reactivated for your
next call.
3-WAY CALLING allows you to talk with 2 separate parties from a single line.
1) Call your first party. Wait for the first party to answer.
2) Press 3-WAY CALLING. Wait for dial tone.
3) Call your second party.
4) After the call is answered, press 3-WAY CALLING again.
MESSAGES dials 98, which is the code to access Qwest Voice Messaging
from your home in the Qwest region. If you subscribe to Qwest Voice Messaging,
when you see the Message Waiting Indicator select MESSAGES to listen to
your messages.
Additional Handset Features
Press
SERVICES
offered by many telephone companies:
1. MESSAGES - dials 98 to access Voice Messages
2. 3-WAY CALLING - to set up a 3-Way Call
3. CANCEL CALL WT - to deactivate Call Waiting for that call
4. LAST CALL RTN - dials 69 to get the number of your last incoming call
5. REJECT ANON. - prevents ringing from callers that blocked Caller ID
6. ACCEPT ANON. - turns off Anonymous Rejection
7. CONTINUOUS DIAL - to redial a number that’s busy (for up to 30 min.)
8. CALL FWD ON – dials 72 to initiate sequence to set up Call Forwarding
9. CALL FWD OFF – turns off Call Forwarding
NOTE: It is likely that your local telephone company will assess charges to use
network service features. You should check with your local service provider
regarding the custom services that are available in your area and the associated
costs for the intentional or unintentional use of network services. Your local
telephone company may provide a monthly subscription to an individual service
or a package of services that gives you unlimited usage for a small monthly
fee.
*
on your Handset for access to other popular custom features
*
*
*
30
31
Additional Information
Headset Operation
Your QW2432 cordless telephone is equipped with a 2.5mm Headset Jack
for use with an optional accessory Headset for hands-free operation.
To purchase a Headset, call 800-244-1111.
Once you have a compatible 2.5mm Headset, locate the Headset Jack on the
Handset. Connect the plug on the Headset cord to the jack on the cordless
Handset. The plug should fit securely. Do not force the connection.
Operation
NOTE :
Whenever a compatible Headset is
connected to the cordless Handset,
the microphone on the Handset will be
muted. This is done to limit the effect
of background noise.
Additional Information
Belt Clip
The Handset is also equipped with
a detachable belt clip. Align the pins
on the inside edge of the clip with the
TM
TM
notches on the sides of the Handset.
The belt clip should snap securely into
place. Do not force the connection.
32
Maintenance
Taking Care Of Your Telephone
Your QW2432 cordless telephone contains sophisticated electronic parts, so
it must be treated with care.
Avoid rough treatment
Place the Handset down gently. Save the original packing materials to protect
your telephone if you ever need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the Handset outdoors
in the rain, or handle it with wet hands. Do not install your Base Unit near a
sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment.
For your own safety, use caution when using electric appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for many
years. Clean it only with a soft cloth slightly dampened with water or a mild soap.
Do not use excess water or cleaning solvents of any kind.
32
Remember that electrical appliances can cause serious injury if used when
you are wet or standing in water. If your Base Unit should fall into water,
DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND
TELEPHONE LINE CORDS FROM THE WALL. Then pull the unit out by
the unplugged cords.
33
Additional Information
In Case Of Difficulty
If you have difficulty operating your phone, the suggestions below should solve
the problem. If you still have difficulty after trying these suggestions, call the
Customer Service at 800-651-6791.
The Phone Doesn't Work At All
• Make sure the Power Cord is plugged in.
• Make sure the telephone line cord is plugged firmly into the Base Unit and
the telephone wall jack.
• Make sure the batteries are properly charged. If the 'LOW BATTERY'
message is shown, the battery pack needs charging.
No Dial Tone
• First check all the suggestions above.
• If you still don't hear a dial tone, disconnect the Base Unit from the telephone
jack and connect a different phone. If there is no dial tone on that phone
either, the problem is in your wiring or local service. Contact your local
telephone company.
You Get Noise, Static, Or A Weak Signal Even When You're Near
The Base Unit
• Household appliances plugged into the same circuit as the Base Unit can
sometimes cause interference. Try moving the appliance or the Base Unit
to another outlet.
You Get Noise, Static, Or A Weak Signal When You're Away From
The Base Unit
• You may be out of range. Either move closer to the Base, or relocate the
Base Unit.
• The layout of your home may be limiting the range. Try moving the Base
Unit to another position.
The Handset Does Not Ring When You Receive A Call
• Make sure you have the Handset ringer activated. To set the ringer, see
HANDSET SETTINGS and BASE SETTINGS.
• Make sure the telephone line cord is plugged firmly into the Base Unit and
the telephone jack. Make sure the power cord is plugged in.
• You may be too far from the Base Unit.
• You may have too many extension phones on your telephone line to allow
all of them to ring. Try unplugging some of the other phones.
Additional Information
34
In Case Of Difficulty
You Hear Other Calls While Using Your Phone
• Disconnect your Base Unit from the telephone jack, and plug in a regular
telephone. If you still hear other calls, the problem is probably in your wiring
or local service. Call your local telephone company.
You Hear Noise In The Handset, And None Of The Keys Or Buttons
Work
• Make sure the power cord is plugged in.
Common Cure For Electronic
Equipment
If the unit does not seem to be
responding normally, then try putting
the Handset in the cradle. If it does not
seem to respond, do the following (in
the order listed) :
1. Disconnect the power to the
Base.
2. Disconnect the Handset battery,
and spare battery pack, if
applicable.
3. Wait a few minutes.
4. Connect power to the Base.
5. Re-install the battery pack (s)
6. Watch for Handset to display :
then
34
35
Additional Information
Warranty Statement
WHAT DOES OUR WARRANTY COVERS?
• Any defect in material or workmanship.
FOR HOW LONG AFTER THE ORIGINAL PURCHASE?
• To the original purchaser only - ONE YEAR.
WHAT WILL WE DO?
• At our option, repair or replace your unit.
WARRANTY RETURNS?
• In the Qwest region, call Customer Service for Return Authorization at:
800-651-6791
• Properly pack your unit. Include any cables & accessories that were
originally provided with the product. We recommend using the original
carton and packing materials.
• Ship the unit following the instructions provided by Qwest Customer
Service
• Qwest assumes no responsibility for units sent without prior Return
Authorization.
WHAT DOES OUR WARRANTY NOT COVER?
• Batteries
• Damage from misuse, neglect, or acts of nature (lightning, floods, power
surges, etc.)
• Products with may have been modified or incorporated into other products
• Products purchased and/or operated outside the USA, its territories.
• Products serviced by the owner or a service facility not expressly
authorized by Qwest Customer Service.
• Products purchased more than 12 months from current date
• Units purchased in "AS IS" condition, or units purchased as "Distressed
Merchandise".
HOW DOES STATE LAW OR PROVINCIAL LAW RELATE TO THIS
WARRANTY?
• This warranty gives you specific rights. You may also have other rights
which vary from state to state.
Additional Information
36
FCC Regulations
This equipment complies with Parts 15 of the Federal Communications
Commission (FCC) rules for the United States. It also complies with regulations
RSS210 and CS-03 of Industry and Science Canada. Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause
undesired operation of the device.
A label is located on the underside of the Base Unit containing either the FCC
registration number and Ringer Equivalence Number (REN) and Load Number.
You must, upon request, provide this information to your local telephone company.
This equipment is compatible with inductively coupled hearing aids.
Should you experience trouble with this telephone equipment, please contact:
Customer Service at 800-651-6791.
disconnect this equipment from the line network until the problem has been
corrected.
The telephone company may ask you to
FCC Part 15
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
The equipment has been tested and found to comply with part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet or on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
36
37
Additional Information
FCC Regulations
FCC Part 68
The FCC requires that you connect your cordless telephone to the nationwide
telephone network through a modular telephone jack (USOC RJ11C, RJ11W
or RJ14).
Your telephone company may discontinue your service if your equipment causes
harm to the telephone network. They will notify you in advance of disconnection,
if possible. During notification, you will be informed of your right to file a complaint
with the FCC.
Occasionally, your telephone company may make changes in its facilities,
equipment, operation, or procedures that could affect the operation of your
equipment. If so, you will be given advance notice of the change to give you
an opportunity to maintain uninterrupted service.
The Base Unit contains no user serviceable parts. The Handset contains a user
replaceable battery pack.
If it is determined that your telephone equipment is malfunctioning, the FCC
requires that it not be used and that it be unplugged from the modular jack until
the problem has been corrected. Repairs to this telephone equipment can only
be made by the manufacturer or its authorized agents or by others who may
be authorized by the FCC. For repair procedures, follow the instructions outlined
under the Limited Warranty.
This equipment may not be used on coin service provided by the phone company
or Party Lines.
The REN is useful in determining the number of devices you may connect to
your telephone line and still enable the devices to ring when you receive a call.
The general rule is that the REN value should not exceed 5.0A total; however,
contact your local telephone company for the specific number in your area.
Additional Information
38
Technical Specifications
FREQUENCY CONTROL
Crystal controlled
PLL synthesizer
TRANSMIT FREQUENCY
2401.056 - 2482.272 MHz
RECEIVE FREQUENCY
2401.056 - 2482.272 MHz
CHANNELS
95 Channels
NOMINAL EFFECTIVE RANGE
Maximum power allowed by FCC.
Actual operating range may vary
according to environmental conditions
at the time of use.
SIZE
Handset :48mm x 33mm x 175mm
Base : 170mm x 115mm x 60mm
WEIGHT
Handset : 170 grams
Base : 348 grams
POWER REQUIREMENTS
Handset : 800mAh NiCd Battery
Pack or 1500mAh NiMH
Battery Pack
Base : 7 VDC @ 900mA
MEMORY
Speed Dial: 50 Memory locations, into
32 digits per location.
CID : Alpha Numeric Display
50 Memory locations
SPECIFICATIONS ARE TYPICAL
AND MAY CHANGE WITHOUT
NOTICE.
38
39
Additional Information
Table Of Contents
1. Important Safety
Instructions
3. Introduction
4. Parts Check List
5. The Handset Layout
6. The Base Unit Layout
7. Getting Started
7. Setup
8. Installation of Battery Pack in
Handset
9. Spare Battery Charger/Power
Backup Function
10. Charging Of Handset Battery
Pack
11. Wall Mounting
12. Registration and Operation
14. Basic Operation
14. Handset and Base Indicators
16. Soft Menu Functions
16. RDL (Redial)
16. MENU
17. Calls Log (Caller ID)
18. Handset Settings
19. Register
20. MEM (Memory)
21. To Store a Number/Name
22. To Search For and Dial a
Number/Name
22. To delete a Number/Name
23. To Edit a Name or a Number
24. Base Setting
25. Advanced Operations
25. Handsfree and Base
Operation
25. Making Calls
25. Answering Calls
25. Redial from Base Unit
26. Mute Function
26. Hold Function
26. Flash Function
26. Volume Control
27. Page/Intercom
28. Handsfree Speakerphone
Operation
28. Base Speakerphone
Operation
28. Line in Use Indication
28. Low Battery Indication
29. Message Waiting Indication
29. Conference Calling
29. Transferring Calls
31. Additional Information
31. Network service Features
32. Headset Operation
33. Maintenance
34. In Case Of Difficulty
36. Warranty Statement
37. FCC Regulations
39. Technical Specifications
91-5366-10-00
ISSUE 0
Loading...
