Page 1

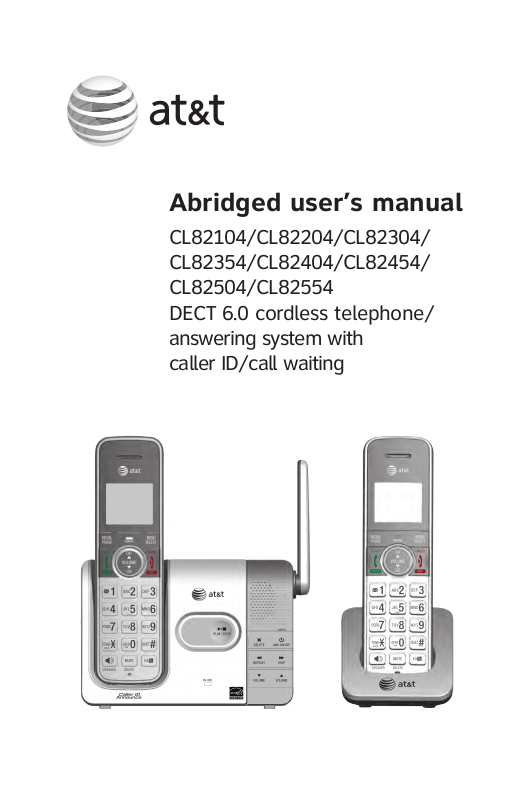

Abridged

L82104/CL82204/CL82304/

C CL82354/CL82404/CL82454/ CL82504/CL82554 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting

user’s manual

Page 2

This Abridged user’s manual provides you with basic installation and major operation instructions. A limited set of features are described in an abridged form.

Please refer to the online CL82104/CL82204/CL82304/CL82354/

CL82404/CL82454/CL82504/CL82554 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Complete user’s manual for a

full set of installation and operation instructions at

www.telephones.att.com/manuals.

For customer service, visit our website at call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

This telephone system is compatible with certain AT&T DECT 6.0 cordless headsets and speakerphones. Visit www.telephones.att.com/headsets for a list of compatible cordless headsets.

www.telephones.att.com or

Model number:

CL82104 (one handset) CL82204 (two handsets) CL82304/CL82354 (three handsets) CL82404/CL82454 (four handsets) CL82504/CL82554 (five handsets)

Type:

DECT 6.0 cordless telephone/answering system with caller ID/call waiting

Serial number: __________________________________________________________

Purchase date: _________________________________________________________

Place of purchase: ______________________________________________________________

Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base.

Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service.

© 2014 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China.

Page 3

Abridged user’s manual

CL82104/CL82204/CL82304/ CL82354/CL82404/CL82454/ CL82504/CL82554 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting

For more detailed instructions, refer to the Complete user’s manual at www.telephones.att.com/manuals.

Table of contents

Getting started

Parts checklist ............................................. 1

Quick reference guide - handset ........2

Quick reference guide - handset

& telephone base .................................4

Telephone base and charger

installation ............................................... 5

Telephone base installation ............5

Charger installation .............................5

Battery installation and charging ....... 6

Installation options .................................... 7

Tabletop to wall mount

installation.............................................7

Telephone settings

Handset settings .........................................8

Ringer volume ........................................ 8

Ringer tone .............................................. 8

LCD language ......................................... 8

Set date/time ......................................... 9

Caller ID announce .............................. 9

Set speed dial voicemail

number ................................................. 10

Voicemail (visual message

waiting) indicator ............................ 10

Clear voicemail indicator ............... 10

Key tone ................................................. 11

Home area code ................................. 11

Dial mode .............................................. 11

QUIET mode ......................................... 12

Telephone operation

Handset operation .................................. 13

Making a call ........................................ 13

Answering a call ................................ 13

Ending a call ........................................ 13

Temporary ringer silencing ........... 13

Speakerphone ..................................... 13

Last number redial ............................ 13

Equalizer ................................................. 13

Volume control ................................... 14

Call waiting ........................................... 14

Mute ......................................................... 14

Handset locator .................................. 14

Join a call in progress ..................... 14

Chain dialing ........................................ 15

Blind transfer ....................................... 15

Multiple handset use

Intercom ....................................................... 16

Call transfer using intercom .............. 17

Push-to-talk (PTT) ................................... 18

Turn incoming PTT on or off ........ 18

PTT call to a single handset ........ 18

PTT call to a group of

handsets .............................................. 19

Answer a PTT call .............................. 19

Parts checklist

Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary.

Abridged user’s manual

CL82104/CL82204/CL82304/ CL82354/CL82404/CL82454/ CL82504/CL82554 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting

Abridged

Quick start guide

user’s manual

Charger for cordless handset with power adapter installed

(1 for CL82204) (2 for CL82304/CL82354) (3 for CL82404/CL82454) (4 for CL82504/CL82554)

Cordless handset

(1 for CL82104) (2 for CL82204) (3 for CL82304/CL82354) (4 for CL82404/CL82454) (5 for CL82504/CL82554)

Battery for cordless handset

(1 for CL82104) (2 for CL82204) (3 for CL82304/CL82354) (4 for CL82404/CL82454) (5 for CL82504/CL82554)

Telephone base

Battery compartment cover

(1 for CL82104) (2 for CL82204) (3 for CL82304/CL82354) (4 for CL82404/CL82454) (5 for CL82504/CL82554)

Wall mount bracket

Telephone line cord Power adapter for

telephone base

Page 6

Getting started

Quick reference guide - handset

CHARGE indicator

On when the handset is charging in the telephone base or charger.

qCID/VOLUME

•

Press qCID to show the caller ID log when the handset is not in use (

•

Press to scroll down while in menus.

•

While entering names or numbers, press to move the cursor to the left.

•

Press to decrease the listening volume when on

page 14), or to decrease the message

a call ( playback volume (page 31).

REDIAL/PAUSE

•

Press repeatedly to view the last 10 numbers dialed (

•

While entering numbers, press and hold to insert a dialing pause (

FLASH /PHONE

•

Press to make or answer a call.

•

During a call, press to answer an incoming call when you receive a call waiting alert (

page 13).

page 23).

page 20).

page 14).

•

While reviewing a caller ID log entry, press repeatedly to add or remove 1 in front of the telephone number before dialing or saving it in the directory (page 23).

•

Press and hold to set ( voicemail number (page 22).

TONE / a>A

Press to switch to touch-tone dialing temporarily

• during a call if you have pulse service.

While entering names, press to change the next

• letter to upper or lower case.

/SPEA�ERSPEA�ER

Press to switch between the speakerphone and the handset (page 13).

page 10) or dial your

Page 7

Getting started

Quick reference guide - handset

pDIR/VOLUME

•

Press pDIR to show directory entries ( when the handset is not in use.

•

Press to scroll up while in menus.

•

While entering names or numbers, press to move the cursor to the right.

•

Press to increase the listening volume when on a call ( playback volume (page 31).

MENU/SELECT

Press to show the menu.

• While in the menu, press to select an item or

• save an entry or setting.

CANCELCANCEL /OFFOFF

During a call, press to hang up.

• While in a menu, press to cancel an operation,

• back up to the previous menu, or exit the menu display, or press and hold this key to exit to idle mode.

Press and hold while the telephone is not in use

• to erase the missed call indicator.

page 21)

page 14), or to increase the message

QUIET # (pound key)

•

Press repeatedly to display other dialing options when reviewing a caller ID log entry (

•

Press and hold to enter the QUIET mode setting screen, or to deactivate QUIET mode (

During an outside call, intercom call, message or announcement playback, press to change the audio quality to best suit your hearing.

MUTE/DELETE

During a call, press to mute the microphone.

• While reviewing the caller ID history, the

• directory or the redial memory, press to delete an individual entry.

While predialing, press to delete digits.

•

page 23).

page 12).

Page 8

Getting started

Quick reference guide - handset & telephone base

Handset side view

Telephone base

/HANDSET LOCATOR

While the phone is idle, press

• to page all handsets (

Press and hold to begin

• handset deregistration (

page 35).

page 14).

PUSH TO TAL�

Press to initiate a one-to-one (page 18) or

• one-to-group broadcast ( turn PTT on or off (

Press and hold

• handsets (page 19).

to broadcast to a group of

page 19), or to

page 18).

Message counter

Shows the number of messages or other answering system information.

/PLAY/STOP

Press to start or stop message playback (page 31).

X/DELETE

Press to delete the

• message currently playing (page 31).

Press twice to delete

• all old messages when the phone is not in use (

page 32).

IN USE indicator

On when the handset is in use,

• or when the answering system is answering an incoming call.

Flashes when another telephone is

• in use on the same line.

/REPEAT

Press to repeat a message.

•

Press twice to play the previous

• message (

page 31).

/ANS ON/OFF

Press to turn the built-in answering system on or off (page 26).

/S�IP

Press to skip a message (page 31).

q/VOLUME/p

During message

• playback, press to adjust the listening volume (page 31).

While in idle mode,

• press to adjust the base ringer volume.

Page 9

Getting started

Telephone base and charger installation

Install the telephone base and charger as shown below.

Telephone base installation

Plug the large end of the telephone base power adapter into a power outlet not controlled by a wall switch.

Route the power adapter cord through this slot.

Raise the antenna.

Plug the small end of the telephone base power adapter into the power adapter jack on the back of the telephone base.

Charger installation

Plug one end of the telephone line cord into a telephone jack or a DSL filter.

If you have DSL high-speed Internet service, a DSL filter (not included) is required.

Route the telephone line cord through this slot.

Plug the other end of the telephone line cord into the telephone jack on the back of the telephone base.

Plug the power adapter into a power outlet not controlled by a wall switch.

IMPORTANT INFORMATION

Use only the power adapter(s) supplied with this product. To order a replacement power

•

adapter, visit our website at www.telephones.att.com or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

For more detailed instructions, refer to the online Complete user’s manual at

www.telephones.att.com/manuals.

The power adapters are intended to be correctly oriented in a vertical or floor mount

• position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.

Page 10

Getting started

THIS SIDE UP / CE CÔTÉ VERS LE HAUT

Battery Pack / Bloc-piles :

BT183342/BT283342 (2.4V 400mAh Ni-MH)

WARNING / AVERTISSEMENT :

DO NOT BURN OR PUNCTURE BATTERIES.

NE PAS INCINÉRER OU PERCER LES PILES.

Made in China / Fabriqué en chine

THIS SIDE UP / CE CÔTÉ VERS LE HAUT

Battery Pack / Bloc-piles :

BT183342/BT283342 (2.4V 400mAh Ni-MH)

WARNING / AVERTISSEMENT :

DO NOT BURN OR PUNCTURE BATTERIES.

NE PAS INCINÉRER OU PERCER LES PILES.

Made in China / Fabriqué en chine

Battery installation and charging

Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 10 hours of continuous charging. See the table in the Technical

specifications section on page 47 for battery operating times.

Battery indicators Battery status Action

The screen is blank, or shows Place in charger

(flashing).

and

The screen shows Low battery and (flashing).

The screen shows HANDSET X.

Battery has no or very little charge. The handset cannot be used.

Battery has enough charge to be used for a short time.

Battery is charged. To keep the battery charged, place it in the

Charge without interruption (at least 30 minutes).

telephone base or charger when not in use.

CHARGE light

Step 1

Plug the battery connector securely into the socket inside the handset battery compartment. Insert the supplied battery with the label THIS SIDE UP facing up as indicated.

Step 3

Charge the handset by placing it face forward in the telephone base or charger. The CHARGE light on the top of the handset is on during charging.

IMPORTANT INFORMATION

•

Use only the supplied rechargeable battery or replacement battery (model BT183342/BT283342). To order, visit our

website at www.telephones.att.com or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. For more detailed instructions,

refer to the online Complete user’s manual at

www.telephones.att.com/manuals.

•

If you do not use the handset for a long time, disconnect and remove the battery toprevent possible leakage.

Step 2

Align the cover flat against the battery compartment, then slide it upwards until it clicks into place.

Page 11

Getting started

A A

Installation options

Your telephone base is ready for tabletop use. If you want to mount your telephone on a wall, follow the steps below to connect the telephone base with a standard dual-stud telephone wall mounting plate. You may need a professional to install the mounting plate.

Tabletop to wall mount installation

1. Plug the power cord and telephone line into the telephone base. If you are using a DSL filter, plug the other end of the telephone line into the filter. Route the telephone line cord (or DSL filter) through the wall mount bracket hole.

2. Position the telephone base as shown below. Insert the extended tabs (marked A in the illustration below) of the wall mount bracket into the slots on the back of the telephone base. Push the telephone base down until it is securely in place.

3. Plug the telephone line cord (or DSL filter) into the wall jack. Plug the power adapter into a power outlet not controlled by a wall switch.

4. Align the holes on the wall mount bracket with the standard wall plate and slide the wall mount bracket down until it locks securely. Bundle the telephone line cord and power adapter cord neatly with twist ties.

Page 12

Telephone settings

Handset settings

Use the menu to change the telephone settings.

Press MENU/

SELECT when the telephone is not in use to

enter the main menu.

Press

qCID or pDIR to scroll to the feature to be changed.

>Play messages

Answering sys

When scrolling through the menu, the > symbol indicates the selected menu item.

Press

MENU/SELECT to select the highlighted item.

NOTE: Press OFF/CANCEL to cancel an operation, back up to the previous menu or exit the menu display. Press and hold

OFF/CANCEL to return to idle mode.

Ringer volume

You can adjust the ringer volume level or turn the ringer off.

1. Press MENU/SELECT in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Ringers, then press MENU/SELECT.

3. Press MENU/SELECT again to select >Ringer volume.

4. Press qCID or pDIR to sample each volume level.

. Press MENU/SELECT to save your preference.

NOTE: The handset ringer volume also determines the ringer volume for intercom calls.

Ringer tone

You can choose one of 10 ringer tones.

p q

1. Press MENU/SELECT in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Ringers, then press MENU/SELECT.

3. Press qCID or pDIR to scroll to >Ringer tone, then press MENU/SELECT.

4. Press qCID or pDIR to sample each ringer tone.

5. Press MENU/SELECT to save your preference.

NOTE: If you turn off the ringer volume, you do not hear ringer tone samples.

LCD language

You can select English, French, or Spanish to be used for all screen displays.

1. Press MENU/SELECT in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Settings, then press MENU/SELECT.

3. Press MENU/SELECT to choose >LCD language.

4. Press qCID or pDIR to scroll to the desired language, then press MENU/SELECT. The screen prompts Set English/Français/Español as LCD language?

5. Press MENU/SELECT to confirm.

Page 13

Telephone settings

Handset settings

NOTE: If you accidentally change the LCD language to French or Spanish, you can reset it back to English without going through the French or Spanish menus. Press MENU/SELECT in idle mode, then enter 364#. There is a confirmation tone.

Set date/time

The answering system announces the day and time of each message prior to playing it. Before using the answering system, set the date and time as follows. If you subscribe to caller ID service, the day, month and time are set automatically with each incoming call. The year must be set so that the day of the week can be calculated from the caller ID information.

When the handset is in idle mode, press MENU/

1. Press q

Enter the month using the dialing keys.

Enter the day using the dialing keys.

Enter the year using the dialing keys, then press

CID or pDIR to scroll to >Set date/time and then press MENU/SELECT.

to set the time.

Enter the hour using the dialing keys.

Enter the minute using the dialing keys.

Press q

CID or pDIR to highlight AM or PM, then press MENU/SELECT to confirm.

SELECT to enter the main menu.

MENU/SELECT to move on

NOTE: If the clock is not set when a message is recorded, the system announces, “Time and day not set,” before it plays the message.

Caller ID announce

The caller ID announce feature lets you know who’s calling without having to look at the display.

To turn on/off the caller ID announce on your handset or base:

1. Press MENU/SELECT in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Settings, then press MENU/SELECT.

3. Use qCID or pDIR to scroll to >Caller ID annc, then press MENU/SELECT.

4. Use qCID or pDIR to highlight the desired option, then press MENU/SELECT.

•

Set all On/Off - Change the setting for the base and all handsets.

•

Local handset - Change the setting for that handset only.

•

Base - Change the setting for the telephone base only.

5. Use q

CID or pDIR to highlight >On or >Off, then press MENU/SELECT.

NOTES:

•

To use the caller ID announce feature, you must subscribe to caller ID service from your telephone service provider.

•

Pronunciation of names may vary with this feature. Not all names may be pronounced correctly.

Page 14

Telephone settings

Handset settings

Set speed dial voicemail number

This feature lets you save your voicemail number for quick access when you press and hold the

To set your voicemail number:

1. Press MENU/SELECT in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Settings, then press MENU/SELECT.

3. Use qCID or pDIR to scroll to >Voicemail #, then press MENU/SELECT.

4. Use the dialing keys to enter the voicemail access number provided by your telephone service provider.

Press q

• Press

•

Press and hold

•

Press

5. Press

CID or pDIR to move the cursor to the left or right.

MUTE/DELETE to erase a digit.

REDIAL/PAUSE to enter a three-second dialing pause (a p appears).

MENU/SELECT to save.

Voicemail (visual message waiting) indicator

If you subscribe to a voicemail service offered by your telephone service provider, New voicemail and the you have new voicemail messages. Contact your service provider for more information and assistance about using your voicemail service.

1 key.

MUTE/DELETE to erase all digits.

icon appear on the handset screen when

Clear voicemail indicator

Use this feature when the telephone indicates there is new voicemail but there is none. For example, when you have accessed your voicemail while away from home. This feature only turns off the displayed New voicemail and the

icon; it does not delete your voicemail messages. As long as you have new voicemail messages, your telephone service provider continues to send the signal to turn on the indicator.

To manually turn off the new voicemail indicator:

1. Press MENU/SELECT when in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Settings, then press MENU/SELECT.

3. Use qCID or pDIR to scroll to >Clr voicemail, then press MENU/SELECT.

The screen shows Reset Voicemail Indicator?

. Press MENU/SELECT again to turn the voicemail indicator off.

NOTE: For information about using your voicemail service, contact your telephone service provider.

Page 15

Telephone settings

Handset settings

�ey tone

The handset is set to beep with each key press. You can adjust the key tone volume or turn it off.

1. Press MENU/

2. Use q

3. Use q

4. Use q

5. Press

CID or pDIR to scroll to >Settings, then press MENU/SELECT. CID or pDIR to scroll to >�ey tone, then press MENU/SELECT. CID or pDIR to select the desired volume or Off.

MENU/SELECT to save your preference.

SELECT in idle mode to enter the main menu.

Home area code

If you dial seven digits to make a local call (no area code required), enter your area code into the telephone as the home area code. When you receive a call from within your home area code, the caller ID history only displays the seven digits of the telephone number.

This feature makes it easy for you to place a call from the caller ID log. If you dial 10 digits to make a local phone call, do not use this home area code feature. If you do, you cannot place local calls from your caller ID log, as they will have only seven digits.

To set the home area code:

1. Press MENU/SELECT in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Settings, then press MENU/SELECT.

3. Use qCID or pDIR to scroll to >Home area code, then press MENU/SELECT.

4. Use the dialing keys to enter a three-digit home area code.

•

Press MUTE/DELETE to delete a digit.

•

Press and hold

MUTE/DELETE to delete all digits.

5. Press MENU/SELECT to save.

NOTE: If in the future, your telephone service provider requires you to dial 10 digits to make a local call (area code plus telephone number), you need to delete your home area code and dial out locally from the caller ID log. With the home area code displayed, press and hold The home area code is now restored to its default setting of _ _ _ (empty).

MUTE/DELETE until the digits are deleted, and then press MENU/SELECT.

Dial mode

The dial mode is preset to tone dialing. If you have pulse (rotary) service, you must change the dial mode to pulse dialing before using the telephone.

1. Press MENU/SELECT in idle mode to enter the main menu.

2. Use qCID or pDIR to scroll to >Settings, then press MENU/SELECT.

3. Use qCID or pDIR to scroll to >Dial mode, then press MENU/SELECT.

4. Use qCID or pDIR to highlight >Touch-tone or >Pulse, then press MENU/SELECT.

Page 16

Telephone settings

Handset operation

QUIET mode

When QUIET mode is turned on, the telephone silences all sounds (except the handset locator paging tone) during the set period of time (1-12 hours). After you turn on QUIET mode, this feature activates immediately and the answering system turns on automatically. When QUIET mode is on, the answering system takes calls and records messages without broadcasting them.

To turn QUIET mode on:

1. Press and hold QUIET # in idle mode to enter the QUIET mode setting

screen. The screen shows Quiet: _ _ hours (1-12 hours).

2. Use the dialing keys to enter the desired number of hours (1-12) you

would like to turn on QUIET mode, then press MENU/SELECT.

To turn QUIET mode off:

While QUIET mode is on, press and hold QUIET #.

•

NOTES:

If you change the base ringer, handset ringer, ringer volume, key tone, or caller ID announce features

•

when QUIET mode is on, the sample plays but the feature is still muted after saving the setting. After QUIET mode is turned off or the set period of time has expired, all muted features will be

•

activated again. The PTT function is not available when QUIET mode is on.

•

Intercom is available during QUIET mode, but the handset will not ring.

•

Page 17

Telephone operation

Handset operation

Making a call

Press

•

Answering a call

Press

•

-OR-

Press any dialing key (0-9, TONE

•

Ending a call

Press

Temporary ringer silencing

Press the ringer temporarily on that handset only. This turns off the ringer without disconnecting the call. The next incoming call rings normally at the preset volume.

Speakerphone

During a call, press and normal handset use. Press OFF/CANCEL to hang up.

PHONE/FLASH or /SPEA�ERSPEA�ER, then enter the telephone number.

PHONE/FLASH or /SPEA�ERSPEA�ER.

or #).

OFF/CANCEL or return the handset to the telephone base or charger.

OFF/CANCEL or MUTE/DELETE while the telephone is ringing to silence

/SPEA�ERSPEA�ER to switch between handsfree speakerphone

NOTE: The speakerphone uses more power than the normal handset. If the handset battery becomes very low while you are using the speakerphone, the call remains in speakerphone mode until you hang up or the battery becomes depleted.

Last number redial

Each handset stores the last 10 telephone numbers dialed (up to 30 digits). Press REDIAL/

PAUSE, then press qCID or pDIR, or press REDIAL/PAUSE

repeatedly to view up to 10 recently called numbers. Press PHONE/FLASH or /SPEA�ERSPEA�ER to dial the displayed number.

Equalizer

The equalizer feature on the handset enables you to change the quality of the audio to best suit your hearing.

While on an outside call or intercom call, or listening to a message or announcement, press EQ

to select the equalizer setting Treble 1, Treble 2,

Bass or Natural (the default setting).

Page 18

Telephone operation

Handset operation

Volume control

While on a call, press to increase the listening volume. You can set the listening volume to one of

six levels.

Call waiting

If you subscribe to call waiting service from your telephone service provider, you hear two beeps if someone calls while you are already on a call. Press

PHONE/FLASH to put your current call on hold and take the new call.

Press PHONE/FLASH at any time to switch back and forth between calls.

Mute

The mute function allows you to hear the other party, but the other party cannot hear you.

Press MUTE/

DELETE while on a call to enable or disable the mute feature.

Handset locator

Use this feature to find misplaced handsets.

To start the paging tone:

•

Press

/HANDSET LOCATOR on the telephone base to start the paging

tone on all handsets for 60 seconds.

qCID/VOLUME to decrease or press pDIR/VOLUME

NOTE: If you press OFF/CANCEL or MUTE/DELETE on a handset, the ringer of that handset stops, but the paging to the rest of the handsets continues.

To stop the paging tone:

Press

•

PHONE/FLASH, /SPEA�ERSPEA�ER, or any dialing key (0-9, TONE , or #)

on the handset(s).

-OR-

•

Press

/HANDSET LOCATOR on the telephone base.

Join a call in progress

When a handset is already on a call and you would like to join the call, press

PHONE/FLASH or /SPEA�ERSPEA�ER on your handset.

Press

OFF/CANCEL or place the handset in the telephone base or charger to

end the call. The call does not end until all handsets hang up.

NOTE: You can use a maximum of four system handsets at the same time on an outside call.

Page 19

Telephone operation

Options while on calls

Chain dialing

Use this feature to initiate a dialing sequence from the numbers in the directory, caller ID history or redial memory while you are on a call.

To access the directory or caller ID log while on a call:

Press MENU/

Press q

MENU/SELECT.

Press q

Press

MENU/SELECT to dial the number shown.

SELECT.

CID or pDIR to scroll to >Directory or >Caller ID log, then press

CID or pDIR to scroll to the desired number.

To access the redial list while on a call:

Press REDIAL/

Press q

PAUSE to show the most recently dialed number.

CID or pDIR to scroll to the desired number, or press REDIAL/PAUSE

repeatedly to show the last 10 recently dialed numbers. Press MENU/SELECT to dial the number shown.

Blind transfer

While on an outside call, you can transfer it to a specific handset or any

handset.

To transfer an outside call directly without notifying the desired handset:

1. During the call, press MENU/

2. Press

MENU/SELECT to choose >Transfer.

•

If you have a two-handset system, the outside call is put on hold and

SELECT.

your handset screen shows Transferring call... The other handset rings and its screen shows Transfer from other handset.

•

If you have more than two handsets, your screen shows TRANSFER TO: Press q

MENU/SELECT. The outside call is put on hold and your handset screen

CID or pDIR to scroll to the desired handset and press

shows Transferring call... or Transferring call to all...

To answer the call on the destination handset, press, press PHONE/FLASH,

/SPEA�ERSPEA�ER, or any dialing key (0-9, TONE , or #). The original handset

shows Call transferred and goes to idle mode.

Page 20

Multiple handset use

Intercom

Use the intercom feature for conversations between two handsets. You can buy extra accessory handsets (AT&T model CL80104) to expand your system.

Use a handset to initiate intercom calls and transfer calls.

1. Press MENU/

pDIR to scroll to >Intercom, then press MENU/SELECT.

If you have a two-handset system, your handset screen shows Calling

•

other handset. If you have more than two handsets, your screen shows INTERCOM TO:

•

Press q

MENU/SELECT. Your handset screen shows Calling HANDSET X or

Calling all handsets.

The other handset(s) rings and shows Other handset is calling, HANDSET X is calling, or HANDSET X is calling all (X represents the handset

number).

2. To answer the intercom call, press PHONE/FLASH, /SPEA�ERSPEA�ER or any dialing key (0-9, TONE , or #) on any called handset.

3. To end the intercom call, one party presses OFF/CANCEL, or places the handset back in the telephone base or charger. The other party hears four beeps. Both handsets display Intercom ended.

SELECT in idle mode to enter the main menu. Press qCID or

CID or pDIR to scroll to the desired handset and press

Page 21

Multiple handset use

Call transfer using intercom

Use the intercom feature to transfer an outside call to another system handset. You can also share an outside call with another system handset. This feature is available only if you have two or more handsets.

To transfer or share an outside call using intercom:

1. During the call, press MENU/

2. Press q

CID or pDIR to scroll to >Intercom and press MENU/SELECT.

3. If you have a two-handset system, your handset screen shows

Calling other handset.

-OR-

If you have more than two handsets, your screen shows INTERCOM TO:

Press qCID or pDIR to scroll to the desired handset and press

MENU/SELECT. Your handset screen shows Calling HANDSET X or

Calling all handsets.

4. When the destination handset(s) picks up, your handset shows Intercom and the outside call is put on hold. You have the following options:

You can transfer the call. Press MENU/SELECT

•

>Transfer on the calling handset. Your screen shows Call transferred. The other handset automatically connects to the outside call.

•

You can let the other handset join you on the outside call in a three-way conversation. Press MENU/ highlight >Share call on the calling handset, then press MENU/SELECT.

•

You can end the intercom call and continue the outside call with your handset. Press intercom call party hears four beeps), or the other person can press

OFF/CANCEL on the other system handset.

SELECT.

twice to select

SELECT. Press qCID or pDIR to

PHONE/FLASH on your handset (the ended

Page 22

Multiple handset use

Push-to-talk (PTT)

You can directly broadcast messages to the speakerphone of any handset. Any handset you call can respond by pressing the PUSH TO TAL� key to begin two-way communication.

Only one handset can talk at a time. To do so, press and hold

• PUSH TO TAL�.

•

You must release

•

Only one PTT session can be active at a time.

•

While PTT is in use between two handsets, other handsets cannot use the intercom feature but can access the answering system.

NOTE: The PTT function is not available when QUIET mode is on.

Turn incoming PTT on or off

1. Press

PUSH TO TAL� when the handset is not in use. The PUSH TO TAL�

menu displays.

2. Press q

3. Press q

CID or pDIR to highlight CID or pDIR to choose

PUSH TO TAL�, so another person can respond.

PTT On/Off, then press MENU/SELECT.

>On

>Off

, then press MENU/SELECT.

PTT

PTT call to a single handset

1. When the handset is not in use:

•

If you have a two-handset system, press and hold

•

If you have more than two handsets, press

PUSH TO TAL�. Press qCID

PUSH TO TAL�.

or pDIR to highlight the destination handset number and then press

MENU/SELECT or PUSH TO TAL�.

Your handset screen shows Connecting to HANDSET X... the destination handset number)

for a few seconds. When the connection

(X represents

is made, both your and the destination handset screens display Press and hold [PTT] to talk.

2. Press and hold

PUSH TO TAL� on your handset. A chirp indicates your

microphone is on. Speak towards the handset. Your voice is broadcast to the destination handset.

3. Release

PUSH TO TAL� after speaking. Both handsets beep once again.

After the handsets beep, you can press and hold PUSH TO TAL� to

continue speaking or the destination handset can respond (see Answer a

PTT call on the next page).

4. To end the PTT call, press

OFF/CANCEL or place the handset in the

telephone base or charger.

Page 23

Multiple handset use

Push-to-talk (PTT)

PTT call to a group of handsets

When there are multiple handsets registered to the phone system, PTT supports one-to-group calls. PTT supports a maximum of one-to-four calls when two to five handsets are registered, and a maximum of one-to-three calls when six or more handsets are registered. The first four registered handsets will be able to use this feature.

To call a group of handsets:

1. When the handset is not in use:

Press and hold

•

Connecting to group...

When the connection is made, both the caller and the destination parties

hear a beep. The speakerphones on all other eligible handsets automatically activate.

2. You need to press and hold Speak towards the handset. Your voice is broadcast to all eligible handsets.

3. Release PUSH TO TAL� after speaking.

4. Any handset can reply (see Answer a PTT call below).

PUSH TO TAL� until your handset screen shows

PUSH TO TAL� when you want to speak.

Answer a PTT call

You can respond to a PTT call whenever the speakerphone light is off, as described below.

When your handset receives a PTT call, the handset beeps and the screen

shows Press and hold [PTT] to talk. When the other party is speaking, your speakerphone light is on, and

your handset shows PTT From HS X To HS X (the first X represents the initiating handset number, the second X represents your handset number; a maximum of four handset numbers appear).

When your speakerphone light is off (the screen shows Press and hold

[PTT] to talk), press and hold hear a chirp. Speak towards the handset. Your voice is broadcast to all destination handsets.

After speaking, release After the beep, if your speakerphone light is off, you can press and hold PUSH TO TAL� to continue speaking, or a destination handset can respond.

PUSH TO TAL�. Your handset will beep.

PUSH TO TAL� on your handset. You will

Page 24

Create a new directory entry

Press MENU/

Scroll to select >Directory, then select >Add contact.

Use the dialing keys to enter a telephone number (up to 30 digits) when prompted.

•

Press q

•

Press

•

Press and hold

•

Press and hold (a p appears).

-OR-

Copy a number from the redial list by pressing REDIAL/ to locate the number. Press MENU/SELECT to copy the number.

Press

MENU/SELECT to move on to the name.

Use the dialing keys to enter a name (up to 15 characters) when prompted. Each time you press a key, the character on that key appears. Additional key presses produce other characters on that key.

•

Press q

•

Press 0 to add a space.

•

Press

•

Press and hold

•

Press a>A to change the next letter to upper or lower case.

Press

MENU/SELECT to store your new directory entry.

SELECT when the handset is not in use.

CID or pDIR to move the cursor to the left or right.

MUTE/DELETE to erase a digit.

MUTE/DELETE to erase all digits.

REDIAL/PAUSE to enter a three-second dialing pause

PAUSE repeatedly

CID or pDIR to move the cursor to the left or right.

MUTE/DELETE to erase a character.

MUTE/DELETE to erase all characters.

Page 25

Review directory entries

Press DIRp when the handset is not in use. Press q through the directory.

Search by name

1. Press DIRp in idle mode to show the first listing in the directory.

2. When an entry appears, use the dialing keys (0-9) to start a name search. The directory shows the first name beginning with the first letter associated with the dialing key if there is an entry in the directory beginning with that letter. Press qCID or pDIR to scroll through the directory.

3. To see other names starting with the letters on the same dialing key, keep pressing the key. The names appear in alphabetical order.

Delete a directory entry

To delete the displayed directory entry, press

MUTE/DELETE. Press MENU/SELECT

to confirm. You cannot retrieve a deleted entry.

Edit a directory entry

1. When a directory entry displays, press MENU/SELECT. The screen shows EDIT NUMBER along with the phone number to be edited. If you only want to edit the name, skip to Step 3.

2. To edit the number:

Use the dialing keys to add digits.

• Press q

•

Press

•

Press and hold

•

Press and hold

. Press MENU/SELECT to save the number. The screen shows EDIT NAME

CID or pDIR to move the cursor to the left or right.

MUTE/DELETE to erase a digit.

MUTE/DELETE to erase all digits. REDIAL/PAUSE to add a three-second pause, if desired.

along with the name to be edited.

4. To edit the name:

•

Use the dialing keys to add characters.

•

Press q

•

Press

•

Press and hold

•

Press a>A to change the next letter to upper or lower case.

. Press MENU/SELECT.

CID or pDIR to move the cursor to the left or right.

MUTE/DELETE to erase a character.

MUTE/DELETE to erase all characters.

CID or pDIR to browse

Page 26

Speed dial

The telephone system has 9 speed dial locations (2-9, 0) and a voicemail access location 1 where you can store the telephone numbers you wish to dial more quickly. You can store up to 30 digits in each location. Speed dial assignments can only be selected from the existing directory entries. The voicemail access number must be manually entered. In the directory, speed dial locations are indicated by their number on the bottom right hand corner of the entry.

Assign a speed dial number

1. When the telephone is idle, press MENU

2. Press q

3. Press q

4. Press q

CID or pDIR to scroll to >Directory. Press MENU/SELECT. CID or pDIR to scroll to >Speed dial. Press MENU/SELECT. CID or pDIR to choose your desired speed dial location (2-9, 0),

then press MENU/SELECT. The screen briefly shows Copy from Directory... then enters your directory list.

5. Press q

CID or pDIR to scroll to the phone number you wish to assign to

the selected speed dial location.

6. Press MENU/SELECT to save.

Assign your speed dial voicemail number

See the Set speed dial voicemail number section on instructions on assigning your speed dial voicemail number.

/SELECT.

page 10 for

Make a call using speed dial

When in idle mode, press and hold the dialing key (2-9, 0) corresponding to the assigned location you wish to call.

Check your voicemail using speed dial

Press and hold the

1 key on your handset to dial your voicemail number.

Page 27

Caller ID

This product supports caller ID services offered by most telephone service providers. The telephone stores caller ID information of the last 50 incoming calls in the telephone base. This information is common to all handsets.

Information about caller ID with call waiting

Caller ID with call waiting lets you see the name and telephone number of the caller before answering the call, even while on another call.

There are fees for caller ID services. In addition, services may not be available in all areas. Contact your telephone service provider for more information about caller ID services.

Missed (new) call indicator

When a handset is in idle mode and has new or missed calls, its screen shows XX Missed calls.

If you do not want to review the missed calls one by one, but still want to keep them in the caller ID history, you can press and hold four seconds when the handset is idle.

Review the caller ID history

When a handset is in idle mode, press qCID to review the caller ID history

1. in reverse chronological order starting with the most recent call.

Press q

Press

CID or pDIR to scroll through the list.

OFF/CANCEL to exit the caller ID history.

OFF/CANCEL for

Dial a caller ID log entry

1. When in the caller ID log, press q

2. Press

PHONE/FLASH or /SPEA�ERSPEA�ER to dial the displayed entry.

CID or DIRp to browse.

View dialing options

While reviewing the caller ID log, press # repeatedly to show different dialing options for local and long distance numbers before dialing or saving the telephone number in the directory.

Press 1 repeatedly if you need to add or remove 1 in front of the telephone number before dialing or saving it in the directory.

When the number is in the correct format for dialing, press

PHONE/FLASH or /SPEA�ERSPEA�ER to

call the number.

883-2445

1-883-2445

888-883-2445

1-888-883-2445

1-883-2445

888-883-2445

1-888-883-2445

883-2445

Press #

Press 1

Page 28

Caller ID

Save a caller ID log entry to the directory

1. When in the caller ID log, press q

2. Press

MENU/SELECT to select an entry. The screen displays EDIT NUMBER.

3. Use the dialing keys to edit the number.

Press q

• Press

•

Press and hold

•

Press and hold

CID or pDIR to move the cursor to the left or right.

MUTE/DELETE to backspace and erase a digit.

MUTE/DELETE to erase the entire entry. REDIAL/PAUSE to insert a three-second dialing pause

(a p appears).

4. Press

MENU/SELECT to move to the name. The screen displays EDIT NAME.

Use the dialing keys to edit the name.

•

Press q

•

Press

•

Press and hold

•

Press # (pound key) to move the last word to the front. For example,

CID or pDIR to move the cursor to the left or right.

MUTE/DELETE to erase a character.

MUTE/DELETE to erase all characters.

Johnson Charlie becomes Charlie Johnson when you press # (pound key).

•

Press a>A to change the next letter to upper or lower case.

Press MENU/SELECT when done.

CID or pDIR to browse.

NOTES:

You might need to change how a caller ID number is dialed if the entry does not appear in the

• correct format. Caller ID numbers might appear with an area code that might not be necessary for local calls, or without a 1 that might be necessary for long distance calls (see View dialing options on the previous page).

If the name you received from the telephone service provider is all in capital letters, the first

• letter of every word remains a capital letter, while other letters become lowercase. However, the next letter after the prefix “Mac”, “Mc”, or “O’”, is kept as a capital letter. For example, the “D” in “MacDonald” is kept as a capital letter. Another exception is that “VAN DER” will be changed to “Van Der”.

If the telephone number from the caller ID information has already been saved in the directory

• under a different name, the new name will overwrite the old one.

Page 29

Answering system

Answering system settings

Use the answering system menu of a system handset to set up the announcement message, turn on or off the answering system or message alert tone, activate call screening, or change the number of rings, message recording time, or remote access code.

Announcement

Your outgoing announcement plays when calls are answered by the answering system.

The telephone has a default outgoing announcement, “Hello. Please leave a message after the tone.” You can use this announcement, or record your own.

To record a new outgoing announcement:

1. When the handset is in idle mode, press MENU/ main menu.

2. Press q

3. Press

4. Press

CID or pDIR to scroll to >Answering sys, then press MENU/SELECT. MENU/SELECT again to select >Announcement. MENU/SELECT again to select >Record annc. The system announces,

“Record after the tone. Press 5 when you are done.”

5. Facing the handset, record your announcement and press 5 to end

recording. Your recorded announcement plays.

To listen to the recorded announcement again, wait after playback is completed, then scroll to >Play annc and press

To reset your outgoing announcement:

When the handset is in idle mode, press MENU/

Press q

Press

Press q

CID or pDIR to scroll to >Answering sys, then press MENU/SELECT. MENU/SELECT again to select >Announcement.

CID or pDIR to scroll to >Reset annc and press MENU/SELECT. The

screen prompts Reset to default annc? Press MENU/SELECT to confirm.

When your announcement is reset, the system answers calls with the default announcement described

above. You cannot delete the default

announcement.

SELECT to enter the

MENU/SELECT.

SELECT to enter the main menu.

Page 30

Answering system

Answering system settings

Answer on/off

By default, the answering system is on and ready to record messages. If you turn the answering system off, it does not answer calls or record messages.

To turn the answering system on or off:

Using the telephone base:

Press

• system on or off.

Using a handset:

1. When the handset is in idle mode, press MENU/SELECT

to enter the main menu.

2. Press qCID or pDIR to scroll to >Answering sys, then press

MENU/SELECT.

3. Press qCID or pDIR to scroll to >Answer ON/OFF, then press

MENU/SELECT.

4. Press qCID or pDIR to highlight >On or >Off, then press MENU/SELECT

to save the setting..

Call screening

Use this feature to choose whether incoming messages can be heard over the telephone base speaker when they are being recorded. If you turn call screening on, you hear the incoming message.

/ANSWER ON/OFF to turn the answering

To change the setting:

1. When the handset is in idle mode, press MENU/

SELECT to enter the

main menu.

2. Press qCID or pDIR to scroll to >Answering sys, then press MENU/SELECT.

3. Press qCID or pDIR to scroll to >Ans sys setup, then press MENU/SELECT.

4. Press MENU/SELECT to select >Call screening.

5. Press qCID or pDIR to choose >On or >Off.

6. Press MENU/SELECT to save the setting.

Page 31

Answering system

Answering system settings

Number of rings

You can set the answering system to answer an incoming call after two, three, four, five, or six rings. You can also select toll saver, which is explained below. Unless you change it, the answering system answers an incoming call after four rings.

To set the number of rings:

1. When the handset is in idle mode, press MENU/SELECT to enter the

main menu.

2. Press qCID or pDIR to scroll to >Answering sys, then press MENU/SELECT.

3. Press qCID or pDIR to scroll to >Ans sys setup, then press MENU/SELECT.

4. Press qCID or pDIR to scroll to ># of rings, then press MENU/SELECT.

5. Press q

•

6. Press MENU/SELECT to save the setting.

Remote access code

To access your answering system remotely from any touch-tone phone, you need to enter a two-digit number (00-99). By default, the remote access code is 19.

CID or pDIR to scroll and choose among 2, 3, 4, 5, 6 or Toll saver.

Toll saver - the answering system answers a call after two rings if you have new messages, and after four rings when there are no new messages. This feature allows you to check for new messages and avoid paying long distance charges when calling from out of your local area.

To change the remote access code:

1. When the handset is in idle mode, press MENU/SELECT to enter the

main menu.

2. Press qCID or pDIR to scroll to >Answering sys, then press

MENU/SELECT.

3. Press qCID or pDIR to scroll to >Ans sys setup, then press MENU/SELECT.

4. Press qCID or pDIR to scroll to >Remote code, then press MENU/SELECT.

5. Use the dialing keys to enter a two-digit number. Use MUTE/DELETE to

backspace and delete a digit.

6. Press MENU/SELECT to save the setting.

Page 32

Answering system

Answering system settings

Message alert tone

When the message alert tone is set to On, and there is at least one new message, the telephone base beeps every 10 seconds. By default, the

message alert tone is set to off.

There is no audible alert at the handset.

To change the setting:

1. When the handset is in idle mode, press MENU/SELECT to enter the main menu.

2. Press qCID or pDIR to scroll to >Answering sys, then press MENU/SELECT.

3. Press qCID or pDIR to scroll to >Ans sys setup, then press MENU/SELECT.

4. Press qCID or pDIR to scroll to >Msg alert tone, then press

MENU/SELECT.

5. Press qCID or pDIR to choose >On or >Off.

6. Press MENU/SELECT to save the setting.

Message recording time

You can set the recording time allowed for incoming messages. The message length is three minutes by default.

To change the setting:

When the handset is in idle mode, press MENU/

Press q

CID or pDIR to scroll to >Answering sys, then press MENU/SELECT.

CID or pDIR to scroll to >Ans sys setup, then press MENU/SELECT. CID or pDIR to scroll to >Recording time, then press MENU/SELECT. CID or pDIR to choose >3 minutes, >2 minutes, or >1 minute, then

press MENU/SELECT to save the setting.

SELECT to enter the main menu.

Page 33

Answering system

About the answering system

Answering system and voicemail indicators

Your telephone has separate indicators for two different types of voice messages: those left on its built-in digital answering system and those left at your telephone service provider’s voicemail

(fees may apply). Your telephone’s built-in digital answering system messages and voicemail messages are separate. Each alerts you to new messages differently.

•

and XX New messages show on the handset

and the message window on the telephone base flashes, there are new messages in the built-in answering system. To listen to messages recorded on

your digital

answering system, press /PLAY/STOP

on the telephone base (page 31).

•

and New voicemail display on the handset, your telephone service

provider is indicating that it has new voicemail for you. To listen to your voicemail, you typically dial an access number provided by your telephone service provider, followed by a security code or PIN.

Some telephone service providers bundle or combine multiple services like voicemail and call waiting, so you may not be aware that you have voicemail. To check what services you have and how to access them, contact your telephone service provider.

HANDSET 1

1 New message

ANS ON

10/15

10:01

To use your voicemail service rather than your answering system, turn off your answering system. To use your answering system rather than your voicemail service, contact your telephone service provider to deactivate your voicemail service.

NOTE: After reviewing all new messages, the number of old messages appears on the message window.

Using the answering machine and voicemail together

You can also use your telephone answering system and voicemail together by setting your built-in answering system to answer before voicemail answers as described below. To learn how to program your voicemail settings, contact your telephone service provider. If you are on a call, or if the answering system is busy recording a message and you receive another call, the second caller can leave a voicemail message.

Set your answering system to answer calls at least two rings earlier than your voicemail is set to answer. For example, if your voicemail answers after six rings, set your answering system to answer after four rings. Some voicemail providers may program the delay before answering calls in seconds instead of rings. In this case, allow six seconds per ring when determining the appropriate setting.

Page 34

Answering system

About the answering system

Message capacity

The answering system can record up to 99 messages, depending on the length of each message. Individual messages can be up to three minutes, and the maximum recording time is approximately 22 minutes. The actual recording time depends on individual message characteristics. Messages remain available for replay until you delete them.

Voice prompts

The system provides voice prompts to guide you through the setup procedures at the telephone base, message playback, remote access and recording outgoing announcements.

Call screening at the telephone base

If the answering system and call screening are on, the announcement and the incoming message broadcast at the telephone base when a call is answered at the telephone base.

You can turn call screening on or off using the handset (see

page 26). When call

screening is off, you can temporarily turn on call screening by pressing p/VOL on the telephone base. Call screening will be off for the next incoming call.

If call screening is on and you want to silence the telephone base while it is recording messages, press

/PLAY/STOP.

Call screening at the handset

If the answering system is on, you can hear the announcement and the incoming message with the handset when a call is answered by the answering system. While a message is being recorded, the handset shows To screen call,

press [SELECT]. Press

MENU/SELECT to screen the call.

Call intercept

While screening a call, you can stop recording and speak to the caller by pressing

PHONE/FLASH on the handset.

Temporarily turning off the message alert tone

If the new message alert tone is turned on, the telephone base beeps every 10 seconds when there are new or missed messages. Pressing any telephone base key (except

/HANDSET LOCATOR) temporarily silences the message alert tone.

If you press X/DELETE in idle mode to temporarily turn off the message alert tone, there is a voice prompt directing you to press X/DELETE again to delete all old messages. The message alert tone is temporarily off. Only press X/DELETE a second time if you wish to erase all old messages.

The message alert tone resumes when you receive another message.

Page 35

Answering system

Message playback

To listen to messages at the telephone base:

Press

/PLAY/STOP. Press /PLAY/STOP again to end the message

playback.

To listen to messages on a cordless handset:

1. Press MENU/SELECT when the handset is not in use.

2. Select >Play messages. If there are new and old messages, select >Play new msgs or >Play

•

old msgs. If there are only new or only old messages, they will play automatically.

•

Options during playback

When messages are playing on the telephone base:

•

Press q/VOL- or p/VOL+ to adjust the message playback volume.

•

Press

•

Press message.

•

Press X/DELETE to delete the message.

•

Press

/S�IP to skip to the next message. /REPEAT to repeat the message. Press twice to hear the previous

/PLAY/STOP to stop playback.

When messages are playing on the handset:

•

Press PHONE/FLASH to stop playback. The screen shows Call back?, then press MENU/SELECT,

caller if the caller’s number is available. If the dialing format used is not correct, then use the option below to choose the correct dialing format before calling back the caller.

•

Press MENU/SELECT to pause playback and show the caller ID information if available. From here, you can press

press # (pound key) to show different dialing options (page 23), or press

PHONE/FLASH or /SPEA�ERSPEA�ER to call back the caller. If you do not call

back within 10 seconds, message playback resumes automatically.

•

Press q

•

Press EQ

•

Press 6 to skip to the next message.

•

Press 4 to repeat the message. Press twice to hear the previous message.

•

Press

•

Press 5 to stop the playback.

•

Press

CID/VOLUME or pDIR/VOLUME to adjust the message playback volume.

to adjust the message playback audio quality.

MUTE/DELETE to delete the message.

/SPEA�ERSPEA�ER to switch between speakerphone mode and handset mode.

PHONE/FLASH, or /SPEA�ERSPEA�ER to call back the

OFF/CANCEL to resume playback,

Page 36

Answering system

Message playback

Delete all old messages

To delete all old messages on the telephone base:

1. When the telephone is idle, press X/DELETE. The system announces, “To

delete all old messages, press DELETE again.”

2. Press X/DELETE again. The system announces, “All old messages deleted.”

To delete all old messages on the handset:

1. Press MENU/SELECT when in idle mode to enter the main menu.

2. Press qCID or pDIR to scroll to >Answering sys. Press MENU/SELECT.

3. Press qCID or pDIR to highlight Delete all old, then press MENU/SELECT.

The screen shows Delete all old messages?

4. Press MENU/SELECT again to confirm.

Recording and playing memos

Memos are messages you record at a handset. You can play back and delete them like incoming messages.

Record a memo

1. When the handset is in idle mode, press MENU/SELECT to enter the main

menu.

2. Press qCID or pDIR to scroll to >Answering sys. Press MENU/SELECT.

3. Press qCID or pDIR to highlight Record memo, then press MENU/SELECT.

The system announces, “Record after the tone. Press 5 when you are done.” You can record a memo of up to four minutes.

4. Speak facing the handset to record a memo.

5. Press 5 to stop recording. The system announces, “Recorded.” The system

does not save memos shorter than two seconds.

Play back a memo

Play memos the same way as messages. See Message playback on

page 31.

Page 37

Answering system

Remote access

You can reach your answering system remotely by dialing your home telephone number from any touch-tone telephone.

To remotely reach your answering system:

1. Dial your telephone number from any touch-tone telephone.

2. When the system answers, enter the two-digit remote access code (19 is

the default code. See page 27 to change it).

The system automatically announces the number of new or old

• messages (if any), and then begins to play them.

3. You can also enter the following remote commands:

Remote commands

1 2 3

7 8 0

Press to listen to all messages.

Press to listen to new messages only.

Press to delete the current message (during playback).

Press twice to delete all old messages.

Press to repeat the current message (during playback).

Press twice to listen to the previous message.

Press to stop any operation (including recording).

Press to listen to a list of remote commands.

Press to skip to the next message (during playback).

Press to record a new announcement.

Press to end remote access (the call will be terminated).

Press to turn the answering system on or off.

4. Hang up or press 8 to end the call.

Page 38

Appendix

Adding and registering handsets/headsets/speakerphones

Your telephone can support up to 12 DECT 6.0 cordless handsets (AT&T model CL80104, sold separately) or up to 10 cordless handsets and two

cordless headsets or speakerphones (sold separately). Visit

www.telephones.att.com/headsets for a list of compatible

DECT 6.0 cordless headsets. Each new handset, headset or speakerphone

must be registered to the telephone base before use. You must register each

handset, headset or speakerphone separately.

To register a cordless headset or speakerphone to this telephone system, please refer to the corresponding user’s manual for details. To register a cordless handset, see below.

The handsets provided within your product box are already registered as HANDSET 1 and so forth. Additional handsets are assigned numbers in the sequential order they are registered (up to HANDSET 12).

Register a handset to your telephone base

1. Before you begin registration, make sure the handset is out of the telephone

base or charger and shows To register HS, see manual.

Put the handset you wish to register on the telephone base cradle.

3. The screen shows Registering... Please wait and the IN USE light turns on. It takes up to 90 seconds to complete registration. HANDSET X Registered appears on the screen, with X being the handset number (1-12). The handset beeps and the IN USE light turns off. The handset is now registered with the telephone base.

If registration fails, the system will automatically try to register again. If registration fails after the third try, Registration failed appears on the screen for a few seconds, and then To register HS, see manual. This may take up to five minutes to occur. Please start again from Step 1 above.

For registration, put the handset on the telephone base, not the handset charger.

Page 39

Appendix

Deregistering handsets

You may need to deregister your handsets if:

•

You have 12 registered handsets and need to replace a handset.

-OR-

You wish to change the designated handset number of your registered

•

handsets.

You must first deregister ALL the handsets, and then register each handset you wish to use again, one at a time.

Please read carefully through all the instructions on this page before beginning the deregistration process.

Deregister all handsets from your telephone base

In addition to the cordless handsets, this operation will also deregister all cordless headsets and speakerphones registered to your telephone base.

1. Make sure that all handsets are out of the telephone base and chargers before you begin deregistration.

2. Press and hold /HANDSET LOCATOR on the telephone base for about 10 seconds (until the IN USE light starts to flash), then release the

/HANDSET LOCATOR button.

3. Immediately press /HANDSET LOCATOR while the IN USE light is still flashing. (The light flashes for about seven seconds. If the light stops flashing, start again with Step 1 above.)

4. It takes up to 10 seconds to complete the deregistration process. Before registering the handset again, wait for the cordless handset screen to display To register HS, see manual.

5. To register the handset(s) to the telephone base again, follow the registration instructions on the previous page.

NOTES:

If the deregistration process is not successful, you might need to reset the system and try again.

• To reset, unplug the power from the telephone base and plug it back in.

You cannot deregister the handset(s) if any other system handset is in use.

• Even if the battery is depleted, you can still deregister the handset by following the steps above.

• After the handset is charged for at least 10 minutes, the screen shows To register HS, see manual.

Page 40

Appendix

Troubleshooting

If you have difficulty with your phone, please try the suggestions below. For customer service, visit our website at www.telephones.att.com or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

For more detailed instructions, please refer to the online Complete user’s manual at www.telephones.att.com/manuals.

My telephone doesn’t work at all.

Make sure the power cord is securely plugged in.

•

Make sure you plug the battery connector securely into the cordless handset.

•

Make sure you plug the telephone line cord securely and firmly into the telephone

•

base and the telephone wall jack. Charge the battery in the cordless handset for at least 10 hours. For optimum daily

•

performance, return the cordless handset to the telephone base or charger when not in use. If the battery is depleted, it might take approximately 30 minutes to charge the

•

handset before it shows Low battery. See Reset the telephone base. Unplug the electrical power. Wait for approximately 15

•

seconds, then plug it back in. Allow up to one minute for the cordless handset and telephone base to reset. You may need to purchase a new battery. Please refer to Battery installation and

•

charging in this user’s manual on

page 6.

page 6 for details.

I cannot get a dial tone.

Try all the suggestions above.

•

Move the cordless handset closer to the telephone base. You might have moved

•

out of range. If the previous suggestions do not work, disconnect the telephone line cord from

•

your telephone and connect the telephone line cord to another telephone. If there is no dial tone on that other telephone either, then

the telephone line cord may be defective: try installing a new telephone line cord.

•

If changing the telephone line cord does not help, the wall jack (or the wiring to

this wall jack) may be defective,

try using a different wall jack in your home to connect your CL82104/CL82204/

•

CL82304/CL82354/CL82404/CL82454/CL82504/CL82554 telephone, or contact your telephone service provider (charges may apply).

•

I cannot dial out.

Try all the suggestions above.

•

Make sure you have a dial tone before dialing. The cordless handset might take a

•

second or two to find the telephone base and produce a dial tone. This is normal. Wait an extra second before dialing. Eliminate any background noise. Noise from a television, radio or other appliances

•

might cause the phone to not dial out properly. If you cannot eliminate the background noise, first try muting the cordless handset before dialing, or dialing from another room with less background noise. If other phones in your home are having the same problem, contact your telephone

•

service provider (charges might apply).

Page 41

Appendix

Troubleshooting

My cordless handset isn’t performing normally.

•

Make sure you plug the power cord securely into the telephone base. Plug the power adapter into a different, working electrical outlet without a wall switch.

•

Move the cordless handset closer to the telephone base. You might have moved out of range.

•

Reset the telephone base. Unplug the electrical power. Wait for 15 seconds, then plug it back in. Allow up to one minute for the cordless handset and telephone base to reset.

•

Other electronic products such as HAM radios and other DECT phones can cause interference with your cordless phone. Try installing your phone as far away as

possible from these types of electronic devices.

The batteries do not hold a charge.

Charge the battery in the cordless handset for at least 10 hours. For optimum daily

•

performance, return the cordless handset to the telephone base or charger when not in use. If the battery is depleted, it might take approximately 30 minutes to charge the

•

handset before it shows Low battery. Refer to the table on page 6 for details. You might need to purchase a new battery. Please refer to Battery installation

•

and charging in this user’s manual on

I experience poor sound quality when using the speakerphone.

For increased sound quality while using the speakerphone, place the handset on a

•

flat surface with the dial pad facing up.

page 6.

I get noise, static, or weak signals even when I’m near the telephone base.

If you subscribe to high-speed Internet service (DSL - digital subscriber line) through

•

your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack (see page 5). The filter prevents noise and caller ID problems as a result of DSL interference. Please contact your DSL service provider for more information about DSL filters. You may be able to improve the performance of your cordless phone by installing

•

your new telephone base as far as possible from any other existing cordless telephone system that may already be installed. Other electronic products such as HAM radios and other DECT phones can cause

•

interference with your cordless phone. Try installing your phone as far away as possible from these types of electronic devices. Do not install this phone near a microwave oven or on the same electrical outlet.

•

You might experience decreased performance while the microwave oven is operating. If you plug your phone in with a modem or a surge protector, plug the phone

•

(or modem/surge protector) into a different location. If this does not solve the problem, relocate your phone or modem farther apart from one another, or use a different surge protector. Move your phone to a higher location. The phone might have better reception in a

•

high area. If other phones in your home are having the same problem, contact your telephone

•

service provider (charges may apply).

Page 42

Appendix

Troubleshooting

My caller ID isn’t working.

Caller ID is a subscription service. You must subscribe to this service from your

•

telephone service provider for this feature to work on your phone. The caller may not be calling from an area which supports caller ID.

•

Both your and your caller’s telephone service providers must use caller ID

•

compatible equipment. If you subscribe to high-speed Internet service (DSL - digital subscriber line) through

•

your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack (page 5). The filter prevents noise and caller ID problems resulting from DSL interference. Please contact your DSL service provider for more information about DSL filters.

System does not receive caller ID when on a call.

Make sure you subscribe to caller ID with call waiting features from your telephone

•

service provider. Caller ID features works only if both you and the caller are in areas offering caller ID service, and if both telephone service providers use compatible equipment.

System does not answer after the correct number of rings.

Make sure that the answering system is on. ANS ON should show on the handset

•

and the /ANSWER ON/OFF light on the telephone base should be on.

•

If toll saver is activated, the number of rings changes to two when you have new messages stored (

•

If the memory is full or the system is off, the system will answer after 10 rings.

•

In some cases, the answering system is affected by the ringing system used by your telephone service provider.

•

If you subscribe to voicemail service, change the number of rings so that your answering system answers before your voicemail answers

page 27). To determine how many rings activate your voicemail, contact your

( telephone service provider.

•

If there is a fax machine connected to the same telephone line, try disconnecting the fax machine. If that solves the problem, consult your fax machine documentation for information on compatibility with answering systems.

page 27).

I’ve set my LCD language to Spanish or French and I don’t know how to change it back to English.

• Press MENU/SELECT in idle mode, then enter 364#. You hear a confirmation tone.

I cannot retrieve voicemail messages.

•

Your telephone has both a built-in answering system and voicemail indicator. They are independent features and each alerts you to new messages differently

(page 29). If you subscribe to voicemail service from your telephone service

provider, contact your telephone service provider for more information on how to access your voicemail.

Page 43

Appendix

Maintenance

Taking care of your telephone

Your cordless telephone contains sophisticated electronic parts, so you must treat

•

it with care. Avoid rough treatment.

•

Place the handset down gently.

•

Save the original packing materials to protect your telephone if you ever need to

•

ship it.

Avoid water

You can damage your telephone if it gets wet. Do not use the handset in the rain,

•

or handle it with wet hands. Do not install the telephone base near a sink, bathtub or shower.

Electrical storms

Electrical storms can sometimes cause power surges harmful to electronic equipment.

•

For your own safety, take caution when using electric appliances during storms.

Cleaning your telephone

Your telephone has a durable plastic casing that should retain its luster for many

•

years. Clean it only with a soft cloth slightly dampened with water or mild soap. Do not use excess water or cleaning solvents of any kind.

•

Remember that electrical appliances can cause serious injury if used when you are wet or standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Pull the unit out by the unplugged cords.

Page 44

Appendix

Important safety information

This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock.

Safety information

Read and understand all instructions in the user’s manual. Observe all markings on the product.

•

Avoid using a telephone during a thunderstorm. There may be a slight chance of electric

•

shock from lightning.

•

Do not use a telephone in the vicinity of a gas leak. Under certain circumstances, a spark may be created when the adapter is plugged into the power outlet, or when the handset is replaced in its cradle. This is a common event associated with the closing of any electrical circuit. The user should not plug the phone into a power outlet, and should not put a charged handset into the cradle, if the phone is located in an environment containing concentrations of flammable or flame-supporting gases, unless there is adequate ventilation. A spark in such an environment could create a fire or explosion. Such environments might include: medical use of oxygen without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc.

•

Do not use this product near water, or when you are wet. For example, do not use it in a wet basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub. Do not use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquid, unplug any line or power cord immediately. Do not plug the product back in until it has dried thoroughly.

•

Install this product in a protected location where no one can trip over any line or power cords. Protect cords from damage or abrasion.

•

If this product does not operate normally, see the Troubleshooting section on pages 36-38 of this user’s manual. If you cannot solve the problem, or if the product is damaged, refer to the Limited warranty section on pages 45-46. Do not open this product except as directed in your user’s manual. Opening the product or reassembling it incorrectly may expose you to hazardous voltages or other risks.

•

Replace batteries only as described on batteries — they contain caustic chemicals.

•

This power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling or an under-the-table/cabinet outlet.

Caution: Use only the power adapter provided with this product. To obtain a

replacement, visit our website at

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

For more detailed instructions, refer to the online Complete user’s manual at

www.telephones.att.com/manuals.

page 6 in this user’s manual. Do not burn or puncture

www.telephones.att.com or call

Page 45

Appendix

Important safety information

Especially about cordless telephones

•

Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and the handset by radio waves, so there is a possibility that your cordless telephone conversations could be intercepted by radio receiving equipment within range of the cordless handset. For this reason, you should not think of cordless telephone conversations as being as private as those on corded telephones.

•

Electrical power: The telephone base of this cordless telephone must be connected to a working electrical outlet which is not controlled by a wall switch. Calls cannot be made from the handset if the telephone base is unplugged, switched off or if the electrical power is interrupted.

•

Potential TV interference: Some cordless telephones operate at frequencies that may cause interference to TVs and VCRs. To minimize or prevent such interference, do not place the telephone base of the cordless telephone near or on top of a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

•

Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries. Exercise care in handling batteries in order not to create a short circuit with conductive material such as rings, bracelets and keys. The battery or conductor may overheat and cause harm. Observe proper polarity between the battery and the battery charger.

•

Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury.

The RBRC™ Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel-metal hydride rechargeable batteries when taken out of service within the United States. These batteries may be taken to a participating local retailer of replacement batteries or recycling center. Or you may call 1 (800) 8-BATTERY for locations accepting spent Ni-MH batteries.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless telephones):

Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that:

Pacemaker patients

Should keep wireless telephones at least six inches from the pacemaker.

Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket, when it is turned ON.

Should use the wireless telephone at the ear opposite the pacemaker.

WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless telephones.

Especially about telephone answering systems

Two-way recording: This unit does not sound warning beeps to inform the other party that the call is being recorded. To ensure that you are in compliance with any federal or state regulations regarding recording a telephone call, you should start the recording process and then inform the other party that you are recording the conversation.

SAVE THESE INSTRUCTIONS

Page 46

Appendix

Ener

gy-saving charging mode

When this mode is activ will be disabled.

To activate the energy-saving charging mode:

1. Unplug the t plugged with char

2. Whil back to the power outlet.

fter about 20 seconds, when the IN USE light starts flashing, release /HANDSET LOCATOR

3. A and then press it again within two seconds.

ote: The telephone base will be powered up as normal if you fail to press /HANDSET LOCATOR

N within two seconds in Step 3.

o deactivate the energy-saving charging mode:

1. Unplug the t The telephone base is powered up as normal.

2. R

egister the handsets back to the telephone base. See

instructions.

elephone base power adapter from the power outlet. Make sure all handsets are

e you

The process takes up to one minute to complete. When the phone successfully enters the energy-saving charging mode, the IN USE light turns off and all handsets display To register HS, see manual. You hear a confirmation tone.

When the phone fails to enter this mode, repeat the steps above.

elephone base power adapter from the power outlet, then plug it back in.

ated, all telephone functions, except handset battery charging,

ged batteries before proceeding.

ess and hold

/HAND

SET LOCATOR, plug the telephone base power adapter

page 34 f

or handset registration

Page 47

Appendix

CC Part 68 and ACTA

his equipment complies with Part 68 of the FCC rules and with technical requirements adopted by

T the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This identifier must be provided to your telephone service provider upon request.

The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two lines. See the installation instructions in the user’s manual.

The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. The REN for this product is encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03, the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more information, please contact your telephone service provider.

This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable the alarm equipment, consult your telephone service provider or a qualified installer.

If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the Limited warranty.

If this equipment is causing harm to the telephone network, the telephone service provider may temporarily discontinue your telephone service. The telephone service provider is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be given the opportunity to correct the problem and the telephone service provider is required to inform you of your right to file a complaint with the FCC. Your telephone service provider may make changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone service provider is required to notify you if such changes are planned.

If this product is equipped with a corded or cordless handset, it is hearing aid compatible. If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency numbers, please:

Remain on the line and briefly explain the reason for the call before hanging up.

Perform such activities in off-peak hours, such as early morning or late evening.

Indus

try Canada

Under Indus type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that, the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

try Canada regulations, this radio transmitter may only operate using an antenna of a

Page 48

Appendix

Swarning

ICRS

ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).

Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustaccept



anyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.

Leprésentappareilestcon



L'exploitationestautoriséeauxdeuxconditionssuivantes:

(1)l'appareilnedoitpasproduiredebrouillage,et

(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'en

compromettrelefonctionnement.

ICCS‐03:

Thisprodu



techniquesapplicablesd’IndustrieCanada. TheRingerEquivalenceNumber(REN)forthisterminalequipmentis0.0.TheRENisanindicationofthemaximumnumberof

terminalsallowedtobeconnectedtoatelephoneinterface.Theterminationonaninterfacemayconsistofanycombinationof

devicessubjectonlytotherequirementthatthesumoftheRingerEquivalenceNumbersofallthedevicesdoesnotexceedfive.

/L’indiced’équivalencedelasonnerie(IES)sertàindiquerlenombremaximaldeterminauxquipeuventêtreraccordésàune

interfacetéléphonique.Laterminaisond’uneinterfacepeutconsisterenunecombinaisonquelconquededispositifs,àlaseule



conditionquelasommed’indicesd’équivalencedelasonneriedetouslesdispositifsn’excèdepascinq.

Privacyofcommunicationsmaynotbeensuredwhenusingthistelephone.

Theterm“IC”beforethecertification/registrationnumberonlysihnifiesthattheIndustryCanadatechnicalspecificationswere

met



ctmeetstheapplicableIndustryCanadatechnicalspecifications./Lepresentmatérielestconformeauxspecifications

This Class B digit

formeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.

al apparatus complies with Canadian requirement:

CAN ICES-3 (B)/NMB-3(B)

FCC Part 15

This equipment has been t digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20 cm (8 inches) or more.

ested and found to comply with the requirements for a Class B

Page 49

Appendix

Limit

ed warranty

he AT&T brand is used under license - any repair, replacement or warranty service, and all questions

about this product should be directed to our website at

or call

1 (800) 222-3111. In Canada, dial 1 (866) 288-4268

or more detailed instructions, refer to the online Complete user’s manual at

.telephones.att.com/manuals

www

t does this limited warranty cover?

Wha

The manufacturer of this AT&T branded product warrants to the holder of a valid proof of purchase (“CONSUMER” or “you”) that the product and all accessories provided in the sales package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for products purchased and used in the United States of America and Canada.

What will be done if the PRODUCT is not free from defects in materials and workmanship

2. during the limited warranty period (“materially defective PRODUCT”)?

During the limited warranty period, the manufacturer’s authorized service representative will repair or replace at the manufacturer’s option, without charge, a materially defective PRODUCT. If the manufacturer repairs the PRODUCT, they may use new or refurbished replacement parts. If the manufacturer chooses to replace the PRODUCT, they may replace it with a new or refurbished PRODUCT of the same or similar design. The manufacturer will retain defective parts, modules, or equipment. Repair or replacement of the PRODUCT, at the manufacturer’s option, is your exclusive remedy. The manufacturer will return repaired or replacement products to you in working condition. You should expect the repair or replacement to take approximately 30 days.

How long is the limited warranty period?

The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the terms of this limited warranty, this limited warranty also applies to repaired or replacement PRODUCT for a period of either (a) 90 days from the date the repaired or replacement PRODUCT is shipped to you or (b) the time remaining on the original one-year limited warranty; whichever is longer.

What is not covered by this limited warranty?

This limited warranty does not cover:

PRODUCT that has been subjected to misuse, accident, shipping or other physical damage,

•

improper installation, abnormal operation or handling, neglect, inundation, fire, water, or other liquid intrusion; or

PRODUCT that has been damaged due to repair, alteration, or modification by anyone

•

other than an authorized service representative of the manufacturer; or

PRODUCT to the extent that the problem experienced is caused by signal conditions,

•

network reliability or cable or antenna systems; or

PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or

•

PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic

•

serial numbers have been removed, altered or rendered illegible; or

•

PRODUCT purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or institutional purposes (including but not limited to products used for rental purposes); or

•

PRODUCT returned without valid proof of purchase (see item 6 below); or

•

Charges for installation or setup, adjustment of customer controls, and installation or repair of systems outside the unit.

www

.telephones.att.com

Page 50

Appendix

Limit

ed warranty

5. How do y

To obtain warranty service, visit our website at

or call F

or more detailed instructions, refer to the online Complete user’s manual at

www

NO controls and features may save you a service call.

Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for delivery or handling charges incurred in the transport of the PRODUCT(s) to the service location. The manufacturer will return repaired or replaced PRODUCT under this limited warranty to you. Transportation, delivery or handling charges are prepaid. The manufacturer assumes no risk for damage or loss of the PRODUCT in transit. If the PRODUCT failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, the manufacturer will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and return shipping costs for the repair of products that are not covered by this limited warranty.

6. What must you return with the PRODUCT to get warranty service?

You must:

•

7. Other limitations

This warranty is the complete and exclusive agreement between you and the manufacturer of this AT&T branded PRODUCT. It supersedes all other written or oral communications related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT. The warranty exclusively describes all of the manufacturer’s responsibilities regarding the PRODUCT. There are no other express warranties. No one is authorized to make modifications to this limited warranty and you should not rely on any such modification.

State/Provincial Law rights: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

Limitations: Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited to one year from date of purchase. Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In no event shall the manufacturer be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the PRODUCT or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this PRODUCT. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

ou get warranty service?

.telephones.att.com

www

1 (800) 222-3111

.telephones.att.com/manuals

TE: Before calling for service, please review the user’s manual; a check of the PRODUCT’s

Return the entire original package and contents including the PRODUCT to the service location along with a description of the malfunction or difficulty; and

Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased (PRODUCT model) and the date of purchase or receipt; and

Provide your name, complete and correct mailing address, and telephone number.

. In Canada, dial

1 (866) 288-4268

ease retain your original sales receipt as proof of purchase.

Page 51

Appendix

echnical specifications

ation Operating time*

Oper

Talk time (cordless handset) Up to 7 hours

Talk time (cordless handset speakerphone) Up to 5 hours

Standby Up to 7 days

* Operating times vary depending on your actual use and the age of the battery.

DECT 6.0 digital technology

The AT&T DECT 6.0 products offer unsurpassed range performance and sound clarity. This is achieved through a unique antenna design and advances in noise-filtering technology. An independent laboratory has confirmed that AT&T DECT 6.0 products perform up to 45% better in range competitions against similarly equipped phones of the leading competition. Now calls can be taken in the basement, backyard and garage with exceptional sound quality.

Telephone operating range

This cordless telephone operates within the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and telephone base can communicate over only a certain distance — which can vary with the locations of the telephone base and handset, the weather, and the construction of your home or office.

Redefining long range coverage and clarity

This telephone base comes with an antenna which gives much better clarity and covers a longer range than before.

HD audio with equalizer for cuztomized audio

HD audio improves sound quality by expanding and rebuilding frequencies that are lost with traditional phone calls. There is no additional telephone service requirement to use HD audio. It is designed to work with standard telephone service. Your system will automatically enhance all received sound with HD audio. Choose from 4 preset audio profiles. The equalizer feature allows you to select from profiles that emphasize bass, treble, and natural tones to meet your individual hearing needs.

ompatible with

Hearing Aid T-Coil

elephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license.

TIA-1083

The ENER the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines.

GY STAR® program (www.energystar.gov) recognizes and encourages

Page 52

Inde

Answering calls, 13 Answering s Assign a speed dial entry, 22

ystem, 25–33

tery charging, 6

Bat Battery installation, 6 Blind transfer, 15

er ID (CID),

Call

Add entries to phone directory, 24 Dial entries, 23 Review entries, 23

Save entries, 24 Caller ID announce, 9 Call transfer using intercom, 17 Call waiting, 23 Chain dialing, 15 Charger installation, 5 Clock, 9

y and time, 9

Da Deregistering handset, 35 Dialing,

From a record in the caller ID

history, 23

Directory,

Delete, 21

Edit, 21

New entries, 20

Review, 21

Search by name, 21 DSL, 5

Handset,

Handset l Quick reference guide, 2–4 Ringer tone, 8 Speakerphone, 13

HD audio, 46

ocator, 14

ant safety information, 40–41

Import Intercom, 16, 17

CD language, 8

Reset to English, 8, 38

Limited warranty, 44–45

enance, 39

Maint Making calls, 13 Memos, 32 Message,

Alert tone, 28 Playback, 31

Names,

er into directory, 20

Ent Search for, 21

going announcement, 25

Out

Paging tone, 14 Power adapter, 1, 5 Push to talk, 18–19

Ending calls, 13 Equaliz

er, 13

Page 53

Inde

Quick r QUIET mode, 12

eference guide, 2–4

eceiving calls, 13

R Recharging, 6 Registering handset, 34 Remote access, 33 Ringer silencing, 13 Ring tone options, 8

fety information, 40–41

Sa Speakerphone, 13 Speed dial, 22

Assign number, 22

Make a call, 22

Set voicemail number, 10

echnical specifications, 46

T Telephone operating range, 46 Time, setting, 9 Troubleshooting, 36–38

isual message waiting indicator, 10

V Voicemail, 10, 29

Quick access, 10, 22 Voice prompts, 30 Volume control,

Base, 31

Handset, 8, 14

all-mount installation, 7

W Warranty, 44–45

Page 54

or more detailed instructions, refer to the Complete user’s

manual at www.telephones.att.com/manuals.

or customer service or product information, please visit our website at www.telephones.att.com, or call 1 (800) 222-3111 In Canada, dial 1 (866) 288-4268.

AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to

Advanced American Telephones, San Antonio, TX 78219.

Printed in China. Issue 1.0 AT&T 02/14.
