Vtech 6042 User Manual

Download

Congratulations

on purchasing your new VTech product.

Before using this telephone, please read the

Important safety instructions

on page 39 of this manual.

This manual has all the feature operations and troubleshooting necessary to install

and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech

product. For support, shopping, and everything new at VTech, visit our website at

www.vtechphones.com. In Canada, please visit www.vtechcanada.com.

The ENERGY STARR program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STARR label indicating it meets the latest energy efficiency guidelines.

www.vtechphones.com

Table of contents

Installation . . . . . . . . . . . . . . . . . . . . . . . . 1

Parts checklist . . . . . . . . . . . . . . . . . . . . . . 1

Install handset batter y . . . . . . . . . . . . . . . . . . 2

Telephone base installation . . . . . . . . . . . . . . . 3

Desk/table bracket installation . . . . . . . . . . . . . . 4

Dial type . . . . . . . . . . . . . . . . . . . . . . . . . 4

DSL lter . . . . . . . . . . . . . . . . . . . . . . . . . 5

Telephone settings . . . . . . . . . . . . . . . . . . . . 6

Handset layout . . . . . . . . . . . . . . . . . . . . . . 6

Telephone base layout . . . . . . . . . . . . . . . . . . 7

Date and time . . . . . . . . . . . . . . . . . . . . . . . 8

Ring melody . . . . . . . . . . . . . . . . . . . . . . . 8

Ring volume . . . . . . . . . . . . . . . . . . . . . . . 9

Battery low tone . . . . . . . . . . . . . . . . . . . . . 9

Out of range tone . . . . . . . . . . . . . . . . . . . . 10

Key tone . . . . . . . . . . . . . . . . . . . . . . . . 10

Edit handset name . . . . . . . . . . . . . . . . . . . 11

Language . . . . . . . . . . . . . . . . . . . . . . . . 11

Dial type . . . . . . . . . . . . . . . . . . . . . . . . 12

Clear voicemail . . . . . . . . . . . . . . . . . . . . . 12

Reset to default settings . . . . . . . . . . . . . . . . 13

Temporary tone dialing . . . . . . . . . . . . . . . . . 13

Basic operation . . . . . . . . . . . . . . . . . . . . . 14

Make, answer and end calls . . . . . . . . . . . . . . 14

Options while on calls . . . . . . . . . . . . . . . . . 14

Speakerphone . . . . . . . . . . . . . . . . . . . . . 14

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Call waiting . . . . . . . . . . . . . . . . . . . . . . . 14

Intercom call . . . . . . . . . . . . . . . . . . . . . . 15

Multiple handset use . . . . . . . . . . . . . . . . . . 15

Answer an external call during an intercom call . . . . 15

Transfer an external call . . . . . . . . . . . . . . . . 16

Find handset . . . . . . . . . . . . . . . . . . . . . . 16

Advanced operation . . . . . . . . . . . . . . . . . . 17

Director y . . . . . . . . . . . . . . . . . . . . . . . . 17

Review the directory . . . . . . . . . . . . . . . . . . 17

Search the directory . . . . . . . . . . . . . . . . . . 17

Chart of characters . . . . . . . . . . . . . . . . . . . 18

Store an entry in the directory . . . . . . . . . . . . . 19

Dial a directory entry . . . . . . . . . . . . . . . . . . 19

Edit an entry in the directory . . . . . . . . . . . . . . 20

Delete from the director y . . . . . . . . . . . . . . . 20

About caller ID information . . . . . . . . . . . . . . . 21

Call log . . . . . . . . . . . . . . . . . . . . . . . . . 22

Review the call log . . . . . . . . . . . . . . . . . . . 22

Dial a call log number . . . . . . . . . . . . . . . . . 23

Store a number from the call log . . . . . . . . . . . . 23

Delete from the call log . . . . . . . . . . . . . . . . . 24

Redial . . . . . . . . . . . . . . . . . . . . . . . . . 25

Review redial . . . . . . . . . . . . . . . . . . . . . . 25

Store a number from redial to the directory . . . . . . 25

Dial a number from redial . . . . . . . . . . . . . . . 26

www.vtechphones.com

Table of contents

Delete from redial. . . . . . . . . . . . . . . . . . . . 26

Answering system operation . . . . . . . . . . . . . . 27

Message capacity . . . . . . . . . . . . . . . . . . . 27

Activate the answering system . . . . . . . . . . . . . 28

Set number of rings. . . . . . . . . . . . . . . . . . . 28

Set telephone base date and time . . . . . . . . . . . 28

Set telephone base melody . . . . . . . . . . . . . . 29

Set telephone base ringer volume . . . . . . . . . . . 29

Change personal identication number (PIN) . . . . . 30

Outgoing announcements . . . . . . . . . . . . . . . 31

Play the announcement . . . . . . . . . . . . . . . . 31

Record your own announcement . . . . . . . . . . . 31

Delete your announcement. . . . . . . . . . . . . . . 32

Message playback . . . . . . . . . . . . . . . . . . . 32

Options during playback . . . . . . . . . . . . . . . . 32

Delete all messages . . . . . . . . . . . . . . . . . . 32

Remote access . . . . . . . . . . . . . . . . . . . . . 33

Message window displays . . . . . . . . . . . . . . . 34

Handset and telephone base indicators . . . . . . . . 35

Handset light . . . . . . . . . . . . . . . . . . . . . . 35

Telephone base lights . . . . . . . . . . . . . . . . . 35

Handset icons . . . . . . . . . . . . . . . . . . . . . 35

Handset display screen messages . . . . . . . . . . . 36

Call log display messages . . . . . . . . . . . . . . . 37

Battery . . . . . . . . . . . . . . . . . . . . . . . . . 38

Important safety instructions . . . . . . . . . . . . . . 39

Troubleshooting . . . . . . . . . . . . . . . . . . . . 40

Operating range . . . . . . . . . . . . . . . . . . . . 50

Maintenance . . . . . . . . . . . . . . . . . . . . . . 50

About cordless telephones . . . . . . . . . . . . . . . 51

Warranty . . . . . . . . . . . . . . . . . . . . . . . . 51

FCC, ACTA and IC regulations . . . . . . . . . . . . . 53

The RBRC® Seal . . . . . . . . . . . . . . . . . . . . 54

Technical specications . . . . . . . . . . . . . . . . 55

Index . . . . . . . . . . . . . . . . . . . . . . . . . . 56

www.vtechphones.com

iii

Installation

Parts checklist

Remember to save your sales receipt and original packaging in case it is necessary to ship your telephone for warranty service. Check to make sure the telephone package includes the following:

1. Quick start guide

2. Handsets (2 for 6042/604 3,

3 for 6052 /605 3)

3. Telephone base

4. User’s manual

5. Chargers (1 for 6042 /6043,

2 for 6052 /605 3)

6. Charger adapters (1 for 6042 /6043,

2 for 6052 /605 3)

7. Base power adapter

8. Batteries (2 for 6042/604 3,

3 for 6052 /605 3)

9. Batter y compartment covers (2 for 6042/604 3,

3 for 6052 /605 3)

10. Telephone line cord

1. Quick start guide

4. User’s manual

2. Handsets

5. Chargers

3. Telephone base

6. Charger adapters

To p urcha se

• re pl aceme nt ba tt eries , or obtain a replacement power adapter, vi si t our website at www. vt echph on es. com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada. com or call 1 (800) 267-7377.

Installation

Basic operation

7. Base power adapter

8. Batteries

9. Battery compartment covers

www.vtechphones.com

10. Telephone line cord

If the handset will

• not be used for a long period of time, remove the bat tery to prevent possible leakage.

To p urcha se

• re pl aceme nt ba tt eries , vis it our website at www. vt ec hphon es. co m or call 1 (800) 595-9511. In Canada, go to www.vtechcanada. com or call 1 (800) 267-7377.

Installation

Install handset battery

• Remove battery compartment cover by pressing on the indentation and sliding it downwards.

• Align the two holes in the plug with the socket pins according to the color-coded label in the battery compartment, then snap the plug into place.

• Place the battery into the compartment.

• Position the battery compartment cover and slide it upwards until it clicks into place.

•

Put the handset in the telephone base or the charger to charge the new battery for at least 16 hours.

You can keep the battery charged by returning the handset to the telephone base or charger after each use. When the battery power is fully depleted, a full recharge takes about 16 hours.

For further information on batteries, please see the

color-coded label

Battery

section on page 38.

www.vtechphones.com

Installation

Telephone base installation

Install the telephone base and the charger as shown below. Choose a location away from any electronic equipment and appliances such as personal computers, computer routers, television sets, microwave ovens, and refrigerators. Avoid excessive heat, cold, dust or moisture.

1. Plug the telephone line cord into a telephone wall jack.

2. Plug the power adapter into an electrical outlet not controlled by a wall switch.

Use only the

• VTech batteries and power adapters (or equivalent) supplied with this telephone. To obtain a replacement, visit our website at www.vtechphones. com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada. com or call 1 (800) 267-7377.

This power unit

• is intended to be correctly oriented

in a vertical or oor

mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-thetable or cabinet outlet.

Installation

Basic operation

www.vtechphones.com

Installation

Desk/table bracket installation

The telephone base comes with the desk/table bracket installed and ready for tabletop use.

To remove the bracket:

1. Push the bracket away from the telephone base as shown below. Do not remove the bracket by force to avoid breakage of the tabs.

Dial type

If you have touch-tone service, your telephone is ready to use as soon as the battery is charged. If

you have pulse (rotary) service, the dial type must be changed. To change the dial type, see Dial type on page 12.

To install the bracket:

1. Align the tabs of the bracket with the slots at the bottom of the telephone base as shown in the diagram.

2. Slide the bracket towards the center of the teleph on e bas e until it cli cks into place.

www.vtechphones.com

Installation

If you subscribe to DSL service

If you receive high speed internet through your telephone line (commonly referred to as DSL), and you are experiencing interference during telephone conversations and/or your caller ID features are

not functioning properly, install a DSL lter to the telephone line between the telephone base and the telephone wall jack. Contact your DSL provider for a DSL lter.

DSL lter (for

DSL users)

To single telephone jack (RJ11C) Telephone line cord

Installation

Basic operation

www.vtechphones.com

Telephone settings

Handset layout

1. Earpiece

2. / (directory/volume)

3. (speakerphone)

4. /FLASH

5. Dialing keys (0-9,*,#)

6. REDIAL/PAUSE

7. Microphone

8. Handset display

9. MENU/SELECT

10. CID / (caller ID/volume)

11. OFF/CLEAR

12. MUTE/REMOVE

13. INT (intercom)

2 3

10 11

12 13

www.vtechphones.com

Telephone settings

Telephone base layout

1. CHARGE light

2. IN USE light

3. /REPEAT

4. Message window

5. FIND HANDSET

6. Speaker

7. VOICEMAIL light

8. X/DELETE

9. VOLUME+/-

10. /SKIP

11. ANS ON/OFF (answer on/off)

12. Microphone

13. NO. OF RINGS

14. ANNC (announcement)

15. /PLAY/STOP

1 2 3

Telephone settings

Basic operation

10 11

www.vtechphones.com

Telephone settings

When entering

• the date or time, if the digit is single, a zero must be

entered rst (i.e.

if the time is 6:08, you must enter

0608). If you have

• more than one handset, setting the date and time on one handset will apply to all other handsets.

The ring melody

• for the telephone base is set separately from the handset ring melody. See page 29 to set the telephone base melody.

Date and time

• Press MENU/SELECT to display menu when in idle mode.

• Press or to reach DATE/TIME. Press MENU/SELECT.

• Use the keypad to set the year. Press MENU/SELECT.

• Use the keypad to set the date. Press MENU/SELECT.

•

Use the keypad to set the time. Press or to select a.m. or p.m.

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

Ring melody

There are ten ring melodies for the handset to choose from.

• Press MENU/SELECT to display menu when in idle mode.

• Press or to reach SETUP HS. Press MENU/SELECT.

• Press or to reach RING MELODY. Press MENU/SELECT, and

a checkmark is shown next to the current ring melody.

• Press or to scroll through the choices and a sample of each ring melody will be played.

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

www.vtechphones.com

YeAr 200\

dAte \1/01

tIMe \2:12AM

rING MelodY rING voluMe

MelodY 1 MelodY 2

Stored

Telephone settings

Ring volume

The handset ringer volume can be adjusted, there are ve levels to

choose from.

• Press MENU/SELECT to display menu when in idle mode.

• Press or to reach SETUP HS. Press MENU/SELECT.

• Press or to reach RING VOLUME. Press MENU/SELECT.

• Press or to scroll through the choices and a sample of each ring volume will be played.

• Press MENU/SELECT to conrm selection. The screen displays

STORED and you’ll hear a conrmation beep.

You can adjust the ringer volume by pressing VOL+/VOL- on the telephone base when the telephone is ringing.

Battery low tone

The handset is preset to beep when the battery level is low.

• Press MENU/SELECT to display the menu when in idle mode.

• Press or to reachto reach SETUP HS. Press MENU/SELECT.

• Press or to reachto reach TONES. Press MENU/SELECT.

• Press or to reachto reach BATTERY LOW. Press MENU/SELECT.

• A checkmark is shown next to the current selection. Press or to choose ON or OFF.

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

toNeS HANdSet NAMe

BAtterY low out of rANGe

oN off

The handset will

• not ring when the ringer volume is at the lowest setting. A ringer off icon will be displayed.

While the

• telephone is ringing, you can temporarily silence the ringer by pressing

OFF/CLEAR or MUTE/REMOVE.

The next call will ring normally. A ringer off icon will be displayed.

The volume of

• the telephone base ringer is set separately from the handset ringer. See page 29 for telephone base ringer volume settings.

Telephone settings

Basic operation

www.vtechphones.com

Telephone settings

Press OFF/CLEAR

• at anytime to return to the previous screen.

Press and hold

• OFF/CLEAR at anytime to exit the menu.

Out of range tone

The handset will beep during a conversation when it is out of range from the telephone base. This tone is preset to ON.

• Press MENU/SELECT to display the menu when in idle mode.

• Press or to reachto reach SETUP HS. Press MENU/SELECT.

• Press or to reachto reach TONES. Press MENU/SELECT.

• Press or to reachto reach OUT OF RANGE. Press MENU/SELECT.

• A checkmark is shown next to the current selection. Press or

to choose ON or OFF.

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

Key tone

The handset is preset to beep whenever any button is pressed.

• Press MENU/SELECT to display the menu when in idle mode.

• Press or to reach SETUP HS. Press MENU/SELECT.

• Press or to reach TONES. Press MENU/SELECT.

• Press or to reach KEY BEEPS. Press MENU/SELECT.

• A checkmark is shown next to the current selection. Press or to

select ON or OFF.

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

www.vtechphones.com

toNeS HANdSet NAMe

out of rANGe KeY BeePS

oN off

Telephone settings

Edit handset name

• Press MENU/SELECT to display the menu when in idle mode.

• Press or to reach SETUP HS. Press MENU/SELECT.

• Press or to reach HANDSET NAME. Press MENU/SELECT. Press MUTE/REMOVE to backspace and erase characters.

• Press and hold MUTE/REMOVE to delete the entire entry. Press * to alternate between uppercase and lowercase.

• Use the keypad to enter characters (see the chart on page 18.)

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

Language

To change the language for all screen displays:

• Press MENU/SELECT to display menu when in idle mode.

• Press or to reach SETUP HS. Press MENU/SELECT.

• Press or to reach LANGUAGE. Press MENU/SELECT.

• A checkmark is shown next to the current selection. Press or to choose the desired language.

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

www.vtechphones.com

HANdSet NAMe lANGuAGe

eNter NAMe HANdSet\

lANGuAGe reSet

A handset name

• can be up to 14 characters only.

Only handset

• display screens are affected by the language setting.

Basic operation

Telephone settings

The clear voicemail

• feature only turns off the displayed NEW VOICEMAIL message and VOICEMAIL light on the telephone base. It does not delete your voicemail message(s). Use this feature when the telephone indicates there is voicemail when you have none or you have accessed your voicemail from a remote location (while away from home). If there is actually a new voicemail message, your local telephone company will continue to send a signal which will cause the NEW VOICEMAIL message in the handset and the telephone base VOICEMAIL light to

ash.

Dial type

The dial type is preset to touch tone. If you have pulse (rotary) service, the dial type must be changed.

• Press MENU/SELECT to display menu when in idle mode.

• Press or to reach SETUP BS. Press MENU/SELECT.

• Press or to reach DIAL TYPE. Press MENU/SELECT.

• A checkmark is shown next to the current selection. Press or

to choose between TONE and PULSE.

• Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

Clear voicemail

If you subscribe to voicemail services provided by your local telephone company, NEW VOICEMAIL will appear on the handset display and the VOICEMAIL light on the telephone base will ash when you have a new voicemail message. This feature allows you to turn off these indicators.

• Press MENU/SELECT to display the menu when in idle mode.

• Press or to reach SETUP BS. Press MENU/SELECT.

• Press or to reachto reach CLR VOICEMAIL. Press MENU/SELECT.

• The screen displays INDICATOR OFF? Press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

www.vtechphones.com

dIAl tYPe clr voIceMAIl

toNe PulSe

clr voIceMAIl reSet

INdIcAtor off?

Telephone settings

Reset to default settings

The handset and the telephone base can be individually reset to their default settings by selecting RESET in the SETUP HS or SETUP BS menus respectively.

• Press MENU/SELECT to display menu when in idle mode.

•

Press or to reach SETUP HS or SETUP BS. Press

MENU/SELECT.

• Press or to reach RESET. Press MENU/SELECT.

• The screen displays RESET? Press MENU/SELECT to conrm or OFF/CLEAR to exit to the previous menu.

• The screen displays STORED and you’ll hear a conrmation beep.

Temporary tone dialing

If you have pulse (rotary) service, you can change from pulse to touch tone dialing during a call by pressing *TONE. This is useful if you need to send touch tone signals for access to telephone banking or long distance services.

Press /FLASH.

• Press *TONE. Buttons pressed after this send touch tone signals.

• Dial the number.

• After hanging up, the telephone automatically returns to pulse dial

• service.

www.vtechphones.com

reSet rING MelodY

reSet?

When default

• settings are reset, all the previously stored settings cannot be retrieved.

When the handset

• default settings are reset, the entire directory will be deleted.

When the

• telephone base default settings are reset, the entire call log will be deleted.

Basic operation

Press or to

• adjust the listening volume during a conversation.

Basic operation

Make, answer and end calls

• Press /FLASH or , then use the keypad to dial a number.

-OR-

•

Dial a number (press MUTE/REMOVE to make corrections) and then press

/FLASH or .

• Press /FLASH, or any dialing keys (0 -9, * or #) to answer an

incoming call.

• Press OFF/CLEAR or put the handset back to the telephone base or

charger to end a call.

• The call timer will be activated during a call to show call duration.

Options while on calls Speakerphone

•

Press to alternate between speakerphone and normal handset use.

Mute

•

Press MUTE/REMOVE on the handset to silence the microphone during a conversation. You can still hear the caller but the caller cannot hear you.

• The screen displays MUTE.

• Press MUTE/REMOVE again to resume conversation.

Call waiting

If you subscribe to call waiting service and you are on a call when a new call comes in, you will hear a beep. The caller ID information will be displayed if you subscribe to caller ID service from your local telephone company.

• Press /FLASH on the handset to answer the incoming call and put

the current call on hold.

• Press /FLASH at anytime to alternate between calls.

www.vtechphones.com

PHoNe 00:00:10 595-9511

MUTE

Basic operation

Intercom call

This feature allows conversation between handsets.

• Press INT on a handset and its screen displays NUMBER.

• Use the keypad to select a destination handset. The screen of the

orignating handset displays CALLING HANDSET X.

• The destination handset rings and its screen displays

CALLING FROM: HANDSET X.

•

Press /FLASH, or any dialing keys (0-9, * or #) on the destination handset to answer the call.

• To end an intercom call, press OFF/CLEAR on the handset or by placing

the handset back on the telephone base or charger.

Multiple handset use

While on a call, the person on the other handset can join the conversation.

• Press /FLASH or to join the conversation. (Only two handsets can

join the conference conversation at the same time.)

• Press OFF/CLEAR, or place the handset in the telephone base or charger

to drop out of the call. The external call will not be terminated until both handsets hang up.

Answer an external call during an intercom call

There will be an alert tone to signify an incoming external call during an intercom call and the screen displays CALL WAITING.

Disconnect the intercom call by pressing OFF/CLEAR and the handset

• will ring.

Press

• incoming call.

/FLASH, or any dialing keys (0-9, * or #) to answer the

www.vtechphones.com

INtercoM NuMBer

cAllING HANdSet X

cAllING froM: HANdSet X

coNf 00:02:48

For 6042/6043,

•

press INT to directly call the other handset. It is not necessary to press any number key.

Basic operation

If the destination

• handset does not answer, press OFF/CLEAR on the originating handset to return to the external call.

Press and hold

• FIND HANDSET to page handsets while listening to messages.

Transfer an external call

An external call can be forwarded to another handset during a conversation.

• Press INT and put the call on hold on the originating handset.

• Use the keypad to select the destination handset and the screen displays CALLING HANDSET X. (For 6052/6053 only)

• The destination handset rings and its screen displays

CALLING FROM: HANDSET X.

• After the destination handset is answered, press MENU/SELECT and then press or to reach CONFERENCE.

• Press MENU/SELECT to let the destination handset join the conversation.

• Press MENU/SELECT and the screen displays END CONFERENCE and then press MENU/SELECT to return to the intercom conversation.

•

During the intercom conversation, press MENU/SELECT and use or to reach OTHER CALL to return to the external call and put the intercom on hold. Repeat this step to switch between the external and intercom call.

• Press OFF/CLEAR on the originating handset to forward the external call to the destination handset.

Find handset

• Press FIND HANDSET on the telephone base to locate the handset when in idle mode. All handsets will ring and PAGING will ash on the screen of all handsets.

• Press FIND HANDSET again or put the handsets back on the telephone base or charger to stop the paging tone.

www.vtechphones.com

coNfereNce otHer cAll

otHer cAll coNfereNce

eNd coNfereNce

PAGING

Advanced operation

Directory

The directory can store up to 50 entries. Each entry may consist of a number up to 24 digits and a name up to 15 characters.

• The screen displays EMPTY if there is no record in the directory.

• The screen displays FULL if the directory is full.

Review the directory

• Press / to enter the directory.

• Press or to browse and press OFF/CLEAR to exit.

-OR-

• Press MENU/SELECT to display menu when in idle mode.

• Press or to reach DIRECTORY. Press MENU/SELECT.

• Press or to reach REVIEW. Press MENU/SELECT.

• Press or to browse and press OFF/CLEAR to exit.

Search the directory

Entries are sorted alphabetically and names beginning with numbers

are listed rst.

An alphabetical search can be done after entering the directory. Enter

the rst letter of the name using the chart on page 18. The rst name

beginning with that letter will be displayed.

For example, press 5 (JKL) once to nd Jenny, twice to nd Kristen, or three times to nd Linda.

-OR-

You can search the directory by pressing or on the handset.

eMPtY

dIrectorY cAll loG

revIew Store

vtecH 1-595-9511

If more than 24

• digits are entered when storing a telephone number, there will be an error tone.

Advanced operation

www.vtechphones.com

Press

•

repeatedly to alternate between uppercase and lowercase when entering characters.

Advanced operation

Chart of characters

Use the keypad and the chart below to enter a name (up to 15 characters). Each press of a particular key causes the characters to be displayed in the following order:

Number Characters by number of key presses

key 1 2 3 4 5 6 7 8 9

1 space 1 * ? ! / ( )

2 A B C 2

3 D E F 3

4 G H I 4

5 J K L 5

6 M N O 6

7 P Q R S 7

8 T U V 8

9 W X Y Z 9

0 0

# #

•

Uppercase/lowercase

Press MUTE/REMOVE to backspace and erase a single character. Press and hold MUTE/REMOVE to delete the entire entry. Press and hold REDIAL/PAUSE to insert a dialing pause (P is displayed) when entering a

telephone number.

, - . &

www.vtechphones.com

Advanced operation

Store an entry in the directory

• Press MENU/SELECT twice to enter the DIRECTORY.

• Press or to reach STORE and then press MENU/SELECT.

• The screen displays ENTER NUMBER. Use the keypad to enter the number and then press MENU/SELECT.

• The screen displays ENTER NAME. Use the keypad to enter the characters and then press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

Dial a directory entry

• Press / to enter the directory.

• Press or to scroll to the desired entry, or use the alphabetical

search to nd it.

• Press /FLASH or to dial.

-OR-

• Press MENU/SELECT to display menu when in idle mode.

• Press or to reach DIRECTORY. Press MENU/SELECT.

• Press or to reach REVIEW. Press MENU/SELECT.

• Press or to scroll to the desired entr y, or use the alphabetical

search to nd it.

• Press /FLASH or to dial.

www.vtechphones.com

Store revIew

eNter NuMBer

Advanced operation

eNter NAMe

Stored

Advanced operation

Press OFF/CLEAR

• to return to the previous screen. Press and hold OFF/CLEAR to exit the menu if you do not want to delete all the entries.

Edit an entry in the directory

• Press / or MENU/SELECT three times to enter the directory.

• Press or to scroll to the desired entry or use the alphabeticalto scroll to the desired entry or use the alphabetical

search to nd the number. Press MENU/SELECT.

•

The screen displays ENTER NUMBER. Use MUTE/REMOVE and thethe keypad to edit the number and presspress MENU/SELECT.

• The screen displays ENTER NAME. Use MUTE/ keypad to edit the name and then press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep.

REMOVE and

the

Delete one or all entries in the directory

• Press / or MENU/SELECT three times to enter the directory.

• Press or to scroll to the desired entr y

To delete an entry

• Press MUTE/REMOVE.

• The screen displays DELETED and there is a conrmation beep.

To delete all entries

• Press and hold MUTE/REMOVE.

• The screen displays DELETE ALL? Press MENU/SELECT.

• The screen displays DELETED and you’ll hear a conrmation beep.

www.vtechphones.com

eNter NuMBer

eNter NAMe

Stored

deleted

delete All?

Advanced operation

About caller ID information

If you subscibe to caller ID service from your local telephone company, this feature displays the name and telephone number of the caller before answering a call (even when you are on another call). The caller ID features of this product will work only if you subscribe to caller ID service and both you and the caller are in areas offering caller ID service, and if both telephone companies use compatible equipment.

Contact your local telephone company if:

•

you have both caller ID and call waiting, but as separate services (you may need combined service),

• you have only caller ID service, or only call waiting service,

• you do not subscribe to caller ID or call waiting services but wish to try them.

There may be fees for these services, and they may not be available in all areas.

This product can be used without subscribing to either caller ID or combined caller ID with call waiting service, although the caller ID features of this product will not function.

Advanced operation

www.vtechphones.com

Due to regional

• service differences, the caller ID information may not be available for every incoming call. In addition, the callers may intentionally block their name and/or telephone number.

The time is

• automatically set and updated with incoming caller ID information if you subscribe to this service.

Advanced operation

Call log

The information of the caller will be displayed if you subscribe to caller ID service from your local tephone company.

• The call log can store up to 50 entries. Each entry may consist of a number up to 20 digits and a name up to

• 15 characters. If the number consists of more than 20 digits, the last 20 digits will be displayed and stored. If the name consists of more than

15 characters, the rst 15 characters will be displayed and stored.

• Entries are displayed in chronological order with the newest entry

rst.

• When the call log is full, the oldest entry will be deleted to make room for the new incoming call information.

• The screen displays EMPTY if there is no record in the call log.

• The screen displays NEW if there are new call log entries (missed and unread calls).

• Duplicate or anonymous calls (no caller ID information) will be stored in the call log.

Review the call log

• Press CID/ to enter the call log.

-OR-

Press MENU/SELECT. Press or to select CALL LOG.

•

Press MENU/SELECT and then press or to browse through the entries.

• The name (if available), number, date and time of the incoming call are displayed on the screen.

www.vtechphones.com

JoHNNY fu

2-345-6789

New

05:27PM 11/23

eMPtY

Advanced operation

Dial a call log number

• Press CID/ to enter the call log.

-OR-

Press MENU/SELECT. Press or to select CALL LOG.

•

• Press MENU/SELECT and then press or to scroll to the desired

entry.

• Press /FLASH or to dial.

Store a number from the call log

• Press Press CID/ to enter the call log.

-OR-

Press MENU/SELECT. Press or to select CALL LOG.

•

Press MENU/SELECT and then press or to scroll to the desired entry.

• Press Press MENU/SELECT and the screen displays ENTER NAME.

• Use the keypad to enter the name and then press Use the keypad to enter the name and then press MENU/SELECT.

• The screen displays The screen displays STORED and you’ll hear a conrmation beep.

eNter NAMe

Stored

While reviewing

• the call log, press # repeatedly to display the other dialing options. The available options are: (1 + area code + number, area code + number, 1 + number, number only). The various dialing options are:

595-9511 1-595-9511 800-595-9511 1-800-595-9511

Advanced operation

www.vtechphones.com

Press OFF/CLEAR

• to return to the previous screen. Press and hold OFF/CLEAR to exit the menu if you do not want to delete all the entries.

Advanced operation

Delete one or all entries in the call log

• Press CID/ to enter the call log.

-OR-

Press MENU/SELECT. Press or to select CALL LOG.

•

To delete one entry

• Press or to scroll to the desired entr y and then press MUTE/REMOVE.

• The screen displays DELETED and you’ll hear a conrmation beep.

To delete all entries

• Press and hold MUTE/REMOVE when in the CALL LOG.

• The screen displays DELETE ALL? Press MENU/SELECT.

• The screen displays DELETED and you’ll hear a conrmation beep.

deleted

delete All?

www.vtechphones.com

Advanced operation

Redial

The redial list can store up to 10 of the most recently dialed numbers.

• When there are already 10 entries in the redial list, the oldest entry will be deleted to make room for the new one.

• The screen displays EMPTY if there is no record on the list.

Review redial

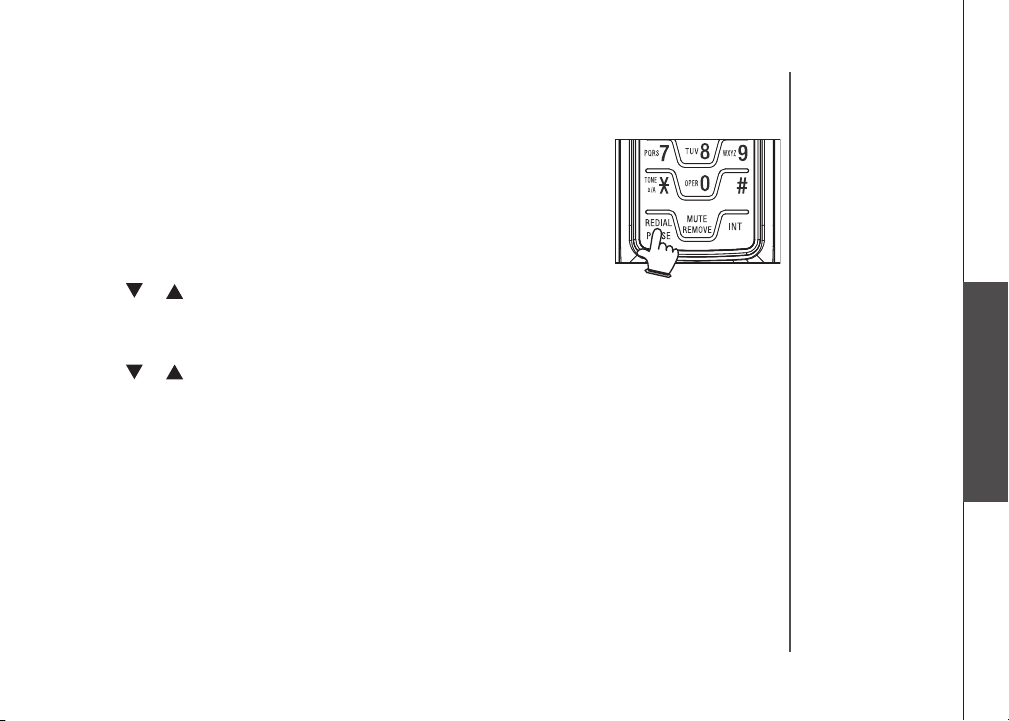

• Press REDIAL/PAUSE to enter the redial list.

• Press or to browse through the entries.

Store a number from redial to the directory

• Press Press REDIAL/PAUSE to enter the redial list.

• Press Press or to scroll to the desired entr y. Press MENU/SELECT.

• The screen displays The screen displays ENTER NAME.

• Use the keypad to enter the name and then press Use the keypad to enter the name and then press MENU/SELECT.

• The screen displays The screen displays STORED and there is a conrmation beep.

Advanced operation

www.vtechphones.com

Press OFF/CLEAR

• to return to the previous screen. Press and hold OFF/CLEAR to exit the menu if you do not want to delete all the entries.

Advanced operation

Dial a number from redial

• Press REDIAL/PAUSE to enter the redial list.

• Press or to scroll to the desired entr y.

• PressPress /FLASH or to dial.

Delete one or all entries from redial

• Press REDIAL/PAUSE to enter the redial list.

To delete one entry

• Press or to scroll to the desired entr y and then press MUTE/REMOVE.

• The screen displays DELETED and you’ll hear a conrmation beep.

To delete all entries

• Press and hold MUTE/REMOVE.

• The screen displays DELETE ALL? Press MENU/SELECT.

• The screen displays DELETED and you’ll hear a conrmation beep.

deleted

delete All?

www.vtechphones.com

Answering system operation

Message capacity

The answering system can record up to 99 messages, depending on the length of each message. The total maximum recording time is 15 minutes and each individual message can be up to four minutes long. Messages will remain available for replay until they are deleted.

X/DELETE

Press to de lete message curr ently pl aying. When idl e, press an d hold to delete all

/REPE AT

Press to repeat a mess age (page 32).

Message window

Shows the status an d number of messages (page 34).

messag es (page 32).

ANNC

Press to play or record the outgoing announ cement (page 31).

/SKIP

Press to sk ip to next messag e (page 32).

/ /VOLUM E+/-

Pr es s t o ad jus t vo lu me during p layback ( page 32). Press to ad just call screen ing volum e (page 32). Press to ad just ringer volume while the te lephon e is ringi ng (page 29).

/PLAY/STOP

Press to play or stop playing messag es (page 32).

ANS ON /OFF

Press to turn on or off the answeri ng system (p age 28).

Advanced operation

www.vtechphones.com

When ANS ON/OFF

•

is turned off, your telephone will ring 10 times before answering and prompting for the remote access code.

Answering system operation

Activate the answering system

The ANS ON/OFF must be on (the button light will be on) in order for the machine to answer calls and record messages. If the button light is off then calls will not be answered.

To turn on/off the answering system, press ANS ON/OFF to choose between on and off.

Use the volume control button on the telephone base to adjust the volume at anytime during the setup procedure.

Set number of rings

This feature allows you to select the number of times the telephone rings before the answering system answers. You can choose from two, four, six, eight rings or toll saver. When toll saver is activated, the answering system answers after two rings when there are new messages, and after six rings when there are no new messages.

• Press NO. OF RINGS when in idle mode and the system announces the current setting.

• The system announces “To change the setting, press number of rings again.”

• Press NO. OF RINGS repeatedly until the desired setting is announced. If you do not press the

ANNC button for about two seconds, the setting will be saved and there is a conrmation beep.

Set telephone base date and time

The answering system announces the day and time the message was received before playing each message. Set the date and time before using the answering system so all messages are dated correctly. Setting handset date and time will simultaneously update the telephone base date and time.

The system will announce “ Please set the handset clock” before message playback if you do not set the date and time before using this system.

www.vtechphones.com

Answering system operation

Set telephone base melody

There are six ring melodies to choose from.

• Press MENU/SELECT on the handset to display menu when in idle

mode.

• Press or to reach SETUP BS. Press MENU/SELECT.

• Press or to reach BS MELODY. Press MENU/SELECT and a

checkmark is shown next to the current melody.

• Press or to scroll through the choices and a sample of each melody will be played on the telephone base.

• Press MENU/SELECT to conrm selection.

• The screen displays STORED and you’ll hear a conrmation beep.

Set telephone base ringer volume

You can adjust the telephone base ringer volume to one of eight different levels, or turn the telephone base ringer off.

• Press MENU/SELECT on the handset in idle mode.

• Press or to reach SETUP BS. Press MENU/SELECT.

• Press or to reach BS RINGER VOL. Press MENU/SELECT.

• Press or to scroll through the choices and a sample of each ring volume will be played at the telephone base.

• Press MENU/SELECT to conrm selection. The screen displays STORED and you’ll hear a conrmation beep.

•

You can also adjust the telephone base ringer volume by pressing VOL+/- on the telephone base while the telephone is ringing.

www.vtechphones.com

SetuP BS

dAte/tIMe

BS MelodY

BS rINGer vol

MelodY 1 MelodY 2

The ring melody

• for the handset is set separately from the telephone base ring melody. See page 8 to set the handset ringer melody.

The volume of the

• handset ringer is set separately from the telephone base ringer. See page 9 to change the handset ringer volume.

Advanced operation

Answering system operation

Change personal identication number (PIN)

A four-digit security code is required for remote access to the answering system from any touch tone telephone. The factory default code is 0000. To change the PIN on your telephone:

• Press MENU/SELECT on the handset in idle mode.

• Press or to reach SETUP BS. Press MENU/SELECT.

• Press or to reach CHANGE ITAD PIN. Press MENU/SELECT.

• The screen displays ENTER PIN.

• Enter the PIN (default 0000) then press MENU/SELECT.

• The screen displays NEW PIN.

• Enter the desired PIN and press MENU/SELECT.

• The screen displays REPEAT PIN.

• Enter the new PIN again and press MENU/SELECT.

• The screen displays STORED and you’ll hear a conrmation beep. If a wrong PIN is entered, the screen displays WRONG PIN, retry

• after two seconds.

www.vtechphones.com

cHANGe ItAd PIN

dIAl tYPe

eNter PIN

****

New PIN

rePeAt PIN

Answering system operation

Outgoing announcements

An outgoing announcement is the message callers hear when calls are answered by the answering system. The telephone is preset with an announcement that answers calls with “Hello, please leave a message after the tone.” You can use this default announcement, or replace it with your own.

Play the announcement

•

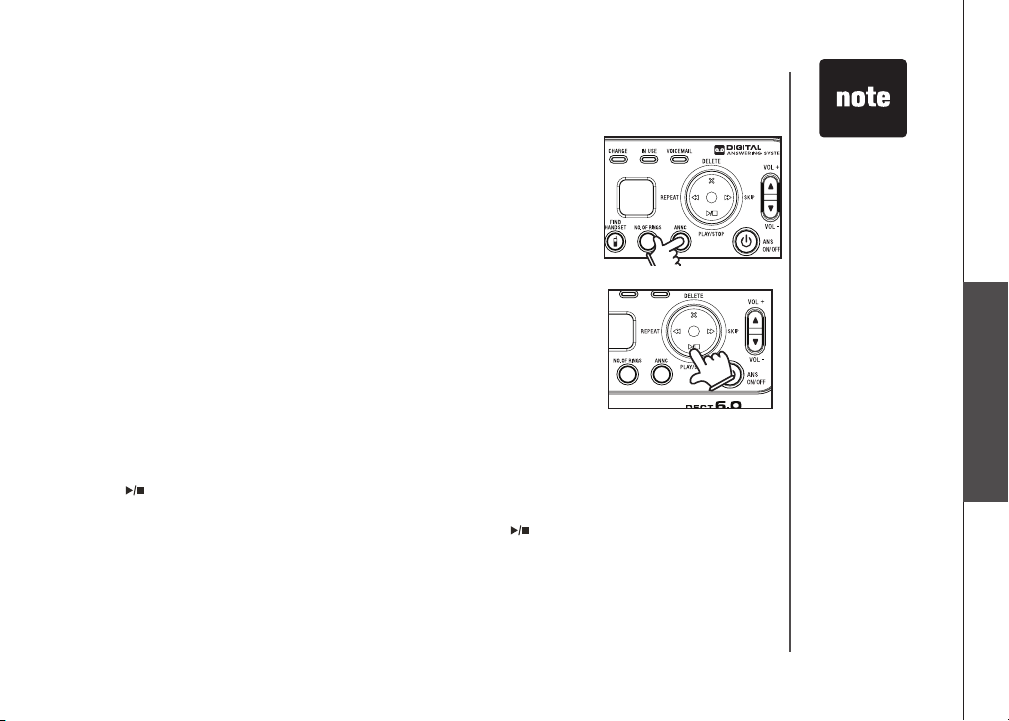

Press ANNC in idle mode. The system announces “Announcement, press play or press announcement again to record a new announcement.”

• Press PLAY/STOP and the announcement will be played.

Record your own announcement

•

Press ANNC in idle mode, and the system announces “Announcement, press play or press announcement again to record a new announcement.”

• Press ANNC again and the system announces “Record after the tone,

press stop when you are done.”

• After the tone, speak towards the microphone at the bottom front of the telephone base from about nine inches away.

• Press /PLAY/STOP when nished.

•

The answering system will automatically playback the newly recorded

announcement and there will be a conrmation tone. Press /PLAY/ STOP to stop the playback at any time.

If you do not like the announcement just recorded, press ANNC to record

•

again before the conrmation tone.

The annoucement

• can be up to seconds in length.

When your

• own recorded annoucement is deleted, calls will be answered with the preset announcement.

Advanced operation

www.vtechphones.com

Messages can

• only be deleted after they are played.

When the

• answering machine is recording an incoming message or in idle mode, the call screening volume can be adjusted by pressing VOL+/- on the telephone base.

Answering system operation

Delete your announcement

•

Press ANNC in idle mode, and the system announces “Announcement,

press play o r p re s s annou n c e m e n t a g a i n to re cord a n e w announcement.”

• Press / PLAY/STOP and then press DELETE when the system

is playing the outgoing announcement. The system announc es

“Announcement deleted.”

Message playback

• Press /PLAY/STOP to listen to messages. Press /PLAY/STOP

again to stop playback.

• If there are new messages, the system will announce the number of

new and old messages then play the new messages only (oldest rst).

If there are no new messages, the system will announce the number

of old messages and playback all messages (oldest rst).

• Before each message is played, the day and time it was received will be announced.

Options during playback

• Press / /VOLUME to adjust the speaker volume.

• Press /SKIP to skip to the next message.

• Press /REPEAT to repeat the message currently playing.

• Press X/DELETE to delete the current message. The system will advance to the next message.

Delete all messages

• Press and hold X /DELETE when in idle mode.

• The system announces “All old messages deleted.”

www.vtechphones.com

Answering system operation

Remote access

You can access many features of your answering system remotely from any touch tone telephone. A four-digit security code is required to access the system and the factory default code is 0000; see page 30 to change it. To enter remote access:

• Dial your telephone number from any touch tone telephone.

• When the system answers and plays the outgoing announcement, press

remote access code.

• After you enter the remote access code, the system will play any new messages and then play the menu of commands.

Remote access commands:

0 To end the call

1 To play all messages

2 To play new messages

3 To delete the message

33 To delete all old messages

4 To repeat the previous message

5 To stop playing the message

6 To skip the message

7 To turn the answering system on

8 To turn the answering system off

9 To repeat help

followed by the

During remote

• access, if no key is pressed within eight seconds, the remote access call is automatically disconnected.

Advanced operation

www.vtechphones.com

Answering system operation

Message window displays

The message counter usually displays the total number of incoming messages. See the list below for explanations of other displays in this counter.

0 No messages.

0 (ashing) The clock needs to be set.

1-99 Total number of old message(s) recorded.

1-99 (ashing) Total number of message(s) recorded, at least one is new.

1-99 & F (alternating) Memory is full with total number of messages recorded.

1-90 (counting) Elapsed time while recording an annoucenment.

1-99 Current message number during message playback.

0-8 Current volume level while adjusting.

02, 04, 06, 08, tS Current number of rings while setting.

-- System is answering a call.

-- (ashing) System is being setup or initialized, or being accessed remotely.

www.vtechphones.com

Handset and telephone base indicators

Handset light

• On when the handset speakerphone is in use.

Telephone base lights

IN USE • Flashes when there is an incoming call.

• Flashes when another handset connected to the same line is in use.

• On when the handset is in use.

VOICEMAIL • Flashes when there is a new network message (a subscription service

CHARGE • On when the handset is in the telephone base.

ANS ON/OFF • On when the answering system is on.

Handset icons

(Battery indicator)

from your local telephone company is required).

• Ringer off.

• Cycles (low, medium, and full) when handset battery is charging. Flashes when the batter y power is low.•

Appendix

www.vtechphones.com

Handset display screen messages

Display: When:

cAll

cAllING HANdSet X

cAllING froM: HANdSet X

cHArGING

coNNectING...

eMPtY

eNded

full

INtercoM

lINe IN uSe

low BAtterY

Mute

New

New voIceMAIl

Not AvAIlABle

No lINe

There is an incoming call.

Calling another handset.

Other handset is calling.

A handset with low batter y has been placed on the telephone base to recharge.

The cordless handset is searching for the telephone base.

There are no entries in the call log, directory, or redial list.

You have just ended a call.

The directory is full.

The handset is on an intercom call.

Another handset connected to the same line is in use.

The battery needs to be recharged.

The microphone is muted temporarily during a conversation.

There are un-reviewed calls in the call log.

There is new voicemail message.

There is no line or the handset is out of range from the telephone base.

-OR- If one handset is already viewing the call log and another handset

attempts to review it.

There is no telephone line connected.

www.vtechphones.com

Handset display screen messages

Display: When:

PAGING

PHoNe

PlAce IN cHArGer

wArNING cHecK BAtterY!

The handset locator has been activated or the handset is being paged.

The handset is in use.

The battery is very low. The handset should be placed on the telephone base to recharge.

The battery is not installed or not installed properly in the handset.

-OR -

The battery needs to be replaced.

-OR -

An incorrect batter y has been installed by mistake. Use only the supplied VTech battery, or equivalent.

Call log display messages

Display: When:

PrIvAte NAMe

PrIvAte NuMBer

PrIvAte cAller

uNKNowN NAMe

uNKNowN NuMBer

uNKNowN cAller loNG dIStANce or

l (before caller’s number)

The caller is blocking name information.

The caller is blocking telephone number information.

The caller is blocking name and number information.

This caller’s name is unavailable.

This caller’s number is unavailable.

No call information is available about this caller.

This is a long distance call.

www.vtechphones.com

Appendix

Battery

After the battery is fully charged for 16 hours, you can expect the following performance:

Operation Operating time

While in use (talking) 10 hours

While not in use (standby*) 100 hours

*Hands et is off the teleph one base b ut not in us e.

The battery needs charging when:

• A new battery is installed in the handset.

• Battery indicator on screen is ashing.

CAUTION:

1. Use only the supplied battery (part number 89-1326-00-00) or equivalent. To order a replacement, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, visit www.vtechcanada.com or call 1 (800) 267-7377.

2. Do not dispose of the battery in a re. Check with local waste management codes for special disposal instructions.

3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electroly te may be toxic if swallowed.

4. Exercise care in handling batteries in order not to create a short circuit by letting them come into contact with conductive materials such as rings, bracelets, and keys. The battery and/or conductor may overheat and cause burns.

5. Charge the battery(ies) provided with or identied for use with this product only in accordance with the instructions and limitations specied in this manual.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO WATER OR ANY TYPE OF MOISTURE.

www.vtechphones.com

Important safety instructions

When usi ng your tele phone equ ipment , basic safe ty prec autions s hould alw ays be followe d:

1. Read and underst and all ins tructi ons.

2. Follow all warning s and instr uctio ns marked on t he produ ct.

3. Unplug this prod uct from t he wall out let before c leaning . Do not use li quid or aer osol cle aners. Us e a damp clo th for clea ning.

4. Do not use this prod uct near wa ter (for exampl e, near a bath tub, kitch en sink, o r swimming p ool).

5. Do not place this pr oduct on a n unstab le surfa ce such as a t able, she lf or stand . This pro duct may fal l, causin g serious d amage.

6. Slots and o pening s in the ba ck or botto m of t he tel ephone base and h andset are pr ovided for ventilati on. To pro tect t hem fr om over heating , thes e open ings m ust no t be blocke d by placing the pr oduct on a sof t surfac e such as a bed, sofa or ru g. This produ ct should ne ver be placed ne ar or over a radiator or heat re gister. This pro duct shou ld not be plac ed in an area w here prop er ventila tion is not p rovided .

7. This product shoul d be operated onl y from the type of pow er source ind icated on the mar king labe l. If you are not sure of the type of power su pply in your home, co nsult your dealer or l ocal powe r company.

8. Do not allow anyth ing to rest on t he power co rd. Do not in stall th is produc t where th e cord may be wa lked on.

9. Never push objects of any kind into this produc t through slots in the telep hone base or handse t as they may touch dangerous volt age points or create a short cir cuit that could

result in a r isk of re or e lectri c shock . Never spil l liquid of a ny kind on th e produc t.

10.

To reduce the risk of electr ic shock, do not dis assemb le this produc t, but take it to an authorized ser vice faci lity. Openin g or removing part s of the telephone bas e or handset other

than spe cied ac cess do ors may expo se you to dan gerous vol tages or ot her risk s. Incorr ect reas semblin g can caus e electr ic shoc k when the pr oduct is s ubsequ ently use d.

11. D o not overlo ad wall out lets and ex tension c ords as th is can resu lt in the ri sk of re or el ectric s hock.

12. U nplug th is produc t from the w all outle t and refer ser vicing to an autho rized ser vice facility u nder the fo llowing c onditi ons:

A. When t he power sup ply cor d or plug is da maged or fr ayed. B. If liq uid has bee n spille d onto the pr oduct. C. If the pro duct has b een expos ed to rain or wat er. D. If the pro duct doe s not opera te normall y by follow ing the ope rating in struct ions. Adj ust only th ose cont rols that a re covered by t he operat ion instr uctio ns, as impr oper

adjust ment of othe r contro ls may resul t in damage a nd often re quires ex tensive wo rk by an auth orized tec hnicia n to restore t he produ ct to norm al operati on.

E. If the p roduct h as been dr opped an d the telep hone base a nd/or han dset has be en damag ed. F. If the produ ct exhibi ts a distin ct chang e in perf ormanc e.

13. The power uni t is intende d to be corre ctly ori ented in a ver tical or o or mount po sition. T he prongs a re not desig ned to hold t he plug in pla ce if it is plu gged into a ce iling, an

under-th e-tabl e or cabin et outlet .

14. Avo id using a te lephon e (other than c ordles s) during an el ectri cal storm . There is a re mote risk o f electr ic shock f rom light ning.

15. D o not use th e telepho ne to repor t a gas leak i n the vic inity of t he leak.

16. O nly put th e handset o f your telep hone next t o your ear whe n it is in norm al talk mo de.

CAUTION: Use o nly the pow er adapter pr ovided w ith this pr oduct . To purchase, vi sit our webs ite at ww w.vtechpho nes.com o r call 1 (80 0) 595-9 511. In Canada, g o to www.vtec hcanad a.com or c all 1 (800) 26 7-7377.

SAVE THESE INSTRUCTIONS

www.vtechphones.com

Appendix

Troubleshooting

If you have difculty with your telephone, please try the suggestions below. For Customer Service, visit our website at www. vtechphones.com, or call 1 (800) 595-9511; in Canada, call 1 (800) 267-7377.

Problem Suggestion

My telephone does not work at all.

LOW BATTERY is displayed on screen.

• Make sure the battery is installed and charged correc tly (page 2). For optimum daily performance, return the cordless handset to the telephone base or charger after use.

• Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch.

•

Make sure the telephone line cord is plugged rmly into the telephone base and the wall jack.

• Unplug the unit’s electrical power. Wait for approximately 15 seconds, then plug it back in. Allow up to one minute for the cordless handset and telephone base to synchronize.

• Charge the battery in the cordless handset for at least 16 hours.

• Remove and re-insert the battery. If that still does not work, it may be necessary to purchase a new battery.

• Disconnect the telephone base from the jack and plug in a working telephone. If this telephone does not work, the problem is probably in the wiring or the local service. Call the local telephone company.

• Place the handset in the telephone base or charger for recharging.

• Remove and re-install the battery and use it normally until fully discharged, then recharge the handset on the telephone base or charger for 16 hours.

• If the above measures do not correct the problem, the battery may need to be replaced.

www.vtechphones.com

Troubleshooting

Problem Suggestion

The battery does not charge in the handset or the handset battery does not accept charge.

The CHARGE light is off.

• Make sure the handset is placed in the telephone base or charger correctly. The CHARGE

light on the telephone base or charger should be on.

• Remove the battery from the handset and then re-install it in the handset. Put the handset back to the telephone base or charger and charge for 16 hours.

• If the cordless handset is in the charger or in the telephone base but the CHARGE light is not on, see The CHARGE light is off in this section.

• It may be necessary to purchase a new battery. Please see the Battery section of this user’s manual (page 38).

• The telephone might be malfunctioning. Please see the Warranty section of this user’s manual (page 51) for further instruction.

• Clean the charging contacts on the cordless handset(s) and telephone base each month using a pencil eraser or a dry non-abrasive fabric.

• Make sure the power adapter and telephone line cords are plugged in c orrectly and securely.

• Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to one minute for the cordless handset and telephone base to reset.

• The telephone might be malfunctioning. Please see the Warranty section of this user’s manual (page 51) for further instruction.

Appendix

www.vtechphones.com

Troubleshooting

Problem Suggestion

There is no dial tone. • First, tr y all the above suggestions. First, try all the above suggestions.

• Move the cordless handset closer to the telephone base. It might be out of range. Move the cordless handset closer to the telephone base. It might be out of range.

• The telephone line cord might be malfunctioning. Try installing a new telephone line cord. The telephone line cord might be malfunctioning. Try installing a new telephone line cord.

• Disconnect the telephone base from the telephone jack and connect a different telephone. If Disconnect the telephone base from the telephone jack and connect a different telephone. If there is no dial tone on the other telephone either, the problem is in your wiring or local service. Contact your local telephone company.

My h an dset displays

CONNECTING...

Move the handset closer to the telephone base. You might have moved out of range.•

My h an dset displays

NOT AVAILABLE

Move the handset closer to the telephone base. You might have moved out of range.

• Make sure no other handset is reviewing the call log when an attempt is denied.

•

www.vtechphones.com

Troubleshooting

Problem Suggestion

The telephone does not ring when there is an incoming call.

• Make sure the ringer is on (see page 9 for handset and page 29 for telephone base). Make sure the ringer is on (see page 9 for handset and page 29 for telephone base).

• Make sure the telephone line cord and power adapter are plugged in properly (page 3). Make sure the telephone line cord and power adapter are plugged in properly (page 3).

• The cordless handset may be too far from the telephone base. Move it closer to the telephone The cordless handset may be too far from the telephone base. Move it closer to the telephone base.

• There may be too many extension telephones on the telephone line to allow all of them to ring There may be too many extension telephones on the telephone line to allow all of them to ring simultaneously. Try unplugging some of them.

• If the other telephones in your home are having the same problem, the problem is in the wiring If the other telephones in your home are having the same problem, the problem is in the wiring or local service. Contact the local telephone company (charges may apply).

• Other electronic products can cause interference to your cordless telephone. Try installing your Other electronic products can cause interference to your cordless telephone. Try installing your telephone as far away as possible from the following electronic devices: wireless routers, radios, radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors, televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.

•

Test a working telephone at the telephone jack. If another telephone has the same problem, the problem is in the telephone jack. Contact your local telephone company (charges may apply)

• The telephone line cord might be malfunctioning. Try installing a new telephone line cord. The telephone line cord might be malfunctioning. Try installing a new telephone line cord.

• Remove and re-insert the battery and place the cordless handset in the telephone base. Remove and re-insert the battery and place the cordless handset in the telephone base.

• Wait for the cordless handset to synchronize with the telephone base. Allow up to one minute Wait for the cordless handset to synchronize with the telephone base. Allow up to one minute for this to take place.

Appendix

www.vtechphones.com

Troubleshooting

Problem Suggestion

I cannot dial out. • First, try all the above suggestions.

• Make sure there is a dial tone before dialing. It is normal if the cordless handset takes a second or two to synchronize with the telephone base before producing a dial tone. Wait an extra second before dialing.

•

Make sure the telephone is set to the correct dial type (pulse dial or tone dial) for the service in your area. See Dial type on page 12 to set the dial type.

• Eliminate any background noise. Noise from a television, radio, or other appliances may cause Eliminate any background noise. Noise from a television, radio, or other appliances may cause

the telephone not to dial out properly. If you cannot eliminate the background noise, rst try

muting the cordless handset before dialing, or dialing from another room in your home with less background noise.

www.vtechphones.com

Troubleshooting

Problem Suggestion

There is noise or interference during a telephone conversation.

My calls cut in and out when I am using the cordless handset.

• The handset may be out of range. Move it closer to the telephone base. The handset may be out of range. Move it closer to the telephone base.

• Appliances or other cordless telephones plugged into the same circuit as the telephone base Appliances or other cordless telephones plugged into the same circuit as the telephone base can cause interference. Try moving the appliance or telephone base to another outlet.

• If your telephone is plugged in with a modem or a surge protector, plug the telephone (or If your telephone is plugged in with a modem or a surge protector, plug the telephone (or modem/surge protector) into a different location. If this solves the problem, re-locate your telephone or modem farther apart from each other, or use a different surge protector.

• The layout of your home or ofce might be limiting the operating range. Try moving the telephone The layout of your home or ofce might be limiting the operating range. Try moving the telephone

base to another location, preferably a higher location for better reception.

• Disconnect the telephone base from the modular jack and plug in a corded telephone. If calls Disconnect the telephone base from the modular jack and plug in a corded telephone. If calls are still not clear, the problem is probably in the wiring or local service. Contact the local telephone company (charges may apply).

• Do you have DSL service If yes, you need to have a DSL lter installed at every telephone jack Do you have DSL service If yes, you need to have a DSL lter installed at every telephone jack that has a telephone connected to it. Contact your DSL service provider for lter information.

Appendix

www.vtechphones.com

Troubleshooting

Problem Suggestion

I hear other calls when using the telephone.

• Disconnect thetelephone base from the telephone jack. Plug in a different telephone. If there are Disconnect the telephone base from the telephone jack. Plug in a different telephone. If there are still other calls, the problem is probably in the wiring or local service. Call your local telephone company.

I hear noise in the cordless handset, and none of the keys or buttons work.

My caller ID features are not working properly

• Make sure the telephone line cord is plugged in securely. Make sure the telephone line cord is plugged in securely.

Remove and re-insert the battery.•

• Caller ID is a subscription service. You must subscribe to this service from your local telephone Caller ID is a subscription service. You must subscribe to this service from your local telephone company for this feature to work on your telephone.

• The caller may not be calling from an area which supports caller ID. The caller may not be calling from an area which supports caller ID.

• Both you and the caller’s telephone companies must use equipment which are compatible with Both you and the caller’s telephone companies must use equipment which are compatible with caller ID ser vice.

• If you subscribe to DSL service, install a DSL lter to the telephone line between the telephone If you subscribe to DSL service, install a DSL lter to the telephone line between the telephone base and the telephone line jack. Contact your DSL service provider for lter information.

www.vtechphones.com

Troubleshooting

Problem Suggestion

The system does not receive caller ID or the system does not display caller ID during call waiting.

• Make sure you subscribe to caller ID with call waiting features provided by the local telephone Make sure you subscribe to caller ID with call waiting features provided by the local telephone company.

• The caller may not be calling from an area which supports caller ID. The caller may not be calling from an area which supports caller ID.

The answering system does not answer after the correct number of rings.

The announcement message is not clear.

• Make sure the answering system is on. When the answering system is on, the red light on the Make sure the answering system is on. When the answering system is on, the red light on the ANSWER ON/OFF key should be lit.

• If toll saver is activated, the number of rings changes to two when there are new messages If toll saver is activated, the number of rings changes to two when there are new messages waiting (see page 28).

• If the memory is full or if the answering system is off, the system will answer after ten rings. If the memory is full or if the answering system is off, the system will answer after ten rings.

• In some cases, the answering system will be affected by the ringing system used by the local In some cases, the answering system will be affected by the ringing system used by the local telephone company.

• When recording the announcement, make sure you speak in a normal tone of voice about nine When recording the announcement, make sure you speak in a normal tone of voice about nine inches from the telephone base.

• Make sure there is no background noise (television, music, trafc, etc.) when recording. Make sure there is no background noise (television, music, trafc, etc.) when recording.

www.vtechphones.com

Appendix

Troubleshooting

Problem Suggestion

The answering system does not record messages.

The messages on the answering system are incomplete.

The messages on the system are very

difcult to hear.

The answering system does not respond to remote commands.

• Make sure the answering system is on. Make sure the answering system is on.

• If a caller leaves a very long message, part of it may be lost when the system disconnects the call after four minutes.

• If the caller pauses for more than ve consecutive seconds, the system stops recording and If the caller pauses for more than ve consecutive seconds, the system stops recording and

disconnects the call.

• If the memory on the system becomes full during a message, the system stops recording and If the memory on the system becomes full during a message, the system stops recording and disconnects the call.

• If the caller’s voice is very soft, the system may stop recording and disconnect the call. If the caller’s voice is very soft, the system may stop recording and disconnect the call.

• Press / /VOLUME on the telephone base to increase the speaker volume.

• Make sure your remote access code is correct (page 33). Make sure your remote access code is correct (page 33).

• Make sure you are calling from a touch-tone telephone. When dialing a number, there should Make sure you are calling from a touch-tone telephone. When dialing a number, there should be tones. If there are clicks, then it is not a touch-tone telephone and cannot activate the answering system.

• The answering system may not detect the remote access code when the announcement is The answering system may not detect the remote access code when the announcement is playing. Wait until the announcement is over before entering the code.

• There may be interference on the telephone line you are using. Press the keypad keys rmly There may be interference on the telephone line you are using. Press the keypad keys rmly

when dialing.

www.vtechphones.com

Troubleshooting

Problem Suggestion

My cordless handset beeps and is not performing normally.

Common cure for electronic equipment

• Make sure the power cord is securely plugged into the telephone base. Plug the unit into a Make sure the power cord is securely plugged into the telephone base. Plug the unit into a different working electrical outlet not controlled by a wall switch.

• Move the cordless handset closer to the telephone base. It may be out of range. Move the cordless handset closer to the telephone base. It may be out of range.

• Reset the telephone base by unplugging the unit’s electrical power. Wait for 15 seconds and Reset the telephone base by unplugging the unit’s electrical power. Wait for 15 seconds and plug it back in again. Allow up to one minute for the cordless handset and the telephone base to synchronize.

• Other electronic products can cause inter ference to your cordless telephone. Try installing Other electronic products can cause interference to your cordless telephone. Try installing your telephone as far away from these electronic devices as possible: wireless routers, radios, radio towers, pager towers, cellular telephones, intercoms, room monitors, televisions, personal computers, kitchen appliances and other cordless telephones.

• If the unit is not responding normally, try putting the cordless handset in the telephone base or the charger. If it does not seem to respond, tr y the following (in the order listed):

• Disconnect the power to the telephone base. Disconnect the power to the telephone base.

• Disconnect the battery on the cordless handset. Disconnect the battery on the cordless handset.

• Wait a few minutes before connecting power to the telephone base. Wait a few minutes before connecting power to the telephone base.

• Re-install the batter y and place the cordless handset into the telephone base or charger. Re-install the batter y and place the cordless handset into the telephone base or charger.

• Wait for the cordless handset to synchronize its connection with the telephone base. Allow up Wait for the cordless handset to synchronize its connection with the telephone base. Allow up to one minute for this to take place.

Appendix

www.vtechphones.com

Operating range

This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and telephone base can

communicate over only a certain distance ----which can vary with the locations of the telephone base and handset, the weather, and the layout of your home or ofce.

When the handset is out of range, the handset will display CONNECTING. The user can access the handset directory, and certain parts of the menu system, i.e. handset setting, but not the time setting and telephone base setting. NOT AVAILABLE will be displayed if access is denied.

If there is a call while the handset is out of range, it might not ring, or if it does ring, the call might not connect well when you press /FLASH. Move closer to the telephone base, then press /FLASH to answer the call.

If the handset moves out of range during a telephone conversation, there might be interference. To improve reception, move closer to the telephone base.

Maintenance

Taking car e of your tel ephon e

Your cordless telephone contains so phisti cated electron ic part s, so it must be treated with care.

Avoid roug h treat ment

Place the handset down gent ly. Save the ori ginal packing materials to protect your telephone if you ever need to sh ip it.

Avoid wate r

Your teleph one can be dam aged if it gets wet. Do not use the handset outdoor s in the rain, or handle it wi th wet ha nds. Do not install t he tele phone b ase near a sink, bat htub or sh ower.

Elect rical s torms

Electr ical sto rms can sometime s cause power surges harmful to electr onic equipment . For your own s afety, take caution wh en using e lectric appli ances during storms.

Clean ing your te lepho ne

Your telephon e has a durabl e plasti c casing th at should retain its luster for many year s. Clean it only with a sof t cloth slightly da mpened w ith water or a mild soap. Do not use excess water o r cleaning solven ts of any kin d.

Remember that electrical appliances can cause serious injury if used when you are wet or standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Then pull the unit out by the unplugged cords.

www.vtechphones.com

About cordless telephones

Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and

•

the cordless handset by radio waves, so there is a possibilit y that the cordles s telephone convers ations could be intercepted by radio receivi ng equipment within range of t he cordl ess hand set. For this reaso n, you shou ld not think of cordless tele phone c onversat ions as being as pri vate as tho se on cord ed telep hones.

Elect rical Power: The telephone base of this cordless telephone must be connected to a working electrical outlet. The electrical outl et should not be controlled

•

by a wall swit ch. Calls cannot be made from t he cordless handset if th e telephone base is unplugged or switched of f, or if the el ectri cal power i s interru pted.

Potent ial TV Inter fere nce: So me cord less te lephon es oper ate at fre quenci es that m ay cause interf erence to televi sions a nd VCRs. To minimize or p revent

•

such inter ferenc e, do not place the telephone bas e of the cordless telephone near or on top of a TV or VCR. If interference is experi enced, moving the cordless telephone farther away fro m the TV or VCR w ill often reduc e or elimin ate the interference.

Recha rgeab le Batte ries: This product contai ns either Nickel -Cadmium or Nickel-Metal Hydride rechargeable batteries. Exercise care in handling bat teries in

•

order not to create a short circui t with conduct ing material suc h as rings, bracelet s, and keys. The battery or conduc tor may overheat and cause harm. Obser ve proper p olarit y betwe en the bat tery an d the battery cha rger.

Nickel -Metal Hydrid e Rechargeable Batteries: Dispose of these batterie s in a safe man ner. Do not b urn o r puncture. Like other batteries of this typ e, if

•

burned o r punctu red, they c ould rel ease cau stic mate rial whi ch could cause injury.

Warranty

What do es this li mited wa rrant y cover?

The manufacturer of t his VTech Produc t warra nts to t he hol der of a valid proof of purch ase (“Consumer” or “you” ) that the Product and all access ories p rovide d in t he sales package (“Prod uct” ) ar e fr ee f rom defect s in material and workma nship, pursuant to the fo llowin g ter ms and condit ions, when inst alled and used normal ly and in accordance with the Product operating instructions. Thi s limite d warranty exte nds only to the Consumer for Products purchase d and use d in the United States of America an d Canada.

What wil l VTech do if t he Product is not f ree fro m defects in material s and workmanship during the limited warra nty pe riod (“M ateri ally De fecti ve Product”)?

During the limited warranty period, VTech’s authorized servi ce representative will repair or replace at VTech’s option, without charge, a Materially Defective Product. If we repair the Product, we may use new or refurbished replaceme nt parts. If we choose to replace the Product, we may replace it with a new or refurbished Produc t of the same or similar design. We will retain defective parts, modules, or equipment. Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech will return repaired or re placem ent Produ cts to you i n working condit ion. You shoul d expect t he repai r or replac ement to t ake approx imately 3 0 days.

How long i s the limi ted warranty p eriod?

The limite d warranty period for the Product extend s for ONE (1) YEAR from the date of purchase. If VTech repai rs or replace s a Materially Defective Product under the terms of this limited warrant y, this limited warrant y also app lies to repa ired or replacemen t Product for a period of either (a) 90 days fro m the date the repaired or replacement Pr oduct i s shippe d to you or (b) the time remai ning on th e origin al one-year warran ty; whichever is longer.

What is not covere d by this limited wa rrant y?

This lim ited warranty does not cover :

1. Produ ct that has been subjected t o misuse, ac ciden t, shipping or other p hysical damage, im proper inst allatio n, abnormal operation or han dling, neglect,

inundation, re, water or other l iquid in trusio n; or

2. Produ ct that ha s been dam aged due to repair, alter ation or modication by anyo ne other t han an auth orized se rvic e representative o f VTech; or

3. Produ ct to the ex tent that t he probl em experienced i s caused by signal conditi ons, net work reliabilit y, or cable or antenna systems; or

4. Produ ct to the ex tent that t he probl em is caus ed by use with non-V Tech access ories; or

www.vtechphones.com

Appendix

Warranty

5. Produ ct whose warrant y/qualit y stickers, product ser ial numb er plates or electr onic ser ial numb ers have been removed , altered o r rendered illegible; or

6. Produc t purchased, used, servic ed, or shipped for repair from outside the United States of America or Canada, or used for commercial or institutio nal purposes (inclu ding but n ot limite d to Produc ts used for rental p urposes); or

7. Produ ct returned with out valid p roof of pur chase (se e item 2 below); or

8. Charg es for installation or set up, ad justme nt of custo mer cont rols, and installation or repair of sys tems outside the u nit.

How do you get warra nty service?

To obtain warranty ser vice in the United States of America, please call 1 (800) 595-9511; In Canada, please call 1 (800) 267-7377. NOTE: Before calling for serv ice, please r eview the u ser’s manu al - a chec k of the Prod uct controls an d features m ay save you a ser vice c all.

Except as prov ided by applicable law, you assume the risk of loss or damage during transit and transpor tatio n and are responsi ble for delivery or handlin g charges incurr ed in the transpor t of the Produ ct(s) to the service loc ation. V Tech will return repaired or replace d Produc t under thi s limited war ranty to yo u, transp ortat ion, deliver y or handling charges prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure is not covered by this limited warranty, or proof of pur chase do es not meet the te rms of this li mited warr anty, VTech will notify you and will reque st that you auth orize the cost of repair pr ior to any fur ther repair ac tivit y. You must pay for the c ost of rep air and return shipping cos ts for the repair of Pro ducts t hat are not c overed by th is limite d warrant y.

What must you retu rn with the Produ ct to get warrant y serv ice?

Return the entire original package a nd contents incl uding th e Produc t to the VTech s ervice locat ion alon g with a des cripti on of the ma lfunction or difcul ty; and

2. Inclu de “valid proof of purchase” (sales receipt) identif ying the Produc t purcha sed (Prod uct mod el) and the date of purc hase or re ceipt; and

3. Provid e your name, c omplet e and corr ect mail ing address, and te lephon e number.

Other Limita tions

This warrant y is t he co mplete and exc lusive agreement bet ween you and VTech. I t supe rsedes all other w ritten or or al co mmunic ations related to th is Pro duct. VTech prov ides no other warr anties f or this Pr oduct . The warr anty exc lusivel y descr ibes all of VTech’s res ponsibilitie s regarding the Produc t. There are no oth er

express w arranti es. No one i s authorized to make mo dications to this limited warranty and you s hould not rely on any such modication. State/ Provinc ial Law Rights: This warrant y gives you s peci c legal r ights, and you may als o have other rights, which var y from state to state or province to provin ce. Limitations: Implie d warranties, inc luding thos e of tnes s for a particular purpose and merchantability (an unwritten warran ty t hat th e Product is t for ordinar y

use) are li mited to one year from date of purc hase. So me state s/provinces d o not all ow limitations on how long an im plied warrant y lasts, so the above lim itation may not appl y to you. In no event s hall V Tech be liable for any i ndirec t, special, incidenta l, consequential, or similar damages (inc luding , but not limited to lost

prots o r revenue, in abilit y to use the Produc t or other as sociat ed equip ment, th e cost of su bstitute equipm ent, and c laims by third par ties) resulting fro m the use

of this Produ ct. So me states/provinces do not allow the excl usion or limi tation of inc idental or c onsequ ential damage s, so t he above limit ation or exclusion may not appl y to you.

Please retain your original sales receipt as proof of purchase.

www.vtechphones.com

FCC, ACTA and IC regulations

FCC Part 15

This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

•

Changes or modications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20 cm (8 inches) or more. If you choose to use a clipping device, please make sure to only use the supplied VTech belt clip.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

Privacy of communications may not be ensured when using this telephone.

FCC Part 68 and ACTA

This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The

label on the back or bottom of this equipment contains, among other things, a product identier in the format US:AAAEQ##TXXXX. This identier must be provided to

your local telephone company upon request.

The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in the user’s manual.

The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them ring when you are called.

The REN for this product is encoded as the 6th and 7th characters following the US: in the product identier (e.g., if ## is 03, the REN is 0.3). In most, but not all areas, the sum of all RENs should be ve (5.0) or less. For more information, please contact your local telephone company.

This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection of this equip-

ment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualied installer.

If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the Limited Warranty.

www.vtechphones.com

Appendix

FCC, ACTA and IC regulations

If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service. The telephone company is

required to notify you before interrupting service. If advance notice is not practical, you will be notied as soon as possible. You will be given the opportunity to correct the problem and the telephone company is required to inform you of your right to le a complaint with the FCC. Your telephone company may make changes in its

facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify you if such changes are planned.

If this product is equipped with a corded or cordless handset, it is hearing aid compatible.

If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g., police, re, medical) in these locations. If you do store or

test emergency numbers, please:

Remain on the line and briey explain the reason for the call before hanging up.

• Perform such activities in off-peak hours, such as early morning or late evening.

•

Industry Canada

This equipment complies with regulations RSS-213 and CS-03 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The term ‘’IC: ‘’ before the certication/registration number only signies that the Industry Canada technical specications were met.

The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the

devices does not exceed ve.

This Class B digital apparatus complies with Canadian ICES-003.

The RBRC® Seal

The RBRC® Seal on th e nickel-metal -hydride battery indi cates that VTech Comm unications, Inc . is volunt arily participating in an indus try pro gram to co llect and recycle these batterie s at the end of their useful lives , when take n out of ser vice within the United S tates and Canada.

The RBRC® progra m provides a convenient alter native to placing used nicke l-metal-hydr ide bat teries in to the trash or municipal waste,whi ch may be illegal in yo ur area.

VTech’s par ticipation in RB RC® makes it ea sy for you to drop off th e spent bat tery at l ocal retailers participatin g in the RBRC® progra m or at auth orized V Tech produc t serv ice centers. Plea se call 1- 80 0- 8-BATTERYT M for information o n Ni-MH batter y recycling and disposal bans /restr ictions in your are a. VTech’s invol vement in t his prog ram is par t of its co mmitme nt to prote cting our environment and conservi ng natural resourc es.

RBRC® is a regi stere d trade mark of R echargeabl e Battery Recycling Co rpora tion.

www.vtechphones.com

Technical specications

Frequency control Crystal controlled PLL synthesizer

Transmit frequency Handset: 1921.536-1928.448 MHz

Telephone base: 1921.536-1928.448MHz

Channels 5

Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according

to environmental conditions at the time of use.

Size Handset: 170.9mm X 48.1mm X 25.8mm

Telephone base: 179.8mm X 123.8mm X 95.0mm Charger: 84.0mm X 99.0mm X 102.0mm

Weight Handset: 131.0 grams (including battery)

Telephone base: 296.8 grams Charger: 101.4 grams

Power requirements Handset: 2.4V DC 600mAh NiMH battery

Telephone base: 6V DC @ 600mA Charger: 6V AC @300mA

Memory Handset directory: 50 memory locations; up to 24 digits and 15 characters

Handset call log: 50 memory locations; up to 20 digits and 15 characters

Appendix

www.vtechphones.com

Index

About cordless telephones 51 Advanced operation 17 Answer an external call during an

intercom call 15

Answering system operation 27

Basic operation 14 Battery 9, 38

Call log 22, 37 Call waiting 14 Chart of characters 18

Date and time 8 Delete from redial 26 Delete from the call log 24 Delete from the director y 20 Delete your announcement 32 Desk/table bracket installation 4 Dial a number from redial 26

Dial type 4, 12 Director y 17

DSL lter 5

Edit an entry in the directory 20 Edit handset name 11

FCC, ACTA and IC regulations 53 Find handset 16

Handset display screen messages 36 Handset layout 6

Important safety instructions 39 Index 56-57 Installation 1 Install handset batter y 2 Intercom call 15 Internet 4

Maintenance 50 Make, answer and end calls 14 Message capacity 27 Message playback 32 Message window displays 34 Multiple handset use 15 Mute 14

Operating range 50 Options while on calls 14 Outgoing announcements 31

Parts checklist 1 Play the announcement 31

Record your own announcement 31 Redial 25 Remote access 33 Reset to default settings 13 Review redial 25

www.vtechphones.com

Review the directory 17 Ring melody 8 Ring volume 9

Volume 9, 29

Search the directory 17 Set telephone base date and time 28 Set number of rings 28 Set telephone base melody 29 Set telephone base ringer volume 29 Speakerphone 14 Store an entry in the directory 19 Store a number from redial to the directory 25 Store a number from the call log 23

Technical specications 55 Telephone base 3, 7 Telephone settings 6 Temporary tone dialing 13 The RBRC® Seal 54 Transfer an external call 16 Troubleshooting 40

Warranty 51

www.vtechphones.com

VTECH TELECOMMUNICATIONS LTD.

A member of THE VTECH GROUP OF COMPANIES.

Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon

Distributed in Canada by VTech Telecommunications Canada, Ltd., Richmond, B.C.

Printed in China.

91-001125-010-100

Models: 6042/6043/ 6052/6053

User’s manual

w w w . vt e c h ph o n e s. c o m

Vtech 6042 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
