IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury
to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub,
kitchen sink, or swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided
for ventilation. To protect it from overheating, these openings must
not be blocked by placing the product on the bed, sofa, rug, or other
similar surface. This product should never be placed near or over
a radiator or heat register. This product should not be placed in a
built-in installation where proper ventilation is not provided.
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your dealer or local power
company.
8. Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be abused by persons walking on it.
9. Never push objects of any kind into this product through cabinet slots
as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any
kind on the product.
10. To reduce the risk of electric shock, do not disassemble this product,
but take it to an authorized service facility. Opening or removing
cabinet parts other than specified access doors may expose you
to dangerous voltages or other risks. Incorrect reassemb-ling can
cause electric shock when the appliance is subsequently used.
11. Do not overload wall outlets and extension cords as this can result
in the risk of fire or electric shock.
2
IMPORTANT SAFETY INSTRUCTIONS
12. Unplug this product from the wall outlet and refer servicing to an
authorized service facility under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions, because improper adjustment of other
controls may result in damage and will often require extensive
work by an authorized technician to restore the product to normal
operation.
E. If the product has been dropped and the cabinet has been
damaged.
F. If the product exhibits a distinct change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lighting.
14. Do not use the telephone to report a gas leak in the vicinity of the
leak.
SAVE THESE INSTRUCTIONS
3
BEFORE YOU BEGIN
Enhanced 2.4GHz Tec hnology -
Dual Band
transmission combines the best of 2.4GHz
and 900MHz technologies, providing enhanced performance over standard cordless
telephones.
About Caller Identification (Caller ID)
This product has a Caller ID with Call Waiting feature that works with
service from your local phone service provider.
Caller ID with Call W aiting lets you see who’ s calling bef ore you ans wer the phone, e v en
when you’re on another call.
You may need to change your phone service to use this feature. Contact your phone
service provider if:
• You have both Caller ID and Call Waiting, but as separate services
(you may need combined service)
• You have only Caller ID service, or only Call Waiting service.
• You don’t subscribe to any Caller ID or Call Waiting services.
You can use this product with regular Caller ID service, and you can use this product’s
other features without subscribing to either Caller ID or combined Caller ID with Call
Waiting service.
There are fees for Caller ID services, and they may not be available in all areas.
This product can provide information only if both you and the caller are in areas offering
Caller ID service, and if both telephone companies use compatible equipment.
Parts Check List:
1. Base Unit
3. AC Power Adapter
5. Battery Pack
To purchase replacement battery packs, call 1-800-595-9511
2.Handset
4.Telephone Line Cond
6.Owner’s Manual
Handset
Battery P ack
Base Unit
Owners Man ual
T
AC Power Adaptor
4
INSTALLATION
Before Y ou Install
1 Choose a location for the Base near an electrical outlet and a telephone
jack.
This phone requires a modular telephone jack and a standard electrical
outlet (110v AC) not controlled by a wall switch.Plug the AC power adaptor
into the electrical outlet and the DC connector to the jack on the bottom of the
Base Unit.

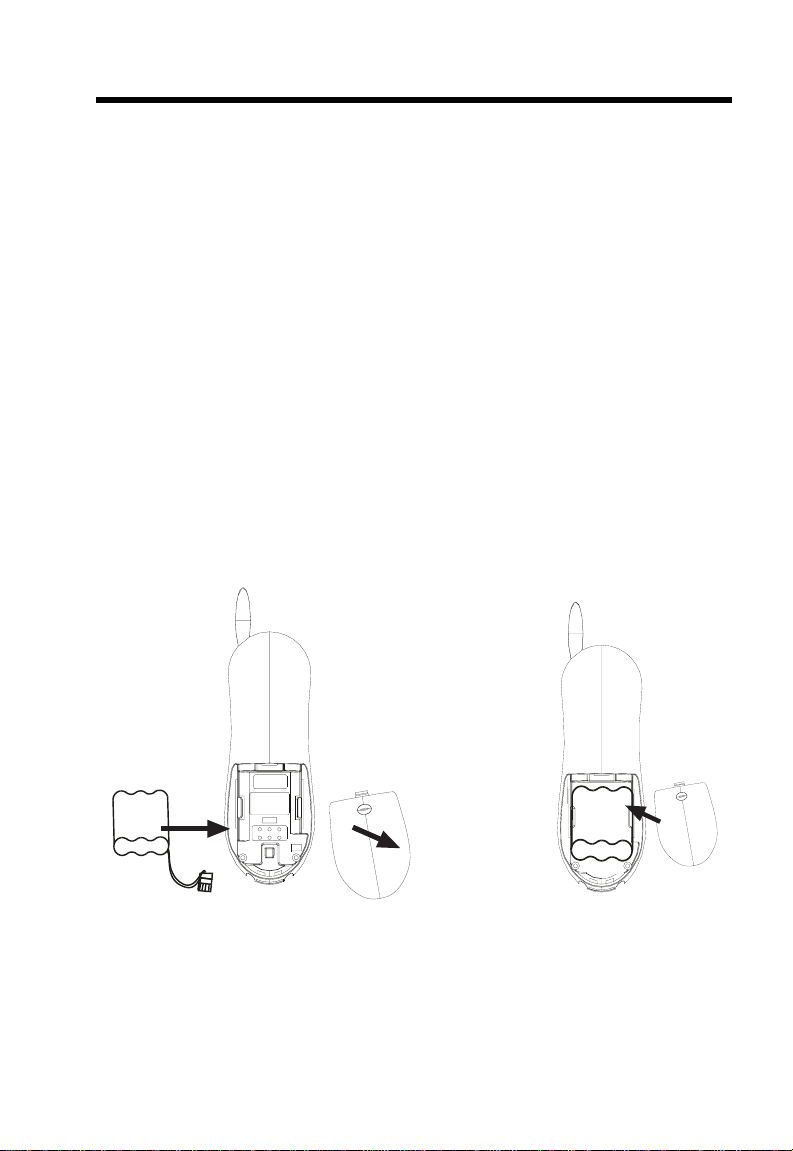

2 Install the handset battery .
Use only battery pack provided or recommended by the manufacturer.
a) Remove battery
compartment cover by
pressing on the indenlation
and sliding downward.
b) Align the two holes in the plug
with the socket pins, then snap
the plug into place.
c) Place battery pack in the
compartment with the wires
in the lower left corner. Run
the wires under the guide
located directly below the
battery pack.
d) Replace cover by sliding
it up into place.
NOTE:
Install the base unit and spare handset charger away from electronic
equipment such as personal computers, television sets or microwave ovens.
Avoid excessive heat, cold, dust or moisture.
5
INSTALLATION
3. Charge the handset battery.
Place the handset in the base. Charge the battery for at least 12 hours the first time.
4. Check for dial tone
After the batteries are charged, connect the modular telephone cord between a live
phone jack and the jack located on the bottom of the Base Unit. Pick up the Handset
and press PHONE. You should hear a dial tone.
5. Set the dial mode.
If you have touch tone service, the phone is ready to use as soon as the batteries are charged.
If you have dial pulse (rotary) service, you’ll need to change the dial mode.
• Press PROG/CHANNEL on the handset to enter programming mode.
• Press or until the screen displays DIAL MODE: and the currently selected mode.
• Press SELECT. The current setting blinks.
• Press to select PULSE (or TONE).
• Press SELECT to save the displayed mode.
T able/Desk Installation
POWER JACK
9V DC
Cd
PRODUCT CONTAINS NICKEL-CADMIUM
BATTERY: MUST BE RECYCLED OR DISPOSED
OF PROPERLY. DO NOT BURN OR PUNCTURE
BATTERY. LIKE OTHER BATTERIES OF THIS
TYPE. IF IT IS BURNED OR PUNCTURED. IT
COULD RELEASE TOXIC MATERIAL WHICH
COULD CAUSE INJURY.
Connect the power cord
CLASS 2 POWER SOURCE ONLY
Michael Graves
CORDLESS TELEPHONE
MANUFACTURED IN CHINA
DC 9V 500mA
MODEL: 2463
COMPLIES WITH 47 CFR PART 68
REGISTRATION NO.: US: EW7W901B24280
RINGER EQUIVALENCE: 0.1B
USOC JACK: RJ11C/RJ11W
HAC
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND
2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN
USING THIS PHONE.
FCC ID: EW780-5125-B01
Connect the telephone
line cord
6
TELEPHONE OPERATION
Answer a Call
Press any key
except OFF
HOLD
Press to put a call on hold;
press HOLD again to return
to the call,OR lift the Handset
of an extension phone.
Make a Call
Press TALK / FLASH,
then dial the number
OR Dial the number
(use to backspace
and correct digits),then
press TALK / FLASH
Press TALK/FLASH to
answer call waiting.
Memory
Use MEM to program
and dial stored numbers.
Handset Volume
While on a call,
adjust the volume
of what you hear
SELECT
Use SELECT in
conjunction with
PROG/CHAN during
Handset programming
End a Call
Press OFF or place
Handset in Base
cradle
Exit
programming
Cancel a page
Redial
Press PHONE,
then press
REDIAL / PAUSE
to call last number
dialed(up to
32 digits)
Program/Channel
Switch to a clearer
channel while on a call
Enter programming
mode with Handset
idle(on hook)
7
TELEPHONE OPERATION
Page / Handset Locator
Press to page the Handset for
up to 60 seconds. Press again to
cancel,or press OFF on Handset.
ON / OFF Indicator
This indicator glows
when the Answering
System is ON.
IN USE / CHARGE Indicator
Flashes when the Handset is in use,
and glows when the Handset is charging.
This indicator will also flash rapidly while
a call is on HOLD.
8
TELEPHONE OPERATION
Handset Ringer Style/Battery Save
You can select from four different handset ringer styles, or turn the ringer off and
extend the battery life.
1 Make sure the handset is off.
2 Press
3 Press until the screen displays RINGER:, and the current selection.
4 Press
5 Press
6 Press
Temporary T one Dialing
If you have dial pulse (rotary) service, you can change from dial pulse to touch
tone dialing during a call by pressing * TONE. This is useful if you need to send
touch tone signals for access to telephone banking or long-distance services.
1 Dial the number.
2 Press * TONE. Buttons pressed after this send touch tone signals.
3 After you hang up, the phone automatically returns to dial pulse (rotary)
Setting Date / Time
1 Make sure the handset is off.
2 Press
3 Press until the screen displays DATE/TIME.
4. Press
month. Press
The DAY is flashing. Use and to select the correct da y. Press
The HOUR is flashing. Use and to select the current hour. Press
SELECT;
The MINUTE is flashing. Use and to select the correct minute. Press
AM or PM is flashing. Use or to choose between AM and PM. Press
SELECT ,
PROG/CHANNEL
SELECT
or to select 1, 2, 3, 4, or OFF. You will hear a sample of each
ring.
SELECT
service.
PROG/CHANNEL
SELECT .
SELECT;
DATE / TIME prog ramming is complete.
to enter programming mode.
. The screen displays the current setting.
to choose the displayed ringer setting.
to enter programming mode.
The MONTH is flashing. Use and to select the current
SELECT;
SELECT;
Note:
The Date / Time will be updated automatically when there is incoming
Caller ID data.
9
TELEPHONE OPERATION
Operating Range
This cordless telephone operates within the maximum power allowed by
the Federal Communications Commission (FCC). Even so, this handset and
base can communicate over only a certain distance — which can vary with the
locations of the base and handset, the weather, and the construction of your
home or office. For best performance, keep the base antenna fully upright.
If you receive a call while you are out of range, the handset might not
ring — or if it does ring, the call might not connect when you press
Move closer to the base, then press
If you move out of range during a phone conversation, you might
hear noise or interference. To improve reception, move closer to the base.
If you move out of range without pressing
“off the hook.” To hang up properly, walk back into range, periodically
pressing
OFF
.
TALK
to answer the call.
OFF
, your phone will be left
Display Screen Messages
TALK
.
Screen Displays:
NO LINE
RINGING
CONNECTING...
PHONE ON
MESSAGES WAITING
**PAGING**
HOLD
EXTENSION IN USE
BATTERY LOW
When:
The base is not connected to the telephone line,
or the line is not working.
There is a call coming in.
The handset is waiting for dial tone.
The handset is in use.
You have received telephone company voice mail.
The base is paging the handset.
There is a call on hold.
Another extension on this line is off hook.
The battery needs to be recharged.
10
TELEPHONE MEMORY
This cordless phone can store 10 telephone numbers with names, each up
to 16 digits long in memory locations you assign (0-9).
Note: Press OFF at any time to exit memory dial mode.
Store a Number and Name in Memory
1 Press
2 Press
3 Press the key (0-9) for the memory location where you’re storing this
NAME.
Note: If the location is not empty, the current entry is displayed along with the choices
DIAL EDIT ERASE.
follow the instructions to dial, edit or erase the current entry.
4 Using the chart below, enter up to 15 characters for the name you’re
storing with the number. Use to backspace and make corrections;
use to advance and add a space.
Presses
Dial Key 1 2 3 4 5 6
PROG/CHANNEL
DIAL.
MEM
. The screen displays ENTER 0-9.
entry. If the selected location is empty, the screen displays ENTER
1
1
2
A B C 2
3
D E F 3
4
G H I 4
5
J K L 5
6
M N O 6
7
P Q R S 7
8
T U V 8
9
W X Y Z 9
0
0
*
*
#
& ’ , - . #
. Then press until the screen displays MEM
Press OFF to exit memory dial mode and start again, or
11
TELEPHONE MEMORY
5 When you finish entering the name, press
PROG/CHANNEL.
The screen displays ENTER NUMBER.
SELECT
or
6 Enter the telephone number . Use to backspace and make a correction.
Press
REDIAL/PAUSE
7 Press
screen displays DISTINCT RING? and the current setting.
SELECT
or
to store a pause in the dialing sequence.
PROG/CHANNEL
to store your entry. The
8 Press or to change the setting. Choose Y (for Yes) if you wish
the phone to alert you to calls from this number by changing to a
distinctive ringing pattern after the first ring. Choose N (for No)
for a normal ringing pattern.
9 Press
SELECT
you chose Y in Step 8, a D will be displayed with the directory entry.
or
PROG/CHANNEL
to confirm your selection. If
Edit a Number/Name Stored in Memory
1 Press
2 Press the memory location key of the entry you wish to edit.
3 When the screen displays the number you want to edit, press
MEM
. The screen displays ENTER 0-9.
SELECT

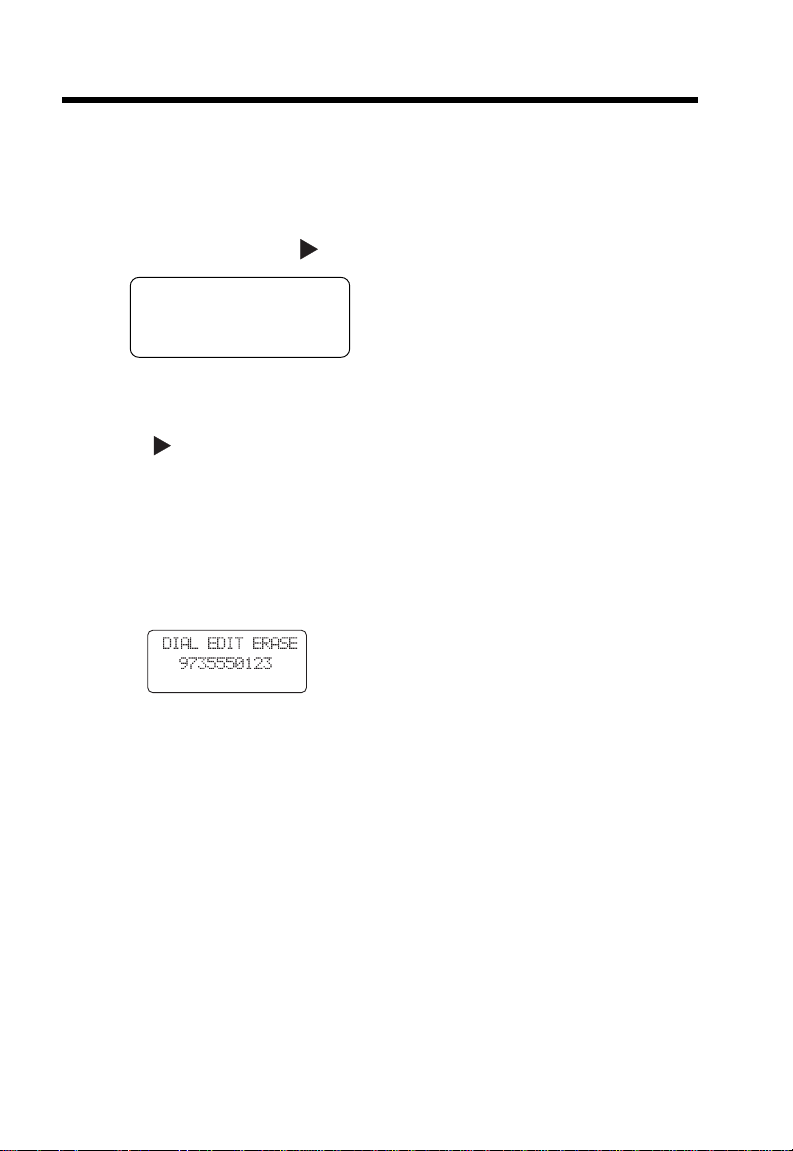

DIAL EDIT ERASE
9735550123
. Then press until EDIT flashes.
4 Press SELECT. The screen displays the name and number . The flashing
cursor appears at the end of the name. Use , and the dial pad
keys to edit the name. Press SELECT to move on to edit the number.
Use and dial pad k e ys to edit the n umber. Press SELECT to move
on to edit the Distinctive Ring setting.
5 Press
SELECT
to save the edited information.
12
TELEPHONE MEMORY
Delete a Number/Name Stored in Memory
1 Press
2 Press the memory location key of the entry you wish to edit.
3 When the screen displays the number you want to delete, press
MEM
. The screen displays ENTER 0-9.
SELECT
.Then press until ERASE flashes.
DIAL EDIT ERASE
9735550123
4 Press
number.
SELECT
. The screen displays ERASE NO YES and the
5 Press until YES flashes.
6 Press
SELECT
.
Dial a Memory Number
1 Press MEM . The screen displa ys ENTER 0-9.
2 Press the memory location key of the entry you wish to edit.
3 When the screen displays the n umber you want to dial, press SELECT .
DIAL will be flashing.
4 Press SELECT. The phone automatically dials the n umber.
13
TELEPHONE DIRECTORY
This cordless phone can store 40 telephone numbers with names, each
up to 16 digits long. Entries are stored alphabetically. For consistency
with Caller ID entries, you may wish to enter last names first.
Note: Press
OFF
at any time to exit directory.
Store a Number/Name in the Directory
1 Press
2 Press
3 Using the chart below, enter up to 15 char acters for the name
PROG/CHANNEL
SELECT
you’ re storing with the number. Use to backspace and make
corrections; use to advance and add a space.
. The screen displays ENTER NAME.
. The screen displays DIRECTORY.
Presses
Dial Key 1 2 3 4 5 6
Presses
Dial Key 1 2 3 4 5 6
1
1
2
A B C 2
3
D E F 3
4
G H I 4
5
J K L 5
6
M N O 6
7
P Q R S 7
8
T U V 8
9
W X Y Z 9
0
0
*
*
#
& ’ , - . #
14
TELEPHONE DIRECTORY
4 When you finish entering the name, press
PROG/CHANNEL
.The screen displays ENTER NUMBER.
SELECT
or
5 Enter the telephone number. Use to backspace and make a
correction. Press
sequence.
6 Press
SELECT
DISTINCT RING? and the current setting.
REDIAL/PAUSE
or
PROG/CHANNEL
to store a pause in the dialing
. The screen displays
7 Press or to change the setting. Choose Y (for Yes) if you wish
the phone to alert you to calls from this number by changing to a
distinctive ringing pattern after the first ring. Choose N (for No)
for a normal ringing pattern.
8 Press
Note:
tone sounds, and you will not be able to store a new number until you delete a
stored number.
SELECT
you chose Y in Step 7,a D will be display ed with the directory entry.
When memory is full the screen displays
or
PROG/CHANNEL
to confirm your selection. If
MEMORY FULL
, an error
Edit a Number/Name Stored in the Directory
1 Press ( DIR ). The screen displays DIRECTORY.
2 Press or to scroll alphabetically through entries
stored in memory
—OR—
Press the dial pad key for the first letter of the entry you want to edit.
3 When the screen displays the number you want to edit, press
SELECT
. Then press until EDIT flashes.
DIAL EDIT ERASE
9735550123
4 Press
5 Press
SELECT
ing cursor appears at the end of the name. Use , and the dial pad
keys to edit the name. Press SELECT to move on to edit the n umber .
Use and dial pad keys to edit the number . Press SELECT to move
on to edit the Distinctive Ring setting.
SELECT
. The screen displays the name and n umber. The flash-
to save the edited information.
15
TELEPHONE DIRECTORY
Delete a Number/Name Stored in the Directory
1 Press ( DIR ). The screen displays DIRECTORY.
2 Press or to scroll alphabetically through entries
stored in memory
—OR—
Press the dial pad key for the first letter of the entry you
want to delete.
3 When the screen displays the number you want to delete , press
Then press until ERASE flashes.
DIAL EDIT ERASE
9735550123
SELECT
.
4 Press
SELECT
number. The current choice flashes.
. The screen displays ERASE NO YES and the
5 Press until YES flashes.
6 Press
SELECT
. You’ll hear a series of beeps confirming the deletion.
Dial a Number from the Directory
1 Press ( DIR ). The screen displays DIRECTORY.
2 Press or to scroll alphabetically through entries
stored in memory
—OR—
Press the dial pad key for the first letter of the entry you want to dial.
3 When the screen displays the number you want to dial, press
DIAL will be flashing.
SELECT .
DIAL EDIT ERASE
9735550123
4 Press
SELECT
. The phone automatically dials the number .
16
CALLER ID OPERATION
Caller’s name
JOHNSON CHARLIE
Caller’s
telephone
number
About Call History
This phone assigns each incoming call a number from 1 to 99. The most
recent call will have the highest number. When the memory is full, the
oldest call information is deleted to make room for new incoming call
information.
For each call that comes in, the screen displays the following information
between the first and second rings:
• Your caller’s name (15 letters are sent by y our telephone company)
• The caller’s area code and telephone number
• The time and date of the call
• The position of the call in call history.
If you answer a call before the information appears on the screen, it will
not be in the call history .
Note: Press
908-555-1212
AM
5/01 5:40 28
Date of cal
OFF
at any time to exit call history.
l
Time of call
PM OLD
Position of call
in call history
Review Call History
The screen displays call information for about 15 seconds after it has
been received.
1 Press (CID) to view call history.
2 Use and to scroll through records in call history.
17
CALLER ID OPERATION
Delete Records from Call History
Delete a Specific Call
1 Locate the record you want to delete from call history .
2 Press
3 Press
4 Press until YES flashes.
5 Press
Delete All Calls
1 While viewing call history , press
SELECT
DIAL PGM ERASE
973-555-0123
5/01 5:40PM OLD 28
SELECT
the phone number. The current choice flashes.
SELECT
ERASE flashes.
DIAL PGM ERASE
973-555-0123
5/01 5:40PM OLD 28
, then press until ERASE flashes.
. The screen displays ERASE NO YES ALL and
. You’ll hear a series of beeps confirming the deletion.
SELECT
, then press until
2 Press
3 Press until ALL flashes, then press
SELECT
the phone number. The current choice flashes.
displays ERASE ALL NO YES. The current choice flashes.
. The screen displays ERASE NO YES ALL and
SELECT
. The screen
4 Press until YES flashes.
5 Press
NOTE:
SELECT
If there are new CID records not yet revie wed,the
not be displayed as a selection.
. You will hear a series of beeps confirming the deletion.
Dial a Displayed Number
1 Locate the record in call history that you want to dial.
2 If you wish to change how the number is dialed, press
The screen displays any alternate dialing sequences available
for this call (area code + number; 1 + area code + number;
1+ number; number only).
18
“ALL”
#
.
option will
CALLER ID OPERATION
3 Press
SELECT
, DIAL will be flashing.
DIAL PGM ERASE
973-555-0123
5/01 5:40PM OLD 28
4 Press
SELECT
to dial the number.
Store a Call History Record in the Directory
1 Locate the record in call history you want to store in memory.
2 If you wish to change how the number is stored, press
The screen displays any alternate dialing sequences available
for this call (area code + number; 1 + area code + number;
1+ number; number only).
3 Press
4 Press
SELECT
DIAL PGM ERASE
973-555-0123
5/01 5:40PM OLD 28
SELECT
, then press until PGM flashes.
four times to store the call record in memory. You
will hear a beep confirming that the name number were stored.
#
.
Display Screen Messages
Screen Display: When:
PRIVATE
OUT OF AREA
The other party is blocking name information.
The other party is blocking name and number
information.
Your phone company is unable to receive
information about this callers name.
Your phone company is unable to receive
information about this callers name and
number.
19
ANSWERING SYSTEM OPERATION
AT THE BASE
Audible Indicators
This system gives you voice prompts for feature operations, and voice
confirmations when you press a button or complete an operation.
About Mailboxes
This answering system has three voice mailboxes. Callers using a touch
tone phone can select the mailbox in which their messages will be
recorded by pressing
outgoing announcement. All other messages will be recorded in Mailbox 1.
Example of an Outgoing Announcement using mailboxes:
Hello, you have reached the Jones family. To leave a message for John, press
* 1 (‘Star’ 1) now; to leave a message for Mary, press * 2 (‘Star’ 2) now; to
leave a message for Cosmo, press * 3 (‘Star’ 3) now; or just wait for the beep
and begin talking.
About Announcements
• Y ou can record up to two diff erent announcements — one for normal
answering and one for when you’ve set the system to play the
announcement only .
• Use normal answering when you want the system to record callers’
messages. Use Announce Only when you want to give information to
callers without accepting messages.
• If you choose not to record an announcement, the system answers with
a pre-recorded announcement.
• The normal answering pre-recorded announcement says: “Hello. I’m unable to answer y our call right now. Please leav e your name, number and
a message after the tone. ” The Announce Only pre-recorded
announcement says: “Hello, I’m unable to answer your call right now.
Please call again. Thank you.”
• By setting Announce Only to ON or OFF, you decide which
announcement your callers will hear when the system answers a call
(the system comes set for normal answering , with Announce Only turned
off). See “Set Announce Only” , located in the Feature Summary chart
later in this section, to change your announcement selection.
NOTE:
When the system is set to Announce Only, the outgoing announce-
ment is played twice for the caller.
* 1 ,* 2
, or
* 3
while the system plays the
20
ANSWERING SYSTEM OPERATION
AT THE BASE
Turn Answering
System ON or
OFF
Record outgoing
announcements
and memos
Enter Answering
System feature
setup and choose
a feature to set
Select a feature
setting
Confirm / review
feature setting
Delete outgoing
announcement
Record Your Announcement
NOTE: If you ha ve assigned diff erent mailbo x es to people, be sure to
tell callers in your announcement to press
announcement is playing to leave a message in the appropriate
mailbox.
1 Press
2 Press
MENU
until you hear “
MEMO/REC
Set Outgoing Message
. After you hear “Now recording” followed by a
beep, speak toward the base to record an announcement up to 90
seconds long.
* 1 ,* 2
, or
* 3
while the
.”
NOTE: You may wish to leave several seconds of blank time at the end
of your recorded announcement to allow callers enough time to select
a mailbox.
3 Press any
MAIL BOX
button to stop recording. The system plays
back your recorded message.
To review your announcement at any time:
1 Press
2 Press any
MENU
MAIL BOX
until you hear “
button.
Set Outgoing Message
.”
To delete your announcement:
Press
DELETE
during announcement playback. The system will use
the pre-recorded announcement until you record a new one.
21
ANSWERING SYSTEM OPERATION
AT THE BASE
Setting Up Your Answering System
You can set up one feature at a time, or you can set up a f eature and
then move on to set up another feature.
1 Make sure the Answering System is ON.
2 Press and release
feature you want to set. Refer to the “Feature Summary” below for a
description of the features and your choices.
3 Press
4 Press
SELECT
TIME SET
Feature Summary
Default settings indicated by * .
System announces: Description/directions:
System announces: Description/directions:
“Set Security Code” Use
MENU
until you hear the system announce the
to hear and change the setting.
to confirm your selection.
SELECT
you will use to access features and functions of the
answering system from a touch tone phone. You can
select any 2-digit code, from 00 to 99.
to choose the remote access code
“Set Day and Time” Press
“Set Audible Message Alert” When Message Alert is turned on, the base beeps
Off * once every 10 seconds when new messages
On have been received.
“Set Announce Only” When you turn Announce Only On, callers hear
Off * your announcement, but cannot leave a message.
On
“Set Base Ringer” Turn the base ringer on or off.
On *
Off
“Set Number of Rings” Choose how many times the phone will ring
2 before the system answers a call.
4 * With Toll Saver active, the system answers after two
6 rings when you have new messages and after
Toll Saver four rings when you have no new messages.
NOTE:
Y ou can exit F eature Setup at any time by pressing any MAILBO X button.
SELECT
SET
to confirm your choice and move on to the
hour. Repeat Steps 3 and 4 in “Setting Up Your
Answering System ” above to complete setting
the day and time.
22
to set the day; then press
TIME/
ANSWERING SYSTEM OPERATION
AT THE BASE
Listen to, Save & Delete Messages
The system automatically saves your messages until you delete them,
and can store approximately 15 minutes of messages, memos, and
announcements (up to a maximum of 99 messages).
After playing a message, the system announces the day and time it was
received. While the message plays, the Message Window displays the
number of the message. After playing the last message in a mailbox, the
system announces “End of messages.” If the system has less than five
minutes of recording time left, it announces the remaining time.
Message Window
Press to skip to the
next message; hold to
Adjust Playback
Volume
System beeps
three times at
hightest or
lowest setting.
speed up playback.
Play Messages
press to play message
in a mailbox. Press
again to stop playback.
Press to repeat
a message;
hold to slow
down playback.
Delete Messages
. To delete all
messages in a
mailbox, press
and hold
DELETE
You will be
prompted to
choose
a mailbox
. To delete a
message in
a mailbox,
press
DELETE
while the
message
is playing.
23
NOTE
. You cannot
delete a
message
until its been
reviewed;
deleted
messages
cannot
be recovered.
ANSWERING SYSTEM OPERATION
AT THE BASE
Call Screening/Intercept
1 Make sure the answering system is on, and set the message playback
volume control above le v el 1 so y ou can hear the caller’ s message .
2 If you decide to take the call, press
3 If you pick up an extension phone during the announcement and the
announcement does not stop right away, press and release the
telephone switchhook.
Record a Memo
You can record a memo up to four minutes long to store as an incoming
message.
1 Press and release
2 Press a
After the beep, speak toward the microphone . The Message
Window displays the length of your memo.
3 To stop recording, press the
MAIL BOX
MEMO/ REC
button to select a mailbox for the memo.
Message Window Display
Window Displays: When:
TALK / FLASH
.
MAIL BOX
on the handset.
button again.
0 No new messages in any mailbox
1 - 98, flashing Total number of messages in all mailboxes
0 - 99 F Memory is full, or total number of messages is 99
Counting
99, flashing Length of recording is more than 99 seconds
1 – 99 Current message number during message playback
1 – 8, steady for Indicates volume level selected when VOLUME +
one second or VOLUME - is pressed
00 – 99 Current Remote Access Code while setting
A Announce Only mode
ON or OFF, steady for Displayed when any setting is changed from
one second on or off
CL normal display Clock needs to be set
-- System is answering a call or is in remote operation
-- , flashing System is in programming mode or initializing
1 to 99 Duration of announcement or memo recording
24
ANSWERING SYSTEM OPERATION
ACCESS FROM A REMOTE LOCATION
Connect with the Answering System
You can access many features of this system remotely from a touch
tone phone.
1 Dial your telephone number.
2 When the system answers, press
Access Code (preset to 19). The system beeps once.
3 Enter a remote command (see “Remote Access Commands”).
4 Press
* 0
to exit remote operation.
Voice Menu
The system has voice prompts to help you with remote operation. Press
* 5
to hear the menu while remotely connected to the answering
system.
Remote Access Commands
Function: Command:
Play messages in Press # , then the appropriate mailbox
a mailbox number ( 1 , 2 , or 3 ). The system plays
new messages. If there are no new
messages, the system plays old messages.
#
, then enter your Remote
Repeat a message Press # 4 while message is playing;
each press backs up another message.
Skip a message Press
Stop Press
Save messages Hang up.
Delete message Press
Review announcement Press
Record announcement Press
# 6
while message is playing;
each press advances another message.
# 5
.
# 9
while message is playing.
# 7
; system plays announcement,
then beeps.
* 7
; after beep, record announcement, press
# 5
to stop. System plays back announcement.
25
ANSWERING SYSTEM OPERATION
ACCESS FROM A REMOTE LOCATION
Remote Access Commands (continued)
Function: Command:
Function: Command:
Record memo Press
whereyou want memo recorded; speak
after beep; press # 5 to exit.
* 8
; then mailbox number
End remote access call Press
T urn system off Press
“Answering Machine Off.” Press
again to turn the system back on.
Turn system on When system is off, it answers after 10
rings and announces, “Please enter your
remote access code.” Press # , then
enter your remote access code.
NOTE: Remote access will automatically end if 20 seconds
go by with no key presses. (other than when recording or playing
messages or announcements).
* 0
.
# 0
; the system announces,
# 0
26
BATTERIES
Charge the Handset Battery Pack
• The battery pack needs charging when:
— A new battery is installed in the handset.
— The phone beeps twice every five seconds.
— The screen displays BATTERY LOW and the low battery icon.
• Place the handset in the base so the CHARGING light turns on.
The battery pack is typically fully charged in 10 hours.
• You can keep the battery fully charged by returning the handset
to the base after each use.
• If you repeatedly get a low battery indicator, e ven after charging
overnight, the battery should be replaced.
CAUTION: To reduce the risk of fire or injury to persons
or damage to the telephone, read and follow these
instructions carefully:
Charge the battery provided with or identified for use with this product
only in accordance with the instructions and limitations specified in the
User’s Manual.
27
BATTERIES
Replacing the Handset Battery Pack
1 Remove the battery compartment cover on the handset by
pressing on the indentation and sliding the cover downward.
2 Lift out the old battery pack and disconnect.
3 Align the two holes in the new battery pack’s plug with the
socket pins, and snap the plug into place. Place the battery pack in
the compartment with the wires in the lower left corner, along the
bottom of the battery pack.
4 Replace the cover by sliding it up into place.
5 The new battery pack must be charged before using the phone.
Place the Handset in the base and allow it to charge for at least
12 hours for the first time. The telephone might operate before that,
but for best perf ormance, let the battery pack charge fully .
28
IN CASE OF DIFFICULTY
If you have difficulty operating this phone, try the suggestions below .
For Customer Service, call 1-800-595-9511. Please retain your receipt as your proof of
purchase
If the phone doesn’t work at all, check these items first:
Make sure the AC adapter is plugged into an outlet not controlled by a wall switch.
Make sure the telephone line cord is plugged firmly into the base unit and the modular
jack.
Make sure the base antenna is fully upright.
If the handset does not beep when you press TALK, the battery might need charging.
Make sure the battery pack is installed correctly .
If you have dial pulse (rotary) service on your phone line, make sure the dial mode
is set to dial pulse (see INST ALLA TION).
Microwave appliances may cause interference with this phone. If you experience
interference, move away from the microwave
If the above suggestions don’t solve the problem, try re-initializing the handset
and base:
1 Disconnect the power to the base.
2 Remove the handset battery pack.
3 Wait a few minutes.
4 Connect the power to the base.
5 Insert the handset battery pack.
6 Put the handset in the base to re-initialize.
If you hear 5 rapid beeps when you try to use the handset:
Y ou might be out of range . Mo ve closer to the base and try again.
If moving closer to the base doesn’t help, try following the directions above for reinitializing the handset and base.
If the phone does not ring when you receive a call:
Make sure the handset ringer is on.
Make sure the telephone line cord is connected firmly to the base and the
telephone jack.
• Make sure the AC adapter is plugged firmly into an outlet not controlled by a wall
switch.
• You might be too f ar from the base; mov e closer.
• Y ou might hav e too many extension phones on y our telephone line to allow all of
them to ring. T ry unplugging some of them.
If you hear noise or interference when using the phone:
• Make sure the base antenna is fully upright.
• Y ou ma y be out of range. Mov e closer to the base.
• Press and release PROG/CHANNEL to change to another of the 30 channels
available. If noise is exceptionally loud, move closer to the base before changing
channels.
• Household appliances plugged into the same circuit as the base can sometimes
cause interference. Try moving the appliance or the base to another outlet.
29
IN CASE OF DIFFICULTY
• Using the handset near household appliances (microwaves, computers, television,
stereos, etc.) can sometimes cause interference. Move away from appliances while
using the handset.
• The layout of your home or office might be limiting the operating range . Try moving
the base to another location, preferably on an upper floor .
• If the buttons don’t work, try placing the handset in the base for at least 15 seconds.
If you hear other calls while using your phone:
• Press PROG/CHANNEL to change to another channel.
• Disconnect the base from the modular jack and plug in a corded telephone. If you still
hear other calls, the problem is probably in your wiring or local service. Call your local
telephone service company .
If you lose a call after changing channels:
Y ou w ere probably almost out of range. Move closer to the base bef ore changing channels.
Before placing another call, set the handset in the base for at least 15 seconds.
If you are unable to operate special telephone services or other equipment requiring
touch tone signals:
If you have dial pulse (rotary) service, follo w the directions under “T emporary T one Dialing”
in the TELEPHONE OPERATION section of this manual.
30
MAINTENANCE
Taking Care Of Your Telephone
Your cordless telephone contains sophisticated electronic parts, so it must
be treated with care.
Avoid rough treatment
Place the Handset down gently. Save the original packing materials to
protect your telephone if you ever need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the Handset
outdoors in the rain, or handle it with wet hands. Do not install your Base
Unit near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment.
For your own safety, use caution when using electric appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster
for many years. Clean it only with a soft cloth slightly dampened with water
or a mild soap. Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used
when you are wet or standing in water. If your Base Unit should fall
into water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER
CORD AND TELEPHONE LINE CORDS FROM THE WALL. Then pull
the unit out by the unplugged cords.
31
WARRANTY STATEMENT
What does this limited warranty cover?
The manufacturer of this product warrants to the holder of a valid proof of pur-
.
chase (“Consumer” or “you”) that the product and all accessories provided in
the sales package (“Product”) are free from material defects in material and
workmanship, pursuant to the following terms and conditions, when installed
and used normally and in accordance with operation instructions. This limited
warranty extends only to the Consumer for products purchased and used in the
United States of America.
What will the manufacturer do if the Product is not free from material defects in
materials and workmanship during the limited warranty period (“materially defective product”)?
.
During the limited warranty period, the manufacturer’s authorized service representative will repair or replace at their option, without charge, a Materially Defective Product. If the product is repaired, new and/or refurbished replacement
parts may be used. If the product is replaced, the replacement product may be
new or refurbished, and of the same or similar design. The manufacturer or its
agent will return the repaired or replacement product to you in working condition.
The manufacturer will retain defective parts, modules, or equipment. Repair or
replacement of the Product at the manufacturer’s option is your exclusive remedy. You should expect the repair or replacement to take approximately 30
days.
How long is the limited warranty period?
.
The limited warranty period for the product extends for ONE (1) YEAR from the
date of purchase if we repair or replace a materially defective product according
to the terms of this limited warranty. This limited warranty also applies to repaired or replacement products for a period of either (a) 90 days from the date
the repaired or replacement product is shipped to you or (b) the time remaining
on the original one-year limited warranty, whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical
2. Product that has been damaged due to repair, alteration or modification by
3. Product to the extent that the problem experienced is caused by signal condi-
4. Product to the extent that the problem is caused by use with electrical accesso-
5. Product whose warranty/quality stickers, product serial number plates or elec-
6. Product purchased, used, serviced or shipped for repair from outside the United
7. Product returned without valid proof of purchase; or
8. Charges for installation or set up, adjustment of customer controls, and installa-
damage, improper installation, abnormal operation or handling, neglect, inundation, fire, water or other liquid intrusion; or
anyone other than an authorized service representative of the manufacturer; or
tions, network reliability or cable or antenna systems; or
ries not approved by the manufacturer; or
tronic serial numbers have been removed, altered or rendered illegible; or
States, or used for commercial or institutional purposes (including but not limited
to products used for rental purposes); or
tion or repair of systems outside the unit.
32
WARRANTY STATEMENT
How do you get warranty service?
.
To obtain warranty service in the United States of America, call 1-800-595-9511
for structions regarding where to return the product. Before calling for service,
please check the User’s Manual. A check of the product controls and features
may save you a service call.
.
Except as provided by applicable law, you assume the risk of loss or damage
during transit and transportation and are responsible for delivery or handling
charges incurred in the transport of Product(s) to the service location. The
manufacturer will return repaired or replaced product under this limited warranty
to you; transportation, delivery or handling charges prepaid. The manufacturer
assumes no risk for damage or loss of the Product in transit.
.
If the product failure is not covered by this limited warranty, or proof of purchase
does not meet the terms of this limited warranty, the manufacturer will notify you
and will request that you authorize the cost of repair prior to any further repair
activity. You must pay for the cost of repair and return shipping costs for the
repair of products that are not covered by this limited warranty.
What must you return with the Product to get warranty service?
1. Return the entire original package and contents, including the Product, to the
2. Include “valid proof of purchase” (sales receipt) identifying the Product pur-
3. Provide your name, complete and correct mailing address, and
Other Limitations
State Law Rights
Limitations
recommended service location, along with a description of the malfunction or
difficulty;
chased (product model) and the date of purchase
or receipt; and
telephone number.
This warranty is the complete and exclusive agreement between you and the
.
manufacturer. It supersedes all other written or oral communications related to
this Product. The manufacturer provides no other warranties for this product.
The warranty exclusively describes all of the manufacturer’s responsibilities
regarding the product. There are no other expressed warranties. No one is
authorized to make modifications to this limited warranty and you should not rely
on any such modification.
This warranty gives you specific legal rights. You may also have other rights that
vary from state to state.
.
Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten warranty that the product is fit for ordinary use) are
limited to one year from date of purchase. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to
you.
.
In no event shall the manufacturer be liable for any indirect, special, incidental,
consequential or similar damages (including, but not limited to lost profits or
revenue, inability to use the product or other associated equipment, and claims
by third parties) resulting from the use of this product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
33
FCC REGULATIONS
This equipment complies with Parts 15 of the Federal Communications
Commission (FCC) rules for the United States. It also complies with
regulations RSS210 and CS-03 of Industry and Science Canada. Operation
is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
A label is located on the underside of the Base Unit containing either the
FCC registration number and Ringer Equivalence Number (REN) or the IC
registration number and Load Number. You must, upon request, provide
this information to your local telephone company.
This equipment is compatible with inductively coupled hearing aids.
Should you experience trouble with this telephone equipment, please contact:
Customer Service at 1-800-595-9511
For repair/warranty information. The telephone company may ask you to disconnect
this equipment from the line network until the problem has been corrected.
FCC Part 15
Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority to
operate the equipment.
The equipment has been tested and found to comply with part 15 of the
FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet or on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
34
FCC REGULATIONS
FCC Part 68
The FCC requires that you connect your cordless telephone to the
nationwide telephone network through a modular telephone jack (USOC
RJ11C, RJ11W or RJ14).
Your telephone company may discontinue your service if your equipment
causes harm to the telephone network. They will notify you in advance
of disconnection, if possible. During notification, you will be informed of
your right to file a complaint with the FCC.
Occasionally, your telephone company may make changes in its facilities,
equipment, operation, or procedures that could affect the operation of your
equipment. If so, you will be given advance notice of the change to give
you an opportunity to maintain uninterrupted service.
The Base Unit contains no user serviceable parts. The Handset contains
a user replaceable battery pack.
If it is determined that your telephone equipment is malfunctioning, the
FCC requires that it not be used and that it be unplugged from the modular
jack until the problem has been corrected. Repairs to this telephone
equipment can only be made by the manufacturer or its authorized agents
or by others who may be authorized by the FCC. For repair procedures,
follow the instructions outlined under the Limited Warranty.
This equipment may not be used on coin service provided by the phone
company or Party Lines.
The REN is useful in determining the number of devices you may connect to
your telephone line and still enable the devices to ring when you receive a call.
The general rule is that the REN value should not exceed 5.0A total; however,
contact your local telephone company for the specific number in your area.
35
R
The RBRC
The RBRC Seal on the nickel-cadmium battery indicates that the manufacturer
R
R
Seal
is voluntarily participating in an industry program to collect and recycle
these batteries at the end of their useful lives, when taken out of service
within the United States and Canada.
The RBRC program provides a convenient alternative to placing used
R
nickel-cadmium batteries into the trash or municipal waste, which may be
illegal in your area.
The manufacturer’ s participating in the RBRC makes it easy for y ou to drop off the
spent battery at local retailers participating in the RBRC program or at authorized
R
product service centers. Please call 1-800-8-BATTERYTM for information on
Ni-Cd battery recycling and disposal bans/restrictions in your area.The
manufacturer’s involvement in this program is part of its commitment to protecting
our environment and conserving natural resources.
Remove the nickel-cadmium battery pack by pressing on the lock knob and sliding
downward as mentioned on this page.
R
RBRC is a registered trademark of Rechargeable Battery Recycling
Corporation.
36
TECHNICAL SPECIFICATIONS
FREQUENCY CONTROL
Crystal controlled
PLL synthesizer
TRANSMIT FREQUENCY
Base: 2411.15 - 2418.4 MHz
Handset: 912.75 - 917.10 MHz
RECEIVE FREQUENCY
Base: 912.75 - 917.10 MHz
Handset: 2411.15 - 2418.4 MHz
CHANNELS
30 Channels
NOMINAL EFFECTIVE
RANGE
Maximum power allowed by FCC
and IC. Actual operating range may
vary according to environmental
conditions at the time of use.
WEIGHT
Handset : 161 grams
Base : 349 grams
(excluding battery)
POWER REQUIREMENTS
Handset : 600mAH NiCd
Battery Pack
Base : 9V DC @ 500mA
MEMORY
Speed Dial:10 Memory locations,
into 16 digits per
location.
CID : Alpha Numeric Display
99 Memory locations
Directory: 40 telephone numbers
with names
SIZE
Handset : 213mm x 65mm x 45mm
Base : 228mm x 182mm x60mm
SPECIFICATIONS ARE
TYPICAL AND MAY CHANGE
WITHOUT NOTICE.
37
CONTENTS
IMPORT ANT SAFETY
INSTRUCTIONS
BEFORE YOU BEGIN.................... 4
About Caller Identification.. .......... 4
Parts Check List............................4
INST ALLA TION
Before Y ou Install............................ 5
T a ble / Desk Installation................ 6
TELEPHONE OPERA TION
Make a Call .....................................7
Answer a Call .................................7
End a Call ....................................... 7
Redial .............................................. 7
Handset Volume ............................. 7
Hold.................................................. 7
Select............................................... 7
Memory ............................................ 7
Program / Channel........................ 7
ON/OFF Indicator............................ 8
In Use / Charge Indicator...............8
Page / Handset Locator .................8
Handset Ringer Style/
Battery Save ................................... 9
Temporary T one Dialing ............... 9
Setting Date/Time........................... 9
Operating Range...........................10
Display Screen Messages ..........10
TELEPHONE MEMORY ..............11
Store a Number and Name
in Memory ......................................11
Edit a Number/Name Stored
in Memory ......................................12
Delete a Number/Name Stored
in Memory ......................................13
Dial a Memory Number................13
TELEPHONE DIRECTOR Y
Store a Number/Name in
the Directory ..................................14
Edit a Number / Name Stored
in the Directory ..............................15
..................... 2
..............................5
......... 7
........14
Delete a Number / Name Stored
in the Directory ... ................................16
Dial a Number from
the Directory ......... ..............................16
CALLER ID OPERA TION . ...............17
About Call History............................... 17
Review Call History ............................ 17
Delete Records from
Call History...........................................18
Dial a Displayed Number .................. 18
Store a Call History Record
in the Directory............................. .......19
Display Screen Messages........... .....19
ANSWERING SYSTEM OPERATION
AT THE BASE
Audible Indicators ..............................20
About Mailboxes ................................20
About Announcements...................... 20
Record Your Announcement ........... .21
Setting up Your Answering System..22
Feature Summary ................................22
Listen to, Save & Delete Messages.......23
Call Screening/Intercept ...................24
Record a Memo ..................................24
Message Window Display .................... 24
ANSWERING SYSTEM OPERATION
ACCESS FROM
A REMOTE LOCA TION......................25
Connect with the
Answering System ............................. 25
V oice Menu...........................................25
Remote Access Commands................. 25
BA TTERIES
Charge the Handset Battery Pack...... 27
Replacing the Handset
Battery Pack.........................................28
IN CASE OF DIFFICUL TY
MAINTENANCE..................................31
WARRANTY ST A TEMENT..................32
FCC REGULA TIONS............................34
The RBRC Seal....................................36
TECHNICAL SPECIFICA TIONS.........37
............................... ....20
........................................ 27
................29
R
38
39
91-5810-10-00
ISSUED 0
Loading...
