V-TAC VT-7662 Installation Instructions

WEEE Number: 80133970

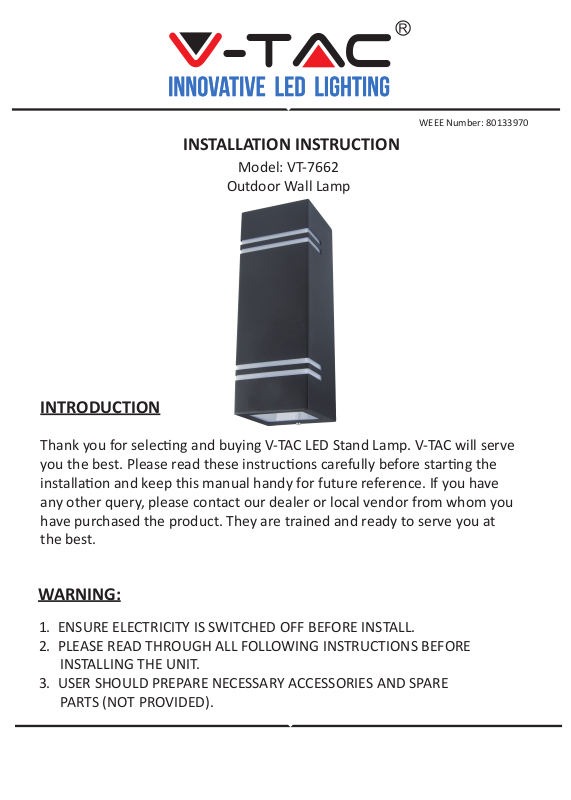

INSTALLATION INSTRUCTION

Model: VT-7662

Outdoor Wall Lamp

INTRODUCTION

Thank you for selecng and buying V-TAC LED Stand Lamp. V-TAC will serve
you the best. Please read these instrucons carefully before starng the
installaon and keep this manual handy for future reference. If you have
any other query, please contact our dealer or local vendor from whom you
have purchased the product. They are trained and ready to serve you at
the best.

WARNING:

1. ENSURE ELECTRICITY IS SWITCHED OFF BEFORE INSTALL.

2. PLEASE READ THROUGH ALL FOLLOWING INSTRUCTIONS BEFORE
INSTALLING THE UNIT.

3. USER SHOULD PREPARE NECESSARY ACCESSORIES AND SPARE
PARTS (NOT PROVIDED).

TECHNICAL PARAMETERS

Input Voltage:
Holder
Protecon Rang
Unit size

220 - 240 V AC, 50 Hz
GU10 2x11W (MAX)
IP 44
85x87x250mm

INSTALLATION INSTRUCTIONS

1. Drill two holes on the wall and insert two plasc expansion bolts in it.

2. Fix the plasc plate on the plasc expansion piece with self-tapping
screws.

3. Connect the supply leads with terminal.

4. Open the lamp and install the bulb in the lamp

5. Fix the lamp body on the plate and ghten the screws.

6. Switch on and test.

In case of any query /issue with the product please reach out to us at [e-mail]
