Volvo Xc90 Twin Engine 2018 Owner's Manual

Page 1
XC90
T W I N E N G I N E
OWNER'S MANUAL
Page 2
Page 3
VÄLKOMMEN!
We hope you will enjoy many years of driving pleasure in your Volvo. The car has been designed for the safety and comfort of you and your pas­sengers. Volvo strives to be one of the safest cars in the world. Your Volvo is also designed to meet applicable safety and environmental requirements.
To increase your enjoyment of your Volvo, we recommend that you read the instructions and maintenance information in this owner's manual.
The owner's manual is also available as a mobile app (Volvo Manual) and on the Volvo Cars support site (support.volvocars.com).
We encourage everyone to always wear their seatbelt in this and other cars. Please do not drive if you are under the influence of alcohol or medication – or have an impaired ability to drive in some other way.
Page 4

TABLE OF CONTENTS

OWNER INFORMATION
Owner information Owner's manual in centre display Navigate in the owner's manual in
the centre display Owner's Manual in mobile devices Volvo Cars support site Reading the owner's manual The owner's manual and the environment
YOUR VOLVO
Volvo ID
18
Creating and registering a Volvo ID
19
Drive-E - cleaner driving pleasure
20
IntelliSafe-driver support
22

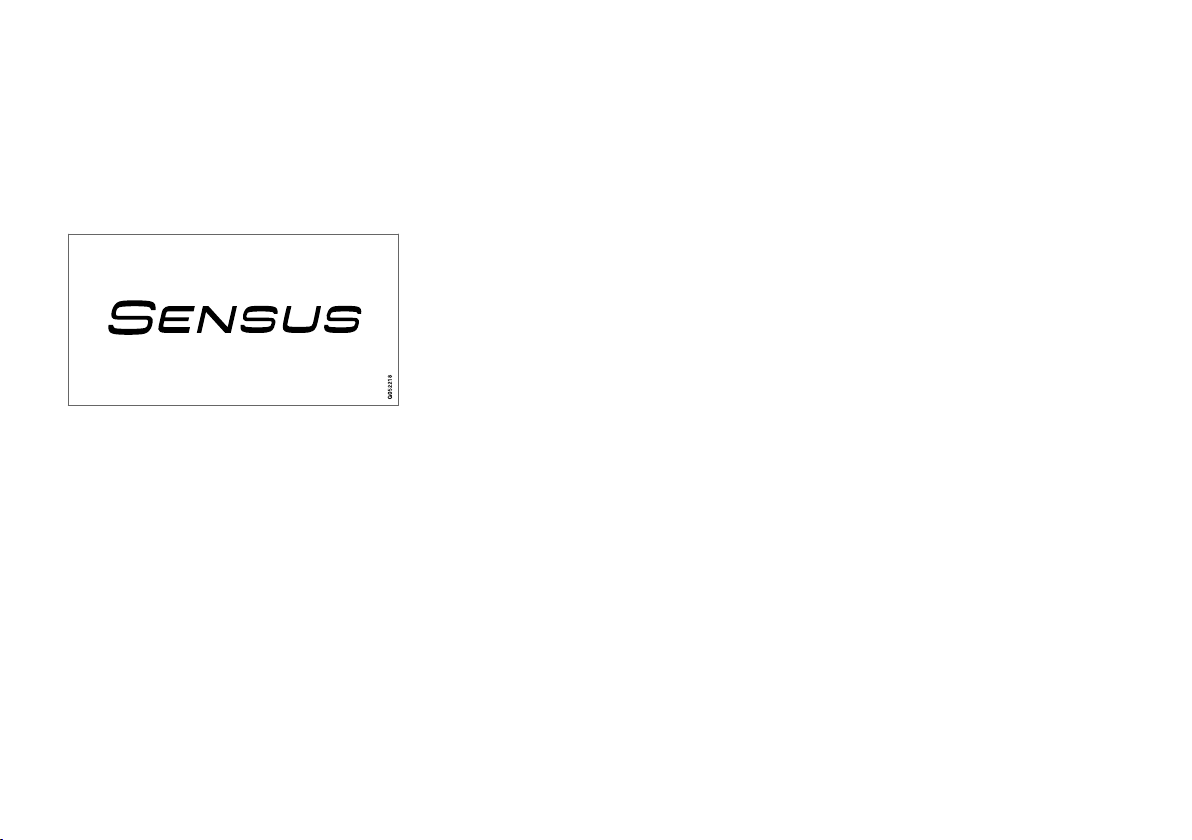

Sensus - online connectivity and entertainment
22
Software updates
23
Recording data
25
Terms & Conditions for Services Customer Privacy Policy Important information on accessories
and auxiliary equipment Installation of accessories Connection of equipment to the car's
diagnostic socket Showing the car's identification number Driver distraction
SAFETY
Safety
28

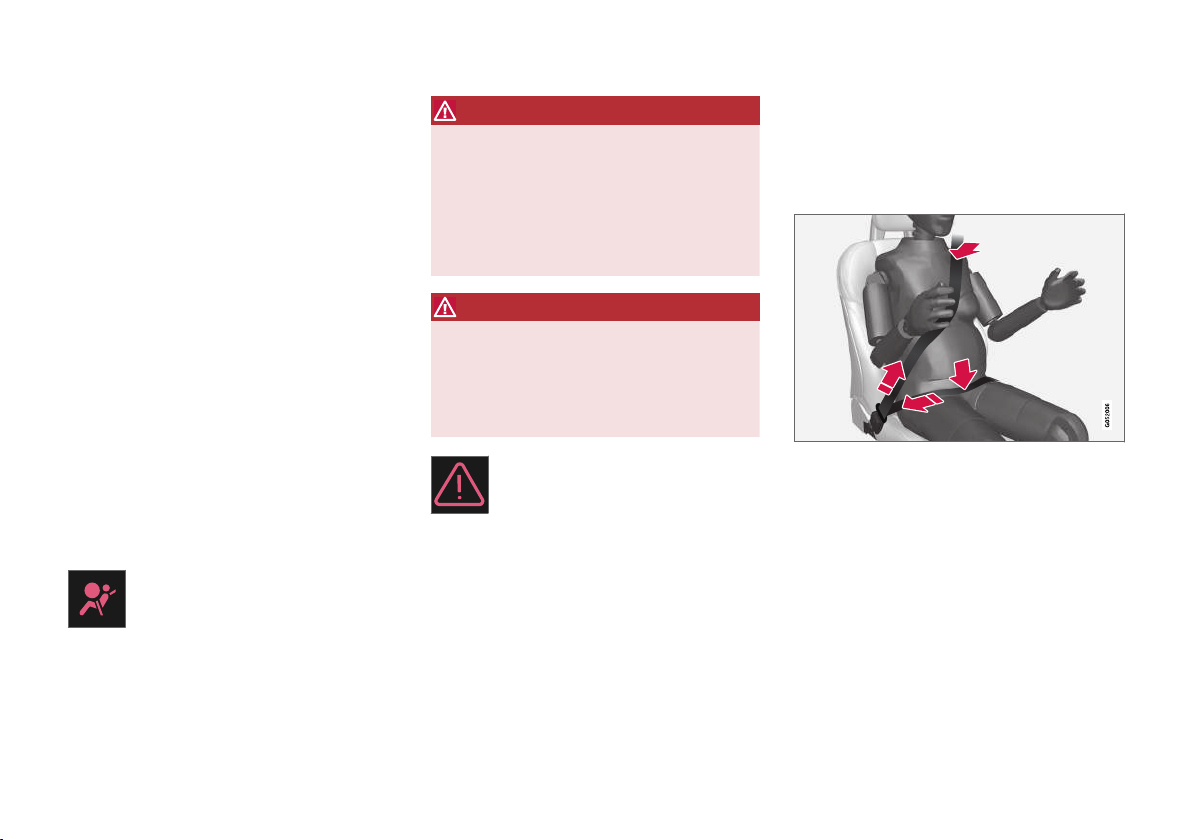

Safety during pregnancy
28

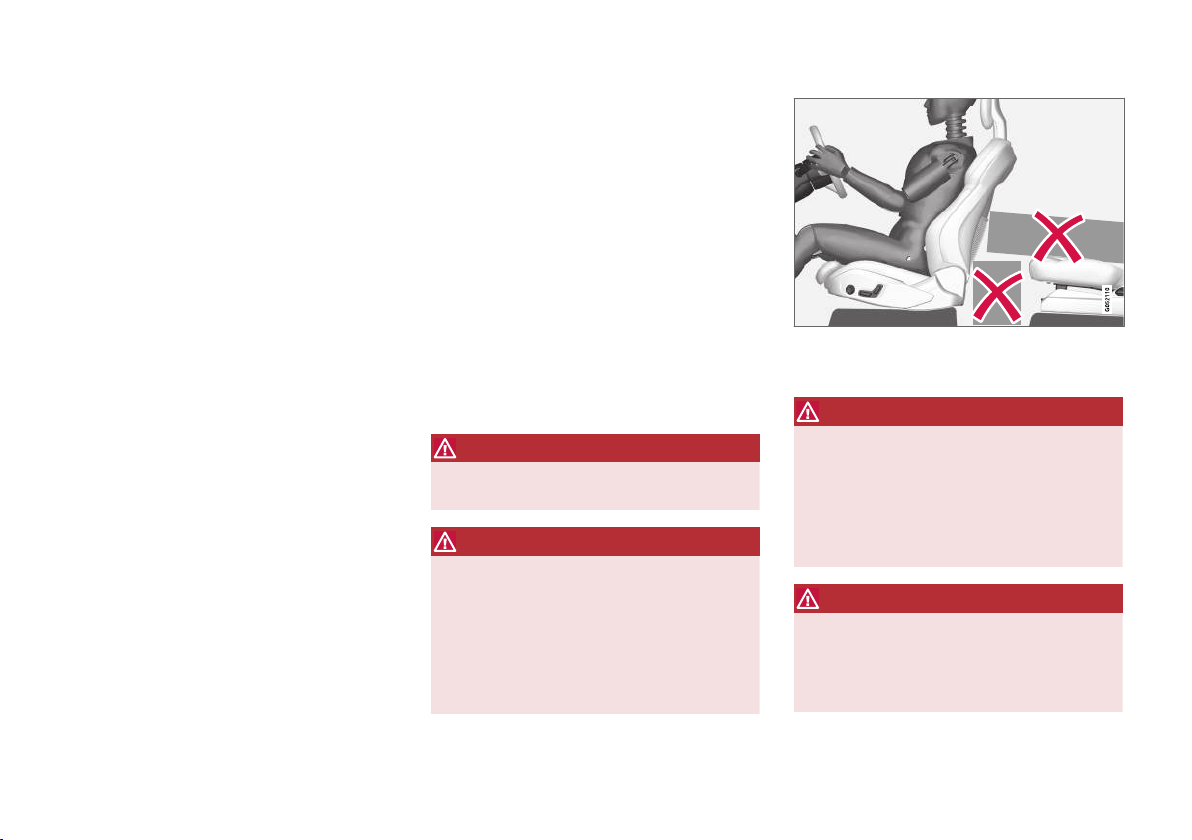

Whiplash Protection System
30
Seatbelts
33

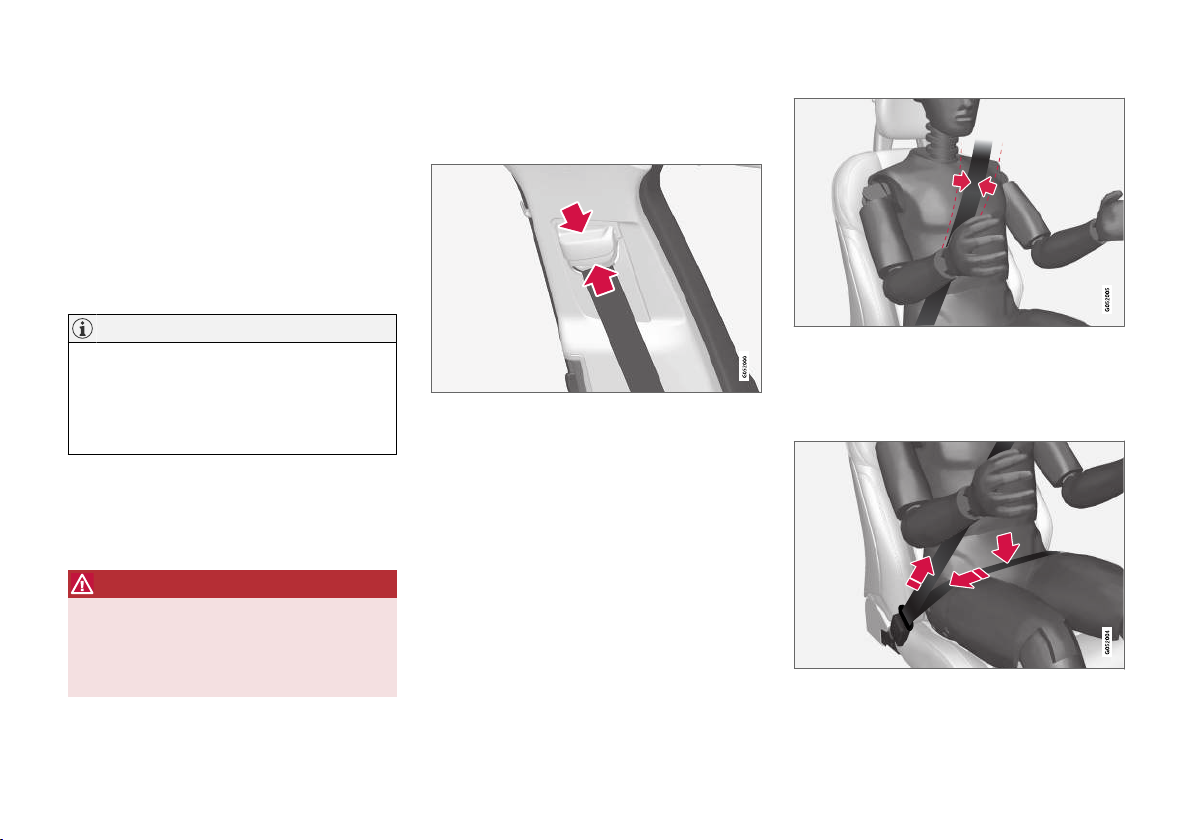

Putting on and taking off seatbelts
34
Seatbelt tensioner
37
Resetting the electric seatbelt tensioner
37

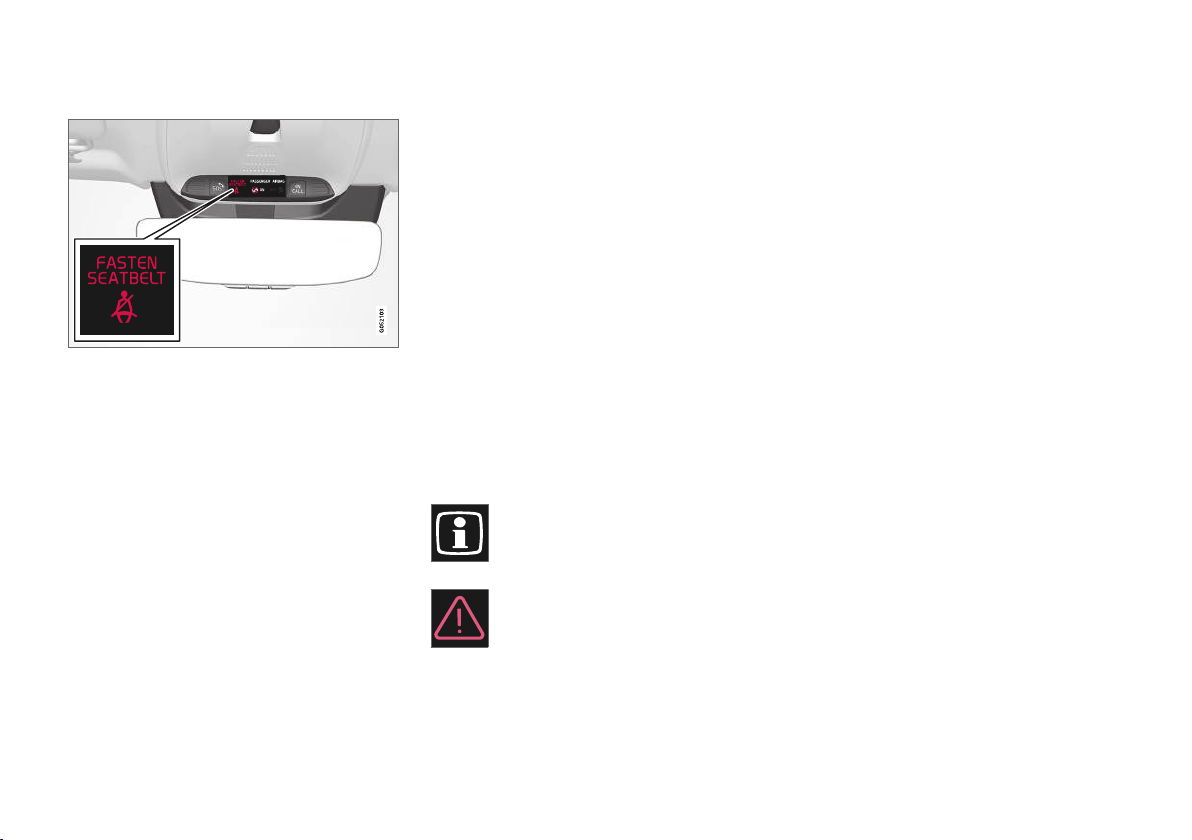

Door and seatbelt reminder
38
Airbags
38

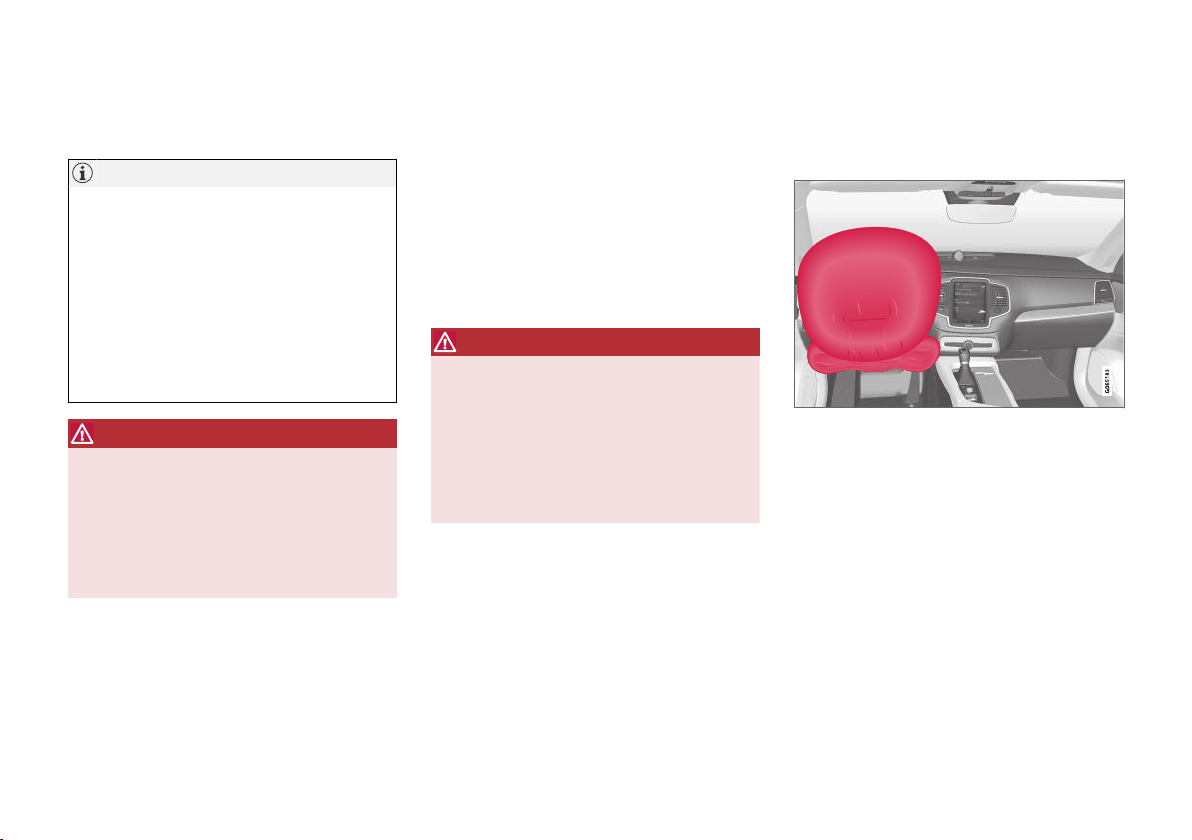

Driver airbags
39

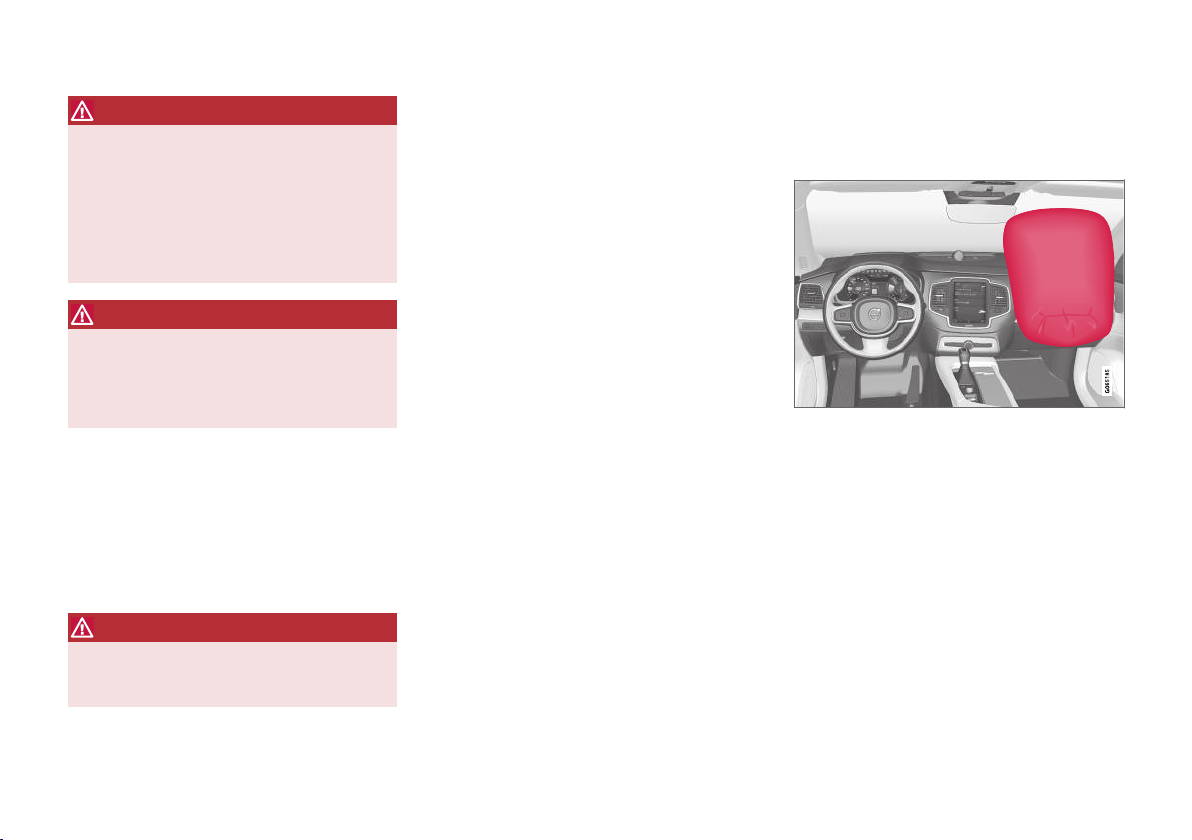

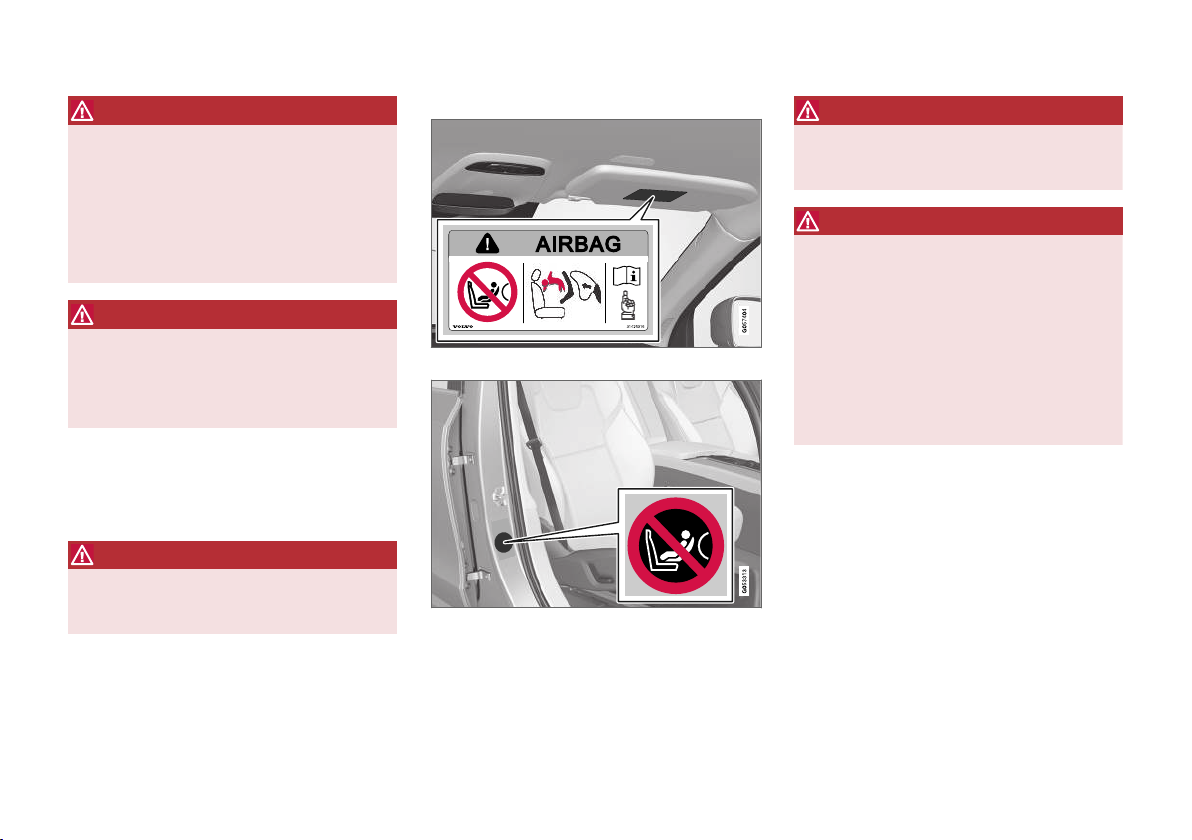

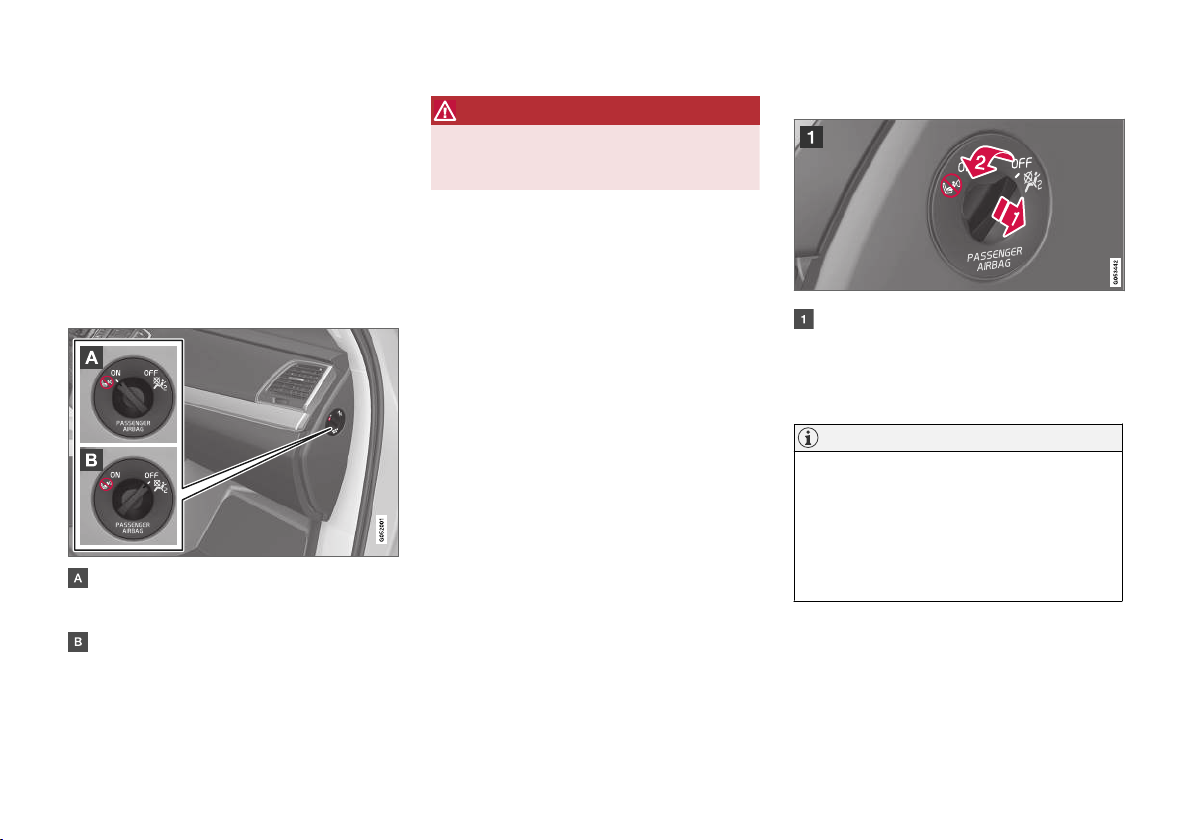

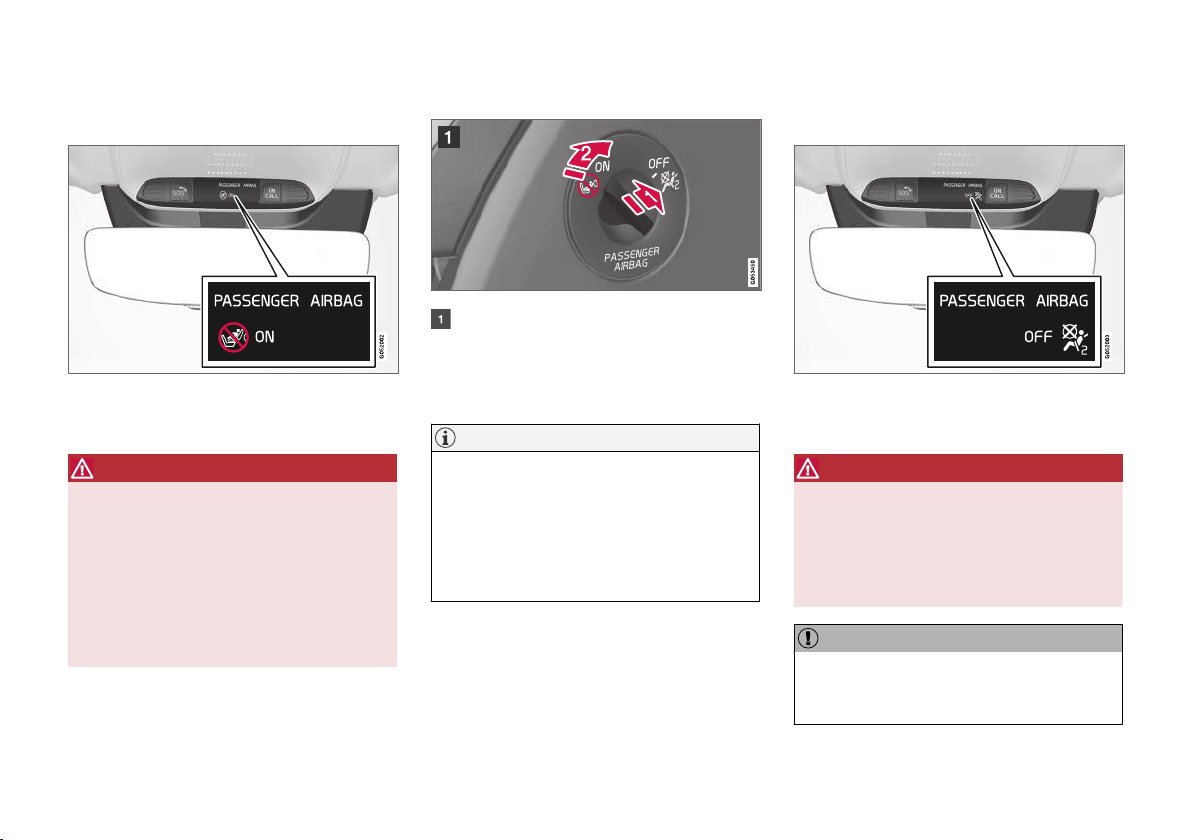

Passenger airbag Activating and deactivating passen-
39
ger airbag*
40

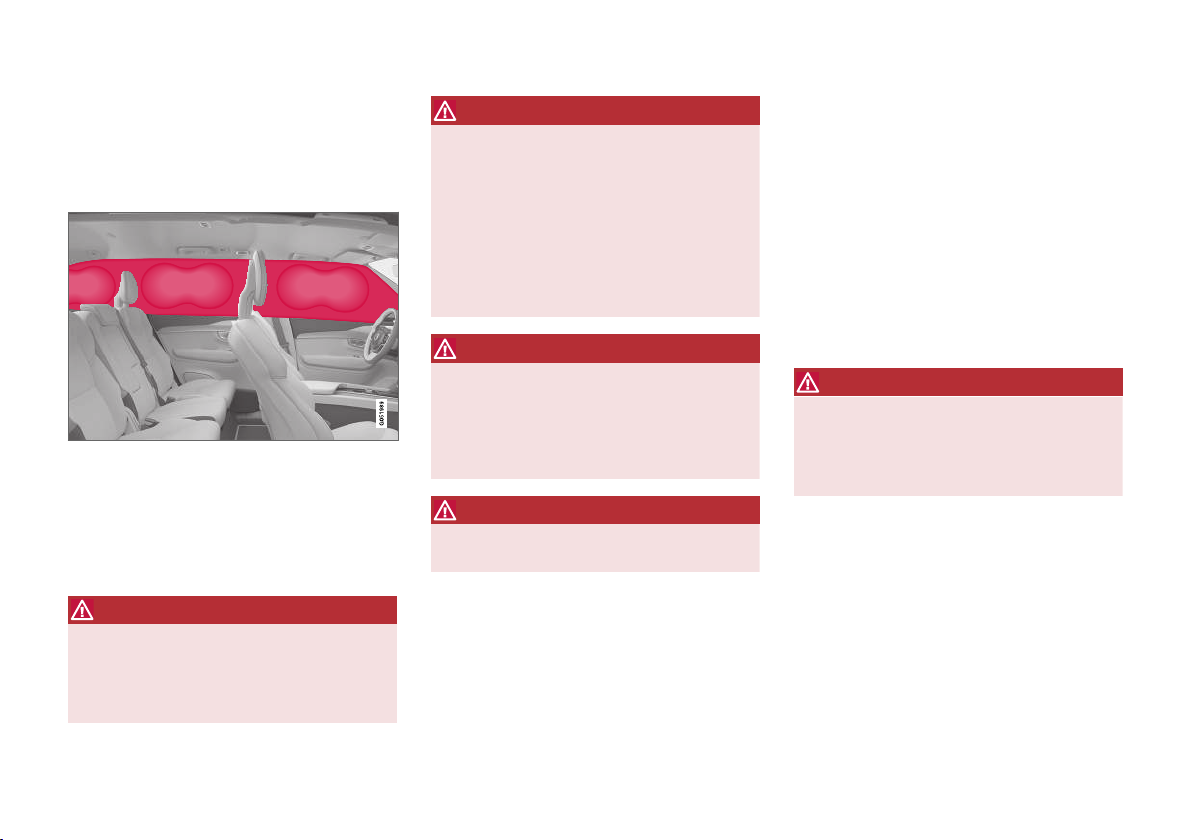

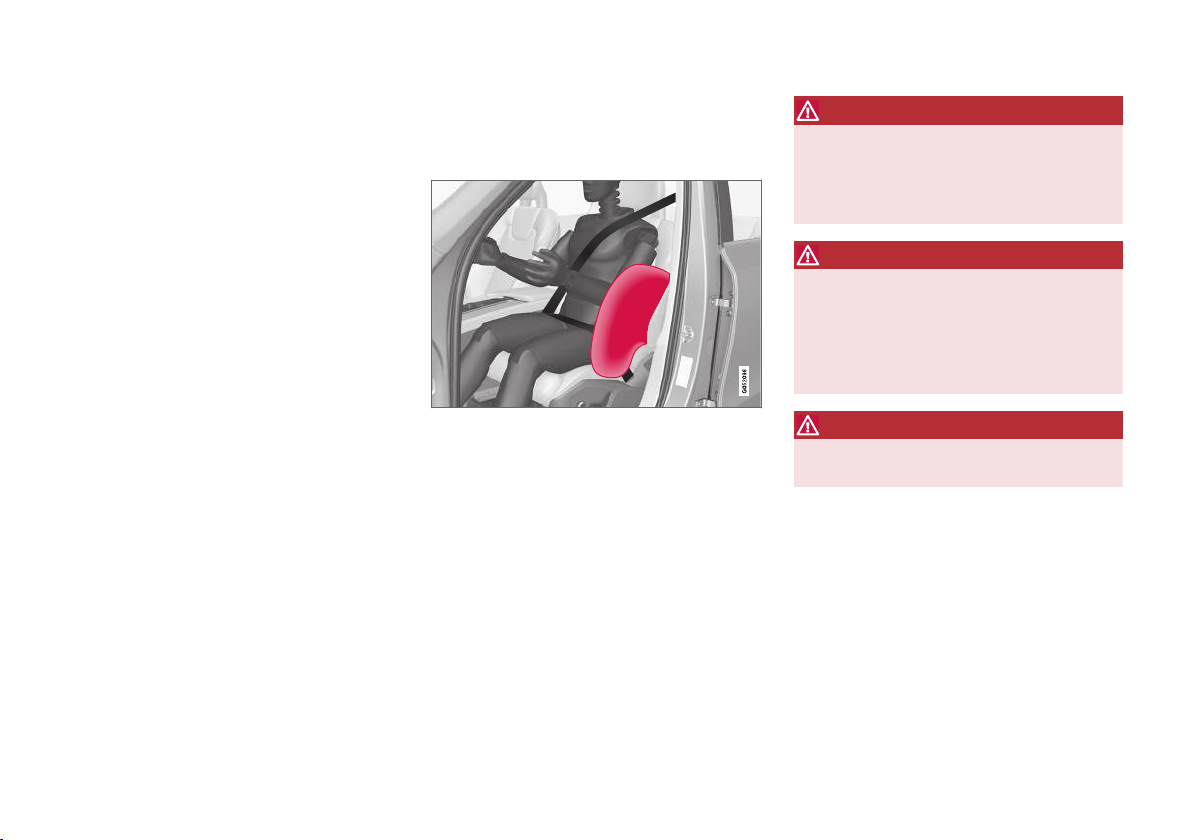

Side airbags Airbags
41
Safety mode
41
Starting and moving the car after safety mode

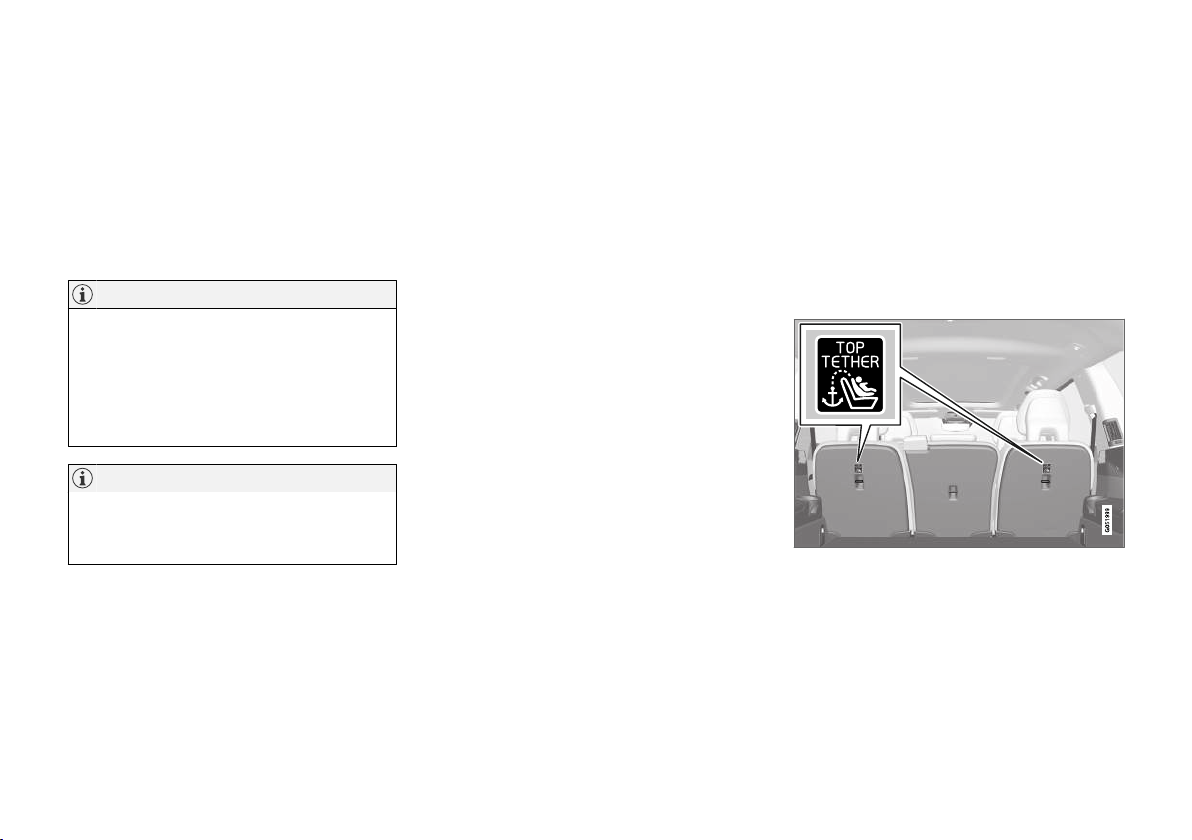

Child safety Child seats Upper mounting points for child seats Lower mounting points for child seats i-Size/ISOFIX mounting points for
child seats Child seat positioning
44 44 45 46 47 48 49 49 51 51 52 54
56 57 57 58
59 60 60 61 62
62
2
Page 5

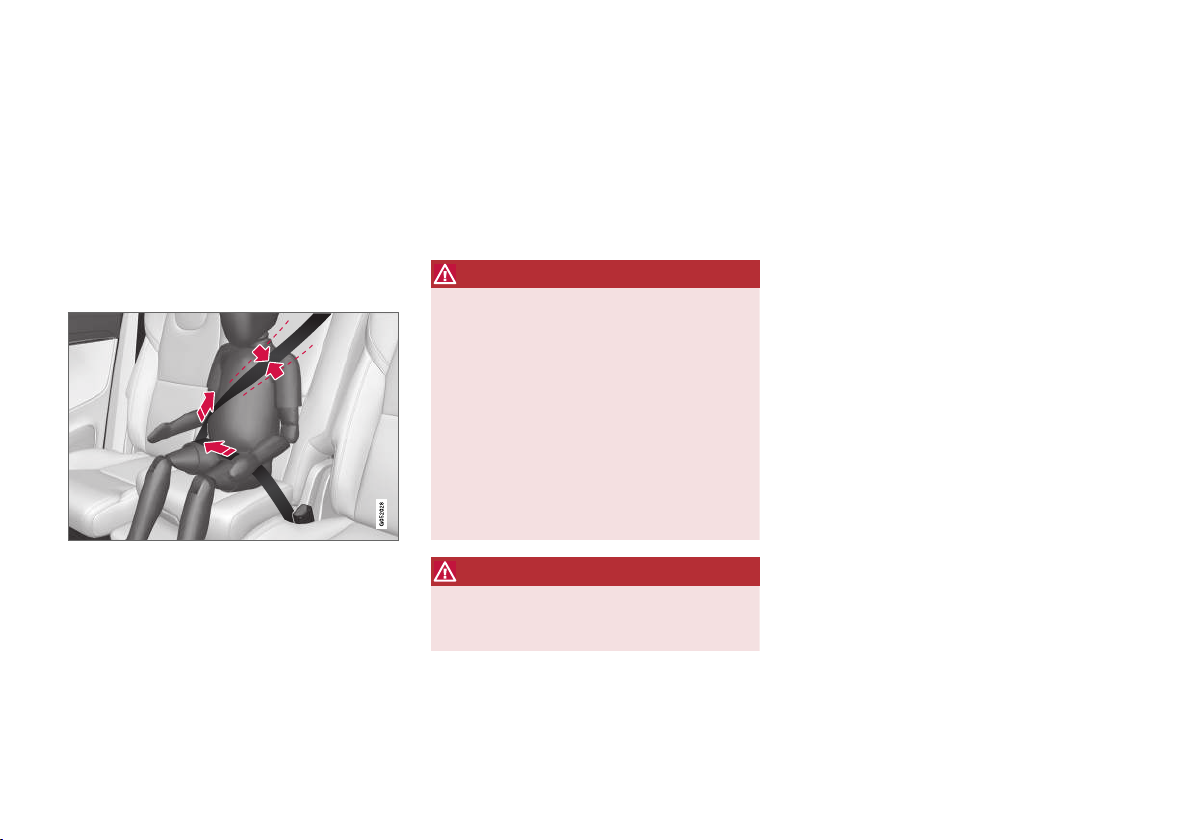

Child seat mounting Table for location of child seats
using the car's seatbelts Table for location of i-Size child seats Table for location of ISOFIX child seats Integrated child seat* Folding up the seat cushion in the

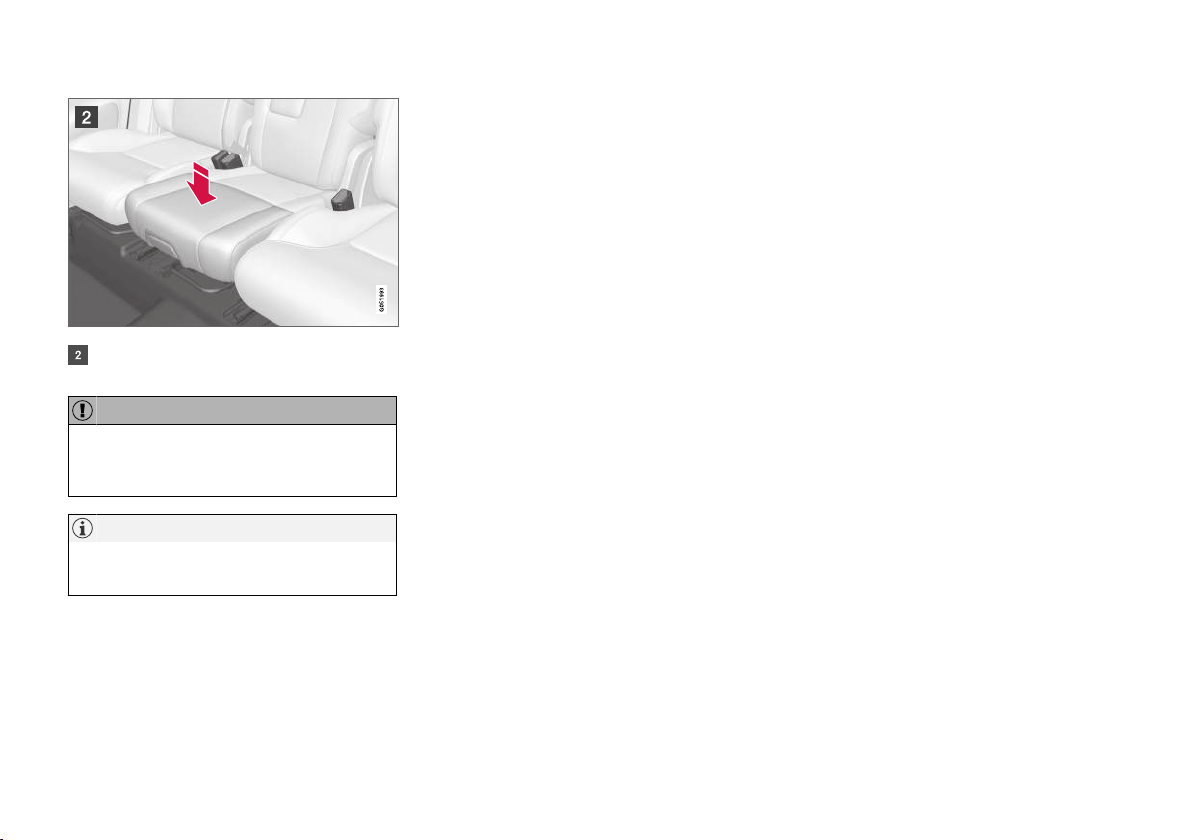

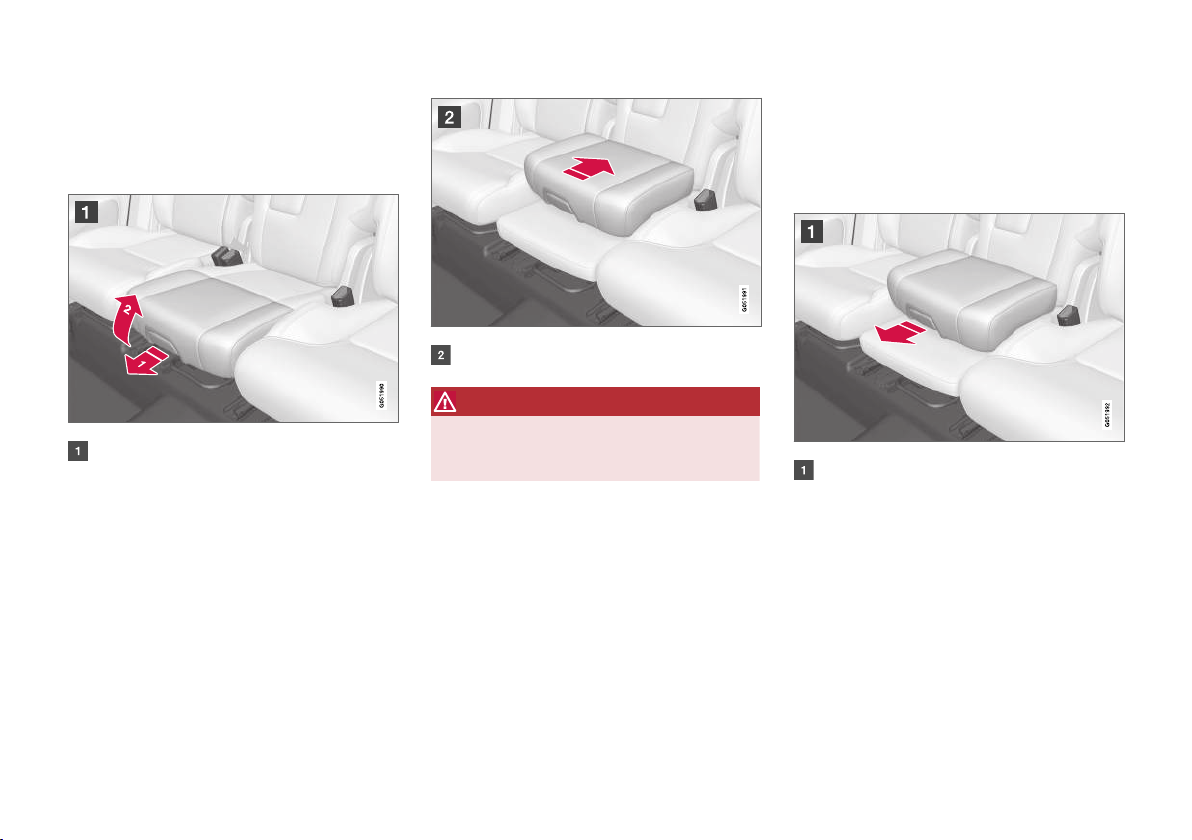

integrated child seat* Folding down the seat cushion in the
integrated child seat*
DISPLAYS AND VOICE CONTROL

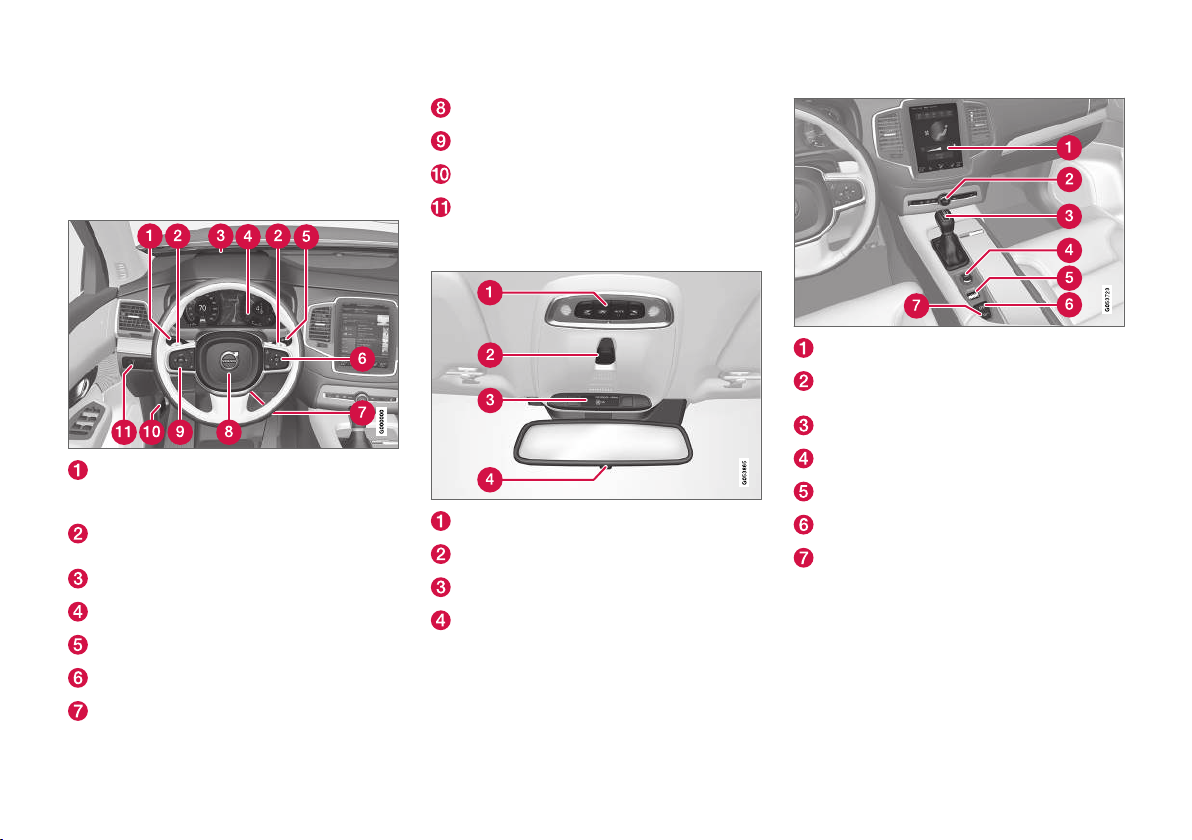

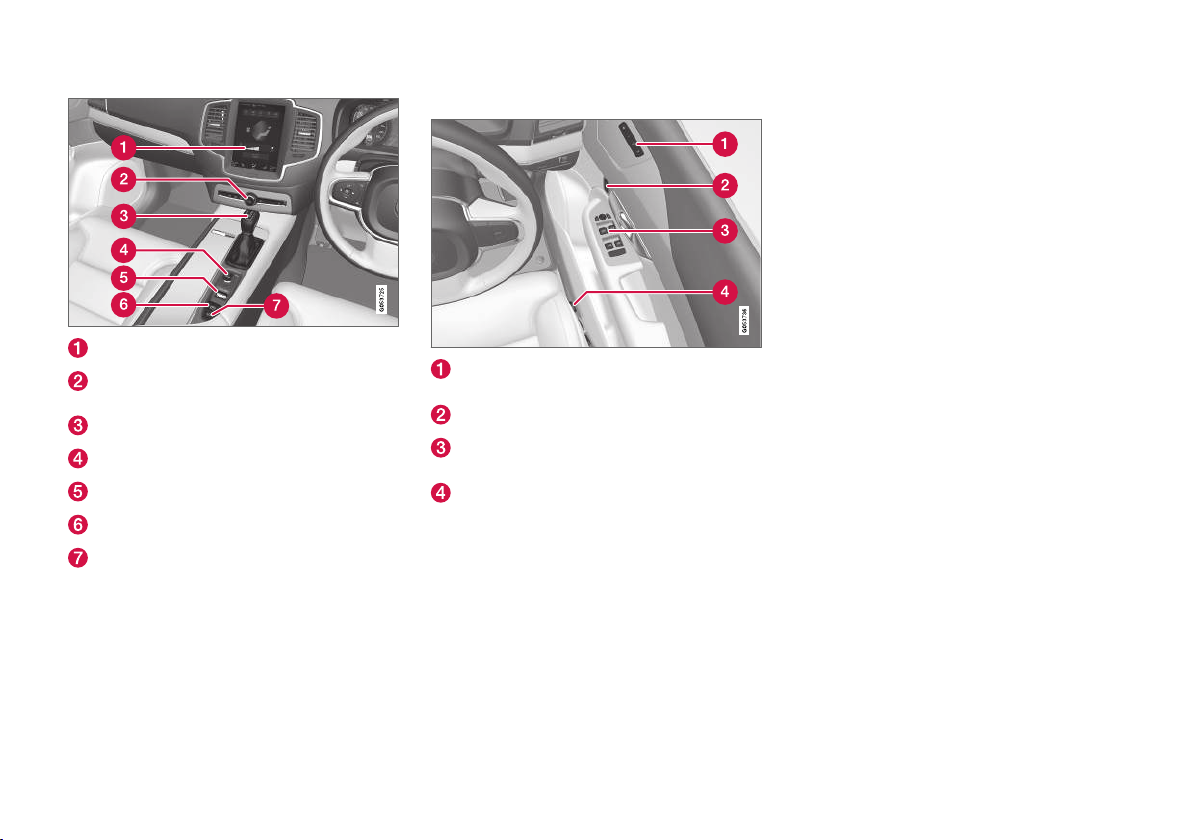

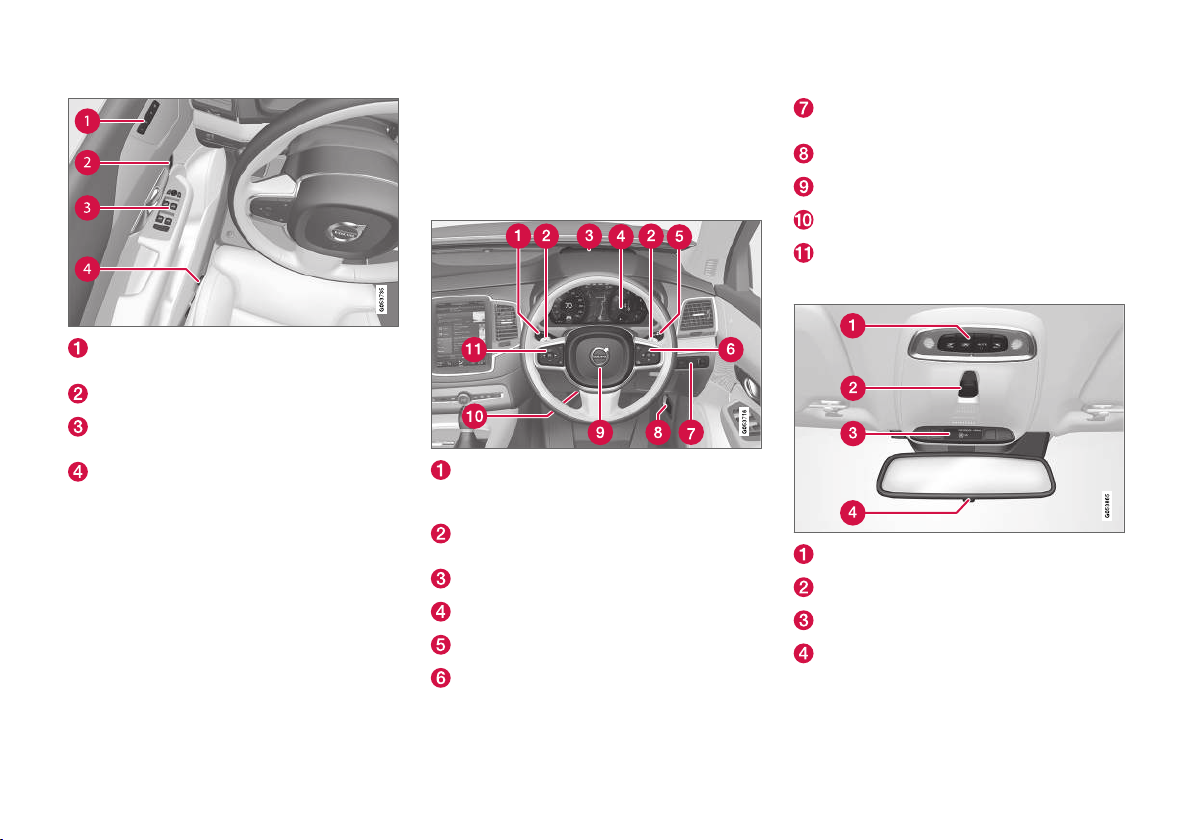

Instruments and controls in left-hand
64
drive car
66
Instruments and controls in right­hand drive car
69

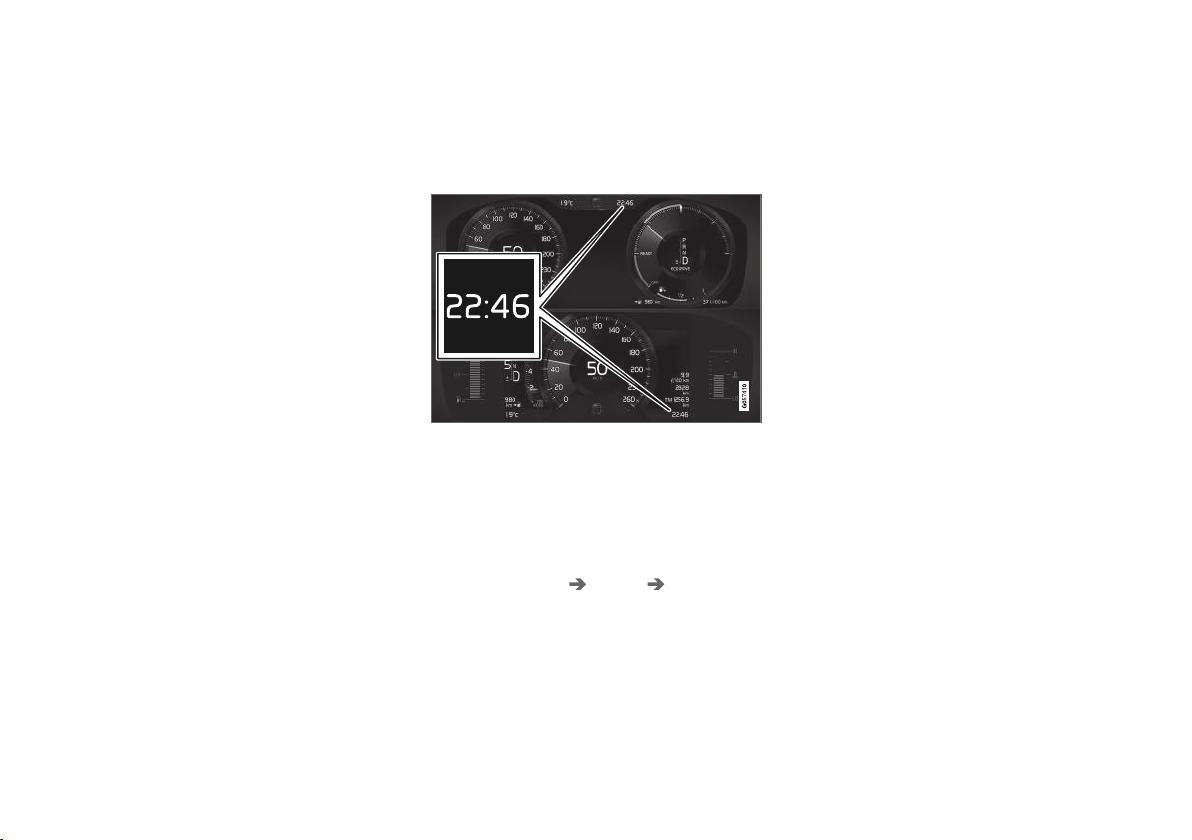

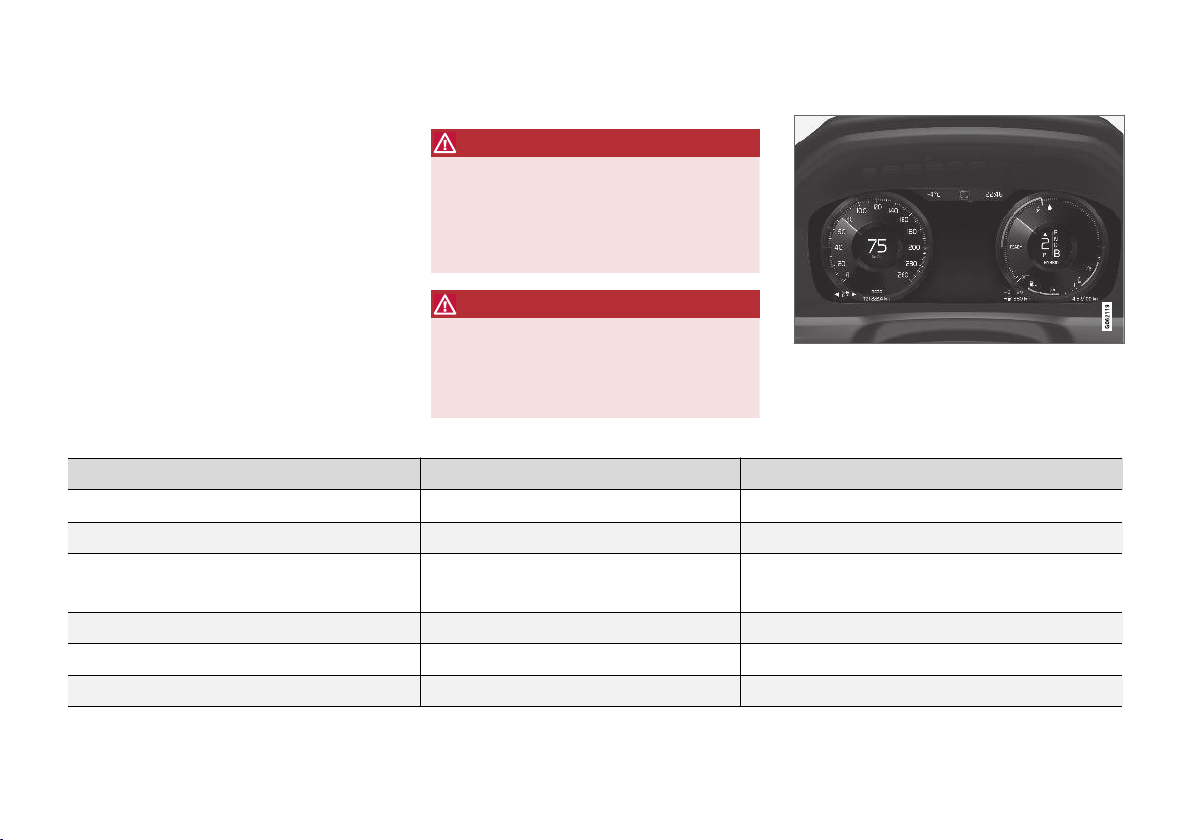

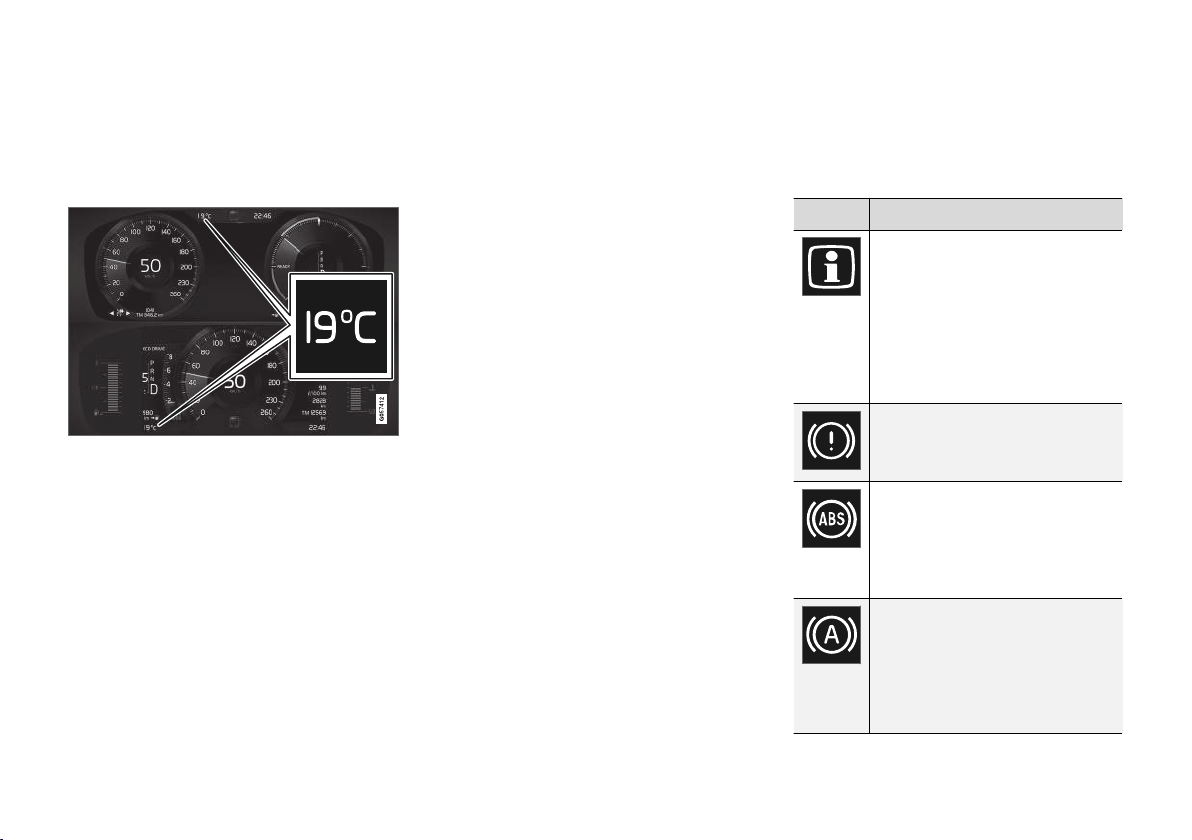

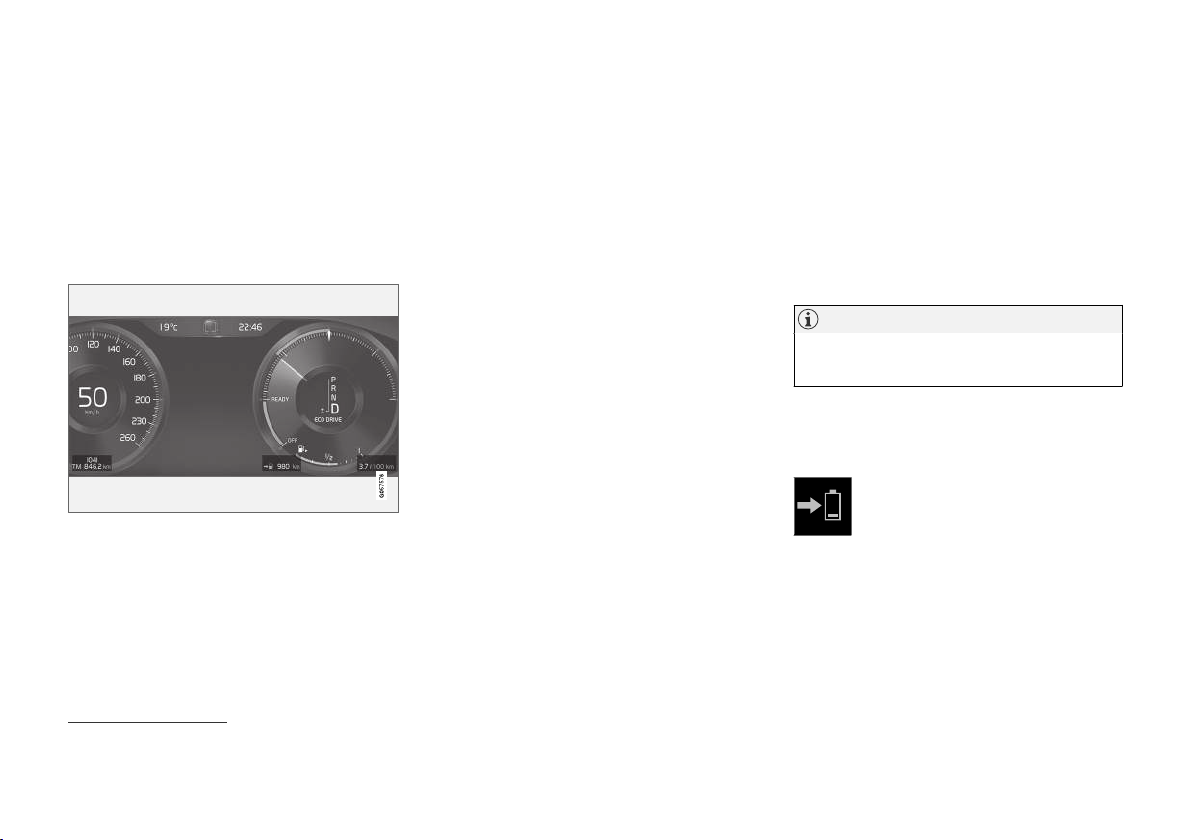

Driver display
70
Driver display settings
74
Fuel gauge
75

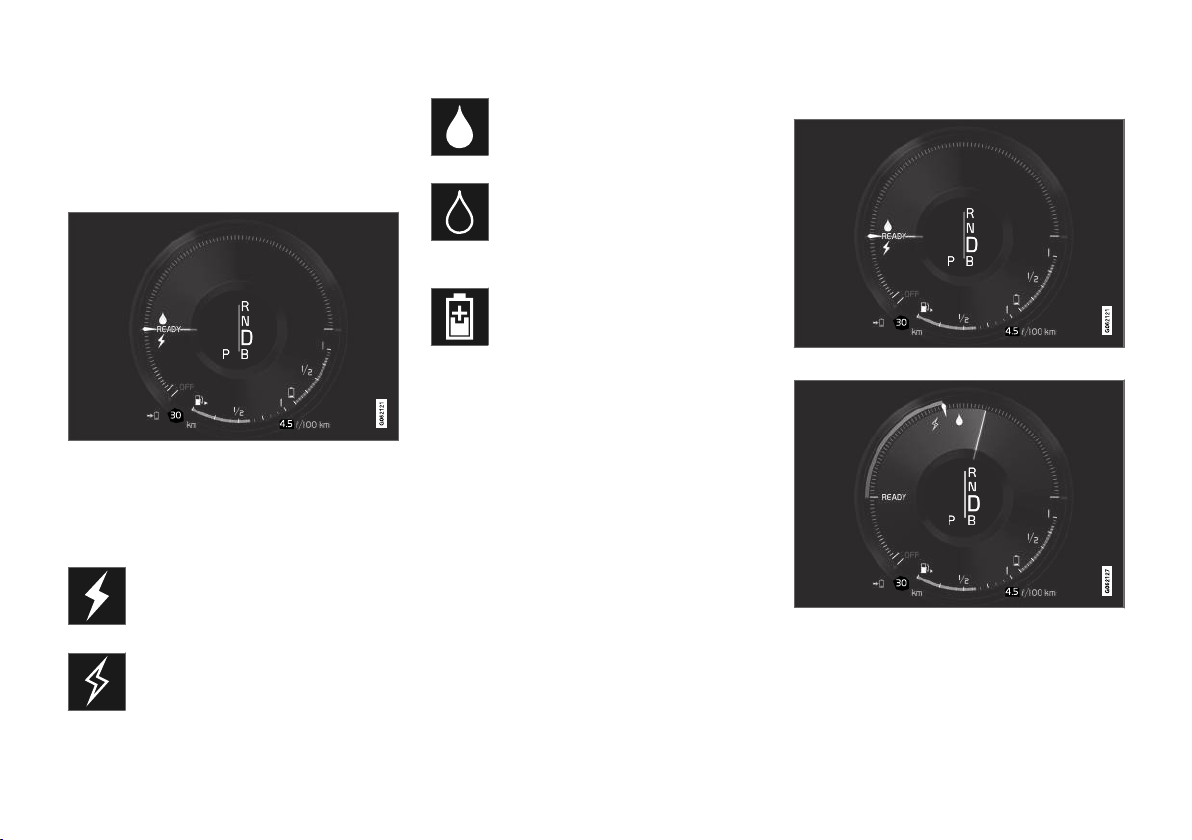

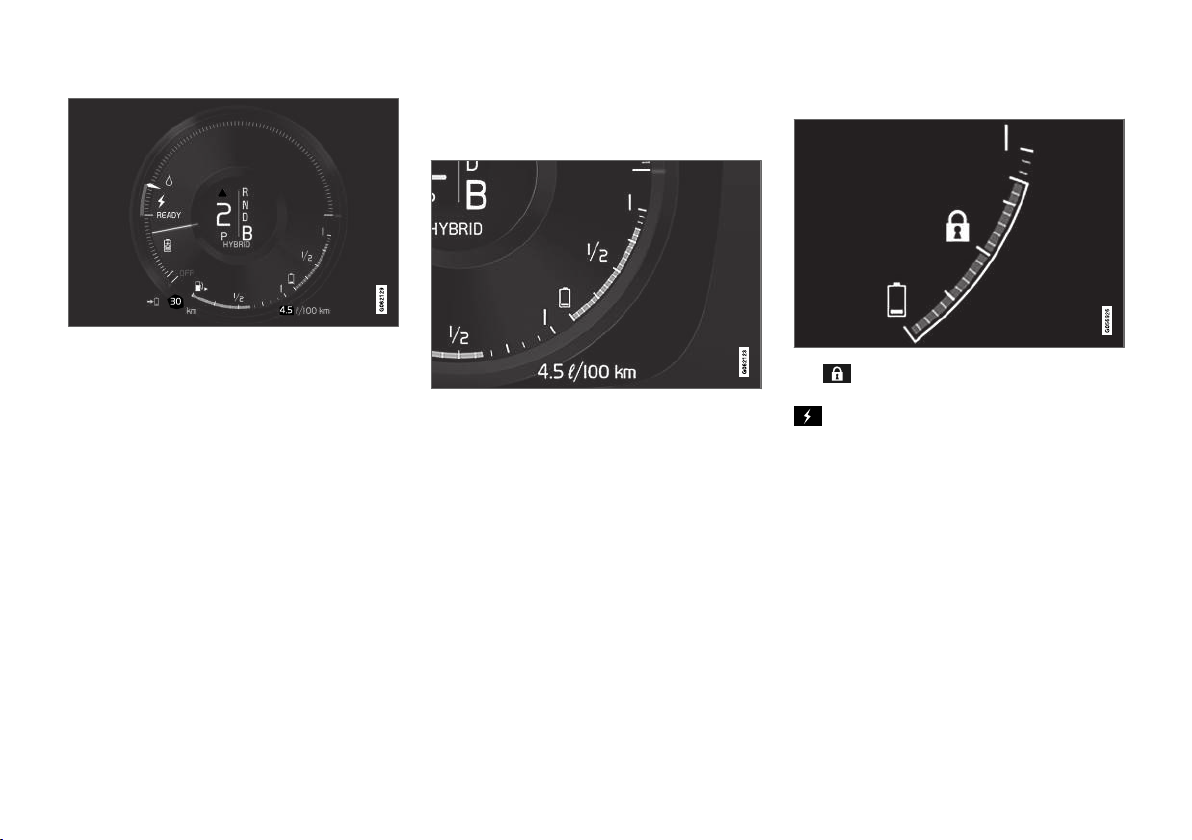

Hybrid gauge Hybrid battery gauge
75

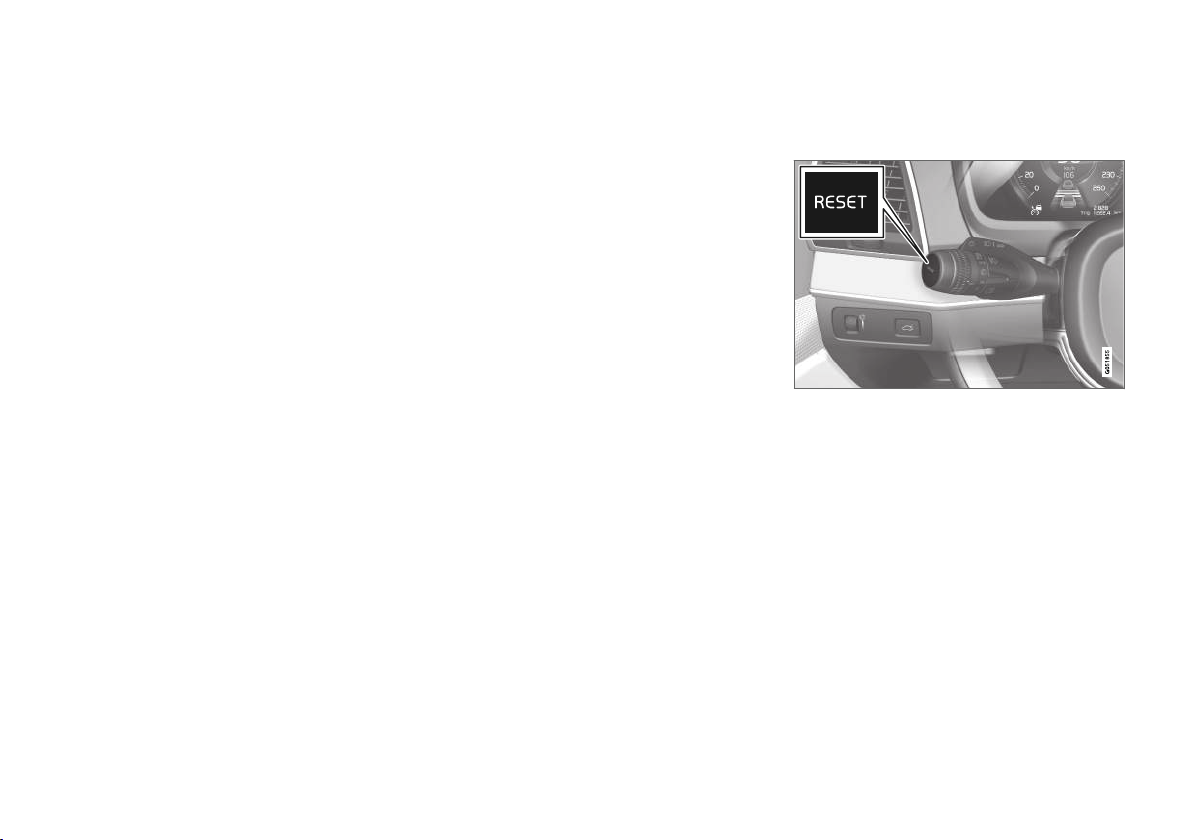

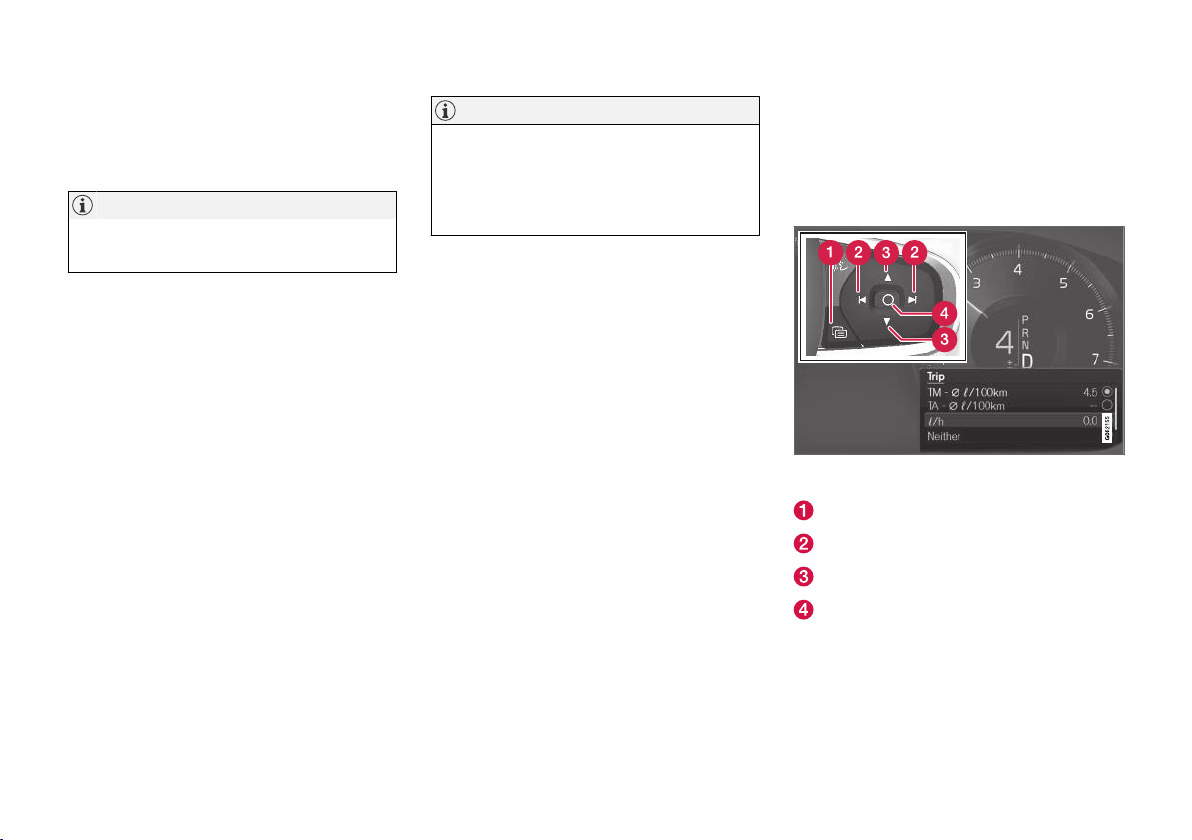

Trip computer Show trip data in the driver display Resetting the trip meter Show trip statistics in the centre display Settings for trip statistics Time and date Outside temperature gauge Indicator symbols in the driver display Warning symbols in the driver display License agreement for the driver display Application menu in driver display Handling the application menu in the
driver display Messages in the driver display Managing messages in the driver display Handling a message saved from the
driver display
78
79
81 83 83 84 85 86 87 88 89 89 90 91 91 93
94 100 101
102 103 103
Overview of centre display Managing the centre display Activating and deactivating centre display Navigating in the centre display's views Managing tiles in centre display Function view in centre display Moving apps and buttons in centre
display Symbols in the centre display's status bar Keyboard in centre display Changing keyboard language in cen-
tre display Enter the characters, letters and
words manually in the centre display Changing the appearance in the
centre display Switching off and changing the vol-
ume of the system sound in the cen­tre display
Changing system units Changing system language Opening settings in the centre display Open contextual setup in the centre
display Changing settings in the centre display Resetting user data for change of
ownership
105 108 111 111 115 118 120
120 122 125
125
127
127
128 128 128 129
130 130
3
Page 6
Resetting settings in the centre display Setting types in the centre display Table showing centre display settings Driver profiles Selecting driver profile Renaming a driver profile Resetting settings in the driver profiles Linking remote control key to driver
profile Message in centre display Managing messages in the centre display Handling a message saved from the

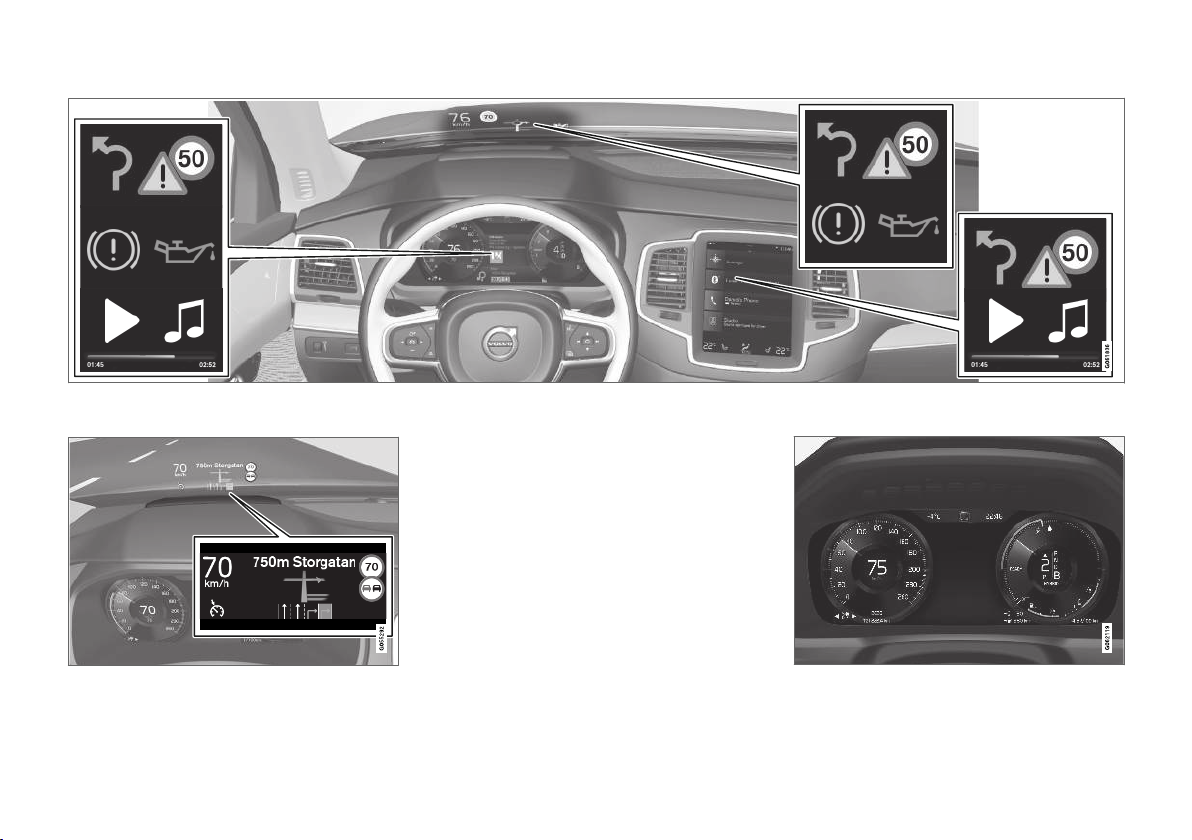

centre display Head-up display* Activating and deactivating the head-

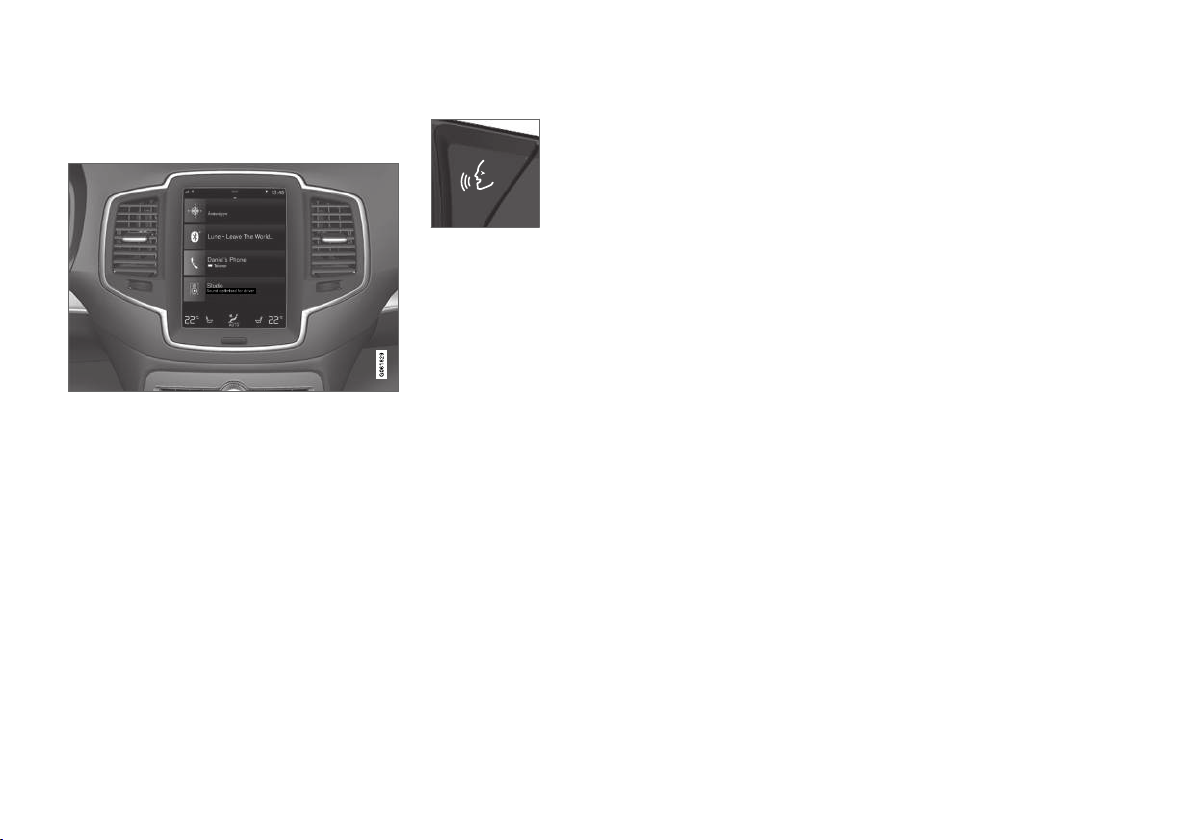

up display* Settings for head-up display* Voice recognition Using voice recognition Controlling a telephone with voice
recognition Voice control of radio and media Settings for voice recognition
131 131 132 133 134 135 135 135
136 137 138
138 140
140 141 142 143
144 144
LIGHTING
Lighting control Adjusting light functions via the cen-
tre display Position lamps Daytime running lights Dipped beam Using main beam Active main beam Using direction indicators Active bending lights* Rear fog lamp Brake lights Emergency brake lights Hazard warning flashers Using home safe lighting Approach light duration Interior lighting Adjusting interior lighting
148 149
149 150 151 151 152 154 154 155 156 156 156 157 157 158 160
WINDOWS, GLASS AND MIRRORS
Windows, glass and mirrors Pinch protection for windows and
sun blinds Reset sequence for pinch protection Power windows Operating power windows Using the sun blind* Rearview and door mirrors Adjusting rearview mirror dimming Angling the door mirrors Panorama roof* Operating the panorama roof* Automatic closing of the panoramic
roof's* sun blind Using windscreen wipers Heated windscreen wiper nozzles* Using the rain sensor Using the rain sensor's memory function Using windscreen and headlamp washers Using the rear window wiper and washer Using automatic rear windscreen
wiping when reversing
162 162
163 163 164 165 166 166 167 169 170 172
173 174 174 175 176 177 178
4
Page 7
SEATS AND STEERING WHEEL
Manual front seat Power front seat* Adjusting the power front seat* Storing memory function in power
operated front seat* Using stored memory in a powered
front seat Massage settings in the front seat* Adjusting massage settings* in the
front seat Adjusting the length of the seat
cushion in the front seat Adjusting the side support* in the
front seat Adjusting the lumbar support* in the
front seat Adjusting the passenger seat from
the driver's seat* Lowering backrests in the second
seat row Adjusting the head restraints in the
second seat row Adjusting the seat longitudinally in
the second seat row* Adjusting the backrest inclination in
the second seat row Getting in/out of the third* seat row
180 181 181 182
183
184 184
185
186
186
187
188
190
192
192
193
Lowering backrests in the third seat row*
Steering wheel controls and horn Steering lock Adjusting the steering wheel
194
195 196 196
CLIMATE
Climate Climate zones Climate control - sensors Perceived temperature Controlling climate control with voice
recognition Air quality Clean Zone* Clean Zone Interior Package* Interior Air Quality System* Activating and deactivating the air
quality sensor* Passenger compartment filter Air distribution Changing air distribution Opening, closing and aiming the air vents Table of air distribution options Climate controls Activating and deactivating heated
front seat* Activating and deactivating automatic
start of heated front seat* Activating and deactivating heated
rear seat* Activating and deactivating ventilated
front seat*
198 198 198 199 199
200 201 202 202 203
203 203 204 205 206 209 211
212
212
213
5
Page 8
Activating and deactivating the heated steering wheel*
Activating and deactivating automatic start of heated steering wheel*
Activating auto climate control Activating and deactivating air recir-
culation Activating and deactivating time set-
ting for air recirculation Activating and deactivating max defroster Activating and deactivating the
heated windscreen* Activating and deactivating automatic
start of heated windscreen* Activating and deactivating the
heated rear window and door mirrors Activating and deactivating automatic
starting of the heated rear window and door mirrors
Regulating fan level for front seat Regulating fan level for rear seat Regulating temperature for front seat Regulating temperature for rear seat Synchronising temperature Activating and deactivating air condi-
tioning Activating and deactivating climate
for the third row of seats*
214
214
215 215
216
216 218
219
219
220
220 221 222 222 223 224
225
Heater Parking heater Additional heater Activating and deactivating automatic
start of auxiliary heater
225 226 227 228
KEY, LOCKS AND ALARM
Lock confirmation Lock indication setting Remote control key Locking and unlocking with the
remote control key Settings for remotely controlled and
inside unlocking Unlocking the tailgate with the
remote control key Remote control key range Replacing the battery in the remote
control key Ordering more remote control keys Red Key - restricted remote control key* Red Key settings* Detachable key blade Locking and unlocking with the
detachable key blade Immobiliser Type approval for the remote control
key system Keyless and touch-sensitive surfaces* Keyless locking and unlocking* Settings for Keyless entry* Keyless unlocking of the tailgate* Antenna locations for the start and
lock systems
230 231 231 233
235
235
236 237
240 240 241 242 243
244 246
255 256 257 257 258
6
Page 9
Locking and unlocking from inside the car
Unlocking the tailgate from the inside of the car
Activating and deactivating child safety locks
Automatic locking when driving Opening and closing the power*-
operated tailgate Programming maximum opening for
power operated tailgate* Opening and closing the tailgate with
foot movement* Private locking Activating and deactivating private
locking Alarm* Activating and deactivating alarms* Reduced alarm level* Double lock* Temporarily deactivating double locks* Detection of unknown car component*
259
260
261
262 262
265
266
268 268
269 271 272 273 273 274
DRIVER SUPPORT
Driving support systems Speed-dependent steering force Stability system Roll Stability Control Electronic stability control Sport mode for electronic stability control Activating/deactivating Sport mode
in Electronic Stability Control Limitation for sport mode in Elec-
tronic Stability Control Symbols and messages for elec-
tronic stability control Speed Limiter Activating and starting the Speed Limiter Managing speed for the Speed Limiter Deactivate the Speed Limiter and set
it in standby mode Reactivating the Speed Limiter from
standby mode Deactivating the Speed Limiter Limitations for Speed Limiter Automatic Speed Limiter Activate/deactivate Automatic Speed
Limiter Changing the tolerance for the Auto-
matic Speed Limiter Limitations for Automatic Speed Limiter Cruise Control
276 276 277 278 279 279
280
281
282 283 283 284
285
285 286 286 288
289
289 290
Activating and starting Cruise Control Managing speed for the Cruise Control Deactivate Cruise Control and set it
in standby mode Reactivating Cruise Control from
standby mode Deactivating Cruise Control Distance Warning* Head-up display for Distance Warning Activating/deactivating Distance Warning Setting the time interval for Distance
Warning Limitations of Distance Warning Adaptive Cruise Control* Adaptive Cruise Control and Collision
risk warning Head-up display for Adaptive Cruise
Control if there is a risk of collision Activating and starting Adaptive
Cruise Control Managing speed with Adaptive
Cruise Control Setting time interval for Adaptive
Cruise Control Deactivating/reactivating Adaptive
Cruise Control Overtaking assistance with Adaptive
Cruise Control
291 292 293
293
294 295 296 296 297
298 298 301
302
302
303
304
306
308
7
Page 10
Starting overtaking assistance with Adaptive Cruise Control
Limitations for overtaking assistance with Adaptive Cruise Control
Changing target with Adaptive Cruise Control
Automatic braking with Adaptive Cruise Control
Limitations for Adaptive Cruise Control Change between Cruise Control and
Adaptive Cruise Control Symbols and messages for Adaptive
Cruise Control Pilot Assist Pilot Assist and Collision risk warning Head-up display for Pilot Assist if
there is a risk of collision Activating and starting Pilot Assist Managing speed for Pilot Assist Setting the time interval for Pilot Assist Deactivating/activating Pilot Assist Overtaking assistance with Pilot Assist Start overtaking assistance with Pilot
Assist Limitations for overtaking assistance
with Pilot Assist Change the target with Pilot Assist Automatic braking with Pilot Assist
308
308
309
309
310 311
313
315 318 319
320 321 322 323 325 325
326
326 327
Limitations of Pilot Assist Symbols and messages for Pilot Assist* Radar unit Limitations for radar device Recommended radar device mainte-
nance Type approval for radar device Camera unit Limitations for camera unit Recommended camera device main-
tenance City Safety™ Parameters and subfunctions for City
Safety Setting the warning distance for City
Safety Detection of obstacles with City Safety City Safety in cross traffic Limitations for City Safety in cross traffic City Safety when evasive manoeu-
vres are prevented Limitations of City Safety Messages for City Safety Rear Collision Warning Limitations of Rear Collision Warning BLIS*
327 329 330 331 334
335 339 340 343
343 344
346
347 349 350 350
351 354 355 355 356
Activate/deactivate BLIS Limitations of BLIS Recommended maintenance for BLIS Messages for BLIS Cross Traffic Alert* Activate/deactivate Cross Traffic Alert Limitations of Cross Traffic Alert Recommended maintenance for
Cross Traffic Alert Messages for Cross Traffic Alert Road Sign Information* Activating/deactivating Road Sign
Information Road Sign Information and sign display Road Sign Information and Sensus
Navigation Road Sign Information with Speed
Warning and Settings Activating/deactivating Speed warn-
ing in Road Sign Information Road Sign Information with Speed
Camera Information Limitations of Road Sign Information Driver Alert Control Activate/deactivate Driver Alert Control
357 358 358 360 361 362 362 363
364 365 366
366 368
368
369
370
370 371 372
8
Page 11
Select rest stop guidance in the event of a warning with Driver Alert Control
Limitations of Driver Alert Control Lane assistance Steering assistance with lane assistance Activate/deactivate Lane Keeping Aid Select assistance option for lane
assistance Limitations of Lane assistance Symbols and messages for lane
assistance Lane assistance symbols in the
driver display Steering assistance at risk of collision Activating/deactivating Steering
assistance in the event of a collision risk Steering assistance upon risk of run-off Steering assistance level in the event
of a run-off risk Activating/deactivating Steering
assistance in the event of run-off risk Limitations for steering assistance
upon risk of running off the road Steering assistance upon risk of
head-on collision Activating/deactivating Steering
assistance in the event of a risk of a head-on collision
373
373 373 375 376 376
376 378
380
381 381
382 382
383
383
384
385
Limitations for steering assistance upon risk of head-on collision
Steering assistance upon risk of rear-end collision*
Activating/deactivating Steering assistance on risk of rear-end collision*
Limitations for steering assistance upon risk of rear-end collision
Symbols and messages for steering assistance upon risk of collision
Park Assist* Park Assist Pilot front, rear and
along the sides Activating/deactivating Park Assist Pilot Limitations of Parking assistance Recommended Park Assist Pilot
maintenance Symbols and messages for Park
Assist Pilot Park assist camera* Parking cameras' camera views Park assist lines for parking camera Sensor fields from Park Assist Pilot
for parking camera Starting the park assist camera Limitations for park assist camera Recommended parking camera
maintenance
385
386
387
387
389
390 391
392 392 393
394
395 396 398 400
400 401 402
Symbols and messages for Park assist camera
Park Assist Pilot* Parking variants with Park Assist Pilot Parking with Park Assist Pilot Leaving a car park with Park Assist Pilot Limitations of Park Assist Pilot* Recommended Park Assist Pilot
maintenance Messages for Park Assist Pilot*
403
404 404 405 408 409 410
411
9
Page 12
HYBRID INFORMATION
General information about Twin Engine Charging the hybrid battery Charging current Charging cable Ground fault breaker in the charging
cable Temperature monitoring of the
charging cable The charging cable's control unit Opening and closing the hatch for
the charging input socket Start charging the hybrid battery Charging status in the car's charging
input socket Charging status in the charging
cable's control unit Charging status in the car's driver display Stop charging of hybrid battery Symbols and messages relating to
Twin Engine in the driver display Long-term storage of vehicles with
hybrid batteries
414 415 416 418 419
420
420 421
422 424
426
428 430 431
433
STARTING AND DRIVING
Starting the car Switching off the car Ignition positions Selecting ignition mode Alcohol lock* Bypass of the alcohol lock* Before starting the engine with the
alcohol lock Brake functions Foot brake Brake assistance Braking on wet roads Braking on gritted roads Brake system maintenance Parking brake Activating and deactivating the park-
ing brake Automatic parking brake activation
setting Parking on a hill In the event of a fault in the parking
brake Automatic braking when stationary Activating and deactivating the auto-
matic brake at a standstill Help when starting on a hill
436 438 438 439 440 440 441
441 442 443 443 444 444 444 445
446
447 447
448 448
449
Auto braking after a collision Gearbox Gear positions for automatic gearbox Changing gear with steering wheel
paddles* Gear selector inhibitor Kick-down function Gear shift indicator* All-wheel drive Drive systems Starting and stopping the combus-
tion engine in Twin Engine Drive modes Changing drive mode Level control* and shock absorption Settings for level control* Low speed control Activating and deactivating low-
speed driving using a function button Hill descent control Activating and deactivating hill
descent control with the function button Economical driving Driving with electric operation Factors that affect range when run-
ning on electricity
449 450 451 453
454 454 454 455 455 456
457 461 462 465 465 466
466 467
468 469 470
10
Page 13
"Hold" and "Charge" function Preparations for a long trip Winter driving Driving in water Opening and closing the fuel filler flap Filling fuel Handling of fuel Petrol Petrol particle filter Overheating in the engine and drive
system Overloading the starter battery Using jump starting with another battery Towbar* Specifications for towbar* Extendable and retractable towbar* Driving with a trailer Trailer stability assist* Checking trailer lamps Towbar-mounted bicycle rack* Towing Fitting and removing the towing eye Recovery HomeLink®*
471 472 473 474 474 475 477 477 478 479
480 480 482 483 483 485 487 488 489 490 491 492 492
Programming HomeLink®* Using HomeLink Type approval for HomeLink®* Compass Activating and deactivating the compass Calibrating the compass
493 495 496 496 496 497
SOUND, MEDIA AND INTERNET
Sound, media and Internet Audio settings Apps Downloading apps Updating apps Deleting apps Radio Start radio Changing radio band and radio station Searching for radio stations Setting radio favourites Settings for radio RDS radio Digital radio* Link between FM and digital radio* Media player Media playback Controlling and changing media Searching media Gracenote CD player* Video Playing a video Playing back DivX®
®
500 500 501 502 503 504 504 505 505 506 507 507 509 509 510 510 511 512 513 514 515 515 515 516
11
Page 14
Settings for video Media via Bluetooth Connecting a device via Bluetooth Media via USB port Connecting a device via USB port TV* Using the TV* Settings for TV* Apple® CarPlay®* Using Apple® CarPlay®* Settings for Apple® CarPlay®* Tips for using Apple® CarPlay®* Android Auto* Using Android Auto* Settings for Android Auto* Tips for using Android Auto* Phone Connecting a phone to the car via
Bluetooth for the first time Connecting a phone to the car via
Bluetooth automatically Connecting a phone to the car via
Bluetooth manually Disconnecting a Bluetooth-con-
nected phone
®
516 516
®
517 517 517 518 518 519 519 520 521 522 523 523 524 525 525 526
528
528
529
Switch between Bluetooth-con­nected phones
Removing a Bluetooth-connected phone Managing phone calls Managing text messages Settings for text messages Managing the phone book Settings for phone Settings for Bluetooth devices Internet-connected car* Connecting the car to the Internet
via a mobile device (Bluetooth) Connecting the car to the Internet
via a mobile device (Wi-Fi) Connect the car to the Internet via
car modem (SIM card) Settings for car modem Sharing Internet access from the car
via a Wi-Fi hotspot No or poor Internet connection Remove Wi-Fi network Wi-Fi technologies and security User terms and conditions and data
sharing Activating and deactivating data sharing Compatible media formats
529
530 530 531 532 532 533 534 534 535
536
536
537 538
539 539 540 540
540 541
Technical specifications for USB devices Storage space on hard disk License agreement for audio and media
542 542 543
12
Page 15
WHEELS AND TYRES
Tyres Dimension designation for tyre Dimension designation for wheel rim Tyres' rotation direction Tread wear indicators on the tyres Checking tyre pressure Adjusting tyre pressure Recommended tyre pressure Tyre pressure monitoring system* Calibrate the system for tyre pres-
sure monitoring* See tyre pressure statue in the cen-
tre display* Action in the event of warning for
low tyre pressure When changing wheels Tool kit Jack* Wheel bolts Removing a wheel Fitting the wheels Spare wheel* Taking out the spare wheel Winter wheels Snow chains
554 555 556 557 557 558 558 559 560 561
563
564
565 565 565 566 567 569 570 571 571 572
Emergency puncture repair kit Using a puncture repair kit Inflating tyres with the compressor
from the puncture repair kit
573 574 577
LOADING, STORAGE AND PASSENGER COMPARTMENT
Passenger compartment interior Tunnel console Electrical sockets Using electrical sockets Using the glovebox Sun visors Cargo area Recommendations for loading Roof load and loading on load carriers Bag hooks Load retaining eyelets Fitting and removing cargo cover* Operating cargo cover* Fitting and removing safety grilles* Fitting and removing the safety net* First aid kit Warning triangle
580 581 582 584 585 586 586 587 588 588 589 589 590 592 593 595 595
13
Page 16
MAINTENANCE AND SERVICE
Volvo service programme Data transfer between car and work-
shop via Wi-Fi Download Center Managing system updates via the
Download Centre Car status Book service and repair Sending car information to a workshop Raise the car Opening and closing the bonnet Servicing the climate control system Head-up display when replacing the
windscreen* Engine compartment overview Engine oil Checking and filling with engine oil Topping up coolant Bulb replacement Bulb specifications Starter battery Hybrid battery Symbols on the batteries Fuses and central electrical units Replacing a fuse
598 598
599 599
600 601 602 603 605 606 607
607 608 609 610 612 612 613 617 618 618 619
Fuses in engine compartment Fuses under glovebox Fuses in cargo area Cleaning the interior Cleaning the centre display Cleaning the head up display* Cleaning fabric upholstery and headlining Cleaning the seatbelts Cleaning floor mats and inlay mats Cleaning leather upholstery Cleaning the leather steering wheel Cleaning interior plastic, metal and
wood parts Cleaning the exterior Polishing and waxing Handwashing Automatic car wash High-pressure washing Cleaning the wiper blades Cleaning exterior plastic, rubber and
trim components Cleaning wheel rims Rustproofing Car paintwork Touching up minor paintwork damage
620 624 627 631 631 632 633 633 633 634 635 635
636 636 637 638 639 639 640
641 641 642 642
Colour codes Replacing the wiper blade, rear window Replacing windscreen wiper blades Wiper blades in service position Filling washer fluid
644 644 645 646 647
14
Page 17
SPECIFICATIONS
Type designations Dimensions Weights Towing capacity and towball load Engine specifications Engine oil — specifications Adverse driving conditions for engine oil Coolant — specifications Transmission fluid — specifications Brake fluid — specifications Fuel tank - volume Air conditioning — specifications Fuel consumption and CO2 emissions Approved tyre pressures Performance
650 653 655 656 658 659 660 661 661 661 662 662 664 665 666
ALPHABETICAL INDEX
Alphabetical Index 667
15
Page 18
Page 19
OWNER INFORMATION
Page 20

OWNER INFORMATION

Owner information

Owner's information is available in several differ­ent product formats, both digital and printed. The owner's manual is available in the car's cen­tre display, as a mobile app and on the Volvo Cars support site. There is a Quick Guide and a supplement to the owner's manual available in the glovebox, with specifications and fuse infor­mation, amongst other things. A printed owner's manual can be ordered.
The car's centre display
1
In the centre display, drag down the top view and tap on
Owner's manual. Available
here are options for visual navi­gation with exterior and interior images of the car. The informa­tion is searchable and is also
divided into categories.

Mobile app

In App Store or Google Play, search for "Volvo Manual", download the app to your smartphone or tablet and select the car. Available in the app are video tutorials and options for
visual navigation with exterior and interior images of the car. It is easy to navi­gate between the different sections in the owner's manual and the content is searchable.

Volvo Cars support site

Go to support.volvocars.com
and select your country. Here
you can find owner's manuals,
both online and in PDF format.
On the Volvo Cars support site
there are also video tutorials
help regarding your Volvo and your car owner­ship. The page is available for most markets.
and further information and

Printed information

There is a supplement to the owner's manual1 in the glove­box that contains information on fuses and specifications, as well as a summary of important and practical information.
There is also a Quick Guide available in printed format that helps you to get started with the most commonly used functions in the car.
Depending on equipment level selected, market, etc. additional owner's information may also be available in printed format in the car.
A printed owner's manual and associated supple­ment can be ordered. Contact a Volvo retailer to order.
IMPORTANT
The driver is always responsible that the vehi­cle is driven safely in traffic and that applica­ble laws and regulations are followed. It is also important that the car is maintained and handled in accordance with Volvo's recom­mendations in the owner's information.
If there should be a difference between the information in the centre display and the prin­ted information then it is always the printed information that applies.
1
A complete printed manual is included with the car for markets without owner's manual in the centre display.
18
Page 21
OWNER INFORMATION
NOTE
Changing the language in the centre display may mean that some owner information is not compliant with national or local laws and reg­ulations. Do not switch to a language that is difficult to understand as this may make it dif­ficult to find your way back in the structure on screen.

Related information

Owner's manual in centre display (p. 19)
•
Owner's Manual in mobile devices (p. 22)
•
Volvo Cars support site (p. 22)
•
Reading the owner's manual (p. 23)
•

Owner's manual in centre display

A digital2 version of the owner's manual is availa­ble in the car's centre display.
The digital owner's manual can be accessed from the top view, and in some cases the contextual owner's manual can also be accessed from the top view.
NOTE
The digital owner's manual is not available while driving.
Owner's manual
The owner's manual is accessed from the top view.
To open the owner's manual - drag down the top view in the centre display and tap on
manual.
Owner's
The information in the owner's manual can be accessed directly via the owner's manual home­page or its top menu.
Contextual owner's manual
The contextual owner's manual is accessed from the top view.
When the contextual owner's manual is available, it is shown to the right of the top view.
Pressing the contextual owner's manual opens an article in the owner's manual that is related to the content that is shown on the screen. E.g. press Navigation Manual - an article that is related to navigation opens.
This only applies to some of the apps in the car. For third party apps that are downloaded, it is not possible, for example, to access app-specific arti­cles.
Owner's manual in
2
Applies for most markets.
}}
19
Page 22
OWNER INFORMATION
||

Related information

Navigate in the owner's manual in the centre
•
display (p. 20) Navigating in the centre display's views
•
(p. 111) Downloading apps (p. 502)
•

Navigate in the owner's manual in the centre display

The digital owner's manual can be accessed from the centre display top view in the car. The content is searchable and it is easy to navigate between different sections.
The owner's manual is accessed from the top view.
To open the owner's manual - drag down the
–
top view in the centre display and tap on
Owner's manual.
There is a range of different options for finding information in the owner's manual. The options can be accessed from the owner's manual home­page and from the top menu.

Opening the menu in the top menu

–
Press in the upper list in the owner's manual.
> A menu containing various options for
finding information opens:
Homepage
Tap on the symbol to go back to the start page in the owner's manual.
Categories
The articles in the owner's manual are structured into main categories and subcate­gories. The same article can be found in several appropriate categories in order to be found more easily.
1.
Press
Categories.
> The main categories are shown in a list.
2.
Tap on a main category ( >
A list of subcategories (
) is shown.
(
3. Tap on an article to open it. To go back, press the back arrow.
).
) and articles
20
Page 23
OWNER INFORMATION
Quick Guide
Press the symbol to access a page with links to a selection of articles that can be particularly useful to read in order to get to know the most common func­tions of the car. The articles
gories, but are collected here for quick access. Tap on an article in order to read it in its entirety.
Hotspots for exterior and interior
1.
Press > Exterior or interior images are shown with
so-called hotspots in place. The hotspot leads to articles about the corresponding part of the car. Swipe horizontally over the screen to browse among the images.
can also be accessed via cate-
Exterior and interior overview images of the car. Different parts are designated with hot­spots that lead to articles about those parts of the car.
Exterior or Interior.
2. Tap on a hotspot.
> The title of the article about the area is
shown.
3. Tap on the title to open the article. To go back, press the back arrow.
Favourites
Press the symbol to access the
articles saved as favourites. Tap
on an article in order to read it
in its entirety.
Saving or deleting articles as favourites
Save an article as favourite by pressing at the top right when an article is open. When an article has been saved as a favourite the star is filled in:
.
To remove an article as a favourite, press the star again in the current article.
Video
Press the symbol to view brief
instruction videos for various
functions in the car.
Information
Tap on the symbol to obtain information about which version of the owner's manual is availa­ble in the car as well as other useful information.

Using the search function in the top menu

Tap on in the top menu of the owner's
1. manual. A keyboard appears in the lower part
of the screen.
2. Type in a keyword, such as "seatbelt". > Suggestions for articles and categories
are shown while letters are being entered.
3. Tap on the article or category to access it.

Related information

Owner's manual in centre display (p. 19)
•
Keyboard in centre display (p. 122)
•
Reading the owner's manual (p. 23)
•
21
Page 24
OWNER INFORMATION

Owner's Manual in mobile devices

The owner's manual is available as a mobile app3 from both the App Store and Google Play. The app is adapted for smartphones and tablets.
The owner's manual can be downloaded as a mobile app from the App Store or Google Play. The QR code provided here takes you directly to the app. Alternatively, you can search for "Volvo manual" in
the App Store or Google Play. The app contains a video along with exterior and
interior images where different parts of the car are highlighted with so-called hotspots, which lead to articles about the area in question. It is easy to navigate between the different sections
in the owner's manual and the content is search­able.
The mobile app is available from both the App Store and Google Play.

Related information

Reading the owner's manual (p. 23)
•

Volvo Cars support site

More information on your car is available on the Volvo Cars website and support site.

Support on the Internet

Go to support.volvocars.com to visit the site. The support site is available for most markets.
It contains support for functions such as web­based services and functions, Volvo On Call*, the navigation system* and apps. Videos and step­by-step instructions explain different procedures, e.g. how to connect the car to the Internet via a mobile phone.

Downloadable information

Maps
For cars equipped with Sensus Navigation, there is the facility to download maps from the support page.
Owner's manuals as PDF
Owner's manuals are available for download in PDF format. Select car model and model year to download the manual as required.

Contact

The support site contains contact details to cus­tomer support and your nearest Volvo retailer.
3
For certain mobile devices.
22
* Option/accessory.
Page 25
OWNER INFORMATION

Log in to Volvo Cars website

Create a personal Volvo ID and log in to www.volvocars.com. When you have logged in it is possible to get an overview of service, agree­ments and warranties, amongst other things. Here there is also information about accessories and software adapted for your car model.

Related information

Volvo ID (p. 28)
•

Reading the owner's manual

A good way of getting to know your new car is to read the owner's manual, ideally before your first journey.
Reading the owner's manual is a good way to become familiar with new functions, get advice on how best to handle the car in different situa­tions and learn how to make the best use of all the car's features. Please pay attention to the safety instructions contained in the owner's man­ual.
The intention of this owner's information is to explain all of the possible features, functions and options included in a Volvo vehicle. It is not intended as an indication or guarantee that all of these features, functions and options are included in every vehicle. Some terminology used may not exactly match terminology used in sales, marketing and advertising materials.
Development work is constantly underway in order to improve our product. Modifications may mean that information, descriptions and illustra­tions in the owner's manual differ from the equip­ment in the car. We reserve the right to make modifications without prior notice.
Do not remove this manual from the car - if prob­lems should arise then the necessary information about where and how to seek professional help will be missing.
© Volvo Car Corporation

Options/accessories

In addition to standard equipment, the owner's manual also describes options (factory fitted equipment) and certain accessories (retrofitted extra equipment).
All types of option/accessory are marked with an asterisk: *.
The equipment described in the owner's manual is not available in all cars - they have different equipment depending on adaptations for the needs of different markets and national or local laws and regulations.
In the event of uncertainty over what is standard or an option/accessory, contact a Volvo retailer.

Special texts

WARNING
Warning texts appear if there is a risk of injury.
IMPORTANT
"Important" texts appear if there is a risk of damage.
NOTE
NOTE texts give advice or tips that facilitate the use of e.g. features and functions.
* Option/accessory.
}}
23
Page 26
OWNER INFORMATION
||

Footnote

The owner's manual contains information in cer­tain locations in the form of a footnote at the bot­tom of the page or at the end of a table. This information is an addition to the text that it refers to via a number. If the footnote refers to text in a table then letters are used instead of numbers for referral.

Message texts

There are displays in the car that show menu and message texts. In the owner's manual the appearance of these texts differs from the normal text. Examples of menu texts and message texts:
Phone, New message.

Decals

The car contains different types of decal which are designed to convey important information in a simple and clear manner. The decals in the car have the following descending degree of impor­tance for the warning/information.
Warning of personal injury
Black ISO symbols on yellow warning field, white text/image on black message field. Used to indi­cate the presence of danger which, if the warning is ignored, may result in serious personal injury or fatality.
Risk of property damage
White ISO symbols and white text/image on black or blue warning field and message field. Used to indicate the presence of danger which, if the warning is ignored, may result in damage to property.
Information
White ISO symbols and white text/image on black message field.
NOTE
It is not intended that the decals illustrated in the owner's manual should be exact replicas of those in the car. They are included to show their approximate appearance and location in the car. The information that applies to your particular car is available on the respective decals for your car.
24
Page 27
OWNER INFORMATION

Procedure lists

Procedures where action must be taken in a cer­tain sequence are numbered in the owner's man­ual:
When there is a series of illustrations for step-by-step instructions each step is num­bered in the same way as the corresponding illustration.
Lists of letters appear adjacent to the series of illustrations where the order of the instruc­tions is not significant.
Arrows appear numbered and unnumbered and are used to illustrate a movement.
Arrows with letters are used to clarify a movement when the relative order is of no relevance.
If there is no series of illustrations for step-by­step instructions then the different steps are numbered with normal numbers.

Position lists

Red circles containing a number are used in overview images where different components are pointed out. The number recurs in the position list featured in connection with the illustration that describes the item.

Bulleted lists

A bulleted list is used when there is a list of points in the owner's manual.
Example:
Coolant
•
Engine oil
•

Related information

Related information refers to other articles con­taining closely associated information.

Images

Illustrations used in the owner's manual are sometimes schematic and are intended to pro­vide an overall picture or example of a certain function. Illustrations may deviate from the car's appearance depending on equipment level and market.

To be continued

}}
This symbol is located furthest down to the right when an article continues on the following page.

Continued from previous page

||
This symbol is located furthest up to the left when an article continues from the previous page.

Related information

Owner's manual in centre display (p. 19)
•
Owner's Manual in mobile devices (p. 22)
•
Volvo Cars support site (p. 22)
•

The owner's manual and the environment

The Owner's Manual is printed on paper origi­nating from controlled forests.
The Forest Stewardship Council (FSC)® symbol shows that the paper pulp in a printed owner's manual comes from FSC®-certified forests or other controlled sources.

Related information

Drive-E - cleaner driving pleasure (p. 30)
•
25
Page 28
Page 29
YOUR VOLVO
Page 30

YOUR VOLVO

Volvo ID

Volvo ID provides access to a wide range of per­sonalized Volvo services1 online.
It is possible to create a Volvo ID from the car, volvocars.com or Volvo On Call app2. Certain functions and services require that the car is reg­istered to a personal Volvo ID. Registering the Volvo ID to the car makes a wide range of Volvo services available directly from the car.
Examples of services:
Volvo On Call* - Volvo ID is used when log-
•
ging in to the Volvo On Call app. Send to Car - Makes it possible to send an
•
address from an Internet map service directly to the car.
Book Service and Repair - Register your pre-
•
ferred workshop/retailer at volvocars.com to be able to book service directly from the car.

Advantages of Volvo ID

One user name and one password to access
•
online services, i.e. only one username and one password to remember.
If the username/password for a service (e.g.
•
Volvo On Call) is changed, then it is also changed automatically for other services.

Related information

Creating and registering a Volvo ID (p. 28)
•
Book service and repair (p. 601)
•

Creating and registering a Volvo ID

It is possible to create a Volvo ID in different ways. If the Volvo ID is created at volvocars.com or with Volvo On Call app, the Volvo ID must also be registered to the car to enable use of the various Volvo ID services.
Create a Volvo ID with the app
1.
Download the Volvo ID app from
Centre in the centre display's app view.
2. Start the app and register a personal email address.
3. Follow the instructions that are automatically sent to the specified email address.
> A Volvo ID has now been created and
automatically registered to the car. Volvo ID services can now be used.
Create a Volvo ID on the Volvo Cars website
1. Go into www.volvocars.com and log in3 using the icon at the top right. Select Create Volvo ID.
2. Enter a personal email address.
3. Follow the instructions that are automatically sent to the specified email address.
> A Volvo ID has now been created. Read
below to learn how to register the ID to the car.
Download
1
The services available may vary over time and vary depending on equipment level and market.
2
If you have Volvo On Call*.
3
Available in certain markets.
28
* Option/accessory.
Page 31
YOUR VOLVO
Create a Volvo ID with the Volvo On Call
4
app
1. Download the latest version of the Volvo On Call app from a smartphone, via e.g. App Store, Windows Phone or Google Play.
2. Choose to create a Volvo ID from the app's start page and enter a personal email address.
3. Follow the instructions that are automatically sent to the specified email address.
> A Volvo ID has now been created. Read
below to learn how to register the ID to the car.

Registering your Volvo ID to the car

If you created your Volvo ID via the web or the Volvo On Call app, register it to your car as fol­lows:
1. If not done already, download the Volvo ID app from
Download Centre in the app view.
NOTE
To download apps, the car must be con­nected to the Internet.
2. Start the app and enter your Volvo ID/your email address.
3. Follow the instructions that are automatically sent to the email address linked to your Volvo ID.
> Your Volvo ID is now registered to the car.
Volvo ID services can now be used.

Related information

Volvo ID (p. 28)
•
Downloading apps (p. 502)
•
Managing system updates via the Download
•
Centre (p. 599) Internet-connected car* (p. 534)
•
4
Cars with Volvo On Call*.
* Option/accessory.
29
Page 32
YOUR VOLVO

Drive-E - cleaner driving pleasure

Volvo Car Corporation is constantly working on the development of safer and more efficient
Environmental care is one of Volvo Cars’ core val­ues and influences all operations. The environ­mental work is based on the whole life cycle of the car and takes into account the environmental impact it has, from design to scrapping and recy­cling. Volvo Cars' basic principle is that every new product developed must have less impact on the environment than the product it replaces.
Volvo's environmental management work has resulted in the development of more effective and less polluting drivelines Drive-E. Personal environment is also important to Volvo - the air
products and solutions in order to reduce the negative impact on the environment.
inside a Volvo is, for example, cleaner than the air outside thanks to the climate control system.
Your Volvo complies with stringent international environmental standards. All Volvo's manufactur­ing units must be ISO 14001 certified, and this supports a systematic approach to the opera­tion's environmental issues, which leads to con­tinuous improvement with reduced environmental impact. Holding the ISO certificate also means that environmental laws and regulations in force are complied with. Volvo also requires that its partners must also meet these requirements.

Fuel consumption

Since a large part of a car's total environmental impact stems from its use, the emphasis of Volvo Cars' environmental work is on reducing fuel con­sumption, carbon dioxide emissions and other air pollutants. Volvo cars have competitive fuel con­sumption in each of their respective classes. Lower fuel consumption generally results in lower emission of the greenhouse gas, carbon dioxide.
30
Page 33
YOUR VOLVO
Contributing to a better environment
An energy-efficient and fuel-efficient car not only contributes to a reduced impact on the environ­ment, but also means reduced costs for the owner of the car. As the driver, it is easy to reduce fuel consumption and thereby save money and contribute to a better environment ­here is some advice:
Plan for an effective average speed. Speeds
•
above approx. 80 km/h (approx. 50 mph) and below 50 km/h (approx. 30 mph) lead to increased energy consumption.
Follow the Service and Warranty Booklet's
•
recommended intervals for service and main­tenance of the car.
Avoid letting the engine idle - switch off the
•
engine when stationary for longer periods. Pay attention to local regulations.
Plan the journey - a lot of unnecessary stops
•
and uneven speed contribute to increased fuel consumption.
Use preconditioning - it improves the range
•
of the hybrid battery and reduces the energy requirement while driving.
Also remember to always dispose of environmen­tally hazardous waste, such as batteries and oil, in an environmentally safe manner. Consult a work­shop in the event of uncertainty about how this type of waste should be discarded - an author­ised Volvo workshop is recommended.

Efficient emission control

Your Volvo is manufactured following the concept "Clean inside and out" – a concept that encom­passes a clean interior environment as well as highly efficient emission control. In many cases the exhaust emissions are well below the applica­ble standards.

Clean air in the passenger compartment

An air filter helps prevent dust and pollen enter­ing the passenger compartment via the air intake.
The Interior Air Quality System (IAQS)* ensures that the incoming air is cleaner than the air in the traffic outside.
The system cleans the air in the passenger com­partment from contaminants such as particles, hydrocarbons, nitrous oxides and ground-level ozone. If the outside air is contaminated then the air intake is closed and the air is recirculated. Such a situation may arise in heavy traffic, queues and tunnels for example.
IAQS is a part of the Clean Zone Interior Pack­age (CZIP)*, which also includes a function that allows the fan to start when the car is unlocked with the remote control key.

Interior

The material used in the interior of a Volvo is carefully selected and has been tested in order to be pleasant and comfortable. Some of the details are hand-made, such as the seams of the steer-
ing wheel that are sewn by hand. The interior is monitored in order not to emit strong odours or substances that cause discomfort in the event of e.g. high heat and bright light.

Volvo workshops and the environment

Regular maintenance creates the conditions for a long service life and low fuel consumption for your car. In this way you also contribute to a cleaner environment. When Volvo's workshops are entrusted with the service and maintenance of your car it becomes part of Volvo's system. Volvo makes clear demands regarding the way in which workshop premises shall be designed in order to prevent spills and discharges into the environment. The workshop staff have the knowl­edge and the tools required to guarantee good environmental care.

Recycling

Since Volvo works from a life cycle perspective, it is also important that the car is recycled in an environmentally sound manner. Almost all of the car can be recycled. The last owner of the car is therefore requested to contact a retailer for refer­ral to a certified/approved recycling facility.

Related information

Fuel consumption and CO2 emissions
•
(p. 664) Economical driving (p. 468)
•
}}
* Option/accessory.
31
Page 34
YOUR VOLVO
||
The owner's manual and the environment
•
(p. 25) Air quality (p. 200)
•
32
Page 35
YOUR VOLVO

IntelliSafe-driver support

IntelliSafe is the Volvo Cars concept for car safety. IntelliSafe comprises a number of sys­tems, both standard and optional, whose pur­pose is to make a car journey safe, to prevent injuries and to protect passengers and other road users.

Support

IntelliSafe includes driver support functions such as Adaptive cruise control* which helps the driver to maintain an even speed combined with a pre­selected time interval to the vehicle ahead.
Pilot Assist5 helps the driver to drive the car between the lane's edge markings using steering assistance as well as to maintain an even speed, combined with a preselected time interval to the vehicle ahead.
Park Assist Pilot* helps the driver to park in or leave a parking space.
Other examples of systems that can help the driver are the Active main beam, Cross Traffic Alert (CTA)* and Blind Spot Information (BLIS)* systems.

Prevention

City Safety is a function that can contribute to preventing accidents. The function can prevent or mitigate a collision with pedestrians, cyclists, larger animals or vehicles. Visual, acoustic and
brake pulse warnings are given in the event of a risk of collision to help the driver act in time. If the driver does not react to the warning and the risk of collision is assessed as imminent then City Safety can automatically brake the car.
Lane assistance (LKA) is another example of a function that can help prevent accidents by help­ing the driver - on motorways and similar larger roads - to reduce the risk of the car accidentally leaving its own lane.
The function Steering aid during increased
collision risk can help the driver reduce the risk
of the car leaving its lane unintentionally and/or colliding with another vehicle or obstacle by actively steering the car back into its lane and/or swerving.

Protection

With the aim of protecting the driver and passen­gers, the car is equipped with seatbelt tensioners which can tension the seatbelts in critical situa­tions and in collisions. The car also has airbags and inflatable curtains, as well as Whiplash Protection System (WHIPS), which protects against whiplash injuries.

Related information

Driving support systems (p. 276)
•
Active main beam (p. 152)
•
Safety (p. 44)
•
Seatbelts (p. 46)
•
Airbags (p. 51)
•
Whiplash Protection System (p. 45)
•
5
This function can be either standard or optional, depending on market.
* Option/accessory.
33
Page 36
YOUR VOLVO

Sensus - online connectivity and entertainment

Sensus makes it possible to surf the Internet, use different types of apps and make the car a Wi-Fi hotspot.

This is Sensus

Sensus offers an intelligent interface and online connectivity with the digital world. An intuitive navigation structure makes it possible to receive relevant support, information and entertainment when it is necessary, without distracting the driver.
Sensus covers all solutions in the car that are connected with entertainment, online connectiv­ity, navigation* and the user interface between driver and car. It is Sensus that makes communi­cation possible between you, the car and the out­side world.

Information when it is needed, where it is needed

The different displays in the car provide informa­tion at the right time. The information is shown in different locations based on how it should be pri­oritised by the driver.
34
* Option/accessory.
Page 37
Different types of information are shown in different displays depending on how the information should be prioritised.
Head-up display*
traffic warnings, speed information and naviga­tion* information. Road Sign Information and incoming phone calls are also shown in the head­up display. The display is operated via the right­hand steering wheel keypad and via the centre display.
YOUR VOLVO

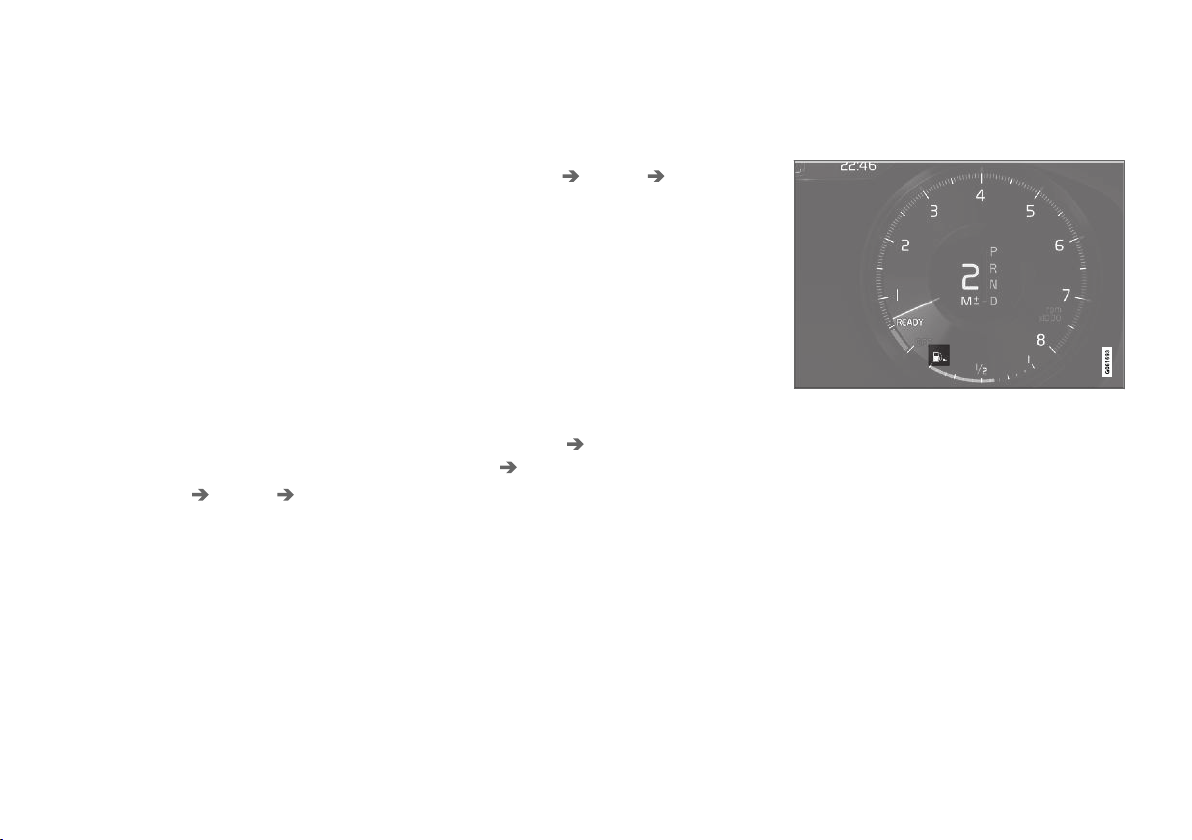

Driver display
The head-up display shows selected information that the driver should deal with as soon as possi­ble. Such information may, for example, include
The driver display shows information on speed and e.g. incoming calls or song tracks being
* Option/accessory.
}}
35
Page 38
YOUR VOLVO
played. The display is operated via the two steer-
||
ing wheel keypads.
Centre display
Many of the main functions of the car are con­trolled from the centre display, a touch screen which reacts to touch. The number of physical buttons and controls in the car is therefore mini­mal. The screen can even be operated while wearing gloves.
From here, for example, you can control the cli­mate control system, the entertainment system and seat position*. The information that is shown in the centre display can be acted on by the driver or someone else in the car when the opportunity arises.
Voice recognition system
The voice recognition system can be used without the driver needing to take his/her hands off the steering wheel. The sys­tem can understand natural speech. Use voice recognition
song, call someone, increase the temperature or read out a text message.
to, for example, play back a

Related information

Head-up display* (p. 138)
•
Driver display (p. 81)
•
Overview of centre display (p. 105)
•
Voice recognition (p. 141)
•
Internet-connected car* (p. 534)
•
Sharing Internet access from the car via a
•
Wi-Fi hotspot (p. 538)
36
* Option/accessory.
Page 39
YOUR VOLVO

Software updates

So that you as a Volvo customer get the best experience of your car, Volvo continuously devel­ops the systems in the cars and the services that you are offered.
You can update the software in your Volvo to the latest version when your car is serviced at an authorised Volvo dealer. The latest software update gives you access to new functions and improvements, as well as previous improvements included with previous software updates.
For more information about released updates and answers to frequently asked questions, please go to support.volvocars.com.
NOTE
Functionality after updating may vary depend­ing on market, model, model year and options.

Related information

Sensus - online connectivity and entertain-
•
ment (p. 34) Managing system updates via the Download
•
Centre (p. 599)

Recording data

As part of Volvo's safety and quality assurance, certain information about the vehicle's operation, functionality and incidents are recorded in the car.
This vehicle is equipped with an "Event Data Recorder" (EDR). Its primary purpose is to regis­ter and record data related to traffic accidents or collision-like situations, such as times when the airbag deploys or the vehicle strikes an obstacle in the road. The data is recorded in order to increase understanding of how vehicle systems work in these types of situations. The EDR is designed to record data related to vehicle dynamics and safety systems for a short time, usually 30 seconds or less.
The EDR in this vehicle is designed to record data related to the following in the event of traffic accidents or collision-like situations:
How the various systems in the car worked
•
Whether the driver and passenger seatbelts
•
were fastened/tensioned The driver's use of the accelerator or brake
•
pedal The travel speed of the vehicle
•
This information can help us better understand the circumstances in which traffic accidents, inju­ries and damage occur. The EDR only records data when a non-trivial collision situation occurs. The EDR does not record any data during normal
driving conditions. Similarly, the system never registers who is driving the vehicle or the geo­graphic location of the accident or near-miss sit­uation. However, other parties, such as the police, could use the recorded data in combination with the type of personally identifiable information routinely collected after a traffic accident. Special equipment and access to either the vehicle or the EDR is required to be able to interpret the regis­tered data.
In addition to the EDR, the car is equipped with a number of computers designed to continually check and monitor the function of the car. They can record data during normal driving conditions, but in particular register faults affecting the vehi­cle's operation and functionality, or upon activa­tion of the vehicle's driver support function (e.g. City Safety and the auto brake function).
Some of the recorded data is required to enable service and maintenance technicians to diagnose and remedy any faults that occurred in the vehi­cle. The registered information is also needed to enable Volvo to satisfy legal requirements laid out in laws and by government authorities. Informa­tion registered in the vehicle is stored in its com­puter until the vehicle is serviced or repaired.
In addition to the above, the registered informa­tion can be used in aggregate form for research and product development with the aim of contin­uously improving the safety and quality of Volvo cars.
}}
37
Page 40
YOUR VOLVO
Volvo will not contribute to the above-described information being disclosed to third parties with­out the vehicle owner's consent. To comply with national legislation and regulations, Volvo may be forced to disclose information of this nature to the police or other authorities who may assert a legal right to access such. Special technical equipment which Volvo and workshops that have entered into agreements with Volvo have access to is required to be able to read and interpret the recorded data. Volvo is responsible that the infor­mation, which is transferred to Volvo during serv­icing and maintenance, is securely stored and managed and that its management complies with relevant legal requirements. For further informa­tion - contact a Volvo retailer.

Terms & Conditions for Services

Volvo offers services so that you can drive your Volvo as safely and as comfortably as possible.
These services include everything from assis­tance in emergencies to navigation and various maintenance services.
Before using the services, it is important for you to read the Terms & Conditions for Services at support.volvocars.com.

Related information

Customer Privacy Policy (p. 38)
•

Customer Privacy Policy

Volvo respects and safeguards the personal integrity of everyone visiting our website.
This policy regards to the handling of customer data and personal information. The purpose is to give current, past and potential customers a gen­eral understanding of:
The circumstances in which we gather and
•
process your personal data. The types of personal data we gather.
•
The reason we gather your personal data.
•
How we handle your personal data.
•
This policy can be read in its entirety at support.volvocars.com.

Related information

User terms and conditions and data sharing
•
(p. 540) Terms & Conditions for Services (p. 38)
•
Recording data (p. 37)
•
38
Page 41
YOUR VOLVO

Important information on accessories and auxiliary equipment

The incorrect connection and installation of accessories and extra equipment can negatively affect the car's electronic system.
We strongly recommend that Volvo owners only install Volvo approved original accessories, and that installation of accessories is only carried out by trained and qualified Volvo service technicians. Certain accessories only function when associ­ated software is installed in the car's computer system.
The equipment described in the owner's manual is not available in all cars - they have different equipment depending on adaptations for the needs of different markets and national or local laws and regulations.
Options or accessories described in this manual are marked with an asterisk. In the event of uncertainty over what is standard or an option/ accessory, contact a Volvo retailer.
WARNING
The driver always bears the ultimate responsi­bility that the car is used safely and that laws and regulations in force are followed.
It is also important that the car has mainte­nance and service according to Volvo's rec­ommendations, the owner's information and the service and warranty booklet.
If the on-board information differs from the printed owner's manual then the printed infor­mation always has precedence.

Related information

Installation of accessories (p. 39)
•
Connection of equipment to the car's diag-
•
nostic socket (p. 40) Reading the owner's manual (p. 23)
•

Installation of accessories

We strongly recommend that Volvo owners only install Volvo approved original accessories, and that installation of accessories is only carried out by trained and qualified Volvo service techni­cians. Certain accessories only function when associated software is installed in the car's com­puter system.
Volvo original accessories are tested to
•
ensure that they function with the car sys­tems for performance, safety and emissions control. In addition, a trained and qualified Volvo service technician knows where acces­sories may or may not be safely installed in your Volvo. Always seek the advice of a trained and qualified Volvo service technician before installing any accessories in or on your car.
Accessories that are not approved by Volvo
•
may not have been specifically tested for use with your car.
Some of the car's performance or safety sys-
•
tems can be negatively affected if you install accessories that have not been tested by Volvo, or if you permit someone without experience of the car to install accessories.
Damage that is caused by accessories instal-
•
led in a non-approved or incorrect way is not covered by any new car warranty. More war­ranty information can be found in the service and warranty booklet. Volvo does not accept
}}
39
Page 42
YOUR VOLVO
||
any liability for deaths, personal injury or costs arising as a result of the installation of non-original accessories.

Related information

Important information on accessories and
•
auxiliary equipment (p. 39)

Connection of equipment to the car's diagnostic socket

Incorrect connection and installation of software or diagnostic tools may have a negative effect on the car's electronic system.
We strongly recommend that Volvo owners only install Volvo approved original accessories, and that installation of accessories is only carried out by trained and qualified Volvo service technicians. Certain accessories only function when associ­ated software is installed in the car's computer system.

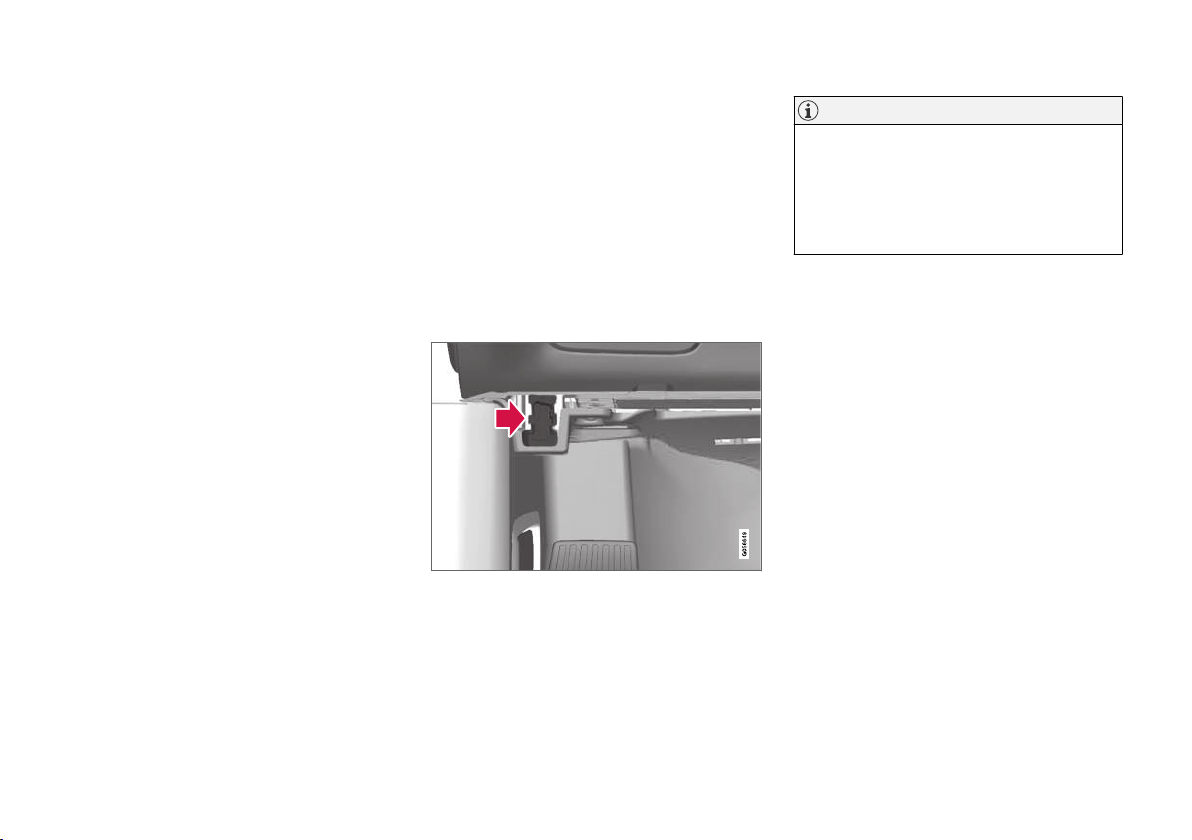

Data link connector (On-board Diagnostic, OBDII) is under the instrument panel on the driver's side.
NOTE
Volvo Cars accepts no liability for the conse­quences if unauthorised equipment is con­nected to the On-board Diagnostic socket (OBDII). This socket should only be used by trained and qualified Volvo service techni­cians.

Related information

Important information on accessories and
•
auxiliary equipment (p. 39)
40
Page 43
YOUR VOLVO

Showing the car's identification number

When contacting a Volvo retailer concerning your Volvo On Call subscription, for example, you will need the car's identification number (VIN6).
1.
2. Continue to
Settings in the top view in the centre
Press display.
System System
Information Number
> The car's identification number is shown.
Vehicle Identification
.

Driver distraction

The driver is responsible for doing everything possible to ensure the safety of themselves, their passengers and other road users. Part of this responsibility is avoiding distractions such as carrying out an activity that is not related to oper­ating the car in a driving environment.
Your new Volvo is, or can be, equipped with con­tent-rich entertainment and communications sys­tems. This could be mobile phones with hands­free, navigation systems and audio systems with lots of functions. You may also have other porta­ble electronic devices for your own convenience. Used correctly, in a safe way they can enrich the driving experience. If they are used in the wrong way they could distract you.
We wish to give the following warnings regarding such systems, to indicate Volvo's concern for your safety. Never use a device or function in the car in such a way that it will distract you from the task of driving safely. Distractions can lead to serious accidents. Apart from these general warnings, we offer the following advice regarding the new functions that may be in the car:
WARNING
Never use a hand-held mobile phone
•
while driving. In some areas it is forbidden for the driver to use a mobile phone while the car is moving.
If the car is equipped with a navigation
•
system you must only set and change the itinerary when the car is parked.
Never program the audio system while
•
the car is moving. Program the radio's presets when the car is parked and then use the programmed presets for faster and simpler use of the radio.
Never use laptops or hand-held comput-
•
ers while the car is moving.

Related information

Sound, media and Internet (p. 500)
•
6
Vehicle Identification Number
41
Page 44
Page 45
SAFETY
Page 46

SAFETY

Safety

The vehicle is equipped with several safety sys­tems that work together to protect the vehicle's driver and passengers in the event of an acci­dent.
The car is equipped with a number of sensors that react in the event of an accident and activate different safety systems, such as different types of airbags and seatbelt tensioners. Depending on the specific accident situation, such as collisions at different angles, roll-over or driving off the road, the systems react in different ways to pro­vide the best protection.
There are also mechanical safety systems such as Whiplash Protection System. The car is also constructed so that a large part of the force of a collision is distributed to beams, pillars, floor, roof and other parts of the body.
The car's safety mode may be activated after a collision if an important function in the car has been damaged.

Warning symbol in driver display

The warning symbol is illuminated in the driver display when the car's elec­trical system is set in ignition position
II. The symbol is extinguished after approx. 6 seconds if the car's safety system is fault-free.
WARNING
If the warning symbol remains illuminated or is switched on during driving and the mes-
SRS airbag Service urgent Drive to
sage
workshop is shown in the driver display, it
means that part of one of the safety systems does not have full functionality. Volvo recom­mends that an authorised Volvo workshop should be contacted as soon as possible.
WARNING
Never modify or repair the car's various safety systems yourself. Defective work in one of the systems can cause malfunction and result in serious personal injury. Volvo recommends that an authorised Volvo workshop should be contacted.
If the specific warning symbol is broken then the general warning symbol is illu­minated instead and the driver display shows the same message.

Related information

Safety during pregnancy (p. 44)
•
Seatbelts (p. 46)
•
Airbags (p. 51)
•
Whiplash Protection System (p. 45)
•
Safety mode (p. 57)
•
Child safety (p. 59)
•

Safety during pregnancy

It is important that the seatbelt is used correctly during pregnancy, and that pregnant drivers adjust their seating position.

Seatbelt

The diagonal section should wrap over the shoul­der then be routed between the breasts and to the side of the abdomen.
The lap section should lay flat over the thighs and as low as possible under the abdomen. – It must never be allowed to ride upward. Remove the slack from the seatbelt and ensure that it fits as close to the body as possible. In addition, check that there are no twists in the seatbelt.

Seating position

As the pregnancy progresses, pregnant drivers must adjust the seat and steering wheel such that they can easily maintain control of the vehi-
44
Page 47
SAFETY
cle as they drive (which means that they must be able to easily operate the foot pedals and steer­ing wheel). The aim should be to position the seat with as large a distance as possible between abdomen and steering wheel.

Related information

Safety (p. 44)
•
Seatbelts (p. 46)
•
Manual front seat (p. 180)
•
Power front seat* (p. 181)
•

Whiplash Protection System

Whiplash Protection System (WHIPS) reduces the risk of whiplash injuries. The system consists of energy absorbing backrests and seat cushion, as well as a specially designed head restraint in the front seats.
WHIPS is deployed in the event of a rear-end collision, where the angle and speed of the colli­sion and the nature of the colliding vehicle all have an influence.
When WHIPS is deployed, the front seat back­rests are lowered backward and the seat cush­ions move downward to change the seating posi­tion of the driver and front seat passenger. Its movement helps to absorb some of the forces that can arise and cause whiplash.
WARNING
WHIPS is a supplement to the seatbelts. Always use a seatbelt.
WARNING
Never modify or repair the seat or WHIPS yourself. Volvo recommends that an author­ised Volvo workshop should be contacted.
If the front seats have been subjected to a major load, such as in conjunction with a colli­sion, the seats must be replaced. Some of the seats' protective properties may have been lost even if they do not appear damaged.
Do not leave any objects on the floor behind or under the front seats or in the rear seat that may prevent WHIPS from functioning.
WARNING
Do not squeeze rigid objects between the rear seat cushion and the front seat's back­rest.
If a backrest in the rear seat is lowered then any load must be secured to prevent it from sliding up to the front seat backrest in the event of a collision.
WARNING
If a backrest in the rear seat is lowered or a rear-facing child seat is used in the rear seat, the corresponding front seat must be moved forward so that it does not make contact with the lowered backrest or child seat.
* Option/accessory.
}}
45
Page 48
SAFETY
||

Seating position

For optimum protection from WHIPS the driver and passenger must have the correct seating position and make sure that the system's func­tion is not obstructed.
Set the correct seating position in the front seat before driving starts.
Driver and front seat passenger should sit in the centre of the seat with as little space as possible between the head and the head restraint.

WHIPS and child seats

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by WHIPS.

Related information

Safety (p. 44)
•
Manual front seat (p. 180)
•
Power front seat* (p. 181)
•
Rear Collision Warning (p. 355)
•

Seatbelts

Heavy braking can have serious consequences if the seatbelts are not used.
It is important that the seatbelt lies against the body so it can provide maximum protection. Do not lean the backrest too far back. The seatbelt is designed to protect in a normal seating position.
WARNING
Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this pre­vents the belt from tightening properly.
WARNING
The seatbelts and airbags interact. If a seat­belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
WARNING
Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvo workshop should be contacted.
If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

Safety (p. 44)
•
Seatbelt tensioner (p. 48)
•
Putting on and taking off seatbelts (p. 47)
•
Door and seatbelt reminder (p. 49)
•
46
* Option/accessory.
Page 49
SAFETY

Putting on and taking off seatbelts

Make sure that all passengers have fastened their seatbelts before starting to drive.

Putting on seatbelts

1. Pull out the seatbelt slowly and make sure it
is not twisted or damaged. Make sure that the seatbelt is correctly in the
belt guide available for the second seat row's centre seat.
NOTE
The seatbelt locks and cannot be withdrawn:
if it is pulled out too quickly
•
during braking and acceleration
•
if the car leans heavily.
•
2. Lock the belt by inserting the locking tab in
the intended buckle. > A loud "click" indicates that the belt has
locked.
WARNING
Always insert the tongue of the seatbelt into the buckle on the correct side. The seatbelts and buckles would otherwise possibly not function as intended in the event of a colli­sion. There is a risk of serous injury.
3. In the front seats and in the outer seats in the second seat row the seatbelt can be adjusted for height.
Press together the seat mounting and move the seatbelt up or down.
Position the belt as high as possible without it chafing against your throat.
The seatbelt must pass over the shoulder (not down over the arm).
4. Tension the hip strap over the lap by pulling the diagonal shoulder belt up towards the shoulder.
The hip strap must be positioned low down (not over the abdomen).
}}
47
Page 50
SAFETY
||
WARNING
Each seatbelt is designed for only one person.
WARNING
Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this pre­vents the belt from tightening properly.
WARNING
Do not make any damages on seatbelts nor insert any foreign objects into a buckle. The seatbelts and buckles would then possibly not function as intended in the event of a colli­sion. There is a risk of serous injury.

Taking off seatbelts

1. Press the red button on the seatbelt buckle and then let the belt retract.
2. If the seatbelt does not retract fully, feed it in by hand so that it does not hang loose.
Make sure that the seatbelt is correctly in the belt guide available for the second seat row's centre seat.

Related information

Seatbelts (p. 46)
•
Seatbelt tensioner (p. 48)
•
Door and seatbelt reminder (p. 49)
•

Seatbelt tensioner

The car is fitted with standard seatbelt tension­ers and electric seatbelt tensioners that can ten­sion the seatbelts in critical situations and colli­sions.

Standard seatbelt tensioner

All the seatbelts are equipped with a standard seatbelt tensioner.
The seatbelt tensioner tensions the seatbelt in the event of a collision with sufficient force in order to more effectively restrain the occupant.

Electric seatbelt tensioner

The driver and front passenger seatbelts are equipped with an electric seatbelt tensioner.
The seatbelt tensioners work together and can be activated together with the driver support sys­tems City Safety and Rear Collision Warning. In critical situations, such as panic braking, driving off the road (e.g. the car rolls into a ditch, lifts off the ground or hits something in the terrain), skid­ding, or risk of collision, the seatbelt can be ten­sioned by the seatbelt tensioner's electric motor.
The electric seatbelt tensioner helps to adjust the occupant to a better position, reducing the risk of striking the car's interior and improving the effect of safety systems, such as the car's airbags.
When the critical situation has come to an end, the seatbelt and the electric seatbelt preten-
sioner are restored automatically, but they can also be restored manually.
IMPORTANT
If the passenger airbag is deactivated, the electric seatbelt tensioner on the passenger side will also be deactivated.
WARNING
Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvo workshop should be contacted.
If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

Seatbelts (p. 46)
•
Putting on and taking off seatbelts (p. 47)
•
Resetting the electric seatbelt tensioner
•
(p. 49) Activating and deactivating passenger air-
•
bag* (p. 54)
48
* Option/accessory.
Page 51
SAFETY
City Safety™ (p. 343)
•
Rear Collision Warning (p. 355)
•

Resetting the electric seatbelt tensioner

The electric seatbelt tensioner is designed to be reset automatically, but the seatbelt tensioner can be reset manually if the belt remains extended.
1. Stop the car at a safe place.
2. Unfasten the seatbelt and then refasten it. > The seatbelt and electric seatbelt ten-
sioner are reset.
WARNING
Never modify or repair the seatbelts yourself. Volvo recommends that an authorised Volvo workshop should be contacted.
If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

Seatbelt tensioner (p. 48)
•
Seatbelts (p. 46)
•

Door and seatbelt reminder

The system reminds unbelted occupants to wear a seatbelt, and also warns about an open door, bonnet, tailgate or fuel filler flap.

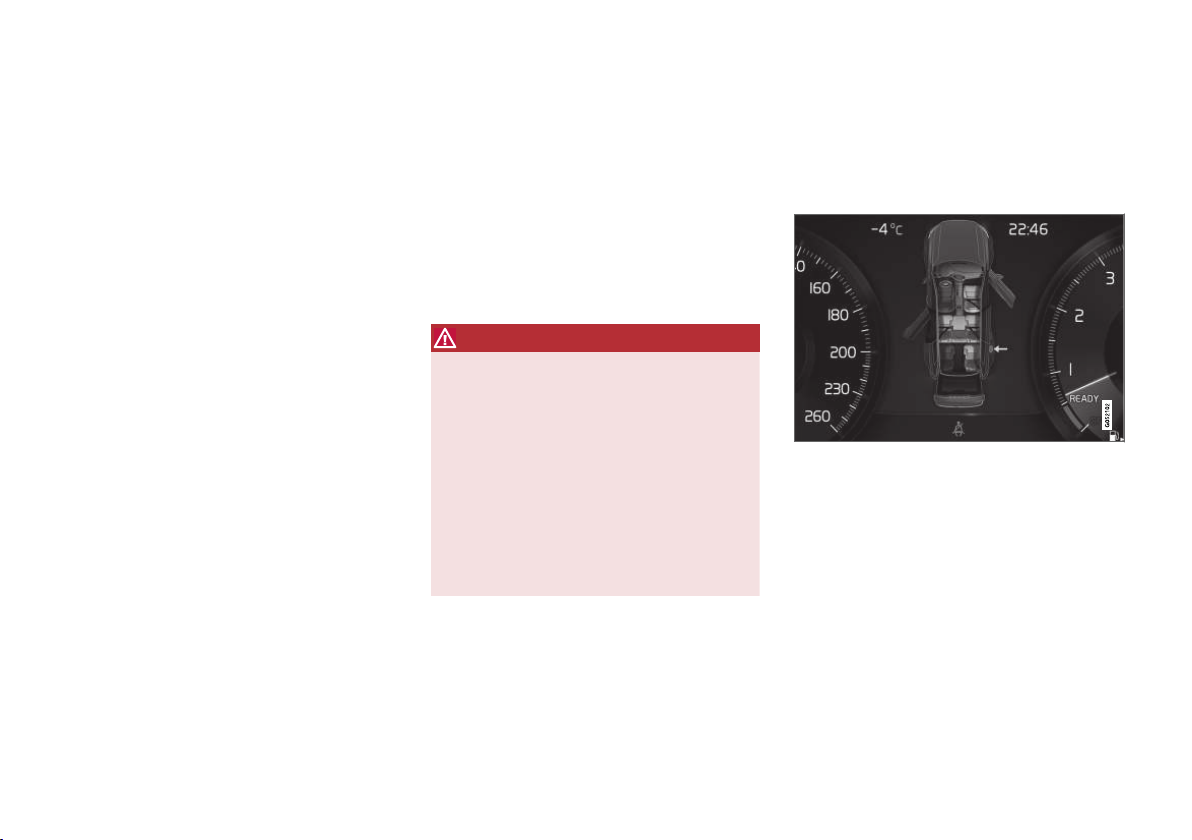

Driver display graphics

Graphics in the driver display with different types of warnings. The warning colour on the door and tailgate is dependent on the vehicle's speed.
The driver display's graphics show which seats in the car are occupied by belted and unbelted pas­sengers.
The same graphic also shows if the bonnet, tail­gate, fuel filler flap or any door is open.
The graphic can be acknowledged by pressing the O button on the right-hand steering wheel keypad.
}}
49
Page 52
SAFETY
||

Seatbelt reminder

Visual reminder in the roof console.
A visual reminder is given in the roof console and by means of the warning symbol in the driver dis­play.
The acoustic reminder is dependent on speed, driving time and distance.
The belt status of the driver and passengers is shown in the driver display graphics when a belt is buckled or unbuckled.
Child seats are not covered by the seatbelt reminder system.
Front seat
A visual and acoustic reminder remind the driver and front seat passenger to use a seatbelt if either of them is not wearing one.
Rear seat
The seatbelt reminder in the rear seat has two subfunctions:
Provides information on which seatbelts are
•
being used in the rear seat. The driver dis­play's graphics are shown when the seatbelts are in use.
Reminding that a seatbelt in the rear seat is
•
unfastened during a journey by means of a visual and acoustic reminder. The reminder will cease once the seatbelt has been put on again.

Reminder for doors, bonnet, tailgate and fuel filler flap

If the bonnet, tailgate, fuel filler flap or a door is not closed properly, the driver display's graphics show what is open. Stop the car in a safe place as soon as possible and close the source of the warning.
If the car is driven at a speed lower than approx. 10 km/h (6 mph) then the driver display's information symbol illu­minates.
If the car is driven at a speed higher than approx. 10 km/h (6 mph) then the driver display's warning symbol illumi­nates.

Related information

Seatbelts (p. 46)
•
Putting on and taking off seatbelts (p. 47)
•
50
Page 53
SAFETY

Airbags

The car is equipped with airbags and inflatable curtains for driver and passengers.
NOTE
The detectors react differently depending on the nature of the collision and whether or not the seatbelts are fastened. Applies to all belt positions.
It is therefore possible that only one (or none) of the airbags may inflate in a collision. The detectors sense the force of the collision on the vehicle and the action is adapted accord­ingly so that none, one or more airbags are deployed.
WARNING
The airbag system's control module is located in the centre console. If the centre console is drenched with water or other liquid, discon­nect the cables to the starter battery. Do not attempt to start the car since the airbags may deploy. Recovering the car. Volvo recom­mends that it is transported to an authorised Volvo workshop.

Deployed airbags

If any of the airbags have deployed, the following is recommended:
Recovering the car. Volvo recommends that it
•
is transported to an authorised Volvo work­shop. Do not drive with deployed airbags.
Volvo recommends engaging an authorised
•
Volvo workshop to handle the replacement of components in the car's safety systems.
Always contact a doctor.
•
WARNING
Never drive with deployed airbags. They can make steering difficult. Other safety systems may also be damaged. The smoke and dust created when the airbags are deployed can cause skin and eye irritation/injury after inten­sive exposure. In case of irritation, wash with cold water. The rapid deployment sequence and airbag fabric may cause friction and skin burns.

Related information

Safety (p. 44)
•
Driver airbags (p. 51)
•
Passenger airbag (p. 52)
•
Side airbags (p. 56)
•
Airbags (p. 57)
•

Driver airbags

As a supplement to the seatbelts, the car is equipped with steering wheel airbag and knee airbag on the driver's side.
Steering wheel airbag and knee airbag on the driver's side in the front seat.
In the event of a frontal collision, the airbags help to protect the head, neck, face and chest of the driver as well as the knees and legs.
A sufficiently violent collision trips the sensors and the airbag/airbags is inflated. The airbag cushions the initial collision impact for the occu­pant. The airbag deflates when compressed by the collision. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation and deflation of the airbag, occurs within tenths of a second.
}}
51
Page 54
SAFETY
||
WARNING
The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the airbag system could cause malfunction and result in serious per­sonal injury.

Steering wheel airbag location

This airbag is fitted into the centre of the steering wheel. The steering wheel is marked AIRBAG.

Knee airbag location

The airbag is folded up in the lower part of the instrument panel on the driver's side. Its cover panel is marked AIRBAG.
WARNING
Do not place or attach any object on the top or front of the panel where the knee airbag is stowed.

Related information

Airbags (p. 51)
•
Passenger airbag (p. 52)
•

Passenger airbag

As a supplement to the seatbelts, the vehicle is equipped with an airbag on the passenger side in the front seat.
Front passenger airbag in front seat.
In the event of a frontal collision, the airbag helps to protect the head, neck, face and chest of the passenger as well as the knees and legs.
A sufficiently violent collision trips the sensors and the airbag is inflated. The airbag cushions the initial collision impact for the occupant. The airbag deflates when compressed by the collision. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation and deflation of the airbag, occurs within tenths of a second.
52
Page 55
SAFETY
WARNING
The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the airbag system could cause malfunction and result in serious per­sonal injury.

Passenger airbag location

The airbag is folded up into a compartment above the glovebox. Its cover panel is marked
AIRBAG.
WARNING
Do not put objects in front of or above the dashboard where the passenger airbag is located.

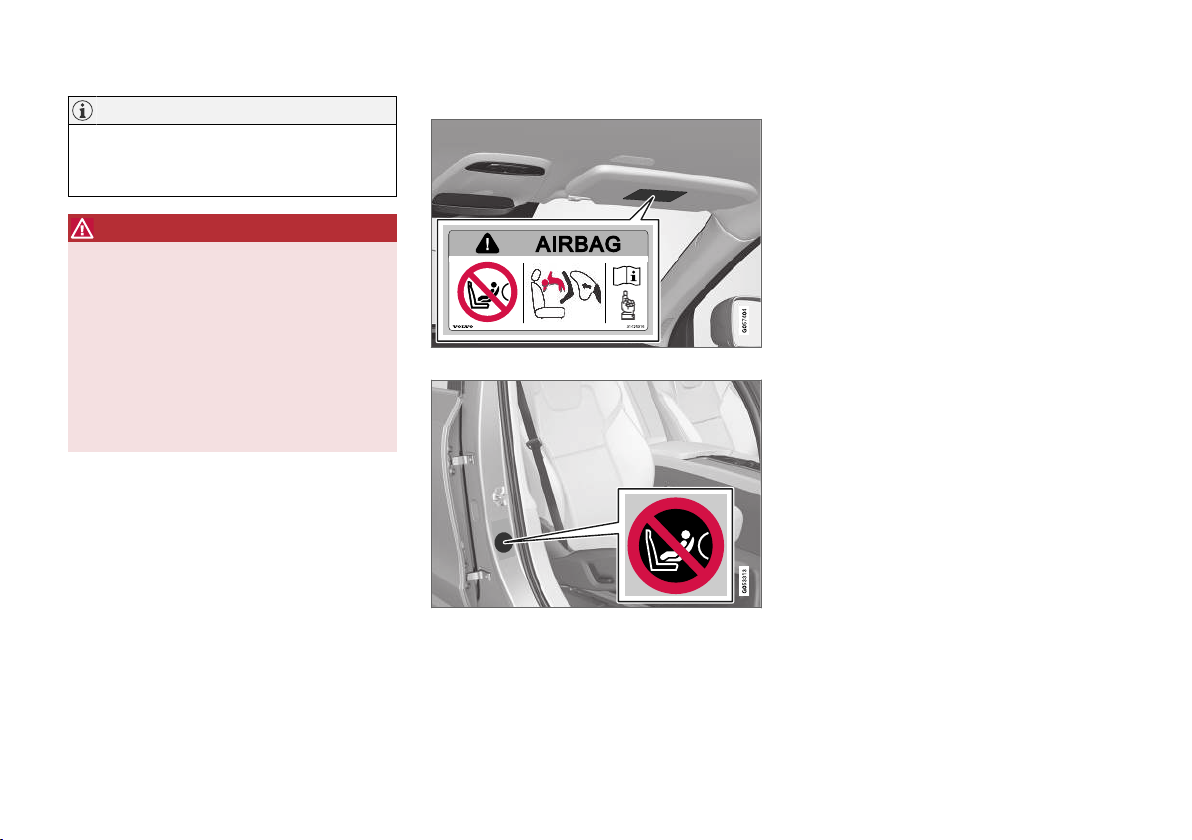

Label for passenger airbag

Label on the passenger side's sun visor.
Label on the passenger side's door pillar. The label becomes visible when the passenger door is opened.
The warning label for the passenger airbag is positioned as shown above.
WARNING
If the car is not equipped with a switch to acti­vate/deactivate the passenger airbag, the air­bag will always be activated.
WARNING
Never allow anybody to stand or sit in front of the front passenger seat.

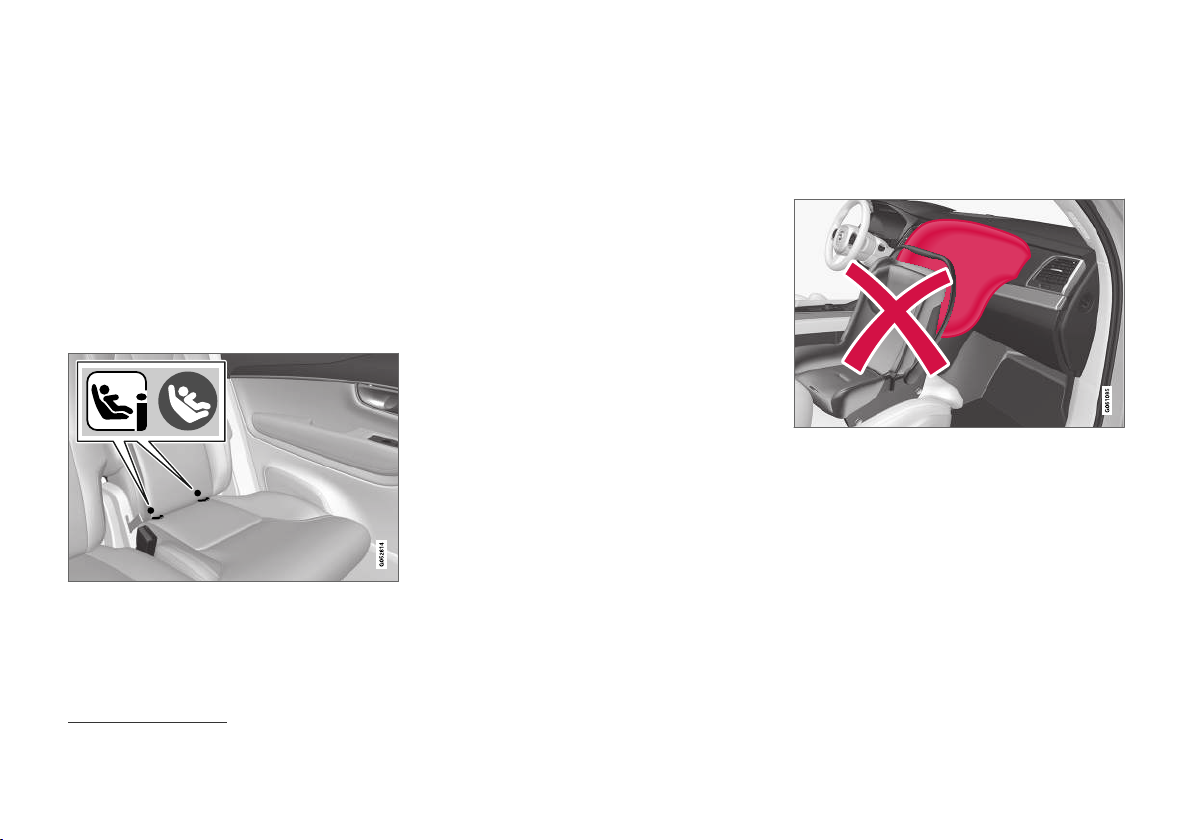

Never use a rear-facing child seat on the front passenger seat if the airbag is activated.
Front-facing passengers (children and adults) must never sit on the front passenger seat if the passenger airbag is deactivated.
Failure to follow the advice given above can endanger life or lead to serious personal injury.

Related information

Airbags (p. 51)
•
Driver airbags (p. 51)
•
Activating and deactivating passenger air-
•
bag* (p. 54)
* Option/accessory.
53
Page 56
SAFETY

Activating and deactivating passenger airbag*

The passenger airbag can be deactivated if the car is equipped with a switch, Passenger Airbag Cut Off Switch (PACOS).

Switch

The switch for the passenger airbag is located on the passenger end of the instrument panel and is accessible when the passenger door is open.
Check that the switch is in the required position.
ON - the airbag is activated and all front-fac­ing passengers (children and adults) can sit safely on the passenger seat.
OFF - The airbag is deactivated and children in rear-facing child seats can sit safely on the passenger seat.
WARNING
If the car is not equipped with a switch to acti­vate/deactivate the passenger airbag, the air­bag will always be activated.

Activating passenger airbag

Pull the switch outward and turn from OFF (B) to ON (A).
> The driver display shows the message
Passenger airbag on Please acknowledge.
NOTE
If the passenger airbag has been activated/ deactivated with the car in ignition position I or lower, a message is shown in the driver display and the following indicator in the roof console approx. 6 seconds after the car's electrical system has been set in ignition position II.
54
* Option/accessory.
Page 57
SAFETY
2. Confirm the message by pressing the right­hand steering wheel keypad's O button.
> A text message and a warning symbol in
the roof console indicate that the airbag for the front passenger seat is activated.
WARNING
Never use a rear-facing child seat on the front passenger seat when the airbag is activated.
The passenger airbag must always be acti­vated when front-facing passengers (children and adults) are sitting in the front passenger seat.
Failure to follow the advice given above can endanger life or lead to serious personal injury.

Deactivating passenger airbag

Pull the switch outward and turn from ON (A) to OFF (B).
> The driver display shows the message
Passenger airbag off Please acknowledge.
NOTE
If the passenger airbag has been activated/ deactivated with the car in ignition position I or lower, a message is shown in the driver display and the following indicator in the roof console approx. 6 seconds after the car's electrical system has been set in ignition position II.
2. Confirm the message by pressing the right­hand steering wheel keypad's O button.
> A text message and a symbol in the roof
console indicate that the airbag for the front passenger seat is deactivated.
WARNING
Front-facing passengers (children and adults) must never sit on the passenger seat when the airbag is deactivated.
Failure to follow the advice given above can endanger life or lead to serious personal injury.
IMPORTANT
If the passenger airbag is deactivated, the electric seatbelt tensioner on the passenger side will also be deactivated.
}}
55
Page 58
SAFETY
||

Related information

Seatbelt tensioner (p. 48)
•
Child seats (p. 60)
•

Side airbags

The side airbags on the driver's and passenger seats act to protect the chest and hips in the event of a collision.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the side airbag system could cause malfunction and result in serious personal injury.
WARNING
Do not put objects in the area between the outside of the seat and the door panel, since this area is required by the side airbag.
Volvo recommends the use only of car seat covers approved by Volvo. Other seat covers may impede the operation of the side airbags.
56
The side airbags are fitted in the outer backrest frames of the front seats and help to protect the driver and passengers in the front seat.
A sufficiently violent collision trips the sensors and the side airbags are inflated. The airbag inflates between the occupant and the door panel and thereby cushions the initial impact. The airbag deflates when compressed by the collision. The side airbag is normally only deployed on the side of the collision.
WARNING
Side airbags are a supplement the seatbelts. Always use a seatbelt.

Side airbags and child seats

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by the side airbag.

Related information

Airbags (p. 51)
•
Page 59
SAFETY

Airbags

The inflatable curtain, Inflatable Curtain (IC), helps to prevent the driver and passengers from striking their heads on the inside of the car dur­ing a collision.
The inflatable curtain is mounted along both sides of the headlining and helps protect the driver and outer seat passengers of the car. The panels are labelled with IC AIRBAG.
A sufficiently violent collision trips the sensors and the inflatable curtain is inflated.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the inflatable curtain system can cause malfunction and result in serious personal injury.
WARNING
Never hang or attach heavy items onto the handles in the roof. The hooks are only designed for light coats and jackets (not for solid objects such as umbrellas).
Do not screw or install anything onto the car's headlining, door pillars or side panels. This could compromise the intended protection. Volvo recommends only using Volvo genuine parts that are approved for fitting within these areas.
WARNING
Leave 10 cm (4 inches) space between the load and the side windows if the car is loaded to above the top edge of the door windows. Otherwise, the intended protection of the inflatable curtain, which is concealed in the headlining, may be compromised.
WARNING
The inflatable curtain is a supplement to the seatbelts. Always use a seatbelt.

Related information

Airbags (p. 51)
•

Safety mode

Safety mode is a protective state that is trig­gered when a collision may have damaged any of the car's vital functions, such as the fuel lines, sensors for any of the safety systems, or the brake system.
If the car has been in a collision, the message
Safety mode See Owner's manual may be
shown on the driver display with a warning sym­bol as long as the display is not damaged and the car's electrical system is still in working order. This message means that the car has reduced functionality.
WARNING
Never, under any circumstances, attempt to restart the car if it smells of fuel when the
Safety mode See Owner's manual mes-
sage is shown in the driver display. Leave the car at once.
If the car is in safety mode, it is possible to attempt to reset the system in order to start and move the car for a short distance, if in a danger­ous traffic situation for example.
}}
57
Page 60
SAFETY
||
WARNING
Never attempt to repair your car or reset the electronics yourself if the car has been in safety mode. This could result in personal injury or the car not functioning as normal. Volvo recommends that engaging an author­ised Volvo workshop to check and restore the car to normal status after
Owner's manual has been shown.
Safety mode See
WARNING
If the car is in safety mode it must not be towed. It must be transported from its loca­tion. Volvo recommends that it is transported to an authorised Volvo workshop.

Related information

Safety (p. 44)
•
Starting and moving the car after safety
•
mode (p. 58) Recovery (p. 492)
•

Starting and moving the car after safety mode

If the car is in safety mode, it is possible to attempt to reset the system in order to start and move the car for a short distance, if in a danger­ous traffic situation for example.

Starting the car after safety mode

1. Check the general damage situation of the car and whether any fuel has been leaking. There must be no smell of fuel either.
If there is only minor damage and a check has revealed no fuel leaks, starting can be attempted.
WARNING
Never, under any circumstances, attempt to restart the car if it smells of fuel when the
Safety mode See Owner's manual mes-
sage is shown in the driver display. Leave the car at once.
2. Switch off the car.
3. Then try to start the car. > The driver's display shows the message
Car start System check, wait while the
car's electronics carry out a systems check and then try to resume normal sta­tus. This can take up to one minute.
4. Then try to start the car again when the mes-
sage Car start System check, wait is no longer shown in the driver's display.
IMPORTANT
If the message Safety mode See Owner's
manual is still shown on the display the car
must not be driven or towed but a vehicle recovery service must then be used instead. Even if the car appears to be driveable, hid­den damage may make the car impossible to control once moving.

Moving the car after safety mode

1. If the driver display shows the message
Normal mode The car is now in normal mode after a start attempt, the car can be
carefully moved if standing in a dangerous position.
2. Do not move the car further than necessary.
WARNING
If the car is in safety mode it must not be towed. It must be transported from its loca­tion. Volvo recommends that it is transported to an authorised Volvo workshop.
58
Page 61
SAFETY

Related information

Safety mode (p. 57)
•
Starting the car (p. 436)
•
Recovery (p. 492)
•

Child safety

Children must always sit secure while travelling in the car.
Volvo has child safety equipment (child seats and attachment devices) which is designed for fitting in this particular car. Using Volvo's child safety equipment, you obtain the optimum conditions for a child to travel safely in the car. In addition, the child safety equipment fits in well and is simple to use.
The equipment that should be used is selected taking account of the weight and size of the child.
Volvo recommends that children travel in a rear­facing child seat until as late an age as possible, at least until 3-4 years of age, and then in a front-facing child seat until the child is 140 cm (4 feet 7 inches) tall.
NOTE
Legal provisions about the type of child seat that must be used for children of different ages and heights vary from country to coun­try. Check what does apply.
NOTE
When using child safety equipment, it is important to read the installation instructions included.
In the event of questions when fitting child safety equipment, contact the manufacturer for clearer instructions.
Children of all ages and sizes must always sit correctly secured in the car. Never allow a child to sit on the knee of a passenger.

Related information

Safety (p. 44)
•
Child seats (p. 60)
•
Activating and deactivating child safety locks
•
(p. 261)
59
Page 62
SAFETY

Child seats

Suitable child seats should always be used when children are travelling in the car.
Children should sit comfortably and safely. Make sure that the child seat is positioned, mounted and used correctly.
Look in the installation instructions for the child seat for the correct fitting.
NOTE
When using child safety equipment, it is important to read the installation instructions included.
In the event of questions when fitting child safety equipment, contact the manufacturer for clearer instructions.
NOTE
Never leave a child seat loose in the car. Always secure it according to the instructions for the child seat, even when it is not in use.

Related information

Child safety (p. 59)
•
Integrated child seat* (p. 74)
•

Upper mounting points for child seats

•
(p. 60) Lower mounting points for child seats
•
(p. 61)
i-Size/ISOFIX mounting points for child seats
•
(p. 62) Child seat positioning (p. 62)
•
Activating and deactivating passenger air-
•
bag* (p. 54)
Upper mounting points for child seats
The car is equipped with upper mounting points for child seats on the outer second row seats.
The upper mounting points are primarily intended for use with front-facing child seats.
Always follow the manufacturer's installation instructions when connecting a child seat to the upper mounting points.

The location of the mounting points

Mounting point locations are indicated by symbols on the rear of the backrest.
The mounting points are located on the rear of the outer second row seats.
60
* Option/accessory.
Page 63
SAFETY
WARNING
The child seat's upper straps must be routed through the hole in the head restraint leg before they are tensioned at the mounting point. If this is not possible, follow the recom­mendations from the child seat manufacturer.
NOTE
Fold the head restraints in order to facilitate fitting this type of child seat in cars with fold­ing head restraints on the outer seats.
NOTE
In cars with a cargo cover over the luggage compartment, this must be removed before child seats can be attached to the securing points.

Related information

Child seats (p. 60)
•

Lower mounting points for child seats

•
(p. 61) i-Size/ISOFIX mounting points for child seats
•
(p. 62) Table for location of child seats using the
•
car's seatbelts (p. 66)
Lower mounting points for child seats
The vehicle is equipped with lower mounting points for child seats in the front seat* and the second row of seats.
The lower mounting points are designed to be used in conjunction with certain rear-facing child seats.
Always follow the manufacturer's installation instructions when connecting a child seat to the lower mounting points.

The location of the mounting points

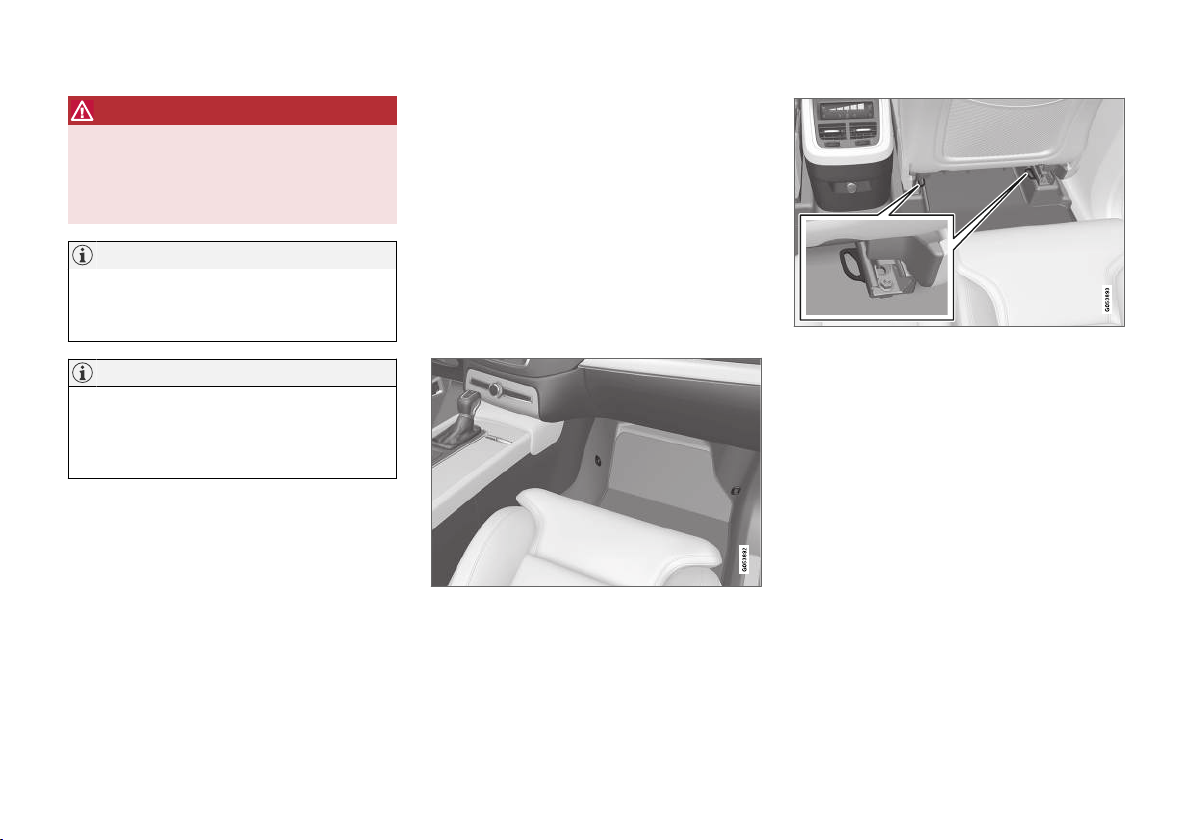

Mounting point locations in the front seat.
The mounting points in the front seat are located on the sides of the passenger seat's legroom.
The mounting points in the front seat are only mounted if the vehicle is equipped with a switch to activate/deactivate the passenger airbag*.
Mounting point locations in the second row of seats.
The mounting points in the second row of seats are located on the rear section of the front seat's floor rails.

Related information

Child seats (p. 60)
•
Upper mounting points for child seats (p. 60)
•
i-Size/ISOFIX mounting points for child seats
•
(p. 62) Table for location of child seats using the
•
car's seatbelts (p. 66)
* Option/accessory.
61
Page 64
SAFETY

i-Size/ISOFIX mounting points for child seats

The vehicle is equipped with i-Size/ISOFIX mounting points for child seats in the second row of seats.
i-Size/ISOFIX is a fixture system for car child seats that is based on an international standard.
Always follow the manufacturer's installation instructions when connecting a child seat to the i-Size/ISOFIX mounting points.

The location of the mounting points

Mounting point locations are indicated by symbols1 on the upholstery of the backrest.
The mounting points for i-Size/ISOFIX are con­cealed behind the lower section of the second seat row's backrest, in the outer seats.
1
Press the seat cushion down to access the mounting points.

Related information

Child seats (p. 60)
•
Upper mounting points for child seats (p. 60)
•
Lower mounting points for child seats (p. 61)
•
Table for location of i-Size child seats
•
(p. 69) Table for location of ISOFIX child seats
•
(p. 70)

Child seat positioning

It is important to position the child seat in the right place in the car and this depends, amongst other things, on the type of child seat and whether the passenger airbag is activated.
Rear-facing child seat and airbag are not compatible.
Always fit rear-facing child seats in the second or third* seat row if the passenger airbag is acti­vated. If a child is sitting on the front passenger seat then he/she could suffer serious injury if the airbag deploys.
If the passenger airbag is deactivated then rear­facing child seats can be fitted on the front pas­senger seat.
1
Names and symbols change depending on market.
62
* Option/accessory.
Page 65
SAFETY
NOTE
Regulations regarding the placement of chil­dren in cars vary from country to country. Check what does apply.
WARNING
Never allow anybody to stand or sit in front of the front passenger seat.
Never use a rear-facing child seat on the front passenger seat if the airbag is activated.
Front-facing passengers (children and adults) must never sit on the front passenger seat if the passenger airbag is deactivated.
Failure to follow the advice given above can endanger life or lead to serious personal injury.

Label for passenger airbag

Label on the passenger side's sun visor.
Label on the passenger side's door pillar. The label becomes visible when the passenger door is opened.
The warning label for the passenger airbag is positioned as shown above.

Related information

Child seats (p. 60)
•
Child seat mounting (p. 64)
•
Table for location of child seats using the
•
car's seatbelts (p. 66) Table for location of i-Size child seats
•
(p. 69) Table for location of ISOFIX child seats
•
(p. 70)
63
Page 66
SAFETY

Child seat mounting

It is important to remember a number of things when a child seat is mounted and used, which depend on where the child seat is positioned.
WARNING
Booster cushions/child seats with steel braces or some other design that could rest on the seatbelt buckle's opening button must not be used, as they could cause the seatbelt buckle to open accidentally.
Do not secure the straps for the child seat into the seat's horizontal adjustment bar or in springs, rails or beams under the seat. Sharp edges may damage the straps.
Do not allow the upper section of the child seat to rest against the windscreen.
NOTE
When using child safety equipment, it is important to read the installation instructions included.
In the event of questions when fitting child safety equipment, contact the manufacturer for clearer instructions.
NOTE
Never leave a child seat loose in the car. Always secure it according to the instructions for the child seat, even when it is not in use.

Installation in the front seat

When fitting rear-facing child seats, check
•
that the passenger airbag is deactivated. When fitting front-facing child seats, check
•
that the passenger airbag is activated. Only use child seats that are recommended
•
by Volvo, are universally approved or are semi-universal, and where the car is included on the manufacturer's vehicle list.
ISOFIX child seats can only be fitted when
•
the car is equipped with the ISOFIX console accessory.
If the child seat is equipped with lower
•
straps, Volvo recommends that the lower mounting points are used with these2.
The ISOFIX guide can be used in order to
•
facilitate child seat installation.

Installation in the second seat row

WARNING
Child seats with support legs must not be mounted in the centre seat, risk of danger.
Only use child seats that are recommended
•
by Volvo, are universally approved3 or are semi-universal, and where the car is included on the manufacturer's vehicle list.
The outer seats are equipped with the
•
ISOFIX fixture system and are approved for i­Size4.
The outer seats are equipped with upper
•
mounting points. Volvo recommends that
2
child seat's upper straps should be pulled through the hole in the head restraint before being tensioned at the mounting point. If this is not possible, follow the recommendations from the child seat manufacturer.
In cars with a third seat row*, the second
•
seat row must be adjusted to its rearmost position. If a child seat is also used in the third row then an exception can be made. In which case, always check that the child seat is still fitted in accordance with the manufac­turer's instructions.
2
The accessory range varies depending on market.
3
Does not apply to the centre seat.
4
Varies depending on market.
64
* Option/accessory.
Page 67
If the child seat is equipped with lower
•
straps, never adjust the position of the seat in front after the straps have been fitted in the lower mounting points. Always remember to remove the lower straps when the child seat is not installed.
The ISOFIX guide must not be used when fit-
•
ting child seats.

Installation in the third seat row*

Only use child seats that are recommended
•
by Volvo, are universally approved or are semi-universal, and where the car is included on the manufacturer's vehicle list.
Child seats with support legs must not be fit-
•
ted in the third row of seats. If necessary, adjust the second seat row for-
•
ward in order to make enough space. If a child seat is also fitted on the second seat row, check that the child seat is still fitted in accordance with the manufacturer's instruc­tions.

Related information

Child seat positioning (p. 62)
•
Table for location of child seats using the
•
car's seatbelts (p. 66) Table for location of i-Size child seats
•
(p. 69) Table for location of ISOFIX child seats
•
(p. 70)
SAFETY
* Option/accessory.
65
Page 68
SAFETY

Table for location of child seats using the car's seatbelts

The table gives a recommendation for which child seats suit which locations, and for what size of child.
Table for XC90 Twin Engine
Weight Front seat (with deactivated
airbag, only rear-facing child seats)
Group 0 max 10 kg
Group 0+ max 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
A, B
U
A, B
U
C
L
C
L
NOTE
Always read the owner's manual section on installing a child seat before installing one in the car.
Front seat (with activated air­bag, only front-facing child seats)
X
X
A, D
UF
A, E
UF
Second row of seats, outer seat
B
U
B
U
C
U, L
C
UE, L
Second row of seats, centre seat
B
L
B
L
L U
, F
E
B*
, L
Third seat row*
U
U
E
U
66
* Option/accessory.
Page 69
SAFETY
Weight Front seat (with deactivated
airbag, only rear-facing child seats)
Group 3 22-36 kg
X
Front seat (with activated air­bag, only front-facing child seats)
A, G
UF
Second row of seats, outer seat
G
U
Second row of seats, centre seat
, F
G
B*
, L
Third seat row*
G
U
U: Suitable for universal category restraints approved for use in this mass group. UF: Suitable for front-facing universally approved child seats. L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories. B: Built-in restraint approved for this mass group. X: The seat is not suitable for children in this mass group.
A
Adjust the backrest to a more upright position.
B
Volvo recommends: Volvo infant seat (type approval E1 04301146).
C
Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192); Volvo rear-facing seat (type approval E5 04212).
D
Volvo recommends rear-facing child seat for children in this mass group.
E
Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04192); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169); Volvo booster seat (type approval E1 04301312).
F
Volvo recommends: Integrated child seat (type approval E5 04218).
G
Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169); Volvo booster seat (type approval E1 04301312).
Table for XC90 Excellence
Weight Front seat (with deactivated airbag, only rear-facing child seats) Front seat (with activated airbag, only front-facing child seats) Rear seat
Group 0 max 10 kg
Group 0+ max 13 kg
A, B
U
, L
A, B
U
, L
X
X
A, B
U
A, B
U
, L
, L
* Option/accessory.
}}
67
Page 70
SAFETY
||
Weight Front seat (with deactivated airbag, only rear-facing child seats) Front seat (with activated airbag, only front-facing child seats) Rear seat
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kg
C
L
C
L
X
UF
UF
UF
A, D
A, E
A, F
U: Suitable for universal category restraints approved for use in this mass group. UF: Suitable for front-facing universally approved child seats. L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories. X: The seat is not suitable for children in this mass group.
A
Adjust the backrest to a more upright position.
B
Volvo recommends: Volvo infant seat (type approval E1 04301146).
C
Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192).
D
Volvo recommends rear-facing child seat for children in this mass group.
E
Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04191); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).
F
Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).
Table for location of i-Size child seats
WARNING
Never use a rear-facing child seat on the front passenger seat if the passenger airbag is activated.
•
(p. 69) Table for location of ISOFIX child seats
•
(p. 70) Seatbelts (p. 46)
•

Related information

Child seat positioning (p. 62)
•
Child seat mounting (p. 64)
•
UA, L
U
U
A, E
A, F
C
C
, L
, L
68
Page 71
SAFETY

Table for location of i-Size child seats

The table gives a recommendation for which i­Size child seats suit which locations, and for what size of child.
Table for XC90 Twin Engine
Type of child seat Front seat (with deactivated
airbag, only rear-facing child
seats)
i-Size child seats X X
i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing. X: Not suitable for universally approved child seats.
A
Volvo recommends rear-facing child seats for this group.
Table for XC90 Excellence
Type of child seat Front seat (with deactivated airbag, only rear-facing child
i-Size child seats X X X
X: Not suitable for universally approved child seats.

Related information

Child seat positioning (p. 62)
•
Child seat mounting (p. 64)
•
Table for location of child seats using the
•
car's seatbelts (p. 66)
The child seat must be approved in accordance with UN Reg R129.
Front seat (with activated
airbag, only front-facing
child seats)
seats)
Table for location of ISOFIX child seats
•
(p. 70) i-Size/ISOFIX mounting points for child seats
•
(p. 62)
Second row of seats,
Front seat (with activated airbag, only front-facing child
outer seat
A
i-U
NOTE
Always read the owner's manual section on installing a child seat before installing one in the car.
Second row of seats,
centre seat
X X
seats)
Third seat row*
Rear seat
* Option/accessory.
69
Page 72
SAFETY

Table for location of ISOFIX child seats

The table gives a recommendation for which ISOFIX child seats suit which locations, and for what size of child.
Table for XC90 Twin Engine
Weight
Group 0 max 10 kg
Group 0+ max 13 kg
Size class
A
Type of child seat Front seat (with
Rear-facing infant
E
seat
Rear-facing infant
E
seat
C Rear-facing child seat
D Rear-facing child seat
The child seat must be approved in accordance with UN Reg R44 and the car model must be included in the manufacturer's vehicle list.
Front seat (with
deactivated airbag,
only rear-facing child
B
seats)
B, C
D
IL
, X
B, C
D
IL
, X
activated airbag, only front-facing
child seats)
B
X
X
NOTE
Always read the owner's manual section on installing a child seat before installing one in the car.
Second row of
seats, outer seat
C
IL
C
IL
Second row of
seats, centre seat
X X
X X
Third seat row*
70
* Option/accessory.
Page 73
SAFETY
Weight
Group 1 9-18 kg
Size class
A
Type of child seat Front seat (with
Front-facing child
A
seat
Front-facing child seat
B1
Front-facing child seat
C Rear-facing child seat
D Rear-facing child seat
deactivated airbag,
only rear-facing child
B
seats)
X
D
ILB, X
Front seat (with activated airbag, only front-facing
B, E
, X
B
D
child seats)
IL
X
Second row of
seats, outer seat
E
ILE, IUF
F
IL
Second row of
seats, centre seat
X XB
X X
Third seat row*
IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal catego­ries.
IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group. X: Not suitable for ISOFIX child restraint systems.
A
For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.
B
Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market).
C
Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).
D
Applicable if the car is not fitted with an ISOFIX bracket.
E
Volvo recommends rear-facing child seat for children in this mass group.
F
Volvo recommends: BeSafe iZi Kid X3 ISOfix (type approval E5 04200).
* Option/accessory.
}}
71
Page 74
SAFETY
Table for XC90 Excellence
||
Weight
Group 0 max 10 kg
Size class
A
Type of child seat Front seat (with deactivated airbag, only
rear-facing child seats)
Front seat (with activated airbag, only front-
facing child seats)
E Rear-facing infant seat X X
E Rear-facing infant seat
Group 0+ max 13 kg
C Rear-facing child seat
X X
D Rear-facing child seat
A Front-facing child seat
Group 1 9-18 kg
B Front-facing child seat
B1 Front-facing child seat
C Rear-facing child seat
D Rear-facing child seat
X X
X X IL
IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal catego­ries.
IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group. X: Not suitable for ISOFIX child restraint systems.
A
For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.
B
Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).
C
Volvo recommends rear-facing child seat for children in this mass group.
Rear seat
B
IL
B
IL
ILC, IUF
C
72
Page 75
WARNING
Never use a rear-facing child seat on the front passenger seat if the passenger airbag is activated.
NOTE
If an i-Size/ISOFIX child seat has no size classification, the car model must be included on the vehicle list for the child seat.
NOTE
Volvo recommends contacting an authorised Volvo dealer for information about which i­Size/ISOFIX child seats Volvo recommends.

Related information

Child seat positioning (p. 62)
•
Child seat mounting (p. 64)
•
Table for location of child seats using the
•
car's seatbelts (p. 66) Table for location of i-Size child seats (p. 69)
•
i-Size/ISOFIX mounting points for child seats
•
(p. 62)
SAFETY
73
Page 76
SAFETY

Integrated child seat*

The integrated child seat on the centre seat in the second seat row allows children to sit com­fortably and safely.
The child seat is specially designed to provide children with good safety, together with the car's seatbelt.
The child seat is approved for children who weigh 15-36 kg (33-80 lbs) and are at least 97 cm (38 inches) tall.
Correct position, the seatbelt should be positioned in on the shoulder.
Check before driving that:
the seat cushion in locked in position
•
the head restraint is adjusted at the same
•
height as the child's head, if possible, so that it covers the entire back of the head
the seatbelt is in contact with the child's
•
body and is not slack or twisted the seatbelt does not lie across the child's
•
throat or below the shoulder the lap section of the seatbelt is positioned
•
low over the pelvis to provide optimal protec­tion.
WARNING
Volvo recommends that repair or replacement of the integrated child seat is only performed by an authorised Volvo workshop. Do not make any modifications or additions to the child seat. If an integrated child seat has been subjected to a heavy load, e.g. in connection with a collision, then the seat cushion, seat­belt and backrest, or possibly the whole seat, must be replaced. Even if the child seat appears to be undamaged, it may not afford the same level of protection. This also applies if the seat cushion was in lowered position during a collision or similar. The seat cushion must also be replaced if it is heavily worn.
WARNING
If the instructions for the integrated child seat are not followed then the child could sustain serious injury in the event of an accident.

Related information

Child seats (p. 60)
•
Folding up the seat cushion in the integrated
•
child seat* (p. 75) Folding down the seat cushion in the inte-
•
grated child seat* (p. 75)
74
* Option/accessory.
Page 77
SAFETY

Folding up the seat cushion in the integrated child seat*

The seat cushion should always be folded up when the integrated child seat is in use.
Pull the handle forwards and upwards to release the seat cushion.
Press the seat cushion backwards to lock.
WARNING
If the instructions for the integrated child seat are not followed then the child could sustain serious injury in the event of an accident.

Related information

Integrated child seat* (p. 74)
•
Folding down the seat cushion in the inte-
•
grated child seat* (p. 75)

Folding down the seat cushion in the integrated child seat*

The seat cushion should be folded down into the rear seat when the integrated child seat is not being used.
Pull the handle forwards to release the seat cushion.
* Option/accessory.
}}
75
Page 78
SAFETY
||
Press down with your hand in the centre of the seat cushion in order to lock it.
IMPORTANT
Check that there are no loose objects (e.g. toys) left behind in the space under the child seat's seat cushion before lowering.
NOTE
Before the rear backrest is lowered, the child seat's seat cushion must be lowered first.

Related information

Integrated child seat* (p. 74)
•
Folding up the seat cushion in the integrated
•
child seat* (p. 75)
76
* Option/accessory.
Page 79
DISPLAYS AND VOICE CONTROL
Page 80

DISPLAYS AND VOICE CONTROL

Instruments and controls in left­hand drive car
The overviews show where the displays and controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights, dipped beam, main beam, direction indica­tors, rear fog lamp, resetting the trip meter
Steering wheel paddles for manual gear changing in an automatic gearbox*
Head-up display*
Driver display
Wipers and washing, rain sensor*
Right-hand steering wheel keypad
Steering wheel adjustment
Horn
Left-hand steering wheel keypad
Bonnet opening
Display lighting, tailgate unlocking/opening*/ closing*, halogen headlamp levelling

Roof console

Front reading lamps and interior lighting
Panorama roof*
Display in roof console
Manual dimming of interior rearview mirror

Centre and tunnel console

Centre display
Hazard warning flashers, defrosting, media, glovebox opening
Gear selector
Start knob
Drive mode control
Parking brake
Automatic braking when stationary

Driver's door

78
* Option/accessory.
Page 81
DISPLAYS AND VOICE CONTROL
Memories for power front seat*, door mirror and head-up display* settings
Central locking
Power windows, door mirrors, electric child safety lock*
Adjusting front seat

Related information

Manual front seat (p. 180)
•
Adjusting the power front seat* (p. 181)
•
Adjusting the steering wheel (p. 196)
•
Lighting control (p. 148)
•
Starting the car (p. 436)
•
Driver display (p. 81)
•
Overview of centre display (p. 105)
•
Gearbox (p. 450)
•
Instruments and controls in right­hand drive car
The overviews show where the displays and controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights, dipped beam, main beam, direction indica­tors, rear fog lamp, resetting the trip meter
Steering wheel paddles for manual gear changing in an automatic gearbox*
Head-up display*
Driver display
Wipers and washing, rain sensor*
Right-hand steering wheel keypad
Display lighting, tailgate unlocking/opening*/ closing*, halogen headlamp levelling
Bonnet opening
Horn
Steering wheel adjustment
Left-hand steering wheel keypad

Roof console

Front reading lamps and interior lighting
Panorama roof*
Display in roof console
Manual dimming of interior rearview mirror

Centre and tunnel console

}}
* Option/accessory.
79
Page 82
DISPLAYS AND VOICE CONTROL
||
Centre display
Hazard warning flashers, defrosting, media, glovebox opening
Gear selector
Start knob
Drive mode control
Parking brake
Automatic braking when stationary

Driver's door

Memories for power front seat*, door mirror and head-up display* settings
Central locking
Power windows, door mirrors, electric child safety lock*
Adjusting front seat

Related information

Manual front seat (p. 180)
•
Adjusting the power front seat* (p. 181)
•
Adjusting the steering wheel (p. 196)
•
Lighting control (p. 148)
•
Starting the car (p. 436)
•
Driver display (p. 81)
•
Overview of centre display (p. 105)
•
Gearbox (p. 450)
•
80
* Option/accessory.
Page 83
DISPLAYS AND VOICE CONTROL

Driver display

The driver display shows information about the car and driving.
The driver display contains gauges, indicators and indicator and warning symbols. The content of the driver display depends on the car's equip­ment, settings and which functions are active at that time.
The driver display is activated as soon as a door is opened, i.e. in ignition position 0. The driver display extinguishes after a while if it is not used. To reactivate it, proceed with one of the following:
Depress the brake pedal.
•
Activate ignition position I.
•
Location in the driver display:
On the left In the middle On the right
Speedometer Indicator and warning symbols
Trip meter Outside temperature gauge Gear shift indicator
Odometer
Cruise control and speed limiter information Messages, in some cases with graphics Fuel gauge
Road Sign Information*
– Charge status Distance to empty tank
B
Open one of the doors.
•
WARNING
In the event of a fault in the driver display the information on e.g. brakes, airbags or other safety systems may not be shown. In which case, the driver cannot check the status of the car's systems or receive current warnings and information.
WARNING
If the driver display should extinguish, not illu­minate on activation/start or be fully or parti­ally illegible, the car must not be used. You should visit a workshop immediately. Volvo recommends an authorised Volvo workshop.
Tachometer/Hybrid gauge
Clock Drive mode
(Hybrid, Off Road, Pure, Power or AWD)
Door and seatbelt information Hybrid battery gauge
A
* Option/accessory.
}}
81
Page 84
DISPLAYS AND VOICE CONTROL
||
On the left In the middle On the right
– Media player Distance to empty battery
–
Navigation map*
Instantaneous fuel consumption
– Phone App menu (activated via steering wheel keypad)
– Voice recognition –
–
A
Depends on drive mode selected.
B
Accumulated mileage.
Compass
A
–

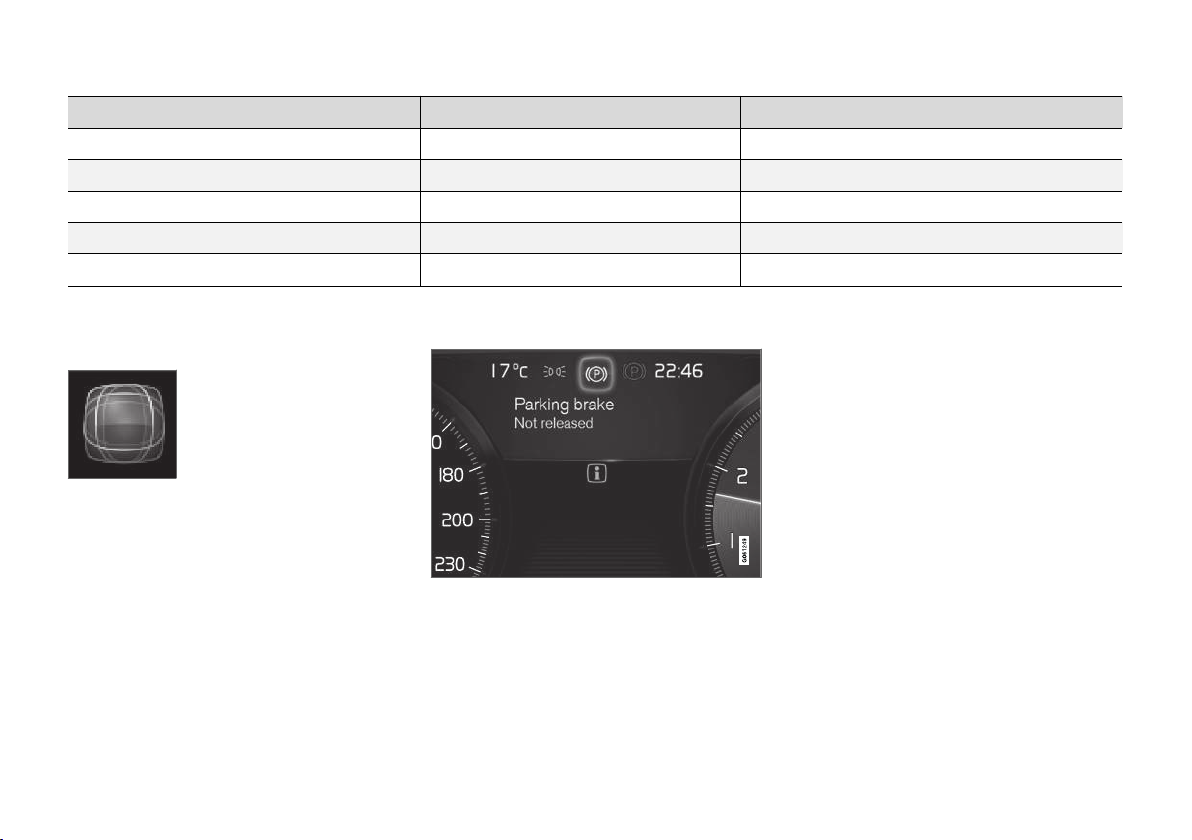

Dynamic symbol

The dynamic symbol in its basic form.
The centre of the driver display contains a dynamic symbol that changes appearance for dif­ferent types of message. An amber or red marker around the symbol indicates the degree of severity of a control or warning message. With an animation, the basic shape can be turned into a larger image in order to graphically indicate where a problem is situated or to clarify informa­tion.
82
Examples of indicator symbol.

Related information

Driver display settings (p. 83)
•

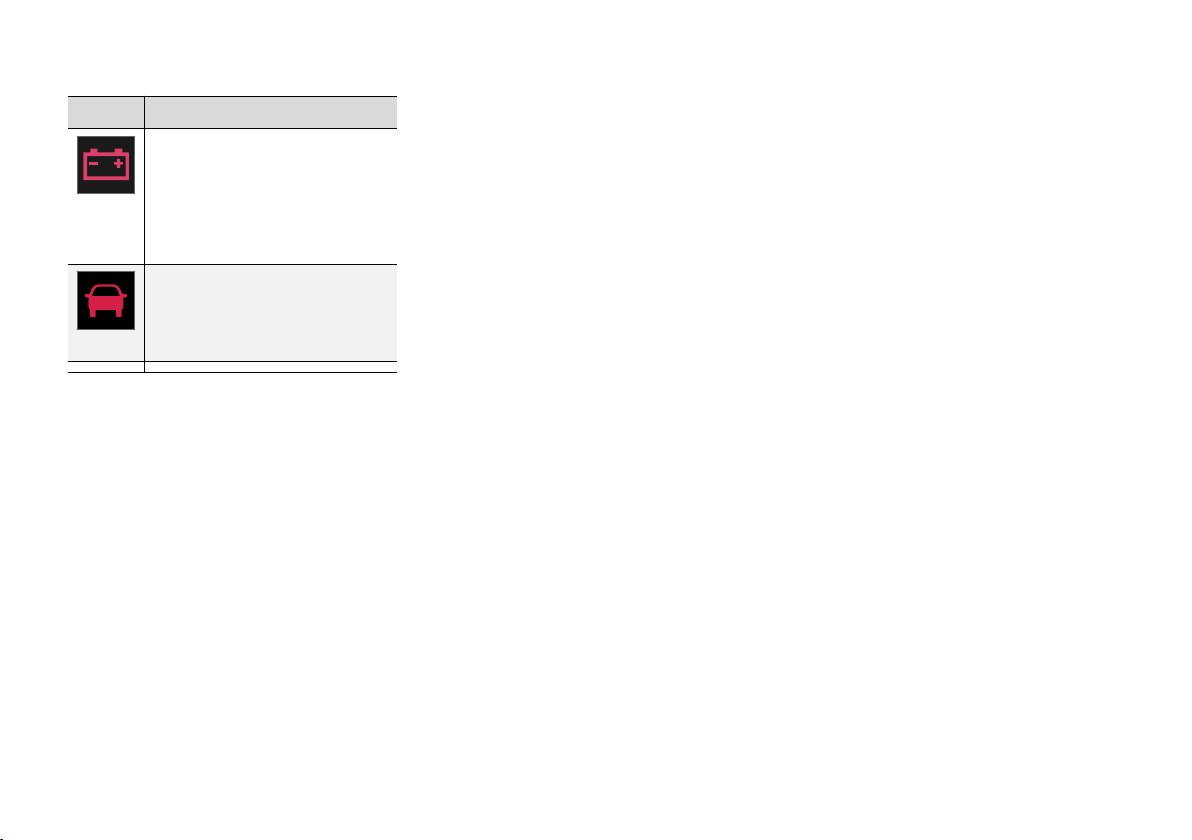

Warning symbols in the driver display
•
(p. 93)

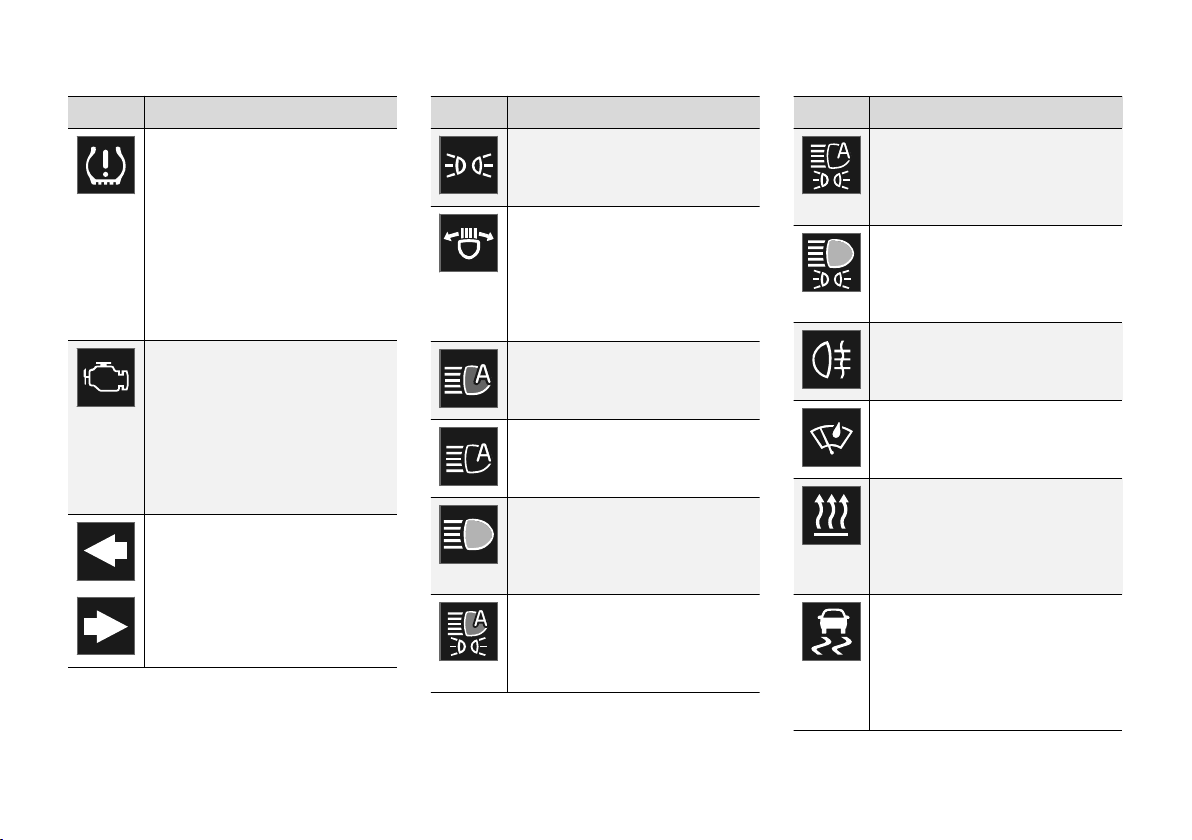

Indicator symbols in the driver display
•
(p. 91) Trip computer (p. 86)
•
Messages in the driver display (p. 102)
•
Handling the application menu in the driver
•
display (p. 101)
* Option/accessory.
Page 85
DISPLAYS AND VOICE CONTROL

Driver display settings

Settings for the driver display's display options can be made in the driver display's application menu and in the centre display's settings menu.

Settings in the driver display's app menu

In the app menu, you can choose which informa­tion is shown on the driver display from:
Trip computer
•
media player
•
phone
•
navigation system*.
•

Settings in the centre display

Selecting information type
1.
2. Press
3. Select what should be shown in the back-
Settings in the centre display's top
Tap on view.
My Car Displays Driver
Display Information
ground:
Show no information in background
•
Show information for current playing
•
media Show navigation even if no route is
•
set.
.
Selecting theme
1.
2. Tap on
3. Select a theme (appearance) for the driver
Selecting language
1.
2. Tap on
These settings are personal and are saved auto­matically to the active driver profile.
Settings in the centre display's top
Tap on view.
My Car Displays Display
Themes
display:
Glass
•
Minimalistic
•
Performance
•
Chrome Rings.
•
Settings in the centre display's top
Tap on view.
System System Languages and
Units
guage. > A change will affect the language in all
System Language to select lan-
displays.

Related information

Driver display (p. 81)
•
Handling the application menu in the driver
•
display (p. 101) Changing settings in the centre display
•
(p. 130)

Fuel gauge

The fuel gauge in the driver display shows the fuel level in the tank.
The beige zone in the fuel gauge indicates the quantity of fuel in the tank.
When the fuel level is low and it is soon time to refuel, the fuel pump symbol illuminates and changes to amber colour. The trip computer also indicates the distance to empty tank.

Related information

Driver display (p. 81)
•
Hybrid battery gauge (p. 85)
•
Filling fuel (p. 475)
•
Fuel tank - volume (p. 662)
•
* Option/accessory.
83
Page 86
DISPLAYS AND VOICE CONTROL

Hybrid gauge

In drive modes Hybrid and Pure, the driver dis­play shows a hybrid gauge that can help the driver to drive the car in a more energy-efficient way.
The hybrid gauge shows in different ways the relationship between how much power is being taken from the electric motor and how much power is available.

Symbols in the hybrid gauge

Indicates current level for available electric motor power. If the symbol is filled in, it means that the electric motor is in use.
If the symbol is not filled in, it means that the electric motor is not in use.
Indicates the power level when the combustion engine starts. If the symbol is filled in, it means that the combus­tion engine is in use.
Indicates the power level when the internal combustion engine is due to start. If the symbol is not filled in, it means that the combustion engine is
not in use.
Indicator that shows that the hybrid battery is being charged, e.g. if the brake pedal is gently depressed.

Driver-requested power

The pointer in the hybrid gauge indicates the amount of engine power requested by the driver by regulating the accelerator pedal. The higher the reading on the scale, the more power is requested by the driver in the current gear. The marking between the lightning bolt and the drop indicates the transition point where the electric motor stops working and the combustion engine takes over.
Example:
The car is started but stationary, no power is requested.
The electric motor cannot supply the amount of engine power requested and the internal combustion engine starts.
84
Page 87
DISPLAYS AND VOICE CONTROL
The car generates current to the battery, the battery is charged, e.g. when the brake pedal is pressed lightly or during engine braking down a hill.

Related information

Drive modes (p. 457)
•
Driver display (p. 81)
•
Foot brake (p. 442)
•
Driving with electric operation (p. 469)
•
Starting and stopping the combustion engine
•
in Twin Engine (p. 456)

Hybrid battery gauge

The hybrid battery gauge shows how much energy there is in the hybrid battery.
The energy in the hybrid battery is used for the electric motor, but also to cool or heat the car. The trip computer calculates an approximate dis­tance for the energy left in the hybrid battery.

Symbols in the hybrid battery gauge

The symbol in the hybrid battery gauge indi­cates that the
symbol indicates that the Charge function
is activated.
Hold function is activated, and the

Related information

Driver display (p. 81)
•
Charging the hybrid battery (p. 415)
•
"Hold" and "Charge" function (p. 471)
•
85
Page 88
DISPLAYS AND VOICE CONTROL

Trip computer

The car's trip computer records and calculates vales such as e.g. distance, fuel consumption and average speed whilst driving.
In order to facilitate fuel-efficient driving, informa­tion is recorded about both instantaneous and average fuel consumption. The information from the trip computer can be shown in the driver dis­play.
Trip computer information in the driver display1.
The following meters are included in the trip computer:

Trip meter

•

Odometer

•

Instantaneous fuel consumption

•

Distance to empty tank

•

Distance to empty battery

•
Tourist - alternative speedometer
•
Units for distance, speed, etc. can be changed via system settings in the centre display.
Trip meter
There are two trip meters, TM and TA. TM can be reset manually and TA is reset auto-
matically if the car is not used for at least four hours.
The following information is registered while driv­ing:
Mileage
•
Driving time
•
Average speed
•
Average fuel consumption.
•
The values apply from the trip meter's latest reset.
Odometer
The odometer records the car's total mileage. This value cannot be reset to zero.
Instantaneous fuel consumption
This gauge shows the fuel consumption that the car has at the moment. The value is updated approximately every second.
Distance to empty tank
The trip computer calculates the remaining mile­age with the fuel available in the tank.
The calculation is based on the average fuel con­sumption over the last 30 km (20 miles) and the remaining drivable fuel quantity.
When the gauge shows "----", there is not enough fuel left to be able to calculate the remaining mileage. Refuel as soon as possible.
NOTE
There may be a slight deviation if the driving style has been changed.
An economic driving style generally results in a longer driving distance.
Distance to empty battery
The gauge shows the approximate dis­tance that can be driven with the energy quantity remaining in the hybrid battery.
No guaranteed range remains when the gauge shows "----".
The calculation is based on the average con­sumption of normally loaded vehicle, during nor­mal driving and taking into account whether the air conditioning (AC) is switched on or off. When
1
The figure is schematic - parts may vary depending on car model.
86
Page 89
DISPLAYS AND VOICE CONTROL
changing between the Hybrid and Pure drive modes, the calculated distance increases since the Pure mode has reduced climate settings (ECO climate).
NOTE
There may be a slight deviation if the driving style has been changed.
An economic driving style generally results in a longer driving distance.
Start value for fully charged hybrid battery
Since it is difficult to anticipate driving style and other factors that affect the range for electric operation, Volvo has decided to use a start value when the car is fully charged. The start value indi­cates an up-to figure instead of a forecast for the range for electric operation. The difference in start value between the car being allowed to use more energy from the hybrid battery in Pure mode, as well as that the car changes over to ECO climate.
Mileage for electric operation
In order to achieve the longest possible mileage for electric operation, the driver of an electrically powered car also has to think about energy con­servation. The more consumers there are (stereo, electric heating in windows/mirrors/seats, very cold air from the climate control system, etc.) that are active - the shorter the potential mileage.
Hybrid and Pure is due to
NOTE
In addition to high current take-off in the pas­senger compartment, sudden acceleration and braking, high speed, heavy loads, low out­side temperature and uphill gradients also reduce the possible driving distance.

Tourist - alternative speedometer

The alternative digital speedometer makes it eas­ier to drive in countries where speed limit signs are in a different unit than that shown in the car's instruments.
The digital speed is then shown in the opposite unit to that shown in the analogue speedometer. If the analogue speedometer is graduated in mph, the digital speedometer shows the corres­ponding speed in km/h and vice versa.

Related information

Show trip data in the driver display (p. 87)
•
Resetting the trip meter (p. 88)
•
Show trip statistics in the centre display
•
(p. 89) Driver display (p. 81)
•

Show trip data in the driver display

The trip computer's recorded and calculated val­ues can be shown in the driver display.
The values are saved in a trip computer app. Via the app menu, you can choose which information is shown on the driver display.
Open and navigate in the app menu using the right­hand steering wheel keypad.
App menu
Left/right
Up/down
Confirm
}}
87
Page 90
DISPLAYS AND VOICE CONTROL
1. Open the app menu in the driver display by
||
pressing (1). (It is not possible to open the app menu
while there is an unacknowledged message in the driver display. The message must first be acknowledged before the app menu can be opened.)
2. Navigate to the trip computer app to left or right with (2).
> The top four menu rows show measured
values for trip meter TM. The next four menu rows show measured values for trip meter TA. Scroll up or down in the list with (3).
3. Scroll down to the option buttons to select which information to show in the driver dis­play:
Distance to empty tank
•
Odometer
•
Mileage for trip meter TM, TA, or no dis-
•
play of mileage Instantaneous fuel consumption, average
•
consumption for TM or TA, alternatively, no display of fuel consumption
Tourist (alternative speedometer).
•
Distance to empty battery
•
Select or deselect an option with the O but­ton (4). The change is made immediately.

Related information

Trip computer (p. 86)
•
Resetting the trip meter (p. 88)
•

Resetting the trip meter

Reset the trip meter using the left-hand stalk switch.
Reset all information in trip meter TM (i.e.
–
mileage, average consumption, average speed and driving time) with a long press on the RESET button on the left-hand stalk switch.
A short press on the RESET button resets only the mileage.
The trip meter TA can only be reset automatically when the car has not been used for four or more hours.

Related information

Trip computer (p. 86)
•
88
Page 91
DISPLAYS AND VOICE CONTROL

Show trip statistics in the centre display

Trip statistics from the trip computer are dis­played graphically in the centre display and pro­vide an overview that facilitates more fuel-effi­cient driving.
Open the Driver performance app in app view in order to show the trip statistics.
Each bar in the diagram sym­bolises a distance of 1, 10 or
100 km, alternatively miles. The bars are filled in from the right as driving pro­gresses. The bar on the far right shows the value for the current distance.
The average fuel consumption and total driving time are calculated since the last time the trip statistics were reset.
Fuel and electricity consumption are shown in separate graphs. Electricity consumption is "net" consumption, i.e. energy consumed minus regen­erated energy created during braking.

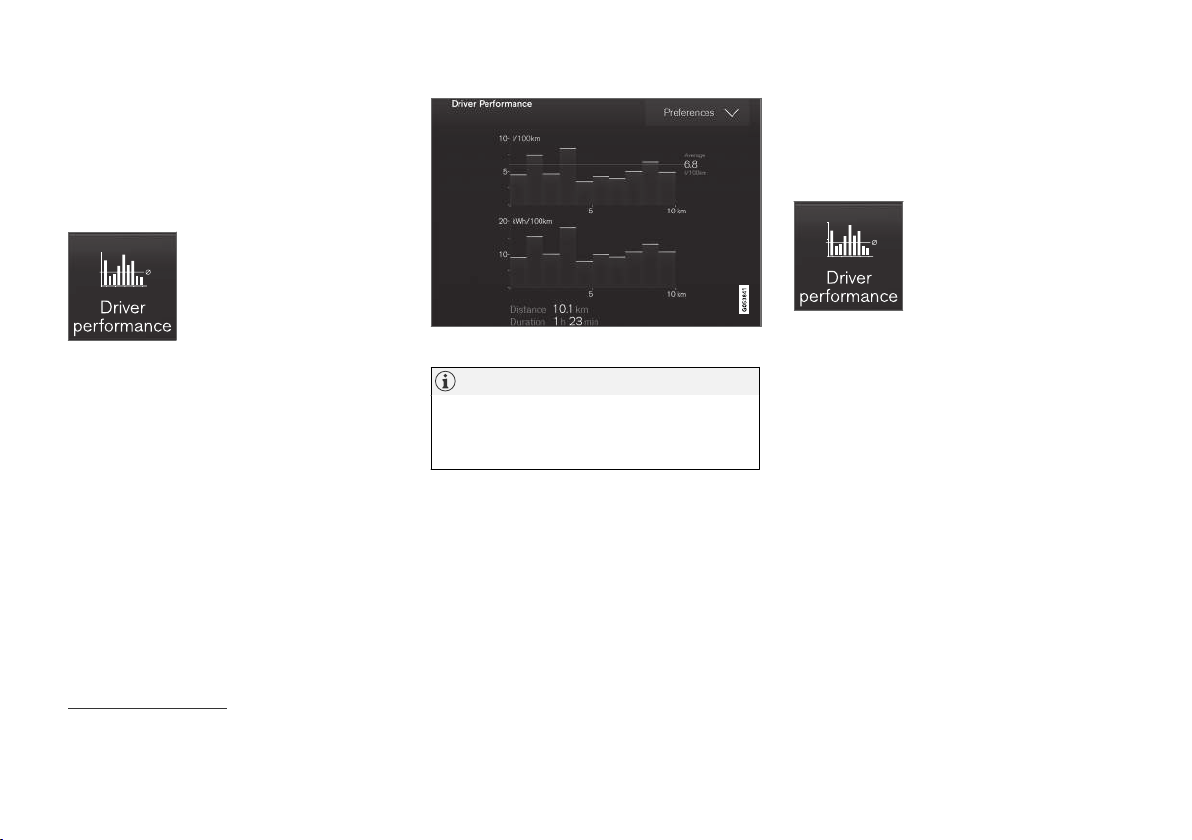

Trip statistics from the trip computer2.
NOTE
When driving with electric operation, fuel con­sumption can be indicated in the trip statistics if the additional heater3 is running.

Related information

Settings for trip statistics (p. 89)
•
Trip computer (p. 86)
•

Settings for trip statistics

Reset or adjust settings for trip statistics.
1.
Open the view in order to show the trip statistics.
2.
Press
•
•
•
Trip statistics, calculated average consump­tion and total driving time are always reset simultaneously.
Units for distance, speed, etc. can be changed via system settings in the centre display.
Driver performance app in app
Preferences to
change graph scale. Select resolution 1, 10 or 100 km/miles for the bar.
reset data after every trip. Performed when the car has been stationary for more than 4 hours.
reset data for the current trip.
2
The figure is schematic - parts may vary depending on car model.
3
Applicable to fuel-driven auxiliary heater.
}}
89
Page 92
DISPLAYS AND VOICE CONTROL
||

Related information

Show trip statistics in the centre display
•
(p. 89) Trip computer (p. 86)
•
Resetting the trip meter (p. 88)
•

Time and date

The clock is shown in both the driver display and the centre display.

Clock location

Clock location in the 12-inch and 8-inch driver display.
In the centre display, the clock is located at the top right of the status bar.
In certain situations, messages and information may cover the clock in the driver display.

Settings for time and date

–
Select Settings System Date and
Time
in the centre display's top view to
change settings for time and date format. Adjust time and date by pressing the up or
down arrow on the touch screen.
Automatic time for cars with GPS
When the car is equipped with a navigation sys-
Auto Time can be selected. The time zone
tem, is then adjusted automatically based on the loca­tion of the car. For certain types of navigation systems, the current location (country) must also be set to obtain the right time zone. If Auto Time is not selected, time and data are adjusted with arrow up or arrow down on the touch screen.
Summer time
In certain countries, it is possible to select auto­matic setting of summer time with other countries, summer time can be set with On or Off.
Auto. For

Related information

Driver display (p. 81)
•
Changing settings in the centre display
•
(p. 130)
90
Page 93
DISPLAYS AND VOICE CONTROL

Outside temperature gauge

The outside temperature is shown in the driver display.
A sensor detects the temperature outside of the car.
Outside temperature gauge location in the 12-inch and 8-inch driver display.
If the car has been stationary, the gauge may dis­play a temperature reading that is too high.
When the outside temperature is within the range
-5 °C to +2 °C (23 till 36 °F) a snowflake symbol is also shown in the driver display as a warning for potentially slippery conditions.
The snowflake symbol is also illuminated briefly in the head-up display, if the car is equipped with one.
Change the unit for the temperature gauge via system settings in the centre display top view.

Related information

Driver display (p. 81)
•
Changing system units (p. 128)
•

Indicator symbols in the driver display

The indicator symbols alert the driver that a func­tion is activated, that a system is operating, or that a fault or abnormal condition exists.
Symbol Specification
Information, read display text
When one of the car's systems does not behave as intended, this information symbol illuminates and a text appears on the driver display. The information symbol can also illuminate in conjunction with other symbols.
Fault in brake system
The symbol lights up when there is a fault in the parking brake.
ABS fault
If this symbol illuminates then the system is not working. The car's regular brake system continues to work, but without the ABS function.
Automatic brake on
The symbol illuminates when the function is activated and the foot brake or parking brake is acting. The brake holds the car stationary when it has stopped.
}}
91
Page 94
DISPLAYS AND VOICE CONTROL
||
Symbol Specification
Tyre pressure system
The symbol illuminates when tyre pressure is too low. If there is a fault in the tyre pressure system, the symbol will flash for approx. 1 minute and then illuminate with a constant glow. This may be because the system cannot detect or warn of low tyre pressure as intended.
Emissions system
If the symbol illuminates after the engine has been started then it may be due to a fault in the car's emissions system. Drive to a work­shop for checking. Volvo recom­mends that an authorised Volvo workshop is contacted.
Left and right-hand direction indicator
The symbols flash when the direc­tion indicators are used.
Symbol Specification
Position lamps
The symbol lights up when the position lamps are switched on.
Fault in the headlamp system
The symbol illuminates if a fault has occurred in the ABL function (Active Bending Lights) or if another fault has occurred in the headlamp system.
Active main beam on
The symbol lights up blue when the automatic main beam is on.
Active main beam off
The symbol lights up white when the automatic main beam is off.
Main beam On
The symbol illuminates when main beam is on and with main beam flash.
Active main beam on
The symbol lights up blue when active main beam is on. Position lamps are switched on.
Symbol Specification
Active main beam off
The symbol lights up white when active main beam is off. Position lamps are switched on.
Main beam On
The symbol lights up when main beam and the position lamps are switched on.
Rear fog lamp on
This symbol illuminates when the rear fog lamp is switched on.
Rain sensor on
This symbol illuminates when the rain sensor is on.
Preconditioning on
The symbol illuminates when the engine block and passenger com­partment heater/air conditioning are preconditioning the car.
Stability system
A flashing symbol indicates that the stability system is operating. If the symbol illuminates with con­stant glow then there is a fault in the system.
92
Page 95
DISPLAYS AND VOICE CONTROL

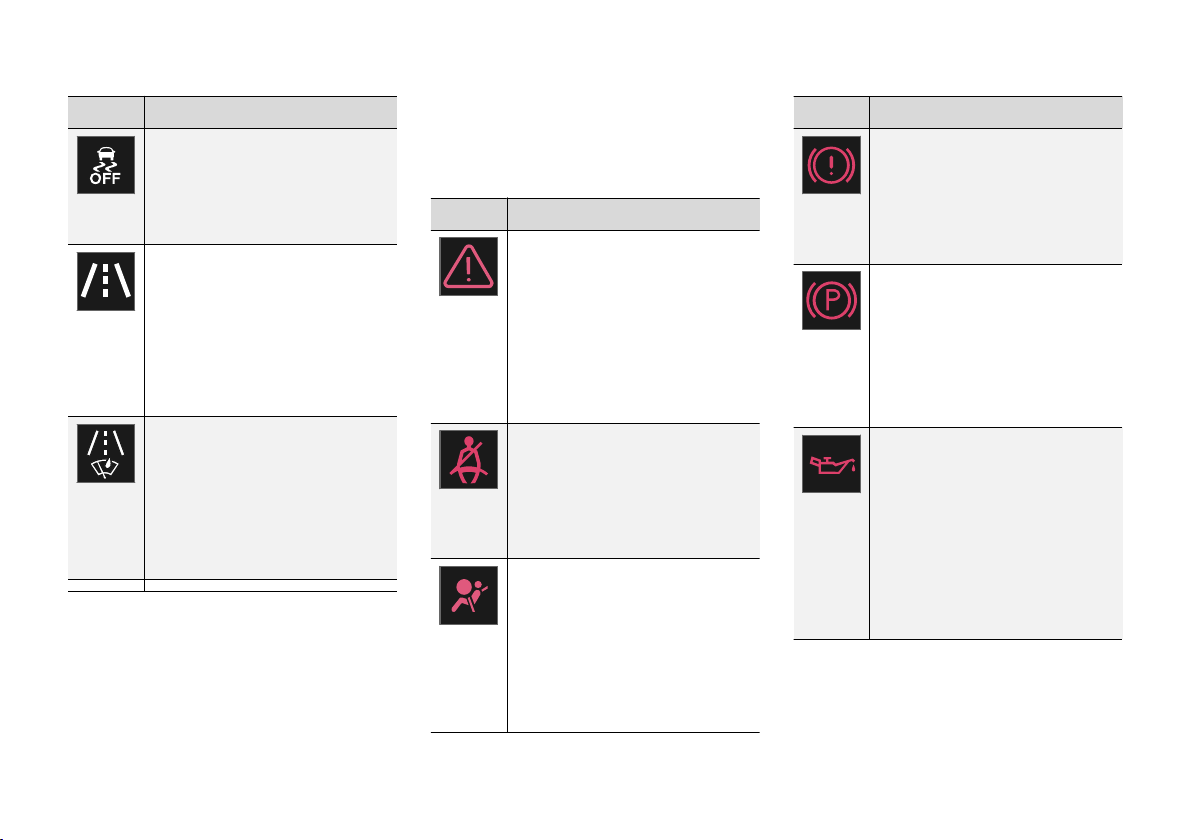

Symbol Specification
Stability system, sport mode
The symbol illuminates when the sport mode is activated. Sport mode allows for a more active driv­ing experience.
Lane assistance
White symbol: Lane assistance is on and road lines are detected.
Grey symbol: Lane assistance is on but road lines are not detected.
Amber symbol: Lane assistance warns/intervenes.
Lane assistance and rain sensor
White symbol: Lane assistance is on and road lines are detected. Rain sensor is on.
Grey symbol: Lane assistance is on but road lines are not detected. Rain sensor is on.

Related information

Driver display (p. 81)
•

Warning symbols in the driver display

•
(p. 93)
Warning symbols in the driver display
The warning symbols alert the driver that an important function is activated or that a serious fault or condition exists.
Symbol Specification
Warning
The red warning symbol illuminates when a fault has been indicated which could affect the safety and/or drivability of the car. An explanatory text is shown on the driver display at the same time. The warning symbol can also illuminate in conjunction with other symbols.
Seatbelt reminder
This symbol illuminates or flashes if someone in a front seat has not put on their seatbelt or if someone in a rear seat has taken off their seatbelt.
Airbags
If the symbol remains illuminated or illuminates while driving, a fault has been detected in one of the car's safety systems. Read the message in the driver display. Volvo recom­mends that an authorised Volvo workshop is contacted.
Symbol Specification
Fault in brake system
If this symbol illuminates, the brake fluid level may be too low. Visit the nearest authorised workshop to have the brake fluid level checked and rectified.
Parking brake applied
This symbol illuminates with a con­stant glow when the parking brake is applied.
A flashing symbol means that a fault has arisen. Read the message in the driver display.
Low oil pressure
If this symbol illuminates during driving then the engine's oil pres­sure is too low. Stop the engine immediately and check the engine oil level, top up if necessary. If the symbol illuminates and the oil level is normal, contact a workshop. Volvo recommends that an author­ised Volvo workshop is contacted.
}}
93
Page 96
DISPLAYS AND VOICE CONTROL
||
Symbol Specification

Related information

Indicator symbols in the driver display (p. 91)
•
Driver display (p. 81)
•
Alternator not charging
This symbol illuminates during driv­ing if a fault has occurred in the electrical system. Visit a workshop. Volvo recommends that an author­ised Volvo workshop is contacted.
Collision risk
City Safety warns of a risk of colli­sion with other vehicles, pedes­trians, cyclists or large animals.

License agreement for the driver display

A license is an agreement for the right to oper­ate a certain activity or the right to use someone else's entitlement according to the terms and conditions in the agreement. The following text is Volvo's agreement with the manufacturer or developer.
Boost Software License 1.0
Permission is hereby granted, free of charge, to any person or organization obtaining a copy of the software and accompanying documentation covered by this license (the "Software") to use, reproduce, display, distribute, execute, and transmit the Software, and to prepare derivative works of the Software, and to permit third-parties to whom the Software is furnished to do so, all subject to the following: The copyright notices in the Software and this entire statement, including the above license grant, this restriction and the following disclaimer, must be included in all copies of the Software, in whole or in part, and all derivative works of the Software, unless such copies or derivative works are solely in the form of machine-executable object code generated by a source language processor.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-
INFRINGEMENT. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR ANYONE DISTRIBUTING THE SOFTWARE BE LIABLE FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
94
Page 97
DISPLAYS AND VOICE CONTROL
BSD 4-clause "Original" or "Old" License
Copyright (c) 1982, 1986, 1990, 1991, 1993 The Regents of the University of California. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain
the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must
reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features
or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the
names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
BSD 3-clause "New" or "Revised" License
Copyright (c) 2011-2014, Yann Collet. Redistribution and use in source and binary
forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the organisation nor the names of its contributors may be used to
endorse or promote products derive from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
}}
95
Page 98
DISPLAYS AND VOICE CONTROL
||
BSD 2-clause “Simplified” license
Copyright (c) <YEAR>, <OWNER> All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The views and conclusions contained in the software and documentation are those of the authors and should not be interpreted as representing official policies, either expressed or implied, of the FreeBSD Project.
FreeType Project License
1. 1 Copyright 1996-1999 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike. As a consequence, its main points are that: o We don't promise that this software works. However, we are be interested in any kind of bug reports. (`as is'
distribution) o You can use this software for whatever you want, in parts or full form, without having to pay us. (`royalty-free' usage) o You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge somewhere in your documentation that you've used the FreeType code. (`credits') We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial products, provided that all warranty or liability claims are assumed by the product vendor. Legal Terms 0. Definitions Throughout this license, the terms `package', `FreeType Project', and `FreeType archive' refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType project', be they named as alpha, beta or final release. `You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'. This program is referred to as `a program using the FreeType engine'. This license applies to all files distributed in the original FreeType archive, including all source code, binaries and documentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you
96
Page 99
DISPLAYS AND VOICE CONTROL
must contact us to verify this. The FreeType project is copyright (C) 1996-1999 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below. 1. No Warranty THE FREETYPE ARCHIVE IS PROVIDED `AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT. As you have not signed this license, you are not required to accept it. However, as the FreeType project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType project, you indicate that you understand and accept all the terms of this license.
2. Redistribution Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: o Redistribution of source code must retain this license file (`licence.txt') unaltered; any additions, deletions or changes to the original files must be clearly indicated in accompanying
documentation. The copyright notices of the unaltered, original files must be preserved in all copies of source files. o Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn't mandatory. These conditions apply to any software derived from or based on the FreeType code, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.
3. Advertising The names of FreeType's authors and contributors may not be used to endorse or promote products derived from this software without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project', `FreeType Engine', `FreeType library', or `FreeType Distribution'.
4. Contacts There are two mailing lists related to FreeType: o [email protected] Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven't found anything to help you in the documentation. o [email protected]
Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc. o http://www.freetype.org Holds the current FreeType web page, which will allow you to download our latest development version and read online documentation. You can also contact us individually at: David Turner
<[email protected]> Robert Wilhelm <[email protected]> Werner Lemberg <[email protected]>
}}
97
Page 100
DISPLAYS AND VOICE CONTROL
||
Libpng License
This copy of the libpng notices is provided for your convenience. In case of any discrepancy between this copy and the notices in the file png.h that is included in the libpng distribution, the latter shall prevail.
COPYRIGHT NOTICE, DISCLAIMER, and LICENSE:
If you modify libpng you may insert additional notices immediately following this sentence.
libpng versions 1.0.7, July 1, 2000, through
1.0.13, April 15, 2002, are Copyright (c) 2000-2002 Glenn Randers-Pehrson and are distributed according to the same disclaimer and license as libpng-1.0.6 with the following individuals added to the list of Contributing Authors
Simon-Pierre Cadieux Eric S. Raymond Gilles Vollant and with the following additions to the disclaimer: There is no warranty against interference with
your enjoyment of the library or against infringement. There is no warranty that our efforts or the library will fulfill any of your particular purposes or needs. This library is provided with all faults, and the entire risk of satisfactory quality, performance, accuracy, and effort is with the user.
libpng versions 0.97, January 1998, through
1.0.6, March 20, 2000, are Copyright (c) 1998,
1999 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-0.96, with the following individuals added to the list of Contributing Authors:
Tom Lane Glenn Randers-Pehrson Willem van Schaik libpng versions 0.89, June 1996, through 0.96,
May 1997, are Copyright (c) 1996, 1997 Andreas Dilger Distributed according to the same disclaimer and license as libpng-0.88, with the following individuals added to the list of Contributing Authors:
John Bowler Kevin Bracey Sam Bushell Magnus Holmgren Greg Roelofs Tom Tanner libpng versions 0.5, May 1995, through 0.88,
January 1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.
For the purposes of this copyright and license, "Contributing Authors" is defined as the following set of individuals:
Andreas Dilger Dave Martindale Guy Eric Schalnat Paul Schmidt Tim Wegner The PNG Reference Library is supplied "AS IS".
The Contributing Authors and Group 42, Inc. disclaim all warranties, expressed or implied, including, without limitation, the warranties of merchantability and of fitness for any purpose. The Contributing Authors and Group 42, Inc. assume no liability for direct, indirect, incidental, special, exemplary, or consequential damages, which may result from the use of the PNG Reference Library, even if advised of the possibility of such damage.
