Volvo XC60 (2021) Owner’s Manual

Download
Page 1
XC60
OWNER'S MANUAL
Page 2
Page 3
VÄLKOMMEN!
We hope you will enjoy many years of driving pleasure in your Volvo. The car has been designed for the safety and comfort of you and your passengers. Volvo strives to design one of the safest cars in the world. Your Volvo is also designed to meet applicable safety and environmental requirements.
manual. The owner's manual is also available as a mobile app (Volvo Manual) and on the Volvo Cars support site (support.volvocars.com).
We encourage everyone to always wear their seatbelt in this and other cars. Please do not drive if you are under the influence of alco­hol or medication – or have an impaired ability to drive in some other way.
Page 4
2
OWNER INFORMATION
Owner information
16
Owner's manual in centre display
17
Navigate in the owner's manual in the centre display
18
Owner's Manual in mobile devices
20
Volvo Cars support site
21
Reading the owner's manual
21
The owner's manual and the envi­ronment
23
YOUR VOLVO
Volvo ID
26
Creating and registering a Volvo ID
26
Drive-E - cleaner driving pleasure
28
IntelliSafe – driver support and safety
31
Sensus - online connectivity and entertainment
32
Software updates
35
Recording data
35
Terms & Conditions for Services
36
Customer Privacy Policy
37
Important information on acces­sories and auxiliary equipment
37
Installation of accessories
38
Connection of equipment to the car's diagnostic socket
38
Showing the car's identification number
39
Change of market when importing or relocating
40
Driver distraction
40
SAFETY
Safety
44
Safety during pregnancy
44
Whiplash Protection System
45
Seatbelts
46
Putting on and taking off seatbelts
47
Seatbelt tensioner
49
Resetting the electric seatbelt tensioner*
50
Door and seatbelt reminder
50
Airbags
51
Driver airbags
52
Passenger airbag
53
Activating and deactivating pas­senger airbag*
54
Side airbags
57
Inflatable curtains
57
Safety mode
58
Starting and moving the car after safety mode
59
Child safety
60
Child seats
60
Upper mounting points for child seats
61
Lower mounting points for child seats
62

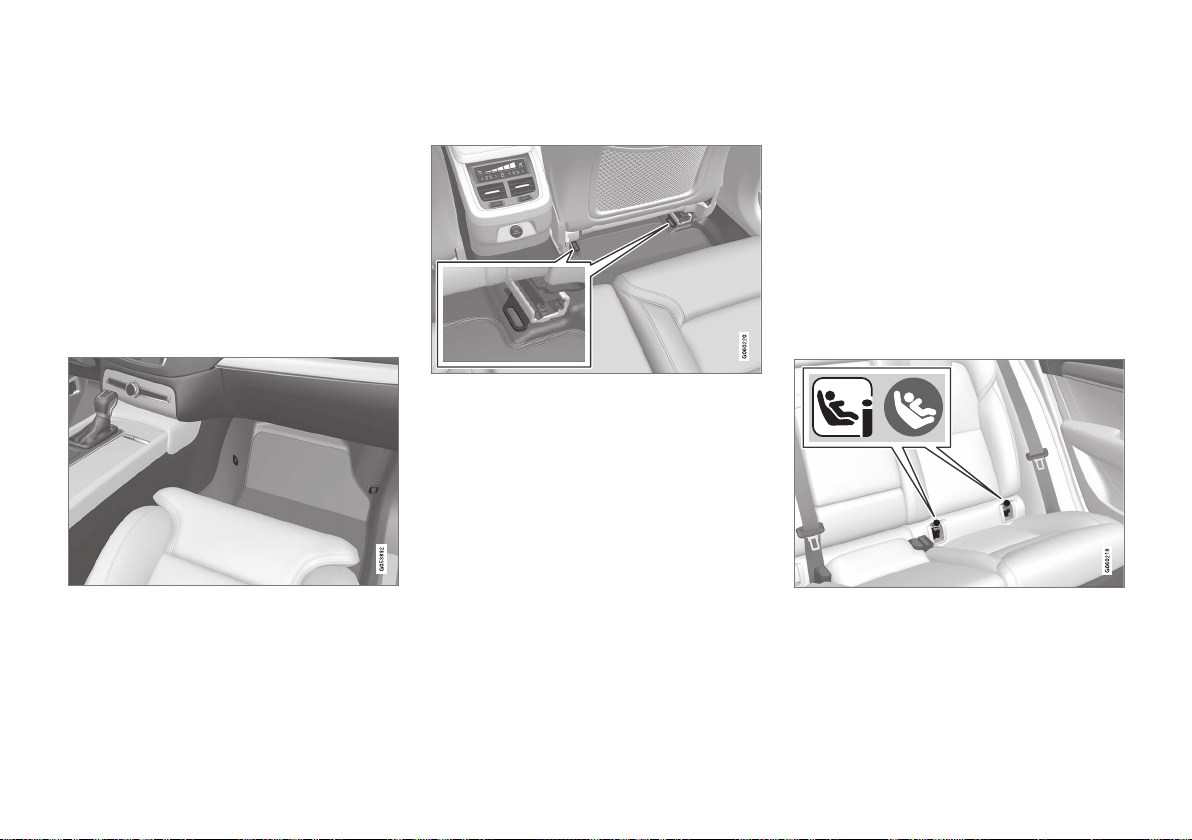

i-Size/ISOFIX mounting points for child seats
62

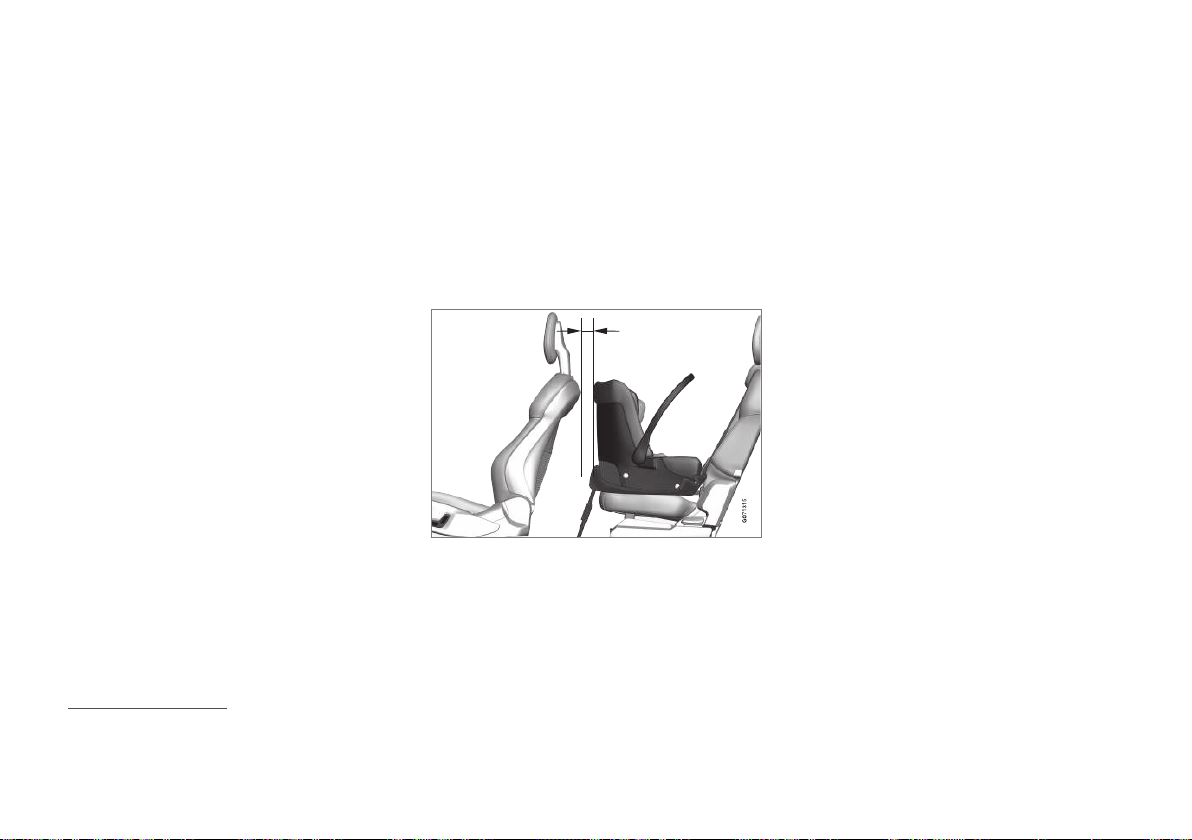

Child seat positioning
63

TABLE OF CONTENTS

Page 5
3
Child seat mounting
64
Table for location of child seats using the car's seatbelts
66
Table for location of i-Size child seats
68
Table for location of ISOFIX child seats
69
Integrated child seat*
72
Folding up the seat cushion in the integrated child seat*
73
Folding down the seat cushion in the integrated child seat*
74
DISPLAYS AND VOICE CONTROL
Displays and controls by the driver in a left-hand drive car
76
Displays and controls by the driver in a right-hand drive car
77

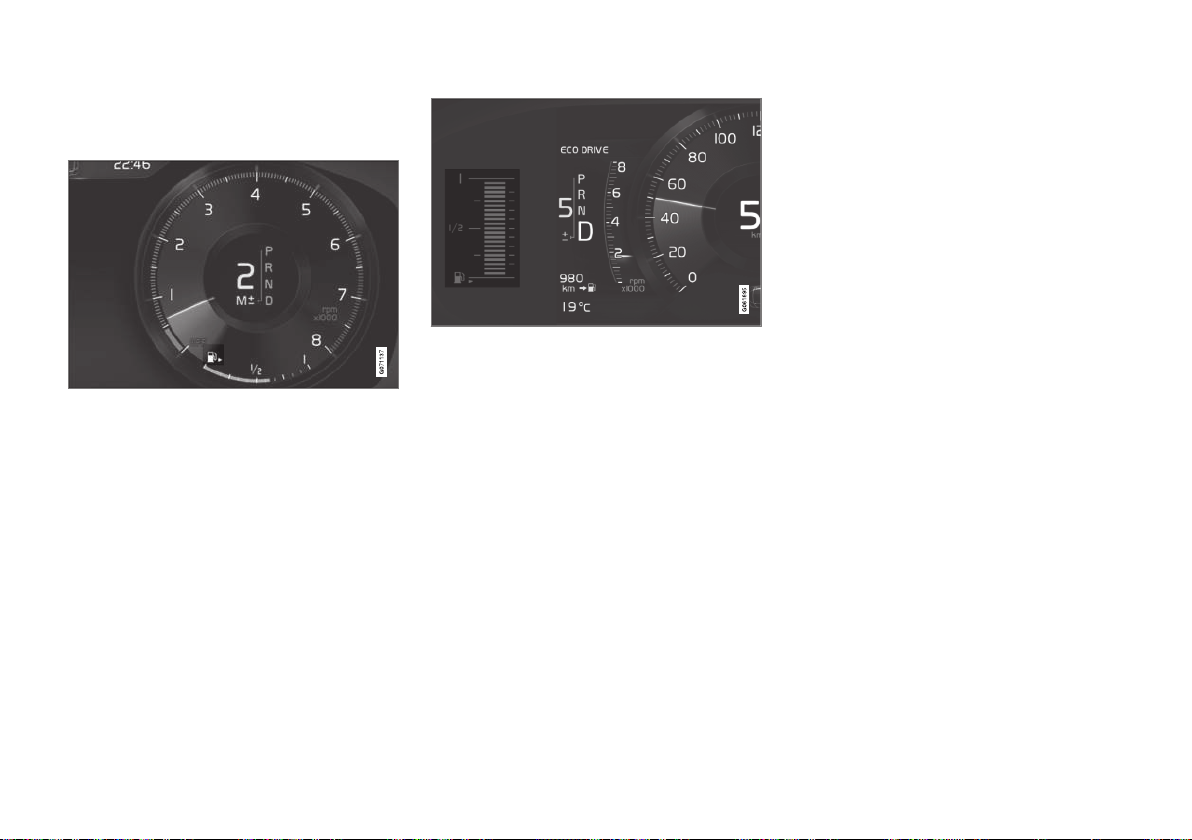

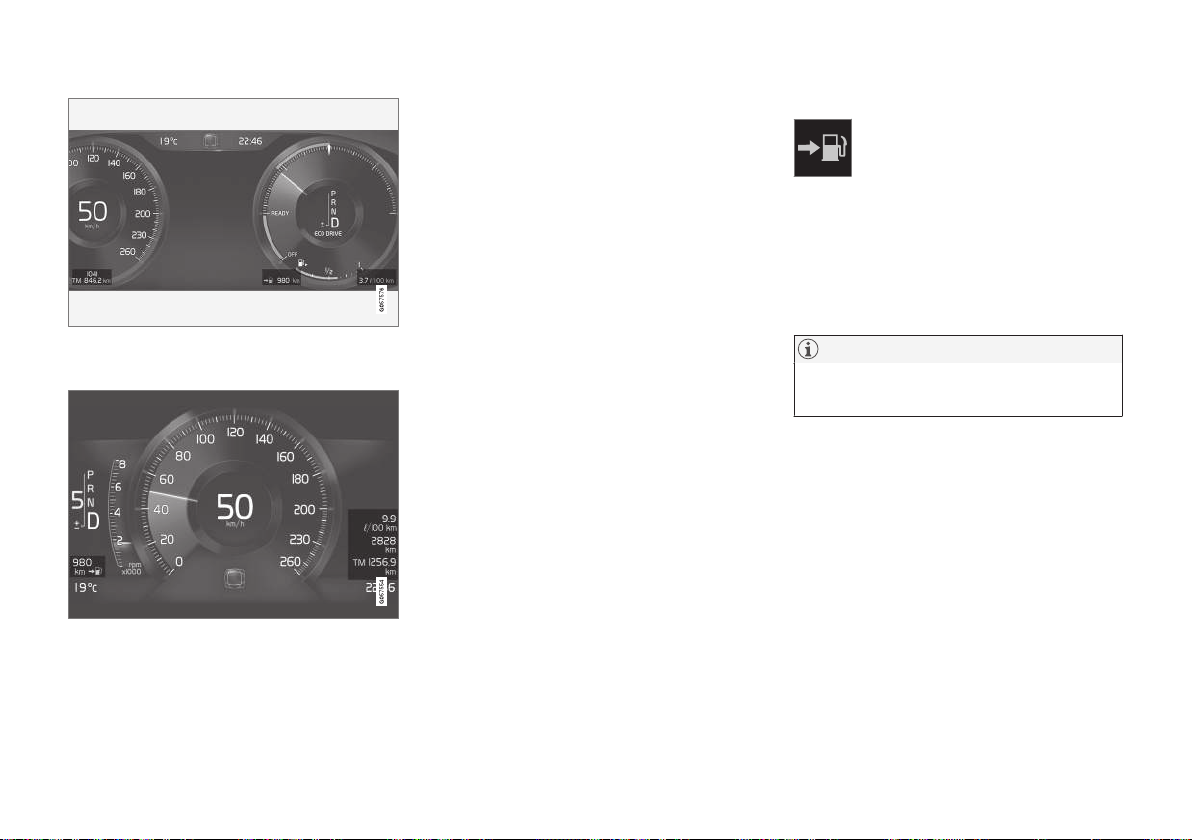

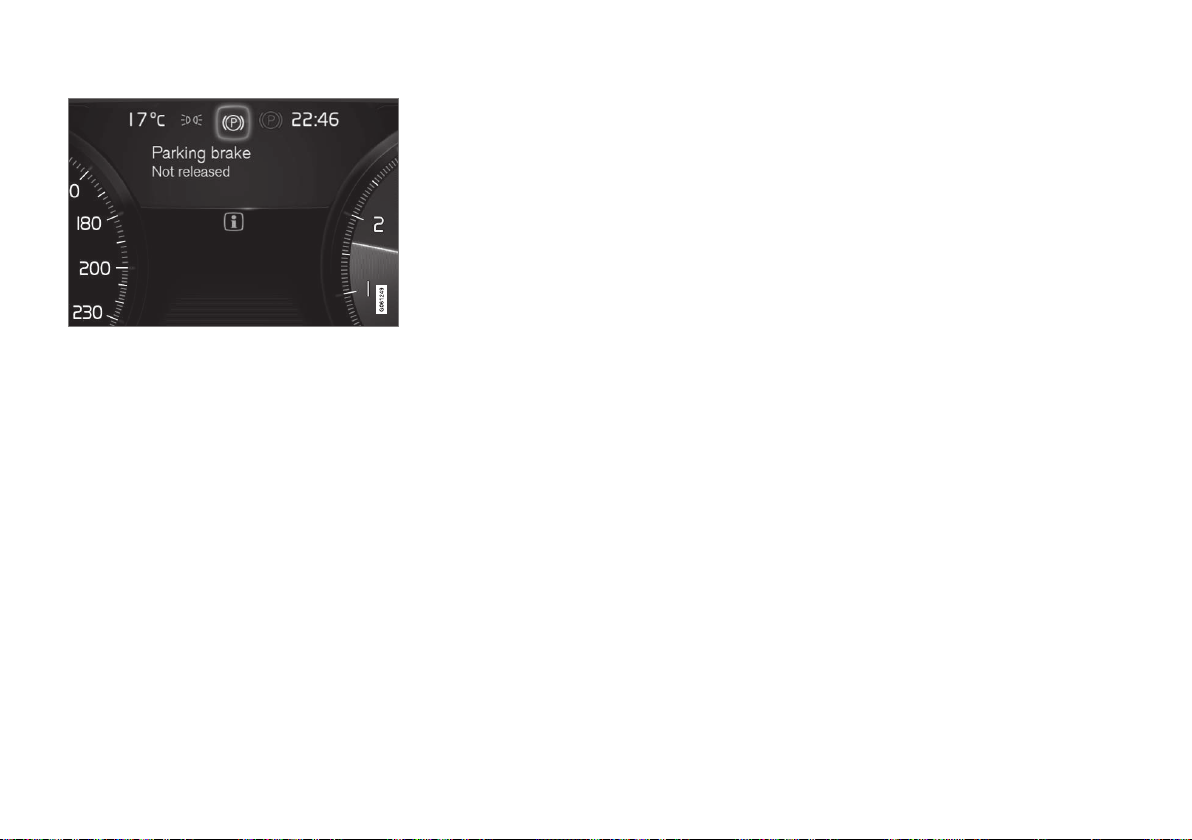

Driver display
79
Driver display settings
83
Fuel gauge
84
Trip computer
84
Show trip data in the driver display
86

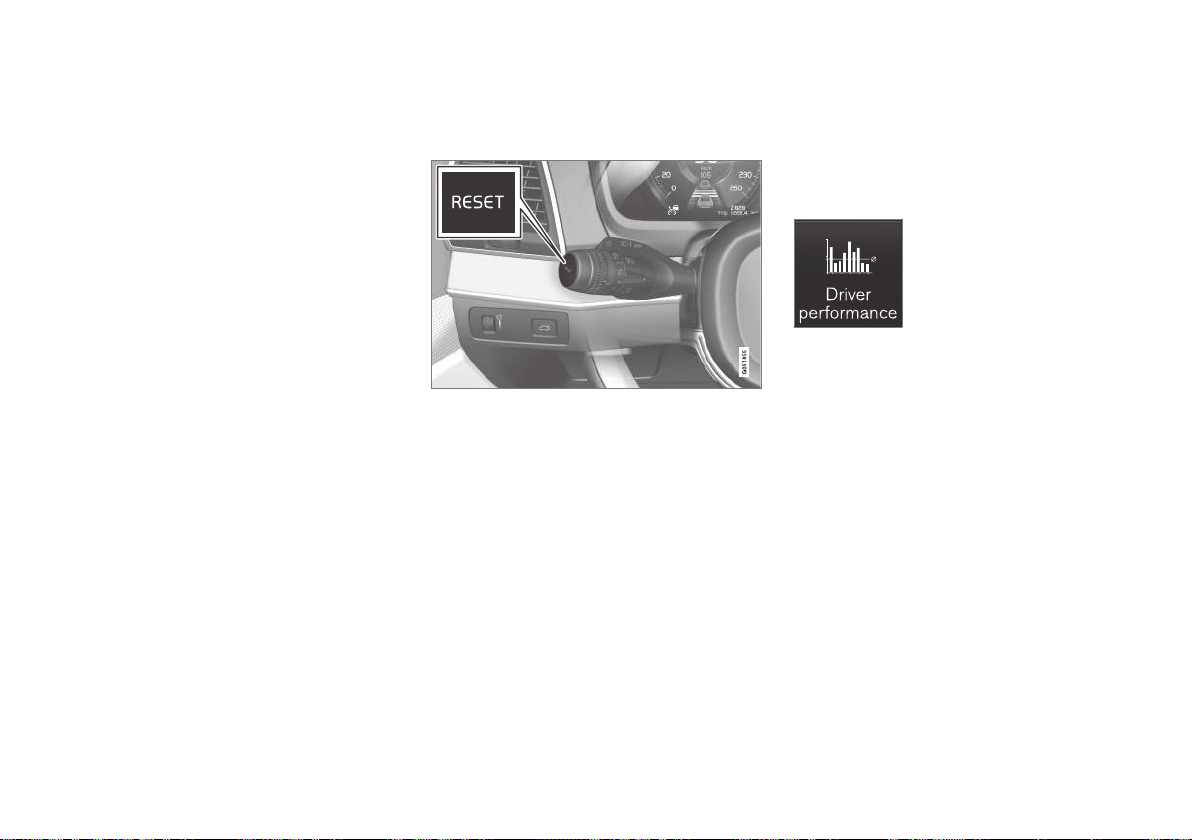

Resetting the trip meter
87

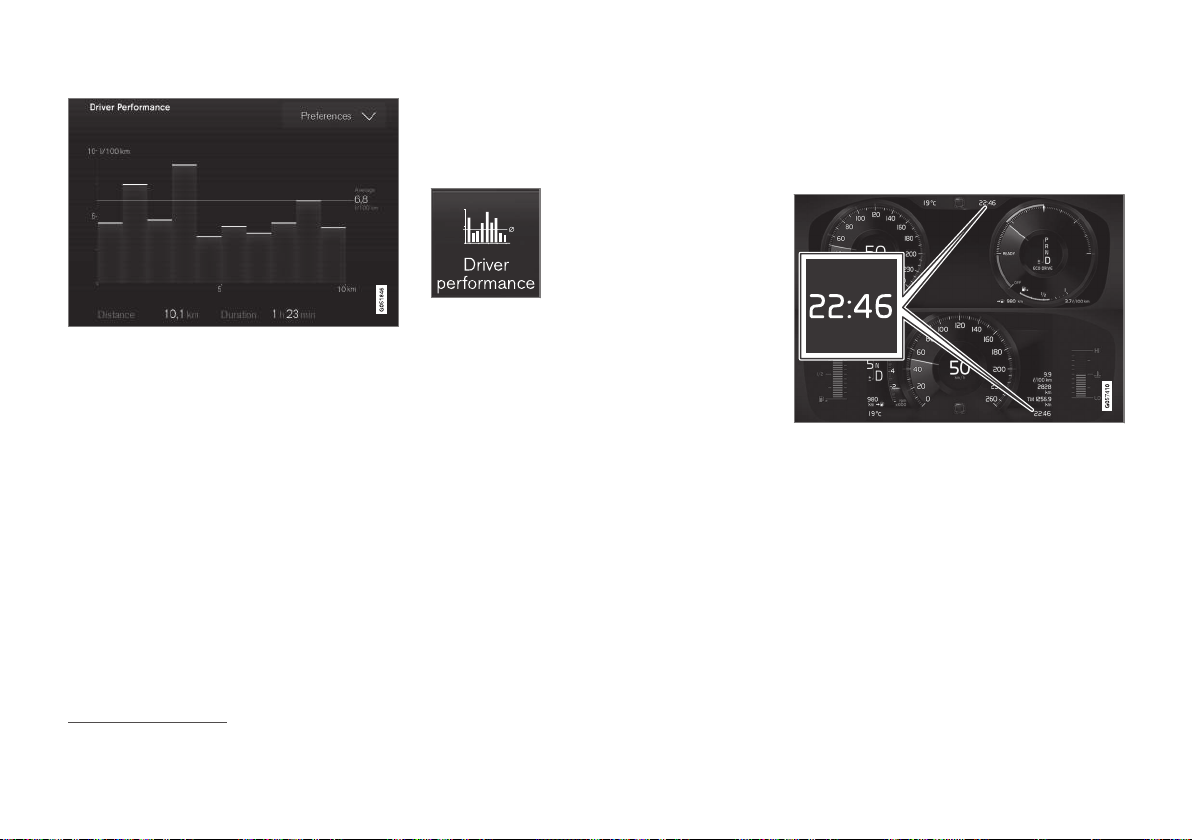

Show trip statistics in the centre display
87
Settings for trip statistics
88
Date and time
88

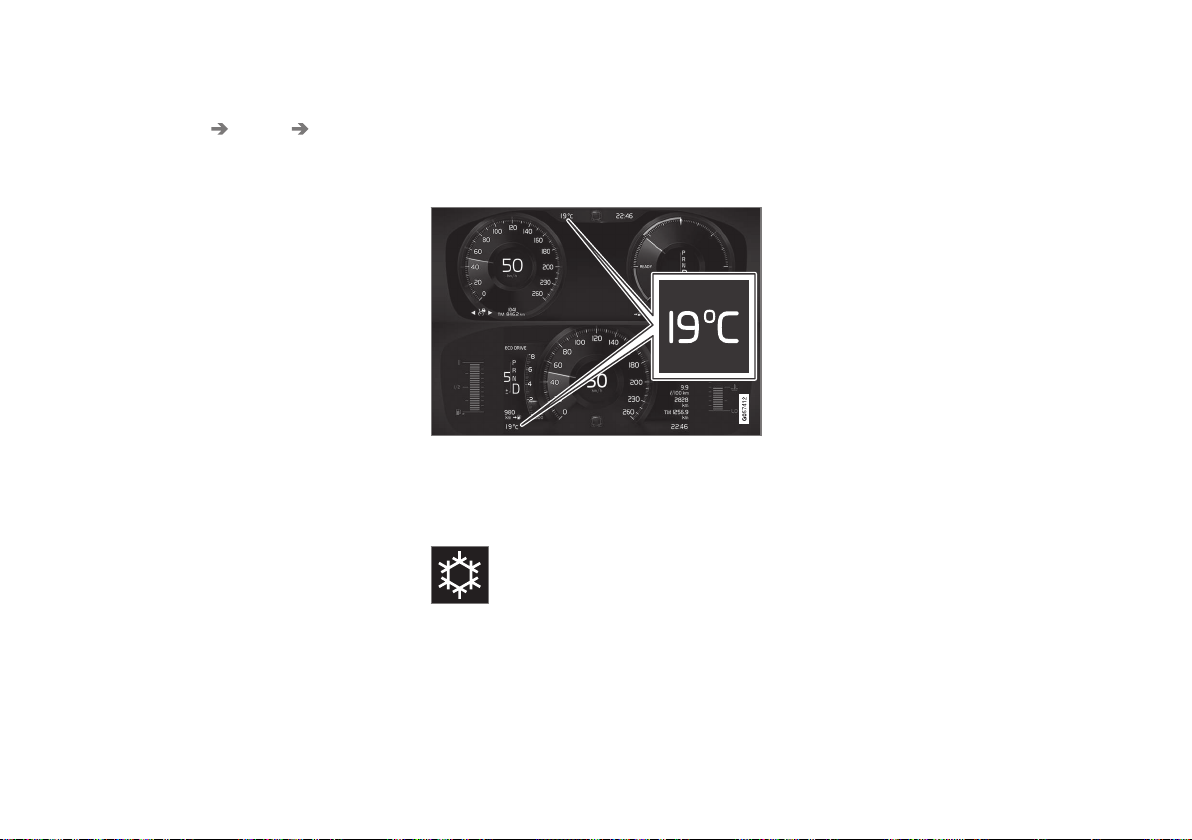

Outside temperature gauge
89
Indicator and warning symbols
90
License agreement for the driver display
92
App menu in the driver display
98
Managing the app menu in the driver display
99
Messages in the driver display
100
Managing messages in the driver display
101
Handling a message saved from the driver display
102
Overview of centre display
104
Managing the centre display
107
Activating and deactivating centre display
110
Navigating in the centre display's views
110
Managing subviews in centre display
114
Function view in centre display
117
Moving apps and buttons in cen­tre display
119
Symbols in the centre display's status bar
119
Keyboard in centre display
121
Changing keyboard language in centre display
124
Enter the characters, letters and words manually in the centre display
124
Changing the appearance in the centre display
126
Switching off and changing the volume of the system sound in the centre display
126
Changing system units
127
Changing system language
127
Other settings in the centre dis­play's top view
127
Open contextual setup in the cen­tre display
128
Page 6
4
Resetting user data for change of ownership
129
Resetting settings in the centre display
129
Table showing centre display settings
130
Driver profiles
131
Selecting driver profile
132
Renaming a driver profile
132
Protect driver profile
133
Linking remote control key to driver profile
133
Resetting settings in the driver profiles
134
Message in centre display
135
Managing messages in the centre display
135
Handling a message saved from the centre display
136
Head-up display*
137
Activating and deactivating the head-up display*
138
Settings for head-up display*
139
Voice recognition
140
Using voice recognition
141
Controlling a telephone with voice recognition
143
Voice control of radio and media
144
Settings for voice recognition
145
LIGHTING
Lighting control
148
Adjusting light functions via the centre display
150
Adapting the headlamp pattern from the headlamps
150
Adjusting headlamp level
150
Position lamps
151
Daytime running lights
152
Dipped beam
153
Using main beam
153
Active main beam
154
Using direction indicators
155
Active bending lights*
156
Front fog lamps/cornering lights*
157
Rear fog lamp
158
Brake lights
158
Emergency brake lights
159
Hazard warning flashers
159
Using home safe lighting
160
Approach light duration
160
Interior lighting
160
Adjusting interior lighting
162
Page 7
5
WINDOWS, GLASS AND MIRRORS
Windows, glass and mirrors
166
Pinch protection for windows and sun blinds
166
Reset sequence for pinch protection
167
Power windows
167
Operating power windows
168
Rearview and door mirrors
169
Adjusting rearview mirror dimming
170
Angling adjustment of the door mirrors
171
Panoramic roof*
172
Operating the panoramic roof*
174
Automatic closing of the panor­amic roof's* sun blind
176
Wiper blades and washer fluid
177
Using windscreen wipers
177
Using the rain sensor
178
Activating and deactivating the rain sensor's memory function
179
Using windscreen and headlamp washers
180
Using the rear window wiper and rear window washer
181
Using automatic rear windscreen wiping when reversing
182
SEATS AND STEERING WHEEL
Manual front seat
184
Power* front seat
185
Adjusting the power* front seat
185
Storing position for seat, door mir­rors and head-up display*
186
Using a stored position for seat, door mirrors and head-up display*
187
Massage settings* in the front seat
188
Adjusting massage settings* in the front seat
189
Adjusting* the length of the seat cushion in the front seat
190
Adjusting the side support* in the front seat
191
Adjusting the lumbar support* in the front seat
192
Adjusting the passenger seat from the driver's seat*
193
Lowering the backrests in the rear seat
194
Adjusting the head restraints in the rear seat
196
Steering wheel controls and horn
197
Steering lock
198
Adjusting the steering wheel
198
CLIMATE
Climate
202
Climate zones
202
Climate control - sensors
203
Perceived temperature
204
Controlling the climate control system using voice control
204
Air quality
205
CleanZone*
206
Clean Zone Interior Package*
206
Interior Air Quality System*
207
Activating and deactivating the air quality sensor*
207
Passenger compartment filter
208
Advanced Air Cleaner*
208
Air distribution
208
Changing air distribution
209
Opening, closing and aiming the air vents
210
Table of air distribution options
211
Climate controls
214
Activating and deactivating heated front seat*
216
Activating and deactivating auto­matic start of heated front seat*
217
Activating and deactivating heated rear seat*
217
Page 8
6
Activating and deactivating venti­lated front seat*
218
Activating and deactivating the heated steering wheel*
219
Activating and deactivating auto­matic start of heated steering wheel*
219
Activating auto climate control
220
Activating and deactivating air recirculation
220
Activating and deactivating time setting for air recirculation
221
Activating and deactivating max defroster
221
Activating and deactivating the heated windscreen*
222
Activating and deactivating auto­matic start of heated windscreen*
223
Activating and deactivating the heated rear window and door mirrors
224
Activating and deactivating auto­matic starting of the heated rear window and door mirrors
224
Regulating fan level for front seat
225
Regulating fan level for rear seat*
225
Regulating temperature for front seat
227
Regulating temperature for rear seat*
227
Synchronising temperature
229
Activating and deactivating air conditioning
229
Parking climate*
230
Preconditioning*
230
Start and switch off preconditioning*
231
Preconditioning time setting*
232
Adding and editing time setting for preconditioning*
232
Activating and deactivating time setting for preconditioning*
234
Removing time setting for precon­ditioning*
234
Precleaning*
235
Starting and switching off pre­cleaning*
235
Climate comfort when parking*
236
Starting and switching off climate comfort when parking*
237
Symbols and messages for park­ing climate control*
238
Heater*
239
Parking heater*
240
Additional heater*
241
Activating and deactivating auto­matic start of auxiliary heater*
241
KEY, LOCKS AND ALARM
Locking and unlocking
244
Lock confirmation
244
Lock indication setting
246
Remote control key
246
Locking and unlocking with the remote control key
248
Settings for remotely controlled and inside unlocking
249
Unlocking the tailgate with the remote control key
250
Remote control key range
250
Replacing the battery in the remote control key
251
Ordering more remote control keys
255
Care Key - restricted remote con­trol key
255
Care Key settings
256
Detachable key blade
257
Locking and unlocking with the detachable key blade
258
Immobiliser
259
Type approval for the remote con­trol key system
260
Keyless and touch-sensitive surfaces*
275
Keyless locking and unlocking*
276
Settings for Keyless entry*
277
Keyless unlocking of the tailgate*
277
Page 9
7
Antenna locations for the start and lock systems
278
Locking and unlocking from inside the car
279
Unlocking the tailgate from the inside of the car
280
Activating and deactivating child safety locks
280
Automatic locking when driving
281
Closing and locking tailgate with button*
282
Setting the max. opening for elec­trically operated tailgate*
284
Operating the tailgate with foot movement*
284
Private locking
286
Activating and deactivating pri­vate locking
287
Alarm*
288
Activating and deactivating alarms*
289
Reduced alarm level*
290
Double lock*
291
DRIVER SUPPORT
Driving support systems
294
Speed-dependent steering force
294
Electronic stability control
295
Electronic Stability Control in sport mode
296
Activating or deactivating sport mode for electronic stability control
297
Symbols and messages for elec­tronic stability control
298
Connected Safety
300
Activating or deactivating Connected Safety
301
Limitations of Connected Safety
301
Road Sign Information*
302
Activating or deactivating road sign information*
303
Display mode for road sign infor­mation*
304
Road Sign Information and Sensus Navigation*
306
Warning for speed limitation and speed camera from road sign information*
306
Activating or deactivating warn­ings from road sign information*
307
Limitations of Road Sign Information*
308
Speed limiter
309
Selecting and activating speed limiter
310
Deactivating the speed limiter
311
Temporary deactivation of speed limiter
312
Limitations for speed limiter
312
Automatic speed limiter
312
Activating or deactivating the automatic speed limiter
314
Changing the tolerance for the automatic speed limiter
315
Limitations for automatic speed limiter
315
Cruise control
316
Selecting and activating cruise control
317
Deactivating cruise control
318
Standby mode for cruise control
318
Adaptive cruise control*
319
Controls for adaptive cruise control*
320
Display mode for adaptive cruise control*
321
Selecting and activating adaptive cruise control*
322
Deactivating adaptive cruise control*
323
Standby mode for adaptive cruise control*
324
Limitations for adaptive cruise control*
325
Change between cruise control and adaptive cruise control* in the centre display
326
Page 10
8
Symbols and messages for adap­tive cruise control*
327
Pilot Assist*
329
Controls for Pilot Assist*
331
Display mode for Pilot Assist*
332
Selecting and activating Pilot Assist*
334
Deactivate Pilot Assist*
335
Standby mode for Pilot Assist*
335
Temporary disabling of steering assistance with Pilot Assist*
336
Limitations of Pilot Assist*
337
Symbols and messages for Pilot Assist*
340
Cornering support*
341
Activating or deactivating corner­ing support*
342
Limitations for cornering support*
342
Overtaking Assistance*
343
Use Overtaking Assistance
343
Warning from driver support in the event of a collision risk
344
Change of target with driver support
345
Set the stored speed for driver support
346
Set time interval to vehicle ahead
347
Drive modes when using time interval to vehicles
348
Automatic braking with driver support
348
Lane assistance
349
Activating or deactivating lane assistance
351
Selecting assistance option for lane assistance
352
Limitations of Lane assistance
352
Symbols and messages for lane assistance
353
Display mode for lane assistance
355
City Safety™
356
Subfunctions for City Safety
357
Setting the warning distance for City Safety
359
Detection of obstacles with City Safety
360
City Safety in cross traffic
362
Limitations for City Safety in cross traffic
363
City Safety steering assistance for evasive manoeuvre
364
Limitations of City Safety steering assistance when taking evasive action
364
Automatic braking in the event of an impeded evasive manoeuvre with City Safety
365
City Safety brakes for oncoming vehicles
365
Limitations of City Safety
366
Messages for City Safety
369
Steering assistance at risk of collision
370
Activating or deactivating steering assistance in the event of a colli­sion risk
371
Steering assistance upon risk of run-off
371
Steering assistance upon risk of head-on collision
372
Steering assistance upon risk of rear-end collision*
373
Limitations for steering assistance at risk of collision
374
Symbols and messages for steer­ing assistance upon risk of collision
375
Rear Collision Warning*
376
Limitations of Rear Collision Warning*
376
BLIS*
377
Activating or deactivating BLIS
378
Limitations of BLIS
379
Messages for BLIS
380
Driver Alert Control
381
Activating or deactivating Driver Alert Control
382
Select rest stop guidance in the event of a warning from Driver Alert Control
382
Page 11
9
Limitations of Driver Alert Control
383
Distance Warning*
383
Activating or deactivating dis­tance warning
384
Limitations of Distance Warning
384
Cross Traffic Alert*
385
Activating or deactivating Cross Traffic Alert*
386
Limitations of Cross Traffic Alert*
386
Messages for Cross Traffic Alert*
388
Park Assist*
389
Park Assist Pilot front, rear and along the sides*
390
Activating or deactivating the parking assistance system*
391
Limitations of Parking assistance
392
Symbols and messages for Park Assist Pilot
394
Park assist camera*
395
Park assist camera locations and surveillance areas*
396
Park assist lines for park assist camera*
398
Sensor fields for parking assis­tance system
400
Activate park assist camera
402
Symbols and messages for Park assist camera
403
Park Assist Pilot*
405
Parking variants with Park Assist Pilot*
406
Using Park Assist Pilot*
407
Leaving parallel parking with Park Assist Pilot*
409
Limitations of Park Assist Pilot*
410
Messages for Park Assist Pilot*
412
Radar unit
413
Type approval for radar device
414
Camera unit
422
Limitations for camera and radar unit
422
Recommended maintenance for camera and radar unit
425
Symbols and messages for cam­era and radar unit
427
STARTING AND DRIVING
Starting the car
430
Switching off the car
431
Ignition positions
432
Selecting ignition mode
433
Alcohol lock*
433
Bypass of the alcohol lock*
434
Before starting the engine with the alcohol lock*
434
Brake functions
435
Foot brake
435
Brake assistance
436
Braking on wet roads
436
Braking on gritted roads
437
Brake system maintenance
437
Parking brake
437
Activating and deactivating the parking brake
438
Automatic parking brake activa­tion setting
440
Parking on a hill
440
In the event of a fault in the park­ing brake
440
Automatic braking when stationary
441
Activating and deactivating the automatic brake at a standstill
442
Help when starting on a hill
442
Page 12
10
Auto braking after a collision
443
Regenerative braking*
443
Gearbox
443
Manual gearbox
444
Automatic gearbox
444
Changing gear with automatic gearbox
445
Changing gear with steering wheel paddles*
448
Gear selector inhibitor
449
Deactivate automatic gear selec­tor inhibitor
450
Kick-down function
451
Launch function*
451
Symbols and messages for auto­matic gearbox
452
Gear shift indicator
452
All-wheel drive*
454
Drive modes*
454
Changing drive mode*
456
Drive mode Eco
457
Activating and deactivating drive mode Eco with the function button
459
Start/stop function
460
Driving with start/stop function
460
Deactivating the start/stop function
462
Conditions for the Start/Stop function
462
Level control* and shock absorption
464
Settings for level control*
467
Low speed control*
468
Activating and deactivating low­speed driving* using a function button
468
Hill descent control*
469
Activating and deactivating hill descent control* with the function button
470
Economical driving
471
Preparations for a long trip
472
Winter driving
473
Driving in water
473
Opening and closing the fuel filler flap
474
Filling fuel
474
Handling of fuel
476
Petrol
476
Petrol particle filter
477
Diesel
478
Empty tank and diesel engine
479
Diesel particulate filter
480
Emission control with AdBlue
®
481
Handling AdBlue
®
482
Checking and filling with AdBlue
®
482
Symbols and messages for AdBlue
®
485
Overheating in the engine and drive system
487
Overloading the starter battery
488
Using jump starting with another battery
488
Towbar*
490
Specifications for towbar*
491
Extendable and retractable towbar*
492
Driving with a trailer
494
Trailer stability assist*
496
Checking trailer lamps
497
Towbar-mounted bicycle rack*
498
Towing
499
Fitting and removing the towing eye
500
Recovery
502
HomeLink®*
502
Programming HomeLink®*
503
Using HomeLink®*
505
Type approval for HomeLink®*
506
Compass*
506
Activating and deactivating the compass*
506
Calibrating the compass*
507
Page 13
11
SOUND, MEDIA AND INTERNET
Sound, media and Internet
510
Audio settings
510
Sound experience*
511
Apps
512
Downloading apps
513
Updating apps
514
Deleting apps
514
Radio
515
Start radio
515
Changing radio band and radio station
516
Searching for radio stations
517
Save radio channels in the Radio Favourites app
518
Settings for radio
518
RDS radio
520
Digital radio*
520
Link between FM and digital radio*
521
Media player
521
Media playback
522
Controlling and changing media
523
Searching media
524
Gracenote
®
525
Video
526
Playing a video
526
Playing back DivX®
526
Settings for video
527
Media via Bluetooth
®
527
Connecting a device via Bluetooth
®
527
Media via USB port
528
Connecting a device via USB port
528
Technical specifications for USB devices
529
Compatible media formats
529
Apple® CarPlay®*
530
Using Apple® CarPlay®*
531
Settings for Apple® CarPlay®*
533
Tips for using Apple® CarPlay®*
533
Android Auto*
534
Using Android Auto*
535
Settings for Android Auto*
536
Tips for using Android Auto*
537
Phone
537
Connecting a phone to the car via Bluetooth for the first time
538
Connecting a phone to the car via Bluetooth automatically
540
Connecting a phone to the car via Bluetooth manually
541
Disconnecting a Bluetooth-con­nected phone
541
Switch between Bluetooth-con­nected phones
541
Removing devices connected to Bluetooth
542
Managing phone calls
542
Managing text messages
543
Settings for text messages
544
Managing the phone book
544
Settings for phone
545
Settings for Bluetooth devices
546
Wireless phone charger*
546
Using the wireless telephone charger*
546
Certificate for wireless charger
548
Internet-connected car*
552
Connect the car to the Internet via a Bluetooth-enabled phone
553
Connect the car to the Internet via a phone (Wi-Fi)
553
Connect the car to the Internet via car modem (SIM card)
554
Settings for car modem*
555
Sharing Internet access from the car via a Wi-Fi hotspot
555
No or poor Internet connection
556
Remove Wi-Fi network
557
Wi-Fi technologies and security
557
Page 14
12
User terms and conditions and data sharing
558
Activating and deactivating data sharing
558
Data sharing for services
559
Storage space on hard disk
560
License agreement for audio and media
561
WHEELS AND TYRES
Tyres
572
Dimension designation for tyre
574
Dimension designation for wheel rim
575
Tyres' rotation direction
575
Tread wear indicators on the tyres
576
Checking tyre pressure
576
Adjusting tyre pressure
577
Recommended tyre pressure
578
Tyre pressure monitoring system*
579
Saving a new reference value for tyre pressure monitoring*
580
See tyre pressure status in the centre display*
581
Action in the event of warning for low tyre pressure
582
Messages for tyre pressure moni­toring*
583
Changing wheel
583
Tool kit
585
Jack*
586
Wheel bolts
586
Spare wheel*
587
Handling the spare wheel*
588
Winter tyres
589
Snow chains
589
Emergency puncture repair kit
590
Using a puncture repair kit
591
Inflating tyres with the compressor from the puncture repair kit
595
Page 15
13
LOADING, STORAGE AND PASSENGER COMPARTMENT
Passenger compartment interior
598
Tunnel console
599
Electrical sockets
600
Using electrical sockets
601
Using the glovebox
602
Sun visors
603
Cargo area
603
Recommendations for loading
604
Roof load and loading on load carriers
605
Bag hooks
606
Load retaining eyelets
606
Through-load hatch in the rear seat
607
Fitting and removing cargo cover*
607
Operating cargo cover*
609
Fitting and removing safety grilles*
610
Fitting and removing the safety net*
612
First aid kit*
614
Warning triangle
614
MAINTENANCE AND SERVICE
Volvo service programme
618
Data transfer between car and workshop via Wi-Fi
618
Download Center
619
Managing system updates via the Download Centre
619
Car status
620
Book service and repair
621
Sending car information to a workshop
622
Raise the car
623
Servicing the climate control system
626
Head up display when replacing the windscreen*
626
Opening and closing the bonnet
627
Engine compartment overview
628
Engine oil
629
Checking and filling with engine oil
630
Coolant
632
Topping up coolant
632
Starter battery
634
Support battery
636
Symbols on the batteries
638
Battery recycle
638
Fuses and central electrical units
639
Replacing a fuse
639
Fuses in engine compartment
641
Fuses under glovebox
646
Fuses in cargo area
651
Bulb replacement
656
Cleaning the interior
656
Cleaning the centre display
657
Cleaning the Head-up display* and driver display
658
Cleaning fabric upholstery and headlining
658
Cleaning the seatbelts
659
Cleaning textile floor and entrance mats
659
Cleaning leather upholstery*
660
Cleaning the leather steering wheel
661
Cleaning interior plastic, metal and wood parts
661
Cleaning the exterior
662
Polishing and waxing
662
Handwashing
663
Automatic car wash
664
High-pressure washing
666
Cleaning the wiper blades
666
Cleaning exterior plastic, rubber and trim components
667
Cleaning wheel rims
668
Page 16
14
Rustproofing
668
Car paintwork
668
Touching up minor paintwork damage
669
Colour codes
670
Replacing the wiper blade, rear window
670
Replacing windscreen wiper blades
671
Set the wiper blades in service position
672
Filling washer fluid
673
SPECIFICATIONS
Type designations
676
Dimensions
679
Weights
681
Towing capacity and towball load
682
Engine specifications
684
Engine oil — specifications
686
Adverse driving conditions for engine oil
688
Transmission fluid – specifications
689
Brake fluid – specifications
689
Fuel tank - volume
689
Tank capacity for AdBlue
®
690
Air conditioning — specifications
690
Fuel consumption and CO2 emissions
692
Approved wheel and tyre sizes
696
Minimum permitted tyre load index and speed rating for tyres
698
Approved tyre pressures
700
ALPHABETICAL INDEX
Alphabetical Index 701
Page 17
OWNER INFORMATION
Page 18

OWNER INFORMATION

16

Owner information

Owner's information is available in several different product formats, both digital and printed. The owner's manual is available in the car's centre display, as a mobile app and on the Volvo Cars support site. There is a Quick Guide and a supplement to the owner's manual available in the glovebox, with specifications and fuse information, amongst other things. A printed owner's manual can be ordered.

The car's centre display

1
In the centre display, drag down the top view and tap on
Owner's manual. Available
here are options for visual navigation with exterior and interior images of the car. The information is searchable and
is also divided into categories.

Mobile app

In App Store or Google Play, search for "Volvo Manual", download the app to your smartphone or tablet and select the car. Available in the app are video tutorials and
options for visual navigation with exterior and interior images of the car. The content is searchable, and the various sections are designed to facilitate navigation

Volvo Cars support site

Go to volvocars.com/support and select your country. Here you can find owner's man­uals, both online and in PDF format. On the Volvo Cars support site there are also
video tutorials and further information and help regarding your Volvo and your car ownership. The page is available for most markets.

Printed information

There is a supplement to the
owner's manual1 in the glove-
box that contains information
on fuses and specifications,
as well as a summary of
important and practical infor-
mation. There is also a Quick Guide available in printed
format that helps you to get started with the most commonly used functions in the car.
Depending on equipment level selected, mar­ket, etc. additional owner's information may also be available in printed format in the car.
A printed owner's manual and associated sup­plement can be ordered. Contact a Volvo dealer to order.
1
A complete printed manual is included with the car for markets without owner's manual in the centre display.
Page 19
OWNER INFORMATION
}}
17
IMPORTANT
The driver is always responsible that the vehicle is driven safely in traffic and that applicable laws and regulations are fol­lowed. It is also important that the car is maintained and handled in accordance with Volvo's recommendations in the owner's information.
If there should be a difference between the information in the centre display and the printed information then it is always the printed information that applies.
NOTE
Changing the language in the centre dis­play may mean that some owner's informa­tion is not compliant with national or local laws and regulations. Do not switch to a language that is difficult to understand as this may make it difficult to find your way back through the screen structure.

Related information

•
Owner's manual in centre display (p. 17)
•
Owner's Manual in mobile devices (p. 20)
•
Volvo Cars support site (p. 21)
•
Reading the owner's manual (p. 21)

Owner's manual in centre display

A digital2 version of the owner's manual is available in the car's centre display.
The digital owner's manual can be accessed from the top view, and in some cases the con­textual owner's manual can also be accessed from the top view.
NOTE
The digital owner's manual is not available while driving.
Owner's manual
Top view with button for owner's manual.
To open the owner's manual - drag down the top view in the centre display and tap on
Owner's manual.
The information in the owner's manual can be accessed directly via the owner's manual homepage or its top menu.
2
Applies for most markets.
Page 20
||
OWNER INFORMATION
18
Contextual owner's manual
Top view with button for contextual owner's manual.
The contextual owner's manual is a shortcut to an article in the owner's manual that describes the active function shown on the screen. When the contextual owner's manual is availa­ble, it is shown to the right of
Owner's
manual in the top view.
Tapping on the contextual owner's manual therefore opens an article in the owner's man­ual that is related to the content that is shown on the screen. E.g. tap on
Navigation Manual
– an article that is related to navigation opens. This only applies to some of the apps in the
car. For downloaded third party apps, for example, it is not possible to access app­specific articles.

Related information

•
Navigate in the owner's manual in the centre display (p. 18)
•
Navigating in the centre display's views (p. 110)
•
Downloading apps (p. 513)

Navigate in the owner's manual in the centre display

The digital owner's manual can be accessed from the centre display top view in the car. The content is searchable, and the various sections are designed to facilitate navigation.
The owner's manual is accessed from the top view.
–
To open the owner's manual - drag down the top view in the centre display and tap on
Owner's manual.
There is a range of different options for finding information in the owner's manual. The options can be accessed from the owner's manual homepage and from the top menu.
Page 21
OWNER INFORMATION
}}
19

Opening the menu in the top menu

–
Press in the upper list in the owner's manual.
> A menu with different options for find-
ing information is opened:
Homepage
Tap on the symbol to go back to the start page in the owner's manual.
Categories
The articles in the owner's manual are structured into main categories and subcate­gories. The same article can be found in several appropri­ate categories so that it can be found more easily.
1.
Press
Categories.
> The main categories are shown in a list.
2.
Tap on a main category (
).
>
A list of subcategories (
) and articles
(
) is shown.
3. Tap on an article to open it. To go back, press the back arrow.
Featured articles
Press the symbol to access a page with links to a selection of articles that can be useful to read in order to get to know the more common functions of the car. The arti-
cles can also be accessed via categories, but are collected here for faster access. Tap on an article in order to read it in its entirety.
Hotspots for exterior and interior
Exterior and interior overview
images of the car. Different
parts are designated with
hotspots that lead to articles
about those parts of the car.
1.
Press
Exterior or Interior.
> Exterior or interior images are shown
with so-called hotspots in place. The hotspot leads to articles about the cor­responding part of the car. Swipe hori­zontally over the screen to browse among the images.
2. Tap on a hotspot. > The title of the article about the area is
shown.
3. Tap on the title to open the article.
To go back, press the back arrow.
Favourites
Press the symbol to access the articles saved as favour­ites. Tap on an article in order to read it in its entirety.
Saving or deleting articles as favourites
Save an article as favourite by pressing at the top right when an article is open. When an article has been saved as a favourite the star is
filled in:
.
To remove an article as a favourite, press the star again in the current article.
Video
Press the symbol to view brief instruction videos for various functions in the car.
Page 22
||
OWNER INFORMATION
20
Information
Tap on the symbol to obtain information about which ver­sion of the owner's manual is available in the car as well as other useful information.

Using the search function in the top menu

1.
Tap on in the top menu of the owner's manual. A keyboard appears in the lower part of the screen.
2. Type in a keyword, such as "seatbelt". > Suggestions for articles and categories
are shown while letters are being entered.
3. Tap on the article or category to access it.

Related information

•
Owner's manual in centre display (p. 17)
•
Keyboard in centre display (p. 121)
•
Reading the owner's manual (p. 21)

Owner's Manual in mobile devices

The owner's manual is available as a mobile app3 from both the App Store and Google Play. The app is adapted for smartphones and tablets.
The owner's manual can be downloaded as a mobile app from the App Store or Google Play. The QR code provided here takes you directly to the app. Alternatively, you can search for "Volvo manual" in
the App Store or Google Play. The app contains a video along with exterior
and interior images where different parts of the car are highlighted with so-called hot­spots, which lead to articles about the area in question. The content is searchable, and the
various sections are designed to facilitate navi­gation.
The mobile app is available from both the App Store and Google Play.

Related information

•
Reading the owner's manual (p. 21)
3
For certain mobile devices.
Page 23
OWNER INFORMATION
}}
* Option/accessory.
21

Volvo Cars support site

More information on your car is available on the Volvo Cars website and support site.

Support on the Internet

Go to volvocars.com/support to visit the site. The support site is available for most markets.
It contains support for functions such as web­based services and functions, Volvo On Call*, the navigation system* and apps. Videos and step-by-step instructions explain different pro­cedures, e.g. how to connect the car to the Internet via a mobile phone.

Downloadable information

Maps
For cars equipped with Sensus Navigation there is the facility to download maps from the support page.
Owner's manuals as PDF
Owner's manuals are available for download in PDF format. Select car model and model year to download the manual as required.

Contact

The support site contains contact details to customer support and your nearest Volvo retailer.

Create a Volvo ID on the Volvo Cars website

Create a personal Volvo ID and manage it on volvocars.com.

Related information

•
Volvo ID (p. 26)

Reading the owner's manual

To help you get to know your new car, read the Owner's Manual before you drive it for the first time.
Reading the owner's manual is a way to become familiar with new functions, get advice on how to handle the car in different situations and learn how to make use of all the car's features. Please pay attention to the safety instructions contained in the owner's manual.
The intention of this owner's information is to explain all possible functions, options and accessories included in a Volvo vehicle. It is not intended as an indication or guarantee that all of these features, functions and options are included in every vehicle. Some terminology used may not exactly match terminology used in sales, marketing and advertising materials.
Development work is constantly underway in order to improve our product. Modifications may mean that information, descriptions and illustrations in the owner's manual differ from the equipment in the car. We reserve the right to make modifications without prior notice.
Do not remove this manual from the car - if problems should arise then the necessary information about where and how to seek pro­fessional help will be missing.
© Volvo Car Corporation
Page 24
||
OWNER INFORMATION
* Option/accessory.
22

Options/accessories

In addition to standard equipment, the owner's manual also describes options (fac­tory fitted equipment) and certain accessories (retrofitted extra equipment).
All, at the time of publication known, options and accessories are marked with an asterisk: *.
The equipment described in the owner's man­ual is not available in all cars - they have differ­ent equipment depending on adaptations for the needs of different markets and national or local laws and regulations.
In the event of uncertainty over what is stand­ard or an option/accessory, contact a Volvo dealer.

Special texts

WARNING
Warning texts appear if there is a risk of injury.
IMPORTANT
Important texts appear if there is a risk of damage.
NOTE
Note texts give advice or tips that facilitate the use of e.g. features and functions.

Decals

The car contains different types of decal which are designed to convey important information in a clear manner. The decals in the car have the following descending degree of impor­tance for the warning/information.
Warning of personal injury
Black ISO symbols on yellow warning field, white text/image on black message field. Used to indicate the presence of danger which, if the warning is ignored, may result in serious personal injury or fatality.
Risk of property damage
White ISO symbols and white text/image on black or blue warning field and message field. Used to indicate the presence of danger which, if the warning is ignored, may result in damage to property.
Page 25
OWNER INFORMATION
23
Information
White ISO symbols and white text/image on black message field.
NOTE
It is not intended that the decals illustrated in the owner's manual should be exact rep­licas of those in the car. They are included to show their approximate appearance and location in the car. The information that applies to your particular car is available on the respective decals for your car.

Illustrations and video clips

Illustrations and video clips used in the owner's manual are sometimes schematic and are intended to provide an overall picture or example of a certain function. They may devi-
ate from the car's appearance depending on equipment level and market.

Related information

•
Owner's manual in centre display (p. 17)
•
Owner's Manual in mobile devices (p. 20)
•
Volvo Cars support site (p. 21)

The owner's manual and the environment

The Owner's Manual is printed on paper orig­inating from controlled forests.
The Forest Stewardship Council (FSC)® sym­bol shows that the paper pulp in a printed owner's manual comes from FSC®-certified forests or other controlled sources.

Related information

•
Drive-E - cleaner driving pleasure (p. 28)
Page 26
Page 27
YOUR VOLVO
Page 28

YOUR VOLVO

* Option/accessory.
26

Volvo ID

Volvo ID is a personal ID that gives access to a wide range of services via a single user­name and password.
NOTE
The services available may vary over time and depend on equipment level and mar­ket.
Examples of services:
•
Volvo On Call app* – check the car with your phone. For example, you can check fuel level, show the nearest petrol station and lock the car remotely.
•
Send to Car – send addresses from map services on the Web, directly to the car.
•
Book service and repair – register a work­shop/dealer and book a service directly from the car.
NOTE
If the username/password for a service (e.g. Volvo On Call) is changed, then it is also changed automatically for other servi­ces.
Volvo ID is created from the car, volvocars.com or the Volvo On Call app1.
When a Volvo ID is registered in the car, sev­eral services will be made available. Several Volvo IDs can be used for the same car and several cars can even be connected to the same Volvo ID.

Related information

•
Creating and registering a Volvo ID (p. 26)
•
Book service and repair (p. 621)

Creating and registering a Volvo ID

It is possible to create a Volvo ID in different ways. If the Volvo ID is created at volvocars.com or with Volvo On Call app2, the Volvo ID must also be registered to the car to enable use of the various Volvo ID services.
Create a Volvo ID with the Volvo ID app
1. Download the Volvo ID app from
Download Centre in the centre display's
app view.
2. Start the app and register a personal email address.
3. Follow the instructions that are automati­cally sent to the specified email address.
> A Volvo ID has now been created and
automatically registered to the car. Volvo ID services can now be used.
Create a Volvo ID on the Volvo Cars website
1. Go into volvocars.com and log in3 using the icon at the top right. Select Create Volvo ID.
2. Enter a personal email address.
3. Follow the instructions that are automati­cally sent to the specified email address.
> A Volvo ID has now been created. Read
below to learn how to register the ID to the car.
1
If you have Volvo On Call*.
Page 29
YOUR VOLVO
* Option/accessory.
27
Create a Volvo ID with the Volvo On Call app
4
1. Download the latest version of the Volvo On Call app to the phone5.
2. Select to create Volvo ID.
3. The web page for creating a Volvo ID opens. Fill in the requested information.
4. Tick the box to accept the terms and con­ditions.
5. Press the button that creates your Volvo ID.
6. An e-mail message is sent to the address given. Click on the link in the e-mail mes­sage to activate Volvo ID.
> Now the Volvo ID is ready to use.

Registering your Volvo ID to the car

If you created your Volvo ID via the web or the Volvo On Call app, register it to your car as fol­lows:
1. If not done already, download the Volvo ID app from
Download Centre in the centre
display's app view.
NOTE
To download apps, the car must be con­nected to the Internet.
2. Start the app and enter your Volvo ID/your email address.
3. Follow the instructions that are automati­cally sent to the email address linked to your Volvo ID.
> Your Volvo ID is now registered to the
car. Volvo ID services can now be used.

Related information

•
Volvo ID (p. 26)
•
Downloading apps (p. 513)
•
Managing system updates via the Down­load Centre (p. 619)
•
Internet-connected car* (p. 552)
2
Only applies to certain markets.
3
Available on certain markets.
4
Cars with Volvo On Call*.
5
Available to download via e.g. Apple App Store or Google Play.
Page 30
YOUR VOLVO
28

Drive-E - cleaner driving pleasure

Volvo Car Corporation is constantly working on the development of safer and more effi-
cient products and solutions in order to reduce the negative impact on the environ­ment.
Environmental care is one of Volvo Cars’ core values and influences all operations. The envi­ronmental work is based on the whole life cycle of the car and takes into account the environmental impact it has, from design to scrapping and recycling. Volvo Cars' basic principle is that every new product developed must have less impact on the environment than the product it replaces.
Volvo's environmental management work has resulted in the development of more effective and less polluting drivelines Drive-E. Personal environment is also important to Volvo - the
air inside a Volvo is, for example, cleaner than the air outside thanks to the climate control system.
Your Volvo complies with stringent interna­tional environmental standards. All Volvo's manufacturing units must be ISO 14001 certi­fied, and this supports a systematic approach to the operation's environmental issues, which leads to continuous improvement with reduced environmental impact. Holding the ISO certificate also means that environmental laws and regulations in force are complied with. Volvo also requires that its partners must also meet these requirements.

Fuel consumption

Since a large part of a car's total environmen­tal impact stems from its use, the emphasis of Volvo Cars' environmental work is on reducing fuel consumption, carbon dioxide emissions and other air pollutants. Volvo cars have com­petitive fuel consumption in each of their respective classes. Lower fuel consumption generally results in lower emission of the greenhouse gas, carbon dioxide.
Page 31
YOUR VOLVO
}}
* Option/accessory.
29
Contributing to a better environment
An energy-efficient and economical car can contribute to reduced environmental impact and also involve reduced costs for the owner of the car. As the driver, it is easy to reduce fuel consumption and thereby save money and contribute to a better environment - here is some advice:
•
Plan for an effective average speed. Speeds above approx. 80 km/h (approx. 50 mph) and below 50 km/h (approx. 30 mph) lead to increased energy con­sumption.
•
Follow the Service and Warranty Book­let's recommended intervals for service and maintenance of the car.
•
Avoid letting the engine idle - switch off the engine when stationary for longer peri­ods. Pay attention to local regulations.
•
Plan the journey - a lot of unnecessary stops and uneven speed contribute to increased fuel consumption.
•
Use preconditioning* before starting in cold conditions - it improves starting capacity and reduces wear in cold weather. The engine reaches normal oper­ating temperature more quickly, which decreases consumption and reduces emissions.
Also remember to always dispose of environ­mentally hazardous waste, such as batteries
and oil, in an environmentally safe manner. Consult a workshop in the event of uncertainty about how this type of waste should be dis­carded - an authorised Volvo workshop is rec­ommended.

Efficient emission control

Your Volvo is manufactured following the con­cept "Clean inside and out" – a concept that encompasses a clean interior environment as well as highly efficient emission control. In many cases the exhaust emissions are well below the applicable standards.

Clean air in the passenger compartment

An air filter helps prevent dust and pollen entering the passenger compartment via the air intake.
The Interior Air Quality System (IAQS)* ensures that the incoming air is cleaner than the air in the traffic outside.
The system cleans the air in the passenger compartment from contaminants such as par­ticles, hydrocarbons, nitrous oxides and ground-level ozone. If the outside air is conta­minated then the air intake is closed and the air is recirculated. Such a situation may arise in heavy traffic, queues and tunnels for exam­ple.
IAQS is a part of the Clean Zone Interior Pack­age (CZIP)*, which also includes a function
that allows the fan to start when the car is unlocked with the remote control key.

Interior

The material used in the interior of a Volvo is carefully selected and has been tested in order to be pleasant and comfortable. Some of the details are hand-made, such as the seams of the steering wheel that are sewn by hand. The interior is monitored in order not to emit strong odours or substances that cause dis­comfort in the event of e.g. high heat and bright light.

Volvo workshops and the environment

Regular maintenance creates the conditions for a long service life and low fuel consump­tion for your car. In this way you also contrib­ute to a cleaner environment. When Volvo's workshops are entrusted with the service and maintenance of your car it becomes part of Volvo's system. Volvo makes clear demands regarding the way in which workshop prem­ises shall be designed in order to prevent spills and discharges into the environment. The workshop staff have the knowledge and the tools required to guarantee good environmen­tal care.

Recycling

Since Volvo works from a life cycle perspec­tive, it is also important that the car is recycled in an environmentally sound manner. Almost all of the car can be recycled. The last owner
Page 32
||
YOUR VOLVO
* Option/accessory.
30
of the car is therefore requested to contact a retailer for referral to a certified/approved recycling facility.

Related information

•
Fuel consumption and CO2 emissions (p. 692)
•
Economical driving (p. 471)
•
Start and switch off preconditioning* (p. 231)
•
The owner's manual and the environment (p. 23)
•
Air quality (p. 205)
Page 33
YOUR VOLVO
* Option/accessory.
31

IntelliSafe – driver support and safety

IntelliSafe is the Volvo Cars concept for car safety. IntelliSafe comprises a number of sys­tems6, whose purpose is to make a car jour­ney safer, to prevent injuries and to protect passengers and other road users.
WARNING
The functions are supplementary aids ­they cannot handle all situations in all con­ditions.
The driver always bears responsibility that the vehicle is driven safely and that applica­ble road traffic rules and regulations are fol­lowed.

Support

With the aim of assisting the driver to drive the car in a safer way, IntelliSafe has the fol­lowing functions.
•
Active main beam
•
Tunnel detection
•
Pilot Assist
•
Cross Traffic Alert*
•
Blind Spot Information*
•
Park Assist*
•
Park Assist Pilot*
•
Park assist camera*
•
Road Sign Information*
•
Electronic stability control
•
Roll Stability Control
•
Speed limiter*
•
Cruise control
•
Adaptive cruise control*
•
Rear Collision Warning
•
Driver Alert Control
•
All-wheel drive
7

Prevention

With the aim of assisting the driver to avoid an accident, IntelliSafe has the following func­tions.
•
City Safety
•
Distance Warning*
•
Lane assistance
•
Collision Avoidance

Protection

With the aim of protecting the driver and pas­sengers in certain situations in the event of an accident, IntelliSafe has the following collabo­rative functions.
•
Whiplash Protection System
•
Seatbelts with seatbelt tensioners
•
Airbags
NOTE
Read the individual sections on each sys­tem in order to fully understand the func­tions and learn about important warnings.

Related information

•
Active main beam (p. 154)
•
Safety (p. 44)
•
Driving support systems (p. 294)
6
Some of the systems are fitted as standard, while others are options. This may vary depending on market, model year and car model.
7
All Wheel Drive
Page 34
YOUR VOLVO
* Option/accessory.
32

Sensus - online connectivity and entertainment

Sensus makes it possible to use different types of apps and turn the car into a Wi-Fi hotspot.

This is Sensus

Sensus offers an intelligent interface and online connectivity with the digital world. An intuitive navigation structure makes it possible to receive relevant support, information and entertainment when it is necessary, without distracting the driver.
Sensus covers all solutions in the car that are connected with entertainment, online connec­tivity, navigation* and the user interface between driver and car. It is Sensus that makes communication possible between you, the car and the outside world.

Information when it is needed, where it is needed

The different displays in the car provide infor­mation at the right time. The information is shown in different locations based on how it should be prioritised by the driver.
Page 35
YOUR VOLVO
}}
* Option/accessory.
33
Different types of information are shown in different displays depending on how the information should be prioritised.
Head-up display*
The head-up display shows selected informa­tion that the driver should deal with as soon as possible. Such information may, for example,
include traffic warnings, speed information and navigation* information. Road Sign Infor­mation and incoming phone calls are also shown in the head-up display. The display is operated via the right-hand steering wheel keypad and via the centre display.
Driver display
12-inch* driver display.
Page 36
||
YOUR VOLVO
* Option/accessory.
34
8-inch driver display.
The driver display shows information on speed and e.g. incoming calls or song tracks being played. The display is operated via the two steering wheel keypads.
Centre display
Many of the main functions of the car are con­trolled from the centre display, a touch screen which reacts to touch. The number of physical buttons and controls in the car is therefore minimal. The screen can even be operated while wearing gloves.
From here, for example, you can control the climate control system, the entertainment sys­tem and seat position*. The information that is shown in the centre display can be acted on by the driver or someone else in the car when the opportunity arises.
Voice recognition system
The voice recognition system can be used without the driver needing to take his/her hands off the steering wheel. The system can understand natural speech. Use voice
recognition to, for example, play back a song, call someone, increase the temperature or read out a text message.

Related information

•
Head-up display* (p. 137)
•
Driver display (p. 79)
•
Overview of centre display (p. 104)
•
Voice recognition (p. 140)
•
Internet-connected car* (p. 552)
•
Sharing Internet access from the car via a Wi-Fi hotspot (p. 555)
Page 37
YOUR VOLVO
}}
35

Software updates

So that you as a Volvo customer get the best experience of your car, Volvo continuously develops the systems in the cars and the ser­vices that you are offered.
In connection with service at an authorised Volvo dealer, the software in your Volvo will be updated to the latest version. The latest soft­ware update allows you to benefit from availa­ble improvements, including improvements from earlier software updates.
For more information about available updates and frequently asked questions, visit volvocars.com/support.
NOTE
Functionality after updating may vary depending on market, model, model year and options.

Related information

•
Sensus - online connectivity and entertain­ment (p. 32)
•
Managing system updates via the Down­load Centre (p. 619)

Recording data

As part of Volvo's safety and quality assur­ance, certain information about the vehicle's operation, functionality and incidents are recorded in the car.

Event Data Recorder (EDR)

This vehicle is equipped with an "Event Data Recorder" (EDR). Its primary purpose is to register and record data related to traffic acci­dents or collision-like situations, such as times when the airbag deploys or the vehicle strikes an obstacle in the road. The data is recorded in order to increase understanding of how vehi­cle systems work in these types of situations. The EDR is designed to record data related to vehicle dynamics and safety systems for a short time, usually 30 seconds or less.
The EDR in this vehicle is designed to record data related to the following in the event of traffic accidents or collision-like situations:
•
How the various systems in the car worked
•
Whether the driver and passenger seat­belts were fastened/tensioned
•
The driver's use of the accelerator or brake pedal
•
The travel speed of the vehicle
This information can help us understand the circumstances in which traffic accidents, inju­ries and damage occur. The EDR only records
data when a non-trivial collision situation occurs. The EDR does not record any data during normal driving conditions. Similarly, the system never registers who is driving the vehi­cle or the geographic location of the accident or near-miss situation. However, other parties, such as the police, could use the recorded data in combination with the type of person­ally identifiable information routinely collected after a traffic accident. Special equipment and access to either the vehicle or the EDR is required to be able to interpret the registered data.
In addition to the EDR, the car is equipped with a number of computers designed to con­tinually check and monitor the function of the car. They can record data during normal driv­ing conditions, but in particular register faults affecting the vehicle's operation and function­ality, or upon activation of the vehicle's driver support function (e.g. City Safety and the auto brake function).
Some of the recorded data is required to ena­ble service and maintenance technicians to diagnose and remedy any faults that occurred in the vehicle. The registered information is also needed to enable Volvo to satisfy legal requirements laid out in laws and by govern­ment authorities. Information registered in the vehicle is stored in its computer until the vehi­cle is serviced or repaired.
Page 38
||
YOUR VOLVO
36
In addition to the above, the registered infor­mation can be used in aggregate form for research and product development with the aim of continuously improving the safety and quality of Volvo cars.
Volvo will not contribute to the above-descri­bed information being disclosed to third par­ties without the vehicle owner's consent. To comply with national legislation and regula­tions, Volvo may be forced to disclose infor­mation of this nature to the police or other authorities who may assert a legal right to access such. Special technical equipment which Volvo and workshops that have entered into agreements with Volvo have access to is required to be able to read and interpret the recorded data. Volvo is responsible that the information, which is transferred to Volvo dur­ing servicing and maintenance, is securely stored and managed and that its management complies with relevant legal requirements. For further information - contact a Volvo retailer.

Vehicle Connectivity Module (VCM High)

Vehicles equipped with VCM High can collect data on the vehicle's safety functions as well as other functions in the vehicle. Data are col­lected for product development, quality fol­low-up and safety work, as well as to improve and monitor the vehicle's quality and its safety functions. The purpose of data collection is
also to manage Volvo Car Corporation's war­ranty undertakings, as well as to meet legal requirements related to engine emissions data.
NOTE
In conjunction with data collection, Volvo may use a small part of the vehicle's data plan of up to 10 MB/month.

Terms & Conditions for Services

Volvo offers services that help to enhance car safety and comfort.
These services include everything from assis­tance in emergencies to navigation and vari­ous maintenance services.
Before using the services, it is important for you to read the support information relating to the Terms & Conditions for Services at volvocars.com.

Related information

•
Customer Privacy Policy (p. 37)
Page 39
YOUR VOLVO
37

Customer Privacy Policy

Volvo respects and safeguards the personal integrity of everyone visiting our website.
This policy regards to the handling of cus­tomer data and personal information. The pur­pose is to give current, past and potential cus­tomers a general understanding of:
•
The circumstances in which we gather and process your personal data.
•
The types of personal data we gather.
•
The reason we gather your personal data.
•
How we handle your personal data.
For more information on the policy, search support information at volvocars.com.

Related information

•
User terms and conditions and data shar­ing (p. 558)
•
Terms & Conditions for Services (p. 36)
•
Recording data (p. 35)

Important information on accessories and auxiliary equipment

The incorrect connection and installation of accessories and extra equipment can nega­tively affect the car's electronic system.
We strongly recommend that Volvo owners only install Volvo approved original accesso­ries, and that installation of accessories is only carried out by trained and qualified Volvo serv­ice technicians. Certain accessories only func­tion when associated software is installed in the car's computer system.
The equipment described in the owner's man­ual is not available in all cars - they have differ­ent equipment depending on adaptations for the needs of different markets and national or local laws and regulations.
Options or accessories described in this man­ual are marked with an asterisk. In the event of uncertainty over what is standard or an option/accessory, contact a Volvo retailer.
WARNING
The driver always bears the ultimate responsibility that the car is used safely and that laws and regulations in force are followed.
It is also important that the car has mainte­nance and service according to Volvo's rec­ommendations, the owner's information and the service and warranty booklet.
If the on-board information differs from the printed owner's manual then the printed information always has precedence.

Related information

•
Installation of accessories (p. 38)
•
Connection of equipment to the car's diagnostic socket (p. 38)
•
Reading the owner's manual (p. 21)
Page 40
YOUR VOLVO
38

Installation of accessories

We strongly recommend that Volvo owners only install Volvo approved original accesso­ries, and that installation of accessories is only carried out by trained and qualified Volvo service technicians. Certain accessories only function when associated software is instal­led in the car's computer system.
•
Volvo original accessories are tested to ensure that they function with the car sys­tems for performance, safety and emis­sions control. In addition, a trained and qualified Volvo service technician knows where accessories may or may not be safely installed in your Volvo. Always seek the advice of a trained and qualified Volvo service technician before installing any accessories in or on your car.
•
Accessories that are not approved by Volvo may not have been specifically tes­ted for use with your car.
•
Some of the car's performance or safety systems can be negatively affected if you install accessories that have not been tes­ted by Volvo, or if you permit someone without experience of the car to install accessories.
•
Damage that is caused by accessories installed in a non-approved or incorrect way is not covered by any new car war­ranty. More warranty information can be found in the service and warranty booklet.
Volvo does not accept any liability for deaths, personal injury or costs arising as a result of the installation of non-original accessories.

Related information

•
Important information on accessories and auxiliary equipment (p. 37)

Connection of equipment to the car's diagnostic socket

Incorrect connection and installation of soft­ware or diagnostic tools may have a negative effect on the car's electronic system.
We strongly recommend that Volvo owners only install Volvo approved original accesso­ries, and that installation of accessories is only carried out by trained and qualified Volvo serv­ice technicians. Certain accessories only func­tion when associated software is installed in the car's computer system.
Data link connector (On-board Diagnostic, OBDII) is under the instrument panel on the driver's side.
Page 41
YOUR VOLVO
39
NOTE
Volvo Cars accepts no liability for the con­sequences if unauthorised equipment is connected to the On-board Diagnostic socket (OBDII). This socket should only be used by trained and qualified Volvo service technicians.

Related information

•
Important information on accessories and auxiliary equipment (p. 37)

Showing the car's identification number

When contacting a Volvo dealer concerning your Volvo On Call subscription, for example, you will need the car's identification number (VIN8).
1.
Tap on
Settings in the centre display's
top view.
2. Continue to
System System
Information
Vehicle Identification
Number
.
> The car's identification number is
shown.
Another way of finding VIN is:
•
on the first page of the service and war­ranty booklet
•
in the car's registration document
•
look on the dashboard through the car's windscreen.
VIN is positioned in a similar place on all models.
8
Vehicle Identification Number
Page 42
YOUR VOLVO
40

Change of market when importing or relocating

When you import a car or relocate a car to another country, it is important that you reg­ister the car in the new market in order, for example, for the online services to work cor­rectly, as well as to ensure that the car com­plies with local requirements and laws.

Visit an authorised Volvo dealer

To get help to register the car, visit an author­ised Volvo dealer.
If you do not do this then you may experience that apps, Volvo On Call9, software downloads and other online services are affected and do not work correctly.
Creating a new Volvo ID in your new home market
When you relocate to another country you should create a Volvo ID in the new country.
If you have already created a Volvo ID in another country and want to use the same email address, you must first delete your Volvo ID in the region you originally created it. Alter­natively, you can create a new Volvo ID using another e-mail address.
For cars with Volvo On Call
9
Download the Volvo On Call app from the country where the car will be used and link the app to your car.
NOTE
Visit an authorised Volvo dealer if you have imported or relocated with your car to a new country.
Available services may vary depending on market and car model.
NOTE
If the car is exported to another market, Volvo is not responsible for any adapta­tions to the car in order to comply with requirements or laws that apply in the importing market. Read more in Service and Warranty or contact your Volvo work­shop for more information.

Related information

•
Book service and repair (p. 621)

Driver distraction

The driver is responsible for doing everything possible to ensure the safety of themselves, their passengers and other road users. Part of this responsibility is avoiding distractions such as carrying out an activity that is not related to operating the car in a driving envi­ronment.
Your new Volvo is, or can be, equipped with content-rich entertainment and communica­tions systems. This could be mobile phones with handsfree, navigation systems and audio systems with lots of functions. You may also have other portable electronic devices for your own convenience. Used correctly, in a safe way they can enrich the driving experience. If they are used in the wrong way they could dis­tract you.
We wish to give the following warnings regar­ding such systems, to indicate Volvo's con­cern for your safety. Never use a device or function in the car in such a way that it will distract you from the task of driving safely. Distractions can lead to serious accidents. Apart from these general warnings, we offer the following advice regarding the new func­tions that may be in the car:
9
Applicable only to markets that have access to Volvo On Call.
Page 43
YOUR VOLVO
41
WARNING
•
Never use a hand-held mobile phone while driving. In some areas it is forbid­den for the driver to use a mobile phone while the car is moving.
•
If the car is equipped with a navigation system you must only set and change the itinerary when the car is parked.
•
Never program the audio system while the car is moving. Program the radio's presets when the car is parked and then use the programmed presets for faster and simpler use of the radio.
•
Never use laptops or hand-held com­puters while the car is moving.

Related information

•
Sound, media and Internet (p. 510)
Page 44
Page 45
SAFETY
Page 46

SAFETY

44

Safety

The vehicle is equipped with several safety systems that work together to protect the vehicle's driver and passengers in the event of an accident.
The car is equipped with a number of sensors that react in the event of an accident and acti­vate different safety systems, such as different types of airbags and seatbelt tensioners. Depending on the specific accident situation, such as collisions at different angles, roll-over or driving off the road, the systems react in dif­ferent ways to provide good protection.
There are also mechanical safety systems such as Whiplash Protection System. The car is also constructed so that a large part of the force of a collision is distributed to beams, pil­lars, floor, roof and other parts of the body.
The car's safety mode may be activated after a collision if an important function in the car has been damaged.

Warning symbol in driver display

The warning symbol is illuminated in the driver display when the car's electrical system is set in ignition
position II. The symbol is extin­guished after approx. 6 seconds if the car's safety system is fault-free.
WARNING
If the warning symbol remains illuminated or is switched on during driving and the message
SRS airbag Service urgent
Drive to workshop is shown in the driver
display, it means that part of one of the safety systems does not have full function­ality. Volvo recommends that an authorised Volvo workshop should be contacted as soon as possible.
WARNING
Never modify or repair the car's various safety systems yourself. Defective work in one of the systems can cause malfunction and result in serious personal injury. Volvo recommends that an authorised Volvo workshop should be contacted.
If the specific warning symbol is bro­ken then the general warning symbol is illuminated instead and the driver display shows the same message.

Related information

•
Safety during pregnancy (p. 44)
•
Seatbelts (p. 46)
•
Airbags (p. 51)
•
Whiplash Protection System (p. 45)
•
Safety mode (p. 58)
•
Child safety (p. 60)

Safety during pregnancy

It is important that the seatbelt is used cor­rectly during pregnancy, and that pregnant drivers adjust their seating position.

Seatbelt

The diagonal section should wrap over the shoulder then be routed between the breasts and to the side of the abdomen.
The lap section should lay flat over the thighs and as low as possible under the abdomen. – It must never be allowed to ride upward. Remove the slack from the seatbelt and ensure that it fits as close to the body as pos­sible. In addition, check that there are no twists in the seatbelt.

Seating position

As the pregnancy progresses, pregnant drivers must adjust the seat and steering wheel such
Page 47
SAFETY
}}
* Option/accessory.
45
that they can easily maintain control of the vehicle as they drive (which means that they must be able to easily operate the foot pedals and steering wheel). The aim should be to position the seat with as large a distance as possible between abdomen and steering wheel.

Related information

•
Safety (p. 44)
•
Seatbelts (p. 46)
•
Manual front seat (p. 184)
•
Power* front seat (p. 185)

Whiplash Protection System

Whiplash Protection System (WHIPS) reduces the risk of whiplash injuries. The sys­tem consists of energy absorbing backrests and seat cushion, as well as a specially designed head restraint in the front seats.
WHIPS is deployed in the event of a rear-end collision, where the angle and speed of the collision and the nature of the colliding vehicle all have an influence.
When WHIPS is deployed, the front seat backrests are lowered backward and the seat cushions move downward to change the seat­ing position of the driver and front seat pas­senger. Its movement helps to absorb some of the forces that can arise and cause whiplash.
WARNING
WHIPS is a supplement to the seatbelts. Always use a seatbelt.
WARNING
Never modify or repair the seat or WHIPS yourself. Volvo recommends that an authorised Volvo workshop should be con­tacted.
If the front seats have been subjected to a major load, such as in conjunction with a collision, the seats must be replaced. Some of the seats' protective properties may have been lost even if they do not appear damaged.
Do not leave any objects on the floor behind or under the front seats or in the rear seat that may prevent WHIPS from functioning.
Page 48
||
SAFETY
* Option/accessory.
46
WARNING
Do not squeeze rigid objects between the rear seat cushion and the front seat's back­rest.
If a backrest in the rear seat is lowered then any load must be secured to prevent it from sliding up to the front seat backrest in the event of a collision.
WARNING
If a backrest in the rear seat is lowered or a rear-facing child seat is used in the rear seat, the corresponding front seat must be moved forward so that it does not make contact with the lowered backrest or child seat.

Seating position

For good protection from WHIPS the driver and passenger must have the correct seating position and make sure that the system's function is not obstructed.
Set the correct seating position in the front seat before driving starts.
Driver and front seat passenger should sit in the centre of the seat with as little space as possible between the head and the head restraint.

WHIPS and child seats

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by WHIPS.

Related information

•
Safety (p. 44)
•
Manual front seat (p. 184)
•
Power* front seat (p. 185)
•
Rear Collision Warning* (p. 376)

Seatbelts

Heavy braking can have serious consequen­ces if the seatbelts are not used.
It is important that the seatbelt lies against the body so it can provide good protection. Do not lean the backrest too far back. The seatbelt is designed to protect in a normal seating posi­tion.
WARNING
Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this prevents the belt from tightening properly.
WARNING
The seatbelts and airbags interact. If a seatbelt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
Page 49
SAFETY
}}
47
WARNING
Never modify or repair the seatbelts your­self. Volvo recommends that an authorised Volvo workshop should be contacted.
If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

•
Safety (p. 44)
•
Seatbelt tensioner (p. 49)
•
Putting on and taking off seatbelts (p. 47)
•
Door and seatbelt reminder (p. 50)

Putting on and taking off seatbelts

Make sure that all passengers have fastened their seatbelts before starting to drive.

Putting on seatbelts

1. Pull out the seatbelt slowly and make sure it is not twisted or damaged.
NOTE
The seatbelt is equipped with an inertia reel that is locked in the following situa­tions:
•
if the belt is extended too quickly.
•
during braking and acceleration.
•
if the car leans heavily.
•
when driving in bends.
2. Lock the belt by inserting the locking tab in the intended buckle.
> A loud "click" indicates that the belt has
locked.
WARNING
Always insert the tongue of the seatbelt into the buckle on the correct side. The seatbelts and buckles would otherwise possibly not function as intended in the event of a collision. There is a risk of seri­ous injury.
Page 50
||
SAFETY
48
3. In the front seats the seatbelt can be adjusted for height.
Press together the seat mounting and move the seatbelt up or down.
Position the belt as high as possible with­out it chafing against your throat.
The seatbelt must pass over the shoulder (not down over the arm).
4. Tension the hip strap over the lap by pull­ing the diagonal shoulder belt up towards the shoulder.
The hip strap must be positioned low down (not over the abdomen).
WARNING
Each seatbelt is designed for only one per­son.
WARNING
Remember not to clip or hook the seatbelt to hooks or other interior fittings, as this prevents the belt from tightening properly.
WARNING
Do not make any damages on seatbelts nor insert any foreign objects into a buckle. The seatbelts and buckles would then possibly not function as intended in the event of a collision. There is a risk of serous injury.

Taking off seatbelts

1. Press the red button on the seatbelt buckle and then let the belt retract.
2. If the seatbelt does not retract fully, feed it in by hand so that it does not hang loose.

Related information

•
Seatbelts (p. 46)
•
Seatbelt tensioner (p. 49)
•
Door and seatbelt reminder (p. 50)
Page 51
SAFETY
* Option/accessory.
49

Seatbelt tensioner

The car is fitted with standard seatbelt ten­sioners and electric* seatbelt tensioners that can tension the seatbelts in critical situations and collisions.

Standard seatbelt tensioner

All the seatbelts are equipped with a standard seatbelt tensioner.
The seatbelt tensioner tensions the seatbelt in the event of a collision with sufficient force in order to more effectively restrain the occu­pant.

Electric seatbelt tensioner*

The driver and front passenger seatbelts are equipped with an electric seatbelt tensioner.
The seatbelt tensioners work together and can be activated together with the driver support systems City Safety and Rear Collision Warning. In critical situations, such as panic braking, driving off the road (e.g. the car rolls into a ditch, lifts off the ground or hits some­thing in the terrain), skidding, or risk of colli­sion, the seatbelt can be tensioned by the seatbelt tensioner's electric motor.
The electric seatbelt tensioner helps to adjust the occupant to a better position, reducing the risk of striking the car's interior and improving the effect of safety systems, such as the car's airbags.
When the critical situation has come to an end, the seatbelt and the electric seatbelt pre­tensioner are restored automatically, but they can also be restored manually.
IMPORTANT
If the passenger airbag is deactivated, the electric seatbelt tensioner on the passen­ger side will also be deactivated.
WARNING
Never modify or repair the seatbelts your­self. Volvo recommends that an authorised Volvo workshop should be contacted.
If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

•
Seatbelts (p. 46)
•
Putting on and taking off seatbelts (p. 47)
•
Resetting the electric seatbelt tensioner* (p. 50)
•
Activating and deactivating passenger air­bag* (p. 54)
•
City Safety™ (p. 356)
•
Rear Collision Warning* (p. 376)
Page 52
SAFETY
* Option/accessory.
50

Resetting the electric seatbelt tensioner*

The electric seatbelt tensioner is designed to be reset automatically, but the seatbelt ten­sioner can be reset manually if the belt remains extended.
1. Stop the car at a safe place.
2. Unfasten the seatbelt and then refasten it. > The seatbelt and electric seatbelt ten-
sioner are reset.
WARNING
Never modify or repair the seatbelts your­self. Volvo recommends that an authorised Volvo workshop should be contacted.
If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

•
Seatbelt tensioner (p. 49)
•
Seatbelts (p. 46)

Door and seatbelt reminder

The system reminds unbelted occupants to wear a seatbelt, and also warns about an open door, bonnet or lid.

Driver display graphics

Graphics in the driver display with different types of warnings. The warning colour on the door and tail­gate is dependent on the vehicle's speed.
The driver display's graphics show which seats in the car are occupied by belted and unbelted passengers.
The same graphic also shows if the bonnet, tailgate or any door is open.
The graphic can be acknowledged by pressing the O button on the right-hand steering wheel keypad.

Seatbelt reminder

Visual reminder in the roof console.
A visual reminder is given in the roof console and by means of the warning symbol in the driver display.
The acoustic reminder is dependent on speed, driving time and distance.
The belt status of the driver and passengers is shown in the driver display's graphic when a belt is buckled or unbuckled.
Child seats are not covered by the seatbelt reminder system.
Front seat
A visual and acoustic reminder remind the driver and front seat passenger to use a seat­belt if either of them is not wearing one.
Page 53
SAFETY
}}
51
Rear seat
The seatbelt reminder in the rear seat has two subfunctions:
•
Provides information on which seatbelts are being used in the rear seat. The driver display's graphics are shown when the seatbelts are in use.
•
Reminding that a seatbelt in the rear seat is unfastened during a journey by means of a visual and acoustic reminder. The reminder will cease once the seatbelt has been put on again.

Reminder for doors, bonnet, tailgate and fuel filler flap

If the bonnet, tailgate, fuel filler flap or a door is not closed properly, the driver display's graphics show what is open. Stop the car in a safe place as soon as possible and close the source of the warning.
If the car is driven at a speed lower than approx. 10 km/h (6 mph) then the driver display's information sym­bol illuminates.
If the car is driven at a speed higher than approx. 10 km/h (6 mph) then the driver display's warning symbol illuminates.

Related information

•
Seatbelts (p. 46)
•
Putting on and taking off seatbelts (p. 47)

Airbags

The car is equipped with airbags and inflat­able curtains for driver and passengers.
NOTE
The detectors react differently depending on the nature of the collision and whether or not the seatbelts are fastened. Applies to all belt positions.
It is therefore possible that only one (or none) of the airbags may inflate in a colli­sion. The detectors sense the force of the collision on the vehicle and the action is adapted accordingly so that none, one or more airbags are deployed.
WARNING
The airbag system's control module is located in the centre console. If the centre console is drenched with water or other liq­uid, disconnect the cables to the starter battery. Do not attempt to start the car since the airbags may deploy. Recovering the car. Volvo recommends that it is trans­ported to an authorised Volvo workshop.

Deployed airbags

If any of the airbags have deployed, the follow­ing is recommended:
•
Recovering the car. Volvo recommends that it is transported to an authorised
Page 54
||
SAFETY
52
Volvo workshop. Do not drive with deployed airbags.
•
Volvo recommends engaging an author­ised Volvo workshop to handle the replacement of components in the car's safety systems.
•
Always contact a doctor.
WARNING
Never drive with deployed airbags. They can make steering difficult. Other safety systems may also be damaged. The smoke and dust created when the airbags are deployed can cause skin and eye irritation/ injury after intensive exposure. In case of irritation, wash with cold water. The rapid deployment sequence and airbag fabric may cause friction and skin burns.

Related information

•
Safety (p. 44)
•
Driver airbags (p. 52)
•
Passenger airbag (p. 53)
•
Side airbags (p. 57)
•
Inflatable curtains (p. 57)

Driver airbags

As a supplement to the seatbelts, the car is equipped with steering wheel airbag and knee airbag1 on the driver's side.
Steering wheel airbag and knee airbag1 on the driv­er's side in the front seat.
In the event of a frontal collision, the airbags help to protect the head, neck, face and chest of the driver as well as the knees and legs.
A sufficiently violent collision trips the sensors and the airbag/airbags is inflated. The airbag cushions the initial collision impact for the occupant. The airbag deflates when com­pressed by the collision. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation
and deflation of the airbag, occurs within tenths of a second.
WARNING
The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the airbag system could cause malfunction and result in seri­ous personal injury.

Steering wheel airbag location

This airbag is fitted into the centre of the steering wheel. The steering wheel is marked
AIRBAG.
Knee airbag1 location
The airbag is folded up in the lower part of the instrument panel on the driver's side. Its cover panel is marked AIRBAG.
1
The car is only equipped with knee airbag in certain markets.
Page 55
SAFETY
}}
53
WARNING
Do not place or attach any object on the top or front of the panel where the knee airbag is stowed.

Related information

•
Airbags (p. 51)
•
Passenger airbag (p. 53)

Passenger airbag

As a supplement to the seatbelts, the vehicle is equipped with an airbag on the passenger side in the front seat.
Passenger side front airbag.
In the event of a frontal collision, the airbag helps to protect the head, neck, face and chest of the passenger as well as the knees and legs.
A sufficiently violent collision trips the sensors and the airbag is inflated. The airbag cushions the initial collision impact for the occupant. The airbag deflates when compressed by the collision. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation and deflation of the airbag, occurs within tenths of a sec­ond.
WARNING
The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.
To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the airbag system could cause malfunction and result in seri­ous personal injury.

Passenger airbag location

The airbag is folded up into a compartment above the glovebox. Its cover panel is marked
AIRBAG.
WARNING
Do not put objects in front of or above the dashboard where the passenger airbag is located.
Page 56
||
SAFETY
* Option/accessory.
54

Label for passenger airbag

Label on the passenger side's sun visor.
The warning label for the passenger airbag is positioned as shown above.
WARNING
If the car is not equipped with a switch to activate/deactivate the passenger airbag, the airbag will always be activated.
WARNING
Never allow anybody to stand or sit in front of the front passenger seat.
Never use a rear-facing child seat on the front passenger seat if the airbag is acti­vated.
Front-facing passengers (children and adults) must never sit on the front passen­ger seat if the passenger airbag is deacti­vated.
Failure to follow the advice given above can endanger life or lead to serious per­sonal injury.

Related information

•
Airbags (p. 51)
•
Driver airbags (p. 52)
•
Activating and deactivating passenger air­bag* (p. 54)

Activating and deactivating passenger airbag*

The passenger airbag can be deactivated if the car is equipped with a switch, Passenger Airbag Cut Off Switch (PACOS).
The switch for the passenger airbag is located on the passenger end of the instrument panel and is accessible when the passenger door is open.
Check that the switch is in the required posi­tion.
ON - The airbag is activated and all front­facing passengers (children and adults) can sit safely on the passenger seat.
OFF - The airbag is deactivated and chil­dren in rear-facing child seats can sit safely on the passenger seat.
Page 57
SAFETY
}}
55
WARNING
If the car is not equipped with a switch to activate/deactivate the passenger airbag, the airbag will always be activated.

Activating passenger airbag

Pull the switch outward and turn from OFF to ON.
> The driver display shows the message
Passenger airbag on Please acknowledge.
NOTE
If the passenger airbag has been activated/ deactivated with the car in ignition position I or lower, a message is shown in the driver display and the following indicator in the roof console approx. 6 seconds after the car's electrical system has been set in igni­tion position II.
2. Confirm the message by pressing the right-hand steering wheel keypad's O but­ton.
> A text message and a warning symbol
in the roof console indicate that the air­bag for the front passenger seat is acti­vated.
WARNING
Never use a rear-facing child seat on the front passenger seat when the airbag is activated.
The passenger airbag must always be acti­vated when front-facing passengers (chil­dren and adults) are sitting in the front pas­senger seat.
Failure to follow the advice given above can endanger life or lead to serious per­sonal injury.
Page 58
||
SAFETY
56

Deactivating passenger airbag

Pull the switch outward and turn from ON to OFF.
> The driver display shows the message
Passenger airbag off Please acknowledge.
NOTE
If the passenger airbag has been activated/ deactivated with the car in ignition position I or lower, a message is shown in the driver display and the following indicator in the roof console approx. 6 seconds after the car's electrical system has been set in igni­tion position II.
2. Confirm the message by pressing the right-hand steering wheel keypad's O but­ton.
> A text message and a symbol in the roof
console indicate that the airbag for the front passenger seat is deactivated.
WARNING
Front-facing passengers (children and adults) must never sit on the passenger seat when the airbag is deactivated.
Failure to follow the advice given above can endanger life or lead to serious per­sonal injury.
IMPORTANT
If the passenger airbag is deactivated, the electric seatbelt tensioner on the passen­ger side will also be deactivated.

Related information

•
Seatbelt tensioner (p. 49)
•
Child seats (p. 60)
Page 59
SAFETY
}}
57

Side airbags

The side airbags on the driver's and passen­ger seats act to protect the chest and hips in the event of a collision.
The side airbags are fitted in the outer back­rest frames of the front seats and help to pro­tect the driver and passengers in the front seat.
A sufficiently violent collision trips the sensors and the side airbags are inflated. The airbag inflates between the occupant and the door panel and thereby cushions the initial impact. The airbag deflates when compressed by the collision. The side airbag is normally only deployed on the side of the collision.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the side airbag system could cause malfunction and result in serious personal injury.
WARNING
Do not put objects in the area between the outside of the seat and the door panel, since this area is required by the side air­bag.
Volvo recommends the use only of car seat covers approved by Volvo. Other seat cov­ers may impede the operation of the side airbags.
WARNING
Side airbags are a supplement the seat­belts. Always use a seatbelt.

Side airbags and child seats

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by the side airbag.

Related information

•
Airbags (p. 51)

Inflatable curtains

The inflatable curtain, Inflatable Curtain (IC), helps to prevent the driver and passengers from striking their heads on the inside of the car during a collision.
The inflatable curtain is mounted along both sides of the headlining and helps protect the driver and outer seat passengers of the car. The panels are labelled with IC AIRBAG.
A sufficiently violent collision trips the sensors and the inflatable curtain is inflated.
WARNING
Volvo recommends that an authorised Volvo workshop should be contacted for repair. Defective work in the inflatable cur­tain system can cause malfunction and result in serious personal injury.
Page 60
||
SAFETY
58
WARNING
Never hang or attach heavy items onto the handles in the roof. The hooks are only designed for light coats and jackets (not for solid objects such as umbrellas).
Do not screw or install anything onto the car's headlining, door pillars or side panels. This could compromise the intended pro­tection. Volvo recommends only using Volvo genuine parts that are approved for fitting within these areas.
WARNING
Leave 10 cm (4 inches) space between the load and the side windows if the car is loa­ded to above the top edge of the door win­dows. Otherwise, the intended protection of the inflatable curtain, which is concealed in the headlining, may be compromised.
WARNING
The inflatable curtain is a supplement to the seatbelts. Always use a seatbelt.

Related information

•
Airbags (p. 51)

Safety mode

Safety mode is a protective state that is trig­gered when a collision may have damaged any of the car's vital functions, such as the fuel lines, sensors for any of the safety sys­tems, or the brake system.
If the car has been in a collision, the message
Safety mode See Owner's manual may be
shown on the driver display with a warning symbol as long as the display is not damaged and the car's electrical system is still in work­ing order. This message means that the car has reduced functionality.
WARNING
Never, under any circumstances, attempt to restart the car if it smells of fuel when the
Safety mode See Owner's manual
message is shown in the driver display. Leave the car at once.
If the car is in safety mode, it is possible to attempt to reset the system in order to start and move the car for a short distance, if in a dangerous traffic situation for example.
WARNING
Never attempt to repair your car or reset the electronics yourself if the car has been in safety mode. This could result in per­sonal injury or the car not functioning as normal. Volvo recommends engaging an authorised Volvo workshop to check and restore the car to normal status after
Safety mode See Owner's manual has
been shown.
WARNING
If the car is in safety mode it must not be towed. It must be transported from its location. Volvo recommends that it is transported to an authorised Volvo work­shop.

Related information

•
Safety (p. 44)
•
Starting and moving the car after safety mode (p. 59)
•
Recovery (p. 502)
Page 61
SAFETY
59

Starting and moving the car after safety mode

If the car is in safety mode, it is possible to attempt to reset the system in order to start and move the car for a short distance, if in a dangerous traffic situation for example.

Starting the car after safety mode

1. Check the general damage situation of the car and whether any fuel has been leaking. There must be no smell of fuel either.
If there is only minor damage and a check has revealed no fuel leaks, starting can be attempted.
WARNING
Never, under any circumstances, attempt to restart the car if it smells of fuel when the
Safety mode See Owner's manual
message is shown in the driver display. Leave the car at once.
2. Switch off the car.
3. Then try to start the car. > The car's electronics carry out a sys-
tems check and then try to resume nor­mal status.
IMPORTANT
If the message Safety mode See
Owner's manual is still shown on the dis-
play the car must not be driven or towed but a vehicle recovery service must then be used instead. Even if the car appears to be driveable, hidden damage may make the car impossible to control once moving.

Moving the car after safety mode

1. If the driver display shows the message
Normal mode The car is now in normal mode after a start attempt, the car can be
carefully moved if standing in a dangerous position.
2. Do not move the car further than neces­sary.
WARNING
If the car is in safety mode it must not be towed. It must be transported from its location. Volvo recommends that it is transported to an authorised Volvo work­shop.

Related information

•
Safety mode (p. 58)
•
Starting the car (p. 430)
•
Recovery (p. 502)
Page 62
SAFETY
60

Child safety

Children must always sit secure while travel­ling in the car.
Volvo has child safety equipment (child seats and attachment devices) which is designed for fitting in this particular car. Using Volvo's child safety equipment, you obtain good conditions for a child to travel safely in the car. In addi­tion, the child safety equipment fits in well and is simple to use.
The equipment that should be used is selected taking account of the weight and size of the child.
Volvo recommends that children travel in a rear-facing child seat until as late an age as possible, at least until 4 years of age, and then in a front-facing child seat until the child is 140 cm (4 feet 7 inches) tall.
NOTE
Legal provisions about the type of child seat that must be used for children of dif­ferent ages and heights vary from country to country. Check what does apply.
NOTE
When using child safety equipment, it is important to read the installation instruc­tions included.
In the event of questions when fitting child safety equipment, contact the manufac­turer for clearer instructions.
Children of all ages and sizes must always sit correctly secured in the car. Never allow a child to sit on the knee of a passenger.

Related information

•
Safety (p. 44)
•
Child seats (p. 60)
•
Activating and deactivating child safety locks (p. 280)

Child seats

Suitable child seats should always be used when children are travelling in the car.
Children should sit comfortably and safely. Make sure that the child seat is positioned, mounted and used correctly.
Look in the installation instructions for the child seat for the correct fitting.
NOTE
When using child safety equipment, it is important to read the installation instruc­tions included.
In the event of questions when fitting child safety equipment, contact the manufac­turer for clearer instructions.
NOTE
Never leave a child seat loose in the car. Always secure it according to the instruc­tions for the child seat, even when it is not in use.
NOTE
Long-term installation and use of child seats may cause wear and tear on the car's fittings. Volvo recommends using the kick guard accessory to protect the car's fit­tings.
Page 63
SAFETY
* Option/accessory.
61

Related information

•
Child safety (p. 60)
•
Integrated child seat* (p. 72)
•
Upper mounting points for child seats (p. 61)
•
Lower mounting points for child seats (p. 62)
•
i-Size/ISOFIX mounting points for child seats (p. 62)
•
Child seat positioning (p. 63)
•
Activating and deactivating passenger air­bag* (p. 54)

Upper mounting points for child seats

The car is equipped with upper mounting points for child seats on the rear seat's outer seats.
The upper mounting points are primarily intended for use with front-facing child seats.
Always follow the manufacturer's installation instructions when connecting a child seat to the upper mounting points.

The location of the mounting points

Mounting point locations are indicated by symbols on the rear of the backrest.
The mounting points are located on the rear of the rear seat's outer seats.
WARNING
The child seat's upper straps must be routed through the hole in the head restraint leg before they are tensioned at the mounting point. If this is not possible, follow the recommendations from the child seat manufacturer.
NOTE
Fold the head restraints in order to facili­tate fitting this type of child seat in cars with folding head restraints on the outer seats.
NOTE
In cars with a cargo cover over the luggage compartment, this must be removed before child seats can be attached to the securing points.

Related information

•
Child seats (p. 60)
•
Lower mounting points for child seats (p. 62)
•
i-Size/ISOFIX mounting points for child seats (p. 62)
•
Table for location of child seats using the car's seatbelts (p. 66)
Page 64
SAFETY
* Option/accessory.
62

Lower mounting points for child seats

The car is equipped with lower mounting points for child seats in the front seat* and the rear seat.
The lower mounting points are designed to be used in conjunction with certain rear-facing child seats.
Always follow the manufacturer's installation instructions when connecting a child seat to the lower mounting points.

The location of the mounting points

Mounting point locations in the front seat.
The mounting points in the front seat are located on the sides of the passenger seat's legroom.
The mounting points in the front seat are only mounted if the vehicle is equipped with a
switch to activate/deactivate the passenger airbag*.
Mounting point locations in the rear seat.
The mounting points in the rear seat are located on the rear section of the front seat's floor rails.

Related information

•
Child seats (p. 60)
•
Upper mounting points for child seats (p. 61)
•
i-Size/ISOFIX mounting points for child seats (p. 62)
•
Table for location of child seats using the car's seatbelts (p. 66)

i-Size/ISOFIX mounting points for child seats

The car is equipped with i-Size/ISOFIX mounting points for child seats in the rear seat.
i-Size/ISOFIX2 is a fixture system for car child seats that is based on an international stand­ard.
Always follow the manufacturer's installation instructions when connecting a child seat to the i-Size/ISOFIX mounting points.

The location of the mounting points

Mounting point locations are indicated by symbols
2
on the upholstery of the backrest.
The mounting points for i-Size/ISOFIX are located behind covers in the lower section of the rear seat's backrest, in the outer seats.
Lift the covers in order to access the mounting points.
Page 65
SAFETY
}}
63

Related information

•
Child seats (p. 60)
•
Upper mounting points for child seats (p. 61)
•
Lower mounting points for child seats (p. 62)
•
Table for location of i-Size child seats (p. 68)
•
Table for location of ISOFIX child seats (p. 69)

Child seat positioning

It is important to position the child seat in the right place in the car. The choice of location depends, amongst other things, on the type of child seat and whether the passenger air­bag is activated.
Rear-facing child seat and airbag are not compatible.
Always fit rear-facing child seats in the rear seat if the passenger airbag is activated. If a child is sitting on the front passenger seat then he/she could suffer serious injury if the airbag deploys.
If the passenger airbag is deactivated then rear-facing child seats can be fitted on the front passenger seat.
NOTE
Regulations regarding the placement of children in cars vary from country to coun­try. Check what does apply.
WARNING
Never allow anybody to stand or sit in front of the front passenger seat.
Never use a rear-facing child seat on the front passenger seat if the airbag is acti­vated.
Front-facing passengers (children and adults) must never sit on the front passen­ger seat if the passenger airbag is deacti­vated.
Failure to follow the advice given above can endanger life or lead to serious per­sonal injury.
2
Names and symbols change depending on market.
Page 66
||
SAFETY
64

Label for passenger airbag

Label on the passenger side's sun visor.
The warning label for the passenger airbag is positioned as shown above.

Related information

•
Child seats (p. 60)
•
Child seat mounting (p. 64)
•
Table for location of child seats using the car's seatbelts (p. 66)
•
Table for location of i-Size child seats (p. 68)
•
Table for location of ISOFIX child seats (p. 69)

Child seat mounting

It is important to remember a number of things when a child restraint system is moun­ted and used, which depend on where the child restraint system is positioned.
WARNING
Booster cushions/child seats with steel braces or some other design that could rest on the seatbelt buckle's opening but­ton must not be used, as they could cause the seatbelt buckle to open accidentally.
Do not secure the straps for the child seat into the seat's horizontal adjustment bar or in springs, rails or beams under the seat. Sharp edges may damage the straps.
Do not allow the upper section of the child seat to rest against the windscreen.
NOTE
When using child safety equipment, it is important to read the installation instruc­tions included.
In the event of questions when fitting child safety equipment, contact the manufac­turer for clearer instructions.
NOTE
Never leave a child seat loose in the car. Always secure it according to the instruc­tions for the child seat, even when it is not in use.
NOTE
Long-term installation and use of child seats may cause wear and tear on the car's fittings. Volvo recommends using the kick guard accessory to protect the car's fit­tings.

Installation in the front seat

•
When fitting rear-facing child seats, check that the passenger airbag is deactivated.
•
When fitting front-facing child seats, check that the passenger airbag is acti­vated.
•
Only use child seats that are recom­mended by Volvo, are universally approved or are semi-universal, and where the car is included on the manufacturer's vehicle list.
•
ISOFIX child seats can only be fitted when the car is equipped with the ISOFIX con­sole3 accessory.
3
The accessory range varies depending on market.
Page 67
SAFETY
65
•
If the child seat is equipped with lower straps, Volvo recommends that the lower mounting points are used with these3.
•
If the child seat is equipped with support legs, always fit the support leg/support legs directly to the floor. Never fit a sup­port leg to a footrest or other object.
•
The ISOFIX guide can be used in order to facilitate child seat installation.

Installation in the rear seat

•
Only use child seats that are recom­mended by Volvo, are universally approved or are semi-universal, and where the car is included on the manufacturer's vehicle list.
•
A child seat with support legs must not be fitted in the centre seat.
•
The outer seats are equipped with the ISOFIX fixture system and are approved for i-Size4.
•
The outer seats are equipped with upper mounting points. Volvo recommends that child seat's upper straps should be pulled through the hole in the head restraint before being tensioned at the mounting point. If this is not possible, follow the rec­ommendations from the child seat manu­facturer.
•
If the child seat is equipped with lower straps, never adjust the position of the seat in front after the straps have been fit­ted in the lower mounting points. Always remember to remove the lower straps when the child seat is not installed.
•
If the child seat is equipped with support legs, always fit the support leg/support legs directly to the floor. Never fit a sup­port leg to a footrest or other object.
With the installation of an infant seat in the rear seat, Volvo recommends a distance of at least 50 mm (2 tum) from the front part of the infant seat to the rearmost part of the seat in front.

Related information

•
Child seat positioning (p. 63)
•
Table for location of child seats using the car's seatbelts (p. 66)
•
Table for location of i-Size child seats (p. 68)
•
Table for location of ISOFIX child seats (p. 69)
3
The accessory range varies depending on market.
4
Varies depending on market.
Page 68
SAFETY
* Option/accessory.
66

Table for location of child seats using the car's seatbelts

The table gives a recommendation for which child seats suit which locations, and for what size of child.
NOTE
Always read the owner's manual section on installing a child seat before installing one in the car.
Weight Front seat (with deactivated airbag, only
rear-facing child seats)
A
Front seat (with activated airbag, only front-facing child seats)
A
Outer rear seat Centre rear seat
Group 0 max 10 kg
U
B, C
X
U
C
U
C
Group 0+ max 13 kg
U
B, C
X
U
C
U
C
Group 1 918 kg
L
D
UF
B, E
UE, L
D
U
E
Group 2 1525 kg
L
D
UF
B, F
UF, B*
, G
, L
D
U
F
Page 69
SAFETY
* Option/accessory.
67
Weight Front seat (with deactivated airbag, only
rear-facing child seats)
A
Front seat (with activated airbag, only front-facing child seats)
A
Outer rear seat Centre rear seat
Group 3 2236 kg
X
UF
B, F
UF, B*
, G
U
F
U: Suitable for universal category restraints approved for use in this mass group. UF: Suitable for front-facing universally approved child seats. L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories. B: Built-in restraint approved for this mass group. X: The seat is not suitable for children in this mass group.
A
The seat cushion extension must always be retracted for the installation of child seats.
B
Adjust the backrest to a more upright position.
C
Volvo recommends: Volvo infant seat (type approval E1 04301146).
D
Volvo recommends: Volvo rear-facing seat (type approval E5 04212).
E
Volvo recommends rear-facing child seat for children in this mass group.
F
Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster seat (type approval E1 04301312).
G
Volvo recommends: Integrated child seat (type approval E5 04220).
WARNING
Never use a rear-facing child seat on the front passenger seat if the passenger air­bag is activated.

Related information

•
Child seat positioning (p. 63)
•
Child seat mounting (p. 64)
•
Table for location of i-Size child seats (p. 68)
•
Table for location of ISOFIX child seats (p. 69)
•
Seatbelts (p. 46)
Page 70
SAFETY
68

Table for location of i-Size child seats

The table gives a recommendation for which i-Size child seats suit which locations, and for what size of child.
The child seat must be approved in accord­ance with UN Reg R129.
NOTE
Always read the owner's manual section on installing a child seat before installing one in the car.
Type of child seat Front seat (with deactivated airbag,
only rear-facing child seats)
Front seat (with activated airbag, only
front-facing child seats)
Outer rear seat Centre rear seat
i-Size child seats X X
i-U
A, B
X
i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing. X: Not suitable for universally approved child seats.
A
Volvo recommends that children travel in a rear-facing child seat until as late an age as possible, at least until 4 years of age.
B
Volvo recommends: BeSafe iZi Kid X2 i-Size (type approval E4129R000002).

Related information

•
Child seat positioning (p. 63)
•
Child seat mounting (p. 64)
•
Table for location of child seats using the car's seatbelts (p. 66)
•
Table for location of ISOFIX child seats (p. 69)
•
i-Size/ISOFIX mounting points for child seats (p. 62)
Page 71
SAFETY
}}
69

Table for location of ISOFIX child seats

The table gives a recommendation for which ISOFIX child seats suit which locations, and for what size of child.
The child seat must be approved in accord­ance with UN Reg R44 and the car model must be included in the manufacturer's vehicle list.
NOTE
Always read the owner's manual section on installing a child seat before installing one in the car.
Weight
Size class
A
Type of child seat Front seat (with deacti-
vated airbag, only rear-
facing child seats)
B, C
Front seat (with acti-
vated airbag, only
front-facing child
seats)
B, C
Outer rear seat Centre rear seat
Group 0 max 10 kg
E Rear-facing infant seat
IL
B, D
, X
E
X
IL
D
X
Group 0+ max 13 kg
E Rear-facing infant seat
IL
B, D, F
, X
E
X
IL
D
XC Rear-facing child seat
D Rear-facing child seat
Page 72
||
SAFETY
70
Weight
Size class
A
Type of child seat Front seat (with deacti-
vated airbag, only rear-
facing child seats)
B, C
Front seat (with acti-
vated airbag, only
front-facing child
seats)
B, C
Outer rear seat Centre rear seat
Group 1 918 kg
A Front-facing child seat
X
IL
B, F, G
, X
E
ILG, IUF
G
XB Front-facing child seat
B1 Front-facing child seat
C Rear-facing child seat
IL
B, F
, X
E
X IL X
D Rear-facing child seat
IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal categories.
IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group. X: Not suitable for ISOFIX child restraint systems.
A
For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.
B
Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market). There are no upper mounting points for child seats here.
C
The seat cushion extension must always be retracted for the installation of child seats.
D
Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).
E
Applicable if the car is not fitted with an ISOFIX bracket.
F
Adjust the backrest so that the head restraint does not interfere with the child seat.
G
Volvo recommends rear-facing child seat for children in this mass group.
WARNING
Never use a rear-facing child seat on the front passenger seat if the passenger air­bag is activated.
NOTE
If an i-Size/ISOFIX child seat has no size classification, the car model must be included on the vehicle list for the child seat.
NOTE
Volvo recommends contacting an author­ised Volvo dealer for information about which i-Size/ISOFIX child seats Volvo rec­ommends.
Page 73
SAFETY
71

Related information

•
Child seat positioning (p. 63)
•
Child seat mounting (p. 64)
•
Table for location of child seats using the car's seatbelts (p. 66)
•
Table for location of i-Size child seats (p. 68)
•
i-Size/ISOFIX mounting points for child seats (p. 62)
Page 74
SAFETY
* Option/accessory.
72

Integrated child seat*

The integrated child seats on the outer posi­tions in the rear seat allow children to sit comfortably and safely.
The child seat is specially designed to provide children with good safety, together with the car's seatbelt. The seat cushion can be raised in two positions depending on the weight of the child.
The child seat is approved for children who weigh 1536 kg (3380 lbs) and are at least 95 cm (37 inches) tall.
Correct position, the seatbelt should be positioned in on the shoulder.
Check before driving that:
•
the seat cushion is raised to the correct position for the weight of the child
•
the seat cushion in locked in position
•
the seatbelt is in contact with the child's body and is not slack or twisted
•
the seatbelt does not lie across the child's throat or below the shoulder
•
the lap section of the seatbelt is posi­tioned low over the pelvis to provide opti­mal protection.
WARNING
Volvo recommends that repair or replace­ment of the integrated child seat is only performed by an authorised Volvo work­shop. Do not make any modifications or additions to the child seat. If an integrated child seat has been subjected to a heavy load, e.g. in connection with a collision, then the seat cushion, seatbelt and back­rest, or possibly the whole seat, must be replaced. Even if the child seat appears to be undamaged, it may not afford the same level of protection. This also applies if the seat cushion was in lowered position dur­ing a collision or similar. The seat cushion must also be replaced if it is heavily worn.
WARNING
If the instructions for the integrated child seat are not followed then the child could sustain serious injury in the event of an accident.

Related information

•
Child seats (p. 60)
•
Folding up the seat cushion in the inte­grated child seat* (p. 73)
•
Folding down the seat cushion in the inte­grated child seat* (p. 74)
Page 75
SAFETY
}}
* Option/accessory.
73

Folding up the seat cushion in the integrated child seat*

The seat cushion should always be folded up when the integrated child seat is in use.
The seat cushion can be folded up in two posi­tions. The position that should be used depends on the weight of the child.
Lower posi-
tion
Upper posi-
tion
Weight 2236 kg
(5080 lbs)
1525 kg (3355 lbs)
Lower position:
Pull the handle forwards and upwards to release the seat cushion.
Press the seat cushion backwards to lock.
Upper position, start from the lower position:
Press the button to release the seat cush­ion.
Lift the seat cushion up at the front edge and press it back against the backrest to lock.
WARNING
If the instructions for the integrated child seat are not followed then the child could sustain serious injury in the event of an accident.
NOTE
It is not possible to adjust the seat cushion from the upper position to the lower posi­tion. From the upper position, the seat cushion must first be fully lowered into the rear seat, and then folded up to the lower position.
Page 76
||
SAFETY
* Option/accessory.
74

Related information

•
Integrated child seat* (p. 72)
•
Folding down the seat cushion in the inte­grated child seat* (p. 74)

Folding down the seat cushion in the integrated child seat*

The seat cushion should be folded down into the rear seat when the integrated child seat is not being used.
NOTE
It is not possible to adjust the seat cushion from the upper position to the lower posi­tion. From the upper position, the seat cushion must first be fully lowered into the rear seat, and then folded up to the lower position.
Pull the handle forwards to release the seat cushion.
Press down with your hand in the centre of the seat cushion in order to lock it.
IMPORTANT
Check that there are no loose objects (e.g. toys) left behind in the space under the child seat's seat cushion before lowering.
NOTE
Before the rear backrest is lowered, the child seat's seat cushion must be lowered first.

Related information

•
Integrated child seat* (p. 72)
•
Folding up the seat cushion in the inte­grated child seat* (p. 73)
Page 77
DISPLAYS AND VOICE CONTROL
Page 78

DISPLAYS AND VOICE CONTROL

* Option/accessory.
76

Displays and controls by the driver in a left-hand drive car

The overviews show where the displays and controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights, dipped beam, main beam, direction indi­cators, front fog lamps/cornering lights*, rear fog lamp, resetting the trip meter
Steering wheel paddles for manual gear changing in an automatic gearbox*
Head-up display*
Driver display
Wipers and washing, rain sensor*
Right-hand steering wheel keypad
Steering wheel adjustment
Horn
Left-hand steering wheel keypad
Bonnet opening
Display lighting, tailgate unlocking/open­ing*/closing*, halogen headlamp levelling

Roof console

Front reading lamps and interior lighting
Panoramic roof*
Display in roof console, ON CALL button*
Manual dimming of interior rearview mir­ror

Centre and tunnel console

Centre display
Hazard warning flashers, defrosting, media
Gear selector
Start knob
Drive mode control*
Parking brake
Automatic braking when stationary
Page 79
DISPLAYS AND VOICE CONTROL
}}
* Option/accessory.
77

Driver's door

Memories for power front seat*, door mir­ror and head-up display* settings
Central locking
Power windows, door mirrors, electric child lock*
Adjusting front seat

Related information

•
Manual front seat (p. 184)
•
Adjusting the power* front seat (p. 185)
•
Adjusting the steering wheel (p. 198)
•
Lighting control (p. 148)
•
Starting the car (p. 430)
•
Driver display (p. 79)
•
Overview of centre display (p. 104)
•
Gearbox (p. 443)

Displays and controls by the driver in a right-hand drive car

The overviews show where the displays and controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights, dipped beam, main beam, direction indi­cators, front fog lamps/cornering lights*, rear fog lamp, resetting the trip meter
Steering wheel paddles for manual gear changing in an automatic gearbox*
Head-up display*
Driver display
Wipers and washing, rain sensor*
Right-hand steering wheel keypad
Display lighting, tailgate unlocking/open­ing*/closing*, halogen headlamp levelling
Bonnet opening
Horn
Steering wheel adjustment
Left-hand steering wheel keypad

Roof console

Front reading lamps and interior lighting
Panoramic roof*
Display in roof console, ON CALL button*
Manual dimming of interior rearview mir­ror
Page 80
||
DISPLAYS AND VOICE CONTROL
* Option/accessory.
78

Centre and tunnel console

Centre display
Hazard warning flashers, defrosting, media
Gear selector
Start knob
Drive mode control*
Parking brake
Automatic braking when stationary

Driver's door

Memories for power front seat*, door mir­ror and head-up display* settings
Central locking
Power windows, door mirrors, electric child lock*
Adjusting front seat

Related information

•
Manual front seat (p. 184)
•
Adjusting the power* front seat (p. 185)
•
Adjusting the steering wheel (p. 198)
•
Lighting control (p. 148)
•
Starting the car (p. 430)
•
Driver display (p. 79)
•
Overview of centre display (p. 104)
•
Gearbox (p. 443)
Page 81
DISPLAYS AND VOICE CONTROL
}}
* Option/accessory.
79

Driver display

The driver display shows information about the car and driving.
The driver display contains gauges, indicators and indicator and warning symbols. The con­tent of the driver display depends on the car's equipment, settings and which functions are active at that time.
The driver display is activated as soon as a door is opened, i.e. in ignition position 0. The driver display extinguishes after a while if it is not used. To reactivate it, proceed with one of the following:
•
Depress the brake pedal.
•
Activate ignition position I.
•
Open one of the doors.
The driver display is available in two versions, 8-inch and 12-inch*.
WARNING
If the driver display should extinguish, not illuminate on activation/start or be fully or partially illegible, the car must not be used. You should visit a workshop immediately. Volvo recommends an authorised Volvo workshop.
WARNING
In the event of a fault in the driver display the information on e.g. brakes, airbags or other safety systems may not be shown. In which case, the driver cannot check the status of the car's systems or receive cur­rent warnings and information.

Driver display, 8-inch

The figure is schematic - parts may vary depending on car model.
Location in the driver display:
On the left In the middle On the right
Fuel gauge Speedometer Media player
Drive mode
Road Sign Information*
Phone
Gear shift indicator Cruise control and speed limiter information
Navigation information*
Tachometer/ECO gauge
A
Door and seatbelt information Clock
Distance to empty tank Start/stop function status App menu (activated via steering wheel keypad)
Outside temperature gauge – Instantaneous fuel consumption
Page 82
||
DISPLAYS AND VOICE CONTROL
* Option/accessory.
80
On the left In the middle On the right
Indicator and warning symbols –
Odometer
B
– – Trip meter
– – Indicator and warning symbols
– – Voice recognition
– – Engine temperature gauge
– – Messages, in some cases with graphics
– –
Compass
A
A
Depends on drive mode selected.
B
Accumulated mileage.

Driver display, 12-inch*

The figure is schematic - parts may vary depending on car model.
Page 83
DISPLAYS AND VOICE CONTROL
}}
* Option/accessory.
81
Location in the driver display:
On the left In the middle On the right
Speedometer Indicator and warning symbols
Tachometer/ECO gauge
A
Trip meter Outside temperature gauge Gear shift indicator
Odometer
B
Clock Drive mode
Cruise control and speed limiter information Messages, in some cases with graphics Fuel gauge
Road Sign Information*
Door and seatbelt information Start/stop function status
– Media player Distance to empty tank
–
Navigation map*
Instantaneous fuel consumption
– Phone App menu (activated via steering wheel keypad)
– Voice recognition –
–
Compass
A
–
A
Depends on drive mode selected.
B
Accumulated mileage.

Dynamic symbol

The dynamic symbol in its basic form.
The centre of the driver display contains a dynamic symbol that changes appearance for
different types of message. An amber or red marker around the symbol indicates the degree of severity of a control or warning mes­sage.
Page 84
||
DISPLAYS AND VOICE CONTROL
* Option/accessory.
82
Examples of indicator symbol.
With an animation, the basic shape can be turned into a graphic showing where a prob­lem is situated, or in order to clarify informa­tion.

Related information

•
Driver display settings (p. 83)
•
Indicator and warning symbols (p. 90)
•
Trip computer (p. 84)
•
Messages in the driver display (p. 100)
•
Managing the app menu in the driver dis­play (p. 99)
•
Drive modes* (p. 454)
Page 85
DISPLAYS AND VOICE CONTROL
* Option/accessory.
83

Driver display settings

Settings for the driver display's display options can be made via the driver display's app menu and via the centre display's set­tings menu.

Settings via the driver display's app menu

The figure is schematic - parts may vary depending on car model.
The app menu is opened and controlled using the right-hand keypad on the steering wheel.
In the app menu, you can choose which infor­mation is shown on the driver display from:
•
trip computer
•
media player
•
phone
•
navigation system*.

Settings via the centre display

Selecting information type
1.
Tap on
Settings in the centre display's
top view.
2. Press
My Car Displays Driver
Display Information
.
3. Select what should be shown in the back­ground:
•
Show no information in background
•
Show information for current playing media
•
Show navigation even if no route is set
1
Selecting theme
1.
Tap on
Settings in the centre display's
top view.
2. Tap on
My Car Displays Display
Themes
3. Select a theme (appearance) for the driver display:
•
Glass
•
Minimalistic
•
Performance
•
Chrome Rings
Selecting language
1.
Tap on
Settings in the centre display's
top view.
2. Tap on
System System Languages
and Units
System Language to select
language. > A change will affect the language in all
displays.
These settings are personal and are saved automatically to the active driver profile.

Related information

•
Driver display (p. 79)
•
Managing the app menu in the driver dis­play (p. 99)
•
Other settings in the centre display's top view (p. 127)
1
The 12-inch* driver display shows the map, the 8-inch driver display only shows guidance.
Page 86
DISPLAYS AND VOICE CONTROL
84

Fuel gauge

The fuel gauge in the driver display shows the fuel level in the tank.
The figure is schematic - parts may vary depending on car model.
Fuel gauge in the 12-inch driver display:
The beige zone in the fuel gauge indicates the quantity of fuel in the tank.
When the fuel level is low, the fuel pump sym­bol illuminates and turns amber colour. The trip computer also shows the distance to empty tank.
The figure is schematic - parts may vary depending on car model.
Fuel gauge in the 8-inch driver display:
The bars in the fuel gauge indicate the quan­tity of fuel in the tank.
When the fuel level is low, the fuel pump sym­bol illuminates and turns amber colour. The trip computer also shows the distance to empty tank.

Related information

•
Driver display (p. 79)
•
Filling fuel (p. 474)
•
Fuel tank - volume (p. 689)

Trip computer

The car's trip computer records vales such as e.g. distance, fuel consumption and average speed whilst driving.
In order to facilitate fuel-efficient driving, infor­mation is recorded about both instantaneous and average fuel consumption. The informa­tion from the trip computer can be shown in the driver display.
Page 87
DISPLAYS AND VOICE CONTROL
}}
* Option/accessory.
85
Examples of trip computer information in the 12-inch driver display*. The figure is schematic - parts may vary depending on car model.
Examples of trip computer information in the 8-inch driver display. The figure is schematic - parts may vary depending on car model.
The following meters are included in the trip computer:
•

Trip meter

•

Odometer

•

Instantaneous fuel consumption

•

Distance to empty tank

•

Tourist - alternative speedometer

Units for distance, speed, etc. can be changed via system settings in the centre display.
Trip meter
There are two trip meters, TM and TA. TM can be reset manually and TA is reset
automatically if the car is not used for at least four hours.
The following information is registered while driving:
•
Mileage
•
Driving time
•
Average speed
•
Average fuel consumption
The values apply from the trip meter's latest reset.
Odometer
The odometer records the car's total mileage. This value cannot be reset to zero.
Instantaneous fuel consumption
This gauge shows the fuel consumption that the car has at the moment. The value is upda­ted approximately every second.
Distance to empty tank
The trip computer calculates the remaining mileage with the fuel available in the tank.
The calculation is based on the average fuel consumption over the last 30 km (20 miles) and the remaining drivable fuel quantity.
When the gauge shows "----", there is not enough fuel left to be able to calculate the remaining mileage. Refuel as soon as possible.
NOTE
There may be a slight deviation if the driv­ing style has been changed.
An economic driving style generally results in a longer driving distance.
Tourist - alternative speedometer
The alternative digital speedometer makes it easier to drive in countries where speed limit signs are in a different unit than that shown in the car's instruments.
The digital speed is then shown in the oppo­site unit to that shown in the analogue speed­ometer. If the analogue speedometer is gradu­ated in mph, the digital speedometer shows the corresponding speed in km/h and vice versa.
Page 88
||
DISPLAYS AND VOICE CONTROL
86

Related information

•
Show trip data in the driver display (p. 86)
•
Resetting the trip meter (p. 87)
•
Show trip statistics in the centre display (p. 87)
•
Driver display (p. 79)
•
Changing system units (p. 127)

Show trip data in the driver display

The trip computer's recorded and calculated values can be shown in the driver display.
The values are saved in a trip computer app. Via the app menu, you can choose which information is shown on the driver display.
Open and navigate in the app menu2 using the right­hand steering wheel keypad.
App menu
Left/right
Up/down
Confirm
1. Open the app menu in the driver display by pressing (1).
(It is not possible to open the app menu while there is an unacknowledged mes­sage in the driver display. The message first has to be confirmed by pressing the O button (4) before the app menu can be opened.)
2. Navigate to the trip computer app to left or right with (2).
> The top four menu rows show meas-
ured values for trip meter TM. The next four menu rows show measured values for trip meter TA. Scroll up or down in the list with (3).
2
The figure is schematic - parts may vary depending on car model.
Page 89
DISPLAYS AND VOICE CONTROL
}}
87
3. Scroll down to the option buttons to select which information to show in the driver display:
•
Odometer
•
Distance to empty tank
•
Tourist (alternative speedometer)
•
Mileage for trip meter TM, TA, or no display of mileage
•
Instantaneous fuel consumption, aver­age consumption for TM or TA, alterna­tively, no display of fuel consumption
Select or deselect an option with the O button (4). The change is made immedi­ately.

Related information

•
Trip computer (p. 84)
•
Resetting the trip meter (p. 87)

Resetting the trip meter

Reset the trip meter using the left-hand stalk switch.
–
Reset all information in trip meter TM (i.e. mileage, average consumption, average speed and driving time) with a long press on the RESET button on the left-hand stalk switch.
Pressing the RESET button resets only the mileage.
The trip meter TA can only be reset automati­cally when the car has not been used for four or more hours.

Related information

•
Trip computer (p. 84)

Show trip statistics in the centre display

Trip statistics from the trip computer are dis­played graphically in the centre display and provide an overview that facilitates more fuel­efficient driving.
Open the Driver
performance app in app
view in order to show the trip statistics.
Each bar in the diagram sym-
bolises a distance of 1, 10 or 100 km, alternatively miles. The bars are filled in from the right as driving progresses. The bar on the far right shows the value for the current distance.
The average fuel consumption and total driv­ing time are calculated since the last time the trip statistics were reset.
Page 90
||
DISPLAYS AND VOICE CONTROL
* Option/accessory.
88
Trip statistics from the trip computer3.

Related information

•
Settings for trip statistics (p. 88)
•
Trip computer (p. 84)

Settings for trip statistics

Reset or adjust settings for trip statistics.
1.
Open the
Driver performance app in app
view in order to show the trip statistics.
2.
Press
Preferences to
•
change graph scale. Select resolution 1, 10 or 100 km/miles for the bar.
•
reset data after every trip. Performed when the car has been stationary for more than 4 hours.
•
reset data for the current trip.
Trip statistics, calculated average con­sumption and total driving time are always reset simultaneously.
Units for distance, speed, etc. can be changed via system settings in the centre display.

Related information

•
Show trip statistics in the centre display (p. 87)
•
Trip computer (p. 84)
•
Resetting the trip meter (p. 87)

Date and time

The clock is shown in both the driver display and the centre display.

Clock location

Clock location in the 12-inch* and 8-inch driver dis­play. The figure is schematic - parts may vary depending on car model.
In certain situations, messages and informa­tion may cover the clock in the driver display.
In the centre display, the clock is located at the top right of the status bar.
3
The figure is schematic - parts may vary depending on car model.
Page 91
DISPLAYS AND VOICE CONTROL
* Option/accessory.
89

Date and time settings

–
Select Settings System Date and
Time
in the centre display's top view to
change settings for time and date format. Adjust the date and time by pressing the
up or down arrow on the touch screen.
Automatic time for cars with GPS
When the car is equipped with a navigation system,
Auto Time can be selected. The time
zone is then adjusted automatically based on the location of the car. For certain types of navigation systems, the current location (country) must also be set to obtain the right time zone. If Auto Time is not selected, time and data are adjusted with arrow up or arrow down on the touch screen.
Summer time
In certain countries, it is possible to select the
Auto Daylight Saving Time setting for auto-
matic setting of summer time. For other coun­tries, the Daylight Saving Time setting can be selected manually.

Related information

•
Driver display (p. 79)
•
Other settings in the centre display's top view (p. 127)

Outside temperature gauge

The outside temperature is shown in the driver display.
A sensor detects the temperature outside of the car.
Outside temperature gauge location in the 12-inch* and 8-inch driver display. The figure is schematic ­parts may vary depending on car model.
If the car has been stationary, the gauge may display a temperature reading that is too high.
When the outside temperature is in the range –5 °C to +2 °C (23 °F to 36 °F), a snowflake symbol lights up that warns of potentially slippery
conditions. The symbol is also illuminated briefly in the
head-up display*, if the car is equipped with one.
Change the unit for the temperature gauge, etc. via system settings in the centre display's top view.

Related information

•
Driver display (p. 79)
•
Changing system units (p. 127)
Page 92
DISPLAYS AND VOICE CONTROL
90

Indicator and warning symbols

The indicator and warning systems alert the driver to the fact that a function is activated, a system is working, or a defect or serious error has occurred.

Red symbols

Warning
The red warning symbol illumi­nates when a fault has been detected which could affect the safety or drivability of the car. An explanatory text is shown on the driver display at the same time.
The warning symbol can also illu­minate in conjunction with other symbols.
Seatbelt reminder
Illuminates or flashes when someone in the car is not wear­ing a seatbelt.
Airbags
An error has been detected in any of the car's safety systems.
Read the message on the driver display and contact a workshop. Volvo recommends that an authorised Volvo workshop is contacted.
Fault in brake system
An error has occurred on the braking system.
Read the message on the driver display and contact a workshop. Volvo recommends that an authorised Volvo workshop is contacted.
Parking brake
Light illuminated permanently: The parking brake is activated.
Flashing: an error has occurred with the parking brake. Read the message in the driver display.
Faults in the electrical system
An error has occurred on the electrical system.
Read the message on the driver display and contact a workshop. Volvo recommends that an authorised Volvo workshop is contacted.
High engine temperature
The engine temperature is too high. Read the message in the driver display.
Collision risk
City Safety warns of a risk of col­lision with other vehicles, pedes­trians, cyclists or large animals.
Low oil pressure
The engine oil pressure is too low. Stop the engine immedi­ately and check the engine oil level, top up if necessary.
If the symbol lights up and the oil level is normal, read the message on the display and contact a workshop. Volvo recommends that an authorised Volvo work­shop is contacted.

Amber symbols

Information
A fault has occurred in one of the car's systems. Read the message in the driver display.
The information symbol can also illuminate in conjunction with other symbols.
Fault in brake system
An error has occurred on the braking system. Read the mes­sage in the driver display.
Page 93
DISPLAYS AND VOICE CONTROL
}}
91
ABS fault
The system is disengaged. The car's regular brake system con­tinues to work, but without the ABS function.
AdBlue system (diesel) Low AdBlue level or fault in
AdBlue system.
Emissions system
Emissions systems fault. Drive to a workshop for checking. Volvo recommends that an authorised Volvo workshop is contacted.
Rear fog lamp
The rear fog lamp is illuminated.
Tyre pressure system
Low tyre pressure. If there is a fault in the tyre pres-
sure system, the symbol will flash for approx. 1 minute and then illuminate with a constant glow. This may be because the system cannot detect or warn of low tyre pressure as intended.
Fault in the headlamp system
A fault has occurred on the head­lamp system. Read the message in the driver display.
Lane assistance
Lane assistance warns/inter­venes.
Stability system
Light on permanently: a fault has occurred in the system.
Flashing: the system is working.
Stability system, sport mode
Sport mode is selected.

Blue symbols

Active main beam
Active main beam is activated and switched on.
Main beam
Main beam is switched on.

Green symbols

Automatic brake
The function is activated and the service brake or parking brake is operating.
Front fog lamps
The front fog lamp is switched on.
Position lamps
The position lamps are switched on.
Left and right-hand direction indicator
The direction indicator is being used.

White/grey symbols

Active main beam
Active main beam is activated, but does not come on.
Preconditioning
Engine and compartment heater/air conditioning pre-con­dition the car.
Page 94
||
DISPLAYS AND VOICE CONTROL
92
Lane assistance
White symbol: Lane assistance is on and road lines are detected.
Grey symbol: Lane assistance is on but road lines are not detected.
Rain sensor
The rain sensor is activated.

Related information

•
Driver display (p. 79)

License agreement for the driver display

A license is an agreement for the right to operate a certain activity or the right to use someone else's entitlement according to the terms and conditions in the agreement. The following text is Volvo's agreement with the manufacturer or developer.
Boost Software License 1.0
Permission is hereby granted, free of charge, to any person or organization obtaining a copy of the software and accompanying documentation covered by this license (the "Software") to use, reproduce, display, distribute, execute, and transmit the Software, and to prepare derivative works of the Software, and to permit third-parties to whom the Software is furnished to do so, all subject to the following: The copyright notices in the Software and this entire statement, including the above license grant, this restriction and the following disclaimer, must be included in all copies of the Software, in whole or in part, and all derivative works of the Software, unless such copies or derivative works are solely in the form of machine-executable object code generated by a source language processor.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON INFRINGEMENT. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR ANYONE DISTRIBUTING THE SOFTWARE BE LIABLE FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Page 95
DISPLAYS AND VOICE CONTROL
}}
93
BSD 4-clause "Original" or "Old" License
Copyright (c) 1982, 1986, 1990, 1991, 1993 The Regents of the University of California. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
BSD 3-clause "New" or "Revised" License
Copyright (c) 20112014, Yann Collet. Redistribution and use in source and binary
forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the organisation nor the names of its contributors may be used to endorse or promote products derive from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Page 96
||
DISPLAYS AND VOICE CONTROL
94
BSD 2-clause “Simplified” license
Copyright (c) <YEAR>, <OWNER> All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The views and conclusions contained in the software and documentation are those of the authors and should not be interpreted as representing official policies, either expressed or implied, of the FreeBSD Project.
FreeType Project License
1. 1 Copyright 19961999 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of
free software in commercial and freeware products alike. As a consequence, its main points are that: o We don't promise that this software works. However, we are be interested in any kind of bug reports. (`as is' distribution) o You can use this software for whatever you want, in parts or full form, without having to pay us. (`royalty-free' usage) o You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge somewhere in your documentation that you've used the FreeType code. (`credits') We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial products, provided that all warranty or liability claims are assumed by the product vendor. Legal Terms 0. Definitions Throughout this license, the terms `package', `FreeType Project', and `FreeType archive' refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType project', be they named as alpha, beta or final release. `You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'. This program is referred to as `a program using the FreeType engine'. This license applies
Page 97
DISPLAYS AND VOICE CONTROL
}}
95
to all files distributed in the original FreeType archive, including all source code, binaries and documentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this. The FreeType project is copyright (C) 19961999 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below. 1. No Warranty THE FREETYPE ARCHIVE IS PROVIDED `AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT. As you have not signed this license, you are not required to accept it. However, as the FreeType project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType project, you indicate that you
understand and accept all the terms of this license.
2. Redistribution Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: o Redistribution of source code must retain this license file (`licence.txt') unaltered; any additions, deletions or changes to the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, original files must be preserved in all copies of source files. o Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn't mandatory. These conditions apply to any software derived from or based on the FreeType code, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.
3. Advertising The names of FreeType's authors and contributors may not be used to endorse or promote products derived from this software without specific prior written permission. We suggest, but do not require, that you use one or more of
the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project', `FreeType Engine', `FreeType library', or `FreeType Distribution'.
4. Contacts There are two mailing lists related to FreeType: o [email protected] Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven't found anything to help you in the documentation. o [email protected] Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc. o http://www.freetype.org Holds the current FreeType web page, which will allow you to download our latest development version and read online documentation. You can also contact us individually at: David Turner <[email protected]> Robert Wilhelm <[email protected]> Werner Lemberg <[email protected]>
Page 98
||
DISPLAYS AND VOICE CONTROL
96
Libpng License
This copy of the libpng notices is provided for your convenience. In case of any discrepancy between this copy and the notices in the file png.h that is included in the libpng distribution, the latter shall prevail.
COPYRIGHT NOTICE, DISCLAIMER, and LICENSE:
If you modify libpng you may insert additional notices immediately following this sentence.
libpng versions 1.0.7, July 1, 2000, through
1.0.13, April 15, 2002, are Copyright (c) 20002002 Glenn Randers-Pehrson and are distributed according to the same disclaimer and license as libpng-1.0.6 with the following individuals added to the list of Contributing Authors
Simon-Pierre Cadieux Eric S. Raymond Gilles Vollant and with the following additions to the
disclaimer: There is no warranty against interference with
your enjoyment of the library or against infringement. There is no warranty that our efforts or the library will fulfill any of your particular purposes or needs. This library is provided with all faults, and the entire risk of
satisfactory quality, performance, accuracy, and effort is with the user.
libpng versions 0.97, January 1998, through
1.0.6, March 20, 2000, are Copyright (c) 1998, 1999 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-0.96, with the following individuals added to the list of Contributing Authors:
Tom Lane Glenn Randers-Pehrson Willem van Schaik libpng versions 0.89, June 1996, through
0.96, May 1997, are Copyright (c) 1996, 1997 Andreas Dilger Distributed according to the same disclaimer and license as libpng-0.88, with the following individuals added to the list of Contributing Authors:
John Bowler Kevin Bracey Sam Bushell Magnus Holmgren Greg Roelofs Tom Tanner libpng versions 0.5, May 1995, through 0.88,
January 1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.
For the purposes of this copyright and license, "Contributing Authors" is defined as the following set of individuals:
Andreas Dilger Dave Martindale Guy Eric Schalnat Paul Schmidt Tim Wegner The PNG Reference Library is supplied "AS
IS". The Contributing Authors and Group 42, Inc. disclaim all warranties, expressed or implied, including, without limitation, the warranties of merchantability and of fitness for any purpose. The Contributing Authors and Group 42, Inc. assume no liability for direct, indirect, incidental, special, exemplary, or consequential damages, which may result from the use of the PNG Reference Library, even if advised of the possibility of such damage.
Permission is hereby granted to use, copy, modify, and distribute this source code, or portions hereof, for any purpose, without fee, subject to the following restrictions:
Page 99
DISPLAYS AND VOICE CONTROL
}}
97
1. The origin of this source code must not be misrepresented.
2. Altered versions must be plainly marked as such and must not be misrepresented as being the original source.
3. This Copyright notice may not be removed or altered from any source or altered source distribution.
The Contributing Authors and Group 42, Inc. specifically permit, without fee, and encourage the use of this source code as a component to supporting the PNG file format in commercial products. If you use this source code in a product, acknowledgment is not required but would be appreciated.
A "png_get_copyright" function is available, for convenient use in "about" boxes and the like:
printf("%s",png_get_copyright(NULL)); Also, the PNG logo (in PNG format, of course)
is supplied in the files "pngbar.png" and "pngbar.jpg (88x31) and "pngnow.png" (98x31).
Libpng is OSI Certified Open Source Software. OSI Certified Open Source is a certification mark of the Open Source Initiative.
Glenn Randers-Pehrson [email protected] April 15, 2002
MIT License
Copyright (c) <year> <copyright holders> Permission is hereby granted, free of charge,
to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
zlib License
The zlib/libpng License Copyright (c) <year> <copyright holders>
This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.
Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:
1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.
Page 100
||
DISPLAYS AND VOICE CONTROL
98
SGI Free Software B License Version 2.0.
SGI FREE SOFTWARE LICENSE B (Version
2.0, Sept. 18, 2008) Copyright (C) [dates of first publication]
Silicon Graphics, Inc. All Rights Reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice including the dates of first publication and either this permission notice or a reference to http://oss.sgi.com/ projects/FreeB/ shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL SILICON GRAPHICS, INC. BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name of Silicon Graphics, Inc. shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from Silicon Graphics, Inc.

Related information

•
Driver display (p. 79)

App menu in the driver display

The app menu in the driver display provides quick access to commonly used functions for certain apps.
The figure is schematic.
The app menu in the driver display can be used instead of the centre display and is con­trolled using the right-hand keypad on the steering wheel. The app menu makes it easier to switch between different apps or functions within the apps without having to let go of the steering wheel.

App menu functions

Different apps give access to different types of functions. The following apps and their associ­ated functions can be controlled from the app menu:
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
