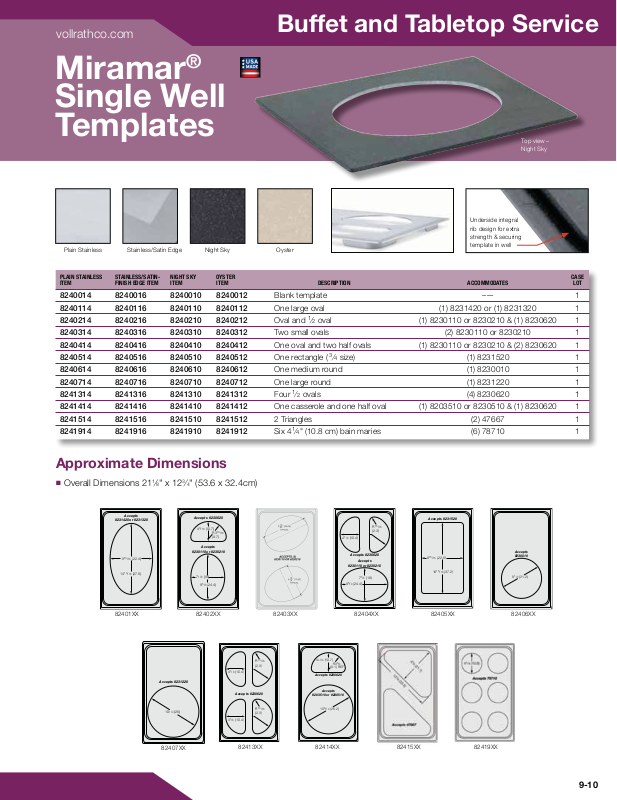

Miramar®
Single Well
Buffet and Tabletop Service
Templates
Plain Stainless
PLAIN STAINLESS
ITEM
Stainless/Satin Edge
STAINLESS/SATINFINISH EDGE ITEM
NIGHT SKY
ITEM
Night Sky Oyster
Underside integral
rib design for extra
strength & securing
template in well
OYSTER
ITEM DESCRIPTION ACCOMMODATES
Top view –
Night Sky
8240014 8240016 8240010 8240012 Blank template –— 1
8240114 8240116 8240110 8240112 One large oval (1) 8231420 or (1) 8231320 1
8240214 8240216 8240210 8240212 Oval and 1⁄2 oval (1) 8230110 or 8230210 & (1) 8230620 1
8240314 8240316 8240310 8240312 Two small ovals (2) 8230110 or 8230210 1
8240414 8240416 8240410 8240412 One oval and two half ovals (1) 8230110 or 8230210 & (2) 8230620 1
8240514 8240516 8240510 8240512 One rectangle ( 3⁄4 size) (1) 8231520 1
8240614 8240616 8240610 8240612 One medium round (1) 8230010 1
8240714 8240716 8240710 8240712 One large round (1) 8231220 1
8241314 8241316 8241310 8241312 Four 1⁄2 ovals (4) 8230620 1
8241414 8241416 8241410 8241412 One casserole and one half oval (1) 8203510 or 8230510 & (1) 8230620 1
8241514 8241516 8241510 8241512 2 Triangles (2) 47667 1
1
8241914 8241916 8241910 8241912 Six 4
⁄4" (10.8 cm) bain maries (6) 78710 1
CASE
LOT
Approximate Dimensions
Q
Overall Dimensions 211⁄8" x 123⁄4" (53.6 x 32.4cm)
Accepts
8231420 or 8231320
813/16 (22.4)
13
14
/16 (37.6)
82401XX 82402XX 82403XX 82404XX 82405XX 82406XX
Accepts 8231220
82407XX
101/4 (26)
Accepts 8230620
43/16 (10.7)
R3
(9.7)
Accepts
8230110 or 8230210
71/8 (18)
5
9
/8 (24.4)
13
/16
41/8 (10.4)
41/8 (10.4)
Accepts 8230620
15
R
/16
(2.3)
41/8 (10.4)
Accepts 8230620
Accepts
8230110 or 8230210
71/8 (18)
5
9
/8 (24.4)
3
4
15
R
/16
(2.3)
15
R
/16
(2.3)
/16 (10.7)
5
R3
/8
(9.1) REF
Accepts 8230620
Accepts
8203510 or 8230510
105/16 (26.2)
82414XX82413XX 82419XX
82415XX
Accepts 8231520
815/16 (22.6)
1415/16 (37.2)
Accepts
8230010
81/3 (21.2)
9-10
