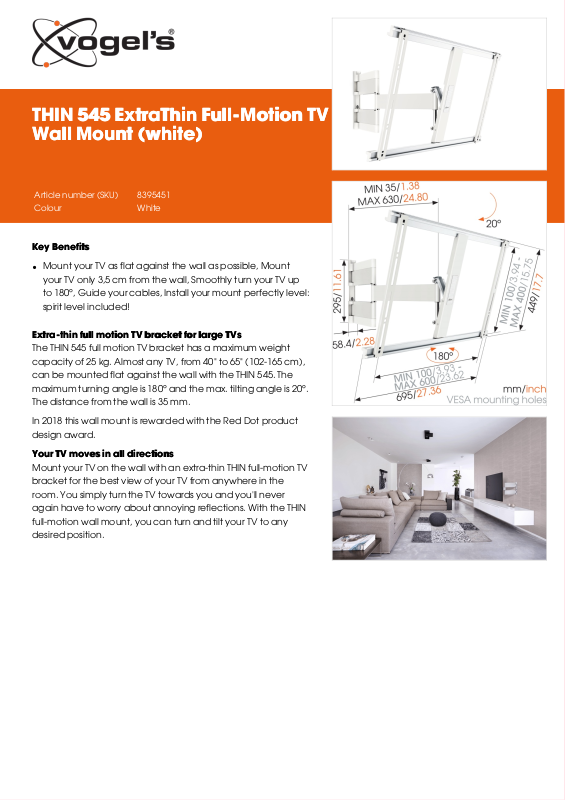

THIN 545 ExtraThin Full-Motion TVTHIN 545 ExtraThin Full-Motion TV
Wall Mount (white)Wall Mount (white)

Article number (SKU) 8395451
Colour White

Key BenefitsKey Benefits

Mount your TV as flat against the wall as possible, Mount
your TV only 3,5 cm from the wall, Smoothly turn your TV up
to 180°, Guide your cables, Install your mount perfectly level:
spirit level included!

Extra-thin full motion TV bracket for large TVsExtra-thin full motion TV bracket for large TVs

The THIN 545 full motion TV bracket has a maximum weight
capacity of 25 kg. Almost any TV, from 40" to 65" (102-165 cm),
can be mounted flat against the wall with the THIN 545. The
maximum turning angle is 180° and the max. tilting angle is 20°.
The distance from the wall is 35 mm.

In 2018 this wall mount is rewarded with the Red Dot product
design award.

Your TV moves in all directionsYour TV moves in all directions

Mount your TV on the wall with an extra-thin THIN full-motion TV
bracket for the best view of your TV from anywhere in the
room. You simply turn the TV towards you and you'll never
again have to worry about annoying reflections. With the THIN
full-motion wall mount, you can turn and tilt your TV to any
desired position.

THIN 545 ExtraThin Full-Motion TVTHIN 545 ExtraThin Full-Motion TV
Wall Mount (white)Wall Mount (white)

www.vogels.com

VOGEL'S HOLDING BV 2018 (c) All rights reserved

Subject to printing errors, technical and price

amendments

Date: 24-09-2018

SpecificationsSpecifications

Product specificationsProduct specifications

Product type number THIN 545
Article number (SKU) 8395451
Colour White
EAN single box 8712285335068
Product size L
TÜV certified Yes
Tilt Tilt up to 20°
Turn Up to 180°
Guarantee Lifetime
Min. screen size (inch) 40
Max. screen size (inch) 65
Max. weight load (kg) 25
Min. hole pattern 100mm x 100mm
Max. hole pattern 600mm x 400mm
Max. screen depth (mm) 0
Max. bolt size M8
Max. height of interface (mm) 449
Max. width of interface (mm) 695

FeaturesFeatures

Functionality Turn
Number of arms 2
Number of pivot points 3

Min. distance to the wall (mm) 35
Max. distance to the wall

(mm)

630
