Page 1
User manual
Vodafone Smart Chat
Page 2
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
Your Vodafone Smart Chat is made exclusively for Vodafone by ZTE
CORPORATION.
No part of this manual reproduced or transmitted in any form or by
any means without prior written consent of ZTE CORPORATION.
Trademarks
Vodafone and the Vodafone logos are trademarks of the Vodafone
Group. Google, Android and its logos are trademarks of Google, Inc.
All other products or service names are the property of their
respective owners.
Notice
The information in this manual is subject to change without notice.
Every effort has been made in the preparation of this manual to
ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute a warranty
of any kind, expressed or implied. Please read the Product Safety
Information carefully to ensure the correct and safe use of your
Vodafone Smart Chat.
Page 3
ZTE CORPORATION Address:
ZTE Deutschland GmbH, Am Seestern 18, 40547 Düsseldorf,
Germany
ZTE Corporation, NO. 55, Hi-tech Road South, Shenzhen, P.R.China
Postal Code: 518057
Website:
http://www.zte.com.cn
Version No. : R1.0
Edition Time : 20120820
Page 4
3
Contents
Safety Precautions .................................................... 11
Pictograms and Graphic Symbols ......................................... 11
RF Exposure ...................................................................... 12
General Statement on RF Energy .................................... 12
Specific Absorption Rate (SAR) ....................................... 12
Body-worn Operation .................................................... 13
Limiting Exposure to Radio Frequency (RF) Fields.............. 14
Regulatory Information ................................................. 14
Getting Started .......................................................... 15
Overview .......................................................................... 15
What the keys do ............................................................... 16
Starting up ........................................................................ 17
How to install your SIM/memory card ............................. 17
How to insert the battery ............................................... 18
How to charge your mobile phone .................................. 18
Powering your phone on/off ............................................... 19
How to power on your phone ......................................... 19
How to power off your phone ......................................... 20
How to switch your phone to sleep mode ........................ 20
How to wake up your phone from sleep mode .................. 20
How to use your phone ...................................................... 21
Using touch ................................................................ 21
Home Screen .............................................................. 22
Phone Status and Notifications ...................................... 25
Page 5
4
Applications and Settings preview .................................. 27
Phone calls ............................................................... 32
Making a call ..................................................................... 32
Making a call from Dialer ............................................... 32
Making a call from Contacts ........................................... 32
Making a call from Call History ....................................... 32
Making a call from a Text Message .................................. 33
Making a conference call............................................... 33
Making an Emergency call ............................................. 34
Making an International call ........................................... 34
Receiving a call ................................................................. 35
Answering an Incoming call ........................................... 35
Rejecting an Incoming call ............................................ 35
Muting a call................................................................ 35
Putting a call on Hold ................................................... 36
Turning the speaker on/off ............................................ 36
Ending a call ................................................................ 36
Call settings ...................................................................... 36
Contacts ................................................................... 38
Starting to use Contacts ..................................................... 38
Contacts screen ........................................................... 38
Managing Contacts ............................................................ 39
Importing/Exporting Contacts ....................................... 39
Creating a contact ........................................................ 40
Adding a contact to Favorites ......................................... 40
Page 6
5
Searching for a contact ................................................. 41
Editing a contact .......................................................... 41
Deleting a contact ........................................................ 41
Entering text ............................................................. 42
Using the hardware keyboard ........................................... 42
Hardware keyboard input settings ........................................ 43
Using the onscreen keyboard .............................................. 44
Onscreen keyboard input settings ........................................ 45
Messages .................................................................. 46
Exchanging messages ........................................................ 46
How to compose an SMS ............................................... 46
How to compose an MMS .............................................. 47
Managing messages and messages threads ..................... 48
Message settings ......................................................... 49
Using Email ...................................................................... 50

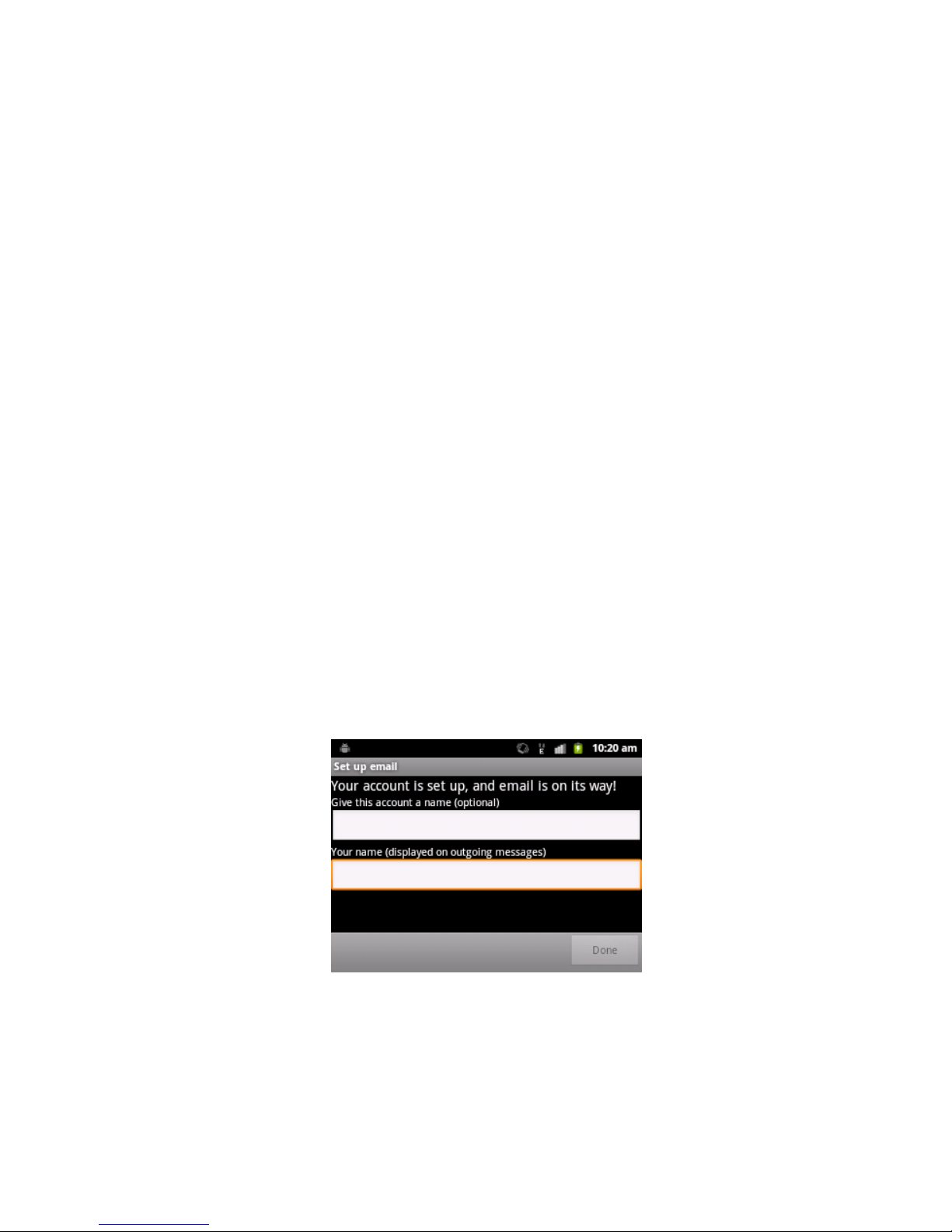

How to create an Email account ..................................... 51
How to compose and send an Email ................................ 53
How to reply to or forward an Email ................................ 53
Email settings .............................................................. 54
Getting connected ..................................................... 56
Connecting to the internet .................................................. 56
Ways of connecting to the internet ................................. 56
GPRS/3G/EDGE ........................................................... 56
Wi-Fi ........................................................................... 57
Using browser ................................................................... 59
Page 7
6
How to open browser .................................................... 59
How to open web pages ................................................ 59
Browsing options ......................................................... 59
Using bookmarks ......................................................... 61
Browser settings .......................................................... 62
Bluetooth ......................................................................... 65
How to turn on/off bluetooth ........................................ 65
How to make your device visible..................................... 65
How to change your device name ................................... 66
How to pair with another bluetooth device ....................... 66
Experiencing multimedia ........................................... 67
Camera ............................................................................ 67
How to open Camera .................................................... 67
How to take pictures ..................................................... 67
Camera settings ........................................................... 68
Camcorder ....................................................................... 69
How to open Camcorder ............................................... 69
How to shoot videos ..................................................... 69
Video settings .............................................................. 69
FM Radio .......................................................................... 70
How to open FM Radio .................................................. 70
How to listen to FM Radio .............................................. 71
Music ............................................................................... 72
How to open Music ....................................................... 72

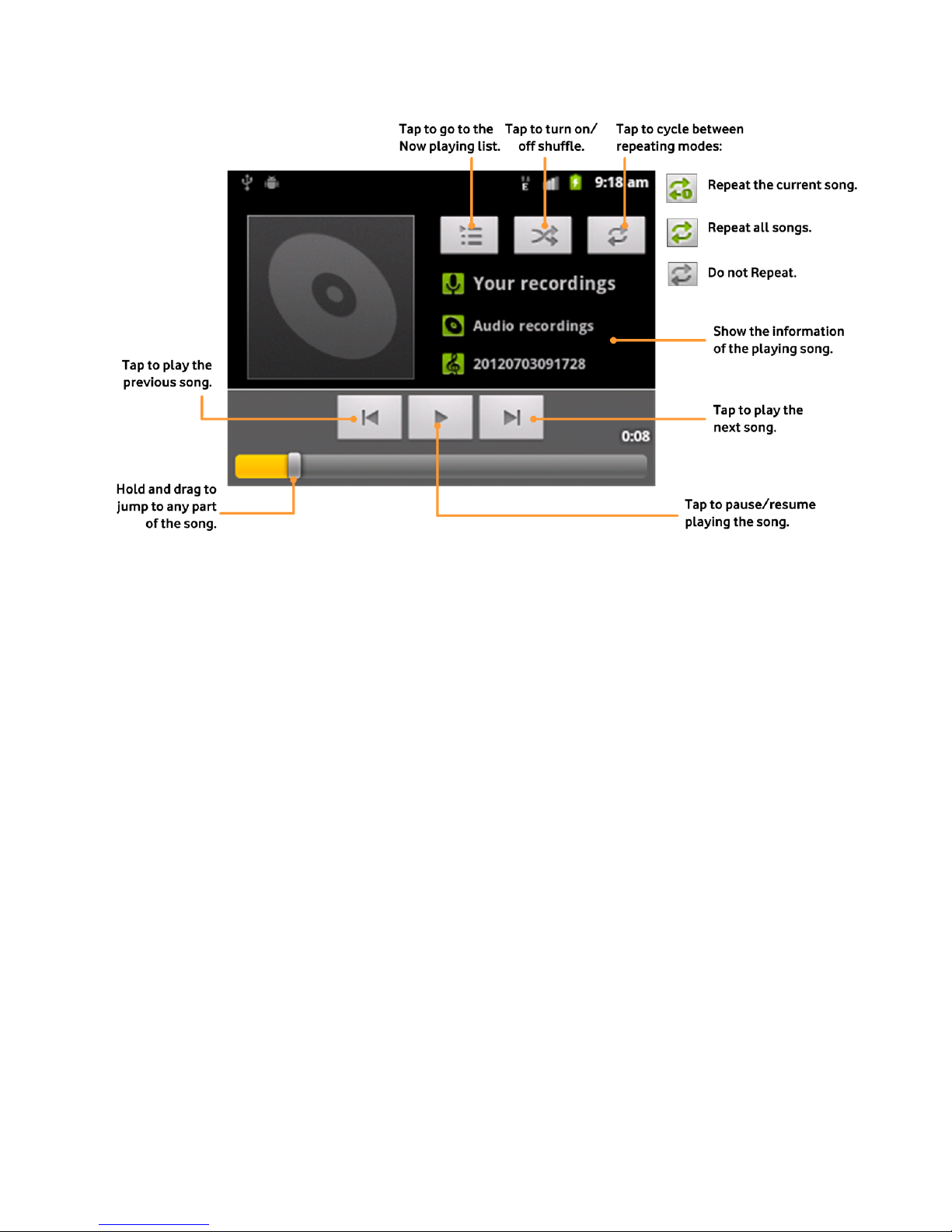

How to play Music ........................................................ 72
How to create playlists .................................................. 73
Page 8
7
Managing Your playlists ................................................ 74
How to set a song as Ringtone ....................................... 74
Videos .............................................................................. 74
How to open Videos ..................................................... 75

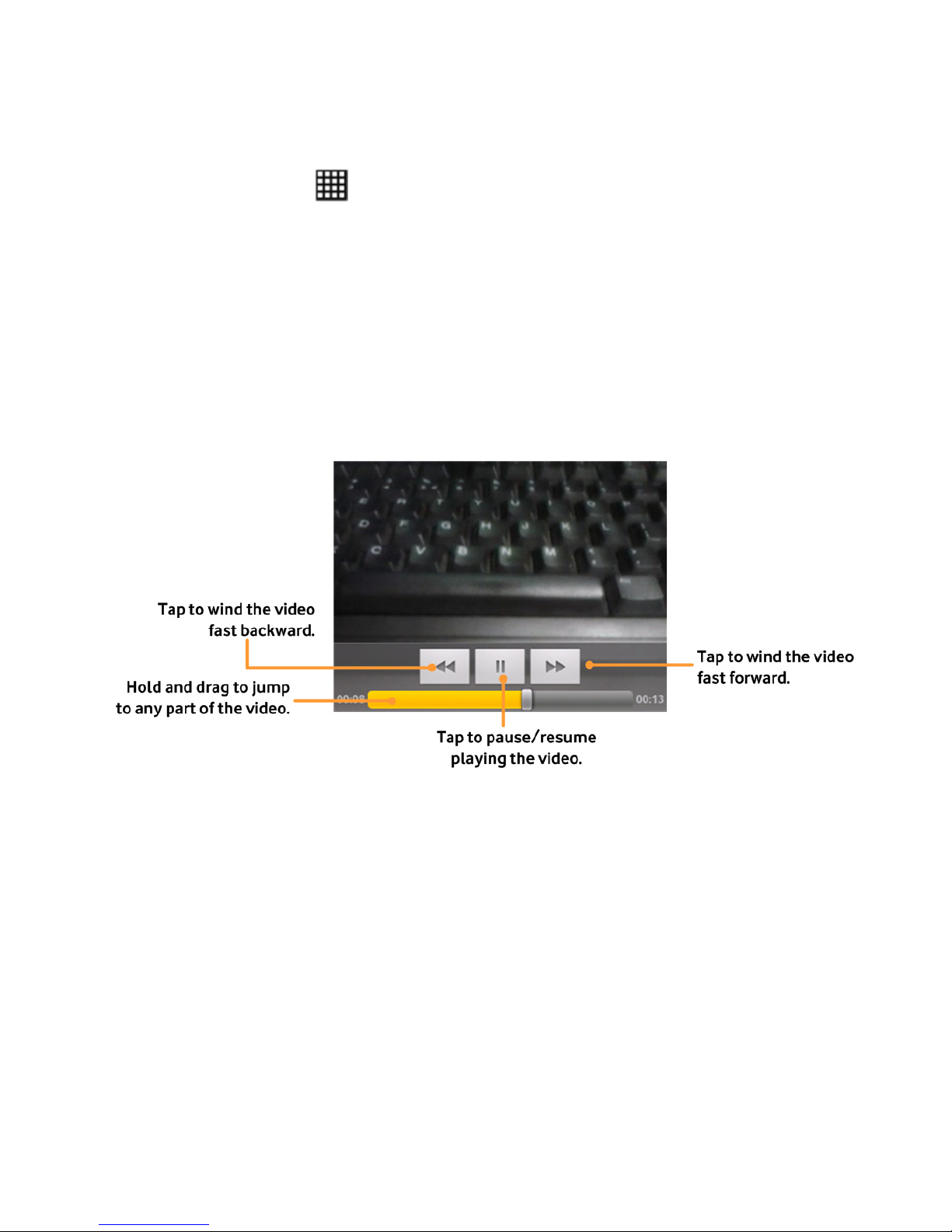

How to play Videos ....................................................... 75

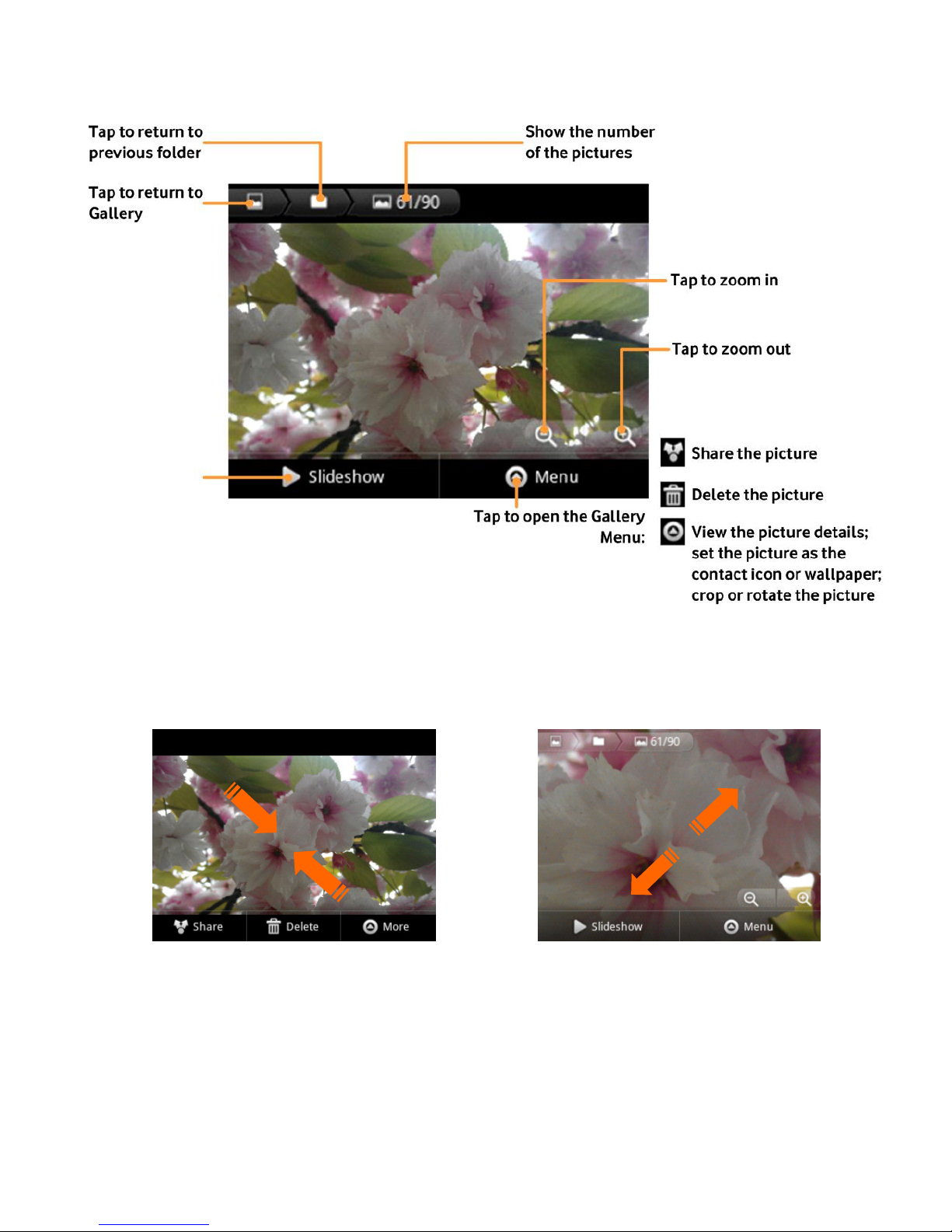

Gallery ............................................................................. 75
Sound Recorder ................................................................ 77
How to open Sound Recorder ........................................ 77
How to record your memos ........................................... 77
Google applications ................................................... 78
Signing In to your google account ........................................ 78
Using Google Calendar ....................................................... 78
Using Google Mail .............................................................. 78
How to open Google Mail .............................................. 79
How to create and send an email .................................... 79
Using Google Talk .............................................................. 79
How to open Google Talk .............................................. 79
How to add a new friend ................................................ 79
How to view and accept an invitation .............................. 80
How to change your online status .................................. 80
How to start a chat ....................................................... 80
Phone settings .......................................................... 81
Basic settings .................................................................... 81
How to set the time and date ......................................... 81
Display settings ........................................................... 81
Page 9
8
Sound settings ............................................................ 82
Language settings ........................................................ 84
Mobile network services ................................................ 85
Security settings ................................................................ 86

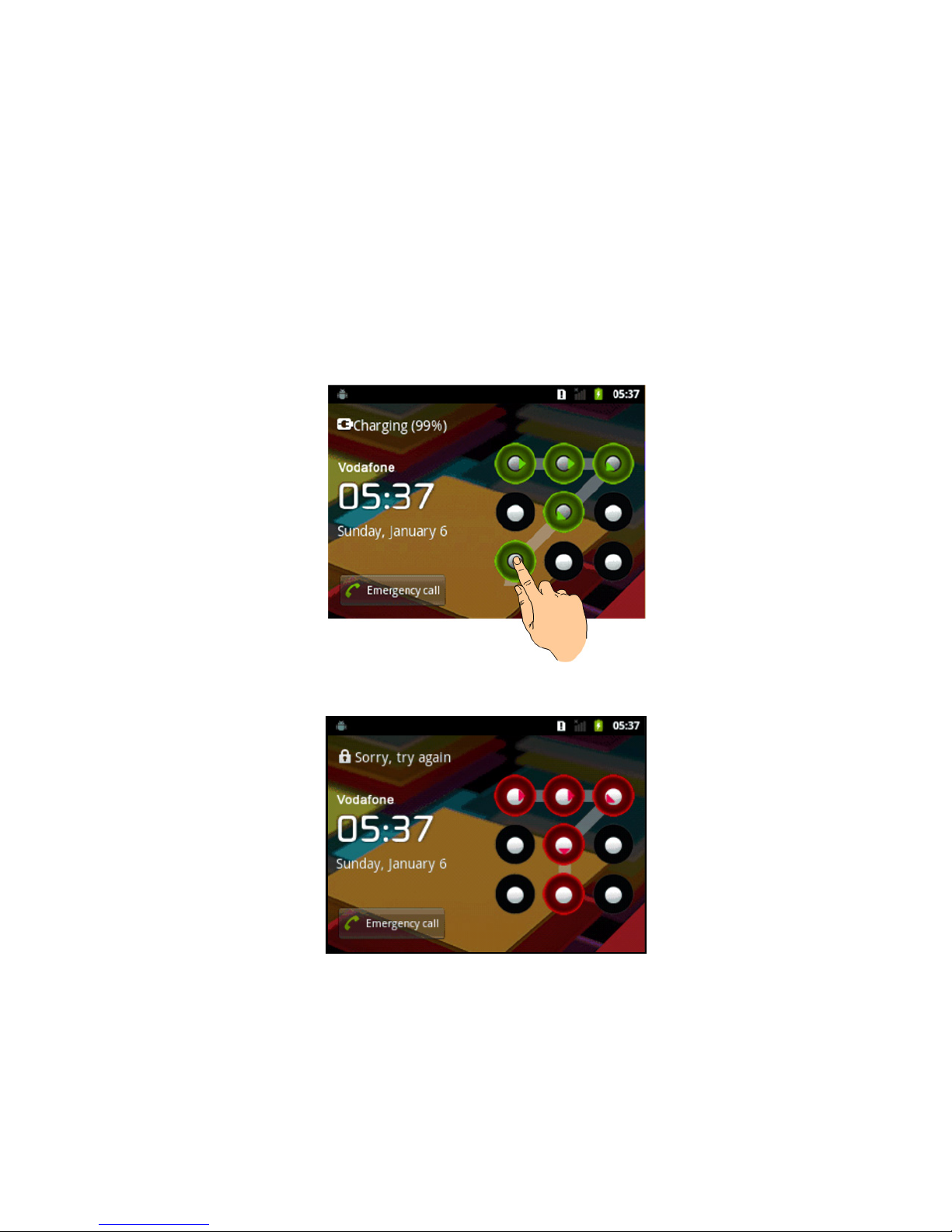

Protecting your phone with a screen lock ........................ 86
Protecting your SIM card with a PIN ................................ 88
Setting up credential storage ......................................... 88
Managing memory ............................................................ 89
Managing your memory card ......................................... 89
Managing internal phone storage ................................... 90
How to reset to factory settings ...................................... 91
How to reduce power consumption ................................ 91
Application settings ........................................................... 93
Managing applications .................................................. 93
Other applications ..................................................... 95
Alarm ............................................................................... 95
How to set alarms ........................................................ 95
Calculator......................................................................... 95
Note pad .......................................................................... 95
SIM Toolkit ....................................................................... 96
Task Manager .................................................................... 96
Google+ service ................................................................ 96
The open source code service ............................................. 97
For Your Safety.......................................................... 99
Distraction ........................................................................ 99
Page 10
9
Driving ........................................................................ 99
Operating Machinery .................................................... 99
Product Handling .............................................................. 99
General Statement on Handling and Use ......................... 99
Small Children ........................................................... 100
Demagnetization ....................................................... 101
Electrostatic Discharge (ESD) ....................................... 101
Power Supply ............................................................ 101
Antenna ................................................................... 101
Normal Use Position ................................................... 101
Air Bags .................................................................... 102
Seizures/ Blackouts ................................................... 102
Repetitive Motion Injuries ............................................ 102
Emergency Calls ........................................................ 103
Loud Noise ................................................................ 103
MP3 and Video Player Function .................................... 103
Bright Light ............................................................... 103
Phone Heating ........................................................... 104
Phone Acoustic.......................................................... 104
Electrical Safety .............................................................. 104
Accessories ............................................................... 104
Connection to a Car .................................................... 104
Faulty and Damaged Products ..................................... 104
Battery Handling & Safety ................................................. 105
Interference .................................................................... 105
Pacemakers .............................................................. 105
Page 11
10
Hearing Aids .............................................................. 106
Medical Devices ......................................................... 106
Hospitals .................................................................. 106
Aircraft ..................................................................... 106
Interference in Cars .................................................... 107
Explosive Environments .................................................... 107
Petrol Stations and Explosive Atmospheres .................... 107
Blasting Caps and Areas .............................................. 107
Declaration of RoHS Compliance .............................. 108
Disposal of Your Old Appliance ................................ 109
EC DECLARATION OF CONFORMITY ......................... 110
Page 12
11
Safety Precautions
Please read the safety precautions carefully to ensure the correct use
of your mobile phone. For detailed information, refer to the section
“For Your Safety” on page 99.
Pictograms and Graphic Symbols
Read the Safety
Information section
of this user manual
on page 99
Do not use while
re-fuelling
Do not use hand-held
while driving
This device may
produce a bright or
flashing light
For body-worn
operation maintain a
separation of 1.5 cm
Do not dispose of it in
a fire
Small parts may
cause a choking
hazard
Avoid contact with
magnetic media
This device may
produce a loud sound
Avoid Extreme
Temperatures
Keep away from
pacemakers and
Avoid any contact
with liquid, keep it dry
Page 13
12
other personal
medical devices
Switch off when
instructed in
hospitals and medical
facilities
Do not attempt to
disassemble
Switch off when
instructed in aircrafts
and airports
Do not rely on this
device for emergency
communications
Switch off in
explosive
environments
Only use approved
accessories
RF Exposure
General Statement on RF Energy
Your phone contains a transmitter and a receiver. When it is ON, it
receives and transmits RF energy. When you communicate with your
phone, the system handling your call controls the power level at
which your phone transmits.
Specific Absorption Rate (SAR)
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves recommended
by international guidelines. These guidelines were developed by the
Page 14
13
independent scientific organisation ICNIRP and include safety
margins designed to assure the protection of all persons, regardless
of age and health.
The guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg
and the highest SAR value for this device when tested at the ear was
0.523 W/kg*. As mobile devices offer a range of functions, they can
be used in other positions, such as on the body as described in this
user guide**.
As SAR is measured utilising the device’s highest transmitting power,
the actual SAR of this device while operating is typically below that
indicated above. This is due to automatic changes to the power level
of the device to ensure it only uses the minimum power required to
communicate with the network.
*The tests are carried out in accordance with [CENELEC EN50360]
[IEC standard PT62209-1].
** Please see page 13 about body worn operation.
Body-worn Operation
Important safety information regarding radiofrequency radiation (RF)
exposure
To ensure compliance with RF exposure guidelines the phone must be
used with a minimum of 1.5cm separation from the body.
Failure to observe these instructions could result in your RF exposure
exceeding the relevant guideline limits.
Page 15
14
Limiting Exposure to Radio Frequency (RF) Fields
For individuals concerned about limiting their exposure to RF fields,
the World Health Organisation (WHO) provides the following advice:
Precautionary measures: Present scientific information does not
indicate the need for any special precautions for the use of mobile
phones. If individuals are concerned, they might choose to limit their
own or their children’s RF exposure by limiting the length of calls, or
using ‘hands-free’ devices to keep mobile phones away from the
head and body.
Further information on this subject can be obtained from the WHO
home page http://www.who.int/peh-emf WHO Fact sheet 193: June
2000.
Regulatory Information
The following approvals and notices apply in specific regions as
noted.
Please find the section Declaration of RoHS Compliance and CE DOC
in the end of this manual.
Page 16
15
Getting Started
Overview
Note: The pictures and icons presented in this manual are meant for
illustrative purposes only and may not accurately represent the actual
pictures and icons found on the phone. Your phone contains the most
up to date information.
Page 17
16
What the keys do
Key Function
Power key • Airplane mode or Power off your phone.
• Hold to get the phone options. You can
select Silent mode, Vibration mode, Airplane
mode or to power off your phone.
• Press to switch your phone to sleep mode.
• Press to wake up your phone.
Home key • Press to return to Home Screen from any
application or screen.
• Hold to see the recently used applications.
Menu key Press to get the options on the current screen.
Back key Press to go to the previous screen.
Volume keys • Press Volume up key to turn the volume up.
• Press Volume down key to turn the volume
down.
Page 18
17
Starting up
How to install your SIM/memory card
Power off your phone before installing or replacing the battery, SIM
card and memory card.
1. Remove the battery cover.
2. Remove the battery.
3. Hold your SIM card and memory card with the cut corner oriented
as shown below and then insert it into the card holder properly.
Page 19
18
Notes:
The microSD logo is a trademark of SD Card Association.
How to insert the battery
1. Insert the battery by aligning the gold contacts on the battery
with the gold contacts in the battery compartment on the phone.
2. Push down the battery until it clicks into place.
How to charge your mobile phone
The new battery is not fully charged. To charge the battery, you need
to:
1. Connect the adapter to your phone via the connector.
Page 20
19
2. Connect the adapter to the charger jack.
3. Connect the charger to a standard AC wall outlet.
Notes:
¾ If the battery is low, there will be a pop-up message on the
screen.
¾ If the battery is charged, the icon
will appear on the
notification bar. When charging is completed, the
battery
indicator
appears on the notification bar.
4. Disconnect the charger when the battery is fully charged.
Powering your phone on/off
How to power on your phone
1. Make sure that your SIM card is in your device and the battery is
charged.
2. Hold the Power key to power on your phone.
Page 21
20
How to power off your phone
1. Hold the Power key to get the phone options.
2. Select Power off, and then touch OK.
How to switch your phone to sleep mode
Press the Power key.
Sleep mode puts your phone in a low power consumption state while
the display is off to save battery power. Your device also goes into
sleep mode automatically when you leave it idle after a certain
period of time.
Tips:
While the device is in sleep mode, it is able to receive incoming calls,
emails and messages.
How to wake up your phone from sleep mode
If your phone is switched to sleep mode, you need to wake it up:
1. Press the Power key to activate your screen display.
2. Drag the lock icon down to unlock.
Page 22
21
Notes:
If you have set an unlock pattern for your phone (see
Phone
Settings-Security settings-Protecting your phone with a screen
lock-To set the screen unlock pattern
on page 86), you need to draw
the pattern to unlock your screen.
How to use your phone
Using touch
You can use touch gestures with your fingers to control your phone. The
controls on your touch screen change dynamically depending on the
tasks you are performing.
1. Touch the buttons, icons, or applications to select items or to
open applications.
2. Touch and hold some items to see available options.
Page 23
22
3. Scroll up/down by sliding your finger up or down the screen.
From the Home screen you can also slide left/right to browse the
extended Home Screen.
4. Drag an item to move it, or do other operations with it.
5. When viewing photos, web pages or maps, you can zoom in and out.
You can double-touch to zoom in, then double- touch again to
zoom out. You can also pinch your fingers together or expand
them to zoom in or out.
Home Screen
You can add or remove home items in your Home Screen.
Notifications bar Displays the reminders and status
icons of your phone. Flick down to
open the notifications panel
Vodafone weather and time Include easy access of location
weather and time.
Page 24
23
Shortcuts Touch these shortcuts to start related
applications.
Right side bar Include the Browser, Apps menu and
Dialer.
How to extend the Home Screen
Beyond the screen width, the Home Screen extends to provide more
space for adding items. Slide your finger to the left or right to get
the extended Home Screen.
Customise the Home Screen Wallpaper
To change the wallpaper
1. Press Home Key to return to Home Screen if needed.
2. Press Menu Key and select Wallpaper.
3. Select the wallpaper you want to use from Gallery, Live
wallpapers, or Wallpapers.
4. Touch Save or Set wallpaper.
Page 25
24
To add a Home Screen item
1. Press Home Key to return to Home Screen.
2. Slide your finger to the left or right to get the extended Home
Screen if needed.
3. Press Menu Key and select Add.
You can also touch and hold the blank area of the Home Screen
to get the Add to Home screen shortcut menu.
4. Select the category and the item you want.
To remove a Home Screen item
1. Press Home Key to return to Home Screen.
2. Slide your finger to the left or right to get the extended Home
Screen if needed.
3. Hold the item you want to delete until the
icon appears on the
screen.
4. Drag the item to .
Page 26
25
Phone Status and Notifications
Phone Status
GPRS connected
Signal strength
GPRS in use
No signal
EDGE connected
Vibrate mode
EDGE in use
Phone microphone
is mute
3G connected
No SIM card installed
3G in use
GPS is on
Battery is very low
Bluetooth is on
Battery is low
USB is connected
Battery is full
Speaker is on
Battery charging
Alarm is set
Airplane mode
Wired microphone
headset
Tips:
Signing in to your Google Account enables the signal strength icon and
data connection icon to green (
, , , ) on your phone.
Page 27
26
Notifications
New Mail
New instant
message
New SMS/MMS
Upcoming event
New Gmail message
/
Song is playing
Missed call
Downloading data
Call in progress
Portable Wi-Fi
hotspot on
Call on hold
Uploading data
Error or warning
More (not displayed)
notifications
How to open the notification panel
From the notifications panel, you can get the information of calendar
events, new messages, and ongoing settings such as call forwarding
or the current call status. You can open the message, reminder, event
notification etc. from the Notification Panel.
1. Hold the notification bar until
appears on the top of the
Screen.
2. Drag
downwards.
Tips:
You can also open the notification panel from the Launcher Home
Screen by pressing Menu Key > More > Notifications.
Page 28
27
Applications and Settings preview
Programs preview
Your Vodafone Smart Chat has lots of functions. Touch
to get
the following programs that are pre-installed on your device.
Applications Description
Alarm Enables you to set alarms.
Browser Enables you to browse the internet.
Calculator Enables you to perform basic calculations such as
addition, subtraction, multiplication, division.
Calendar Enables you to schedule appointments,
including meetings and other events.
Camera Enables you to enter the camera screen directly
and use the camera features.
Contacts Enables you to manage the information of your
contacts.
Dialer Enables you to dial a number to call.
Email Enables you to enter the Email screen, where
you can setup Email, send or receive Emails.
FM-Radio Enables you to search for radio channels, listen to
them, and save them on your device.
Gallery Enables you to organize and manage your
multimedia files.
Page 29
28
Applications Description
Gmail Enables you to access your Gmail account and
check your email on your mobile phone.
Maps Enables you to track your current location, view
real-time traffic situations, and receive detailed
directions to your destination.
Messages Enables you to enter the Messages screen, where
you can send and receive SMS and MMS
messages.
MGolf Park 99
Trial
Play the game on your phone.
Music Enables you to browse your audio files and listen
to them in the Music player.
Music Shop Have your music with you, wherever you are.
My Web Lets you create your personal web page, with all
the news, information and features you want.
Settings Enables you to adjust the device settings.
SIM Toolkit Appears on the screen only if your SIM card
provides this function. Please contact your service
provider for detailed information.
Sound Recorder Enables you to record audio clips.
Talk Enables you to send and receive instant
messages and voice over internet protocol
(VOIP), offered by Google Inc.
Page 30
29
Applications Description
Task Manager Enables you to view and manage all the running
programs on your device.
Videos Enables you to browse your video files and watch
them in the Video player.
YouTube Enables you to view videos that have been
uploaded by YouTube members.
Settings preview
You can adjust the device settings. Press Home Key > >
Settings to view all the settings on your device.
Tips:
You can also press Menu Key > Settings from the Home Screen.
Wireless &
networks
Enables you to configure and manage your
phone’s wireless connections, such as Wi-Fi,
Bluetooth, mobile networks, and Virtual Private
Networks. You can also enable the Airplane
mode.
Call settings Enables you to set up fixed dialing numbers,
voicemail, DTMF tones, call forwarding, call
waiting, and caller ID etc.
Sound Enables you to set sound settings, such as
ringtones, notifications.
Display Settings such as screen brightness and so on.
Page 31
30
Location &
security
Enables you to set the screen unlock pattern,
enable the SIM card lock, or manage the phone’s
credential storage. You can also select the
sources to use when determining locations from
My Location.
Applications Enables you to manage applications and
installation of new programs.
Account & sync Enables you to manage your account and
configure general sync settings.
Privacy Enables you to configure privacy settings, such
as Location, back up Settings, and Personal data.
Storage Enables you to check the available memory of the
external card and the internal phone storage.
You can also unmount or format the external
card.
Language &
keyboard
Enables you to set the locale (operating system
language and region) and text input options.
Accessibility Enables you to manage accessibility options.
Voice input &
output
Enables you to configure the voice recognizer
settings or text-to-speech settings if you have
installed a text-to-speech (voice data) application.
Date & time Enables you to set the date, time, time zone, and
date/time format. If the network supports, you
can also enable automatic time update.
Page 32
31
About phone Enables you to view the phone status, battery
level, legal information, etc.
How to open recently used applications
1. Hold Home Key from any screen until the following recently used
applications interface appears.
2. Touch an application you want to open.
Page 33
32
Phone calls
Making a call
Making a call from Dialer
1. Touch > Dialer from Home Screen.
2. Enter the phone number or the contact name you want to call.
Touch
to erase a wrong entry, hold this key to clear all
digits. Your phone automatically lists the matching numbers
or contacts. You can touch
to hide the input box and to see
if there are more matching numbers or contacts.
3. Touch .
Making a call from Contacts
1. Press Home Key > > Contacts.
2. Slide your finger to scroll the contacts list and touch the
contact you want to call.
3. Touch .
Making a call from Call History
1. Press Home Key > > Dialer to open the Dialer.
2. Touch
to open Call History.
Tips:
Page 34
33
You can also open Call History by touching the Call log tab
from the Contacts Screen.
3. Touch a recently dialed, received or missed call from the list.
You can scroll down the list to see more call history.
4. Touch
.
Making a call from a Text Message
If a text message contains a phone number that you want to call, you
can make the call while viewing the text message.
1. Press Home Key > > Messages and touch the message that
contains the phone number you want to call.
2. Touch the message content.
3. Select the number and touch
.
Making a conference call
You can create a phone session between yourself and two or more
other parties.
Notes:
This function is subject to your service operator and the network
status.
1. Call the first number.
2. While you are connected to the first number, press Menu Key >
Add call.
3. Call the second number.
Page 35
34
4. While you are connected to the second number, press Menu Key >
Merge calls.
5. To add the third party, touch Add call.
6. Dial the number, and when connected, touch Merge calls.
Making an Emergency call
1. Enter the emergency number for your location from Dialer.
2. Touch .
Notes:
In most countries it is possible to dial emergency numbers when the
SIM card is not inserted.
Your SIM card may store other emergency numbers. Contact your
service operator if you need more information.
Making an International call
Notes:
This function is subject to your service operator and the network
status.
1. Enter “+”.
2. Enter the full phone number.
For example: +49-123-12345678 in the following format: +
country code-area code-phone number.
3. Touch
.
Page 36
35
Receiving a call
Answering an Incoming call
When there is an incoming call, the phone will display the
information on the screen.
Slide to right to answer the call
.
Rejecting an Incoming call
Slide
to left to reject the call
.
Muting a call
During a call, you can mute your microphone so that the person
with whom you are speaking cannot hear you, but you can still hear
him or her.
Touch
.
Page 37
36
When the microphone is turned off, the mute icon
appears on the
screen.
Putting a call on Hold
During a call, you can use the following methods to put the call on
hold.
Touch Hold on incall screen currently.
The icon will be displayed if a call is on hold.
If you are already on a call and accepted the new call, the first call
will be put on hold automatically. You can choose to switch between
the two callers by touching Swap on incall screen currently.
Turning the speaker on/off
Touch during a call.
The speakerphone icon ( ) appears in the notification bar when the
speakerphone is on.
Ending a call
During a call, you can touch to end it.
Call settings
You can adjust the call settings of your phone. To open the call settings
menu, press Menu Key > Settings > Call settings from the Home
Screen.
Page 38
37
Fixed Dialing
Numbers
Enables you to restrict outgoing calls to a fixed set of
numbers. To enable this feature you must know your
SIM card’s PIN2 code.
Voicemail
service
Enables you to select a voicemail service provider.
Voicemail
settings
Enables you to specify a voicemail number.
DTMF Tones Enables you to set the length of DTMF tones.
GSM/
WCDMA call
settings
Call
forwarding
Enables you to forward incoming calls
to a different number. You can select
when to forward: Always forward,
Forward when busy, Forward when
unanswered, or Forward when
unreachable.
Additional
settings
Caller ID
Enables you to choose
whether to display your
number in outgoing calls.
Call waiting
Enables you to choose
whether to be notified of
new incoming calls while
you are already on a call.
Page 39
38
Contacts
Starting to use Contacts
You can add new contacts along with their information. Setting up
communication information for the contact will allow you to call the
person quickly or browse the contact's information. Contacts are
saved in the phone memory or in the SIM card. If you store the
information in the SIM card, you can fill the name and a number. If
you store the information in the phone memory, you can also fill
out more information including Email, Postal address, pictures,
Nickname, website, etc.
Press Home Key >
> Contacts to enter the Contacts Screen.
Contacts screen
There are five tabs in the Contacts Screen: Dialer, Call log, Contacts,
Favorites, and Groups.
Page 40
39
Managing Contacts
Importing/Exporting Contacts
You can import/export contacts from/to your SIM card or
microSD card.
To Import/export contacts from/to SIM card
1. Press Menu Key > Import/Export from the Contacts Screen.
2. Select to import or export contacts from/to SIM card.
Your Vodafone Smart Chat will automatically read the contacts.
3. Select the contacts you want to import/export.
Tips:
¾
If you want to import all contacts saved in your SIM card, tip
.
¾
If you want to export all contacts to your SIM card, tip .
4. Touch if needed.
To Import/export contacts from/to memory card
1. Press Menu Key > Import/Export from the Contacts Screen.
2. Select to import or export contacts from/to memory card.
If you want to import contacts from memory card, you should
have vCard files saved in the memory card. If there is more than one
vCard file, you can select to import one vCard file, multiple vCard
files or all vCard files.
3. Touch
if needed.
Page 41
40
Creating a contact
1. Press Menu Key > New contact from the Contacts Screen.
2. Select the location to save your contact.
3. Enter the name and phone numbers. You can also set the Email
addresses, Chat addresses, Postal addresses, Organizations,
Notes etc. if you select to create a phone contact.
4. Touch Done to save the contact.
Adding a contact to Favorites
1. Find the contact you want to add to Favorites from your Contacts
Screen.
2. Hold the contact until a shortcut menu appears.
3. Touch Add to favorites.
Tips:
You can also select a contact and touch the star next to the contact’s
name to add the contact to Favorites. Touch the star again to remove
the contact from Favorites.
Page 42
41
Searching for a contact
1. Press Search Key from the Contacts Screen.
2. Input the contact name you want to search for.
The contacts matched will be listed.
Editing a contact
1. Select the contact you want to edit from the Contacts Screen.
2. Touch .
Tips:
You can also edit a contact by holding it in the Contacts Screen
and select Edit contact from the pop-up shortcut menu.
3. Edit the contact and touch Done.
Deleting a contact
1. Select the contact you want to delete from the Contacts Screen.
2. Touch
.
3. Touch OK.
Tips:
If you need to delete multiple contacts, you can press Menu Key >
Delete contacts from the Contacts Screen and select the contacts
in Phone or SIM card to delete.
Page 43
42
Entering text
Using the hardware keyboard
Your phone has a hardware keyboard – a compact version of standard
computer keyboard.
When entering text, do the following:
• To enter lowercase letters, press the letter keys on the hardware
keyboard.
• To enter a single uppercase letter, press
and then press the
corresponding key.
Page 44
43
• To enter all uppercase letters, press
twice and then press the
letter keys. To change back to all lowercase letters, press
again.
• To enter a character, number or symbol (labeled at the upper
part of the key), press
then press the corresponding keys.
Press
twice to enter all characters, numbers or symbols
(labeled at the upper part of the key). And then the same again
to go to normal type.
• To open the symbol pad, press . You can touch on the screen
to enter a symbol.
• To move the cursor, touch on the screen.
• To delete the character before the cursor, press
.
• To start a new line, press
.
• To enter a space, press
.
NOTE: Holding a specific letter key may result in multiple accented
character options (like á, ü, é, etc). Touch on the screen to enter the
character you need.
Hardware keyboard input settings
You can choose the text input settings for the hardware keyboard by
press Menu Key >
> Settings > Language & keyboard >
Build-in keyboard from the Home Screen.
Tick the check boxes to enable the following options:
Page 45
44
• Auto-replace: Correct the mistyped words automatically.
• Auto-cap: Capitalize the first letter in each sentence
automatically.
• Auto-punctuate: Press the space key twice to insert “.”
Using the onscreen keyboard
You can also use the onscreen Android keyboard to enter text. If the
keyboard is enabled, it automatically appears on the screen when you
enter a field that needs text.
To enable the onscreen keyboard:
1. Press Home Key > > Settings > Language & keyboard.
2. Tick the Android keyboard check box.
3. Touch Android keyboard and tick the Enable the soft
keyboard check box.
The Android keyboard provides a layout similar to a desktop
computer keyboard. Turn the phone sideways and the keyboard will
change from portrait to landscape.
Page 46
45
• Touch the alphabetic keys to enter letters. Touch and hold some
specific keys to enter associated accented letters or numbers. For
example, to enter È, touch and hold
and the available
accented letters and number 3 appear. Then slide to choose È.
• Touch to use uppercase or lowercase. This key also changes
to indicate the current case you are using: for lowercase,
for uppercase, and when locked in uppercase.
• Touch to delete the text before the cursor.
• Touch to select numbers and symbols. You can then touch
to find more. Also, often used symbols are displayed on top
of the keyboard. Flick left or right to find the one you need and
touch to enter.
• Touch
to enter a smiley face; hold the key and swipe to
choose more emoticons.
• Touch to use Google’s networked voice input.
• Touch and hold and then select to set up Android
keyboard.
Onscreen keyboard input settings
You can set the options for Android keyboard by press Menu Key >
> Settings > Language & keyboard > Android keyboard from
the Home Screen.
Page 47
46
Messages
Messages is where all of your SMS and MMS accounts are located.
To access your message accounts, Press Home Key > >
Messages.
Exchanging messages
From Messages you can receive and send an SMS or MMS.
When you receive a new message, you can open it from the
Notification Panel, or from Messages Screen. Simply touch on the
new message to read it.
The device will alert you for the unread message(s) with the icon
in the notification bar.
How to compose an SMS
1. Press Home Key > > Messages.
2. Touch New message .
3. Touch To field and enter the recipient’s number. You can also enter
the first letters of the recipient’s name to display a list of
matching names stored in Contacts, and then select a recipient
from the list.
4. Touch Compose message field and enter the content of your
SMS.
5. Touch Send to send your SMS.
Page 48
47
How to compose an MMS
1. Press Home Key > > Messages.
2. Touch New message.
3. Touch To field and enter the recipient’s number. You can also enter
the first letters of the recipient’s name to display a list of matching
names stored in Contacts, and then select a recipient from the list.
4. Press Menu Key > Add subject to enter the subject of your
MMS.
5. Touch Compose message field and enter the contents of your
MMS.
6. Touch
to add an attachment to your MMS:
Pictures: Select a picture to add to your MMS.
Capture picture: Take a photo and add to your MMS.
Videos: Select a video clip to add to your MMS.
Capture video: Shoot a video clip and add to your MMS.
Audio: Select an audio file to add to your MMS.
Record audio: Record an audio file and add to your MMS.
Slideshow: Edit a slide show and add to your MMS.
7. Touch
to add an expression to your MMS
8. Touch Send to send your MMS.
Tips:
• If you add a subject or an attachment to your SMS, the SMS will
be converted to an MMS automatically.
Page 49
48
• If you remove the subject and attachment of your MMS, the MMS
will be converted to an SMS automatically.
Managing messages and messages threads
SMS and MMS messages which are sent to and received from a contact
(or a number) are grouped into message threads in Messages Screen.
Threaded messages show your exchanged messages (similar to a chat
program) with a specific contact on the screen. Message threads are
sorted by the time when you received them, with the latest one on
the top.
To reply to a message
1. Touch the message you want to reply to from Messages Screen.
2. Touch Compose message and enter the contents of your
message.
3. Touch Send.
To delete a message (thread)
1. Press Menu Key > Delete threads from the Messages Screen.
2. Select the messages or threads you want to delete.
3. Touch OK.
Notes:
You can also delete a message or thread by opening it from
Messages Screen and pressing Menu Key > Delete.
Page 50
49
Message settings
Press Menu Key > Settings from the Messages Screen. You can
configure your message settings.
Storage settings
• Delete old messages: Select to delete old messages as limits
are reached.
• Text message limit: Set the maximum number of text
messages allowed in a single thread.
• Multimedia message limit: Set the maximum number of
multimedia messages allowed in a single thread.
Text message (SMS) settings
• Delivery reports: Request a delivery report for each SMS message
you send.
• Manage SIM card messages: Manage the messages saved in
your SIM card.
• SMS validity: Set the validity time for SMS messages.
• SMS priority: Set the order priority for SMS messages.
• Service Center: Enables you to view and edit the service center
number.
Multimedia message (MMS) settings
• Delivery reports: Request a delivery report for each MMS message
you send.
• Read reports: Request a read report for each MMS message
you send.
Page 51
50
• Auto-retrieve: Select to retrieve MMS messages
automatically.
• Roaming auto-retrieve: Select to retrieve MMS messages
automatically when you are roaming.
• MMS validity: Set the validity time for MMS messages.
• MMS creation mode: Set the creation mode for MMS messages.
Notifications settings
• Notifications: Select to display message notifications in the
notification bar.
• Group Msg Notifications: Select to display group message
notifications in status bar.
• Select ringtone: Select a ringtone for your incoming
messages.
• Vibrate: Select to make your phone vibrate when receiving a new
message.
Signature settings
• Edit signature: Enables you to view and edit the signature for
outgoing messages.
• Add signature: Select to add signature to all outgoing messages.
Using Email
Press Home Key > > Email. You can enter the Email Screen to
setup your email account and exchange emails.
Page 52
51
If there is a pre-stored email account in your phone, you may use the
default account to send and receive emails directly.
How to create an Email account
1. If there is a pre-stored email account in your phone,you may
touch the email address name or press Menu Key > More >
Accounts from the Email Screen, and then press Menu Key >
Add account.
2. Enter your Email address and password, and then touch Next
when you enter the Email Screen for the first time.
3. Select the type of your account, edit the incoming server settings,
and then touch Next.
Page 53
52
If you touch Next[Check], your phone will check the incoming
server settings and finish the setup automatically. If you are
notified that setup could not be finished, you might need to
correct some settings to finish it. If there is any problem, please
contact your mobile service provider and Email service provider.
4. Edit the outgoing server settings and touch Next.
If you touch Next[Check], your phone will check the outgoing
server settings and finish the setup automatically.
5. Set the Email checking frequency, select whether to use this
account by default or be notified when email arrives, and then
touch Next.
6. Set the Email download options and number of messages per
download, select whether to synchronise deleted message with
server or not.
7. Give your account a name and set a name displayed on outgoing
message, and then touch Done.
Page 54
53
How to compose and send an Email
After creating an email account, you can compose and send email
messages.
1. Press Menu Key > Compose from the Email Screen.
2. Touch To field and enter your recipient’s address.
When you enter the address, the matching addresses saved in
your Contacts will be displayed. You can touch the recipient from
the list.
Tips:
You can also press Menu Key > Add Cc/Bcc to add
recipients.
3. Enter the subject and the content of your email.
4. Touch Send.
How to reply to or forward an Email
1. Open the email you want to reply to or forward from Email
Screen.
2. Press Menu Key > Reply/ Forward to reply to/forward the
email.
You can also press Menu Key > Reply all to reply to all
recipients of the email.
3. Enter the contents/recipients of your email.
4. Touch Send.
Page 55
54
Email settings
Touch the account you want to set from the Email Screen and press
Menu Key > More > Account settings. You can get the email
settings.
General settings
• Account name: Set your account name.
• Your name: Set the name displayed on outgoing message.
• Email address: Set the email address.
• Use signature: Select to use signature for emails.
• Signature: Edit the signature for emails.
• Use reply to: Select to use reply to email address.
• Reply to: Edit reply to email address. Format: abc<[email protected]>
• Email check frequency: Set the email checking frequency.
• Power-saving mode: Enable the email synchronization time
intelligent adjustment.
• Default account: Select the check box to send email from
this account by default.
Download settings
• Download settings: Set the Email download options and
number of messages per download, select whether to
synchronise deleted message with server or not.
Page 56
55
• Sync deleted message: Select to be synchronise deleted
message with server.
Notification settings
• Email notifications: Select to be notified in notification bar
when email arrives.
• Select ringtone: Select the ringtone for incoming email
notification.
• Vibrate: Select to be notified by vibration with ringtones when
email arrives.
Server settings
• Incoming settings: Set the incoming server settings.
• Outgoing settings: Set the outgoing server settings.
Page 57
56
Getting connected
Connecting to the internet
Your phone’s networking capabilities allow you to access the Internet
or your corporate network.
Ways of connecting to the internet
You can use the default connection settings to connect to the
Internet through your mobile network (GPRS/3G/EDGE), or Wi-Fi.
GPRS/3G/EDGE
Use GPRS/3G/EDGE to connect to the Internet and to send and
receive MMS/Email messages on your phone. You will need a data
plan to use your wireless service provider’s GPRS/3G/EDGE
network. Check with your wireless service provider for
GPRS/3G/EDGE rates. If the GPRS/3G/EDGE settings are not
pre-configured on your phone, contact your operator for the
parameters. Do not change the settings as this may cause services to
stop working.
To add a new GPRS/3G/EDGE connection
Before you begin, get the following information from your service
provider:
• Access Point Name (APN)
• Your user name and password if needed.
• Server IP and the port number if the network uses a proxy server.
Page 58
57
1. Press Home Key >
> Settings > Wireless & networks >
Mobile networks > Network Settings > Access Point Names.
2. Press Menu Key > New APN.
3. Touch Name to enter you APN name (You can name it as you
like).
4. Touch APN to enter the APN you want to add.
5. Touch Proxy and Port to enter the Server IP and port if the
network uses a proxy server.
6. Touch and enter Username and Password (If there is no User
name and Password, leave them blank).
7. Touch and enter APN type if needed.
8. Press Menu Key > Save to complete.
Notes:
If you want to set the APN to default settings, press Menu Key >
Reset to default.
Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 300
feet (100 meters).
To turn on Wi-Fi
1. Press Home Key >
> Settings > Wireless & networks.
2. Select the Wi-Fi check box to turn Wi-Fi on.
To add a Wi-Fi network
1. Press Home Key >
> Settings > Wireless & networks > Wi-Fi
settings.
Page 59
58
The Wi-Fi network names and security settings (open network
or secured network) of detected Wi-Fi networks are displayed in
the Wi-Fi networks section.
You can also press Menu Key > Scan to scan the Wi-Fi networks.
2. Touch a network to connect.
¾
If you select an open network, you will be automatically
connected to the network.
¾
If you select a secured network, you will need to input the
wireless password.
Check the Wi-Fi network status
You can check the Wi-Fi network status from the notification bar and
wireless controls.
1. Check the icon in the notification bar.
2. Press Home Key >
> Settings > Wireless & networks > Wi-Fi
settings, then touch the wireless network that the phone is
currently connected to.
You can check the network status from the pop-up window.
Page 60
59
Using browser
You can use your Browser to browse most of the websites. Some
web pages may not be displayed properly as some specific web
page technologies, such as Flash, are not supported by the phone.
Your phone will automatically create an EDGE or GPRS/3G
connection for you while browsing web pages.
How to open browser
Press Home Key > > Browser to start this function.
How to open web pages
In Browser you can open web pages through the following ways:
1. Touch the address bar to enter the website you want to
browse, and touch Go.
2. Press Menu Key > More > Bookmarks and select an item to open.
3. Select an item from Most visited tab/History tab in
Bookmarks Screen.
Browsing options
When browsing web pages, you can do some operations.
1. Press Menu Key > Refresh to refresh the page.
2. Press Menu Key > More > Find on page and enter the search
item to view the search result.
3. Press Menu Key > More > Select text and slide your finger on
the page to select the text you want to copy.
Page 61
60
Your phone automatically copies the selected text to the
clipboard.
4. Press Menu Key > More > Share page to send the page by Email,
Google Mail, Messages, or RoadSync Mail.
5. Press Menu Key > More > Page info/Downloads to view the
page or download information.
Note: You can double-touch to zoom in, then double-touch again to
zoom out. You can also pinch to zoom in or out.
You can rotate your phone sideways to view the landscape Browser
Screen if you select the Orientation check box in Home Key >
>
Settings > Sound & display.
To open a new browser window
1. Press Menu Key > New window to open a new browser window.
2. Touch the address bar to enter the website you want to
browse.
To switch between different browser windows
If you have more than one browser window opened, you can switch
between these windows.
1. Press Menu Key > Windows to view all the windows you opened.
2. Touch the page you want to browse.
Tips:
You can also touch
next to the web page to close a window.
Open links in web pages
1. Open a web page that contains a link.
Page 62
61
2. Touch a link to open the page.
You can also hold on the link to open the shortcut menu:
¾
Open: Open the web page.
¾
Open in new window: Open the web page in a new window.
¾
Bookmark link: Save the link to your Bookmarks.
¾
Save link: Download the linked web page to your phone.
¾
Share link: Send the link by Email, Google Mail,
Messages, or RoadSync Mail.
¾
Copy link URL: Copy the link to the clipboard.
To download applications from web pages
1. Open a web page that contains an application link.
2. Touch the link or hold on the link and select Save link to
download the application to your phone.
Notes:
Downloaded applications are saved in your memory card.
Using bookmarks
You can save your frequently-used pages as bookmarks on your
phone.
To add a new bookmark
1. Open a web page.
2. Press Menu Key > Bookmarks.
3. Touch Add.
Page 63
62
4. Enter a name of the bookmark and touch OK.
Bookmarks will be sorted by the time with the latest one on the top.
To edit a bookmark
1. Open a Browser window.
2. Press Menu Key > More > Bookmarks.
3. Select an item you want to edit and hold on it until the shortcut
menu pops up.
4. Select Edit bookmark.
5. Edit the name or location, and then touch OK to save it.
To delete a bookmark
1. Open a Browser window.
2. Press Menu Key > More > Bookmarks.
3. Select an item you want to delete and hold on it until the
shortcut menu pops up.
4. Select Delete bookmark and touch OK to confirm the deletion.
Browser settings
You can set the Browser text size, home page etc. by pressing Menu
Key > More > Settings from a browser window.
Page content settings
• Text size: Adjust the browser text size.
• Default zoom: Set the browser default zoom.
Page 64
63
• Open pages in overview: Select to show overview of newly
opened pages.
• Text encoding: Select a text encoding type.
• Block pop-up windows: Select to block pop-up windows.
• Load images: Select to show the images of web pages.
• Enable power save mode: Select to reduce display power
consumption by inverting webpage colors.
• Auto-fit pages: Select to format the web pages to fit the screen.
• Enable JavaScript: Select to enable JavaScript.
• Enable plug-ins: Select to enable plug-ins.
• Open in background: Select to open new windows behind the
current one.
• Set home page: Select to edit the home page web site.
Privacy settings
• Clear cache: Delete all the cached page contents.
• Clear history: Clear the browser navigation history.
• Accept cookies: Select to allow sites to save and read cookies.
• Clear all cookie data: Clear the browser cookies.
• Remember form data: Select to remember the data you type in
forms for later use.
• Clear form data: Clear the saved form data.
• Enable location: Select to allow sites to request access to your
location.
Page 65
64
• Clear location access: Select to clear access for all websites.
Security settings
• Remember passwords: Select to save usernames and
passwords for web sites.
• Clear passwords: Clear the saved passwords.
• Show security warnings: Select to show warnings if there is a
problem with a site’s security.
Advanced settings
• Set search engine: Select a search engine.
• Website settings: View advanced settings for individual websites.
• Reset to default: Clear all browser data and reset all settings
to default.
Page 66
65
Bluetooth
Bluetooth is a short-range wireless communication technology.
Phones with Bluetooth capabilities can exchange information within
a distance of about 10 meters without any physical connection.
The Bluetooth devices must be paired before the communication is
performed.
How to turn on/off bluetooth
1. Press Home Key > > Settings > Wireless & networks.
2. Select the Bluetooth check box to turn Bluetooth on.
The icon will be displayed in the notification bar. If you want to
turn Bluetooth off, clear the Bluetooth check box.
Notes:
By default Bluetooth is turned off. If you turn it on, and then turn off
your device, Bluetooth is also turned off. When you turn on your
device again, Bluetooth turns on automatically.
How to make your device visible
Other devices with Bluetooth capabilities can detect your phone,
establish a partnership, or use a Bluetooth service.
1. Press Home Key >
> Settings > Wireless & networks >
Bluetooth settings.
2. Select the Bluetooth check box if needed.
3. Select the Discoverable check box to make your device visible.
Page 67
66
Note: Bluetooth visibility is turned off automatically after 2 minutes.
How to change your device name
1. Press Home Key > > Settings > Wireless & networks >
Bluetooth settings.
2. Select the Bluetooth check box if needed.
3. Touch Device name.
4. Enter the name and touch OK.
How to pair with another bluetooth device
You can pair your device with another device that has Bluetooth
capabilities. Once you do this, the two devices must have Bluetooth
turned on but do not need to be visible for you to exchange
information between them.
1. Press Home Key > > Settings > Wireless & networks >
Bluetooth settings.
2. Touch Scan for devices.
Your Vodafone Smart Chat will display all reachable Bluetooth
devices in the Bluetooth devices section.
3. Touch the device you want to pair with.
4. If necessary, type your PIN to pair and touch OK.
Tips:
The same PIN should be entered on the other device.
Page 68
67
Experiencing multimedia
Camera
Your phone comes with a 3–megapixel camera that lets you capture
sharp pictures.
How to open Camera
Press Home Key > > Camera or hold Camera Key to open the
camera.
Notes: You can switch from the camera to the camcorder quickly by
dragging the switch up.
How to take pictures
Aim the camera at the subject and then touch or press Camera
Key to take the shot. You can touch to adjust the
brightness and touch open the zoom list to zoom in or out
before taking pictures.
Page 69
68
¾ Touch the picture in the top right corner of your Camera
Screen to view the picture just captured.
¾ Press Menu Key > Gallery to view all of your pictures.
Camera settings
By pressing from the Camera Screen, you can adjust the
camera settings.
Camera settings
• Exposure: Touch to adjust the exposure.
• Picture size: Touch to select the size of your captured
pictures.
• Picture quality: Touch to adjust the jpeg quality.
• Color effect: Touch to select the picture effect.
• Select ISO: Touch to set the ISO level or set it back to Auto.
Higher ISO numbers are better for taking pictures in low light
conditions.
• Anti Banding: Select to adjust preview images automatically or for
specified AC frequencies, in order to avoid striate previews caused
by interference.
• Saturation: Touch to adjust the saturation.
• Contrast: Touch to adjust the contrast. Higher contrast ratio
enables you to easily see the sharp colors of blue, red or green
against any black color.
• Sharpness: Touch to adjust the sharpness.
Page 70
69
• Camera settings: Restore the camera settings to default.
• Store location: Select to record location in picture data.
• White balance: Touch to adjust the white balance. White
balance enables the camera to capture colors more
accurately by adjusting to the current lighting environment.
Camcorder
Camcorder enables you to shoot video clips.
How to open Camcorder
Touch > Camcorder to open the camcorder.
Notes:
You can switch from the camcorder to the camera quickly by
dragging the
switch down.
How to shoot videos
1. Touch or press Camera Key to start shooting.
2. Touch
or press Camera Key to stop shooting.
Notes:
Touch the picture in the top right corner of your Camcorder
Screen to view the video clip just shot.
Video settings
By pressing from the Camcorder Screen, you can
adjust the video settings.
Page 71
70
Camcorder settings
• Color effect: Touch to select the video effect.
• Video quality: Select the video quality type (CIF: 352×288, QVGA:
320×240, QCIF: 176×144).
• Video Encoder: Select the video encoder type.
• Audio Encoder: Select the audio encoder type.
• Video duration: Touch to set the video duration.
• Restore settings: Restore the camcorder settings to default.
• White balance: Touch to adjust the white balance. White
balance enables the video to capture colors more accurately
by adjusting to the current lighting environment.
• Video quality: Touch to adjust the video quality.
FM Radio
With the FM Radio, you can search for radio channels, listen to them,
and save them on your device. Note that the quality of the radio
broadcast depends on the coverage of the radio station in that
particular area. The wired headset works as an antenna, so always
connect the headset when using the radio. When you receive an
incoming call while listening to the radio, the radio will be turned off.
How to open FM Radio
You need to insert a headset to your phone before opening the FM
radio.
Page 72
71
Touch
> FM Radio to open the FM radio.
After opening the FM radio, you will see the
icon in the
notification bar.
How to listen to FM Radio
1. Press Menu Key > Scanning for all FM Stations to scan for
channels automatically.
2. Press Menu Key > Select Regional Band to select the regional
of band .
3. Press Volume Keys to adjust the volume.
4. Press Menu Key > Sleep to set the FM radio sleep timer.
Page 73
72
5. Press Menu Key > Enable Speaker to switch to loudspeaker or
headset
.
6. Touch to turn off the FM radio.
Music
You can play digital audio files from your phone’s memory card in
Music.
How to open Music
You need to copy the audio files you want to play to your memory
card first.
1. Touch > Music to open Music Screen.
2. Select a file to open.
How to play Music
1. Touch Artists/Albums/Songs/Playlists to get the songs you want
to play.
2. Touch a song from the list to start playing.
Page 74
73
Notes:
Press Volume Keys to adjust the volume.
How to create playlists
You can create some playlists to organize your music files.
1. Select a music file you want to add to a new playlist.
2. Touch and hold on the file until a shortcut menu pops up.
3. Touch Add to playlist.
4. Touch New.
5. Enter the playlist name and touch Save.
The playlist is created and the file you selected is added to the
playlist.
Page 75
74
Managing Your playlists
1. Touch Playlist from the Music Screen to view all playlists.
2. Hold on the playlist you want to play or edit until a shortcut menu
pops up.
i Touch Play to play the playlist.
ii Touch Delete to delete the playlist.
iii Touch Rename to edit the playlist name.
To add songs to your playlist
1. Open the folder where the song you want to add to a playlist
is.
2. Hold on the song until a shortcut menu pops up.
3. Select Add to playlist.
4. Select a playlist from the list.
How to set a song as Ringtone
1. Open the folder where the song you want to set as ringtone is.
2. Hold on the song until a shortcut menu pops up.
3. Select Use as phone ringtone.
Tips:
You can also set a song as ringtone when you are playing it by
pressing Menu Key > Use as ringtone.
Videos
You can use Videos to play your video files.
Page 76
75
How to open Videos
Press Home Key > > Videos to open the video player.
Your phone will show you all video files saved on your memory card.
How to play Videos
Copy the video file to your memory card before playing it.
1. Touch the video file you want to play from the Videos Screen.
2. Touch on the screen to show the control bar.
Gallery
Gallery helps you view pictures. For pictures, you can also do some
basic editing tasks. For instance, set them as your wallpaper or contact
icon, and share with your friends.
Page 77
76
When viewing a picture, you can double-touch to zoom in, then
double-touch again to zoom out. You can also pinch to zoom in or
out.
Page 78
77
Sound Recorder
Sound Recorder enables you to record your voice memos that you
can set as ringtone.
How to open Sound Recorder
Press Home Key > > Sound Recorder to open the sound
recorder.
Notes:
You need to install a memory card to use Sound Recorder.
How to record your memos
1. Get the microphone near to your mouth.
2. Touch to start recording.
3. Touch
to stop recording.
4. Touch to play back the voice recording.
5. Touch OK to save the voice recording, or touch Discard to
discard the recording.
Notes:
You can find your recordings in Home Key >
> Music >
Playlists > My recordings. If you want to set a recording as ringtone,
hold the recording and select Use as phone ringtone from the pop-up
shortcut menu.
Page 79
78
Google applications
Signing In to your google account
Signing in to your Google Account enables you to synchronise Google
Mail, Calendar, and contacts between your phone and the web.
1. Touch a Google application, such as Talk.
2. Read the instructions and touch Next.
3. Touch Sign in if you have a Google account. Enter your user name
and password, and then touch Sign in.
Touch Create if you do not have a Google account.
Using Google Calendar
Touch Home Key > > Calendar to use Google Calendar,
Google’s time management application. You can use the
calendar to schedule appointments, including meetings and other
events. Your appointments will be displayed on the screen as
scheduled. All your appointments are synchronised to your Google
account, which enables you to share your schedule, get your entire
calendar on the go, and receive Email reminders for your upcoming
events.
Using Google Mail
Google Mail is Google’s web-based email service. Google Mail is
configured when you sign in to your Google account. Depending on
Page 80
79
your synchronization settings, Google Mail on your phone is
automatically synchronised with your Google Mail account on the
web.
How to open Google Mail
Touch > Google Mail.
How to create and send an email
1. In the Inbox, press Menu Key and then touch Compose.
2. Enter the message recipient’s email address in the To field. If you
are sending the email to several recipients, separate the email
addresses with a comma. You can add as many message
recipients as you want.
3. Enter the email subject, and then compose your email.
4. After composing your email, touch Send.
Using Google Talk
Google Talk is Google’s instant Messages program, which enables
you to communicate with other people that also use Google Talk.
How to open Google Talk
Touch > Talk.
How to add a new friend
You can only add people who have a Google Account.
Page 81
80
1. In the Friends list, press Menu Key > Add friend.
2. Enter the Google Talk instant Messages ID or Google email
address of the friend you want to add.
How to view and accept an invitation
1. In the Friends list, press Menu Key > Invites.
All chat invitations you have sent or received are listed on the
pending invitations screen.
2. Touch a pending invitation, and then touch Accept or Decline.
How to change your online status
1. Touch the online status icon beside your status message, and
then select the status you want on the menu.
2. Touch the status message box and then enter your status
message using the onscreen keyboard.
How to start a chat
1. Touch a friend in the Friends list.
2. Chat with your friend by entering text using the on-screen
keyboard.
3. After entering your message, touch Send.
Page 82
81
Phone settings
Basic settings
How to set the time and date
1. Press Home Key > Menu Key > Settings > Date & time.
2. Clear the Automatic check box if you want to set time and date
by yourself.
3. Configure the time and date settings:
• Touch Set date. Adjust the date, and touch Set to save it.
• Touch Select time zone and touch the area where you are.
• Touch Set time. Adjust the time, and touch Set to save it.
• Touch the check box beside Use 24–hour format to change
the time format.
• Touch Select date format and select the type you like.
Display settings
By pressing Home Key > Menu Key > Settings > Display, you can
configure the display settings, such as orientation, animation,
brightness, and screen timeout.
To adjust the screen brightness
1. Select Brightness from the Display settings.
2. Adjust the brightness and touch OK.
Page 83
82
To adjust the delay before the screen turns off
1. Touch Screen timeout from the Display settings.
2. Select the time from the list.
To show animation when opening/closing windows
You can select to show an animation when opening or closing
windows.
1. Touch Animation in the Display settings.
2. Select the animation type you’d like to use.
If you want to disable this function, select No animations.
Sound settings
By pressing Home Key > Menu Key > Settings > Sound, you can
configure the sound settings, such as ringtones and notifications.
To switch your phone to silent mode
Select the Silent mode check box from the Sound settings.
To switch your phone to vibration mode
Select the Phone vibrate check box from the Sound settings.
If you switch your phone to silent mode with vibration, the vibration
icon
will appear in the notification bar.
To adjust the volume
If you want to set the volume, make sure your phone is not in silent
mode.
1. Select volume from the Sound settings.
Page 84
83
2. Adjust the ringtone/Media volume and touch OK to save.
Tips:
You can adjust the ringtone volume quickly by pressing Volume Keys
from any screen.
Notes:
If you want to adjust the notification volume together with ringtone
volume, select the Use incoming call volume for notifications check
box.
To set the ringtone
1. Touch Phone ringtone from Sound settings.
2. Select the ringtone you want to use from the pop-up list and
touch OK.
Tips:
You can also set an audio file as the ringtone while browsing the
music list.
1. Open the songs list by pressing Home Key > > Music >
Songs.
2. Hold the song you like until the shortcut menu pops up.
3. Select Use as phone ringtone.
To set the default notification ringtone
1. Select Notification ringtone from the Sound settings.
2. Scroll the ringtone list and select one to set as the default
notification ringtone.
Page 85
84
3. Touch OK to save.
To enable the touch tones
You can set your phone to play tones when using dial pad.
Select the Audible touch tones check box from the Sound settings.
To enable the screen selection tones
You can set your phone to play sound while making a selection by
touching the screen.
Select the Audible selection check box from the Sound settings.
To enable the screen lock sounds
You can set your phone to play sound when locking and
unlocking the screen.
Select the Screen lock sounds check box from the Sound settings.
To enable the haptic feedback
You can get the vibration feedback while pressing the soft keys and
on certain UI interfaces if you have enabled haptic feedback.
1. Press Home Key >
> Settings > Sound.
2. Select the Haptic feedback check box.
Language settings
You can change the system language of your phone.
To change the language of your operating system
1. Touch
> Settings > Language & keyboard > Select
language.
Page 86
85
2. Select a language from the list to set it as the system language.
Mobile network services
The GSM and WCDMA services are supported by your phone. You can
configure the network settings according to your phone service.
To enable data roaming
1. Touch > Settings > Wireless & networks > Mobile
networks.
2. Select the Data roaming check box to enable data roaming.
To switch the network mode
1. Touch
> Settings > Wireless & networks > Mobile
networks > Mobile settings > Network Mode.
2. Select GSM/WCDMA auto, WCDMA only, or GSM only to switch
the network mode.
To switch the network operators
1. Touch > Settings > Wireless & networks > Mobile
networks > Mobile settings > Network operators.
2. Touch Search networks to set the network operator manually, or
touch Select automatically to set the network operator
automatically.
To set the Access Point Names
You can use the default Access Point Names (APN) to connect to the
internet. If you want to add a new APN, please contact your network
operator to get detailed information.
Page 87
86
1. Press Home Key >
> Settings > Wireless & networks >
Mobile networks > Mobile settings > Access Point Names.
2. Press Menu Key > New APN.
3. Set the necessary parameters (see
Getting ConnectedConnecting to the Internet- GPRS/3G/EDGE- To add a new
GPRS/3G/EDGE connection
on page 56
.)
4. Press Menu Key > Save.
Security settings
You can protect your device and SIM card from unauthorized use.
Protecting your phone with a screen lock
To set the screen unlock pattern
You can protect your phone from unauthorized use by creating a
personal screen unlock pattern.
1. Touch
> Settings > Location & security > Set up screen
lock > pattern.
2. Draw your own pattern and touch Continue.
Page 88
87
3. Draw the pattern again and touch Confirm.
To lock the screen
Press Power Key to lock the screen.
To unlock the screen with a pattern
1. Press Power Key.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your phone will ask you to try again.
Page 89
88
Protecting your SIM card with a PIN
You can set the PIN password to prevent others from using the SIM
function. The initial PIN code is provided by your service operator.
To enable SIM PIN
1. Touch
> Settings > Location & security > Set up SIM
card lock.
2. Select the Lock SIM card check box.
3. Enter the PIN and touch OK.
To change SIM PIN
Before changing SIM PIN, you need to enable it.
1. Press Home Key >
> Settings > Location & security > Set up
SIM card lock.
2. Touch Change SIM PIN.
3. Enter the PIN and touch OK.
4. Enter a new PIN and touch OK.
5. Reenter the new PIN and touch OK.
Setting up credential storage
You can select to allow applications to access secure certificates and
other credentials.
To enable secure credentials
1. Press Home Key >
> Settings > Location & security.
2. Touch Set password to create a password.
Page 90
89
Tips:
You can also install encrypted certificates from memory card by
touching Install from SD card.
3. Select the Use secure credentials check box.
To delete credentials
1. Touch
> Settings > Location & security.
2. Touch Clear storage to clear credentials.
Managing memory
Managing your memory card
To view the space information
Press Home Key > > Settings > Storage.
You can view the space information from the Total
space/Available space in SD card section.
To unmount your memory card
1. Press Home Key >
> Settings > Storage.
2. Touch Unmount SD card.
The
icon will appear in the notification bar.
To erase your memory card
1. Unmount your memory card.
2. Touch Erase SD card.
3. Touch Erase SD card to confirm.
Page 91
90
If you have set an unlock pattern, you will be asked to draw it on
your screen.
4. Touch Erase everything.
Managing internal phone storage
To see how much storage space is available
Press Home Key > > Settings > Storage.
View the Available space in the Internal storage section.
Managing internal storage
Your phone has an internal memory storage allocation of 512Mbytes
theoretically, but most used for system file, you can use only
between 120 and 130Mbytes for yourself, you can view the
Available space to query it.
Managing the internal storage is very necessary. You can clean or
manage the user memory by following methods:
z Applications update may have an impact on the phone memory,
update selectively for memory saving.
z Some applications can be installed on the SD card but not all.
z Uninstall the applications in your phone memory.
Moving an application
You can move applications downloaded or installed on your phone to
the microSD card. You can also move applications to your phone if
the microSD card is getting full.
NOTE: Not all applications can be moved to your phone or microSD
card.
Page 92
91
1. Press Home Key >
> Settings > Applications > Manage
applications.
2. Touch the application you want to move below the
Downloaded tab.
3. Touch Move to phone or Move to SD card.
Uninstalling an application
You can uninstall applications installed on your phone.
1. Press Home Key >
> Settings > Applications > Manage
applications.
2. Touch the application you want to uninstall under the
Downloaded tab.
3. Touch Uninstall.
How to reset to factory settings
1. Press Home Key > > Settings > Privacy.
2. Touch Factory data reset.
3. Touch Reset phone.
If you have set an unlock pattern, you will be asked to draw it on
your screen.
4. Touch Erase everything.
How to reduce power consumption
If you reduce power consumption you can make your battery last longer.
There are many ways to reduce it – for example:
Page 93
92
1. Reduce the LCD brightness;
2. Use only 2G networks, as this uses much less battery power (but
data is much slower):
z Press Home Key >
> Settings > Wireless &
networks > Network settings > Network Mode.
z Select the GSM only to switch the network mode.
3. Sleep mode puts your device into a low-power-consumption state
while the display is off, to save battery power. Your device also
goes into Sleep mode automatically when you leave it idle after a
certain period of time.
4. Cancel the Always-On Data Services. When you enable this option,
more data traffic will be generated for automatic updates of
applications data, and also means your phone will consume more
power.
z Touch Home Key >
> Settings > Wireless &
networks > Mobile networks.
z Cancel the Enable always-on mobile data box to stop
applications from uploading data automatically.
5. Reduce the number of widgets on your Home screen.
Page 94
93
Application settings
Managing applications
You can view and manage the applications installed in your phone.
To view the applications installed in your phone
Press Home Key >
> Settings > Applications > Manage
applications.
Your phone will show you the applications in a list.
To allow the installation of non-Market applications
1. Press Home Key >
> Settings > Applications.
2. Select the Unknown sources check box.
To install an application
You can install an application from the Play Store by selecting the
item you want to download and touch Install.
You can also install a non-Marketing application if you have allowed
the installation of it. Make sure that you select an application
developed for your phone and processor type before installing it.
1. Press Home Key > > Filer, and open the folder where the
application you want to install is.
2. Touch the application to start installation.
3. Read the installation instructions that come with the
application and follow it to complete the setup.
To remove an application
Page 95
94
You can uninstall any application that you have downloaded and
installed from Play Store.
1. On the Market Downloads screen, touch the application you want
to uninstall, then touch Uninstall.
2. When prompted, touch OK to remove the application on your
phone.
3. Choose the reason for removing the application, then touch OK.
Uninstall third-party applications
1. Press Home Key >
> Settings > Applications > Manage
applications.
2. Touch on the application you want to remove.
3. Touch Uninstall, and touch OK to confirm.
Page 96
95
Other applications
Alarm
How to set alarms
1. Press Home Key > > Alarm.
2. Touch the default alarm set to configure it or touch to
create a new alarm.
3. Select the Alarm check box and edit the items needed, such as
Name, Time, Repeat, Snooze, Duration, Vibrate, Ringtone, Volume,
Volume crescendo, and Delay.
Calculator
Open Calculator
Touch > Calculator.
Tips:
Press Menu Key > Advanced panel to use scientific calculation.
Note pad
Note pad is used to take down some memos.
Page 97
96
SIM Toolkit
SIM Toolkit appears on the screen only if your SIM card provides
this function. To use the SIM card services, insert your SIM card into
the phone first.
Press Home Key > > SIM Toolkit.
Task Manager
You can use Task Manager to view and stop running
applications.
Google+ service
Google+ makes connecting on the web more like connecting in the
real world. Share your thoughts, links and photos with the right
circles. Get everyone on the same page with fast and simple group
chat.
This software is not default installed in Smart Chat. When you want to
use it first, you must install it from SD card:
1. Make sure you have installed the microSD card on your phone.
2. Press Home Key >
> File Manager, and find the .apk file
about google+ at the directory of /sdcard/google+.
3. Touch the file to start installation.
4. Read the installation instructions that come with the
application and follow it to complete the setup.
Page 98
97
The open source code service
For this product’s supporting open source code service, please read it
on your phone:
On the Home screen, press the Menu key > Settings > About
phone > Legal information.
Also you can visit the website below:
http://support.zte.com.cn/support/news/NewsDetail.aspx?newsId=
1002222
Page 99
98
Specifications
Dimension Approx. 114mm x 65mm x 10.9
mm
Weight 200g (with battery)
Bearer GSM/WCDMA support
Main Display dimension，
resolution
2.6 inches QVGA
Back
Camera
Sensor Type CMOS
Still Image Capture
Resolution (in MP)
3 mega pixel
Total internal memory 512MB
Removable memory card Support microSD card
Maximum Capacity of memory card 32GB
Battery Capacity 1100mAh
Standby time Approx. 180 h (subject to
network status)
Voice talk time Approx. 260 min (subject to
network status)
WAP browser version WAP2.0
Page 100
99
For Your Safety
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving (even
with a hands free kit) causes distraction and can lead to an accident.
You must comply with local laws and regulations restricting the
use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating the machinery in order to
reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always switch off your phone wherever the use of a phone
is prohibited. Use of your phone is subject to safety measures
designed to protect users and their environment.
• Always treat your phone and its accessories with care and keep it
in a clean and dust-free place.
Loading...
