Vodafone 905SH User Manual

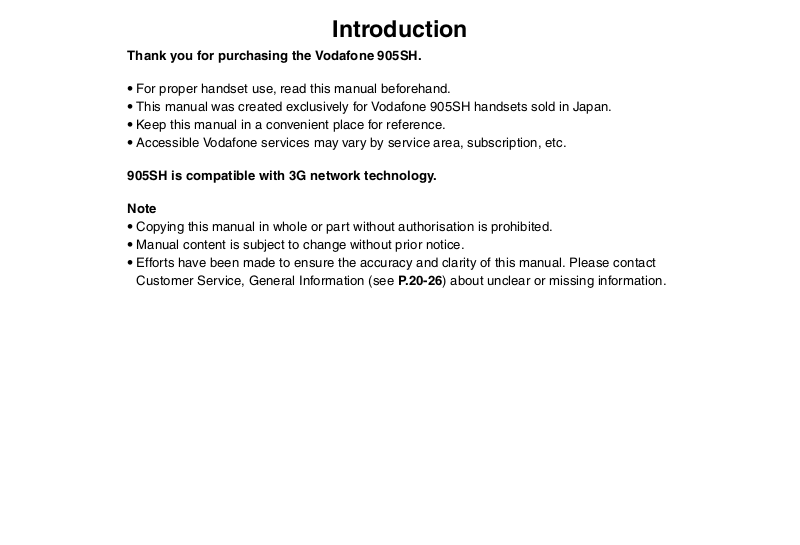

Introduction

Thank you for purchasing the Vodafone 905SH.

^ For proper handset use, read this manual beforehand.
^ This manual was created exclusively for Vodafone 905SH handsets sold in Japan.
^ Keep this manual in a convenient place for reference.
^ Accessible Vodafone services may vary by service area, subscription, etc.

905SH is compatible with 3G network technology.

Note

^ Copying this manual in whole or part without authorisation is prohibited.
^ Manual content is subject to change without prior notice.
^ Efforts have been made to ensure the accuracy and clarity of this manual. Please contact

Customer Service, General Information (see P. 2 0- 2 6 ) about unclear or missing information.

Symbols

Multi Selector

Use Multi Selector to select menu items, move cursor and
scroll, etc.

In this manual, Multi Selector
operations are indicated as
shown to the right.

^

Basic Multi Selector Operations

B E: Press C or D
B F: Press B or A
B G: Press C, D, B or A

Note H ^ In this manual, most operations are described with handset in portrait position (see P.1-11) in Standby.

^ Sample screen shots, etc. are provided for reference only. Actual handset windows, menus, etc. may differ in appearance.

B

C

b

A

D

Side Keys

Use Side Keys to control compatible functions such as TV
and mobile camera.
In this manual, Side Keys are indicated as shown below.

L Volume/Zoom Key M

Record/Shutter Key

h

i

Abbreviated Steps

Handset operations starting from Main Menu are abbreviated as follows:

Press b

Main Menu

Select the menu item
and press b

Perform the operation
such as opening a window

H Menu Item A Selection A Operation A Options (N) A Menu (F)

Select the folder or file
and press b

Press the corresponding
key in parentheses

Use F to open
the menu

In this Vodafone 905SH Instruction Manual, Vodafone 905SH is abbreviated as 905SH.

ii

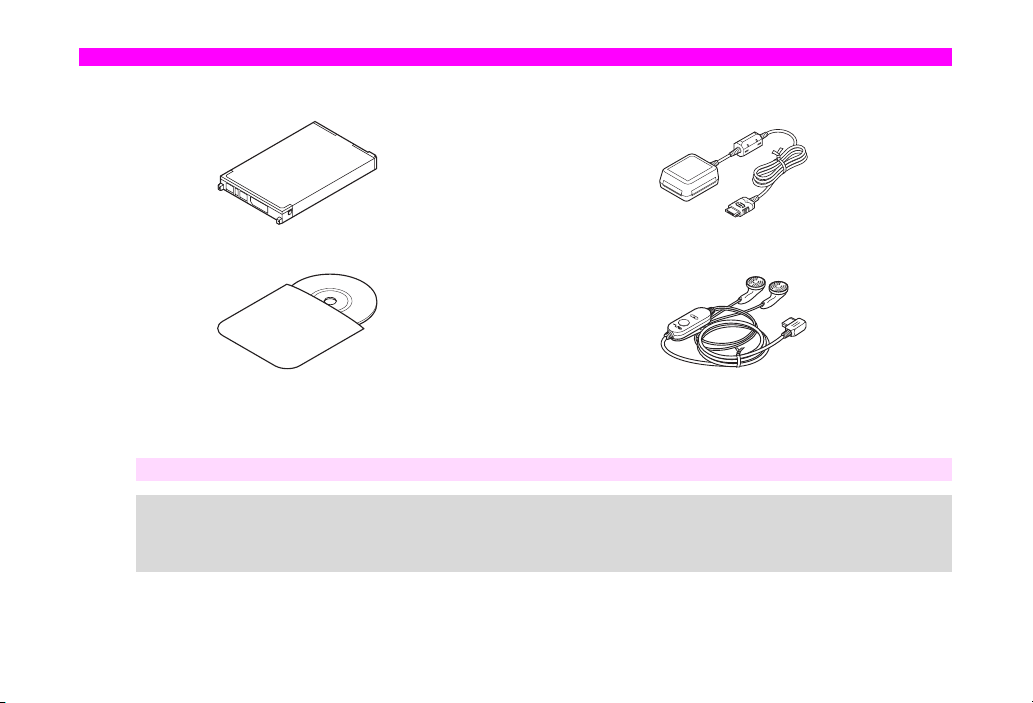

Accessories

CLithium-ion Battery (Type 1) (SHBAK1) CAC Charger (SHCAK1)

CUtility Software (CD-ROM)

*Upgrades or updates of included Utility Software may become available on the Vodafone Website (http://www.vodafone.jp) without prior

notification. Please check for the newest version of Utility Software and download as required.

★

Complimentary sample not available for purchase

Supplied Utility Software is designed exclusively for 905SH/705SH.

Note H

^ For accessory-related information, please contact Vodafone Customer Centre, General Information (see P. 20 - 2 6).

Tip H

^ 905SH is compatible with miniSD! Memory Card; miniSD! Memory Card is not included in this package. Purchase miniSD!

Memory Card to use Memory Card-related handset functions.

^ In this manual, miniSD! Memory Card is referred to as "Memory Card".

★*

CHeadphones (with Built-in TV Antenna) (SHLV01)

iii

Symbols ............................................................................................i

Accessories....................................................................................iii

Contents .........................................................................................iv

Safety Precautions .....................................................................xviii

General Notes...........................................................................xxviii

Contents

Specific Absorption Rate (SAR) .............................................xxxiii

Getting Started

1

Function & Feature Preview ....................................................... 1-2

USIM Card .................................................................................... 1-4

C General Information & Precautions ...................................... 1-4

C Inserting & Removing USIM Card ........................................ 1-5

C USIM PINs............................................................................ 1-6

Handset Parts & Functions ........................................................ 1-7

C Handset................................................................................ 1-7

C Display Indicators ................................................................. 1-9

C Display Positions ................................................................ 1-11

Battery & Charger ..................................................................... 1-12

C Getting Started ................................................................... 1-12

C Installing & Removing Battery ............................................ 1-16

C AC Charger ........................................................................ 1-17

C Desktop Holder................................................................... 1-18

C In-Car Charger ................................................................... 1-19

Handset Power On/Off .............................................................. 1-20

C My Details........................................................................... 1-21

C Keypad Lock....................................................................... 1-21

C Large Font Mode ................................................................ 1-22

C Pen Light ............................................................................ 1-22

Handset Menus.......................................................................... 1-23

C Main Menu.......................................................................... 1-23

Contents

C User Shortcuts ................................................................... 1-24

C Multi Job ............................................................................. 1-26

Security Codes .......................................................................... 1-27

C Handset Code .................................................................... 1-27

C Centre Access Code .......................................................... 1-27

C Network Password.............................................................. 1-27

2

Initiating a Call ............................................................................ 2-2

C Emergency Calls .................................................................. 2-3

C Redial ................................................................................... 2-4

C Placing an International Call ................................................ 2-5

Incoming Call .............................................................................. 2-6

C Calling from Received Calls ................................................. 2-8

Answer Phone ............................................................................. 2-9

C Activating & Cancelling......................................................... 2-9

C Playing Messages .............................................................. 2-10

Engaged Call Operations ......................................................... 2-11

C Earpiece Volume ................................................................ 2-11

C Voice Output ....................................................................... 2-11

C Voice Memo........................................................................ 2-12

C Other Engaged Call Operations......................................... 2-12

0 Assign ............................................................................. 1-24

0 Move ............................................................................... 1-24

0 Set to Default .................................................................. 1-24

Basic Handset Operations

0 Loudspeaker ................................................................... 2-11

0 Mute................................................................................ 2-11

0 Hold ................................................................................ 2-11

0 Play................................................................................. 2-12

iv

Call Log ...................................................................................... 2-13

0 Delete ............................................................................. 2-13

0 Delete All ........................................................................ 2-13

C Using Call Log.................................................................... 2-13

0 Call ................................................................................. 2-13

0 Create Message ............................................................. 2-13

Call Timers/Data Counter ......................................................... 2-14

C Call Timers ......................................................................... 2-14

0 Clear Timers ................................................................... 2-14

C Data Counter ...................................................................... 2-14

0 Clear Counter ................................................................. 2-14

Call Costs .................................................................................. 2-15

0 Clear Costs ..................................................................... 2-15

0 Cost Units ....................................................................... 2-15

C Limit Call Costs .................................................................. 2-15

0 Max Cost ........................................................................ 2-15

Manner Mode ............................................................................. 2-16

C Minding Mobile Manners.................................................... 2-16

C Activating & Cancelling....................................................... 2-17

C Activating/Cancelling Offline Mode..................................... 2-18

Entering Characters

3

Character Selection .................................................................... 3-2

C Entry Modes ......................................................................... 3-2

C Key Assignments.................................................................. 3-3

Entering Characters .................................................................... 3-5

C Kanji, Hiragana & Katakana................................................. 3-5

C Entering Alphanumerics ....................................................... 3-7

C Symbols, Pictographs & Emoticons ..................................... 3-7

C Mail & Web Extensions ........................................................ 3-8

C Character Code .................................................................... 3-8

C Pager Code .......................................................................... 3-8

Conversion Methods (Japanese Only).................................... 3-10

C Phonetic Conversion .......................................................... 3-10

C One-Hiragana Conversion.................................................. 3-10

C Hiragana to Katakana/Alphanumerics Conversion............. 3-10

C Quick Conversion (for Hiragana)........................................ 3-11

C Conversion Settings ........................................................... 3-12

0 Optional Predictive Functions......................................... 3-12

0 Set Low Priority .............................................................. 3-12

0 Reset Learning ............................................................... 3-12

Editing Characters .................................................................... 3-12

C Deleting & Replacing.......................................................... 3-12

C Copy/Cut & Paste............................................................... 3-12

C Deleting Text On and After Cursor ..................................... 3-13

Additional Functions ................................................................ 3-13

C Copying from Phone Book ................................................. 3-13

C Using Text Templates ......................................................... 3-14

C Changing Font Size............................................................ 3-14

Phone Book

4

Overview ...................................................................................... 4-2

Saving to Phone Book................................................................ 4-3

C Phone Book Entry Items ...................................................... 4-3

C New Phone Book Entries ..................................................... 4-4

C Saving from Call Log ............................................................ 4-8

C Phone Book Memory Status ................................................ 4-8

Using Phone Book ...................................................................... 4-8

C Dialling from Phone Book..................................................... 4-8

Editing Phone Book Entries ..................................................... 4-10

C Correction/Change............................................................. 4-10

C Copying Phone Book Entries ............................................. 4-10

C Deleting Phone Book Entries ............................................. 4-11

Category Settings ..................................................................... 4-11

C Changing Category Name.................................................. 4-11

C Customising Handset Responses ...................................... 4-12

Contents

v

Contact Groups ......................................................................... 4-12

C Creating Contact Groups.................................................... 4-12

C Saving Group Members ..................................................... 4-12

C Editing Contact Groups...................................................... 4-13

C Editing Group Members ..................................................... 4-13

Speed Dial List .......................................................................... 4-14

C Saving Phone Numbers ..................................................... 4-14

Contents

C Speed Dial.......................................................................... 4-14

0 Delete ............................................................................. 4-14

0 Clear All .......................................................................... 4-14

Vodafone Address Book (VAB) ................................................ 4-15

C VAB Sync Commands & Features...................................... 4-15

C Service Usage Outline ....................................................... 4-16

C Saving User ID & Password ............................................... 4-17

C Backup & Restore .............................................................. 4-17

C Synchronising Phone Book................................................ 4-18

C Opening Log....................................................................... 4-18

My Details .................................................................................. 4-18

C Opening My Details............................................................ 4-18

0 Edit/Add Details .............................................................. 4-18

0 Delete ............................................................................. 4-18

Video Call

5

Getting Started ............................................................................ 5-2

Initiating a Video Call .................................................................. 5-3

Answering a Video Call .............................................................. 5-3

Engaged Video Call Operations................................................. 5-4

0 Camera Picture................................................................. 5-4

0 Earpiece Volume .............................................................. 5-4

0 Mute.................................................................................. 5-4

0 Video Output..................................................................... 5-4

0 Switch Images .................................................................. 5-5

0 Lateral Display Size .......................................................... 5-6

0 Loudspeaker ..................................................................... 5-6

0 Open Phone Book ............................................................ 5-6

0 Transfer Audio................................................................... 5-6

0 Hold .................................................................................. 5-6

0 Mirror Image ..................................................................... 5-6

0 Exposure .......................................................................... 5-6

0 Help .................................................................................. 5-6

Video Call Settings ..................................................................... 5-7

0 Camera Picture................................................................. 5-7

0 Lateral Display Size .......................................................... 5-7

0 Loudspeaker ..................................................................... 5-7

0 Incoming Picture ............................................................... 5-7

0 Outgoing Picture ............................................................... 5-7

0 Backlight ........................................................................... 5-7

0 Mute Microphone .............................................................. 5-8

0 Hold Guidance Pict ........................................................... 5-8

vi

TV

6

Basics .......................................................................................... 6-2

Getting Started ............................................................................ 6-3

C Precautions .......................................................................... 6-3

C One Seg Digital Television Broadcasts ................................ 6-4

C Antenna................................................................................ 6-4

C Incoming Transmissions ....................................................... 6-5

C Key Assignments.................................................................. 6-7

C Window Description.............................................................. 6-8

C Channel Setup...................................................................... 6-8

Digital TV ..................................................................................... 6-9

C Watching Digital TV.............................................................. 6-9

C TV Listing (Japanese Only)................................................ 6-10

C Subtitle & Sound Settings................................................... 6-10

0 Display Subtitle ............................................................... 6-10

0 Subtitle Position .............................................................. 6-10

0 Subtitle Language........................................................... 6-11

0 Sound Type..................................................................... 6-11

C Data Broadcast (Japanese Only) ....................................... 6-11

0 Navigate.......................................................................... 6-11

0 Change View .................................................................. 6-12

0 Image Location ............................................................... 6-12

0 Delete Station Data ........................................................ 6-12

0 Disclosure Settings ......................................................... 6-12

C TV Link ............................................................................... 6-12

C Recording & Playback ........................................................ 6-13

0 Set Recording ................................................................. 6-14

0 Rename .......................................................................... 6-15

0 Information...................................................................... 6-15

0 Delete ............................................................................. 6-15

C TV Timer & Timer Recording.............................................. 6-16

0 Edit ................................................................................. 6-17

0 Delete ............................................................................. 6-17

0 TV Alarm......................................................................... 6-17

C Channel Lists...................................................................... 6-18

0 Set Area Info................................................................... 6-18

0 Set Channels .................................................................. 6-18

0 Change CH Name .......................................................... 6-19

0 Reset .............................................................................. 6-19

0 Save Channel ................................................................. 6-19

0 Move ............................................................................... 6-19

0 Delete ............................................................................. 6-19

C TV Settings......................................................................... 6-19

0 Navi Key Settings............................................................ 6-19

0 Adjust Brightness............................................................ 6-19

0 Tone Control ................................................................... 6-20

0 Sound Output ................................................................. 6-20

0 Calls & Alarms ................................................................ 6-20

0 Auto Power Off................................................................ 6-20

0 Activate TV ..................................................................... 6-21

0 Answer Call..................................................................... 6-21

Analogue TV .............................................................................. 6-21

C Watching Analogue TV....................................................... 6-21

C Analogue TV Functions ...................................................... 6-22

0 Playback Jump................................................................ 6-22

0 Edit Channel ................................................................... 6-22

0 Landscape ...................................................................... 6-23

Contents

vii

FM Radio

7

Getting Started ............................................................................ 7-2

C Precautions .......................................................................... 7-2

C Key Assignments.................................................................. 7-3

C Window Description.............................................................. 7-4

Using FM Radio ........................................................................... 7-4

Contents

C Station Setup........................................................................ 7-4

C Listening............................................................................... 7-5

C Now On Air ........................................................................... 7-5

Station Lists ................................................................................ 7-6

C Editing Station Lists.............................................................. 7-6

0 Auto Scan & Save............................................................. 7-6

C Stations ................................................................................ 7-7

0 Save Station ..................................................................... 7-7

0 Station Name .................................................................... 7-7

0 Frequency......................................................................... 7-7

0 Move ................................................................................. 7-7

0 Delete ............................................................................... 7-7

FM Settings.................................................................................. 7-8

0 Sound Output ................................................................... 7-8

0 Auto switch off .................................................................. 7-8

0 Phone Closing .................................................................. 7-8

0 Navi Key Settings.............................................................. 7-8

0 Switch List to .................................................................... 7-8

Camera

8

Getting Started ............................................................................ 8-2

C Mobile Camera Basics ......................................................... 8-2

C Camera Display Indicators ................................................... 8-3

C Key Assignments.................................................................. 8-4

Still Images .................................................................................. 8-5

C Photo Camera Mode ............................................................ 8-5

C Capturing Still Images.......................................................... 8-6

C Still Image Functions ............................................................ 8-7

Video ............................................................................................ 8-8

C Video Camera Mode ............................................................ 8-8

C Recording Video................................................................... 8-9

C Video Recording Operations.............................................. 8-10

Opening Images & Playing Video ............................................ 8-11

C Opening Still Images.......................................................... 8-11

C Playing Video ..................................................................... 8-11

0 SD Video ........................................................................ 8-11

Special Shooting Modes........................................................... 8-11

C Self-timer ............................................................................ 8-11

C Continuous Shoot (Photo Camera) .................................... 8-12

C Adding Frames (Photo Camera)......................................... 8-14

C Camera Effects (Photo Camera) ........................................ 8-15

Sending Images ........................................................................ 8-15

C Still Images......................................................................... 8-15

C Video Clips ......................................................................... 8-16

Camera Settings........................................................................ 8-16

C Shooting Options................................................................ 8-16

0 Hide Indicators/Normal Finder........................................ 8-16

0 Shutter Sound................................................................. 8-16

0 Mobile Light .................................................................... 8-17

0 Display Size .................................................................... 8-17

viii

C Image Settings ................................................................... 8-17

0 Exposure ........................................................................ 8-17

0 Picture Size..................................................................... 8-18

0 Picture/Video Quality ...................................................... 8-18

0 Scene ............................................................................. 8-18

0 Record Time/Size ........................................................... 8-19

0 Microphone..................................................................... 8-19

0 Video Encode ................................................................. 8-19

C Additional Settings.............................................................. 8-20

0 Internal Camera/External Camera.................................. 8-20

0 Save to............................................................................ 8-20

0 Auto Save ....................................................................... 8-20

Media Player

9

Media Player Basics.................................................................... 9-2

C Downloading Music/Video .................................................... 9-2

C Saving Music Files from PCs ............................................... 9-3

Recording Music ......................................................................... 9-4

C Connecting to Audio Sources ............................................... 9-6

C Recording............................................................................. 9-7

C Recording Settings ............................................................... 9-8

0 Monitor Level .................................................................... 9-8

0 Synch Recording .............................................................. 9-8

0 Bit Rate ............................................................................. 9-8

0 Auto Mark Level................................................................ 9-8

Playing Music .............................................................................. 9-9

C Playback............................................................................. 9-10

C Playback Settings............................................................... 9-11

0 Tone Control ................................................................... 9-11

0 Playback Pattern............................................................. 9-11

Playing Video............................................................................. 9-12

C Playback............................................................................. 9-13

C Playback Settings............................................................... 9-14

0 Playback Pattern............................................................. 9-14

0 Backlight ......................................................................... 9-14

0 Display Size .................................................................... 9-14

0 Sound Settings ............................................................... 9-14

0 Title/Artist........................................................................ 9-15

Editing Video ............................................................................. 9-15

C Clipping Portions between Two Points ............................... 9-15

C Cropping Video Clips.......................................................... 9-16

C Adding Subtitles ................................................................. 9-16

0 Duration .......................................................................... 9-17

0 Display Position .............................................................. 9-17

0 Font Size......................................................................... 9-17

0 Scrolling.......................................................................... 9-18

0 Background Colour ......................................................... 9-18

0 Font Colour ..................................................................... 9-18

0 Highlight.......................................................................... 9-19

0 Blink ................................................................................ 9-19

0 Reset .............................................................................. 9-19

Managing Video & Music Files................................................. 9-19

C Adding New Playlist............................................................ 9-20

C Adding Files to Playlists ..................................................... 9-20

C Editing SD AUDIO Files...................................................... 9-21

C Deleting Files in SD VIDEO & SD AUDIO.......................... 9-21

Contents

ix

10

Data Folder ................................................................................ 10-2

Opening Files ............................................................................ 10-5

Contents

Managing Files & Folders......................................................... 10-9

Using Files ............................................................................... 10-11

Editing Still Images ................................................................. 10-12

Managing Files (Data Folder)

C Window Description............................................................ 10-2

C Major Icons......................................................................... 10-3

C Display Settings.................................................................. 10-4

C CCF Files ........................................................................... 10-7

C SVG Files ........................................................................... 10-7

C MMS Mail Attachments ...................................................... 10-8

C Printing Images .................................................................. 10-8

C Adding Folders ................................................................... 10-9

C Changing File/Folder Name ............................................... 10-9

C Deleting Files & Folders ................................................... 10-10

C Copying/Moving Files ....................................................... 10-10

C Wallpaper ......................................................................... 10-11

C Saving to Phone Book...................................................... 10-11

C Ringvideo & Ringtone....................................................... 10-11

C Changing Image Size ....................................................... 10-12

C Visual Effects (Retouch) ................................................... 10-13

C Adding Text & Stamps ...................................................... 10-13

C Face Arrange.................................................................... 10-14

C Additional Picture Effects ................................................. 10-15

0 Add Frame .................................................................... 10-15

0 Rotate ........................................................................... 10-15

0 Reformat file ................................................................. 10-15

C Panorama Images ............................................................ 10-16

C Split Screen ...................................................................... 10-17

Text Templates ........................................................................ 10-17

C New Entry......................................................................... 10-17

C Opening Templates .......................................................... 10-18

C Editing Templates ............................................................. 10-18

C Deleting Templates........................................................... 10-18

Memory Card ........................................................................... 10-18

C Precautions ...................................................................... 10-19

C Inserting & Removing Memor y Card ................................ 10-19

C Format Card ..................................................................... 10-20

C Backup & Restore ............................................................ 10-21

C Additional Function........................................................... 10-22

0 SD Local Contents........................................................ 10-22

Digital Print Order Format (DPOF)......................................... 10-23

C Selecting Images & Prints ................................................ 10-23

C Print Settings .................................................................... 10-23

0 For All Pictures ............................................................. 10-23

0 Add Date....................................................................... 10-23

0 Index Print..................................................................... 10-24

0 Check Settings.............................................................. 10-24

0 Reset Settings .............................................................. 10-24

11

Mode Settings ........................................................................... 11-2

Additional Settings

C Activating a Mode............................................................... 11-2

0 Mode Settings................................................................. 11-2

C Customising Modes............................................................ 11-2

0 Personalise ..................................................................... 11-2

0 Any Key Answer.............................................................. 11-2

0 Answer Phone ................................................................ 11-2

C Reset.................................................................................. 11-2

0 Set to Default .................................................................. 11-2

x

Display ....................................................................................... 11-3

C Display Settings.................................................................. 11-3

0 Wallpaper........................................................................ 11-3

0 System Graphics ............................................................ 11-3

0 Font Settings................................................................... 11-4

0 Clock/Calendar ............................................................... 11-4

0 Show Indicators .............................................................. 11-4

0 Show Operator Name ..................................................... 11-4

0 Greeting Message .......................................................... 11-5

C Language Setting............................................................... 11-5

0 Language........................................................................ 11-5

C Custom Screens................................................................. 11-5

0 Delete ............................................................................. 11-7

0 Web Access.................................................................... 11-7

C Light Settings...................................................................... 11-8

0 Backlight ......................................................................... 11-8

0 Display Saving ................................................................ 11-8

C External Display Settings ................................................... 11-8

0 Switch On/Off ................................................................. 11-8

0 Backlight ......................................................................... 11-8

0 LCD Contrast .................................................................. 11-9

0 Caller Display.................................................................. 11-9

C Viewing Images on External Devices ................................. 11-9

Sounds & Alerts ...................................................................... 11-11

C Customising Handset Responses .................................... 11-11

0 Volume.......................................................................... 11-11

0 Ringtone/videos............................................................ 11-11

0 Vibration........................................................................ 11-12

0 Event Light.................................................................... 11-12

0 Status Light................................................................... 11-13

C Customising System Sounds ........................................... 11-13

0 Keypad Tones............................................................... 11-13

0 Warning Tone & Power On/Off Sound .......................... 11-13

C Additional Sound Settings................................................ 11-14

0 Surround ....................................................................... 11-14

0 Ringer Output ............................................................... 11-14

0 Earpiece Volume .......................................................... 11-14

Date & Time ............................................................................. 11-14

0 Set Date/Time............................................................... 11-14

0 Set Time Zone/Daylight Saving .................................... 11-15

0 Date/Time Format......................................................... 11-15

0 Calendar Format........................................................... 11-15

0 Wake-up Alarm ............................................................. 11-15

User Dictionary ....................................................................... 11-16

C Entries (Japanese Only) ................................................... 11-16

0 New Entry ..................................................................... 11-16

0 Edit/Delete .................................................................... 11-16

C 905SH Download Dictionary (Japanese Only)................. 11-16

0 Acquire Dictionary ........................................................ 11-16

0 Cancel .......................................................................... 11-16

0 Info................................................................................ 11-16

Handset Security..................................................................... 11-17

C Face Recognition.............................................................. 11-17

0 Conductor Setting ......................................................... 11-19

0 Security Level ............................................................... 11-19

C PIN ................................................................................... 11-20

0 PIN Entry ...................................................................... 11-20

0 Change PIN .................................................................. 11-20

C Handset Locks.................................................................. 11-20

0 Handset Lock................................................................ 11-20

0 Function Lock ............................................................... 11-21

0 Phone Book Lock.......................................................... 11-21

C Secret Mode ..................................................................... 11-21

0 Show Secret Data......................................................... 11-21

C Changing Handset Code .................................................. 11-22

0 Chng Handset Code ..................................................... 11-22

Contents

xi

Reset ........................................................................................ 11-22

0 Reset Settings .............................................................. 11-22

0 Reset All ....................................................................... 11-22

Call Settings ............................................................................ 11-23

C International Call .............................................................. 11-23

0 Int'l Prefix ...................................................................... 11-23

Contents

0 Country Codes.............................................................. 11-23

C Additional Settings............................................................ 11-24

0 Minute Minder............................................................... 11-24

0 Display Call Cost .......................................................... 11-24

0 Call Time Counter......................................................... 11-24

12

Bluetooth#.................................................................................. 12-2

Infrared....................................................................................... 12-9

Mass Storage........................................................................... 12-14

Network Information ............................................................... 12-14

Internet Settings...................................................................... 12-14

Connectivity

C Getting Started ................................................................... 12-2

C Transferring Files via Bluetooth#......................................... 12-4

C Connecting Handsfree Devices.......................................... 12-8

C Bluetooth# Settings............................................................. 12-8

0 Device Name .................................................................. 12-8

0 Bluetooth Timeout .......................................................... 12-8

0 Handsfree Setting ........................................................... 12-9

0 OPP Authentication ........................................................ 12-9

0 Device Details................................................................. 12-9

C Getting Started ................................................................... 12-9

C Transferring Files via Infrared ........................................... 12-10

0 Network Info.................................................................. 12-14

0 Retrieve NW Info........................................................... 12-14

0 Clear DNS Cache ......................................................... 12-14

0 White List ...................................................................... 12-15

Location Info............................................................................ 12-15

0 URL Setting .................................................................. 12-15

0 Datum On/Off ............................................................... 12-15

13

Calendar..................................................................................... 13-2

Tasks .......................................................................................... 13-8

Tools

C Opening Calendar.............................................................. 13-2

0 Default View.................................................................... 13-2

0 Set Holiday ..................................................................... 13-3

0 Quick Entry ..................................................................... 13-3

C Saving Entries .................................................................... 13-3

0 Assign Tone .................................................................... 13-5

0 Assign Video................................................................... 13-5

0 Duration .......................................................................... 13-5

0 Repeat ............................................................................ 13-5

0 Secret ............................................................................. 13-5

C Opening Entries ................................................................. 13-6

C Searching Entries by Subject ............................................. 13-6

C Editing Entries .................................................................... 13-6

C Deleting Entries .................................................................. 13-7

0 This Appointment/All This Day........................................ 13-7

0 All This Month/All This Week .......................................... 13-7

0 Up to Last Month/Up to Last Week................................. 13-7

0 All Appointments............................................................. 13-7

C Saving Entries .................................................................... 13-8

0 Assign Tone .................................................................... 13-9

0 Assign Video................................................................... 13-9

0 Duration ........................................................................ 13-10

0 Secret ........................................................................... 13-10

C Opening Entries ............................................................... 13-10

C Searching Entries by Subject ........................................... 13-10

C Editing Entries .................................................................. 13-11

xii

C Deleting Entries ................................................................ 13-11

0 This Task....................................................................... 13-11

0 All Tasks/All Comp. Tasks............................................. 13-11

Alarm ........................................................................................ 13-11

C Setting Alarm.................................................................... 13-11

0 Assign Tone .................................................................. 13-13

0 Assign Video................................................................. 13-13

0 Snooze.......................................................................... 13-13

0 Alarm Volume ............................................................... 13-13

0 Vibration........................................................................ 13-13

0 Duration ........................................................................ 13-13

C Cancelling & Reactivating Alarm...................................... 13-14

0 Switch Off ..................................................................... 13-14

0 Switch On ..................................................................... 13-14

C Deleting Alarm.................................................................. 13-14

0 Reset Alarm .................................................................. 13-14

0 Clear All ........................................................................ 13-14

Auto Power On ........................................................................ 13-14

World Clock ............................................................................. 13-15

C Setting Time Zone & Daylight Saving............................... 13-15

C Opening World Clock ....................................................... 13-15

Calculator ................................................................................ 13-16

Voice Recorder........................................................................ 13-17

C Preparation....................................................................... 13-17

C Recording......................................................................... 13-17

C Playback........................................................................... 13-18

C Recording Setting............................................................. 13-18

0 Save Recording To ....................................................... 13-18

Barcode.................................................................................... 13-19

0 Scanning during Text Entry........................................... 13-21

0 Open Barcode .............................................................. 13-22

0 Scanned Results .......................................................... 13-22

Create QR Codes .................................................................... 13-22

0 Phone Book .................................................................. 13-22

0 Text Input ...................................................................... 13-22

0 Data Folder ................................................................... 13-23

Text Scanner............................................................................ 13-23

0 Scanning during Text Entry........................................... 13-25

Stopwatch ................................................................................ 13-25

Countdown Timer.................................................................... 13-25

Expenses Memo ...................................................................... 13-26

0 Add New Expense ........................................................ 13-26

0 Totals ............................................................................ 13-26

0 Edit Category ................................................................ 13-26

Electronic Books..................................................................... 13-27

C Reading Content .............................................................. 13-27

C Using E-Book Images....................................................... 13-30

0 Embedded Information ................................................. 13-30

C Using a Dictionary............................................................ 13-30

0 Look Up Word............................................................... 13-30

Phone Help .............................................................................. 13-30

14

Optional Services Overview..................................................... 14-2

Call Forwarding ......................................................................... 14-2

Voicemail.................................................................................... 14-3

Optional Services

0 Call Forwarding............................................................... 14-2

0 Cancel All ....................................................................... 14-3

0 Status ............................................................................. 14-3

0 Voicemail ........................................................................ 14-3

0 Cancel All ....................................................................... 14-4

0 Status ............................................................................. 14-4

0 Call Voicemail ................................................................. 14-4

0 Voicemail Centre Numbers............................................. 14-4

C Missed Call Notification ...................................................... 14-5

0 Activate/Cancel............................................................... 14-5

Contents

xiii

Call Waiting................................................................................ 14-5

0 Call Waiting On/Off ......................................................... 14-5

0 Status ............................................................................. 14-5

0 Incoming Calls ................................................................ 14-5

Conference Call......................................................................... 14-6

0 Dial New Number............................................................ 14-6

Contents

0 Swap Calls...................................................................... 14-6

0 Conference Call .............................................................. 14-6

Call Barring................................................................................ 14-7

C Restricting Outgoing Calls.................................................. 14-8

0 Set/Cancel Restriction .................................................... 14-8

0 Status ............................................................................. 14-8

C Restricting Incoming Calls.................................................. 14-8

0 Set/Cancel Restriction .................................................... 14-8

0 Status ............................................................................. 14-8

C Rejecting a Call .................................................................. 14-9

0 Set Reject Number ......................................................... 14-9

0 Switch On/Off ................................................................. 14-9

C Rejecting Calls without Caller ID ........................................ 14-9

0 Withheld Call .................................................................. 14-9

C Changing Network Password ............................................. 14-9

0 Change NW Password.................................................... 14-9

Caller ID ................................................................................... 14-10

0 Show My Number ......................................................... 14-10

0 Status ........................................................................... 14-10

15

Basics ........................................................................................ 15-2

Sending Text Messages............................................................ 15-6

Incoming Text Messages........................................................ 15-13

Messaging

C Messaging Folders ............................................................. 15-2

C Window Description............................................................ 15-3

C Views.................................................................................. 15-4

C Customising Handset Address ........................................... 15-5

C Basics................................................................................. 15-6

C Creating & Sending a Message.......................................... 15-7

C SMS/MMS Send Options ................................................. 15-12

0 Delivery Report ............................................................. 15-12

0 Expiry Time................................................................... 15-12

0 Priority .......................................................................... 15-12

C Using Drafts...................................................................... 15-12

C Using Templates............................................................... 15-13

C Opening New Messages .................................................. 15-13

C Retrieving Complete MMS Messages .............................. 15-15

C Retrieving Mail List ........................................................... 15-15

0 Get................................................................................ 15-16

0 Remote Forward ........................................................... 15-16

0 Delete ........................................................................... 15-16

0 Message Details ........................................................... 15-16

xiv

Using Messages ...................................................................... 15-16

C Checking Messages......................................................... 15-16

0 Display Effect................................................................ 15-17

0 Background Colour/Display Speed ............................... 15-17

C Replying to Messages ...................................................... 15-18

C Forwarding Messages ...................................................... 15-19

C Linked Info........................................................................ 15-19

C Protecting Messages ........................................................ 15-20

C Deleting Messages........................................................... 15-21

C Saving Attachments to Data Folder.................................. 15-22

C My Folders........................................................................ 15-22

Additional Functions .............................................................. 15-24

C Speed Mail List................................................................. 15-24

C Speed Mail ....................................................................... 15-25

C Auto Resend..................................................................... 15-25

C General Settings............................................................... 15-25

0 Home Download ........................................................... 15-25

0 Delivery Report............................................................. 15-26

0 Anti Spam Measures .................................................... 15-26

0 Signature ...................................................................... 15-26

0 Auto Delete ................................................................... 15-26

0 Message Notice ............................................................ 15-27

0 Scroll Unit ..................................................................... 15-27

0 Message Type............................................................... 15-27

C SMS Settings.................................................................... 15-27

0 Expiry Time................................................................... 15-27

0 Message Centre ........................................................... 15-27

C MMS Settings ................................................................... 15-28

0 Expiry Time................................................................... 15-28

0 Picture Appearance...................................................... 15-28

0 Send File Settings ........................................................ 15-28

0 Auto Play File................................................................ 15-28

0 SMIL Settings ............................................................... 15-28

0 Slide Auto Play ............................................................. 15-28

16

Getting Started .......................................................................... 16-2

Using Web.................................................................................. 16-3

Basic Operations ...................................................................... 16-5

Advanced Features ................................................................... 16-7

Streaming ................................................................................ 16-11

Additional Functions .............................................................. 16-12

Web

C Opening Vodafone Web Menu ........................................... 16-3

C Entering URLs Directly ....................................................... 16-5

C Bookmarks & Saved Pages................................................ 16-7

0 Edit ................................................................................. 16-8

0 Bookmarks Folder........................................................... 16-9

0 Rename .......................................................................... 16-9

0 Move ............................................................................... 16-9

0 Delete ............................................................................. 16-9

C Saving to Data Folder......................................................... 16-9

C Using Linked Info.............................................................. 16-10

0 Streaming from Media Player ....................................... 16-12

C Sub Menu Settings ........................................................... 16-12

0 Change View ................................................................ 16-12

0 Copy Text...................................................................... 16-12

0 Reload .......................................................................... 16-12

0 Enter URL ..................................................................... 16-12

0 Home ............................................................................ 16-12

0 Access History .............................................................. 16-12

0 Send ............................................................................. 16-13

0 Properties ..................................................................... 16-13

0 Delete Browser Data..................................................... 16-13

0 Search .......................................................................... 16-13

0 Current Cert. ................................................................. 16-13

0 Uploading Files ............................................................. 16-13

Contents

xv

C Basic Settings................................................................... 16-14

0 Font Size....................................................................... 16-14

0 Scroll Unit ..................................................................... 16-14

0 Char-code ..................................................................... 16-14

0 Send Referrer ............................................................... 16-14

0 Cookies......................................................................... 16-14

Contents

0 Downloads .................................................................... 16-14

0 Manufacture Number .................................................... 16-14

0 Location ........................................................................ 16-14

0 Download to.................................................................. 16-15

C Security ............................................................................ 16-15

0 Secure Prompt.............................................................. 16-15

0 Root Certificates/Current Cert. ..................................... 16-15

0 Authentication ............................................................... 16-15

17

Getting Started .......................................................................... 17-2

Using V-applications................................................................. 17-5

Managing V-applications .......................................................... 17-6

V-applications

C V-appli Library .................................................................... 17-2

C V-applications on Memory Card ......................................... 17-3

C Video Output ...................................................................... 17-3

C Downloading V-applications ............................................... 17-4

C Starting V-applications ....................................................... 17-5

C Exit, Pause & Resume ....................................................... 17-5

C Opening V-application Properties....................................... 17-6

C Moving V-applications to Memory Card.............................. 17-6

C Deleting V-applications....................................................... 17-6

C Screensaver ....................................................................... 17-7

C Setting Permissions............................................................ 17-8

C V-application Operational Settings ..................................... 17-8

0 Application Volume ......................................................... 17-8

0 Backlight ......................................................................... 17-8

0 Blink ................................................................................ 17-9

0 Vibration.......................................................................... 17-9

0 Calls & Alarms ................................................................ 17-9

0 Surround ......................................................................... 17-9

C Reset.................................................................................. 17-9

0 Set to Default .................................................................. 17-9

0 Memory All Clear .......................................................... 17-10

18

Vodafone live! CAST (Japanese Only) .................................... 18-2

Near chat (Japanese Only) ....................................................... 18-4

ComicSurfing (Japanese Only) ................................................ 18-6

19

Basics ........................................................................................ 19-2

Using Vodafone live! FeliCa ..................................................... 19-3

Vodafone live! FeliCa Settings................................................. 19-4

Entertainment

C Basics................................................................................. 18-2

C Service Registration & Content Subscription ..................... 18-2

C Opening Received Information........................................... 18-2

C Using Information ............................................................... 18-3

C Basics................................................................................. 18-4

C Using Near chat.................................................................. 18-4

0 Latest Information ........................................................... 18-5

Vodafone live! FeliCa

C Starting IC-appli ................................................................. 19-3

C IC Card Status.................................................................... 19-4

C IC Card Lock ...................................................................... 19-4

C Remote Lock ...................................................................... 19-5

C Interface Settings ............................................................... 19-7

C Resetting Defaults .............................................................. 19-7

xvi

20

Function List ............................................................................. 20-2

Troubleshooting ........................................................................ 20-4

Software Update........................................................................ 20-9

Character Code List ................................................................ 20-10

Pictograph List ........................................................................ 20-16

Specifications.......................................................................... 20-17

Memory List ............................................................................. 20-18

Index......................................................................................... 20-19

Warranty & After-Sales Services ........................................... 20-25

Customer Service ................................................................... 20-26

Appendix

Contents

xvii

Safety Precautions

^ Read safety precautions before using handset.
^ Observe precautions to avoid injury to self or others, or damage to property.
^ Vodafone is not liable for any damages resulting from use of this product.

Before Using Handset

CSymbols

Make sure you thoroughly understand these symbols before reading on.
Symbols and their meanings are described below:

xviii

!
!
!

CSymbols

DANGER

WARNING

CAUTION

$(%+*

Prohibited Actions Compulsory Actions Attention Required

Great risk of death or serious injury from improper use

Risk of death or serious injury from improper use

Risk of injury or damage to property from improper use

#) !

!DANGER

Handset, Battery & Charger

Use specified battery, Charger and Desktop Holder
only (see P.iii).

Using non-specified equipment may cause malfunctions,
electric shock or fire due to battery leakage, overheating or
bursting.

Do not short-circuit Charger terminals.

Keep metal objects away from Charger terminals. Keep
handset away from necklaces, hairpins, etc.
Battery may leak, overheat, burst or ignite causing injury.
Use a case to carry battery.

#

$

Battery

Prevent injury from battery leakage, breakage or
fire.
Do not:

^ Heat or dispose of battery in fire
^ Open/modify/disassemble battery
^ Damage or solder battery
^ Use a damaged or deformed battery
^ Use non-specified charger (see P.iii)
^ Force battery into handset
^ Charge battery near fire or sources of heat; or expose it

to extreme heat

^ Use battery for other equipment

If battery fluid contacts eyes, do not rub them.
Rinse with clean water and consult a doctor
immediately.

Eyes may be severely damaged.

$

#

xix

Handset, Battery & Charger

!WARNING

Do not insert foreign objects into the handset,
Charger or Desktop Holder.

Do not insert metal or flammable objects into handset,
Charger or Desktop Holder; may cause fire or electric
shock. Keep out of children's reach.

Keep handset out of rain or extreme humidity.

Fire or electric shock may result.

Keep handset away from liquid-filled containers.

Keep the handset, Charger and Desktop Holder away from
chemicals or liquids; fire or electric shock may result.

Keep battery, handset, Charger or Desktop Holder
away from microwave ovens.

Battery, handset, Charger or Desktop Holder may leak,
burst, overheat or ignite, leading to accidents or injury.

Do not disassemble or modify handset or related
hardware.

^ Do not open handset, Charger or Desktop Holder; may

cause electric shock or injury. Contact Vodafone
Customer Centre, Customer Assistance for repairs.

^ Do not modify handset, Charger or Desktop Holder; fire

or electric shock may result.

xx

$

%
$

$

(

Do not use Mobile Light near people's faces.

Eyesight may be temporarily affected leading to accidents.

CAUTION:
Use of controls, adjustments or performance of procedure
other than those specified herein may result in hazardous
radiation exposure. As the emission level from Mobile Light
LED used in this product is harmful to the eyes, do not
attempt to disassemble the cabinet. Servicing is limited to
qualified servicing station only.

If water or foreign matter is inside handset:

Discontinue handset use to prevent fire/electric shock. Turn
off handset, remove battery and unplug Charger, then
contact Vodafone Customer Centre, Customer Assistance.

Avoid sources of fire.

Prevent fire or explosion. Do not use handset in the
presence of gas or fine particles (coal, dust, metal, etc.).

Do not subject handset to strong shocks or impacts.

Strong shocks or impacts to handset, Charger or Desktop
Holder may cause malfunction or injury.
Should handset be damaged, remove battery then contact
Vodafone Customer Centre, Customer Assistance.
Discontinue handset use; fire or electric shock may occur.

$

)

$

$

!WARNING

Handset, Battery & Charger

If an abnormality occurs:

If a handset emits an unusual sound, smoke or odour,
discontinue use; may cause fire or electric shock. Turn off
handset, remove battery and unplug Charger; contact
Vodafone Customer Centre, Customer Assistance.

)

Handset

Take measures to prevent accidents.

^

For safety, never use handset while driving. Pull over
beforehand. Mobile phone use while driving is prohibited by
the revised Road Traffic Law (effective 1 November 2004).

^ Do not use Headphones while driving or riding a bicycle.

Accidents may result.

^ Moderate volume outside, especially at level/road

crossings to avoid accidents.

Do not swing handset by Headphones or handstrap.

May result in injury or breakage.

Turn handset power off before boarding aircraft.

Using wireless devices aboard aircraft may cause
electronic malfunctions or endanger aircraft operation.

Adjust vibration and Ringtone settings:

Users with a heart condition/pacemaker/defibrillator should
adjust handset settings accordingly.

During thunderstorms, turn power off; find cover.

There is a risk of lightning strike or electric shock.

$

$
#

#

#

xxi

Charger

!WARNING

Use only the specified voltage.

Non-specified voltages may cause fire or electric shock.

^ AC Charger: AC 100V-240V Input
^ In-Car Charger: DC 12V-24V Input

Do not use In-Car Charger if vehicle has a positive
earth.

Fire may result. Use In-Car Charger only inside vehicles
with a negative earth.

Charger care

^ Do not touch blades with wet hands. Electric shock may

occur.

^ Do not use multiple cords in one outlet; may cause

excess heat/fire.

^ Do not bend, twist, pull or set objects on cord. Exposed

wire may cause fire or electric shock.

Do not short-circuit Charger terminals.

May cause overheating, fire or electric shock. Keep metal
away from terminals.

Do not use Desktop Holder inside vehicles.

Extreme temperature or vibration may cause fire or
damage handset, etc.

xxii

$

$

+

$

$

$

Take measures to prevent accidents.

Secure In-Car Charger to avoid injury or accidents.

Damaged AC Charger/In-Car Charger cord:

May cause fire or electric shock; discontinue use and
purchase a new Charger.

During thunderstorms:

Unplug Charger to avoid damage, fire or electric shock.

Charger/Desktop Holder use and children:

May cause electric shock/injury; keep out of reach.

#
#

)
#

Battery

!WARNING

^ If battery does not charge properly, stop charging. Battery

may overheat, burst or ignite.

^ If there is leakage or abnormal odour, avoid fire sources.

Battery may catch fire or burst.

##

If there is abnormal odour, excessive heat, discolouration or
distortion, remove battery from handset.
It may leak, overheat or explode.

Handset Use & Electronic Medical Equipment

This section is based on "Guidelines on the Use of Radio Communications Equipment such as Cellular Telephones and
Safeguards for Electronic Medical Equipment" (Electromagnetic Compatibility Conference, April 1997) and "Report of
Investigation of the Effects of Radio Waves on Medical Equipment, etc." (Association of Radio Industries and Businesses,
March 2001).

Persons with implanted pacemaker/defibrillator
should keep handset more than 22 cm away.

Radio waves can interfere with implanted pacemakers or
defibrillators causing such devices to malfunction.

Turn handset off in crowds or trains where persons
with implanted pacemaker/defibrillator may be near.

Radio waves can interfere with implanted pacemakers or
defibrillators causing such devices to malfunction.

#

#

Observe these rules inside medical facilities:

^ Do not enter an operating room or an Intensive or

Coronary Care Unit while carrying a mobile handset.

^ Keep handset off in hospitals.
^ Keep handset off in hospital lobbies. Electronic

equipment may be near.

^ Obey rules regarding mobile phone use in medical

facilities.

Consult manufacturer for radio wave effects on
electronic medical equipment.

#

#

xxiii

!CAUTION

Handset, Battery & Charger

Handset care

^ Place handset on stable surfaces to avoid malfunction or

injury.

^ Keep handset away from oily smoke or steam. Fire or

accidents may result.

^ Cold air from air conditioners may condense, resulting in

leakage or burnout.

^ Keep handset away from direct sunlight (inside vehicles,

etc.) or heat sources. Distortion, discolouration or fire
may occur. Battery shape may be affected.

^ Keep handset out of extremely cold places to avoid

malfunction or accidents.

^ Keep handset away from fire sources to avoid malfunction

or accidents.

Usage environment

^ Excessive dust may prevent heat release and cause

burnout or fire.

^ Avoid using handset on the beach. Sand may cause

malfunction or accidents.

^ Keep handset away from credit cards, telephone cards,

etc. to avoid data loss.

!

!

Handset

Handset temperature

Handset may become hot while in use. Avoid prolonged
contact with skin especially at high temperature. May cause
burn injuries.

Avoid leaving handset in extreme heat (inside
vehicles, etc.).

Handset may become hot to the touch, leading to burn
injuries.

Volume settings

Moderate handset volume; excessive volume may damage
ears or hearing.

Headphones

^ Do not force plugs or pull on cord; may damage plugs or

cord.

^ Keep plugs clean to avoid noise and malfunction.

Inside vehicles

Handset use may cause electronic equipment to
malfunction.

!

$

!

!

!

xxiv

!CAUTION

Handset

If you experience any skin irritation associated with handset use, discontinue handset use and consult a doctor.

See handset materials below. Some materials may cause skin irritation, rashes, or itchiness depending on your physical condition.

Housing (Display side) Magnesium alloy/Acrylic baking finish (sealer: epoxy baking finish)
Housing (Display back/Keypad/Keypad back side), battery cover ABS resin/Acrylic UV curing painting (sealer: acrylic painting)
Housing ornament (Display back side) ABS resin (chrome plating on nickel plating)
Display window, External Display window, lens cover, Mobile Light cover
Back ornament plate (for blue and black) ABS resin/Acrylic UV curing painting (sealer: acrylic painting)

Back ornament plate (for white)

Antenna ABS resin/Brass/PA/Elastomer/SUS
Logo badge Acrylic UV curing resin/Aluminium (base)
Infrared Port ABS resin (infrared grade)
Protector (Display edges) Nylon
LCD rotation stopper (stop pad), Portrait/Macro Selector ABS resin
Cabinet cover (below Keypad) Elastomer
Multi Selector (centre) ABS resin (chrome plating on nickel plating)
Multi Selector (Cursor Keys), Start Key, Power On/ Off Key, Ma il Key,
Vodafone Web Key, Side Keys, Shortcuts & A/a Key, Clear/Back Key,
Multimedia/Text Key, TV/Multi Job/Manner Key, Keypad
Memory Card Slot cover, External Device Connector cover, VIDEO
OUT/Headphone/Optical Digital Line In Connector cover
Battery PC resin
Charger Terminal SUS/Gold plating (sealer: nickel)
Screw (all pieces) SWCH12A/Ni plating
USIM pin Copper alloy/Gold plating (sealer: nickel)
USIM holder SUS

Parts Materials & Finishing

Acrylic resin

ABS resin/Acrylic UV curing painting (sealer: acrylic UV curing
painting, discontinuous deposition)

PC resin/Paint

ABS resin/Acrylic UV curing painting (sealer: acrylic painting)/
Elastomer

#

xxv

Charger

!CAUTION

Charger & In-Car Charger

^ Grasp plug (not cord) to disconnect Charger. May cause

fire/electric shock.

^ Keep cord away from heaters. Exposed wire may cause

fire or electric shock.

^ Stop use if plug is hot or improperly connected. May

cause fire/electric shock.

^ Keep In-Car Charger socket clean. May overheat and

cause injury.

Do not touch Desktop Holder while in use.

May cause burn injuries.

Use only the specified fuse.

1 A fuse for In-Car Charger.
Or may cause breakage/fire.

xxvi

$

#

$
$

Always charge battery in a well-ventilated area.

Avoid covering/wrapping Charger and Desktop Holder; may
cause damage/fire.

Do not use In-Car Charger when engine is off.

To avoid weakening the car battery, always start engine
before charging the handset using In-Car Charger.

During periods of disuse

Always unplug AC Charger or In-Car Charger after use.

Handset maintenance

Always disconnect AC Charger or In-Car Charger when
cleaning handset, to prevent shock/injury.

Installing In-Car Charger

Properly position the cable for safe driving to avoid injury or
accidents.

$

$

)
)

!

Battery

!CAUTION

Do not throw or abuse battery. Battery may overheat, burst
or ignite.

Do not leave battery in direct sunlight or inside a closed
vehicle; may reduce battery performance or overheat.
An overheated battery may cause fire.

Do not expose battery to liquids. Performance may deteriorate.

If battery fluid contacts skin or clothes, rinse with clean
water immediately.

Do not dispose of an exhausted battery with ordinary
refuse; always tape over battery terminals before disposal.
Take exhausted battery to a Vodafone shop, or follow the
local disposal regulations.

Keep battery out of children's reach.

$
$

*
#
$

#

^ Charge battery in ambient temperatures between 5]C

and 35]C; outside this range, battery may leak/overheat
and performance may deteriorate.

^ If your child is using handset, explain all instructions and

supervise usage.

^ If there is abnormal odour or excessive heat, stop using

battery and call Vodafone Customer Centre, Customer
Assistance.

^ Charge battery at least once every six months; an

uncharged battery may become unusable.

!

xxvii

General Notes

General Use

^ Vodafone is not liable for any damages resulting from

accidental loss/alteration of handset or Memory Card data.
Keep a copy of Phone Book entries, etc. in a separate place.

^ Handset transmissions may be disrupted inside buildings,

tunnels or underground, or when moving into/out of such
places.

^ Use handset without disturbing others.
^ Handsets are radios as stipulated by the Radio Law. Under the

Radio Law, handsets must be submitted for inspection upon
request.

Inside Vehicles

^ Never use handset while driving.
^ Do not park illegally to use handset.

Aboard Aircraft

Never use handset aboard aircraft (keep power off).
Handset use may impair aircraft operation.

^ Handset use near landlines, TVs or radios may cause

interference.

^ Beware of eavesdropping.

Because this service is completely digital, the possibility of
signal interception is greatly reduced. However, some
transmissions may be overheard.

Eavesdropping

Deliberate/accidental interception of communications
constitutes eavesdropping.

^ Handset use may affect a vehicle's electronic equipment.

xxviii

Handset Care

^ If handset is left with no battery or an exhausted one, data

may be altered/lost. Vodafone is not liable for any resulting
damages.

^ Use handset within temperatures of 5]C to 35]C and humidity

35% to 85%. Avoid extreme temperatures/direct sunlight.

^ Exposing lens to direct sunlight may damage colour filter and

affect image colour.

^ Do not drop or subject handset to shocks.
^ Clean handset with dry, soft cloth. Using alcohol, thinner, etc.

may damage it.

^ Do not expose handset to rain, snow or high humidity.
^ Never disassemble or modify handset.
^ Avoid scratching handset Display.
^ When closing handset, keep straps, etc. outside to avoid

damaging the Display.

^ When using Headphones, moderate volume to avoid sound

bleed.

^ Handset is not water-proof. Avoid exposure to liquids and

high humidity.

B Keep handset away from precipitation.
B Cold air from air conditioning, etc. may condense causing

corrosion.

B Avoid dropping handset in damp places (toilet, bathroom,

etc.).

B On the beach, keep handset away from water and direct

sunlight.

B Perspiration may seep inside handset causing malfunction.

^ Avoid heavy objects or excessive pressure. May cause

malfunction or injury.

B Do not sit down with handset in a back pocket.
B Do not place heavy objects on handset in a bag.

^ Connect only the specified products to VIDEO OUT/

Headphone Connector. Non-specified devices may
malfunction or cause damage.

^ Always turn off handset before removing battery. If battery is

removed while saving data or sending mail, data may be lost,
changed or destroyed.

xxix

Copyrights

Copyright laws protect sounds, images, computer programs, databases, other materials and copyright holders. Duplicated
material is limited to private use only. Use of materials beyond this limit or without permission of copyright holders may
constitute copyright infringement, and be subject to criminal punishment. Comply with copyright laws when using images
captured with handset camera.

Video recording and playback are based on MPEG-4.
This product is licensed under the MPEG-4 Visual Patent Portfolio
License for the personal and non-commercial use of a consumer to
(i) encode video in compliance with the MPEG-4 Video Standard
("MPEG-4 Video") and/or (ii) decode MPEG-4 Video that was
encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a licensed video
provider. No licence is granted or implied for any other use.
Additional information may be obtained from MPEG LA.
See http://www.mpegla.com.
This product is licensed under the MPEG-4 Systems Patent
Portfolio License for encoding in compliance with the MPEG-4
Systems Standard, except that an additional licence and payment
of royalties are necessary for encoding in connection with (i) data
stored or replicated in physical media which is paid for on a title by
title basis and/or (ii) data which is paid for on a title by title basis
and is transmitted to an end user for permanent storage and/or
use. Such additional licence may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com for additional details.

This product is equipped with
JBlend! designed to accelerate the
performance of Java! Application.
Powered by JBlend! Copyright
1997-2006 Aplix Corporation.
All rights reserved.
JBlend and JBlend-related brands are trademarks or registered
trademarks of Aplix Corporation in Japan and other countries.
Java and Java-related brands are trademarks or registered
trademarks of Sun Microsystems, Inc. in the United States and
other countries.

905SH employs RSA#BSAFE! software
developed by RSA Security Inc.
RSA is a registered trademark of RSA Security Inc.
BSAFE is a registered trademark of RSA Security
Inc. in the United States and/or other countries.

miniSD! is a trademark of the SD Card
Association.

xxx

Portions of this product are protected under
copyright law and are provided under license by
ARIS/SOLANA/4C.

Licensed by QUALCOMM Incorporated under one or more of the
following United States Patents and/or their counterparts in other
nations:
4,901,307 5,490,165 5,056,109 5,504,773 5,101,501
5,506,865 5,109,390 5,511,073 5,228,054 5,535,239
5,267,261 5,544,196 5,267,262 5,568,483 5,337,338
5,600,754 5,414,796 5,657,420 5,416,797 5,659,569
5,710,784 5,778,338

This product employs NetFront Browser (Internet browser) and
NetFront SMIL Player (SMIL player) developed by ACCESS Co.,
Ltd.
Copyright$ 2004-2006 ACCESS Co., Ltd.
ACCESS and NetFront are trademarks or registered trademarks of
ACCESS Co., Ltd in Japan or other countries.
This product includes a module developed by Independent JPEG
Group.

Bluetooth is a registered trademark of the Bluetooth SIG, Inc.

The Bluetooth word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by Sharp is under license.
Other trademarks and trade names are those of their respective
owners.

The frequency band used for the Bluetooth# function of 905SH is
shared with other industrial, scientific or medical equipment
(microwave ovens, etc.), and used at premises radio stations,
amateur radio stations, etc. (hereinafter "other radio stations").

Before using the Bluetooth# function, visually check that there are

1

no other radio stations sharing the same frequency band nearby.

2 Should interference occur between 905SH and other radio

stations, move to other place or stop the Bluetooth# function
(stop the transmission) immediately.

3 For additional information and support, contact us at the

following number.

Vodafone Customer Centre, General Information

From a Vodafone handset, call toll free at 157 for General
Information.
From landlines, see P.20-26 "Customer Service".

^ This radio equipment operates in the 2.4 GHz band using the

FH-SS modulation, and its maximum communication distance is
ten metres.

xxxi

This product employs Macromedia# Flash# Lite!
technology developed by Adobe Systems
Incorporated.
Copyright$ 1995-2006 Adobe Systems
Incorporated. All rights reserved.
Macromedia, Flash, Macromedia Flash and
Macromedia Flash Lite are either registered
trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.

Vodafone, Vodafone live!, the speech mark symbol and My
Vodafone are trademarks or registered trademarks of Vodafone
Group Plc.

Video Call, V-application, Custom Screen, Sky Mail, Movie Sha-mail,
Sha-mail, 3D Pictogram, Input Memory, Near chat and Multi Job are
trademarks or registered trademarks of Vodafone K.K.

Cycloid is a registered trademark of SHARP Corporation.

xxxii

MPEG Layer-3 audio coding technology licensed from Fraunhofer
IIS and Thomson.

QR Code is a registered trademark of DENSO WAVE INCORPORATED.

Powered by Mascot Capsule#/Micro3D Edition!
Mascot Capsule is a registered trademark of HI Corporation
$ 2002-2006 HI Corporation. All rights reserved.

Chaku-Uta and Chaku-Uta Full are registered trademarks of Sony
Music Entertainment (Japan) Inc.

FeliCa is a contactless IC card technology developed by Sony
Corporation.
FeliCa is a trademark of Sony Corporation.
m is a trademark of FeliCa Network, Inc.

ComicSurfing is a trademark or registered trademark of CELSYS,
Inc.

CP 8 PAT E NT

Other company and product names mentioned herein are
trademarks or registered trademarks of their respective owners.

The software contained in 905SH is copyrighted material;
copyright, moral right and other related rights are protected by
copyright laws. Do not copy, modify, alter, disassemble, decompile
or reverse-engineer the software, and do not separate it from
hardware in whole or part.

Specific Absorption Rate (SAR)

905SH meets the government's requirements for
exposure to radio waves.

These requirements are based on scientific basis to assure that radio
waves emitted from mobile phones and other handheld wireless devices
do not affect human health. They require that the Specific Absorption
Rate (SAR), which is the unit of measurement for the amount of
radiofrequency absorbed by the body, shall not exceed 2 W/k
This limit includes a substantial safety margin designed to assure the
safety of all persons, regardless of age or health, and meets the
international standard set by International Commission on Non-Ionizing
Radiation Protection (ICNIRP) in cooperation with World Health
Organization (WHO).
The highest SAR value for 905SH is 0.69 W/k
conducted with handset transmitting at its highest certified power level,
and follow the testing methods set by the government. While there may
be differences between the SAR levels for various handsets, they all
meet the governmental requirements for safe exposure. The actual
SAR level of the handset while operating can be well below the highest
value. This is because the handset is designed to operate at multiple
power levels so as to use only the power required to reach the Network.
Additional information on SAR can be obtained on the following Websites:
Ministry of Internal Affairs and Communications (Protection
from Radio Wave Environment)
http://www.tele.soumu.go.jp/e/ele/index.htm
Association of Radio Industries and Businesses (ARIB)
http://www.arib-emf.org/index02.html (Japanese only)

-------------------------------------------------------------------------------

*

Requirements are stipulated in Radio Law (Ordinance Regulating
Radio Equipment, Article 14-2).

g

. Tests for SAR are

g*.

xxxiii

Getting Started

1-1

1

Function & Feature Preview

Getting Started

Memory Card is required for items with grey background.

1-2

Cycloid Position

Rotate Display to enjoy digital
TV, use Video Call or capture
images in full widescreen view.

P. 1- 1 1

Face Recognition

Save up to five facial images to
use along with passwords, etc.
to restrict handset access.

P. 11 - 17

USIM Card

For use only with USIM Card­compatible Vodafone handsets;
contains vital user information.

P. 1- 4

Video Call

Exchange voice and video with
compatible handsets; export
images to TVs, etc.

P. 5- 2

Television

Enjoy One Seg terrestrial digital
television or analogue programs.
Record shows on Memory Card.

P. 6- 2

Vodafone live! CAST

Subscribe to Japanese mobile
periodicals delivered overnight
to your handset automatically.

P. 18 - 2

Phone Book

Save up to 750 entries; add up
to three phone numbers/three
mail addresses to each.

P. 4- 2

Camera

Capture still/video images shot
with the 2.0 megapixel handset
camera; send images via MMS.

P. 8- 2

FM Radio

Set up an editable area-based
station list. See title, artist, etc.
for currently broadcasted track.

P. 7- 2

Near chat

Exchange instant messages
with compatible Bluetooth#
devices within ten metres.

P.18-4

Vodafone Address Book (VAB)

Backup Phone Book via
Server; synchronise Phone
Book/VAB to reflect changes.

P. 4- 1 5

Media Player

Play downloaded music and
video images as well as those
recorded/captured on handset.

P. 9- 2

Data Folder

Access handset image and
sound files from here; files are
organised by file type.

P. 1 0- 2

Memory Card

Save files to Memory Card to
expand handset memory or
backup your handset files.

P.10-18

Display

Change Wallpaper, System
Graphics, Fonts, et cetera to
customise handset interface.

P. 1 1- 3

Custom Screen

Load uni-themed Wallpaper,
Indicators, Ringtones, and
more, all at the same time.

P.11-5

1

Getting Started

Display Language

Change Phone Settings to make
handset user interface appear in
either English or Japanese.

P. 1 1- 5

Calendar & Tasks

Add events by date with time
parameters; set Reminder, add
stamps and set other options.

P. 1 3- 2 , P. 1 3- 8

Call Forwarding

Automatically divert all or all
unanswered incoming calls to
another preset phone number.

P. 1 4- 2

Conference Call

Switch between open lines or
connect multiple lines at once
for wireless teleconferencing.

P. 1 4- 6

Video Output

View previously saved handset
still/video images on an external
display or send real-time images.

P.11-9

Voice Recorder

Save voice memos on handset
or Memory Card; send via MMS
or use as Ringtone.

P.13-17

Optional Services

Voicemail

Redirect all or unanswered calls
to Voicemail; access messages
from 905SH/touchtone landline.

P.14-3

Call Barring

Restrict all incoming/outgoing
calls or apply restrictions by
type of call/current location.

P.14-7

Bluetooth# & Infrared

Wirelessly exchange handset
files with compatible devices.
Use Bluetooth# headsets, etc.

P. 1 2- 2 , P. 1 2- 9

Barcodes & Text Scanner

Scan UPC/QR Codes and text
or create QR Codes from
Phone Book entries, etc.

P. 1 3- 1 9 , P. 13 - 23

Missed Call Notification

Receive records of calls missed
while handset is off/out-of-range
and Voicemail is active.

P. 1 4- 5

Caller ID

Set 905SH to show/hide your
phone number for all outgoing
calls or enter show/hide prefix.

P. 1 4- 1 0

Mass Storage

Use a PC to directly access
Memory Card content while
card is inserted into handset.

P.12-14

Vodafone live! FeliCa

Hold handset over compatible
reader/writers to use e-money
services, etc. all around Japan.

P.19-2

Call Waiting

Reduce missed calls! Answer
incoming calls even while the
handset is already engaged.

P.14-5

1-3

1

USIM Card

Getting Started

General Information & Precautions

Universal Subscriber Identity Module (USIM) Card is an IC
card containing customer and authentication information,
including the handset number, and limited storage for
Phone Book entries and SMS messages. USIM Card must
be inserted to use this handset.

^ Save contacts on USIM Card Phone Book (see P. 4- 3 ).
^ Inser t into compatible Vodafone handsets to access files.
^ Do not apply excessive force to insert/remove USIM Card.
^ Do not inser t USIM Card into any other IC card device.

Vodafone is not liable for resulting damages.

^ Keep the USIM Card IC chip

clean.

^ Use a dry, soft cloth to clean the

USIM Card.

^ Do not attach labels to USIM

Card. Malfunction may result.

Note H

Some downloaded files may be inaccessible after repairs,
USIM Card replacement or handset upgrade/replacement.

USIM Card

IC Chip

CIf Handset is Dropped or Subjected to Shocks

905SH may not recognise USIM Card; REFRESH appears
and handset returns to Standby. This is not a malfunction.
If Insert USIM Card appears or 905SH does not restart,
clean and properly reinsert USIM Card then restart 905SH.

Important

^ USIM Card is the property of Vodafone.
^ USIM Card will be reissued for a fee if lost or damaged.
^ Return USIM Card to Vodafone upon subscription

termination.

^ Returned USIM Cards are recycled.
^ USIM Card specifications may change without prior notice.
^ Backup USIM Card files. Vodafone is not liable for lost files.
^ If your USIM Card or handset (with USIM Card inserted) is

lost or stolen, suspend your service immediately. For details,
contact Vodafone Customer Centre, General Information
(see P. 20 - 2 6).

1-4

Inserting & Removing USIM Card

^ Follow the steps below after removing battery (see P.1-16).
^ Do not force USIM Card into or out of handset; damage may result.
^ Avoid touching USIM Card IC chip; doing so may hinder performance (see P. 1 -4 ).

Avoid touching USIM Card terminals as well.

Inserting

Press down the centre

1

of the holder to slide it
as shown in e, then
lift it

Slide USIM Card into

2

the holder (with IC
chip facing inward)
until it stops

Set down the holder,

3

then press down its
centre to slide it back
in as shown in f

Insert battery (Steps 3 - 4 "Inserting" on P.1-16)

4

Centre

Holder

Notch

f

e

Removing

Take care not to lose removed USIM Card.

Press down the centre

1

of the holder to slide it
as shown in e, then
lift it

Slide out USIM Card

2

Set down the holder,

3

then press down its
centre to slide it back
in as shown in f

Insert battery (Steps 3

4

- 4 "Inserting" on
P.1-16)

Centre

Notch

e

Holder

f

1

Getting Started

1-5

1

USIM PINs

Getting Started

There are two Security Codes for USIM Card: PIN1 and
PIN2.

PIN1

A 4-digit to 8-digit Security Code to prevent unauthorised
use of Vodafone handset.

^ PIN1 is 9999 by default; change as needed (see P. 1 1 - 20

"Change PIN").

^ Activate PIN Entry (see P. 1 1- 2 0 ) to require PIN1 entry each

time handset (USIM Card inserted) is turned on.

PIN2

Required to clear Call Costs or set Max Cost (see P. 2 - 15 ).
PIN2 is 9999 by default; change as needed (see P.11-20
"Change PIN").

PIN Lock & PUK Code

PIN1 Lock or PIN2 Lock is activated if PIN1 or PIN2 is
incorrectly entered three times consecutively. Cancel PIN
Lock (see P.11-20) by entering the Personal Unblocking Key
(PUK Code). For information on PUK Code, contact
Vodafone Customer Centre, General Information (see

P.20-26).

Note H ^ If PUK Code is incorrectly entered ten times

consecutively, USIM Card is locked and handset is
disabled. Write down PUK Code.

^ For USIM Card unlocking procedures, call Vodafone

Customer Centre, General Information (see P.20-26).

^ Emergency calls (110, etc.) are not possible when PIN

Entry (see P.11-20) is active. For more, see P. 2- 3
"Emergency Calls".

1-6

Handset Parts & Functions

Handset

1

Getting Started

9
A
B

1

C

2
3

5

4

D

E
F

6
7

8

1 Display
2 Mail Key

Open Messaging menu or execute Soft Key functions (see
P.1-23).

3 Start Key

Initiate/answer calls. Open records of All Calls.

4 Shortcuts & A/a Key

Open Shortcuts menu. In text entry windows, toggle upper/
lower case roman letters or standard/small hiragana/
katakana.

G

H

L

I

J

K

5 Clear/Back Key

Delete entries, escape/return to previous window.

6 Keypad
7 U Key

In text entry windows, toggle Symbol/Pictograph Lists.

8 Microphone

Tip H Descriptions (P. 1- 7 - 1-9) are illustrative of general

handset usage.

M

N

O
P

Q

R

S

T
U
V
W

X
Y

Z

1-7

9 Internal Camera

1

Getting Started

Use during Video Call.

A Light Sensor

Detects ambient light level to adjust Display Brightness
automatically (see P.6-19, P. 11 - 8 ). Do not place labels or
stickers.

B Earpiece
C Multi Selector & Keypad Lock Key

Select menu items, move cursor, scroll, etc. In Standby, press b
for 1+ seconds to activate/cancel Keypad Lock.

D Vodafone Web Key

Open Vodafone Web Main Menu or execute Soft Key
functions (see P.1-23).

E Power On/Off Key

Press and hold to turn handset power on/off.

F Multimedia/Text Key

Start Media Player or toggle between character entry modes.
In Standby, press for 1+ seconds to activate/cancel Large
Font Mode.

G # Key

In text entry windows, enter comma, full stop, line break,
space, etc.

H TV/Multi Job/Manner Key

Activate TV in Standby or toggle multiple active function
windows (see P.1-26). Press for 1+ seconds to activate/
cancel Manner mode.

I VIDEO OUT/Headphone/Optical Digital Line In Connector

Connect Headphones (with built-in TV antenna), optional
Video Cable, etc.

1-8

J External Device Connector

Connect Charger here.

K Charger Terminal
L Infrared Port

Use for infrared data transmissions.

M Strap Eyelet

Attach straps as shown.

N Speaker
O Volume/Zoom Key

Adjust volume while watching TV or zoom in/out while mobile
camera is active.

P Record/Shutter Key

Start/stop TV recording or capture images with mobile
camera. In Standby, press for 1+ seconds to activate mobile
camera (in portrait position) or Pen Light (in closed position).

Q Memory Card Slot

Insert Memory Card here.

R Small Light
S External Display
T Internal Antenna Location

Handset transmits/receives signals via Internal Antenna for
calls and Vodafone live! services.

U m Logo

Vodafone live! FeliCa contactless IC Card embedded (see
P. 1 9- 3 ).

V Antenna

Extend for TV/FM reception.

W Mobile Light

Flashes for calls/new mail; use as strobe/Pen Light.

X Portrait ( p)/Macro (o) Selector

Y External Camera (lens cover)
Z Battery Cover

Note H ^ Antenna (see P. 1- 7 V) is for TV and FM reception and

does not affect voice quality.

Internal Antenna (see P.1-7 T)

^ Do not cover or place stickers, etc. over the area

containing Internal Antenna.

^ Voice quality varies with handset usage/location.
^ For better reception in Standby, close handset (closed

position: see P. 1- 1 1).

^ Avoid attaching metallic straps. Antenna sensitivity will

be affected.

Display Indicators

Display

Ncq9mKcNWs J

j Hmeh4kl4g

1

2

Ncq9mKcNWs J
j Hmeh4kl4g

D

E3F4G5H6I7J8K9L

C

AB

1 Signal Strength

N: Within Range
N: Strong, O: Moderate, P: Low, Q: Weak

E: Out-of-Range

2 Voice/Video Call, Offline Mode (see P.2-18)

Packet Transmission (see P.16-2), SSL (see P.16-3)

M: Incoming Voice Call, c: Voice Call in Progress
Y: Video Call in Progress, U: Offline Mode

7: Packet Transmission Ready
8: Packet Transmission in Progress

X: SSL

3 Mail (see P.15-3)

q: Unread Mail, w: Unread Delivery Report
q (red): Memory Low
Y: Receiving Mail, Q: Sending Mail

4 IC Card Lock Active (see P.19-4)
5 TV Timer/TV Recording Timer Set (see P.6-16)
6 V-application (see P.17-5), Music Player (see P.9-10)

TV (see P.6-13), FM Radio (see P.7-4)

K: Active V-application, K (grey): Paused V-application

I: Music Player Active, k: TV Recording in Progress

I: FM Radio Active

7 Memory Card Status, Auto Delivery Info

CAST Info (see P.18-2), Software Update (see P.20-9)

c: Inserted, S: In Use, Q: Formatting, s: Unusable

G: Auto Delivery Info, 8: CAST Info

O Software Update, P: Software Update Result

8 Call Forwarding/Voicemail (see P.14-2)

Multi Job (see P.1-26)

N: Call Forwarding or Voicemail Active

Appears when Always (forwarding condition) is set for
Voice Calls.

Q: Multiple Functions (Multi Job) Active

1

Getting Started

1-9

9 External Transmission

1 2 3

1

Getting Started

W: USB Transmission Ready

g: USB Transmission in Progress
I: Infrared Connection in Progress

V: Infrared Transmission in Progress

2: Bluetooth# Transmission Ready

Appears in grey when Visibility is set to Hide My Phone.

B: Bluetooth# Transmission in Progress
C: Bluetooth# Talk in Progress

A Mode (see P.11-2), Loudspeaker (see P.2-11)

Microphone Mute (see P.2-11)

s: Meeting, r: Activity, b: Car, V: Headset, k: Manner

C: Loudspeaker Active, w: Microphone Muted
c: Loudspeaker Active & Microphone Muted

B Battery Strength (see P.1-15)

Indicator may appear vertically (e.g. @).

C Answer Phone (see P.2-9)

j: Answer Phone Active
r: Answer Phone Active & Message Recorded
s: Answer Phone Cancelled & Message Recorded

D New Voicemail (see P.14-4)
E Message Delivery Failure (see P.15-9)
F Alarm Set (see P.13-11)
G Schedule (see P.13-3)

h: Reminder Set, i: Reminder Unset

H Copyright Information

4: Content Key Received

When Content Key memory is low, x (below 10 %) or
6 (below 5 %) appears.

I Secret Mode Active (see P.11-21)
J Function Lock (see P.11-21), Keypad Lock (see P.11-21)

l: Function Lock active, b : Keypad Lock active

K Infrared Transmission Ready
L Ringtone (see P.11-11), Vibration (see P.11-12)

g: Silent, G: Increasing Volume, F: Vibration Active

R: Silent & Vibration Active

External Display

See major External Display indicators below.

1@/n: Battery Strength

@ P D

p: IC Card Lock Active

2Time
3D: Signal Strength

CAdditional Indicators

Indicator and number of calls/messages, etc. appear for
missed calls, new mail/information, etc.

Missed Calls i Alarm R

Answer Phone Message
New Messages z Task Reminder U
New Delivery Report O Auto Delivery Info r

Message Delivery Failure
CAST Info s
Content Key l
TV Alarm (Watch) i

h Schedule Reminder V

s Bluetooth# Notification S

CAST Reception Failure

TV Alarm (Record)

m

h

Up to two indicators appear at the same time. Press L or
M to view more.

1-10

Display Positions

CClosed Position

Handset is closed. Keep handset in this position when not in
use.

CPortrait Position

Handset is open. Place or answer calls, enter text, etc.

CCycloid Position

Open 905SH and rotate Display 90 degrees clockwise to
use the following functions in wide view: Digital TV,
Analogue TV, TV Player, mobile camera, Video Camera,
Video Player, Video Call and compatible V-applications.

Note H ^ Do not carry 905SH with Display in Cycloid position.

Display may be damaged.

^ Do not forcefully rotate Display; damage may result.
^ In Cycloid position, use Loudspeaker or Headphones

for conversations. (Use Earpiece in portrait position.)

Tip H

Rotating Display into Cycloid position while 905SH is in
Standby automatically activates TV. To change this
setting, see P.6-21 "Activate TV".

1

Getting Started

1-11

1

Battery & Charger

Getting Started

Getting Started

Charge battery before first use/after period of disuse.

Battery Life

^ Do not use/store battery at extreme temperatures; this may

shorten batter y life.
Ideally, use/store between 5]C - 35]C.

^ Use specified Charger only; others may damage handset/

battery or overheat or ignite battery.

^ Replace battery if operating time shortens noticeably.

Charging

^ Do not use Charger for other purposes.
^ Contact with metal may short, overheat or burst battery.
^ Small Light illuminates red while charging. (It may take longer

for the light to illuminate when handset is off.)

^ Charging takes approximately 140 - 145 minutes (with

handset off).

B Charging time may vary by ambient temperature.

^ 905SH and Charger may warm during charging.
^ Separate Charger from TV/radio if interference occurs.

Precautions

^ Clean device charging terminals with a dry cotton swab.
^ Avo id :

B Extreme temperatures
B Humidity, dust and vibration
B Direct sunlight

^ Charge battery at least once every six months; an uncharged

battery may become unusable.

^ Use a case when carrying battery separately.

Tip H ^ Battery must be inside handset to charge it.

^ While charging battery with handset on, J flashes

until battery is fully charged.

^ Battery will charge regardless of handset position.

1-12

Estimated Hours of Use (fully charged battery)

Continuous Talk Time 3 hours

Continuous Standby Time 360 hours

Continuous Operating Time 5.5 hours

Continuous Playback Time 13 hours

90 minutes

Continuous Video Call Time

Continuous TV Reception Time

Continuous TV Recording Time

(with Internal Camera in use)
70 minutes
(with External Camera in use)

4 hours (Digital)/1.5 hours (Analogue)

3 hours (Digital)/1 hour (Analogue)

Values calculated with Backlight Brightness set to Auto.

^ Continuous Talk Time is an average measured with a new,

fully charged battery, with stable signals. Continuous Talk
Time may be less than half this value if handset is out-of-range
or signal is weak.

^ Continuous Standby Time is an average measured with a new,

fully charged battery, in closed position without calls or
operations, in Standby with stable signals. Standby Time may
be less than half this value if handset is out-of-range or signal
is weak. Standby Time may vary by environment (battery
status, temperature, etc.).

^ Continuous Operating Time is the length of time handset keys

can be pressed continuously without calls.

^ Continuous Playback Time is measured while music plays

(Tone Control set to Normal) using Headphones, Offline Mode
cancelled, and in closed position.

^ Continuous TV Reception Time is measured while watching

TV (Adjust Brightness set to Level 2) using Headphones.

^ The above values (Battery Time) are nominal values,

measured under stable signal conditions.

Battery Time

Using handset in poor conditions may shorten Battery Time:

^ Poor Usage Conditions

B Extreme temperatures (use within a range of 5]C to 35]C)
B Impaired handset, battery or Charger terminals
B Signal is weak/handset is out-of-range

^ Power Consuming Operations

B TV or FM is active
B Recording/playing TV programs
B Activating/using V-applications
B Repeated mobile camera use or barcode scanning
B Frequent use of Mobile Light
B Playing video images
B Frequent use of Pen Light
B Continuous Keypad use (keeping backlights on for long

periods)

B Using Music Player/Voice Recorder
B Frequent Bluetooth# transmissions
B Frequent infrared transfers
B Frequent opening/closing of handset

^ Power Consuming Settings

B Increasing Backlight Time Out/Display Saving time
B Setting Backlight to illuminate brighter
B Using 905SH in good light with Backlight set to Auto
B Activating Bluetooth# in Standby

1

Getting Started

1-13

1

Getting Started

Extend Battery Time

Select shorter Display Saving/Backlight time (see P.11-8)
to extend Battery Time.

When Battery Runs Out

A message appears and short beeps sound.
Press g to stop short beeps. (Short beeps do not sound in
Manner mode.)

CDuring Voice Call

A double beep sounds every five seconds. After 20 seconds,
the call ends and handset shuts down.

CDuring Video Call

A message appears and call ends with a double beep, then
short beeps sound. Handset shuts down after 20 seconds.

Battery Disposal

Do not dispose of an exhausted battery with ordinary
refuse; always tape over battery terminals before disposal.
Take exhausted battery to a Vodafone shop, or follow the
local disposal regulations.

Battery Strength

Strength Levels

@ 15:05 D

External Display

When battery runs out, Battery low. Please connect to
charger! appears and short beeps sound. Handset shuts

down after 20 seconds.

1-14

CIndicator

Battery Strength indicator varies as shown.
Charge or replace when level is low.

Battery low. Please connect to charger! appears.
Charge or replace battery immediately.

Minimum Operating

Battery Voltage

Level 3 Level 2 Level 1 Level 0

Approx. 70% Approx. 20%

Remaining Strength (at 25]C)

Approx. 10%

Voltage

M/CL/BK/AJ/@

CBattery Strength & Environment

At low temperatures, battery is consumed faster.
At high temperatures, battery lasts longer.

Note H ^ Battery Strength indicator is for reference only.

^ At Level 1, some functions including TV, Video Camera,

Music Player and Voice Recorder do not operate (see
P. 6- 9 , P.6-13, P.6-15, P.8 - 9, P. 9 - 9, P. 1 3 - 17 ).

Hours of Use

Small Light & Battery Strength Indicator

CHandset Power On

Small Light Indicator (J / @) Conditions

Off Flashes

Flashes red Flashes

Illuminates red Flashes Charging

Off On

Ambient temperature is
outside the range of 5]C to
35]C

Battery life has ended, or
battery defect

Charging completed/
Standby

CHandset Power Off

Small Light Indicator (J / @) Conditions

Flashes red Off

Illuminates red Off Charging

Off Off Charging completed

Battery life has ended, or
battery defect

1

Getting Started

1-15

1

e

e

Installing & Removing Battery

Getting Started

Inserting

Press down and slide cover as

1

shown

Lift and remove cover as

2

shown

Insert battery

3

^ With printed side up, fit tabs into

battery cavity slots.

Close cover

4

^ Position and slide the cover as shown

until it stops.

This product requires a lithium-ion battery. Lithium-ion batteries are a recyclable resource.

Tip H

^ To recycle a used lithium-ion battery, take it to any shop displaying the symbol shown to the right.
^ To avoid fire or electric shock, do not:

B Short-circuit battery B Disassemble battery

Battery Cover

Removing

^ Turn handset power off before removing battery.
^ Do not remove battery immediately after saving files, sending

f

messages, etc.

Press down and slide cover as

1

shown

Lift and remove cover as

2

shown

Remove battery

3

^

Take hold of Battery Tab here and lift as
shown.

f

Battery Cover

1-16

AC Charger

1

Getting Started

Small Light

Terminal Cover

External Device Connector

Use specified Charger only.

Open Terminal Cover to connect Charger

1

^ Insert connector until it clicks.
^ Use slot to gently pull Terminal

Cover down and out as shown.

Plug Charger into AC outlet

2

^ Charging starts and Small Light

illuminates red (see P. 1- 1 5). Charging takes approximately
140 minutes.

^ Charging is complete when Small Light goes out.
^ Extend Charger blades. (Fold back

when not in use.)

Slot

1

Arrows Up

AC 100V Outlet

AC Charger

Release Tabs

Charger Connector

Blades

3

After Charging

3

Unplug Charger from AC outlet, then 905SH

^ Squeeze release tabs to remove connector.
^ Replace Terminal Cover to protect External Device Connector.

Note H ^ Do not pull, bend or twist AC Charger cord.

^ AC Charger is compatible with household currents

between AC 100V and 240V.

2

1-17

1

Desktop Holder

Getting Started

Desktop Holder may be purchased separately.

3

1

2

Tabs

Small Light

Connection Terminal

1

Release Tabs

Charger
Connector

AC 100V Outlet

AC Charger

2

Blades

4

Arrows Down

Insert cord into
the groove.

1-18

Use specified Charger only.

Insert Charger connector into Desktop Holder

1

until it clicks

^ Connection Terminal is on the back of Desktop Holder.

Plug Charger into AC outlet

2

^ Extend Charger blades. (Fold back

when not in use.)

Gently insert handset into Desktop Holder

3

^ Fit tabs into slots as shown in 1 and push handset as

indicated in 2 until it clicks into place (resting flat).

^ Charging starts and Small Light illuminates red (see P. 1- 1 5).

Charging takes approximately 140 minutes.

^ Charging is complete when Small Light goes out.

After Charging

4

Unplug Charger from outlet and remove handset

^ To remove connector, squeeze release tabs.

In-Car Charger

In-Car Charger may be purchased separately.

1

Getting Started

Small Light

Terminal Cover

External Device Connector

In-Car Charger

Open Terminal Cover to connect Charger

1

^ Insert connector until it clicks.

Plug Charger into cigarette lighter socket

2

Start car engine

3

^ Charging starts and Small Light illuminates red (see P. 1- 1 5 ).

Charging takes approximately 145 minutes.

^ Charging is complete when Small Light goes out.

Tip H ^ For more information, see In-Car Charger manual.

^ Use optional In-Car Holder to secure handset.

1

Arrows Up

Release Tabs

Charger Connector

4

2

Cigarette Lighter
Socket

3

4

Plug

After Charging

Unplug Charger from cigarette lighter socket,
then 905SH

^ Squeeze release tabs to remove connector.
^ Replace Terminal Cover to protect External Device Connector.

Note H

^ Use In-Car Charger only when vehicle has a negative

earth.

^ Disconnect Charger before leaving vehicle to prevent

charging with engine off.

^ Do not use In-Car Charger with Desktop Holder.
^ Avoid charging battery inside extremely hot vehicles.
^ Never use handset while driving.

1-19

1

Handset Power On/Off

Getting Started

Open handset

1

Press and hold g

2

After Power On Graphic, handset enters
Standby.

1

2
3

Standby

C When handset is turned on for the first time, setup confirmation appears after Power On Graphic.

Press N i A Enter last name A Press b A Enter first name A Press b

C Handset initiates Network information retrieval when N, M or b is pressed for the first time;

press N i.
^ Retrieve Network information to use Vodafone live! services, TV and TV Player. (Clock is set

automatically after retrieval.)

^ To update Network information manually, see P. 1 2- 1 4 "Retrieve NW Info".
^ Unless otherwise noted, operations in this manual are described with Clock set.

C Press g to return to Standby from function windows, menus, etc.

^ When a confirmation appears, press N i. Handset returns to Standby.

^ USIM Card data is read after turning power on. Signal strength indicator may take some time

Note H

to appear. It may take longer when turning power on for the first time.

^ Insert USIM Card appears when USIM Card is not inserted (see P. 1- 4 ).

Tip H Display turns off after a period of inactivity.

My Details Setup & Network Information

Return to Standby

Turning O f f

3

Press g for 2+ seconds

After Power Off Graphic, handset shuts down.

1-20

My Details

Press b0

1

Handset phone number appears.

^ To add, edit or delete My Details, see P.4-18.

Press g to exit

2

1

Getting Started

1

2

Keypad Lock

Use Keypad Lock to lock handset keys and prevent accidental operation/function activation.

Activating Cancelling

Press b for 1+ seconds

1

b appears and Keypad Lock is set.

Note H Emergency calls (110, etc.) are possible even when Keypad Lock is active. For more, see P.2 - 3

"Emergency Calls".

When Keypad Lock is Active

1

Tip H

^

Incoming calls temporarily cancel Keypad Lock. To answer a call, press f. [Activate Any Key
Answer (see
the call.

^ Handset power does not turn off even if g is pressed for 2+ seconds.

P.11-2

) to answer calls with other keys (see

Press b for 1+ seconds

1

b disappears.

P. 2- 6

).] Keypad Lock reactivates after

1-21

1

Getting Started

Large Font Mode

In Standby, press j for

1

1+ seconds

Font size is set as follows.

Menu Large

Editor Huge

Messaging Huge

Browser Huge

1

Tip H Large Font Mode is cancelled if font size is changed for all the items.

2

Pen Light

Use handset as a flashlight in closed position.

Press h for 1+ seconds

1

Mobile light illuminates.

C To change illumination colour, press L

or M while on.

Note H Do not point Pen Light at people or look at it directly.

To cancel, press j for

2

1+ seconds in Standby

Font Size settings, except those changed in
Large Font Mode, return to previous state.

Press h to turn off

2

1
2

1-22

Handset Menus

1

Main Menu

2

Main Menu

Access functions/operations from Main Menu.

Press b

1

Main Menu opens.

Use G to select an item and

2

press b

Sub Menu opens (see P. 20 - 2 - 20-3).

Soft Keys

C Soft Key functions appear at the bottom of

Display.

Press N to select or
execute the assigned
function or operation.

Press b to select or
execute the assigned
function or operation.

Press M to select or
execute the assigned
function or operation.

CMain Menu Items

Entertainment

Vodafone live!

Media Player

Messaging Open/create messages, etc.

Camera

Data Folder

Tools Use Calendar, Alarms, etc.

V-appli Use/download V-applications

Call Log

IC-appli Use/download IC-appli

Phone Book

Settings

FM Radio Listen to FM radio

TV Player Play recorded programs

TV Watch Digital/Analogue TV

Launch Vodafone live! CAST,
Near chat or ComicSurfing

Access the Mobile Internet

Record music or play/download
music/video

Capture still images or record
video

Open files saved on handset/
Memory Card

Check Dialled Numbers,
Received Calls, Call Costs, etc.

Search contacts, add entries, etc.

Customise handset interface,
sounds, etc.

1

Getting Started

1-23

1

Getting Started

User Shortcuts

Using Shortcuts

Create shortcuts to functions and folders.

^ Default Shortcuts:

B Main Menu, Enter Number, Received, Create New, Calculator, Alarms,

Custom Screens, Near chat, Sounds & Alerts, Display, Bluetooth#, V-appli,
IC-appli and Expenses Memo.

2

1

Press k

1

Shortcuts menu opens.

Select a function and press b

2

Editing Shortcuts

Edit items except Main Menu and Enter Number.

Assign Change default shortcuts

Press k A Select an item A Press N x A Select Assign A Press b A
Select new item A Press N U

Move Change the order of items

Press k A Select an item A Press N x A Select Move A Press b A
Select target location with E A Press b

Set to Default Restore default shortcuts

Press k A Press N x A Select Set to Default A Press b A
Press N i

1-24

Quick Operations

In Standby, enter numbers to access functions. Accessible functions vary by entered digits. To
activate functions, press corresponding Soft Key.

Function
Speed Dial (see P.4-14) !
Calculator (see P.13-16) !!!!!!#
Expenses Memo (see P.13-26) !!!!!##
Speed Mail (see P.15-25) !
Calendar (see P.13-2) ###!
Set Alarm (see P.13-11) ###!
Place International Calls (see P.2-5) ####!!!

1

Except for 0 and 1.

2

Press N A after entering a number. Save entries to Speed Mail List (see P.15-24) beforehand.

3

Enter four digits for month and day and press C to view entries up to 12 months forward of current date.

4

Enter four digits for time (24-hour format) to set Alarm.

Digits

1 2 3 4 5 - 6 7 - 12 13 - 32

1

######

2

######

3

###

4

###

CExample: Enter 1111 to use Calculator

Press 1111

1

Press j

2

1

Getting Started

1

2

1-25

1

Getting Started

Multi Job

Open a function window while another is active.

In a function window, press k

1

Shortcuts menu opens.

^ Some shortcuts are disabled.
^ Multi Job cannot be activated from some

windows/under some conditions (e.g. while
watching TV in Cycloid position, when a

2

1

3

V-application is active, etc.).

^ In text/phone number entry windows, press

k for 1+ seconds.

Handling Incoming Calls

C Press b to answer the call. End the call to return.

Select a function and press b

2

Menu/window opens (Q appears).
^ Two function windows may appear in TV

window.

C Press 0 to toggle active windows.

(Multiple windows may not be available
from some windows/under some
conditions.)

Press g to exit

3

The other window appears (Q disappears).

C When a confirmation appears,

press N i.

1-26

Security Codes

Handset Code, Centre Access Code and Network Password are needed for handset use.

1

Getting Started

Handset Code

9999 or the 4-digit number selected at initial subscription;
required to use/change some handset functions.

^U appears when Handset Code is entered.
^ If Handset code is incorrect! appears, re-enter code.
^ Change Handset Code as needed (see P. 1 1 -2 2 ).

Centre Access Code

The 4-digit number in the contract; required to access Voice­mail via landlines or subscribe to fee-based information.
Do not attempt to change Centre Access Code. Contact
Vodafone Customer Centre, General Information (see

P.20-26) for details.

Note H ^ Write down Handset Code, Centre Access Code and Network Password. If lost, contact Vodafone Customer Centre, General

Information (see P. 2 0 - 2 6).

^ Do not reveal Handset Code, Centre Access Code and Network Password. Vodafone is not liable for misuse or damages.

Network Password

The 4-digit number selected at initial subscription; required
to restrict handset services (see P. 1 4 -7 ).

^ If Network Password is incorrectly entered three times

consecutively, Call Barring settings are locked. To resolve,
Network Password and Centre Access Code must be
changed. For details, contact Vodafone Customer Centre,
General Information (see P.2 0 - 2 6).

^ Change Network Password as needed (see P. 14 - 9).

1-27

Basic Handset Operations

2-1

Initiating a Call

2

See P. 2- 5 to initiate international calls from Japan and P. 5 -3 for Video Calls.

Basic Handset Operations

2-2

Confirm handset is on

1

^ Check signal strength (see P.1 - 9 1).

1

^ Handset will not transmit when E, U, b or

l appears (see P.20-4 - 20-6).

Enter a phone number

2

3
4

2

^ Include dialling code for all numbers.

C To send/block Caller ID, enter a phone

number and press N x A Select
Show My ID or Hide My ID A Press b

Confirm the number and press f

3

Correcting Numbers

^ Use F to move cursor and press i to

delete the digit above the cursor. Move
cursor and press i for 1+ seconds to
delete the digits above and after the cursor.

^ Before moving cursor, press i for

1+ seconds to delete the entire number and
return to Standby.

^ If you misdial, press g to hang up and try

again.

Busy Numbers

^ Press g to end the call and try again later.

Press g to end call

4

^ Alternatively, close handset.

Calling Numbers Not Saved in Phone Book

^ Would you like to save this number to

your Phone Book? appears after calls.

B To save, press N i A Perform Step

4 in "Saving from Call Log" on P.4 - 8

B Press M c to end without saving.

^ To hide this confirmation, see P. 4- 4

"Confirmation for Unsaved Numbers".

Note H ^ In Cycloid position, use Loudspeaker or Headphones (with built-in TV antenna) for conversations.

^ Use Earpiece (see P. 1- 7 B) in portrait position.
^ Do not cover handset microphone (see P.1 - 7 8) while talking on the phone.
^ Avoid covering area over Internal Antenna (see P.1 - 7 T).
^ Voice quality is affected depending on how and where handset is used.

^ Check Call Timers (see P. 2- 1 4) and Call Costs (see P. 2 - 15 ).

Tip H

^ For operations during a call, see P. 2- 1 1 - 2-12.

Emergency Calls

Emergency calls (110, 119, 118, etc.) are possible even while some handset restrictions are active.

Active Restriction Emergency Calls Active Restriction Emergency Calls

Max Cost (see P.2-15) Possible Handset Lock (see P.11-20) Possible

Offline Mode (see P.2-18) Not Possible PIN Entry (see P.1-6, P.11-20) Not Possible

Function Lock (see P.11-21) Possible Outgoing Calls (see P.14-8) Possible

Keypad Lock (see P.1-21) Possible

2

Basic Handset Operations

2-3

2

Basic Handset Operations

1

3

Redial

Place calls from Dialled Numbers. Up to 30 recently dialled numbers are saved.

Press B (F)

1

Select a record and press b

2

Press f

3

905SH dials the number.

CIndicators

q Dialled Voice Call O Dialled Video Call

2

Dialled numbers appear with date and time.

^ Name appears if saved in Phone Book.
^ Press D or C to see more.
^ Use F to open Received Calls or All Calls.

Tip H ^ When the same number is dialled more than once, only the last record appears. (Records for

Voice Calls and Video Calls appear separately.)

^ Records remain even after handset power is turned off.
^ When there are 30 records, oldest records are replaced by new ones. To delete records

manually, see P.2 - 1 3 .

2-4

Placing an International Call

^ When calling Vodafone handsets, country code is not required. (Calls cannot be placed when

outside Japan as 905SH does not support international roaming.)

^ Service requires an additional contract. For details, contact Vodafone Customer Centre, General

Information (see P.2 0 -2 6 ).

Enter a phone number

1

2

5

3
4

1

^ Include dialling code for landline numbers.

Quick Operations

Enter a phone number A Press k A
Select a country A Press b A Skip ahead
to Step 5

Direct Entry

Press 0 for 1+ seconds (W appears) A
Enter a country code A Enter a phone
number including the dialling code A Skip
ahead to Step 5

B Omit the first 0 of the dialling code except

when calling Italy (country code: 39) or
Russia (country code: 7).

Tip H ^ In Standby, press 0 for 1+ seconds to enter W (a substitute symbol for international

prefix). To change the default international prefix (0046010), see P.11-23 "Int'l Prefix".

^ To save frequently used country codes, see P.1 1 - 23 "Country Codes".

Press N x

2

Select Int'l Call and press b

3

Country names appear.

Select a country and press b

4

C To call unlisted countries, select Enter

Code A Press b A Enter country code

A Press b

Press f

5

2

Basic Handset Operations

2-5

Incoming Call

2

Basic Handset Operations

1

2

When a call arrives, open handset

1

^ Number appears when Caller ID is sent.

3

^ Name appears if saved in Phone Book.

C To reject an incoming call, press g while

handset is ringing/vibrating.
B Standby returns; record appears in

Received Calls.

C Answering a Video Call: see P. 5- 3

Tip H ^ When Caller ID is not sent, Withheld appears instead of the phone number.

^ Up to 30 received call records are saved (see P.2-13).
^ Use Quick Recorder (see P.2 - 1 0) to record caller messages on handset when Answer Phone

is inactive.

^ Change Ringtone volumes/patterns, vibration patterns and Mobile Light colours (see P. 11 - 1 1 -

11-13).

^ To answer calls while watching TV, see P. 6 -5 .

Answering Calls with Headphones

C Press Call Button for 1+ seconds to answer a call.

^ To end the call, press Call Button for 1+ seconds until a beep sounds.

Press f

2

When Any Key Answer (see P.11-2) is Active

^ Press any of the following keys to answer

calls:

0 - 9, q, p, G, k,
j

Press g to end call

3

^ Alternatively, close handset.

Calls from Numbers Not Saved in Phone Book

^ Would you like to save this number to

your Phone Book? appears after calls.

B To save, press N i A Perform Step

4 in "Saving from Call Log" on P.4 - 8

B Press M c to end without saving.

^ To hide this confirmation, see P. 4- 4

"Confirmation for Unsaved Numbers".

2-6

Redirecting a Call

CCall Forwarding: see P.14-2

Direct incoming calls to a specified number by
pressing M h.

CVoicemail: see P.14-3

Unanswered calls are forwarded to Voicemail Centre.
Activate Missed Call Notification (see P.14-5) for records of
calls missed while 905SH is off/out-of-range.

CAnswer Phone: see P.2-9

Record caller messages on handset.
Use Quick Recorder (see P.2-10) to record caller messages
on handset when Answer Phone is inactive.

Information

C Information window opens for

Missed Calls or Answer Phone
messages.
^ Select Call and press b to see

details (see P. 2- 1 3).

^ Select Voice Message and

press b to play recorded
messages (see P. 2- 1 0 ).

C Information window opens for other

items as well. Select an item and
press b to jump to the
corresponding window.

2

Basic Handset Operations

2-7

2

Basic Handset Operations

1

3

Calling from Received Calls

Up to 30 received calls are saved. When Caller ID is sent, numbers appear. Place calls
directly to those numbers.

Press A (C)

1

2

Received numbers appear with date and time.

^ Name appears if saved in Phone Book.
^ Press D or C to see more.
^ Use F to open Dialled Numbers or All Calls.

Tip H ^ Names in Secret Mode entries appear only in Secret Mode.

^ Records remain even after handset power is turned off.
^ When there are 30 records, oldest records are replaced by new ones. To delete records

manually, see P.2 - 1 3 .

Select a record and press b

2

Press f

3

905SH dials the number.

CIndicators

Answered Voice

r

Call

s Missed Voice Call R Missed Video Call

Rejected Voice

N

Call

Missed Call

E

Notification

Answer Phone

9

Answered

Q

S

@

Answered Video
Call

Rejected Video
Call

Forwarded to
Voicemail Centre

2-8

Answer Phone

Record caller messages on handset.

^ Answer Phone cannot be used when handset is off, out-of-range or in Offline Mode. Use Voicemail to record caller messages when

Answer Phone is not available (see P.14-3).

^ Record up to 90 seconds or 20 messages between Answer Phone and Voice Memo (see P.2-12).
^ Answer Phone is inactive by default.

Activating & Cancelling

2

Basic Handset Operations

Main Menu

1

H To ol s A Answer Phone A

Settings

Select Switch On/Off and press b

C To sample outgoing message, select

Guidance Message A Press b

B Press i to stop.

Activating

2

1 Choose On and press b

^ Press g to return to Standby

(j appears). (r appears when
messages are recorded.)

Cancelling

1 Choose Off and press b

1
2

Alternatively, press i for 1+ seconds

Tip H

in Standby to activate/cancel Answer
Phone.

Note H ^ When less than 12 seconds remain or 20 messages are recorded, Answer Phone is disabled.

Delete messages to activate Answer Phone.

^ Answer Phone is not available for incoming Video Calls.
^ In Manner mode, Manner settings take priority over (see P.11-2 "Mode Settings").

When Answer Phone is Active

C For incoming calls, outgoing message plays and recording starts.

^ Recording continues even if handset is closed.
^ To answer calls, press f during recording (no message will be recorded).
^ When recording ends, r appears.

C If recording capacity becomes full after the recording, Answer Phone is cancelled and s appears.

2-9

Playing Messages

2

Basic Handset Operations

Main Menu

1

Tip H

C Follow these steps to activate or mute Earpiece for outgoing

H To ol s A Answer Phone

Select Play Ans. Phone and press b

Number of recordings appears and playback starts from the
most recent message. After all messages have played, playback
ends automatically.

C Press i to stop playback.
C To skip a message, press b J or A.
C To play the previous message, press B twice during

playback.

C To delete a message, press N . during playback A

Press N i

^ Alternatively, press i in Standby to play messages.
^ Message playback stops for incoming calls. Press f to

answer the call.

message/caller message recordings.

Press b A Select Too ls A Press b A Select
Answer Phone A Press b A Select Settings A
Press b A Select Vol um e A Press b A Select
Link to Profile or Silent A Press b

^ For Link to Profile, current Earpiece Volume applies.

Earpiece Volume

Answer Time

C Adjust ring time between 0 and 59 seconds (Answer Phone

waits to answer calls).

Press b A Select Too ls A Press b A Select
Answer Phone A Press b A Select Settings A

Press b A Select Answer Time A Press b A
Enter time (00 - 59) A Press b

B To start recording immediately after a call arrives, enter

00 for time A Press b

^ Answer Time is 09 seconds by default.

C When Answer Phone and Voicemail or Call Forwarding are

both active, the function with the shortest ring time takes
priority.

Example:
Ring time for Answer Phone: 9 seconds
Ring time for Voicemail or Call Forwarding: 10 seconds

In this example, Answer Phone responds first. (Priority may
change depending on signal conditions.)
^ If Answer Phone is full or handset is in Offline Mode or

out-of-range, incoming calls are handled by Voicemail or
Call Forwarding.

Quick Recorder

C Use Quick Recorder to record caller messages on handset

when Answer Phone is inactive. When a call arrives, follow
these steps. Outgoing message plays and caller's message
is recorded.

Press N

x A

Select Record Message A Press

b

2-10

Engaged Call Operations

Earpiece Volume

Adjust Earpiece Volume (5 levels).

^ Volume level remains as set even after handset power is turned off.
^ To adjust Earpiece Volume in Standby, see P. 1 1- 1 4 .
^ Earpiece Volume is Level 3 by default.

During a call, press L or M

1

Voice Output

1

Loudspeaker Use Loudspeaker for handsfree conversations

2

During a call, press b.

C To cancel, press b.

Mute

During a call, press M N.

C To cancel, press M M.

Hold Hold tone sounds and each other's voice is not heard

During a call, press N x A Select Hold A Press b

C To cancel, press N x A Select Retrieve A Press b

B Alternatively, press f.

C

Use Touch Tones to send alphanumeric messages to pagers or operate a home answerphone remotely.
^ Use 0 - 9, U and # to send Touch Tones.

Mute your handset microphone
Other party's voice can be heard

Press L (up) or M (down) to

2

adjust volume

CSubscription to Call Waiting (see P.14-5) or Conference Call (see P. 1 4 -6 ) is required.

Tou c h To nes

2

Basic Handset Operations

2-11

2

Basic Handset Operations

1

Voice Memo

Record up to 90 seconds between Voice Memo and Answer Phone (see P. 2- 9 ).

During a call, press N x

1

Select Record and press b

2

Recording starts.

Play Play Voice Memos

2

Main Menu

3

Select Play Ans. Phone A Press b

H To ol s A Answer Phone

C For details, see P.2-10 "Playing Messages".

Press b to stop

3

^

Alternatively, end call to stop. (Recordings
remain even after handset power is turned off.)

Other Engaged Call Operations

2-12

Open Phone
Book Entry

Save Phone
Book Entry

Open Message

Create
Message

Dial New
Number

Enable/Disable
DTMF

Tip H

Open Phone Book entries or check My Details
Press N x A Select Phone Book List A Press b A Select an entry (or My
Details) A Press b
Save the other party's number to Phone Book
Press N x A Select Phone Book List A Press b A Press N x A Select
Add New Entry A Press b A Perform from Step 2 on P.4 - 4
Check received/sent/draft messages
Press N x A Select Messaging A Press b A Select an item A Press b
Create a new message
Press N x A Select Messaging A Press b A Select Create Message A
Press b A Perform from Step 3 on P.1 5 - 7
Call another number
Press N

x A

Select

Select whether to send Touch Tones during a call

Dial New Number A

Press N x A Select Disable DTMF or Enable DTMF A Press b

To switch sound output between handset and handsfree devices during a call, see

Press b A Enter a phone number A Press

P. 1 2- 8

"Sound Output".

f

Call Log

1

Open the following records:

All Calls All dialled/received calls
Dialled Numbers All dialled calls
Received Calls All received calls

Press f

1

All Calls opens.

C Press A to open others.

Tip H Press f to open All Calls during a call.

2

Delete Delete records one at a time

Press f A Select a record A Press N

Delete All Delete all records

Press f A Open All Calls, Dialled Numbers or Received Calls A Press N

A

Select Delete All A Press b A Press N

Tip H To save phone numbers to Phone Book, see P. 4- 8 "Saving from Call Log".

x A

Select a record and press b

2

Record details appear.

Select Delete A Press b A Press N

i

Using Call Log

Call Place calls

Press f A Select a record A Press N

C To edit numbers before dialling, select a record and press N x A Select Edit Before Call A

Press b A Edit number A Press f (Long Press for Video Calls)

Create

Message

Press f A Select a record A Press N
Press

Create messages

D A

Perform from Step 5 on P.15-8

x A

x A

Select Call or Video Call A Press

Select Create Message A Press b A

i

x

2

Basic Handset Operations

b

2-13

Call Timers/Data Counter

2

Basic Handset Operations

1
2

Call Timers

Check estimated time of the most recent call (Last Call Time) and all calls made since Clear
Timers was last applied (All Calls Time).

^ Times for Dialled Calls and Received Calls appear separately.
^ To show elapsed Call Time during a call, see P.1 1 -2 4 "Call Time Counter".

Main Menu

Select Dialled Calls or Received

1

Calls and press b

Tip H ^ Last Call Time and All Calls Time remain even after handset power is turned off.

Clear Timers Reset Call Timers

H Call Log A Call Timers

Press b to return to Call Timers menu

2

^ Press g to return to Standby.

^ Ring time for incoming or outgoing calls is not counted. On hold time is counted.

2-14

Main Menu

Select Clear Timers A Press b A Enter Handset Code A Press b A Press N

H Call Log A Call Timers

i

Data Counter

Check estimated volume of the most recent or all packet transmissions (sent, received and
total). Charges do not appear.

Main Menu

1

Clear Counter Reset Data Counter

Main Menu

Select Clear Counter A Press b A Press N i

H Call Log A Data Counter

Select Last Data or All Data and
press b

H Call Log A Data Counter

Press b to return to Data Counter

2

menu

^ Press g to return to Standby.

Call Costs

Check estimated call charge of the most recent call or all calls. To show Call Cost automatically after each call, see

Main Menu

1

Tip H ^ Call Costs remain even after handset power is turned off.

Clear Costs Reset Call Costs

H Call Log A Call Costs

Select Last Call or All Calls and
press b

^ Sum of charges appears for Conference Call (Optional Service).

Press b to return to Call Costs menu

2

^ Press g to return to Standby.

P. 11 - 2 4

"Display Call Cost".

2

Basic Handset Operations

1
2

Main Menu

Select Clear Costs A Press b A Enter PIN2 A Press b A Press N i

Cost Units Set currency and conversion rate (per yen) to show converted amount in Call Costs

Main Menu

Select Set Units A Press b A Enter PIN2 A Press b A Enter currency A
Press b A Enter conversion rate A Press b A Press b

H Call Log A Call Costs

KYEN 1

H Call Log A Call Costs A Cost Units

C To check current cost unit, select Read Units A Press b

Limit Call Costs

Max Cost

Main Menu

Select Max Cost A Press b A Select Set Limit A Press b A Enter PIN2 A
Press b A Enter the amount A Press b

C To check the set limit, select Max Cost A Press b A Select Read Limit A Press b
C To check the remaining amount, select Residual Credit A Press b

Emergency calls (110, etc.) are possible even when the limit is reached. For more, see

Note H

Set a limit of total call charges
When the limit is reached, outgoing calls are blocked

H Call Log A Call Costs

P. 2 -3

"Emergency Calls".

2-15

Manner Mode

2

Basic Handset Operations

Minding Mobile Manners

Please use your handset responsibly. Use these basic tips as a guide. Inappropriate handset use can be both dangerous
and bothersome. Please take care not to disturb others when using your handset. Adjust handset use according to your
surroundings.

^ Turn it off in theatres, museums and other places where silence is the norm.
^ Refrain from using it in restaurants, hotel lobbies, lifts, etc.
^ Observe signs and instructions regarding handset use aboard trains, etc.
^ Refrain from use that interrupts the flow of pedestrian or vehicle traffic.

Manner-Related Features

CManner Mode: see P.2-17

Press Manner Key to automatically mute all Ringtones and
activate Vibration mode for incoming calls, mail, etc.

CVibration Mode: see P.11-12

Activate Vibration mode to use handset vibration to alert you
to incoming calls, mail, etc. in public places.

CVolume Settings: see P.11-11

Decrease or mute Ringtone volume for incoming calls, mail,
etc. as well as tones for Web or V-applications when
carrying handset in public places.

COffline Mode: see P.2-18

Use Offline Mode to temporarily suspend all handset
transmissions. In Offline Mode, incoming/outgoing calls and
Vodafone live! transmissions are blocked.

CAnswer Phone: see P.2-9

Use Answer Phone to handle incoming calls when it is
inappropriate or unsafe to answer.

2-16

Activating & Cancelling

Activate/cancel Manner mode in Standby, while browsing the Mobile Internet or while using
Media Player, TV, FM Radio or V-applications.

Activating Cancelling

Press 0 for 1+ seconds

1

k appears and Manner mode is set.

^ j (Answer Phone), F (Vibration), g

(Silent) and G (Increasing Volume) appear
as set in Manner settings (see P.11-2 "Mode
Settings").

Press 0 for 1+ seconds

1

k disappears and Manner mode is cancelled.

2

Basic Handset Operations

1

C Keypad Tones, Power On/Off and error tones are muted. Beeps for Switch Line (see P.14-6) are

heard.

^ Even in Manner mode, Ringtone can be heard through Headphones. Volume is fixed to Level 1.
C Shutter click and Self-timer tone sound even in Manner mode.
C Settings for Manner mode (see P.11-2 "Mode Settings") are applied to Answer Phone, Ringtones,

Vibration, Mobile Light, etc.

Tip H

^ When Answer Phone is recording messages, the other party's voice is heard through

Earpiece.

^ To change Manner settings, see P.11-2 "Mode Settings".

When Manner Mode is Active

2-17

2

Basic Handset Operations

Activating/Cancelling Offline Mode

Use Offline Mode to temporarily suspend all handset transmissions.

^ In Offline Mode, incoming/outgoing calls and Vodafone live! transmissions are blocked.
^ Offline Mode is Off by default.

Activating

Cancelling

2-18

Main Menu

1

1

Tip H ^ When Offline Mode is set while a V-application (see P.17-2) is paused, confirmation appears.

H Settings A Network Settings

(F) A Offline Mode

Choose On and press b

U appears and Offline Mode is set.

Press N i to enter Offline Mode. (Network connection is disabled until Offline Mode is
cancelled.)

^ Emergency calls (110, etc.) are not possible in Offline Mode. For more, see P.2 - 3 .

Main Menu

1

H Settings A Network Settings

(F) A Offline Mode

Choose Off and press b

U disappears and Offline Mode is cancelled.

Entering Characters

3-1

Character Selection

Use Kana and Pager (see P. 3- 8 ) to enter alphanumerics,

3

Symbols, hiragana, kanji, katakana and Pictographs.

Entering Characters

Unless otherwise noted, text entry operations are described
for use in text entry windows using Kana Mode.

Entry Modes

Press j to toggle between character entry modes as
follows:

I%J%B%A%D%E%G%I

Available Modes

A Kanji (hiragana)
D Double-byte katakana

Current Entry
Mode

^ Alternatively, use F to toggle between entry modes after

pressing j once.

^ F and H appear in upper/lower case mode (see right).

3-2

E Single-byte katakana

Double-byte alphanumerics

F

(upper/lower case)

Double-byte alphanumerics

G

(lower case)

Single-byte alphanumerics

H

(upper/lower case)

Single-byte alphanumerics

I

(lower case)

J Single-byte number
B Character Code

Upper & Lower Case

C In double or single-byte alphanumerics mode, press k to

toggle between upper/lower case and lower case modes. In
Pager Mode (see P.3 - 8), while selecting double or single­byte entry mode, press k to toggle upper and lower case.

k

Double-byte Alphanumerics

(Upper/Lower Case)

Tip H

^ Handset Character Codes correspond to 6,355 kanji.
^ Some characters are not available for mail addresses,

etc.

Double-byte Alphanumerics

(Lower Case)

Key Assignments

Multiple characters are assigned to each key. Press a key to toggle between character options for that key.

Example: In katakana entry, press 1 three times for

When entering characters, press f to toggle options in reverse. (Not available for single-byte numbers or Character Codes.)

い

Example: Enter

Key

1
2
3
4
5
6
7
8
9
0

q

p 、。X (Line Break) ？！ ) (Space)

1

Press 0 for 1+ seconds to enter + (available for phone number entry).

2

- is available only in single-byte katakana entry.

3

Double or single-byte according to the entry mode.

4

M

(Pause), ? and - are for phone number entry.

Kanji (Hiragana)

あいうえおぁぃぅぇぉ アイウエオァィゥェォ @./-1

Log List, Pictograph List,

, then press f to return to あ.

[Double-byte]

かきくけこ カキクケコ ABCabc2

さしすせそ サシスセソ DEFdef3

たちつてとっ タチツテトッ GHIghi4

なにぬねの ナニヌネノ JKLjkl5

はひふへほ ハヒフヘホ MNOmno6

まみむめも マミムメモ PQRSpqrs7

やゆよゃゅょ ヤユヨャュョ TUVtuv8

らりるれろ ラリルレロ WXYZwxyz9

わをんー ワヲンー 0

゛゜

Symbol List

Katakana

[Double & Single-byte]

2

゛゜-

Symbol List

3

Log List, Pictograph List,

ウ

.

Alphanumerics

[Double & Single-byte]

Log List, Pictograph List,

Symbol List

3

, .X (Line Break) ?!

) (Space)

Numbers

[Single-byte]

11

22

33

44

55

66

77

88

99

1

0 +

UM (Pause) ? -4 Log List,

Single-byte Symbol List,

Pictograph List

#

Character

Codes

0

─────

─────

3

Entering Characters

3-3

CKey Assignments (Continued)

Key

3

Entering Characters

C Conversion (Up)
D Conversion (Down)

Kanji (Hiragana)

[Double-byte]

5

6

B Cursor Left
A Cursor Right

j Change Entry Mode

k Toggle Case (for some characters)

i

Press

i

Delete One Character,

Cancel Conversion

Long

Press

f Recover up to 64 deleted characters
b OK

N Phonetic Conversion

Hiragana to Katakana/

M

Alphanumerics

Conversion

5

Cursor moves up except during conversion.

6

Cursor moves down except during conversion.

7

Press f once for each character to recover immediately after deleting. (Not available after deleting text with i (Long Press).)

Katakana

[Double & Single-byte]

Delete before or after cursor

Alphanumerics

[Double & Single-byte]

Numbers

[Single-byte]

Cursor Up

Cursor Down X (Line Break)

Toggle Case + Toggle

Mode (upper/lower and

───── ─────

lower case)

Delete One Character

7

───── ─────

───── ─────

Character

Codes

Delete Code/

One Character

3-4

Entering Characters

Kanji, Hiragana & Katakana

Following the example below, enter 鈴木 to learn how to
enter characters in kanji (hiragana) entry mode.

Press 3 three times

1

Word suggestions change as hiragana
are entered.

Press A

2

^ When the next character is on the

same key, press A first.

Katakana Entry

C Switch to double or single-byte katakana mode to enter

katakana. Alternatively, enter hiragana and then select
katakana from the word suggestion list.

C To convert hiragana to katakana/alphanumerics only, see

P. 3- 1 0 "Hiragana to Katakana/Alphanumerics Conversion".

Press 3 three times and

3

press q

Press 2 twice

4

^ To enter unconverted hiragana, skip

ahead to Step 6.

Press D (convert) and use E

5

to select a word

^ The most recent selection appears first

in the list.

C

To see other suggestions, press N
or

M J

C To exit the list, press i.
C To change segment, see P. 3 - 6

"Segmenting Phrases".

Press b

6

.

z

3

Entering Characters

3-5

Predictive & Previous Usage

C Use these functions to convert hiragana to kanji more quickly.

3

Entering Characters

Predictive

Previous Usage

^ Both functions are active by default (see P.3 - 1 2 "Optional

Predictive Functions").

^ To lower priority of particular types of words (names of

people, places, etc.) in the word suggestion list, see P.3-12
"Set Low Priority".

C Save frequently used words/phrases to select from the word

suggestion list (see P.11-16).

Word suggestions change as up to
five hiragana are entered

Suggests words/characters likely to
follow entry based on previous entries

User Dictionary

CSegmenting Phrases

If the word is not listed, press i after Step 5 on P. 3 - 5 to
exit. Use F to segment hiragana to convert separately.

Example: Segment

B DEb DEb

みち みち 三ち 三智

みち

into み and ち.

CSelecting Multiple Converted Words

Press j.

Example: To enter

にしやま だい すけ 

西山大輔

D j

西山大輔

西山大輔

Small Kana (っ, ッ, etc.)

Enter small hiragana あ, い, う, え, お, つ, や, ゆ and よ as
well as small katakana.

Enter a character and press k

1

つ

k

っ

Adding ゛or ゜

Enter a character and press q

1

^ In kanji (hiragana)/double-byte katakana

entry, press the key once to add
(Ka) row,

さ

characters, and press twice to remove. For

は

(Ha) row characters, press once to add

゛

, twice to add ゜and three times to

remove.

Tip H In Single-byte Katakana Entry

(Sa) row and た (Ta) row

^ Press q once to add single-byte ﾞor twice forﾟ.
^ Press i to remove ﾞorﾟ.

゛

to か

は

q

ば

q

ぱ

q

は

Space

Press A

1

^ Alternatively, in kanji (hiragana), katakana

or alphanumeric entry, press p six times
for space.

Ueda

A

Ueda

3-6

Line Break

Insert line breaks in text, Text Templates, etc.

Press D at the end of text

1

^ To insert line breaks in text, press p

until X appears. In kanji (hiragana) entry
mode, then press b.

Contact me at

D

Contact me at

Entering Alphanumerics

Enter alphanumerics in double or single-byte alphanumerics mode.
Alternatively, enter numbers in single-byte number mode.

a ad

^ When the next character is on the same key (example:

entering a then b), press A first to move cursor.

^ In double or single-byte alphanumerics mode, press k to

toggle between upper/lower and lower case modes.

^ To convert hiragana to katakana/alphanumerics only, see

P.3-10 "Hiragana to Katakana/Alphanumerics Conversion".

3

Symbols, Pictographs & Emoticons

Symbols & Pictographs

Pictographs do not appear in e-mail or on incompatible
Vodafone handsets.

Press q to open Log List (Log List is

1

available in some entry modes; see P.3-3)

Recently used Symbols/Pictographs appear.

^

―

appears by default or when Log List is deleted.

Use G to select one and press

2

^ Repeat Step 2 to enter more.

C To see more lists, press M; toggles as

follows: Symbol List(s) % Log List.

C To see Pictographs, press N; toggles as

X

follows: Pictograph Lists % Log List.
B Alternatively, press D repeatedly to

scroll through Symbols or Pictographs.

Press a key (0 - 9) to exit

3

list and enter the assigned character

^ Alternatively, press i to exit list.

Tip H ^ Double-byte Symbols appear only in double-byte entry

modes. (All Pictographs are double-byte.)

^ Single-byte Symbols do not appear in Log List.
^ Alternatively, enter

Some Symbols can be selected.

^ For available Pictographs, see P.20-16.
^ Enter a descriptive word such as

press D (convert). Corresponding Pictographs can be
selected.

C In a text entry window, press N x A Select Input/

Conversion A Press b A Select Clear Symbols A

Press b A Press N i

B

To return to the text entry window, press i A Press

きごう

and press D (convert).

Deleting Log List

b

はーと

or はな and

i

3

Entering Characters

3-7

Emoticons

Press N x

1

3

Entering Characters

Select Emoticons and press b

2

Enter two digits (01 - 50) to jump to the emoticon assigned to
the number.

Select an emoticon and press b

3

Tip H ^ For other emoticons, enter かお and press D (convert).

Alternatively, enter a descriptive word such as

うーん

and press D (convert). Corresponding

emoticons can be selected.

^ Immediately after inserting a descriptive word such as

嬉しい

or

悲しい

appear in the word suggestion list. To disable this
function, see P.3 - 1 2 "Optional Predictive Functions"
(Pre-used Emoticon).

, corresponding emoticons may

わーい

or

Character Code

In Character Code entry mode, enter four digits

1

(see P.20-10)

Pager Code

Press N x

1

Select Input/Conversion and press b

2

Select Input Method and press b

3

Select Pager Code and press b

4

Pager Code _ _ appears at the bottom.

C To switch to Kana Mode, select Kana A Press b

Enter two digits (see P.3-9)

5

^ Pager Mode is active until switched to Kana Mode.

3-8

Mail & Web Extensions

Press N x

1

Select Quick Address List and press b

2

Select an extension and press b

3

^ Mail addresses and URLs are single-byte.

Character Entry Modes

C For text entry in Pager Mode, press j to toggle between

entry modes as follows:

Single-byte lower case (N) % Character Code (B)
% Double-byte lower case (L)

C While selecting an entry mode, press k to toggle

between upper and lower case modes.

^ Hiragana to Katakana/Alphanumerics Conversion is

Tip H

disabled in Pager Mode.

^ To e n t e r ﾞor ﾟ, see Pager Code List on P.3 - 9 .

CPager Code List

^ Blanks indicate no entry.
^ Grey background indicates upper and lower case available. Press k to switch immediately after character entry.

Double-byte upper case Single-byte upper case

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0

あ い う え お Ａ Ｂ Ｃ Ｄ Ｅ

1

かきくけこ

2

さしすせそ

3

たち

4

なにぬねの

5

はひふへほ

6

まみむめもV ＆ Z

7

や（ ゆ）よ

8

らりるれろ１２３４５

9

First digit (Press first)

わをん゛゜６７８９０

0

Second digit (Press next) Second digit (Press next)

ｱ ｲ ｳ ｴ ｵ A B C D E
Ｆ Ｇ Ｈ Ｉ Ｊ
Ｋ Ｌ Ｍ Ｎ Ｏ

つてとＰ Ｑ Ｒ Ｓ Ｔ

Ｕ Ｖ Ｗ Ｘ Ｙ
Ｚ？！−／

Space

＃

U

Y

*1

*2

1

ｶｷｸｹｺ

2

ｻｼｽｾｿ

3

ﾀﾁ

4

ﾅﾆﾇﾈﾉ

5

ﾊﾋﾌﾍﾎ

6

ﾏﾐﾑﾒﾓ

7

ﾔ(ﾕ)ﾖ

8

ﾗﾘﾙﾚﾛ12345

9

First digit (Press first)

ﾜｦﾝ゛゜67890

0

ﾂﾃﾄP Q R S T

F G H I J

K L M N O

U V W X Y

Z?! - /

V
U

& Z
#

Double-byte lower case Single-byte lower case

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0

ぁ ぃ ぅ ぇ ぉ ａ ｂ ｃ ｄ ｅ

1
2
3
4
5
6
7

ゃ ゅ ょ

8
9 9

First digit (Press first)

*1

Press 70 to insert line breaks (in mail message text, Text Templates, etc.).

*2

Press 80 to toggle between upper and lower case.

0

Second digit (Press next) Second digit (Press next)

ｧ ｨ ｩ ｪ ｫ
ｆ ｇ ｈ ｉ ｊ
ｋ ｌ ｍ ｎ ｏ

っ ｐ ｑ ｒ ｓ ｔ

ｕ ｖ ｗ ｘ ｙ
ｚ

、。

1
2 f g h i j
3 k l m n o
4

ｯ

5 u v w x y
6 z

*1

*2

7

ｬ ｭ ｮ

8

First digit (Press first)

0 ,.

a b c de

p q r s t

^ Y and Z are double-byte.

Space

3

Entering Characters

*1

*2

Y

*1

*2

3-9

Conversion Methods (Japanese Only)

Phonetic Conversion

3

Entering Characters

Enter alternate readings to search for kanji.

Enter reading in hiragana

1

Press N _

2

Select a kanji and press b

3

One-Hiragana Conversion

Enter the first hiragana to access previously selected words.

Example: To enter

Up to 20 word selections are saved per hiragana. When
memory is full, the oldest entry is deleted to make room for
a new entry.

鈴木

DE b

鈴木す 鈴木

Hiragana to Katakana/Alphanumerics Conversion

Enter katakana and alphanumerics in kanji (hiragana) entry
mode.

Enter hiragana and press M S

1

^ To enter AM, press 26 then M S.

Use E to select a word and press b

2

^ Hiragana to Roman Letter Conversion (hiragana with ゛or ゜

is converted to the same characters/Symbols):

あ＠い．う／え＿お

かＡきＢくＣけ

さＤしＥすＦせ

たＧちＨつＩて

なＪにＫぬＬね

はＭひＮふＯへ

まＰみＱむＲめＳも

やＴゆＵよＶ

らＷりＸるＹれＺろ

わ，を．ん

^ Hiragana to Number Conversion (hiragana with ゛or ゜is

converted to the same numbers):

Bあ (A) row...1Bか
Bた (Ta) row...4Bな
Bま (Ma) row...7Bや
B

わをんー

(Long Sound)...0

Space

(Ka) row...2Bさ
(Na) row...5Bは
(Ya) row...8Bら

Space

Space

Space

Space

Space

ーーーー

ー (Long Sound)

(Sa) row...3
(Ha) row...6
(Ra) row...9

Space

こ

Space

そ

Space

と

Space

の

Space

ほ

Space

Space

Space

Space

3-10

Quick Conversion (for Hiragana)

Quick Conversion helps reduce keystrokes needed to enter
frequently used words.
A list of word suggestions appears based on the key
pressed.

Example: To enter

Normal
Conversion

Quick
Conversion

Enter hiragana and press C

1

Cursor turns green.
^ While cursor is green, use F to segment entered hiragana

and then convert one segment at a time.

C To cancel Quick Conversion, press i A Press D for

normal conversion

Use E to select a word and press b

2

Note H

Use Quick Conversion in kanji (hiragana) mode only.

The most recent selection (mostly nouns) appears first.

Tip H

微妙

66q (
888888 (
111 (

6q (ば) 7 (ま) 8 (や) 1 (あ)
C (convert)

び

) 77 (み)

う

) D (convert)

ょ

)

One Hiragana Predictive Entry

Enter hiragana and initiate Quick Conversion. Words
starting with a hiragana in the same row (

あ

) appear. Word suggestions vary by time of day.

Example: When

5:00 - 10:59 11:00 - 16:59 17:00 - 22:59 23:00 - 4:59

朝一番
朝帰り
行ってきます
いってらっしゃい

...

^ Words in the list are preset by time blocks.
^ If Clock is unset, only words for 11:00 - 16:59 are available.

あ

is entered

あちぃ〜
後でね
いただきま〜す♪
移動中

...

遊ぼう
明日
急いで行くよ
今どこ？

...

あ い う え お

アウチ！！
ありがとう
いえーい！！！
行こうね

...

One Hiragana Word Call

Enter the first hiragana of entries you used Quick
Conversion for. The most recent selection appears first.

Example: You entered

あたあさわ

and selected

お父さん

last time.

C

お父さん あ

for

3

Entering Characters

3-11

Conversion Settings

Optional Predictive

3

Entering Characters

Functions

Press N

A

Select Predictive, Previous Usage or
Pre-usedEmoticon
or Off

A

Set

Low Priority

Press N

A

Select Set Low Priority A Press b A Select an item

A

Press b A Press M

^ To select multiple items, select and press b for each item

before pressing M K.

Reset Learning

Press N

A

Select Reset Learning A Press b A Press N

^ Words saved in User Dictionary remain.

Activate or cancel Predictive, Previous Usage
or Pre-used Emoticon

x A

Press

x A

x A

Select Input/Conversion A Press b

A

Press b A Choose On (activate)

b

Select types of words to lower their priorities in
the word suggestion list

Select Input/Conversion A Press b

K

Clear log of words selected in kanji conversion,
Predictive, etc.

Select Input/Conversion A Press b

KOn (all)

i

Editing Characters

Deleting & Replacing

Use G to select a character and

1

press i

^ The highlighted character is deleted.
^ Place cursor at the end of text and

press i for 1+ seconds to delete all
text. When cursor is located amidst a
block of text, characters on and after cursor are deleted.

Enter another character

2

Copy/Cut & Paste

When Options appears, copy or cut and paste text into the
same window or another.

Press N x

1

Select Copy or Cut and press b

2

Mikako

i

Mikko

Mikiko

3-12

Use G to select the first

3

character of text and press b

Start point is set.

C

To change the start point, press M

Select the end point and press

4

Open text paste target window

5

Press N x

6

Select Paste and press b

7

Deleting Text On and After Cursor

Select the first character of text

1

Press N x

2

Select Delete Posterior and press b

3

s

b

.

Cut

Additional Functions

Copying from Phone Book

Insert Phone Book entry items into text entry windows.
Select from phone numbers, mail addresses, Category,
postal address, Homepage, Note, and Birthday.

Press N x

1

^ Move cursor to target location beforehand.

Select Advanced and press b

2

Select Phone Book and press b

3

Open a Phone Book entry or

4

My Details

Use E to select an item and

5

press b

Item is inserted following a comma and
the entry name.

3

Entering Characters

3-13

Using Text Templates

Insert text saved in Text Templates (see P.10-17) into text
entry windows.

3

Entering Characters

Press N x

1

Select Text Te mpla tes and press b

2

Select Call Templates and press b

3

Select text and press b

4

Text is inserted.

Saving to Text Templates

C Follow these steps to save text in text entry windows to Text

Te mp l a t es .

Press N x A Select Text Tem pla te s A
Press b A Select Save Templates A Press b A
Select the first character of text A Press b A
Select the end point A Press b

^ Enter up to 256 characters.

Changing Font Size

Press N x

1

Select Advanced and press b

2

Select Font Size and press b

3

Select a size and press b

4

Tip H Setting applies to Editor Font Size in Display Font

Settings (see P. 1 1- 4 ).

3-14

Phone Book

4-1

Overview

Save frequently used phone numbers and mail addresses to Phone Book.

^ Entry names appear for calls from numbers saved in Phone Book.
^ Set Ringtone/Ringvideo by caller/sender, sort entries into Categories, etc. See P.4 - 3 for more about Phone Book entry items.

4

Phone Book

CDialling from Phone Book

CWhen a Call Arrives

f

CSending SMS/MMS messages from Phone Book

b

Tip H Use Phone Book Lock (see P.11-21) to protect entries

from accidental alteration and to restrict access to Phone
Book information.

4-2

A call arrives

Service Dial

C Dial service dial numbers saved on compatible USIM Cards

to use services.

Press b A Select Phone Book A Press b A
Select Service Dial No. A Press b A Select
service A Press b

^ For details, contact the service providers.

Back-up Important Information

Note H

When battery is exhausted/removed for long periods,
Phone Book entries may be lost; handset damage may
also affect handset information recovery. Vodafone is not
liable for damages from lost/altered data.

Saving to Phone Book

Phone Book Entry Items

Save up to 750 entries in 905SH Phone Book; USIM Card Phone Book entry limit varies according to card specifications.

Item Description

Last Name:

First Name:

Reading: Enter up to 64 characters

Add Phone Number:

Add Email Address:

Category:

Address:

Homepage:

*

Not supported on USIM Card.

*

*

Enter up to 32 characters. (Select Name:
when saving to USIM Card.)

Enter up to three numbers on handset/two
on USIM Card (32 digits each)

Enter up to three addresses on handset/one
on USIM Card (128 single-byte
alphanumerics each)

Sort entries into 16 Categories (11 on some
USIM Cards). Category names can be
changed. Set Ringtone/Ringvideo, Mobile
Light and Vibration by Category (handset
only).

Enter postal code (20 characters), country
name (32 characters), state/province
(64 characters), city name (64 characters)
and street name/number (64 characters)

Save URLs. Enter up to 1,024 bytes.

Note:

Birthday:

Picture:

Tone/Video for Voice Call:

Tone/Video for Video Call:

Tone/Video for New
Message:

Light for Voice Call:

Light for Video Call:

Light for New Message:

Vibration for Incoming Call:

Vibration for New Message:

Secret:

Note H Depending on the USIM Card in use, some items may not be supported, and character entry limits or number of Categories may be

lower. Also, the number of phone numbers or mail addresses per entry may be lower.
Name does not appear in recipient/sender field of e-mail to/from addresses saved only in USIM Card Phone Book.

Item Description

*

*

*

*

*

*

*

Add personal details. Enter up to
256 characters.

Enter birth date

Set an image to appear for
incoming calls/mail

*

*

Set Ringtone/Ringvideo, Mobile
Light or Vibration by caller/sender

*

*

*

Restrict access to Phone Book
entries by saving them as Secret
Mode entries

4

Phone Book

4-3

New Phone Book Entries

Enter a name, reading, phone number and mail address.
For other items, see P. 4- 5 - 4-7.
Storage media is set to handset (Phone) by default.

4

Phone Book

Main Menu

1

2
3
4
5

6
7

8
9

H Phone Book

Select Add New Entry and
press b

Phone Book Details appears.

C If storage media confirmation

appears, select To Pho ne or To U SIM

A Press b

Select Last Name: and press
Enter last name and press b

Select First Name: and press
Enter first name and press b

Characters entered for names (reading for kanji) appear.

^ To correct reading, see P.4 - 7.

Select Add Phone Number: and press b
Enter a phone number and press b

^ Include dialling code for landline numbers.

Select an icon and press b

^ To save additional phone numbers, repeat Steps 6 - 8.

Select Add Email Address: and press b

b

b

Phone Book

Details

Enter a mail address and press b

10

Select an icon and press b

11

^ To save additional mail addresses, repeat Steps 9 - 11.

Press M q

12

Note H To save an entry, enter at least one of the following: a)

last name; b) first name; c) phone number; or d) mail
address.

Incoming Calls while Creating Entry

C Contents are temporarily saved. To continue with the entry,

end the call or press 0 during the call.

Storage Media

C

Follow these steps to set default storage media for new entries.

Press b A Select Phone Book A Press b A
Select Settings A Press b A Select Save New
Entry A Press b A Select Phone, USIM Memory
or Ask Each Time A Press b

^ Phone is set by default.
^

For

Ask Each Time

Confirmation for Unsaved Numbers

C Follow these steps to show/hide confirmation for saving to

Phone Book after calls with unsaved numbers.

Press b A Select Phone Book A Press b A
Select Settings A Press b A Select New Number

Prompt A Press b A Select Incoming Call or
Outgoing Call A Press b A Choose On or Off A

Press b

^ Both are On by default.

, select storage media for each new entry.

4-4

Personal Ringtone/Ringvideo

Select Ringtones or Ringvideos for incoming calls/mail from
numbers/addresses saved in Phone Book.

^ Select from preset patterns or use the following melody or

video files in Data Folder.
B Files in Ring Songs·Tones or Music folder (file name:

55 characters or less including extension)

B Files in Videos folder (file name: 55 characters or less

including extension)

^ Save files to Data Folder (Videos) before assigning video.
^ Follow these steps after opening Phone Book Details (see

P. 4 -4 ). When finished, Phone Book Details returns. Complete
other fields.

Select Tone/Video for Voice Call:, Tone/Video for

1

Video Call: or Tone/Video for New Message: and

press b

Ringtone

2

1 Select Assign Tone and press b

C To cancel assigned tone, select Remove Tone/Video

A Press b A Press N i

2 Select Preset Sounds, Ring Songs·Tones or

Music and press b

Ringvideo

1 Select Assign Video and press b

C To cancel assigned video, select Remove Tone/Video

A Press b A Press N i

Select a file and press b

3

C For Preset Sounds, select a tone A Press b

Setting Ring Time for Incoming Mail

C After Step 3, Select Tone/Video for New Message: A

Press b A Select Duration A Press b A Enter time A
Press b

Note H

^ When source file in Data Folder is deleted, renamed or

moved to another folder/Memory Card, tone/video set
in Sounds & Alerts (see P.11-11 "Ringtone/videos")
applies. (This also applies if source file is copyrighted
and the licence expires.)

^ To apply settings to Secret Mode entries, first activate

Secret Mode.

Personal Mobile Light

Select whether to flash Mobile Light for incoming calls/mail
from numbers/addresses saved in Phone Book.

^ Follow these steps after opening Phone Book Details (see

P. 4 -4 ). When finished, Phone Book Details returns. Complete
other fields.

Select Light for Voice Call:, Light for Video Call:

1

or Light for New Message: and press b

4

Phone Book

4-5

Activating/Deactivating

2

1 Select Switch On/Off and press b
2

Select On, Link to Sound or Off and press

^ Link to Sound: Mobile Light flashes only when

4

Phone Book

Select whether to vibrate handset for incoming calls/mail
from numbers/addresses saved in Phone Book.
Follow these steps after opening Phone Book Details (see
P. 4- 4 ). When finished, Phone Book Details returns.
Complete other fields.

1

2

Ringtone is a compatible SMAF file.

Light Colour

1 Select Light Colour and press b
2 Select a colour and press b

C To check colours, select one and press N @.

B Press N C to stop.

Personal Vibration

Select Vibration for Incoming Call: or Vibration
for New Message: and press b

Select Switch On/Off and press b

Select On, Link to Sound or Off and press b

3

^ Link to Sound: Handset vibrates only when Ringtone is a

b

compatible SMAF file.

Select Vibration Pattern and press b

4

Select a pattern and press b

5

Personal Picture

Save an image to each Phone Book entry; saved image
appears for calls/mail from phone numbers/mail addresses
saved in that entry.
Follow these steps after opening Phone Book Details (see
P. 4- 4 ). When finished, Phone Book Details returns.
Complete other fields.

Select Picture: and press b

1

C To cancel saved image, select Remove Picture A Press b

A Press N i

Selecting from Data Folder

2

1 Select Assign Picture and press b
2 Select an image and press b

Capturing New Image

1 Select Take Picture and press b
2 Frame image on Display and press b

Captured image appears.

3 Press b

4-6

Note H ^ Setting is cancelled when source file in Data Folder is

deleted, renamed or moved to Memory Card.

^ To apply the setting to Secret Mode entries, first

activate Secret Mode.

Saving Secret Mode Entries

Restrict access to Phone Book entries by saving them as
Secret Mode entries.
Follow these steps after opening Phone Book Details (see
P. 4- 4 ). When finished, Phone Book Details returns.
Complete other fields.

Select Secret: and press b

1

Choose On and press b

2

Note H ^ Activate Secret Mode (see P. 1 1- 2 1 ) to open Secret

Mode entries.

^ To cancel Secret, activate Secret Mode (see P.11-21)

and choose Off in Step 2. To edit Phone Book entries,
see P.4-10 "Editing Phone Book Entries".

Other Phone Book Entry Items

^ For descriptions of each item, see P. 4 -3 .
^ Follow these steps after opening Phone Book Details (see

P. 4 -4 ). When finished, Phone Book Details returns. Complete
other fields.

Reading

Category

Address

Homepage

Note

Birthday

Select Reading: A Press b A Enter reading A
Press b

Select Category: A Press b A Select a
Category A Press b

Select Address: A Press b A Select Postal
Code: A Press b A Enter postal code A
Press b A Select Country: A Press b A Enter
country name A Press b A Select State/
Province: A Press b A Enter name A Press b

A Select City: A Press b A Enter name A

Press b A Select Street & Number: A Press b

A Enter street name/number A Press b A

Press M K
Select Homepage: A Press b A Enter URL A

Press b

Select

Note: A

Press b A Enter text A Press

Select Birthday: A Press b A Enter date A
Press b

b

4

Phone Book

4-7
