Vizio VO37L FHDTV10A User Manual

VIZIO VO37L FHDTV10A User Manual

Dear VIZIO Customer,

Congratulations on your new VIZIO VO37L FHDTV10A High Definition LCD Television purchase. Thank you for your support. For maximum benefit of your set, please read these instructions before making any adjustments, and retain them for future reference. We hope you will experience many years of enjoyment from your new VIZIO VO37L FHDTV10A High Definition Television.

For assistance, please call (877) 698-4946 or e-mail us at

techsupport@vizio.com.

To purchase or inquire about accessories and installation services for your VIZIO LCD HDTV, please visit our website at call toll free at (888) 849-4623.

www.vizio.com or

We recommend you register your VIZIO VO37L FHDTV10A either at our website

www.VIZIO.com or fill in your registration card and mail it in.

For peace of mind and to protect your investment beyond the standard warranty, VIZIO offers on-site extended warranty service plans. These plans give additional coverage during the standard warranty period. Visit our website or call us to purchase a plan.

Write down the serial number located on the back of your VO37L FHDTV10A.

__ __ __ __ __ __ __ __ __ __ __ __ __

Purchase Date _____________________

VIZIO is a registered trademark of VIZIO, Inc. dba V, Inc.

HDMI logo and “High Definition Multimedia Interface” are registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Is a trademark of SRS Labs, Inc.

THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. BRAVO, VIZIO AND THE V LOGO AND WHERE VISION MEETS VALUE AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © 2008 VIZIO INC. ALL RIGHTS RESERVED.

Version 10/17/2008 1

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Important Safety Instructions

Your HDTV is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your HDTV from being damaged, the following rules should be observed for the installation, use, and maintenance of your HDTV. Read the following safety instructions before operating your HDTV. Keep these instructions in a safe place for future reference.

• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your HDTV.

• Unplug the power cord before cleaning your HDTV. A damp cloth is sufficient for cleaning your HDTV. Do not use a liquid or a spray cleaner for cleaning your HDTV. Do not use abrasive cleaners.

• Always use the accessories recommended by the manufacturer to insure compatibility.

• When moving your HDTV from an area of low temperature to an area of high temperature,

condensation may form in the housing. Wait before turning on your HDTV to avoid causing fire, electric shock, or component damage.

• Use only with the cart, stand, tripod, bracket, or table specified by manufacturer or sold with your HDTV. When a cart is used, use caution when moving the cart/HDTV combination to avoid injury from tip-over. Do not place your HDTV on an unstable cart, stand, or table. If your HDTV falls, it can injure a person and cause serious damage to your HDTV. Use only a cart or stand recommended by the manufacturer or sold with your HDTV.

• A distance of at least 3 feet should be maintained between your HDTV and any heat source, such as a radiator, heater, oven, amplifier etc. Do not install your HDTV close to smoke. Operating your HDTV close to smoke or moisture may cause fire or electric shock.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your HDTV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your HDTV in a bookcase or cabinet unless proper ventilation is provided.

• Never push any object into the slots and openings on your HDTV cabinet. Do not place any objects on the top of your HDTV. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your HDTV.

• Your HDTV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

• Do not apply pressure or throw objects at your HDTV. This may compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations.

• The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer.

• Your HDTV is equipped with a three-pronged grounded plug (a plug with a third grounding pin). This plug will fit only into a grounded power outlet. This is a safety feature. If

your outlet does not accommodate the three-pronged, have an electrician install the correct outlet, or use an adapter to ground your HDTV safely. Do not defeat the safety purpose of the grounded plug.

• When connected to a power outlet, power is always flowing into your HDTV. To totally disconnect power, unplug the power cord.

• The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within the inside of your HDTV that may be of sufficient magnitude to constitute a risk of electric shock to persons.

• The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and servicing instructions in the literature accompanying your HDTV.

• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

• The wall socket should be installed near your HDTV and easily accessible.

• Only power of the marked voltage can be used for your HDTV. Any other voltage than the

specified voltage may cause fire or electric shock

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Unplug your HDTV during a lightning storm or when it will not be used for long period of time. This will protect your HDTV from damage due to power surges.

• Do not attempt to repair or service your HDTV yourself. Opening or removing the back cover may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel.

• Keep your HDTV away from moisture. Do not expose your HDTV to rain or moisture. If water penetrates into your HDTV, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

• Do not use your HDTV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your HDTV yourself.

• Avoid using dropped or damaged appliances. If your HDTV is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your HDTV may cause fire or electric shock.

• Do not install your HDTV in an area with heavy dust or high humidity. Operating your HDTV in environments with heavy dust or high humidity may cause fire or electric shock.

• Follow instructions for moving your HDTV. Ensure that the power cord and any other cables are unplugged before moving your HDTV.

• When unplugging your HDTV, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your HDTV will not be used for an extended period of time, unplug the power cord.

• To reduce risk of electric shock, do not touch the connector with wet hands.

• Insert batteries in accordance with instructions. Incorrect polarities may cause the batteries to

leak which can damage the remote control or injure the operator.

• If any of the following occurs, contact the dealer:

o The power cord fails or frays. o Liquid sprays or any object drops into your HDTV. o Your HDTV is exposed to rain or other moisture. o Your HDTV is dropped or damaged in any way. o The performance of your HDTV changes substantially.

Version 10/17/2008 3

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Television Antenna Connection Protection

External Television Antenna Grounding

If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements of the grounding electrode.

Lightning Protection

For added protection of the TV during a lightning storm or when it is left unattended or unused for long periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits.

Remember, the screen of the coaxial cable is intended to be connected to earth in the building installation.

FCC Bulletin for New TV Owners

After February 17, 2009, a television receiver with only an analog broadcast tuner will require a converter box to receive full power over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before to receive low power, Class A or translator television stations and with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products.

Information about the DTV transition is available from http://www.DTV.gov 877 MY VIZIO (877-698-4946), and from http://www.dtv2009.gov

about subsidized coupons for digital-to-analog converter boxes.

Your HDTV comes with a built-in tuner capable of processing digital broadcasts, making it easier for you to receive this type of signal without the need of an extra converter box.

www.VIZIO.com

or 1-888-DTV-2009 for information

or this manufacturer at

VIZIO VO37L FHDTV10A User Manual

Opening the Package

Your VIZIO VO37L FHDTV10A and accessories are carefully packed in a cardboard carton that has been designed to protect it from transportation damage. Now you have opened the carton check that the VO37L FHDTV10A is in good condition and that all of the accessories are included.

The VO37L FHDTV10A weighs approximately 37lb and is about 37” wide; please exercise care when unpacking the HDTV.

The screen can easily be scratched or broken so please handle the product gently and never place the HDTV with the glass facing downwards on a surface without protective padding.

IMPORTANT: Save the carton and packing material for future shipping.

Package Contents

VIZIO VO37L FHDTV10A

VIZIO Remote Control VR3P

VIZIO Removable Stand Base and instructions

Power Cord

Premium Size Screen Cleaning Cloth

This User Manual

Quick Setup Guide

Registration Card

VIP Services Brochure

2 AA Batteries for the Remote Control

HDMI Cable

Caution:

of the display. The manufacturer’s warranty does not cover user abuse or improper installations.

Do not apply pressure or throw objects at your HDTV. This may compromise the integrity

Version 10/17/2008 5

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Additional Certified Accessories for the VIZIO VO37L FHDTV10A are sold separately

Wall Mounts High Definition Cables Extra or replacement Remote VIZIO also offers Installation Services and Extended Warranty Services for your VIZIO VO37L

FHDTV10A

To purchase or inquire about additional accessories and services for your VIZIO product, visit our web site at www.VIZIO.com

Installation Preparation

Please read this user manual carefully before installing your VIZIO HDTV. The power consumption of the TV is up to 200W (max), please use the power cord designated for TV.

When an extension cord is required, use one with the correct power rating. The cord must be grounded and the grounding feature must not be defeated.

The TV should be installed on a flat surface to avoid tipping. For proper ventilation, you must allow space between the back of the TV and the wall. If you would like to mount your TV on the wall, please see below ‘Preparing Your LCD HDTV for Wall Mounting’ for additional information. Avoid installing the TV in places with high humidity, dust or smoke so as not to shorten the service life of the electronic components.

Install the TV in landscape orientation; any 90˚ clockwise or counter-clockwise installation may induce poor ventilation and excessive component damage.

The VIZIO VO37L FHDTV10A can either be kept on the stand base or mounted on the wall for viewing. If you choose to mount the VO37L FHDTV10A on the wall, please refer to “Preparing your LCD HDTV for Wall Mounting” on page 7.

VIZIO offers professional installation services. Please contact VIZIO for more information on these services at 888-VIZIOCE (888-849-4623) or www.VIZIO.com

or call us toll free at 888-VIZIOCE (888-849-4623)

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

TV Setup and Stand Assembly

Note: We strongly recommend that two people perform the setup and assembly due to the weight and

size of the TV.

To unpack the TV and stand base:

1. Remove the remote control, batteries, and power cord from the foam end caps.

2. Remove the two top foam end caps.

3. Remove the stand base under foam end cap.

4. Remove the TV from the box and lay it face down on a clean, flat surface.

Note: Make sure that the surface is free of debris to prevent the TV screen from getting scratched.

To attach the TV stand base:

Note: If you will be wall mounting the TV, skip this step

and go to the next page for wall mounting instructions.

1. Line up the arrows on the stand neck (attached to the TV) with the arrows on the stand base.

2. Push the stand base onto the stand neck.

3. On the bottom of the base, insert the four included screws and tighten.

4. Move the TV into an upright position.

Stand Neck

Stand Base

Version 10/17/2008 7

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Preparing Your LCD HDTV for Wall Mounting

To remove the stand base

5. Unplug all of the cables and cords from your VO37L FHDTV10A.

6. Place the VO37L FHDTV10A face down on a soft and flat surface (blanket, foam, cloth, etc) to prevent any damage to the TV.

7. Push up the plastic panel on the back of the stand and lift it away once to release.

8. Remove the eight (8) screws that were hidden by the panel, while holding the base.

9. Carefully remove the stand base.

Now, the VO37L FHDTV10A can fit securely to a mount (sold separately) by utilizing the mounting holes in the center of the back panel of the TV. Please make sure to read the instructions of your specific mount to properly hang the VO37L FHDTV10A. The pitch of the mounting holes is 400mm horizontally and 200mm vertically. The screw type required is metric M6, 1.00mm pitch. The length of the screws will depend on the thickness plate being attached to TV set, our brackets come with different length screws.

To find the perfect mount for the VIZIO VO37L FHDTV10A, browse VIZIO’s certified mount selection at

www.VIZIO.com

or call directly 888-VIZIOCE (888-849-4623).

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Table of Contents

Chapter 1 Basic Controls and Connections.......................................................... 11

Front Panel..............................................................................................................................................................11

Side Panel Controls.................................................................................................................................................11

Rear Panel Connections .........................................................................................................................................12

Right-Side Panel Connection ..................................................................................................................................13

VIZIO Remote Control.............................................................................................................................................14

Insertion of Batteries in the Remote Control .......................................................................................................15

Remote Control Range.......................................................................................................................................15

VIZIO Remote Control Precautions ....................................................................................................................15

Chapter 2 Connecting Equipment ...........................................................................16

Which Video Connection Should I Use?..................................................................................................................16

Connecting Coaxial (RF) .........................................................................................................................................17

Using Your Antenna or Digital Cable for DTV.....................................................................................................17

Using the Antenna or Cable through your VCR ..................................................................................................17

Connecting Your HDTV Set-Top Box......................................................................................................................18

Using HDMI Input ...............................................................................................................................................18

Using Component Video.....................................................................................................................................20

Connecting Your Basic Set-Top Box.......................................................................................................................21

Using Composite Video ......................................................................................................................................21

Using Coax (RF).................................................................................................................................................21

Connecting Your DVD Player..................................................................................................................................22

Using HDMI Input ...............................................................................................................................................22

Using Component Video.....................................................................................................................................24

Using S-Video (AV1/S-VIDEO)...........................................................................................................................25

Using Composite (AV) Video Input .....................................................................................................................25

Connecting Your VCR or Video Camera................................................................................................................26

Connecting an external Receiver/Amp ....................................................................................................................27

Optical Output of Audio received ........................................................................................................................28

Connecting a PC Computer ....................................................................................................................................29

Preset PC Resolutions .......................................................................................................................................30

Resolution (1920x1080) through RGB (15-Pin VGA) Input.................................................................................30

Chapter 3 Setting Up to Watch Television ............................................................ 31

Basic LCD HDTV Start Up ......................................................................................................................................31

Watching a TV Program ..........................................................................................................................................37

Adjusting Basic HDTV Settings ...............................................................................................................................38

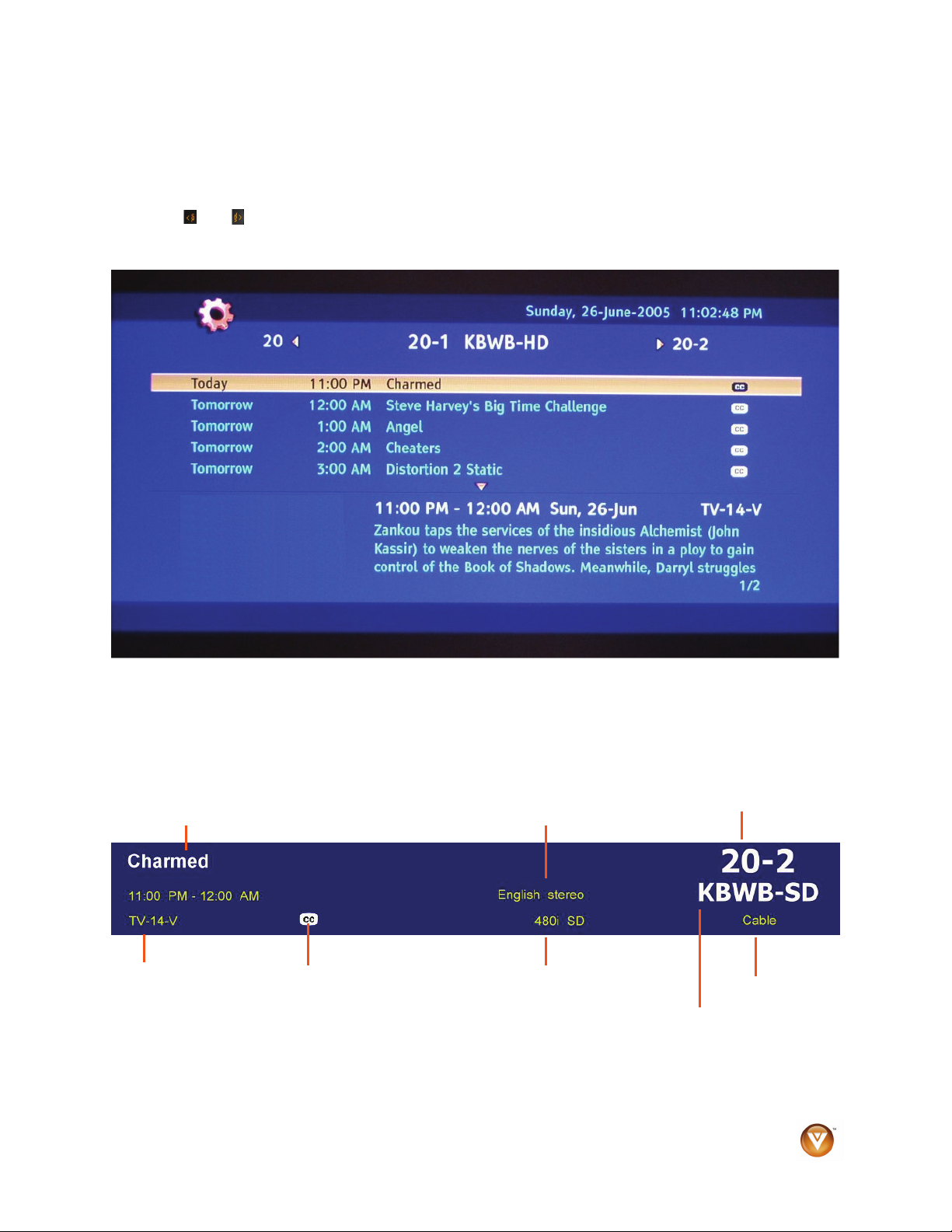

Program Information................................................................................................................................................39

Information on HDTV Status ...................................................................................................................................39

Chapter 4 Advanced Adjustment of HDTV ............................................................40

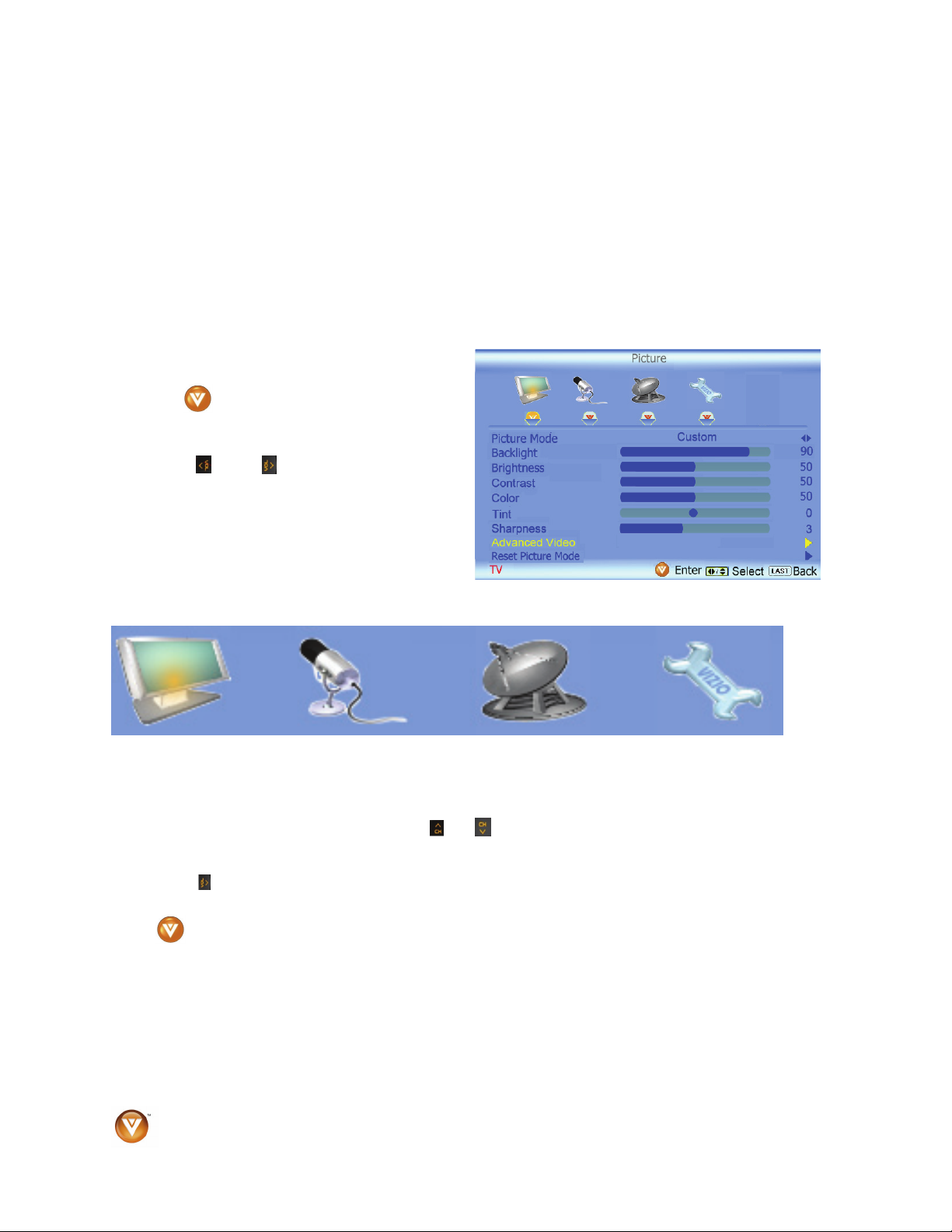

Using the On Screen Display (OSD) .......................................................................................................................40

DTV / TV Input Picture Adjustment..........................................................................................................................41

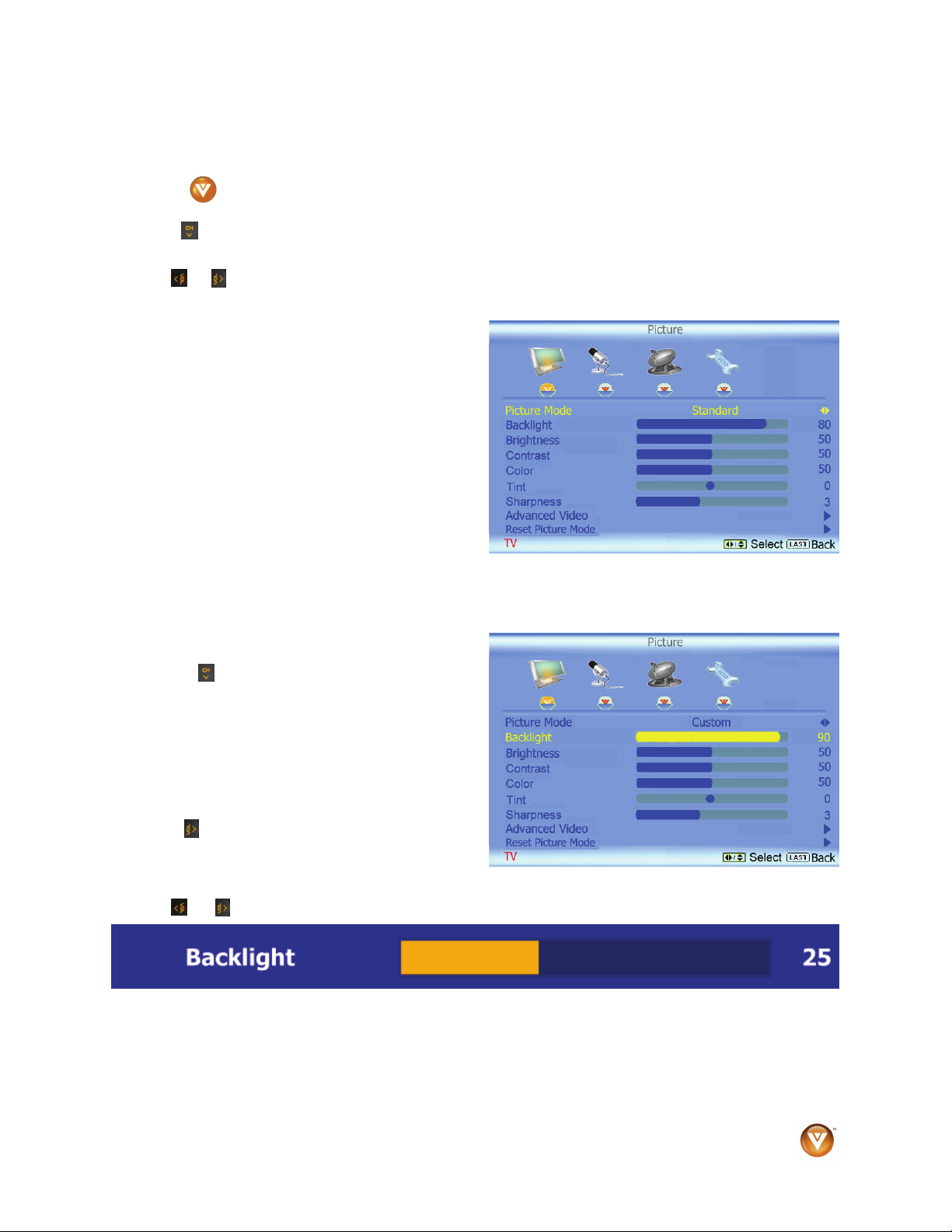

Picture Mode ......................................................................................................................................................41

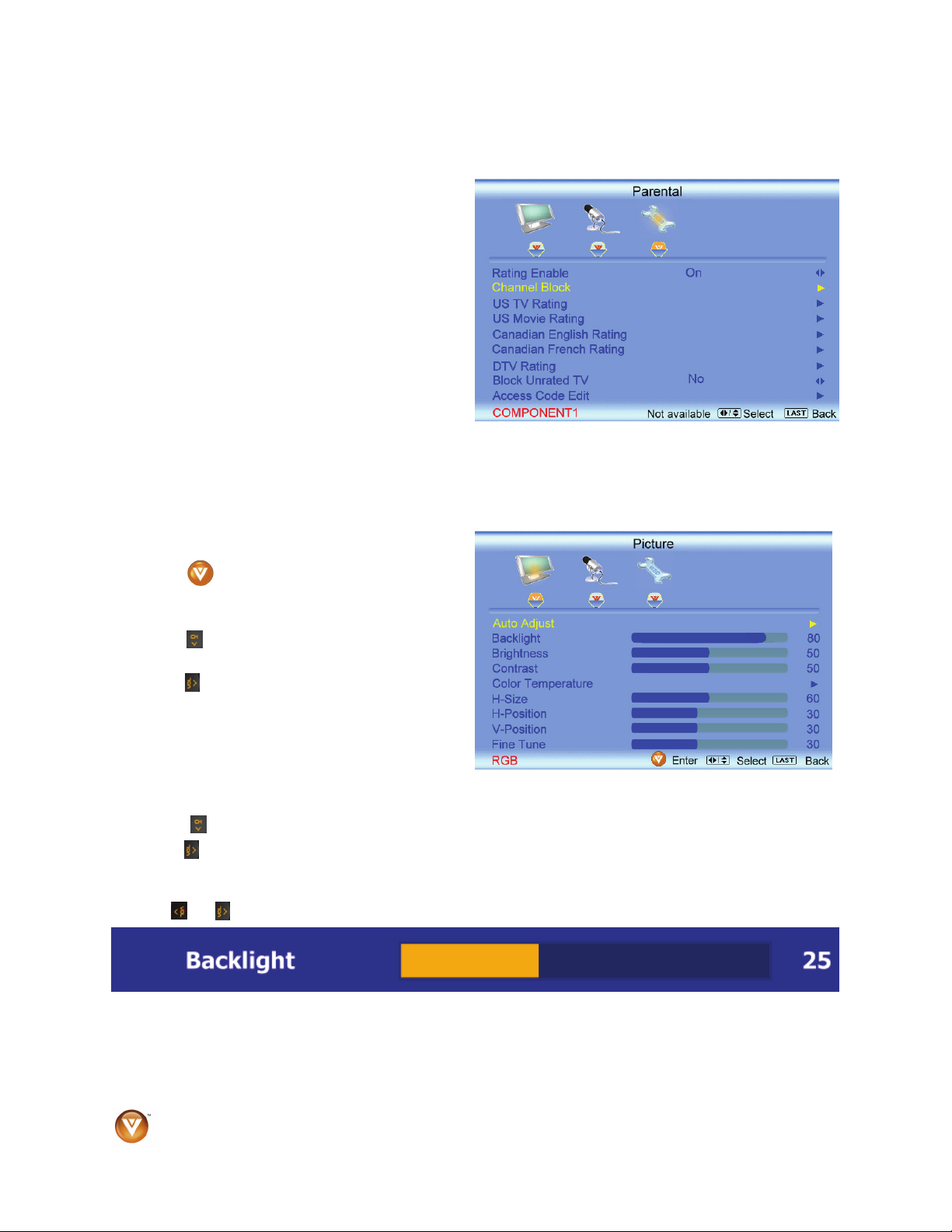

Backlight .............................................................................................................................................................41

Brightness...........................................................................................................................................................42

Contrast..............................................................................................................................................................42

Color...................................................................................................................................................................42

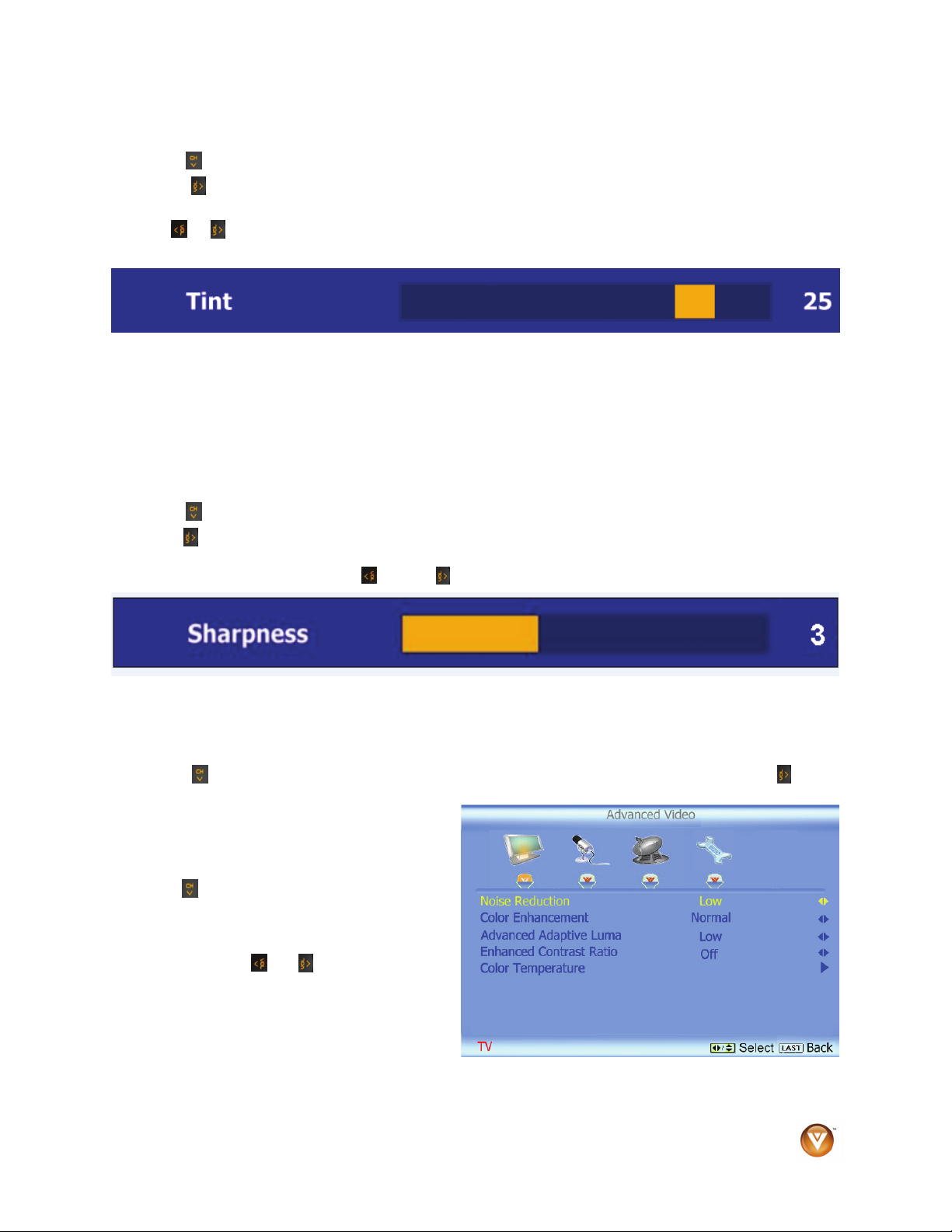

Tint .....................................................................................................................................................................43

Sharpness ..........................................................................................................................................................43

Advanced Video Features ..................................................................................................................................43

Reset Picture Mode ............................................................................................................................................45

DTV / TV Input Audio Adjustment ...........................................................................................................................45

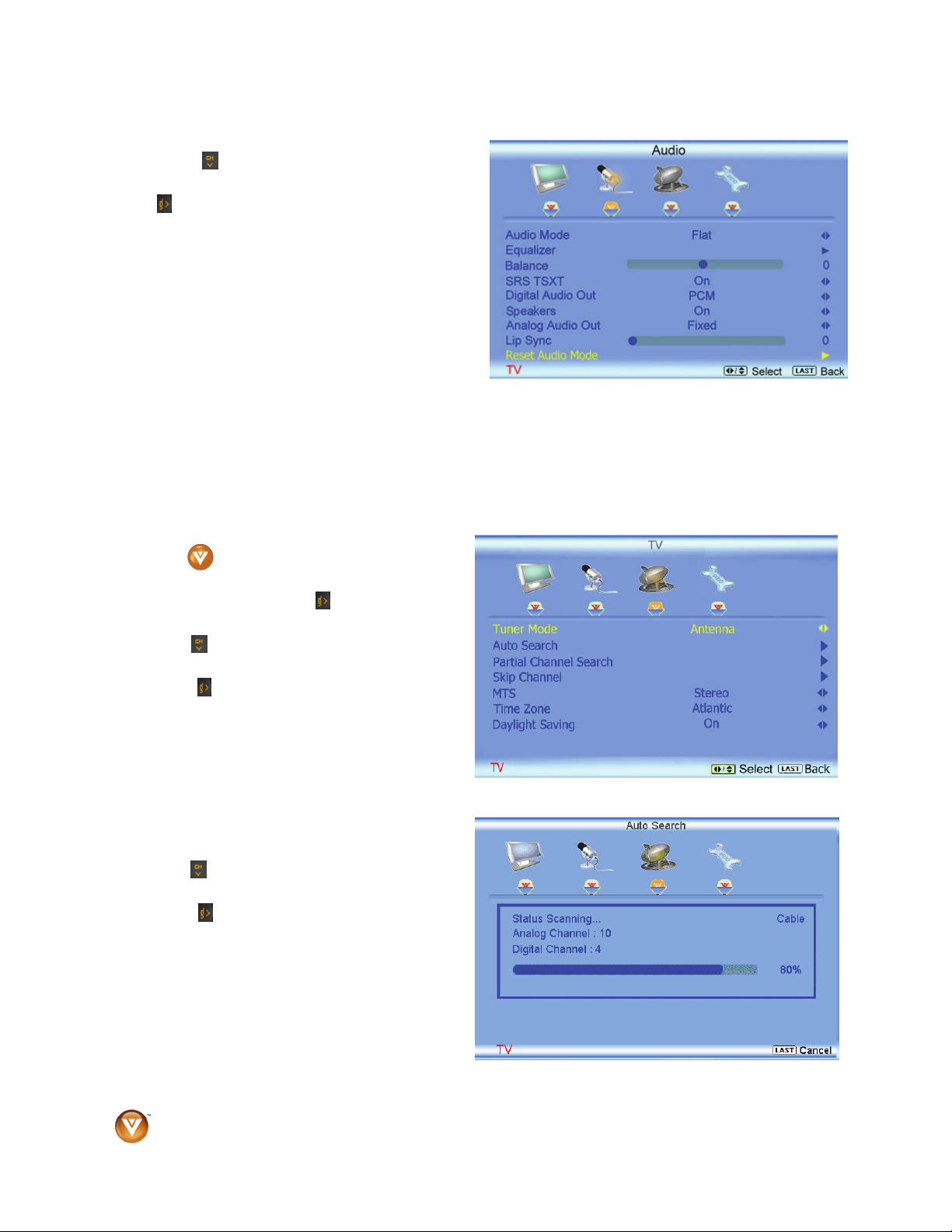

Audio Mode ........................................................................................................................................................45

Equalizer.............................................................................................................................................................46

Balance...............................................................................................................................................................46

SRS TSXT..........................................................................................................................................................46

Digital Audio Out.................................................................................................................................................47

Speakers ............................................................................................................................................................47

Analog Audio Out ...............................................................................................................................................47

Lip Sync..............................................................................................................................................................47

Reset Audio Mode ..............................................................................................................................................48

DTV / TV Tuner Setup.............................................................................................................................................48

Version 10/17/2008 9

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Tuner Mode ........................................................................................................................................................48

Auto Search........................................................................................................................................................48

Partial Channel Search.......................................................................................................................................49

Skip Channel ......................................................................................................................................................49

MTS....................................................................................................................................................................49

Time Zone ..........................................................................................................................................................49

Daylight Saving...................................................................................................................................................50

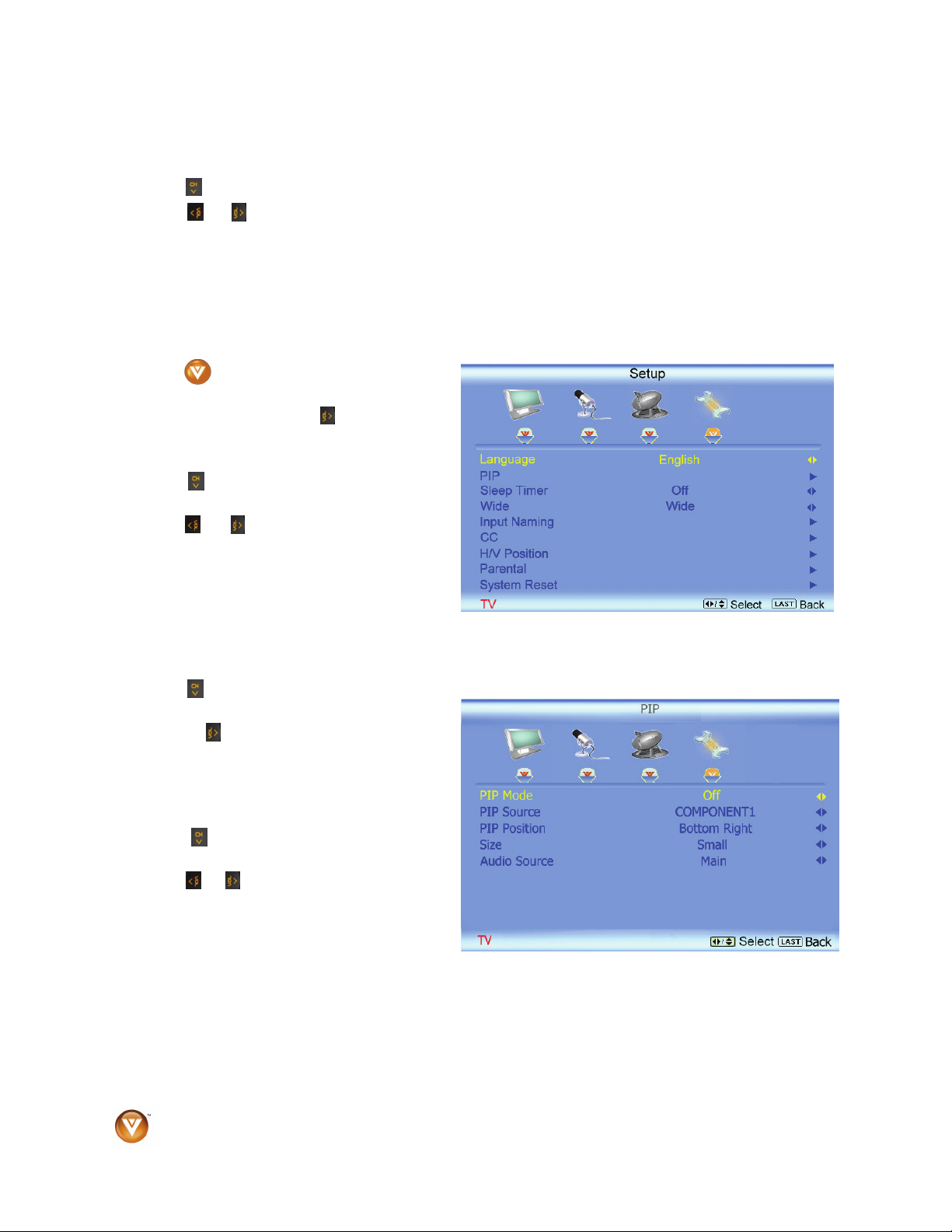

DTV / TV Input Setup ..............................................................................................................................................50

Language............................................................................................................................................................50

PIP (Picture-in-Picture).......................................................................................................................................50

Sleep Timer ........................................................................................................................................................52

Wide ...................................................................................................................................................................52

Input Naming ......................................................................................................................................................53

CC (Closed Caption) ..........................................................................................................................................54

H/V Position........................................................................................................................................................55

DTV / TV Input Parental Control .........................................................................................................................56

Rating Enable .....................................................................................................................................................56

Channel Block ....................................................................................................................................................57

US TV Rating......................................................................................................................................................57

US Movie Rating (For US) ..................................................................................................................................58

Canadian English Rating ....................................................................................................................................58

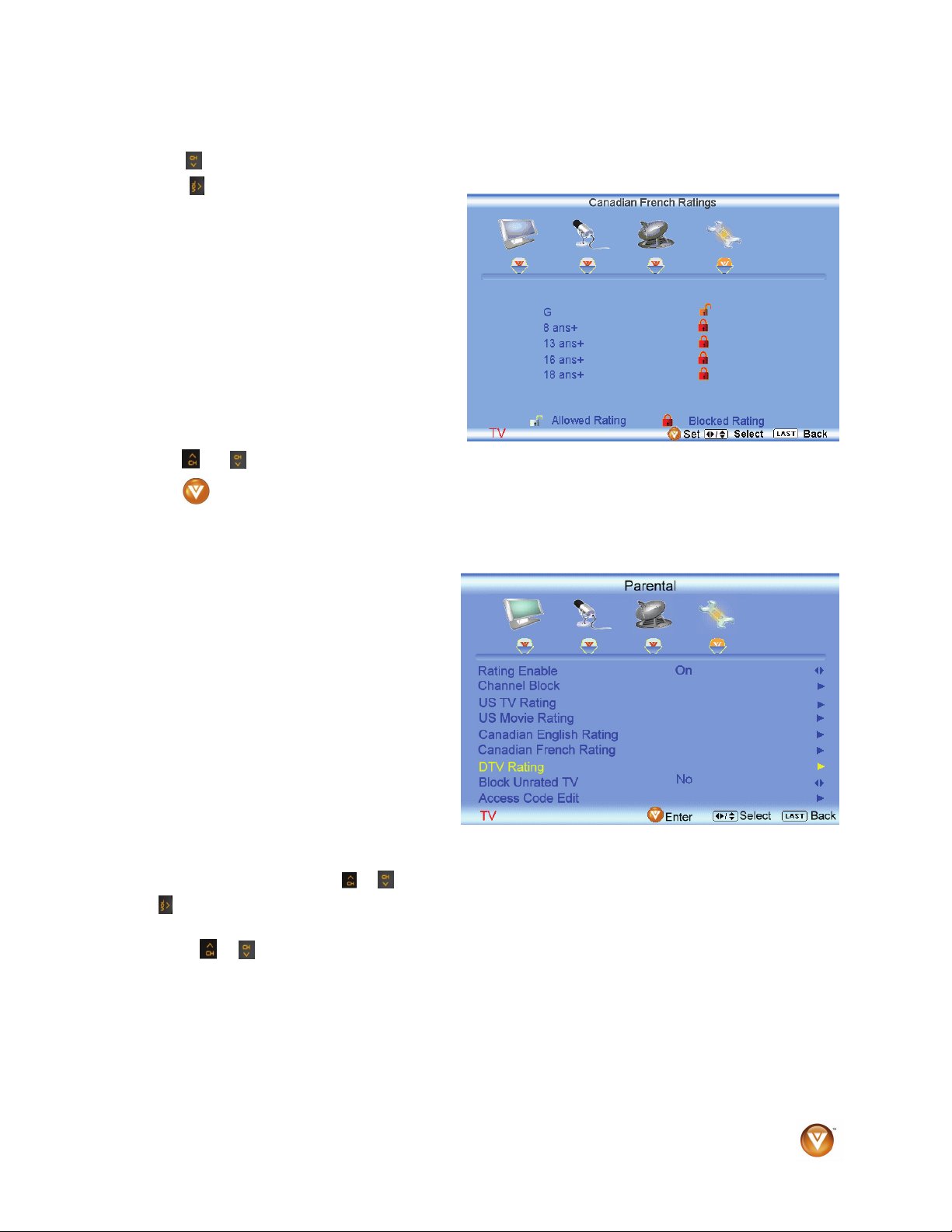

Canadian French Rating.....................................................................................................................................59

DTV Rating .........................................................................................................................................................59

Blocked Unrated Programming...........................................................................................................................60

Change the Password ........................................................................................................................................60

System Reset .....................................................................................................................................................61

HDMI Input Picture Adjustment ...............................................................................................................................61

HDMI Input Audio Adjustment .................................................................................................................................62

HDMI Input Setup....................................................................................................................................................62

Video Input Picture Adjustment ...............................................................................................................................62

Video Input Audio Adjustment .................................................................................................................................63

Video Input Setup....................................................................................................................................................63

Video Input Parental Control ...................................................................................................................................64

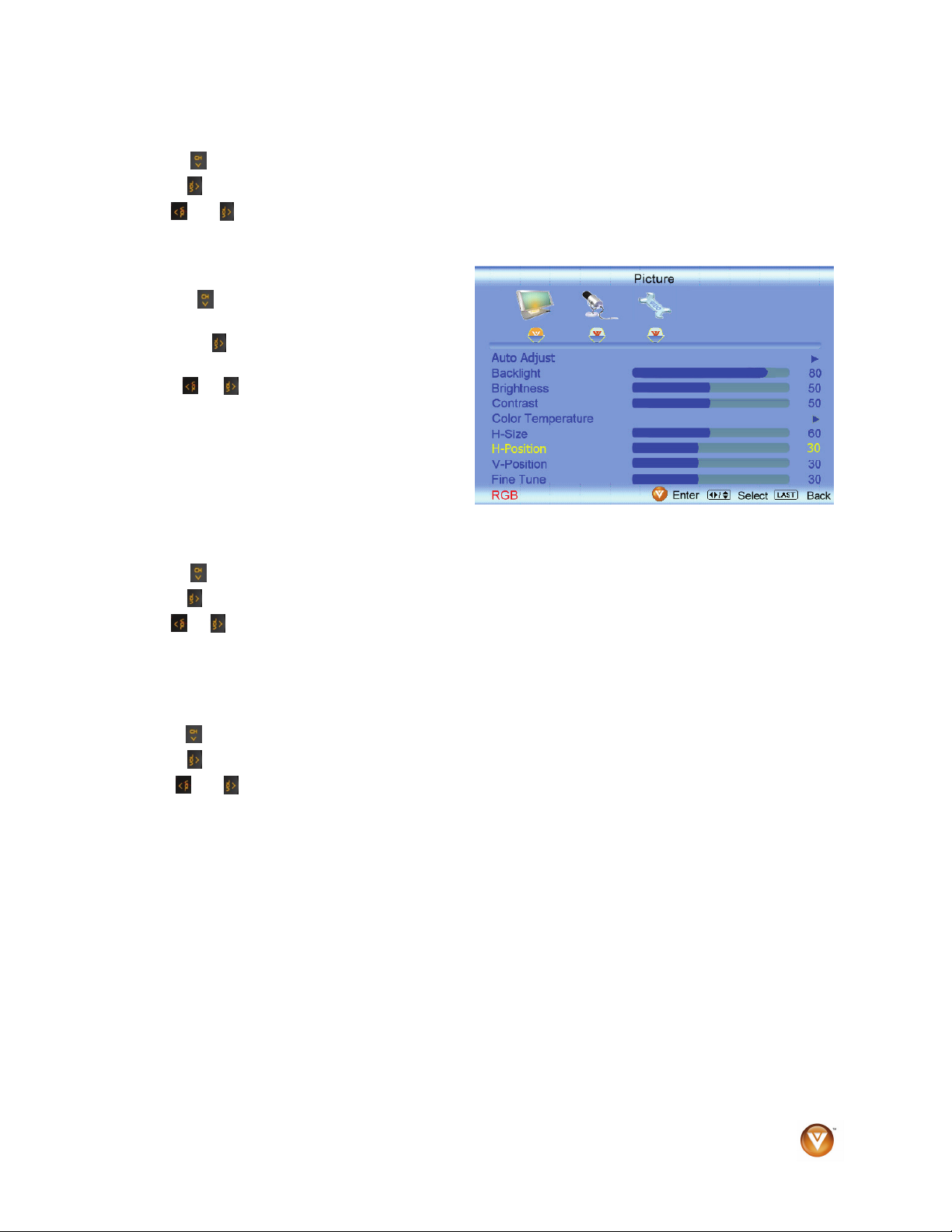

PC Input Picture Adjustment ...................................................................................................................................64

Auto Adjust .........................................................................................................................................................64

Backlight .............................................................................................................................................................64

Brightness...........................................................................................................................................................65

Contrast..............................................................................................................................................................65

Color Temperature .............................................................................................................................................66

H-SIZE................................................................................................................................................................67

H-Position ...........................................................................................................................................................67

V-Position ...........................................................................................................................................................67

Fine Tune ...........................................................................................................................................................67

PC Input Audio Adjustment .....................................................................................................................................68

PC Input Setup........................................................................................................................................................68

Understanding Viewing Features ............................................................................................................................69

Viewing Modes ...................................................................................................................................................69

Chapter 5 Maintenance and Troubleshooting ...................................................... 70

Maintenance............................................................................................................................................................70

Troubleshooting Guide ............................................................................................................................................70

Telephone & Technical Support ..............................................................................................................................72

Compliance .............................................................................................................................................................73

FCC Class B Radio Interference Statement............................................................................................................73

Chapter 6 Miscellaneous Information..................................................................... 74

Specifications ..........................................................................................................................................................74

Glossary – Standard Definitions..............................................................................................................................75

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Chapter 1 Basic Controls and Connections

Front Panel

POWER ‘VIZIO’ LIGHT– The VIZIO name lights white when powered on and orange when powered off.

REMOTE CONTROL SENSOR – This is the window through which all of the remote control signals pass to the sensor. Point the remote control directly at this window for the best response to the remote signal.

Side Panel Controls

POWER ( ) – Switch the VO37L FHDTV10A on by pressing the button once. Press the button again to the VO37L FHDTV10A off.

MENU – This button activates the On Screen Display (OSD). If a sub-menu is active, pressing next menu level.

CH + / - – Use these buttons to step up or down the TV channels. While the OSD is active, these buttons function as up and down controls in the OSD menus.

VOL + / - – Use these buttons to increase or decrease to the speaker volume. While the OSD is active, these buttons function as left and right controls in the OSD menus.

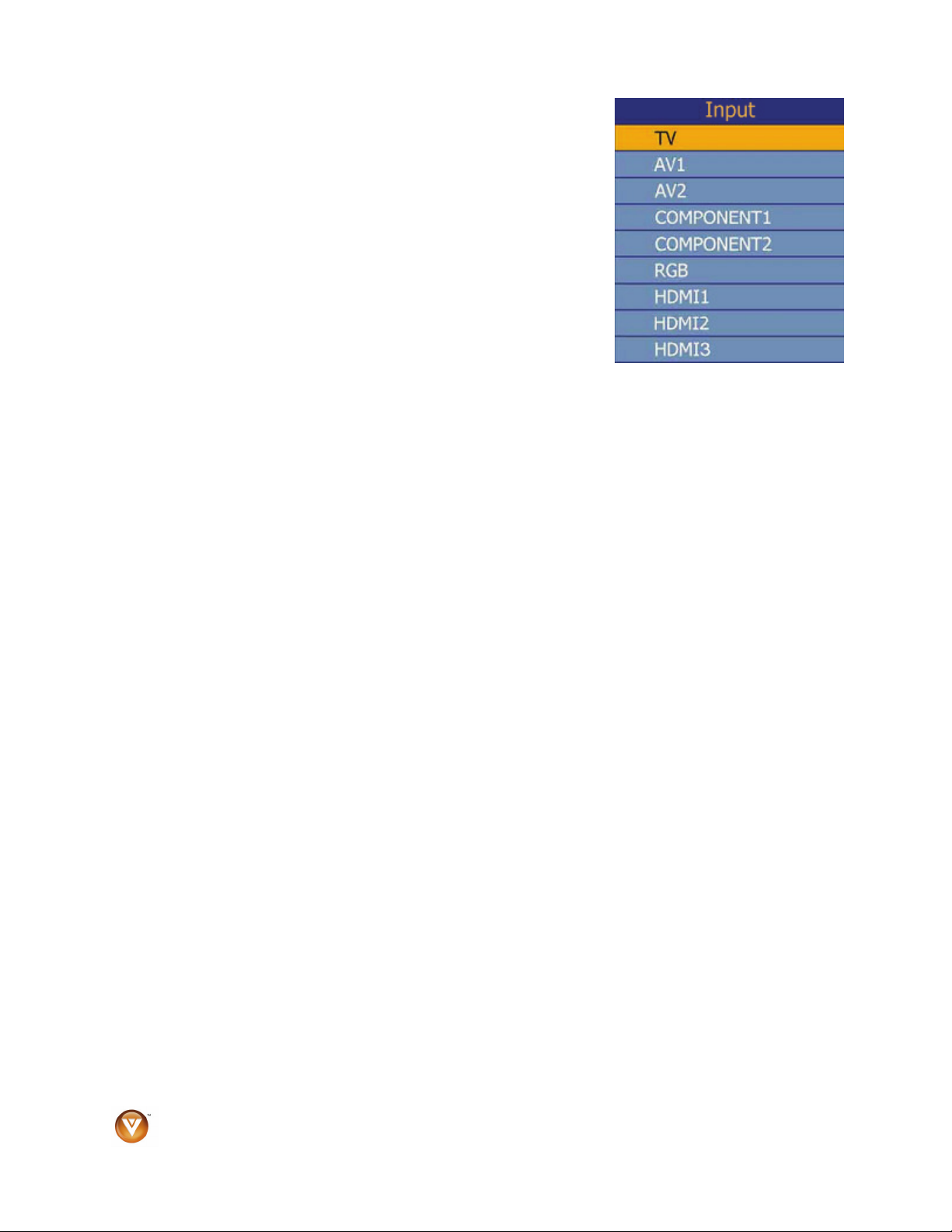

INPUT

Repeated pressing of this buttons steps through the input sources in the following sequence: TV, AV1/S-Video, AV2, Component1, Component2, RGB, HDMI 1, HDMI 2 and HDMI 3. Once you have stepped through the entire sequence, you will return to the beginning.

Additionally, when the OSD is active, this button confirms the menu function to be adjusted. When the OSD is not active, pressing this button will display the current input mode.

–

If a sub-menu is active, pressing this button will return to the previous menu level.

this button will proceed to the

Version 10/17/2008 11

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Rear Panel Connections

1. SERVICE – This custom communication port is for factory service only. Use of this input for any

2. HDMI 1 –

3. HDMI 2 – Connect a secondary source for digital video such as a DVD multimedia player or set top

4. RGB PC – Connect the video and audio from a computer here. The blue color band on the rear of

5. COMPONENT1 (YPb/CbPr/Cr with Audio L/R) – Connect the source for component video devices

6. AV1/S-VIDEO IN – Connect the primary source for composite video devices, such as a VCR or

7. OPTICAL DIGITAL AUDIO OUT – When a digital audio signal is associated with an input which is

8. ANALOG AUDIO OUT – Connect the audio from the LCD HDTV to an external device, such as a

9. DTV – Connect to an antenna or digital cable (out-of-the-wall, not from Cable Box) for Digital TV.*

10. AC IN – Plug-in the supplied AC Power Cord here. * For digital TV stations in your area visit www.antennaweb.org

purpose other than factory authorized service will void the manufacturer’s warranty of this equipment.

through this all digital connector. The white color band on the rear of the TV indicates this connection

box through this all digital connector. The white color band on the rear of the TV indicates this connection. For users who want to connect to a DVI enabled device, use a DVI-HDMI cable and connect the Analog Audio output of the device to the L+R AUDIO here. . Your VIZIO Certified HDMI and HDMI-DVI cables are available for purchase from www.VIZIO.com VIZIOCE (888-849-4623).

the TV indicates this connection. A 1/8” plug stereo cable is needed to connect the audio out from the computer to the connector in the rear of the TV for audio from computer.

such as a DVD Player or set top box here. From left to right, use white for left audio and red for right audio inputs, green for Y, blue for Pb (or Cb) and red for Pr (or Cr). The green color band on the rear of the TV indicates this connection.

video game. Use the white and red connectors to connect the external audio from the same source, then use the S-Video or yellow connector to connect the external video from the same source. The S-Video, if connected, will take priority over AV RCA (yellow) connector. The yellow color band on the rear of the TV indicates this connection.

selected for viewing, the digital audio associated with digital programming will be available on this SPDIF Optical connector for connection to your home theatre system. The white color band on the rear of the TV indicates this connection.

home theater system, external amplifier or stereo. Speakers cannot be connected directly to here. The white color band on the rear of the TV indicates this connection.

Connect the primary source for digital video such as a DVD multimedia player or set top box

or by calling 888-

www.VIZIO.com

Right-Side Panel Connection

1. HEADPHONE – Connect your headphone here for personalized listening without disturbing others.

2. AV2 – Connect the secondary source for composite video devices, such as a VCR or video game. Use the white and red connectors to connect the external audio from the same source, then use the yellow connector to connect the external video from the same source. The orange color band on the side of the TV indicates this connection. Note:

The red and white audio connectors are shared between AV2 and COMPONENT2.

3. COMPONENT2 (YPb/CbPr/Cr with Audio L/R) - Connect the source for component video devices such as a DVD Player or set top box here. From top to bottom, left to right, use green for Y, blue for Pb (or Cb), red for Pr (or Cr), then connect white for left audio and red for right audio inputs under the orange band. The purple color band on the side of the TV indicates this connection. Note: The red and white

audio connectors are shared between AV2 and COMPONENT2.

4. HDMI 3 - Connect the third source for digital video such as a DVD multimedia player or set top box through this all digital connector. The white color band on the side of the TV indicates this connection.

VIZIO VO37L FHDTV10A User Manual

Version 10/17/2008 13

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

VIZIO Remote Control

GUIDE – This button displays program information. Press this button once when in TV mode and the information of the program being viewed is shown. Press it a second time and the Electronic Programming Guide will appear in the screen. In any other mode when this button is pressed, the screen will display the selected input plus the definition of the signal; i.e. HDMI 720p, HDMI 1080i, etc.

POWER – Press this button to turn the TV on from the Standby mode. Press it again to return to

the Standby mode.

HDMI – Press this button to select the HDMI input. MUTE – This button turns the sound on and off. TV – Press this button to select TV. COMPONENT – Press this button to select the Component (YPbPr)

input. LAST – This button recalls the previously viewed channel. If the On-

Screen Display (OSD) menu is being used, this button will allow you to get back to previous menu screen or out to your program when you press it repeatedly.

AV – Press this button to select AV (either Composite or S-Video) input.

(MENU) – Use this button for the On-Screen Display (OSD)

menu. When it is used within a menu selection, the

V ball key will

help you to make the selection of the feature to be adjusted after it has been highlighted.

-These labeled buttons are used to navigate the OSD menu.

When navigating the OSD menu, the arrows control the

direction up and down or left and right. They will also be used

as value settings when the slide bar is shown on the screen and option settings to turn a feature off or on. During regular TV watching these keys will provide us with the control functions of Volume (up or down) and Channel (up or down).

Channel up or down will not function when a cable box or satellite receiver is being used as the source of the signal.

PIP – Use this button to activate the Picture-in-Picture mode. SWAP – Used to swap the inputs from the main screen and the

sub-screen while in PIP mode. FREEZE – Press this button to “freeze-frame” the current screen.

Press this button again to continue playing.

hen

NUMBER BUTTON PAD – Use these buttons to select a channel or enter a password.

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

INPUT – This button allows the user to cycle through the inputs. Repeatedly pressing of this button will step you through the input sources in the following sequence: TV, AV1/S-VIDEO, AV2, Component 1, Component 2, RGB, HDMI 1, HDMI 2 and HDMI 3. Once you have stepped through the entire sequence, you will return to the beginning.

- (DASH) – When selecting a digital channel directly use this button for the separation of main and sub-channels. For example, channel 28-2 would be selected by the button sequence 2 8 ENTER 2.

Insertion of Batteries in the Remote Control

Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the battery cover.

Precautionary Tips for Inserting the Batteries:

Only use the specified AA batteries. Do not mix new and old batteries. This may result in

cracking or leakage that may pose a fire risk or lead to personal injury.

Inserting the batteries incorrectly may also result in cracking or leakage that may pose a fire risk or lead to personal injury.

Dispose of the batteries in accordance with local laws and regulations.

Keep the batteries away from children and pets.

Remote Control Range

Point the remote control at the remote control sensor to transmit the commands. Do not place any obstacles between the remote control and the receiver window. The effective range of the remote control is approximately 30 feet (10 meters) from the front of the

receiver window, 30° to the left and right, 20° up and down.

VIZIO Remote Control Precautions

The remote control should be kept dry and away from heat sources. Avoid humidity. If the TV responds erratically to the remote control or does not respond at all, check the batteries. If the

batteries are low or exhausted, replace them with fresh batteries. When not using the remote control for a long period of time, remove the batteries. Do not take the batteries apart, heat them, or throw them into a fire. Do not subject the remote control to undue physical stress, such as striking or dropping it. Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.

Version 10/17/2008 15

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Chapter 2 Connecting Equipment

Which Video Connection Should I Use?

The VIZIO VO37L FHDTV10A has six different ways to connect your video equipment from a basic connection to the most advanced for digital displays.

Rear and

Connection

Quality

(type)

Connector

Side

Panel

Color

Codes

Description

Best

(digital)

Best

(digital)

- - - - - - - - - -

- -

Good

(analog)

Best

(analog)

Better

(analog)

White

Black

Blue

Green and

Purple

HDMI (High-Definition Multimedia Interface) - It is the first and only industry-supported, uncompressed, alldigital audio/video interface. HDMI provides an interface between any audio/video source, such as a set-top box, DVD player, or A/V receiver and an audio and/or video monitor, such as a digital television (DTV), over a single cable.

DTV Coaxial RF. When used for MPEG2 encoded bit streams from ATSC broadcast programming, this input takes advantage of the High Definition content.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

TV Coaxial RF. This is the connection for standard NTSC TV using antenna or cable.

RGB PC (VGA) – This video input has separate red, green and blue color components. The signal carries horizontal and vertical sync information on the green signal. This is most commonly used for PC input.

Component1/2 - The video signal is separated into three signals, one containing the black-and-white information and the other two containing the color information. This enhancement over S-Video takes advantage of the superior picture provided by progressive scan DVD players and HDTV formats.

S-Video (AV1) - The video signal is separated into two signals, one containing the black-and-white information and the other containing the color information. Separating the color in this way avoids ‘cross color’ effects where closely spaced black and white lines are erroneously displayed in color. It also enables text to be displayed more sharply.

Composite (AV1/2) - The complete video signal is carried through this single pin connector. This is the most commonly used video connection.

Good

(analog)

Yellow, Orange

and

Red

Note: For more info refer to the Quick Start Guide

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Connecting Coaxial (RF)

Using Your Antenna or Digital Cable for DTV

1. Turn off the power to the HDTV.

2. Connect the coaxial (RF) connector from your antenna or digital cable (out-of-the-wall, not from the Cable Box) to the DTV/TV CABLE/ANTENNA connector on the rear of the HDTV.

3. Turn on the power to the HDTV.

4. Select DTV using the INPUT button on the remote or side of the HDTV, or directly by pressing the TV button on the Remote Control.

Note:

a) Not all digital TV broadcasts are High Definition (HD). Refer to the

program guides, or consult your cable, satellite or TV station operator.

b) Digital broadcasts are not available in all areas. Refer to

www.antennaweb.org

c) Make sure the antenna and coaxial cable are correctly grounded.

for detailed information.

Using the Antenna or Cable through your VCR

1. Turn off the power to the HDTV and VCR.

2. Connect the “Output to TV”, “RF Out” or “Antenna Out” connector on the rear of your VCR to the DTV/TV CABLE/ANTENNA connector at the rear of the HDTV.

3. Turn on the power to the HDTV and VCR.

4. Select TV using the INPUT button on the remote or side of the HDTV, or directly by pressing the TV button on the Remote Control.

Note: If you have an off-air antenna or cable TV, connect it to the “Antenna In” connector on the rear of your VCR.

Version 10/17/2008 17

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Connecting Your HDTV Set-Top Box

Using HDMI Input

HDTV Set-Top Boxes that have a HDMI digital interface should be connected to the HDMI input of the LCD HDTV for optimal results.

Note: To maintain the display quality, use a VIZIO certified HDMI cable. Length is available up to 10 meters. See www.VIZIOCE.com

Connecting your HDTV Set-Top Box (Best):

or call 1-888-VIZIOCE (1-888-849-4623) for details.

1. Turn off the power to the HDTV and HDTV Set-Top Box.

2. Connect a HDMI cable to the HDMI output of your HDTV Set-Top Box and the other end to the HDMI Input (white color area) at the rear of the HDTV.

3. Turn on the power to the HDTV and HDTV Set-Top Box.

4. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote Control.

Note: a) The HDMI input on the HDTV supports High-bandwidth Digital Content Protection (HDCP).

HDCP encrypts the transmission between the video source and the digital display for added security and protection.

b) Refer to your HDTV Set-Top Box user manual for more information about the video

output requirements of the product or consult your cable or satellite operator.

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

For HDTV Set-Top Boxes with DVI:

1. Turn off the power to the HDTV and HDTV Set-Top Box.

2. Using a HDMI-DVI cable, connect the DVI end to your HDTV Set-Top Box and the HDMI end to the HDMI 2 Input (white color area) at the rear of the HDTV.

3. Using an audio cable (white and red connectors), connect the cable to the audio output connectors associated with the DVI output on your HDTV Set-Top Box and connect the other end to the audio connectors associated with the HDMI input (white area) at the rear of the HDTV.

4. Turn on the power to the HDTV and HDTV Set-Top Box.

5. Select HDMI 2 using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote Control.

Note:

a) The HDMI input on the HDTV supports High-bandwidth Digital Content Protection

(HDCP). HDCP encrypts the transmission between the video source and the digital display for added security and protection.

b) Refer to your HDTV Set-Top Box user manual for more information about the

video output requirements of the product or consult your cable or satellite operator.

Version 10/17/2008 19

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Using Component Video

Connecting your HDTV Set-Top Box (Better):

1. Turn off the power to the HDTV and HDTV Set-Top Box.

2. Connect the Y (green color) connector on your HDTV Set-Top Box to the corresponding Y (green color) connector in the Component1 group (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

3. Connect the Pb (blue color) connector on your HDTV Set-Top Box to the corresponding Pb (blue color) connector in the Component1 input (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

4. Connect the Pr (red color) connector on your HDTV Set-Top Box to the corresponding Pr (red color) connector in the Component1 input (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

5. Using an audio cable (white and red connectors), connect the cable to the audio output connectors associated with the Component output on your HDTV Set-Top Box and connect the other end to the audio connectors associated with the Component1 input (green color area) at the rear of the HDTV.

6. Turn on the power to the HDTV and HDTV Set-Top Box.

7. Select Component1 using the INPUT button on the remote or side of the HDTV, or directly by pressing the Component button on the Remote Control.

Note:

a) Refer to your HDTV Set-Top Box user manual for more information about the

video output requirements of the product or consult your cable or satellite operator.

b) If Component1 is already connected to another device, or you do not wish to

use Component1, connect the green, blue and red video adapters into Component2 connectors (purple color) and the audio connectors into the AV2 connectors (orange color).

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Connecting Your Basic Set-Top Box

Using Composite Video

1. Turn off the power to the HDTV and Set-Top Box.

2. Using the AV Cable, connect the Video (yellow color) connector on your Set-Top Box to the corresponding Video (yellow color) connector in the AV1 input (yellow color area) at the rear of the HDTV.

3. Using the white and red connectors, connect the cable to the audio output connectors associated with the Video output on your Set-Top Box and connect the other end to the audio connectors associated with the AV input (yellow color area) at the rear of the HDTV.

4. Turn on the power to the HDTV and Set-Top Box.

5. Select AV1 using the INPUT button on the remote or side of the HDTV, or directly by pressing the AV button on the Remote Control.

Using Coax (RF)

1. Turn off the power to the HDTV and Set-Top Box.

2. Using a Coax (RF) cable, connect one end to the TV OUT (RF) on your Set Top Box and the other end to the DTV/TV input at the rear of the HDTV.

3. Turn on the power to the HDTV and Set-Top Box.

4. Select TV using the INPUT button on the remote or side of the HDTV, or directly by pressing the TV button on the Remote Control.

Note: Refer to your Set Top Box user manual for more information about selecting the video or RF output of the product.

Version 10/17/2008 21

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Connecting Your DVD Player

You have several options for connecting your DVD player to your VO37L FHDTV10A; HDMI, Component, AV (S-Video or Composite) inputs. Based on your configuration, you can decide which option is right for you.

Using HDMI Input

DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface) should be connected to the HDMI input of the VIZIO VO37L FHDTV10A for optimal results.

Note: To maintain the display quality, use a VIZIO certified HDMI cable. Length is available up to 10 meters. See www.VIZIOCE.com

Connecting your DVD Player (Best):

or call 1-888-VIZIOCE (1-888-849-4623) for details.

1. Turn off the power to the HDTV and DVD player.

2. Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDMI1 Input (white color area) at the rear of the HDTV.

3. Turn on the power to the HDTV and DVD player.

4. Select HDMI1 using the INPUT button on the remote or side of the HDTV,

or directly by pressing the HDMI button on the Remote Control.

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

For DVD Players with DVI:

1. Turn off the HDTV and DVD player.

2. Using a HDMI-DVI cable, connect the DVI end to your DVD player and the HDMI2 end to the HDMI Input (white

color area) at the rear of the HDTV.

3. Connect an audio cable (white and red connectors) to the audio output connectors associated with the DVI output of

the DVD player and connect the other end to the audio connectors by the HDMI input (white area) at the rear of the HDTV.

4. Turn on the power to the HDTV and your DVD player.

5. Select HDMI 2 using the INPUT button on the remote or side of the HDTV, or directly by pressing the HDMI button on the Remote.

Note: Refer to your DVD player user manual for more information about the video output requirements of the product.

Version 10/17/2008 23

www.VIZIO.com

VIZIO VO37L FHDTV10A User Manual

Using Component Video

Connecting your DVD Player (Better):

1. Turn off the power to the HDTV and DVD player.

2. Connect the Y (green color) connector on your DVD player to the corresponding Y (green color) connector in the Component1 input (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

3. Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue color) connector in the Component1 input (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

4. Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color) connector in the Component1 input (green color area - row of connectors nearest to you when viewing from the rear of the TV) at the rear of the HDTV.

5. Using an audio cable (white and red connectors), connect the cable to the audio output connectors associated with the Component1 output on your DVD player and connect the other end to the audio connectors associated with the Component input (green color area) at the rear of the HDTV.

6. Turn on the power to the HDTV and DVD player.

7. Select Component1 using the INPUT button on the remote or side of the HDTV, or directly by pressing the Component1 button on the Remote Control.

Note:

a) Refer to your DVD player user manual for more information about the

video output requirements of the product.

b) If Component1 is already connected to another device, or you do not

wish to use Component1, connect the green, blue and red video adapters into Component2 connectors (purple color) and the audio connectors into the AV2 connectors (orange color).

www.VIZIO.com

+ 56 hidden pages
