USER MANUAL
Model: V21-H8R
VIZIO V-Series™ 2.1 Sound Bar
Please read this guide before using the product.
IMPORTANT SAFETY INSTRUCTIONS
Your Unit is designed and manufactured to operate within deined design limits, and misuse may result in electric shock or ire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with a dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not it into your outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
•Only use attachments/accessories speciied by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table speciied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualiied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
•To reduce the risk of electric shock or component damage, switch of the power before connecting other components to your Unit.
•Unplug the power cord before cleaning your Unit. A damp cloth is suicient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.
•Always use the accessories recommended by the manufacturer to insure compatibility.
•When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing ire, electric shock, or component damage.
•Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.
•Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a ire or electric shock. Never spill liquids on your Unit.
•Do not block the subwoofer ports. Allow for 1-2 inches of space around all sides for ventilation.
•WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort.
•When connected to a power outlet, power is always lowing into your Unit. To totally disconnect power, unplug the power cord.
•Do not overload power strips and extension cords. Overloading can result in ire or electric shock.
IMPORTANT SAFETY INSTRUCTIONS
•The wall socket should be located near your Unit and be easily accessible
•Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in ire or electric shock.
•Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your unit yourself.
•Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause ire or electric shock.
•Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause ire or electric shock.
•Ensure that the power cord and any other cables are unplugged before moving your Unit.
•When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause ire or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.
•To reduce risk of electric shock, do not touch the connector with wet hands.
•Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.
•See the important note and rating located on the back of the unit.
•WARNING: This equipment is not waterproof. To prevent a ire or shock hazard, do not place any container illed with liquid near the equipment (such as a vase or lower pot) or expose it to dripping, splashing, rain, or moisture.
•CAUTION: Danger of explosion or ire if batteries are mistreated. Replace only with the same or speciied type.
•Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or dispose of it in ire.
•Where the MAINS plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
•No naked lame sources,such as lighted candles,should be placed on the apparatus.
•The ventilation should not be impeded by covering the ventilation openings with items,such as newspapers, table-cloths, curtains, etc.
•The equipment shall be used at maximum 35 degree C ambient temperature.
WARNING: To reduce the risk of ire or electric shock, do not expose this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lighting lash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of not isolated dangerous voltage within the product that may be suicient magnitude to constitute a risk of shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance.
Warning: This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
TABLE OF CONTENTS |
|
Package Contents...................................................................................................................................... |
1 |
Controls & Connections ............................................................................................................................ |
2 |
First-time Setup......................................................................................................................................... |
6 |
Using the Remote ...................................................................................................................................... |
11 |
Proper Placement ...................................................................................................................................... |
12 |
Mode & Level Settings............................................................................................................................... |
13 |
Using Button Combinations...................................................................................................................... |
16 |
Programming the Sound Bar .................................................................................................................... |
17 |
Bluetooth Pairing....................................................................................................................................... |
18 |
Using Bluetooth Mode............................................................................................................................... |
19 |
Connecting to a Voice Assistant .............................................................................................................. |
20 |
Advanced Setup......................................................................................................................................... |
22 |
Connecting with HDMI ARC ...................................................................................................................... |
23 |
Connecting a Subwoofer........................................................................................................................... |
25 |
Wall-mounting............................................................................................................................................ |
26 |
Register Your Product................................................................................................................................ |
28 |
Customer Service ...................................................................................................................................... |
29 |
Help & Troubleshooting............................................................................................................................. |
30 |
Limited Warranty ....................................................................................................................................... |
31 |
Legal & Compliance ................................................................................................................................... |
34 |
Speciications ............................................................................................................................................ |
35 |
Package Contents
|
|
VIZIO |
Wireless Subwoofer |
Remote Control |
|
|
|
|
||||
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|||||||
|
|
Sound Bar |
with 2x AAA Batteries |
2 x Power Cables |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stereo RCA to |
3.5mm to 3.5mm |
|
Digital Optical |
|
2 x Wall |
||
3.5mm Audio Cable |
Audio Cable |
|
Cable |
HDMI Cable |
Mount Screws |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 x Wall |
|
|
|
Mount Brackets |
Wall Mount Template |
User Manual |
Quick Setup Steps |
(Sound Bar) |
ENG - 1
Controls & Connections
Back of Sound Bar
Power Port |
USB* In |
*Supports .WAV and .MP3 ile format playback only.
ENG - 2
Controls & Connections
Digital Optical |
AUX In |
|
Audio In |
Analog Audio In |
|
|
(Stereo 3.5mm) |
|
HDMI (ARC) |
AUX VA** |
|
Analog Audio In |
||
to TV |
||
(Stereo 3.5mm) |
||
|
**Only use this port to connect a Voice Assistant device. See Connecting to a Voice Assistant on page 20 for more information.
ENG - 3
Controls & Connections
Top of Sound Bar
Power
Press to turn on or of.
Input
Press to change the audio source.
Bluetooth Input
Hold to pair.
(See ‘Bluetooth Pairing’ for more information.)
Volume
Increase or decrease the loudness of the audio.
ENG - 4
Controls & Connections

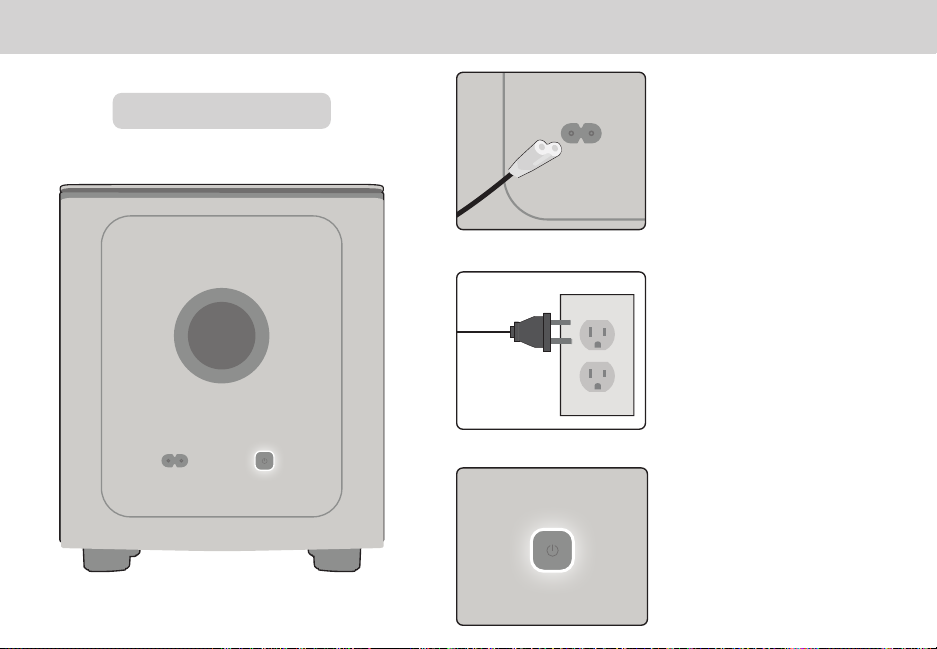

Back of Subwoofer
|
LED Indicator |
AC IN |
ON / OFF |
Power Port |
Power Button |
ENG - 5
First-time Setup
1 |
Choose the best possible connection cable type and connect it to your TV.* |
|
Back of Sound Bar
Be sure the TV port is an audio output, not an audio input.
ENG - 6
First-time Setup
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BEST |
|
|
|
|
|
|
|
|
BETTER |
|
|
|
|
|
|
|
|
GOOD |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
OR |
|
|
OR |
|
|
|
||||||||||||||
|
|
|
|
|
|
|

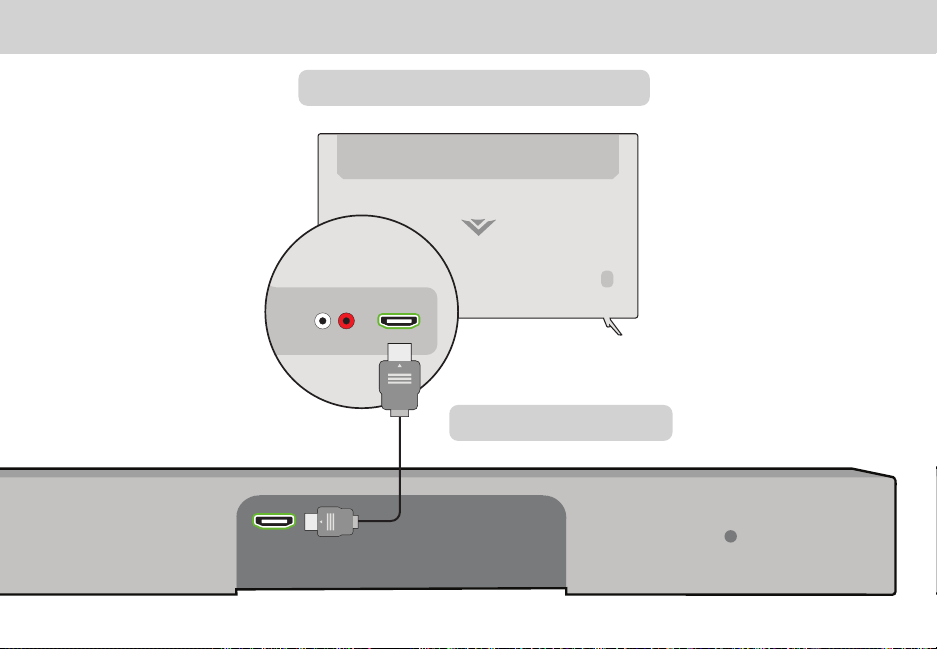

HDMI ARC |
|
|
|
|
|
|
|
|
Digital Optical |
|
|
|
|
|
|
|
|
3.5mm to |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
Cable |
|
|
|
|
|
|
|
|
Cable** |
|
|
|
|
|
|
|
|
RCA cable |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Not all TVs have the audio outputs shown. |
|
**Some TVs do not pass through digital audio: |
To connect the sound bar directly to your other |
When using the digital input, if there is no audio, try: |
|
devices (Blu-ray player, game system, etc.) see |
• |
setting the TV output to PCM, or |
your device’s user manual. |
• |
connecting directly to your Blu-ray or other source. |
ENG - 7
First-time Setup
2 |
Connect the power cable to the sound bar AC IN as shown. |
Plug the power cable into an electrical outlet. |
Back of Sound Bar
ENG - 8
