Vizio Thin + Light Quick Start Manual

QUICK START GUIDE

14” and 15.6” Thin + Light

VIZIO

Package Contents ........................................................................1

Getting Started .............................................................................. 2

Getting to Know Your PC

Ports ................................................................................... 6

Function Keys .................................................................... 8

Touchpad .......................................................................... 10

What’s New in Windows® 8 ............................................................ 14

Gestures in Windows® 8 ................................................................ 15

Connecting a USB Device ............................................................18

Connecting a Bluetooth® Device ................................................. 22

Troubleshooting ............................................................................. 26

Limited Warranty ............................................................................ 24

Table of Contents

PRINTED ON BAMBOO PAPER

RENEWABLE • RECYCLABLE • RESPONSIBLE

1

This Quick

Start Guide

VIZIO Thin + Light

AC Adapter Power Cable

Package Contents

2

1

Getting Started

Connect the Power Cord to the AC Adapter, then connect

to the PC. Plug the Power Cord into an electrical outlet.

When light on connector is

orange, PC is charging.

When light on connector is

green, PC is fully charged.

IMPORTANT: Use only the VIZIO AC Adapter and Power cord with your PC. Using other adapters may cause damage to your PC.

3

2

If you plan to connect to your network wirelessly, make

sure you know your router or modem’s* wireless password.

Have this information ready.

*Router/Modem/Internet service sold separately.

4

3

Press the Power button on the PC, then follow the

on-screen instructions to setup Windows.

5

4

Your PC is ready to use. Save the product packaging. It

can be used to ship the PC if servicing is needed.

6

Getting to Know Your PC - Ports

Right Side

USB 3.0 - Connect USB
devices. (Thumb drives,
tablets, phones, mp3
players, printers etc.)

HDMI Out - Connect to HDMI

TVs or monitors to share video,
presentations, or to use dual
displays.

7

Left Side

Power - Connect AC

adapter here.

USB 3.0 - Connect USB
devices. (Thumb drives,
tablets, phones, mp3 players,
printers etc.)

Headphone - Connect

3.5mm headphone jack.
This port can be used
with headsets that have
a microphone.

8

fn - Press and hold this
key and one of the
keys on page 9 to use
F1, F2, F3, etc.

Getting to Know Your PC - Function Keys

Function Keys - These
keys are used as
shortcuts for special
functions. See next
page.

To toggle the function
keys between Standard
F1, F2, F3, etc, and the
Special Functions at
right, click the Fn+ icon
in your system tray.

9

V Key - Lauch VIZIO
experience page. (Internet

access required)

Display Toggle - Switch
between PC screen and
external monitor or TV.

Wireless - Turn the wireless
on or off. This key affects
both WiFi and Bluetooth.

Brightness Off - Turn
brightness of Display
completely off. Press again
to return to previous setting.

Brightness Down ­Decrease the brightness of
the Display.

Brightness Up - Increase

the brightness of the
Display.

Mute - Turn speakers off or
on.

Volume Down - Decrease
loudness of speakers.

Volume Up - Increase

loudness of speakers.

Previous - When playing
media, go to the last
chapter or track.

Play/Pause - When playing
media, stop or resume
playback.

Next - When playing media,
advance to next chapter
or track.

10

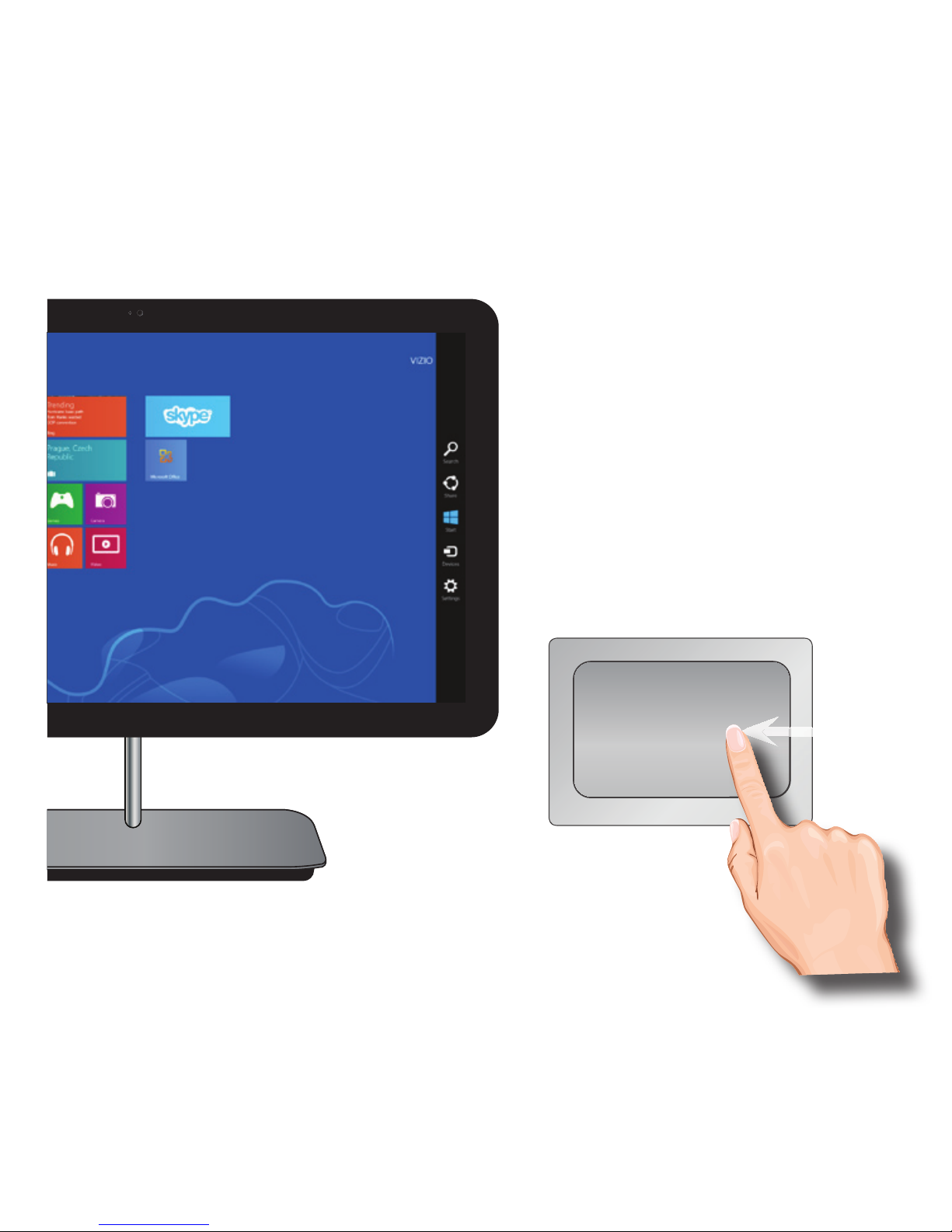

Getting to Know Your PC - Touchpad

Left Click Area Right Click Area
