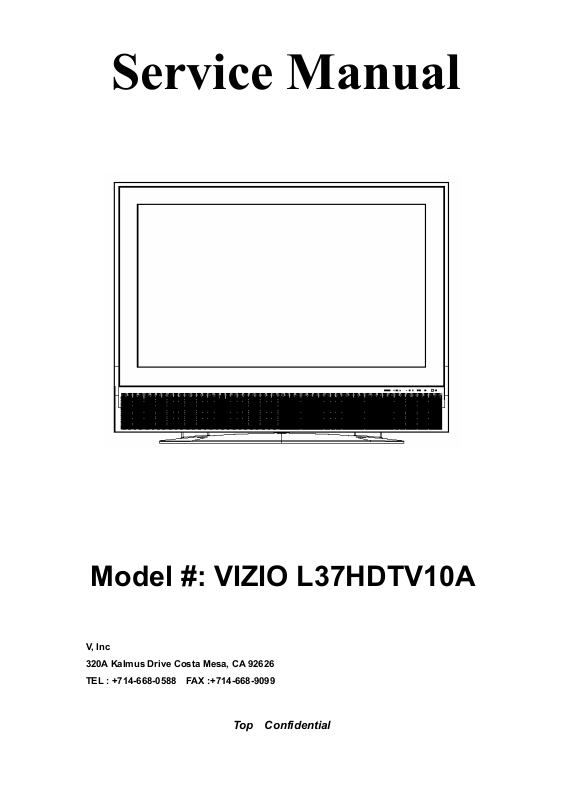

Vizio L37HDTV10A Service Manual

Page 1
Service Manual
V, Inc
320A Kalmus Drive Costa Mesa, CA 92626
TEL : +714-668-0588 FAX :+714-668-9099
Top Confidential
Page 2
Table of Contents
CONTENTS PAGE
Sections
1. Features 1-1
2. Specifications 2-1
3. On Screen Display 3-1
4. Factory Preset Timings
5. Pin Assignment
4-1
5-1
6. Main Board I/O Connections 6-1
7. Theory of Circuit Operation 7-1
8. Waveforms 8-1

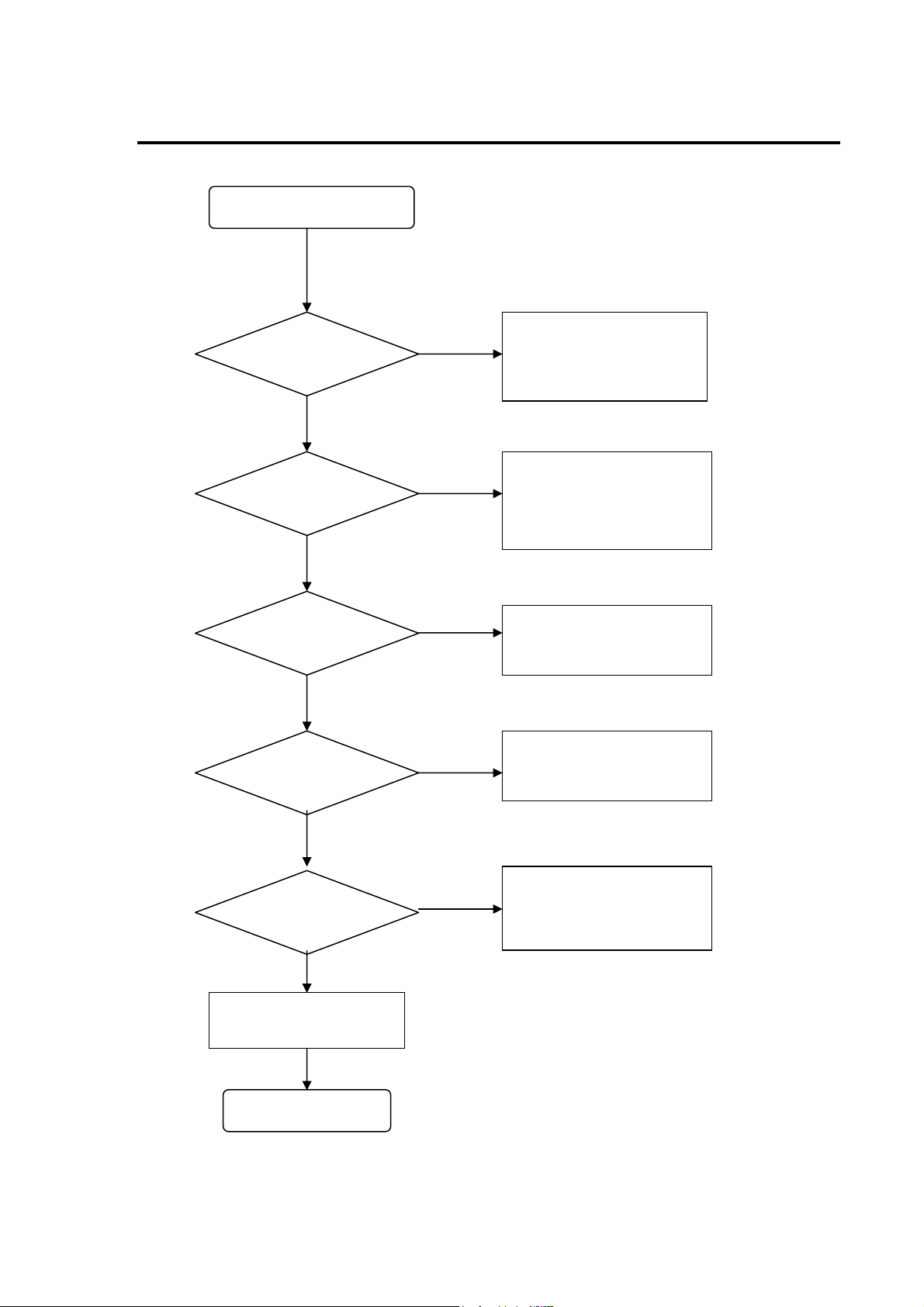

9. Trouble Shooting 9-1
10. Block Diagram 10-1
11. Spare parts list 11-1
12. Complete Parts List 12-1
Appendix
1. Main Board Circuit Diagram
2. Main Board PCB Layout
3. Assembly Explosion Drawing
Block Diagram
VIZIO L37HDTV10A Service Manual
Page 3
VINC Service Manual
VIZIO L37HDTV10A
COPYRIGHT © 2000 V, INC. ALL RIGHTS RESERVED.
IBM and IBM products are registered trademarks of International Business Machines Corporation.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
VINC and VINC products are registered trademarks of V, Inc.
VESA, EDID, DPMS and DDC are registered trademarks of Video Electronics Standards Association (VESA).
Energy Star is a registered trademark of the US Environmental Protection Agency (EPA).
No part of this document may be copied, reproduced or transmitted by any means for any purpose without prior written permission from VINC.
FCC INFORMATION This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause unacceptable interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures -- reorient or relocate the receiving antenna; increase the separation between equipment and receiver; or connect the into an outlet on a circuit different from that to which the receiver is connected.
FCC WARNING To assure continued FCC compliance, the user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications to Amtrak products will void the user’s authority to operate this device. Thus VINC Will not be held responsible for the product and its safety.
CE CERTIFICATION This device complies with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility.”
SAFETY CAUTION Use a power cable that is properly grounded. Always use the AC cords as follows – USA (UL); Canada (CSA); Germany (VDE); Switzerland (SEV); Britain (BASEC/BS); Japan (Electric Appliance Control Act); or an AC cord that meets the local safety standards.
VIZIO L37HDTV10A Service Manual
Page 4
Chapter 1 Features
1. Built in TV channel selector for TV viewing
2. Simulatnueous display of PC and TV images
3. Connectable to PC’s analog RGB port
4. Built in s-video, HDTV, composite video, HDMI ,TV and DTV out
5. Built in auto adjust function for automatic adjument of screen display
6. Smoothing function enables display of smooth texts and graphics even if image
withresolution lower than 1366x768 is magnified
7. Picture In Picture (PIP) funtion to show TV or VCR images
8. Power saving to reduce consumption power too less than 3W
9. On Screen Display: user can define display mode (i.e. color, brightness, contrast,
sharpness), sound setting, PIP, TV channel program, aspect and gamma or
reset all setting.
CONFIDENTIAL – DO NOT COPY
Page 1-1
File No. SG-0183
Page 5
Chapter 2 Specification
1. LCD CHARACTERISTICS
Type: WXGA TFT LCD
Size: 37 inch
Display Size: 37.02 inches (940.3mm) diagonal
Outline Dimension: 877.0/878.0 mm (H) x 516.8 mm (V) x 55.5 (D) mm (Typ.)
Pixel Pitch: 0.200mm x 0.600mm x RGB
Pixel Format: 1366 horiz. By 768 vert. Pixels RGB strip arrangement
Contrast ratio: 600(Typ)
Luminance, White: 500 cd/m
2 (Typ)
Display Operating Mode: normally Black
Surface Treatment : Hard coating(3H), Anti-glare treatment of the front polarizer
Color Depth : 8-bit, 16.7 M colors
Viewing Angle (CR>10) : Viewing angle free ( R/L 176(Typ.), U/D 176(Typ.))
Power Consumption : Total 125Watt (Typ.) (Logic=4.5W, Lamp=120W [IBL=6.0mA] )
2. OPTICAL CHARACTERISTICS
Viewing Angle by Contrast Ratio :
Left: 88°typ.
Right: 88°typ.
Top: 88°typ.
Bottom: 88°typ.
3. SIGNAL (Refer to the Timing Chart)
3.1 Input Voltage Level: 90~240 Vac, 50/ 60 Hz
3.2 Input Signal :
3.2.1 RCA-type (Yellow) Composite Video Connector :
a. Signal Level Video (Y+C): Analog 1Vp-p/75
Sync (H+V): 0.3V below Video (Y+C)
b. Frequency H: 15.734KHz V:60Hz (NTSC)
3.2.2 Four-Pin mini DIN S-Video Connector
a. Pin Assignment
CONFIDENTIAL – DO NOT COPY
Page 2-1
File No. SG-0183
Page 6
b. Signal Level Video (Y): Analog 0.1Vp-p/75
Video (C): Analog 0.286p-p/75
Sync (H+V): 0.3V below Video (Y)
c. Frequency H: 15.734KHz V: 60Hz (NTSC)
3.2.3 F-Type TV RF connector
3.2.3.1 NTSC System:
a. Signal Level: Analog 1Vp-p typical(45dB~90dB)
b. System :NTSC
c. Frequency: 55~801MHz (NTSC)
3.2.3.2 ATSC System
a. IF-output level: 1Vp-p minimum
b. System: ATSC
c. Frequency: 57~863MHz(ATSC)
3.2.4 PC connector 15 pin male D-sub connector
a. Pin Assignment :
CONFIDENTIAL – DO NOT COPY
Page 2-2
File No. SG-0183
Page 7
b. Signal Level Video (R, G, B) : Analog 0.7Vp-p/75
Sync (H, V) : TTL level
c. Sync Type TTL (Separate / Composite) or Sync. On-Green
d. Sync polarity Positive or Negative
e. Frequency : H: support to 30K~70KHz
V: support to 50~85Hz
Pixel Clock: support to 110MHz
3.2.5 HDMI Signal (Digital HD):
a. Pin Assignment
CONFIDENTIAL – DO NOT COPY
Page 2-3
File No. SG-0183
Page 8
b. Type: TYPE A
c. Polarity: Positive or Negative
d. Frequency: H: 15.734KHz V: 60Hz (NTSC-480i)
H: 31KHz V: 60Hz (NTSC-480p)
H: 45KHz V: 60Hz (NTSC-720p)
H: 33KHz V: 60Hz (NTSC-1080i)
CONFIDENTIAL – DO NOT COPY
Page 2-4
File No. SG-0183
Page 9
3.2.6 Component signal (Analog HD1 and Analog HD2)
3.2.6.1 Analog HD1
a. Frequency H: 15.734KHz V: 60Hz (NTSC-480i)
H: 31KHz V: 60Hz (NTSC-480p)
H: 45KHz V: 60Hz (NTSC-720p)
H: 33KHz V: 60Hz (NTSC-1080i)
b. Signal level Y: 1Vp-p Pb: ±0.350Vp-p Pr: ±0.350Vp-p
c. Impedance 75
3.2.6.2 Analog HD2
a. Frequency H: 15.734KHz V: 60Hz (NTSC-480i)
H: 31KHz V: 60Hz (NTSC-480p)
H: 45KHz V: 60Hz (NTSC-720p)
H: 33KHz V: 60Hz (NTSC-1080i)
b. Signal level Y: 1Vp-p Pb: ±0.350Vp-p Pr: ±0.350Vp-p
c. Impedance 75
3.2.7 Audio Signal
a. Signal Level 1Vrms
b. Frequency Response 250Hz-20KHz
4.Input Connectors
RJ11, D-SUB15PIN ,mini jack(PC Audio in), HDMI CONNECT, RCAX2 (component),
RCAX3 (AUDIO in), RCAX3 (composite), RCAX3 (AUDIO in),F CONNECTx2,S-Video
5. POWER SUPPLY
Power Consumption: 220W MAX
Power OFF: to less than 3W MAX
6.Speaker
Output 6/10W (max) X2
7. ENVIRONMENT
7-1. Operating Temperature: 5°C ~35°C (Ambient)
7-2. Relative Humidity: Ta= 35 °C, 10~90%RH (Non-condensing)
7-3. Altitude: 0~40,0000 feet (Non-Operating)
CONFIDENTIAL – DO NOT COPY
Page 2-5
File No. SG-0183
Page 10
8. DIMENSIONS (Physical dimension)
Width: 959.9mm.
Depth: 311.0mm
Height: 748.4mm
9. WEIGHT (Physical weight)
a. Net: 25.9kgs
b. Gross: 33.5kg
9-1. MOUNTING PRECAUTIONS
(1) You must mount a module using holes arranged in four corners or four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted
stress) is not applied to the module. And the case on which a module is mounted
should have sufficient strength so that external force is not transmitted directly to
the module.
(3) Please attach the surface transparent protective plate to the surface in order to
protect the polarizer. Transparent protective plate should have sufficient strength
in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable
because the former generates corrosive gas of attacking the polarizer at high
temperature and the latter causes circuit break by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizes with glass, tweezers or anything
harder than HB pencil lead. And please do not rub with dust clothes with chemical
treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some
cosmetics are detrimental to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or
other soft materials like chamois soaks with petroleum benzene. Normal-hexane
is recommended for cleaning the adhesives used to attach front / rear polarizers.
Do not use acetone, toluene and alcohol because they cause chemical damage to
the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with
polarizer causes deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
CONFIDENTIAL – DO NOT COPY
File No. SG-0183
Page 2-6
Page 11
9-2. OPERATING PRECAUTIONS
(1) The spike noise causes the mis-operation of circuits. It should be lower than
following voltage :
V=±200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes
longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable
after turned on) becomes longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes
damage to polarizer or electrical contacted parts. And after fading condensation,
smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to
occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference shall be done by system manufacturers. Grounding and shielding
methods may be important to minimized the interference.
9-3. HANDLING PRECAUTIONS FOR PROTECTION
(1) The protection film is attached to the bezel with a small masking tape. When the
protection film is peeled off, static electricity is generated between the film and
polarizer. This should be peeled off slowly and carefully by people who are
electrically grounded and with well ion-blown equipment or in such a condition,
etc.
(2) When the module with protection film attached is stored for a long time,
sometimes there remains a very small amount of glue still on the bezel after the
protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel surface or its
vestige is recognized, please wipe them off with absorbent cotton waste or other
soft material like chamois soaked with normal-hexane.
CONFIDENTIAL – DO NOT COPY
Page 2-7
File No. SG-0183
Page 12
Chapter 3 On Screen Display
Main unit button
Power
Input
CH
CH
VOL +
VOL -
MUTE / EXIT
MENU
TV Source
A. PICTURE ADJUST
a. PICTURE MODE (USER/ VIVID1 /VIVID2 / VIVID3)
b. Adjust the BACKLIGHT (0~100)
c. Adjust the BRIGHTNESS (0~100)
d. Adjust the CONTRAST (0~100)
e. Adjust the COLOR (saturation)(0~100)
f. Adjust the TINT (hue) (0~100)
g. Adjust the SHARPNESS (0~100)
h. CLOSED CAPTION (OFF/CC1/CC2/CC3/CC4/TT1/TT2/TT3/TT4)
B. AUDIO ADJUST
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SURROUND (ON/OFF)
f. REVERB (OFF, CONCERT, LIVINGROOM, HALL, ARENA)
g. MUTE (ON/OFF)
h. SPEAKERS (ON/OFF)
C. TV TUNER SETUP
a. SOUND (SAP/MONO/STEREO)
b. TV/CABLE (TV/CABLE)
c. CHANNEL SEARCH (RUN)
d. SET CHANNEL
CONFIDENTIAL – DO NOT COPY
Page 3-1
File No. SG-0183
Page 13
e. SKIP CHANNEL (YES/NO)
D. PARENTAL CONTROL
a. PARENT LOCK ENABLE (ON/OFF)
b. TV RATING
c. MOVIE RATING
d. ACCESS CODE EDIT
E. PIP SETUP
a. STYLE (OFF/PIP/POP)
b. Source (AV1、AV2、AV3、ANALOGHD1、ANALOG HD2、DIGITAL HD
RGBDTV)
c. SIZE (SMALL (20%)/MEDIUM (30%)/LARGE (40%))
d. POSITION (TOP LEFT/TOP CENTER/TOP RIGHT/MIDDLE LEFT
/MIDDLE RIGHT/BOTTOM LEFT/BOTTOM CENTER/BOTTOM RIGHT)
F. SPECIAL FEATURES
a. LANGUAGE (ENGLISH/FRANCE/SPANISH)
b. SLEEP TIMER (OFF/30/60/90/120)
c. WIDE FORMAT (NORMAL/WIDE/ZOOM/PANORAMIC)
d. RESET ALL SETTING
PC Analog Mode
A. PICTURE ADJUST
a. AUTO PICTURE (Run)
b. Adjust the BACKLIGHT (0~100)
c. Adjust the BRIGHTNESS (0~100)
d. Adjust the CONTRAST (0~100)
e. Adjust the V-POSITION (0~100)
f. Adjust the H-SIZE (0~100)
g. Adjust the H-POSITION (0~100)
h. Adjust the FINETUNE (0~100)
B. COLOR TEMP
a. COLOR TEMP. (User, 5000K, 6500K,9300K)
b. RED (0~255)
c. GREEN (0~255)
d. BLUE (0~255)
CONFIDENTIAL – DO NOT COPY
Page 3-2
File No. SG-0183
Page 14
C. AUDIO ADJUST
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SURROUND (ON/OFF)
f. REVERB (OFF, CONCERT, LIVING ROOM, HALL, ARENA)
g. MUTE (ON/OFF)
h. SPEAKERS (ON/OFF)
D. PIP SETUP
a. STYLE (OFF/PIP/POP)
b. SOURCE (AV1、AV2、AV3、TV)
c. SIZE (SMALL (20%)/MEDIUM(30%)/LARGE (40%))
d. POSITION (TOP LEFT/TOP CENTER/TOP RIGHT/MIDDLE LEFT
/MIDDLE RIGHT/BOTTOM LEFT/BOTTOM CENTER/BOTTOM RIGHT)
E. SPECIAL FEATURES
a. LANGUAGE (ENGLISH/FRANCE/SPANISH)
b. SLEEP TIMER (OFF/30/60/90/120)
c. WIDE FORMAT (WIDE/ NORMAL)
d. RESET ALL SETTING
DIGITAL HD MODE
A. PICTURE
a. PICTURE MODE (USER/ VIVID1 /VIVID2 / VIVID3)
b. Adjust the BACKLIGHT (0~100)
c. Adjust the BRIGHTNESS (0~100)
d. Adjust the CONTRAST (0~100)
e. Adjust the COLOR (saturation)(0~100)
f. Adjust the TINT (hue) (0~100)
g. Adjust the SHARPNESS (0~100)
B. AUDIO ADJUST
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SURROUND (ON/OFF)
CONFIDENTIAL – DO NOT COPY
Page 3-3
File No. SG-0183
Page 15
f. REVERB (OFF, CONCERT, LIVING ROOM, HALL, ARENA)
g. MUTE (ON/OFF)
h. SPEAKERS (ON/OFF)
i. AUDIO SOURCE(DIGITAL HD/DTV)
C. PARENTAL CONTROL
a. PARENT LOCK ENABLE (ON/OFF)
b. TV RATING
c. MOVIE RATING
d. ACCESS CODE EDIT
D. PIP SETUP
a. STYLE (OFF/PIP/POP)
b. SOURCE (AV1、AV2、AV3、TV)
c. SIZE (SMALL (20%)/MEDIUM (30%)/LARGE (40%))
d. POSITION (TOP LEFT/TOP CENTER/TOP RIGHT/MIDDLE LEFT
/MIDDLE RIGHT/BOTTOM LEFT/BOTTOM CENTER/BOTTOM RIGHT)
E. SPECIAL FEATURES
a. LANGUAGE (ENGLISH/FRANCE/SPANISH)
b. SLEEP TIMER (OFF/30/60/90/120)
c. WIDE FORMAT (NORMAL/WIDE/ZOOM)
d. RESET ALL SETTING
Video Sources:
AV1AV2AV3ANALOG HD1ANALOG HD2
A. PICTURE
a. PICTURE MODE (USER/ VIVID1 /VIVID2 / VIVID3)
b. Adjust the BACKLIGHT (0~100)
c. Adjust the BRIGHTNESS (0~100)
d. Adjust the CONTRAST (0~100)
e. Adjust the COLOR (saturation)(0~100)
f. Adjust the TINT (hue) (0~100)
g. Adjust the SHARPNESS (0~100)
h. CLOSED CAPTION (OFF/CC1/CC2/CC3/CC4/TT1/TT2/TT3/TT4)
CONFIDENTIAL – DO NOT COPY
Page 3-4
File No. SG-0183
Page 16
B. AUDIO ADJUST
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SURROUND (ON/OFF)
f. REVERB (OFF, CONCERT, LIVING ROOM, HALL, ARENA)
g. MUTE (ON/OFF)
h. SPEAKERS (ON/OFF)
C. PARENTAL CONTROL
a. PARENT LOCK ENABLE (ON/OFF)
b. TV RATING
c. MOVIE RATING
d. ACCESS CODE EDIT
D. PIP SETUP
a. STYLE (OFF/PIP/POP)
b. SOURCE (AV2、AV3、ANALOGHD1、ANALOG HD2DIGITAL HD
RGBTV)
c. SIZE (SMALL (20%)/MEDIUM (30%)/LARGE (40%))
d. POSITION (TOP LEFT/TOP CENTER/TOP RIGHT/MIDDLE LEFT
/MIDDLE RIGHT/BOTTOM LEFT/BOTTOM CENTER/BOTTOM RIGHT)
E. SPECIAL FEATURES
a. LANGUAGE (ENGLISH/FRANCE/SPANISH)
b. SLEEP TIMER (OFF/30/60/90/120)
c. WIDE FORMAT (NORMAL/WIDE/ZOOM/PANORAMIC)
d. RESET ALL SETTING
DTV Sources:
A. PICTURE
a. PICTURE MODE (USER/ VIVID1 /VIVID2 / VIVID3)
b. Adjust the BACKLIGHT (0~100)
c. Adjust the BRIGHTNESS (0~100)
d. Adjust the CONTRAST (0~100)
e. Adjust the COLOR (saturation)(0~100)
f. Adjust the TINT (hue) (0~100)
CONFIDENTIAL – DO NOT COPY
Page 3-5
File No. SG-0183
Page 17
g. Adjust the SHARPNESS (0~100)
B. AUDIO ADJUST
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SURROUND (ON/OFF)
f. REVERB (OFF, CONCERT, LIVING ROOM, HALL, ARENA)
g. MUTE (ON/OFF)
h. SPEAKERS (ON/OFF)
C.DTV OSD
a. DTV TUNER SETUP
1. TIME ZONE:
α. HAWALL
β. EASTTERN TIME
γ. INDIANA
δ. CENTRAL TIME
ε. MOUNTAIN TIME
ζ. ARIZONA
η. PACIFIC TIME
θ. ALASKA
2. AUTO SCAN
3. MANUAL SCAN PRESS<OK>
(1) ADD-ON MODE
(2) RANGE MODE
α. FORM CHANNEL(2~69)
β. TO CHANNEL(2~69)
4. CHANNEL SKIP PRESS<OK>
b. CLOSED CAPTION:
1. ANALOG COLOSED CAPTION
α.OFF
β.CC1
γ.CC2
δ.CC3
ε.CC4
CONFIDENTIAL – DO NOT COPY
Page 3-6
File No. SG-0183
Page 18
2. DIGITAL COLOSED CAPTION
α.OFF
β.SERVICE1
γ.SERVICE2
δ.SERVICE3
ε.SERVICE4.
ζ.SERVICE5
η.SERVICE6
3. DIGITAL CAPTION STYLE PRESS<OK>
(1) AS BROADCASTER
(2)CUSTOM
FONT SIZE
α.LARGE
β.SMALL
γ.MEDIUM
FONT COLOR
α.BLACK
β.WHITE
γ.GREEN
δ.BLUE
ε.RED
ζ.CYAN
η.YELLOW
θ.MAGENTA
FONT OPACITY
α.SOLID
β.TRANSLUCENT
γ.TRANSPARENT
BLACKGROUND COLOR
α.BLACK
β.WHITE
γ.GREEN
δ.BLUE
ε.RED
ζ.CYAN
CONFIDENTIAL – DO NOT COPY
Page 3-7
File No. SG-0183
Page 19
η.YELLOW
θ.MAGENTA
BLACKGROUND OPACITY
α.SOLID
β.TRANSLUCENT
γ.TRANSPARENT
WINDOW COLOR
α.BLACK
β.WHITE
γ.GREEN
δ.BLUE
ε.RED
ζ.CYAN
η.YELLOW
θ.MAGENTA
WINDOW OPACITY
α.SOLID
β.TRANSLUCENT
γ.TRANSPARENT
c.PARENTAL CONTROL
PASSWORD PRESS<OK>
1.0000
2.CHANNEL BLOCK PRESS<OK>
D. PARENTAL CONTROL
a. PARENT LOCK ENABLE (ON/OFF)
b. TV RATING
c. MOVIE RATING
d. ACCESS CODE EDIT
E. PIP SETUP
a. STYLE (OFF/PIP/POP)
b. SOURCE (AV1、AV2、AV3、TV)
c. SIZE (SMALL (20%)/MEDIUM (30%)/LARGE (40%))
d. POSITION (TOP LEFT/TOP CENTER/TOP RIGHT/MIDDLE LEFT
/MIDDLE RIGHT/BOTTOM LEFT/BOTTOM CENTER/BOTTOM RIGHT)
CONFIDENTIAL – DO NOT COPY
Page 3-8
File No. SG-0183
Page 20
F. SPECIAL FEATURES
a. LANGUAGE (ENGLISH/FRANCE/SPANISH)
b. SLEEP TIMER (OFF/30/60/90/120)
c. WIDE FORMAT (NORMAL/WIDE)
d. RESET ALL SETTING
CONFIDENTIAL – DO NOT COPY
Page 3-9
File No. SG-0183
Page 21
Chapter 10 Trouble shooting
MONITOR DISPLAY NOTHING (PC MODE)
Start
LED is lighted
N0
1. Is Power board output +5V?
2. Is J1 connector good?
3. Is DC-DC OK?
4. Is U4 (3.3V) working ok?
LED is lighting?
Is backlight on?
Yes
Yes
N0
N0
N0
It is in power saving
1. Check video cable
2. Is the timing supported?
3. Check sync input
4. Check VGASOG rout if analog
(SOG)
1.Check J1 PIN 1
2.Is inverter ok?
Yes Yes
N0
U9 no data out?
It means data to LVDS
1.Is J6 connecting well?
2.Check J1 +5V&+12V
3.Is panel ok?
Yes
U9 no data in?
N0
1.Is U9 working good?
2.Is U11&U12 working good?
3.IS U10 working good?
1. Check P3 D-sub Input correct
2. Check analog input route
END
CONFIDENTIAL – DO NOT COPY
Page 10-1
File No. SG-0183
Page 22
(TV, COMPOSITE VIDEO1, 2, 3, S-VIDEO) IS NOT DISPLAY CORRECTLY
Star t
N0
Input signal good?
1.Check video
2.Check DVD player
Yes
U20 input correct?
Yes
U20 output correct?
Yes
LVDS output correct?
Yes
1.Chcak J6 Connect is good?
2.Is panel working ok?
END
N0
N0
N0
1.Check P2 signal
2.Check signal between P2 and
U20 (IF AV1/AV2 mode)
3.Check Tuner &U20 (IF TV mode)
4.Check J4&J6 (IF AV3&S-Video)
5.Check U20 POWER +9V
6.Check U22 data input/output
1.Check signal between U20 and
U9
1.Check signal between U20 and
U9
2.Check U9 clock (27MHz)
3.Check U9 power
CONFIDENTIAL – DO NOT COPY
Page 10-2
File No. SG-0183
Page 23
(COMPONENT1,
2) IS NOT DISPLAY CORRECTLY
Star t
N0
Input signal good?
Yes
N0
U21 input correct?
Yes
N0
U9 input correct?
1.Check video
2.Check host’s setting
1.Check signal between P8&U21
2.Check U21 power 3.3V
1.Check signal between U21&U9
2.Check U9 Clock (27MHZ)
Yes
LVDS output correct ?
Yes
1.Is J6 connected good?
2.Is panel working ok?
END
N0
1.Check U9
2.Check U9 power 3.3V 1.8V
CONFIDENTIAL – DO NOT COPY
Page 10-3
File No. SG-0183
Page 24
U16
HDMI) IS NOT DISPLAY CORRECTLY
(
Star t
Input signal good?
Yes
U16 input correct?
Yes
U16 no data out ?
N0
N0
N0
1.Check video
2.Check host’s setting
1.Check p1 connect
2.Check signal between P1 and
1.Check U16 power
2.Check between signal U16 and U9
3.Check clock 28.224MHZ
1.Is J6 connected good?
2.Is panel working ok?
Yes
END
CONFIDENTIAL – DO NOT COPY
Page 10-4
File No. SG-0183
Page 25
TROUBLE
OF DC-DC CONVERTER
Star t
J1 PIN 9,10,11
Yes
J1 PIN 2,3,4,5
Yes
U7 pin 5 6 7 8
N0
N0
N0
The voltage is about + 5V
1.Check power board
2.Check power cable connection J1
The voltage is about + 12V while power switch on
1.J1 connection good
2.Check U9 GPIO Pin
3.Check power board
The voltage is about +5V while power switch on
1.J1 connection good
2. Check U9 GPIO Pin
U4 pin2
U6 pin 3
U14 pin2
U5 pin2
U13 pin2
Yes
Yes
Yes
Yes
N0
N0
N0
N0
The voltage is about +3.3V
1.J1 to connection good?
2.Check U4
The voltage is about +9V
1.Check U9 GPIO Pin
2.Check U6
The voltage is about +2.5V while power switch on
1.Check U9 GPIO Pin
2.Check U14
The voltage is about +1.8V
1.Check J1 Connect
2.Check U5&L5
The voltage is about +1.25V while power switch on
1.Check J1 Connect
2.Check U13
END
CONFIDENTIAL – DO NOT COPY
Page 10-5
File No. SG-0183
Page 26
TROUBLE
OF DDC READING
Star t
Analog DDC OK?
Yes
HDMIDDC OK?
Yes
N0
N0
Support DDC1/2B
1.Analog cable ok?
2.Check signal (U18 to P3)
3.Check U18 Voltage
4.Is compliant protocol?
Support DDC1/2B
1.Analog cable ok?
2.Check signal (U17 to P1)
3.Check U17 Voltage
4.Is compliant protocol?
END
CONFIDENTIAL – DO NOT COPY
Page 10-6
File No. SG-0183
Page 27
TROUBLE OF THE DTV
CONFIDENTIAL – DO NOT COPY
Page 10-7
File No. SG-0183
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Loading...
