VIZIO E50-C1, E55-C1 User Manual

VIZIO

USER MANUAL

Models E50-C1 & E55-C1

This product qualies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved. Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating. For more information on the ENERGY STAR program, go to energystar.gov

For DTS patents, see

http://patents.dts.com.

Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Welcome

THANK YOU FOR CHOOSING VIZIO

And congratulations on your new VIZIO HDTV.

To get the most out of your new VIZIO product, read these instructions before using your product and retain them for future reference. Be sure to inspect the package contents to ensure there are no missing or damaged parts.

PRODUCT REGISTRATION

To purchase or inquire about accessories and installation services for your VIZIO product, visit our website at www.VIZIO.com or call toll free at (877) 698-4946.

We recommend that you either:

• Register your VIZIO product at www.VIZIO.com.

• Complete and mail the enclosed registration card.

Extended Warranties

For peace of mind, and to protect your investment beyond

the standard warranty, VIZIO oers on-site extended warranty

service plans. These plans provide additional coverage during the

standard warranty period, and must be purchased within the rst year after purchase. To purchase an extended warranty service

plan, visit www.vizio.com.

This symbol alerts you to important warnings or notices as part of the operating instructions.

WHEN READING THIS MANUAL

This symbol identies helpful tips.

IMPORTANT SAFETY INSTRUCTIONS

Your TV is designed and manufactured to operate within dened design limits. Misuse may result in electric shock or re. To

prevent your TV from being damaged, the following instructions should be observed for the installation, use, and maintenance of your TV. Read the following safety instructions before operating your TV. Keep these instructions in a safe place for future reference.

• To reduce the risk of electric shock or component damage,

switch o the power before connecting other components

to your TV.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including ampliers)

that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

• Only use attachments/accessories specied by the manufacturer.

iii



• Use only with the cart, stand, tripod, bracket,

or table specied by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does

not operate normally or has been dropped.

• Unplug the power cord before cleaning your TV.

• When moving your TV from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your TV to avoid causing

re, electric shock, or component damage.

source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

• Do not apply pressure or throw objects at your TV. This may compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations.

• The power cord must be replaced when using dierent

voltage than the voltage specied. For more information,

contact your dealer.

• When connected to a power outlet, power is always owing into your TV. To totally disconnect power, unplug the power cord.

• The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within the

inside of your TV that may be of sucient magnitude to

constitute a risk of electric shock to persons.

• Do not overload power strips and extension cords.

Overloading can result in re or electric shock.

• A distance of at least three feet should be maintained between your TV and any heat source, such as a radiator,

heater, oven, amplier etc. Do not install your TV close to

smoke. Operating your TV close to smoke or moisture may

cause re or electric shock.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your TV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your TV in a bookcase or cabinet unless proper ventilation is provided.

• Never push any object into the slots and openings on your TV cabinet. Do not place any objects on the top of your TV.

Doing so could short circuit parts causing a re or electric

shock. Never spill liquids on your TV.

• Your TV should be operated only from the type of power

• The wall socket should be installed near your TV and easily accessible.

• Only power of the marked voltage can be used for your TV.

Any other voltage than the specied voltage may cause re

or electric shock.

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Unplug your TV during a lightning storm or when it will not be used for long period of time. This will protect your TV from damage due to power surges.

• Do not attempt to repair or service your TV yourself.

Opening or removing the back cover may expose you to

high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to

qualied service personnel.

• WARNING: Keep your TV away from moisture. Do not

expose your TV to rain or moisture. If water penetrates into

your TV, unplug the power cord and contact your dealer.

Continuous use in this case may result in re or electric

shock.

• Do not use your TV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your TV yourself.

• Avoid using dropped or damaged appliances. If your TV is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair.

Continued use of your TV may cause re or electric shock.

• Do not install your TV in an area with heavy dust or high humidity. Operating your TV in environments with heavy

dust or high humidity may cause re or electric shock.

• Follow instructions for moving your TV. Ensure that the power cord and any other cables are unplugged before moving your TV.

• When unplugging your TV, hold the AC/DC power adapter, not the cord. Pulling on the power cord may damage the

wires inside the cord and cause re or electric shock. When your TV will not be used for an extended period of time,

unplug the power cord.

- The performance of your TV changes substantially.

• This apparatus shall not be exposed to dripping or

splashing and no objects lled with liquids, such as vases,

shall be placed on the apparatus.

• The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• CAUTION - These servicing instructions are for use by

qualied service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than that contained in the operating instructions unless you are

qualied to do so.

The lightning ash with arrowhead symbol within an

equilateral triangle is intended to alert the user to the

presence of uninsulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sucient magnitude to

constitute a risk of electrical shock to persons.

• To reduce risk of electric shock, do not touch the connector with wet hands.

• Insert batteries in accordance with instructions. Incorrect polarities may cause the batteries to leak which can damage the remote control or injure the operator. Do not

expose batteries to excessive heat such as sunshine, re or

the like.

• If any of the following occurs, contact the dealer:

- The power cord fails or frays.

- Liquid sprays or any object drops into your TV.

- Your TV is exposed to rain or other moisture.

- Your TV is dropped or damaged in any way.

TELEVISION ANTENNA CONNECTION PROTECTION

If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides

information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements of the grounding electrode.

Ground Clamp

Lightning Protection

For added protection of the TV during a lightning storm or when it is left unattended or unused for long periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits. Remember, the

screen of the coaxial cable is intended to be connected to earth in

the building installation.

Antenna Lead In Wire

Electric Service Equipment

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductors

(NEC Section 810-21)

Ground Clamps

Power Service Grounding Electrode System (NEC ART 250, part H)

Table of Contents

Installing the TV .....................................................9

Inspecting the Package Contents ...................... 9

Installing the TV ................................... 10

Installing the TV Stands ....................................................... 10

Installing the TV on a Wall ................................................... 12

Front Panel ....................................... 13

Rear Panel ........................................ 14

Remote Control Front .............................. 15

Connecting Your Devices .....................................17

Connecting A Device ................................ 17

Connecting a Device - Audio and Video Cable Types ........ 18

Connecting an Audio Device ......................... 20

Connecting an Audio Device - Audio Cable Types ............. 21

Connecting an Audio Device - ARC .................... 22

Connecting to your Network ......................... 23

Connecting to a Wired Network (Best) ............................... 23

Connecting to a Wireless Network ...................................... 23

Adjusting the Color Tuner Settings ..................................... 32

Creating a Custom Picture Mode ........................................ 35

Locking and Unlocking the Custom Picture Modes ........... 36

Deleting a Custom Picture Mode ........................................ 36

Adjusting the Audio Settings ......................... 37

Changing the Equalizer Settings ......................................... 38

Delete the Custom Audio Mode .......................................... 38

Setting Timers ..................................... 39

Setting the Sleep Timer........................................................ 39

Setting the Auto Power O Feature .................................... 39

Enabling the Screen Saver ................................................... 39

Blanking the Screen ............................................................. 40

Using the Network Connection Menu .................. 41

Connecting to a Wireless Network ...................................... 41

Changing the Manual Setup Settings .................................. 41

Finding MAC Addresses for Network Setup ....................... 42

Connecting to a Hidden Network ........................................ 42

Setting Up Channels ................................ 43

Completing the First-Time Setup ........................24

Using the On-Screen Menu .................................26

Navigating the On-Screen Menu ...................... 26

Changing the Input Source .......................... 26

Changing the Screen Aspect Ratio .................... 27

Viewing Video with the Menu Open ................... 28

Adjusting the Picture Settings ........................ 29

Adjusting the More Picture Settings ................................... 30

Adjusting the Color Temperature ....................................... 31

Adjusting the Picture Mode Edit Settings ........................... 31

Adjusting the Color Calibration Settings ............................ 32

Selecting a Channel Source ................................................. 43

Finding Channels .................................................................. 43

Adding New Channels .......................................................... 44

Skipping Channels ................................................................ 45

Changing the Audio Language ............................................ 46

Setting Up Closed Captioning ........................ 47

Changing the Appearance of Digital Closed Captions ....... 47

Renaming Inputs (Using the Devices Menu) ............ 49

Changing the TV Settings ............................ 50

Viewing System Information ............................................... 50

Changing the On-Screen Menu Language .......................... 51

vii

Setting the Time Zone .......................................................... 51

Using the Parental Controls ................................................ 52

Accessing the Parental Controls Menu .......................... 52

Enabling or Disabling Program Ratings .......................... 52

Locking and Unlocking Channels .................................... 52

Blocking and Unblocking Content by Rating .................. 53

Changing the Parental Control Passcode ....................... 53

Resetting the Content Locks ........................................... 53

Changing the View Mode Settings ...................................... 54

Adjusting the Wide Mode (Aspect Ratio) ............................ 54

Changing Your TV's DLNA Name ......................................... 55

Controlling Other Devices with CEC .................................... 55

Turning the Power Indicator On or O ............................... 56

Restoring the TV to Factory Default Settings ..................... 57

Enabling and Disabling Smart Interactivity ........................ 57

Using the Guided Setup Menu ....................... 58

Using the Info Window .............................. 59

Adding an App to the My Apps Tab .................................... 67

Deleting an App from the My Apps Tab ............................. 67

Moving an App in My Apps .................................................. 68

Troubleshooting & Technical Support ................69

Specications .......................................................72

Limited Warranty .................................................74

Legal & Compliance .............................................75

Using the USB Media Player ................................60

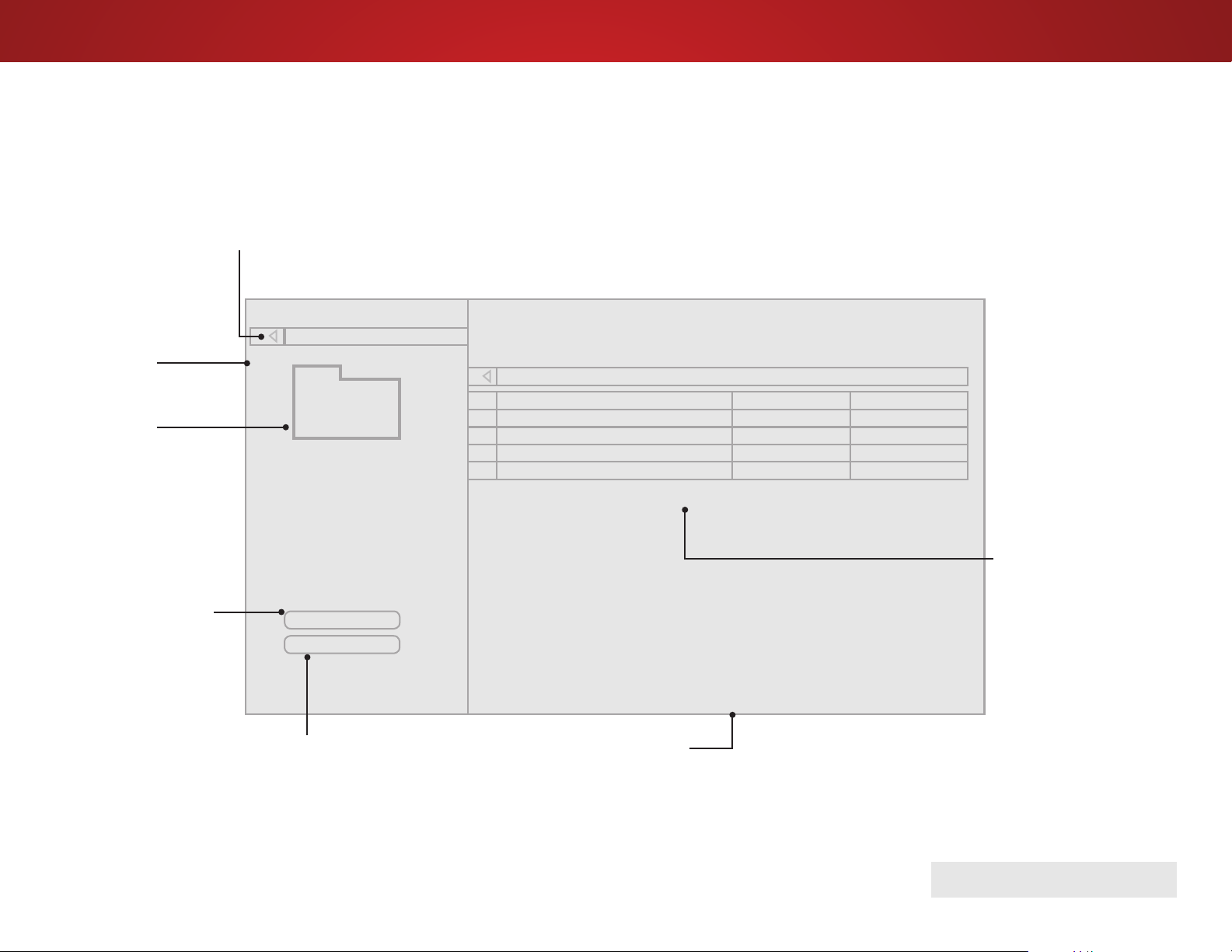

Using the USB Media Player ......................... 60

Preparing your USB drive to display USB Media ............... 60

Displaying USB Media .......................................................... 60

Removing the USB drive from the TV ................................. 60

Using VIZIO Internet Apps Plus® (V.I.A. Plus) .....64

Using the V.I.A. Plus App Dock ....................... 64

Using the App Launcher Keys.............................................. 64

Using the Fullscreen V.I.A. Plus Apps Window ........... 65

Fullscreen V.I.A. Plus Apps Window Overview ........... 66

Customizing the V.I.A. Plus Apps Window .............. 67

viii

Installing the TV

INSPECTING THE PACKAGE CONTENTS

Before installing your new TV, take a moment to inspect the package contents. Use the images below to ensure nothing is missing or damaged.

VIZIO LED HDTV

Remote Control

with Batteries

Power Cord

2 x Quick Start Guides

(1 x English, 1 x French/Spanish)

4 x Phillips ScrewsTV Stands

PACKAGE CONTENTS

INSTALLING THE TV

After removing the TV from the box and inspecting the package contents, you can begin installing the TV. Your TV can be installed in two ways:

• On a at surface, using the included stand

• On a wall, using a VESA-standard wall mount (not included)

Installing the TV Stands

Your TV includes stands designed to support the weight of the TV and keep it from falling over. However, the TV can still fall over if:

• It is placed on an uneven, unstable, or non-level surface

• It is pushed, pulled, or otherwise improperly moved

• If an earthquake occurs and the TV is not properly secured.

To install the stands:

TV ON STAND

Remove any plastic wrapping from the TV and the stands.

Place the TV screen-down on a clean, at surface. To prevent

scratches or damage to the screen, place the TV on a soft

surface such as a blanket and avoid any sharp edges.

Insert the left and right stands into the base of the TV. (The stands are identical.)

Secure each stand to the TV with two Phillips screws (included).

Insert the screws into the back of the TV and tighten them using a Phillips screwdriver.

When you are nished, place the TV on a stable, level surface.

Installing the TV on a Wall

To mount your TV on a wall, you will need a wall mount. Consult

Installing a TV on a wall requires lifting. To prevent injury or damage to the TV, ask someone to help you.

E50-C1 E55-C1

Screw Size: M6 M6

Hole

Pattern:

Weight w/o

Stand:

the information below to nd the appropriate mount for your TV

model:

Be sure the mount you choose is capable of supporting the weight of the TV. After you have determined that you have the correct mount for your TV, you can begin the installation.

To install your TV on a wall:

1. Disconnect any cables connected to your TV.

2. Place the TV face-down on a clean, at, stable surface. Be sure

the surface is clear of debris that can scratch or damage the TV.

3. Remove the base by loosening and removing the screws.

4. Attach your TV and wall mount to the wall, carefully following the instructions that came with your mount. Use only with a UL-listed wall mount bracket rated for the weight/load of this TV.

200 mm (V) x 200 mm (H) 300 mm (V) x 300 mm (H)

27.56 lbs 34.17 lbs

WALL MOUNT SCREW LOCATIONS

REMOTE SENSOR & POWER INDICATOR

When using the remote, point it directly at this sensor.

The power indicator ashes on when the TV turns on, then goes out after

several seconds. To keep the power indicator on as long as the TV is on, see

Turning the Power Indicator On or O

on page 56.

FRONT PANEL

Note: The image shown here is for illustrative purposes only and may be subject to change.

REAR PANEL

The actual number of ports and their locations may vary, depending on the model.

USB - Connect a USB thumb drive to play photos, music, or video.

HDMI - Connect an HDMI device.

Optical Audio Out - Connect an optical/SPDIF audio device, such

as home audio receiver.

Stereo Audio Out - Connect an RCA audio device, such as

sound bar.

HDMI - Connect an HDMI device.

DTV/TV (Coaxial) - Connect a coaxial cable from a cable or satellite

box, or from an antenna.

Component/Composite - Connect a component or composite

device.

Ethernet - Connect an Ethernet cable from a home network.

POWER - Press to turn the TV on. Press and hold to turn the TV o.

INPUT - Press to change the input source.

REAR PANEL

Change the currently displayed input.

INPUT

A/V CONTROLS

Control USB media player and

video streaming playback.

CLOSED CAPTIONS

Turn closed captions on and off.

EXIT

Close the on-screen menu.

Select the highlighted option.

BACK

Go to the previous on-screen menu.

VOLUME UP/DOWN

Increase or decrease loudness

of the audio.

MUTE

Turn the audio off or on.

WIDE

Change the display mode.

NUMBER PAD

Manually enter a channel.

Quickly launch the pictured App.

APP LAUNCHER

(Also turns on the TV if it is off.)

POWER

Turn TV on or off.

Display the on-screen menu.

INFO

Display the info window.

ARROW

Navigate the on-screen menu.

GUIDE

Display the info window.

CHANNEL UP/DOWN

Change the channel.

V BUTTON

Open the VIZIO Internet Apps Plus® (V.I.A. Plus) dock.

LAST

Return to the channel last viewed.

PIC

Opens the Picture Mode menu.

Conﬁrm channel or passcode

ENTER

entered using the Number Pad.

DASH

Use with number pad to manually enter a digital sub-channel. (For example, 18-4 or 18-5.)

REMOTE CONTROL

Replacing the Batteries

1. To remove the battery cover, press on the logo and slide the cover out.

2. Insert two batteries into the remote control. Make sure that the (+) and (-) symbols on the batteries match the (+) and (-) symbols inside the battery compartment.

3. Replace the battery cover.

Connecting Your Devices

CONNECTING A DEVICE

Your TV can be used to display output from most devices.

1. Verify that your device has a video port that matches an available port on the TV (HDMI-1, HDMI-2, Comp, etc.).

2. Turn the TV and your device o.

3. Connect the appropriate cable (not included) to the TV and the device.

4. Turn the TV and your device on. Set the TV’s input to match the connection you used (HDMI-1, HDMI-2, Comp, etc.).

Cable/Satellite Box

DVD/Blu-ray Player

HDMI CABLE

BEST

COMPONENT CABLE

BETTER

• DIGITAL

• HD VIDEO (1080p)**

• HD AUDIO

• ANALOG

• HD VIDEO (1080p)**

• STEREO AUDIO

Game Console

BACK OF TV

Note: The image shown here is for illustrative purposes only and may be subject to change. The actual number of ports and their locations may vary, depending on the model.

COAXIAL CABLE

BETTER

AV CABLE

GOOD

Cables not included.

• ANALOG

• HD VIDEO (1080i)**

• STEREO AUDIO

• ANALOG

• VIDEO (480i)**

• STEREO AUDIO

Maximum resolution.

CONNECTING A DEVICE - AUDIO AND VIDEO CABLE TYPES

AV CABLE

AV cables (or Composite cables) are the traditional way of connecting your devices to your TV. Video signals are sent over the yellow connector while audio is sent over the red and white connectors.

• Video resolutions up to 480i

• Analog connection

• Audio and video signals

Y/V L R

COAXIAL CABLE

Coaxial cables are the traditional way of connecting antennas and cable television signals to your TV. Coaxial cables carry both audio and video signals through a single connector.

• HD video resolutions up to 1080i

• Analog connection

• Audio and video signals

Cable/Antenna

GOOD BETTER

COMPONENT VIDEO

COMPONENT CABLE

Component cables are designed to carry HD (high

denition) video signals along with additional audio

connections. Colors are delivered with color information over three connectors for video (separated into red, blue and green signals) and the left and right audio connectors (red and white).

• HD video resolutions up to 1080i

• Analog connection

• Audio and video signals

Pb/Cb

Y/V

Pr/Cr L R

HDMI CABLE

HDMI is the intelligent, all-digital interface that delivers both dazzling quality and unmatched ease of use. HDMI technology transmits crystal-clear digital video along with multi-channel surround audio. HDMI-connected devices have the ability to automatically adjust themselves for optimal viewing.

• HD video resolutions up to 1080p

• HD audio

• Digital connection

• Audio and video signals

BETTER

BEST

CONNECTING AN AUDIO DEVICE

Your TV can output sound to an audio device, such as a receiver or sound bar.

1. Verify that your device has an audio port that matches an available port on the TV (HDMI, Optical, or RCA).

2. Turn the TV and your audio device o.

3. Connect the appropriate cable to the TV and the device.

4. Turn the TV and your device on.

HDMI CABLE

BEST

OPTICAL/SPDIF CABLE

BETTER

RCA CABLE

GOOD

Home Audio Receiver

VIZIO Sound Bar

• ARC 2-WAY COMMUNICATION

• 2.0-5.1 DIGITAL AUDIO

• PCM, DTS, DOLBY DIGITAL

• PCM STREAM

• DOLBY DIGITAL 5.1 CHANNEL

• DTS 5.1 CHANNEL

• ANALOG STEREO CONNECTION

• 2.0 CHANNEL

Note: The image shown here is for illustrative purposes only and may be subject to change. The actual number of ports and their locations may vary, depending on the model.

Cables not included.

CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES

COMPONENT VIDEO

RCA CABLE

RCA cables (or Composite cables) are the traditional way of connecting your devices to your audio device. Audio signals are sent over the red and white connectors.

• Quality Stereo Connection

• 2.0 Channel

• Analog Connection

• Audio Signal Only

L R

OPTICAL/SPDIF CABLE

Optical/SPDIF cables transmit audio signals as pulses of light through a cable made of plastic

bers. Audio signals are digitally transmitted

between devices.

• PCM Stream (Lossless)

• Dolby Digital 5.1 Channel

• DTS 5.1 Channel

• Digital Connection

• Audio Signal Only

Optical/SPDIF

HDMI CABLE

HDMI technology transmits crystal-clear digital multi-channel surround audio through a single HDMI cable. Audio Return Channel-enabled (ARC) TVs allow audio to be sent over an already connected HDMI cable, eliminating the need for a separate audio cable. See

Device - ARC

• CEC 2-way Communication

• PCM, DTS, Dolby Digital

• 2.0 - 5.1 Scaleable Lossless

• Audio and Video Signals

on page 22.

(Auto setup)

Digital Audio Connection

Connecting an Audio

GOOD BETTER

BEST

CONNECTING AN AUDIO DEVICE - ARC

Without HDMI ARC With HDMI ARC

VIZIO Internet Apps Plus

Without an HDMI ARC setup, your TV needs an extra cable to connect it to your home audio receiver. The audio signal is analog-only.

RCA (Audio)

Built-in Tuner

Your TV

HDMI

Your Home Audio Receiver

Built-in Tuner

Your TV

HDMI

Your Home Audio Receiver

VIZIO Internet Apps Plus

HDMI ARC transmits all-digital audio from your TV to your home audio receiver, with no need for an extra cable. The single HDMI cable also carries digital HD (high

denition) video to your TV.

HDMI

Your Blu-ray Player

HDMI

Your Blu-ray Player

CONNECTING TO YOUR NETWORK

Your TV is Internet-ready. It can be connected to your home network with a Wired or Wireless connection.

Connecting to a Wired Network (Best)

1. Connect an Ethernet cable to your router and to the Ethernet port on the back of the TV. See below.

2. Use the Guided Network Setup to congure the TV. See

the Guided Setup Menu

on page 58.

Using

Connecting to a Wireless Network

1. Ensure you have a router or modem broadcasting as high-speed wireless signal (802.11n recommended).

2. Use the Guided Network Setup to congure the TV. See

the Guided Setup Menu

Ethernet Cable

on page 58.

Using

Note: The image shown here is for illustrative purposes only and may be subject to change. The actual number of ports and their locations may vary, depending on the model.

Router / Modem

Completing the First-Time Setup

Choose your mode.

Select Store Demo for in-store display.

Select Home Use for in-home use.

Seleccione "Home Use" por Modo de Casa o "Store Demo" por Demostración de Tienda.

Choisissez "Home Use" pour Mode Domicile ou "Store Demo" pour Démonstration en Magasin.

Store Mode Home Mode

The rst time you turn on the TV, the Setup App will guide you through each of the steps necessary to get your TV ready for use.

Before you begin the rst-time setup:

• Your TV should be installed and the power cord should be connected to an electrical outlet.

• Your devices should be connected.

• If you have a wireless network, have the wireless password

ready.

• If you are connecting to your network with an Ethernet cable, connect it to the Ethernet port on the TV.

To complete the rst-time setup:

1. Press the Power button on the remote. The TV powers on and the Setup App starts.

2. Use the Arrow buttons on the remote to highlight Home Use and press OK.

3. Use the Arrow buttons on the remote to highlight your preferred language, and then press the OK button.

4. Use the Arrow buttons on the remote to highlight your country, and then press the OK button.

5. Use the Arrow buttons on the remote to highlight your wireless network in the list of available networks and press OK.

Type the wireless password using the on-screen keyboard, then highlight Connect and press OK.

6. Use the Arrow and OK buttons on the remote to read and accept the Terms and Conditions and the Privacy Policy. When you are nished, highlight I Accept and press OK.

7. Type your E-mail Address, First Name, Last Name, Phone Number, and ZIP Code using the on-screen keyboard.

Highlight Next and press OK.

8. Use the Arrow buttons on the remote to highlight your TV source and press OK.

If you have cable TV, select whether you have a cable box or if you connect the TV directly to a cable from the wall.

9. If the TV Signal screen appears, the TV will need to scan for channels, which takes several minutes. Use the arrow buttons on the remote to highlight Begin Scan and press OK.

10. Use the Arrow and OK buttons on the remote to select the input your TV source is connected to.

The First-Time Setup is complete.

Using the On-Screen Menu

Help

Network

Sleep Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Your TV features an easy-to-use on-screen menu.

To open the on-screen menu, press the MENU button on the remote.

From this menu, you can:

• Adjust the Picture settings

• Adjust the Audio settings

• Activate the Sleep Timer

• Adjust the Network settings

• Adjust the Channels

• Set up Closed Captioning

• Name the TV Inputs

VIZIO

SETTINGS


Audio

Timers

Network

Channels

Closed Captions

Devices

System

Guided Setup

User Manual

• Adjust the TV Settings

• Access the Guided Setup

• Access the User Manual

NAVIGATING THE ON-SCREEN MENU

To open the on-screen menu, press the MENU button on the remote.

Use the Arrow buttons to highlight a menu option, and press the OK button to select that option.

CHANGING THE INPUT SOURCE

External devices such as DVD players, Blu-ray Players, and video game consoles can be connected to your TV. To use one of these

devices with your TV, you must rst change the input source in the

on-screen menu.

To change the input device:

1. Press the INPUT button on the remote. The input menu is displayed.

2. Use the Up/Down Arrow buttons or the INPUT button on the remote to highlight the input you wish to view and press OK. The selected input is displayed.

Input Name

You can change the input names that appear on the Input menu to make your devices easy to recognize. See

Renaming Inputs (Using the Devices Menu)

49 for more information.

Note: Inputs may vary by TV.

HDMI-1

HDMI-2

COMP

on page

While navigating the on-screen menu, you can press the BACK button at any time to return to the previous menu screen. The EXIT button will close the on-screen menu.

CHANGING THE SCREEN ASPECT RATIO

The TV can display images in five different modes: Normal, Stretch, Panoramic, Wide, and Zoom. Each mode displays the picture differently.

To change the screen aspect ratio:

1. Press the WIDE button on the remote.

2. Use the Arrow buttons to

Normal

Panoramic

Normal

Stretch

highlight the aspect ratio you wish to view and press OK.

Wide

• Normal preserves the content’s

original aspect ratio. Since the 4:3 aspect ratio is not large enough to fill the TV’s screen,

Zoom

Note: Aspect ratio settings may vary by Input source.

Zoom

black bars are added to the left and right of the display image.

• Stretch expands the display image to fill the screen.

Images may appear wider than intended. If you are watching widescreen (1.85:1 or 2.35:1) content, black bars will still appear on the top and bottom of the display image. This option is only available when the TV is

displaying a 720p/1080i source.

• Wide stretches a 4:3 aspect ratio picture to the edges of

the screen. Since the picture is being stretched, the display image may appear distorted. If the program is already formatted for widescreen viewing (1.85:1 or 2.35:1), then black bars will appear on the top and bottom of the display image.

• Zoom expands images with black bars to fit the screen.

• Panoramic expands the display image to fill the width of

the screen. Images may appear wider than intended. If you are watching widescreen (1.85:1 or 2.35:1) content, black bars will still appear on the top and bottom of the display image. This option is only available when the TV

is displaying a 480i/480p source.

VIEWING VIDEO WITH THE MENU OPEN

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

When the on-screen menu opens, it covers the left-hand portion of

the picture. The picture can be displayed in three dierent ways:

• Overlay - The picture stays in its normal position and the

menu covers the left-hand portion of the picture. (The picture is full-sized.)

• Viewport - The entire picture is resized to t into the space

to the right of the menu.

• Centered Overlay - The picture is full-sized and centered in

the area next to the menu, so that the right and left edges

are cut o.

To change the position of the picture while the on-screen menu is displayed:

1. Use the Arrow buttons on the remote to highlight

Resize

Video.

2. Press OK to cycle through the three display methods.

3. Press the Up Arrow button on the remote to the menu.

VIZIO


Picture Mode Standard

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

More Picture

Picture Mode Edit

Color Calibration

Select from preset picture modes. Standard picture mode meets ENERGY STAR requirements. For the best picture, use Calibrated mode. To reduce video delay (lag) when gaming, use Game mode.

VIZIO


Picture Mode Standard

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Professional Picture

Select from preset picture modes. Standard picture mode meets ENERGY STAR requirements. For the best picture, use Calibrated mode. To reduce video delay (lag) when gaming, use Game mode.

VIZIO


Picture Mode Standard

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Professional Picture

Select from preset picture modes. Standard picture mode meets ENERGY STAR requirements. For the best picture, use Calibrated mode. To reduce video delay (lag) when gaming, use Game mode.

VIZIO


Picture Mode Standard

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

Advanced Picture

Professional Picture

Select from preset picture modes. Standard picture mode meets ENERGY STAR requirements. For the best picture, use Calibrated mode. To reduce video delay (lag) when gaming, use Game mode.

OVERLAY

VIEWPORT

CENTERED OVERLAY

ADJUSTING THE PICTURE SETTINGS

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Your TV display can be adjusted to suit your preferences and viewing conditions.

To adjust the picture settings:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight Picture and press OK. The PICTURE menu is displayed.

3. Use the Arrow buttons on the remote to highlight Picture

Mode, then use the Left/Right Arrow buttons to change the

picture mode:

VIZIO


Picture Mode Standard

Backlight 85

Brightness 50

Contrast 50

Color 59

Tint 0

Sharpness 9

More Picture

Picture Mode Edit

Color Calibration

• Standard mode sets the

various picture settings to values that meet ENERGY STAR® requirements.

• Calibrated mode sets the

picture settings to values perfect for watching TV in a

Select from preset picture modes. Standard picture mode meets ENERGY STAR requirements. For the best picture, use Calibrated mode. To reduce video delay (lag) when gaming, use Game mode.

brightly-lit room.

4. To manually change each of the picture settings, use the Up/ Down Arrow buttons on the remote to highlight that picture setting, then use the Left/Right Arrow buttons to adjust the setting:

• Backlight - Adjusts the LED brightness to aect the overall

brilliance of the picture. Backlight cannot be adjusted from some picture modes.

• Brightness - Adjusts the black level of the picture. When

this setting is too low, the picture may be too dark to distinguish details. When this setting is too high, the picture may appear faded or washed out.

• Contrast - Adjusts the white level of the picture. When this

setting is too low, the picture may appear dark. When this setting is too high, the picture may appear faded or washed out. If the setting is too high or too low, detail may be

dicult to distinguish in dark or bright areas of the picture.

• Color - Adjusts the intensity of the picture colors.

• Tint - Adjusts the hue of the picture. This setting is useful in

adjusting the esh tones in the picture. If esh appears too

orange, reduce the level of color before adjusting tint.

• Sharpness - Adjusts the edge sharpness of picture

elements. It can be used to sharpen non-HD (high

denition) content; however, it will not produce detail that

does not otherwise exist.

• Calibrated Dark mode sets the picture settings to values perfect for watching TV in a dark room.

• Vivid mode sets the picture settings to values that produce a brighter, more vivid picture.

• Game mode reduces throughput delays and optimizes the picture settings for displaying game console output.

• Computer mode optimizes the picture settings for displaying computer output.

5. When you have nished adjusting the picture settings, press the EXIT button on the remote.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Adjusting the More Picture Settings

To adjust the More Picture settings:

1. From the PICTURE menu, use the Arrow buttons on the remote to highlight More Picture and press OK. The MORE PICTURE menu is displayed.

2. Use the Arrow buttons to highlight the setting you wish to adjust, then press Left/Right Arrow buttons to change the setting:

• Color Temperature -

See

Adjusting the Color

Temperature

on page 31.

• Black Detail - Adjusts the

average brightness of the picture to compensate for large areas of brightness. Select O, Low, Medium, or High.

VIZIO

MORE PICTURE

Color Temperature

Black Detail Off

Backlight Control On

Clear Action Off

Reduce Noise

Game Low Latency

Picture Size & Position

Film Mode Auto

Gamma 2.1

• Game Low Latency - Reduces video delay (lag) when gaming. Select On or O. This option is not available for devices connected using a coaxial cable.

• Picture Size & Position - Opens a sub-menu with two options:

• Picture Size increases or decreases the vertical and horizontal size of the displayed picture.

• Picture Position adjusts the vertical and horizontal positions of the picture to ensure the image is centered and completely lls the screen. Use the Left/Right Arrow buttons to adjust the horizontal position of the displayed picture. Use the Up/Down Arrow buttons to adjust the vertical position of the displayed picture. Press the OK

button when you are nished.

• Film Mode - Optimizes the picture for watching lm. Select Auto or O.

• Gamma - Sets the shape of the gamma curve. Use lower values for bright room conditions and higher values when it is dark. Select 1.8, 2.0, 2.1, 2.2, or 2.4.

3. When you have nished adjusting the More Picture Settings, press the EXIT button on the remote.

• Backlight Control Dynamically improves the contrast ratio of the picture by adjusting the backlight. Select On or O.

• Clear Action - Reduces blur in scenes with fast action. Some

sensitive viewers may notice icker. Select On or O.

• Reduce Noise - Opens a sub-menu with two settings:

• Reduce Signal Noise - Reduces background picture noise

when viewing analog sources. The function helps to correct "speckle" noise with a slight reduction in sharpness. Select

O, Low, Medium, or High.

• Reduce Block Noise - Reduces pixelation and distortion

for mpeg les. Select O, Low, Medium, or High.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

VIZIO

Input CC

ABC

Wide

Normal

PanoramicWide Zoom

2D 3DExit

Adjusting the Color Temperature

Adjusting the color temperature changes the white balance of the picture.

To adjust the color temperature:

1. From the MORE Picture menu, use the Arrow buttons to highlight Color Temperature, then press OK.

VIZIO

COLOR TEMPERATURE

Normal

Computer

Cool

2. Use the Arrow buttons on the remote to highlight Color Temperature, then press OK.

3. Use the Left/Right Arrow buttons to highlight a color temperature preset and then press OK:

• Normal is optimized for

television viewing.

• Computer optimizes the

picture for use as a PC monitor.

• Cool produces a blue-hued

picture.

4. When you have nished adjusting the color temperature, press the EXIT button on the remote.

Adjusting the Picture Mode Edit Settings

To adjust the Picture Mode Edit settings:

1. From the PICTURE menu, use the

Arrow buttons to highlight More Picture, and then press the OK button. The MORE PICTURE

menu is displayed.

PICTURE MODE EDIT

Save Picture Mode

Lock Picture Mode

Reset Picture Mode - Calibrated*

- Calibrated

2. Highlight Picture Mode Edit, and then press the OK button. The PICTURE MODE EDIT menu is displayed.

3. Use the Arrow buttons to highlight the setting you wish to adjust, then press the Left/Right Arrow buttons to change the setting:

• Save Picture Mode - Saves

the settings for a custom picture mode.

• Lock Picture Mode / Unlock Picture Mode - Prevents or

allows changes to the currently selected custom picture mode. Select On or O.

• Reset Picture Mode - Resets the settings of the current

built-in picture mode to the factory default values.

• Delete Picture Mode - Deletes the current custom picture

mode. Any inputs that use the deleted picture mode are switched to the Calibrated picture mode.

4. When you have nished adjusting the Picture Mode Edit settings, press BACK to adjust additional settings or EXIT.

VIZIO

Input CC

ABC

Wide

Normal

PanoramicWide Zoom

2D 3DExit

Adjusting the Color Calibration Settings

Color Calibration Settings allow you to make precise adjustments to the picture and to create picture modes to save groups of picture settings.

The Color Tuner, 11 Point White Balance, and test patterns allow technicians to manually calibrate the TV. Calibration requires specialized training, an input with precisely set colors, and a specialized light meter.

To adjust the color calibration picture settings:

1. From the PICTURE menu, use the Arrow buttons to highlight Color Calibration and press the OK button. The COLOR CALIBRATION menu is displayed.

2. Use the Arrow buttons to

COLOR CALIBRATION

Picture Mode*

Color Temperature*

Color Tuner

Reset Color Temperature

highlight the setting you wish to adjust, then press the OK button to change the setting:

• Picture Mode - Not directly

selectable (reference only). Changes to Hue, Saturation, and Brightness are saved here and indicated with an asterisk (*).

• Color Temperature - Not directly selectable (reference

only). Changes to Oset and Gain are saved here and

indicated with an asterisk (*).

• Color Tuner - Adjust the HSB color, RGB osets, and

11-point white balance, and display calibration test patterns.

• Reset Color Tuner/Temperature - Prevent/allow changes to

the currently selected custom picture mode.

Adjusting the Color Tuner Settings

The Color Tuner settings allow you to adjust the Hue, Saturation, and Brightness (HSB) color and 11 point white balance, turn color

channels o for testing, and display color bar, at, and ramp test

patterns.

To adjust the HSB color settings:

1. From the PICTURE menu, use the Arrow buttons to highlight Color Calibration and press the OK button. The COLOR CALIBRATION menu is displayed.

2. Use the Arrow buttons to highlight Color Tuner, and press the OK button. The Color Tuner menu is displayed.

Color Tuner

Red Green Blue Cyan Magenta Yellow

Hue 0 0 0 0 25 -14

Saturation -1 5 -4 0 -2 0

Brightness -24 0 -22 0 0 0

Offset 0 0 0

Gain 0 0 0

3. Use the Arrow buttons on the remote to highlight the Hue, Saturation, Brightness, (these 3 adjust the color) Oset, or Gain (these two adjust the color temperature) of the color you

wish to adjust. Press the OK button.

4. Use the Left/Right Arrow buttons to adjust the value. When you are nished press the OK button to save the setting.

5. When you have nished adjusting the Color Tuner settings, press the BACK button to adjust additional settings or EXIT.

When Hue, Saturation, or Brightness have been changed, an

asterisk(*) appears after the name of the Picture Mode.

When Oset or Gain have been changed, an asterisk (*) appears

after the name of the Color Temperature.

To turn color channels o and on:

1. From the PICTURE menu, use the Arrow buttons to highlight Color Calibration and press the OK button. The COLOR

CALIBRATION menu is displayed.

2. Use the Arrow buttons to highlight Color Tuner, and then press the OK button. The Color Tuner menu is displayed ..

Color Tuner

Red Green Blue Cyan Magenta Yellow

Hue 0 0 0 0 25 -14

Saturation -1 5 -4 0 -2 0

Brightness -24 0 -22 0 0 0

Offset 0 0 0

Gain 0 0 0

3. Use the Arrow buttons on the remote to highlight Red, Green, or Blue.

4. Press the OK button to turn the color channel o or on. An X

appears over a color channel that has been turned o.

5. Use the Arrow buttons to highlight another color channel to

turn o or on. Only two color channels can be turned o at the

same time.

To adjust the 11 Point White Balance settings:

1. From the Color Tuner menu, use the Arrow buttons to highlight Color Tuner, and then press the Left/Right Arrow buttons until the 11 Point White Balance menu is displayed.

11 Point White Balance

Gain Red Green Blue

5% 0 0 0

2. Use the Arrow buttons on the remote to highlight the Gain and Color values you wish to adjust. Press the OK button and use the Left/Right Arrow buttons to adjust the value. When you

are nished press the OK button to save the setting.

3. When you are nished, press the BACK button to adjust additional settings or EXIT.

All changes here are saved to Color Temperature.

6. When you are nished with the color channels, press the BACK button to adjust additional settings or EXIT.

To show or hide the Color Bar Test Pattern:

1. Ensure that you are on an input that is displaying active content. From the Color Tuner menu, use the Arrow buttons to highlight Color Tuner, and then press the Left/Right Arrow buttons until the SMPTE Test Pattern menu is displayed.

SMPTE Test Pattern

Off

2. Use the Arrow buttons on the remote to highlight O. Use the Left/Right Arrow buttons to highlight On to show the Color

Bar. —or—

To hide the Color Bar Test Pattern, use the Left/Right Arrow buttons to highlight O.

3. When you are nished, press the BACK button to adjust additional settings or EXIT.

To show or hide the Flat Test Pattern:

Flat Test Pattern

Off

2. Use the Arrow buttons on the remote to highlight O. Use the Left/Right Arrow buttons to select the percentage brightness

for the at test pattern. Selecting a percentage immediately shows the at pattern at that brightness.

—or—

To disable the Flat Test Pattern, use the Left/Right Arrow buttons to highlight O.

3. When you are nished, press the BACK button to adjust additional settings or EXIT.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

To show or hide the Ramp Test Pattern:

Ramp Test Pattern

Off

2. Use the Arrow buttons on the remote to highlight O. Use the Left/Right Arrow buttons to select the color for the ramp test

pattern. Selecting a color immediately shows that color ramp.

—or—

To hide the Ramp Test Pattern, use the Left/Right Arrow buttons to highlight O.

3. When you are nished, press the BACK button to adjust additional settings or EXIT.

Creating a Custom Picture Mode

Custom picture modes allow you to save a group of custom settings for various viewing conditions and video sources.

When changes are made while a preset picture mode is selected, an asterisk appears after the name of the picture mode. These settings can be saved as a new custom picture mode and the preset mode can be reset to its default settings.

A custom picture mode only applies to the input (HDMI1, HDMI-2, COMP, AV, etc.) in use when it was created. Each input can have up to six custom picture modes.

To create a custom picture mode:

1. Set the Picture Mode to an existing custom setting. See

Adjusting the Picture Settings

VIZIO

SAVE PICTURE MODE

page 29.

2. From the PICTURE menu, use the Arrow buttons to highlight Picture Mode Edit and press OK. The PICTURE MODE EDIT menu is displayed.

a b c d e f g h i j k l m n o p q r s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

3. On the PICTURE MODE EDIT menu, select Save Picture Mode.

Done

The SAVE PICTURE MODE menu is displayed.

4. Use the Arrow buttons to enter a custom name using the on-screen keyboard.

5. Highlight Done and press OK.

6. Press the EXIT button to exit the menu screens.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Locking and Unlocking the Custom Picture Modes

Custom picture modes can be locked with a unique PIN to prevent accidental changes to their settings.

To lock all custom picture modes:

1. From the PICTURE menu, use the Arrow buttons to highlight

Picture Mode Edit and select Lock or Unlock Picture Mode, then press OK. The LOCK

VIZIO

LOCK PICTURE MODE

Create a picture control PIN to prevent change to all custom picture modes.

PICTURE MODE menu is displayed.

2. Use the Number Pad on your remote to enter a unique 4-digit

Save

PIN.

3. Highlight Save and then press the OK button.

4. Press the EXIT button to exit the

Create a 4 digit passcode using the number keys on the remote.

menu screens.

Deleting a Custom Picture Mode

Custom picture modes that are no longer needed can be deleted.

Inputs assigned to a deleted custom picture mode become assigned to the

Calibrated

picture mode.

To delete a custom picture mode:

1. From the PICTURE menu, use the Arrow buttons to highlight

To delete the user created Custom 1 picture mode,

select the Delete button.

Picture Mode Edit and select Lock or Unlock Picture Mode,

Delete Cancel

then press OK. The DELETE PICTURE MODE window is displayed.

2. Use the Left/Right Arrow buttons to highlight Delete and press OK.

3. Press the BACK button to adjust additional settings or EXIT.

To unlock all custom picture modes:

5. From the PICTURE menu, use the Arrow buttons to highlight

Picture Mode Edit and select Lock or Unlock Picture Mode,

then press OK. The LOCK PICTURE MODE menu is displayed.

6. Use the Number Pad on your remote to enter your 4-digit PIN.

7. Make any desired changes to the picture modes.

8. To re-lock picture modes, you must create a new 4-digit PIN.

VIZIO

Input CC

ABC

Wide

Normal

PanoramicWide Zoom

2D 3DExit

ADJUSTING THE AUDIO SETTINGS

Adjusting audio settings creates a custom audio mode which can be

further modied or restored to factory defaults (deleted).

To adjust the audio settings:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight Audio and press OK. The AUDIO menu is displayed.

3. Use the Arrow buttons to highlight the setting you wish to adjust, then press Left/Right Arrow buttons to change the setting:

• TV Speakers - Turns the

built-in speakers on or o.

When the TV speakers are set to On, DTS signals cannot be passed through digital audio outputs.

• Surround Sound - Surround sound uses DTS TruSurround™

to deliver an immersive surround sound experience from the TV’s internal speakers. TruSurround completes the entertainment experience by providing deep, rich bass and by delivering crisp details and clear, intelligible dialog. Select On or O.

AUDIO

TV Speakers On

Surround Sound On

Volume Leveling On

Balance 0

Lip Sync 0

Digital Audio Out PCM

Analog Audio Out Fixed

Equalizer Settings

Delete Audio Mode

volume leveling o.

• Balance - Adjusts the loudness of the audio output from the left and right speakers.

• Lip Sync - Adjusts the synchronization between the display image and the accompanying audio track.

• Digital Audio Out - Changes the type of processing for digital audio out and HDMI ARC output when connected to a home theater audio system or sound bar. Select PCM or

Bitstream.

• Analog Audio Out - Sets the volume control properties for

the RCA (red & white) connector when connected to a home theater audio system. Select Variable to control the external speakers’ volume from the TV’s volume controls, or select Fixed to control the external speakers’ volume from your home theater system controls.

You must select Bitstream for audio with more than two channels (3.0, 5.0, or 5.1, for example).

• Equalizer Settings - Adjusts the boost or attenuation

of dierent frequencies using either preset or custom

settings. See

Locking and Unlocking Channels

on page

52.

• Delete Audio Mode - Restores audio equalizer settings to the factory defaults by deleting the custom mode previously created. See

Delete the Custom Audio Mode

page 38.

4. When you have nished adjusting the audio settings, press the

EXIT button on the remote.

• Volume Leveling - Volume leveling uses DTS TruVolume™

to maintain consistent volume levels during transitions between program content, AV formats, and input sources. Select On or O. In a few cases, volume leveling may

articially suppress volume increases, making it dicult to hear dialog or attening sudden noises. If this occurs, turn

Changing the Equalizer Settings

To select a pre-set audio mode:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons to highlight Audio and press OK. The AUDIO menu is displayed.

3. Use the Arrow buttons to highlight Equalizer Settings and press OK. The AUDIO MODE and equalizer settings screen appears.

4. Use the Left and Right Arrow buttons to select an audio mode.

The equalizer bars change to reect the mode.

5. Press the EXIT button on the remote.

To customize an equalizer setting:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons to highlight Audio and press OK. The AUDIO menu is displayed.

Delete the Custom Audio Mode

To delete the custom audio mode:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight Audio and press OK. The AUDIO menu is displayed.

3. Use the Arrow buttons to highlight Delete Audio Mode and press OK. The TV displays, “To delete the user created custom audio mode, select the Delete button."

4. Highlight Delete and press OK.

5. Press the EXIT button on the remote.

3. Use the Arrow buttons to highlight Equalizer Settings and press OK. The AUDIO MODE and equalizer settings screen appears.

4. Use the Down, Left, and Right Arrow buttons to select any audio mode as a starting point and press OK.

5. Use the Up and Down Arrow buttons to adjust the boost (up) and attenuation (down) for the frequency.

6. Use the Left and Right Arrow buttons to select another frequency, if desired, and adjust it. A new audio mode called "Custom" is created.

7. Press the EXIT button on the remote.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

SETTING TIMERS

This TV has timers that save energy, can turn o the TV when you go

to sleep, and can blank the screen when you stream music.

Setting the Sleep Timer

When activated, the TV’s sleep timer will turn the TV o after a set

period of time.

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight Timers and press OK. The TIMERS menu is displayed.

3. From the TIMERS menu, use the Up/Down Arrow buttons on the remote to highlight Sleep Timer.

4. Use the Left/Right Arrow buttons on the remote to highlight the period of time after which you want the TV to go to sleep: 30, 60, 90, 120, or 180 minutes. If you don’t want the sleep timer to activate, change the setting to O.

5. When you have nished setting the sleep timer, press the EXIT button on the remote.

VIZIO

TIMERS

Sleep Timer Off

Auto Power Off 10 minutes

Screen Saver 2 minutes

Blank Screen

Setting the Auto Power O Feature

To help save energy, your TV is set by default to turn o after

10 minutes without a video or audio signal. This feature can be deactivated.

To set the Auto Power O feature:

1. From the TIMERS menu, use the Up/Down Arrow buttons on the remote to highlight Auto Power O.

2. Use the Left/Right Arrow buttons on the remote to change

whether the TV will turn o. If you don’t want the TV to turn o

when there is no signal, change the setting to O. Otherwise, select 10 minutes.

3. When you have nished setting the auto power o time, press the EXIT button on the remote.

Enabling the Screen Saver

If there is no on-screen content or static content when audio is

streaming, the backlight is turned o, saving energy. You can set

the time before the screen saver begins.

To set the screen saver delay:

1. From the TIMERS menu, use the Up/Down Arrow buttons on the remote to highlight Screen Saver.

2. Use the Left/Right Arrow buttons on the remote to change the time before the screen saver begins. If you don’t want the screen saver to activate, change the setting to O. Otherwise, select 2, 10, or 20 minutes.

3. When you have nished setting the screen saver delay, press the EXIT button on the remote.

Exiting the Screen Saver

Press any button other than the Volume and Mute buttons on the remote to exit the screen saver.

Blanking the Screen

You can blank the screen while there is audio streaming. This feature helps save energy and the life of the screen.

To blank the screen:

• From the TIMERS menu, use the Up/Down Arrow buttons on the remote to highlight Blank Screen, and then press OK.

Exiting the Screen Saver

Press any button other than the Volume and Mute buttons on the remote to exit the screen saver.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

USING THE NETWORK CONNECTION MENU

Your TV is Internet-ready, featuring both an Ethernet port and built-in high-speed Wireless-N.

Connecting to a Wireless Network

To connect to a wireless network whose network name (SSID) is being broadcast:

If your TV is connected to a network with an Ethernet cable, you will not see the wireless network connection menu. You must disconnect the Ethernet cable to set up a wireless network connection.

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight Network and press OK. The NETWORK menu is displayed.

3. If you do not see your wireless network displayed, highlight

More Access Points and press OK. The WIRELESS ACCESS

POINTS menu, which is a list of available wireless networks, is displayed.

4. Highlight the name of your wireless network (this is the network’s SSID) and press OK.

5. Using the on-screen keyboard, enter your network’s password, then highlight Connect and press OK.

VIZIO

NETWORK

Wired Connection Disconnected

Wireless Access Points

More Access Points

WPS

Manual Setup

Hidden Network

Test Connection

Changing the Manual Setup Settings

Advanced users can ne-tune the network settings using the Manual

Setup feature.

To change advanced network settings:

1. From the NETWORK menu, highlight Manual Setup and press OK. The MANUAL SETUP menu is displayed.

2. To change the settings manually, use the Arrow buttons on the remote to highlight DHCP and then use the Left/Right Arrow buttons to change the setting to O.

3. Use the Arrow and OK buttons to adjust each setting:

VIZIO

MANUAL SETUP

DHCP Off

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Default Gateway ____.____.____.____

Pref. DNS Server ____.____.____.____

Alt. DNS Server ____.____.____.____

Wireless MAC 0:0:0:0:0:0

Save

Cancel

• IP Address - The IP address

assigned to the TV.

• Subnet Mask - The subnet

mask.

• Default Gateway - Your

network’s default gateway address.

• Pref. DNS Server - Your

preferred domain name server address.

• Alt. DNS Server - Your alternate domain name server

address.

4. Use the Arrow buttons on the remote to highlight Save and press OK.

5. Press the BACK button to adjust additional settings or EXIT.

6. Press the BACK button to adjust additional settings or EXIT.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Finding MAC Addresses for Network Setup

The security settings on your router may require you to enter the TV's MAC address in the router's settings.

To nd the TV's MAC address:

1. From the NETWORK menu, highlight Manual Setup and press OK. The MANUAL SETUP menu is displayed.

2. Find the MAC address for the TV at the bottom of the list. The MAC addresses for the connections in use are displayed:

• RJ45 MAC - The Ethernet or RJ45 MAC address may be

needed to set up your network when you have connected the TV to your network with an Ethernet (Cat 5) cable.

• Wireless MAC - The Wireless (Wi-Fi) MAC address may be

needed to connect your TV to your network with Wi-Fi.

Connecting to a Hidden Network

To connect to a wireless network whose network name (SSID) is not being broadcast:

1. From the NETWORK menu, highlight Hidden Network and press OK. The ENTER ACCESS POINT NAME screen is displayed.

2. Using the on-screen keyboard,

VIZIO

ENTER ACCESS POINT NAME

Enter your access point name. This is used to connect to an access point with a hidden SSID.

enter your network’s name (SSID), then highlight Connect and press OK.

3. Using the on-screen keyboard, enter your network’s password, then highlight Connect and press OK.

4. Press the BACK button to adjust additional settings or EXIT.

Testing Your Network Connection

To test your network connection:

1. From the NETWORK menu, highlight Test Connection and press OK.

2. The TEST CONNECTION screen displays the connection method, network name, signal strength, and download speed of your network connection.

3. Press the EXIT button on the remote.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

SETTING UP CHANNELS

You can use the TV’s Tuner menu to:

• Select a channel source

• Find channels

• Perform a partial channel scan

• Manually add channels

• Select channels to skip

• Select language for analog and digital channels.

VIZIO

CHANNELS

Channel Source Cable

Find Channels

Partial Channel Search

Add Analog Channel

Skip Channel

Analog Audio Stereo

Digital Language English

Selecting a Channel Source

1. On the remote control, press Input and use the Arrow button to highlight TV (antenna icon), then press OK.

2. Press the MENU button, select Channels and press OK. The CHANNELS menu is displayed.

3. On the CHANNELS menu, highlight Channel Source and using the left/right Arrow buttons to select either Antenna or Cable.

Finding Channels

Before the TV can detect and display channels and their associated information, you must scan for channels. A channel scan may also be necessary when the TV has been moved to an area where

dierent free-to-air broadcast television channels are available.

To perform an Auto Channel Scan:

1. From the CHANNELS menu, highlight Find Channels, and press OK. The channel scan begins.

2. Wait until the channel scan is 100% complete. Highlight Done and press OK.

VIZIO

FIND CHANNELS

Channels Found

Digital: 0

Analog: 0

13% Complete

Cancel

3. Press the EXIT button on the remote.

If the channel scan is cancelled, only the channels that were already discovered are saved. A new channel scan clears all saved channels.

Cancel the channel scan.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Adding New Channels

Occasionally, you may need to add a new range of channels or add a new analog channel. You can do this by using the Partial Channel Search and Add Analog Channel options.

To add a range of new channels:

1. From the CHANNELS menu, highlight Partial Channel Search, and press OK. The PARTIAL CHANNEL SEARCH menu is displayed.

2. Highlight Scan Mode and select the type of channel you are adding: Analog, Digital, or Analog/Digital.

3. Highlight From Channel and enter the channel where you want to begin the scan. (Use the Left Arrow button to backspace. Use the Number Pad on the remote to enter the channel.)

4. Highlight To Channel and enter the channel where you want to end the scan. (Use the Left Arrow button to backspace. Use the Number Pad on the remote to enter the channel.)

5. Highlight Start and press OK. The partial channel search begins.

6. Wait until the partial channel search is 100% complete. Highlight Done and press OK.

To add a single new analog channel:

1. From the CHANNELS menu, highlight Add Analog Channel and press OK. The ADD ANALOG CHANNEL menu is displayed.

2. Highlight Enter Channel # and use the Number Pad on the remote to enter the number of the channel you are adding.

3. Highlight Add Channel and press OK. The TV scans for the channel.

4. When the TV is done scanning for the channel, press the EXIT button on the remote.

VIZIO

ADD ANALOG CHANNEL

Enter Channel #

Add Channel

7. Press the EXIT button on the remote.

Skipping Channels

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

After a channel scan is completed, you may nd that some channels

are too weak to watch comfortably. There may also be some channels you do not want to view. You can remove these channels from the TV’s memory with the Skip Channel feature.

Channels that have been removed with the Skip Channel feature can still be viewed if the channel is entered using the Number Pad. If you wish to completely block a channel from being viewed, use the parental controls. See

Locking and Unlocking Channels

on page 52.

To remove a channel:

1. From the CHANNELS menu, highlight Skip Channel, and press OK. The SKIP CHANNEL menu is displayed.

2. For each channel you wish to remove, use the Up/Down Arrow buttons on the remote to highlight the channel and press

OK. A P appears to the right of

VIZIO

1-2

2-2

2-3

SKIP CHANNEL

Test 0

Test 1

Test 2

Test 3

Test 4

Test 5

each channel you select.

3. When you have selected all of the channels you wish to remove, press the EXIT button on the remote.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Changing the Audio Language

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Some free-to-air, cable, and satellite channels broadcast programs in more than one language. The Analog Audio and Digital Language features allow you to listen to audio from Secondary Audio Programming (SAP). SAP allows you to listen to broadcasts in multiple languages.

• Analog Audio works with analog channels.

• Digital Language works with digital channels.

Not all programs are broadcast in multiple languages. The Analog Audio and Digital Language features only work when the program being viewed is being broadcast in the language you select.

To use the Analog Audio feature:

1. From the CHANNELS menu, highlight Analog Audio and press OK. The ANALOG AUDIO menu is displayed.

2. Select Stereo, SAP (Secondary Audio Programming), or Mono.

VIZIO

ANALOG AUDIO

Stereo

SAP

Mono

Press OK.

To use the Digital Language feature:

1. From the CHANNELS menu, highlight Digital Language and press OK. The DIGITAL LANGUAGE menu is displayed.

2. Select your preferred language: English, Español, or Français. Press OK.

3. Press the EXIT button on the remote.

VIZIO

DIGITAL LANGUAGE

English

Español

Français

3. Press the EXIT button on the remote.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

SETTING UP CLOSED CAPTIONING

Your TV can display closed captions for programs that include them. Closed captions display a transcription of a program’s dialogue.

If the program you are viewing is not being broadcast with closed captions, the TV will not display them.

The Closed Captioning menu only appears when the input is an antenna for Over-the-Air signals, cable TV directly from the wall (no cable box), or a device with a composite video connection.

To activate or deactivate closed captions:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight Closed Captions and press OK. The CLOSED CAPTIONS menu is displayed.

3. Use the Arrow buttons on the remote to highlight the type of closed captions you wish to see:

• Captions turns this option On

or O.

• Analog Closed Captions for

analog (NTSC) TV channels.

• Digital Closed Captions for

digital (ATSC) TV channels.

4. After highlighting the type of closed captions you wish to see, use the Left/Right Arrow buttons on the remote to select the caption channel you wish to display, then press EXIT.

VIZIO

CLOSED CAPTIONS

Captions Off

Analog Closed Captions CC1

Digital Closed Captions CS1

Digital Style Custom

Changing the Appearance of Digital Closed Captions

Digital closed captions can be displayed according to your preference. See the diagram on the next page for an explanation of the parts of the closed caption area.

To change the appearance of digital closed captions:

1. From the CLOSED CAPTIONS menu, use the Arrow buttons to highlight Digital Caption Style and press OK.

2. Use the Left/Right Arrow buttons on the remote to select Digital Style > Custom. The DIGITAL STYLE menu appears as shown.

3. Use the Up/Down Arrow buttons on the remote to highlight the setting you wish to change, then use the Left/Right

VIZIO

DIGITAL STYLE

Caption Style

Text Style

Text Size

Text Color

Text Opacity

Text Edges

Text Edges Color

Background Color

Background Opacity

Window Color

Window Opacity

As Broadcast

Arrow buttons to change the setting:

• Caption Style - Choose

As Broadcast to keep

default settings or Custom to manually change each setting.

• Text Style - Changes the

font used for the closed captioning text.

• Text Size - Makes the text larger or smaller.

• Text Color - Changes the color of the text.

• Text Opacity - Changes the transparency of the text.

• Text Edges - Change the eects at the edges of the text,

such as raising the edges or adding drop shadows.

• Text Edges Color - Change the color at the edges of the text.

Custom

Large

Color

Black

• Background Color - Change the color of the background directly behind the text.

• Background Opacity - Change the transparency of the background directly behind the text.

• Window Color - Change the color of the closed captioning box.

• Window Opacity - Change the opacity of the closed captioning box.

4. When you are satised with the appearance of the closed captions, press the EXIT button on the remote.

Text

Typical choices include:

• Opaque background, transparent window—Only a strip of background appears behind the text, expanding as the text appears. This is the typical "As Broadcast" mode.

• Opaque background and window in the same color—When

text appears, the entire line lls with color at once.

In the example below, the closed caption text is green, the background is black, and the window is red.

Background

CLOSED CAPTION TEXT SAMPLE

Window

CLOSED CAPTIONS SCREEN

RENAMING INPUTS (USING THE DEVICES MENU)

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Inputs can be renamed to make them easier to recognize on the Input menu (see example, if you have a DVD player connected to the Component input, you can rename that input to display “DVD Player.”

Changing the Input Source

on page 26). For

Input Port

To change the name of an input:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight Devices and press OK. The DEVICES menu is displayed.

3. Highlight the input device that you want to rename and press OK.

4. To use a preset input name:

a. Highlight the Input Port row and press OK.

b. Highlight the input name you want to use and press OK. —or—

To enter a custom name:

a. Enter your custom name using the on-screen keyboard.

b. Highlight OK and press OK.

c. The Input Name changes to show the custom name that

you created.

VIZIO

NAME INPUT

HDMI-1 DVD

DVD_

a b c d e f g h i j k l m n o p q r s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

Cancel

Select the input name from a list of common device names (Blu-ray, Cable Box, DVD, etc).

Input Name

Custom Name

5. When you have nished naming your input, press the EXIT button on the remote.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

CHANGING THE TV SETTINGS

Using the system menu, you can:

• View technical system and

networking information

• Change the on-screen menu

language

• Set the time zone and local

setting

• Set up parental controls

• Open the WIDE menu

• Give the TV a name for it to

work with DLNA-enabled devices

• Set up CEC devices to control

them with your VIZIO TV remote

• Control when the power

indicator light is on

VIZIO

SYSTEM

System Information

Menu Language English

Time & Local Settings

Parental Controls

View Mode

Wide

TV Name

CEC

Power Indicator Off

Reset & Admin

Viewing System Information

To view technical data and status information about your TV and network connection:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.

3. Highlight System Information and press OK.

4. Use the Up/Down Arrow buttons to scroll through the system information.

5. When you are nished reviewing the system information, press the EXIT button on the remote.

• Reset TV settings and control Smart Interactivity

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Changing the On-Screen Menu Language

Your TV can display the on-screen menu in dierent languages.

To change the on-screen menu language:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and

VIZIO

MENU LANGUAGE

English

Español

Français

press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight Menu Language and press OK. The MENU LANGUAGE menu is displayed.

4. Highlight your preferred language (English, Español, or Français) and press OK.

5. Press the EXIT button on the remote.

Setting the Time Zone

To ensure the correct time is displayed when you press the GUIDE button, set the TV’s time zone:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight Time & Local Settings and press OK. The TIME & LOCAL SETTINGS menu is displayed.

VIZIO

TIME ZONE

Hawaii (-10)

Alaska (-9)

Paciﬁc (-8)

Mountain (-7)

Arizona (-7)

Central (-6)

Indiana (-6)

Eastern (-5)

Atlantic (-4)

Newfoundland (-3.5)

4. Highlight Time Zone and press OK. The TIME ZONE menu is

displayed.

5. Highlight your time zone and press OK.

6. Highlight Daylight Saving Time and press OK. The DAYLIGHT SAVING TIME menu is displayed. Choose On if your locale observes daylight saving time, O if it does not, or Auto to have your TV detect daylight saving automatically.

7. If you are in the United States, highlight ZIP Code. Enter your ZIP code using the keypad on the remote, then press OK. ZIP codes are often used by V.I.A. Plus Apps to give you the most accurate location-based information, such as weather or news.

8. Highlight Country and press OK. Highlight our country and press OK.

9. Press the EXIT button on the remote.

Using the Parental Controls

The TV’s parental controls allow you to prevent the TV from displaying certain channels or programs without a password.

The Parental Controls menu only appears when:

• You are using an the tuner receive your TV signals, such as when you are using an antenna for Over-the-Air signals or when connected to cable TV directly from the wall (no cable box).

• You have a device connected using a composite video cable or a coaxial cable, such as a VCR, satellite or cable box, or DVR.

Other devices have their own parental control settings.

Accessing the Parental Controls Menu

To access the Parental Controls menu:

1. Press the MENU button on the remote. The on-screen menu is displayed.

Enabling or Disabling Program Ratings

To manage program content according to its rating, you must enable the Program Rating feature.

To enable or disable the Program Rating feature:

1. From the PARENTAL CONTROLS menu, highlight Locks and press OK. Type the parental passcode. The LOCKS menu is displayed.

2. Select On or O and press OK.

Locking and Unlocking Channels

When a channel is locked, it will be inaccessible. Locking a channel is a good way to prevent children from viewing inappropriate material.

To lock or unlock a channel:

1. From the PARENTAL CONTROLS menu, highlight Channel Locks and press OK. The CHANNEL LOCKS menu is displayed.

2. Highlight the channel you want to lock or unlock and press OK.

2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight Parental Controls and press OK.

4. Enter your parental passcode. If you have not set a passcode, enter the default, 0000. The PARENTAL CONTROLS menu is displayed.

To set a custom parental passcode, see

Parental Control Passcode

on page 53.

Changing the

3. When a channel is locked, the Lock icon appears locked. The channel is not accessible unless the parental passcode is entered.

4. When a channel is unlocked, the Lock icon appears unlocked. The channel is accessible.

Blocking and Unblocking Content by Rating

A channel may sometimes broadcast programs that are meant for children, and at other times broadcast programs that are meant for mature audiences. You may not want to block the channel completely using a channel lock, but you may wish to block certain programs from being viewed.

When this is the case, you can use the TV’s Rating Block feature to block content based on its rating.

For a list of content ratings and their denitions, visit www.tvguidelines.org.

To block or unblock content by its rating:

1. From the PARENTAL CONTROLS menu, highlight the content type you want to adjust and press OK:

USA - TV - USA television program broadcasts. USA - Movie - USA movie broadcasts. CAN - English - Canadian English television program

broadcasts. CAN - French - Canadian French television program

broadcasts.

2. For each rating type you want to block or unblock, use the Up/ Down and Left/Right Arrow buttons on the remote to highlight the rating type and press OK.

Changing the Parental Control Passcode

If you use the parental controls, you should change the passcode to prevent children from accessing inappropriate material.

To change the parental control passcode:

1. From the PARENTAL CONTROLS menu, highlight Change PIN and press OK. The CHANGE PIN menu is displayed.

2. In the New PIN eld, use the Number Pad on the remote to enter your new 4-digit parental control passcode.

3. In the Conrm PIN eld, use the Number Pad on the remote to re-enter your new 4-digit parental control passcode.

4. Write down your new parental control passcode and save it in a secure location.

5. Press the EXIT button on the remote.

Resetting the Content Locks

To reset the content locks to the factory-default settings:

1. From the PARENTAL CONTROLS menu, highlight RESET LOCKS and press OK. The TV displays, “Are you sure you want to RESET ALL LOCKS SETTINGS to the factory defaults?”

2. Highlight Yes and press OK.

3. When the rating type is blocked, the Lock icon appears locked. Content with this rating and all higher ratings cannot be viewed.

4. When the rating type is unblocked, the Lock icon appears unlocked. Content with this rating and all lower ratings can be viewed.

If you want to block all unrated content, highlight Block Unrated Shows and use the Arrow buttons on the remote to select On.

5. When you are nished adjusting the rating level blocks, press the EXIT button on the remote.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Changing the View Mode Settings

You can resize the video content to t while the menu is open.

To change the on-screen menu language:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and

VIZIO

VIEW MODE

Viewport

Overlay

Centered Overlay

press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight View Mode and press OK. The VIEW MODE menu is displayed.

4. Highlight your Viewport, Overlay, or Centered Overlay and press OK.

• Viewport - The entire picture

is visible in the space to the right of the menu.

• Overlay - The left-hand

portion of the picture covered by the menu.

• Centered Overlay - The picture extends o of the right side

of the screen.

5. Press the EXIT button on the remote. See

the Menu Open

on page 28 for an alternate way of resizing

Viewing Video with

the video content.

Adjusting the Wide Mode (Aspect Ratio)

The TV can display images in ve dierent modes: Normal, Stretch,

Panoramic, Wide, and Zoom. Each mode displays the picture

dierently.

To change the screen aspect ratio:

1. Press the WIDE button on the remote.

2. Use the Arrow buttons to

Normal

Panoramic

Normal

Stretch

highlight the aspect ratio you wish to view and press OK.

Wide

• Normal preserves the content’s

original aspect ratio. Since the 4:3 aspect ratio is not large enough

to ll the TV’s screen, black bars

Zoom

Note: Aspect ratio settings may vary by Input source.

Zoom

are added to the left and right of the display image.

• Stretch expands the display image to ll the screen. Images

may appear wider than intended. If you are watching widescreen (1.85:1 or 2.35:1) content, black bars will still appear on the top and bottom of the display image. This

option is only available when the TV is displaying a 720p/1080i source.

• Panoramic expands the display image to ll the width of

displaying a 480i/480p source.

• Wide stretches a 4:3 aspect ratio picture to the edges of

• Zoom expands images with black bars to t the screen.

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

Changing Your TV's DLNA Name

DLNA allows your TV to display content from DLNA-certied

computers, cameras, tablets, and smartphones.

To create a custom DLNA name for your TV:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the

VIZIO

TV NAME

VIZIOTV_

remote to highlight System and press OK. The SYSTEM menu is displayed.

a b c d e f g h i j k l m n o p q r s t u v w x y z 0

3. Use the Arrow buttons on the remote to highlight TV Name and press OK. The TV NAME menu is displayed.

1 2 3 4 5 6 7 8 9

.@# .com Space

Done

4. Use either the onscreen keyboard or keyboard on your remote control to enter a name for your TV (the name can be up to 10 characters long).

When you are nished, highlight

OK and press the OK button.

5. Press the EXIT button on the remote.

Controlling Other Devices with CEC

The CEC function on your TV enables you to control devices connected to the HDMI (ARC) input with the included remote, without any programming. Using CEC, your VIZIO TV remote can control:

• Power on/o

• Volume

• Mute

Not all HDMI devices support CEC. See your device’s user manual for details.

To enable, disable, or adjust CEC settings:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight CEC and press OK. The CEC Settings menu is displayed.

4. Highlight CEC and press OK. Select a setting and then press OK.

• Enable - All CEC-compatible devices connected to HDMI

inputs can be discovered.

• ARC only - VIZIO sound bars and other CEC-compatible

audio systems connected to the HDMI (ARC) input are automatically discovered, controlled by the remote, and have audio played through them.

• Disable - Devices are not discovered and the remote does

not control CEC devices.

To begin device discovery:

• From the CEC menu, highlight Device Discovery and press OK.

Your TV begins looking for CEC devices connected to all of its HDMI inputs. When discovery is complete:

• The CEC-compatible devices are listed below Device Discovery.

• The names of these devices now appear on the Input menu.

• If an audio device was discovered, the TV's speakers are

turned o.

• The VIZIO TV remote controls an attached VIZIO sound bar or other audio system.

Turning the Power Indicator On or O

The Power Indicator on the front of your TV normally does not glow when the TV is on. You can change this setting if you prefer the light to be on.

To turn the Power Indicator Light on or o:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.

3. Highlight Power Indicator and press OK.

4. Use the Up/Down Arrow buttons to select On or O, then press OK.

Restoring the TV to Factory Default Settings

You can use the TV’s Reset & Admin menu to restore the TV to its factory default settings.

All of the on-screen menu settings can be reset to the factory defaults.

If you restore the TV to the factory default settings, all changes you have made to the settings will be lost!

To restore the TV to its factory default settings:

1. Press the MENU button. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.

3. Highlight Reset & Admin and press OK. The RESET & ADMIN menu is displayed.

4. Highlight Reset TV to Factory Defaults and press OK.

5. Enter your parental control passcode. If you have not yet set up a parental passcode, enter the default, 0000.

The TV displays, "Select Reset to restore all TV settings to factory defaults."

Enabling and Disabling Smart Interactivity

Your TV can display program-related information as part of a broadcast. To enable or disable Smart Interactivity:

1. Press the MENU button. The on-screen menu is displayed.

2. Use the Arrow buttons on the remote to highlight System and press OK. The SYSTEM menu is displayed.

3. Highlight Reset & Admin and press OK. The RESET & ADMIN menu is displayed.

4. Highlight Smart Interactivity and press OK.

5. Select On or O and press OK.

6. Press the EXIT button on the remote.

6. Highlight Reset and press OK.

7. Wait for the TV to turn o. The TV will turn back on shortly afterward and the Setup App will begin.

USING THE GUIDED SETUP MENU

Help

Network

Sleep

Timer

Input CC

ABC

Audio

Wide

Normal


Settings

PanoramicWide Zoom

2D 3DExit

The TV’s Setup App can be used to easily set up channels on the TV or to connect the TV to your network.

To use guided setup:

1. Press the MENU button on the remote. The on-screen menu is displayed.

2. Highlight Guided Setup and press OK. The GUIDED SETUP menu is displayed.

3. Highlight the guided setup you want to use and press OK:

• Tuner Setup - Set up the TV

tuner.

• Network Setup - Connect the

TV to the Internet using your network.

VIZIO

GUIDED SETUP

Tuner Setup

Network Setup

4. Follow the on-screen

instructions. When nished,

press the EXIT button on the remote.

USING THE INFO WINDOW

The Info Window can be displayed by pressing the GUIDE or INFO buttons on the remote:

• Press the GUIDE or INFO button once to display channel,

input, and display information.

• Press the GUIDE or INFO button twice to display the

program title, program rating, audio information, and the start and end times of the program.

Channel/Input Information

Oliver’s Holiday Surprise

Oliver wakes up one morning only to discover that his pals are missing. In this hour-long holiday special, Oliver goes on a journey in search of his pals. Who knows what he’ll encounter on the way?

Program Title

28-1

KCET-HD

1080p 6:15pm

TV-PG (V)

Dolby Digital Stereo

Normal

11:00AM - 12:00PM

Program Description

DIGITAL EPISODE GUIDE WINDOW

Using the USB Media Player

USING THE USB MEDIA PLAYER

The USB media player allows you to connect a USB thumb drive to your TV and view photos.

Displaying USB Media

To display your USB media:

1. Connect your USB thumb drive to the USB port on the side of the TV.

2. Use the Arrow buttons to highlight Yes and press the OK.

If the dialog box disappears, press the V button on the remote to go the next step.

Use the Arrow buttons to highlight your USB device in the list and press OK.

4. Use the Arrow buttons to highlight Photo and press OK.

5. Use the Arrow buttons to highlight the photo you want to display. Press OK. The photo displays.

You can display your photos in fullscreen. Select the photo, press OK, then highlight Fullscreen and press OK.

USB PORT

Note: The image shown here is for illustrative purposes only and may be subject to change. The actual number of ports and their locations may vary, depending on the model.

Preparing your USB drive to display USB Media

To display USB media, you must rst save your photos onto a USB

thumb drive:

• The USB thumb drive must be formatted as FAT32.

• Files on the USB thumb drive must end in a supported le extension (.jpg or .jpeg.).

• The USB media player is not designed to play media from external hard drives, MP3 players, cameras, or smartphones.

Removing the USB drive from the TV

Do not remove the USB thumb drive while the TV is on. Doing so may damage the drive.

To safely remove your USB drive from the TV:

1. Turn o the TV.

2. Disconnect your USB thumb drive from the USB port on the side of the TV.

Connected Sources

Displays connected USB devices. To change source, highlight it and press OK.

Current Folder

Start Fullscreen Slideshow

Sort by Name or Date View Thumbnails or Folders Adjust Slideshow Settings

Back Button

Highlight this button and press OK to return to the previous screen.

VIZIO


USB1:

root

Start Slideshow

Sort:

View:

File Name: D 1920x1080 Resolution: 1920x1080 Size: 1607270KB

Name A-Z

Thumbnails

Settings

Back Button Highlight and press OK to return to left column.

Current Folder

Displays the folder path.

VIZIO_2GB\Photo\root



B.jpg C.jpg

E.jpg F.jpg

Folder Contents

This area displays the contents of the currently selected folder. You

can browse les and folders using

the Arrow and OK buttons on the remote.

Photo Information

Displays name,

resolution, and le

size for currently selected photo.


H.jpg I.jpg

Page 1 of 1

Page Information

If your USB thumb drive has more

les than can be displayed on a

single screen, the page information is displayed here.

PHOTO VIEWER

Connected Sources

Displays connected USB devices.

Current Folder

Playback Controls

Use to control audio playback. Highlight Play/ Pause, Previous, or Next and press OK.

Toggle Music/Photos

Sort by Album/Artist/ Track

Back Button

Highlight this button and press OK to return to the previous screen.

VIZIO

Music

USB1: MyFlashDrive

My Music

Browse Photos

Sort:

View:

View All or View Folders

Artist A-Z

All

Now Playing Information

Displays song title, album title, and artist name.

Progress Bar

Displays the duration of the currently-playing song. The blue bar will lengthen as the song progresses.

Fab Apple Dream

On January Mix Comp By Oliver

5:50 8:46

MyFlashDrive\Audio\root\My Music

Track Album Artist Duration#

Seminal Summer January Mix Comp JCheesy 2:421

Downspin JCheesy 6:202

Fab Apple Dream Oliver 8:463

Man of the Year The Dash 4:214

Maximal Smooth Rio Steve 7:585

January Mix Comp

Page 1 of 1

Page Information

If your USB thumb drive has more

les than can be displayed on a

single screen, the page information is displayed here.

Album Art

If included on the USB thumb drive and associated with your music, the album art will display here.

Folder Contents/ Playlist

This area displays the contents of the currently selected folder. You can

browse les and

folders using the Arrow and OK buttons on the remote.

MUSIC PLAYER

Connected Sources

Displays connected USB devices.

Current Folder

Back Button

Highlight this button and press OK if you would like to return to the previous screen.

VIZIO

Video

USB1: MyFlashDrive

My Videos

MyFlashDrive\Video\root\My Videos

File Date Duration#

Family Vacation - California - 00:23:431

26th Birthday Party - 00:38:182

Summer 2012 - 00:41:083

Greatest Trip Ever - 00:05:324

Sort by Date

Sort:

Date New-Old

View:

Folders

View All or View Folders

Page 1 of 1

Page Information

If your USB thumb drive has more

les than can be displayed on a

single screen, the page information is displayed here.

Folder Contents/ Playlist

This area displays the contents of the currently selected folder. You can

browse les and

folders using the Arrow and OK buttons on the remote.

VIDEO PLAYER

Using VIZIO Internet Apps Plus

(V.I.A. Plus)

Vizio Internet Apps Plus (V.I.A. Plus) delivers popular online content to your TV. V.I.A. Plus features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand.

A high-speed Internet connection is required to receive product updates and to access online content.

See

Using the Network Connection Menu

not yet connected to your home network.

on page 41 if your TV is

USING THE V.I.A. PLUS APP DOCK

The V.I.A. Plus App Dock is where all of your V.I.A. Plus Apps are accessed.

To launch an App from the Dock:

1. Press the V Button on the remote.

2. Highlight an App by scrolling left and right using the Left/Right Arrow buttons on the remote. (The highlighted App is in the center of the dock.)

Using the App Launcher Keys

Use the App Launcher keys on the remote to launch the apps pictured on the buttons. Pressing a App Launcher key will also turn

the TV on (if it is o).

The specic apps on the App Launcher

keys vary from model to model.

App Launcher Keys

3. Press the OK button on the remote to launch the App.

V Button

V.I.A. Plus App Dock

USING THE FULLSCREEN V.I.A. PLUS APPS WINDOW

The Fullscreen V.I.A. Plus Apps Window allows you to add and store

Apps. The Apps on the rst page are displayed in the Dock and

Apps on additional pages can be moved to the Dock.

To open the Fullscreen V.I.A. Plus Apps Window:

1. Press the V Button on the remote twice.

2. Highlight an App by using the Arrow buttons on the remote.

My Apps

Features the Apps

installed on your TV.

3. Press the OK button on the remote to launch the App.

4. To exit from an open App or to close the App Dock, press the

Exit button on the remote.

App Tabs

Browse through Apps on these tabs and add them to your

MyApps tab.

Installed Apps

The Apps displayed

here are also

available in the

V.I.A.Plus App Dock.

Note: App location, appearance, and availability subject to change without notice.

FULLSCREEN V.I.A. PLUS APPS WINDOW OVERVIEW

The Fullscreen V.I.A. Plus Apps Window allows you to add, delete, and organize your Apps. The My Apps tab displays Apps that are

already installed on your TV. The Apps on the rst page are displayed

in the V.I.A. Plus App Dock.

Apps with a small lock icon in the right-hand corner cannot be deleted.

The following tabs are located at the top of your Fullscreen V.I.A. Plus Apps Window:

• My Apps: Displays Apps that are installed on your TV.

• Featured: Displays Apps that are recommended by Yahoo!

• Latest: Displays Apps that were most recently added to the

library of Apps.

• All Apps: Displays every App that is available for download.

• Categories: Displays Apps sorted into categories: Spotlight,

Yahoo!, Weather, News and Finance, Movies and TV, Photos and Video, Sports, Music, Social, Information, Fun and Games, Shopping, and Local TV.

• App Info ( ): Displays App software information and development settings.

You can preview Apps without installing them. Simply highlight the App you wish to preview and press OK to open it.

Note: App location, appearance, and availability subject to change without notice.

CUSTOMIZING THE V.I.A. PLUS APPS WINDOW

You can add, delete, and move Apps around on your My Apps tab for a custom look and feel.

Adding an App to the My Apps Tab

To add an App to your TV:

1. Use the Arrow buttons on the remote to highlight the App you wish to add.

2. Press and hold the OK button until [

added to your My Apps list

Once the App has been installed, a star appears in the top right-hand corner of the App icon as shown below.

Star

appears.

App Name] has been

Deleting an App from the My Apps Tab

To delete an App from your TV:

1. Use the Arrow buttons on the remote to highlight the App you wish to delete.

2. Press and hold the OK button. The following options appear:

Note: App location, appearance, and availability subject to change without notice.

3. Press OK to delete the App. The following dialog box appears:

4. Use the Left/Right Arrow buttons to select Delete and press OK.

The App is removed from your My Apps tab.

Moving an App in My Apps

You can organize your Apps on your My Apps tab by moving them where you want.

To move the Apps on your My Apps tab:

1. Use the Arrow buttons on the remote to highlight the App you wish to move.

2. Press and hold the OK button. The following options appear:

Note: App location, appearance, and availability subject to change without notice.

3. Use the Arrow buttons to move the App to the desired location and press OK to place the App. When you can move the App, it appears as shown below.

Note: App location, appearance, and availability subject to change without notice.

Only the Apps on the rst page appear in the Dock.

Troubleshooting & Technical Support

Do you have questions? Find answers at

SUPPORT.VIZIO.COM

Find help with:

• New product setup

• Connecting your devices

• Technical problems

• Product updates and more

Live chat support available

You can also contact our award-winning support team at:

Phone: Email:

Hours of Operation:

Monday - Friday: 7 am to 11 pm (pSt) Saturday - Sunday: 9 am to 6 pm (pSt)

Se habla Español • Nous parlons Français

(877) 698-4946 (toll-free) techsupport@VIZIO.com

The TV displays “No Signal.”

• Press the INPUT button on the remote control to select a

dierent input source.

• If you are using cable TV, satellite, or an antenna connected directly to the TV, scan for channels. See

Finding Channels

There is no power.

• Ensure the TV is plugged into a working electrical outlet.

• Ensure the power cable is securely attached to the TV.

• Press the Power/Standby button on the remote or on the side of the TV to turn the TV on.

The power is on, but there is no image on the screen.

• Ensure all cables are securely attached to the TV.

• Ensure all devices are connected correctly. Devices dier; see your device’s user manual for details.

• Adjust Brightness, Contrast, or Backlight. See

the Picture Settings

• Press the INPUT button on the remote to select a dierent input source.

on page 43.

Adjusting

on page 29.

There is no sound.

• Press Volume Up on the remote control.

• Press the MUTE button on the remote to ensure mute is

o.

• Check the audio settings. See on page 37. Ensure that the speakers are set to On.

• Ensure no headphones are connected to the TV.

• Check the audio connections of external devices (Blu-ray player, game console, cable/satellite box) that are connected to the TV.

• If you are using an antenna, the signal strength of the channel may be low. Ensure your antenna is connected securely to the TV and move the antenna around the room or close to a window for the best signal.

The colors on the TV don’t look right.

• Adjust the Color and Tint settings in the Picture menu. See

Adjusting the Picture Settings

• Select a pre-set picture mode. See

Settings

Calibrated mode.

• Check all cables to ensure they are securely attached.

on page 29. VIZIO recommends selecting the

Adjusting the Audio Settings

on page 29.

Adjusting the Picture

The buttons on the remote aren’t working.

• Ensure you are only pressing one button at a time.

• Point the remote directly at the TV when pressing a button.

• Replace the remote batteries with new ones. See

Replacing the Batteries

on page 17.

The image quality is not good.

• For the best image quality, view high-denition programs using digital sources. Connect your devices with HDMI cables.

The picture is distorted.

• Nearby electrical devices may be interfering with the TV. Separate the TV from electrical appliances, cars, or

uorescent lights.

• Ensure all cables are securely attached.

The display image does not cover the entire screen.

• If you are using TV, AV, or Component with 480i input, press the WIDE button on the remote to change the screen mode.

The TV has pixels (dots) that are always dark.

• Your HDTV is precision-manufactured using an extremely high level of technology. However, sometimes pixels may not display correctly. These types of occurrences are inherent to this type of product and do not constitute a defective product.

I see “noise” or static on the screen.

• When your TV’s digital capabilities exceed a digital broadcast signal, the signal is up-converted (improved) to match your TV’s display capabilities. This up-converting can sometimes cause irregularities in the image.

When I change input source, the volume changes.

• The TV remembers the volume level on each input source. If the volume level on the new input source is higher or lower than the level on the source you switch from, the

dierence may be noticeable.

• Use the Volume Up/Down buttons on the remote to adjust the volume.

When I change input source, the display image changes size.

• The TV remembers the viewing mode on each input source. If the viewing mode on the new input source

diers from the one on the input source you switch from, the dierence may be noticeable.

• See

Changing the Screen Aspect Ratio

on page 27.

Specications

Screen Size: 50" Class 55" Class

Viewable Area: 49.50" 55"

E50-C1 E55-C1

Dimensions w/ Stand:

w/o Stand:

Weight w/ Stand:

w/o Stand:

TV Type: DLED DLED

Refresh Rate: 120 Hz Eective Refresh Rate 120 Hz Eective Refresh Rate

Clear Action: 240 240

Maximum Resolution: 1920 x 1080 (1080p) 1920 x 1080 (1080p)

Dynamic Contrast Ratio: 5,000,000:1 5,000,000:1

Pixel Pitch: 0.571 mm (H) x 0.571 mm (V) 0.630 mm (H) x 0.630 mm (V)

Viewing Angle: 176° (H) / 176° (V) 178° (H) / 178° (V)

HDMI Inputs: 3 3

Component Video Inputs: 1 1

44.24" x 28.27" x 10.04"

44.24" x 25.91" x 2.52"

28.44 lbs

27.56 lbs

48.76” x 30.75” x 10.04”

48.76” x 28.39” x 2.52”

35.05 lbs

34.17 lbs

Composite Inputs: 1 (Shared with Component) 1 (Shared with Component)

RF Antenna Input: 1 1

USB 2.0 Ports: 1 1

Ethernet: 1 1

Built-In Wi-Fi: 802.11n

Audio Outputs: Optical Digital, RCA Analog Stereo

OSD Language: English, Spanish, French

E50-C1 E55-C1

Remote Control Model: XRT122 XRT122

Certications: UL, cUL, NOM, FCC Class B, BET7/ICES-003 Class B, IC, IFETEL, HDMI (CEC, ARC), Dolby Digital

Compliance: Energy Star 6.1, NRCan, CONUEE, NOM-032

Voltage Range: 120V @ 60 Hz 120V @ 60 Hz

Power Consumption: 58.8W 59.3W

Standby Power: < 1 W < 1 W

Zero Bright Pixel

Guarantee:

Yes Yes

Limited Warranty

ON PARTS AND LABOR

Covers units purchased as new in United States and Puerto Rico Only. VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one (1) year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support via e-mail: TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946) from 7:00AM to 11:00PM Monday through Friday and 9:00AM to 6:00PM Saturday and Sunday, Pacic Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period.

Replacement parts and Products may be new or recertied at VIZIO’s option

and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.

and set-up issues or any repairs attempted by anyone other than by a VIZIO

authorized service center. Products with unreadable or removed serial

numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold “AS IS”, “FACTORY RECERTIFIED”,

or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET

FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S

NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.

CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.

Type of Service

Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.

Product returns to VIZIO’s service centers must utilize either the original carton box and shipping material or packaging that aords an equal degree

of protection. VIZIO Technical Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO’s one-year limited warranty only covers defects in materials and

workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type

of customer misuse, modications or adjustments, as well as installation

Personal Data

If your VIZIO product is capable of storing personal data and other information, ALL CONTENTS AND INFORMATION WILL BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY SERVICE. If this occurs, your

product will be restored to you congured as originally purchased. You will

be responsible for restoring all applicable data and passwords. Recovery and reinstallation of user data is not covered under this Limited Warranty. In order to protect your personal information, VIZIO recommends that you always clear all personal information from the unit before it is serviced, regardless of the servicer.

Zero Bright Pixel Defect Guarantee

This policy covers “zero bright pixel” defects for the duration of the limited

“ONE YEAR WARRANTY” on select new product purchases. To determine if this

guarantee applies to your product, refer to the “DETAILS” tab of the model’s product information page (www.VIZIO.com) or look for the “zero bright pixel”

guarantee on the box.

Legal & Compliance

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice

1. The changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference

caused by unauthorized modication to this equipment. It is the

responsibilities of the user to correct such interference.

FCC warning

Changes or modications not expressly approved by the party responsible for

compliance with the FCC Rules could void the user’s authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Radiation exposure statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Caution

Always use an AC/DC power adapter that is properly grounded. Use the AC cords listed below for each area.

USA: UL Canada: CSA Germany: VDE UK: BASE/BS Japan: Electric Appliance Control Act

Open Source Software Notice

Your VIA device may contain GPL executables and LGPL libraries that are subject

to the PL2.0/LGPL2.1 License Agreements. VIZIO oers to provide source code

to you on CD-ROM for a processing fee covering the cost of performing such distribution, such as the cost of media, shipping and handling upon request made to VIZIO at www.VIZIO.com.

This oer is valid for a period of three (3) years from the date of the distribution

of this VIA device by VIZIO.

You can obtain a copy of the GPL, LGPL licenses from:

http://www.gnu.org/licenses/old-licenses/gpl-2.0.html

and

http://www.gnu.org/licenses/oldlicenses/lgpl-2.1.html

You can also obtain a copy of gSOAP public license from:

http://www.cs.fsu.edu/~engelen/license.html

Please visit www.VIZIO.com for attribution of copyrights to any open source software on your VIZIO VIA device.

Permission is hereby granted, free of charge, to any person obtaining a copy

of any such software and associated documentation les (the “Open Source

Software”), to deal in the Open Source Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Open Source Software, and to permit persons to whom the Open Source Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF ERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE

FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

VIZIO Internet Applications Disclaimer

VIZIO Internet Applications (“VIA”) aords the opportunity to access third party Internet product oerings or services (“VIA Services”) on certain VIZIO TVs.

The VIA Services accessible herein are provided as per our agreement with these third parties. These agreements are subject to change, interruption, suspension (including termination) at any time and for various reasons. VIZIO makes no warranties or representations that any particular VIA Service will be accessible, available, function in any particular manner or function at all.

To use these VIA Services, you must obtain access to the Internet, either directly or through devices that access the Internet and pay any service fees associated with such access. In addition, you must provide all equipment necessary to make such connection to the Internet including a modem or other Internet access device.

VIZIO or said third parties providing VIA Services reserve the right to delete data from their servers, or prevent access to their servers or to change data

categories, product oerings or service levels for any reason that VIZIO or said third parties deem sucient in their sole discretion at any time, without notice.

Some or all of the data or functionality of VIA Services may require additional payment by you. However, in no event will you be charged for any VIA Services unless those charges are made available to you in advance. VIZIO makes no warranties or representations of any kind as to the accuracy, currency, or completeness of any information contained on the data servers of such third party providers of any VIA Services. Furthermore, we do not review, control, or endorse the content, products or services of VIA Services or their data servers.

Your rights to use the widget links to access VIA Services is governed by

the VIZIO Internet Applications Software License Agreement (“VIA Software

License Agreement”), the terms of which are available in your Product Guide,

all of which are incorporated herein by this reference. In the event of a conict

between this VIZIO Internet Applications Disclaimer and the VIA Software License Agreement, the VIA Software License Agreement shall control.

VIZIO INTERNET APPLICATIONS SOFTWARE LICENSE AGREEMENT

THE FOLLOWING AGREEMENT EXPLAINS HOW YOU MAY USE THE VIZIO

INTERNET APPLICATIONS (“VIA”) TO ACCESS THIRD PARTY INTERNET PRODUCT OFFERINGS AND SERVICES (“VIA SERVICES”) AND THE VIZIO

SOFTWARE INSTALLED ON YOUR VIZIO HD TV. BY USING THE VIZIO INTERNET APPLICATIONS, YOU CONSENT AND AGREE TO BE BOUND BY ALL OF THE TERMS AND CONDITIONS BELOW AND YOU MAY, SUBJECT TO THOSE TERMS AND CONDITIONS, USE THE VIZIO SOFTWARE AND ACCESS THE VIA SERVICES.

VIZIO SOFTWARE LICENSE AGREEMENT

The following terms and conditions govern the use of any software on your VIZIO HD TV:

1. General. The software, documentation and any fonts accompanying this License Agreement whether on disk, in read only memory, on any other

media or in any other form (collectively the “VIZIO Software”) are licensed, not sold, to you by VIZIO, Inc. (“VIZIO”) for use only under the terms of this

License Agreement, and VIZIO reserves all rights not expressly granted to you. The rights granted herein are limited to VIZIO’s and its third party licensors’ intellectual property rights in the VIZIO Software and do not include any other patents or intellectual property rights. You own the media on which the VIZIO Software is recorded or resides but VIZIO and/or its licensor(s) retain ownership of the VIZIO Software itself. The terms of this License Agreement will govern any software upgrades provided or made available by or through VIZIO that replace and/or supplement the original VIZIO Software, unless such upgrade is accompanied by a separate license in which case the terms of that license will govern.

2. Permitted Uses and Restrictions. This License Agreement allows you to use the VIZIO Software and, through functions solely found within the VIZIO HD TV, this Agreement also allows you to install upgrades thereto. The VIZIO Software may be used to access VIA Services and view materials so long as such use is limited to materials in which you are authorized or legally permitted to view. You may not make the VIZIO Software or VIA Services available over a network or where it could be used by multiple televisions at the same time. Except as and only to the extent expressly permitted in this License Agreement or by applicable law, you may not copy, decompile, reverse engineer, disassemble, modify, or create derivative works of the VIZIO Software or any part thereof. THE VIZIO SOFTWARE AND VIA SERVICES ARE NOT INTENDED FOR USE IN ANY EQUIPMENT OR ENVIRONMENT IN WHICH THE FAILURE OF THE VIZIO SOFTWARE OR VIA SERVICES COULD LEAD TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE.

3. Transfer. You may not rent, lease, lend, redistribute or sublicense the VIZIO Software or access to the VIA Services. You may, however, make a one-time permanent transfer of all of your license rights to the VIZIO Software to another party, provided that: (a) the transfer must include the VIZIO HD TV, including all its component parts, original media, printed materials and this License Agreement; (b) you do not retain any copies of the VIZIO Software, full or partial, including copies stored on a computer or other storage device; and (c) the party receiving the VIZIO HD TV and VIZIO Software reads and agrees to accept the terms and conditions of this License Agreement.

4. Consent to Use of Collected Data. You agree that VIZIO and its third party providers of VIA Services may collect and use technical, non-technical and related information, including but not limited to information about your use of the VIZIO Software, the VIA Services, content viewed and attached peripherals,

products or services purchased, that is gathered periodically to facilitate the provision of software updates, product support and other services to you,

including additional or dierent VIA Services related to the VIZIO Software

and to verify compliance with the terms of this License Agreement. VIZIO and its third party providers of VIA Services and/or other providers may use this information, as long as it is in a form that does not personally identify you, to improve our products or to provide services or technologies to you.

5. VIA Services and other Services. The VIZIO software aords the opportunity to access third party Internet product oerings or services (“VIA Services”).

The VIA Services accessible herein are provided as per our agreement with certain third parties. These agreements are subject to change, interruption, suspension, removal (including termination) at any time and for various reasons. Moreover, VIZIO or its third party providers of VIA Services reserve the right to delete data from their servers, or prevent access to their servers

or to change data categories, product oerings or service levels for any reason that VIZIO or said third parties deem sucient in their sole discretion at any time, without notice. VIZIO may also impose additional or dierent limits on

the use of or access to certain VIA Services, in any case and without notice or liability. VIZIO makes no warranties or representations that any particular VIA Service will be accessible, available, function in any particular manner or function at all.

Use of the VIA Services may require you to accept additional terms of service or end user license agreements which will be presented to you before you can use such Services. Some or all of the data, functionality of VIA Services may require additional payment by you. However, in no event will you be charged for any VIA Services unless those charges are made available to you in advance.

6. Disclaimer as to Content on VIA Services. Certain VIA Services may include materials from third parties or links to certain third party data servers. You acknowledge and agree that VIZIO is not responsible for examining or evaluating the content or accuracy of any VIA Services, their data servers or related third-party materials. VIZIO does not warrant or endorse and does not assume and will not have any liability or responsibility for any third-party materials or websites, or for any other materials, products, or services of third parties. Links to VIA Services and any associated links to other data servers are provided solely as a convenience to you. To the extent provided, content types or descriptions of VIA Services provided for convenience, and you acknowledge and agree that VIZIO does not guarantee their accuracy. You understand that by using any of the VIA Services, you may encounter content

that may be deemed oensive, indecent, or objectionable, which content may or may not be identied as having explicit language. Nevertheless, you agree

to use the VIA Services at your sole risk and that VIZIO shall have no liability to

you for content that may be found to be oensive, indecent, or objectionable.

You agree that you will not use any third-party materials in a manner that would infringe or violate the rights of any other party, and that VIZIO is not in

any way responsible for any such use by you.

7. Internet Access Required. To use these VIA Services, you must obtain access to the Internet, either directly or through devices that access the Internet and pay any service fees associated with such access. In addition, you must provide all equipment necessary to make such connection to the Internet including a modem or other Internet access device.

8. Upgrades, Support. VIZIO or its third party providers may elect, but shall be under no obligation, to provide you with customer support and/or software

upgrades, enhancements, or modications to the VIZIO Software or VIA Services (collectively, “Support”), in its sole discretion, and may terminate such

Support at any time without notice to you. VIZIO and its third party providers reserve the right to charge you for any Support it provides but will make a schedule of those charges available to you prior to your incurring any costs.

9. Termination. This License is eective until terminated. Your rights under

this License will terminate automatically without notice from VIZIO if you fail to comply with any term(s) of this License Agreement. Upon the termination of this License Agreement, you shall cease all use of the VIZIO Software and VIA Services.

10. Limited Warranty on VIZIO Media. VIZIO warrants the media on which the VIZIO Software is recorded and delivered by VIZIO to be free from defects in materials and workmanship under normal use for a period of ninety (90) days from the date of original retail purchase. Your exclusive remedy under this Section shall be, at VIZIO’s option, a refund of the purchase price of the product containing the VIZIO Software or replacement of the VIZIO Software which is returned to VIZIO or a VIZIO authorized representative with a copy of the receipt. THIS LIMITED WARRANTY AND ANY IMPLIED WARRANTIES ON THE MEDIA INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY QUALITY, AND OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO NINETY (90) DAYS FROM THE DATE OF ORIGINAL RETAIL PURCHASE. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THE LIMITED WARRANTY SET FORTH HEREIN IS THE ONLY WARRANTY MADE TO YOU AND IS PROVIDED IN LIEU OF ANY OTHER WARRANTIES (IF ANY) CREATED BY ANY DOCUMENTATION

OR PACKAGING. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,

AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY BY JURISDICTION.

11. Disclaimer of Warranties. YOU EXPRESSLY ACKNOWLEDGE AND AGREE

THAT USE OF THE VIZIO SOFTWARE AND VIA SERVICES (AS DEFINED ABOVE)

IS AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY

QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU. EXCEPT FOR THE LIMITED WARRANTY ON MEDIA SET FORTH ABOVE AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE VIZIO SOFTWARE

AND VIA SERVICES ARE PROVIDED “AS IS”, WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND VIZIO AND VIZIO’S THIRD PARTY PROVIDERS

OF VIA SERVICES AND THIRD PARTY LICENSORS (COLLECTIVELY REFERRED TO

AS “VIZIO” FOR THE PURPOSES OF SECTIONS 10 AND 11) HEREBY DISCLAIM

ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE VIZIO SOFTWARE AND SERVICES, EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF MERCHANTABILITY, OF SATISFACTORY QUALITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY, OF QUIET ENJOYMENT, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. VIZIO DOES NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE VIZIO SOFTWARE OR VIA SERVICES, THAT THE FUNCTIONS CONTAINED IN THE VIZIO SOFTWARE OR VIA SERVICES WILL MEET YOUR REQUIREMENTS, THAT THE OPERATION OF THE VIZIO SOFTWARE OR VIA SERVICES WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS IN THE VIZIO SOFTWARE OR VIA SERVICES WILL BE CORRECTED. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY VIZIO OR A VIZIO AUTHORIZED REPRESENTATIVE SHALL CREATE A WARRANTY. SHOULD THE VIA SOFTWARE OR VIA SERVICES PROVE DEFECTIVE, YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO THE ABOVE EXCLUSION AND LIMITATIONS MAY NOT APPLY TO YOU.

12. Limitation of Liability. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL VIZIO BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, LOSS OF DATA, BUSINESS INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATED TO YOUR USE OR INABILITY TO USE THE VIZIO SOFTWARE OR VIA SERVICES, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY (CONTRACT, TORT OR OTHERWISE) AND EVEN IF VIZIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS LIMITATION MAY NOT APPLY TO YOU. In no event shall VIZIO’s total liability to you for all damages (other than as may be required by applicable law in cases involving personal

injury) exceed the amount of twenty ve dollars ($25.00). The foregoing

limitations will apply even if the above stated remedy fails of its essential purpose.

13. Export Control. You may not use or otherwise export or re-export the VIZIO Software except as authorized by United States law and the laws of the jurisdiction in which the VIZIO Software was obtained. In particular, but without limitation, the VIZIO Software may not be exported or re-exported (a) into any U.S. embargoed countries or (b) to anyone on the U.S. Treasury Department’s list of Specially Designated Nationals or the U.S. Department of Commerce Denied Person’s List or Entity List. By using the VIZIO Software, you represent and warrant that you are not located in any such country or on any such list. You also agree that you will not use these products for any

purposes prohibited by United States law, including, without limitation, the development, design, manufacture or production of missiles, or nuclear, chemical or biological weapons.

14. Controlling Law and Severability. This License Agreement will be governed by and construed in accordance with the laws of the State of California, as applied to agreements entered into and to be performed entirely within California between California residents. This License Agreement shall not be governed by the United Nations Convention on Contracts for the International Sale of Goods, the application of which is expressly excluded. If for any reason

a court of competent jurisdiction nds any provision, or portion thereof, to be

unenforceable, the remainder of this License Agreement shall continue in full

force and eect.

15. Complete Agreement; Governing Language. This License Agreement constitutes the entire agreement between the parties with respect to the use of the VIZIO Software licensed hereunder and supersedes all prior or contemporaneous understandings regarding such subject matter, with the exception of any additional terms and conditions you are required to accept if you choose to access VIA Services which will govern your use of such VIA

Services. No amendment to or modication of this License Agreement will be

binding unless in writing and signed by VIZIO. Any translation of this License Agreement is done for local requirements and in the event of a dispute between the English and any non-English versions, the English version of this License Agreement shall govern.

Other

Image(s) used under license from Shutterstock.com

VIZIO E50-C1, E55-C1 User Manual
