DIGITAL COLOUR PLAIN PAPER COPIER

OPERATOR'S MANUAL
FOR COPYING FUNCTIONS

How to affix the PM labels

WARNING: Changes or modification made to this equipment, not expressly approved by

Toshiba TEC or parties authorized by Toshiba TEC could void the user’s
authority to operate the equipment.

Trademarks:

Fiery is a trademark registered in the U.S.Patent and Trademark Office.
Fiery Scan, Command WorkStation, WebSpooler are trademarks of Electronics For Imaging, Inc.

2

TOSHIBA QUALITY IS SECOND TO NONE

e-STUDIO210c/310c Toner Cartridg es

It is recommended that genuine TOSHIBA supplies and parts be used in order to obtain optimum results.

1

2

3

4

5

6

Supplies / Parts

Dependability

Genuine Toshiba supplies are subjected to the strictest of inspections so that every supply you receive
will perform at optimal levels.

High Productivity

Genuine Toshiba supplies are created to meet the demands of our competitive world and provide high­speed reliable trouble-free copies when you need them.

Stable Image Quality

Genuine Toshiba supplies are designed to provide consistently stable image output day after day.

Copier Kind

Genuine Toshiba supplies are designed to keep the copier and all its parts in trouble-free working order.
Reduction of machine wear is due to Toshiba´s intimate knowledge of the copier’s characteristics ensuring
the highest standard of care.

Machine Balance

From the beginning Toshiba supplies and machines were made for each other. Whenever Toshiba designs
a new machine, it also designs a new toner that is made just for that machine. By using Genuine Toshiba
supplies with Toshiba copiers you guarantee optimum performance.

7

8

9

10

11

12

1

TOSHIBA QUALITY IS SECOND TO NONE (Cont.)

1

2

3

4

5

6

7

Toners

Optimum Image Quality

Genuine Toshiba toners use ultra-fine quality materials and precisely controlled parameters so that
Toshiba copiers can continually generate sharp high-quality image output.

Cost Advantage

Genuine Toshiba toners mean value. They are designed to use only the proper amount of toner enabling
the machine to continue to operate until all the toner has been used. In this way you get the full value of
the toner.

Environmental Harmony

Genuine Toshiba toners are designed with the environment in mind. To care for Mother Earth, we use
embossed or plastic labels making our toners fully recyclable. In addition, harmful dust and ozone levels
have been reduced to improve the working environment.

Human Friendly

Genuine Toshiba toners are people-friendly. Before approving our toners for sale, we test them to be
sure that they pass the strictest of health standards. This takes the worry out of handling the toner.

General

ISO 9000 and ISO 14000

Toshiba toner plants are ISO 9001 or ISO 9002 and ISO 14001 certified.
Therefore quality of craftsmanship and environmental friendly production are guaranteed from the
factory.

8

9

10

11

12

Service and Support Benefits

Toshiba´s Service engineers are certified to keep your copier performing at optimum levels. To ensure
continuous image quality it is highly recommended to utilize an authorized Toshiba service provider to
care for and perform periodical maintenance so that you can get full benefit from your copier.

2

PREFACE

Thank you for purchasing the Toshiba Digital Colour Copier e-STUDIO210c/310c. This Operator’s Manual
describes the following:

• how to use the digital colour copier

• how to inspect and carry out maintenance on the digital copier

• how to remedy mechanical and copying problems

The Colour Guidebook in colour, which comes in a separate volume explains copy density adjustment,
colour adjustment, copy editing, image editing and image processing in a way that is easy for you to under­stand.
Before using the digital colour copier, thoroughly read and understand this Operator’s Manual. To ensure
that clean copies are made at all times and to keep your digital colour copier in optimum working order, this
Operator’s Manual should be readily available for future reference.

1

2

3

When the digital copier is used as a printer or scanner, be sure to read the Operator’s Manual for the Printer
Controller (User Document CD-ROM).

To ensure correct and safe use of the Toshiba Digital Colour Copier e-STUDIO210c/310c, this Operator’s
Manual describes safety precautions according to the following three levels of warning:

Before reading this Operator’s Manual, you should fully understand the meaning and importance of
these signal words.

Warning .. Indicates a potentially hazardous situation which, if not avoided, could result in death,

serious injury, or serious damage, or fire in the equipment or surrounding assets.

Caution ... Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury, partial damage of the equipment or surrounding assets, or loss of data.

Note........ Indicates a procedure you should follow to ensure the optimal performance of the digital

colour copier and problem-free copying.

Tip .......... Describes handy information that is useful to know when operating the digital colour

copier.

Advice .... Describes an operation you should follow to keep the digital colour copier in good working

order.

Warning
This is a Class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.

4

5

6

7

8

9

1. Do not touch the connector terminal when disconnecting the cables of peripheral equipment.

2. Before opening any covers or removing any units from the copier, discharge the static electricity
from your body by touching a metal part of the copier.

This product is carrying the CE-Mark in accordance with the related European Directives. Responsible
for CE-marking is TOSHIBA TEC GERMANY IMAGING SYSTEMS GmbH, Carl-Schurz-Str. 7, 41460
Neuss, Germany. e-mail : [e-mail]

COPYRIGHT 2001

TOSHIBA TEC COPORATION

10

11

12

3

1

2

3

4

5

6

7

8

9

PREFACE (Cont.)

Features of the e-STUDIO210c/310c

The e-STUDIO210c/310c is a digital colour copier employing a 4-step tandem copy process, which is
capable of high-speed full-colour copying. The e-STUDIO210c/310c incorporates a display with a touch
panel and menu keys that graphically represent copier functions. As a result, anybody can make clear­looking copies quickly and easily.
The e-STUDIO210c/310c also has the following convenient features, functions and options.

The full-colour copying speed is 21 copies (A4) per minute for the e-STUDIO210c, and 31 copies (A4)
per minute for the e-STUDIO310c.
The resolution of both scanning and reading realizes a high-quality full-colour image with 600dpi and 256
shades of gradation for each colour by the proprietary 4-beam laser unit.
The 9.5 seconds for the first copy output marks the fastest speed among copiers of a similar class. You
can make copies pleasantly in no time.
The warm-up time is drastically shortened to approximately 4 minutes (about half of that of the Toshiba
copiers FC15/22).
Electronic sorting improves both colour and black-and-white copying productivity.
OHP film feeding is available from the cassette.
Comes with rich editing functions such as trimming, masking and image repeat.
Loading the page memory and hard disc as standard equipment enables 2 in 1/ 4 in 1, electronic sorting
and magazine sorting, etc.
A fixing system with less oil reduces the amount of oil stuck to the paper and consequently produces
OHP-film copies of good permeability.
Just by simply replacing the cartridge, you can add toner and you do not soil your hands. Since the
paper is fed in straight, any paper jams can be cleared quickly.
A wide variety of media from thin paper (64g/m2) to thick paper (256g/m2), sticker labels, OHP films, etc.
is acceptable.
A wide range of paper sizes from A6-R to A3-wide (305 x457mm) is acceptable.
The image quality technology offers up to 999 successive stable copy images.
The Advanced Image Enhancement mode automatically analyses an original which has mixed text,
illustrations and photographs, and reproduces an optimal image.
Installing an optional finisher offers quick sorting such as stapling, magazine sorting and hole punching
(optional) of copies automatically.
Installing a finisher with an optional saddle stitching function attached allows you to select the saddle
stitching mode which will automatically staple the centre of the document just like a book.
Two types of controllers (optionaI) can be connected to the copier externally or internally in order to
make printers and scanners available.
Comes with the ‘energy saving mode’ which can lower the fuser temperature to save power consump­tion while the copier is not being used. The ‘off-mode’ will automatically turn the copier off when it is not
used for a specified period of time, and the ‘sleep mode’ can maintain the minimum power consumption
when the optional printer is in use (waiting) while the copier is not being used.

10

11

12

4

TABLE OF CONTENTS

Toshiba quality is second to none ......................................................................................................1

Preface ................................................................................................................................................3

Features of the e-STUDIO210c/310c ................................................................................................... 4

Table of contents .................................................................................................................................. 5

Precautions .......................................................................................................................................... 8

1. Installation ........................................................................................................................................8

2. General precautions ......................................................................................................................... 9

Forgery prevention function/ Storage of colour copies ........................................................................ 12

1

2

1.Before making copies ................................................................................................................... 1-1

1. Description of the digital colour copier and the optional equipment .......................................... 1-2

- Main components ..................................................................................................................... 1-2

- Optional equipment .................................................................................................................. 1-3

- Control panel ............................................................................................................................ 1-4

- Touch panel .............................................................................................................................. 1-6

2. Turning ON the power switch ...................................................................................................... 1-8

- Controlling the use of the copier with access codes ............................................................... 1-9

- Controlling the use of the copier using the optional key copy counters ................................ 1-10

3. Energy-saving functions............................................................................................................ 1-11

2.How to make copies ...................................................................................................................... 2-1

1. General copying procedures ...................................................................................................... 2-2

2. Setting copy paper ...................................................................................................................... 2-4

- Acceptable copy paper types and sizes .................................................................................. 2-4

- Recommended paper / Handling and storing paper .................................................................... 2-5

- Changing the paper size of the cassette / Setting the cassette for special uses ......................... 2-6

3. Setting originals .............................................................................................................................2-9

- Acceptable original types and sizes............................................................................................ 2-9

- When placing an original on the glass ....................................................................................... 2-10

- When using the reversing automatic document feeder (optional) ...............................................2-11

4. Auto job start (Job preset) ........................................................................................................... 2-14

- During warming-up ................................................................................................................... 2-14

- During copying ......................................................................................................................... 2-15

- During printing (optional) ........................................................................................................... 2-16

5. Interrupt copying ..........................................................................................................................2-17

6. Cancelling/Resuming a copy operation ........................................................................................ 2-18

3

4

5

6

7

8

9

3.Setting of basic copy modes ........................................................................................................ 3-1

1. Paper selection ........................................................................................................................... 3-2

- Automatic paper selection (APS) ............................................................................................. 3-2

- Manual paper selection ........................................................................................................... 3-3

2. Reduction and enlargement copying ......................................................................................... 3-4

3. Duplex copying (1-sided, 2-sided, book-type) ............................................................................ 3-7

4. Copy density adjustment ........................................................................................................... 3-13

5. Colour mode.............................................................................................................................. 3-14

6. Original mode ............................................................................................................................ 3-15

10

11

12

5

TABLE OF CONTENTS (Cont.)

1

2

3

4

5

6

4.Colour editing and adjustment....................................................................................................... 4-1

1. Monocolour copying ......................................................................................................................4-2

2. Hue adjustment ............................................................................................................................. 4-3

3. Saturation ...................................................................................................................................... 4-4

4. Colour balance (YMCK adjustment) ...............................................................................................4-5

5. RGB adjustment ............................................................................................................................ 4-6

6. One-touch adjustment ................................................................................................................... 4-7

7. Background adjustment ................................................................................................................. 4-8

8. Sharpness adjustment ...................................................................................................................4-9

5.Using the editing functions............................................................................................................ 5-1

1. Image shift ................................................................................................................................... 5-2

2. Edge erase .................................................................................................................................. 5-4

3. Book centre erase ....................................................................................................................... 5-5

4. Dual-page ................................................................................................................................... 5-6

5. Full image .................................................................................................................................... 5-8

6. 2 IN 1 / 4 IN 1 ............................................................................................................................... 5-9

7. Magazine sort (from the editing menu) ......................................................................................... 5-11

8. X-Y zoom .................................................................................................................................... 5-13

9. Image editing ............................................................................................................................... 5-14

- Trimming/Masking ..................................................................................................................... 5-14

- Mirror image ............................................................................................................................. 5-16

- Negative/Positive reversal ........................................................................................................ 5-17

10.Centring ..................................................................................................................................... 5-18

11.Image repeat .............................................................................................................................. 5-20

7

8

9

10

11

12

6.Using the special functions .......................................................................................................... 6-1

1. Continuous original feeding / Single original feeding ....................................................................... 6-2

2. Mixed-sized originals ..................................................................................................................... 6-4

3. Bypass copying ............................................................................................................................. 6-5

- Bypass copying on standard size or A3-wide paper ................................................................... 6-7

- Bypass copying on non-standard size paper ..............................................................................6-8

- Special paper such as thin paper/thick paper/OHP films and sticker labels .............................. 6-10

4. Mode memory.............................................................................................................................. 6-12

5. Setting the “OTHER” size key ...................................................................................................... 6-15

6. User selection (Initial settings) ..................................................................................................... 6-16

7. Weekly timer ................................................................................................................................ 6-18

8. Setting the date and time ............................................................................................................. 6-20

9. Total counter ............................................................................................................................... 6-21

10. Department management .......................................................................................................... 6-22

- Printing an access code list ......................................................................................................6-23

- Setting access codes (Registration/Change/Deletion) .............................................................. 6-24

- Resetting counters ................................................................................................................... 6-27

11.Automatic calibration .................................................................................................................. 6-28

12.Switching between languages .................................................................................................... 6-30

13.Setting the energy saving mode ................................................................................................. 6-31

14.Setting the off-mode (auto shutoff) .............................................................................................. 6-32

6

7.Selecting finishing modes (Using the optional finishers) ............................................................. 7-1

1. Finishing modes and finishers (optional) ........................................................................................ 7-2

2. Sort/group copying ........................................................................................................................7-3

3. Staple sorting ................................................................................................................................7-4

4. Magazine sort & saddle stitching mode (booklet mode) ................................................................. 7-6

5. Hole punching mode ...................................................................................................................... 7-8

8.Network scanning function (Using the optional printer controller) ............................................ 8-1

1. Scanning the image data ............................................................................................................ 8-2

- Scan setting on the touch panel .............................................................................................. 8-2

- Touch panel during scanning ................................................................................................... 8-9

2. Shutting down the power supply to the printer controller ......................................................... 8-10

9.When the graphic symbols flash on the touch panel.................................................................... 9-1

1. Description of the flashing graphic symbols ................................................................................... 9-2

2. Add paper symbol.......................................................................................................................... 9-3

- Adding paper to the cassettes .................................................................................................... 9-3

- Adding paper to the large-capacity feeder (optional) ................................................................... 9-4

3. Replace toner cartridge symbol .....................................................................................................9-5

4. Replace toner bag symbol ............................................................................................................. 9-7

5. Clear paper symbol ....................................................................................................................... 9-9

Reversing automatic document feeder (optional) ...................................................................... 9-9

Cassette feeding area ............................................................................................................ 9-10

Large-capacity feeder (optional) ............................................................................................. 9-11

Bypass feed unit .................................................................................................................... 9-12

Inside of the copier ................................................................................................................. 9-12

Automatic duplexer (optional) ................................................................................................. 9-15

Hole punch unit (optional) ....................................................................................................... 9-17

Finisher (optional) ................................................................................................................... 9-18

Saddle stitching unit (optional) ................................................................................................ 9-19

6. Adding staples (optional) ............................................................................................................. 9-21

7. Removing jammed staples (optional) ........................................................................................... 9-25

8. Clearing accumulated punched paper bits (optional) .................................................................... 9-27

9. Call service symbol ..................................................................................................................... 9-28

10. Periodic maintenance message ................................................................................................. 9-29

1

2

3

4

5

6

7

8

9

10.Maintenance ............................................................................................................................... 10-1

1. Daily inspection ......................................................................................................................... 10-2

2. Simple troubleshooting ............................................................................................................. 10-4

11.Specifications & Options ........................................................................................................... 11-1

1. e-STUDIO210c/310c specifications ........................................................................................... 11-2

2. Specifications of options ............................................................................................................. 11-3

3. Packing list ............................................................................................................................... 11-10

4. Copying function combination matrix ........................................................................................ 11-11

5. Image quality adjustment combinaton matrix ............................................................................. 11-12

6. Index ........................................................................................................................................ 11-13

10

11

12

7

PRECAUTIONS

1. Installation

1

2

3

4

5

6

The e-STUDIO210c/310c should be installed by a qualified service technician.

Note: The packing material should be disposed of properly.

1

To obtain the best possible results, this copier should be used in conjunction with a
dedicated AC power line at the following ratings.

2

220–240V, 50/60Hz, 9A

Notes:

1. The use of other appliances or other equipment on the same line as this copier may adversely
affect performance and copy quality.

2. Be sure to use a 3-conductor, grounded wall outlet.

3. In areas where a 2-pin plug is used, the copier must be grounded for safety.
Never ground it to a gas pipe, a water pipe, or any other object not suitable for grounding.

After a suitable place has been selected for the installation of the e-STUDIO210c
/310c, please do not change it. Avoid excessive heat, dust, vibration and direct sun-

3

light. Also, provide proper ventilation as the copier emits a small amount of ozone.

Notes:

1. The recommended environmental range for use is as follows:

• Temperature: 10~30°C/50~86°F

• Humidity: 20~85% RH

2. To insure optimal operation, allow clearances of at least 80cm on the left, 80cm on the right and 10
cm in the rear (refer to the illustration below).

7

8

9

10

11

12

The socket outlet should be installed near the equipment and be easily accessible.

8

2. General Precautions

Handle and use the copier gently and carefully.

• Do not place anything on the paper cassettes or the original feeding tray.

1

• Never allow the power cable to be trampled on or pinched between hard objects, otherwise an

accident or electrical trouble might occur.

• Do not allow any metal items such as paper clips to fall into the copier.

Be sure to turn OFF the power switch (unless using the weekly timer mode):

2

3

4

• When you leave your office at night.

• If a power failure occurs.

Caution: When turning OFF the power switch, be sure to do so only after the machine cycling

has come to a complete stop.

Be sure to disconnect the power-cord plug:

• When you do not intend to use the copier for an extended period of time.

Be sure to turn OFF the power switch immediately and call for service:

• If an unusual noise is heard from the copier.

• If the outside of the copier becomes unusually hot.

• If any part of this copier is damaged, or if it has been dropped.

• If the copier has been exposed to rain or liquid.

It is recommended that only supplies made or designated by Toshiba be used for the
e-STUDIO210c/310c in order to optimize copy quality. All supplies should be stored
in a cool, dry area.

For optimum performance, it is recommended that 80 g/m2 xerographic bond paper of high quality be
used. Paper of lower quality may contain inherent properties such as excess paper dust and may lead to
premature servicing.

Do not apply force or place heavy objects (4kg or more) on the original glass. Break­ing the glass may cause personal injury.

1

2

3

4

5

6

7

Do not place heavy objects on the copier. They may fall and injure you.

5

WARNING:DO NOT LEAN ON, APPLY FORCE OR PLACE HEAVY OBJECTS ON THE

FINISHER. PERSONAL INJURY OR PROPERTY DAMAGE MAY RESULT.

Machine Noise Information

Ordinance3. GSGV, January 18, 1991: The maximum sound pressure level is equal to or less than
70dB(A) according to EN27779.

8

9

10

11

12

9

1

2

3

4

PRECAUTIONS (Cont.)

2. General Precautions (Cont.)

Warning Label

DANGER

- LASER RADIATION WHEN OPTICAL UNIT OPEN OR DRUM UNIT REMOVED

AND INTERLOCK DEFEATED. AVOID DIRECT EXPOSURE TO BEAM.

VORSICHT

- LASERSTRAHLUNG, WENN DIE ABDECKUNG GEOFFNET ODER
DIE TROMMEL ENTFERNT UND DIE VERRIEGELUNG UNWIRKSAM GEMACHT WIRD.
NICHT DIREKT DEM STRAHL AUSSETZEN.

DANGER

- RAYON LASER LORSQUE LE BLOC OPTIQUE EST OUVERT, LE
TAMBOUR RETIRE ET LE VERROUILLAGE HORS D' USAGE.
EVITER L'EXPOSITION DIRECTE AU RAYON.

PELIGRO

- RADIACION DE LASER CUANDO LA UNIDAD OPTICA ESTA
ABIERTA O LA UNIDAD DEL CILINDRO ES RETIRADA Y CUANDO EL INTERRUPTOR
DE SEGURIDAD ESTA DESACTIVADO. EVITE EXPOSICION DIRECTA AL RAYO.

>PS<

Copying Prohibition
Label

5

6

7

8

9

10

11

Explanatory Label

CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
LASER KLASSE 1
PRODUCTO DE LASER DE CLASE 1

PS

<

>

Warning for high
temperature areas

12

10

Fixing the adjusters (stoppers)

There are two adjusters (stoppers) located in the front bot­tom part of the copier. After moving/installing the copier, be
sure to turn the adjusters clockwise to fix them firmly on
the ground.

*To unlock the adjusters when moving the copier, turn them

anticlockwise.

If the copier is not steady, it may fall over and result in personal
injury.

1

2

3

To lock

To unlock

4

5

6

7

8

9

10

11

12

11

FORGERY PREVENTION FUNCTION/ STORAGE OF COLOUR COPIES

1

2

3

4

5

6

7

FORGERY PREVENTION FUNCTION

This copier has a forgery prevention function.
Please ensure that your digital full-colour copier is not used for making copies of prohibited
items.

STORAGE OF COLOUR COPIES

(1) The copies should be kept in a place which is not exposed to light to prevent fading when

they are stored for a long time.

(2) If copies are kept pressed between plastics made of chloroethylene for a long time, the

toner may melt and stick to the plastic due to high pressure and high temperature. Keep

them in polythene binders.
(3) When a colour copy is folded, the toner at the fold can become separated.
(4) The toner on the copies may melt if it touches solvent. If the ink on the copies has not

completely dried, the toner may also melt. Keep copies away from solvent.
(5) When copies are kept near an extremely high temperature source such as a heater, the

toner may melt. Keep them at room temperature and do not allow this to vary very much.

8

9

10

11

12

12

1. BEFORE MAKING COPIES

1. Description of the digital colour copier and the optional equipment ......

- Main components .......................................................................................... 1-2

- Optional equipment ........................................................................................ 1-3

- Control panel.................................................................................................. 1-4

1-2

1

2

3

- Touch panel .................................................................................................... 1-6

2. Turning ON the power switch ..................................................... 1-8

- Controlling the use of the copier with access codes....................................... 1-9

- Controlling the use of the copier using the optional key copy counters......... 1-10

3. Energy-saving functions ........................................................... 1-11

4

5

6

7

8

9

10

11

12

1-1

1. DESCRIPTION OF THE DIGITAL COLOUR COPIER AND THE OPTIONAL EQUIPMENT

Main Components

1

2

3

4

5

6

7

Control panel

Exit cover
(Left side)

Fuser unit

Original scales

Cassettes*1

Operator’s manual pocket

(Back side)

Original cover
(Optional)

Original glass

Key copy
counter slot

Power switch

Bypass guide

Feed side cover

Paper size indicator

Toner cartridges

Right-hand front cover

8

9

10

11

12

1-2

Left-hand
front cover

Used toner bag
(container)

Electrophotographic unit

Transfer belt unit knob

Transfer belt unit

Fuser unit
Transfer belt unit

*1......2 cassettes are standard equipment. When the automatic duplexer (optional) is in-

stalled in the uppermost cassette, the 2nd to the 4th cassettes are for paper feeding (the
4th is an option).

BEFORE MAKING COPIES

Optional Equipment

Key Copy Counter

Records (or accumulates) the number of copies made by each person or group separately.

Reversing Automatic Document Feeder

Automatically feeds a placed stack of originals one by one to have them copied.

Automatic Duplexer

This reverses the copies in order to make duplex copies.

1

2

Optional Cassette Modules

One optional module can be attached when the automatic duplexer (optional) is installed.

Large-Capacity Feeder

Feeds up to 1500 sheets of A4-sized paper (80g/m

Finisher

Enables the use of the hole punching (available when the optional hole punch unit is installed) and
saddle stitching modes (MJ-1020 only) in addition to the sort, group and stapling modes.

Hole Punch Unit

Makes punch holes on copies.

Optional Equipment Configuration

Finisher

Hole Punch Unit

Original
Feed Tray

2

)(recommended by Toshiba) continuously.

Reversing Automatic Document Feeder

Key Copy Counter

(Right side)

3

4

5

6

7

8

Automatic Duplexer

Large-Capacity Feeder

(Without the automatic duplexer in­stalled, two optional modules can
be attached as the 3rd and 4th cas­settes.)

Optional Cassette Module

9

10

11

12

1-3

1

1. DESCRIPTION OF THE DIGITAL COLOUR COPIER AND THE OPTIONAL EQUIPMENT (Cont.)

Control Panel

TIMER lamp

The TIMER lamp lights when the timer is being used.

HELP key

When this key is pressed, the appropriate operation procedures are displayed.

2

3

4

5

6

7

8

PRINTER/NETWORK key

If you have a printing and scanning option (printer controller) installed, press this key to switch between
the printer/scanner function and copier function.
* PRINT key Page 1-5 (right bottom)

ENERGY SAVER key

When you are not going to use the copier for a while, press this key, which automatically turns off all
display lamps. To resume copying, press this key again.
If you press this key when the optional printer controller is installed, the power supply to the printer
board is not cut off, which allows automatic return of the device when it receives printer data.

INTERRUPT key

While copying is already in progress, press this key when you want to make copies of different
originals. During interrupt copying, copies can be made only one by one. Pressing the key again will
return you to the previous copy job.

Touch panel

Displays the copier conditions, operating procedures, and various instructions and information to the
user in text and illustrations.

COLOUR SAMPLE SEAL

This seal shows samples of the monocolour mode.

1

234

5

6

9

10

11

12

1-4

BEFORE MAKING COPIES

HELP

14

ACCESS CODE key

Press this key to administer the users of the copier by the access code. Press this key again when you
finish making copies so that the next person must enter his/her own access code to make the copier

available again.

Page 1-9

1

FUNCTION CLEAR key
When this key is pressed, all selected copy modes are cleared to default settings.
* Automatic Function Clear

STOP key

Use this key to stop an ongoing scan and copy operation.

START key

Press this key to start copying.

Digital keys

Use these keys to enter the number of copies you want to make and so on.

cCLEAR key

Use this key to correct numbers entered with the digital keys such as an incorrect copy quantity.

COLOUR MODE SELECTION key

AUTO COLOUR
The type of original is automatically recognized. Coloured originals are colour-copied and black and white
originals are copied in black and white.

FULL COLOUR
Regardless of colour, all originals are colour-copied.

BLACK
Regardless of colour, all originals are copied in black and white.

78 9

Right bottom of this page

Page 2-18

10

PRINT key

Page 2-2

2

3

4

5

6

7

8

If you press the PRINTER/NETWORK key when
the optional printer controller is installed, the PRINT
key is displayed on the touch panel ( Page 8-2).
Press this key if you want to start printing immediately
after copying has been finished.
(If it is not pressed, printing automatically starts in 45

seconds.)

Automatic Function Clear

Even if you do not press the
key, withinthe specified period of time after copying or
scanning (when the optional printer controller is in­stalled) is finished or after the last key is pressed in a
copy procedure, the automatic function clear mode will
work to clear all settings to defaults, and the basic
screen will be displayed. While the department man­agement function is being operated, the display returns

to the access code input screen. Page 1-9

13

12

11

FUNCTION CLEAR

9

10

11

12

1-5

1

2

3

4

5

1. DESCRIPTION OF THE DIGITAL COLOUR COPIER AND THE OPTIONAL EQUIPMENT (Cont.)

Touch Panel

When the power is turned on, the following basic screen is shown on the touch panel. (If each department is
controlled by an access code, a different screen is displayed. Page 1-9)
On the screen, currently set functions, selected functions and the copier status are shown using mes­sages and illustrations.
* The contents of the touch panel screens in this manual show a copier equipped with a complete range of
options.

Paper type

Message

Index keys

Function setting area

Reproduction ratio

Total copy

quantity

Selected colour mode

Set functions confirmation key

6

7

8

9

10

11

12

Message Display

The following information is shown on the touch panel:
Copier status, operational instructions, cautionary messages, reproduction ratios, total copy quantity,
paper type and colour modes.

- Paper type

If THIN, THICK1 paper or OHP films are set in the cassette
( Page 2-7), or any special sheets are set on the sheet
bypass (
on the top right of the screen.

The various function items are touch-key selectable. Press any key lightly with your finger.

- Index keys

Used for switching between the Basic, Colour, Editing and Programme menu.

- Function setting area

This is where you select or set various functions.

Page 6-10), the selected paper type is displayed

Touch-keys

THIN

THICK1,2,3

OHP
FILM

1-6

BEFORE MAKING COPIES

- Set functions confirmation key

This key allows you to confirm the functions that have been
set. (The display shown on the right is an example.)

The icons displayed on the screen are as follows(some icons may not appear on the screen):

1

2

3

4

5

6

Clearing the Functions Selected

If you press any key that is half-tone shaded, the function selected is cleared. Also, if the copier is left
inactive for approx. 45 seconds, the automatic function clear (
cleared.

Page 1-5) works and the settings will be

7

8

9

10

11

12

1-7

1

2

3

4

5

6

2. TURNING ON THE POWER SWITCH

Turn ON the power switch.

- This message appears on the message panel of the Basic

1

Screen:

Wait Warming Up

About 4 minutes later, the copier will become ready
for copying.

2

- This message appears on the message panel:
READY

While the copier is warming up, you can use the Auto Job
Start function.

Page 2-14

7

8

9

10

11

12

1-8

BEFORE MAKING COPIES

Controlling the Use of the Copier with Access Codes

With the use of access codes, you can restrict copier users as well as manage copy volumes made by
individual groups or departments of your company.
* Registering, changing and deleting an access code
* The access codes and the key copy counters ( Page 1-10) cannot be used together.

When the department management function is in
use, the screen shown on the right appears imme-

1

diately after the power switch is turned on.

- The same screen is displayed when the ACCESS
CODE key is pressed or the automatic function clear mode
is activated.

Key in a registered access code (5-digit).

- The copier will be ready for copying.

2

If the following message remains displayed,

Enter access code

the access code you have entered may be incorrect. Key in the
correct code.

Page 6-24

1

2

3

4

5

6

After Copying is Finished

If the department control function is in use, be sure to press the ACCESS CODE key on the control
panel after finishing copying. The display returns to the access code input screen and the department
management function will remain active.

7

8

9

10

11

12

1-9

2. TURNING ON THE POWER SWITCH (Cont.)

Controlling the Use of the Copier Using the Optional Key Copy Counters

1

2

3

4

5

6

7

When the optional key copy counter is available, you can only make copies by inserting your key copy
counter. When you make copies with your key copy counter inserted, the number of copies made is re­corded (or added up) in your counter. Any number of key copy counters can be used.
* For how to use the key copy counter, consult your service technician.
* The key copy counters and the access codes (

The following message appears on the basic screen:

1

2

Set key copy counter

Insert your key copy counter slowly in the direc­tion as shown on the right until it comes to a stop.

- When the message has changed to:

READY

the copier is ready for copying.

Page 1-9) cannot be used together.



,

8

9

10

11

12

1-10

Do not pull out the key copy counter during copying.

After Copying is Finished

After you have finished making copies, remove your key copy counter.

BEFORE MAKING COPIES

3. ENERGY-SAVING FUNCTIONS

Off-mode (Base model)

The power switch of the copier automatically shuts off when the copier is not being used for a specified
period of time. The default setting is “OFF”, however, the period of time until the switch is turned OFF is
selectable between 3 and 240 minutes on the “AUTO SHUTOFF” menu.
Setting the off-mode

This function allows the copier automatically to cut off the unnecessary electricity to the fuser unit when the
copier is not being used for a specified period of time and to stand by with the minimum power consumption.
The default setting is “OFF”, however, the period of time until the copier goes into the sleep mode is select­able between 3 and 240 minutes on the “AUTO SHUTOFF” menu.
Setting the off-mode Page 6-32

Energy saving mode (When the copier is used also as a printer)

This function allows the copier automatically to lower the fuser unit temperature to stand by with the mini­mum power consumption when the copier is not being used for a specified period of time. The default setting
is “OFF”, however, the period of time until the copier goes into the energy-saving mode is selectable be­tween 3 and 60 minutes on the “ENERGY SAVE” menu.
Setting the energy saving mode Page 6-31

Page 6-32

Sleep mode (When the copier is used also as a printer)

1

2

3

4

5

6

ENERGY SAVER time < AUTO SHUTOFF time

The copier goes into the energy saving mode, then the off-mode or sleep mode.

ENERGY SAVER time AUTO SHUTOFF time

The setting of the off-mode or sleep mode takes precedence and the energy saving mode becomes
invalid.

Power consumption and warm-up time at energy saving mode

Power consumption: Average power per hour

Power Consumption

Mode

Energy saving mode

Normal standby

*1 With full options: Reversing automatic document feeder, automatic duplexer, finisher, large-capacity feeder,

- Power consumption and warm-up time are the actual measurements made according to Toshiba’s method
of measuring.

- The initial (default) setting of the energy saving mode is Level 1. You can switch the level depending on the
user’s environment. User selection

Level 1

Level 2

hole punch unit , cassette modules

Without

option

Approx.100W

Approx.160W

Approx.230W Approx.265W

Page 6-16

With full

options*1

Approx.135W

Warm-up time

Approx. 2 min. 15 sec.0Approx. 57 %

Efficiency

Without

option

Approx. 30 % Approx. 26 %Approx. 1min. 15 sec.Approx.195W

0 % 0 %

With full

options*1

Approx. 49 %

7

8

9

10

11

12

1-11

1

2

3

4

5

6

7

8

9

10

11

12

1-12

BEFORE MAKING COPIES

2. HOW TO MAKE COPIES

1. General copying procedures...................................................... 2-2

2. Setting copy paper ..................................................................... 2-4

- Acceptable copy paper types and sizes ....................................................... 2-4

- Recommended paper / Handling and storing paper ...................................2-5

-

Changing the paper size of the cassette / Setting the cassette for special use

3. Setting originals ......................................................................... 2-9

- Acceptable original types and sizes ...........................................................2-9

s ...............2-6

1

2

3

4

- When placing an original on the glass ......................................................2-10

- When using the reversing automatic document feeder (optional) ............ 2-11

4. Auto job start (Job preset) ........................................................2-14

- During warming up ....................................................................................2-14

- During copying .......................................................................................... 2-15

- During printing (optional) ...........................................................................2-16

5. Interrupt copying....................................................................... 2-17

6. Cancelling/Resuming a copy operation.....................................2-18

5

6

7

8

9

10

11

12

2-1

1. GENERAL COPYING PROCEDURES

1

2

3

4

5

6

7

After setting (confirming) paper in the cassettes, place the originals. When the START key is pressed
with any settings unchanged, copies are made in the initial (default) settings (*1). You can make copies
as desired by setting different copy modes.

The initial (default) settings of the copier at the time of installa­tion are as shown on the right.

*1 The copy modes that are automatically set when the power

is turned on, when the energy-saving mode is cleared or
when the

control panel are called the initial (default) settings.

*2 This is displayed when the reversing automatic document

feeder (optional) is installed.

Place paper in the cassette(s).

1

- Acceptable copy paper Page 2-4

When the desired paper is not set in any of the cassettes or the
large-capacity feeder (optional):

- Setting the cassette

- Bypass copying Page 6-5

FUNCTION CLEAR key is pressed on the

Copying Procedure

Page 2-6

Initial (default) settings

Full-colour mode

Reproduction ratio........... 100%

Copy quantity ................ 1

Automatic paper selection
1-sided

copies from
Manual image density
Text/photo mode (original image type)

Sheet bypass........ plain paper

Non-sort Non-staple mode
Continuous original feed mode (*2)

1-sided

originals

8

9

10

11

12

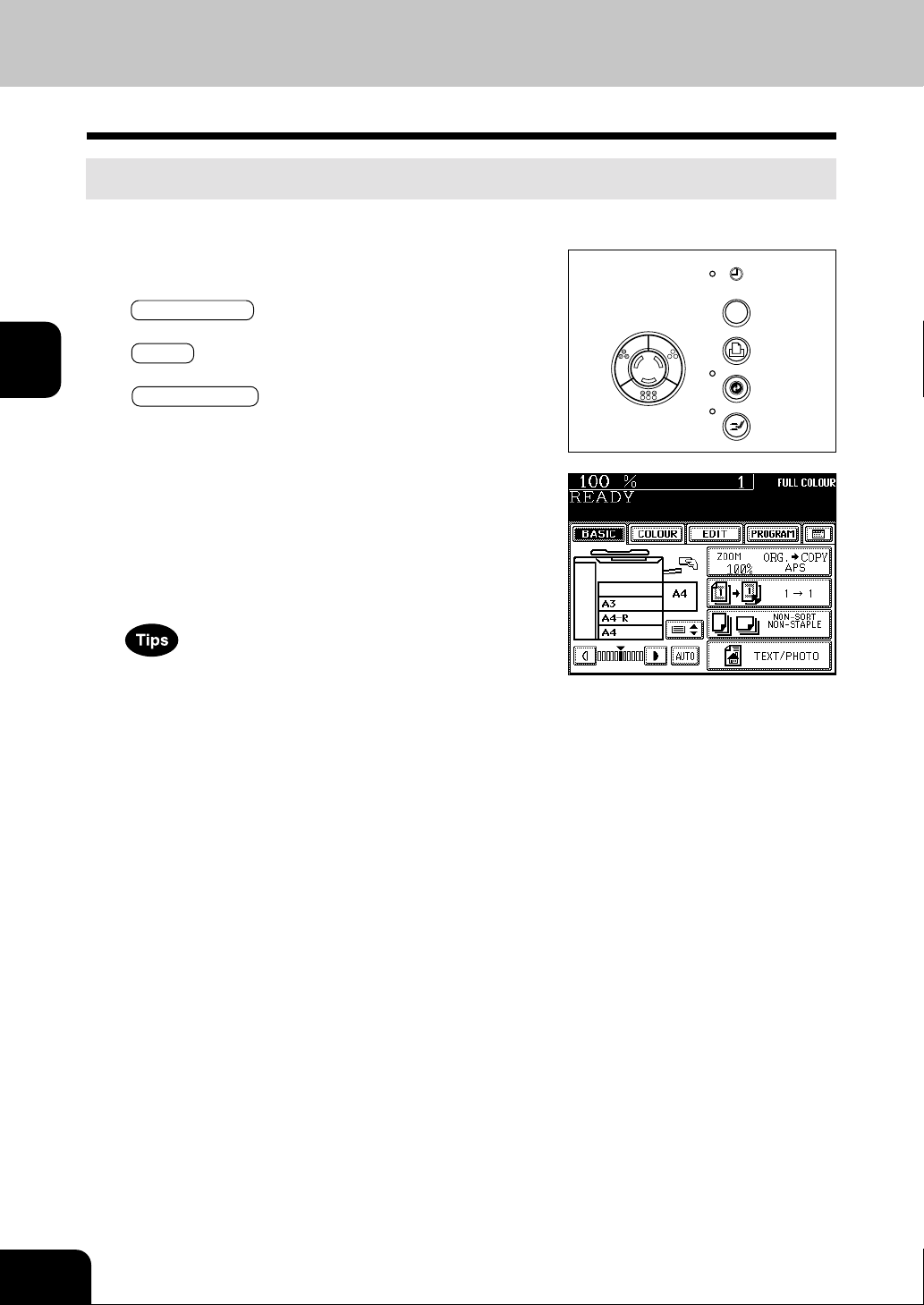

2-2

Place the originals.

- Acceptable originals Page 2-9

2

- When placing an original on the glass

- When using the reversing automatic document feeder (op­tional)

Select the copy modes ( in the illustration on the page

on the right)

3

- Use the colour mode selection key, the touch panel and the
digital keys.

- Any copy modes cannot be changed after the START key
is pressed (including the case when originals are divided into
multiple sets when fed).

- Selecting multiple copy modes may be restricted depending
on their combination. Page 11-11, 11-12

Press the START key ( in the illustration on the page

on the right).

4

- When the reversing automatic document feeder is used and
the continuous feed mode is selected (
begins.

HOW TO MAKE COPIES

Page 2-11

.

Page 2-10

Page 6-2), copying

1

1

HELP

1 1 2

Place the next original (2nd side) and press the

5

6

START key.

- Set the first page of your originals first.

- You can also press the YES key before pressing the
START key to perform the same operation.

- Repeat this step for the subsequent originals.

Once the final original has been scanned, press the
FINISHED key.

When the reversing automatic document feeder (optional) is
used, and the single-feed mode is selected, the procedure is
slightly different from the above.

- Procedure of using the single-feed mode Page 6-3

2

3

4

5

6

7

8

When Coming Across the Situations below

To make multiple sets of copies:

- Key in the copy quantity with the digital keys.

c

- To correct the input copy quantity, press the

When paper of the same size as the original has run out:

The corresponding cassette key on the touch panel flashes. Add
paper or select another cassette.

To stop a copy operation Page 2-18
When this message appears: “Wait Performing Auto Cali­bration”:

The copier may automatically go into the adjustment mode. It

will soon start working. Do not turn OFF the power. Just wait
for a while.

CLEAR key.

9

10

11

12

2-3

2. SETTING COPY PAPER

Acceptable Copy Paper Types and Sizes

1

2

3

4

5

6

7

8

9

10

Feeder

Cassettes
(optional
Cassette
Module
included)

Large­Capacity
Feeder
(optional)

Sheet
Bypass
( Page

6-5)

Paper Type

Thin paper
(64~79g/m2)

Plain Paper
(80~105g/m2)

THICK1
(

106

~163g/m2)

OHP film

Thin paper
(64~79g/m2)

Plain paper
(80~105g/m2)

THICK1
(

106-163

g/m2)

Thin paper
(64~79g/m2)

Plain paper
(80~105g/m2)

THICK1
(

106~163

g/m2)

THICK2
(

164~209

g/m2)

THICK3
(

210~256

g/m2)

Sticker labels

OHP film

Paper Size

(Standard size)
A/B format: A3,A4,A4-R,
A5-R,B4(257x364mm),
B5(257x182mm),
B5-R(182x257mm),
FOLIO(210x330mm),
LT format: LD(11”x17”),
LG(81/2”x14”), LT(11”x81/2”),
LT-R(81/2”x11”),
ST-R(51/2”x81/2”),
COMP(101/8”x14”)
13”LG(81/2”x13”),8.5”SQ(81/2”x81/2”)

(Standard size)
A4

(Standard size)
A4

(Standard size)
A/B format: A3,A4,A4-R,A5-R,
A6-R, B4(257x364mm),
B5(257x182mm),
B5-R(182x257mm),
FOLIO(210x330mm),
A3-wide(305x457mm)
LT format: LD(11”x17”),
LG(81/2”x14”), LT(11”x81/2”),
LT-R(81/2”x11”),
ST-R(51/2”x81/2”),
COMP(101/8”x14”)
13”LG(81/2”x13”),8.5”SQ(81/2”x81/2”)
(Non-standard size)
Length:100-305mm,
Width:148-457mm
(Standard size)
A4

Maximum Capacity

600 sheets

600 sheets(90g/m2)
500 sheets(100g/m2)

250 sheets(
250 sheets(

100 sheets

1500 sheets

1250 sheets(90g/m2)
1250 sheets(100g/m2)

750 sheets(120g/m2)
750 sheets(160g/m2)

130 sheets

115 sheets(90g/m2)
100 sheets(100g/m2)

60 sheets(120g/m2)
60 sheets(160g/m2)

40 sheets(200g/m2)

40 sheets(220g/m2)
40 sheets(250g/m2)

40 sheets

40 sheets

120
160

g/m2)
g/m2)

Remarks

Only the 2nd,3rd,4th
cassette can be set

Only the 2nd cassette
can be set

*1

*1

*1

*1

*1

*1

*1

*1

11

12

2-4

*1 Duplex copying with the optional automatic duplexer is not available.

- Paper with filing holes is not acceptable.

- The maximum capacity is the approximate number of sheets when Toshiba-recommended paper is used
(

Page 2-5).

- LT format is the standard format for North America.

HOW TO MAKE COPIES

Recommended Paper/Handling and Storing Paper

Recommended Paper

To make copies with a fine image, use of the following sheets is recommended.
If you use copy paper other than the recommended types, ask your service technician.

Paper Type Toshiba Recommendations / Manufacturer Size Mode

Plain Paper Color Copy / Neusiedler (90g/m2) A3,A4 PLAIN

(100g/m2) A3,A4 PLAIN

Color Copy / Neusiedler (120g/m2, 160g/m2) A3,A4 THICK 1

Thick Paper

Sticker Labels 3478 / Zweckfoem-Avery A4 THICK 2

OHP Film BG78 / Folex A4(125µm) OHP FILM

* Be sure to use only the OHP films specified by Toshiba. Using other types of OHP films may result in

the breakdown of the copier.

Handling and Storing Paper

Pay attention to the following points:

- Avoid using paper that is specially treated or paper that was printed on another machine, and also

avoid performing double copying on the same side of paper; this may cause a malfunction.

- Do not use paper with creases, wrinkles or prone to curling, slippery paper, or tough paper; this may

cause paper misfeeds.

- Paper should be wrapped in its wrapping paper and stored in a damp-free place.

- To prevent paper from being folded or bent, store it evenly on a flat surface.

(200g/m2) A3,A4 THICK 2
(220g/m2, 250g/m2) A3,A4 THICK 3

1

2

3

4

5

6

7

8

9

10

11

12

2-5

2. SETTING COPY PAPER (Cont.)

Changing the Paper Size of the Cassette / Setting the Cassette for Special Uses

1

2

3

4

5

6

The paper size of the cassettes of the copier can be changed. The cassettes can also be set for THIN,
THICK1 paper or OHP films.
* Bypass copying

Pull out the cassette toward you.

Page 6-5

1

Push the lever of the side guides in the direction of
the arrow, and set the side guides at the desired pa-

2

per width (indicated on the bottom surface of the
cassette).

Push the lever in the direction of the arrow, set the
back guide to the desired paper size (indicated on

3

the bottom surface of the cassette).

Place paper in the cassette. Page 9-3 (step 2)

4

7

8

9

10

11

12

Adjust the size mark plate to match with the size of
paper that has been set.

5

Install the cassette into the copier.

6

Press the PROGRAM key to enter the programme
menu. Then press the CASSETTE key.

7

2-6

HOW TO MAKE COPIES

Press the cassette key corresponding to that in which
the paper size has been changed.

8

Press the key of the paper size newly set.

- Pressing the Next key will display the LT format paper

9

sizes.

Setting the Cassette for THIN/THICK1/OHP Film

For types of copy paper that can be set in the cassette Page 2-4

Place the THICK1 paper (or THIN paper or OHP films)
in the cassette.

1

- For THICK1 paper, only the 2nd, 3rd, 4th cassette is acceptable.

- Place the paper with its face up.

- For OHP films, only the A4 size is acceptable. Be sure to set
them in the second casssette.

1

2

3

4

5

6

7

8

For changing the paper size in the cassette, follow steps 1 to 9
on the previous page, then go to step 3 on the next page.

Press the PROGRAM key to enter the programme
menu. Then press the CASSETTE key.

2

9

10

11

12

2-7

2. SETTING COPY PAPER (Cont.)

Changing the Paper Size of the Cassette / Setting the Cassette for Special Uses(Cont.)

1

2

3

4

5

6

Press the cassette key in which the THICK1 paper (or
THIN paper or OHP films) has been set, then select

3

the THICK1 (or THIN or OHP ) key.

- If the desired key is not shown, press the Next key to switch
the screen.

The setting is completed.

- The paper type that has been set is displayed on the top right

4

of the screen.

- When thick paper is set

- When OHP films are set

Page 1-6

7

8

9

10

11

12

Clearing the Cassette for THIN/THICK1/OHP Film

Press the THICK1 paper (or THIN paper or OHP films)
cassette key, then press the THICK1 (or THIN or
OHP ) key.

- If the desired key is not shown, press the Next key to switch the
screen.

- Replace the paper set in the cassette as required.

- When you need to change the paper size of the cassette
Page 2-6

2-8

HOW TO MAKE COPIES

3. SETTING ORIGINALS

Acceptable Original Types and Sizes

Setting place

Glass

Reversing
automatic
document
feeder
(optional)

Types of originals Maximum size

Sheets
Three-dimensional objects
Books

Plain paper, recycled paper:
64~105 g/m

2

Width:297mm
Length:432mm

Width:297mm
Length:432mm

Sizes capable of

automatic detection

Regular size
A/B format:
A3, A4, A4-R, A5, A5-R,
B4, B5, B5-R, FOLIO
LT format:
LD, LG, LT, LT-R, ST-R,
COMP

Regular size
A/B format:
A3, A4, A4-R, A5-R,
B4, B5, B5-R, FOLIO
LT format:
LD, LG, LT, LT-R, ST-R,
COMP

Remarks

Do not place any heavy
object (4 kg or over) on
the glass.

Even listed under “Types
of originals”, some of the
originals may not be
used depending on pa­per quality.

1

2

3

4

5

6

Maximum Number of Sheets that Can be Set in the Reversing Automaic Document Feeder (optional)

Sizes of originals

64~90g/m

Paper weight

2

91~105g/m

2

7

A4, A4-R, A5-R, B5, B5-R, LT, LT-R, ST-R

B4, FOLIO, LG, COMP

A3, LD

50 sheets

35 sheets

25 sheets

40 sheets

8

25 sheets

20 sheets

9

10

11

12

2-9

3. SETTING ORIGINALS (Cont.)

When Placing an Original on the Glass

1

2

3

4

5

6

Sheet Originals

Raising the original cover or the reversing automatic
document feeder (optional), place the original face

1

down on the glass.

Align the original against the left inner corner of the
glass.

2

Lower the original cover or the reversing automatic
document feeder (optional) slowly.

3

When copying originals with high transparency, such as OHP
films and tracing paper, place a blank sheet of paper the size
of the original or larger over the original.

Original

Blank sheet

Original

7

8

9

10

11

12

Book-type Originals

Raising the original cover or the reversing auto­matic document feeder (optional), place the origi-

1

nal in the direction shown in the illustration.

- When using the Book-Type Originals 2-sided Copies (
Page 3-11) or the Dual-Page ( Page 5-6) function, cen-

tre the book original on the yellow indicator line.

Lower the original cover or the reversing automatic
document feeder (optional) slowly.

2

- Do not try to force the original cover or reversing automatic
document feeder (optional) to fully close over a very thick
original, such as a big book. Copies can be made even if
the cover or feeder does not close fully.

- During copying, an intense light may leak out. Do not look
at the original glass surface.

2-10

HOW TO MAKE COPIES

When Using the Reversing Automatic Document Feeder (optional)

Precautions for Using the Reversing Automatic Document Feeder (optional)

Do not use the following types of originals as they tend to misfeed or become damaged:

(1) Badly wrinkled or folded originals; in particu-

lar, originals whose leading edge is curled may
fail to be correctly fed.

(2) Originals with carbon paper (5) Originals with holes or torn originals

(3) Taped, pasted or clipped (cut out) originals (6) Damp originals (7) OHP film originals

(4) Clipped or stapled originals

1

2

3

4

5

6

Also, the following originals should be handled carefully:

(1) Folded or curled originals

should be smoothed out
before being used.

(3) Originals, two of which, when pinched between two fingers, can-

not be moved, or originals which are surface-treated may fail to
be separated properly.

(2) Only originals with the

same width can be set at a
time. (Do not mix originals
with different widths.)

7

8

9

10

11

12

2-11

3. SETTING ORIGINALS (Cont.)

When Using the Reversing Automatic Document Feeder (optional) (Cont.)

1

2

3

4

5

6

In the Continuous Feed Mode Page 6-2

- Be sure to set only originals with the same width. Mixed-sized originals Page 6-4

- Align the originals in the order from the top.

After aligning the edges of originals well, place them
face up and align the slides to the width of the origi-

1

nals.

- One original sheet is also acceptable.

- Maximum number of originals that can be set

- For setting large-size paper such as A3 or B4, pull out the
paper folder in the direction of the arrow.

Page 2-9

Slide

Holder

7

8

9

10

11

12

When the number of originals is too large to be set at one
time, you can divide the originals into two to four sets and set
them one after another. To do so, place the last set of originals
first, and press the CONTINUE key while the scanning is in
progress. After they have been scanned, place the previous
set of originals.

2-12

HOW TO MAKE COPIES

In the Single-feed Mode Page 6-3

Align the slides to the desired original size.

1

1

Slide

2

3

Insert the original face up and straight along the
slides; it will then be pulled in automatically.

2

- When the original starts being pulled in, let go of it.

4

5

6

7

8

9

10

11

12

2-13

4. AUTO JOB START (JOB PRESET)

During Warming up

1

2

3

4

5

6

While the copier is warming up (when the power switch is just turned on,etc.), you can preset the copy
modes. Copying operation starts when warming up has been completed.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Select copy modes as required.

Press the START key.

The following message will be displayed:

3

Wait Warming Up
Auto Start
When the warm-up has been completed and this message

appears:

Ready

copying begins automatically.

7

8

9

10

11

12

Cancelling the auto job start during warming up

You can cancel a preset job during warming up even after you
have pressed the

FUNCTION CLEAR key.

START key. Press the cCLEAR key or

2-14

HOW TO MAKE COPIES

During Copying

You can preset the next copy modes during a copy run.
You cannot preset the next copy modes during the scanning of the originals.

Place the original(s). Page 2-9

1

Press the JOB PRESET key during a copy run.

2

- The following message appears:
JOB PRESETTING

Select other copy modes as required.

Press the START key.

3

1

2

3

4

5

6

7

The preset job will start when the current copying
is finished.

4

If the copy run is interrupted due to running out of paper,
etc.during job presetting, press the JOB PRESET key to set
the desired copy modes again after the copy operation restarts.

Cancelling Preset Job during Copying

To cancel the preset copy job, press the JOB CANCEL key.

8

9

10

11

12

2-15

4. AUTO JOB START (JOB PRESET) (Cont.)

During Printing (optional)

1

2

3

4

5

6

7

When the copier is being used as a printer (optional), you can interrupt it and make copies after the
current printing job is completed.

Place the original(s). Page 2-9

1

Press the COPY JOB REQUEST key during print­ing.

2

- The screen on the right appears during printing. If you
press the COPY JOB REQUEST key, preset copying be­comes available when the current printing job is completed.

Select copy modes as required and press the

3

START key.

After the copying has been finished, press the PRINTER/
NETWORK key on the control panel. The printing mode will
be resumed.

8

9

10

11

12

2-16

HOW TO MAKE COPIES

5. INTERRUPT COPYING

While multicopying is in progress, you can interrupt it and make copies from different originals. Only sheets
that have already been set (in the cassette, optional large-capacity feeder or sheet bypass) are available in
interrupt copying.
*The following functions are not available:

- duplex - book centre erase - dual-page - full image

- 2 IN 1/4 IN 1 - X-Y zoom - trimming/masking - centring

- image repeat - mixed-sized originals - mode memory - user selection

- sort/group - staple sorting - magazine sort - saddle stitching

- hole punching

Press the INTERRUPT key.

- This message appears:

1

Job interrupted job 1 saved

Replace the original with a new one.

HELP

2

During the interruption, the reversing automatic document
feeder (optional) and automatic duplexer (optional) are in­operable.

1

2

3

4

5

6

Select other copy modes as required.

Press the START key.

3

- You can make multiple copies by pressing the START key
once for each copy desired.

After you have finished interrupt copying, press the

4

5

INTERRUPT key again.

- The following message appears:

READY to resume job 1

Press the START key.

- The remaining number of copies in the previous multicopy
run will be made automatically.

7

8

9

10

11

12

2-17

6. CANCELLING/RESUMING A COPY OPERATION

1

2

3

4

5

6

7

You can suspend or cancel a copy operation during multicopying including scanning, or resume the sus­pended copy operation.

Suspending a Copy Operation

Press the STOP key on the control panel during
copying.

After Suspending a Copy Operation

To cancel the copy job

Press the MEMORY CLEAR key (or the FUNCTION
CLEAR key on the control panel).

8

9

10

11

12

2-18

When originals are set in the reversing automatic document
feeder, those pulled inside will come out automatically.

To resume copying

Press the START key.

- The suspended copy operation resumes.

HOW TO MAKE COPIES

3. SETTING OF BASIC COPY MODES

1

2

1. Paper selection .......................................................................... 3-2

- Automatic paper selection (APS) ................................................................... 3-2

- Manual paper selection .................................................................................. 3-3

2. Reduction and enlargement copying ......................................... 3-4

3

3. Duplex copying (1-sided, 2-sided, book-type)............................ 3-7

4. Copy density adjustment .......................................................... 3-13

5. Colour mode ............................................................................. 3-14

6.

Original mode ............................................................................ 3-15

4

5

6

7

8

9

10

11

12

3-1

1. PAPER SELECTION

Automatic Paper Selection (APS)

1

2

3

4

5

6

When you place regular-sized originals on the glass or in the reversing automatic document feeder
(optional), the built-in sensors automatically work to detect the size of the originals, helping the copier
select and copy on paper that is the same size as the original.
* Depending on the condition of the original, automatic paper selection may not work correctly. In that

case, select the paper size manually.
* This mode can only be used for actual-size (100%) copying.
* Original sizes capable of automatic detection

Place paper in the cassette(s). Page 2-4

Page 3-3

Page 2-9

1

Place the original(s). Page 2-9

2

Confirm that the Automatic Paper Selection mode
(default setting) is selected on the basic screen.

3

7

8

9

10

11

12

- If the Automatic Paper Selection mode is not selected, press
the ZOOM··· key, then press the APS key on the next
screen.

- If the following messages are shown, proceed the indications
as you are told to:

Change direction of original

Set correct cassette

When the selected cassette size and the original size are the
same, the copier rotates the original data 90° and makes a copy
in the same size as the original even if those directions differ
(e.g. an A4-size original is set while the same size paper is set
in R direction). This function, however, is applicable to plain
paper only.

Select other copy modes as required.

Press the START key.

4

3-2

SETTING OF BASIC COPY MODES

Manual Paper Selection

It may not be possible for the device to perform Automatic Paper Selection with highly transparent origi­nals such as OHP films and tracing paper, wholly dark originals or originals with dark borders, or
irregular sized originals such as newspapers and magazines. For these types of originals, use manual
paper selection.
* When the desired size of paper is not set in any of the cassettes, you can change the paper size of the

cassette (

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying ( Page 6-5), be

1

sure to specify the paper size.

Place the original(s). Page 2-9

Page 2-6) or use the sheet bypass copying ( Page 6-5).

2

On the basic screen, press the cassette icon repre­senting the desired paper size.

3

- Or press the area on the screen on the right to select the
desired cassette.

1

2

3

4

5

6

- Or press the ZOOM··· key to enter the next screen, and
press the key of the desired paper size.

- OTHER key

Select other copy modes as required.

Press the START key.

Page 6-15

4

7

8

9

10

11

12

3-3

2. REDUCTION AND ENLARGEMENT COPYING

1

2

3

4

5

6

There are the following three ways of making copies in the reduction and enlargement mode:

• Using Automatic Magnification Selection (AMS)

• Specifying both original size and copy size

• Using the reduction/enlargement zoom keys or the one-touch zoom keys
* It is not possible for the device to perform Automatic Magnification Selection with highly transparent

originals such as OHP films and tracing paper, wholly dark originals or originals with dark borders, or
irregular sized originals such as newspapers and magazines. For these types of originals, use the other
reduction/enlargement modes.
Original sizes for which Automatic Magnificaton Selection (automatic detection) is available
2-9

* Set the paper size for “the OTHER” key as required ( Page 6-15). When the set originals or paper are

a non-standard size other than A3, A4, B4 or A5, you will select the OTHER key on the screen of step
3 below. Before pressing it, you need to make the OTHER key recognize the same size as the originals
or paper that have been set.

Automatic Magnification Selection (AMS)

Place paper in the cassette(s). Page 2-4

Page

1

Press the desired cassette, then the ZOOM··· key.

- The copy paper size is selectable on the screen in step 3 as

2

well.

7

8

9

10

11

12

Press the AMS key.

- OTHER key Page 6-15

3

Place the original(s). Page 2-9

- The built-in sensors automatically detect the size of the

4

original(s) and compute the reproduction ratio using the speci­fied paper size.

- If the following messages are shown, proceed as directed:

Change direction of original

Use reduced-size cassette

Select other copy modes as required.

Press the START key.

5

3-4

SETTING OF BASIC COPY MODES

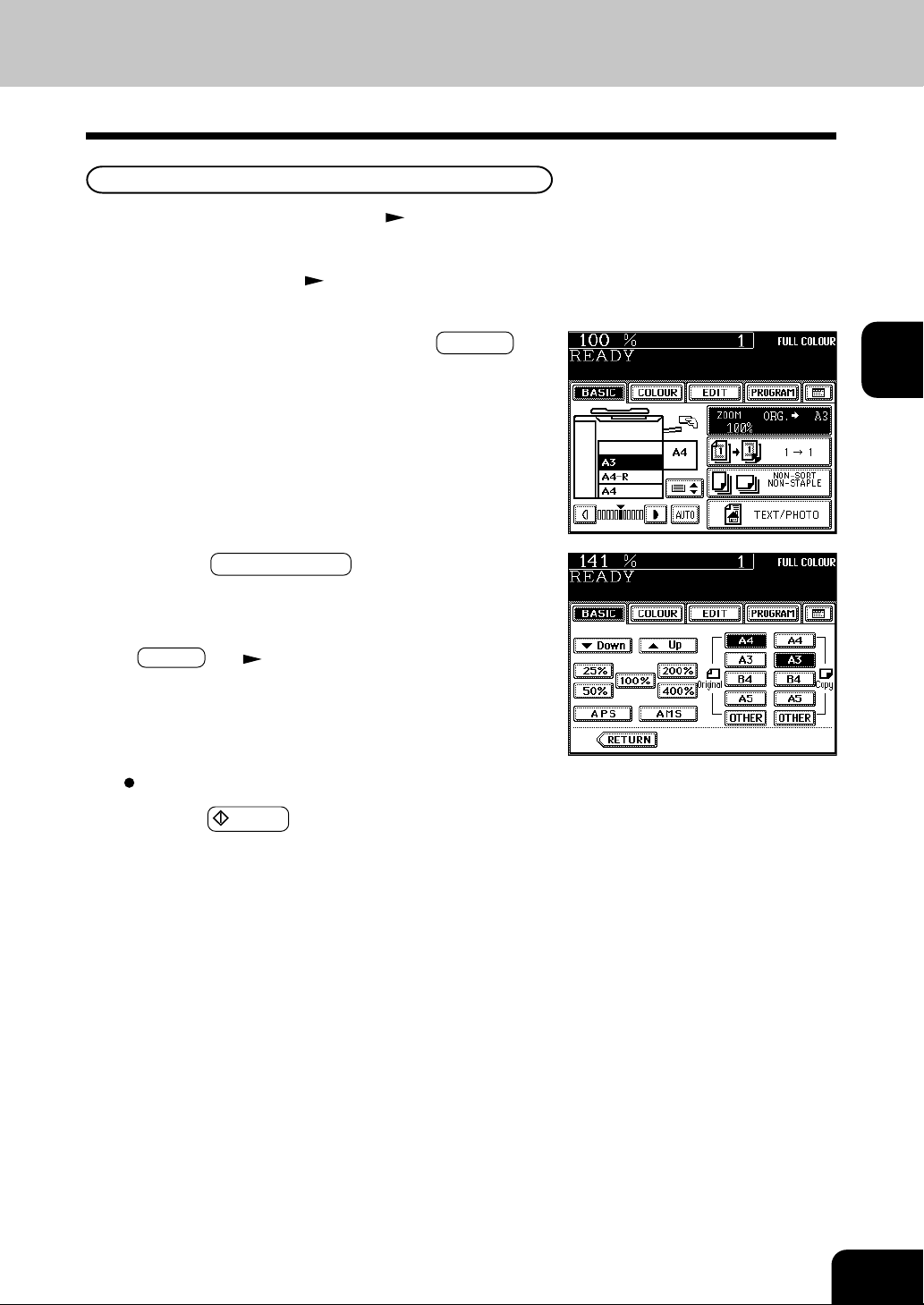

Specifying both Original Size and Copy Size

Place paper in the cassette(s). Page 2-4

1

1

Place the original(s). Page 2-9

2

Press the desired cassette, then the ZOOM··· key.

- The copy paper size is selectable on the screen in step 4 as

3

well.

Press the ORIGINAL SIZE key of the same size as
the original.

4

- Using the original size and copy size, the correct reproduc­tion ratio is computed and displayed on the screen.

- OTHER key

Select other copy modes as required.

Press the START key.

Page 6-15

5

2

3

4

5

6

7

8

9

10

11

12

3-5

2. REDUCTION AND ENLARGEMENT COPYING (Cont.)

1

2

3

4

5

6

7

Using the Reduction/Enlargement Zoom Keys or One-touch Zoom Keys

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the cassette icon representing the desired copy
paper size, then press the ZOOM···· key.

3

- The copy paper size is selectable on the screen in step 4 as
well.

Press the UP (or DOWN ) key to set the de­sired reproduction ratio.

4

- Each time you press either key, the reproduction ratio
changes by 1%. Holding down the key changes it continu­ously.

- You can also select the reproduction ratio by pressing the
400% , 200% , 100% , 50% or 25% key directly.

- OTHER key

Page 6-15

8

9

10

11

12

3-6

Select other copy modes as required.

Press the START key.

5

SETTING OF BASIC COPY MODES

3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE)

This function allows you to set the type of originals (1-sided, 2-sided or book-type) and the desired type
of copying (1-sided or 2-sided).

Original Copy

1

2

3

4

5

6

-13-

-13-

-12-

* and require the optional reversing automatic document feeder to be installed.
*

, and require the optional automatic duplexer to be installed. In this case, copying can be
made in the thin paper (64~79g/m2) and the plain paper (80~105g/m2) modes only.
* The STACK

stacked in the automatic duplexer (optional) during copying; however, this flashing does not indicate a
paper jam.

symbol flashes on the touch panel when sheets of paper copied on one side are

-15- -12- -13- -15-

-13-

7

8

9

10

11

12

3-7

3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE) (Cont.)

1

2

3

4

5

6

1-Sided Originals 1-Sided Copies (default setting)

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Confirm that the 1 1 mode is selected in the ba-

sic mode.

3

- If the “1-SIDED 1-SIDED” mode is not selected, press the
key (shaded) in the screen on the right, then press the 1
key on the next screen.

1

7

8

9

10

11

12

Select other copy modes as required.

Press the START key.

4

3-8

SETTING OF BASIC COPY MODES

1-Sided Originals 2-Sided Copies

The optional automatic duplexer must be installed. Duplex copying can be performed in the thin paper
(64~79g/m

2

) and the plain paper (80~105g/m2) modes.

1

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying ( Page 6-5),

1

be sure to specify the paper size.

Place the original(s). Page 2-9

2

On the basic screen, press the key (shaded) on the
right.

3

Press the 1 2 key.

4

Select other copy modes as required.

2

3

4

5

6

7

Press the START key.

5

- When placing an original on the glass, perform steps 5 to 6
on page 2-3 continuously.

8

9

10

11

12

3-9

3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE) (Cont.)

1

2

3

4

5

6

2-Sided Originals 2-Sided Copies

The optional reversing automatic document feeder and the automatic duplexer must be installed.
Duplex copying can be performed in the thin paper (64~79g/m

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying ( Page 6-5),

1

be sure to specify the paper size.

Place the originals. Page 2-9

2

) and the plain paper (80~105g/m2) modes.

2

On the basic screen, press the key (shaded) on the
right.

3

Press the 2 2 key.

4

7

8

9

10

11

12

Select other copy modes as required.

Press the START key.

5

The optional reversing automatic document feeder must be installed.

2-Sided Originals 1-Sided Copies

Place paper in the cassette(s). Page 2-4

1

Place the originals. Page 2-9

2

3-10

SETTING OF BASIC COPY MODES

On the basic screen, press the key (shaded) on the
right.

3

Press the 2 1 key.

4

Select other copy modes as required.

1

2

3

4

5

Press the START key.

5

Book-Type Originals 2-Sided Copies

The optional automatic duplexer must be installed. Duplex copying can be performed in the thin paper
(64~79g/m
*The acceptable paper sizes for this function are A4 or B5 only.

1
2

2

) and the plain paper (80~105g/m2) modes.

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying ( Page 6-5),
be sure to specify the paper size.

On the basic screen, press the key (shaded) on the
right.

6

7

8

9

10

11

12

3-11

3. DUPLEX COPYING (1-SIDED, 2-SIDED, BOOK-TYPE) (Cont.)

1

2

3

4

5

6

7

8

Press the BOOK 2 key.

3

Select the book copying type.

- Press the RIGHT RIGHT key if copying should start at a

4

right-hand page and end at a right-hand page. By the same
token, you can choose from among the RIGHT LEFT ,
LEFT

Press the BASIC key to enter the basic menu, then
select A4 or B5 copy size.

5

If you need a binding space, select the book margin
mode from the Image Shift function ( Page 5-3).

6

Select other copy modes as required.

Place the first page(s) to be copied on the glass, and

7

press the START key.

- If you do not copy your originals from the first page, the
copies will not be arranged in the same order as the origi­nal.

- Centre the book on the yellow indicator line with its bottom
toward you. Book-type originals

LEFT and LEFT RIGHT keys.

Page 2-10

9

10

11

12

3-12

Turn to the next page, set the book again and press

8

the START key.

- Pressing the YES key and then the START key also
continues copying.

- Repeat the procedure above until all your originals have been
scanned.

After all your originals have been scanned, press the
FINISHED key.

9

- Press the COPY FINAL PAGE key if the last original has
only one page.

SETTING OF BASIC COPY MODES

Indicator line

4. COPY DENSITY ADJUSTMENT

There are two types of image density adjustments: manual mode(default setting) and automatic mode.
In the manual mode, you can select the desired level of image density. It is recommended that lighter­density originals be copied in the manual copy density mode. In the automatic mode, the sensors
automatically detect the density of each original and select the optimum image density and background
level.

Manual Copy Density Mode

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press either or key to adjust the copy density

3

to the desired level.

- Each time you press the or key, your copies will be­come lighter or darker, respectively.

Select other copy modes as required.

Press the START key.

4

1

2

3

4

5

6

7

Automatic Copy Density Mode

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the AUTO key.

3

Select other copy modes as required.

Press the START key.

4

In the automatic copy density mode, the background level
is detected during copying, so the copying speed becomes
slower.

8

9

10

11

12

3-13

1

2

3

4

5

5. COLOUR MODE

This function is to switch the colour copy mode and black-and-white copy mode.

Press the desired colour mode selection key.

- The lamp inside of the selected key lights.

1

- FULL COLOUR : Regardless of colour, all originals are

colour-copied (default setting).

- BLACK : Regardless of colour, all originals are

copied in black.

- AUTO COLOUR : The type of original is automatically

recoginized. Coloured originals are
colour-copied, and black-and-white
originals are copied in black-and­white.

- The selected colour mode is displayed in the top right cor­ner of the touch panel.

HELP

6

7

8

9

10

11

12

- In the AUTO COLOUR mode, the colours of originals are
recognized during copying, so the copying speed becomes
slower.

- In the AUTO COLOUR mode, if the colour area is too small
or the colours are close to black or they are too light, colour
originals may be copied in black. In this case, select the
FULL COLOUR mode.

- Yellowish originals or originals with a coloured background
may be automatically copied in colour even though they
are black-and-white. To be certain to make the copies in
the desired mode, select FULL COLOUR or BLACK.

3-14

SETTING OF BASIC COPY MODES

6. ORIGINAL MODE

By selecting an original mode according to the type of your originals, you can make copies with the
suitable image. The Advance Image Enhancement mode can be used with the AI board.
*Be sure to select the original mode after having selected the colour mode.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

On the basic screen, press the key (shaded) on the
right.

3

According to the type of your original, choose the
most suitable image type mode by pressing one of

4

the keys:

TEXT/PHOTO : Original with text and printed image mixed

together (default setting)

TEXT : Original with text only (or text and line artwork)
PRINTED IMAGE : Original with printed photos using half tone

dot patterns.

PHOTO : Original with photos printed on photographic pa-

per.

MAP : Original with fine illustrations and text
ADVANCED IMAGE :
The copier automatically recognizes the contents of the

original in each block or originals in each page and makes
copies in appropriate modes. This is suitable for copying
several types of originals mixed together.

* In the Advanced Image Enhancement mode, the patterns of

originals are recognized during copying, so the copying
speed becomes slower.

Select other copy modes as required.

1

2

3

4

5

6

7

8

9

10

11

Press the START key.

5

12

3-15

1

2

3

4

5

6

7

8

9

10

11

12

3-16

SETTING OF BASIC COPY MODES

4. COLOUR EDITING AND

1

ADJUSTMENT

1. Monocolour copying .................................................................. 4-2

2. Hue adjustment.......................................................................... 4-3

3. Saturation .................................................................................. 4-4

4. Colour balance (YMCK adjustment) .......................................... 4-5

5. RGB adjustment ........................................................................ 4-6

6. One-touch adjustment................................................................ 4-7

7. Background adjustment ............................................................. 4-8

8. Sharpness adjustment ............................................................... 4-9

2

3

4

5

6

7

8

9

10

11

12

4-1

1. MONOCOLOUR COPYING

1

2

3

4

5

6

You can select one colour out of the 10 colours of the colour sample seal to make a monocolour copy.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the MONOCOLOUR key.

3

Press the desired copy colour key.

- Press the MAGENTA key for instance.

4

7

8

9

10

11

12

Refer to the colour sample seal above the touch panel.

Page 1-4

Select other copy modes as required.

Press the START key.

5

4-2

COLOUR EDITING AND ADJUSTMENT

2. HUE ADJUSTMENT

This function is available to allow you to adjust the hue by changing the hue circle.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the HUE/SATURATION key.

3

Press the HUE key, then the + or - key to adjust
the hue.

4

- Pressing the + key brings the colour closer to the next
clockwise colour while pressing the - key brings it closer
to the next anticlockwise colour.

Press the SET key.

5

1

2

3

4

5

6

7

Select other copy modes as required.

Press the START key.

6

Cancelling the Hue Adjustment

There are two ways for clearing the setting.

Press the + or - key on the HUE column to move the

indicator to 0, then press the SET key.

Press the DEFAULT key, then the SET key.

*The saturation setting also becomes the default mode.

8

9

10

11

12

4-3

3. SATURATION

1

2

3

4

5

6

7

This function allows you to adjust the saturation of copies.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the HUE/SATURATION key.

3

Press the SATURATION key, then the + or - key to
adjust the saturation.

4

- Pressing the + key increases the brightness while press­ing the - key decreases the brightness.

Press the SET key.

5

8

9

10

11

12

4-4

Select other copy modes as required.

Press the START key.

6

Cancelling the Saturation Adjustment

There are two ways for clearing the setting.

Press the + or - key on the SATURATION column to move

the indicator to 0, then press the SET key.

Press the DEFAULT key, then the SET key.

*The hue setting also becomes the default mode.

COLOUR EDITING AND ADJUSTMENT

4. COLOUR BALANCE (YMCK ADJUSTMENT)

This function allows you to adjust the colour balance of copies by changing the strength of the primary
colours (Yellow(Y), Magenta(M), Cyan(C) and Black(K)).

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the COLOUR BALANCE key.

3

Press the + or - key to adjust the colour balance.

- Pressing the + key enhances the tint of the colour while

4

pressing the - key decreases the tint of the colour.

1

2

3

4

5

6

Press the SET key.

5

Select other copy modes as required.

Press the START key.

6

Cancelling the Colour Balance Adjustment

There are two ways for clearing the setting.

Press the + or - key on the column you want to cancel to

move the indicator to 0, then press the SET key.

If you want to cancel all the 4 adjustments, press the

DEFAULT key, then the SET key.

7

8

9

10

11

12

4-5

5. RGB ADJUSTMENT

1

2

3

4

5

6

This function allows you to adjust the colour balance by changing the strength of Red(R), Green(G) and
Blue(B).

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the RGB ADJUSTMENT key.

3

Press the + or - key to adjust the colour balance.

- Pressing the + key enhances the tint of the colour while

4

pressing the - key decreases the tint of the colour.

7

8

9

10

11

12

Press the SET key.

5

Select other copy modes as required.

Press the START key.

6

Cancelling the RGB Adjustment

There are two ways for clearing the setting.

Press the + or - key on the column you want to cancel to

move the indicator to 0, then press the SET key.

If you want to cancel all the 3 adjustments, press the

DEFAULT key, then the SET key.

4-6

COLOUR EDITING AND ADJUSTMENT

6. ONE-TOUCH ADJUSTMENT

You can make the image quality warm, cool, vivid or clear with just one touch.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the ONE TOUCH ADJUSTMENT key.

3

Press the WARM ( COOL , VIVID , or CLEAR )
key.

4

1

2

3

4

5

6

Select other copy modes as required.

Press the START key.

5

7

8

9

10

11

12

4-7

7. BACKGROUND ADJUSTMENT

1

2

3

4

5

6

7

This function allows you to emphasize the background of light colour originals or to avoid copying the
background of dark colour originals or rear side of originals.
This function is available in the black or monocolour mode as well.
*The automatic density mode is not available with this function.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the BACKGROUND ADJUSTMENT key.

3

Press the LIGHT (or DARK ) key.

4

Press the SET key.

5

8

9

10

11

12

4-8

Select other copy modes as required.

Press the START key.

6

Cancelling the Background Adjustment

There are two ways for clearing the setting.

Press the LIGHT or DARK key on the Background

column to move the indicator to 0, then press the SET key.

Press the DEFAULT key, then the SET key.

COLOUR EDITING AND ADJUSTMENT

8. SHARPNESS ADJUSTMENT

This function allows you to emphasize the letters and edges of images.
This function is available in the black or monocolour mode as well.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the COLOUR key to enter the colour menu.
Then press the SHARPNESS key.

3

Press the SOFT ( or SHARP ) key.

- Pressing the SOFT key suppresses the moire fringe

4

while pressing the SHARP
and sharpens the fine lines.

Press the SET key.

key emphasizes the letters

5

1

2

3

4

5

6

7

Select other copy modes as required.

Press the START key.

6

Cancelling the Sharpness Adjustment

There are two ways for clearing the setting.

Press the SOFT or SHARP key on the Sharpness

column to move the indicator to 0, then press the SET key.

Press the DEFAULT key, then the SET key.

8

9

10

11

12

4-9

1

2

3

4

5

6

7

8

9

10

11

12

4-10

COLOUR EDITING AND ADJUSTMENT

5. USING THE EDITING

1

FUNCTIONS

1. Image shift ................................................................................ 5-2

2. Edge erase ............................................................................... 5-4

3. Book centre erase .................................................................... 5-5

4. Dual-page ................................................................................ 5-6

5. Full image ................................................................................ 5-8

6. 2 IN 1 / 4 IN 1............................................................................ 5-9

7. Magazine sort (from the editing menu) ................................... 5-11

8. X-Y zoom ................................................................................ 5-13

9. Image editing........................................................................... 5-14

- Trimming/Masking ....................................................................................5-14

- Mirror image ............................................................................................5-16

- Negative/Positive reversal .......................................................................5-17

10.Centring ...................................................................................5-18

11.Image repeat ...........................................................................5-20

2

3

4

5

6

7

8

9

10

11

12

5-1

1. IMAGE SHIFT

1

2

3

4

5

6

With this feature, a margin for binding is created on each copy. You can place a binding margin on either
the right or left side of the copy. You can also create binding margins on copies of book originals if you
use this mode in combination with the Dual-Page mode (double-sided) or duplex copying from book
originals.

Providing Right or Left Margin

Place paper in the cassette(s). Page 2-4

1

- When using this mode in bypass copying (
sure to specify the paper size.

Place the original(s). Page 2-9

Page 6-5), be

2

7

8

9

10

11

12

Press the EDIT key to enter the editing menu, and
press the IMAGE SHIFT key.

3

Press the LEFT (or RIGHT ) key according to
your desired binding side.

4

USING THE EDITING FUNCTIONS5-2

Adjust the binding margin, then press the SET key.

- The default width of the margin is 7 mm.

5

- To adjust the width, press the 0mm or 30mm key to
select the desired number, then press the SET key.

- In duplex copying, margins on the back are created on the
other side of those in the front.

Duplex copying

Select other copy modes as required.

Page 3-7

1

2

Press the START key.

6

Providing a Bookbinding Margin

When Book Margin is selected, use it in conjunction with the Duplex Copying mode from book-type
originals (

Press the EDIT key to enter the editing menu, and
press the IMAGE SHIFT key.

1

Press the BOOK key.

Page 3-11) or the Dual-Page mode (double-sided) ( Page 5-6).

2

3

4

5

6

7

8

9

Adjust the width of the margin, then press the SET
key.

3

- The default width of the margin is 14 mm.

- To adjust the width, press the
select the desired number, then press the SET key.

2mm or 30mm key to

10

11

12

5-3

2. EDGE ERASE

1

2

3

4

5

6

If your original has a dirty or torn edge, it may be reproduced as a black stain on the copy. In that case,
use Edge Erase Copying. A white border is created along the edges of the copy, eliminating those black
stains.

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying (

1

sure to specify the paper size.

Place the original(s). Page 2-9

Page 6-5), be

2

Press the EDIT key to enter the editing menu, and
press the EDGE ERASE key.

3

7

8

9

10

11

12

Adjust the width of the white border, then press the
SET key.

4

- The default width of the white border is 5 mm.

- To adjust the width, press the
select the desired number, then press the SET key.

Select other copy modes as required.

Press the START key.

2mm or 20mm key to

5

USING THE EDITING FUNCTIONS5-4

3. BOOK CENTRE ERASE

This function allows you to erase the shadow in the centre of a book original.

Before

After the book centre has been erased

Place paper in the cassette(s). Page 2-4

1

- When using this mode in bypass copying (
sure to specify the paper size.

Page 6-5), be

1

2

3

4

5

6

7

Place the original(s). Page 2-9

2

Press the EDIT key to enter the editing menu, and
press the BOOK CENTER ERASE key.

3

- If the key for the desired function is not shown, press the
Next key to switch the screen.

Adjust the width of the book centre erase margin,
then press the SET key.

4

- The default width of the book centre erase margin is 10
mm.

- To adjust the width, press the 2mm or 50mm key and
select the desired number.

Select other copy modes as required.

Press the START key.

5

8

9

10

11

12

5-5

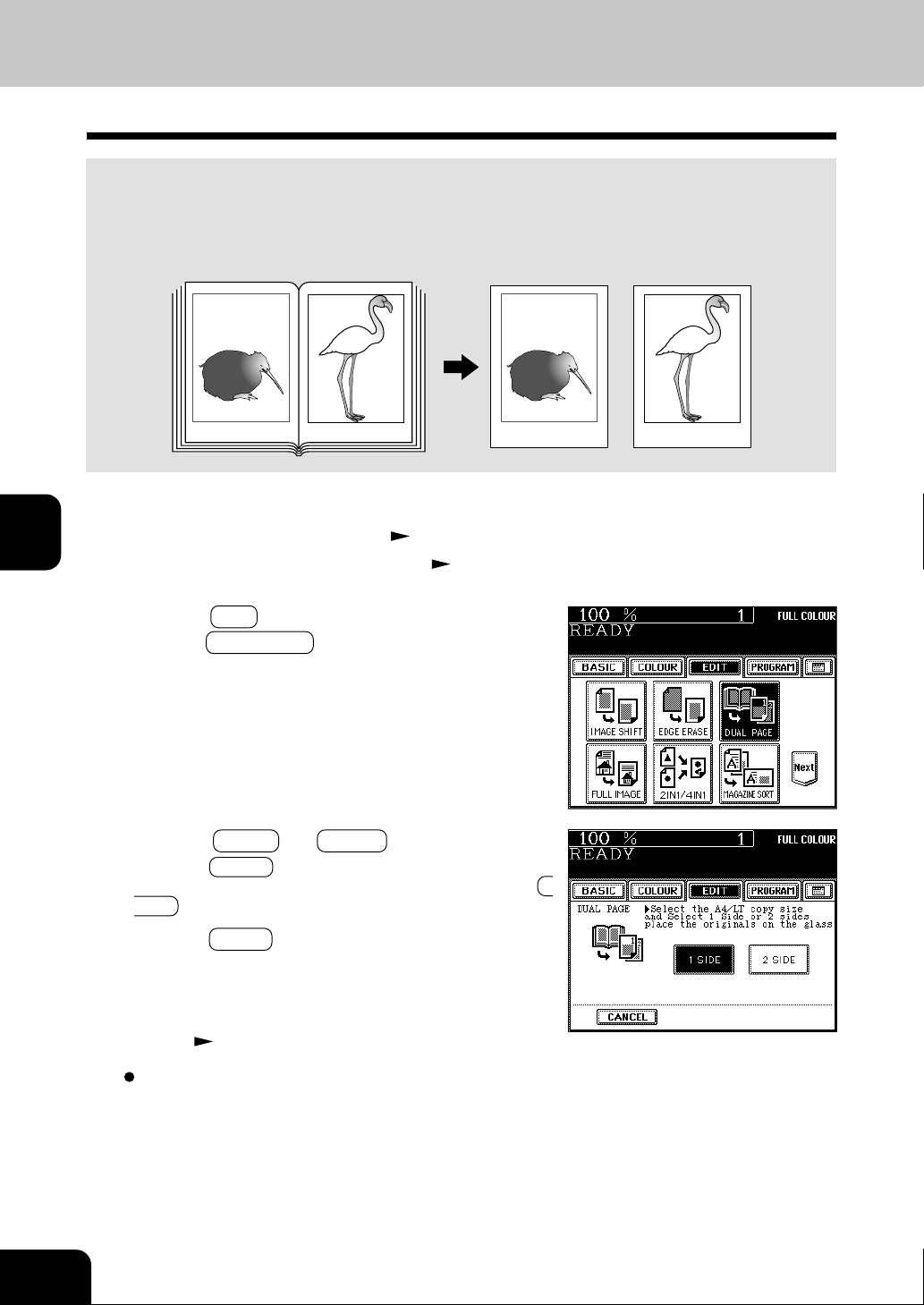

4. DUAL-PAGE

1

2

3

4

5

6

Utilizing this feature allows the facing pages of a book or magazine to be copied page by page onto two
separate sheets of paper or duplex-copied on one sheet. There is no need to move the original on the
glass. You can also place a pair of A4 (B5 or LT) sized originals side by side and copy them on separate
sheets of paper.
* Only A4, B5 or LT sized sheets of paper can be used in this mode.

-12- -13- -12-

Place paper in the cassette(s). Page 2-4

1

- When using this mode in bypass copying (
sure to specify the paper size.

Press the EDIT key to enter the editing menu, and
press the DUAL PAGE key.

2

Page 6-5), be

-13-

7

8

9

10

11

12

Press the 1 SIDE (or 2 SIDE ) key.

- Select the 1 SIDE key to make copies of the facing pages

3

on two separate sheets of paper page by page. Select the 2
SIDE key to make duplex copies of them on one sheet.

Press the BASIC key to enter the basic menu, then
select A4 (B5, LT) copy size.

4

If you need a binding margin, set the bookbinding
margin ( Page 5-3).

5

Select other copy modes as required.

USING THE EDITING FUNCTIONS5-6

Place the first page(s) to be copied on the glass, and

6

press the START key.

- If you do not copy your originals from the first page, the cop­ies will not be arranged in the same order as the original.

- Centre the book on the yellow indicator line with the bottom
toward you. Book-type originals

Page 2-10

1

2

Turn to the next page, set the book again and press

7

the START key.

- Pressing the YES key and then the START key also
continues copying.

- Repeat the above procedure until all your originals have
been scanned.

After all your originals have been scanned, press the
FINISHED key.

8

- Press the COPY FINAL PAGE key if the last original has
only one page.

Indicator line

3

4

5

6

7

8

9

10

11

12

5-7

5. FULL IMAGE

1

2

3

4

5

6

7

When the image occupies the entire original (to the edges), use Full Image Copying to reduce the ratio
a little bit so that the edges of the image will not be missed.

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying (

1

sure to specify the paper size.

Place the original(s). Page 2-9

Page 6-5), be

2

Press the EDIT key to enter the editing menu, and
press the FULL IMAGE key.

3

- The image is automatically reduced by a few percent so that
the entire image can be copied on a sheet.

8

9

10

11

12

Select other copy modes as required.

Press the START key.

4

USING THE EDITING FUNCTIONS5-8

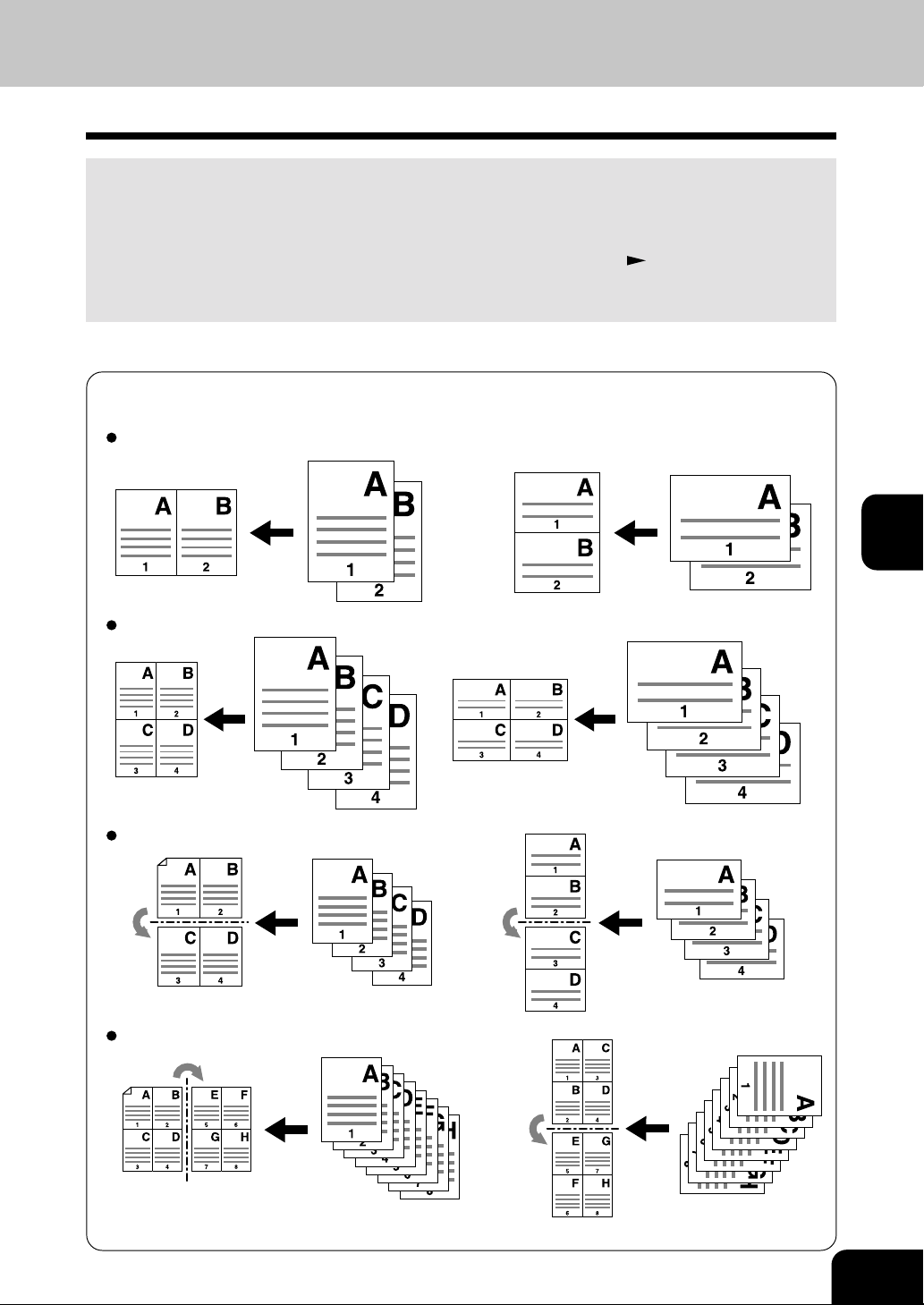

6. 2 IN 1 / 4 IN 1

This feature allows multiple originals to be reduced and copied onto a single sheet of paper. There are two
modes: 2 IN 1 copying, where two originals are copied onto a single sheet, and 4 IN 1 copying, where four
originals are copied onto a single sheet. In addition, duplex 2 IN 1 / 4 IN 1 modes are available, where four/
eight originals can be copied to two sides of a single sheet of paper.
* This mode cannot be used in combination with the AUTO COLOUR mode (
* 2 IN 1/4 IN 1 duplex copying mode requires the optional automatic duplexer to be installed.
* This mode cannot be used in combination with reduction/enlargement copying.

The combination of page arrangement differs depending on the direction of originals set on the op­tional reversing automatic document feeder.

2IN1

Copy

4IN1

Originals

Page 3-14).

1

2

3

4

5

6

2IN1 DUPLEX

SIDE 1

SIDE 2

4IN1 DUPLEX

SIDE 1 SIDE 2

When a copy is turned with the line —·—·— as a pivot, originals are printed on side 2 (back face) as shown.

7

8

9

10

11

12

5-9

1

6. 2 IN 1 / 4 IN 1 (Cont.)

Place paper in the cassette(s). Page 2-4

1

- When using this mode in bypass copying (
sure to specify the paper size.

Page 6-5), be

2

3

4

5

6

7

8

To make copies onto paper which is not the same size as

originals, press the ZOOM... key to display the screen on
the right, then press the desired paper size and the AMS
key.

Place the originals. Page 2-9

2

Press the EDIT key to enter the editing menu, and
press the 2IN1/4IN1 key.

3

Select the type of image combination.

- Press the 2IN1 (or 4IN1 , 2IN1 DUPLEX or

4

4IN1 DUPLEX ) key.

9

10

11

12

Select the type of the original.

- Press the 1 SIDE (or 2 SIDE ) key.

5

Select other copy modes as required.

Press the START key.

- When placing an original on the glass, perform steps 5 to 6 on

6

page 2-3 continuously.

USING THE EDITING FUNCTIONS5-10

7. MAGAZINE SORT (FROM THE EDITING MENU)

The magazine sort mode allows 1-sided originals to be copied and sorted so that they can be folded and
bound along a centre line like typical magazines or booklets. A3, A4-R, B4, LD and LT-R are available.

• The optical automatic duplexer must be installed.
* This mode cannot be used in combination with the AUTO COLOUR mode (

Example of copying a 12-page document

1

2

3

• If used in combination with the optional finisher (MJ-1020) equipped with saddle stitch capabilities, copies
can be automatically folded in half and stapled along their centre line.

1

2

3

* There are two Magazine Sort procedures available. For the mode operated from the BASIC menu when

the finisher (optional) is installed, see page 7-6.

12

12

Page 3-14).

76

94

112

76

1

2

3

4

5

6

Place paper in the cassette(s). Page 2-4

1

Select the paper type.

For cassette feeding Page 3-3 (step 3)

2

For bypass feeding Page 6-7 (step 4)

Place the original(s). Page 2-9

- When placing them in the reversing automatic document

3

feeder (optional), set them by referring to the order of pages
in the illustrations above.

- When placing them on the glass, place the first page of the
originals first.

Press the EDIT key to enter the editing menu, and
press the MAGAZINE SORT key.

4

7

8

9

10

11

12

5-11

1

2

3

4

5

7. MAGAZINE SORT (FROM THE EDITING MENU) (Cont.)

Adjust the binding margin and press the SET key.

- The default width of the margin is 12 mm.

5

- To adjust the width, press the
select the desired number, then press the SET key.

- If the optional finisher (MJ-1020) equipped with the saddle
stitcher is installed, copies can be automatically stapled
along their centre line. To have copies stapled, press the
STAPLE ON key.

- Maximum number of sheets that can be stapled

If the binding margin is set as less than 12mm and the STAPLE
ON key is pressed, the paper may not exit normally.

12mm or 30mm key to

Page 7-7

6

7

8

9

10

11

12

Select other copy modes as required.

Press the START key.

- When placing an original on the glass, perform steps 5 to 6 on

6

page 2-3 continuously.

USING THE EDITING FUNCTIONS5-12

8. X-Y ZOOM

You can make copies with different reproduction ratios set for the X (horizontal) and Y (vertical) direc­tions, respectively.

Place paper in the cassette(s). Page 2-4

100%

200%

100%

200%

1

Place the original(s). Page 2-9

2

Press the EDIT key to enter the editing menu, and
press the XY ZOOM key.

3

- If the key for the desired function is not shown, press the
Next key to switch between the screens.

1

2

3

4

5

6

Set the reproduction ratios for the X (horizontal) and
Y (vertical) directions, respectively.

4

- Using the 25%< and >400% keys on the screen, set the
reproduction ratio for X and press the upper SET key.
Similarly, set the reproduction ratio for Y.

Press the lower SET key.

5

Select other copy modes as required.

Press the START key.

6

7

8

9

10

11

12

5-13

9. IMAGE EDITING

Trimming/Masking

1

2

3

4

5

6

7

You can select an area on an original and copy it with the area trimmed (only the inside of the area
copied) or masked (only the outside of the area copied). One rectangular area can be specified on an
original.
* Image editing is only possible with standard sized originals.
* If the settings of the original and copy sizes are not made appropriately, the image may not be copied

completely.

Trimming Masking

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying (

1

sure to specify the paper size.

Press the EDIT key to enter the editing menu, and
press the EDITING key.

2

- If the key for the desired function is not shown, press the
Next key to switch the screen.

Page 6-5), be

8

9

10

11

12

Press the TRIM (or MASK ) key.

3

USING THE EDITING FUNCTIONS5-14

Place an original on the glass to specify the area.

- Set the original face up with the bottom toward you, fit its top

4

left corner against the top left corner of the glass, and align it
with the original scale.

1

Using the original scale on the left and the inner (top)
scale, read the position of the desired area as fol-

5

lows:

- X1 Distance from the top left to the left edge of the specified
area.

- X2 Distance from the top left to the right edge of the speci­fied area.

- Y1 Distance from the top left to the upper edge of the speci­fied area.

- Y2 Distance from the top left to the lower edge of the speci­fied area.

Enter the distance values read in step 5 for the
specified area.

6

- Key in the value for X1 with the digital keys and press the
upper SET key.

- Similarly, set the values for X2, Y1 and Y2.

Press the lower SET key.

7

Place the original(s) on the glass face down and
with its bottom toward you and with its top left

8

aligned against the original scale on the left side.

Page 2-9

2

3

4

5

6

7

8

Select other copy modes as required.

Press the START key.

9

9

10

11

12

5-15

9. IMAGE EDITING (Cont.)

Mirror Image

1

2

3

4

5

6

Copies are made with images completely reversed in terms of right and left.

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying (

1

sure to specify the paper size.

Place the original(s). Page 2-9

Page 6-5), be

2

Press the EDIT key to enter the editing menu, and
press the EDITING key.

3

- If the key for the desired function is not shown, press the
Next key to switch the screen.

7

8

9

10

11

12

Press the MIRROR key.

4

Select other copy modes as required.

Press the START key.

5

USING THE EDITING FUNCTIONS5-16

Negative/Positive Reversal

In the full colour mode, this function allows you to reverse both the hue and the shading of the entire original
when making copies. In the black mode or monocolour mode, only the shading of the entire original is
reversed.

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

2

Press the EDIT key to enter the editing menu, and
press the EDITING key.

3

- If the key for the desired function is not shown, press the
Next key to switch the screen.

1

2

3

4

5

6

Press the NEG/POS key.

4

Select other copy modes as required.

Press the START key.

5

7

8

9

10

11

12

5-17

10. CENTRING

1

2

3

4

5

6

7

You can trim all of or a part of an original and copy it out in the centre of a sheet.
* Centring is only possible with standard sized originals.
* If the settings of the original and copy sizes are not made appropriately, the image may not be copied

completely.

All Part

B5

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying (

1

sure to specify the paper size.

Press the EDIT key to enter the editing menu, and
press the CENTERING key.

2

- If the key for the desired function is not shown, press the
Next key to switch the screen.

A4

Page 6-5), be

8

9

10

11

12

Press the ALL (or PART ) key to select the area
for centring.

3

- If you have pressed the ALL key, go to step 8.

USING THE EDITING FUNCTIONS5-18

When centring a part of an original, place the origi­nal on the glass to specify the area.

4

- Set the original face up with the bottom toward you, fit its
top left corner against the top left corner of the glass, and
align it with the original scale.

Using the original scale on the left and the inner (top)
scale, read the position of the desired area, as fol-

5

lows:

- X1 Distance from the top left to the left edge of the specified
area.

- X2 Distance from the top left to the right edge of the speci­fied area.

- Y1 Distance from the top left to the upper edge of the speci­fied area.

- Y2 Distance from the top left to the lower edge of the speci­fied area.

Enter the distance values read in step 5 for the
specified area.

6

- Key in the value for X1 with the digital keys and press the
upper SET key.

- Similarly, set the values for X2, Y1 and Y2.

Press the lower SET key.

7

1

2

3

4

5

6

7

Place the original(s) on the glass face down and
with its bottom toward you and with its top left

8

aligned against the original scale on the left side.

Page 2-9

Select other copy modes as required.

Press the START key.

9

8

9

10

11

12

5-19

11. IMAGE REPEAT

1

2

3

4

5

6

7

You can repeat the entire original or a part of the area of the original on the copy.
* Image repeat is only possible with standard sized originals. However, a non-standard sized original can

be copied if it is placed on a standard sized original and its area is specified.

Non-standard size

Standard size

Place paper in the cassette(s). Page 2-4

- When using this mode in bypass copying (

1

sure to specify the paper size.

Press the EDIT key to enter the editing menu, and
press the IMAGE REPEAT key.

2

- If the key for the desired function is not shown, press the
Next key to switch the screen.

Page 6-5), be

8

9

10

11

12

Place an original on the glass to specify the area.

- Set the original face up with the bottom toward you, fit its

3

top left corner against the top left corner of the glass, and
align it with the original scale.

Using the original scale on the left and the inner (top)
scale, read the position of the desired area, as fol-

4

lows:

- X1 Distance from the top left to the left edge of the specified
area.

- X2 Distance from the top left to the right edge of the speci­fied area.

- Y1 Distance from the top left to the upper edge of the speci­fied area.

- Y2 Distance from the top left to the lower edge of the speci­fied area.

USING THE EDITING FUNCTIONS5-20

Enter the distance values read for the area to be re­peated.

5

- Key in the value for X1 with the digital keys and press the
upper SET key.

- Similarly, set the values for X2, Y1 and Y2.

Press the lower SET key.

6

Select the repeat number.

- To change the repeat number:

7

Press the

number, and press the SET key.

2 or 8 key to select the desired repeat

1

2

3

4

- If the repeat number is not set, the copier automatically re­peats the original once. Only the height direction is available
for repeat copying, and the original can be repeated up to 8
times.

- If the settings of the original and copy sizes are not made
appropriately, the repeated image may not be copied com­pletely.

Place the original(s) on the glass face down and
with its bottom toward you and with its top left

8

aligned against the original scale on the left side.

Page 2-9

Select other copy modes as required.

Press the START key.

9

5

6

7

8

9

10

11

12

5-21

1

2

3

4

5

6

7

8

9

10

11

12

USING THE EDITING FUNCTIONS5-22

6. USING THE SPECIAL

1

FUNCTIONS

1. Continuous original feeding / Single original feeding ............... 6-2

2. Mixed-sized originals ................................................................ 6-4

3. Bypass copying ........................................................................ 6-5

- Bypass copying on standard size or A3-wide paper ................................. 6-7

- Bypass copying on non-standard size paper.............................................6-8

- Special paper such as thin paper/thick paper/OHP films/sticker labels .6-10

4. Mode memory .........................................................................6-12

5. Setting the “OTHER” size key.................................................. 6-15

6. User selection (Initial settings) ................................................ 6-16

7. Weekly timer............................................................................6-18

8. Setting the date and time ........................................................6-20

9. Total counter............................................................................6-21

10.Department management .......................................................6-22

2

3

4

5

6

7

8

- Printing an access code list ....................................................................6-23

- Setting access codes (Registration/Change/Deletion) ............................ 6-24

- Resetting counters .................................................................................. 6-27

11.Automatic calibration ...............................................................6-28

12.Switching between languages .................................................6-30

13.Setting the energy saving mode.............................................. 6-31

14.Setting the off-mode (auto shutoff) .........................................6-32

9

10

11

12

6-1

1. CONTINUOUS ORIGINAL FEEDING / SINGLE ORIGINAL FEEDING

1

2

3

4

5

6

7

When using the optional reversing automatic document feeder, you can select the continuous feed
mode (default setting) where multiple (or single) originals are continuously fed in one by one, or the
single-feed mode where if you insert an original, it is automatically pulled in and starts being copied.

Continuous Feed Mode

Place paper in the cassette(s). Page 2-4

1

Place the original(s). Page 2-9

- Maximum number of originals that can be set Page 2-9

2

Press the PROGRAM key to enter the programme
menu, and press the ADF key.

3

Press the ADF key.

4

8

9

10

11

12

6-2

Select other copy modes as required.

Press the START key.

5

When the number of originals is too large to be set at one
time, you can divide the originals into two to four sets and set
them one after another. To do so, place the last set of originals
first, and press the CONTINUE key while the scanning is in
progress. After they have been scanned, place the previous
set of originals.

USING THE SPECIAL FUNCTIONS

Single-feed Mode

Place paper in the cassette(s). Page 2-4

1

1

Press the PROGRAM key to enter the programme
menu, and press the ADF key.

2

Press the SADF key.

3

Select other copy modes as required.

Place an original. Page 2-9

- The original is automatically pulled in and the screen

4

changes as shown on the right.

- If there are more originals, set them in the same way. (The
same operation is carried out whether or not you press the
YES key.)

2

3

4

5

6

7

8

After all originals have been fed through the revers­ing automatic document feeder, press the FINISHED

5

key.

- Copying begins.

9

10

11

12

6-3

2. MIXED-SIZED ORIGINALS

1

2

3

4

5

6

When the optional reversing automatic document feeder is used, different-sized originals can be copied at
the same time in this copying mode, if their widths are the same.
* Do not set originals whose widths are different.

Place paper in the cassette(s). Page 2-4

1

- Bypass copying is not possible.

Place the original(s). Page 2-9

- A3 and A4, B4 and B5, FOLIO and A4-R, LD and LT, or LG

2

and LT-R sized originals can be mixed.

- The number of originals you can load at a time is 25.

7

8

9

10

11

12

Press the PROGRAM key to enter the programme
menu, and press the MIXED ORIGINAL SIZES key.

3

Press the SET key.

4

Select either the Automatic Paper Selection ( Page

3-2) or Automatic Magnification Selection mode (

5

Page 3-4).

- To make duplexed copies, select the automatic magnification
mode.

Select other copy modes as required.

Press the START key.

6

6-4

USING THE SPECIAL FUNCTIONS

3. BYPASS COPYING

When the desired size of paper is not set in any of the cassettes, or when you want to make copies on A3­wide or non-standard sized paper, use the sheet bypass.
The modes below are available even in bypass copying if the paper size is specified:

- automatic paper selection - automatic magnification selection - duplex

- edge erase - image shift - book centre erase - dual-page

- full image - 2 IN 1 / 4 IN 1 - trimming/masking - mirror image

- centering - image repeat - staple sorting - magazine sort

- saddle stitching - hole punching

In these cases, the setting procedures of the following two types of paper are different:

- Bypass copying on standard size and A3-wide paper

- Bypass copying on non-standard size paper

If you want to make copies on thin paper, thick paper, OHP films or sticker labels, make bypass copies.

Page 6-10, 6-11

2

* You can also set THIN paper (64~79g/m

Page 2-7

), THICK1 paper (106~163g/m2) and OHP films in the cassettes.

Page 6-8

Page 6-7

1

2

3

4

Bypass Copy Mode

- Refer to the table below and select the mode corresponding to the paper that has been set. Otherwise,
paper jams may result or the image quality could deteriorate.

- The number of sheets that can be set at a time differs depending on the paper type. Setting more than the
specified number of sheets at a time may cause copier failure or the paper jams. Be sure to set within the
specified range.

- It takes 30 to 60 seconds to switch between either two modes among “PLAIN”, “OHP FILM”, “THICK1”,
“THICK2” and ”THICK3” for adjustment, and 30 to 120 seconds between “THIN” and other modes.

- If the BYPASS MISFEED symbol flashes, pull out the paper and place it on the sheet bypass again.

Page 9-13

- When copying is finished, the lamp of the
TION CLEAR key, or wait 45 seconds before the bypass copying mode automatically returns to the default
mode.

Corresponding Paper Type
THIN (64~79g/m2)

PLAIN (80~105g/m2)

THICK1 (106~163g/m

THICK2 (164~209g/m2)

THICK3 (210~256g/m

Sticker labels (THICK2)

(Standard size)
A/B format: A3,A4,A4-R,A5-R,A6-R,B4,B5,B5-R,
FOLIO(210x330mm),A3-wide(305x457mm)
LT format: LD(11”x17”), LG(81/
LT(11”x8

2

)

COMP(10

8.5”SQ(8

(Non-standard size)

2

)

Length: 100~305mm; Width: 148~457mm

1

1

FUNCTION CLEAR key lights. Either press the FUNC-

Paper Size

”

/

), LT-R(81/

2

1

”

/

x14”), 13”LG(81/2”x13”),

8

/2”x81/2”)

”

x11”), ST-R(51/

2

”

x14”),

2

”

”

x81/

),

2

2

Maximum Capacity

130 sheets

115 sheets (90g/m2)
100 sheets (100g/m
60 sheets (120g/m
60 sheets (160g/m

40 sheets (200g/m2)

40 sheets (220g/m2)
40 sheets (250g/m
40 sheets

2

)

2

)

2

)

2

)

5

6

7

8

9

10

11

OHP FILM

* The copier stops its operation when the paper set on the bypass guide has run out even if there is the same

size of copy paper in the cassette.

(Standard size)
A4

40 sheets

12

6-5

3. BYPASS COPYING (Cont.)

1

2

3

4

5

6

Bypass Copying

The general procedure for making bypass copies (the paper size is not specified) is described below.

Set sheets of paper on the bypass guide and align
the slides with the size of the paper.

1

- This message appears:
Ready for bypass copying

- The paper should be placed with the side to be copied

facing up.

Slide

- If the paper is long-sized, pull out the triple paper holder.

- Types of paper that can be used in bypass copying

Page 6-5

- If you put several sheets on the sheet bypass at a time, fan

the paper well before placing it.

7

8

9

10

11

12

Place the original(s). Page 2-9

2

Select other copy modes as required.

Press the START key.

3

6-6

USING THE SPECIAL FUNCTIONS

Bypass Copying on Standard Size or A3-wide Paper

Perform steps 1 to 2 on page 6-6.

1

Set the “OTHER” size key as necessary. Page 6-15

1

If the paper that has been set is the standard size other than
A3, A4, B4 or B5, you will select the OTHER key in step 4. In
this case, you need to make the OTHER key recognize the
same size as the paper that has been set. Such setting should
be done at this step.

Press the PROGRAM key to enter the programme
menu, and press the BYPASS FEED key.

2

- When paper is set on the sheet bypass, pressing the by-

pass guide icon as shown on the right-hand display can
also make the screen in step 3 appear.

2

3

4

5

6

7

After selecting the paper type key corresponding to

3

the type of the paper that has been set, press the
SET key.

- Plain paper is selected as the default mode (half-tone

shaded).

- When using A3-wide paper, press both the paper weight key

and the 305x457mm key. Then press the SET key.

Select the key of the same size as the paper that has
been set.

4

- For A3-wide paper, the selection is done in step 3.

- For A4-R (or B5-R) size, press the A4 (or B5 ) key twice.

- OTHER key

If the size of the sheets fed from the sheet bypass is not speci­fied, the Automatic Magnification Selection mode is cancelled.

Select other copy modes as required.

Press the START key.

Page 6-15

5

8

9

10

11

12

6-7

3. BYPASS COPYING (Cont.)

Bypass Copying on Non-standard Size Paper

1

2

3

4

5

6

The size of non-standard paper is within the following ranges:
Length: 100 ~ 305mm Width: 148 ~ 457mm Page 6-5 (table)

Perform steps 1 to 3 on page 6-7.

1

Press the NON-STANDARD key.

2

Key in each dimension (length and width) with the
digital keys, or recall the data stored in the MEMORY.

3

Then press the lower SET key.

- When using the digital keys to key in the size:

Key in the length with the digital keys and press the upper

SET key. Simlarly, set the value for the width.

7

8

9

10

11

12

- Press the MEMORY 1 ( MEMORY 2 , MEMORY 3 or

MEMORY 4 ) key and the paper size memorized in the
MEMORY 1 appears.

- Storing a non-standard size in the memory

Select other copy modes as required.

Press the START key.

Page 6-9

4

6-8

USING THE SPECIAL FUNCTIONS
