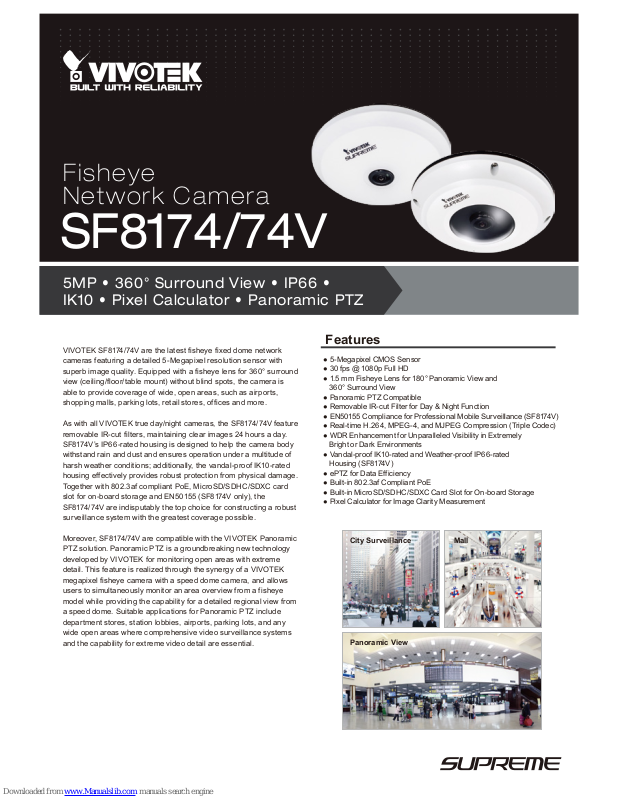

Page 1
Fisheye
Network Camera
SF8174/74V
5MP • 360° Surround View • IP66 •
IK10 • Pixel Calculator • Panoramic PTZ
VIVOTEK SF8174/74V are the latest f isheye fixed dome network
cameras featuring a detailed 5 -Megapixel resolution sensor with
superb image quality. Equipped with a fisheye lens for 360° surround
view (ceiling/floor/table mount) without blind spots, the camera is
able to provide coverage of wide, open areas, such as airports,
shopping malls, parking lots, retail stores, offices and more.
As with all VIVOTEK true day/night cameras, the SF8174/74V feature
removable IR-cut filters, maintaining clear images 24 hours a day.
SF8174V’s IP66-rated housing is designed to help the camera body
withstand rain and dust and ensures operation under a multitude of
harsh weather conditions; additionally, the vandal-proof IK10-rated
housing effectively provides robust protection from physical damage.
Together with 802.3af compliant PoE, MicroSD/SDHC/SDXC card
slot for on-board storage and EN50155 (SF8174V only), the
SF8174/74V are indisputably the top choice for constructing a robust
surveillance system with the greatest coverage possible.
Moreover, SF8174/74V are compatible with the VIVOTEK Panoramic
PTZ solution. Panoramic PTZ is a groundbreaking new technology
developed by VIVOTEK for monitoring open areas with extreme
detail. This feature is realized through the synergy of a VIVOTEK
megapixel fisheye camera with a speed dome camera, and allows
users to simultaneously monitor an area overview from a f isheye
model while providing the capability for a detailed regional view from
a speed dome. Suitable applications for Panoramic PTZ include
department stores, station lobbies, airpor ts, parking lots, and any
wide open areas where comprehensive video surveillance systems
and the capability for extreme video detail are essential.
● 5-Megapixel CMOS Sensor
● 30 fps @ 1080p Full HD
● 1.5 mm Fisheye Lens for 180° Panoramic View and
360° Surround View
● Panoramic PTZ Compatible
● Removable IR-cut Filter for Day & Night Function
● EN50155 Compliance for Professional Mobile Surveillance (SF8174V)
● Real-time H.264, MPEG- 4, and MJPEG Compression (Triple Codec)
● WDR Enhancement for Unparalleled Visibility in Extremely
Bright or Dark Environments
● Vandal-proof IK10-rated and Weather-proof IP66-rated
Housing (SF8174V)
● ePTZ for Data Efficiency
● Built-in 802.3af Compliant PoE
● Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
● Pixel Calculator for Image Clarity Measurement
Features
City Surveillance Mall
Panoramic View
Page 2
Technical Specifications
AM-51A
Dome adapter
Mounting Kits
POE-IJ-1748NDN
PoE injector, 802.3af compliant
PoE Kits
Alarm Triggers
Alarm Events
Connectors
LED Indicator
Power Input
Power Consumption
Dimensions
Weight
Casing
Safety Certifications
Operating Temperature
Warranty
Operating System
Web Browser
Other Players
CD
Others
Alarm and Event
General
System Requirements
Included Accessories
Video motion detection, manual trigger, digital input, periodical
trigger, system boot, recording notification, camera tampering
detection
Event notification using digital output, HTTP, SMTP, FTP and
NAS server
File upload via HTTP, SMTP, FTP and NAS server
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
System power and status indicator
DC 12V
IEEE 802.3af PoE Class 2
Max. 5.1 W (DC 12V)
Max 5.3 W (PoE)
Ø: 145 mm x 47 mm (SF8174V)
Ø: 139 mm x 34 mm (SF8174)
Net: 545 g (SF8174V)
Net: 358 g (SF8174)
Vandal-proof IK10-rated metal housing (SF8174V)
Weather-proof IP66-rated housing (SF8174V)
CE, LVD, FCC Class A, VCCI, C-Tick, EN50155 (SF8174V), UL
Starting Temperature: -25°C ~ 50°C (-13°F ~ 122°F)
Working Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
36 months
Microsoft Windows 7/Vista/XP/2000
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10
VLC: 1.1.11 or above
Quicktime: 7 or above
User's manual, quick installation guide, Installation Wizard 2,
VAST CMS (90-day free trial version)
Quick installation guide, warranty card, alignment sticker,
desiccant bag, screw driver, screws pack, I/O cable, mounting
bracket, software CD
Model
CPU
Flash
RAM
Image Sensor
Maximum Resolution
Lens Type
Focal Length
Aperture
Field of View
Shutter Time
WDR Technology
Day/Night
Minimum Illumination
Pan/tilt/zoom Functionalities
On-board Storage
Compression
Maximum Frame Rate
Maximum Streams
S/N Ratio
Dynamic Range
Video Streaming
Image Settings
Audio Capability
Compression
Interface
Effective Range
Users
Protocols
Interface
ONVIF
Video Motion Detection
System Information
Camera Features
Video
Audio
Network
Intelligent Video
SF8174/74V
Multimedia SoC (System-on-Chip)
128 MB
128 MB
1/2.5" Progressive CMOS in 2560 x 1920 resolution
1920x1920
Fixed-focal
f = 1.5 mm
F2.8
180° (horizontal)
180° (vertical)
180° (diagonal)
1/5 sec. to 1/32,000 sec.
WDR Enhanced
Removable IR-cut filter for day & night function
0.5 Lux @ F2.8, 30 IRE (Color)
0.001 Lux @ F2.8, 50 IRE (B/W)
ePTZ:
12x digital zoom (12x on IE plug-in)
MicroSD/SDHC/SDXC card slot
H.264, MJPEG & MPEG-4
H.264:
15 fps at 1920x1920
30 fps at 1920x1080
MPEG-4:
15 fps at 1920x1920
30 fps at 1920x1080
MJPEG:
15 fps at 1920x1920
30 fps at 1920x1080
3 simultaneous streams
Above 62 dB
57 dB
Adjustable resolution, quality and bitrate
Adjustable image size, quality and bit rate
Pixel counter
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white
balance, exposure control, gain, backlight compensation, privacy
masks
Scheduled profile settings
Audio input/output (full duplex)
AAC, G.711, G.726
Built-in microphone
External microphone input
5 meters
Live viewing for up to 10 clients
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP,
IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS,
QoS, SNMP, 802.1X, UDP, ICMP
10Base-T/100 BaseTX Ethernet (RJ-45)
Supported, specification available at www.onvif.org
Five-window video motion detection
Compatible Accessories
Dimensions
Ø139 mm 34 mm
Ø145 mm 47 mm
AM-114
Pendant head
AM-515
NPT adapter (for AM-51A)
Power Adapter
AA-221
DC 12V Power Adapter
Wireless
• SF8174V • SF8174
N600AG
Outdoor wireless access point
All specications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
Ver 1.3
Distributed by:
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei Ci ty, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-8 2455532
E: sales@ vivotek.com
VIVOTEK INC. VIVOTEK USA
2050 Ringwood Avenue,
San Jose , CA 95131
T: 408-773-8686 F: 408-773-8298
E: [email protected]
VIVOTEK Europe
Buspl ein 36, 1315KV, Almere,
The Netherlands
T: +31(0)36- 5389-149 F: +31(0)36-538 9-111
E: [email protected]
AM-116
Pendant pipe
