Vivotek MD9561-H Specsheet

MD9561-H

Mobile Dome Network Camera

H.265 • 2MP 60fps • WDR Pro • 30M IR • Smart Stream III • IP67 • IK10 •
EN50155 • PoE

H.265 Compres s ion Technology

60 fps @ 1920x1080

W D R P ro f or Unparalleled Vis ibility in High C ontras t E nvironments

Fas t A E for Quick Adaptation to Light Changes

Smart Stream III to O ptim iz e B andw idth E fficiency

Weat her-proof IP 66 and IP67, Vandal-pr oof IK 10 Housing

Built- in I R Illum inators, effec tive up to 30 Meters

Built- in 802.3af Com pliant P oE

Built- in Micro S D /S D H C /SD XC C ard Slot for On-board S torage

E N50155 2017 O T 2 C omplianc e for P rofessional Mobile S urveillanc e

Video Rotation for C orr idor S c enario

Technical Specifications

System Information

Model

MD9561-H(2. 8mm)
MD9561-H(3. 6mm)

CPU Multi media SoC (Sy stem-on-Chip)

Flas h 256MB

RAM 512MB

Camera Features

Image Sens or 1/2.8" progress iv e sc an CMOS

Max. Resolut ion 1920x1080 (2 MP)

Lens Ty pe Fix ed-f ocal

Focal Length

MD9561-H(2. 8mm): f = 2. 8 mm
MD9561-H(3. 6mm): f = 3. 6 mm

Apert ure

MD9561-H(2. 8mm): F1.8
MD9561-H(3. 6mm): F2.0

Auto- iri s Fix ed-iris

Fiel d of Vi ew

MD9561-H(2. 8mm):
110° ( Horizontal)
63° (Verti cal)
129° (Diagonal )
MD9561-H(3. 6mm):
90° (Horizont al)
49° (Verti cal)
109° (Diagonal )

Shutt er Time 1/5 sec. t o 1/32, 000 sec .

WDR Technol ogy WDR Pro

Day /Night Yes

Remov able IR-cut Filt er Yes

IR I lluminat ors Built -in IR illuminat ors, ef fect iv e up to 30 meter s with Smart IR, IR LED*2

Minimum Il lumi nati on

MD9561-H(2. 8mm):

0.07 Lux @ F1.8 (Color)

0.01 Lux @ F1.8 (B/W)
0 Lux with IR ill uminat ion on
MD9561-H(3. 6mm):

0.08 Lux @ F2.0 (Color)

0.01 Lux @ F2.0 (B/W)
0 Lux with IR ill uminat ion on

Pan Range ±30°

Tilt Range 90°

Rotati on Range ±180°

Pan/Til t/ Zoom F unct ional it ies ePTZ: 48x di git al zoom ( 4x on IE plug-in, 12x bui lt -in)

On-board St orage

Slot t ype: Mic roSD/ SDHC/ SDXC c ard slot
Seamles s Recor ding

Video

Video Compres si on H.265, H264, MJPEG

Maximum Frame Rate 60 f ps @ 1920x1080

Maximum Str eams 4 s imul taneous st reams

S/N Ratio

MD9561-H(2. 8mm): 60 dB
MD9561-H(3. 6mm:): 55 dB

Dy namic Range 120 dB

Video Str eaming Adjus table resol uti on, qual it y and bitr ate, Smart St ream I II

Image Set ti ngs

Adjustabl e i mage size, qualit y and bit rate; Time s tamp, text ov erlay , fl ip & mi rror ;
Conf igurabl e br ight ness , cont rast, sat urat ion, shar pness, white balance, expos ure
cont rol, gain, backlight c ompensat ion, priv acy mas ks; Schedul ed pr of ile set ti ngs, 3 DNR,
v ideo rotat ion, def og

Audio

Audio Capabilit y One-way Audio

Audio Compres si on G.711, G.726

Audio Int erf ace

Built -in micr ophone
Ext ernal line input

Ef f ecti v e Range 5 meter s

Networ k

User s Liv e v iewing f or up t o 10 cli ents

Prot ocols

802.1X, ARP, CIFS/ SMB, CoS, DDNS, D HCP, DNS, FTP, HTTP, HTTPS, ICMP, I GMP,
IPv 4, IPv6, NTP, PPPoE, QoS, R TSP/ RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP,
UPnP

Int erf ace 10 Base-T/100 Bas e-TX Ethernet (M12, Female, 4pi n D-coded)

ONVIF Support ed, specif icati on av ailable at www.onv if .org

Solution Integra tion

Video Motion Detection Fiv e-window v ideo moti on detec ti on

VADP Pac kage Trend Micr o IoT Sec urit y

Alarm and Event

Alarm Triggers

Motion detect ion, manual t rigger, digit al input , periodi cal tri gger, s y st em boot, r ecording
notif icat ion, camera tamperi ng detec ti on, audio det ecti on, SD car d l if e ex pect ancy ,
cy bersec urit y ev ent s (brut e f orce at tack event , c y berat tack event , quarantine ev ent) ,
shoc k detec tion

Alarm Event s

Ev ent notif icati on v ia digit al out put, emai l, H TTP, FTP, NAS serv er, SD card
Fil e upload v ia email , HTTP, FTP, NAS s erv er, SD car d

Gener al

Connect ors

M12 f or Network/ PoE connec ti on*1
Audio input *1
Digi tal i nput*1 (30V, 1A)
Digi tal out put*1 (12V, 50mA)

LED Indi cat or Sy st em power and stat us indicat or

Power I nput IEEE 802.3af PoE Cl ass 2

Power Cons umpt ion

Max. 6 W (IR on)
Max. 3.3 W (I R of f )

Dimens ions 98 x 54 x 110.8 mm

Weight 400 g

Casi ng IP66, IP67, IK10

Saf ety Certif icat ions

CE, LVD, FCC Class B, VCCI, C-Tic k, UL, EN50155 2017 OT2/ST1, IEC60571, EN61373,
EN50121-3- 2, EN50121-4, EN50132-7, EN45545 HL1, I EC62236-3-2, IEC62236-3-2,
EN60068-2- 1, EN60068-2-2, EC E R118

Operating Temperat ure

Star ti ng Temperature:

-40° C ~ 55°C ( -40° F~ 131° F)
Worki ng Temperat ure:

-40° C ~ 60°C ( -40° F~ 140° F) ( IR off )

-40° C ~ 55°C ( -40° F~ 131° F) ( IR on)
Maximum (intermittent ): 70 ° C (158 °F)

Humidi ty 98%

Warrant y 36 months

System Requirements

Operating Sy st em

Micros of t Windows 8/7
Mac 10. 12 (Chr ome only )

Web Br owser

Chrome 58.0 or abov e
Int ernet Expl orer 10/11

Other Players

VLC: 1. 1.11 or abov e
Quick Time: 7 or abov e

Included Accessories

Others Quic k inst allat ion guide, ali gnment s ti cker , screwdri v er, ac cessori es bag

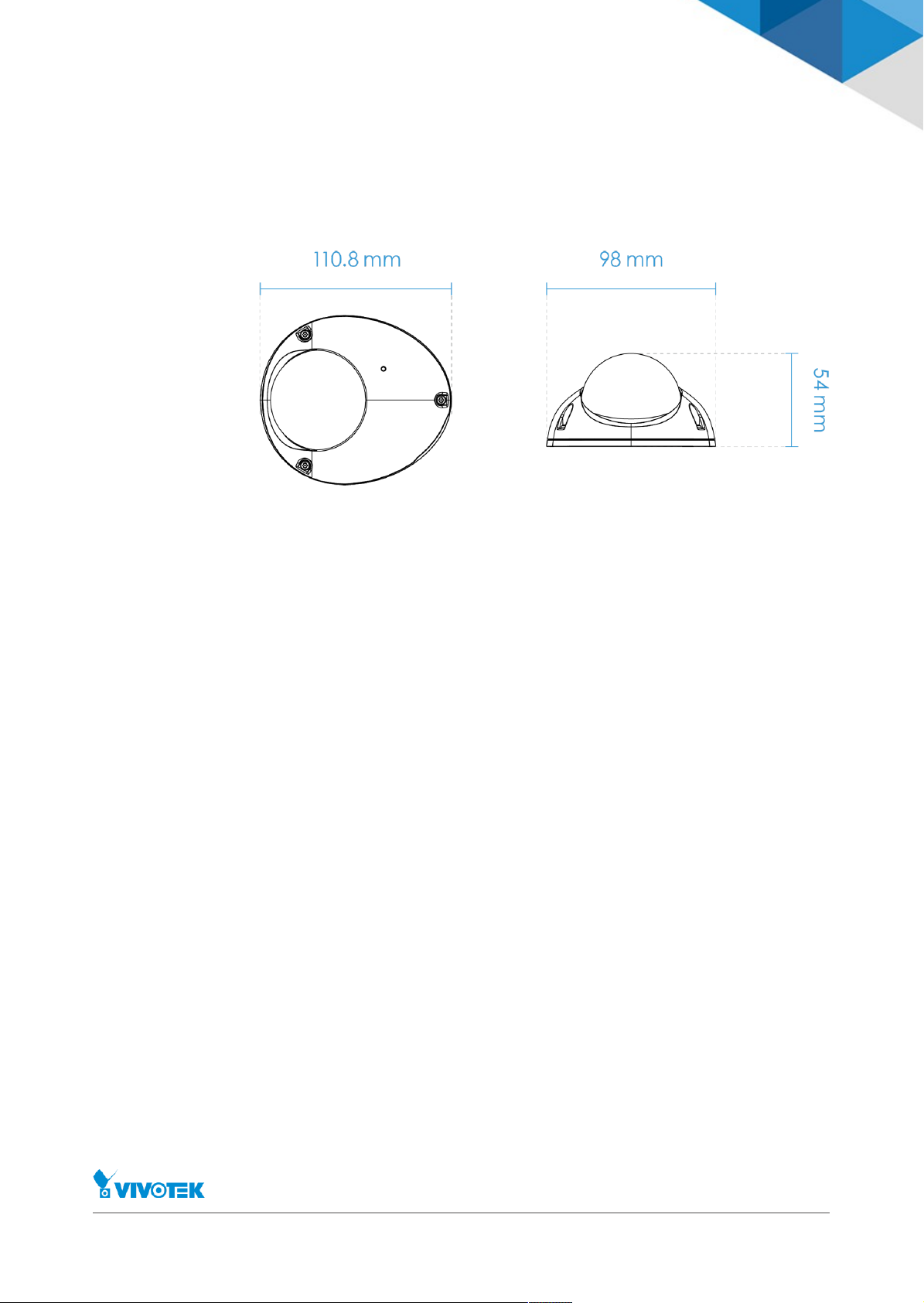

Dimensions

All specifications are subject to change without notice. Copyright© VIVOTEK INC. All rights reserved. Ver.3
