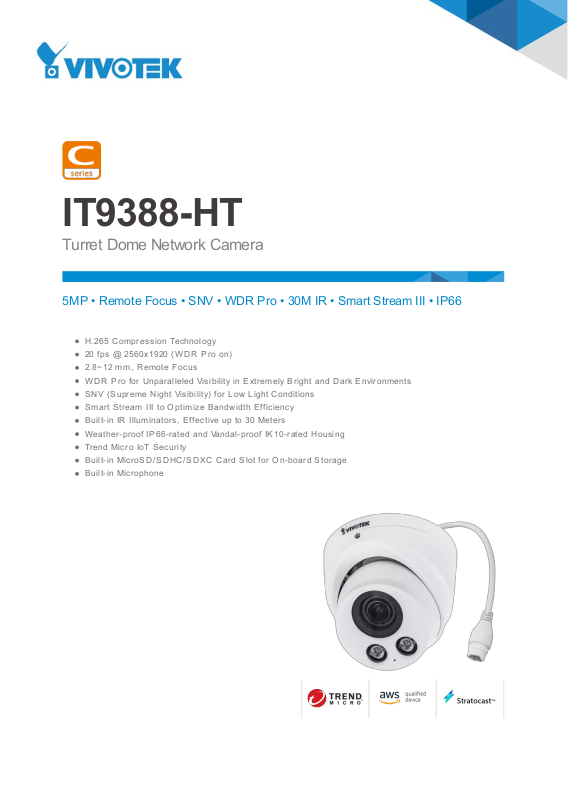

IT9388-HT
Turret Dome Network Camera
5MP • Remote Focus • SNV • WDR Pro • 30M IR • Smart Stream III • IP66
H.265 C ompres s ion Tec hnology
20 fps @ 2560x1920 (W D R P r o on)
2.8~12 m m , Rem ote F ocus
W D R P ro for Unparalleled Visibility in E xtr em ely B right and Dar k E nvir onments
S NV (Supreme Night Vis ibility) for L ow L ight C onditions
Smar t S t ream III to O ptimiz e Bandwidth E ffic ienc y
Built-in IR Illum inators , Eff ec t ive up to 30 Meters
Weather-proof IP 66-rated and Vandal-pr oof IK10-r ated Hous ing
Trend Mic r o IoT S ecur it y
Built-in MicroS D /S D HC /S D XC C ard S lot for O n-board S torage
Built-in Microphone
Page 2
Technical Specifications
System Infor mation
Model IT9388-HT
CPU Multi media SoC (Sy stem-on-Chip)
Flas h 128MB
RAM 512MB
Camera Features
Image Sens or 1/2.7" Progress iv e CMOS
Max. Resolut ion 2560x1920 ( 5MP)
Lens Ty pe Vari- f ocal, Remot e F ocus
Focal Lengt h f = 2. 8~ 12 mm
Apert ure F1. 4 ~ F2.8
Auto- iri s Fi xed-iri s
Fiel d of View
30° ~ 90° ( Hori zontal )
23° ~ 65° ( Vertical)
38° ~ 115° (Diagonal )
Shutt er Time 1/5 s ec. to 1/32, 000 sec.
WDR Tec hnology WDR Pro
Day /Night Yes
Remov able IR- cut Fil t er Yes
IR I lluminat ors Built -in IR i ll uminat ors, ef f ecti v e up t o 30 met ers with Smar t IR, IR LED*2
Minimum Illuminat ion
0.035 Lux @ F1. 4 (Col or)
<0.005 Lux @ F1. 4 ( B/W)
0 Lux with I R il lumi nation on
Pan Range 360°
Tilt Range 70°
Rotati on Range 360°
Pan/Til t /Z oom Funct ionali ti es ePTZ: 48x di git al zoom (4x on I E plug-in, 12x built -in)
On-board St orage
Slot t ype: MicroSD/SDHC/ SDXC car d slot
Seamles s Recording
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 20 f ps @ 2560x1920
Maximum St reams 3 s imult aneous streams
S/N Ratio 61 dB
Dy namic Range 120 dB
Video Str eaming Adjust able resolut ion, qualit y and bit r ate c ont rol, Smart Str eam II I
Image Set tings
Time st amp, t ext overlay, f lip & mirr or; Conf igurabl e br ight ness, c ont rast, sat urat ion,
sharpness , white balance, expos ure cont rol, gai n, bac kl ight compensat ion, priv acy
mask s; Schedul ed prof ile sett ings , H LC, def og, 3D NR, v ideo rot ation
Audio
Audio Capabi lity One-way Audio
Audio Compression G.711, G. 726
Audio Inter f ace Built -i n micr ophone
Ef f ectiv e Range 5 meter s
Networ k
User s Liv e v iewing f or up t o 10 cl ient s
Prot ocol s
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, D NS, FTP, HTTP, HTTPS, IC MP, I GMP,
IPv 4, I Pv 6, NTP, PPPoE, QoS, RTSP/R TP/RTCP, SMTP, SNMP, SSL, TCP/I P, TLS, UDP,
UPnP
Int erf ace
10 Base-T/ 100 Base-TX Ethernet (RJ-45)
*I t i s highly rec ommended t o us e st andard CAT5e & CAT6 c ables which are compliant
with the 3P/ETL st andard.
Page 3
ONVIF Support ed, s peci f icat ion avai labl e at www.onv if .org
Solution Integration
Video Motion Detec tion Fiv e-window v ideo moti on detect ion
VADP Pac kage Trend Micro I oT Sec uri ty , St rat ocast
Alarm and Event
Alarm Tri ggers
Motion detect ion, peri odic al trigger, s y stem boot, recording not if icat ion, camera
tampering det ecti on, audi o detec tion, manual trigger, SD c ard li f e expect ancy ,
cy bersec urit y event s (brut e f orce at tack ev ent, cyberat tack event , quarant ine event )
Alarm Event s
Ev ent not if ic ation v ia emai l, HTTP, F TP, N AS s erv er, SD card
Fil e upload via email, HTTP, FTP, NAS s erv er, SD car d
General
Connect ors RJ- 45 c able connect or f or 10/100Mbps Network/ PoE c onnect ion*1
LED Indi cat or Sy stem power and st atus indicat or
Power I nput IEEE 802. 3af PoE Class 0
Power Cons umpt ion
Max. 9. 8 W ( IR on)
Max. 6. 29 W ( IR of f )
Dimens ions Ø 120 x 90.5 mm
Weight 625 g
Casi ng IP66, IK10(Metal Housing)
Saf ety Cert if ic ati ons CE, FCC Clas s B, UL, LVD, VCCI, C-Tick
Operating Temper ature
Star ti ng Temperatur e: -10°C ~ 60° C ( 14°F ~ 140° F)
Worki ng Temper atur e: -30°C ~ 60°C (-22°F ~ 140°F)
Humidi t y 90%
Warrant y 24 Months
System Require ments
Operating Sy st em
Micros of t Windows 8/ 7
Mac 10. 12 (Chr ome only )
Web Br owser
Chrome 58.0 or abov e
Int ernet Ex plorer 10/11
Other Pl ay ers
VLC: 1. 1.11 or abov e
Quick Time: 7 or abov e
Included Accessories
Others Qui ck i nst allat ion guide, alignment st ic ker, screw pack, cable gland
Page 4
Mounti ng Kits
AM-21A (V02)
L-shape Br ack et
Mounti ng Kits
AM-51G
Adapti ng Plat e
Mounti ng Kits
AM-52E
Mounting Adapter
Mounti ng Kits
AM-71B
Outdoor Conduit Box (I P66)
Dimensions
Compatible Accessories
All specifications are subject to change without notice. Copyright© VIVOTEK INC. All rights reserved. Ver. 3
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. | T: +886-2-82455282 | F: +886-2-82455532 | E: [email protected] | W: www.vivotek.com
