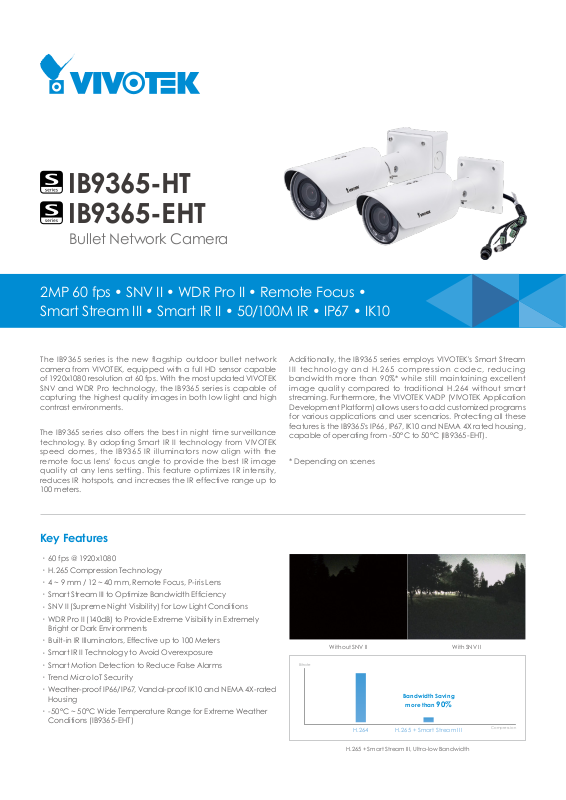

Page 1
IB9365-HT
IB9365-EHT
Bullet Network Camera
2MP 60 fps • SNV II • WDR Pro II • Remote Focus •
Smart Stream III • Smart IR II • 50/100M IR • IP67 • IK10
The IB9365 series is the new flagship outdoor bullet network
camera from VIVOTEK, equipped with a full HD sensor capable
of 1920x1080 resolution at 60 fps. With the most updated VIVOTEK
SNV and WDR Pro technology, the IB9365 series is capable of
capturing the highest quality images in both low light and high
contrast environments.
The IB9365 series also offers the best in night time surveillance
technology. By adopting Smart IR II technology from VIVOTEK
speed domes, the IB9365 IR illuminators now align with the
remote focus lens' focus angle to provide the best IR image
quality at any lens setting. This feature optimizes IR intensity,
reduces IR hotspots, and increases the IR effective range up to
100 meters.
Key Features
60 fps @ 1920x1080
•
H.265 Compression Technology
•
4 ~ 9 mm / 12 ~ 40 mm, Remote Focus, P-iris Lens
•
Smar t Stream III to Optimize Bandwidth Efciency
•
SNV II (Supreme Night Visibility) for Low Light Conditions
•
WDR Pro II (140dB) to Provide Extreme Visibility in E xtremely
•
Bright or Dark Environments
Built-in IR Illuminators, Effective up to 100 Meters
•
Smar t IR II Technology to Avoid Overexposure
•
Smar t Motion Detection to Reduce False Alarms
•
Trend Micro IoT Security
•
Weather-proof IP66/IP67, Vandal-proof IK10 and NEMA 4X-rated
•
Housing
-50 °C ~ 50 °C Wide Temperature Range for E xtreme Weather
•
Conditions (IB9365-EHT)
Additionally, the IB9365 series employs VIVOTEK's Smart Stream
III technology and H.265 compression codec, reducing
bandwidth more than 90%* while still maintaining excellent
image quality compared to traditional H.264 without smart
streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application
Development Platform) allows users to add customized programs
for various applications and user scenarios. Protecting all these
features is the IB9365's IP66, IP67, IK10 and NEMA 4X rated housing,
capable of operating from -50°C to 50°C (IB9365 -EHT).
* Depending on scenes
With out SNV II With SNV II
Bitrate
Bandwidth Saving
more than
H.264 H.26 5 + Smar t Stream II I
90%
Compression
H.26 5 + Smar t Stream II I, Ultra- low Bandwidth
Page 2
Technical Specications
IB936 5-H T:
Model
Motorized, Vari -focal, Remote Focus
IB9365-EHT:
Motorized, Vari -focal, Remote Focus,
-50 ° C ~ 50 °C
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 512 MB
Camera Features
Image Sensor 1/2 Progressive CMOS
Max. Resolution 1920 x1080 (2MP)
Lens Type Motorized, Vari -focal, Remote focus
Focal Length
Aperture
Iris type P-iris
Fiel d of View
Shutter Time 1/5 sec. to 1/32,00 0 sec.
WDR Technology WDR Pro I I
IB936 5-EHT(4-9mm): f = 4 ~ 9 mm (f = 3.5 ~
11.4 mm, equi valent foca l length @ 1/2.8")
IB936 5-HT/EHT(12-40mm): f = 12 ~ 40 mm
IB936 5-HT/EHT(4-9mm): F1.3 ~ F2.2
IB9365-HT/EHT(12-40mm): F1.8
IB9365-HT/EHT(4-9mm):
46° ~ 100 ° (Hor izontal)
26° ~ 52° (Vertical)
53° ~ 120 ° (Diagonal)
IB9365-HT/EHT(12-40mm):
12° ~ 35° (Horizontal)
7° ~ 19° (Ver tical)
14° ~ 40° (Diagonal)
Compression H.265, H.264, MJPEG
Maximum Frame Rate 60 fps @ 1920x1080
Maximum Streams 4 simu ltaneous streams
S/N Ratio 66 dB
Dynamic Range 140 dB
Video Streaming
Image Settings
Adjus table resolution, quality and co nstant
bit rate control, Smart Stream III
Time stamp, text overlay, ip & mirror;
Cong urable brightness, contrast,
saturation, sharpness, white balance,
exposure contro l, gain, backlight
compensation, privacy masks; Scheduled
prole settings, video rotat ion, 3DNR, DIS,
HLC, defog, deblur, metering
Audio
Audio Capability Two-way Audio (full- duplex)
Compression G.711, G.726
Inter face
External microphone input
External l ine output
Network
Users Live vi ewing for up to 10 clients
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP,
Protocol s
Inter face
DNS, F TP, HTTP, HTTPS, ICMP, IGMP, I Pv4,
IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP,
SNMP, SSL, TCP/IP, TLS, UD P, UPnP
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is h ighly recommended to use standard
CAT5e & CAT6 cables whi ch are compl iant
with the 3P/ETL sta ndard.
Day/Ni ght Yes
Removable IR-cut lter Yes
IB9365-HT/EHT(4-9mm):
Built-in IR illuminators, effective up to 50
IR Illuminators
Minimum Illumination
Tilt Range 90°
Rotation Range 180 °
Pan/Tilt/Zoom
Functionalities
On- board Storage
meters with Sma rt IR II, IR LED*5
IB9365-HT/EHT(12-40mm):
Built-in IR illuminators, effective up to 100
meters with Sma rt IR II, IR LED*4
IB9365-HT/IB9365-EHT (4-9mm):
0.01 Lux @ F1.3 (Color), 50 IRE
0.002 Lux @ F1.3 (Color), 30IRE
<0.01 Lux @ F1.3 (B/W)
0 Lux with IR ill umination on
IB9365-HT/EHT(12-40mm):
0.06 Lux @ F1.8 (Color), 5 0IRE
0.03 Lux @ F1.8 (Color), 30IRE
<0.01 Lux @ F1.8 (B/W)
0 Lux with IR ill umination on
ePTZ: 48x digital zoom (4x on IE plug-in, 12x
built-in)
Slot type: Micro SD/SDHC/SDXC card slot
Seamless Recording
Video
ONVIF
System Integration
Smar t Motion Detection
Sma rt VCA
VAD P Pac kag e
Alarm and Event
Alarm Triggers
Alarm Events
Suppo rted, specication available at
www.onvif.org
Five-window video motion detection,
people detection, time lte r
Intr usion detection, l oitering detection, line
crossing detection, unattended object
detection, missing object detection, face
detection
*Please access http://license.vivotek.com/
to get the free trial license.
Trend Micro IoT Security, Deep Learning
VCA (Smart Motion Detection, Smar t VCA)
Motion detection, manual trigger,
digital input, periodical tr igger, system
boot, recording notication, camera
tampering detection, audio detection,
shock detection, SD card life expectancy,
cybersecur ity events (brute force attack
event, cyberattack event, quarantine
event)
Event notication via digital output, email,
HTTP, FTP, NAS server, SD card
File upload v ia emai l, HTTP, FTP, NAS server,
SD card
Page 3
Technical Specications
General
RJ- 45 cable connecto r for 10/100Mpbs
Network/PoE connection
Audio line in
Connectors
LED Indicator System power and status indicator
Power Input
Audio l ine out
AC 24 V
DC 12 V
Digital input *2
Digital output *2
BNC out
IB936 5-H T:
AC 24V, DC 12V, IEEE 80 2.3af PoE Class 0
IB9365-EHT:
AC 24V, DC 12V, IEEE 80 2.3at PoE Class 4
IB9365-HT/EHT(4-9mm)
w/ junction box
121 mm 415 mm
121 mm
IB936 5-H T:
PoE: Max. 11.9 W
DC 12V: Max. 9 W
Power Consumption
Dimensions
Weig ht
Casing IP66, IP67, IK10 (Metal Housing), NEMA 4X
Safety Certications
Operating Temperature
AC 24V: Max. 10. 5 W
IB9365-EHT:
PoE: Max. 24.8/11.9 W (Heater on/off)
DC 12V: Max. 19.5/9 W (Heater on/off)
AC 24V: Max. 21.8/10.5 W (Heater on/off)
IB9365-HT/EHT(4-9mm):
121 x 121 x 415 mm (w/ junction box)
121 x 121 x 351 mm (w/o junction box)
IB9365-HT/EHT(12-40mm):
121 x 121 x 444 mm (w/ junction box)
121 x 121 x 380 mm (w/o junction box)
IB9365-HT/EHT(4-9mm):
1,942 g (w/ junction box)
1,475 g (w/o junction box)
IB9365-HT/EHT(12-40mm):
2,116 g (w/ junction box)
1,649 g (w/o junct ion box)
CE, LVD, FCC Class A, VCCI, C-Tick, UL,
EN 50121-4
IB936 5-H T:
Star ting Temperature:
-10°C ~ 50°C (14°F ~ 122 °F)
Workin g Temperature:
-30°C ~ 50 °C (-22°F ~ 122 °F)
IB9365-EHT:
Star ting Temperature:
-40°C ~ 50 °C (-40°F ~ 122°F)
Workin g Temperature:
-50 °C ~ 50 °C (-5 8°F ~ 122 °F)
w/o junction box
121 mm 351 mm
121 mm
IB9365-HT/EHT(12-40mm)
w/ junction box
121 mm 444 mm
121 mm
w/o junction box
121 mm 38 0 mm
121 mm
Humidity 90%
War rant y 36 months
System Requirements
Operating System
Web Browser
Other Players
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Chrome 58.0 or above
Inter net Explorer 10/11
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others
Quick instal lation guide, warranty card,
screw pack, alignment sticker, junction box
Dimensions
Page 4
Compatible Accessories
Mounting Kits
Junction Box (Standard Package) Pole Mount Adapter Corner Mount Adapter
*For USA and Canada markets, the junction box (AM-719) is not included.
AM -719 * AM -312 AM -412
All sp ecicat ions are su bject to cha nge without notice. Co pyright © VIVOTEK INC . All rights reser ved. Ver. 13
6F, No.192, Lien -Che ng Rd., Chun g-Ho, N ew Taipei C ity, 235, Taiwan, R.O.C. | T: +8 86-2-8245 5282 | F: +8 86-2- 8245 5532 | E: s ales@v ivotek.co m | W: www.vivote k.com
