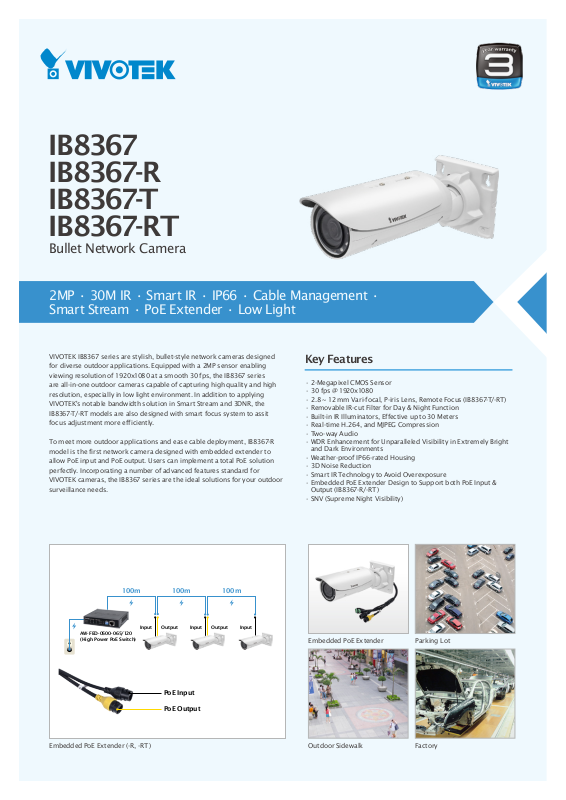

Vivotek IB8367-RT Specsheet

IB8367
IB8367-R
IB8367-T
IB8367-RT

Bullet Network Camera

2MP • 30M IR • Smart IR • IP66 • Cable Management •
Smart Stream • PoE Extender • Low Light

VIVOTEK IB8367 series are stylish, bullet-style net work cameras designed
for diverse outdoor applications. Equipped with a 2MP sensor enabling
viewing resolution of 1920x1080 at a smooth 30 fps, the IB8367 series
are all-in-one outdoor cameras capable of capturing high quality and high
resolution, especially in low light environment. In addition to applying
VIVOTEK's notable bandwidth solution in Smart Stream and 3DNR, the
IB8367-T/-RT models are also designed with smart focus system to assit
focus adjustment more efficiently.

To meet more outdoor applications and ease cable deployment, IB8367-R
model is the first net work camera designed with embedded extender to
allow PoE input and PoE output. Users can implement a total PoE solution
perfectly. Incorporating a number of advanced features standard for
VIVOTEK cameras, the IB8367 series are the ideal solutions for your outdoor
surveillance needs.

100 m

AW-FED- 0500-065/120
(High Power PoE Swi tch)

Input Output

100 m 100 m

Input Output Input

Key Features

• 2-Megapixel CMOS Sensor

• 30 fps @ 1920x1080

• 2.8 ~ 12 mm Vari-focal, P-iris Lens, Remote Focus (IB8367-T/-RT)

• Removable IR-cut Filter for Day & Night Function

• Built-in IR Illuminators, Effective up to 30 Meters

• Real-time H.264, and MJPEG Compression

• Two-way Audio

• WDR Enhancement for Unparalleled Visibilit y in Extremely Bright
and Dark Environments

• Weather-proof IP66-rated Housing

• 3D Noise Reduction

• Smart IR Technology to Avoid Overexposure

• Embedded PoE Extender Design to Suppor t both PoE Input &
Output (IB8367-R/-RT)

• SNV (Supreme Night Visibility)

Embedded PoE Extender

Parking Lot

Embedded PoE Extender (-R, -RT)

PoE Input

PoE Output

Outdoor Sidewalk

Factory

Technical Specifications

Models IB8367

IB8 367-R
IB 8367-T
IB8 367-RT

System Inform ation

CPU Multimed ia SoC (System-on- Chip)

Flash 128 MB

RAM 256MB

Camera Features

Image Senso r 1/2.8” Progressive CMO S

Maximum Resolution 1920x1080 (2MP)

Lens Type Vari-focal

Focal Leng th f = 2.8 ~ 12 mm

Aperture F1.8 ~ F2.85

Auto-iris P-Iris

Field of View IB 836 7/-R

Shutter Ti me 1/5 sec. to 1/32,000 sec.

WDR Technolog y WDR Enhanc ed

Day/Night Removab le IR-cut filter for day & night func tion

Minimum Illumination 0.06 Lux @ F1.8 (Color)

Pan/tilt/zoom Functionalities ePTZ:

IR Illuminators Built-in IR illumi nators, effect ive up to 30 meters

On-board Storage SD/SDHC/SDXC car d slot

30° ~ 98° (Horizonta l)
21° ~ 54° (Vertica l)
40° ~ 121° (Diagonal)
IB 8367-T/ -RT
45° ~ 103° (Horizonta l)
25° ~ 56° (Vert ical)
54° ~ 128° (Diagonal )

0.001 Lux @ F1.8 (B/W)

48x digital zoo m (4x on IE plug-in, 12x built in)

with Smar t IR
IR LED*6

Video

Compression H.264 & MJPEG

Maximum Fra me Rate 30 fps @ 1920x1080

Maximum Streams 3 simultane ous streams

S/N Ratio Above 58 dB

Dynami c Range 60.37 dB

Video Stre aming Adjustab le resolution, qualit y and bitrate

Image Set tings Adjustab le image size, quality and bit rate , Time stamp, text

In both compres sion modes

overlay, flip & mirr or, Config urable brightness , contra st,
saturati on, sharpness, white bal ance, exposure contro l, gain,
backlig ht compensation, pri vacy masks, Sched uled profile
setting s, Seamless recordin g, smart stream, 3D Noise Reduc tion

Audio

Audio Capability Audi o input /output (full dup lex)

Compression G.711, G.726

Interface External microphone input

Exter nal line output

Network

Users Live view ing for up to 10 clients

Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPn P, RTSP/RTP/RTCP, IGMP,

Interface 10Bas e-T/100 BaseTX Ethernet (RJ- 45)

ONVIF Suppor ted, specificat ion available at ww w.onvif.org

SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPo E, CoS, QoS, SNMP,

802.1X, UDP, ICMP

Intelligent Video

Video Motion Detection Triple-win dow video motion dete ction

Alarm and Event

Alarm Triggers Video motio n detect ion, manual trigger, digit al input, periodic al

Alarm Events Eve nt notification usin g digital output, HT TP, SMTP, FTP and NAS

trigger, syste m boot, recording notif ication, came ra tampering
detection, audio detection

serve r, SD Card
File upload vi a HTT P, SMTP, FTP, NAS ser ver and SD card

General

Smart Foc us System Manual foc us

Connectors RJ-45 cable co nnector for Netwo rk/PoE connect ion

LED Indica tor Sy stem power and status indi cator

Power Input IB8367/67-T

Power Consumption IB8367

Dimensions Ø: 82 x 283 mm

Weight Net: 920 g

Casing Weathe r-proof IP66-rat ed housing

Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL

Operating Temperature Star ting Temperature: -10°C ~ 50°C (14°F~ 122°F)

Warranty 36 months

Remote Focus (IB 8367-T/-RT)

RJ-45 cable co nnector for PoE output (IB 8367-R/-RT)
Audio input
Audio output
DC 12V power input (IB8367/-T)
Digita l input*1
Digita l output *1

DC 12V
IEEE 802.3af PoE Class 3
IB8 367-R/6 7-RT
IEEE 802.3at, UPoE

Max: 8.6 W (DC12V)
Max: 9.7 W (PoE)
IB8 367-R
Max: 10 W (PoE)
IB 8367-T
Max: 11 W (DC12V)
Max: 11.6 W (PoE)
IB8 367-RT
Max:12.6 W (PoE)

Net: 985 g (IB8367-R/-RT)

Working Tempera ture: -20°C ~ 50°C (-4°F~ 122°F)

System Requirements

Operat ing System Mi crosoft Windows 7/8/Vista /XP/2000

Web Browser Mozilla Firefox 7~10 (Streaming only)

Other Players VLC: 1.1.11 or above

Interne t Explor er 7.x, 8.x, 9.x,10.x

Quicktim e: 7 or above

Included Accessories

CD User's manua l, quick installation gui de, Installation Wiz ard 2,

Others Quick instal lation guide, warra nty card, sun shield, wall mo unt

ST7501 32-channel record ing software

bracket, ali gnment sticker/desiccant bag, wa terproof connec tor,
screw pack

Dimensions

116 mm

Ø82 mm

283 mm

116 mm

Compatible Accessories

Mounting Kits

A M- 311

Pole Mount Adaptor

Distributed by:

A M- 411

Corner Mount Adaptor

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chu ng-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: [phone] F: [phone]
E: [e-mail]

A M-711

Junction Box

All specif ications are subj ect to change witho ut notice. Copyri ght © VIVOTEK INC. All ri ghts reserved .

Ver. 6
