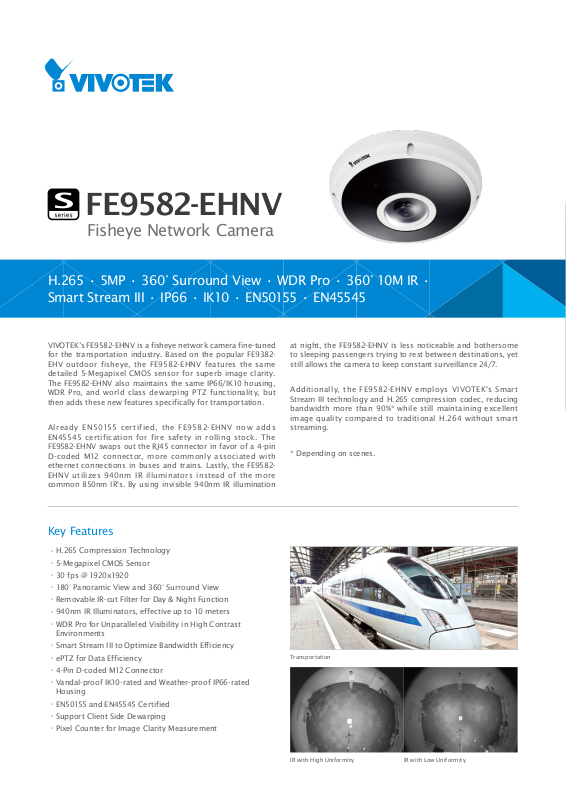

Vivotek FE9582-EHNV Specsheet

FE9582-EHNV

Fisheye Network Camera

H.265 • 5MP • 360° Surround View • WDR Pro • 360° 10M IR •
Smart Stream III • IP66 • IK10 • EN50155 • EN45545

VIVOTEK’s FE9582-EHNV is a fisheye network camera fine-tuned
for the transportation industry. Based on the popular FE9382­EHV outdoor fisheye, the FE9582-EHNV features the same
detailed 5-Megapixel CMOS sensor for superb image clarity.
The FE9582-EHNV also maintains the same IP66/IK10 housing,
WDR Pro, and world class dewarping PTZ functionality, but
then adds these new features specifically for transportation.

Already EN50155 certified, the FE9582-EHNV now adds
EN45545 certification for fire safet y in rolling stock. The
FE9582-EHNV swaps out the RJ45 connector in favor of a 4-pin
D-coded M12 connector, more commonly associated with
ethernet connections in buses and trains. Lastly, the FE9582­EHNV utilizes 940nm IR illuminators instead of the more
common 850nm IR's. By using invisible 940nm IR illumination

Key Features

H.265 Compression Technology

•

5-Megapixel CMOS Sensor

•

30 fps @ 1920x1920

•

180° Panoramic View and 360° Surround View

•

Removable IR-cut Filter for Day & Night Function

•

940nm IR Illuminators, effective up to 10 meters

•

WDR Pro for Unparalleled Visibilit y in High Contrast

•

Environments

Smart Stream III to Optimize Bandwidth Efficiency

•

ePTZ for Data Efficiency

•

4-Pin D-coded M12 Connector

•

Vandal-proof IK10-rated and Weather-proof IP66-rated

•

Housing

EN50155 and EN45545 Certified

•

Support Client Side Dewarping

•

Pixel Counter for Image Clarity Measurement

•

at night, the FE9582-EHNV is less noticeable and bothersome
to sleeping passengers trying to rest between destinations, yet
still allows the camera to keep constant surveillance 24/7.

Additionally, the FE9582-EHNV employs VIVOTEK's Smart
Stream III technology and H.265 compression codec, reducing
bandwidth more than 90%* while still maintaining excellent
image quality compared to traditional H.264 without smart
streaming.

* Depending on scenes.

Bitrate

Bandwidth Saving:

Up to 80%

Compression

H.264 H.265 +

Transportation

Smart Stream II

IR with High Uniformity IR with Lo w Uniformit y

Technical Specifications

Model FE9582-EHNV

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128 MB

RAM 512MB

Camera Features

Image Sensor 1/1.8" Progressive CMOS in 3096x2094

Maximum Resolution 1920x1920

Lens Type Fixed-focal

Focal Length f = 1.47 mm

Aperture F2.2

Field of View

Shutter Time 1/5 sec. to 1/32,000 sec.

WDR Technology WDR Pro

Day/Night

Minimum Illumination

Pan/Tilt/Zoom
Functionalities

IR Illuminators

180° (Horizontal)
180° (Vertical)
180° (Diagonal)

Removable IR-cut filter for day & night
function

0.18 Lux @ F2.2 (Color)

0.001 Lux @ F2.2 (B/W)

ePTZ:
12x digital zoom (12x on IE plug-in)

Built-in IR illuminators, effective up to 10
meters
940nm IR LED*6

Compression G.711, G.726

Interface

Effective Range 5 meters

Built-in microphone
External microphone input
External line output

Network

Users Live viewing for up to 10 clients

IPv4, IP v6, TCP/IP, HTTP, HTTPS, UPnP,

Protocols

Interface

ONVIF

RTS P/RT P/R TCP, IG MP, SM TP, FT P, DH CP,
NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,

802.1X, UDP, ICMP, ARP, SSL, TLS, CIFS/
SMB

10 Base-T/100 Base-TX Ethernet
(M12,Female,4pin D-coded)

Supported, specification available at
ww w.onvif.org

Intelligent Video

Video Motion Detection Five-window video motion detection

Alarm and Event

Motion detection, manual trigger, digital

Alarm Triggers

Alarm Events

input, periodical trigger, system boot,
recording notification, camera tampering
detection, audio detection, MicroSD card
life expectancy

Event notification using digital output,
HTTP, SMTP, FTP, NAS server and MicroSD
Card
File upload via HTTP, SMTP, FTP, NAS
server and MicroSD Card

General

On-board Storage

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Compression H.265, H.264, MJPEG

Maximum Frame Rate

Maximum Streams 4 simultaneous streams

S/N Ratio 42.3dB

Dynamic Range 100 dB

Video Streaming

Image Settings

H.265/H.264: 30 fps @ 1920x1920
MJPEG: 12 fps @ 1920x1920

Adjustable resolution, quality and bitrate;
Smart Stream III

Time stamp, text overlay, flip & mirror;
Configurable brightness, contrast,
saturation, sharpness, white balance,
exposure control, gain, backlight
compensation, privac y masks; Scheduled
profile settings, 3D noise reduction;
Adjustable image size, qualit y and bit rate,
defog; Pixel calculator

Audio

Audio Capabilit y Two-way audio

M12 4-pin connector
Audio input*1

Connectors

LED Indicator System power and status indicator

Power Input

Power Consumption Max. 20 W

Dimensions Ø 160 x 51 mm

Weight 762 g

Casing

Safety Certifications

Operating Temperature

Humidity 90%

Warranty 36 months

Audio output*1
DC 12V power input*1
Digital input*1
Digital output*1

DC 12V
IEEE 802.3at PoE Class 4

Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing

CE, LVD, FCC Class A, VCCI, C-Tick, UL,
EN50155, EN 45545

Starting Temperature:

-25°C ~ 55°C (-13°F ~ 131°F)
Working Temperature:

-40°C ~ 55°C (-40°F ~ 131°F)
