Overview

VIVOTEK FE8171V is the first fisheye fixed dome network camera from VIVOTEK, featuring detailed

3.1MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic

view (wall mount) or 360° surround view (ceiling/oor/table mount) without blind spots, this camera is able to provide an 8X wider eld of view than a standard VGA camera, signicantly reducing the need

for multiple camera installations. It is extremely suitable for monitoring open areas such as airports,

shopping malls, parking lots, retail stores, ofces, and many more.

The FE8171V offers various display layouts, including original surround view, panoramic views, and regional views for various mounting applications. With the latest cutting-edge image processing,

hemispherical images captured from the sheye camera can be converted into conventional rectilinear

projection for viewing and analysis. In addition, in the panoramic and regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI).

As with all VIVOTEK true day/night cameras, the FE8171V features a removable IR-cut lter, maintaining

clear images 24 hours a day. Its IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the vandalproof IK10-rated housing effectively provides robust protection from vandalism. Together with 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, EN50155 mobile surveillance, and iPad iViewer applications, the FE8171V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.

4 - User's Manual

VIVOTEK

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not

only a high-performance web-ready camera but can also be part of a exible surveillance system. It is

the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

It is important to rst verify that all contents received are complete according to the Package Contents

listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge. It is designed for various applications including video sharing, general security/ surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and ensure proper operations. For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server.

Package Contents

■ FE8171V - the Network Camera

■ Alignment Stickers

■ Mounting Plate / Screwdriver

■ Screws / Moisture Absorber / Double-side Tape /

Rubber Seal Plug / Rubber Washer

■ DC Power Adapter

■ Power & I/O Cables

■ Quick Installation Guide / Warranty Card

■ Software CD

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent inconvenient

or problem situations.

NOTE: Notices provide guidance or advices that are related to the functional integrity of the

machine.

Tips: Tips are useful information that helps enhance or facilitae an installation, function, or

process.

WARNING! or IMPORTANT!: These statements indicate situations that can be dangerous or

hazardous to the machine or you.

Electrical Hazard: This statement appears when high voltage electrical hazards might occur

to an operator.

User's Manual - 5

VIVOTEK

Physical Description

Inner View

Lens

Pin Header (J7)

Spring Contacts (A)

Contacts for Internal Microphone (B)

Pin Header (J6)

Ethernet 10/100 RJ45 Socket

MicroSD/SDHC/SDXC Card Slot

Align (B) to (A) when attaching the dome cover

Reset Button

6 - User's Manual

Outer View

VIVOTEK

IP66-rated Vandalproof Dome Cover

Built-in Microphone

IMPORTANT! Record the MAC

address under the camera base before installing the camera.

Network Camera

Model No: FE8171V MAC: 0002D1XXXXXX

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

Made in Taiwan

User's Manual - 7

VIVOTEK

DI/DO Diagram

Please refer to the following illustration for the connection method.

12V

PIN 1

Power+12V

PIN 2

Digital output

+12V

PIN 3

Digital input

PIN 4

Ground

Hardware Reset

Reset Button

The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, press the reset button longer to restore the factory settings and install again.

Reset: Press and release the recessed reset button with a straightened paper clip. Wait for the Network Camera to reboot.

Restore: Press and hold the recessed reset button for at least several seconds to restore. Note that all settings will be restored to factory defaults.

Micro SD/SDHC/SDXC Card Capacity

This network camera is compliant with Micro SD/SDHC 32GB and other preceding standard SD cards.

8 - User's Manual

VIVOTEK

Hardware Installation

Opening Dome Cover

First, use the included T20 hex key stardriver to loosen the four screws and detach the dome cover from the camera base. Follow the steps below to install the camera either to a ceiling or a wall.

Tamper-proof Screw

Connect the supplied power &

IO cables if your switch does not support PoE.

Rubber Stopper on the Hole for Power & IO Cables

Rubber Seal Plug for RJ45 Ethernet Cable

Dome Cover Retainer

User's Manual - 9

VIVOTEK

Connecting RJ45 Ethernet Cable

RJ45 Cable Dimension (unit: mm)

Recommended cable gauge: 24AWG (0.51 mm)

Assembling Steps

o: white/orange stripe O: orange solid g: white/green stripe B: blue solid b: white/blue stripe G: green solid br: white/brown stripe BR: brown solid

g B

b G br

Rubber Seal Plug

1 2 3 4 5 6 7 8

NOTE:

This equipment is only to be connected to PoE networks without routing to outside plant.

1. Drill a hole on the rubber seal plug and insert an Ethernet cable through the opening.

2. Strip part of the sheath from the Ethernet cable.

3. You will need an RJ45 crimping tool to attach the Ethernet wires to a connector. When done, connect the cable to the camera’s Ethernet RJ45 socket.

4. Feed the Ethernet cable from the bottom of the camera and through the hole. Attach the rubber seal plug for wa-

ter proong.

Connecting DC Power Cable

1. Remove the rubber stopper from the camera base.

2. Add the supplied rubber washer to the cable as shown in the picture.

3. Feed the cable from the bottom of the camera and tighten the plastic base for waterproong.

10 - User's Manual

VIVOTEK

Ceiling/Wall Mount without Mounting Plate (Choose this mounting type if you would like to feed the cables form the bottom of the camera)

1. Attach the supplied alignment sticker for camera base to the ceiling/wall.

2. Using the three circles on the sticker, drill three pilot holes into the ceiling. Then hammer the three supplied plastic anchors into the holes.

3. Drill a cable hole on the ceiling/wall, and feed the cables through the hole.

4. Connect the Ethernet cable to the socket.

5. Connect the two white pin header connectors to the J6 and J7 connectors.

6. Secure the camera base to the ceiling/wall with three supplied screws.

7. You will nd a moisture absorber attached to the camera. Replace the moisture absorber included in the camera with the one shipped within the accessory bag.

8. Attach the dome cover.

9. Secure the four screws with the supplied stardriver. Make sure all camera parts are securely installed.

Pin Header (J6)

Pin Header (J7)

IMPO RTANT!

Arrange the cables neatly to avoid getting in the way when the dome cover is attached.

User's Manual - 11

VIVOTEK

Ceiling/Wall Mount with Mounting Plate (Choose this mounting type if you would like to feed the cables form the side)

1. Attach the supplied alignment sticker for the supplied mounting plate to the ceiling/wall.

2. Using the three circles on the sticker, drill three holes into the ceiling. Then hammer the three supplied plastic anchors into the holes.

3. Arrange and feed the cables through the side of the mounting plate.

4. Secure the mounting plate to the ceiling/wall with three supplied screws.

5. Connect the Ethernet cable to the socket.

6. Connect two white pin header connectors to the J6 and J7 connectors.

7. Attach the camera base to the mounting plate and turn counter-clockwise as shown below

(Figure 7-1). Then secure the supplied screw to x the camera base.

8. You will nd a moisture absorber attached to the camera. Replace the moisture absorber

with the one shipped within the accessory bag.

9. Attach the dome cover.

10. Secure the four screws with the supplied stardriver. Make sure all camera parts are securely installed.

7-1

12 - User's Manual

7-2

VIVOTEK

N (

Local Area Network)

dre

N (Wide Area Network )

dre

Network Deployment

Setting up the Network Camera over the Internet

There are several ways to set up the Network Camera over the Internet. The rst way is to set up the Network Camera behind a router. The second way is to utilize a static IP. The third way is to use PPPoE.

Internet connection via a router

Before enabling the access to the Network Camera over the Internet, make sure you have a router and follow the steps below.

1. Connect your Network Camera behind a router, the Internet environment is illustrated below.

Regarding how to obtain your IP address, please refer to Software Installation on page 16 for details.

IP address : 192.168.0.3 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

Internet

Cable or DSL Modem

WAN (Wide Area Network ) Router IP address : from ISP

LINK

POWER

COLLISION

RECEIVE

PARTITION

LAN (Local Area Network) Router IP address : 192.168.0.1

2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is

192.168.0.3, please forward the following ports for the Network Camera on the router.

■ Secondary HTTP port

■ RTSP port

■ RTP port for audio

■ RTCP port for audio

■ RTP port for video

■ RTCP port for video

If you have changed the port numbers on the Network page, please open the ports accordingly on your router. For information on how to forward ports on the router, please refer to your router’s user’s manual.

3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).

Use the public IP and the secondary HTTP port to access the Network Camera from the Internet. Please refer to Network Type on page 58 for details.

User's Manual - 13

VIVOTEK

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera.

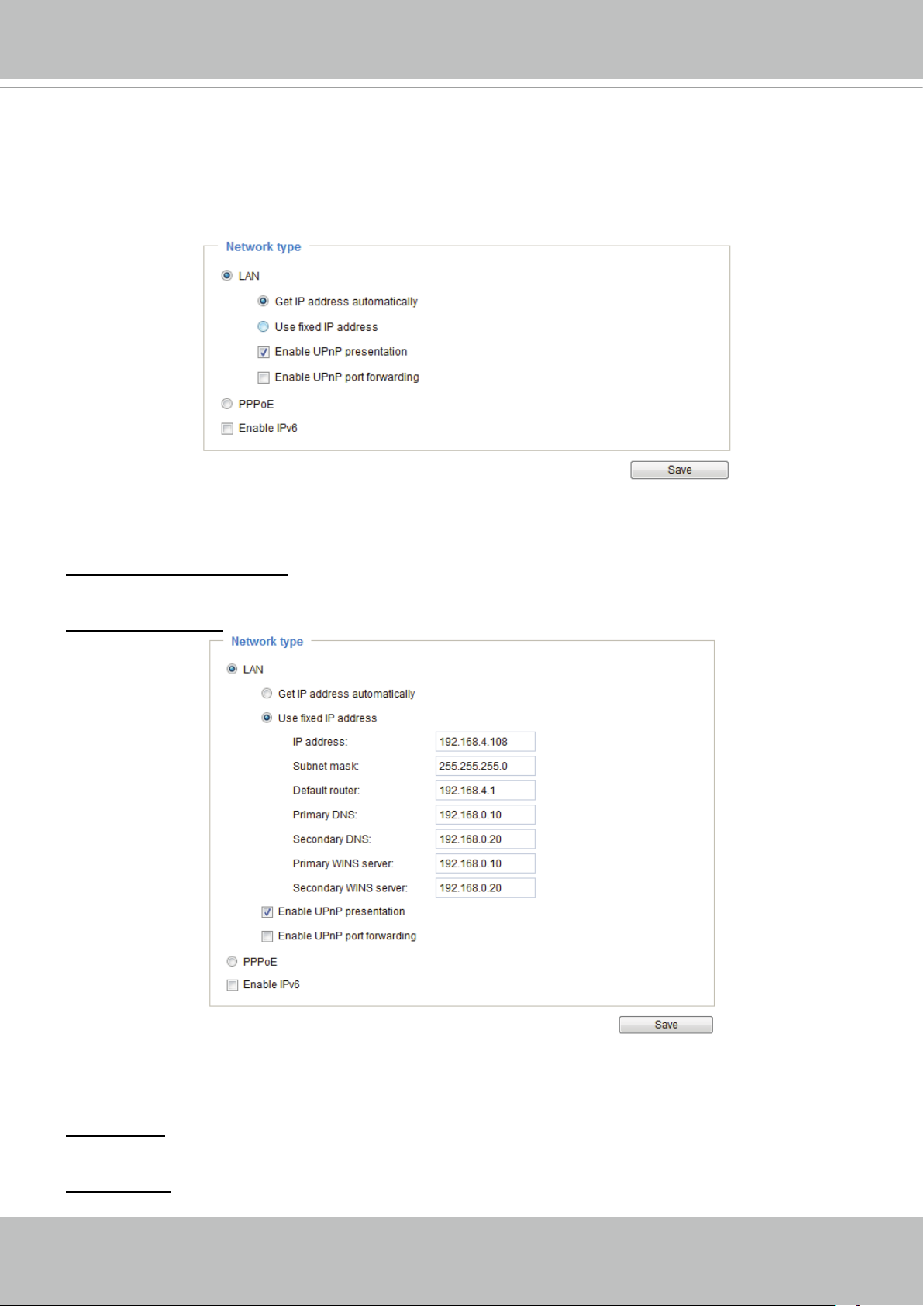

Please refer to LAN conguration on page 58 for details.

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to PPPoE on page 49 for details.

Set up the Network Camera through Power over Ethernet (PoE)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via an Ethernet cable.

NOTE:

1. The camera is only to be connected to PoE networks without routing to outside plants.

2. For PoE connection, use only UL listed I.T.E. with PoE output.

I N

RECEIVE

PARTITIO

Power + Data Transmission

POW

I S ION

PoE Switch

When using a non-PoE switch

If your switch/router does not support PoE, use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.

14 - User's Manual

PoE Power Injector

(optional)

I N

POW

I S

ION

RECEIVE

PARTITIO

Non-PoE Switch

VIVOTEK

General Connection (without PoE)

1. If you have external DI devices, make the connection from general I/O terminal block.

2. Ethernet, power and IO cables are user-supplied. Use a Category 5 Cross Cable when Network Camera is directly connected to PC.

3. Connect DC power cord to a DC Adapter, and then to a power outlet.

Ethernet

Switch

I N

POW

I S

ION

RECEIVE

PARTITIO

General I/O Terminal Block

Power Cord Socket (Black)

Microphone In (Pink)

Audio Out (Green)

+3V3

GND

+3V3 : Power, 3.3V DC

D O : Digital Output

D I : Digital Input

G N D : Ground

NOTE:

The power adapter should comply with L.P.S. regulations featuring O/P: 12V DC, 1.5A min.

User's Manual - 15

VIVOTEK

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up your Network Camera on the LAN.

1. Install IW2 under the Software Utility directory from the software CD.

Double click the IW2 shortcut on your desktop to launch the program.

2. The program will conduct an analysis of your network environment.

After your network environment is analyzed, please click Next to continue the program.

Installation

Wizard 2

3. The program will search for all VIVOTEK network devices on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC address

that matches the one printed on the camera label or the S/N number on the package box label to open a browser management session with the Network Camera.

Network Camera

Model No: FE8171V MAC: 0002D1083236

Pat. 6,930,709

Made in Taiwan

00-02-D1-08-32-36 192.168.5.109 FE8171V

0002D1083236

16 - User's Manual

VIVOTEK

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.

User's Manual - 17

VIVOTEK

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software.

Using Web Browsers

IMPORTANT!

Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a

•

management/view session with the camera using a 64-bit IE browser. If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\

•

SysWOW64. A 32-bit version of IE browser will be installed. On Windows 7, the 32-bit explorer browser can be accessed from here: C:\Program

•

Files (x86)\Internet Explorer\iexplore.exe

Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN. If your network environment is not a LAN, follow these steps to access the Netwotk Camera:

1. Launch your web browser (ex. Microsoft

2. Enter the IP address of the Network Camera in the address eld. Press Enter.

3. The live video will be displayed in your web browser.

4. If it is the rst time installing the VIVOTEK network camera, an information bar will prompt as

shown below. Follow the instructions to install the required plug-in on your computer.

Internet Explorer, Mozilla Firefox, or Netscape).

18 - User's Manual

VIVOTEK

NOTE:

For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream live video. If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's website, and then launch your web browser.

User's Manual - 19

VIVOTEK

NOTE:

1. By default, your Network Camera is not password-protected. To prevent unauthorized

access, it is highly recommended to congure a password for your camera later.

more information about how to enable password protection, please refer to Security on page 47

2. If you see a dialogue box indicating that your security settings prohibit running ActiveX

Controls®, please enable ActiveX Controls for your browser.

To enable the ActiveX® Controls for your browser:

1. Choose Tools > Internet Options > Security

> Custom Level.

For

2. Look for Download signed ActiveX® controls;

select Enable or Prompt. Click OK.

3. Refresh your web browser, then install the ActiveX complete installation.

control. Follow the instructions to

20 - User's Manual

VIVOTEK

Using RTSP Players

To view the H.264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming.

Quick Time Player

Real Player

1. Launch the RTSP player.

2. Choose File > Open URL. A URL dialog box will prompt.

3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for stream1 to stream4>

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554. For more information, please refer to RTSP Streaming on page 67. For example:

rtsp://192.168.5.151:554/live.sdp

4. The live video will be displayed in your player. For more information on how to congure the

RTSP access name, please refer to RTSP Streaming on page 67 for details.

Video 16:38:01 2011/03/25

The RTSP players will show the original oval-shape image. You can access the Regional views via the ST-7501 or VAST software. See page 68 for an example.

User's Manual - 21

VIVOTEK

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page

13.

To utilize this feature, please check the following settings on your Network Camera:

1. Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable.

For more information, please refer to RTSP Streaming on page 67.

2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.

Please set the video and audio streaming parameters as listed below.

For more information, please refer to Stream settings on page 86.

Video Mode MPEG-4 Frame size 176 x 144 Maximum frame rate 5 fps Intra frame period 1S Video quality (Constant bit rate) 40kbps Audio type (GSM-AMR) 12.2kbps

3. As most ISPs and players only allow RTSP streaming through port number 554, please set

the RTSP port to 554. For more information, please refer to RTSP Streaming on page 67.

4. Launch the player on the 3GPP-compatible mobile devices (e.g., Real Player).

5. Type the following URL commands in the URL eld.

The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming access name for stream 3>.

For example:

rtsp://192.168.5.151:554/live.sdp

22 - User's Manual

VIVOTEK

Using VIVOTEK Recording Software

The product software CD also contains recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras. Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com.

User's Manual - 23

VIVOTEK

VIVOTEK logo

Main Page

This chapter explains the screen elements on the main page. It is composed of the following

sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Conguration Area, and Live

Video Window.

Resize Buttons

Host name

Camera Control Panel

Configuration Area

Live View window

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website.

Host Name

The host name can be customized to t your needs. For more information, please refer to System > General

Settings on page 36.

Camera Control Area

Display mode:

to the sheye lens’ wide coverage of 180º hemispheric and 360º panoramic views, the following display

modes are provided:

This is a brand new conguration menu exclusively designed for Fisheye cameras. Due

1O - One Original sheye view. 1P - One Panoramic view 1R - One Regional view 2P - Two Panoramic views 1O3R - One Original and three Regional views 4R - Four Regional views 4R PRO - Four Regional views interactively displayed when the eld

of view changes in any of the views 1O8R - One Original and eight Regional views

* See following discussions for detailed explanation of these modes. The Wall mount type provides another two distinctive modes.

24 - User's Manual

1O (Original) Display mode:

When mounted on a ceiling, the sheye camera can

cover an approximately 50 m² of surveillance area, while still keeping details in videos with recognizable facial

features of people trafcking through the area.

VIVOTEK

1O View (Original View)

The 1O view is especially adequate for taking an overview glimpse of surveillance area with a ceiling mount camera.

1P (Single Panoramic) Display mode:

With image correction rmware algorithms, the hemispheric image is transformed into a rectilinear stripe

in the 1P display mode. Viewers can use the PTZ panel or simply use mouse control to quickly move through the 360º panoramic view.

180° Hemispheric

Note that the 1P view is apt for an overview, the Zoom in/out function does not apply in this mode.

Swipe to scroll horizontally

User's Manual - 25

VIVOTEK

1R (Single Regional) Display mode:

The 1R mode provides access to one image section within the hemisphere. You can zoom in or out (using the mouse wheel or PTZ panel) or travel through to other areas within the hemisphere using simple mouse clicks and drags. A single click on a particular object can bring the object to the center of your view window. Click and hold down the left mouse button, and you can swipe the view both horizontally and vertically.

1R View (Single Regional View)

Zoom In

Zoom in/out

all-direction

navigation control

Zoom Out

2P (Dual Panoramic View) Display mode:

Similar to 1P, the 2P display mode provides simultaneous access to both the front and rear sections of a hemisphere. Both panoramic views are corrected into a more viewable dewarped image. Viewers can use a mouse click and drag to quickly scroll horizontally through the surveillance area.

2P View (Panoramic View)

Extended to rectilinear view (Dewarp)

Front hemi

26 - User's Manual

Rear hemi

VIVOTEK

1O3R (Original & Regional) Mode Screen Control

1O3R (One Original & Three Regional) Display mode:

The 1O3R mode provides access to multiple live view sections within the hemisphere and the reference to their relative positions on the Original view. The FOV indicators (#1 ~ #3) interact with your current operation as you may zoom in/out or move the live view sections elsewhere.

You can zoom in or out or travel to other areas within the hemisphere using identical methods as previously described in the 1R mode.

You can also change the locations of Regional views by dragging the FOV indicators on the "Original" round-shape image window.

Zoom In

Click to bring into center of view

Zoom Out

Pan or tilt

Interactive regional FOV indicators

Current screen selection

Tips:

In a Regional view displaying 100% of video feed (via the Resize buttons - see page 30), your mouse wheel can be used to scroll the view window vertically before you click on a live image. After you click on the live image, the mouse wheel becomes the zoom in/out tool.

User's Manual - 27

VIVOTEK

4R (Four Regional) Display mode:

The view control and look and feel are identical to that as described in the 1O3R mode except the Original window.

4R PRO (Four Regional Proactive) Display mode:

The 4R PRO mode is similar to the 4R mode except that the quad view windows consecutively rotate in correspondence to the change of view area in one window. Note that zoom in/out and tilt control is not available in this mode.

1O8R (One Original and Eight Regional) Display mode:

The view control and look and feel are identical to that as described in the 1O3R mode.

Note that if you change the position of a view in hemisphere, e.g., #3 window, you may lose the

conguration change by switching to another display mode. The live view window does not automatically

save your view section layout.

123

1P2R (One Panoramic and Two Regional) Display mode: 1P3R (One Panoramic and Three Regional) Display mode:

These two modes are only available with the Wall Mount type! The Mount type conguration is found in

Conguration > Media > Image > General Settings. Please refer to page 77 for details.

The view control in these two modes is identical to that as described in the 1O3R mode.

28 - User's Manual

VIVOTEK

Video Stream: This Network Cmera supports multiple streams (stream 1 ~ 4) simultaneously. You can select any one of them for live viewing. For more information about multiple streams, please refer to page 86 for detailed information.

Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting

before enabling this function. A total of 3 or 4 event settings can be congured. For more information

about event setting, please refer to page 93. If you want to hide this item on the homepage, please go to the System > Homepage Layout > General settings > Customized button to uncheck “show manual trigger button”.

Digital Output: Click to turn the digital output device on or off.

PTZ Control Panel:

Return to Home Position

Left

Right

Down

Zoom Out

Start to Auto Pano

Zoom In

Start to Auto Rotate

Stop Auto Pano/Rotate

Pano.: Click this button to start the automated circular rotation through a regional view (360° continuous rotation). Note that this function does not apply in a Panoramic view because a Panoramic view already shows the full coverage.

Stop: Click this button to stop the Auto Pano and Auto Rotate functions.

Rotate: Once the Administrator has determined a list of preset PTZ positions, click this button to command the camera to consecutively display views of these positions. The Network Camera will display these views continuously. For more information, please refer to PTZ settings on page 90.

Pan speed Tilt speed Zoom speed Panoramic

speed

-5 -5 -5 - - Slower

-4 -4 -4 - -

-3 -3 -3 - -

-2 -2 -2 - -

-1 -1 -1 - -

0 0 0 0 0

1 1 1 1 1

2 2 2 2 2

3 3 3 3 3

4 4 4 4 4

5 5 5 5 5

Pan /Tilt /Zoom /Panoramic/Rotate: Adjust the speed of these controls:

Rotate speed

Faster

User's Manual - 29

VIVOTEK

H.264/MPEG-4 Protocol and Media Options

Conguration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 33.

Conguration: Click this button to access more of the conguration options provided with the Network

Camera. It is suggested that a password is applied to the Network Camera so that only the administrator can configure the Network Camera. For more information, please refer to the description for the

Conguration menus on page 35.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano,

日本語

, Português,

簡体中文

, and

繁體中文

. You can

also change a language on the Conguration page; please refer to page 35.

Hide Button

You can click the hide button to hide the control panel or display the control panel.

Resize Buttons

Click the Auto button, the video cell will resize automatically to t the monitor.

Click 100% is to display the original homepage size. Click 50% is to resize the homepage to 50% of its original size. Click 25% is to resize the homepage to 25% of its original size.

Live Video Window

■ The following window is displayed when the video mode is set to H.264 / MPEG-4:

Time

Video Title

Title and Time

Video Title: The video title can be congured. For more information, please refer to Video settings on page 77.

H.264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 /

MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 33.

Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings on page 77.

Video (TPC-AV)

Video 13:59:05 2011/07/04

Video and Audio Control Buttons

Title and Time: The video title and time can be stamped on the streaming video. For further conguration, please refer to Media > Image > Genral settings on page 77.

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

30 - User's Manual

+ 173 hidden pages
