The use of surveillance devices may be prohibited by law in your country. The
Network Camera is not only a high-performance web-ready camera but also can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of such devices is legal before installing this unit for its intended use.
It is important to first v erify that all c ontents received are complete according to the
list in the "Package Contents" chapter. Take notice of the warnings in “Quick
installation guide” before the Network Camera is installed, then carefully read and
follow the instructions in the “I nstallation” chapter to avoid damages due to faulty
assembly and installation. This also ensures the product is used properly as
intended.
The Network Camera is a network device and its use should b e straightforward for
those who have basic network knowledge. The “Troubleshooting” chapter in the
Appendix provides remedies to the most common errors in set up and configuration.
You should consult this chapt er fir st if you run into a system error.
The Network Camera is designed for various applications including video sharing,
general security/surveillance, etc. The “How to Use” chapter suggests ways to best
utilize the Network Camera and ensure proper operations. For the creative and
professional developers, the "URL Commands of The Network Camera" chapter
serves to be a helpful reference to customize existing homepages or integrating with
the current web server.
For paragraphs preceded by the reader should use caution to understand
completely the warnings. Ignoring the warnings may result in serious hazards or
injuries.
- 2 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Table of Contents
Before Yo u Use This Product......................................................................2
C. Technical specifications ............................................................... 100
- 5 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Package Content
FD7131
Software CD
Warranty card
Power Adapter
Alignment sticker
Quick Installation Guide
Screwdriver
- 6 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Screws and I/O Connector
Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the Network Camera and grant
user access to the camera.
Hardware installation
Please verify that your product package
contains all the accessories listed in the
foregoing Package Contents. Depending
on the user’s application, an Ethernet cable
may be needed. The Ethernet cable should
meet the specs of UTP Category 5 and not
exceed 100 meters in length.
Connect the power adapter jack to the Network Camera before plugging in to
the power socket. This will reduce the risk of accidental electric shock.
Upon powering up, the status LED will become lighted first and then the device will go
through booting process. The status LED will be steady orange for getting IP address.
After getting IP Address, the LED will blink orange and red as heartbeat to indicate
alive.
To install in Ethernet
Make sure the Ethernet is firmly connected to a switch hub. After attaching the
Ethernet cable plug in the power adapter. If the LED turns out to blink orange-color, go
to next paragraph “Software installation”.
- 7 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
This Network Camera provides a general I/O terminal block with one digital input and
one digital output device control. The pin definition is as below.
1: Power
2: Digital output
3: Digital input
4: Ground
Ext./Int.
Switch “Internal” or “Microphone” to set up the source of audio input
Software installation
At the end of the hardware installation, users can use Installation Wizard program
included in the product CDROM to find the location of the Network Camera. There may
be many Network Cameras in the local network. Users can differentiate the Network
Cameras with the serial number . The serial number is printed on the labels on the carton and the bottom of the Network Camera body. Please refer to the Quick
installation guide of Installation Wizard for details.
Once installation is complete, the Administrator should proceed to the next
section "Initial Access to the Network Camera" for necessary checks and
configurations.
Initial Access to the Network Camera
Check Network Settings
The Network Camera can be connected either before or immediately after software
installation onto the Local Area Network. The Administrator should complete the
- 8 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
network settings on the configuration page, including the correct subnet mask and IP
address of gateway and DNS. Ask your network administrator or Internet service
provider for the detail information. By default the Network Camera requires the
Administrator to run installation every time it reboots. If the network settings are to
remain unchanged, disable the Install option. Refer to “Network settings” on the
System Configuration page for details. If any setting is entered incorrectly and cannot
proceed to setting up the Network Camera, restore the factory settings following the
steps in the “Troubleshooting” chapter of the Appendix.
Add Password to prevent Unauthorized Access
The default Administrator’s password is blank and the Network Camera initially will not
ask for any password. The Administrator should immediately implement a new password as a matter of prudent security practice. Once the Administrator’s
password is saved, the Network Camera will ask for the user’s name and password
before each access. The Administrator can set up a maximum of twenty (20) user
accounts. Each user can access the Network Camera except to perform system
configuration. Some critical functions are exclusive for the Administrator, such as
system configuration, user administration, and software upgrades. The user name for
the Administrator is permanently assigned as “root”. Once the password is changed,
the browser will display an authentication window to ask for the new password. Once
the password is set, there is no provision to recover the Administrator’s
password. The only option is to restore to the original factory default
settings.
How to Use
A PC with Windows operating system can use the Internet Explorer to conn ect to the
Network Camera. A plug-in will be installed into the IE when it is connected for the first
time. A PC with Linux operating system can connect to the camera using a browser like
Firefox. It needs to install QuickTime first to view streaming.
- 9 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Authentication
After opening the Web browser and typing in the URL of the Network Camera, a
dialogue window pops up to request a username and password. Upon successful
authentication, the following figure is displayed.
The foreground is the login window and the background shows the message if
authentication fails. The user may check the option box to save the password for future
convenience. This option is not available to the Administrator for obvious reason.
- 10 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Installing plug-in
For the initial access to the Network Camera in Windows, the web browser may prompt
for permission to install a new plug-in for the Network Camera on the Internet Explorer.
Permission request depends on the Internet security settings of the user’s PC or
notebook. If the highest security level is set, the computer may prohibit any installation
and execution attempt. This plug-in has been registered for certificate and is used to
display the video in the browser. Users may click on
to proceed. If the w eb
browser does not allow the user to continue to install, check the Internet security
option and lower the security levels or contact your IT or networking su pervisor for
help.
- 11 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Primary user’s capability
Main Screen with Camera View
The main page layout has two parts:
Configuration functions: The camera can be configured using these user interfaces.
Camera View: What the camera sees.
Click on the configuration link to the left of the image window to enter the configuration
page.
Here is the layout in IE when it is MPEG-4 streaming.
- 12 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
The function in JPEG will be a little different when it is JPEG streaming. Only d igital
zoom and record button are supported.
- 13 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Here is the layout in Firefox when it is MPEG-4 streaming. It uses QuickTime to
streaming.
- 14 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Here is the layout in Firefox when it is JPEG streaming.
- 15 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Digital Zoom
Click on the magnifier icon under the camera view then the digital zoom control panel
will be shown. Uncheck “Disable digital zoom” and use the slider control to change the
zoom factors.
- 16 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
MP4 Recording
Click on the red circle button on the plugin to start MP4 recording. Y ou can set the
related options in client setting page.
Snapshot
Click on “Snapshot”, web browser will pop up a new window to show the snapshot.
Users can point at the snapshot and click the right button of mouse to save it.
- 17 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Language
Click on the language, all supported languages are shown in th e drop-down list. The
user can choose the different display language.
- 18 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Client settings
1.
2.
3.
4.
There are four settings for the client side in IE.
1. The first one is “Stream Options” for users to determine which stream to be
streaming. This product supports dual-stream. Therefore, there are two streams to
choose.
2. The second one is “MPEG-4 Media Options” for users to determine which media to
- 19 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
be streaming under MPEG-4 mode.
3. The third one is “MPEG-4Protocol Options” which allows choices on connection
protocol between client and server. There are four protocols choices to optimize
your usage – UDP unicast, UDP multicast, TCP and HTTP.
zThe UDP unicast protocol allows for more real-time audio and video streams.
However, some packets may be lost due to network burst traffic and images
may be obscured.
zThe UDP multicast protocol allows to save the ba ndwidth of server while
serving multiple clients at the same time.
zThe TCP protocol allows for less packet loss and produces a more accurate
video display. The downside with this protocol is that the real-time effect is
worse than that with the UDP protocol.
zThe HTTP protocol allows the same quality as TCP protocol and the user don’t
need to open specific port to streaming under some network environment.
If no special need is required, UDP unicast protocol is recommended. Generally
speaking, the client’s choice will be in the order of UDP multicast → UDP unicast →
TCP → HTTP. After the Network Camera is connected successfully , “Protocol Option”
will indicate the selected protocol. The selected protocol will be recorded in the user's
PC and will be used for the next connection. If the network environment is changed, or
the user wants to let the web browser to detect again, manually select the UDP protocol,
save, and return HOME to re-connect.
4. The fourth one is “Save Options” . User can specify the recording folder, file name
prefix and suffix here.
- 20 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
There is only one setting “Stream Options” for the client side in Firefox. User can
choose to view stream1 and stream2.
<url> http://<Network Camera>/clientset.ht ml <Network Camera> is the domain name
or the original IP address of the Network Camera.
Digital output
Click on “ON” , the digital output of the Network Camera will be triggered. Or , clicking on
“OFF” can let the digital output turn into normal state.
- 21 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Administrator’s capability

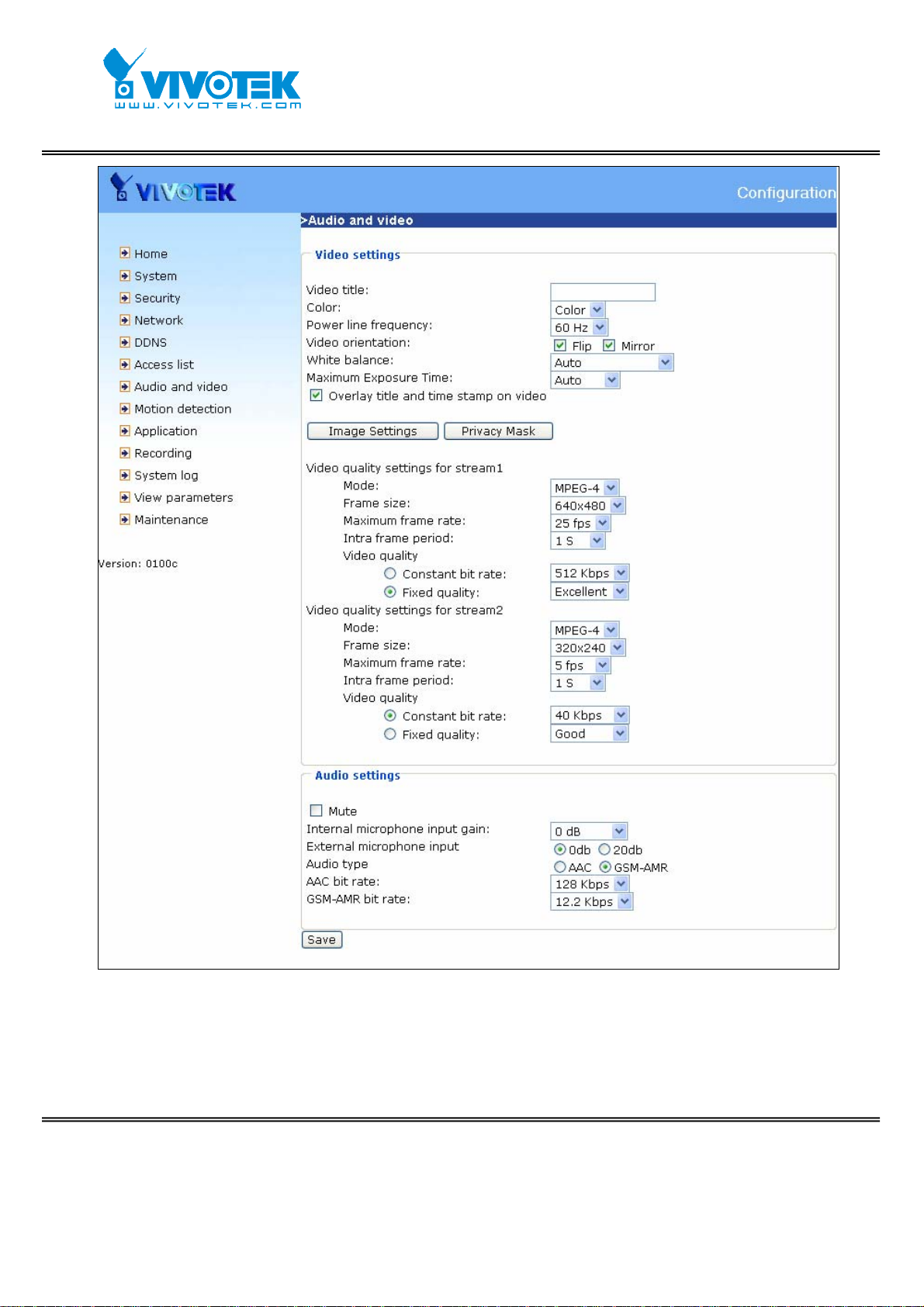

Fine-tuning for Best Performance
Best performance generally equates to the fastest image refresh rate with the best
video quality, and at the lowest network bandwidth as possible. The three factors,
“Maximum frame rate”, “Constant bit rate”, and “Fixed quality” for MPEG-4 mode and
“Maximum frame rate” and “Fixed quality” for JPEG mode on the Audio and Video
Configuration page, are correlative to allow for achieving the best performance
possible.
- 22 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
For Viewing by Mobile Phone
Most 3GPP cell phone supports media streaming with MPEG4 video and GSM-AMR
audio. Due to the limitation of the bandwidth for 3GPP , only 176x144 video solution will
- 23 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
be supported for cell phone viewing. Please set related video settings first as
mentioned when viewing by mobile phone.
For Best Real-time Video Images
T o achiev e good real-time visual eff ect, the network bandwidth should be large enough
to allow a transmission rate of greater than 20 image frames per second. If the
broadband network is over 1 Mbps, set the “Constant bit rate” to 1000Kbps or
1200Kbps, or set “Fixed quality” at the highest quality . The maximum frame rate is 30.
If your network bandwidth is more than 512Kbps, you can adjust the bit rate according
to your bandwidth and set the maximum frame rate to 30 fps. If the images vary
dramatically in your environment, you may want to slow the maximum frame rate
down to 20 fps in order to lower the rate of data transmission. This allows for better
video quality and the human eyes cannot readily detect the differences between those
of 20, 25, or 30 frames per second. If yo ur network bandwidth is below 512 Kbps, set
the “Constant bit rate” according to your bandwidth and try to get the best
performance by fine-tuning with the “Maximum frame rate” . In a slow network, greater
frame rate results in blur images. Video quality performance will vary somewhat due to
the number of users viewing on the network; even when the parameters have initially
been finely tuned. Performance will also suffer due to poor connectivity because of the
network’s burst constraint.
Only Quality Images Will Do
To have the best video quality, you should set “Fixed quality” at “Detailed” or
“Excellent” and adjust the “Maximum frame rate” to match your network’s bandwidth.
If your network is slow and you receive “broken” pictures, go to the TCP or HTTP
protocol in “MPEG-4 Protocol Options” and choose a more appropriate mode of
transmission. The images may suffer a time delay due to a slower connection. The
delay will also increase with added number of users.
Somewhere Between Real-time and Clear Images
If you have a broadband network, set “Fixed quality” at “Good” or better, rather than
setting “Constant bit rate”. You can also fix the bandwidth according to your actual
network speed and adjust the frame rate. Start from 30 fps down for best results but
- 24 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
not below 15 fps. If the image qualities are not improved, select a lower bandwidth
setting.
Opening accounts for new users
1
2
3
Protect Network Camera by passwords
The Network Camera is shipped without any password by default. That means
everyone can access the Network Camera including the configuration as long as the IP
address is known. It is necessary to assign a password if the Network Camera is
- 25 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
intended not to be accessed by others. Type a new word twice in ○1 to enable
protection. This password is used to identify the administrator. Then add an account
with user name, password and authentication for your friends in ○
delete users from ○
3
.
2
. You can edit or
- 26 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Build a security application
The Administrator can use the built-in motion detection to monitor any movement to
perform many useful security applications. T o upload the snapshots, users can choose
either email, FTP, HTTP or Network storage according to user’s needs. All servers
setting are in Server section on Application page. Refer to the definiti on section for
detail configuration.
1. Click on “Configuration” on homepage,
2. Click on “Motion detection” at the left column,
3. Check “Enable motion detection” ,
4. Click on new to have a new window to monitor video,
5. Type in a name to identify the new window,
6. Use the mouse to click, hold, and drag the window corner to resize or the title bar to
move
7. Fine-tune using the “Sensitivity” and “Percentage” fields to best suit the camera’s
8. Clicking on “Save” enables the activity display. Green means the motion in the
window is under the watermark set by Administrator and red means it is over the
watermark,
9. Click on “Application” at the left column,
10.Add a server in server section,
11.Add a media with snapshot type in media section. And Set the number of pre-event
and post-event images to be uploaded
12.Add a event in event section
z Enter one event name and enable this event.
z Check the weekdays as you need and give the time interval to monitor the
motion detection ev ery day,
zSelect the T rigger on Motion detection and Check the window name set in step
5
zSet the appropriate delay time to avoid continuous false alarms following the
- 27 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
original event
zCheck the server name set in Step 10 and select the media name set in Step
11.
13. Click on save to validate.
Software revision upgrade
Customers can obtain the up-to-date software from the web site of Vivotek. An
easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a
few clicks. The upgrade function is opened to the Administrator only. To upgrade the
system, follow the procedures below.
1. Download the firmware file named “xxx.pkg” from the appropriate product folder.
2. Run the Installation Wizard 2 and proceed following the prompts. Refer to the
instructions of the Installation Wizard 2 on CD-ROM for details.
3. Or upgrade firmware from HTTP web page directly.
4. The whole process will finish in a few minutes and it will automatically restart t he
system.
If power fails during the writing process of Flash memory, the program in the
memory of the Network Camera may be destroyed permanently. If the Network
Camera cannot restart properly, ask your dealer for technical service.
- 28 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Definitions in Configuration
Only the Administrator can access system configuration. Each category in the left
column will be explained in the following pages. The bold texts are the specific phrases
on the Option pages. The Administrator may type the URL below the figure to directly
enter the frame page of configuration. If the Administrator also wants to set certain
options through the URL, read the reference appendix for details.
<url> http://<Network Camera>/setup/system.html
<Network Camera> is the domain name or original IP address of the Network Camera.
- 29 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Loading...
+ 74 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
