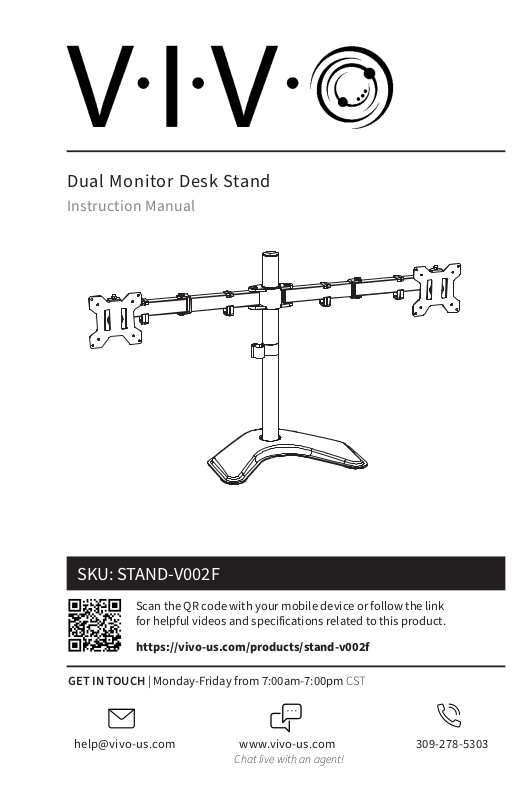

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V002F
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002f
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com www.vivo-us.com 309-278-5303
Chat live with an agent!
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD
OR BACKWARD.
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
PACKAGE CONTENTS
M5x14 S crew
2
A (x1)
Pole
F (x1)
Wire Clip
S-A (x3)
T-A (x 1)
3mm Allen
Wrench
B (x1)
Base
G (x4)
Wire Clip
S-B (x8)
M4x12
Thumbscrew
T-B (x 1)
5mm Allen
Wrench
C (x1)
Swivel Arm
S-C (x2)
Nut
T-C (x1)
6mm Allen
Wrench
D (x2)
VESA Plate
S-D (x8)
M4x30 S crew
E (x1)
Pole Cap
S-E (x8)
M4 Spacer
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
TOOLS NEEDED
22 lbs
(10kg)
PER ARM
Phillips
Screwdriver
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
ASSEMBLY STEPS
STEP 1
Install the pole (A) to the base (B) using M5x14 Screw (S-A). Tighten with the 3mm Allen wrench (T-A).
B
A
S-A
T-A
3
STEP 2
Slide Wire Clip (F) and Swivel Arm (C) down onto the Pole (A) and tighten the screw with 6mm Allen
Wrench (T-C). Attach the Pole Cap (E) to the top of the Pole (A). Attach the Wire Clips (G) to the Arms.
E
C
F
A
T-C
G
STEP 3
OPTION A: Flat Back Monitor
Attach the VESA plates (D) to the monitors using M4x12 Thumbscrew (S-B).
NOTE: Hand tighten screws to avoid stripping the plastic screw heads.
D
S-B
4
STEP 3 (Continued)
OPTION B: Curved Back Monitor
Attach the VESA plates (D) to the monitors using M4 Spacers (S-E) and M4x30 Screws (S-D). Tighten
with a Phillips screwdriver.
S-E
S-D
D
STEP 4
Slide the monitors onto the heads of swivel arm and install the Security Nuts (S-C). Make sure the
security nuts are installed before you rotate the monitors.
S-C
5
STEP 5
Tighten the bolt on the side of the tilt joint with the 5mm Allen Wrench (T-B) to fix the tilt angle.
T-B
Fix the tilt angle
To level the monitors, remove the security nut and turn the bolt with the 3mm Allen Wrench (T-A) to
raise or lower the monitor. Replace nut aer the adjustment.
T-A
Ignore this step if
monitors are level
6
STEP 6
Use the 5mm Allen Wrench (T-B) to adjust swivel joints if needed. Manage cables and store the Allen
Wrenches (T-A, T-B, T-C) in Wire Clip (F) for future use.
T-B
h
F
STEP 7
CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward.
7
