Vivitek D965 User Manual

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

All other product names used in this manual are the properties of their respective owners and are acknowledged.

— i —

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

“Push the Menu button on the remote control to open the Main menu.”

General Safety Information

¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

¾ Follow all warnings and cautions in this manual and on the unit case.

¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

¾ Do not place the unit on an unstable surface, cart, or stand.

¾ Avoid using the system near water, in direct sunlight, or near a heating device.

¾ Do not place heavy objects such as books or bags on the unit.

— ii —

Projector Installation Notice

¾ Place the projector in a horizontal position

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be in-

stalled in any way other than the desktop and ceiling mount, otherwise lamp life could decrease

dramatically, and may lead to other unpredictable damages.

¾ Allow at least 50 cm clearance around the exhaust vent.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

¾ Ensure that the intake vents do not recycle hot air from the exhaust vent.

¾ When operating the projector in an enclosed space, ensure that the surrounding air temperature

within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.

¾ All enclosures should pass a certified thermal evaluation to ensure that the projector does not

recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.

– iii –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

r

o

j

e

c

t

o

r

—

D

L

P

r

o

j

e

c

Verify Installation Location

¾ Verify if the voltage is stable, grounded properly and there is no electricity leakage.

¾ Measure total power consumption which should not higher the safety capacity and avoid safety is-

sue and short circuit.

¾ Turn on Altitude Mode when located in high altitude areas

¾ The projector can only be installed upright or inverted.

¾ When installation the bracket, make sure the weight limit is not exceed and firmly secured.

¾ Avoid installing near air conditioner duct or subwoofer.

¾ Avoid installing at high temperature, insufficient cooling and heavy dust locations.

¾ Keep your product away from fluorescent lamps to avoid malfunction

caused by IR interference

¾ Install the projector above 200cm to avoid damage.

Cooling notes

Air outlet

¾ Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.

¾ Air outlet location should not be in front of the lens of other projector to avoid causing illusions.

¾ Keep the outlet at least 100cm away from the inlets of other projectors

U

t

o

r

—

U

M

s

e

r

’

s

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

a

n

u

a

l

Air inlet

¾ Make sure there is no object blocking air input within 30 cm.

¾ Keep the inlet away from other heat sources

¾ Avoided heavy dust area

Choosing a Projector

Edge blending application

Not only brightness, bright balances, lens but stability is important too when choosing a projector.

¾ A projector need 30 to 60 minutes warm up to adjust properly.

¾ After lens shift, there should not be any optical distortion such as trapezoidal and barrel shape dis-

tortions.

¾ Quick dis-assemble lens need to be firmly secured, the electric motor cannot be mistakenly shift.

The screen should not be offset for long time use or during booting up and shutting down the projector.

¾ Projector six-axis colors (R,G,B,Y,C,W). Projector adjust functions require: Hue, Saturation, Gain

¾ Vertical or 360 degree projection application. Needs to VERIFY engineering design of lamp aging

to avoid conflict with client.

HDMI Cable

Edge blending signal needs to use digital transfer, the 4 pairs of TMDS transfer impedance require 100 Ω diameter as following to maintain signal quality:

¾ 5 M : AWG 26

¾ 10 M : AWG 24

¾ 15 M : AWG 22

¾ 20 M : AWG 22

¾ 25 M : AWG 22

— iv —

Power Safety

¾ Only use the supplied power cord.

¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 44

for clear and safe instructions for this procedure. Before replacing the lamp:

¾ Unplug the power cord.

¾ Allow the lamp to cool for about one hour.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.

P

r

P

r

P

e

f

a

c

e

f

a

c

e

r

e

f

a

c

e

Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.

Cleaning the Projector

¾ Unplug the power cord before cleaning. See Cleaning the Projector on page 48.

¾ Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section

on page 58.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG

specific disposal information check WWW.LAMPRECYCLE.ORG.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services.

. For lamp

– v –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Main Features

• Lightweight unit, easy to pack away and transport.

• Compatible with all major video standards including NTSC, PAL, and SECAM.

• A high brightness rating allows for presentations in daylight or in lit rooms.

• Supports resolutions up to SXGA+ at 16.7 million colors to deliver crisp, clear images.

• Flexible setup allows for front, rear projections.

• Line-of-vision projections remain square, with advanced keystone correction for angled

projections.

• Input source automatically detected.

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs.

— vi —

P

r

e

f

a

c

P

e

r

e

f

a

c

r

e

f

a

c

Table of Contents

GETTING STARTED........................................................................................................................................................... 1

PACKING CHECKLIST........................................................................................................................................................... 1

VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2

Front-right View............................................................................................................................................................ 2

Top view—On-screen Display (OSD) buttons and LEDs....................................................................................... 3

Rear view....................................................................................................................................................................... 4

Bottom view................................................................................................................................................................... 5

REMOTE CONTROL PARTS ...................................................................................................................................................6

REMOTE CONTROL OPERATING RANGE...............................................................................................................................8

PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 8

SETUP AND OPERATION................................................................................................................................................. 9

INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 9

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 10

SETTING AN ACCESS PASSWORD (SECURITY LOCK).......................................................................................................... 12

ADJUSTING THE PROJECTOR LEVEL................................................................................................................................... 14

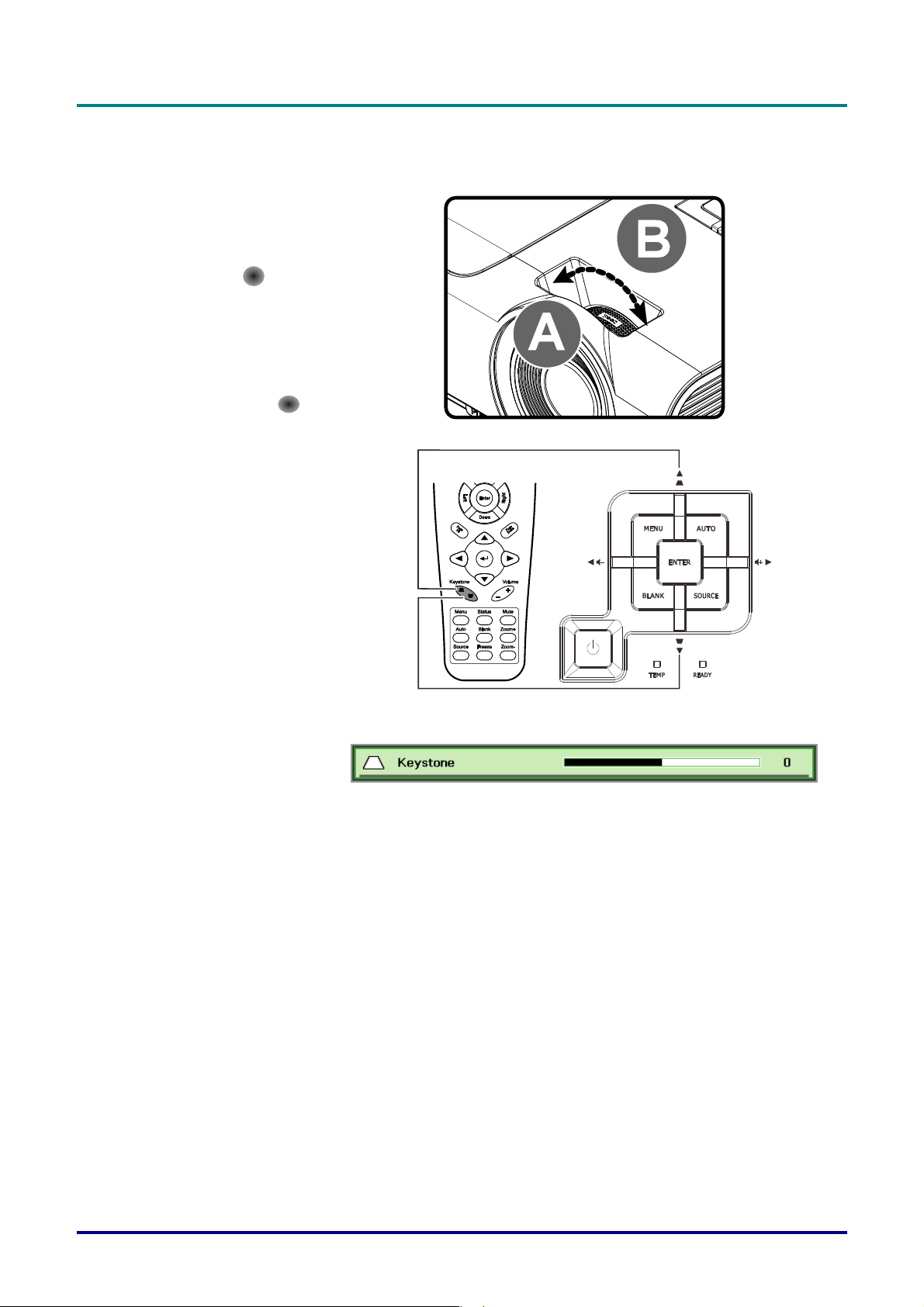

ADJUSTING THE ZOOM RING, FOCUS AND KEYSTONE ........................................................................................................ 15

ADJUSTING THE VOLUME ..................................................................................................................................................16

ON-SCREEN DISPLAY (OSD) MENU SETTINGS...................................................................................................... 17

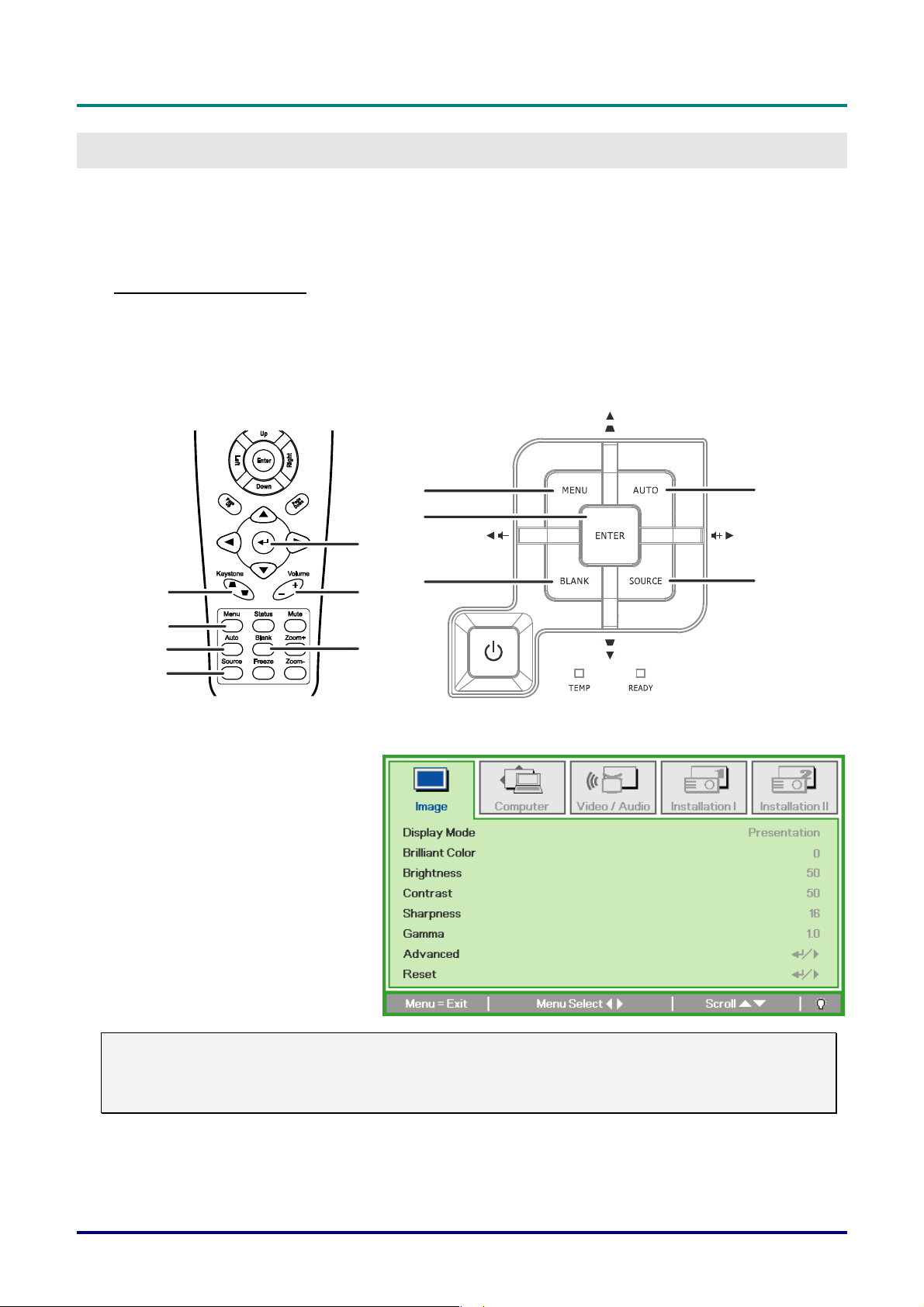

OSD MENU CONTROLS .....................................................................................................................................................17

Navigating the OSD................................................................................................................................................... 17

SETTING THE OSD LANGUAGE.......................................................................................................................................... 18

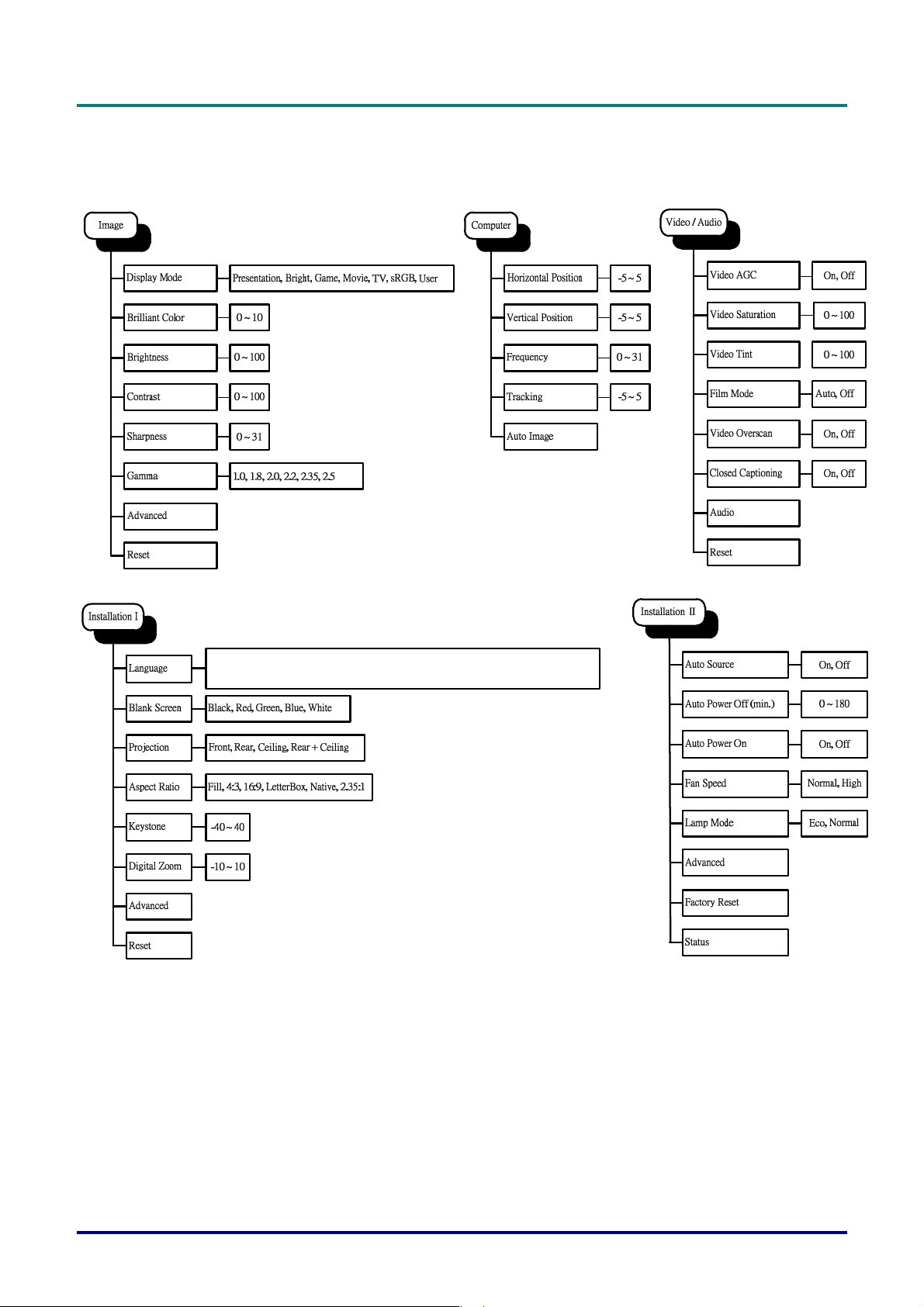

OSD MENU OVERVIEW ..................................................................................................................................................... 19

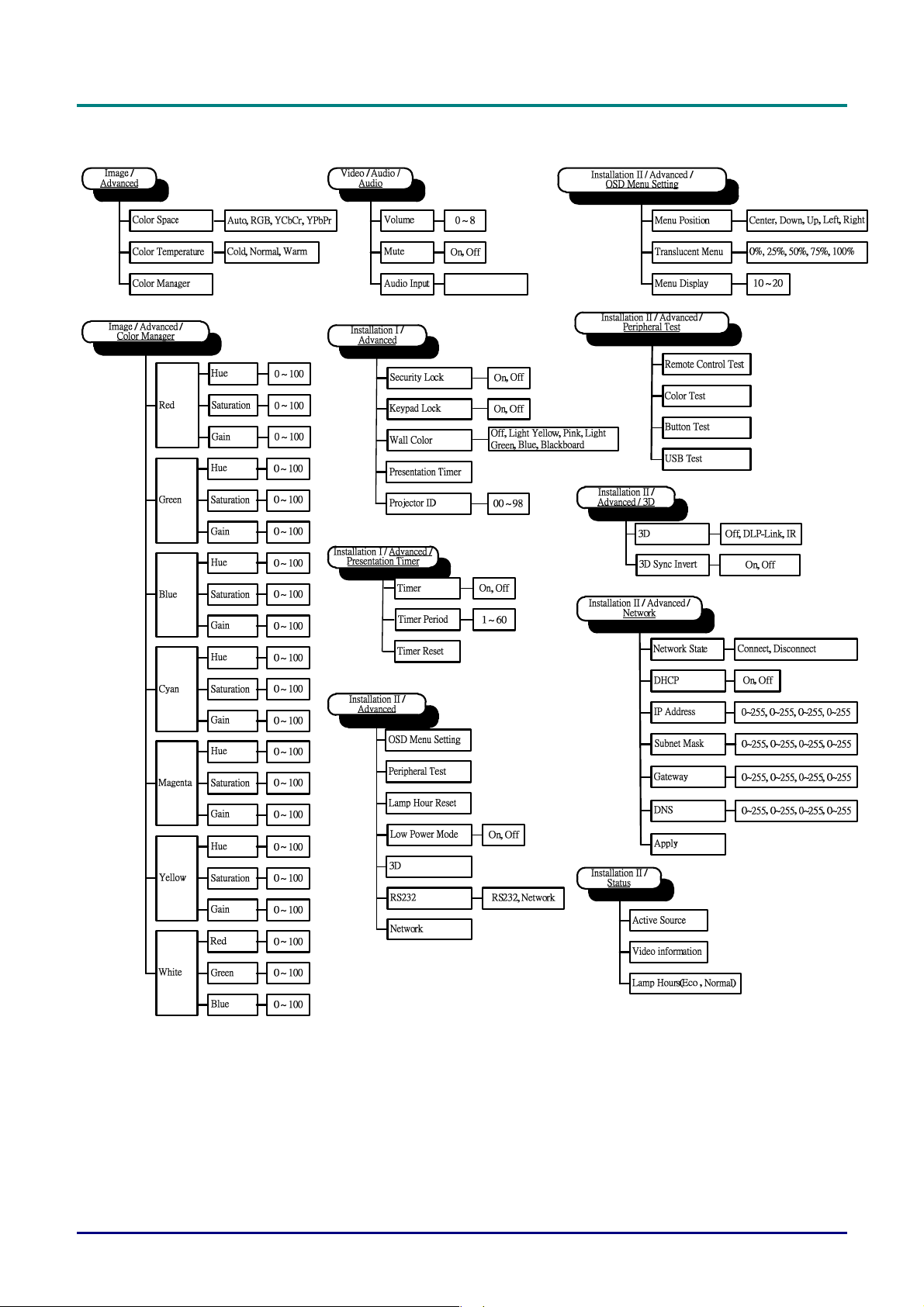

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 20

IMAGE MENU.....................................................................................................................................................................21

Advanced Feature......................................................................................................................................................22

Color Manager............................................................................................................................................................ 23

COMPUTER MENU.............................................................................................................................................................. 24 U

VIDEO/AUDIO MENU ......................................................................................................................................................... 25

Audio............................................................................................................................................................................ 26

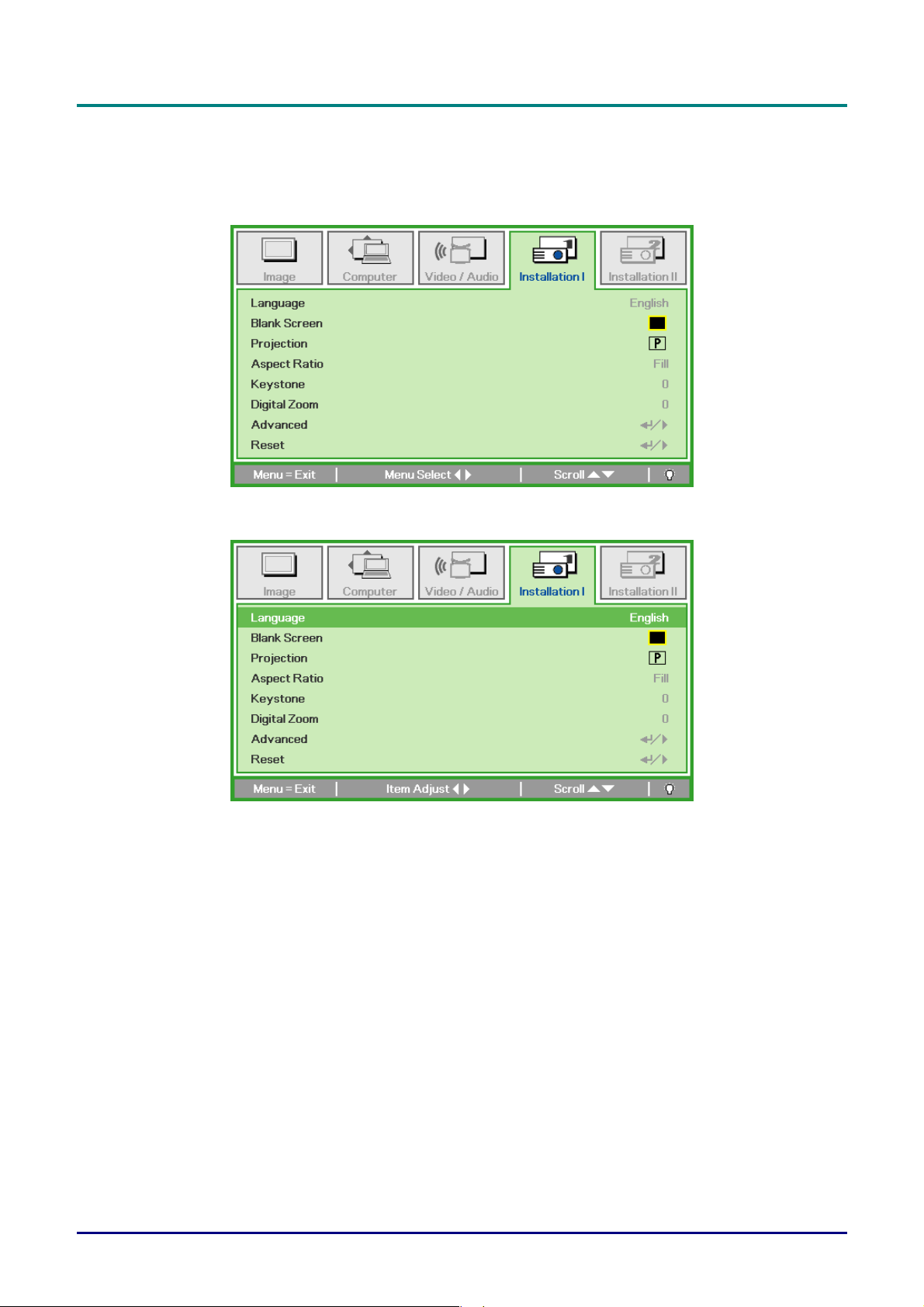

INSTALLATION I MENU...................................................................................................................................................... 27

Advanced Feature......................................................................................................................................................28

INSTALLATION II MENU..................................................................................................................................................... 29

Advanced Feature......................................................................................................................................................30

OSD Menu Setting..................................................................................................................................................... 31

Peripheral Test ...........................................................................................................................................................31

Lamp Hour Reset....................................................................................................................................................... 32

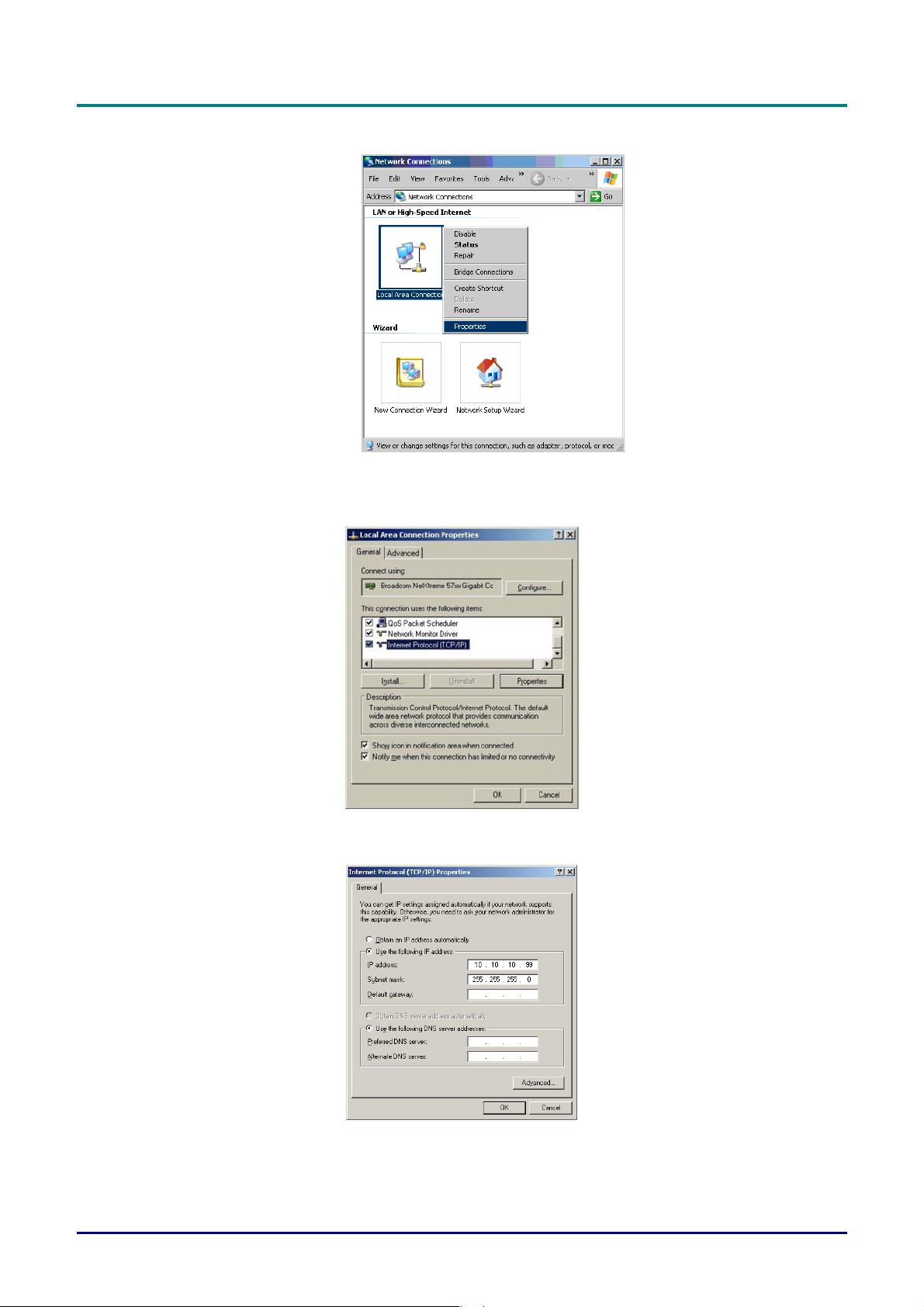

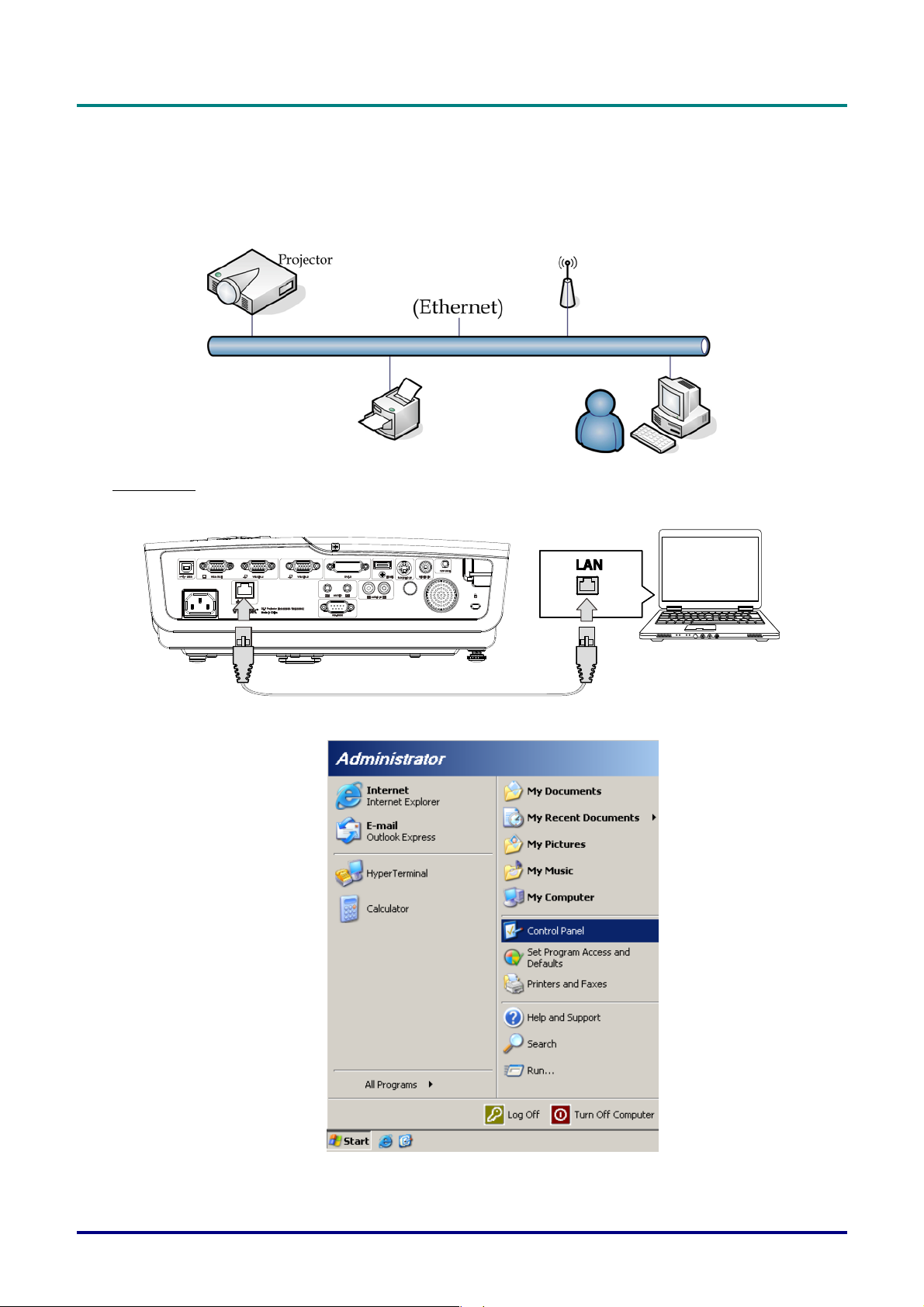

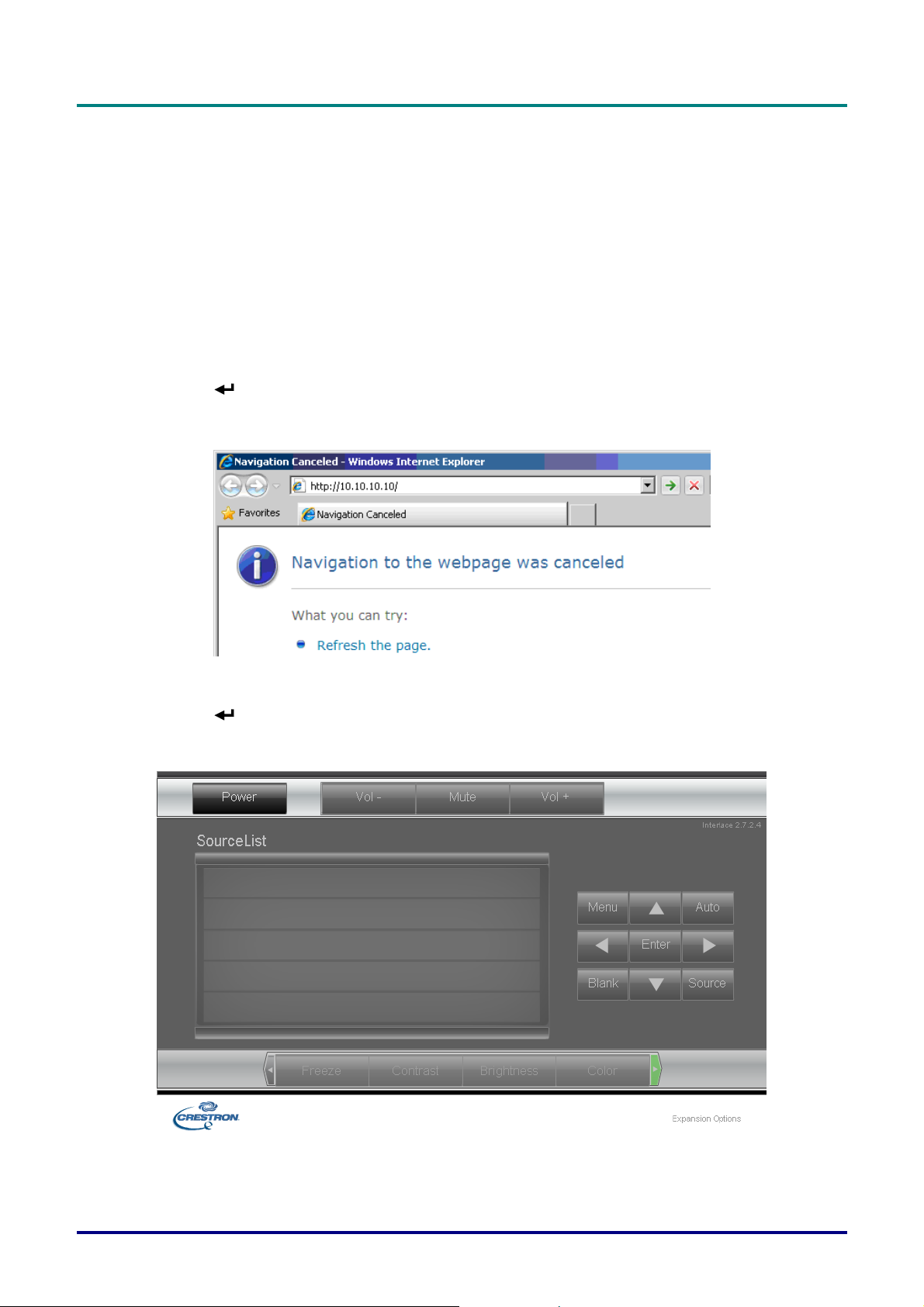

Network........................................................................................................................................................................ 34

Factory Reset.............................................................................................................................................................. 43

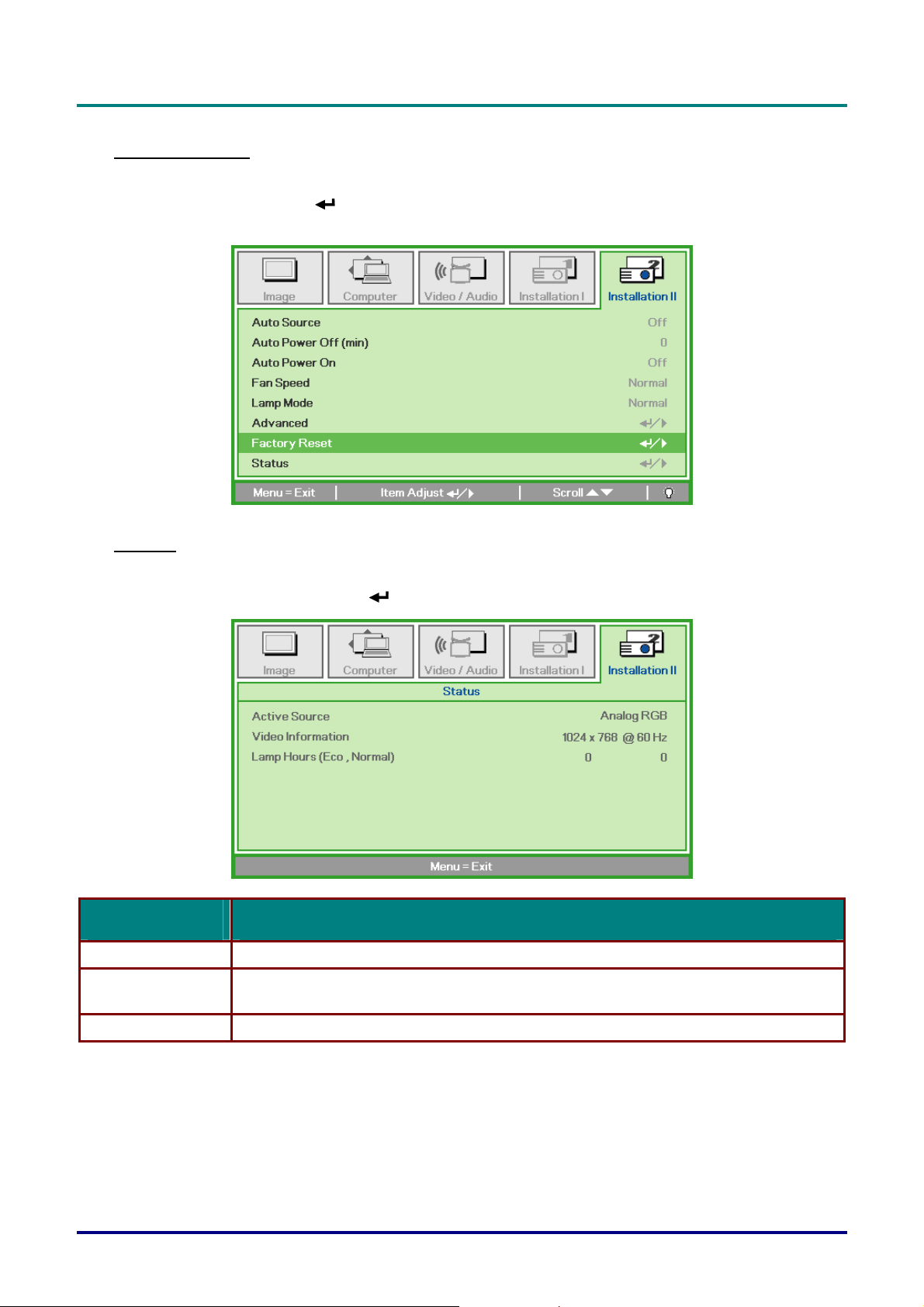

Status........................................................................................................................................................................... 43

e

MAINTENANCE AND SECURITY..................................................................................................................................44

REPLACING THE PROJECTION LAMP................................................................................................................................... 44

Resetting the Lamp....................................................................................................................................................47

CLEANING THE PROJECTOR................................................................................................................................................48

Cleaning the Lens...................................................................................................................................................... 48

Cleaning the Case...................................................................................................................................................... 48

USING THE KENSINGTON

Using the Security Bar.................................................................................................................................................. 49

TROUBLESHOOTING......................................................................................................................................................50

COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 50

TIPS FOR TROUBLESHOOTING............................................................................................................................................ 50

LED ERROR MESSAGES..................................................................................................................................................... 51

IMAGE PROBLEMS.............................................................................................................................................................. 51

LAMP PROBLEMS............................................................................................................................................................... 52

REMOTE CONTROL PROBLEMS .......................................................................................................................................... 52

®

LOCK & USING THE SECURITY BAR......................................................................................... 49

– vii –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

r

o

j

e

c

t

o

r

—

U

AUDIO PROBLEMS ............................................................................................................................................................. 52

HAVING THE PROJECTOR SERVICED .................................................................................................................................. 52

SPECIFICATIONS.............................................................................................................................................................53

SPECIFICATIONS................................................................................................................................................................. 53

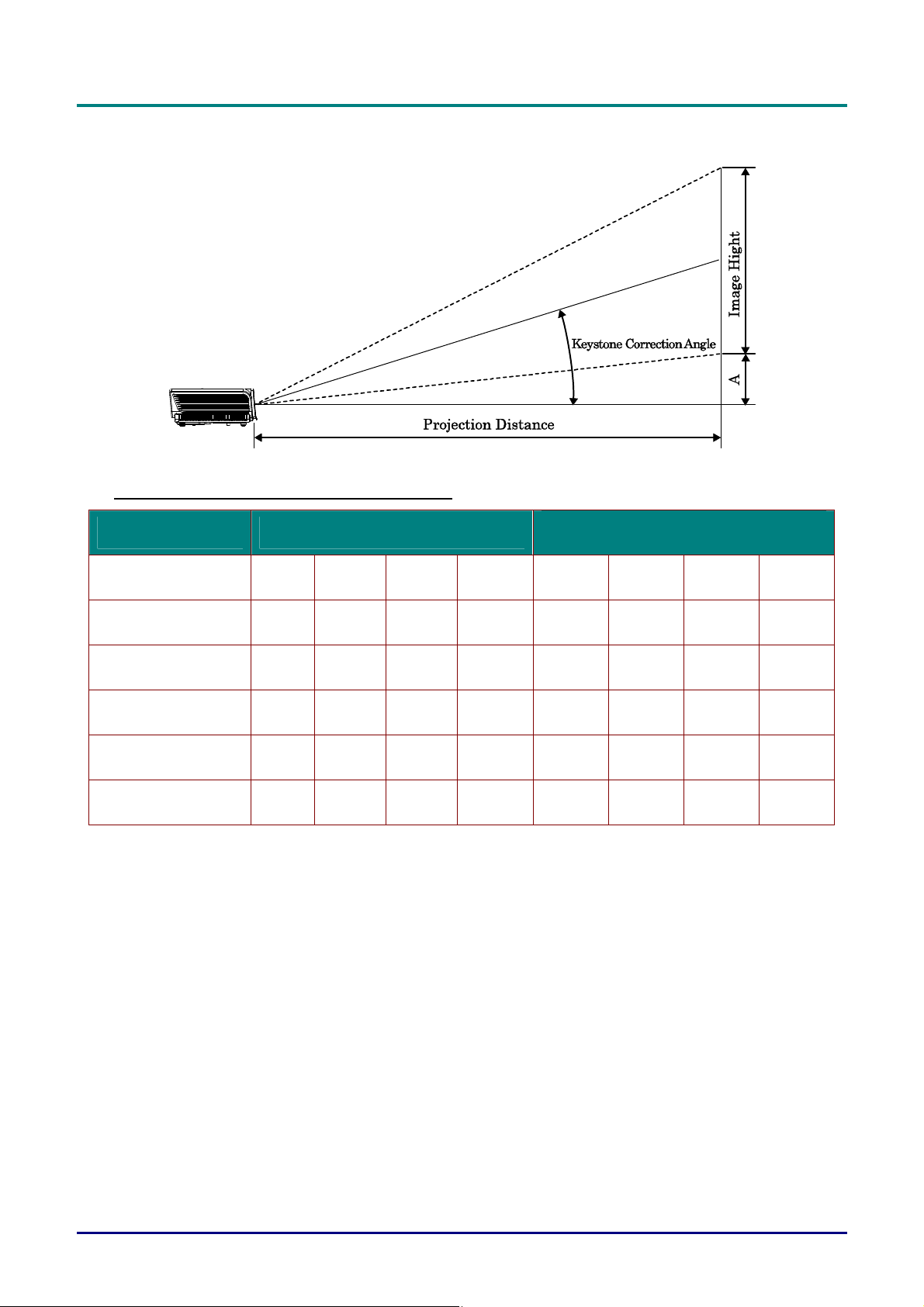

PROJECTION DISTANCE VS. PROJECTION SIZE.................................................................................................................... 54

Projection Distance and Size Table......................................................................................................................... 54

TIMING MODE TABLE........................................................................................................................................................ 55

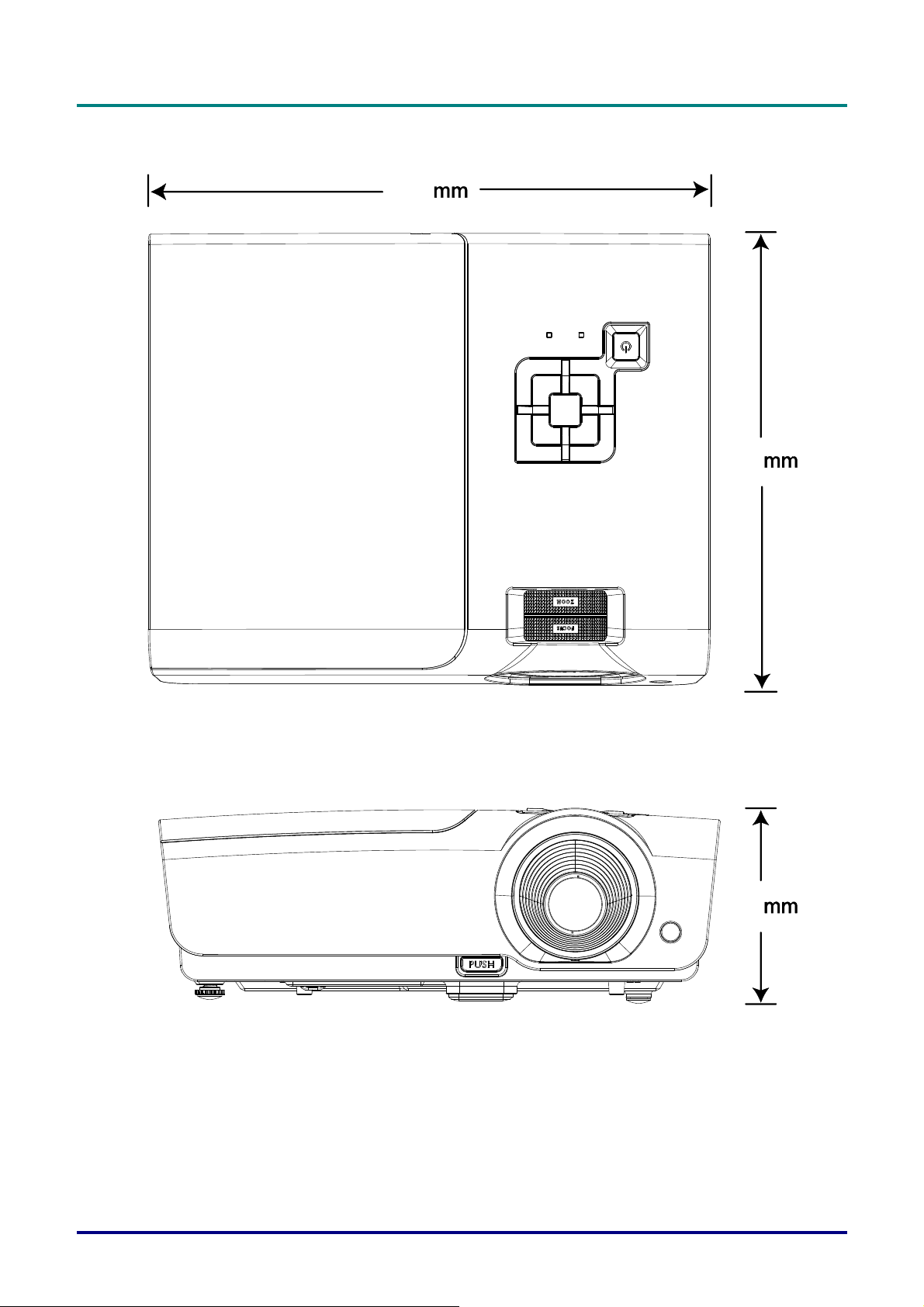

PROJECTOR DIMENSIONS ................................................................................................................................................... 57

REGULATORY COMPLIANCE....................................................................................................................................... 58

FCC WARNING..................................................................................................................................................................58

CANADA ............................................................................................................................................................................ 58

SAFETY CERTIFICATIONS...................................................................................................................................................58

APPENDIX I....................................................................................................................................................................... 59

RS-232C PROTOCOL.......................................................................................................................................................... 59

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

— viii —

GETTING STARTED

Packing Checklist

Carefully unpack the projector and check that the following items are included:

DLP PROJEC TO R

R

EMOTE CONTROL

(WITH TWO AAA

BATTERIES)

CABLE POWER CORD RGB TO COMPONENT

RGB

ADAPTER (OPTIONAL)

ARRYING CASE CD-ROM

C

HIS USER’S MANUAL)

(T

W

ARRANTY CARD

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service.

Caution:

Avoid using the projector in dusty environments.

— 1 —

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

L

P

r

o

j

e

c

t

o

r

—

U

r

s

e

r

n

’

s

M

a

n

’

s

M

a

n

Views of Projector Parts

Front-right View

u

a

l

u

a

l

u

a

l

ITEM LABEL DESCRIPTION SEE PAGE:

1.

Height-adjuster button Push to release height adjuster

14

2.

3.

4.

5.

6.

Height adjuster Adjusts level of projector

Lens cap Protect lens when not in use

Lens Projection Lens

IR receiver Receive IR signal from remote control

Focus ring Focuses the projected image

6

15

7.

8.

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings.

Zoom ring Enlarges the projected image

Function keys

See Top view—On-screen Display (OSD) buttons and LEDs.

3

— 2 —

Top view—On-screen Display (OSD) buttons and LEDs

6

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

5

4

3 2

1

ITEM LABEL DESCRIPTION

1.

2.

(Power button)

BLANK Displays a blank screen and mutes audio

Turns the projector On or Off.

7

8 9

10

11 12

SEE

PAGE:

10

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

◄ (Left cursor) / Volume

Enter Enter or confirm highlighted OSD menu item

MENU Opens and exits OSD menus

▲ (Up cursor) / Keystone+

AUTO Optimizes image size, position, and resolution

► (Right cursor) / Volume

SOURCE Enter the Source menu

▼ (Down cursor) / Keystone-

READY LED

TEMP LED Red Error code

Navigates and changes settings in the OSD Quick Menu – For Volume

Navigates and changes settings in the OSD Quick Menu – For Keystone

Navigates and changes settings in the OSD Quick Menu – For Volume

Navigates and changes settings in the OSD Quick Menu – For Keystone

Red Lamp is ready to be powered-on.

Flashing

Lamp not ready (Warm-up/shutting down/cooling)

(see LED Error Messages on page 51)

17

– 3 –

D

3

456789101113

L

P

D

r

L

P

L

P

Rear view

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

r

o

j

e

c

t

o

r

—

U

s

e

r

12

M

’

s

M

a

n

u

a

l

a

n

u

a

l

12

141516

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

AC IN Connect the POWER cable

(USB)

VGA OUT

LAN Connect a LAN cable from Ethernet

VGA IN – 1 Connect the RGB cable from a computer or component device

VGA IN – 2 Connect the RGB cable from a computer or component device

DVI-D Connect the DVI cable from a computer

HDMI Connect the HDMI cable from a HDMI device

S-VIDEO IN Connect the S-Video cable from a video device

VIDEO IN Connect the composite cable from a video device

DC 12V TRIGGER Connect a 12V screen trigger (200ma max)

Connect the USB cable from a computer

Connect the RGB cable to a display (Loop Thru only for VGA IN-1)

10

12.

13.

14.

15.

16.

Note:

If your video equipment has various input sources, it is recommended to connect in priority of HDMI/DVI, component (thru VGA), S-Video, Composite for better picture quality.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

Speaker Outputs audio sound

Kensington Lock

AUDIO IN (L and R) Connect the audio cable from audio device

RS-232 Connect RS-232 serial port cable for remote control

AUDIO IN AUDIO OUT

Secure to permanent object with a Kensington® Lock system

Connect an AUDIO cable from audio device Connect an AUDIO cable for audio loop through

— 4 —

49

Bottom view

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

3.

4.

Note: When installing, ensure that you use only UL Listed ceiling mounts. For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 6 mm (0.23 inch). The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount load capacity must exceed the weight of the installed equipment, and as an additional precaution be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a period of 60 seconds.

Tilt adjustor Rotate adjuster lever to adjust angle position.

Ceiling support holes

Height adjustor

Height adjustor button Push to release adjustor.

Contact your dealer for information on mounting the projector on a ceiling

Adjuster drops down when adjuster button is pushed.

14

– 5 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

r

o

j

e

c

t

o

r

—

L

P

r

o

j

e

c

U

t

o

r

—

U

M

s

e

r

’

s

M

s

e

r

’

s

M

Remote Control Parts

a

n

u

a

l

a

n

u

a

l

a

n

u

a

l

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-

rescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user’s manual describes the functions based on the remote control.

— 6 —

P

r

e

f

a

P

r

e

f

a

P

r

e

f

a

ITEM LABEL DESCRIPTION SEE PAGE:

c

e

c

e

c

e

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

IR transmitter Transmits signals to projector

Status LED Lights when the remote control is used

Laser Press to operate the on-screen pointer

Up Up arrow when connected through USB to a PC

Right Right arrow when connected through USB to a PC

Down Down arrow when connected through USB to a PC

Page Down Page down when connected through USB to a PC

Up cursor

Right cursor

Down cursor

Volume +/- Adjusts volume

Mute Mutes the built-in speaker

Zoom+ Zoom in

Zoom- Zoom out

Navigates and changes settings in the OSD

17

16

15

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

Freeze Freeze/unfreezes the on-screen picture

Blank Makes the screen blank

Source Detects the input device

Auto Auto adjustment for phase, tracking, size, position

Menu Opens the OSD

Status Opens the OSD Status menu (the menu only opens

when an input device is detected)

Keystone top/bottom

Left cursor Navigates and changes settings in the OSD

Enter Changes settings in the OSD

Page Up Page up when connected through USB to a PC

Left Left arrow when connected through USB to a PC

Enter Enter key when connected through USB to a PC

Corrects image-trapezoid (wider top/bottom) effect

17 43

15

17

27.

28.

Power Turns the projector on or off

Laser Use as on-screen pointer. DO NOT POINT IN EYES.

– 7 –

10

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however, the buttons on the projector are limited in use.

— 8 —

Inserting the Remote Control Batteries

Remove the battery compartment

1.

cover by sliding the cover in the direction of the arrow.

Insert the battery with the positive

2.

side facing up.

P

r

e

f

a

c

P

e

r

e

f

a

c

e

r

e

f

a

c

e

SETUP AND OPERATION

Replace the cover.

3.

Caution:

1. Only use AAA batteries (Alkaline batteries are recommended).

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

– 9 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Starting and Shutting down the Projector

Connect the power cord to the pro-

1.

jector. Connect the other end to a wall outlet.

The on the projector light.

POWER and READY LEDs

Turn on the connected devices.

2.

Ensure the READY LED displays a

3.

solid red and not a flashing red. Then press the

to turn on the projector.

The projector splash screen displays and connected devices are detected.

See Setting an Access Password (Security Lock) on page 12 if secu-

rity lock is enabled.

If more than one input device is con-

4.

nected, press the SOURCE button

and use ▲▼ to scroll among devices. (Component is supported through the RGB to COMPONENT ADAPTER.)

POWER button

• VGA 1/VGA 2: Analog RGB Component: DVD input YCbCr / YPbPr, or HDTV input YPbPr via HD15 connector

• Composite Video: Traditional composite video

• S-Video: S-Video

• DVI: DVI

HDMI: HDMI, DVI

•

— 10 —

When the “Power Off? /Press Power

5.

again” message appears, press the

POWER button. The projector turns

off.

Caution:

1. Be sure to remove the lens cap before starting projector.

2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has cooled down.

P

r

P

r

P

r

e

f

a

c

e

f

a

c

e

f

a

c

e

– 11 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Setting an Access Password (Security Lock)

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.

When enabled, the password must be entered after you power on the projector. (See Navigating the OSD on page 17 and Setting the OSD Language on page 18 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password.

Press the MENU button to open the

1.

OSD menu.

Press the cursor ◄► button to move

2.

to the Installation I menu, press the cursor ▲▼ button to select Ad- vanced.

Press the cursor ▲▼ button to select

3.

Security Lock.

Press the cursor ◄► button to enable

4.

or disable security lock function.

A password dialog box automatically appears.

— 12 —

You can use the cursor buttons

5.

▲▼◄► either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five.

Press the cursor buttons in any order

to set the password. Push the MENU button to exit the dialog box.

The password confirm menu appears

6.

when user presses the power-on key

in case the Security Lock is enabled.

Enter the password in the order you set it at step 5. In case you forget the password, please contact the service center. Service center will validate the owner and help reset the password.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

– 13 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.

• Position the projector so that it is perpendicular to the screen.

• Ensure the cables are in a safe location. You could trip over them.

1.

2.

3.

To raise the level of the projector, lift the projector [A] and press the heightadjuster button [B].

The height adjuster drops down [C].

To lower the level of the projector, press the height-adjuster button and push down on the top of the projector.

To adjust the angle of the picture, turn the tilt-adjuster [D] right or left until

the desired angle has been achieved.

— 14 —

Adjusting the Zoom ring, Focus and Keystone

Use the Image-zoom

1.

control (on the projector only) to resize the projected image and

screen size

Use the Image-focus

2.

control (on the projector only) to sharpen the projected image

Use the KEYSTONE

3.

buttons (on the projector or the remote control) to correct image-trapezoid (wider top or bottom) effect.

B

.

A

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

The keystone control

4.

appears on the display.

Remote control and OSD panel

– 15 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

r

o

j

e

c

t

o

r

—

L

P

r

o

j

e

c

U

t

o

r

—

U

M

s

e

r

’

s

M

s

e

r

’

s

M

Adjusting the Volume

Press the Volume +/-

1.

buttons on the remote control. The volume control appears on the display.

Press the Left or Right

2.

Cursor buttons on the keypad to adjust Volume +/-.

a

n

u

a

l

a

n

u

a

l

a

n

u

a

l

Press the MUTE button

3.

to turn off the volume (This feature is available only on the remote).

— 16 —

ON-SCREEN DISPLAY (OSD) MENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the projector.

1

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

1

2 3

4

1. To enter the OSD, press the

MENU button.

2. There are five menus. Press the cursor ◄► button to move through the menus.

3. Press the cursor ▲▼ button to move up and down in a menu.

4. Press ◄► to change values for settings.

2

3

5

7

6

7

6

1

6

4

5. Press MENU to close the OSD

or leave a submenu.

Note:

Depending on the video source, not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Computer menu can only be modified when connected to a PC.

Items that are not available cannot be accessed and are grayed out.

– 17 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I.

2. Press the cursor ▲▼ button until Language is highlighted.

3. Press the cursor ◄► button until the language you want is highlighted.

4. Press the MENU button twice to close the OSD.

— 18 —

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

English, French, German, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Italian, Norwegian, Swedish, Dutch, Russian, Polish, Finnish, Greek, Korean, Hungarian, Czech, Arabic, Turkish, Vietnamese, Japanese, Thai, Farsi

– 19 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

u

M

a

n

u

M

a

n

OSD Sub-Menu Overview

a

l

a

l

u

a

l

Mini, RCA, HDMI

— 20 —

Image Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change

values for settings.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

ITEM DESCRIPTION

Display Mode Press the cursor ◄► button to set the Display Mode.

Brilliant Color Press the cursor ◄► button to adjust the Brilliant Color value.

Brightness Press the cursor ◄► button to adjust the display brightness.

Contrast Press the cursor ◄► button to adjust the display contrast.

Sharpness Press the cursor ◄► button to adjust the display sharpness level.

Gamma Press the cursor ◄► button to adjust the gamma correction of the display.

Advanced

Reset Press (Enter) / ► to reset all settings to default values.

Press

22.

(Enter) / ► to enter the Advanced menu. See Advanced Feature on page

– 21 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the

Advanced menu.

ITEM DESCRIPTION

Color Space

Color Temperature

Color Manager

Press the cursor (Range: Auto – RGB – YPbPr – YCbCr)

Press the cursor (Range: Cold – Normal – Warm)

Press Cyan-Magenta-Yellow-White). See page 23 for more information on Color Manager.

(Enter) / ► to enter the color manager menu. (Range: Red-Green-Blue-

◄► button to adjust the color space.

◄► button to adjust the color temperature.

— 22 —

Color Manager

Press (Enter) / ► to enter the Color Manager sub menu.

ITEM DESCRIPTION

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Red

Green

Blue

Cyan

Magenta

Yellow

White

Select to enter the Red Color Manager. Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Green Color Manager. Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Blue Color Manager. Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Cyan Color Manager. Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Magenta Color Manager. Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Yellow Color Manager. Press the◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the White Color Manager. Press the ◄► buttons to adjust the Red, Green, and Blue.

– 23 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Computer Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Computer menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◄► to

change values for settings.

ITEM DESCRIPTION

Horizontal Position Press the cursor ◄► button to adjust the display position to left or right.

Vertical Position Press the cursor ◄► button to adjust the display position to up or down.

Frequency Press the cursor ◄► button to adjust the A/D sampling clock.

Tracking Press the cursor ◄► button to adjust the A/D sampling dot.

Auto Image

Press tion.

(Enter) / ► to automatically adjustment for phase, tracking, size and posi-

— 24 —

Video/Audio Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu.

Press ◄► to change values for settings.

ITEM DESCRIPTION

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Video AGC

Video Saturation Press the ◄► buttons to adjust the video saturation.

Video Tint Press the ◄► buttons to adjust the video tint/hue.

Film Mode Press the ◄► buttons to select a different film mode.

Video Overscan Press the ◄► buttons to enable or disable video over scan.

Closed Captioning Press the ◄► buttons to enable or disable Closed Captioning

Audio Press (Enter) / ► to enter the Audio menu. See Audio on page 26.

Reset Press (Enter) / ► to reset all settings to default values.

Note:

Video jagging may occur when playing interlace video. To overcome this issue, open the Video / Audio menu and adjust the Film Mode feature.

Press the ◄► buttons to enable or disable the Automatic Gain Control for video source.

– 25 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Audio

Press (Enter) / ► to enter the Audio sub menu.

ITEM DESCRIPTION

Volume

Mute Press the ◄► buttons to turn on or off the speaker.

Audio Input

Press the ◄► buttons to adjust the audio volume. (Range: 0 ~ 8)

Press the cursor ◄► button to select audio input. (Range: Mini / RCA / HDMI)

— 26 —

Installation I Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press

◄► to change values for settings.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

ITEM DESCRIPTION

Language Press the cursor ◄► button to select a different localization Menu.

Blank Screen Press the cursor ◄► button to select different color to blank the screen.

Projection Press the cursor ◄► button to choose from four projection methods:

Aspect Ratio Press the cursor ◄► button to adjust the video aspect ratio.

Keystone Press the cursor ◄► button to adjust the display keystone.

Digital Zoom Press the cursor ◄► button to adjust the Digital Zoom menu.

Advanced

Reset

Press

30.

Press (except Language and Security Lock).

(Enter) / ► to enter the Advanced menu. See Advanced Feature on page

(Enter) / ► to reset all settings to default values

– 27 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Installation I menu. Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in

the Advanced menu. Press ◄► to change values for setting.

ITEM DESCRIPTION

Security Lock Press the cursor ◄► button to enable or disable security lock function.

Keypad Lock Press the cursor ◄► button to enable or disable keys can be work on keypad.

Wall Color Press the cursor ◄► button to select different wall color setting.

Presentation Timer

Projector ID Press the cursor ◄► button to adjust a two digit projector ID from 0 through 98.

Presentation Timer

The Presentation Timer function can indicate the presentation time on the screen to help you achieve better time management when giving presentations.

Press

(Enter) / ► to enter the Presentation Timer sub menu.

Press

28.

(Enter) / ► to enter the Presentation menu. See Advanced Feature on page

ITEM DESCRIPTION

Timer Press the cursor ◄► button to enable or disable presentation timer function.

Timer Period Press the cursor ◄► button to adjust the display timer period.

Timer Reset Press (Enter) / ► to reset presentation timer counter.

— 28 —

Installation II Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu.

ITEM DESCRIPTION

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Auto Source Press the cursor ◄► button to enable or disable automatic source detection.

Auto Power Off (min.)

Auto Power On

Fan Speed

Lamp Mode

Advanced

Factory Reset Press (Enter) / ► to reset all items to factory preset values.

Status

Press the cursor ◄► button to enable or disable automatic shutdown of lamp when no signal.

Press the cursor ◄► button to enable or disable automatic power On when AC power is supplied.

Press the cursor ◄► button to toggle between Normal and High fan speeds.

Note: We recommend selecting high speed in high temperatures, high humidity, or

high altitude

Press the cursor ◄► button to select the lamp mode for higher brightness or lower brightness to save lamp life.

Press

30.

Press Status.

(above 1500m/4921ft) areas.

(Enter) / ► to enter the Advanced menu. See Advanced Feature on page

(Enter) / ► to enter the Status menu. See page 43 for more information on

– 29 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu. Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced menu. Press ◄► to change values for setting.

ITEM DESCRIPTION

OSD Menu Setting

Peripheral Test

Lamp Hour Reset

Low Power Mode Press ◄► to turn Low Power Mode on or off.

3D

RS232

Network

Press tion on OSD Menu Setting.

Press mation on Peripheral Test.

After replacing the lamp, this item should be reset. See page 32 for more information on Lamp Hour Reset.

Press setting..

Press ◄► to select RS232 (remote) or Network (LAN) mode depending on projector connection method.

Press Network settings.

(Enter) / ► to enter the OSD setting menu. See page 31 for more informa-

(Enter) / ► to enter the Peripheral Test menu. See page 31 for more infor-

(Enter) / ► to enter the 3D menu. See page 33 for more information on 3D

(Enter) / ► to enter the Network menu. See page 34 for more information on

— 30 —

OSD Menu Setting

ITEM DESCRIPTION

Menu Position Press ◄► button to select different OSD location.

Translucent Menu Press ◄► button to select OSD background translucent level.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Menu Display Press ◄► button to select OSD timeout delay.

Peripheral Test

ITEM DESCRIPTION

Remote Control Test

Color Test Press (Enter) / ► to select different colors on screen.

Press

(Enter) / ► to test the IR remote controller for diagnostic.

Button Test Press (Enter) / ► to test the button on keypad.

USB Test Press (Enter) / ► to test the USB connection with connected PC.

– 31 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Lamp Hour Reset

Please refer to Resetting the Lamp on page 47 to reset the lamp hour counter.

— 32 —

3D

ITEM DESCRIPTION

3D Press the cursor ◄► button to select different 3D mode.

3D Sync Invert Press the cursor ◄► button to enable or disable 3D Sync Invert.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Note:

1. The 3D OSD menu item is gray if there is no appropriate 3D source. This is the default setting.

2. When the projector is connected to an appropriate 3D source, the 3D OSD menu item is enabled for selection.

3. Use 3D glasses to view a 3D image.

4. You need 3D content from a 3D DVD or 3D media file.

5. You need to enable the 3D source (some 3D DVD content may have a 3D on-off selection feature).

6. You need DLP link 3D or IR 3D shutter glasses. With IR 3D shutter glasses, you need to in stall a driver on your PC and connect a USB emitter.

7. The 3D mode of the OSD needs to match the type of glasses (DLP link or IR 3D).

8. Power on the glasses. Glasses normally have a power on -off switch. Each type of glasses has their own configuration instructions. Please follow the configuration instructions that come with your glasses to finish the setup process.

Note:

Since different types of glass (DLP link or IR shutter glass) have their own setting instructions,

Please follow the guide to finish the setup process.

– 33 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Network

ITEM DESCRIPTION

Network State Displays the network connection status.

Press ◄► to turn DHCP On or Off.

DHCP

Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and

DNS fields.

IP Address Enter a valid IP address if DHCP is turned off.

Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.

Gateway Enter a valid Gateway address if DHCP is turned off.

DNS Enter a valid DNS name if DHCP is turned off.

Apply Press (Enter) / ► to confirm settings.

— 34 —

For simplicity and ease of operation, the projector provides diverse networking and remote management features.

The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off, Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute,

.

etc

LAN_RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).

P

r

e

f

a

P

r

e

f

a

P

r

e

f

a

c

e

c

e

c

e

2. On the PC (Laptop), select Start → Control Panel → Network Connections.

– 35 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

3. Right-click on Local Area Connection, and select Properties.

4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).

5. Click Properties.

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.

— 36 —

7. Press the Menu button on the projector.

8. Select Advanced Setup → Network Settings → Control By → RJ45 option

9. After getting into Network Status, input the following:

` DHCP: Off

` IP Address: 10.10.10.10

` Subnet Mask: 255.255.255.0

` Gateway: 0.0.0.0

` DNS Server: 0.0.0.0

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

10. Press

Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).

11. In the Address bar, input the IP address: 10.10.10.10.

12. Press

The projector is setup for remote management. The LAN/RJ45 function displays as follows.

(Enter) / ► to confirm settings.

(Enter) / ►.

– 37 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

CATEGORY ITEM INPUT-LENGTH

IP Address 15

Crestron Control

Projector

Network Configuration

User Password

Admin Password

IP ID 3

Port 5

Projector Name 10

Location 10

Assigned To 10

DHCP (Enabled) (N/A)

IP Address 15

Subnet Mask 15

Default Gateway 15

DNS Server 15

Enabled (N/A)

New Password 10

Confirm 10

Enabled (N/A)

New Password 10

Confirm 10

For more information, please visit http://www.crestron.com.

— 38 —

P

r

e

f

a

c

P

r

e

f

a

c

P

r

e

f

a

c

RS232 by Telnet Function

Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated RS232 command control, there is alternative RS232 command control way, so called “RS232 by TELNET” for LAN/RJ45 interface.

Quick Start-Guide for “RS232 by TELNET”

Check and get the IP-Address on OSD of the projector.

Make sure that laptop/PC can access the web-page of the projector.

Make sure that “Windows Firewall” setting to be disabled in case of “TELNET” function filtering out by laptop/PC.

e

Start => All Programs => Accessories => Command Prompt

– 39 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

r

o

j

e

c

t

o

r

—

U

Input the command format like the below:

telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) (ttt.xxx.yyy.zzz: IP-Address of the projector)

If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the RS232 command will be workable.

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

How to have TELNET enabled in Windows VISTA / 7

By default installation for Windows VISTA, “TELNET” function is not included. But end-user can have it by way of “Turn Windows features On or Off” to be enabled.

Open “Control Panel” in Windows VISTA

Open “Programs”

— 40 —

Select “Turn Windows features on or off” to open

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Have “Telnet Client” option checked, then press “OK” button.

– 41 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Specsheet for “RS232 by TELNET” :

1. Telnet: TCP

2. Telnet port: 8000

3. Telnet utility: Windows “TELNET.exe” (console mode)

4. Disconnection for RS232-by-Telnet control normally: Close Windows Telnet utility directly after TELNET connection ready

5. Limitation 1 for Telnet-Control: there is only one connection for Telnet-Control in one projector

Limitation 2 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

Limitation 3 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.

Limitation 4 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

(*, In Windows XP built-in “TELNET.exe” utility, “Enter” key pressed will have “Carriage-Return” and “New-Line” code.)

6. The IP-Address setting/modification on OSD would be ‘tempo-DISABLED’, while RS232-byTelnet connected running.

7. There is either/or option concerned for the RS232-by-Telnet, Crestron RoomView-Connected functions.

8. The Crestron RoomView-Connected is enabled by default. Once the RS232-by-Telnet enabled, the Crestron RoomView-Connected and IP-Address changing(re-configuration) function would be disabled silently.

9. Once the RS232-by-Telnet disconnected normally, the Crestron RoomView-Connected would be re-start in 5 seconds for control of manual re-connection in LAN.

10. Before the RS232-by-Telnet connection running, kindly please have the IP Address field to be “0.0.0.0” setting of“Crestron Control”in the Crestron web-FLASH UI to ease the bulky massive Crestron-Type packets.

— 42 —

P

r

e

P

r

e

P

r

e

Factory Reset

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory Reset sub menu and press

(expect Language and Security Lock).

(Enter) / ► to reset all the menu items to the factory default values

f

a

c

e

f

a

c

e

f

a

c

e

Status

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Installation II sub menu and press

ITEM DESCRIPTION

Active Source Display the activated source.

Video Information

Displays resolution/video information for RGB source and color standard for Video source.

(Enter) / ► to enter the Status sub menu.

Lamp Hours Lamp hour used information is displayed. Eco and Normal counters are separated.

– 43 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

MAINTENANCE AND SECURITY

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

a. The projection lamp used in this product contains a small amount of mercury. b. Do not dispose this product with general household waste. c. Disposal of this product must be carried out in accordance with the regulations of your local

authority.

Warning:

Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to do so could result in a severe burn.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury. Always keep your face away from the exhaust vent so that you do not suffer from the gas and bro-

ken shards of the lamp. When removing the lamp from a ceiling-mounted projector, make sure that no one is under the pro-

jector. Glass fragments could fall if the lamp has been burned out.

！

IF A LAMP EXPLODES

If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come ut of the exhaust vent. The gas contains toxic mercury.

Open windows and doors for ventilation. If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor

immediately.

Remove the single screw

1.

on the lamp compartment cover.

— 44 —

Remove the lamp com-

2.

partment cover.

Remove the three screws

3.

from the lamp module.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Lift the module handle up.

4.

Pull firmly on the module

5.

handle to remove the lamp module.

– 45 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

Reverse steps 1 to 5 to in-

6.

stall the new lamp module. While installing, align the lamp module with the connector and ensure it is level to avoid damage.

Note: The lamp module

must sit securely in place and the lamp connector must be connected properly before tightening the screws.

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

— 46 —

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

Press the MENU button to open

1.

the OSD menu.

Press the cursor ◄► button to

2.

move to the Installation II menu.

Press the cursor button to move down to

Advanced.

Press the cursor ▼▲ button to

3.

move down to Lamp Hour Reset.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Press the cursor ► or Enter but-

4.

ton.

A message screen appears.

Press ▼▲◄► buttons to reset

5.

the lamp hour.

Press the MENU button to get

6.

back to Installation II.

– 47 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so

could result in a severe burn.

2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on the projector.

3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using.

4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the

lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then

wipe the case.

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

— 48 —

Using the Kensington® Lock & Using the Security Bar

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington’s MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242,

http://www.Kensington.com.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

Using the Security Bar

In addition to the password protection function and the Kensington lock, the Security Bar helps protect the projector from unauthorized removal. See the following picture.

– 49 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

TROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.

• Ensure the projector is turned on.

• Ensure all connections are securely attached.

• Ensure the attached device is turned on.

• Ensure a connected PC is not in suspending mode.

• Ensure a connected notebook computer is configured for an external display.

(This is usually done by pressing a Fn-key combination on the notebook).

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts. For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

— 50 —

LED Error Messages

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

ERROR CODE MESSAGES

Over temperature OFF OFF ON

G794 fail 4 4 OFF

T1 fail 4 5 OFF

Lamp error 5 OFF OFF

Fan1 error (Burner Fan) 6 1 OFF

Fan2 error (Lamp Fan) 6 2 OFF

Fan3 error (Power Fan) 6 3 OFF

Fan4 error (DMD Fan) 6 4 OFF

Lamp door open 7 OFF OFF

DMD error 8 OFF OFF

Color wheel error 9 OFF OFF

Ballast error 10 OFF OFF

Ballast communication error 10 1 OFF

In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the POWER or RESDY LEDs are still blinking or the TEMP LED is lit, contact your service center.

POWER LED

BLINK

READY LED

BLINK

TEMP LED

BLINK

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control or projector.

3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed

Check the Projection setting on the Installation I menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the de-

fault settings.

2. To ensure the problem is not caused by a connected PC’s video card, connect to another

computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Image menu of the OSD.

– 51 –

D

L

P

r

o

j

e

c

t

o

r

—

D

L

P

r

o

j

e

L

P

c

P

r

o

j

e

c

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.

U

t

o

r

—

U

t

o

r

—

U

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is green.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Re-plug power cord. When the READY LED

is on, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

s

e

r

’

s

M

a

n

u

a

l

s

e

r

’

s

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it.

— 52 —

Specifications

P

r

e

f

a

c

P

e

r

e

f

a

c

e

r

e

f

a

c

e

SPECIFICATIONS

Model Display type Native Resolution Weight Projection distance

Projection screen Projection lens

Zoom ratio Vertical keystone

Projection methods Data compatibility SDTV/EDTV/ HDTV Video compatibility H-Sync V-Sync

Safety certification Operation tempera-

Dimensions AC Input Power consumption Stand By Lamp Audio speaker

D965

TI DMD 0.7” XGA

XGA 1024x768

3.75 kg (8.27 lbs)

1 meters ~ 10 meters

23.4”~300”

Manual Focus/Manual Zoom

1.15

+/- 15 degrees, 40 steps

Front, Rear, Desktop/Ceiling (Rear, Front)

VGA, SVGA, XGA, SXGA, UXGA, Mac

480i, 576i, 480p, 576p, 720p, 1080i, 1080p

NTSC/NTSC 4.43, PAL (B/G/H/I/M/N/60), SECAM

15, 31 – 90 kHz

50 – 85 Hz

FCC-B, UL, cUL, CB, CE, CCC, KC, PCT, PSB, ICES-003 (Canada),C-tick,

SASO, CECP, TW ECO Label

5° ~ 35°C

335 mm (W) x 102 mm (H) x 256 mm (D)

AC Universal 100 ~ 240, Typical @ 110VAC (100~240)/+-10%

380W

<1 watt

300W

3W mono speaker

VGA x 2

S-Video x 1

Input Terminals

Output Terminals

Control Terminals

Security

Composite Video x 1

HDMI x 1

DVI x 1

RCA stereo x 1

Mini-jack stereo x 1

VGA x 1 (Loop Thru only for VGA IN-1)

Mini-jack stereo x 1

RS-232C

RJ45

USB (type B) ; 12V trigger

Kensington lock

– 53 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Projection Distance vs. Projection Size

Projection Distance and Size Table

TELE

Distance (m) 1.28 3.41 4.27 8.53 1.46 2.93 3.66 10.97

Diagonal (inches) 30 80 100 200 40 80 100 300

Keystone (degree) 12.55 12.55 12.55 12.55 14.56 14.56 14.56 14.56

Image Height (mm) 457.2 1219.2 1524 3048 609.6 1219.2 1524 4572

Image Width (mm) 609.6 1625.6 2032 4064 812.8 1625.6 2032 6096

A (mm) 56.4 150.5 188.1 376.3 75.3 150.5 188.1 564.4

WIDE

— 54 —

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector.

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

SIGNAL RESOLUTION

NTSC — 15.734 60.0 O

PAL/SECAM — 15.625 50.0 O

720 x 400 37.9 85.0 — — O O

640 x 480 31.5 60.0 — — O O

640 x 480 37.9 72.8 — — O O

640 x 480 37.5 75.0 — — O O

640 x 480 43.3 85.0 — — O O

800 x 600 35.2 56.3 — — O O

800 x 600 37.9 60.3 — — O O

800 x 600 46.9 75.0 — — O O

800 x 600 48.1 72.2 — — O O

800 x 600 53.7 85.1 — — O O

1024 x 768 48.4 60.0 — — O O

VESA

Apple Macintosh

SDTV

EDTV

1024 x 768 56.5 70.1 — — O O

1024 x 768 60.0 75.0 — — O O

1024 x 768 68.7 85.0 — — O O

1280 x 800 49.7 59.8 — — O O

1280 x 800 62.8 74.9 — — O O

1280 x 800 71.6 84.8 — — O O

1280 x 1024 64.0 60.0 — — O O

1280 x 1024 80.0 75.0 — — O O

1280 x 1024 91.1 85.0 — — O O

1400 x 1050 65.3 60.0 — — O O

1440 x 900 55.9 60.0 — — O O

1600 x1200 75.0 60 — — O O

640 x 480 35.0 66.7 — — O O

832 x 624 49.7 74.5 — — O O

1024 x 768 60.2 74.9 — — O O

1152 x 870 68.7 75.1 — — O O

480i 15.734 60.0 — O — O

576i 15.625 50.0 — O — O

576p 31.3 50.0 — O — O

480p 31.5 60.0 — O — O

H-SYNC

(KHZ)

V-SYNC

(HZ)

COMPOSITE

/ S-VIDEO

COMPONENT

—

RGB

(ANALOG)

－－

DVI/

HDMI

(DIGITAL)

– 55 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

SIGNAL RESOLUTION

720p 37.5 50.0 — O — O

720p 45.0 60.0 — O — O

1080i 33.8 60.0 — O — O

HDTV

1080i 28.1 50.0 — O — O

1080p 67.5 60.0 — O — O

1080p 56.3 50.0 — O — O

O: Frequency supported

—: Frequency not supported

H-SYNC

(KHZ)

V-SYNC

(HZ)

COMPOSITE

/ S-VIDEO

COMPONENT

RGB

(ANALOG)

DVI/

HDMI

(DIGITAL)

— 56 —

Projector Dimensions

335

256

P

r

e

f

a

c

e

P

r

P

r

e

f

a

c

e

f

a

c

e

102

– 57 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

REGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user’s authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC-B, UL, cUL, CB, CE, CCC, KC, PCT, PSB, ICES-003 (Canada),C-tick, SASO, CECP and TW ECO Label

— 58 —

RS-232C Protocol

RS232 Setting

Minimum delay for next command: 1ms

Control Command Structure

Header code Command code Data code End code

HEX Command Data 0Dh ASCII ｀V’ Command Data CR

Operation Command

Note: XX=00-98, projector's ID, XX=99 is for all projectors Return Result P=Pass / F=Fail n: 0:Disable/1: Enable/Value(0~9999)

Baud rate: 9600

Parity check:

Data bit: 8 Stop bit: 1

Flow Control

None

A

PPENDIX

P

r

e

f

a

c

e

r

P

r

e

f

a

c

e

f

a

c

e

I

Command Group 00

ASCII HEX Function Description Return Result

VXXS0001 56h Xh Xh 53h 30h 30h 30h 31h 0Dh Power On P/F

VXXS0002 56h Xh Xh 53h 30h 30h 30h 32h 0Dh Power Off P/F

VXXS0003 56h Xh Xh 53h 30h 30h 30h 33h 0Dh Resync P/F

VXXG0004 56h Xh Xh 47h 30h 30h 30h 34h 0Dh Get Lamp Hours Pn/F

VXXS0006 56h Xh Xh 53h 30h 30h 30h 36h 0Dh System Reset P/F

0:Reset

VXXG0007 56h Xh Xh 47h 30h 30h 30h 37h 0Dh Get System Status

VXXG0008 56h Xh Xh 47h 30h 30h 30h 38h 0Dh Get F/W Version Pn/F

1:Standby 2:Operation 3:Cooling

Pn/F

Command Group 01

ASCII HEX Function Description Return Value

VXXG0101 56h Xh Xh 47h 30h 31h 30h 31h 0Dh Get Brightness n=0~100 Pn/F

VXXS0101n 56h Xh Xh 53h 30h 31h 30h 31h nh 0Dh Set Brightness n=0~100 P/F

– 59 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

D

L

P

r

o

j

e

c

t

o

r

—

U

VXXG0102 56h Xh Xh 47h 30h 31h 30h 32h 0Dh Get Contrast n=0~100 Pn/F

VXXS0102n 56h Xh Xh 53h 30h 31h 30h 32h nh 0Dh Set Contrast n=0~100 P/F

VXXG0103 56h Xh Xh 47h 30h 31h 30h 33h 0Dh Get Color n=0~100 Pn/F

VXXS0103n 56h Xh Xh 53h 30h 31h 30h 33h nh 0Dh Set Color n=0~100 P/F

VXXG0104 56h Xh Xh 47h 30h 31h 30h 34h 0Dh Get Tint n=0~100 Pn/F

VXXS0104n 56h Xh Xh 53h 30h 31h 30h 34h nh 0Dh Set Tint n=0~100 P/F

VXXG0105 56h Xh Xh 47h 30h 31h 30h 35h 0Dh Get Sharpness 0~31 Pn/F

VXXS0105n 56h Xh Xh 53h 30h 31h 30h 35h nh 0Dh Set Sharpness 0~31 P/F

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

VXXG0106 56h Xh Xh 47h 30h 31h 30h 36h 0Dh

VXXS0106n 56h Xh Xh 53h 30h 31h 30h 36h nh 0Dh

VXXG0107 56h Xh Xh 47h 30h 31h 30h 37h 0Dh Get Gamma

VXXS0107n 56h Xh Xh 53h 30h 31h 30h 37h nh 0Dh Set Gamma

Get Color Temperature

Set Color Temperature

0: Cold 1: Normal 2: Warm

0: 1.0 1: 1.8 2: 2.0 3: 2.2 4: 2.35 5: 2.5

Pn/F

P/F

Pn/F

P/F

Command Group 02

ASCII HEX Function Description Return Value

VXXS0201 56h Xh Xh 53h 30h 32h 30h 31h 0Dh Select RGB

VXXS0202 56h Xh Xh 53h 30h 32h 30h 32h 0Dh Select RGB2

VXXS0203 56h Xh Xh 53h 30h 32h 30h 33h 0Dh Select DVI

VXXS0204 56h Xh Xh 53h 30h 32h 30h 34h 0Dh Select Video

VXXS0205 56h Xh Xh 53h 30h 32h 30h 35h 0Dh Select S-Video

VXXS0206 56h Xh Xh 53h 30h 32h 30h 36h 0Dh Select HDMI

VXXG0220 56h Xh Xh 47h 30h 32h 32h 30h 0Dh

Get Current Source

— 60 —

Return 1:RGB 2:RGB2 3:DVI 4:Video 5:S-Video 6:HDMI

P/F

Pn/F

P

r

e

f

a

c

P

e

r

e

f

a

c

e

r

e

f

a

c

e

Command Group 03

ASCII HEX Function Description Return Value

0: Fill 1: 4:3

VXXG0301 56h Xh Xh 47h 30h 33h 30h 31h 0Dh Get Scaling

VXXS0301n 56h Xh Xh 53h 30h 33h 30h 31h nh 0Dh Set Scaling

VXXG0302 56h Xh Xh 47h 30h 33h 30h 32h 0Dh Blank Pn/F

VXXS0302n 56h Xh Xh 53h 30h 33h 30h 32h nh 0Dh Blank P/F

VXXG0304 56h Xh Xh 47h 30h 33h 30h 34h 0Dh Freeze On Pn/F

2: 16:9 3 :Letter Box 4 :Native 5: 2.35:1

0: Fill 1: 4:3 2: 16:9 3 :Letter Box 4 :Native 5: 2.35:1

Pn/F

P/F

VXXS0304n 56h Xh Xh 53h 30h 33h 30h 34h nh 0Dh Freeze On P/F

VXXG0305 56h Xh Xh 47h 30h 33h 30h 35h 0Dh Volume n=0~8 Pn/F

VXXS0305n 56h Xh Xh 53h 30h 33h 30h 35h nh 0Dh Volume n=0~8 P/F

0:Front

VXXG0308 56h Xh Xh 47h 30h 33h 30h 38h 0Dh Projection Mode

VXXS0308n 56h Xh Xh 53h 30h 33h 30h 38h nh 0Dh Projection Mode

VXXG0309 56h Xh Xh 47h 30h 33h 30h 39h 0Dh

VXXS0309n 56h Xh Xh 53h 30h 33h 30h 39h nh 0Dh

VXXG0311 56h Xh Xh 47h 30h 33h 31h 31h 0Dh Adjust the zoom n=-10~+10 Pn/F

VXXS0311n 56h Xh Xh 53h 30h 33h 31h 31h nh 0Dh Adjust the zoom n=-10~+10 P/F

Set vertical keystone value

1:Rear 2: Ceiling 3: Rear+Ceiling

0:Front 1:Rear 2: Ceiling 3: Rear+Ceiling

n=-40~+40 Pn/F

n=-40~+40 P/F

Pn/F

P/F

– 61 –

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

M

a

n

u

a

l

D

L

P

r

o

j

e

c

t

o

r

—

U

s

e

r

’

s

L

P

r

o

j

e

c

t

o

r

—

U

M

s

e

r

’

s

M

a

n

u

a

l

a

n

u

a

l

Command Group 04 (Remote Control)

ASCII HEX Function Description Return Value

VXXS0401 56h Xh Xh 53h 30h 34h 30h 31h 0Dh UP arrow P/F

VXXS0402 56h Xh Xh 53h 30h 34h 30h 32h 0Dh DOWN arrow P/F

VXXS0403 56h Xh Xh 53h 30h 34h 30h 33h 0Dh LEFT arrow P/F

VXXS0404 56h Xh Xh 53h 30h 34h 30h 34h 0Dh RIGHT arrow P/F

VXXS0405 56h Xh Xh 53h 30h 34h 30h 35h 0Dh POWER P/F

VXXS0406 56h Xh Xh 53h 30h 34h 30h 36h 0Dh EXIT P/F

VXXS0407 56h Xh Xh 53h 30h 34h 30h 37h 0Dh INPUT P/F

VXXS0408 56h Xh Xh 53h 30h 34h 30h 38h 0Dh AUTO P/F

VXXS0409 56h Xh Xh 53h 30h 34h 30h 39h 0Dh KEYSTONE+ P/F

VXXS0410 56h Xh Xh 53h 30h 34h 31h 30h 0Dh KEYSTONE- P/F

VXXS0411 56h Xh Xh 53h 30h 34h 31h 31h 0Dh MENU P/F

VXXS0412 56h Xh Xh 53h 30h 34h 31h 32h 0Dh STATUS P/F

VXXS0413 56h Xh Xh 53h 30h 34h 31h 33h 0Dh MUTE P/F

VXXS0414 56h Xh Xh 53h 30h 34h 31h 34h 0Dh ZOOM+ P/F

VXXS0415 56h Xh Xh 53h 30h 34h 31h 35h 0Dh ZOOM- P/F

VXXS0416 56h Xh Xh 53h 30h 34h 31h 36h 0Dh BLANK P/F

VXXS0417 56h Xh Xh 53h 30h 34h 31h 37h 0Dh FREEZE P/F

VXXS0418 56h Xh Xh 53h 30h 34h 31h 38h 0Dh VOLUME+ P/F

VXXS0419 56h Xh Xh 53h 30h 34h 31h 39h 0Dh VOLUME- P/F

VXXS0420 56h Xh Xh 53h 30h 34h 32h 30h 0Dh Enter P/F

— 62 —
