Vivitek D867 User Manual

Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.
© Copyright 2013
Disclaimer
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
All other pro acknowledged.
duct names used in this manual are the properties of their respective owners and are
— i —
DLP Projector—User’s Manual
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example: “Push the Menu button on the remote control to open the Main menu.”
General Safety Information
Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.
— ii —
Projector Installation Notice
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.
Allow at least 50 cm clearance around the exhaust vent.
Preface
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.
–iii –
DLP Projector—User’s Manual
Verify Installation Location
To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper
grounding and equalized ground potential for all of the equipment in the Projector System.
The power code provided with the Projector should be used. In case of any missing item, other
qualified 3-blade (with earthing lead) power cord can be used as substitution; however, do not use 2-blade power cord.
Verify if the voltage is stable, grounded properly and there is no electricity leakage.
Measure total power consumption which should not higher the safety capacity and avoid safety
issue and short circuit.
Turn on Altitude Mode when located in high altitude areas
The projector can only be installed upright or inverted.
When installation the bracket, make sure the weight limit is not exceed and firmly secured.
Avoid installing near air conditioner duct or subwoofer.
Avoid installing at high temperature, insufficient cooling and heavy dust locations.
Keep your product away from fluorescent lamps to avoid malfunction
caused by IR interference
The VGA IN connector should be connected to the VGA IN port. Note that it should be inserted
tightly, with the screws on both sides securely fastened to ensure proper connection of the signal wire for achieving optimal display effect.
The AUDIO IN connector should be connected to the AUDIO IN port and CANNOT be connected
to AUDIO OUT or other ports like BNC, RCA; otherwise, it will lead to mute output and even DAMAGE the port.
Install the projector above 200cm to avoid damage.
The power cord and signal cable should be connected before power on the projector. During the
projector starting and operating process, DO NOT insert or remove the signal cable or the power cord to avoid damaging the projector.
Cooling notes
Air outlet
Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.
Air outlet location should not be in front of the lens of other projector to avoid causing illusions.
Keep the outlet at least 100cm away from the inlets of other projectors
The projector generates a massive amount of heat during use. The internal fan dissipates the heat
of the projector when shutting down, and such process may continue for a certain period. After the project enters STANDBY MODE status, press the AC power button to turn off the projector and remove the power cord. DO NOT remove the power cord during the shutdown process, as it may cause damage to the projector. In the meantime, the delayed heat radiating will also affect the service life of the projector. The shutdown process may vary depending on the model used. Whatever the case may be, be sure to disconnect the power cord till after the projector enters the STANDBY status.
Air inlet
Make sure there is no object blocking air input within 30 cm.
Keep the inlet away from other heat sources
Avoided heavy dust area
— iv —
Preface
Power Safety
Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.

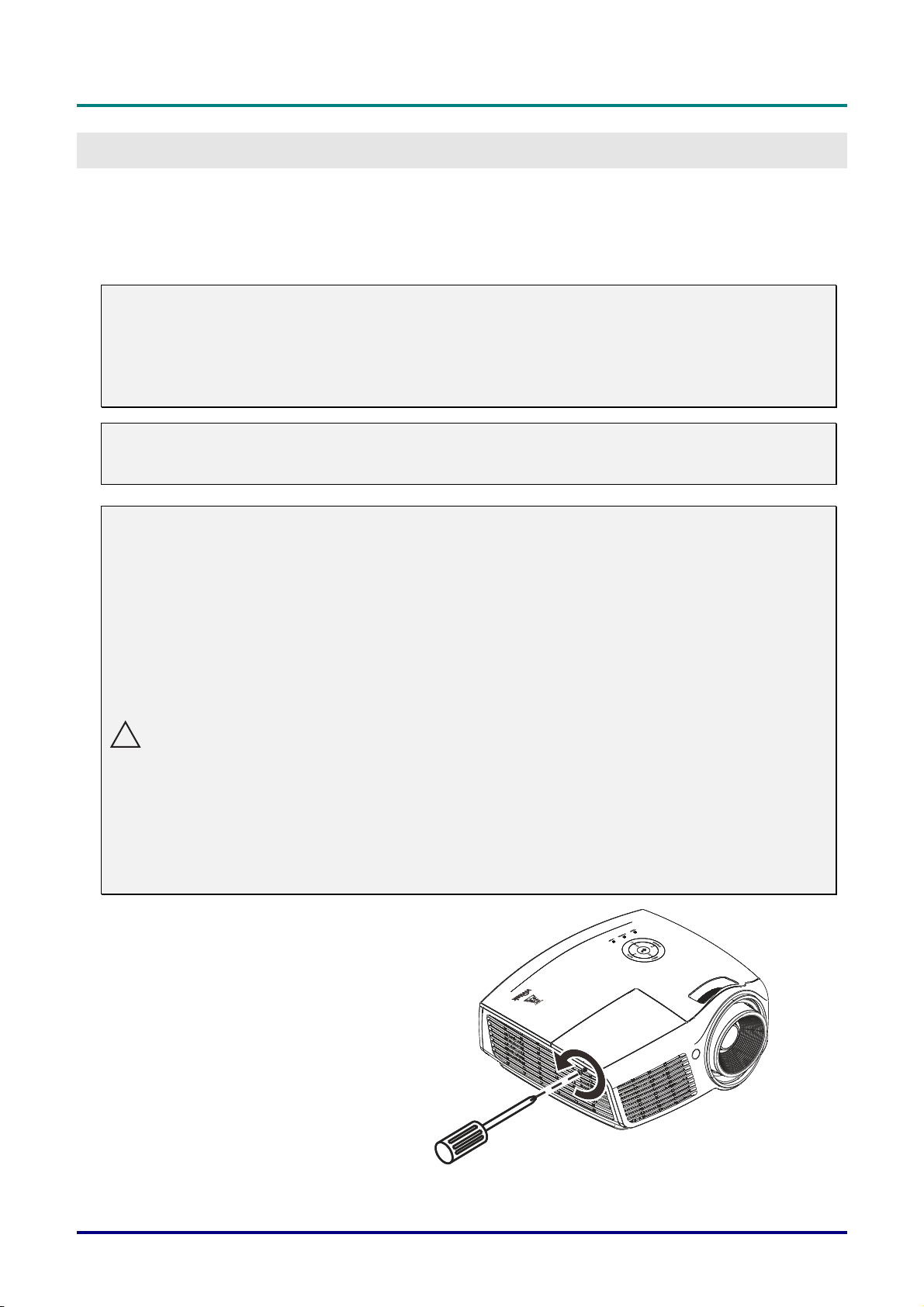

Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 45 for clear and safe instructions for this procedure. Before replacing the lamp:
Unplug the power cord.
Allow the lamp to cool for about one hour.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.
Cleaning the Projector
Unplug the power cord before cleaning. See Cleaning the Projector page 48.
Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on page 62.
Important Recycle Instructions:
Hg
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG
specific disposal information check WWW.LAMPRECYCLE.ORG.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services.
. For lamp
–v –
DLP Projector—User’s Manual
Main Features
Lightweight unit, easy to pack away and transport.
Compatible with all major video standards including NTSC, PAL, and SECAM.
A high brightness rating allows for presentations in daylight or in lit rooms.
Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
Flexible setup allows for front, rear projections.
Line-of-vision projections remain square, with advanced keystone correction for angled projections.
Input source automatically detected.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs.
— vi —
Preface
Table of Contents
GETTING STARTED..............................................................................................................................................1
PACKING CHECKLIST .............................................................................................................................................1
VIEWS OF PROJECTOR PARTS................................................................................................................................2
Front-right View ...............................................................................................................................................2
Top view—On-screen Display (OSD) buttons and LEDs................................................................................3
Rear view.........................................................................................................................................................4
Bottom view .....................................................................................................................................................6
REMOTE CONTROL PARTS .....................................................................................................................................7
REMOTE CONTROL OPERATING RANGE ..................................................................................................................9
PROJECTOR AND REMOTE CONTROL BUTTONS.......................................................................................................9
INSERTING THE REMOTE CONTROL BATTERIES .....................................................................................................10
SETUP AND OPERATION...................................................................................................................................11
STARTING AND SHUTTING DOWN THE PROJECTOR ................................................................................................11
SETTING AN ACCESS PASSWORD (SECURITY LOCK)..............................................................................................13
ADJUSTING THE PROJECTOR LEVEL .....................................................................................................................15

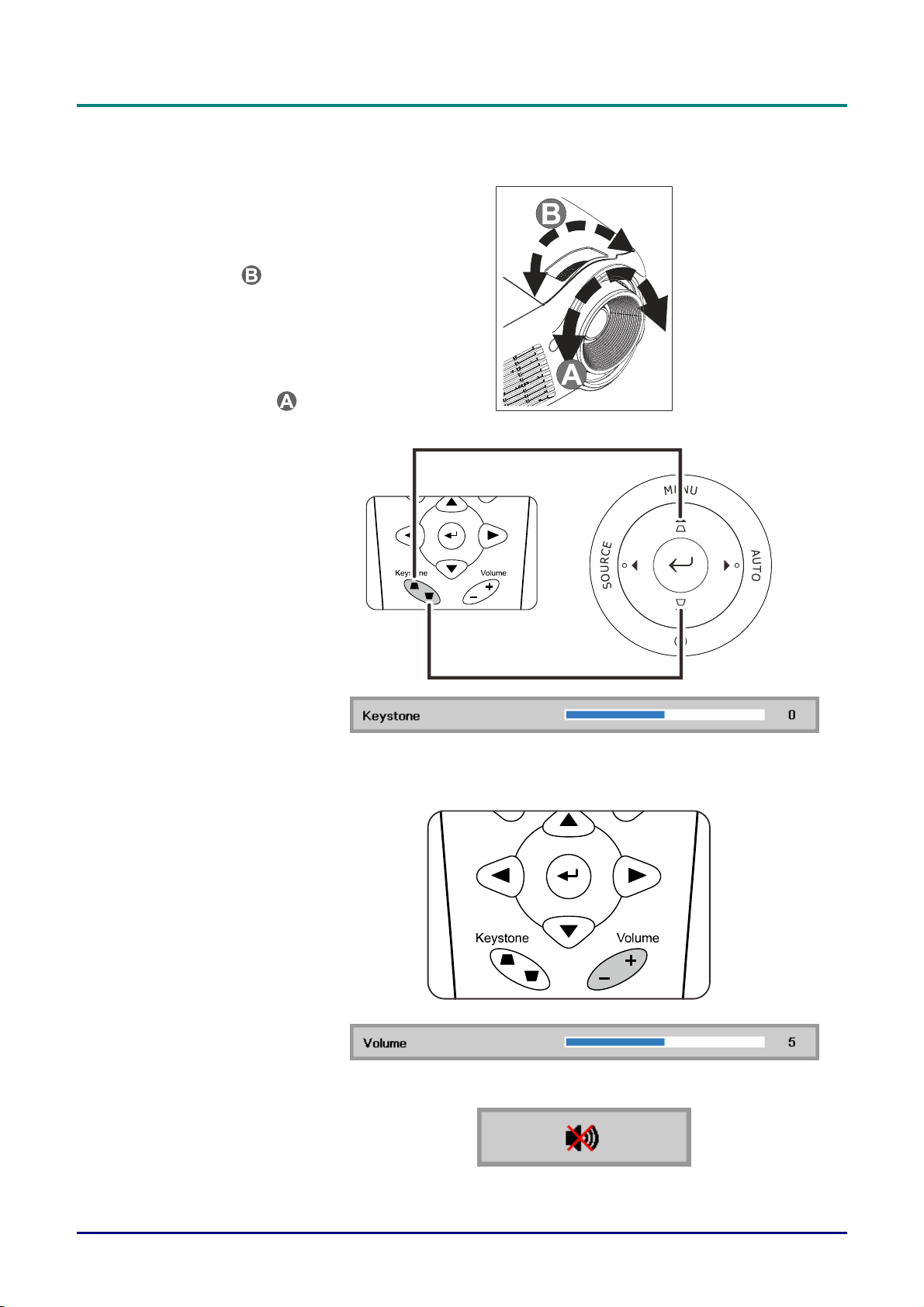

ADJUSTING THE ZOOM, FOCUS AND KEYSTONE.....................................................................................................16
ADJUSTING THE VOLUME .....................................................................................................................................16
ON-SCREEN DISPLAY (OSD) MENU SETTINGS..............................................................................................17

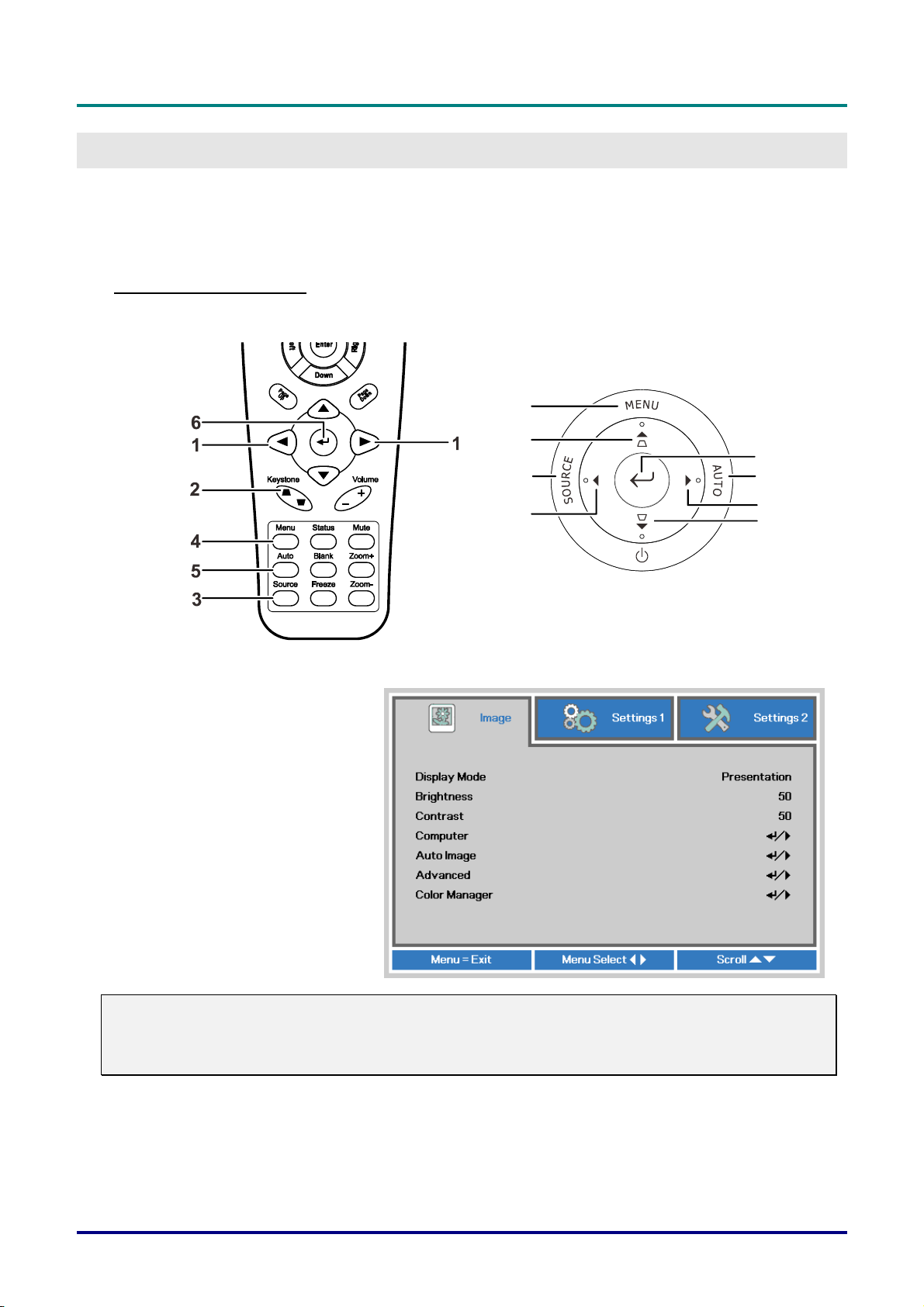

OSD MENU CONTROLS .......................................................................................................................................17
Navigating the OSD.......................................................................................................................................17
SETTING THE OSD LANGUAGE.............................................................................................................................18
OSD MENU OVERVIEW........................................................................................................................................19

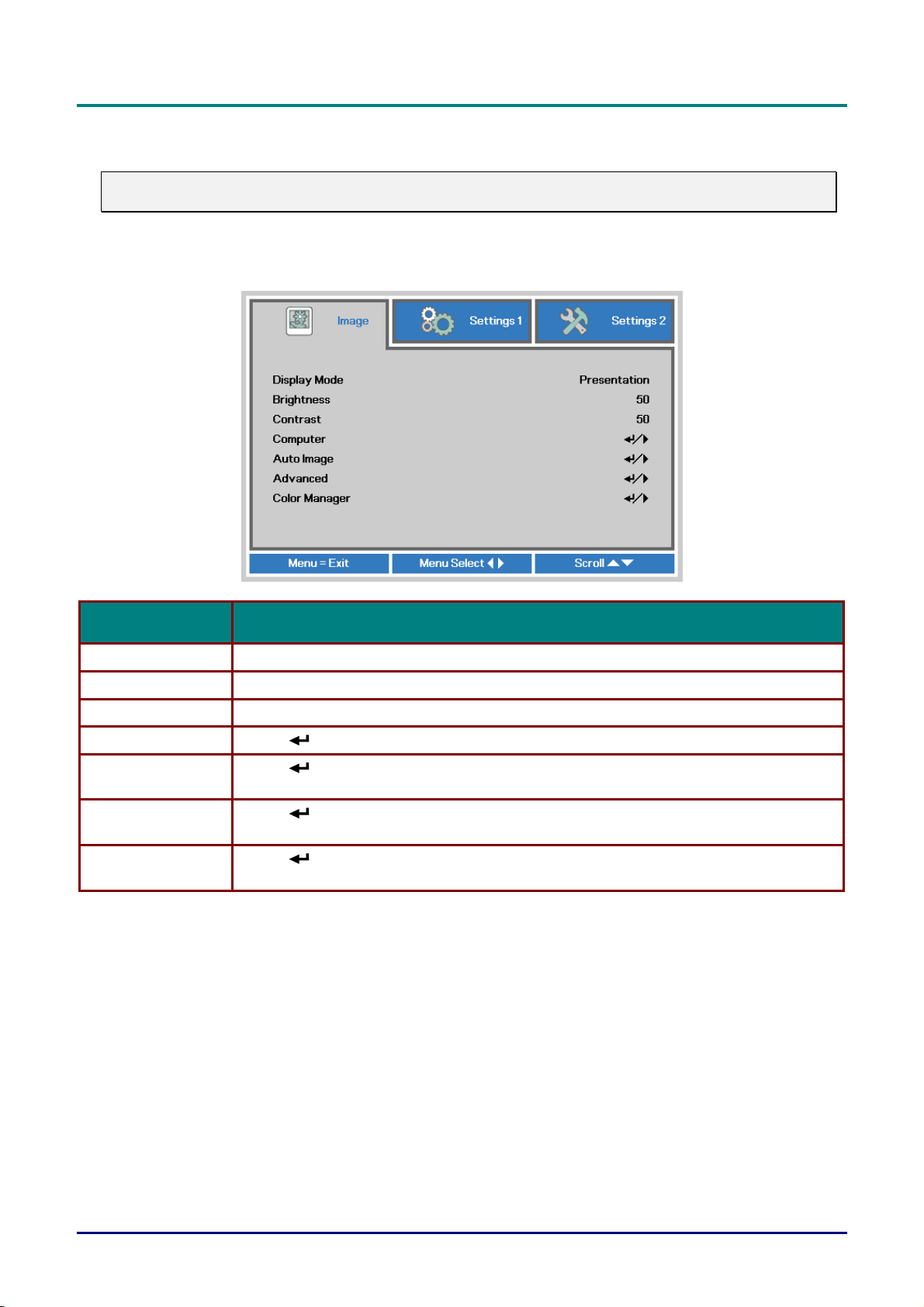

IMAGE MENU .......................................................................................................................................................20

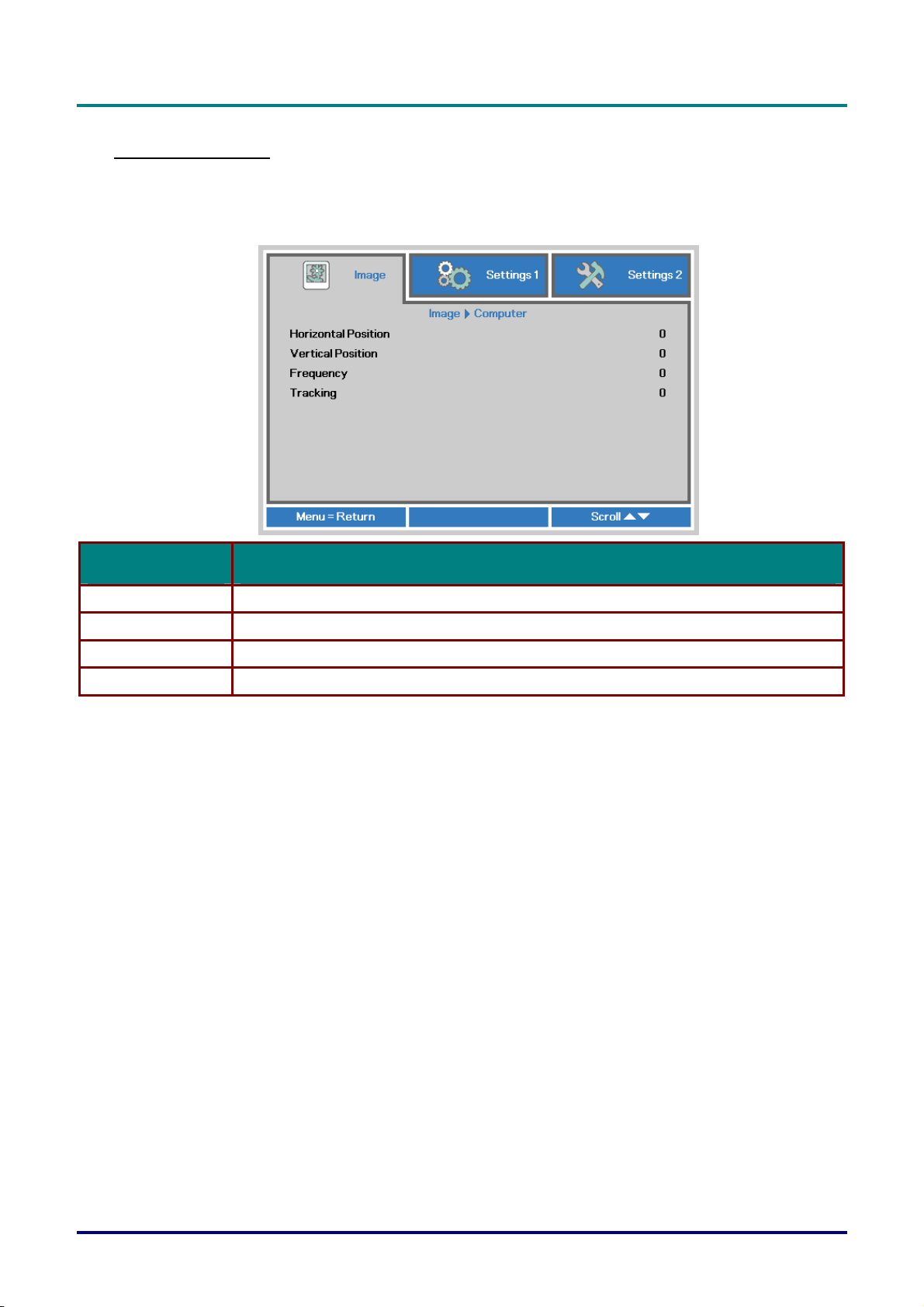

Computer Menu.............................................................................................................................................21

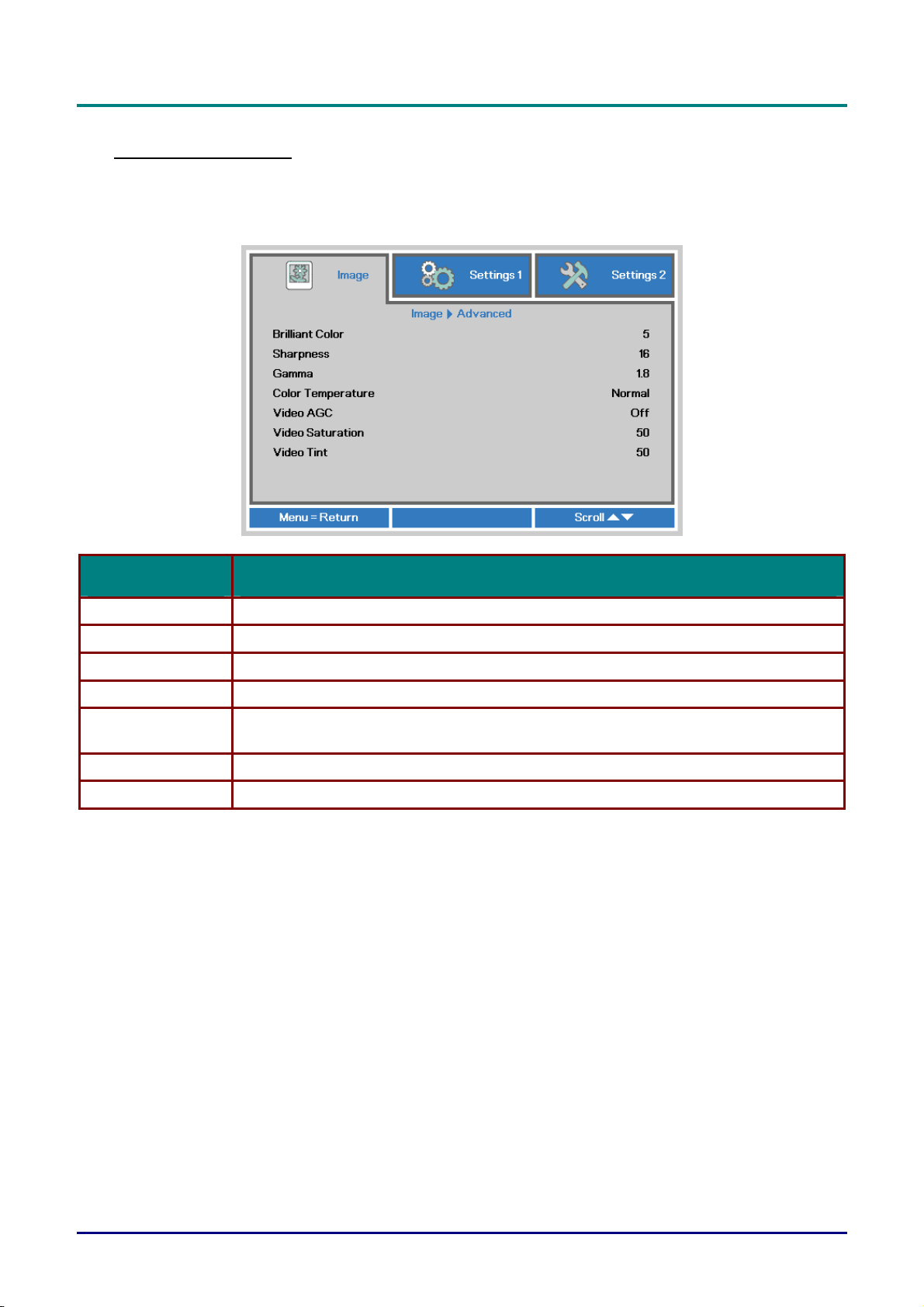

Advanced Feature .........................................................................................................................................22

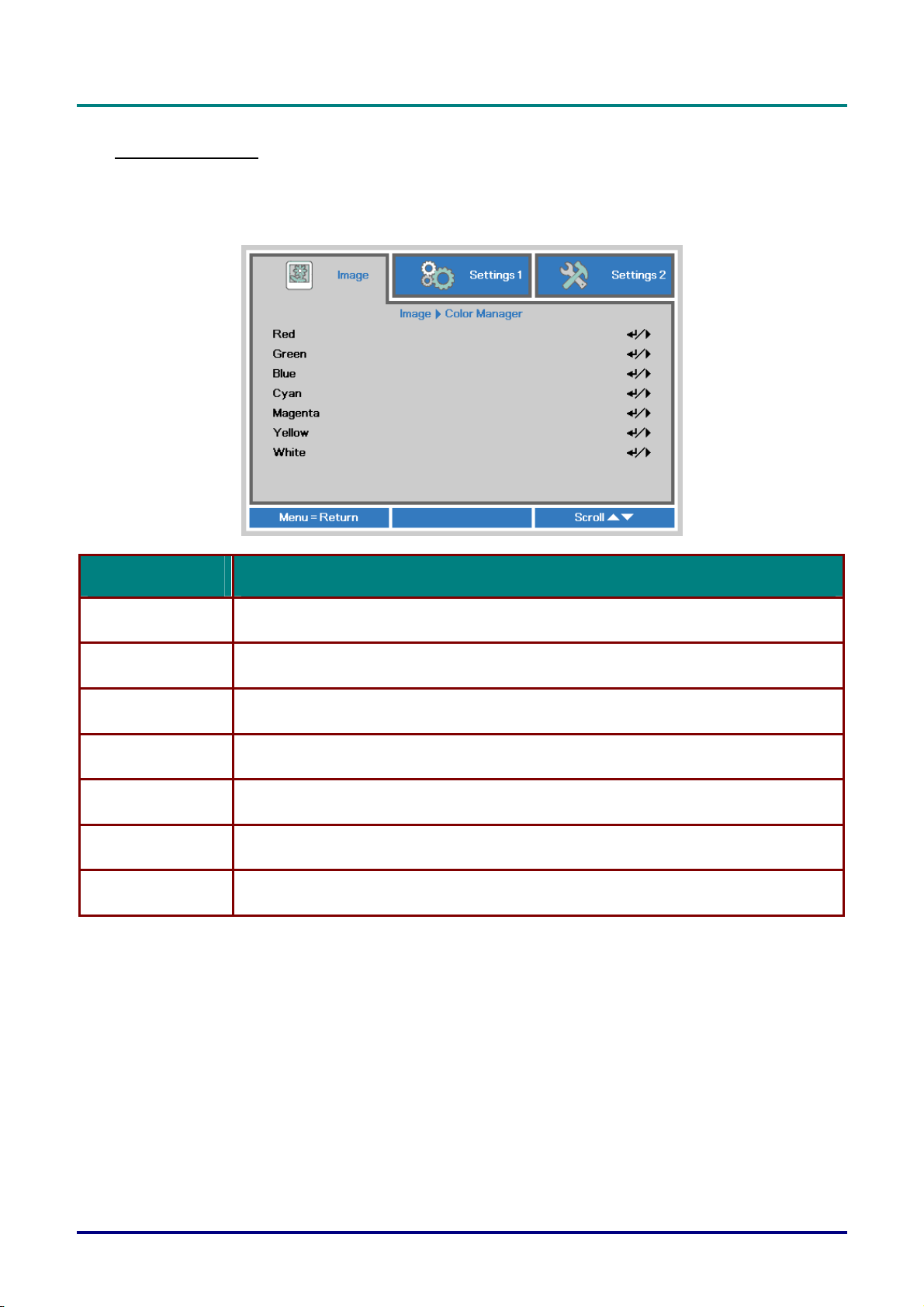

Color Manager...............................................................................................................................................23
SETTINGS 1 MENU...............................................................................................................................................24

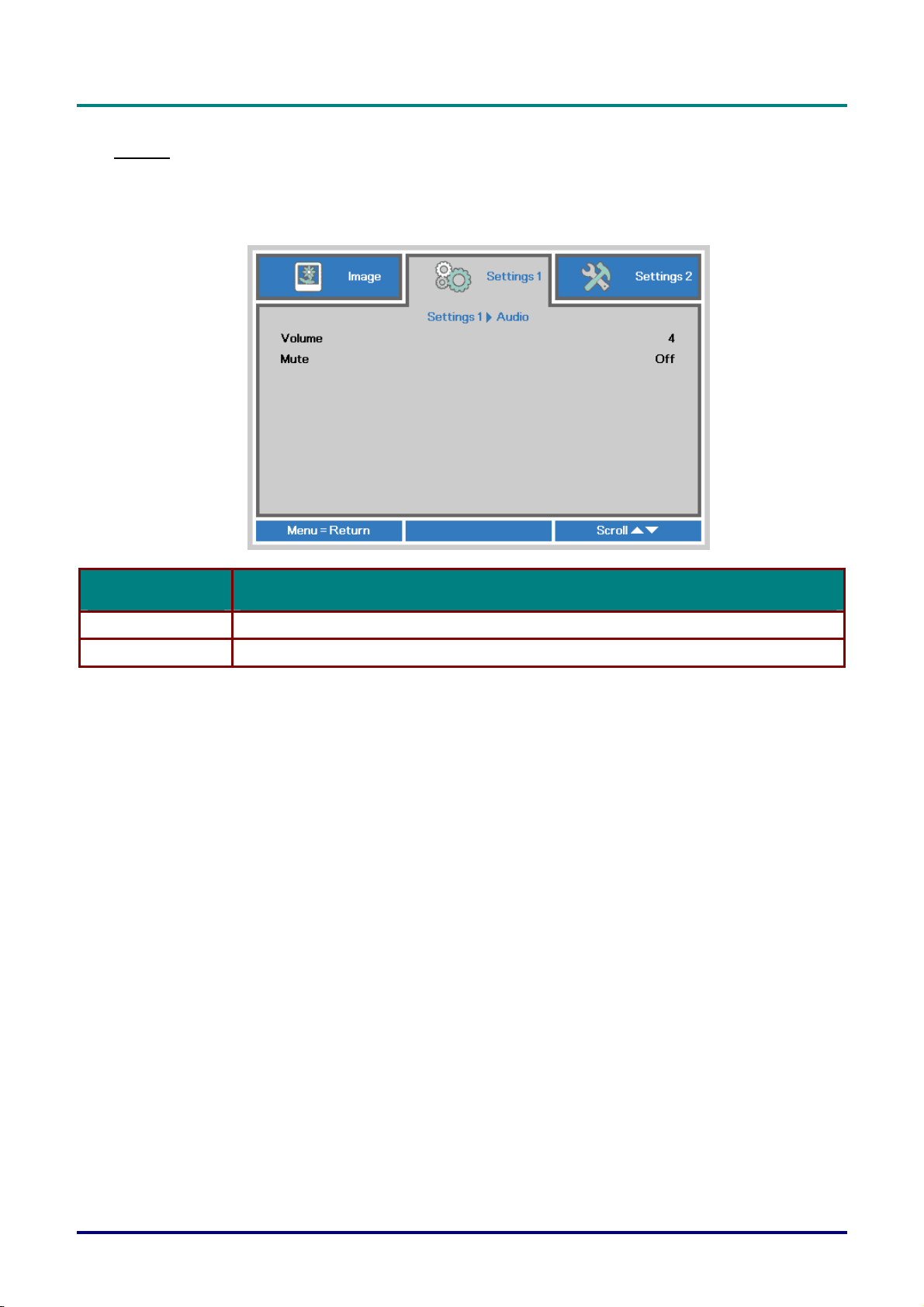

Audio..............................................................................................................................................................25

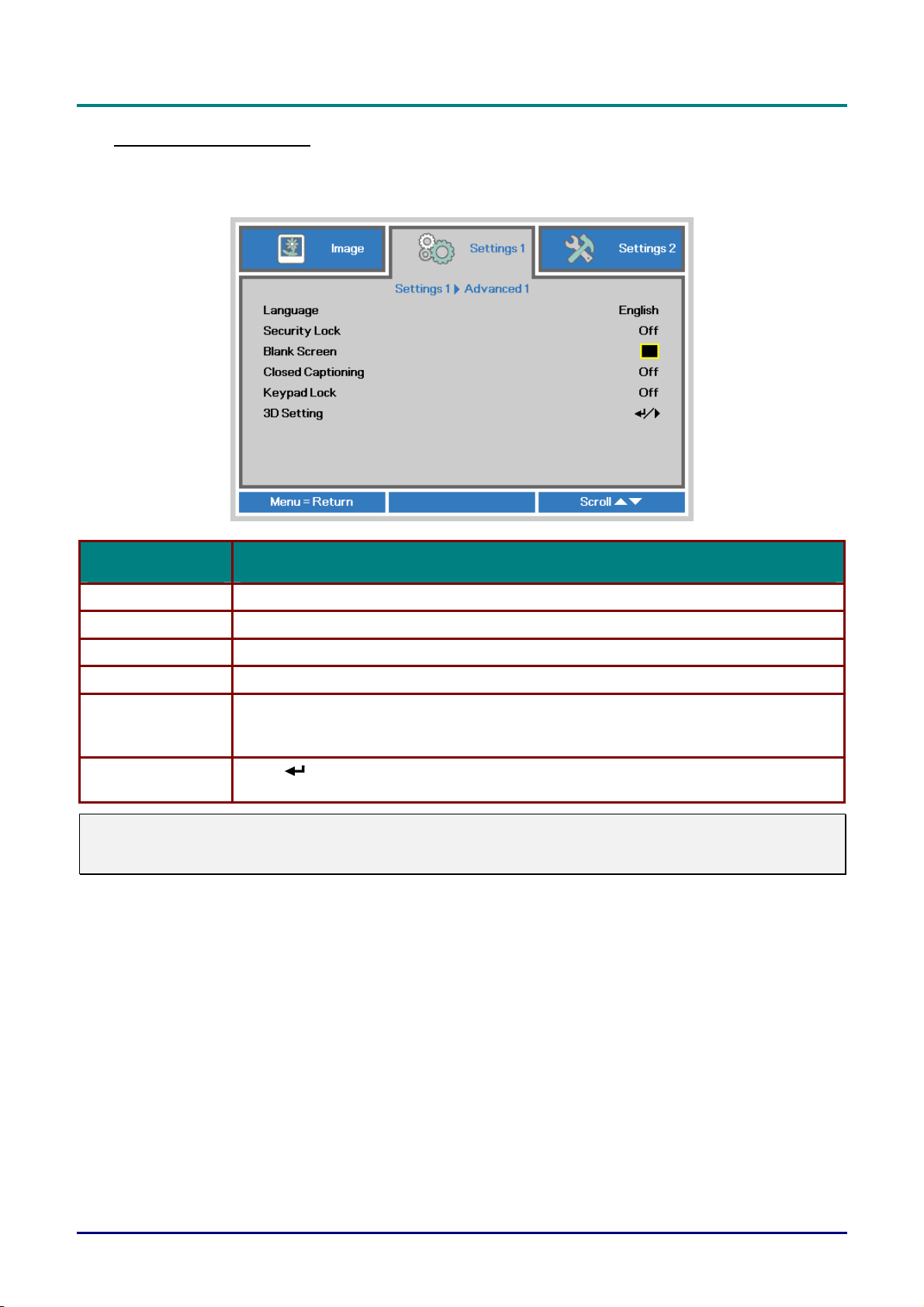

Advanced 1 Feature ......................................................................................................................................26
Advanced 2 Feature ......................................................................................................................................28

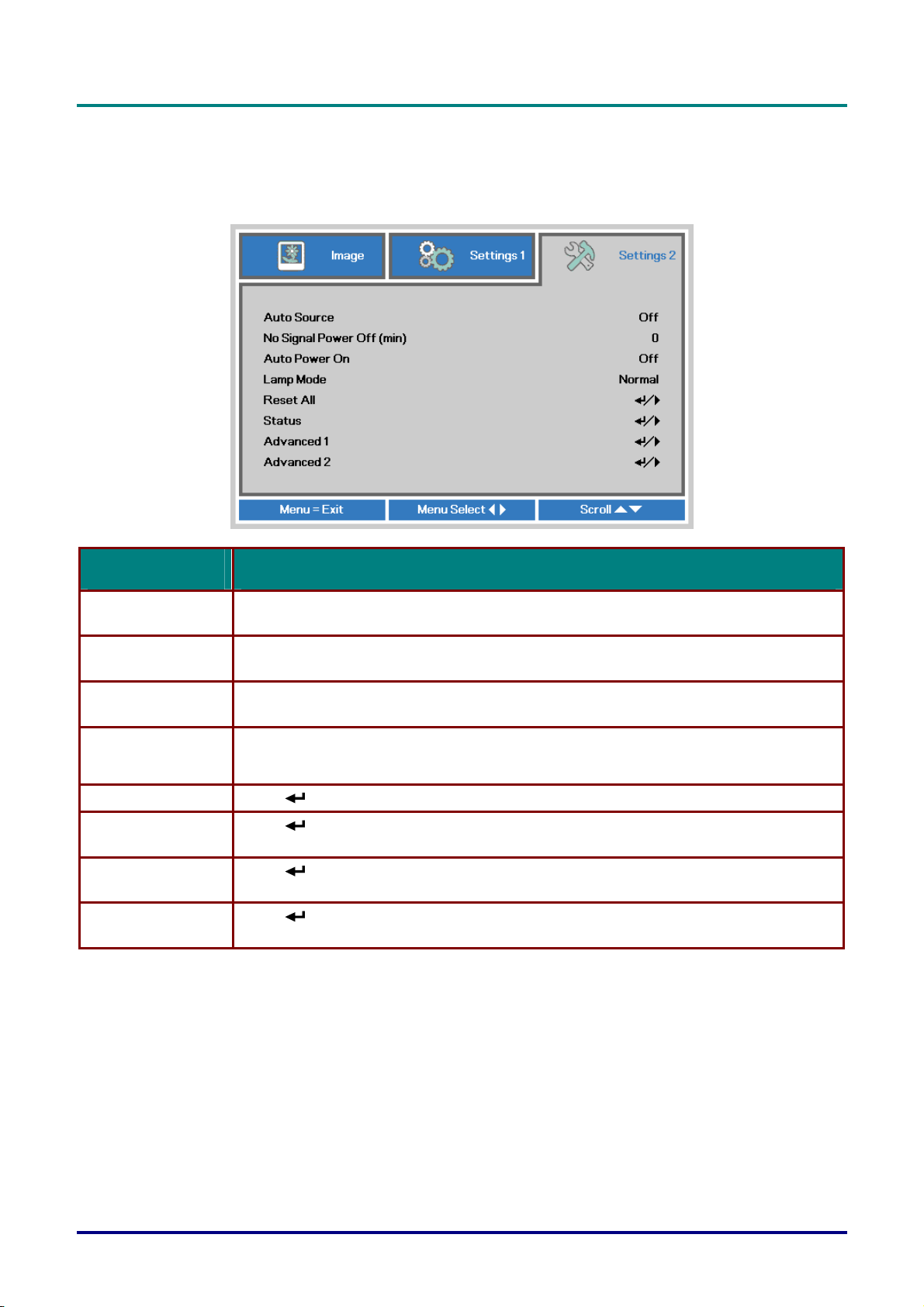

SETTINGS 2 MENU...............................................................................................................................................29

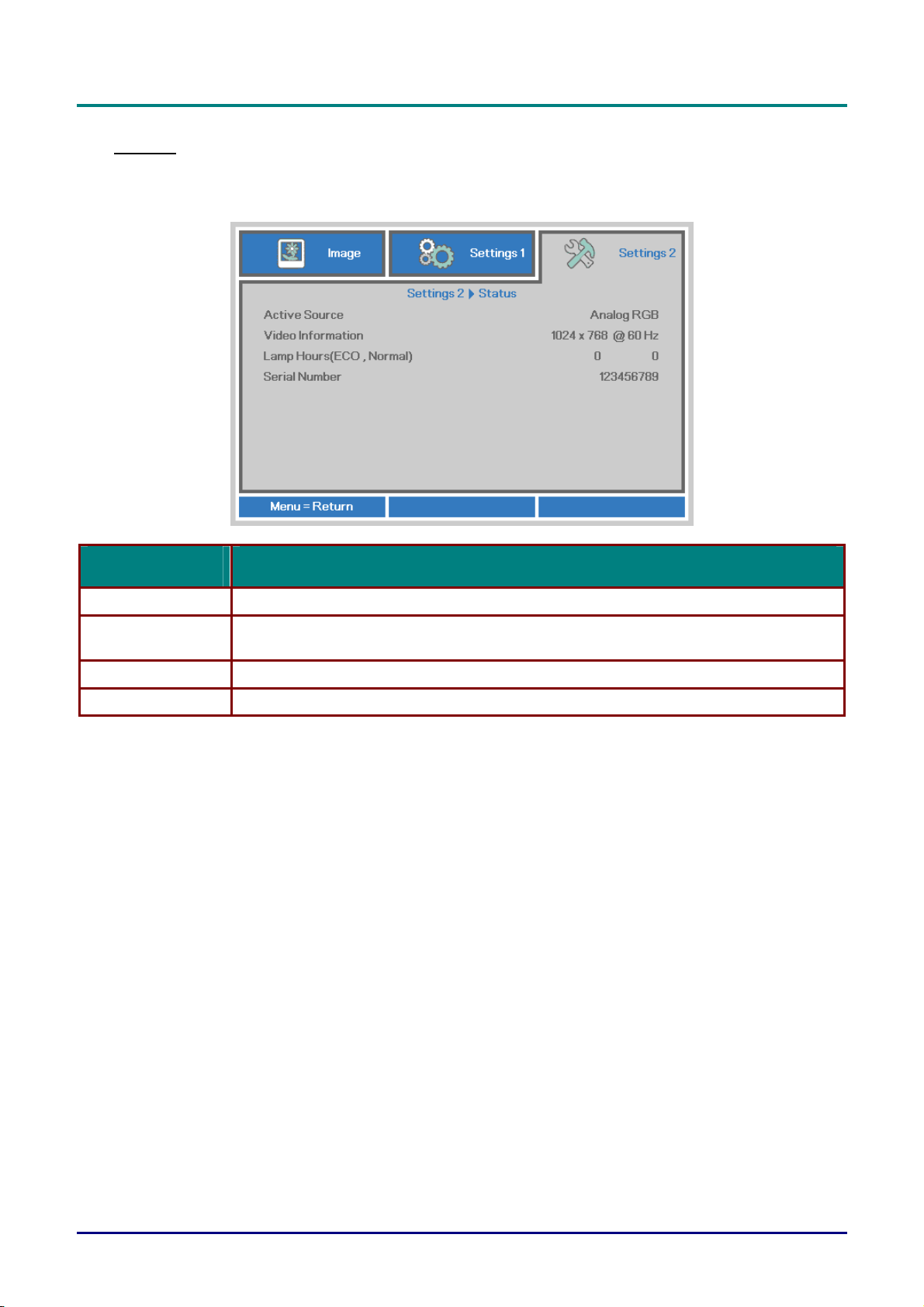

Status.............................................................................................................................................................30

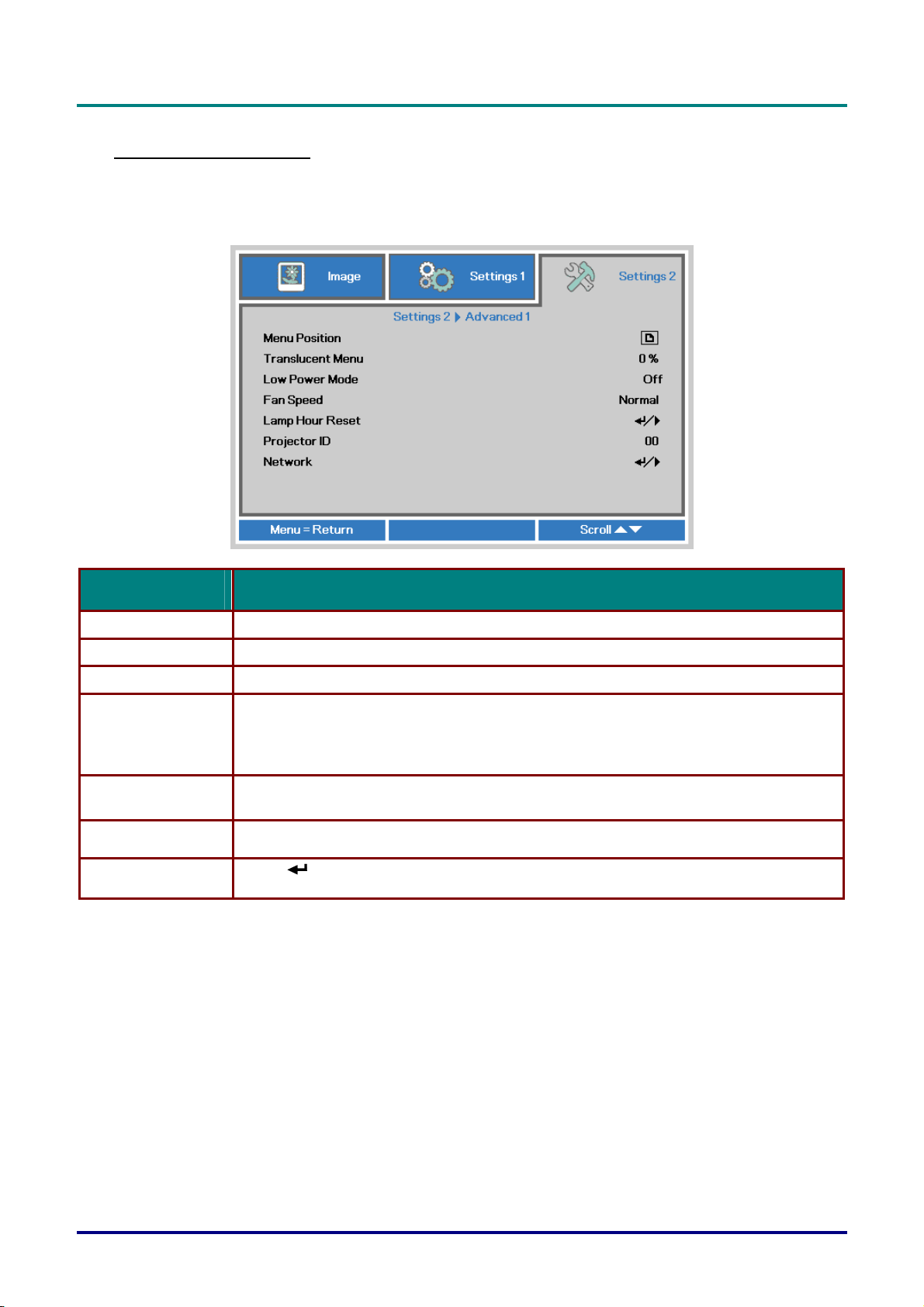

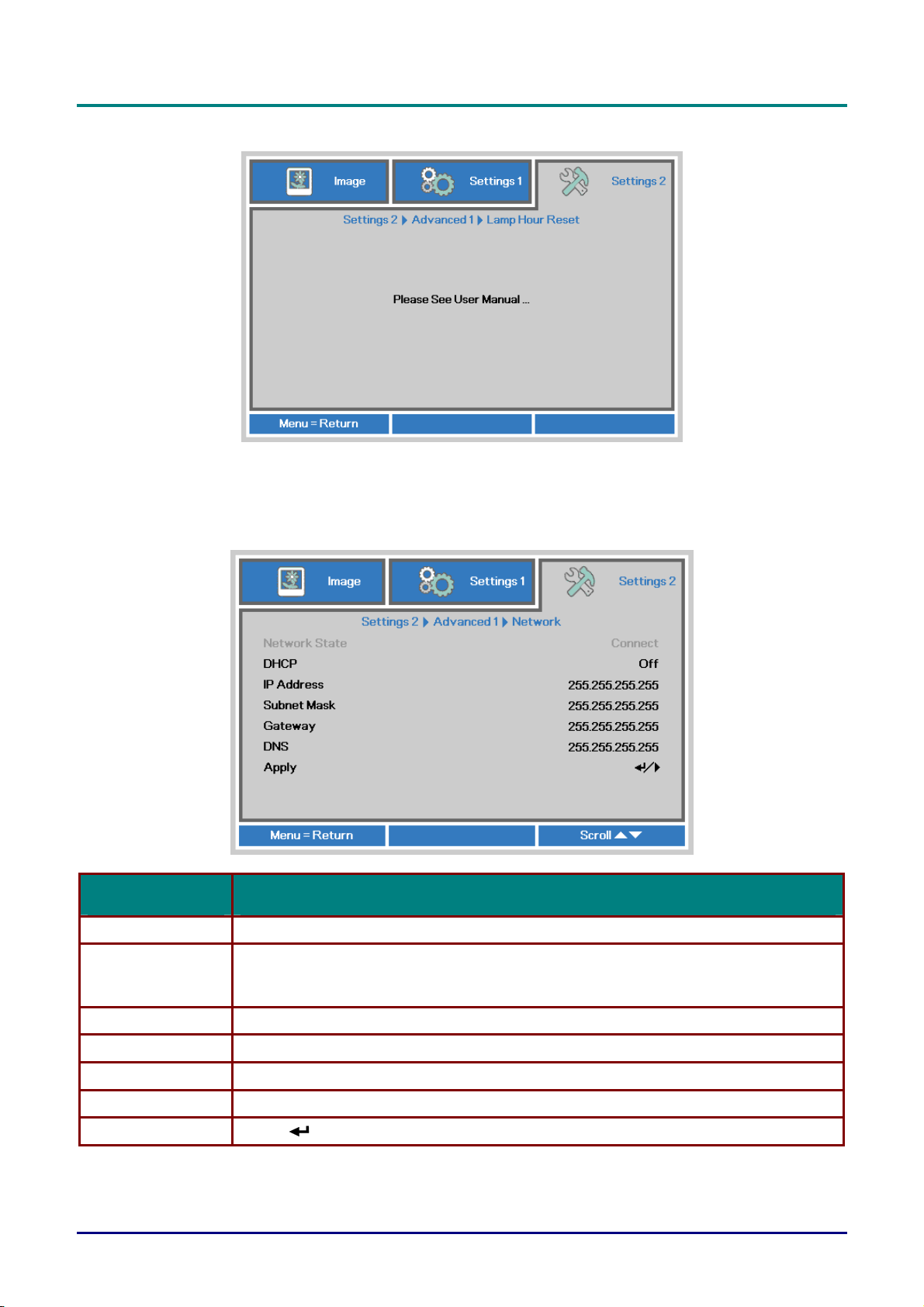

Advanced 1 Feature ......................................................................................................................................31

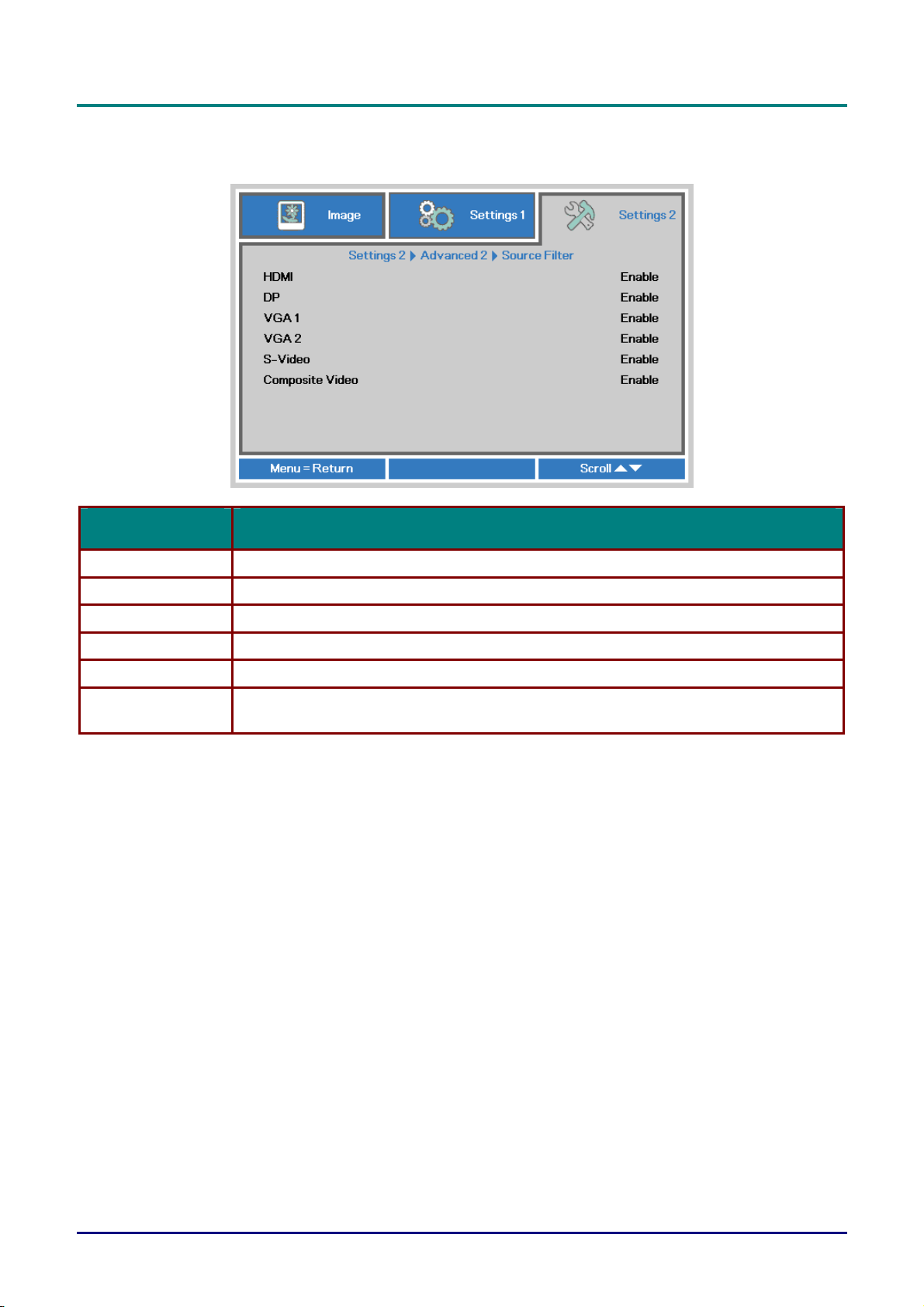

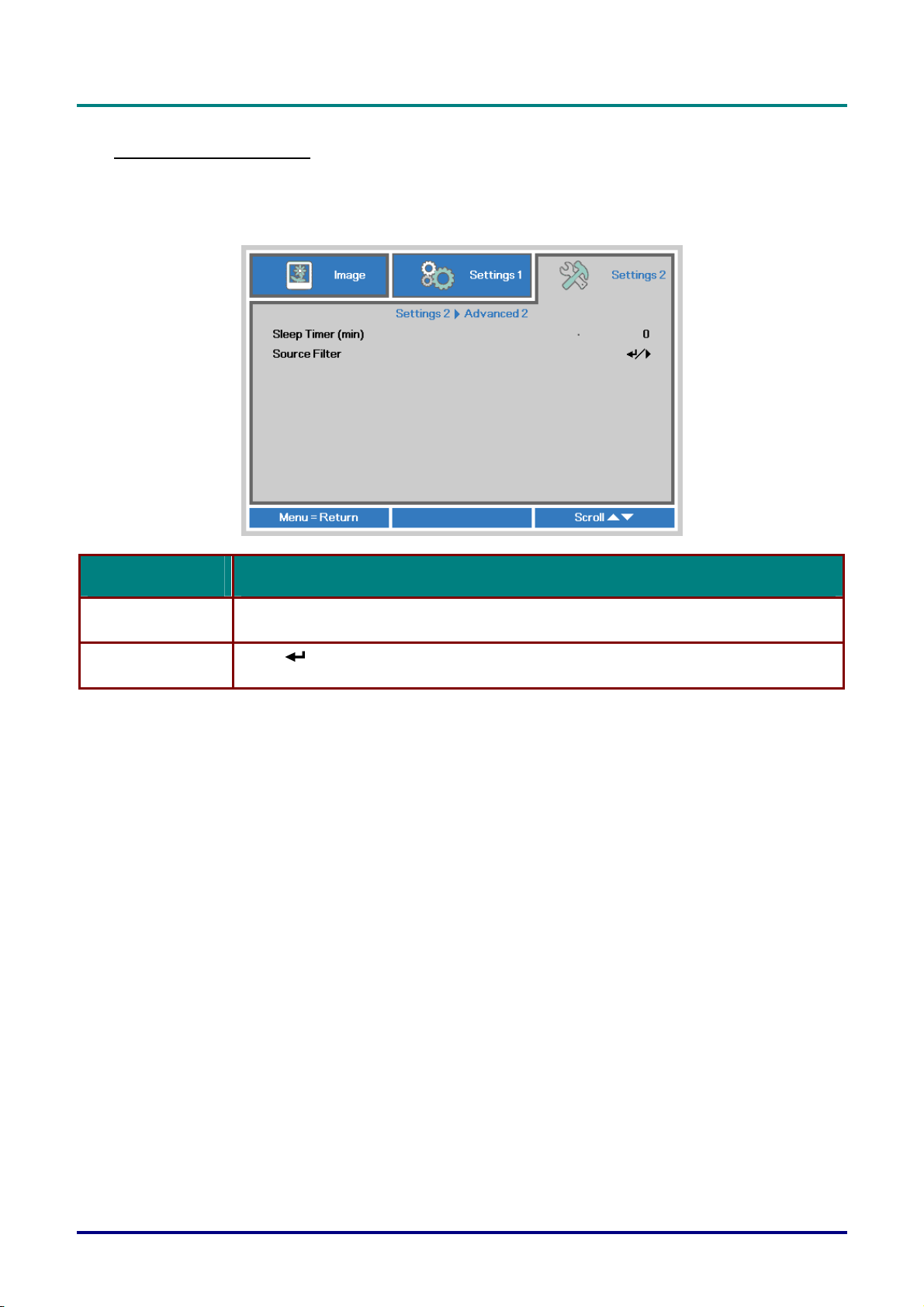

Advanced 2 Feature ......................................................................................................................................43
MAINTENANCE AND SECURITY .......................................................................................................................45

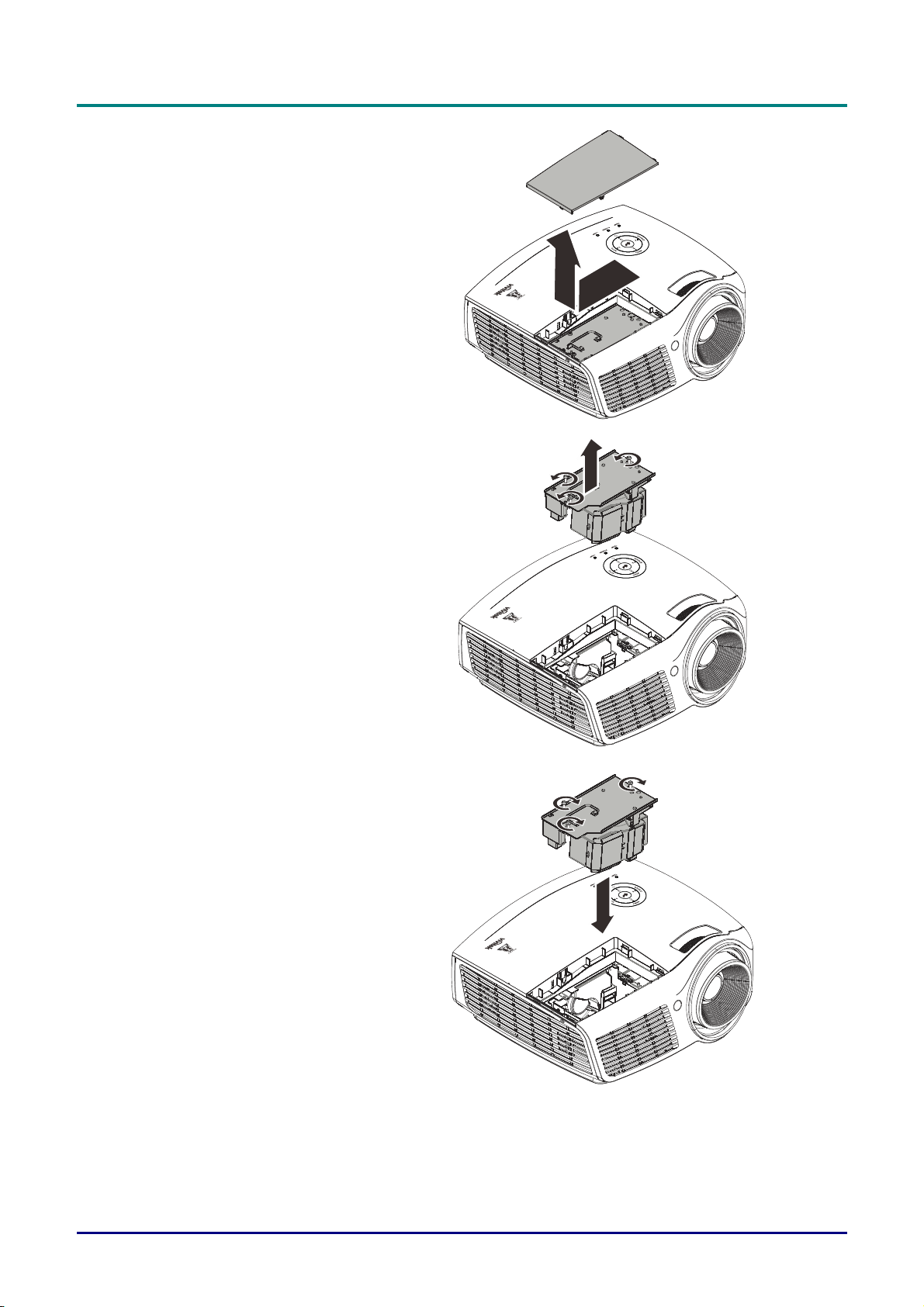

REPLACING THE PROJECTION LAMP .....................................................................................................................45

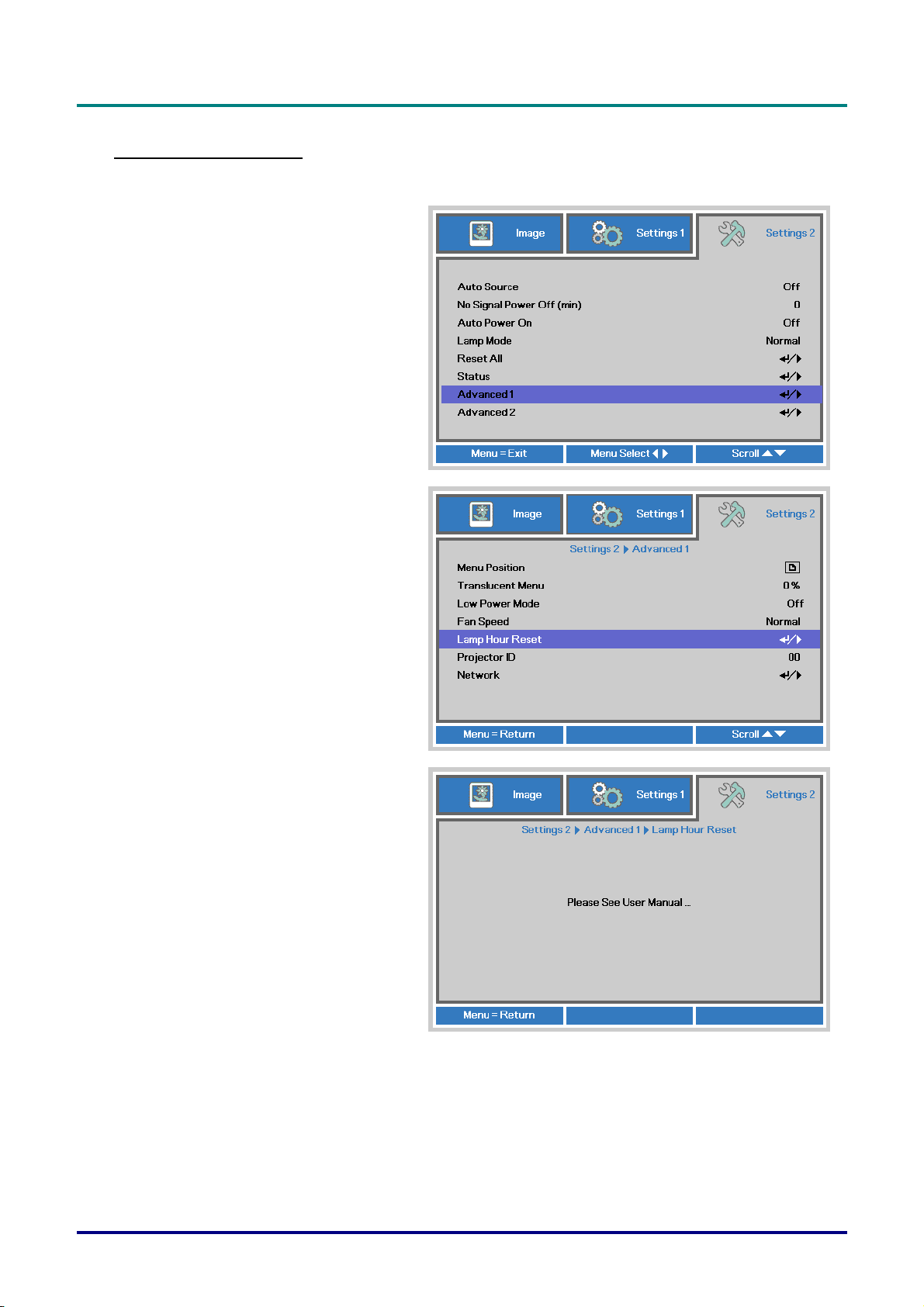

Resetting the Lamp .......................................................................................................................................47
CLEANING THE PROJECTOR .................................................................................................................................48
Cleaning the Lens..........................................................................................................................................48
Cleaning the Case.........................................................................................................................................48
USING THE KENSINGTON
®
LOCK & USING THE SECURITY BAR ...............................................................................49

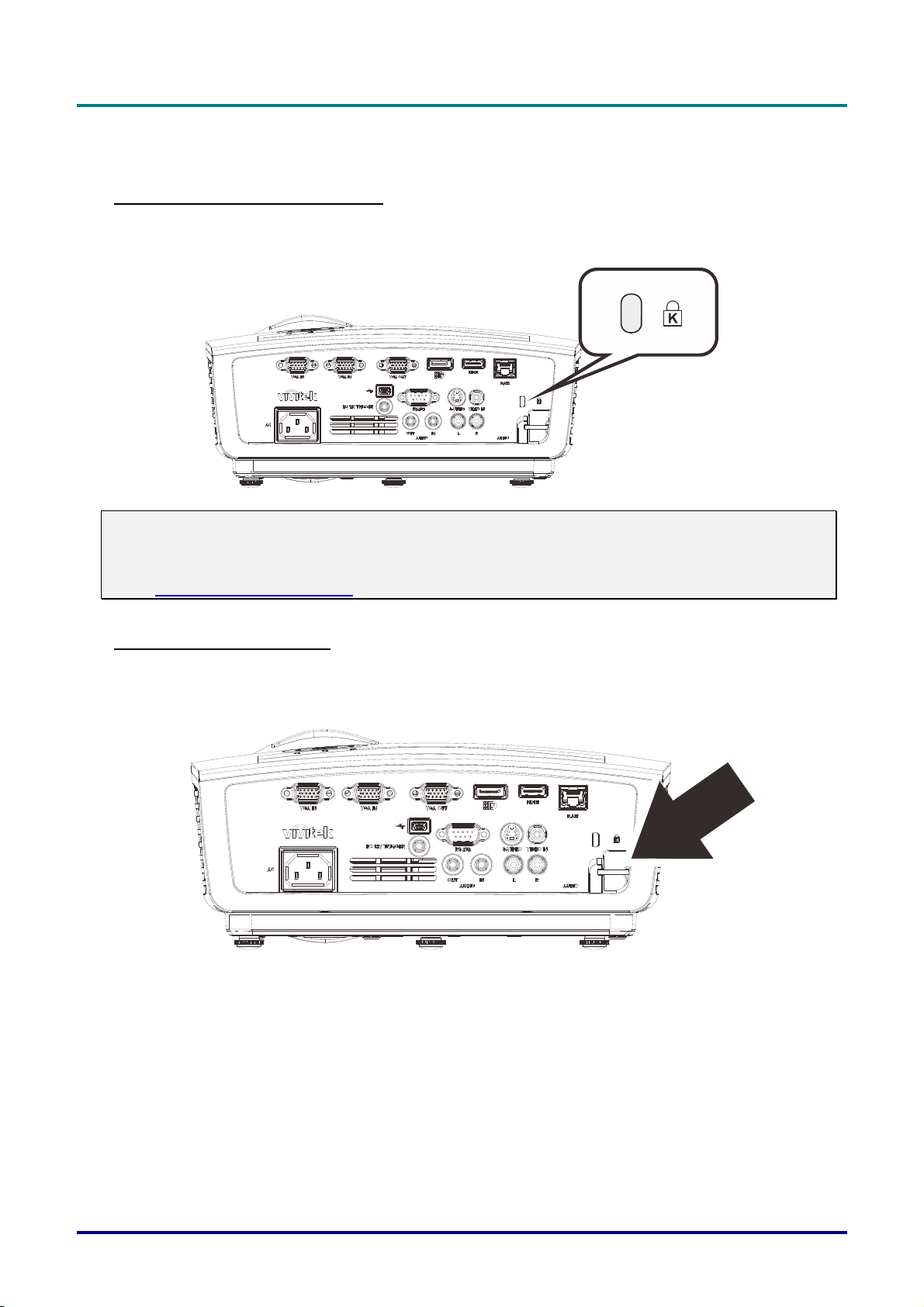

Using the Kensington® Lock ..........................................................................................................................49
Using the Security Bar...................................................................................................................................49
TROUBLESHOOTING .........................................................................................................................................50
COMMON PROBLEMS AND SOLUTIONS ...................................................................................................................50
TIPS FOR TROUBLESHOOTING ..............................................................................................................................50
LED ERROR MESSAGES ......................................................................................................................................51
IMAGE PROBLEMS ...............................................................................................................................................51
LAMP PROBLEMS.................................................................................................................................................52
REMOTE CONTROL PROBLEMS.............................................................................................................................52
AUDIO PROBLEMS ...............................................................................................................................................53
HAVING THE PROJECTOR SERVICED .....................................................................................................................53
HDMI Q & A .......................................................................................................................................................54
–vii –
DLP Projector—User’s Manual
SPECIFICATIONS................................................................................................................................................55
SPECIFICATIONS..................................................................................................................................................55

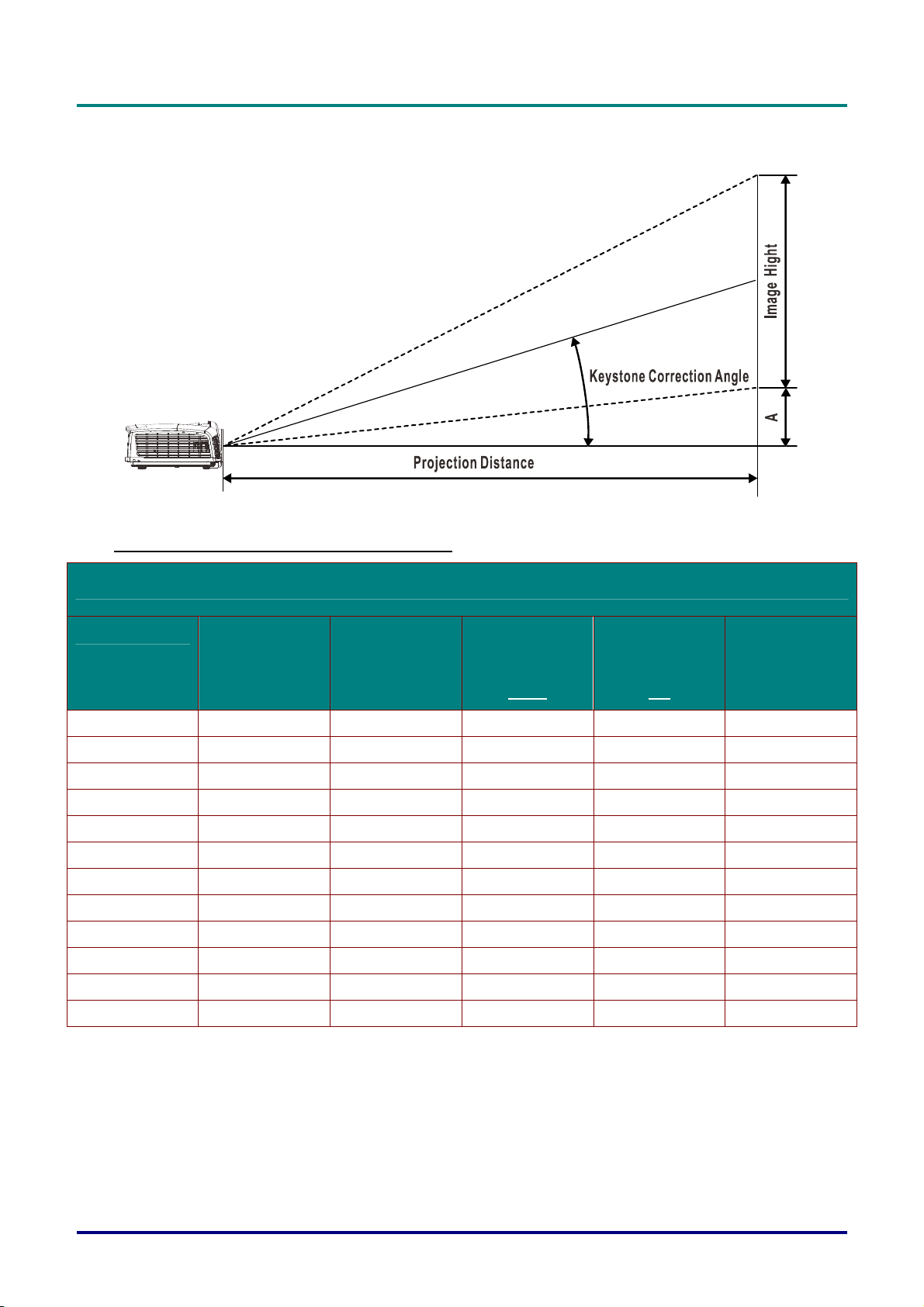

PROJECTION DISTANCE VS. PROJECTION SIZE ......................................................................................................57
Projection Distance and Size Table ..............................................................................................................57
TIMING MODE TABLE ...........................................................................................................................................59
PROJECTOR DIMENSIONS ....................................................................................................................................61
REGULATORY COMPLIANCE ...........................................................................................................................62
FCC WARNING ...................................................................................................................................................62
CANADA..............................................................................................................................................................62
SAFETY CERTIFICATIONS .....................................................................................................................................62
APPENDIX I .........................................................................................................................................................63
RS-232C PROTOCOL ..........................................................................................................................................63
— viii —
DLP Projector—User’s Manual

GETTING STARTED

Packing Checklist

Carefully unpack the projector and check that the following items are included:
DLP PROJECTOR WITH LENS CAP
R
EMOTE CONTROL
WITH TWO AAA BATTERIES)
(
RGB
CABLE POWER CORD
C
ARRYING CASE
PTIONAL)
(O
CD-ROM
HIS USER’S MANUAL)
(T
Q
UICK START GUIDE WARRANTY CARD
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service.
Caution:
Avoid using the projector in dusty environments.
– 1 –
DLP Projector—User’s Manual

Views of Projector Parts

Front-right View

ITEM LABEL DESCRIPTION SEE PAGE
1.
2.
3.
IR receiver Receive IR signal from remote control
Lens Projection Lens
Focus ring Focuses the projected image
16
4.
5.
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings.
Zoom ring Enlarges the projected image
Function keys
See Top view—On-screen Display (OSD) buttons and LEDs.
3
— 2 —
DLP Projector—User’s Manual
0

Top view—On-screen Display (OSD) buttons and LEDs

1
2
3
4
5
12
6
7
8
9
1
11
ITEM LABEL DESCRIPTION SEE PAGE
1.
2.
3.
4.
MENU Opens and exits OSD menus
Navigates in the OSD
SOURCE Enter the Source menu
Quick Menu – For Keystone
Navigates and changes settings in the OSD
17
17
5.
6.
7.
8.
9.
10.
11.
12.
AUTO Optimizes image size, position, and resolution
LAMP LED Flashing Error code
POWER LED
TEMP LED Red Over Temperature
Enter or confirm highlighted OSD menu item
Navigates and changes settings in the OSD
Navigates in the OSD Quick Menu – For Keystone
Turns the projector On or Off
Blue Lamp Ready, Over Temperature
Flashing Start, Cooling, Error code
– 3 –
17
51
DLP Projector—User’s Manual

Rear view

12
456789
14
13
12
1516
103
11
ITEM LABEL DESCRIPTION SEE PAGE
1.
2.
3.
AC IN Connect the POWER cable
VGA IN Connect the RGB cable from a computer
VGA IN Connect the RGB cable from a computer
11
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
(USB)
VGA OUT Connect the RGB cable to a display
RS-232C Connect RS-232 serial port cable for remote control
DP Connect a DISPLAYPORT CABLE from a DISPLAYPORT device
HDMI Connect the HDMI cable from a HDMI device
RJ45 Connect a LAN cable from Ethernet
Kensington Lock
VIDEO IN Connect the COMPOSITE cable from a video device
AUDIO IN (L and R) Connect the AUDIO cable from a audio device
S-VIDEO Connect the S-VIDEO cable from a video device
AUDIO IN Connect an AUDIO cable from the audio device
AUDIO OUT Connect an AUDIO cable to audio amplifier
DC 12V TRIGGER
Connect the USB cable from a computer
Secure to permanent object with a Kensington® Lock system
When connected to the screen through a commercially available cable, the screen deploys automatically on start up of the projector. The screen retracts when the projector is powered off (see notes below).
49
Note:
To use this feature, you must plug in the connector before turn on/off the projector.
Screen controllers are supplied and supported by screen manufacturers.
Do not use this jack for anything other than intended use.
— 4 —
DLP Projector—User’s Manual
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the S-VIDEO connector. S-VIDEO provides a better quality signal.
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making connections.
– 5 –
DLP Projector—User’s Manual

Bottom view

ITEM LABEL DESCRIPTION SEE PAGE
1.
2.
Note: When installing, ensure that you use only UL Listed ceiling mounts. For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 12 mm (0.47 inch). The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount load capacity must exceed the weight of the installed equipment, and as an additional precaution be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a period of 60 seconds.
Ceiling support holes
Tilt adjustor Rotate adjuster lever to adjust angle position.
Contact your dealer for information on mounting the projector on a ceiling
15
— 6 —

Remote Control Parts

DLP Projector—User’s Manual
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency
fluorescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user’s manual describes the functions based on the remote control.
– 7 –
DLP Projector—User’s Manual
ITEM LABEL DESCRIPTION SEE PAGE
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
IR transmitter Transmits signals to projector
Status LED Lights when the remote control is used
Laser Press to operate the on-screen pointer
Up Up arrow when connected through USB to a PC
Right Right arrow when connected through USB to a PC
Down Down arrow when connected through USB to a PC
Page Down Page down when connected through USB to a PC
Up cursor Navigates in the OSD
Right cursor Navigates and changes settings in the OSD
Down cursor Navigates in the OSD
Volume +/- Adjusts volume
Mute Mutes the built-in speaker
Zoom+ Zoom in
Zoom- Zoom out
Freeze Freeze/unfreezes the on-screen picture
17
16
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
Blank Makes the screen blank
Source Detects the input device
Auto Auto adjustment for phase, tracking, size, position
Menu Opens or exit the OSD
Status
Keystone top/bottom
Left cursor Navigates and changes settings in the OSD
Enter
Page Up Page up when connected through USB to a PC
Left Left arrow when connected through USB to a PC
Enter Enter key when connected through USB to a PC
Power Turns the projector on or off
Laser Use as on-screen pointer. DO NOT POINT IN EYES.
Opens the OSD Status menu (the menu only opens when an input device is detected)
Corrects image-trapezoid (wider top/bottom) effect
Changes settings in the OSD
17
30
16
17
11
！
Caution:
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure.
— 8 —
DLP Projector—User’s Manual

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however, the buttons on the projector are limited in use.
– 9 –
DLP Projector—User’s Manual

Inserting the Remote Control Batteries

Remove the battery compartment
1.
cover by sliding the cover in the direction of the arrow.
Insert the battery with the positive
2.
side facing up.
Replace the cover.
3.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
— 10 —

Starting and Shutting down the Projector

Connect the power cord to the
1.
projector. Connect the other end to a wall outlet.
The projector light.
POWER LED on the
DLP Projector—User’s Manual

SETUP AND OPERATION

Turn on the connected devices.
2.
Ensure the POWER LED not a
3.
flashing. Then press the button to turn on the projector.
The projector splash screen displays and connected devices are detected.
See Setting an Access Password
(Security Lo
security lock is enabled.
If more than one input device is
4.
connected, press the SOURCE button and use ▲▼ to scroll among devices. (Component is supported through the RGB to COMPONENT ADAPTER.)
ck) on page 13 if
POWER
HDMI : High-Definition Multimedia Interface  DisplayPort : Display Port  VGA 1 : Analog RGB 1  VGA 2 : Analog RGB 2  S-Video: Super video (Y/C separated)  Composite Video : Traditional composite video
– 11 –
DLP Projector—User’s Manual
When the “Power Off? /Press
5.
Power again” message appears,
press the POWER button. The projector turns off.
Caution:
1. Be sure to remove the lens cap before starting projector.
2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has
cooled down.
— 12 —
DLP Projector—User’s Manual

Setting an Access Password (Security Lock)

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.
When enabled, the password must be entered after you power on the projector. (See Navigating the
OSD on page 17 and Setting the OSD Language on page 18 for help on using OSD menus.)
Important:
Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact your reseller for information on clearing the password.

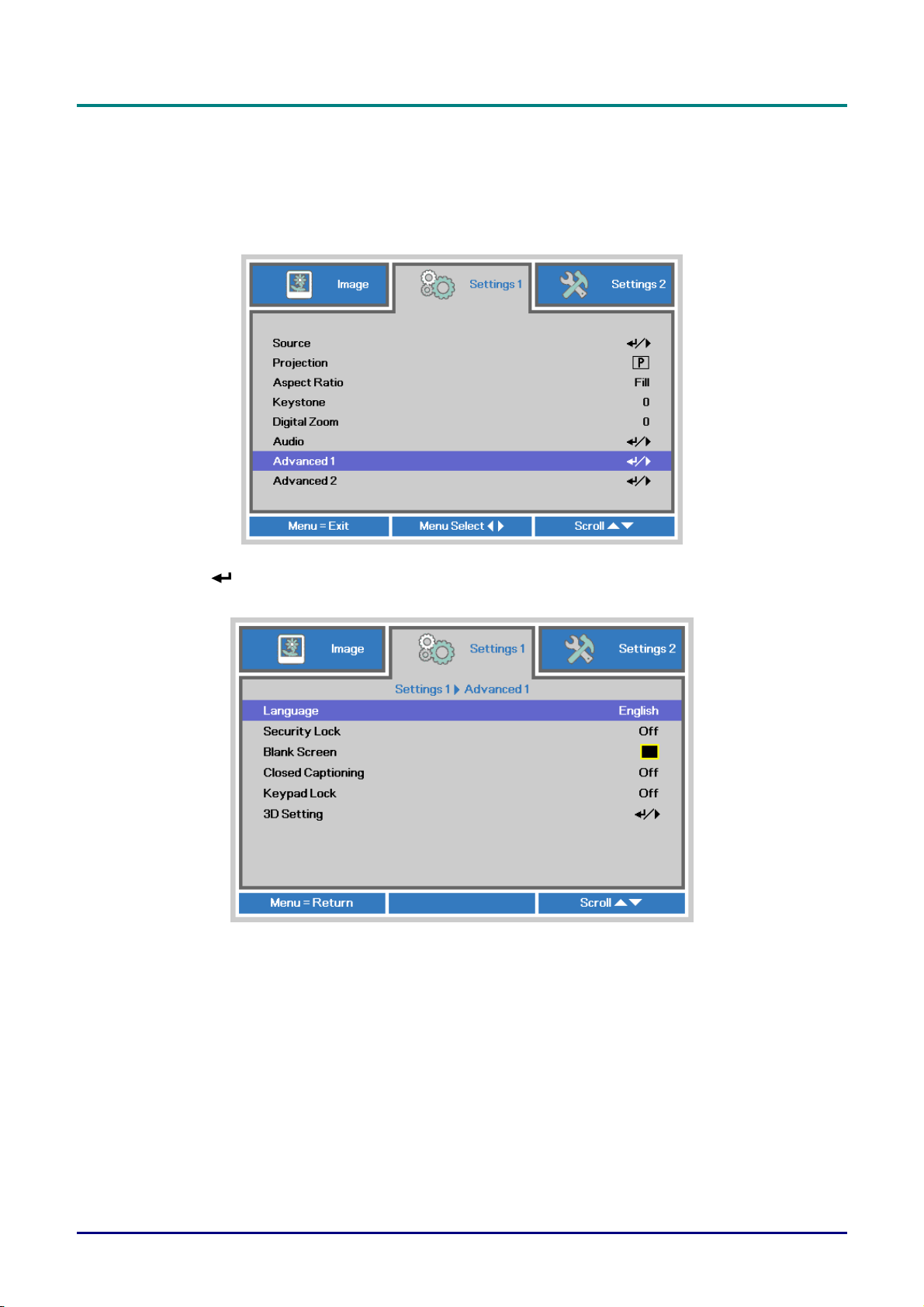

Press the MENU button to open the
1.
OSD menu.
Press the cursor ◄► button to move
2.
to the Settings 1 menu, press the cursor ▲▼ button to select Advanced
1.
Press (Enter) / ► to enter the
3.
Advanced 1 sub menu. Press the cursor ▲▼ button to select Security Lock.
Press the cursor ◄► button to enter
4.
and enable or disable security lock function.
A password dialog box automatically appears.
– 13 –
DLP Projector—User’s Manual
You can use the cursor buttons
5.
▲▼◄► either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five.
Press the cursor buttons in any order to set the password. Push the MENU button to exit the dialog box.
The password confirm menu appears
6.
when user presses the power-on key in case the Security Lock is enabled. Enter the password in the order you set it at step 5. In case you forget the password, please contact the service center. The service center will validate the owner and help reset the password.
— 14 —
Loading...
+ 52 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
