Vivitek D861, D862, D860 User Manual

Copyright

This publication, including all photographs, illustrations and software, is protected under international copy­right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.

© Copyright 2011

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no repre­sentations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pend­ing applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and other countries.

All other product names used in this manual are the properties of their respective owners and are ac­knowledged.

— i —

DLP Projector—User’s Manual

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause per­sonal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”

General Safety Information

 Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

 Follow all warnings and cautions in this manual and on the unit case.

 The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

 Do not place the unit on an unstable surface, cart, or stand.

 Avoid using the system near water, in direct sunlight, or near a heating device.

 Do not place heavy objects such as books or bags on the unit.

— ii —

Projector Installation Notice

 Place the projector in a horizontal position

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in
any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.

 Allow at least 50 cm clearance around the exhaust vent.

Preface

 Ensure that the intake vents do not recycle hot air from the exhaust vent.

 When operating the projector in an enclosed space, ensure that the surrounding air temperature

within the enclosure does not exceed 5 – 35°C while the projector is running, and the air intake and
exhaust vents are unobstructed.

 All enclosures should pass a certified thermal evaluation to ensure that the projector does not

recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable 5 – 35°C range.

– iii –

DLP Projector—User’s Manual

Power Safety

 Only use the supplied power cord.

 Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

 Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 39
for clear and safe instructions for this procedure. Before replacing the lamp:

 Unplug the power cord.

 Allow the lamp to cool for about one hour.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.

Always keep your face away from the exhaust vent so that you do not suffer from the gas and bro­ken shards of the lamp.

Cleaning the Projector

 Unplug the power cord before cleaning. See Cleaning the Projector page 42.

 Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
page 55.

Important Recycle Instructions:

Hg

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG

specific disposal information check WWW.LAMPRECYCLE.ORG.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.

. For lamp

— iv —

Main Features

 Lightweight unit, easy to pack away and transport.

 Compatible with all major video standards including NTSC, PAL, and SECAM.

 A high brightness rating allows for presentations in daylight or in lit rooms.

 Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.

 Flexible setup allows for front, rear projections.

 Line-of-vision projections remain square, with advanced keystone correction for angled

projections.

 Input source automatically detected.

About this Manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wher­ever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.

Preface

– v –

DLP Projector—User’s Manual

Table of Contents

GETTING STARTED.......................................................................................................................................................... 1

PACKING CHECKLIST ........................................................................................................................................................... 1

VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2

Front-right View ............................................................................................................................................................. 2

Top view—Power buttons and LEDs .............................................................................................................................. 3

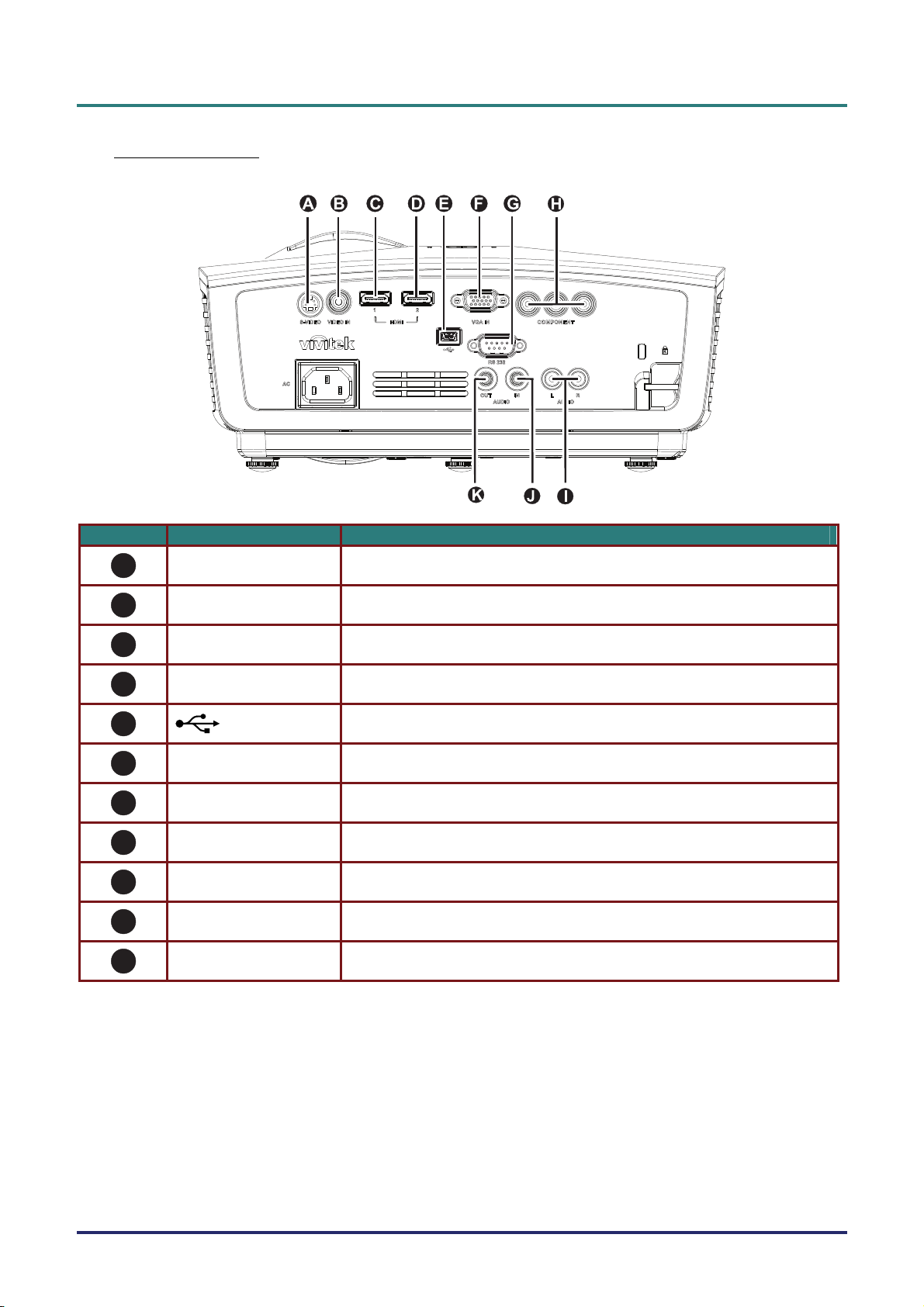

Rear view ........................................................................................................................................................................ 4

Bottom view..................................................................................................................................................................... 6

REMOTE CONTROL PARTS ................................................................................................................................................... 7

For D860/D861 Series .................................................................................................................................................... 7

Inserting the Remote Control Batteries........................................................................................................................... 8

For D862 Series.............................................................................................................................................................. 9

Inserting the Remote Control Batteries......................................................................................................................... 11

REMOTE CONTROL OPERATING RANGE ............................................................................................................................. 12

PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................. 12

SETUP AND OPERATION............................................................................................................................................... 13

CONNECTING INPUT DEVICES ............................................................................................................................................ 13

For D860/D861 Series .................................................................................................................................................. 13

For D862 Series............................................................................................................................................................ 14

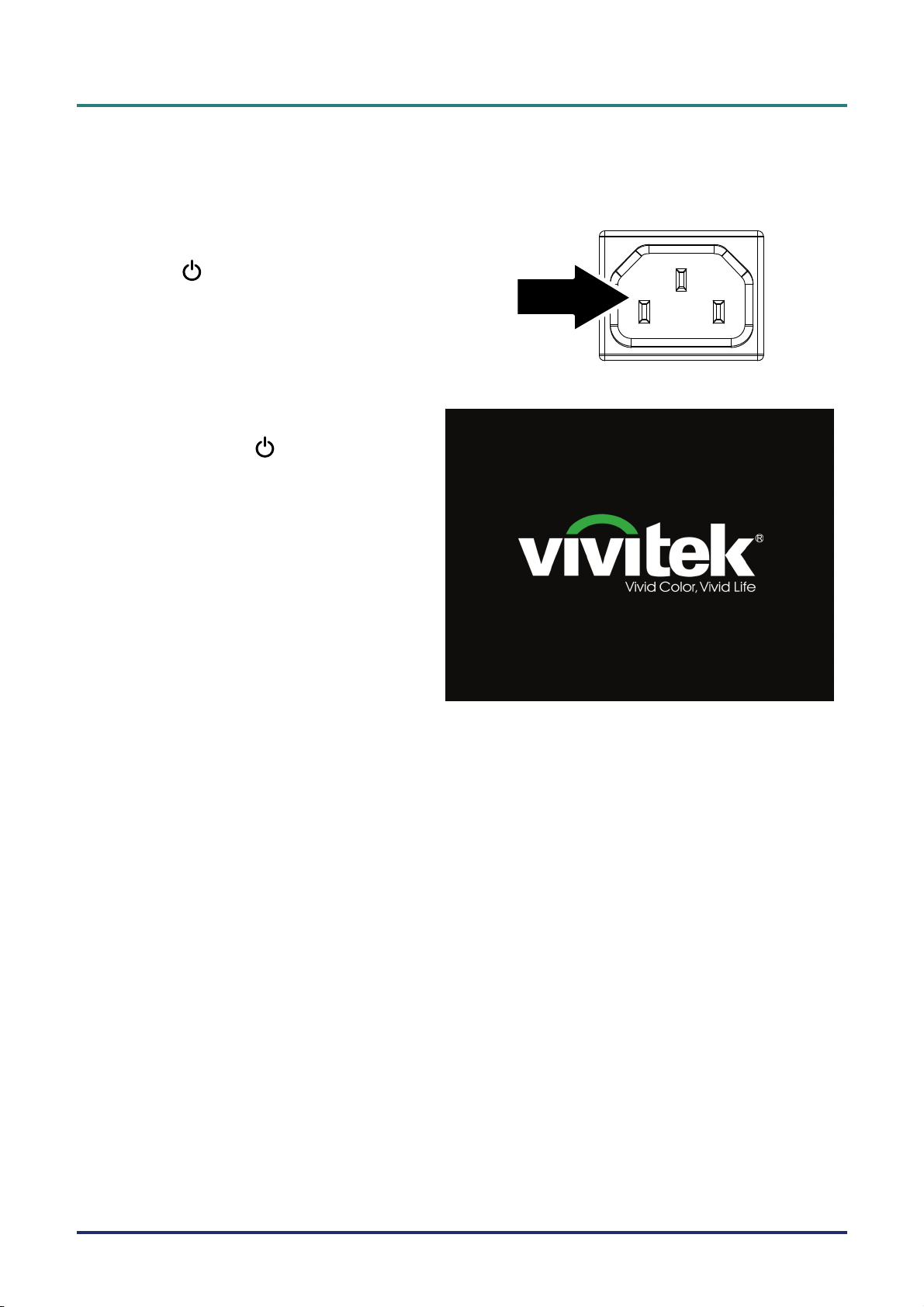

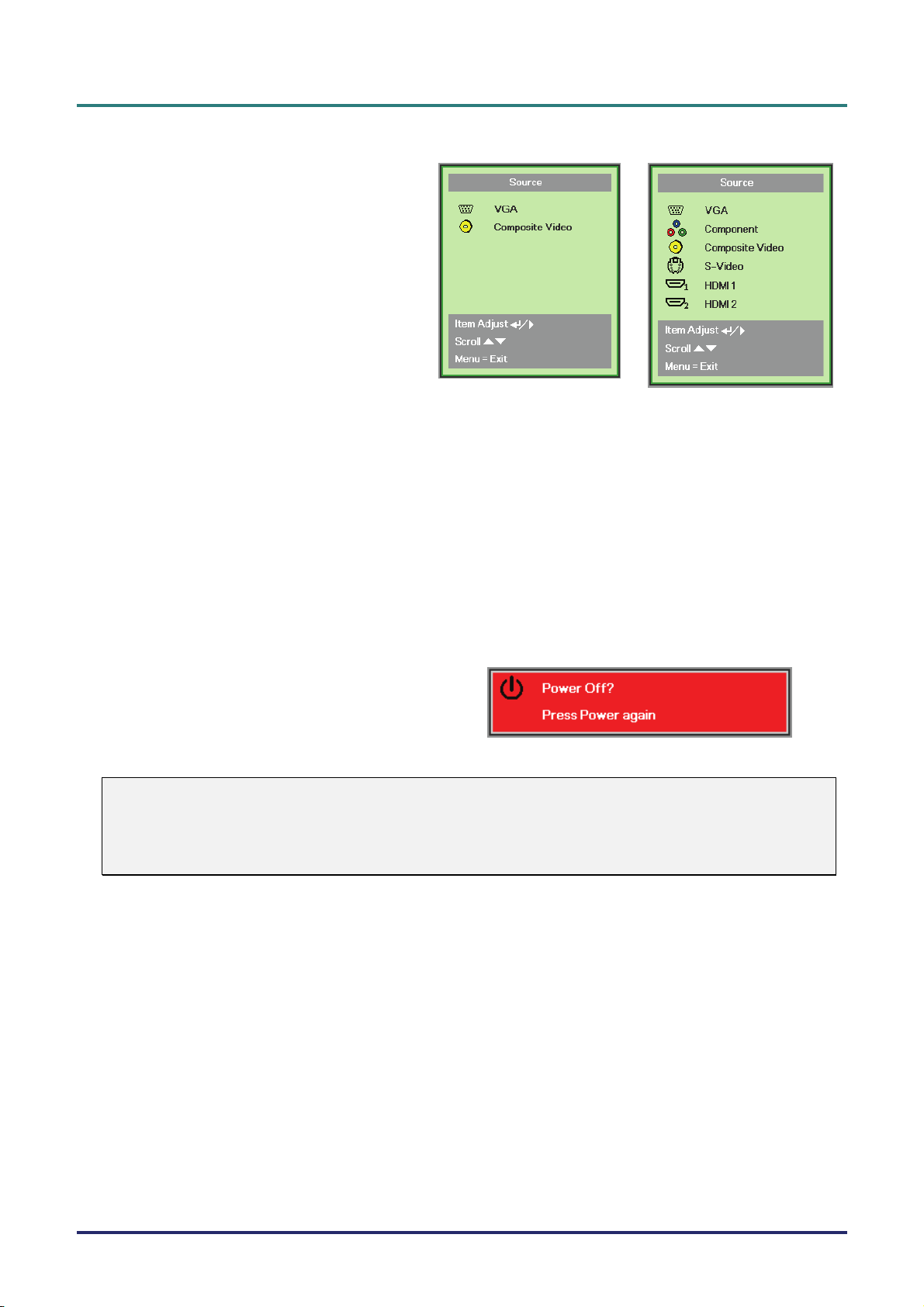

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 15

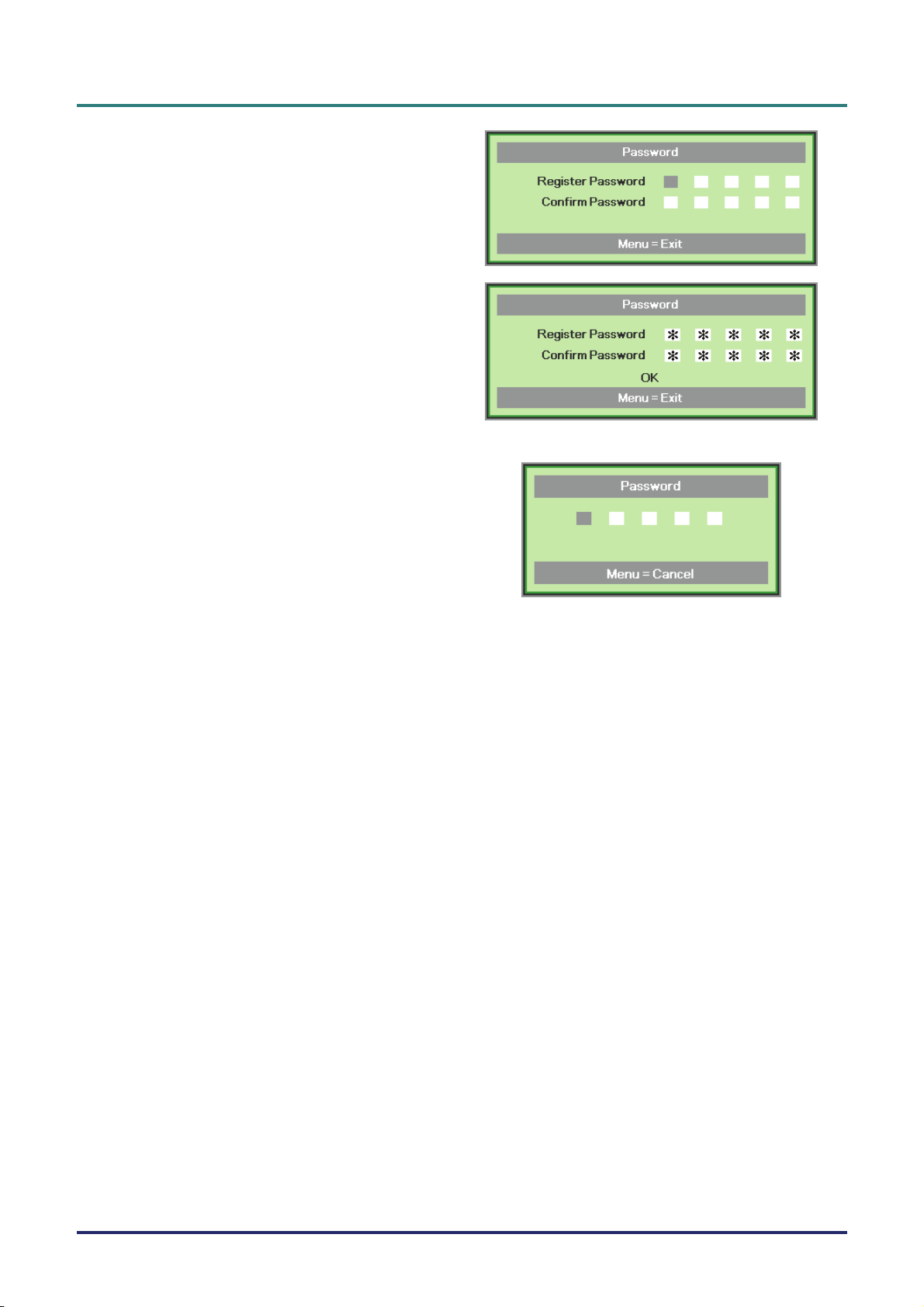

SETTING AN ACCESS PASSWORD (SECURITY LOCK) .......................................................................................................... 17

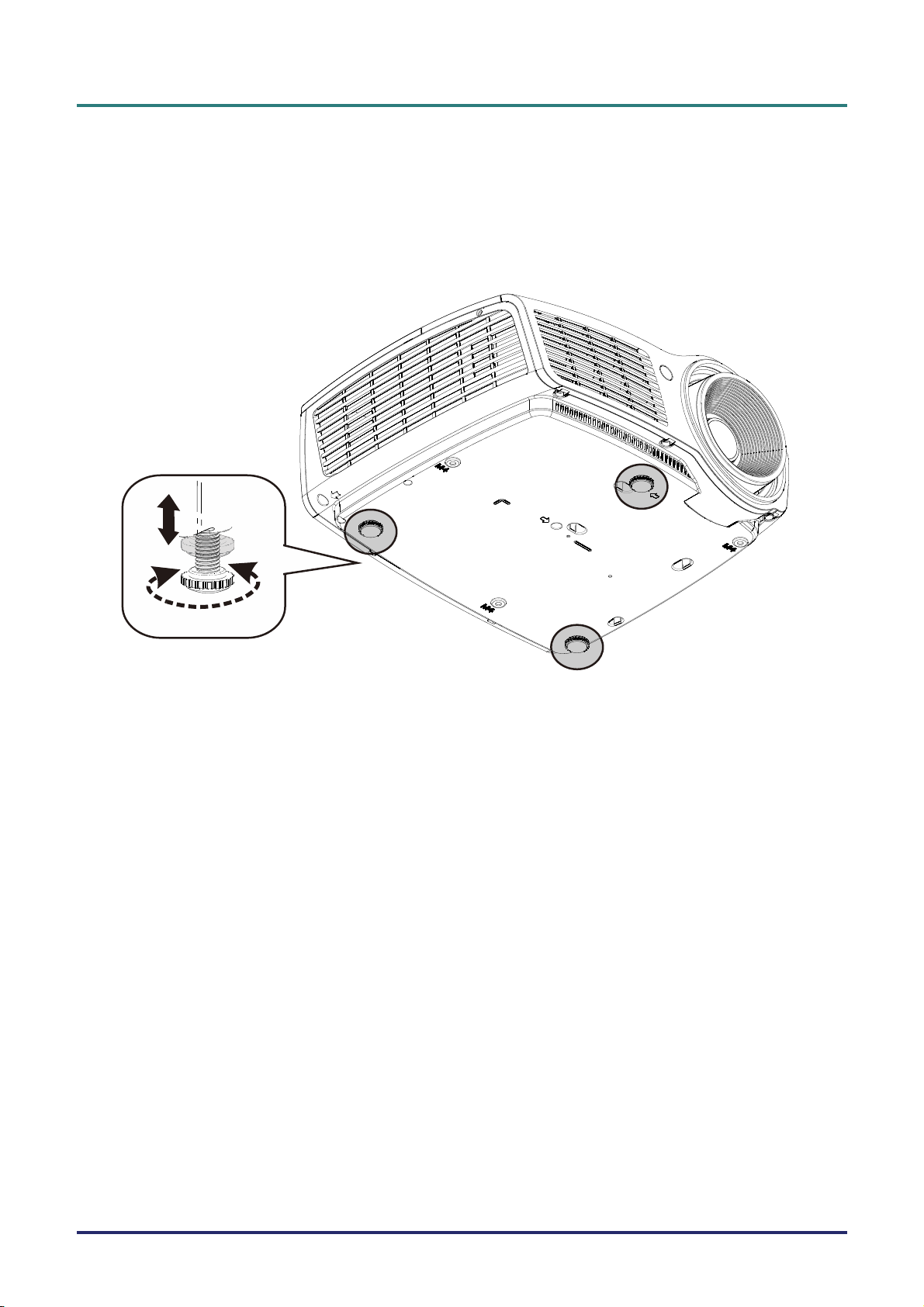

ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 19

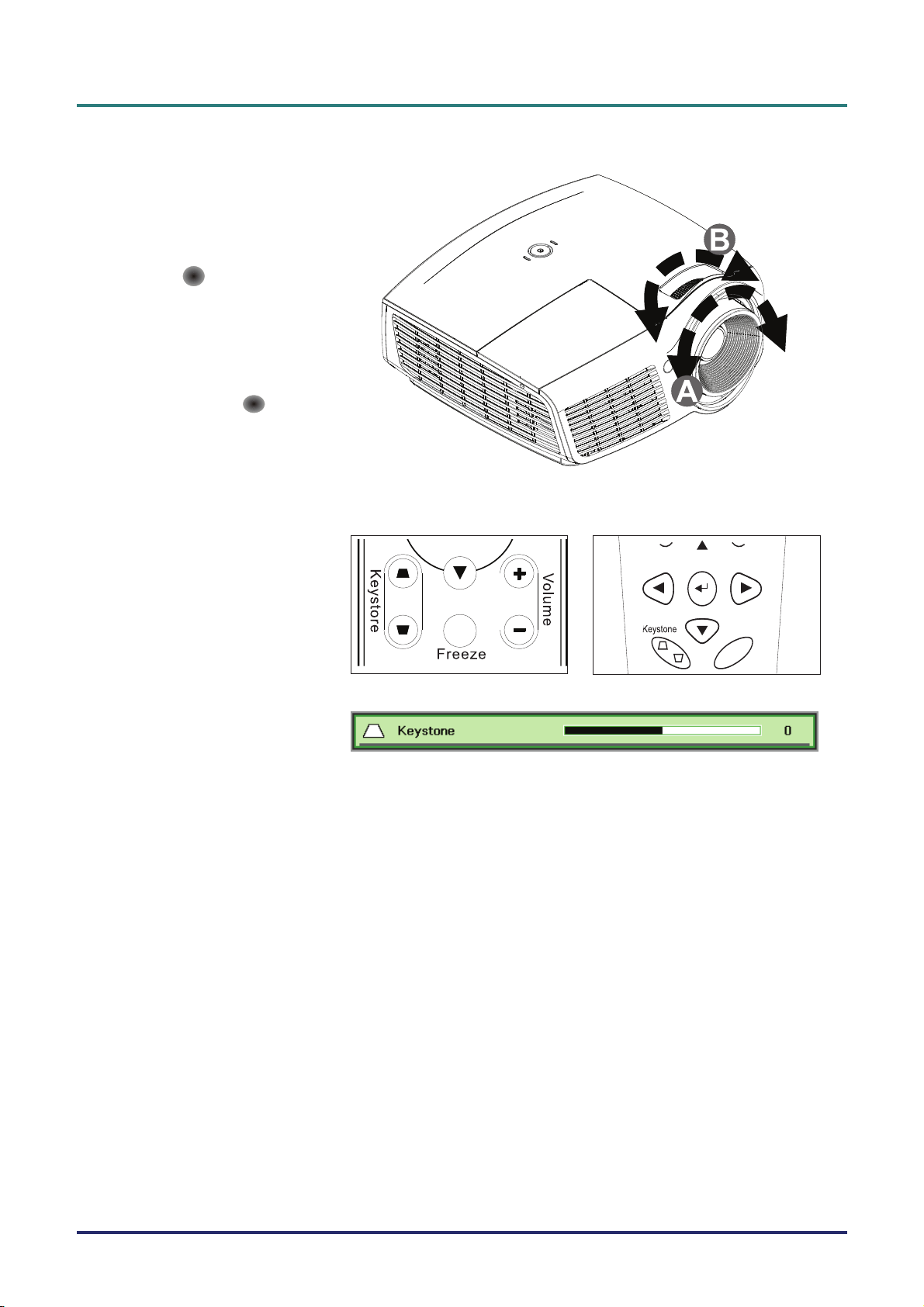

ADJUSTING THE ZOOM, FOCUS AND KEYSTONE ................................................................................................................ 20

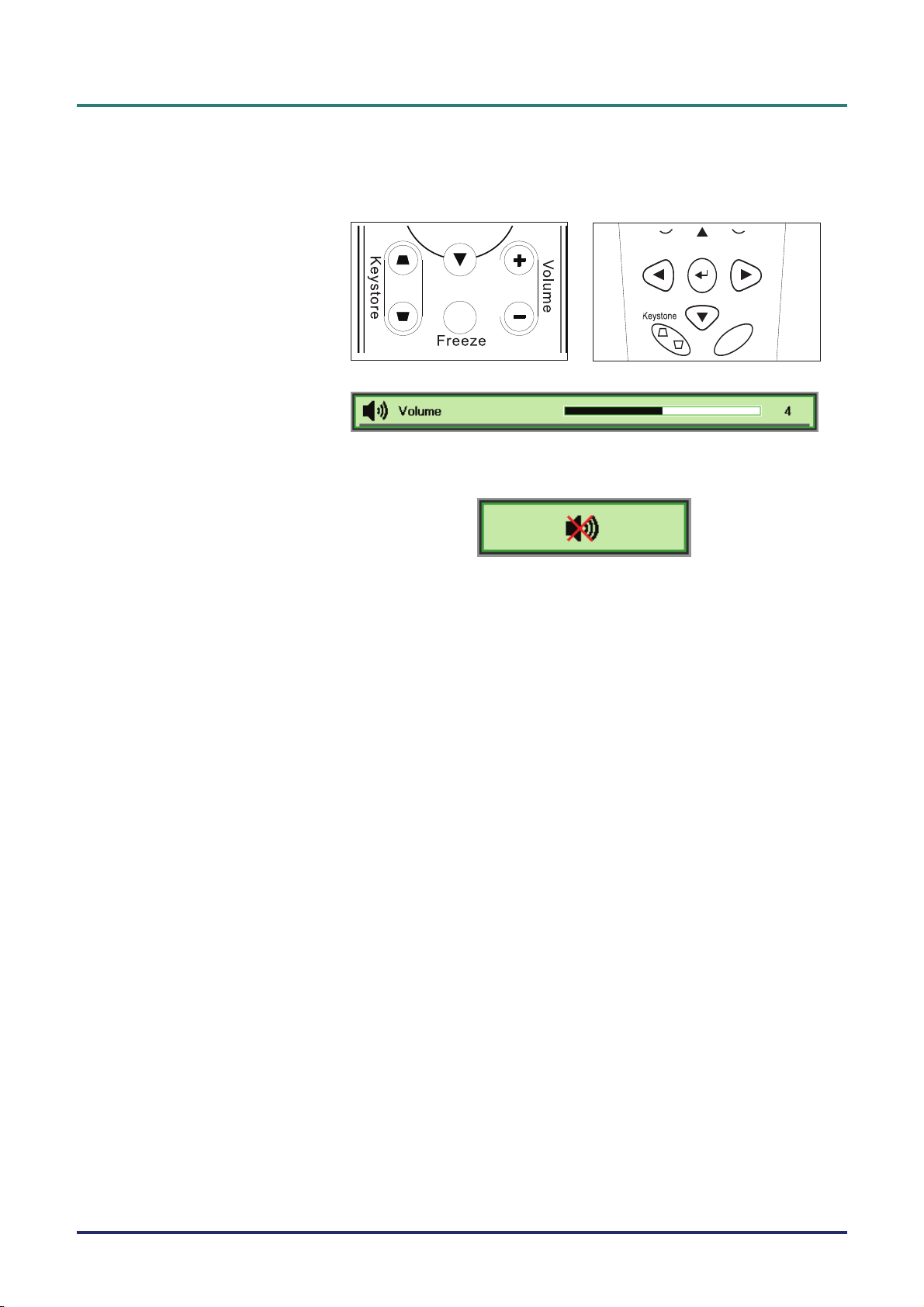

ADJUSTING THE VOLUME .................................................................................................................................................. 21

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 22

OSD MENU CONTROLS ..................................................................................................................................................... 22

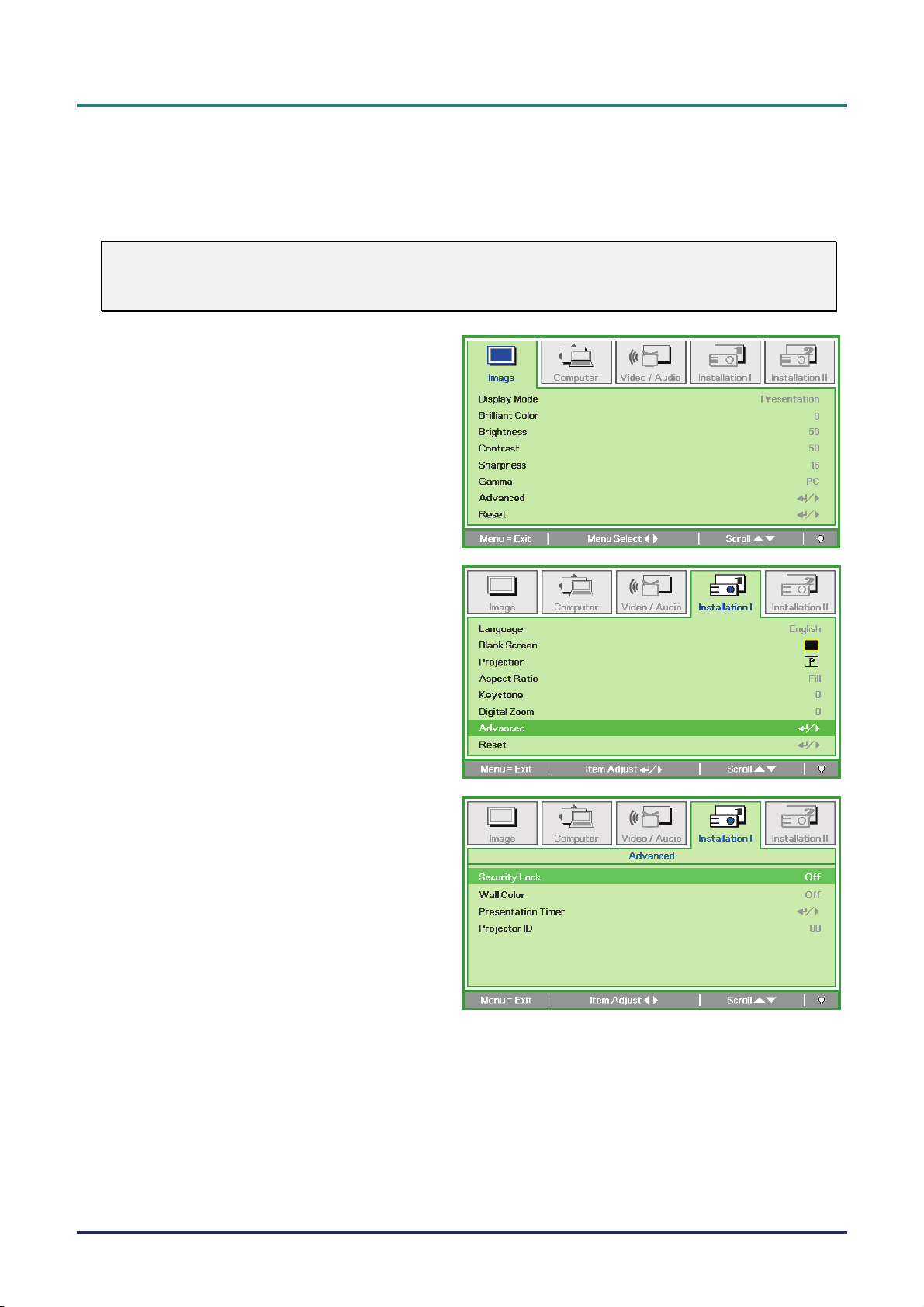

Navigating the OSD ...................................................................................................................................................... 22

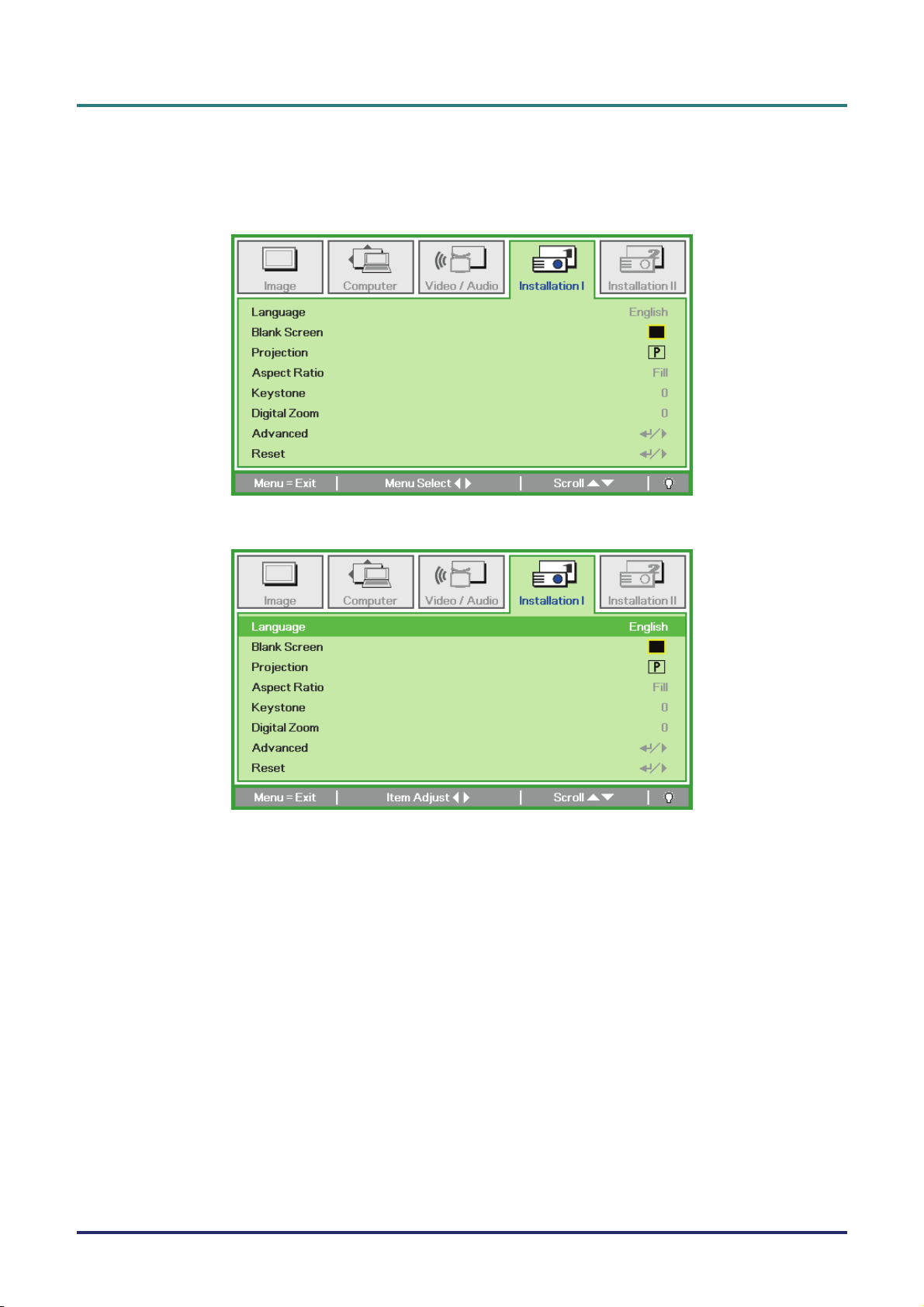

SETTING THE OSD LANGUAGE .......................................................................................................................................... 23

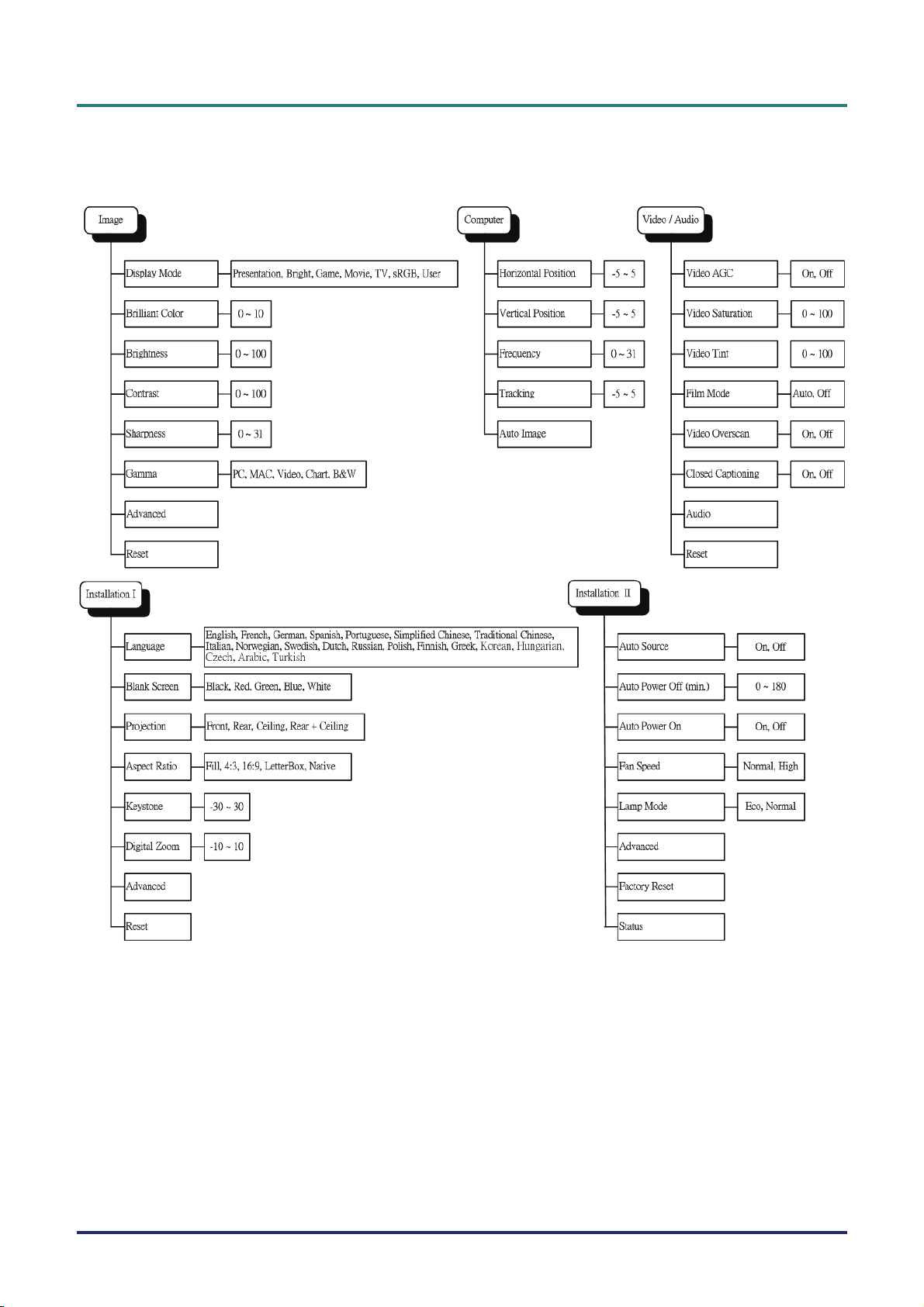

OSD MENU OVERVIEW ..................................................................................................................................................... 24

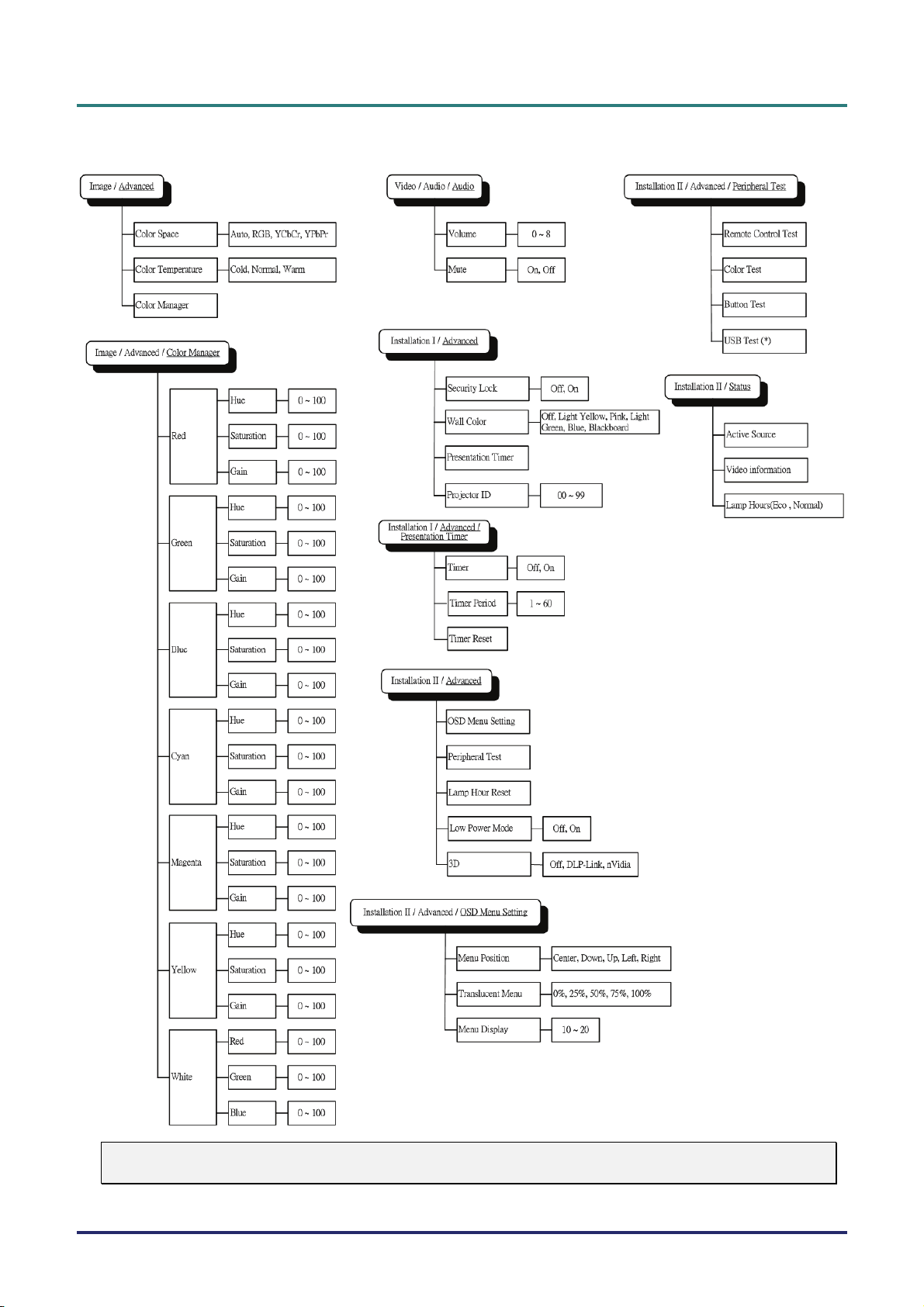

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 25

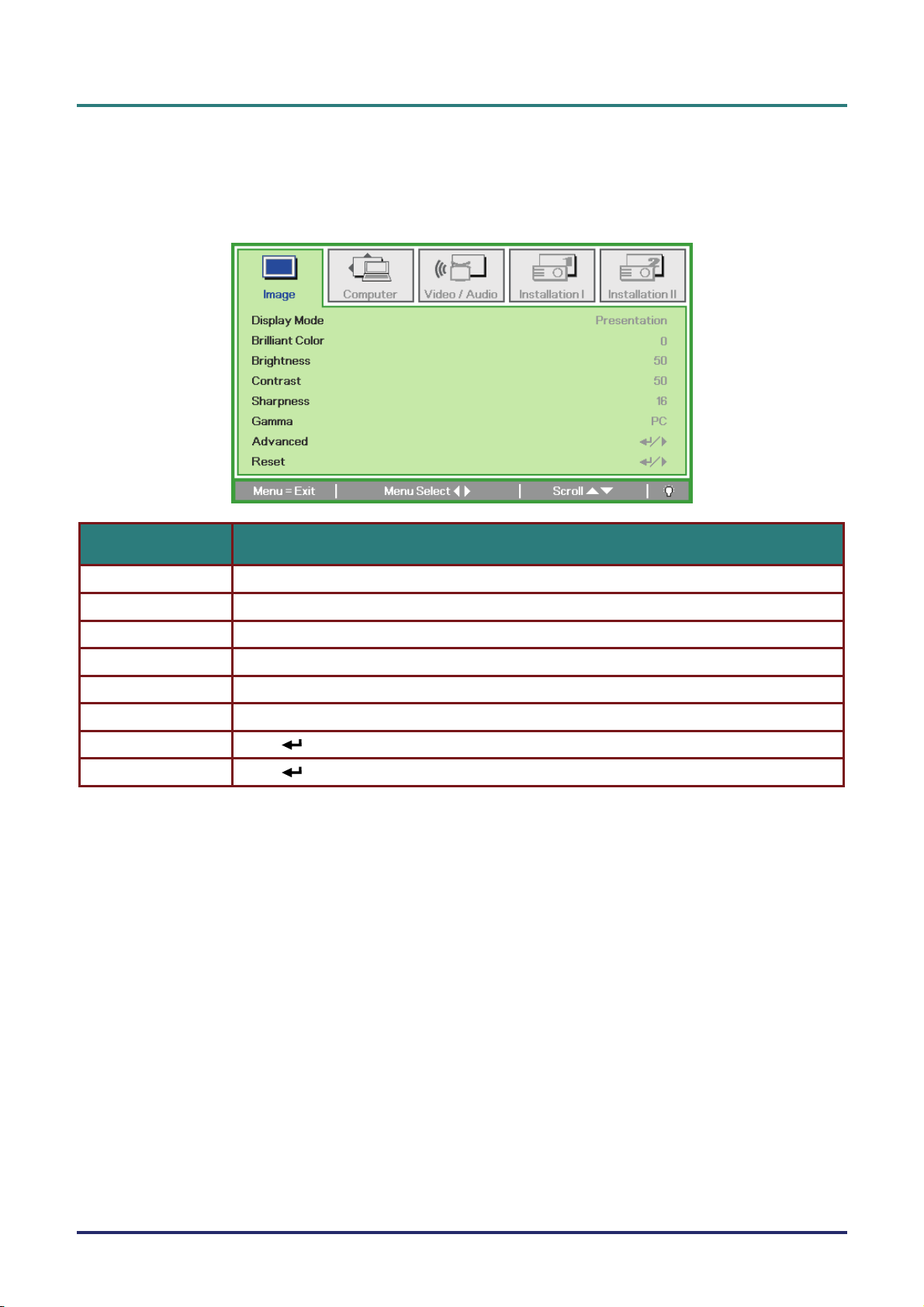

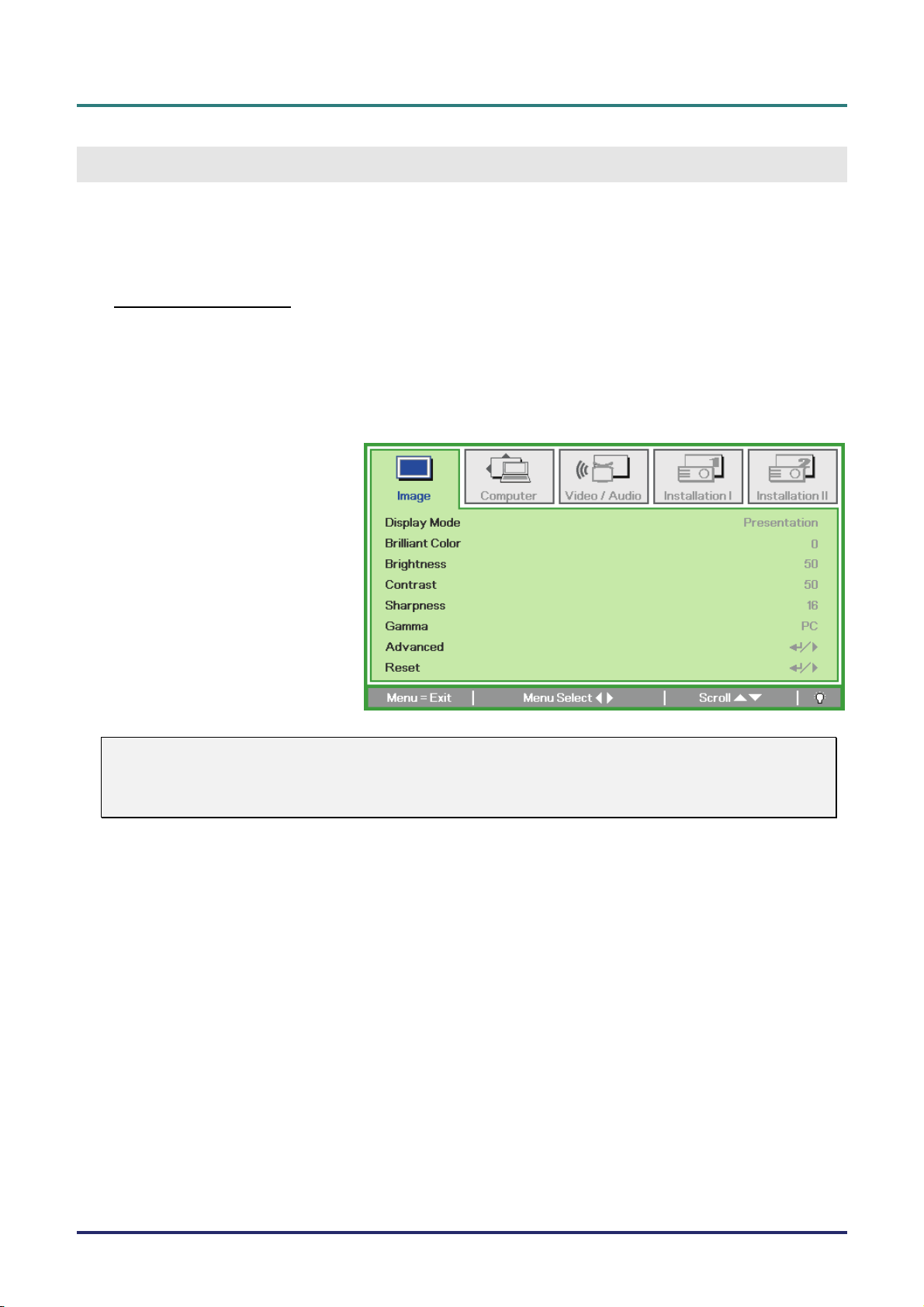

IMAGE MENU..................................................................................................................................................................... 26

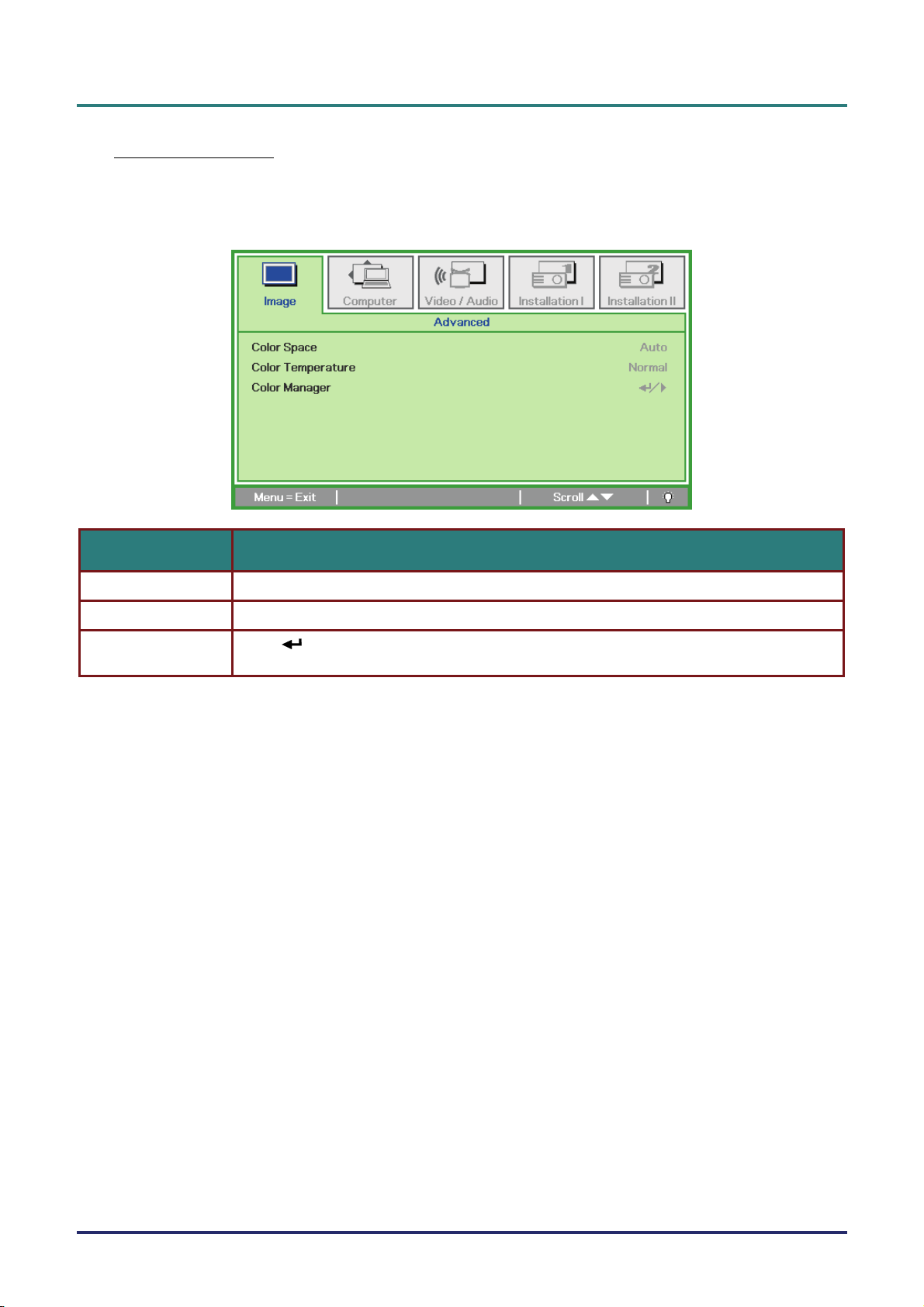

Advanced Feature......................................................................................................................................................... 27

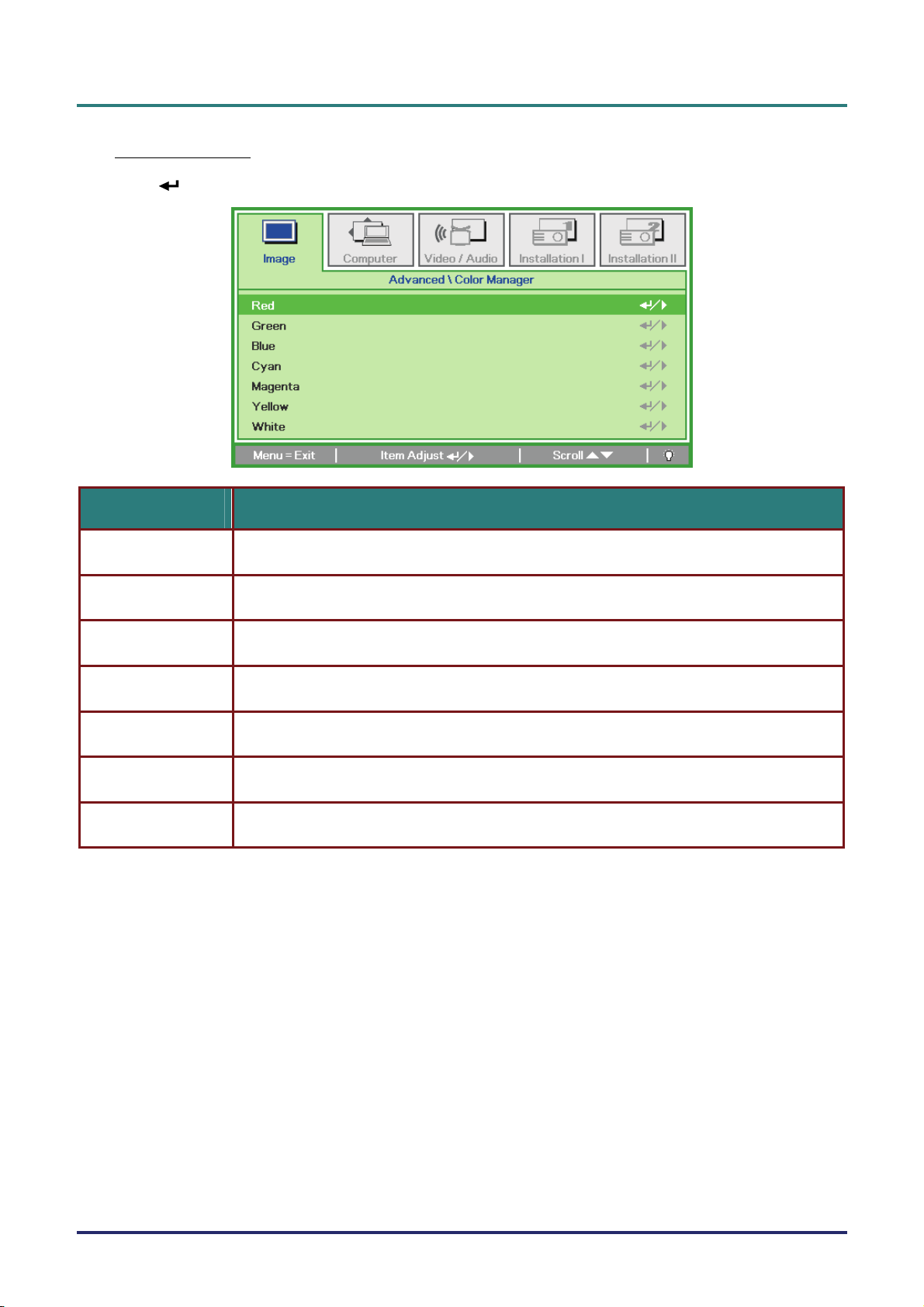

Color Manager.............................................................................................................................................................. 28

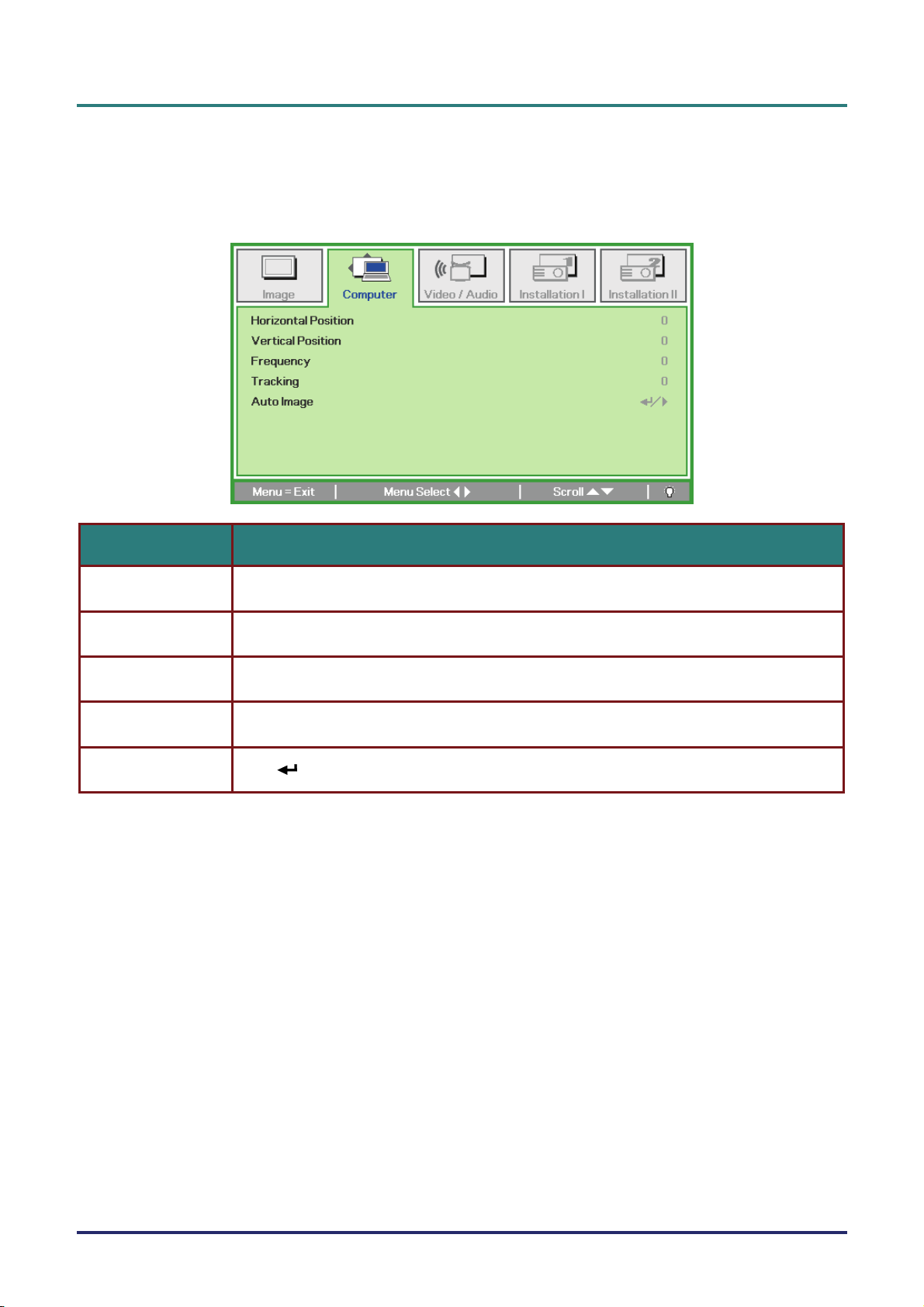

COMPUTER MENU.............................................................................................................................................................. 29

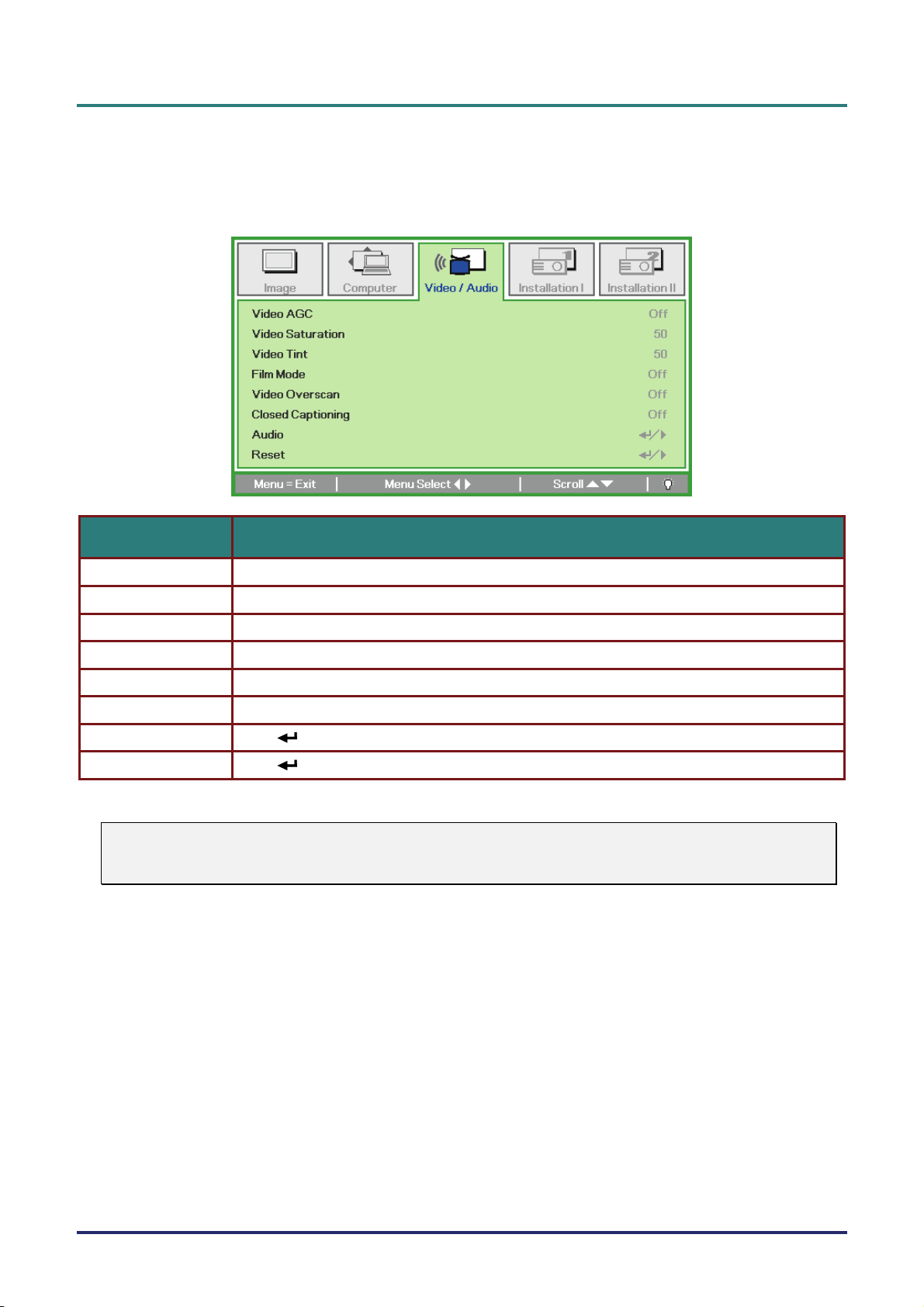

VIDEO/AUDIO MENU ......................................................................................................................................................... 30

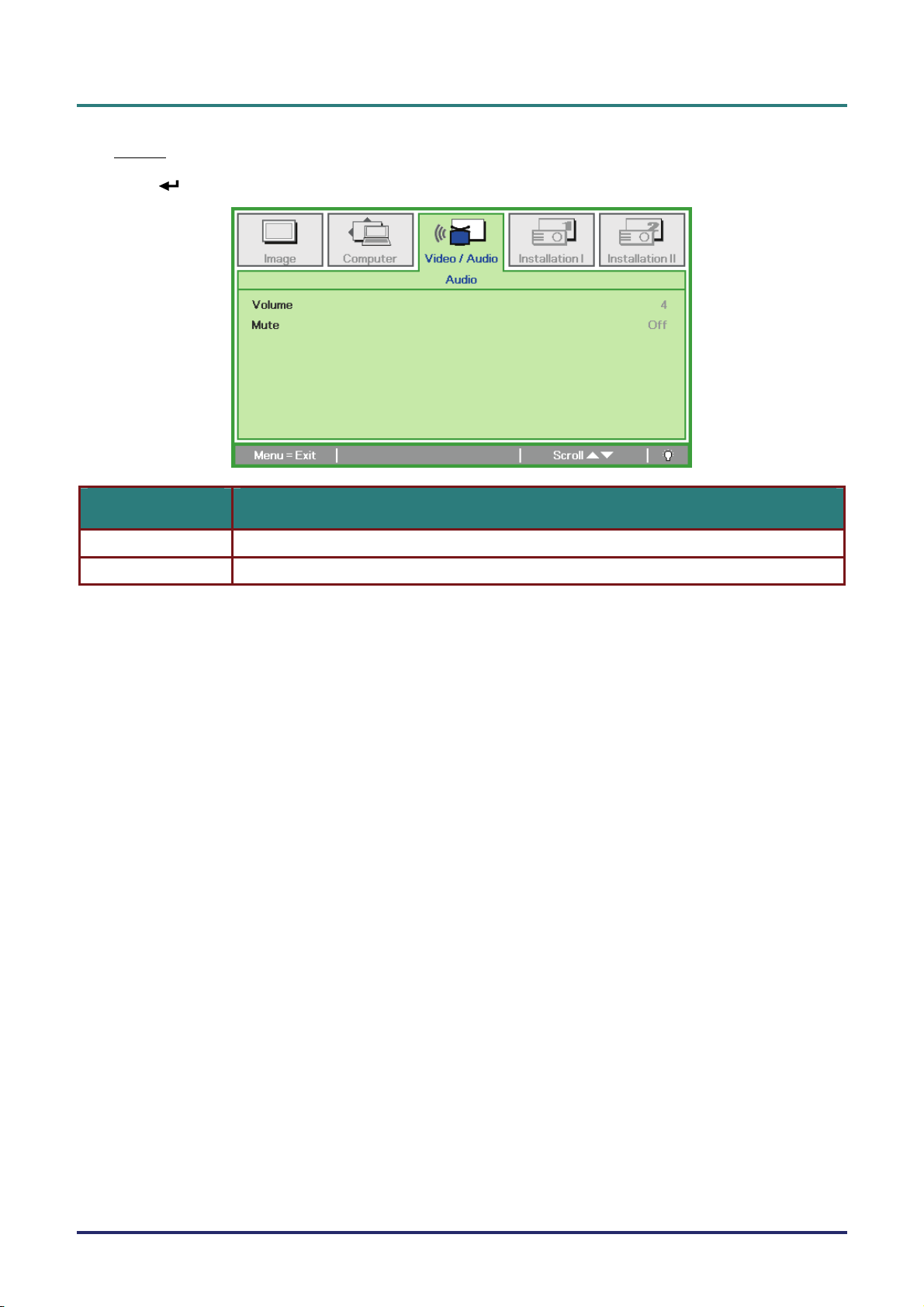

Audio............................................................................................................................................................................. 31

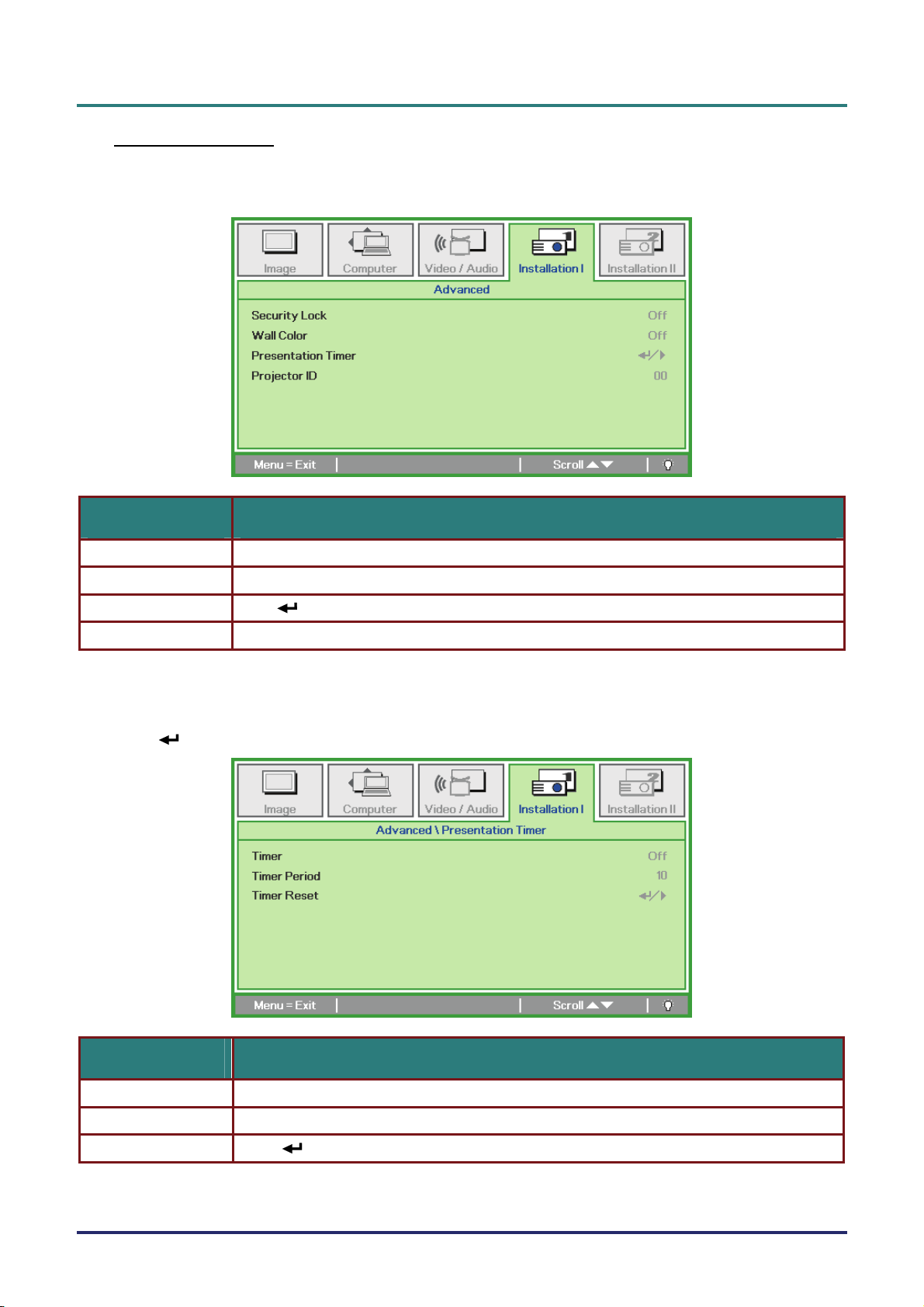

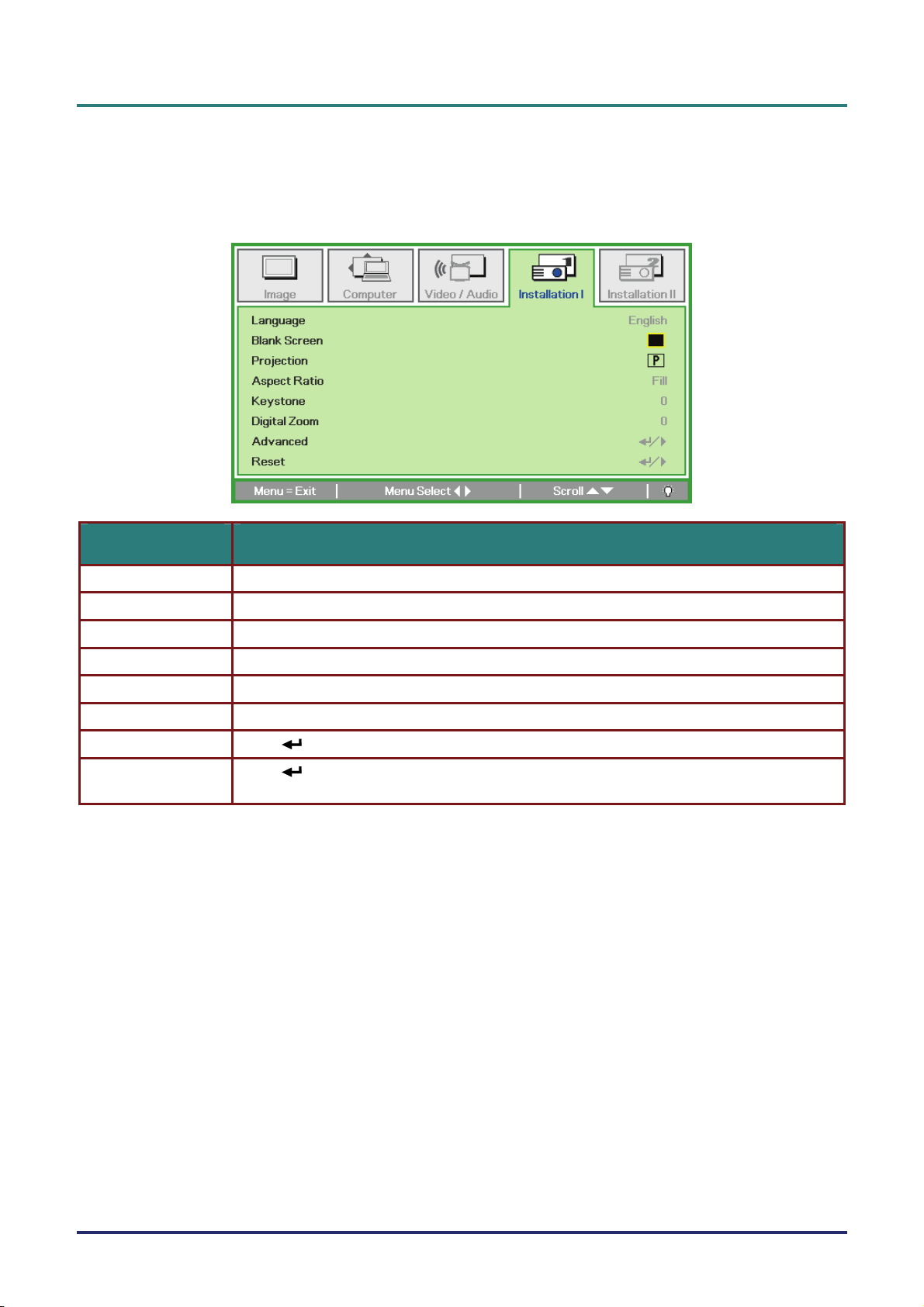

INSTALLATION I MENU ...................................................................................................................................................... 32

Advanced Feature......................................................................................................................................................... 33

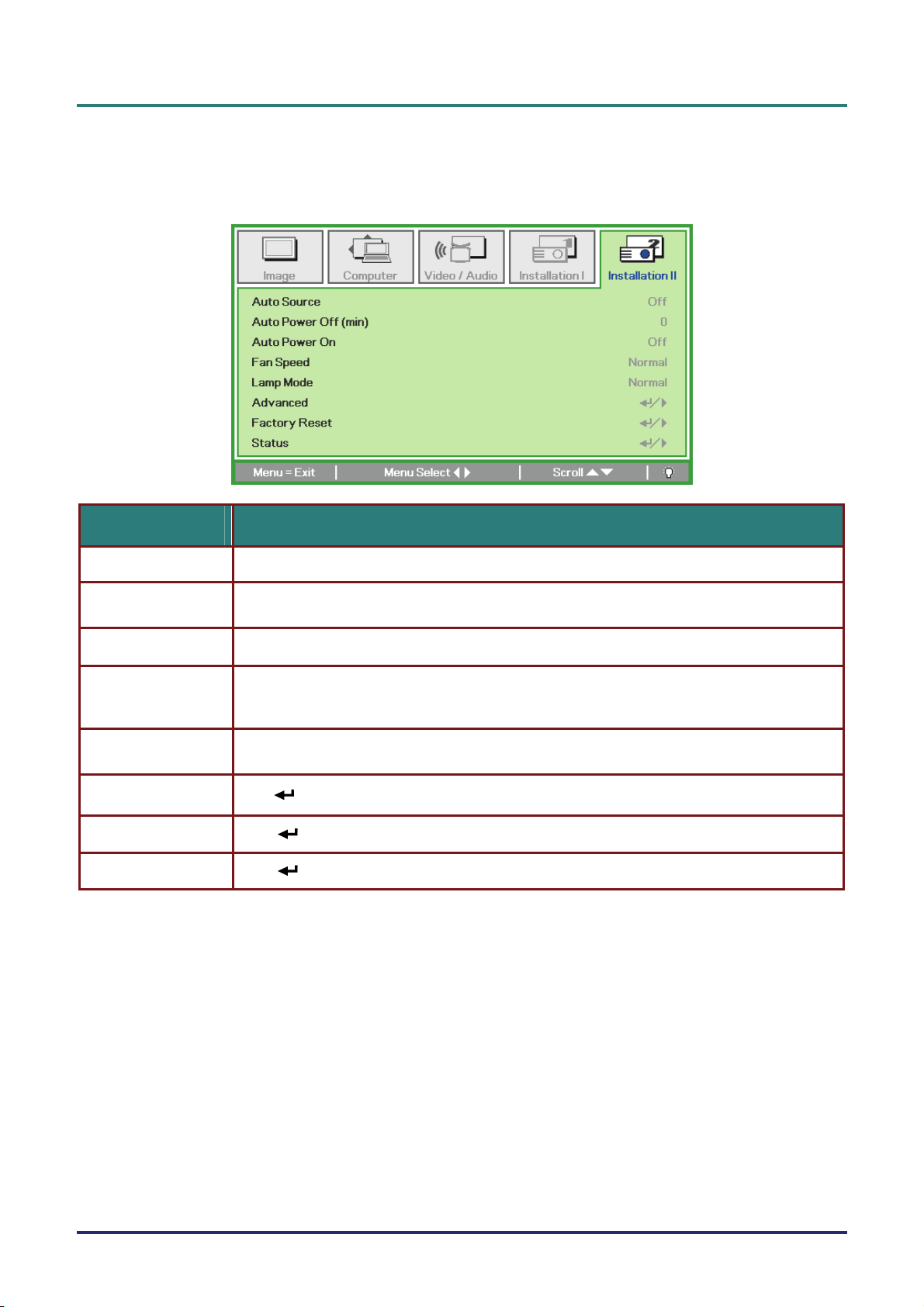

INSTALLATION II MENU..................................................................................................................................................... 34

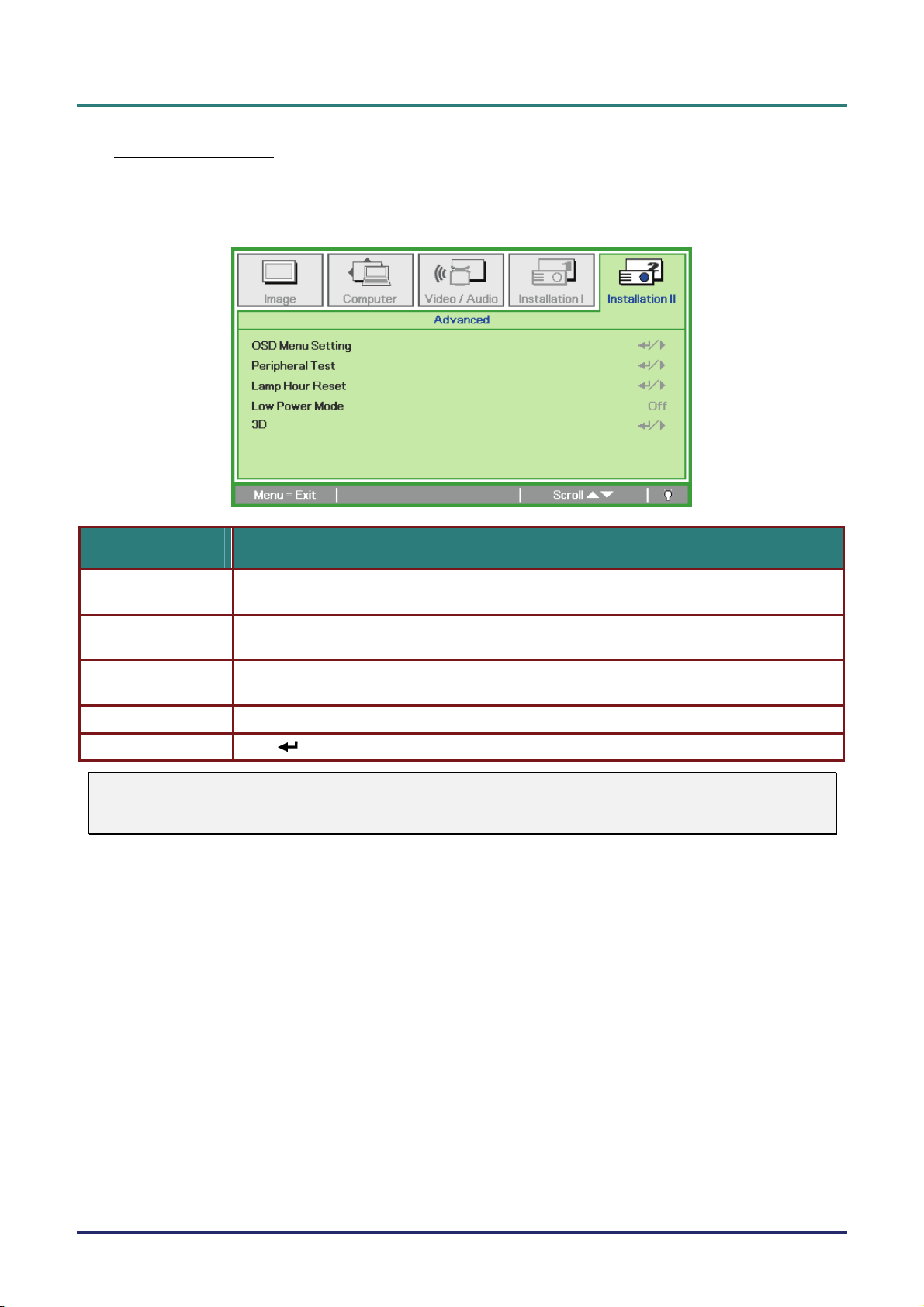

Advanced Feature......................................................................................................................................................... 35

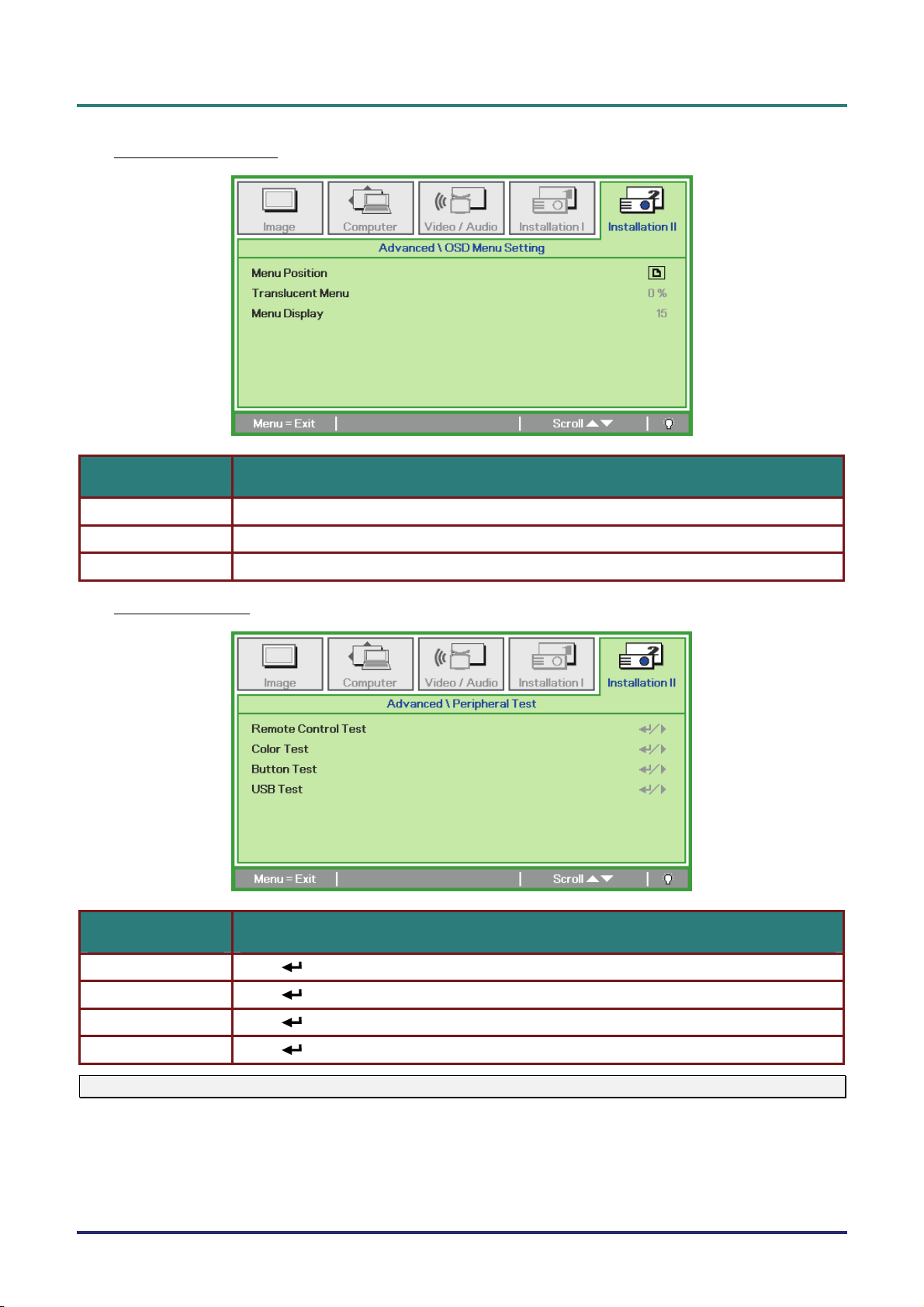

OSD Menu Setting......................................................................................................................................................... 36

Peripheral Test.............................................................................................................................................................. 36

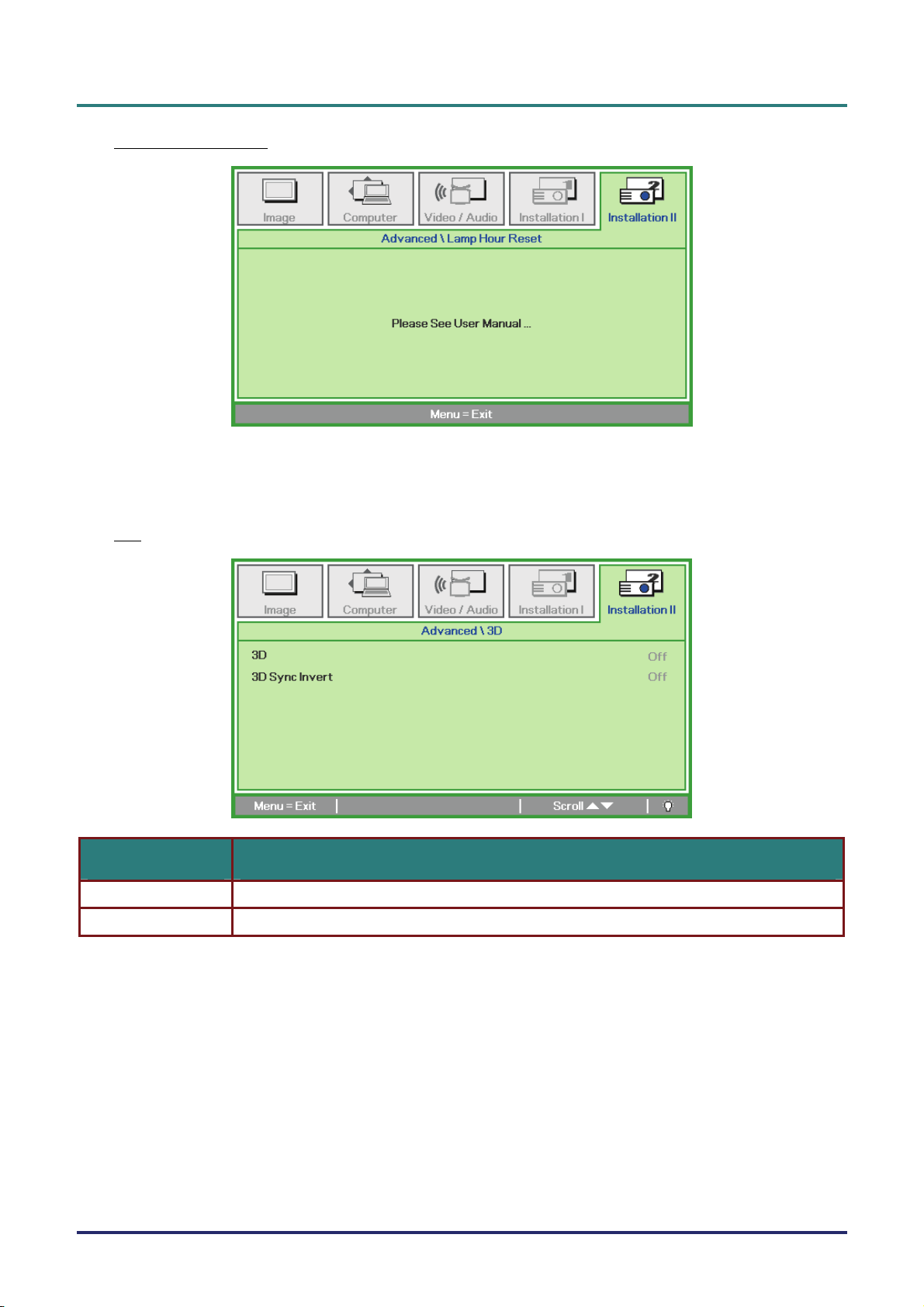

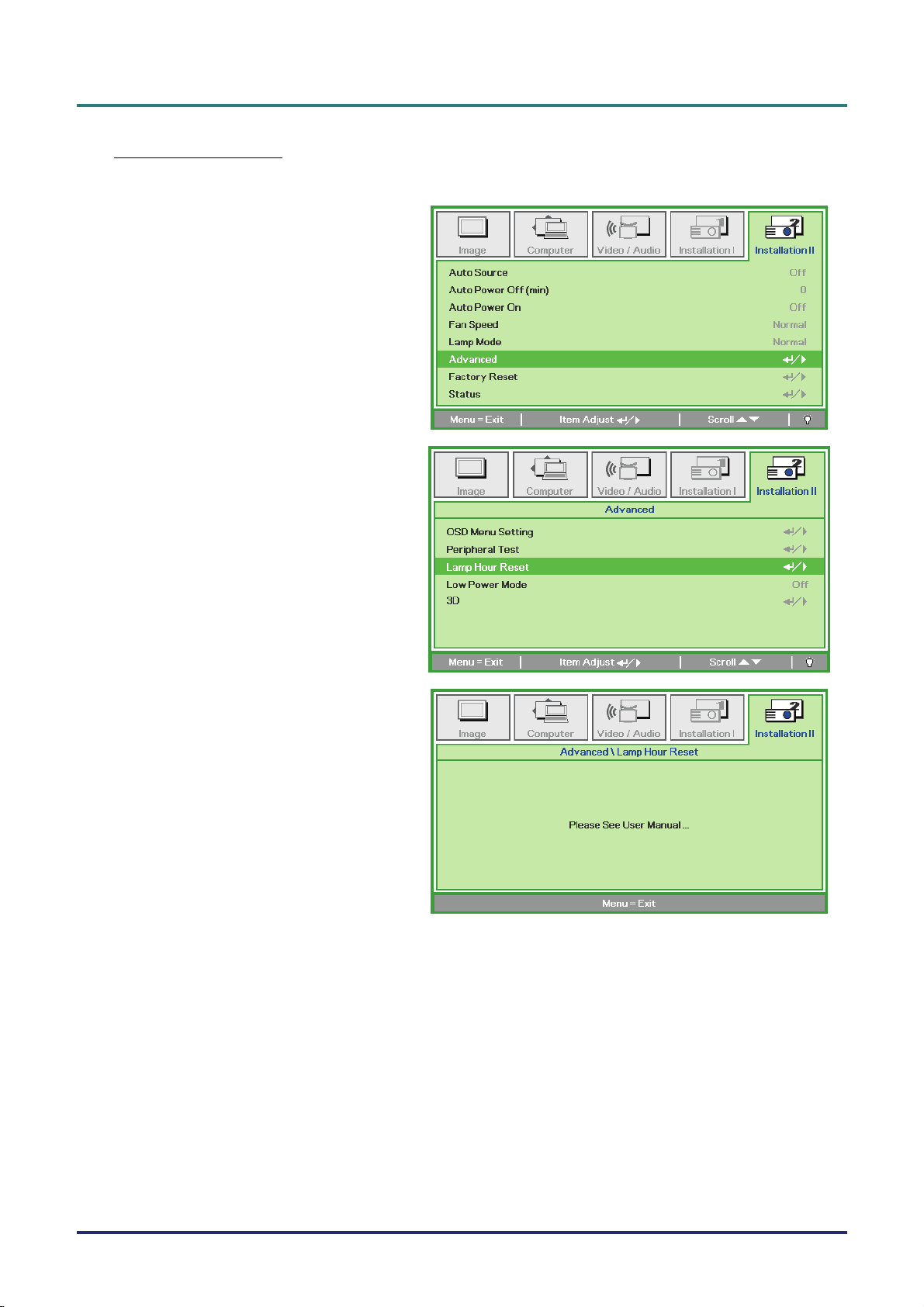

Lamp Hour Reset .......................................................................................................................................................... 37

3D ................................................................................................................................................................................. 37

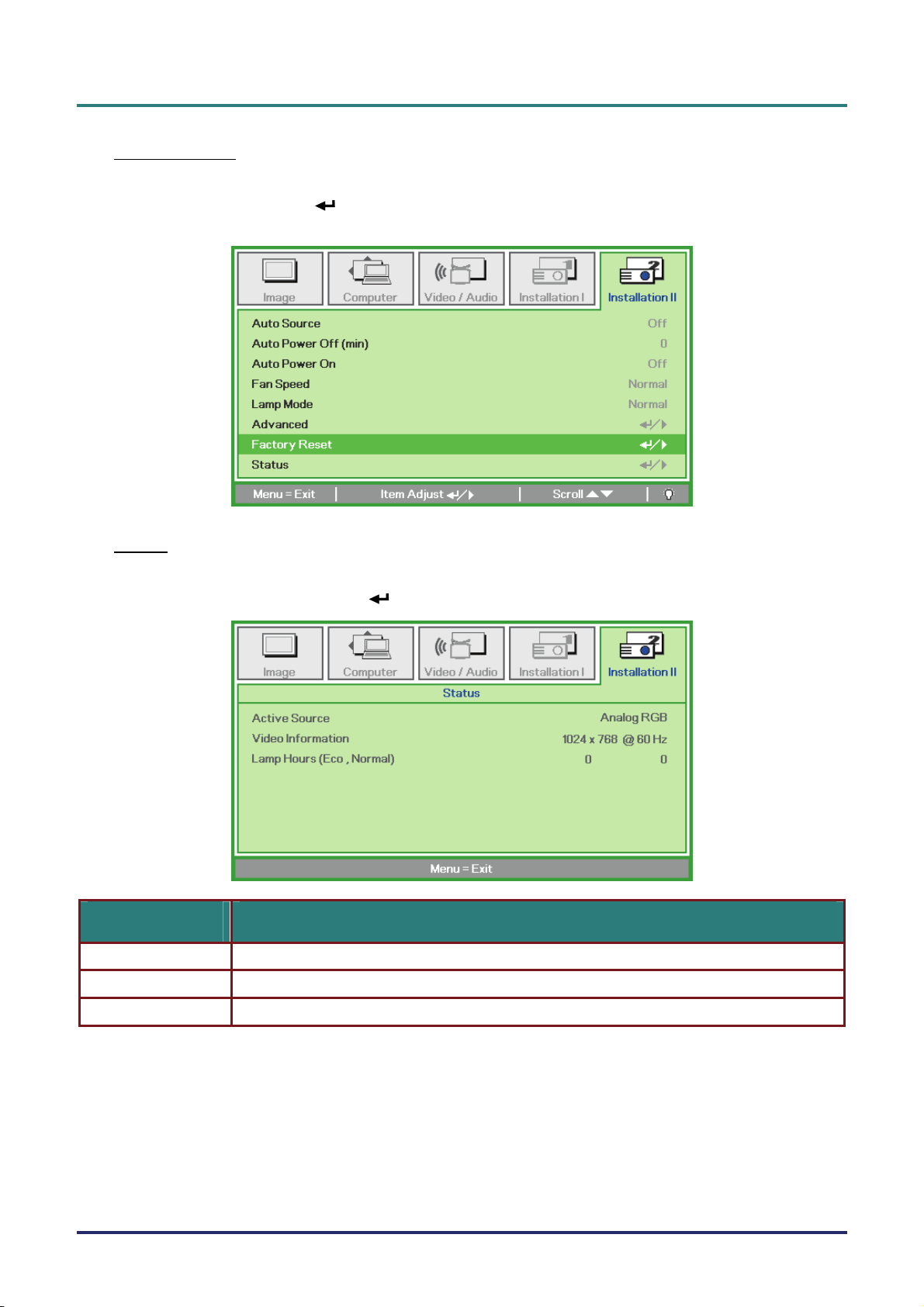

Factory Reset ................................................................................................................................................................ 38

Status............................................................................................................................................................................. 38

MAINTENANCE AND SECURITY................................................................................................................................. 39

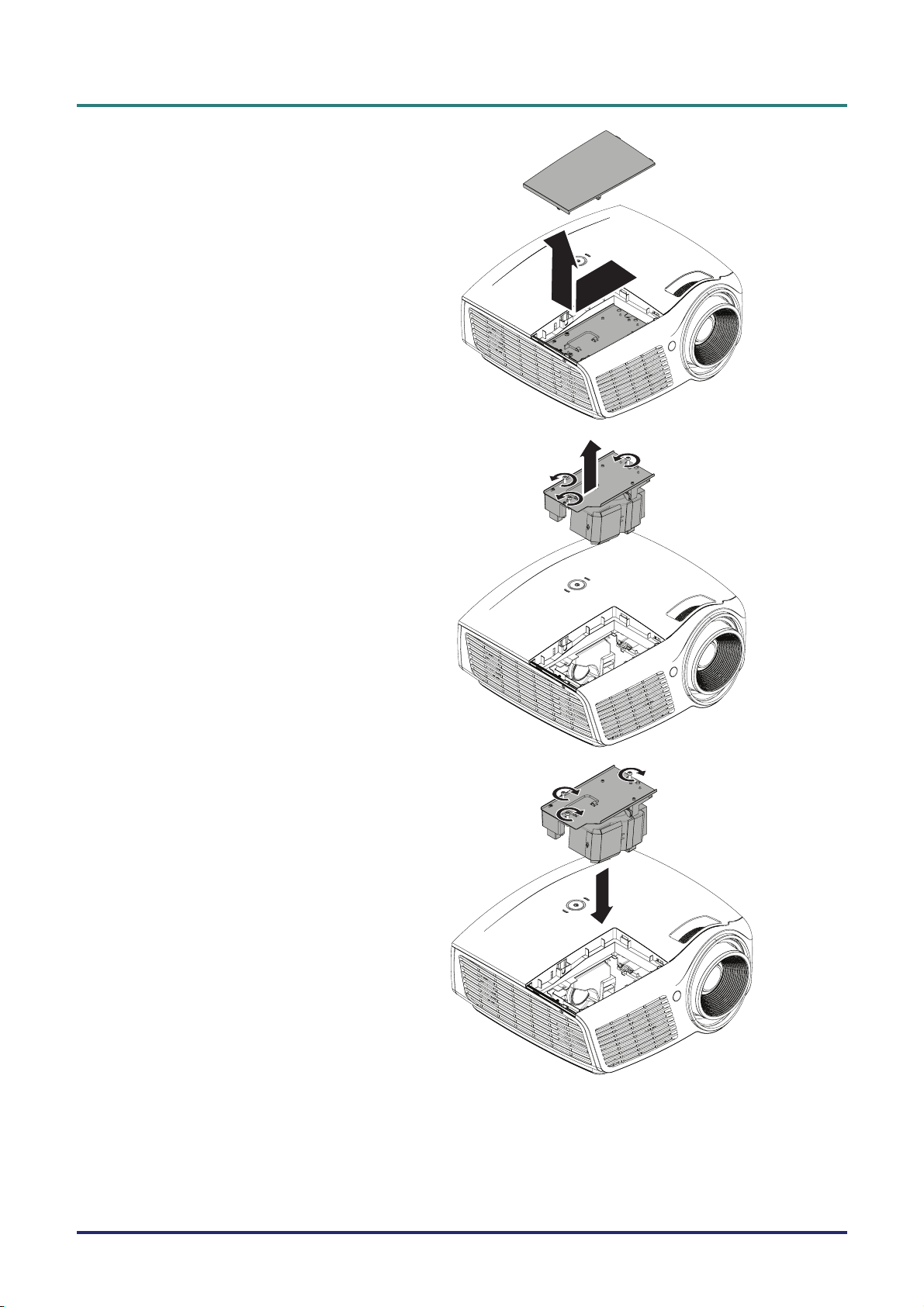

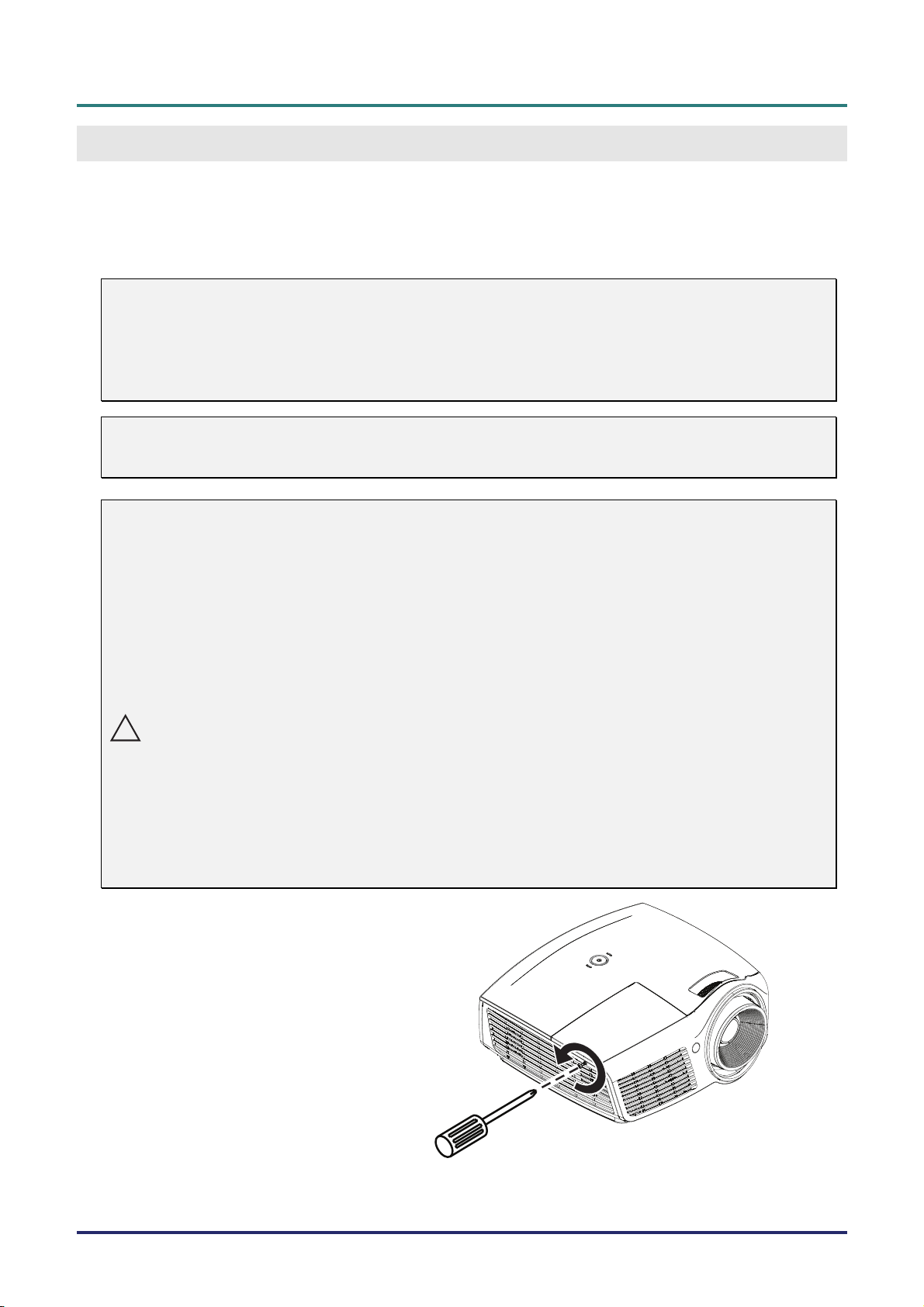

REPLACING THE PROJECTION LAMP................................................................................................................................... 39

Resetting the Lamp........................................................................................................................................................ 41

CLEANING THE PROJECTOR................................................................................................................................................ 42

Cleaning the Lens ......................................................................................................................................................... 42

Cleaning the Case......................................................................................................................................................... 42

USING THE KENSINGTON

®

LOCK ....................................................................................................................................... 43

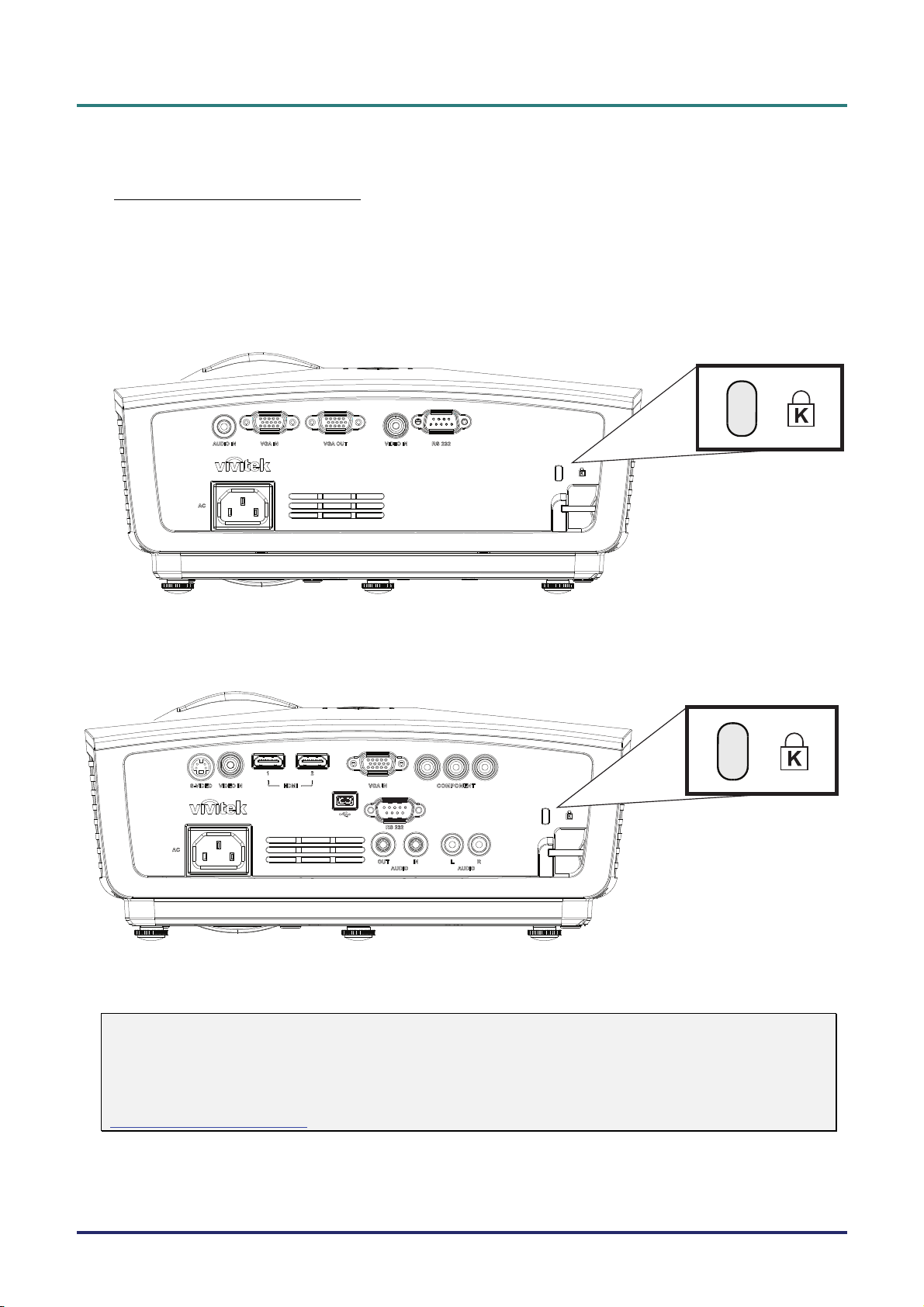

Using the Kensington® Lock ......................................................................................................................................... 43

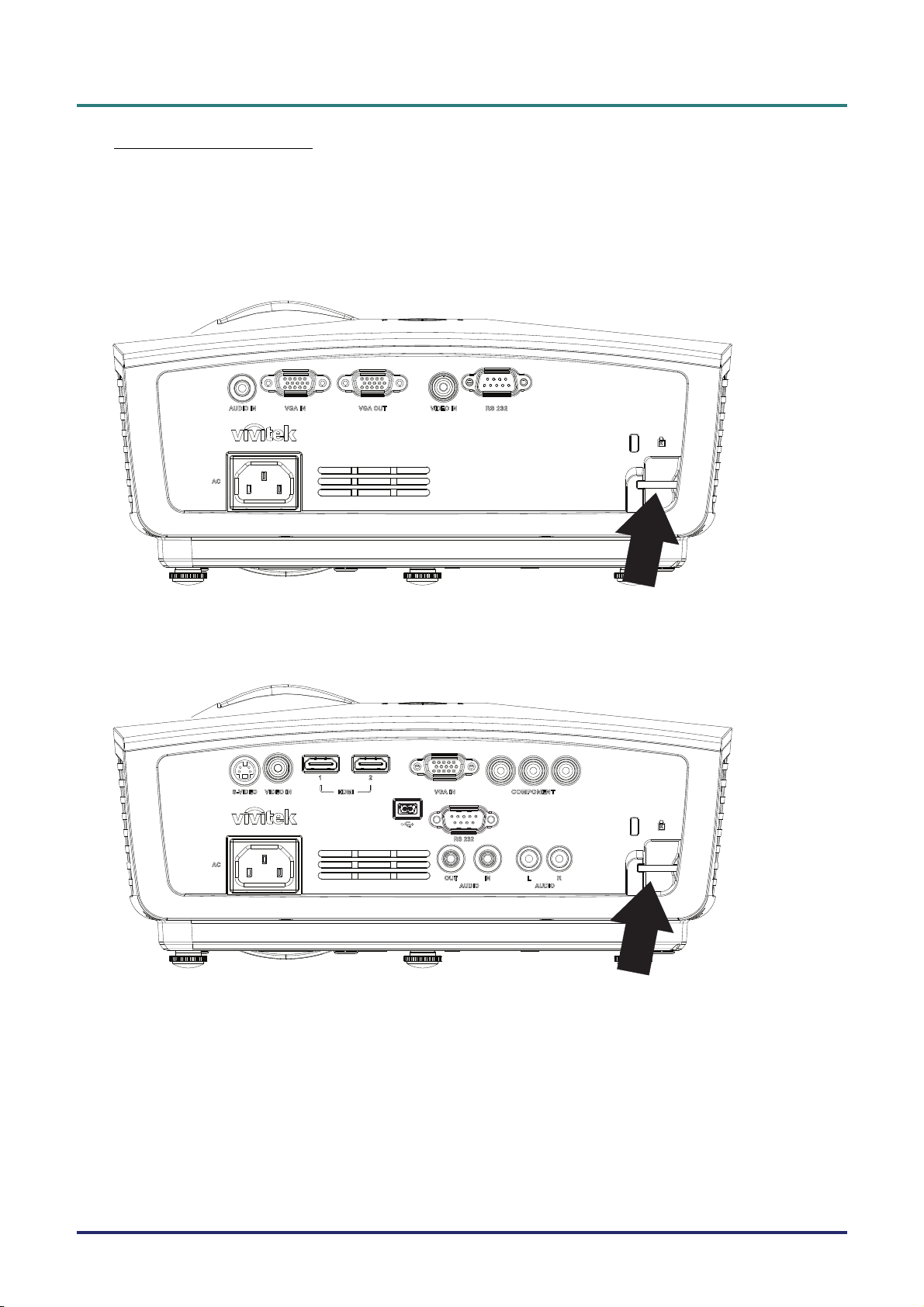

Using the Security Bar .................................................................................................................................................. 44

TROUBLESHOOTING ..................................................................................................................................................... 45

— vi —

COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 45

TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 45

LED ERROR MESSAGES..................................................................................................................................................... 46

IMAGE PROBLEMS.............................................................................................................................................................. 46

LAMP PROBLEMS ............................................................................................................................................................... 47

REMOTE CONTROL PROBLEMS .......................................................................................................................................... 47

AUDIO PROBLEMS ............................................................................................................................................................. 47

HAVING THE PROJECTOR SERVICED .................................................................................................................................. 47

TM

HDMI

SPECIFICATIONS............................................................................................................................................................. 49

SPECIFICATIONS................................................................................................................................................................. 49

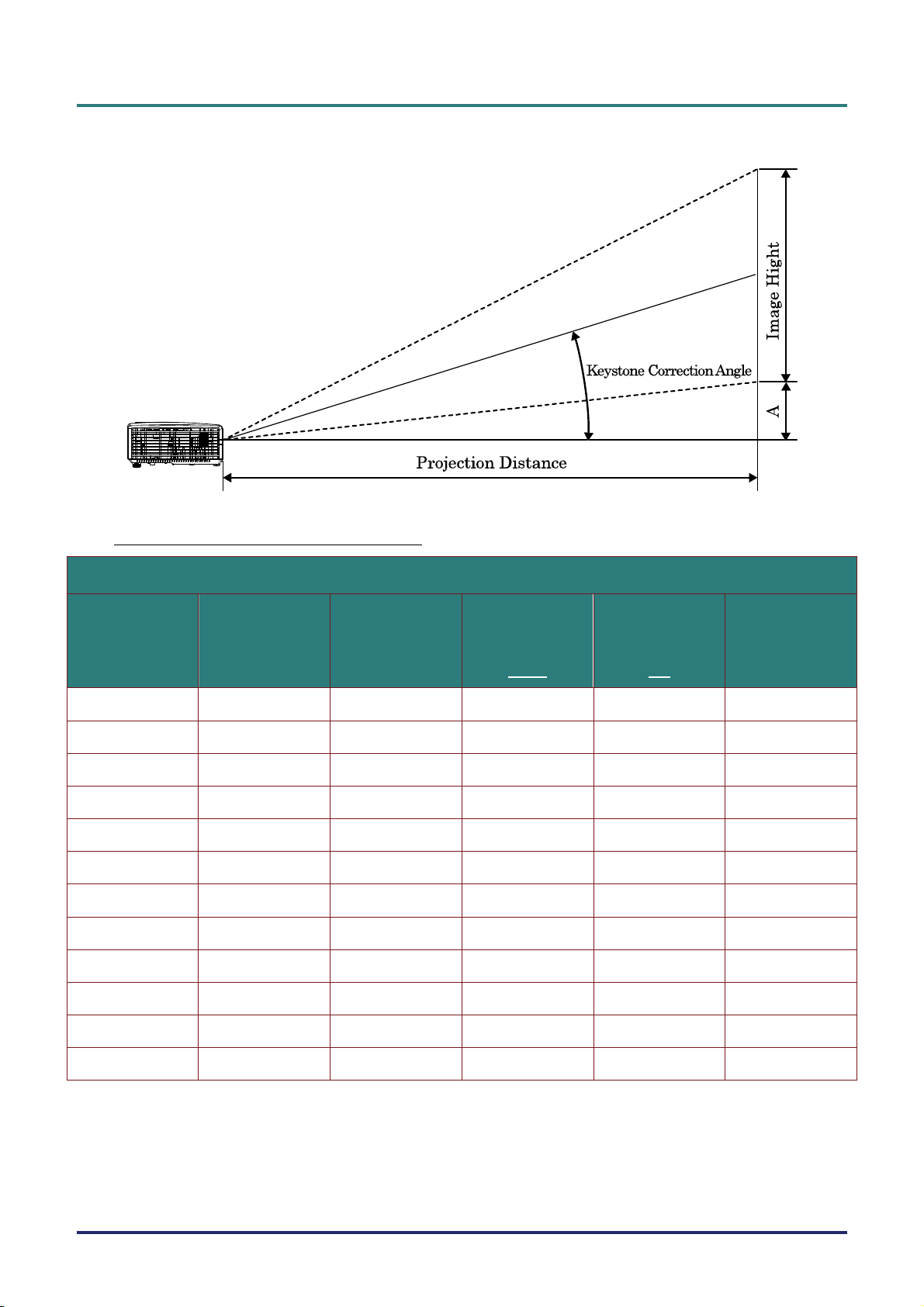

PROJECTION DISTANCE VS. PROJECTION SIZE.................................................................................................................... 50

TIMING MODE TABLE ........................................................................................................................................................ 52

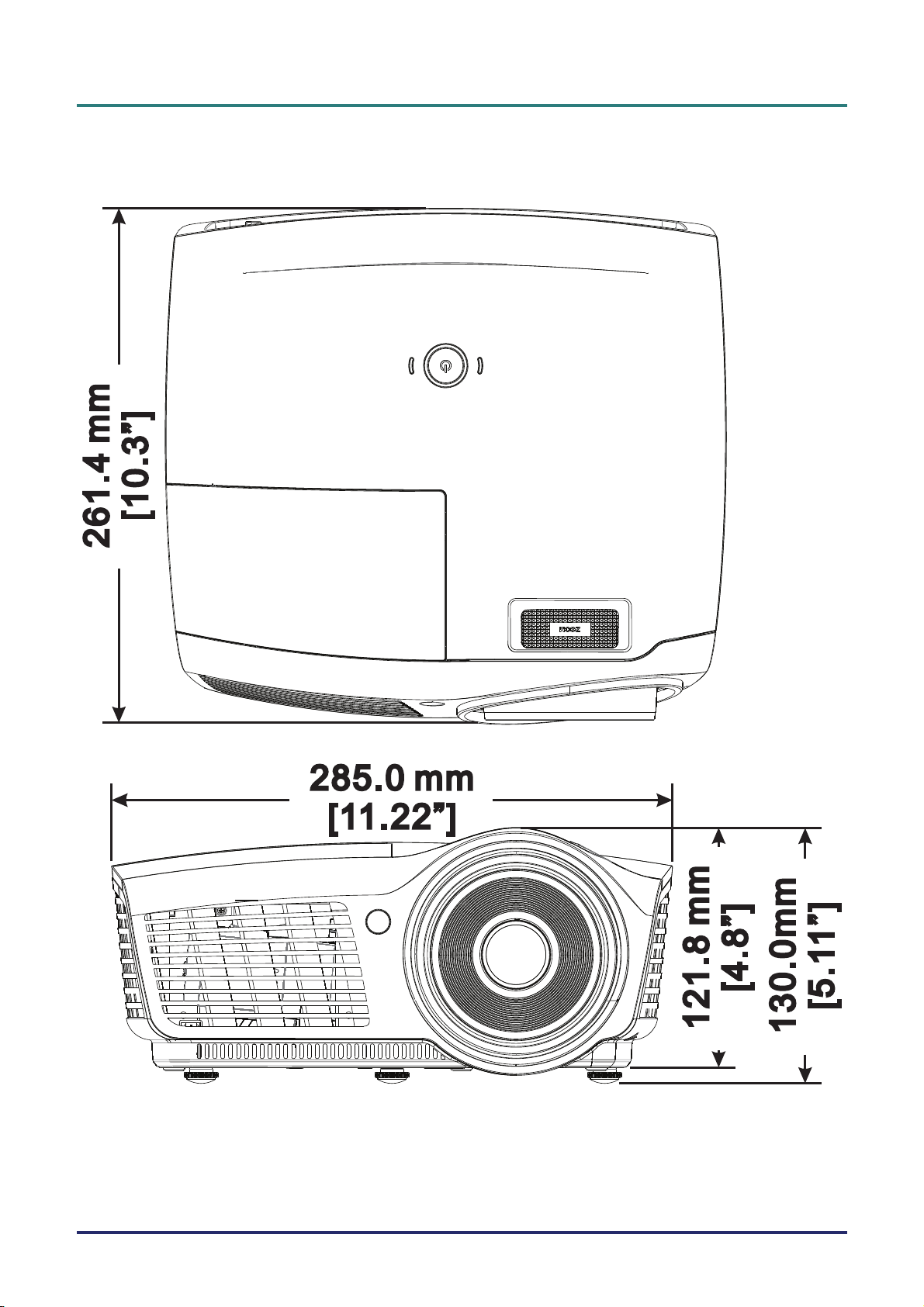

PROJECTOR DIMENSIONS ................................................................................................................................................... 54

REGULATORY COMPLIANCE ..................................................................................................................................... 55

FCC WARNING .................................................................................................................................................................. 55

CANADA ............................................................................................................................................................................ 55

SAFETY CERTIFICATIONS ................................................................................................................................................... 55

APPENDIX I ....................................................................................................................................................................... 56

Q & A................................................................................................................................................................. 48

Projection Distance and Size Table.............................................................................................................................. 50

Preface

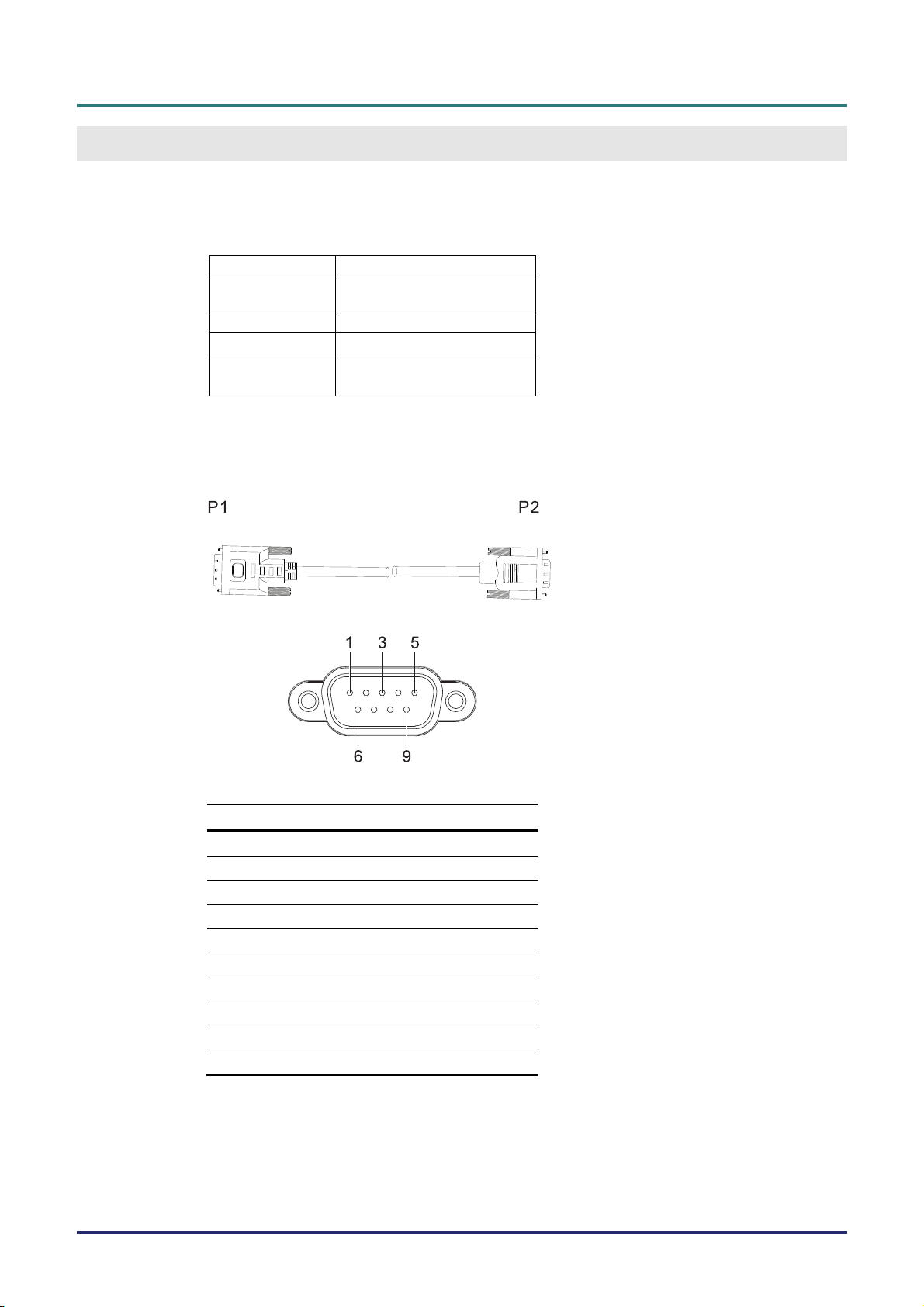

RS-232C PROTOCOL.......................................................................................................................................................... 56

– vii –

DLP Projector – User’s Manual

G

ETTING STARTED

Packing Checklist

Carefully unpack the projector and check that the following items are included:

DLP PROJECTOR WITH LENS CAP

EMOTE CONTROL (*1)

R

WITH ONE 3V CR2025

(

BATTERY

)

EMOTE CONTROL (*2)

R

WITH TWO AAA BATTERIES)

(

RGB

CABLE POWER CORD

C

ARRYING CASE

(O

PTIONAL)

CD-ROM

HIS USER’S MANUAL)

(T

Q

UICK START GUIDE WARRANTY CARD

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.

Caution:

Avoid using the projector in dusty environments.

Note:

(*1) D860/D861 only

(*2) D862 only.

– 1 –

DLP Projector—User’s Manual

Views of Projector Parts

Front-right View

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

3.

IR receiver Receive IR signal from remote control

Lens Projection Lens

Focus ring Focuses the projected image

7

20

4.

5.

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.

Zoom ring Enlarges the projected image

(POWER)

See Top view—Power buttons and LEDs.

3

– 2 –

Top view—Power buttons and LEDs

DLP Projector – User’s Manual

ITEM LABEL DESCRIPTION

1.

2.

(POWER)

LAMP LED

POWER LED

Turns the projector On or Off

On Lamp Error.

Off Normal State

Blue Power On

Off Power Off (AC Off) 3.

Flashing System Initialized / Cooling / Error code

SEE

PAGE:

15

– 3 –

DLP Projector—User’s Manual

Rear view

For D860/D861 Series

ITEM LABEL DESCRIPTION SEE PAGE:

1. AC IN Connect the POWER CABLE 15

2. AUDIO IN Connect an AUDIO CABLE from the input device

3. VGA IN Connect the RGB CABLE from a computer and components

4. VGA OUT Connect the RGB CABLE to a display

13

5. VIDEO IN Connect the COMPOSITE CABLE from a video device

6. RS-232C Connect RS-232 serial port cable for remote control

7. Kensington Lock Secure to permanent object with a Kensington® Lock system 43

– 4 –

DLP Projector – User’s Manual

For D862 Series

ITEM LABEL DESCRIPTION SEE PAGE:

1. AC IN Connect the POWER CABLE 15

2.

S-VIDEO Connect the S-VIDEO CABLE from a video device

3. VIDEO IN Connect the COMPOSITE CABLE from a video device

4. HDMI

5. HDMI

TM

Connect the HDMITM CABLE from a HDMITM device

TM

Connect the HDMITM CABLE from a HDMITM device

6. (USB) Connect the USB CABLE from a computer

7. VGA IN Connect the RGB CABLE from a computer

8. RS-232C Connect RS-232 serial port cable for remote control

9. COMPONENT Connect the Component CABLE to a display

10. Kensington Lock Secure to permanent object with a Kensington® Lock system 43

11. AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device

12. AUDIO IN Connect an AUDIO CABLE from the input device

13. AUDIO OUT Connect an AUDIO CABLE for audio loop through

13

13

– 5 –

DLP Projector—User’s Manual

Bottom view

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12 mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.

Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling

Tilt adjustor Rotate adjuster lever to adjust angle position.

19

– 6 –

Remote Control Parts

For D860/D861 Series

DLP Projector – User’s Manual

ITEM LABEL DESCRIPTION SEE PAGE:

1.

Up cursor Navigates and changes settings in the OSD

22

2.

3.

4.

5.

Enter Changes settings in the OSD

Power Turns the projector On or Off

Right cursor Navigates and changes settings in the OSD

Volume + Increase volume

15

22

21

6.

7.

8.

9.

10.

Volume - Decrease volume

Blank Video off and audio mute

Freeze Freeze/unfreezes the on-screen picture

Source Detects the input device

Auto Auto adjustment for frequency, tracking, size, position (RGB only)

13

11.

12.

13.

14.

15.

Keystone top Corrects image-trapezoid (wider top) effect

Keystone bottom Corrects image trapezoid (wider bottom) effect

Down cursor Navigates and changes settings in the OSD

Left cursor Navigates and changes settings in the OSD

Menu Opens the OSD

– 7 –

20

22

DLP Projector—User’s Manual

Inserting the Remote Control Batteries

Remove the battery compartment cover

1.

by sliding the cover in the direction of
the arrow (A). Pull out the cover (B).

Insert the battery with the positive side

2.

facing up.

Replace the cover.

3.

Caution:

1. Only use a 3V lithium battery (CR2025).

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

– 8 –

For D862 Series

DLP Projector – User’s Manual

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

IR transmitter Transmits signals to projector

Status LED Lights when the remote control is used

Laser Press to operate the on-screen pointer

Up Up arrow when connected through USB to a PC

Right Right arrow when connected through USB to a PC

Down Down arrow when connected through USB to a PC

Page Down Page down when connected through USB to a PC

Up cursor

Right cursor

Down cursor

Navigates and changes settings in the OSD

22

– 9 –

DLP Projector—User’s Manual

ITEM LABEL DESCRIPTION SEE PAGE:

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

Volume +/- Adjusts volume

Mute Mutes the built-in speaker

Zoom+ Zoom in

Zoom- Zoom out

Freeze Freeze/unfreezes the on-screen picture

Blank Makes the screen blank

Source Detects the input device

Auto Auto adjustment for phase, tracking, size, position

Menu Opens the OSD

Status Opens the OSD Status menu (the menu only opens when an

input device is detected)

Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect

Left cursor Navigates and changes settings in the OSD

21

22

38

20

23.

24.

25.

26.

27.

28.

Enter

Page Up Page up when connected through USB to a PC

Left Left arrow when connected through USB to a PC

Enter Enter key when connected through USB to a PC

Power Turns the projector on or off

Laser Use as on-screen pointer. DO NOT POINT IN EYES.

Changes settings in the OSD

22

15

– 10 –

Inserting the Remote Control Batteries

Remove the battery compartment cover

1.

by sliding the cover in the direction of
the arrow.

Insert the battery with the positive side

2.

facing up.

DLP Projector – User’s Manual

Replace the cover.

3.

Caution:

1. Only use AAA batteries (Alkaline batteries are recommended).

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

– 11 –

DLP Projector—User’s Manual

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-

rescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path be­tween the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are lim­ited in use.

– 12 –

DLP Projector – User’s Manual

S

ETUP AND OPERATION

Connecting Input Devices

A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.

For D860/D861 Series

ITEM LABEL DESCRIPTION

A

B

C

D

E

AUDIO IN Connect an AUDIO CABLE from the input device

VGA IN Connect the RGB CABLE from a computer or components

VGA OUT Connect the RGB CABLE to a display

VIDEO IN Connect the COMPOSITE CABLE from a video device

RS-232C Connect RS-232 serial port cable for remote control

– 13 –

DLP Projector—User’s Manual

For D862 Series

ITEM LABEL DESCRIPTION

A

B

C

D

E

F

G

H

J

K

S-VIDEO Connect the S-VIDEO CABLE from a video device

VIDEO IN Connect the COMPOSITE CABLE from a video device

HDMITM Connect the HDMITM CABLE from a HDMITM device

HDMITM Connect the HDMITM CABLE from a HDMITM device

I

(USB)

VGA IN Connect the RGB CABLE from a computer

RS-232C Connect the RS-232 serial cable for remote control

COMPONENT Connect the Component CABLE to a display

AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device

AUDIO IN Connect an AUDIO CABLE from the input device

AUDIO OUT Connect an AUDIO CABLE for audio loop through

Connect the USB CABLE from a computer

– 14 –

Starting and Shutting down the Projector

Connect the power cord to the projector.

1.

Connect the other end to a wall outlet.

The
light.

POWER LED on the projector

DLP Projector – User’s Manual

Turn on the connected devices.

2.

Ensure the LAMP LED not a flashing.

3.

Then press the
turn on the projector.

The projector splash screen displays and
connected devices are detected.

See Setting an Access Password

(Security Loc

lock is enabled.

POWER button to

k) on page 17 if security

– 15 –

DLP Projector—User’s Manual

If more than one input device is con-

4.

nected, press the SOURCE button and
use ▲▼ to scroll among devices.
(Component is supported through the
RGB to COMPONENT ADAPTER.)

For D860/D861 Series

 VGA: Analog RGB

Component: DVD
input YCbCr /
YPbPr, or HDTV
input YPbPr

 Composite Video: Tradi-

tional composite video

For D862 Series

 VGA: Analog RGB

 Component: DVD input

YCbCr / YPbPr.

 Composite Video: Tra-

ditional composite
video

 S-Video: Super video

(Y/C separated)

 HDMI 1/HDMI 2:

HDMI

When the “Power Off? /Press Power

5.

again” message appears, press the
POWER button. The projector turns
off.

Caution:

1. Be sure to remove the lens cap before starting projector.

2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has

cooled down.

– 16 –

DLP Projector – User’s Manual

Setting an Access Password (Security Lock)

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.

When enabled, the password must be entered after you power on the projector. (See Navigating the

OSD on page 22 and Setting the OSD Language on page 23 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.

Press the MENU button to open the OSD

1.

menu.

Press the cursor ◄► button to move to

2.

the Installation I menu, press the cursor
▲▼ button to select Advanced.

Press the cursor ▲▼ button to select

3.

Security Lock.

Press the cursor ◄► button to enable or

4.

disable security lock function.

A password dialog box automatically
appears.

– 17 –

DLP Projector—User’s Manual

You can use the cursor buttons ▲▼◄►

5.

either on keypad or IR remote control for
password entry. You can use any
combination including the same arrow five
times, but not less than five.

Press the cursor buttons in any order to set
the password. Push the MENU button to
exit the dialog box.

The password confirm menu appears when

6.

user presses the power-on key in case the
Security Lock is enabled.
Enter the password in the order you set it
at step 5. In case you forget the password,
please contact the service center.
The service center will validate the owner
and help reset the password.

– 18 –

Adjusting the Projector Level

Take note of the following when setting up the projector:

 The projector table or stand should be level and sturdy.

 Position the projector so that it is perpendicular to the screen.

 Ensure the cables are in a safe location. You could trip over them.

DLP Projector – User’s Manual

To adjust the angle of the picture, turn the tilt-adjuster right or left until the
desired angle has been achieved.

– 19 –

DLP Projector—User’s Manual

Adjusting the Zoom, Focus and Keystone

Use the Image-zoom

1.

control (on the projector
only) to resize the pro­jected image and screen

B

size

Use the Image-focus

2.

control (on the projector
only) to sharpen the pro­jected image

.

A

.

Use the KEYSTONE

3.

buttons the remote control
to correct image-trapezoid
(wider top or bottom) ef­fect.

The keystone control

4.

appears on the display.

For D860/D861 Series

For D862 Series

Volume

+

-

– 20 –

Adjusting the Volume

Press the Volume +/-

1.

buttons on the remote
control.
The volume control
appears on the display.

Press the MUTE button to

2.

turn off the volume (This
feature is available only on
the D862 Series remote).

For D860/D861 Series

DLP Projector – User’s Manual

For D862 Series

Volume

+

-

– 21 –

DLP Projector—User’s Manual

ON-S

CREEN DISPLAY

(OSD) M

ENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons to navigate and make changes to the OSD.

1. To enter the OSD, press the

MENU button.

2. There are five menus. Press
the cursor ◄► button to
move through the menus.

3. Press the cursor ▲▼ button
to move up and down in a
menu.

4. Press ◄► to change values
for settings.

5. Press MENU to close the
OSD or leave a submenu.

Note:

Depending on the video source, not all items in the OSD are available. For example, the Horizon­tal/Vertical Position items in the Computer menu can only be modified when connected to a PC.

Items that are not available cannot be accessed and are grayed out.

– 22 –

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I.

2. Press the cursor ▲▼ button until Language is highlighted.

DLP Projector – User’s Manual

3. Press the cursor ◄► button until the language you want is highlighted.

4. Press the MENU button twice to close the OSD.

– 23 –

DLP Projector—User’s Manual

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.

– 24 –

OSD Sub-Menu Overview

DLP Projector – User’s Manual

Note:

(*)Not available in D860/D861 Series.

– 25 –

DLP Projector—User’s Manual

Image Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image
Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change

values for settings.

ITEM DESCRIPTION

Display Mode Press the cursor ◄► button to set the Display Mode.

Brilliant Color Press the cursor ◄► button to adjust the Brilliant Color value.

Brightness Press the cursor ◄► button to adjust the display brightness.

Contrast Press the cursor ◄► button to adjust the display contrast.

Sharpness Press the cursor ◄► button to adjust the display sharpness level.

Gamma Press the cursor ◄► button to adjust the gamma correction of the display.

Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 27.

Reset Press (Enter) / ► to reset all settings to default values.

– 26 –

DLP Projector – User’s Manual

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the
Advanced menu.

ITEM DESCRIPTION

Color Space

Color Temperature

Color Manager

Press the cursor

Press the cursor

Press
Color Manager.

◄► button to adjust the color space.

◄► button to adjust the color temperature.

(Enter) / ► to enter the color manager menu. See page 28 for more information on

– 27 –

DLP Projector—User’s Manual

Color Manager

Press (Enter) / ► to enter the Color Manager sub menu.

ITEM DESCRIPTION

Red

Green

Blue

Cyan

Magenta

Yellow

White

Select to enter the Red Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Green Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Blue Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Cyan Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Magenta Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Yellow Color Manager.
Press the◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the White Color Manager.
Press the ◄► buttons to adjust the Red, Green, and Blue.

– 28 –

DLP Projector – User’s Manual

Computer Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Com­puter menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◄► to

change values for settings.

ITEM DESCRIPTION

Horizontal Position Press the cursor ◄► button to adjust the display position to left or right.

Vertical Position Press the cursor ◄► button to adjust the display position to up or down.

Frequency Press the cursor ◄► button to adjust the A/D sampling clock.

Tracking Press the cursor ◄► button to adjust the A/D sampling dot.

Auto Image Press (Enter) / ► to automatically adjustment for phase, tracking, size and position.

– 29 –

DLP Projector—User’s Manual

Video/Audio Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu.

Press ◄► to change values for settings.

ITEM DESCRIPTION

Video AGC Press the ◄► buttons to enable or disable the Automatic Gain Control for video source.

Video Saturation Press the ◄► buttons to adjust the video saturation.

Video Tint Press the ◄► buttons to adjust the video tint/hue.

Film Mode Press the ◄► buttons to select a different film mode.

Video Overscan Press the ◄► buttons to enable or disable video over scan.

Closed Captioning Press the ◄► buttons to enable or disable Closed Captioning

Audio Press (Enter) / ► to enter the Audio menu. See Audio on page 31.

Reset Press (Enter) / ► to reset all settings to default values.

Note:

Video jagging may occur when playing interlace video. To overcome this issue, open the
Video / Audio menu and adjust the Film Mode feature.

– 30 –

Audio

Press (Enter) / ► to enter the Audio sub menu.

ITEM DESCRIPTION

DLP Projector – User’s Manual

Volume Press the ◄► buttons to adjust the audio volume.

Mute Press the ◄► buttons to turn on or off the speaker.

– 31 –

DLP Projector—User’s Manual

Installation I Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installa­tion I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press

◄► to change values for settings.

ITEM DESCRIPTION

Language Press the cursor ◄► button to select a different localization Menu.

Blank Screen Press the cursor ◄► button to select different color to blank the screen.

Projection Press the cursor ◄► button to choose from four projection methods:

Aspect Ratio Press the cursor ◄► button to adjust the video aspect ratio.

Keystone Press the cursor ◄► button to adjust the display keystone.

Digital Zoom Press the cursor ◄► button to adjust the Digital Zoom menu.

Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 35.

Reset

Press
(expect Language and Security Lock).

(Enter) / ► to reset all settings to default values

– 32 –

DLP Projector – User’s Manual

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Installation I menu. Press
▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in
the Advanced menu. Press ◄► to change values for setting.

ITEM DESCRIPTION

Security Lock Press the cursor ◄► button to enable or disable security lock function.

Wall Color Press the cursor ◄► button to select different wall color setting.

Presentation Timer Press (Enter) / ► to enter the Presentation menu. See Advanced Feature on page 33.

Projector ID Press the cursor ◄► button to adjust a two digit projector ID from 0 through 99.

Presentation Timer

The Presentation Timer function can indicate the presentation time on the screen to help you achieve
better time management when giving presentations.

Press (Enter) / ► to enter the Presentation Timer sub menu.

ITEM DESCRIPTION

Timer Press the cursor ◄► button to enable or disable presentation timer function.

Timer Period Press the cursor ◄► button to adjust the display timer period.

Timer Reset Press (Enter) / ► to reset presentation timer counter.

– 33 –

DLP Projector—User’s Manual

Installation II Menu

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installa­tion II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu.

ITEM DESCRIPTION

Auto Source Press the cursor ◄► button to enable or disable automatic source detection.

Auto Power Off
(min.)

Auto Power On Press the cursor ◄► button to enable or disable automatic power On when AC power is supplied.

Fan Speed

Lamp Mode

Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 35.

Factory Reset Press (Enter) / ► to reset all items to factory preset values.

Status Press (Enter) / ► to enter the Status menu. See page 38 for more information on Status.

Press the cursor ◄► button to enable or disable automatic shutdown of lamp when no signal.

Press the cursor ◄► button to toggle between Normal and High fan speeds.
Note: We recommend selecting high speed in high temperatures, high humidity, or high
altitude areas.

Press the cursor ◄► button to select the lamp mode for higher brightness or lower brightness
to save lamp life.

– 34 –

DLP Projector – User’s Manual

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu.
Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and

down in the Advanced menu. Press ◄► to change values for setting.

ITEM DESCRIPTION

OSD Menu Setting

Peripheral Test

Lamp Hour Reset

Low Power Mode Press ◄► to turn Low Power Mode on or off.

3D Press Enter/ ► to enter the 3D menu. See page 37 for more information on 3D setting..

Note:

To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD
device under the 3D Disc Menu.

Press Enter / ► to enter the OSD setting menu. See page 36 for more information on OSD
Menu

Setting.

Press Enter/ ► to enter the Peripheral Test menu. See page 36 for more information on
Peripheral Test.

After replacing the lamp, this item should be reset. See page 37 for more information on Lamp

Ho

ur Reset.

– 35 –

DLP Projector—User’s Manual

OSD Menu Setting

ITEM DESCRIPTION

Menu Position Press ◄► button to select different OSD location.

Translucent Menu Press ◄► button to select OSD background translucent level.

Menu Display Press ◄► button to select OSD timeout delay.

Peripheral Test

ITEM DESCRIPTION

Remote Control Test Press (Enter) / ► to test the IR remote controller for diagnostic.

Color Test Press (Enter) / ► to select different colors on screen.

Button Test Press (Enter) / ► to test the button on keypad.

USB Test (*) Press (Enter) / ► to test the USB connection with connected PC.

Note: (*) Not available in D860/D861 Series.

– 36 –

DLP Projector – User’s Manual

Lamp Hour Reset

Please refer to Resetting the Lamp on page 41 to reset the lamp hour counter.

3D

ITEM DESCRIPTION

3D Press ◄► to select Off, DLP-Link or IR.

3D Sync Invert Press ◄► to turn 3D Sync Invert On or Off.

– 37 –

DLP Projector—User’s Manual

Factory Reset

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory
Reset sub menu and press

(expect Language and Security Lock).

(Enter) / ► to reset all the menu items to the factory default values

Status

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the
Installation II sub menu and press

ITEM DESCRIPTION

Active Source Display the activated source.

Video Information Displays resolution/video information for RGB source and color standard for Video source.

(Enter) / ► to enter the Status sub menu.

Lamp Hours Lamp hour used information is displayed. Eco and Normal counters are separated.

– 38 –

DLP Projector – User’s Manual

M

AINTENANCE AND SECURITY

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.

Important:

a. The projection lamp used in this product contains a small amount of mercury.

b. Do not dispose this product with general household waste.

c. Disposal of this product must be carried out in accordance with the regulations of your local

authority.

Warning:

Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to
do so could result in a severe burn.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.

Always keep your face away from the exhaust vent so that you do not suffer from the gas and bro­ken shards of the lamp.

When removing the lamp from a ceiling-mounted projector, make sure that no one is under the pro­jector. Glass fragments could fall if the lamp has been burned out.

！

IF A LAMP EXPLODES

If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come
out of the exhaust vent. The gas contains toxic mercury.

Open windows and doors for ventilation.

If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor
immediately.

Loosen the single screw on

1.

the lamp compartment cover.

– 39 –

DLP Projector—User’s Manual

Remove the lamp compart-

2.

ment cover.

Remove the three screws

3.

from the lamp module.

Lift the module handle up.

4.

Pull firmly on the module

5.

handle to remove the lamp
module.

Reverse steps 1 to 5 to install

6.

the new lamp module.
While installing, align the
lamp module with the
connector and ensure it is
level to avoid damage.

Note: The lamp module must
sit securely in place and the
lamp connector must be con­nected properly before
tightening the screws.

– 40 –

DLP Projector – User’s Manual

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

Press the MENU button to open the

1.

OSD menu.

Press the cursor ◄► button to move

2.

to the Installation II menu. Press the
cursor button to move down to
Advanced.

Press the cursor ▼▲ button to move

3.

down to Lamp Hour Reset.

Press the cursor ► or Enter button.

4.

A message screen appears.

Press ▼▲◄► buttons to reset the

5.

lamp hour.

Press the MENU button to get back

6.

to Installation II.

– 41 –

DLP Projector—User’s Manual

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so

could result in a severe burn.

2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.

3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.

4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the pro­jector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe

the case.

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

– 42 –

DLP Projector – User’s Manual

Using the Kensington® Lock

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.

For D860/D861 Series

For D862 Series

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington’s MicroSaver Security System. If you have any com­ment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: [phone],

http://www.Kensington.com.

– 43 –

DLP Projector—User’s Manual

Using the Security Bar

In addition to the password protection function and the Kensington lock, the Security Bar helps pro­tect the projector from unauthorized removal. See the following picture.

For D860/D861 Series

For D862 Series

– 44 –

DLP Projector – User’s Manual

T

ROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose con­nection. Check the following before proceeding to the problem-specific solutions.

 Use some other electrical device to confirm that the electrical outlet is working.

 Ensure the projector is turned on.

 Ensure all connections are securely attached.

 Ensure the attached device is turned on.

 Ensure a connected PC is not in suspending mode.

 Ensure a connected notebook computer is configured for an external display.

(This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when call­ing for technical support or for passing on to service personnel.

– 45 –

DLP Projector—User’s Manual

LED Error Messages

ERROR CODE MESSAGES

Standby mode ON OFF

System Initial Flash OFF

Over temperature 3 OFF

Thermal break status error 4 OFF

Lamp Fail OFF ON

Cooling Flashing OFF

Lamp temperature too high 5 3

Case Open 7 OFF

Color wheel error 9 OFF

In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting
the projector. If the Power or Lamp LEDs are still blinking or any other situation that isn't listed in the chart

, please contact your service center.

above

POWER LED

BLUE

LAMP LED

BLUE

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control.

3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control to correct the problem.

Problem: The image is reversed

Check the Projection setting on the Installation I menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the de-

fault settings.

2. To ensure the problem is not caused by a connected PC’s video card, connect to another

computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Image menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.

– 46 –

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is blue.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Power LED

is on, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

DLP Projector – User’s Manual

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem: The information may be useful to service personnel. For servicing, return the
projector to the place you purchased it.

– 47 –

DLP Projector—User’s Manual

HDMITM Q & A

Q. What is the difference between a “Standard” HDMITM cable and a “High-Speed”
HDMITM cable?

Recently, HDMITM Licensing, LLC announced that cables would be tested as Standard or
High-Speed cables.

․Standard (or “category 1”) HDMI

or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.

․High Speed (or “category 2”) HDMI

340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an

TM

HDMI
depths and/or increased refresh rates from the Source. High-Speed cables are also able to
accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of
2560 x 1600).

Q. How do I run HDMITM cables longer than 10 meters?

There are many HDMITM Adopters working on HDMITM solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.

cable and can successfully handle 1080p signals including those at increased color

TM

cables have been tested to perform at speeds of 75Mhz

TM

cables have been tested to perform at speeds of

Q. How can I tell if a cable is an HDMITM certified cable?

All HDMITM products are required to be certified by the manufacturer as part of the HDMITM
Compliance Test Specification. However, there may be instances where cables bearing the

TM

HDMI
investigates these instances to ensure that the HDMI

logo are available but have not been properly tested. HDMITM Licensing, LLC actively

TM

trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.

For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49

– 48 –

Specifications

DLP Projector – User’s Manual

S

PECIFICATIONS

Model

Display type

Resolution

Projection distance

Projection screen size

Projection lens

Zoom ratio

Vertical keystone correction

Projection methods

Data compatibility

SDTV/EDTV/ HDTV

Video compatibility

H-Sync

V-Sync

Safety certification

Operation temperature

Dimensions

D860 D861 D862

TI DMD 0.55”

SVGA 800x600 XGA 1024x768

1 ~ 10 m

23” ~ 255” 25.6” ~ 308”

Manual Focus/Manual Zoom

1.1x 1.2x

+/- 30 steps

Front, Rear, Desktop/Ceiling (Rear, Front)

VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Mac

480i, 480p, 720p, 1080i, 1080p

NTSC/NTSC 4.43, PAL (B/G/H/I/M/N/60), SECAM

15, 30 – 90 kHz

43 – 120 Hz

FCC-B, cUL, UL, CE, C-tick, CCC, KC, CB, PCT, NOM, SASO, PSB

5° ~ 35°C

285 mm (W) x 261 mm (D) x 130 mm (H)

AC Input

Power consumption

Stand By

Lamp

Audio speaker

Input Terminals

Output Terminals

Control Terminals

Security

AC Universal 100-240, Typical @ 110VAC (100-240)/+-10%

250W

<0.5 watts

190W (Normal) / 160W (Eco)

2W mono speaker 10W mono speaker

VGA x 1

Composite video x 1

PC Audio jack(3.5mm) x 1

─

─

─

─

VGA x 1

RS-232C

─

Kensington lock / Security Bar

Component (YPbPr

RCAx3) x 1

S-Video x 1

HDMI x 2

RCA Stereo Audio LR

x 1

PC Audio jack(3.5mm)

x 1

USB (service only)

Note:

For questions regarding product specifications, please contact your local distributor.

– 49 –

DLP Projector—User’s Manual

Projection Distance vs. Projection Size

Projection Distance and Size Table

IMAGE DIAGONAL

（INCH）

60 48 36 2353.1 2633.5 128.0

70 56 42 2745.2 3072.4 149.4

72 57.6 43.2 2823.7 3160.2 153.6

80 64 48 3137.4 3511.3 170.7

84 67.2 50.4 3294.3 3686.9 179.2

90 72 54 3529.6 3950.2 192.0

96 76.8 57.6 3764.9 4213.6 204.8

100 80 60 3921.8 4389.1 213.4

120 96 72 4706.1 5266.9 256.0

135 108 81 5294.4 5925.3 288.0

IMAGE WIDTH

(INCH)

D860 / D86ZA～ZE

IMAGE HIGHT

(INCH)

PROJECTION

DISTANCE

（MM）

FROM

PROJECTION

DISTANCE

（MM）

TO

OFFSET-A

( MM )

150 120 90 5882.6 6583.7 320.0

200 160 120 7843.5 8778.2 426.7

– 50 –

D861 / D86AA～AE

DLP Projector – User’s Manual

IMAGE DIAGONAL

（INCH）

60 48 36 1950.7 2340.9 128.0

70 56 42 2275.8 2731.0 149.4

72 57.6 43.2 2340.9 2809.0 153.6

80 64 48 2601.0 3121.2 170.7

84 67.2 50.4 2731.0 3277.2 179.2

90 72 54 2926.1 3511.3 192.0

96 76.8 57.6 3121.2 3745.4 204.8

100 80 60 3251.2 3901.4 213.4

120 96 72 3901.4 4681.7 256.0

135 108 81 4389.1 5266.9 288.0

150 120 90 4876.8 5852.2 320.0

200 160 120 6502.4 7802.9 426.7

IMAGE WIDTH

(INCH)

IMAGE HIGHT

(INCH)

PROJECTION

DISTANCE

（MM）

FROM

PROJECTION

DISTANCE

（MM）

TO

OFFSET-A

( MM )

IMAGE DIAGONAL

（INCH）

60 48 36 1950.7 2340.9 128.0

70 56 42 2275.8 2731.0 149.4

72 57.6 43.2 2340.9 2809.0 153.6

80 64 48 2601.0 3121.2 170.7

84 67.2 50.4 2731.0 3277.2 179.2

90 72 54 2926.1 3511.3 192.0

96 76.8 57.6 3121.2 3745.4 204.8

100 80 60 3251.2 3901.4 213.4

120 96 72 3901.4 4681.7 256.0

135 108 81 4389.1 5266.9 288.0

150 120 90 4876.8 5852.2 320.0

IMAGE WIDTH

(INCH)

D862 / D86BA～BE

IMAGE HIGHT

(INCH)

PROJECTION

DISTANCE

（MM）

FROM

PROJECTION

DISTANCE

（MM）

TO

OFFSET-A

( MM )

200 160 120 6502.4 7802.9 426.7

– 51 –

DLP Projector—User’s Manual

Timing Mode Table

SIGNAL RESOLUTION

NTSC

PAL/SECAM

VESA

－

－

720 x 400 37.9 85.0

640 x 480 31.5 60.0

640 x 480 37.9 72.0

640 x 480 37.5 75.0

640 x 480 43.3 85.0

800 x 600 35.2 56.0

800 x 600 37.9 60.0

800 x 600 48.1 72.0

800 x 600 46.9 75.0

H-SYNC

(KHZ)

15.734 60.0

15.625 50.0

V-SYNC

(HZ)

COMPOSITE

/ S-VIDEO

O

O

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

COMPONENT

－ － －

－ － －

RGB

O O

O O

O O

O O

O O

O O

O O

O O

O O

DVI/

HDMI

TM

800 x 600 53.7 85.0

1024 x 768 48.4 60.0

1024 x 768 56.5 70.0

1024 x 768 60.0 75.0

1024 x 768 68.7 85.0

1280 x 800 49.7 59.8

1280 x 800 62.8 74.9

1280 x 800 71.6 84.8

1280 x 1024 63.98 60.0

1280 x 1024 79.98 75.0

1280 x 1024 91.10 85.0

1280 x 960 60.0 60.0

1280 x 960 85.9 85.0

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

－ －

O O

O O

O O

O O

O O

O O

O O

O O

O O

O O

O O

O O

O O

1400 x 1050 65.3 60.0

1440 x 900 70.6 75.0

1440 x 900 55.6 60.0

– 52 –

－ －

－ －

－ －

O O

O O

O O

DLP Projector – User’s Manual

SIGNAL RESOLUTION

1600 x 1200 75.0 60.0

640 x 480 35.0 66.68

832 x 624 49.725 74.55

Apple Mac

1024 x 768 60.24 75.0

1152 x 870 68.68 75.06

480i 15.734 60.0

SDTV

576i 15.625 50.0

480p 31.469 60.0

EDTV

576p 31.25 50.0

720p 37.5 50.0

720p 45.0 60.0

1080i 33.8 60.0

HDTV

1080i 28.1 50.0

H-SYNC

(KHZ)

V-SYNC

(HZ)

COMPOSITE

/ S-VIDEO

－ －

－ －

－ －

－ －

－ －

－

－

－

－

－

－

－

－

COMPONENT

O

O

O

O

O

O

O

O

RGB

DVI/

HDMI

TM

O O

O O

O O

O O

O O

－

－

－

－

－

－

－

－

O

O

O

O

O

O

O

O

1080p 67.5 60.0

1080p 56.3 50.0

O: Frequency supported

—: Frequency not supported

* : Displayable level

－

－

O

O

－

－

O

O

– 53 –

DLP Projector—User’s Manual

Projector Dimensions

– 54 –

DLP Projector – User’s Manual

R

EGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pur­suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communica­tions. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC-B, cUL, UL, CE, C-tick, CCC, KC, CB, PCT, NOM, SASO, PSB.

– 55 –

DLP Projector—User’s Manual

RS-232C Protocol

RS232 Setting

Baud rate: 9600
Parity
check:
Data bit: 8
Stop bit: 1

Flow Con­trol

Minimum delay for next command: 1ms

Control Command Structure

None

None

A

PPENDIX

I

P1 P2

Pin no. Name Pin no.

1 NC 1
2 RXD 3
3 TXD 2
4 NC 4
5 GND 5
6 NC 6
7 RTS 7
8 CTS 8
9 NC 9

– 56 –

DLP Projector – User’s Manual

Header code Command code Data code End code

HEX Command Data 0Dh
ASCII ｀V’ Command Data CR

Operation Command

Note:

XX=00-98, projector's ID, XX=99 is for all projectors

Return Result P=Pass / F=Fail

n: 0:Disable/1: Enable/Value(0~9999)

Command Group 00

ASCII Function Description Return Result

VXXS0001 Power On P/F
VXXS0002 Power Off P/F
VXXS0003 Resync P/F

VXXG0004 Get Lamp Hours Pn/F

VXXS0005n Set Air filter timer n=0~999999 P/F

VXXG0005 Get Air filter timer n=0~999999 Pn/F
VXXS0006 System Reset P/F

0: Standby

VXXG0007 Get System Status

2:Operation

Pn/F

3:Cooling

VXXG0008 Get F/W Version Pn/F
VXXG0009 Get Alter EMail Pn/F

VXXS0009n Set Alter Email

[email protected]

P/F

Command Group 01

ASCII Function Description Return Value

VXXG0101 Get Brightness n=0~100 Pn/F
VXXS0101n Set Brightness n=0~100 P/F
VXXG0102 Get Contrast n=0~100 Pn/F
VXXS0102n Set Contrast n=0~100 P/F
VXXG0103 Get Color n=0~100 Pn/F
VXXS0103n Set Color n=0~100 P/F
VXXG0104 Get Tint n=0~100 Pn/F
VXXS0104n Set Tint n=0~100 P/F
VXXG0105 Get Sharpness 0~31 Pn/F
VXXS0105n Set Sharpness 0~31 P/F

0:Cold

VXXG0106 Get Color Temperature

1:Normal

Pn/F

2:Warm

VXXS0106n Set Color Temperature

– 57 –

0:Cold
1:Normal
2:Warm

P/F

DLP Projector—User’s Manual

0:PC
1:MAC

VXXG0107 Get Gamma

2:Video

Pn/F
3:Chart
4: B&W

0:PC
1:MAC

VXXS0107n Set Gamma

2:Video

P/F
3:Chart
4: B&W

Command Group 02

ASCII Function Description Return Value

VXXS0201 Select RGB P/F
VXXS0202 Select RGB2 P/F
VXXS0203 Select DVI P/F
VXXS0204 Select Video P/F
VXXS0205 Select S-Video P/F
VXXS0206 Select HDMI P/F
VXXS0207 Select BNC P/F
VXXS0208 Select Component P/F
VXXS0209 Select HDMI 2 P/F

Return
1:RGB
2:RGB2
3:DVI

VXXG0220 Get Current Source

4:Video
5:S-Video
6:HDMI
7:BNC
8:Component
9:HDMI 2

Pn/F

Command Group 03

ASCII Function Description Return Value

0: Fill
1: 4:3

VXXG0301 Get Scaling

2: 16:9

Pn/F
3 :Letter Box
4 :Native

0: Fill
1: 4:3

VXXS0301n Set Scaling

2: 16:9

P/F
3 :Letter Box
4 :Native

VXXG0302 Blank Pn/F
VXXS0302n Blank P/F
VXXG0303 Auto Keystone On Pn/F
VXXS0303n Auto Keystone On P/F
VXXG0304 Freeze On Pn/F
VXXS0304n Freeze On P/F

– 58 –

DLP Projector – User’s Manual

VXXG0305 Volume n=0~8 Pn/F
VXXS0305n Volume n=0~8 P/F
VXXG0306 Treble n=0~16 Pn/F
VXXS0306n Treble n=0~16 P/F
VXXG0307 Bass n=0~16 Pn/F
VXXS0307n Bass n=0~16 P/F

0:Front

VXXG0308 Projection Mode

1:Rear
2:Ceiling

Pn/F

3:Rear+Ceiling

0:Front

VXXS0308n Projection Mode

1:Rear
2:Ceiling

P/F

3:Rear+Ceiling

VXXG0309 Set vertical keystone value n= -30~30 Pn/F

VXXS0309n Set vertical keystone value n= -30~30 P/F

VXXG0310 Set horizontal keystone value n=-20~+20 Pn/F

VXXS0310n Set horizontal keystone value n=-20~+20 P/F

VXXG0311 Adjust the zoom n=-10~10 Pn/F

VXXS0311n Adjust the zoom n=-10~10 P/F

VXXG0312 Adjust the focus n=-20~+20 Pn/F

VXXS0312n Adjust the focus n=-20~+20 P/F

VXXG0313 Adjust the vertical lens shift n=-20~+20 Pn/F

VXXS0313n Adjust the vertical lens shift n=-20~+20 P/F

VXXG0314 Adjust the horizontal lens shift n=-20~+20 Pn/F

VXXS0314n Adjust the horizontal lens shift n=-20~+20 P/F

Command Group 04 (Remote Control)

ASCII Function Description Return Value

VXXS0401 UP arrow P/F
VXXS0402 DOWN arrow P/F
VXXS0403 LEFT arrow P/F
VXXS0404 RIGHT arrow P/F
VXXS0405 POWER P/F
VXXS0406 EXIT P/F
VXXS0407 INPUT P/F
VXXS0408 AUTO P/F
VXXS0409 KEYSTONE+ P/F
VXXS0410 KEYSTONE- P/F
VXXS0411 MENU P/F
VXXS0412 STATUS P/F
VXXS0413 MUTE P/F
VXXS0414 ZOOM+ P/F
VXXS0415 ZOOM- P/F

– 59 –

DLP Projector—User’s Manual

VXXS0416 BLANK P/F
VXXS0417 FREEZE P/F
VXXS0418 VOLUME+ P/F
VXXS0419 VOLUME- P/F
VXXS0420 Enter P/F

– 60 –
