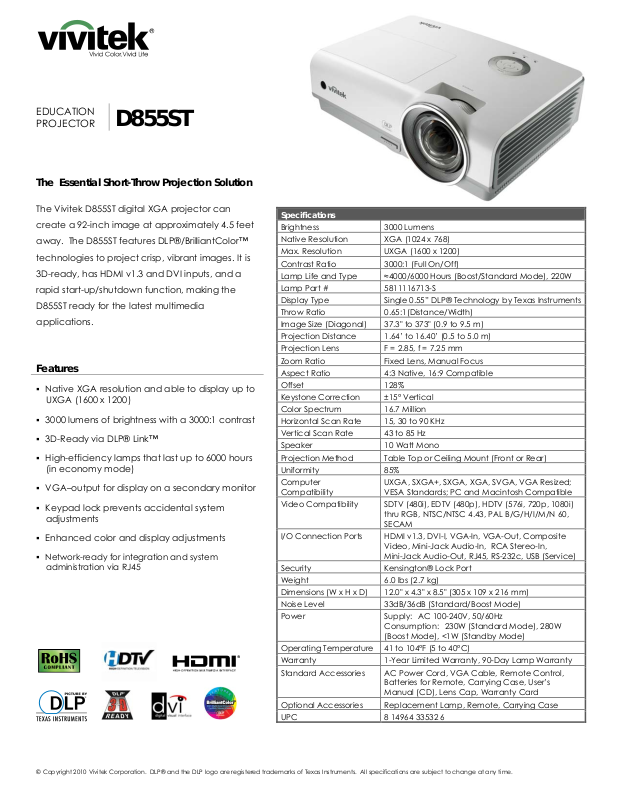

Vivitek D855ST Product Sheet
EDUCATION
D855ST
PROJECTOR
The Essential Short-Throw Projection Solution
The Vivitek D855ST digital XGA projector can
create a 92-inch image at approximately 4.5 feet
away. The D855ST features DLP®/BrilliantColor™
technologies to project crisp, vibrant images. It is
3D-ready, has HDMI v1.3 and DVI inputs, and a
rapid start-up/shutdown function, making the
D855ST ready for the latest multimedia
applications.
Features
Native XGA resolution and able to display up to
UXGA (1600 x 1200)
3000 lumens of brightness with a 3000:1 contrast
3D-Ready via DLP® Link™
High-efficiency lamps that last up to 6000 hours
(in economy mode)
VGA–output for display on a secondary monitor
Keypad lock prevents accidental system
adjustments
Enhanced color and display adjustments
Network-ready for integration and system
administration via RJ45
Specifications
Brightness 3000 Lumens
Native Resolution XGA (1024 x 768)
Max. Resolution UXGA (1600 x 1200)
Contrast Ratio 3000:1 (Full On/Off)
Lamp Life and Type ≈4000/6000 Hours (Boost/Standard Mode), 220W
Lamp Part # 5811116713-S
Display Type Single 0.55” DLP® Technology by Texas Instruments
Throw Ratio 0.65:1(Distance/Width)
Image Size (Diagonal) 37.3" to 373" (0.9 to 9.5 m)
Projection Distance 1.64’ to 16.40’ (0.5 to 5.0 m)
Projection Lens F = 2.85, f = 7.25 mm
Zoom Ratio Fixed Lens, Manual Focus
Aspect Ratio 4:3 Native, 16:9 Compatible
Offset 128%
Keystone Correction ±15° Vertical
Color Spectrum 16.7 Million
Horizontal Scan Rate 15, 30 to 90 KHz
Vertical Scan Rate 43 to 85 Hz
Speaker 10 Watt Mono
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer
Compatibility
Video Compatibility SDTV (480i), EDTV (480p), HDTV (576i, 720p, 1080i)
I/O Connection Ports HDMI v1.3, DVI-I, VGA-In, VGA-Out, Composite
Security Kensington® Lock Port
Weight 6.0 lbs (2.7 kg)
Dimensions (W x H x D) 12.0" x 4.3" x 8.5" (305 x 109 x 216 mm)
Noise Level 33dB/36dB (Standard/Boost Mode)
Power Supply: AC 10 -240V, 50/60Hz 0
Operating Temperature 41 to 104°F (5 to 40°C)
Warranty 1-Year Limited Warranty, 90-Day Lamp Warranty
Standard Accessories AC Power Cord, VGA Cable, Remote Control,
Optional Accessories Replacement Lamp, Remote, Carrying Case
UPC 8 14964 33532 6
UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized;
VESA Standards; PC and Macintosh Compatible
thru RGB, NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60,
SECAM
Video, Mini-Jack Audio-In, RCA Stereo-In,
Mini-Jack Audio-Out, RJ45, RS-232c, USB (Service)
Consumption:
(Boost Mode), <1W (Standby Mode)
Batteries for Remote, Carrying Case, User’s
Manual (CD), Lens Cap, Warranty Card
230W (Standard Mode), 280W
© Copyright 2010 Vivitek Corporation. DLP® and the DLP logo are registered trademarks of Texas Instruments. All specifications are subject to change at any time.
