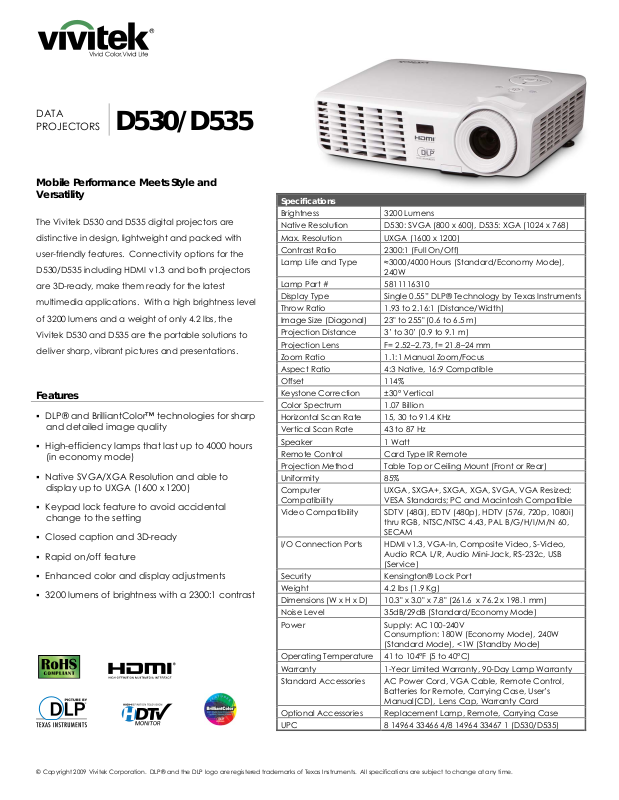

Vivitek D535, D530 Product Sheet

DATA
PROJECTORS

D530/D535

Mobile Performance Meets Style and
Versatility

The Vivitek D530 and D535 digital projectors are

distinctive in design, lightweight and packed with

user-friendly features. Connectivity options for the

D530/D535 including HDMI v1.3 and both projectors

are 3D-ready, make them ready for the latest

multimedia applications. With a high brightness level

of 3200 lumens and a weight of only 4.2 lbs, the

Vivitek D530 and D535 are the portable solutions to

deliver sharp, vibrant pictures and presentations.

Features

 DLP® and BrilliantColor™ technologies for sharp

and detailed image quality

 High-efficiency lamps that last up to 4000 hours

(in economy mode)

 Native SVGA/XGA Resolution and able to

display up to UXGA (1600 x 1200)

 Keypad lock feature to avoid accidental

change to the setting

 Closed caption and 3D-ready
 Rapid on/off feature
 Enhanced color and display adjustments
 3200 lumens of brightness with a 2300:1 contrast

Specifications

Brightness 3200 Lumens
Native Resolution D530: SVGA (800 x 600), D535: XGA (1024 x 768)
Max. Resolution UXGA (1600 x 1200)
Contrast Ratio 2300:1 (Full On/Off)
Lamp Life and Type ≈3000/4000 Hours (Standard/Economy Mode),

Lamp Part # 5811116310
Display Type Single 0.55” DLP® Technology by Texas Instruments
Throw Ratio 1.93 to 2.16:1 (Distance/Width)
Image Size (Diagonal) 23" to 255" (0.6 to 6.5 m)
Projection Distance 3’ to 30’ (0.9 to 9.1 m)

Projection Lens F= 2.52–2.73, f= 21.8–24 mm
Zoom Ratio 1.1:1 Manual Zoom/Focus
Aspect Ratio 4:3 Native, 16:9 Compatible
Offset 114%
Keystone Correction ±30° Vertical
Color Spectrum 1.07 Billion
Horizontal Scan Rate 15, 30 to 91.4 KHz

Vertical Scan Rate 43 to 87 Hz
Speaker 1 Watt
Remote Control Card Type IR Remote
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer

Compatibility
Video Compatibility SDTV (480i), EDTV (480p), HDTV (576i, 720p, 1080i)

I/O Connection Ports HDMI v1.3, VGA-In, Composite Video, S-Video,

Security Kensington® Lock Port
Weight 4.2 lbs (1.9 Kg)
Dimensions (W x H x D) 10.3" x 3.0" x 7.8" (261.6 x 76.2 x 198.1 mm)

Noise Level 35dB/29dB (Standard/Economy Mode)
Power Supply: AC 100-240V

Operating Temperature 41 to 104°F (5 to 40°C)
Warranty 1-Year Limited Warranty, 90-Day Lamp Warranty
Standard Accessories AC Power Cord, VGA Cable, Remote Control,

Optional Accessories Replacement Lamp, Remote, Carrying Case
UPC 8 14964 33466 4/8 14964 33467 1 (D530/D535)

240W

UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized;
VESA Standards; PC and Macintosh Compatible

thru RGB, NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60,
SECAM

Audio RCA L/R, Audio Mini-Jack, RS-232c, USB
(Service)

Consumption: 180W (Economy Mode), 240W
(Standard Mode), <1W (Standby Mode)

Batteries for Remote, Carrying Case, User’s
Manual(CD), Lens Cap, Warranty Card

© Copyright 2009 Vivitek Corporation. DLP® and the DLP logo are registered trademarks of Texas Instruments. All specifications are subject to change at any time.
