Vivitek D3 User Manual

D3 Series

User Manual

ϡΊ

⫼᠋᠟ݠ

Manuel de l'utilisateur
Benutzerhandbuch

Copyright

This publication, including all photographs, illustrations and software, is protected under international copy­right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.

© Copyright January, 2010

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no repre­sentations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pend­ing applications in other countries throughout the world.

All other product names used in this manual are the properties of their respective owners and are ac­knowledged.

— i —

DLP Projector—User’s Manual

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause per­sonal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”

General Safety Information

¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

¾ Follow all warnings and cautions in this manual and on the unit case.

¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

¾ Do not place the unit on an unstable surface, cart, or stand.

¾ Avoid using the system near water, in direct sunlight, or near a heating device.

¾ Do not place heavy objects such as books or bags on the unit.

— ii —

Projector Installation Notice

¾ Place the projector in a horizontal position

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in
any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.

¾ Allow at least 50 cm clearance around the exhaust vent.

Preface

¾ Ensure that the intake vents do not recycle hot air from the exhaust vent.

¾ When operating the projector in an enclosed space, ensure that the surrounding air temperature

within the enclosure does not exceed 5 – 35°C while the projector is running, and the air intake and
exhaust vents are unobstructed.

¾ All enclosures should pass a certified thermal evaluation to ensure that the projector does not

recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable 5 – 35°C range.

– iii –

DLP Projector—User’s Manual

Power Safety

¾ Only use the supplied power cord.

¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 36
for clear and safe instructions for this procedure. Before replacing the lamp:

¾ Unplug the power cord.

¾ Allow the lamp to cool for about one hour.

Cleaning the Projector

¾ Unplug the power cord before cleaning. See Cleaning the Projector on page 40.

¾ Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the Regulatory Compliance section
on page 53.

Important Recycle Instructions:

Hg

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG

specific disposal information check WWW.LAMPRECYCLE.ORG.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.

. For lamp

— iv —

Main Features

• Lightweight unit, easy to pack away and transport.

• Compatible with all major video standards including NTSC, PAL, and SECAM.

• A high brightness rating allows for presentations in daylight or in lit rooms.

• Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.

• Flexible setup allows for front, rear projections.

• Line-of-vision projections remain square, with advanced keystone correction for angled

projections.

• Input source automatically detected.

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wher­ever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.

Preface

– v –

DLP Projector—User’s Manual

Table of Contents

GETTING STARTED.......................................................................................................................................................... 1

PACKING CHECKLIST ........................................................................................................................................................... 1

VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2

Front-right View ............................................................................................................................................................. 2

Top view—On-screen Display (OSD) buttons and LEDs ............................................................................................... 3

Rear view ........................................................................................................................................................................ 4

Bottom view..................................................................................................................................................................... 5

REMOTE CONTROL PARTS ................................................................................................................................................... 6

REMOTE CONTROL OPERATING RANGE ............................................................................................................................... 8

PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 8

Remote Control ............................................................................................................................................................... 8

SETUP AND OPERATION................................................................................................................................................. 9

INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 9

CONNECTING INPUT DEVICES ............................................................................................................................................ 10

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 11

SETTING AN ACCESS PASSWORD (SECURITY LOCK) .......................................................................................................... 13

ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 15

ADJUSTING THE ZOOM, FOCUS AND KEYSTONE ................................................................................................................ 16

ADJUSTING THE VOLUME .................................................................................................................................................. 17

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 18

OSD MENU CONTROLS ..................................................................................................................................................... 18

Navigating the OSD ...................................................................................................................................................... 18

SETTING THE OSD LANGUAGE .......................................................................................................................................... 19

OSD MENU OVERVIEW ..................................................................................................................................................... 20

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 21

IMAGE MENU..................................................................................................................................................................... 22

Color Manager.............................................................................................................................................................. 23

COMPUTER MENU.............................................................................................................................................................. 25

VIDEO/AUDIO MENU ......................................................................................................................................................... 26

INSTALLATION I MENU ...................................................................................................................................................... 27

INSTALLATION II MENU..................................................................................................................................................... 29

OSD Menu Setting......................................................................................................................................................... 32

Peripheral Test.............................................................................................................................................................. 33

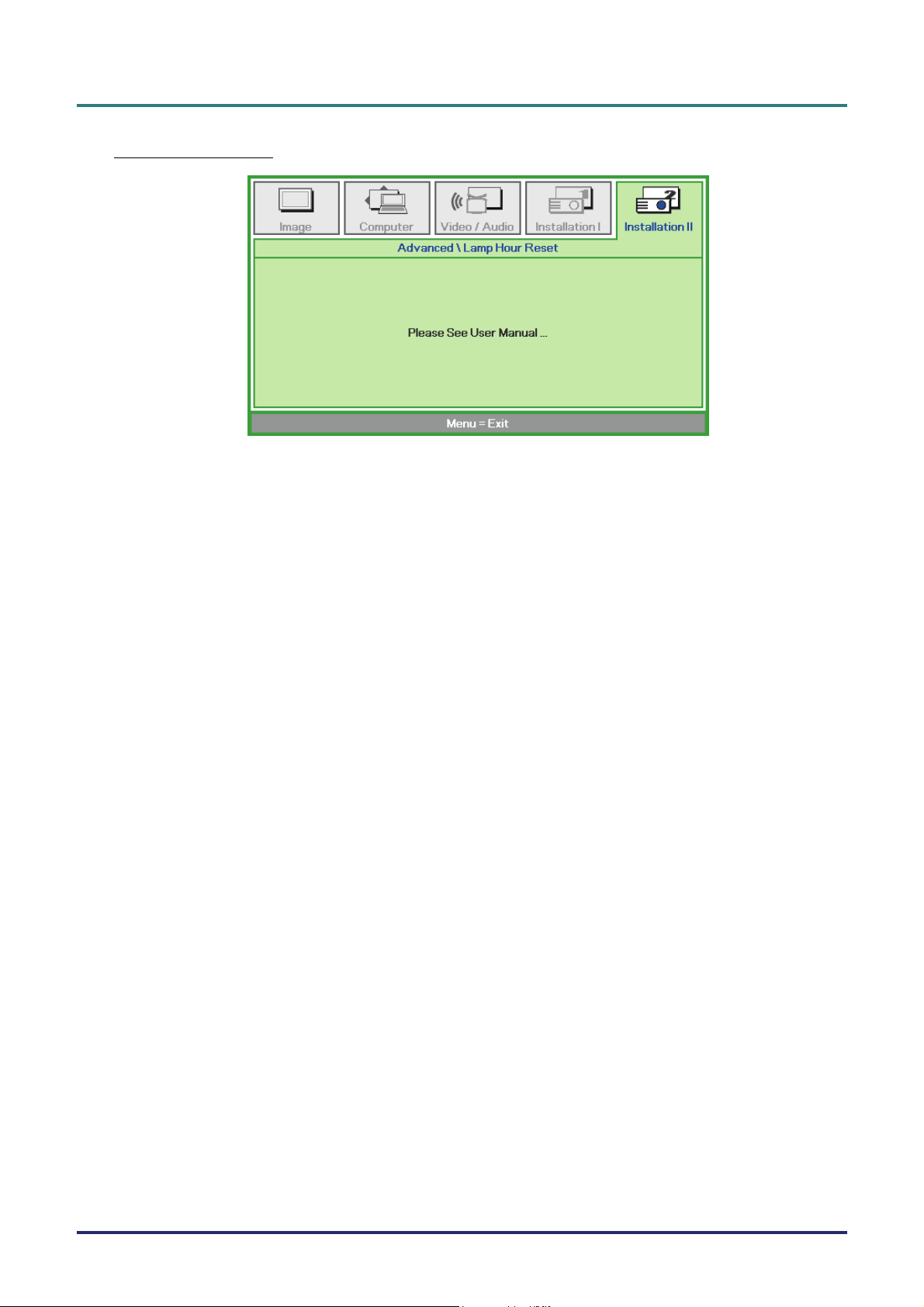

Lamp Hour Reset .......................................................................................................................................................... 34

Factory Reset ................................................................................................................................................................ 35

Status............................................................................................................................................................................. 35

MAINTENANCE AND SECURITY................................................................................................................................. 36

REPLACING THE PROJECTION LAMP................................................................................................................................... 36

Resetting the Lamp........................................................................................................................................................ 38

CLEANING THE PROJECTOR................................................................................................................................................ 39

Cleaning the Lens ......................................................................................................................................................... 40

Cleaning the Case......................................................................................................................................................... 40

USING THE KENSINGTON

®

LOCK ....................................................................................................................................... 41

TROUBLESHOOTING ..................................................................................................................................................... 42

COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 42

TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 42

LED ERROR MESSAGES..................................................................................................................................................... 43

IMAGE PROBLEMS.............................................................................................................................................................. 43

LAMP PROBLEMS ............................................................................................................................................................... 44

REMOTE CONTROL PROBLEMS .......................................................................................................................................... 44

AUDIO PROBLEMS ............................................................................................................................................................. 44

HAVING THE PROJECTOR SERVICED .................................................................................................................................. 44

TM

HDMI

Q & A ................................................................................................................................................................. 45

SPECIFICATIONS............................................................................................................................................................. 46

— vi —

SPECIFICATIONS............................................................................................................................................................. 46

SPECIFICATIONS................................................................................................................................................................. 46

PROJECTION DISTANCE V.S. PROJECTION SIZE.................................................................................................................. 46

TIMING MODE TABLE ........................................................................................................................................................ 48

PROJECTOR DIMENSIONS ................................................................................................................................................... 52

REGULATORY COMPLIANCE ..................................................................................................................................... 53

FCC WARNING .................................................................................................................................................................. 53

CANADA ............................................................................................................................................................................ 53

SAFETY CERTIFICATIONS ................................................................................................................................................... 53

Preface

– vii –

DLP Projector – User’s Manual

G

Packing Checklist

Carefully unpack the projector and check that the following items are included:

ETTING STARTED

DLP

PROJECTOR WITH LENS CAP REMOTE CONTROL

WITH ONE 3V CR2025 BATTERY)

CABLE POWER CORD CARRYING CASE

RGB

Q

UICK START GUIDE WARRANTY CARD CD-ROM (THIS USER’S MANUAL)

(

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.

Caution:

Avoid using the projector in dusty environments.

– 1 –

DLP Projector—User’s Manual

Views of Projector Parts

Front-right View

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

Ventilation opening

Height-adjuster button Push to release height adjuster

Do not block in order to keep the projector lamp cool

15

3.

4.

5.

6.

7.

Height adjuster Adjusts level of projector

Lens cap

IR receiver Receiver for IR signal from remote control

Lens Remove lens cap before use

Focus ring Focuses the projected image

Covers lens to protect when not in use

6

16

8.

9.

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.

Zoom ring Enlarges the projected image

See

Function keys

Top view—On-screen Display (OSD) buttons and

.

LEDs

3

– 2 –

DLP Projector – User’s Manual

Top view—On-screen Display (OSD) buttons and LEDs

ITEM LABEL DESCRIPTION

1.

2.

3.

4.

5.

6.

7.

(Power)

▲ (Up cursor) Navigates and changes settings in the OSD

Power LED

Over Temp LED

Ready LED

Menu Open and exits the OSD buttons

◄ (Left cursor)/
Source

Turns the projector On or Off

Green Power On

Off Power Off (AC Off)

Flashing Error code

On System over temperature

Off Normal State

Orange Lamp is ready to be powered-on.

Flashing

Detects the input device
Navigates and changes settings in the OSD

Lamp not ready (Warm-up/shutting down/cooling)
(see LED Error Messages on page 43)

SEE

PAGE:

18

18

8.

9.

▼ (Down cursor) /
Quick Menu

► (Right cursor)/
Auto

Quick Menu – For Keystone, Audio Volume and Digital Zoom
Navigates and changes settings in the OSD

Optimizes image size, position, and resolution
Navigates and changes settings in the OSD

– 3 –

16, 17, 18

18

DLP Projector—User’s Manual

Rear view

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

3.

4.

5.

6.

7.

8.

AC IN Connect the POWER CABLE

USB (Service Only)

AUDIO Connect the AUDIO CABLE from the input device

S-VIDEO Connect the S-VIDEO CABLE from a video device

VIDEO Connect the VIDEO CABLE from a video device

VGA Connect the RGB cable (supplied) from a computer

HDMITM

Security Lock Secure to permanent object with a Kensington® Lock

Connect the USB CABLE from a computer (Service
Only)

TM

Connect the HDMI
device

digital video CABLE from a video

Note:

If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.

11

10

41

– 4 –

Bottom view

DLP Projector – User’s Manual

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

3.

4.

5.

6.

Note:

When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 6 mm (0.23 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling
mount load capacity must exceed the weight of the installed equipment, and as an additional pre­caution be capable of withstanding three times the weight of the equipment (not less than 5.15 kg)
over a period of 60 seconds.

Lamp cover Remove when changing the lamp.

X36X

Height adjustor button Push to release adjustor.

X15

Height adjustor Adjuster drops down when adjuster button is pushed.

Lens cap hook To fasten the lens cap cover.

Tilt adjustor Rotate adjuster lever to adjust angle position.

X15

Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling.

– 5 –

DLP Projector—User’s Manual

Remote Control Parts

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-

rescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path be­tween the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.

– 6 –

DLP Projector – User’s Manual

ITEM LABEL DESCRIPTION SEE PAGE:

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

Up cursor Navigates and changes settings in the OSD

Enter Changes settings in the OSD

Power Turns the projector On or Off

Right cursor Navigates and changes settings in the OSD

Volume + Increase volume

Volume - Decrease volume

Mute Mutes the built-in speaker

Freeze Freeze/unfreezes the on-screen picture

Source Detects the input device

Auto Auto adjustment for frequency, tracking, size, position (RGB only)

Keystone top Corrects image-trapezoid (wider top) effect

Keystone bottom Corrects image trapezoid (wider bottom) effect

18

11

18

17

16

13.

14.

15.

Down cursor Navigates and changes settings in the OSD

Left cursor Navigates and changes settings in the OSD

Menu Opens the OSD

18

– 7 –

DLP Projector—User’s Manual

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are lim­ited in use. The following illustration shows the corresponding buttons on the remote control and on
the projector.

Remote Control

Some buttons on the projector have multiple functions. For example, item 3/6/7 on the projector func­tions as the keystone button, volume adjuster, and as the down cursor key.

– 8 –

Inserting the Remote Control Batteries

Remove the battery compartment cover

1.

by sliding the cover in the direction of
the arrow. (A) Pull out the cover. (B)

Insert the battery with the positive side

2.

facing up.

DLP Projector – User’s Manual

S

ETUP AND OPERATION

Replace the cover.

3.

Caution:

1. Only use a 3V lithium battery (CR2025).

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the battery when not using the projector for prolonged periods.

– 9 –

DLP Projector—User’s Manual

Connecting Input Devices

A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.

ITEM LABEL DESCRIPTION

A

B

C

D

E

F

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.

USB (Service Only) Connect the USB CABLE from a computer. (Service Only)

AUDIO

S-VIDEO Connect the S-VIDEO CABLE from a video device.

VIDEO Connect the VIDEO CABLE from a video device.

VGA

HDMITM Connect the Digital Video from any video device

Connect the AUDIO CABLE from the computer’s audio-out connector.

Connect the AUDIO CABLE (mini jack-to-RCA x 2) from a video device.

Connect the RGB CABLE from a computer.

Connect DVD input YCbCr / YPbPr, through optional RGB to
COMPONENT ADAPTOR.

– 10 –

Starting and Shutting down the Projector

DLP Projector – User’s Manual

Connect the power cord to the projector.

1.

Connect the other end to a wall outlet.

The
projector light.

Turn on the connected devices.

2.

Ensure the Ready LED displays a solid

3.

orange and not a flashing orange. Then

press the
the projector.

The projector splash screen displays and
connected devices are detected.

See

(Security Lock)

lock is enabled.

Power and Ready LEDs on the

Power button to turn on

Setting an Access Password

on page 13 if security

If more than one input device is con-

4.

nected, press the Source button and use
▲▼ to scroll among devices.
(Component is supported through the
RGB to COMPONENT ADAPTER.)

• VGA: Analog RGB

Component: DVD input YCbCr / YPbPr, or
HDTV input YPbPr via HD15 connector

• Composite Video: Traditional composite video

• S-Video: Super video (Y/C separated)

HDMI: Digital Video source

•

– 11 –

DLP Projector—User’s Manual

When the “Power Off? /Press Power

5.

again” message appears, press the
Power button. The projector turns off.

Caution:

1. Be sure to remove the lens cap before starting projector.

2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has

cooled down.

– 12 –

DLP Projector – User’s Manual

Setting an Access Password (Security Lock)

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.
When enabled, the password must be entered after you power on the projector. (See

on page 18 and on page 19 for help on using OSD menus.) Setting the OSD Language

OSD

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.

Press the Menu button to open the OSD

1.

menu.

Press the cursor ◄► button to move to

2.

the Installation I menu, press the cursor
▲▼ button to select Advanced.

Navigating the

Press the cursor ▲▼ button to select

3.

Security Lock.

Press the cursor ◄► button to enable or

4.

disable security lock function.

A password dialog box automatically
appears.

– 13 –

DLP Projector—User’s Manual

You can use the cursor buttons ▲▼◄►

5.

either on keypad or IR remote control for
password entry. You can use any
combination including the same arrow five
times, but not less than five.

Press the cursor buttons in any order to set
the password. Push the Menu button to
exit the dialog box.

The password confirm menu appears when

6.

user presses the power-on key in case the
Security Lock is enabled.
Enter the password in the order you set it
at step 5. In case you forget the password,
please contact the service center.
Service center will validate the owner and
help reset the password.

– 14 –

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.

• Position the projector so that it is perpendicular to the screen.

• Ensure the cables are in a safe location. You could trip over them.

DLP Projector – User’s Manual

1.

2.

3.

To raise the level of the projector, lift the projector [A] and press the height-adjuster
button [B].

The height adjuster drops down [C].

To lower the level of the projector, press the height-adjuster button and push down
on the top of the projector.

To adjust the angle of the picture, turn the tilt-adjuster [D] right or left until the
desired angle has been achieved.

– 15 –

DLP Projector—User’s Manual

Adjusting the Zoom, Focus and Keystone

Use the Image-zoom

1.

control (on the projector
only) to resize the pro­jected image and screen

B

size

Use the Image-focus

2.

control (on the projector
only) to sharpen the pro-

jected image

Use the Quick Menu but-

3.

ton on the projector or
Keystone on the remote
control to correct image­trapezoid (wider top or
bottom) effect.

.

A

.

The keystone control

4.

appears on the display.

Remote control and OSD panel

– 16 –

Adjusting the Volume

Press the Volume +/-

1.

buttons on the remote
control.
The volume control
appears on the display.

Press the Down Cursor

2.

button on the keypad to
adjust Volume +/-.

DLP Projector – User’s Manual

Press the Mute button to

3.

turn off the volume (This
feature is available only
on the remote).

– 17 –

DLP Projector—User’s Manual

ON-S

CREEN DISPLAY

(OSD) M

ENU SETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the buttons on the top of the projector to navigate
and make changes to the OSD. The following illustration shows the corresponding buttons on the re­mote control and on the projector.

1. To enter the OSD, press the

Menu button.

2. There are five menus. Press
the cursor ◄► button to
move through the menus.

3. Press the cursor ▲▼ button
to move up and down in a
menu.

4. Press ◄► to change values
for settings.

5. Press Menu to close the
OSD or leave a submenu.

Note:

Depending on the video source, not all items in the OSD are available. For example, the Horizon­tal/Vertical Position items in the Computer menu can only be modified when connected to a PC.

Items that are not available cannot be accessed and are grayed out.

– 18 –

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the Menu button. Press the cursor ◄► button to navigate to Installation I.

2. Press the cursor ▲▼ button until Language is highlighted.

DLP Projector – User’s Manual

3. Press the cursor ◄► button until the language you want is highlighted.

4. Press the Menu button twice to close the OSD.

– 19 –

DLP Projector—User’s Manual

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.

– 20 –

OSD Sub-Menu Overview

DLP Projector – User’s Manual

– 21 –

DLP Projector—User’s Manual

Image Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Image
Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change

values for settings.

ITEM DESCRIPTION

Display Mode Press the cursor ◄► button to set the Display Mode.

Brilliant Color Press the cursor ◄► button to adjust the Brilliant Color value.

Brightness Press the cursor ◄► button to adjust the display brightness.

Contrast Press the cursor ◄► button to adjust the display contrast.

Sharpness Press the cursor ◄► button to adjust the display sharpness level.

Gamma Press the cursor ◄► button to adjust the gamma correction of the display.

Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 23.

Reset

(Enter) / ► to reset all settings to default values. Press

– 22 –

DLP Projector – User’s Manual

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the
Advanced menu.

ITEM DESCRIPTION

Color Space

Color Temperature

Color Manager

Press the cursor
(Range: Auto – RGB – YPbPr – YCbCr)

Press the cursor
(Range: Cold – Normal – Warm)

Press
Magenta-Yellow-White). See page

◄► button to adjust the color space.

◄► button to adjust the color temperature.

(Enter) / ► to enter the color manager menu. (Range: Red-Green-Blue-Cyan-

24 for more information on Color Manager.

– 23 –

DLP Projector—User’s Manual

Color Manager

Press

(Enter) / ► to enter the Color Manager sub menu.

ITEM DESCRIPTION

Red

Green

Blue

Select to enter the Red Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Green Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Blue Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Cyan

Magenta

Yellow

White

Select to enter the Cyan Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Magenta Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the Yellow Color Manager.
Press the◄► buttons to adjust the Hue, Saturation, and Gain.

Select to enter the White Color Manager.
Press the ◄► buttons to adjust the Red, Green, and Blue.

– 24 –

DLP Projector – User’s Manual

Computer Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Com­puter menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◄► to

change values for settings.

ITEM DESCRIPTION

Horizontal Position Press the cursor ◄► button to adjust the display position to left or right.

Vertical Position Press the cursor ◄► button to adjust the display position to up or down.

Frequency Press the cursor ◄► button to adjust the A/D sampling clock.

Tracking Press the cursor ◄► button to adjust the A/D sampling dot.

Auto Image Press (Enter) / ► to automatically adjustment for phase, tracking, size and position.

– 25 –

DLP Projector—User’s Manual

Video/Audio Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the
Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu.

Press ◄► to change values for settings.

ITEM DESCRIPTION

Video AGC Press the ◄► buttons to enable or disable the Automatic Gain Control for video source.

Video Saturation Press the ◄► buttons to adjust the video saturation.

Video Tint Press the ◄► buttons to adjust the video tint/hue.

Film Mode Press the ◄► buttons to select a different film mode.

Video Overscan Press the ◄► buttons to enable or disable video over scan.

Closed Captioning Press the ◄► buttons to enable or disable Closed Captioning

Audio Press (Enter) / ► to enter the Audio menu. See Audio on page 27.

Reset Press (Enter) / ► to reset all settings to default values.

Note:

Video jagging may occur when playing interlace video. To overcome this issue, open the
Video / Audio menu and adjust the Film Mode feature.

– 26 –

Audio

(Enter) / ► to enter the Audio sub menu. Press

ITEM DESCRIPTION

DLP Projector – User’s Manual

Volume Press the ◄► buttons to adjust the audio volume.

Mute Press the ◄► buttons to turn on or off the speaker.

– 27 –

DLP Projector—User’s Manual

Installation I Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Installa­tion I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press

◄► to change values for settings.

ITEM DESCRIPTION

Language Press the cursor ◄► button to select a different localization Menu.

Blank Screen Press the cursor ◄► button to select different color to blank the screen.

Projection Press the cursor ◄► button to choose from four projection methods:

Aspect Ratio Press the cursor ◄► button to adjust the video aspect ratio.

Keystone Press the cursor ◄► button to adjust the display keystone.

Digital Zoom Press the cursor ◄► button to adjust the Digital Zoom menu.

Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced on page 29.

Reset

Press
(expect Language and Security Lock).

(Enter) / ► to reset all settings to default values

– 28 –

Advanced

Press (Enter) / ► to enter the Advanced sub menu.

ITEM DESCRIPTION

DLP Projector – User’s Manual

Security Lock Press the cursor ◄► button to enable or disable security lock function.

Keypad Lock Press the cursor ◄► button to enable or disable keypad lock function.

Wall Color Press the cursor ◄► button to select different wall color setting.

Presentation Timer Press (Enter) / ► to enter the Presentation menu. See Presentation Timer on page 30.

– 29 –

DLP Projector—User’s Manual

Presentation Timer

(Enter) / ► to enter the Presentation Timer sub menu. Press

ITEM DESCRIPTION

Timer Press the cursor ◄► button to enable or disable presentation timer function.

Timer Period Press the cursor ◄► button to adjust the display timer period.

Timer Reset Press (Enter) / ► to reset presentation timer counter.

– 30 –

DLP Projector – User’s Manual

Installation II Menu

Press the Menu button to open the OSD menu. Press the cursor ◄► button to move to the Installa­tion II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu.

ITEM DESCRIPTION

Auto Source Press the cursor ◄► button to enable or disable automatic source detection.

Auto Power Off
(min.)

Auto Power On Press the cursor ◄► button to enable or disable automatic power On when AC power is supplied.

Fan Speed

Lamp Mode

Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 32.

Factory Reset Press (Enter) / ► to reset all items to factory preset values.

Status Press (Enter) / ► to enter the Status menu. See page 35 for more information on Status.

Press the cursor ◄► button to enable or disable automatic shutdown of lamp when no signal.

Press the cursor ◄► button to toggle between Normal and High fan speeds.
Note: We recommend selecting high speed in high temperatures, high humidity, or high
altitude areas.

Press the cursor ◄► button to select the lamp mode for higher brightness or lower brightness
to save lamp life.

– 31 –

DLP Projector—User’s Manual

Advanced Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu.
Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and

down in the Advanced menu. Press ◄► to change values for setting.

ITEM DESCRIPTION

OSD Menu Setting

Peripheral Test

Lamp Hour Reset

Low Power Mode Press ◄► to turn Low Power Mode on or off.

Press Enter / ► to enter the OSD setting menu. See page

Menu Setting

Press Enter/ ► to enter the Peripheral Test menu. See page
Peripheral Test.

After replacing the lamp, this item should be reset. See page

Hour Reset

.

.

33 for more information on OSD

33 for more information on

34 for more information on Lamp

– 32 –

OSD Menu Setting

ITEM DESCRIPTION

DLP Projector – User’s Manual

Menu Position Press ◄► button to select different OSD location.

Translucent Menu Press ◄► button to select OSD background translucent level.

Menu Display Press ◄► button to select OSD timeout delay.

Peripheral Test

ITEM DESCRIPTION

Remote Control Test Press (Enter) / ► to test the IR remote controller for diagnostic.

USB Test Press (Enter) / ► to test the USB connection with connected PC.

Button Test Press (Enter) / ► to test the button on keypad.

Color Test Press (Enter) / ► to select different colors on screen.

Sound Test Press (Enter) / ► to test sound output.

– 33 –

DLP Projector—User’s Manual

Lamp Hour Reset

Please refer to Resetting the Lamp on page 39 to reset the lamp hour counter.

– 34 –

DLP Projector – User’s Manual

Factory Reset

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory
Reset sub menu and press

(expect Language and Security Lock).

(Enter) / ► to reset all the menu items to the factory default values

Status

Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the
Installation II sub menu and press

ITEM DESCRIPTION

Active Source Display the activated source.

(Enter) / ► to enter the Status sub menu.

Video Information Displays resolution/video information for RGB source and color standard for Video source.

Lamp Hours Lamp hour used information is displayed. ECO and Normal counter are separated.

– 35 –

DLP Projector—User’s Manual

M

AINTENANCE AND SECURITY

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.

Important:

a. The projection lamp used in this product contains a small amount of mercury

b. Do not dispose this product with general household waste.

c. Disposal of this product must be carried out in accordance with the regulations of your local

authority.

Warning:

Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to
do so could result in a severe burn.

Loosen the two captive

1.

screws on the lamp
compartment cover (A).

Remove the lamp com-

2.

partment cover (B).

– 36 –

Remove the two screws from

3.

the lamp module (A).

Lift the module handle up (B).

4.

DLP Projector – User’s Manual

Pull firmly on the module han-

5.

dle to remove the lamp
module.

– 37 –

DLP Projector—User’s Manual

Reverse steps 1 to 5 to install

6.

the new lamp module.
While installing, align the
lamp module with the connec­tor and ensure it is level to
avoid damage.

Note: The lamp module must
sit securely in place and the
lamp connector must be con­nected properly before
tightening the screws.

– 38 –

DLP Projector – User’s Manual

Resetting the Lamp

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

Press the MENU button to open the

1.

OSD menu.

Press the cursor ◄► button to move

2.

to the Installation II menu. Press the
cursor button to move down to
Advanced.

Press the cursor ▼▲ button to move

3.

down to Lamp Hour Reset.

Press the cursor ► or Enter button.

4.

A message screen appears.

Press ▼▲◄► buttons to reset the

5.

lamp hour.

Press the MENU button to get back

6.

to Installation II.

– 39 –

DLP Projector—User’s Manual

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so

could result in a severe burn.

2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.

3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.

4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the pro­jector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe

the case.

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

– 40 –

DLP Projector – User’s Manual

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

The security lock corresponds to Kensington’s MicroSaver Security System. If you have any com­ment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: [phone],

http://www.Kensington.com.

– 41 –

DLP Projector—User’s Manual

T

ROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose con­nection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.

• Ensure the projector is turned on.

• Ensure all connections are securely attached.

• Ensure the attached device is turned on.

• Ensure a connected PC is not in suspending mode.

• Ensure a connected notebook computer is configured for an external display. (This is usu-

ally done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when call­ing for technical support or for passing on to service personnel.

– 42 –

DLP Projector – User’s Manual

LED Error Messages

ERROR CODE MESSAGES Power LED Blink Over Temp LED Ready LED Blink

Over temperature 0 ON 0

Thermal break status error 4 0 0

Lamp error 5 0 0

Fan1 error (Power Fan) 6 0 1

Fan2 error (Lamp Fan) 6 0 2

Fan3 error (Blower Fan) 6 0 3

Lamp door open 7 0 0

DMD error 8 0 0

Color wheel error 9 0 0

In the event of an error, please disconnect the AC power cord and wait for one (1) minute before re­starting the projector. If the Power or Ready LEDs are still blinking or the Over Temp LED is lit,
contact your service center.

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control or projector.

3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control or Quick Menu on the projector to correct

the problem.

Problem: The image is reversed

Check the Projection setting on the Installation I menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the de-

fault settings.

2. To ensure the problem is not caused by a connected PC’s video card, connect to another

computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Image menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.

– 43 –

DLP Projector—User’s Manual

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is green.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Ready LED

is on, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the batteries.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem: The information may be useful to service personnel. For servicing, return the
projector to the place you purchased it.

– 44 –

HDMITM Q & A

DLP Projector – User’s Manual

Q. What is the difference between a “Standard” HDMITM cable and a “High-Speed”

TM

HDMI

cable?

Recently, HDMITM Licensing, LLC announced that cables would be tested as Standard or
High-Speed cables.

TM

․Standard (or “category 1”) HDMI

cables have been tested to perform at speeds of 75Mhz

or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.

․High Speed (or “category 2”) HDMI

340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an

TM

HDMI

cable and can successfully handle 1080p signals including those at increased color

TM

cables have been tested to perform at speeds of

depths and/or increased refresh rates from the Source. High-Speed cables are also able to
accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of
2560 x 1600).

Q. How do I run HDMITM cables longer than 10 meters?

There are many HDMITM Adopters working on HDMITM solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.

Q. How can I tell if a cable is an HDMITM certified cable?

All HDMITM products are required to be certified by the manufacturer as part of the HDMITM
Compliance Test Specification. However, there may be instances where cables bearing the

TM

HDMI
investigates these instances to ensure that the HDMI

logo are available but have not been properly tested. HDMITM Licensing, LLC actively

TM

trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.

For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49

– 45 –

DLP Projector—User’s Manual

Specifications

S

PECIFICATIONS

Model

Display type

Resolution

Projection distance

Projection screen size

Projection lens

Zoom ratio

Vertical keystone
correction

Projection methods

Data compatibility

SDTV/EDTV/ HDTV

Video compatibility

H-Sync

V-Sync

Safety certification

Operation temperature

D330MX D330WX

TI DMD 0.55” XGA Type X, TI DMD 0.65” WXGA-800

XGA 1024x768 Native WXGA 1280x800 Native

1.5 meters ~ 10 meters

34" ~ 300" 40" ~ 310"

Manual focus / Manual zoom

1.15x

+/- 15 degrees

Front/Rear/Front Ceiling/Rear Ceiling

VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Mac

480i, 576i, 480p, 576p, 720p, 1080i

NTSC/NTSC 4.43, PAL (B/G/H/I/M/N 60), SECAM

15, 31 - 90 KHz

43 - 85 Hz

FCC-B, UL, cUL, CB, CE, PCT, CCC

5° ~ 35°C

Dimensions

AC Input

Power consumption

Stand By

Lamp

Audio speaker

Input Terminals

Control Terminals

Security

220 mm (W) x 71 mm (H) x 178 mm (D)

AC Universal 100-240, Typical @ 110 VAC (100-240)/±10%

Typical 280W (standard mode); Typical 230W (ECO mode)

< 1 watts

Normal Mode: 220W; Eco Mode: 176W

1W / 4 ohm mono speaker

RGB

Composite video (RCA X 1)

HDMITM

S-Video (Mini-DIN)

PC audio-jack

USB (type B)

Kensington lock

– 46 –

Projection Distance V.S. Projection Size

Screen width

A
B

DLP Projector – User’s Manual

Image Hight

Keystone Correction Angel

A

Projection Distance

Projection Distance and Size Table

D330MX TELE WIDE

Distance (m) 1.56 4.47 7.15 9.83 1.54 3.86 7.72 11.58

Diagonal (inches) 35 100 160 220 40 100 200 300

Keystone (degree) 12.29 12.29 12.29 12.29 14.16 14.16 14.16 14.16

Image Height (mm) 533.4 1524.0 2438.4 3352.8 609.6 1524.0 3048.0 4572.0

Image Width (mm) 711.2 2032.0 3251.2 4470.4 812.8 2032.0 4064.0 6069.0

A (mm) 74 212 339 466 85 212 424 636

D330WX TELE WIDE

Distance (m)

Diagonal (inches)

1.52 4.55 7.58 9.86 1.65 3.30 6.59 9.89

40 120 200 260 50 100 200 300

Keystone (degree)

Image Height (mm)

Image Width (mm)

A (mm)

12.29 12.29 12.29 12.29 14.07 14.07 14.07 14.07

538.5 1615.4 2692.4 3500.1 673.1 1346.2 2692.4 4038.6

861.6 2584.7 4307.8 5600.2 1077.0 2153.9 4307.8 6461.7

61 183 306 397 76 153 306 458

– 47 –

DLP Projector—User’s Manual

Timing Mode Table

The projector can display several resolutions. The following table outlines the resolutions that can be
displayed by the projector.

Signal Resolution Frequency

(KHZ)

NTSC

PAL

/

SECAM

--

--

640 x 350

640 x 350

15.734

15.625

31.5

37.9

720 x 350

31.5

640 x 400

640 x 400

720 x 400

720 x 400

640 x 480

640 x 480

31.5

37.9

31.5

37.9

31.5

37.9

640 x 480

640 x 480

800 x 600

800 x 600

VESA

800 x 600

800 x 600

800 x 600

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1280 x 1024

1280 x 1024

1280 x 1024

1280 x 768

1600 x1200

37.5

43.3

35.2

37.9

46.9

48.1

53.7

48.4

56.5

57.7

60.0

68.7

64.0

80.0

91.1

47.4

75.0

Refresh
Rate(HZ)

60.0

50.0

70.1

85.1

70

70.1

85.1

70

85

60

72.8

75

85

56.3

60.3

75

72.2

85.1

60

70.1

72

75

85

60

75

85

60

60

XGA WXGA

Video Digital Analog Video Digital Analog

Ο

Ο

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

– 48 –

Signal

Macboo k

相容性

Mac book Pro

(Intel) 相容性

Resolution

1280x1024

1280x1024

1280x1024

1280x1024

800x600

800x600

800x600

800x600

1024x768

1024x768

1024x768

1024x768

1280x720

1280x720

1280x720

1280x768

1280x768

1280x768

1280x800

800x600

800x600

800x600

800x600

1024x768

1024x768

1024x768

1024x768

1280x720

1280x720

1280x720

1280x768

1280x768

1280x768

1280x800

Frequency

(KHZ)

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Refresh
Rate (HZ)

60

72

75

85

60

70

75

85

60

75

85

60

75

85

60

60

75

60

72

75

85

60

70

75

85

60

75

85

60

75

85

60

60

75

DLP Projector – User’s Manual

XGA WXGA

Video Digital Analog Video Digital Analog

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

--

Ο

Ο

Ο

Ο

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

Ο

Ο

Ο

Ο

Ο

Ο

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

Ο

--

--

--

Ο

Ο

Ο

Ο

Ο

--

Ο

Ο

Ο

Ο

--

--

--

Ο

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

Ο

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

Ο

Ο

Ο

– 49 –

DLP Projector—User’s Manual

Signal

Power Mac G5

相容性

Power Mac G4

相容性

Resolution

1280x1024

1280x1024

1280x1024

1280x1024

1280x1024

1280x1024

800x600

800x600

800x600

800x600

800x600

1024x768

1024x768

1024x768

1024x768

1280x720

1280x720

1280x720

1280x768

1280x800

800x600

800x600

800x600

800x600

800x600

1024x768

1024x768

1024x768

1024x768

1280x720

1280x720

1280x720

1280x768

1280x800

Frequency

(KHZ)

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Refresh
Rate (HZ)

56

60

72

75

85

60

70

75

85

60

75

85

60

60

60

75

85

56

60

72

75

85

60

70

75

85

60

75

85

60

60

60

75

85

XGA WXGA

Video Digital Analog Video Digital Analog

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

--

--

--

Ο

Ο

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

--

--

Ο

Ο

Ο

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

--

Ο

--

Ο

Ο

Ο

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

--

--

Ο

--

Ο

Ο

Ο

--

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

Ο

--

– 50 –

DLP Projector – User’s Manual

Signal Resolution Frequency

(KHZ)

1920 x 1080

33.8

HDTV

1920 x 1080

1280 x 720

SDTV

720 x 576

720 x 480

28.1

45.0

31.3

31.5

Refresh
Rate(HZ)

30.0

25.0

60.0

50.0

60.0

Video Digital Analog Video Digital Analog

Ο

Ο

Ο

Ο

Ο

○: Frequency supported

－: Frequency not supported

• The resolution of the panel for the XGA is 1024 x 768 and 1280 x 800 for the WXGA. Resolution
other than native resolution may display with uneven size of text or lines.

• HDTV timing: DVD player (main source), VG828 (secondary source).

XGA WXGA

--

--

--

--

--

--

--

--

--

--

Ο

Ο

Ο

Ο

Ο

--

--

--

--

--

--

--

--

--

--

– 51 –

DLP Projector—User’s Manual

Projector Dimensions

220 mm (8.6 inches)

178 mm (7 inches)

(2.7 inches)

71 mm

– 52 –

DLP Projector – User’s Manual

R

EGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pur­suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communica­tions. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC-B, UL, cUL, CB, CE, PCT, and CCC

– 53 –

2010 Vivitek Corporation. All rights reserved. All trademarks are the property of

their respective owners. All specifications are subject to change without prior notice.

201009
