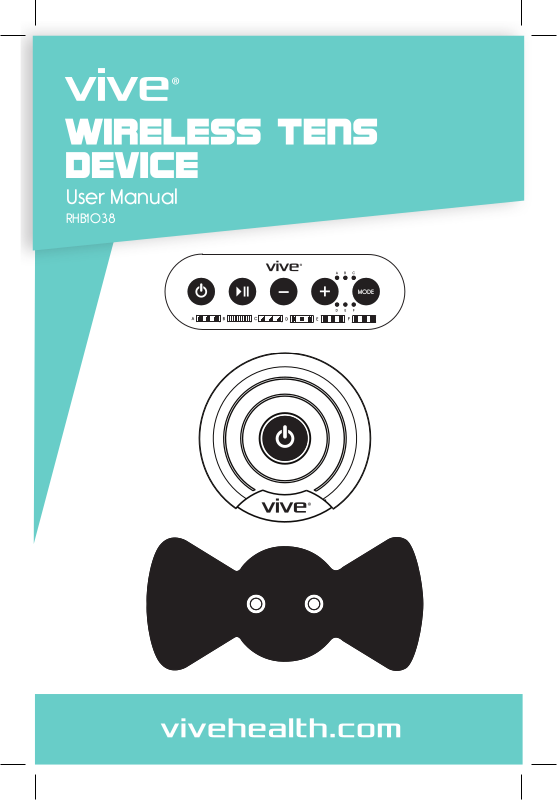

User Manual
RHB1038
WHAT’S INCLUDED
• 1 Wireless Tens Device
• 1 Remote Control
• 2 Gel Pads
• 1 CR2032 Lithium Battery
• 1 USB Charger
• 1 User Manual
WARNINGS
• Do not use this device if you have a cardiac
pacemaker, implanted defibrillator, or other
implanted metallic or electronic device.
• Do not use the device across or through
your chest.
• Do not use this device over your neck.
• Do not use the device over, or in proximity to,
these skin conditions: abnormal skin that is not
intact, untidy, unhealthy, open wounds,
rashes, swollen, red, infected, inflamed areas,
skin eruptions (e.g., phlebitis, thrombophlebitis,
varicose veins), or cancerous lesions.
• The device should be operated, transported
and stored at temperatures between 50° F and
104° F (10° C and 40° C), with relative humidity
between 30% - 85%.
• Do not use the device when in the bath or
shower, sleeping, driving, operating machinery
or any activity in which electrical stimulation can
put you at risk of injury.
• Using the device around electronic monitoring
equipment (e.g., cardiac monitors, ECG alarms)
may cause equipment malfunction.
• Do not use the device on children or let children
handle the device.
• Do not use this device if you are pregnant, or
suspect that you are pregnant, unless under the
direction of your physician.
• Do not apply the device across your head.
• Do not disassemble or modify the device.
• Do not use this device if you have suspect-
ed or been diagnosed with epilepsy or heart
disease, when suffering from a malignant tumor,
or having a high fever.
• Consult your physician before using the device.
• Stop using the device and consult with your
physician if you experience adverse reactions
from use of this device.
QUICK START GUIDE
Note:
The wireless device is suggested to be charged for
more than 3 hours before using the device. DO NOT
use the device when charging.
1. Prepare the treatment area by washing and
drying the skin thoroughly.
2. Insert a CR2032 battery into the remote control
by sliding off the lower back cover. The top of
the battery with the lettering should be visible
when inserted.
3. Remove gel pads from the package and snap
the pads onto the Wireless Tens Device.
4. DO NOT activate stimulation of the device prior
to applying the device to your body.
5. Remove the clear protective film from the gel
pad. DO NOT discard the protective film as it will
be reapplied to the gel pad for storage after
use. Be sure not to allow dirt to come in contact
with the gel pad as this may interfere with the
adhesion properties of the gel pad.
6. Place the gel pad onto your body. (See
warnings for areas to avoid) Make sure the gel
pad make good contact with the skin.
7. Press the button on the Wireless Tens device.
The blue light will begin blinking.
8. On the remote control, press the button. The
small “A” LED mode light will turn on. There are 6
modes in the unit. (See an explanation of each
mode on the next page.) Press MODE to change
the modes.
9. Press the INCREASE INTENSITY (+) button to
increase the stimulation to a comfortable level.
To decrease the stimulation intensity anytime
during treatment, press the DECREASE INTENSITY
(-) button. When the user switches the mode,
the intensity will automatically go down to the
minimum for safety reasons.
10. Treatment will automatically stop after 20
minutes. Treatment can be paused at any
time by pressing or stopped by pressing
the power button on the remote control or
Wireless Tens Device. DO NOT remove the device
until treatment has stopped.
Note:
Once the cycle is completed the Wireless Tens
Device and remote will turn off. If you required an
additional cycle first turn on the Wireless Tens Device
and then the remote.
11. When you are finished with the device, replace
the protective films on the pad for storage.
OPERATING MODES
A. Oscillating Pulse: Great for joint pain.
B. Continuous Rhythmic Pulse: Works on chronic
pain areas.
C. Rolling Massage Pulse: For reaching deep
seated pain.
D. Deep Alternating Massage Wave: Great for
large muscles.
E. Medium Rhythmic Wave: Relieve muscle cramps.
F. Light Rhythmic Wave: For sensitive areas and
small muscles.
TECHNICAL SPECIFICATIONS
• Intensity Levels: 20 levels
• Output Current: 40mA
• Power Voltage: 3.7V
• Pulse Frequency: 110Hz
• Pulse Width: 100μs
• Timer Control: 20 minutes
• Control Range: 10 meters
• Remote Control: One (1) CR2032 Lithium battery
(Internally Powered)
• Wireless Unit: DC 3.7V lithium battery
ACTIVATE YOUR GUARANTEE
You are protected by Vive Health’s industry leading
guarantees and customer service:
If you did not purchase through vivehealth.com,
please register at vivehealth.com/register to
validate your guarantee.
Product Code: RHB1038
service@vivehealth.com
1-800-487-3808
Monday - Friday 9am - 5pm EST
