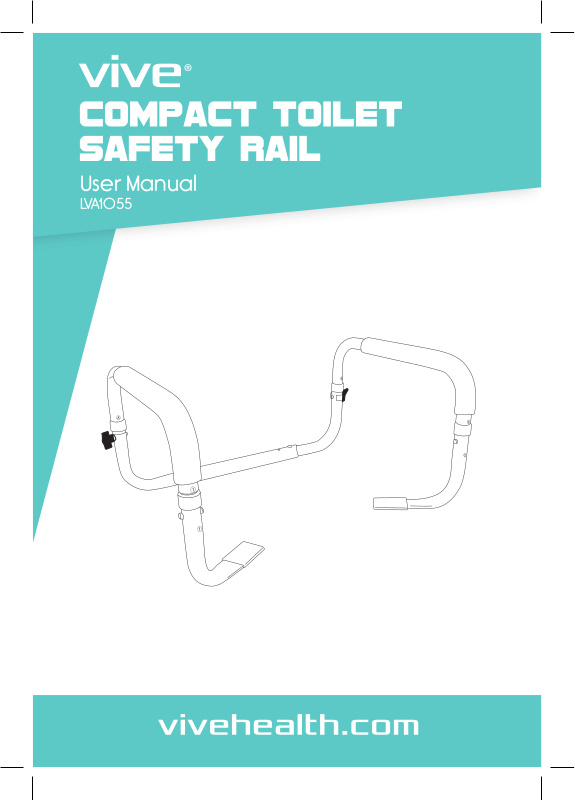

User Manual
LVA1055
PARTS LIST
Fig 2
A) 1x Rear Bracket
B) 2x Armrests
C) 2x Slide Assist Rails
D) 2x Locking Pins
E) Toilet Seat Rester
ASSEMBLY INSTRUCTIONS
1. Remove the toilet seat and lid and set them aside with the
fastening nuts and bolts.
2. Position the screw holes on the Bracket (A) over the holes on
the toilet, with the round side of the
bracket closer to the toilet tank.
3. Align the holes on the toilet seat
and toilet lid to the holes in the
Bracket (A) and the toilet. Fasten
them down with the same nuts and
bolts. See figure 1.
4. Attach the Armrests (B) to the Toilet Seat Resters (E).
5. Fasten Side Assist Rails (C) into the fastened Bracket (A) with
the tubes pointing upward.
6. Attach the tube ends of the Side Assist Rails (C) into the open
end of the Armrests (B) with the Toilet Seat Resters (E) pointed
in towards the toilet bowl.
7. Secure with the Locking Pins (D) through the open holes
where (B) and (C) meet.
Fig. 1
A
GUARANTEE
You are protected by Vive Health’s industry leading guarantees
and customer service:
LIFETIME GUARANTEE
If you did not purchase through vivehealth.com, please register
at vivehealth.com/register to validate your guarantee.
Product Code: LVA1055
