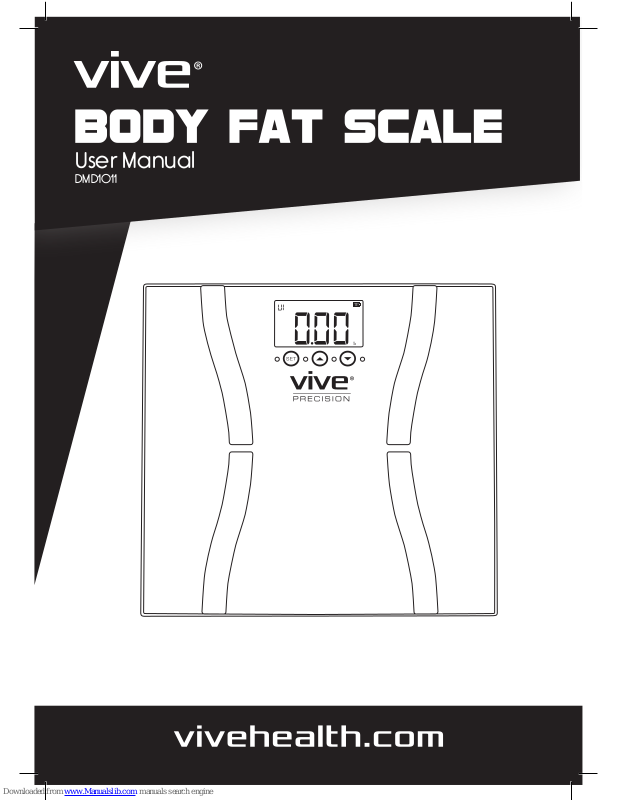

User Manual
DMD1011
WHAT’S INCLUDED
• 1x Body Fat Scale
• 2x CR2032 Lithium Batteries
• Two-Year Warranty
WARNING
• Please do not use this body fat scale if you are pregnant or have
a pacemaker.
• To ensure your safety as well as the service life of your scale, avoid
jumping onto the platform with wet feet as this may cause injury.
• Avoid storage in extreme temperatures, direct sunlight, dust, or salt air.
• Avoid locations of potentially shocking or dropping the scale.
• Avoid storage near chemicals.
• Out of Reach of Infants or small children.
• Make sure scale is on a hard flat surface. Carpets or rugs will affect
performance of the scale.
• Always start measurement in the same time slot and on the same scale
location on the same flat, hard surface to record accurate results.
• Avoid measurement after exercise, bathing, sauna, jacuzzi, dining
and drinking.
SPECIFICATIONS
• Dimension: Scale: 11.75” x 11.75” x .075”
• Net Weight: Approximate 3.5lbs
• Display: Digital LCD with Blue Backlight - 2.875”(L) x 1.5”(W)
• Measurement Unit: Pound / Kilogram / Stone
• Maximum Capacity: 400 lb / 180 kg / 28st
• Graduation: 0.1kg / 0.2lb/1lb
• Working Environment: Temperature: 5C-40C to 40F-104F Humidity: <90% RH
• Storage Environment: Temperature: -20C to 60C / -4F to 140F
• Power Source: 6V (Two CR2032 Batteries)
• Auto-ON: SENSE ON technology
• Auto-OFF:
The scale will turn off after about 10s if there is no operation.
SCREEN SPECIFICATIONS
• Overload Indication: Err
• Low Battery Indication: Lo
• Zero Indication: ----
• High Body Fat Indication: ErrH
• Low Body Fat Indication: ErrL
• Height Range: 100-240cm / 3’3” - 7’10”
• ( ) Age Range: 10 - 80 years old
• ( ) Number of Users: U1 - U8; 8 Users
• ( or ) Male (Normal) or Male Athlete (Exercises 3-4 times/week)
• ( or ) Female (Normal) or Female Athlete (Exercises 3-4 times/week)
• ( ) Body Mass Index Parameter
• ( ) Measuring Body Fat Range: 5% - 50%
• ( ) Measuring Muscle Mass Range: 10% - 80%
• ( ) Measuring Water Weight Range: 10% - 80%
• ( ) Measuring Bone Mass Range: 0.5kg - 8.0kg
SELECT MEASUREMENT UNIT
Press the UNIT button on the back of the scale to select measuring unit
(kg/lb/st). The default unit is pounds (lb).
Note: When using the scales for the rst time, or when changing their position or
location, they should be restarted twice and should be free of objects to ensure
accurate measurements. This is for calibrating the scale on a rm, at surface. If
you do not perform these measures, measurements may be incorrect.
INITIALIZING YOUR SCALE
You must enter user parameters in order to measure your body fat
percentage and other physical data. Now you can enter the
following settings.
st
st
User Position U1 - U8
Body Height 100 - 240cm / 3’3” - 7’10”
Age 10 - 80 Years
Gender Normal Male ( ) or Athletic Male ( ),
Normal Female ( ) or Athletic Female ( )
2. Press or to change the
user number (U1 - U8). Press for
confirmation.
4. Press or to change the
height. Press for confirmation.
1. Press to turn scale ON,
then again to enter settings.
3. Press or to choose Male
( ) or Female ( ) or Male Athlete
( ) or Female Athlete ( ).
Press for confirmation.
Feet Inches
5. Press or to change the
age. Press for confirmation.
6. When finished you will see the
following displayed. Scale is ready
for use.
START MEASURING
1. Place the scale on a hard at surface.
2. Stand bare foot on the scale, make sure to have contact with the 2 metal
electrodes on each foot.
3. Your weight will be displayed rst.
5. The measurements will be on display one by one, BMI, body fat, muscle mass,
water weight, bone mass, and weight. The results will be displayed twice
before shutting off.
6. At last, it will display the user information which can let the user conrm the
information again. After the display, the scale will turn off automatically.
Note: The scale has a step-on function. Step bare feet onto the scale.
Stand still with your weight distributed evenly on both legs. The scale will start
measuring your weight immediately and a short time after will display your
weight. When you step off the scale it will turn off after a few seconds.
USER DETECTION FEATURE
Your body fat scale includes a feature that detects which user you are. If
there are two pre-set users that have similar weights, the scale will prompt
you to select which user you are. This is important because an accurate BMI
calculation requires Gender, Age, and Height. If a different user is selected,
the results of the BMI calculation may be skewed.
To select the correct user when the user detection feature is triggered, simply
press the Up or Down arrow that corresponds with your preset user number.
4. Then, 4 “0” disappear one by
one from left to right.
REPLACING BATTERIES
1. Simply remove battery door on the back and remove old batteries.
2. Replace with 2x CR2032 Lithium Batteries.
MAINTENANCE
1. Use a dry soft cloth to wipe off dust, then damp the cloth with either water or
mild detergent. Do not submerge or immerse scale in water.
2. Wipe clean with a dry, soft cloth.
EVALUATION OF THE RESULTS
Body Fat Analysis (Unit %)
Age
10 - 39
<21
<23
<24
21-33
23-34
24-36
33-39
34-40
36-42
>39
>40
>42
<8
<11
<13
8-20
11-22
13-25
20-25
22-28
25-30
>25
>28
>30
40 - 59
60 - 80
Female Male
Low LowNormal NormalHigh HighVery High Very High
Body Mass Index
BMI <18.5
Low Normal High Very High
18.5-25 25-30 >30
Muscle Mass Analysis (Unit %)
Gender
Normal
Female
>34%
Male
>40%
Battery Door
2x CR2032 Lithium Batteries
Water Weight Analysis (Unit %)
Age
10 - 15
<57 <58
<47 <53
<42 <47
<37 <42
57-67 58-72
47-57 53-67
42-52 47-61
37-47 42-56
>67 >72
>57 >67
>52 >61
>47 >56
16 - 30
31 - 60
61 - 80
Female Male
Low LowNormal NormalHigh High
Bone Mass Analysis (Unit lb)
Bone Mass
Weight
Gender
4.3 5.9
<110 <143110-165 143-209
Female Male
>165 >209
5.3 7.36.5 8.1
service@vivehealth.com
1-800-487-3808
Monday - Friday 9am - 5pm EST
ACTIVATE YOUR GUARANTEE
You are protected by Vive Health’s industry leading guarantees and
customer service:
If you did not purchase through vivehealth.com, please register at
vivehealth.com/register to validate your guarantee.
Product Code: DMD1011
