Vitek VT-IPSD102H User Manual

VT-IPSD102H

Dual Streaming IP Server

with H.264 Compression

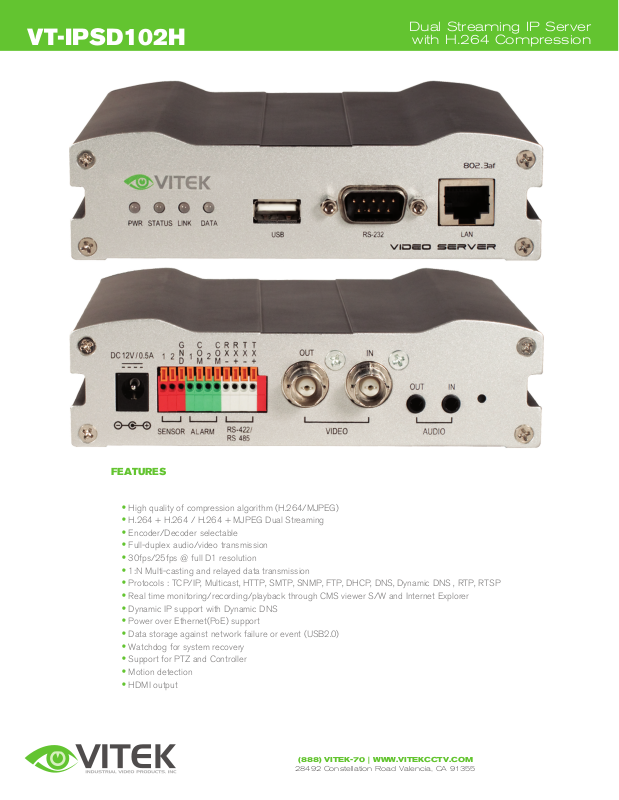

FEATURES

• High quality of compression algorithm (H.264/MJPEG)

• H.264 + H.264 / H.264 + MJPEG Dual Streaming

• Encoder/Decoder selectable

• Full-duplex audio/video transmission

• 30fps/25fps @ full D1 resolution

• 1:N Multi-casting and relayed data transmission

• Protocols : TCP/IP, Multicast, HTTP, SMTP, SNMP, FTP, DHCP, DNS, Dynamic DNS , RTP, RTSP

• Real time monitoring/recording/playback through CMS viewer S/W and Internet Explorer

• Dynamic IP support with Dynamic DNS

• Power over Ethernet(PoE) support

• Data storage against network failure or event (USB2.0)

• Watchdog for system recovery

• Support for PTZ and Controller

• Motion detection

• HDMI output

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VT-IPSD102H

Detailed Specifications

Dual Streaming IP Server

with H.264 Compression

System Mode

Network Interface

Network Protocol

Standards

Data Rate

Resolution

Max Frame Rate

Frame Rate Range

Input

Output 1

Output2

Motion Detection

Standards

Sample Rate

Data Rate

Encoder, Decoder

Ethernet 10/100Base-T (RJ-45)

TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP

Main Stream: H.264

Secondary Stream: H.264, MJPEG

32Kbps ~ 8Mbps

NTSC : 720x480, 720x240, 352x480, 352x240

PAL : 720x576, 720x288, 352x576, 352x288

NTSC : Max 30fps / PAL : Max 25fps

NTSC : 0.2 ~ 30fps / PAL : 0.2 ~ 25fps

1 x Composite (1 Vpp 75 Ohm, BNC)

1 x HDMI (Type-A), HDMI TX

Sensitivity Adjustment

G.711

8KHz

64Kbps

Input

Output

Port1

Port2

Data Rate

Sensor Input

Alarm Output

Beep

Reset Button

System Status

Recording/Backup

CMS/Web Viewer

Dimension

Weight

Power Source

Power Consumption

Operating Temp.

1 x Line-In (Mini-Stereo, Single Mono)

1 x Line-Out (Mini-Stereo, Single Mono)

1 x RS-232 (Terminal Block)

1 x RS-422/485 (Terminal Block)

2,400bps ~ 115,200bps

2 x NO Contact (Terminal Block)

1 x Buzzer 88dB Min

1 x Factory Reset Button

LED

1 x USB 2.0 Port

Live Monitoring, Recording, Search & Playback, Backup

134(W) X 125(D) X 35(H)mm

472g

DC 12V/0.6A, PoE(Power over Ethernet): 802.3af

Max 7.2W

-10°C ~ 50°C / 14°F ~ 122°Fs
