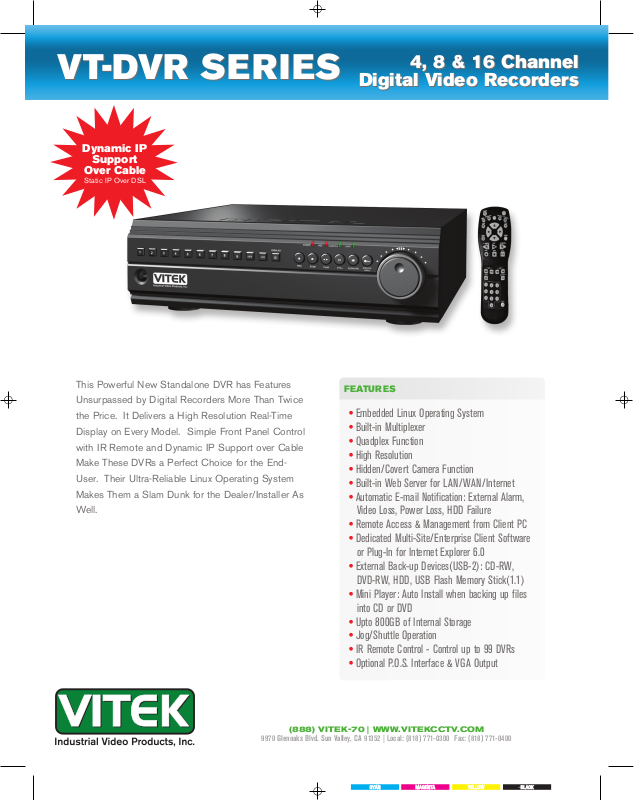

VT-DVR SERIES

Dynamic IP

Support

Over Cable

Static IP Over DSL

4, 8 & 16 Channel

Digital Video Recorders

This Powerful New Standalone DVR has Features

Unsurpassed by Digital Recorders More Than Twice

the Price. It Delivers a High Resolution Real-Time

Display on Every Model. Simple Front Panel Control

with IR Remote and Dynamic IP Support over Cable

Make These DVRs a Perfect Choice for the End-

User. Their Ultra-Reliable Linux Operating System

Makes Them a Slam Dunk for the Dealer/Installer As

Well.

FEATURES

• Embedded Linux Operating System

• Built-in Multiplexer

• Quadplex Function

• High Resolution

• Hidden/Covert Camera Function

• Built-in Web Server for LAN/WAN/Internet

• Automatic E-mail Notification: External Alarm,

Video Loss, Power Loss, HDD Failure

• Remote Access & Management from Client PC

• Dedicated Multi-Site/Enterprise Client Software

or Plug-In for Internet Explorer 6.0

• External Back-up Devices(USB-2): CD-RW,

DVD-RW, HDD, USB Flash Memory Stick(1.1)

• Mini Player: Auto Install when backing up files

into CD or DVD

• Upto 800GB of Internal Storage

• Jog/Shuttle Operation

• IR Remote Control - Control up to 99 DVRs

• Optional P.O.S. Interface & VGA Output

(888) VITEK-70 | WWW.VITEKCCTV.COM

9970 Glenoaks Blvd. Sun Valley, CA 91352 | Local: (818) 771-0300 Fax: (818) 771-0400

4, 8 & 16 Channel

VT-DVR SERIES

Digital Video Recorders

Detailed Specifications VT-DVR4000 VT-DVR8000 VT-DVR16000

Video Input Video Output Loopout Live Displays Playback Displays Compression Live Display Resolution Record & Playback Resolution Alarm In / Out Operating System System Control Live Display Speed Maximum Recording Speed Recording Speed Per Channel Audio Display Camera Title -8 characters Recording Modes Recording Adjustments Pre-Alarm & Post Alarm Recording Motion Detection Per Channel Search Modes Playback Modes Multi-tasking / Full Quadplex Watchdog Alarm Notification System Utility Back Up External Recording Devices Mini-Player for CD & DVD Interface HDD Network External Telephone Modem Support Remote Client Software Dynamic IP Support over Cable IR Remote Power Dimensions (W x H x D) Weight Options

1 Monitor, 1 S-Video

1, 4, PIP

1, 4

4/1

Key Buttons & Jog/Shuttle, IR Remote, Remote Client

120 fps

60 fps 15 fps

1 -ch.( Line In, Line Out, MIC Input )

Brightness, Contrast, Color Adjustments, Hidden/Covert Per Channel

8 Characters Per Channel

Manual, Schedule, Alarm, Motion

8 Levels of Compression / Record Frame Rate Adjustment

Pre-Alarm: 140 frames / Post-Alarm: 20 sec. ~ 240 sec.

9 Selectable Grids / 15 Sensitivity Levels

Time & Date, Camera, Alarm

Forward & Reverse: Pause, Frame by Frame, Normal Speed, 2X, 4X, 6X, 8X, 16X

Simultaneous Live Display, Record, Playback, Back-Up, Remote Transmission

Power Failure Recovery: Auto Reboot w/ Maintaining Previous Record Settings

Automatic E-mail : External Alarm, Video Loss, Power Loss, HDD Failure

2-Level Password / Auto Lock / Disk Format / Disk Check / Fan Lock Detection

Ethernet: UTP Cross Cable, Remote PC, External Recording Devices, VCR

USB-2: External CD-RW, DVD-RW, HDD USB-1.1: Flash Memory Stick

Installing dedicated software into PC is not required to playback files from CD or DVD

USB2.0, RS-232C, Ethernet

Up to 2 Internal HDDs -Max. 600GB

LAN, WAN, Internet, PSTN Line

Plug-In For Internet Explorer 6.0 or Dedicated Multi-Site/Enterprise Client Software

Dedicated Host ID per Unit. DVR will automatically self reconfigure everytime IP address changes

Control Up to 99 DVRs

100 or 230 VAC Switchable (50/60Hz)

14.19” x 3.94” x 13.4”

Optional P.O.S. Interface / Optional VGA Output

8 1, 4, 6, 8 1, 4, 6, 8

Wavelet 720 x 480 720 x 243

8/ 1

Embedded Linux

240 fps

60 fps

7.5 fps

RS -232C

13.23 lbs.

1, 4, 6, 8, 9, 13, 16 1, 4, 6, 8, 9, 13, 16

16 / 1

480 fps

60 fps

3.75 fps
