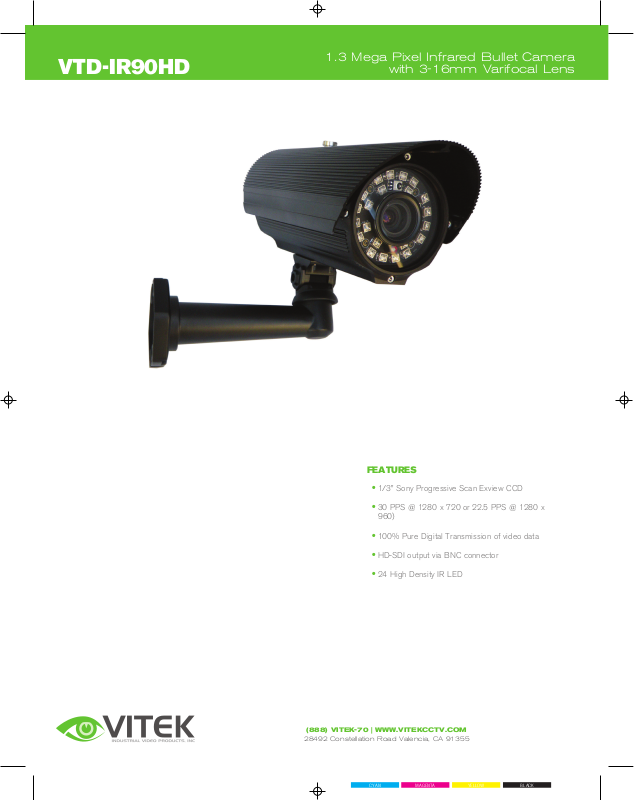

VTD-IR90HD
1.3 Mega Pixel Infrared Bullet Camera
with 3-16mm Varifocal Lens
FEATURES
• 1/3” Sony Progressive Scan Exview CCD
• 30 PPS @ 1280 x 720 or 22.5 PPS @ 1280 x
960)
• 100% Pure Digital Transmission of video data
• HD-SDI output via BNC connector
• 24 High Density IR LED
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
blackyellowmagentacyan
VTD-IR90HD
Detailed Specifications
1.3 Mega Pixel Infrared Bullet Camera
with 3-16mm Varifocal Lens
Image Sensor
Total Pixels
Effective Pixels
Scanning System
Sync System
S/N Ratio
Min, Illumination
Video Mode
AGC
DSS
MIRIS
BLC
Lens
Video Out 1
Video Out 2
IR LED
Operation Temp
1/3” progressive scan CCD, 1.3 Mega pixel
1348(H) x 976(V) 1.32 Mega pixel
1296(H) x 966(V) 1.25 Mega pixel
Progressive Scan
Internal
More than 50dB
1.0 lux (F1.2, 30IRE, AGC On, 0.1x DSS On)
Select Switch for 1280x960, 22.5fps / 1280x720, 30fps in NTSC mode
OSD
OSD
OSD
OSD
F=3~16mm Auto IRIS Varifocal Lens
HD-SDI (BNC Type)
Composite 1V p-p (Dual Output)
24 High Density @ 850nm
14°F -58°F(-10°C ~ 50°C)
Storage Temp
Power Spec
-4°F -94°F (-20°C ~ 70°C)
12V DC ±2V / 1A
