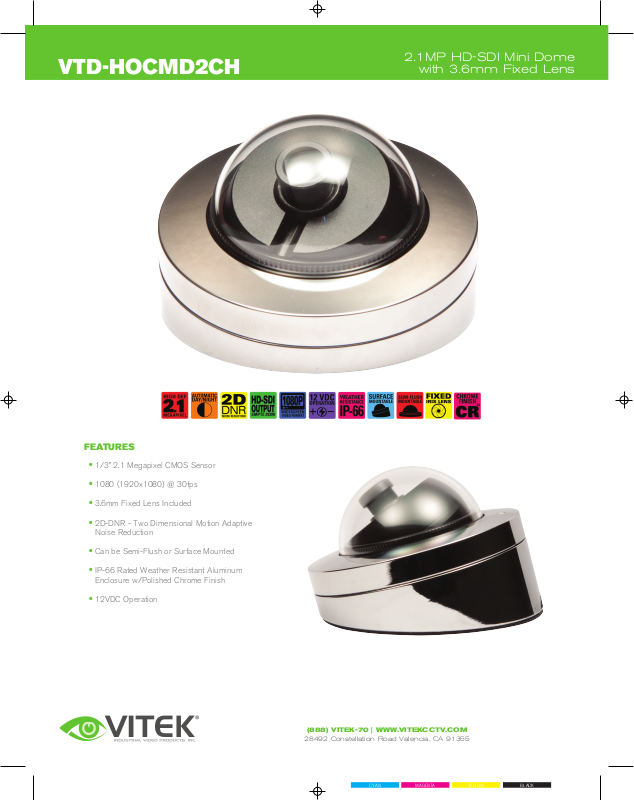

Vitek VTD-HOCMD2CH Specsheet

VTD-HOCMD2CH

2.1MP HD-SDI Mini Dome
with 3.6mm Fixed Lens

FEATURES

• 1/3” 2.1 Megapixel CMOS Sensor

• 1080 (1920x1080) @ 30fps

• 3.6mm Fixed Lens Included

• 2D-DNR - Two Dimensional Motion Adaptive

Noise Reduction

• Can be Semi-Flush or Surface Mounted

• IP-66 Rated Weather Resistant Aluminum

Enclosure w/Polished Chrome Finish

• 12VDC Operation

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

blackyellowmagentacyan

VTD-HOCMD2CH

Detailed Specifications

2.1MP HD-SDI Mini Dome
with 3.6mm Fixed Lens

Image Device

Resolution

Effective Pixels

Minimum Illumination

Included Lens

Day/Night

Noise Reduction

Synchronization

S/N Ratio

Video Output

Electronic Iris

Construction

Water Resistance

Power Source

Power Consumption

Operating condition

Dimensions

1/3” 2.1 Megapixel CMOS

1920x1080p(1080p/30fps)

1944(H)x1092(V) (2,122,848 Pixels)

0.1LuX / F2.0

3.6mm Fixed Megapixel lens

Auto

2D-DNR

Internal

More than 50dB

VBS 1Vpp +/-10%, 75ohm

1/60 ~ 1/100,000sec

Aluminum Housing with Polished Chrome Finish

IP-66

12VDC

150mA

14F ~ 122F (-10C ~ +50C) / 95% RH Max

3.15” x 1.69”/2.47” (80mm x 42.8mm/62.8mm)

Weight

14.11 Oz. (400g)
