Vitek VTD-AR2812, VTD-AR2812V Specifications
BLACKYELLOWMAGENTACYAN
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355

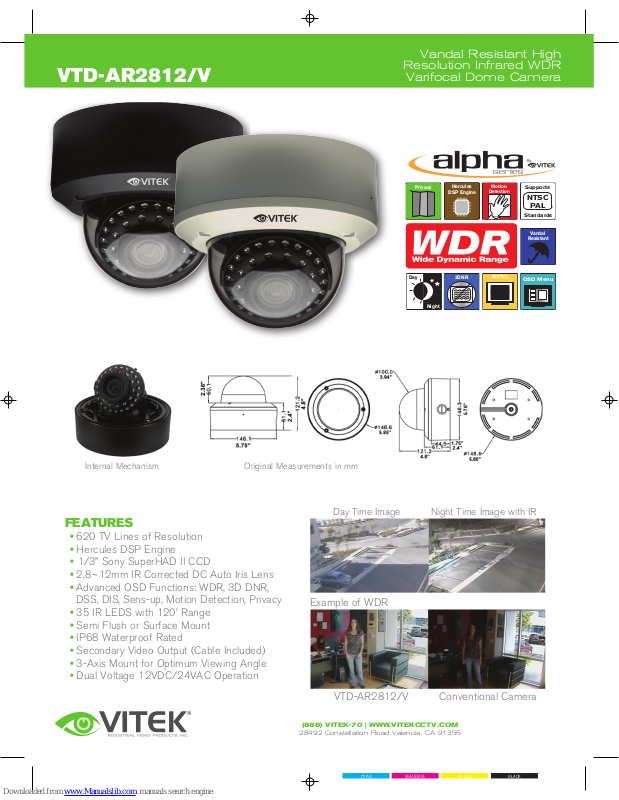

VTD-AR2 812/V
Vandal Resistant High
Resolution Infrared WDR
Varifocal Dome Camera
• 620 TV Lines of Resolution
• Hercules DSP Engine
• 1/3” Sony SuperHAD II CCD
• 2.8~12mm IR Corrected DC Auto Iris Lens
• Advanced OSD Functions: WDR, 3D DNR,
DSS, DIS, Sens-up, Motion Detection, Privacy
• 35 IR LEDS with 120’ Range
• Semi Flush or Surface Mount
• IP68 Waterproof Rated
• Secondary Video Output (Cable Included)
• 3-Axis Mount for Optimum Viewing Angle
• Dual Voltage 12VDC/24VAC Operation
FEATURES
Internal Mechanism
Example of WDR
Conventional Camera
VTD-AR2812/V
Privacy
3DNR
Day
Night
Hercules
DSP Engine
NTSC
PAL
Standards
Supports
620TVL
OSD Menu
Motion
Detection
Vandal
Resistant
Original Measurements in mm
Night Time Image with IRDay Time Image
BLACKYELLOWMAGENTACYAN
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
VTD-VS48B2
1/4” 4mm-8mm Varifocal Color
Dome Camera w/420 TVL
BLACKYELLOWMAGENTACYAN
VTD-AR2 812/V
Vandal Resistant High
Resolution Infrared WDR
Varifocal Dome Camera
Detailed Specifications
Resolution
Sensor
Total Pixels
Effective Pixels
Scanning System
S/N (Y Signal)
Frequency
Video Output
Min. Illumination
White Balance
Standard Lens
Electronic Shutter Speed
WDR (Long and Short Exposure)
O.S.D.
Backlight Compensation
AGC (Auto Gain Control)
3DDNR (3D Digital Noise Reduction)
Day & Night
IP Rating
Privacy
Motion Detection
Image Conversion
DIS (Digital Image Stabilizer)
LSC (Lens Shading Compensation)
Digital Zoom
Sharpness
Operating Temperature/Humidity
Storage Temperature/Humidity
Power
Dimensions (Dia. X H)
IR LED
620 TV Lines
1/3 Inch Sony SuperHAD II CCD
811(H) x 508(V) 410K pixels 795(H) X 595(V) 470K Pixels
768(H) x 494(V) 380K pixels 752(H) X 582(V) 440K Pixels
2:1 Interlace
More than 52 dB (AGC Off)
Horizontal: 15.734KHz / Vertical: 59.94Hz Horizontal: 15.625KHz / Vertical: 50.00Hz
CVBS: 1.0Vp-p / 75ohm
0 Lux at IR On
ATW / AWC / PUSH / MANUAL Adjustable
2.8-12mm IR Corrected DC Auto Iris Lens
AUTO / MANUAL (1/60sec ~ 1/100,000sec)
ON, OFF Adjustable
Built-in
BLC (LOW, MIDDLE, HIGH, OFF Selectable) / HLM (Adjustable)
LOW, MIDDLE, HIGH, OFF Selectable
LOW, MIDDLE, HIGH, OFF
AUTO (Day <--> Night time Change), CDS, COLOR, B/W
IP68
OFF / ON (6 Zone)
OFF / ON (240 Zone)
FREEZE / V-FLIP / H-FLIP / ROTATE / NEGA: All ON/OFF Adjustable
ON / OFF
ON / OFF
ON (X1 ~ 10) / OFF
ADJUSTABLE
14’F ~ 122’F (-10’C ~ 50’C) / 30% ~ 80% RH
4’F ~ 140’F (-20’C ~ 60’C) / 20% ~ 90% RH
AC24V / DC12V DualPower
5.85” X 4.22” (148.48mm X 107.13mm)
35 840nm LEDs
NTSC PAL
Hercules
DSP Engine
OSD Menu
Privacy
3DNR
NTSC
PAL
Standards
Supports
Day
Night
Motion
Detection
620TVL
Vandal
Resistant
