Vitek VTD-A4F, VTD-A4V Specifications
BLACKYELLOWMAGENTACYAN
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355

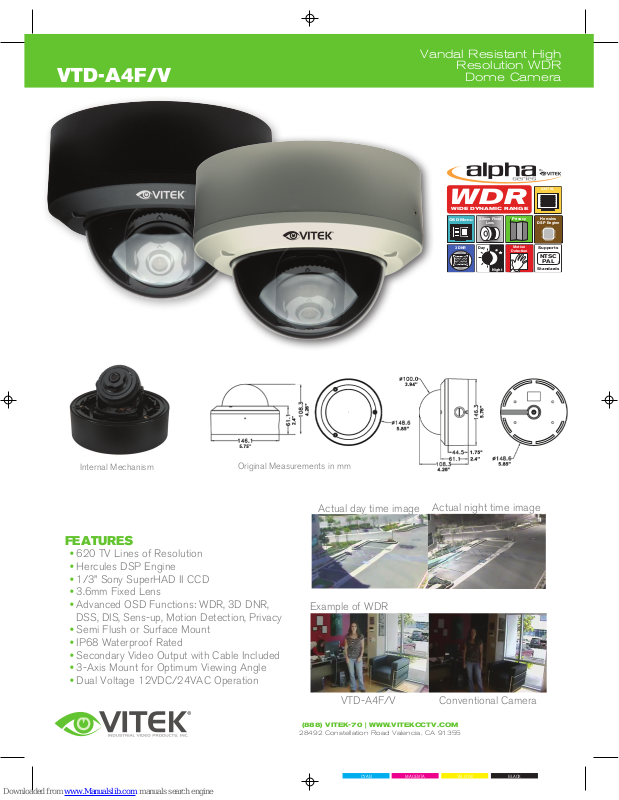

VTD-A4F /V
Vandal Resistant High
Resolution WDR
Dome Camera
• 620 TV Lines of Resolution
• Hercules DSP Engine
• 1/3” Sony SuperHAD II CCD
• 3.6mm Fixed Lens
• Advanced OSD Functions: WDR, 3D DNR,
DSS, DIS, Sens-up, Motion Detection, Privacy
• Semi Flush or Surface Mount
• IP68 Waterproof Rated
• Secondary Video Output with Cable Included
• 3-Axis Mount for Optimum Viewing Angle
• Dual Voltage 12VDC/24VAC Operation
FEATURES
Internal Mechanism
Example of WDR
Conventional Camera
VTD-A4F/V
Original Measurements in mm
Actual night time image
Actual day time image
WDR
WIDE DYNAMIC RANGE
620TVL
OSD Menu
3.6mm Fixed
Lens
Privacy
Hercules
DSP Engine
3DNR
Day
Night
Motion
Detection
NTSC
PAL
Standards
Supports
BLACKYELLOWMAGENTACYAN
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
VTD-VS48B2
1/4” 4mm-8mm Varifocal Color
Dome Camera w/420 TVL
BLACKYELLOWMAGENTACYAN
VTD-A4F /V
Vandal Resistant High
Resolution WDR
Dome Camera
Detailed Specifications
Resolution
Sensor
Total Pixels
Effective Pixels
Scanning System
S/N (Y Signal)
Frequency
Video Output
Min. Illumination
White Balance
Standard Lens
Electronic Shutter Speed
WDR (Long and Short Exposure)
O.S.D.
Backlight Compensation
AGC (Auto Gain Control)
3DDNR (3D Digital Noise Reduction)
Day & Night
IP Rating
Privacy
Motion Detection
Image Conversion
DIS (Digital Image Stabilizer)
LSC (Lens Shading Compensation)
Digital Zoom
Sharpness
Operating Temperature/Humidity
Storage Temperature/Humidity
Power
Dimensions (Dia. X H)
620 TV Lines
1/3 Inch Sony SuperHAD II CCD
811(H) x 508(V) 410K pixels 795(H) X 595(V) 470K Pixels
768(H) x 494(V) 380K pixels 752(H) X 582(V) 440K Pixels
2:1 Interlace
More than 52 dB (AGC Off)
Horizontal: 15.734KHz / Vertical: 59.94Hz
CVBS: 1.0Vp-p / 75ohm
0.1 Lux at F1.2 (Color) / 0.0001Lux (Sense up x256)
ATW / AWC / PUSH / MANUAL Adjustable
3.6mm Fixed Lens
AUTO / MANUAL (1/60sec ~ 1/100,000sec) AUTO / MANUAL (1/50sec ~ 1/100,000sec)
ON, OFF Adjustable
Built-in
BLC (LOW, MIDDLE, HIGH, OFF Selectable) / HLM (Adjustable)
LOW, MIDDLE, HIGH, OFF Selectable
LOW, MIDDLE, HIGH, OFF
AUTO (Day <--> Night time Change), CDS, COLOR, B/W
IP68
OFF / ON (6 Zone)
OFF / ON (240 Zone)
FREEZE / V-FLIP / H-FLIP / ROTATE / NEGA: All ON/OFF Adjustable
ON / OFF
ON / OFF
ON (X1 ~ 10) / OFF
ADJUSTABLE
14’F ~ 122’F (-10’C ~ 50’C) / 30% ~ 80% RH
4’F ~ 140’F (-20’C ~ 60’C) / 20% ~ 90% RH
AC24V / DC12V DualPower
5.85” X 4.22” (148.48mm X 107.13mm)
NTSC PAL
Hercules
DSP Engine
OSD Menu
Privacy
3.6mm Fixed
Lens
3DNR
NTSC
PAL
Standards
Supports
Day
Night
Motion
Detection
620TVL
