Vitek VTD-A4F/IWM, VTD-A2812/IWM, VTD-A2812/IBM, VTD-A4F/IBM, VTD-AR2812/IWM User Manual
...
black
VITEK
Alpha Mega Series
Indoor Dome
Cameras
• 1000 TV Lines of Resolution (1.39 MegaPixel)
• 1/2.9” Sony® CMOS Sensor
• Highly Advanced EN773E Digital Signal
Processor
• 3.6mm Fixed & 2.8-12mm Varifocal Lens
Options
• Available with 35 IR LEDs (120’ Range)
• Advanced OSD Functions: WDR, 3D DNR, DSS,
DIS, Sens-up, Motion Detection, Privacy
• Secondary Video Output (Cable Included)
• 3-Axis Mount for Optimum Viewing Angle
• 12VDC/24VAC Dual Voltage Operation
Table of ConTenTs
BOX CONTENTS / MOUNTING ACCESSORIES 2
AVAILABLE MODELS 3
VTD-A4F/IM INSTALLATION 4
VTD-A2812/IM INSTALLATION 5
VTD-AR2812/IM INSTALLATION 6
INSTALLATION TIPS 7

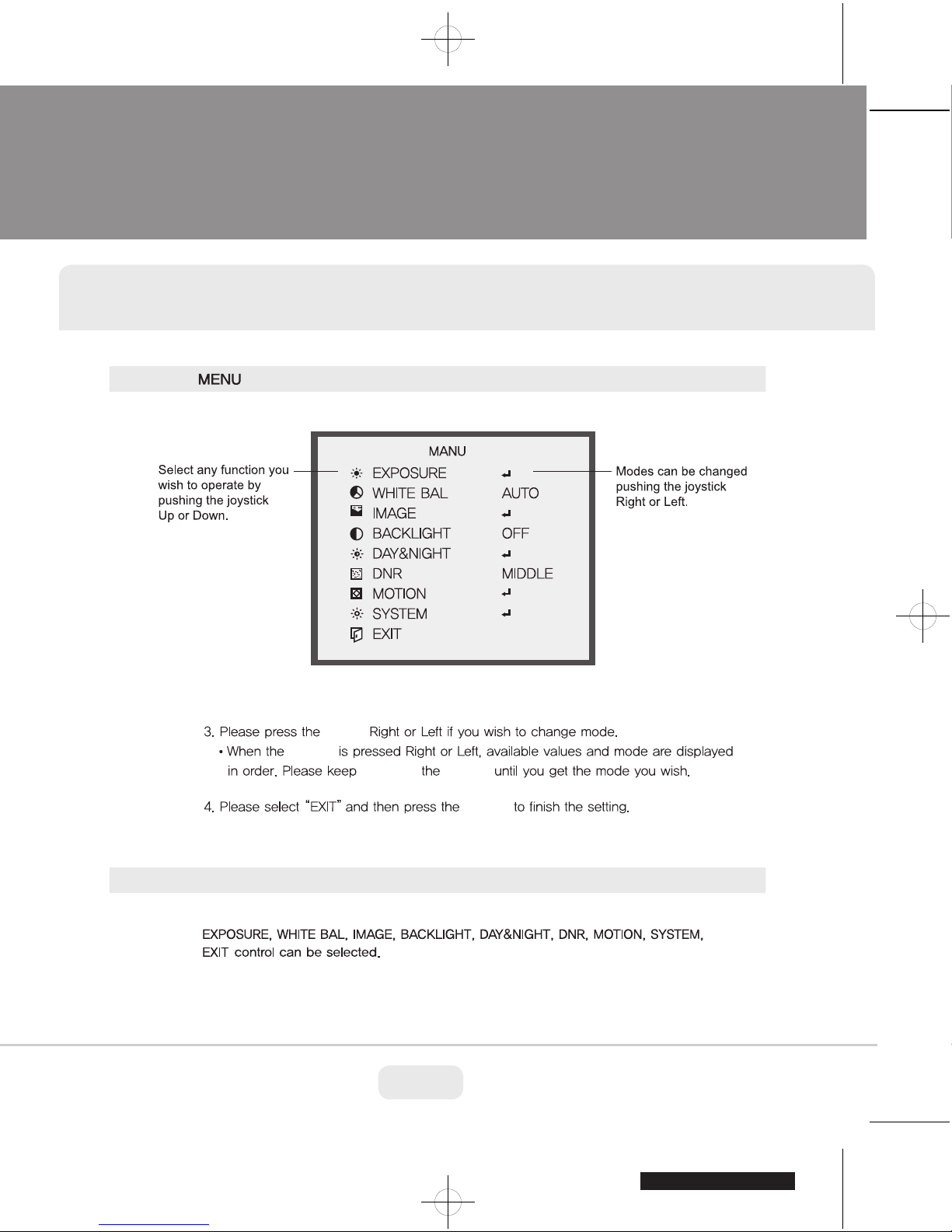

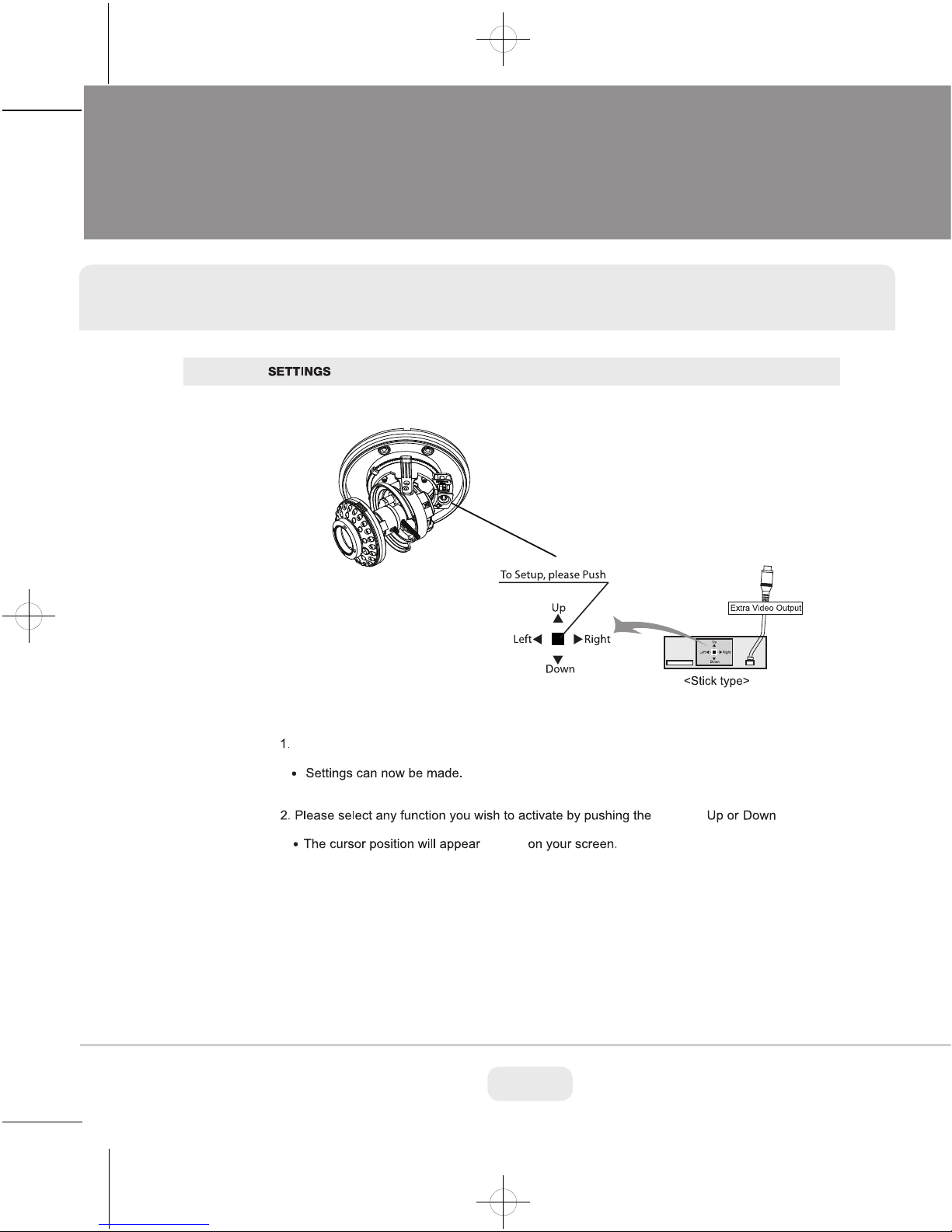

SETUP MENU 8

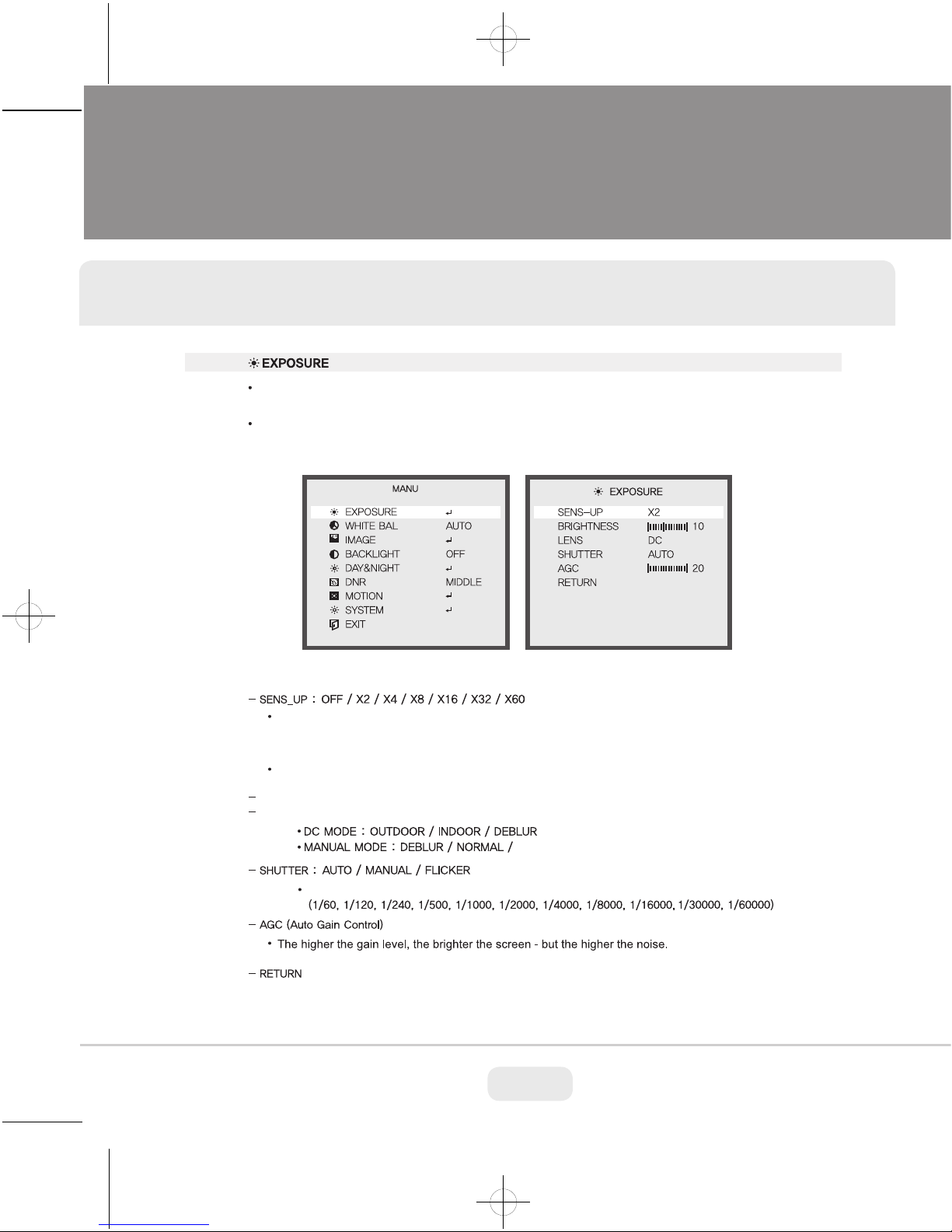

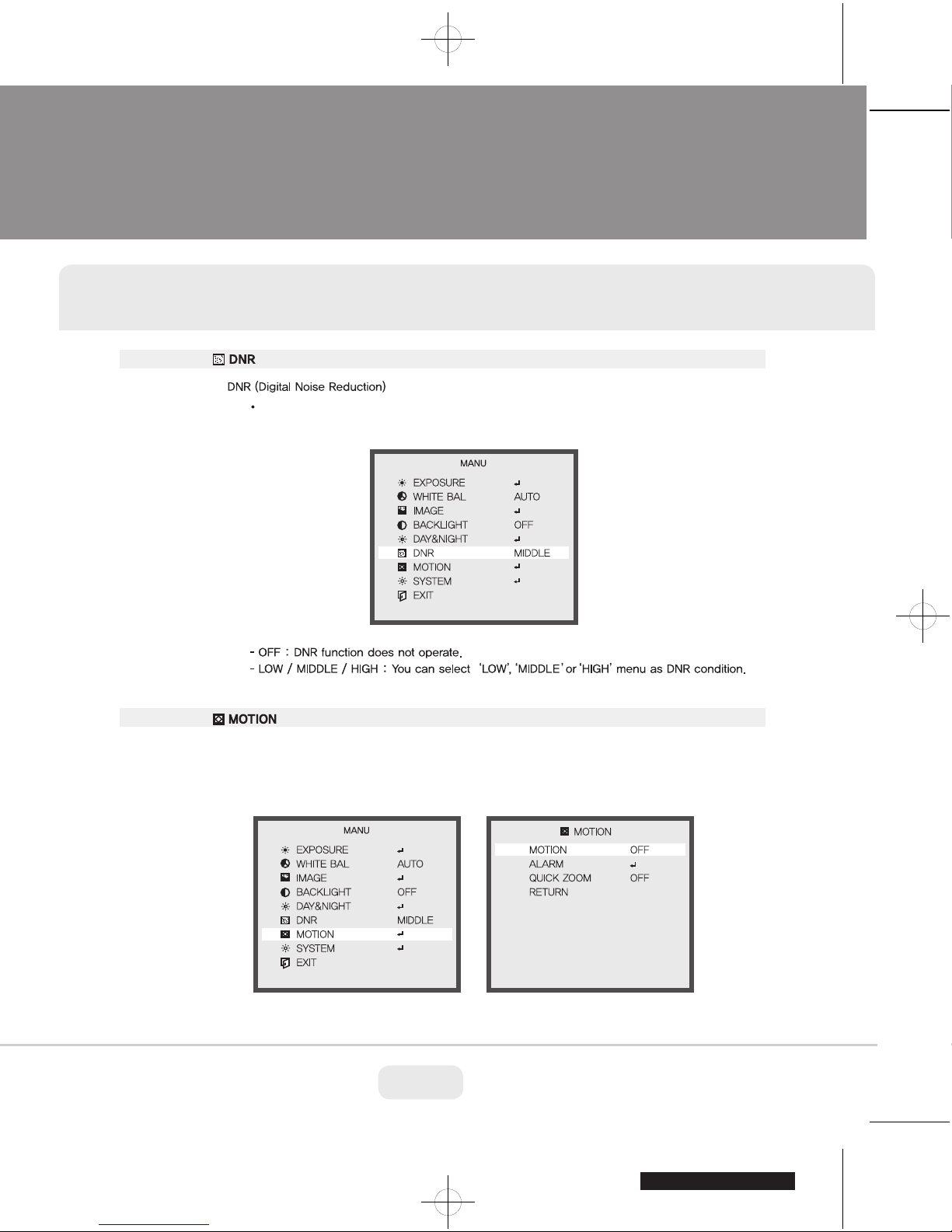

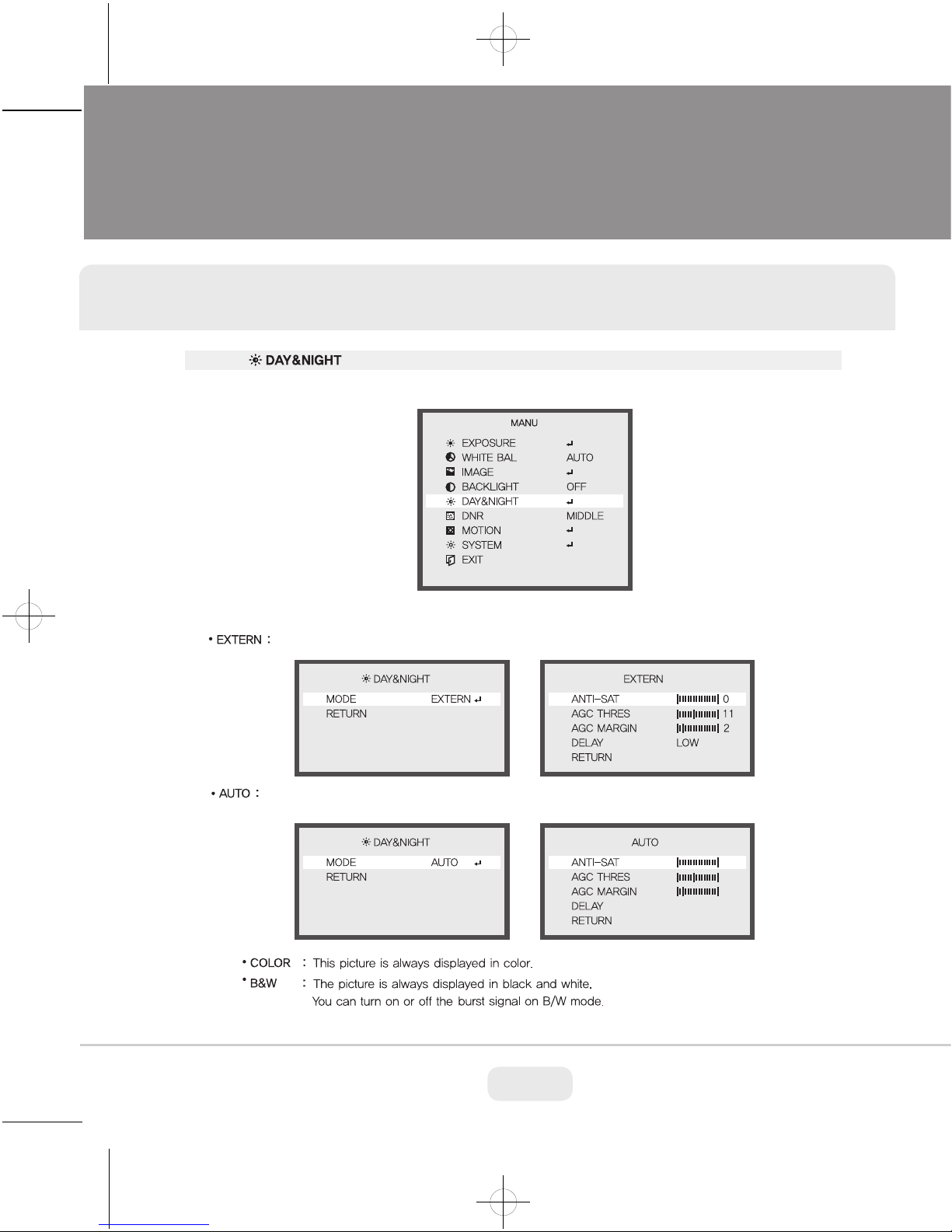

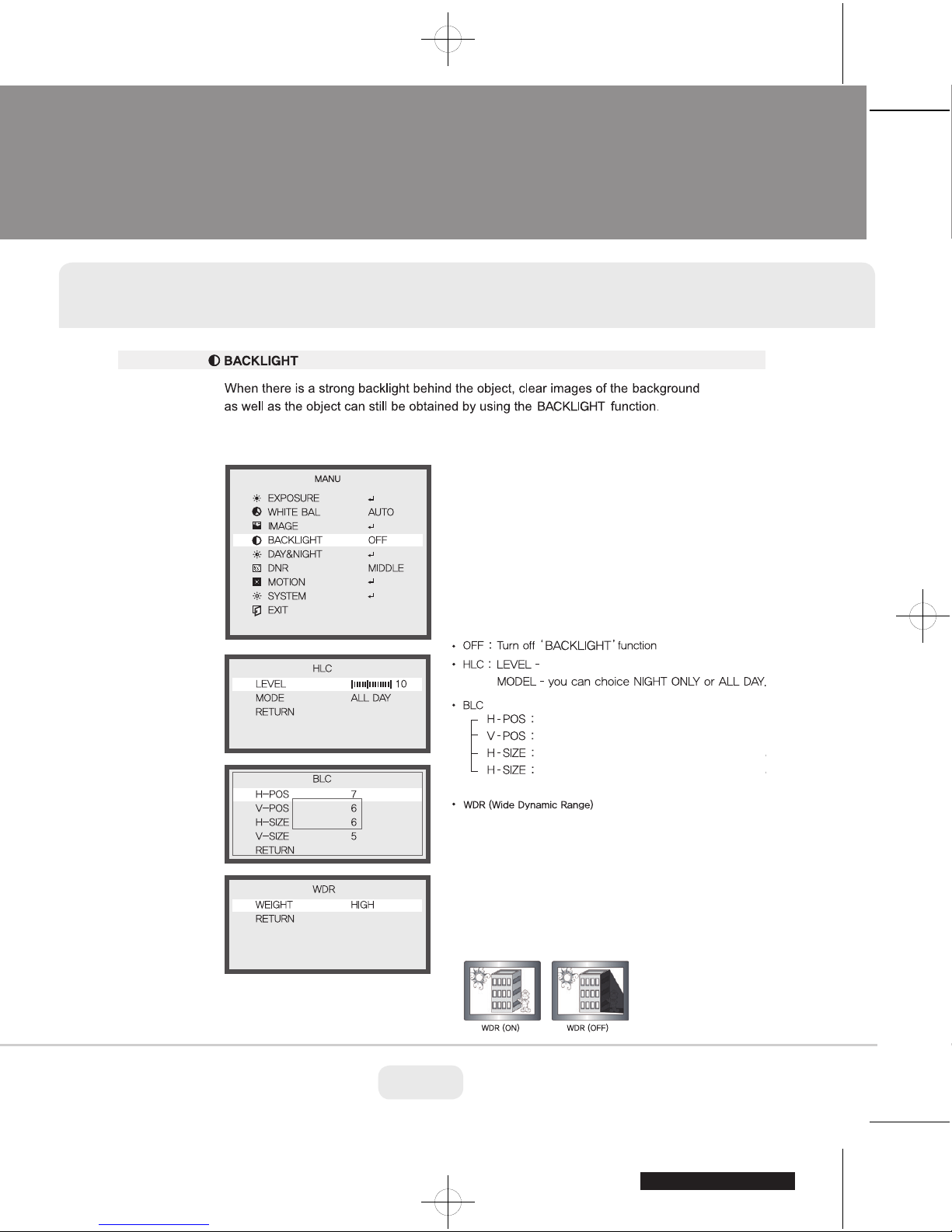

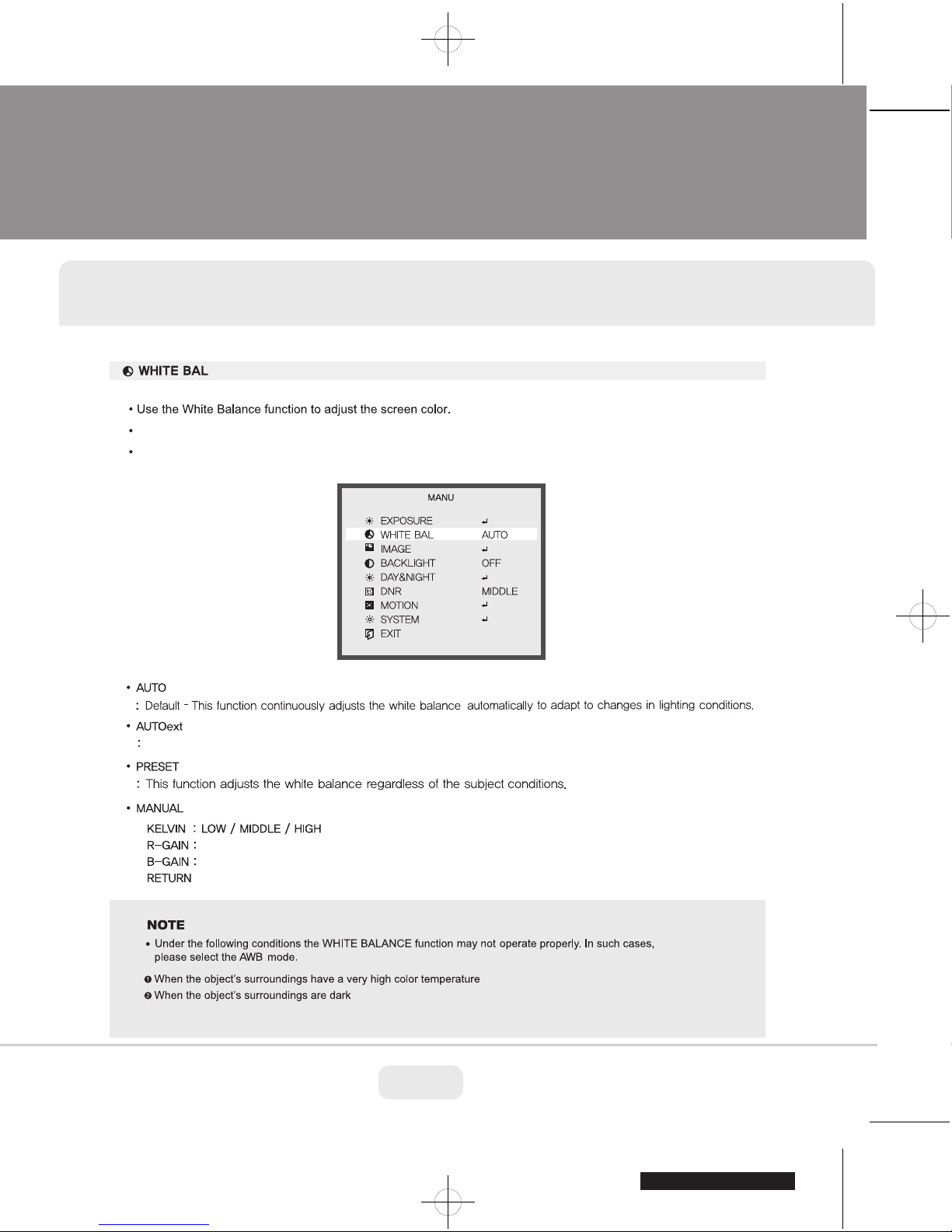

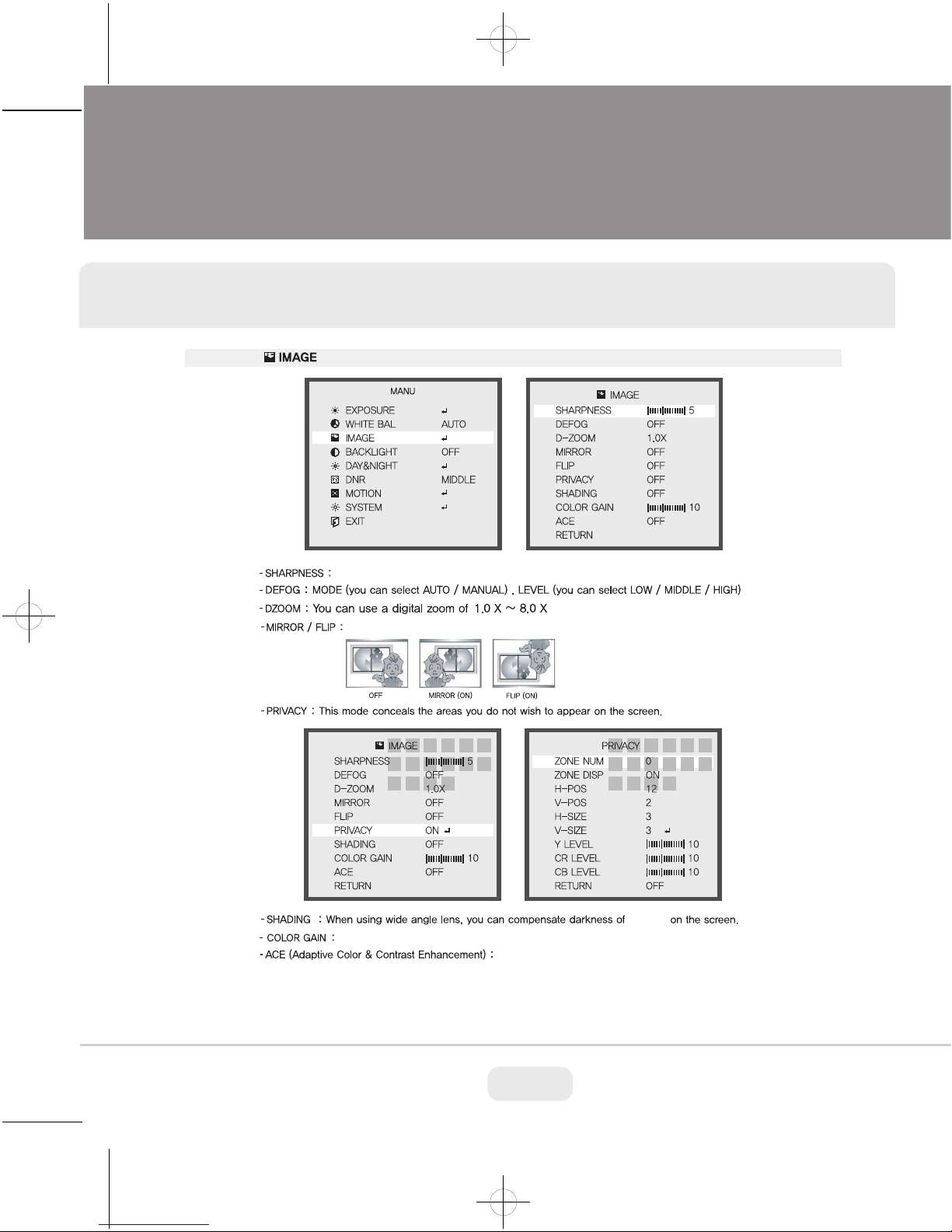

OSD OPERATION 9-19

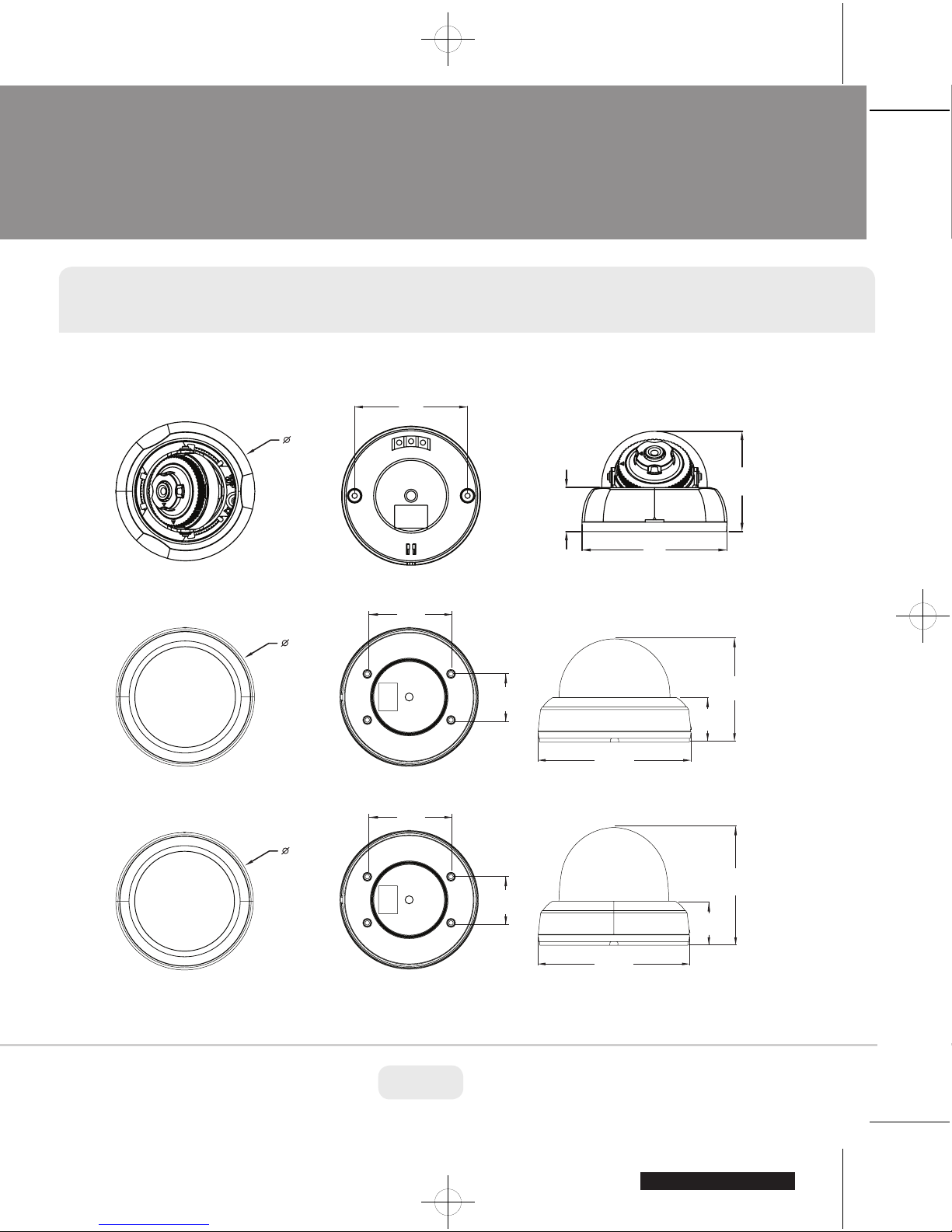

DIMENSIONS 20
SPECIFICATIONS 21-23
NOTES 24-26
1
black
1) Alpha Mega Dome Camera
2) Mounting Accessories
3) Secondary Video Output Cable
4) This instruction Manual & Mounting Template
Self Tapping Screws
For attaching the housing base to a
solid surface.
Type #: Phillips ST4x30
Qty: 4 (2 screws - VTD-A4F/IM)
Secondary Video Output Cable
To be used with a service monitor for
adjusting
the angle, focus and zoom.
Qty: 1
BOX CONTENTS AVAILABLE MODELS / ACCESSORIES
1) Dome Camera
2) Mounting Accessories
3) This instruction Manual & Mounting Template
VTD-A4F/IB / VTD-A4F/IW
620TVL Indoor Color Dome Camera with Fixed Lens.
VTD-A2812/IB / VTD-A2812/IW
620TVL Indoor Color Dome Camera with 2.8~12mm DC Auto Iris Lens.
VTD-AR2812/IB / VT-AR2812/IW
620TVL Indoor Color Dome Camera with 2.8~12mm DC Auto Iris, IR
Corrected Lens & 35 IR LEDs.
BOX CONTENTS
Self Tapping Screws
For attaching the housing base to a solid surface.
Type #: Phillips ST4x30
Qty: 4
BOX CONTENTS AVAILABLE MODELS / ACCESSORIES
1) Dome Camera
2) Mounting Accessories
3) This instruction Manual & Mounting Template
VTD-A4F/IB / VTD-A4F/IW
620TVL Indoor Color Dome Camera with Fixed Lens.
VTD-A2812/IB / VTD-A2812/IW
620TVL Indoor Color Dome Camera with 2.8~12mm DC Auto Iris Lens.
VTD-AR2812/IB / VT-AR2812/IW
620TVL Indoor Color Dome Camera with 2.8~12mm DC Auto Iris, IR
Corrected Lens & 35 IR LEDs.
BOX CONTENTS
Self Tapping Screws
For attaching the housing base to a solid surface.
Type #: Phillips ST4x30
Qty: 4
Secondary Video Output Cable
To be used with a service monitor for adjusting
the angle, focus and zoom.
Qty: 1
boX ConTenTs
MounTing aCCessories
2
aVailable MoDels
3
VTD-A4F/IWM
Alpha Mega Series 1000 TVL (1.39MP) Indoor Fixed 3.6mm
Dome - Ivory
VTD-A2812/IWM
Alpha Mega Series 1000 TVL (1.39MP) Indoor 2.8-12mm Varifocal
Dome - Ivory
VTD-AR2812/IWM
Alpha Mega Series 1000 TVL (1.39MP) Indoor 2.8-12mm Varifocal
Dome & 35 IR LEDs - Ivory
VTD-A2812/IBM
Alpha Mega Series 1000 TVL (1.39MP) Indoor 2.8-12mm Varifocal
Dome - Black
VTD-A4F/IBM
Alpha Mega Series 1000 TVL (1.39MP) Indoor Fixed 3.6mm
Dome - Black
VTD-AR2812/IBM
Alpha Mega Series 1000 TVL (1.39MP) Indoor 2.8-12mm Varifocal
Dome & 35 IR LEDs - Black
black
VTD-a4f/iM insTallaTion
a
4
* See Installation Tips on page 7
VTD-a2812/iM insTallaTion
5
a
/ DC12V
DualPower
* See Installation Tips on page 7
black
a
/ DC12V
DualPower
6
VTD-ar2812/iM insTallaTion
* See Installation Tips on page 7
7
insTallaTion Tips
1.) Power Consumption - Amperage/Voltage
It is of utmost importance that the proper Voltage and Amperage is used when
applying power to your VITEK Alpha Series Dome Camera. They can be powered by either 12V DC or 24V AC (except for the model VTD-A4F/IM - 12V DC
only). Always use a UL Listed power transformer.
The Voltage must be measured at the camera location. It is very important that
the camera receives no less than the required Voltage or it will be “Starved”
and eventually die out. Cameras with Infrared LEDs require substantially more
Amperage than others so please refer to the Specications (page 21-23) for
the camera you are installing.
black
8

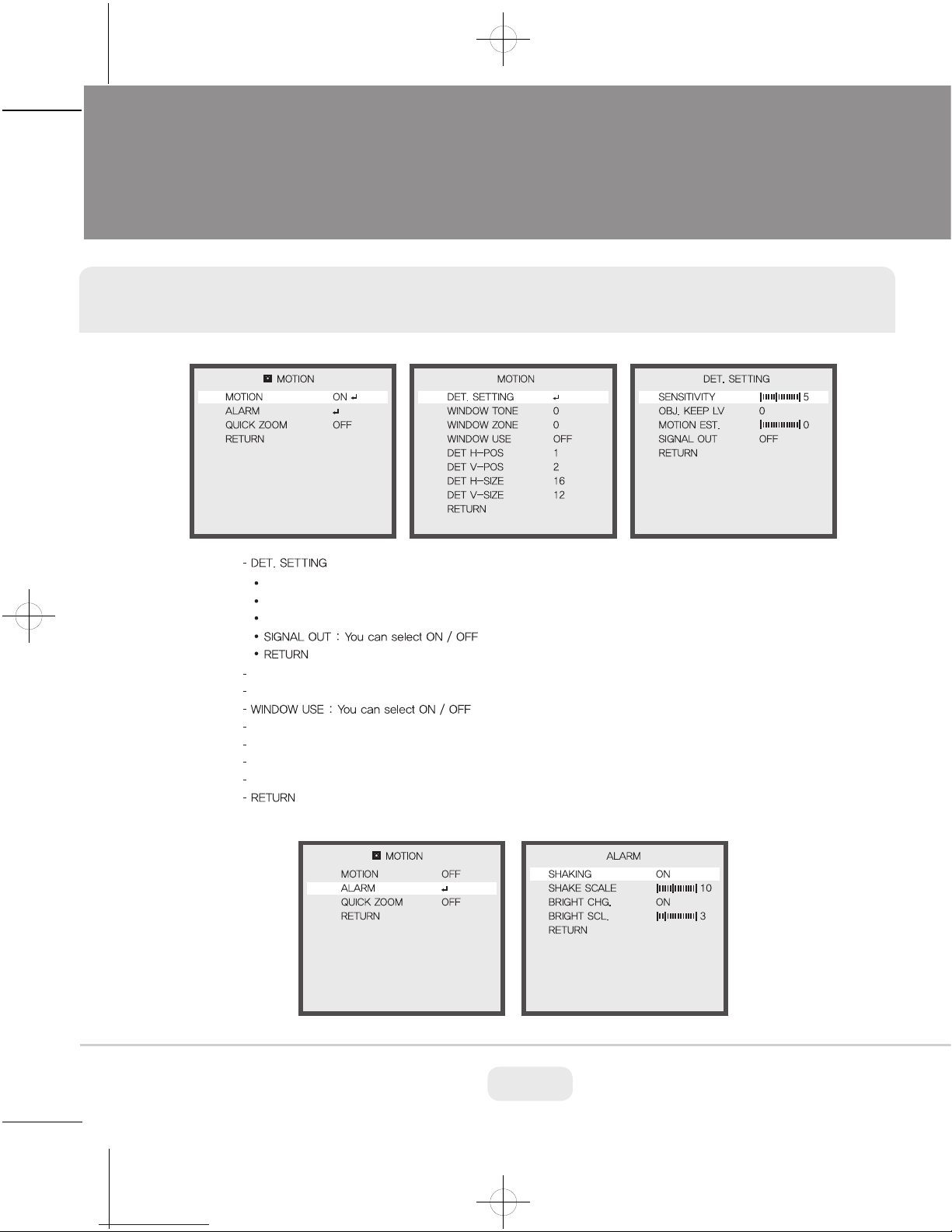

seTup Menu
