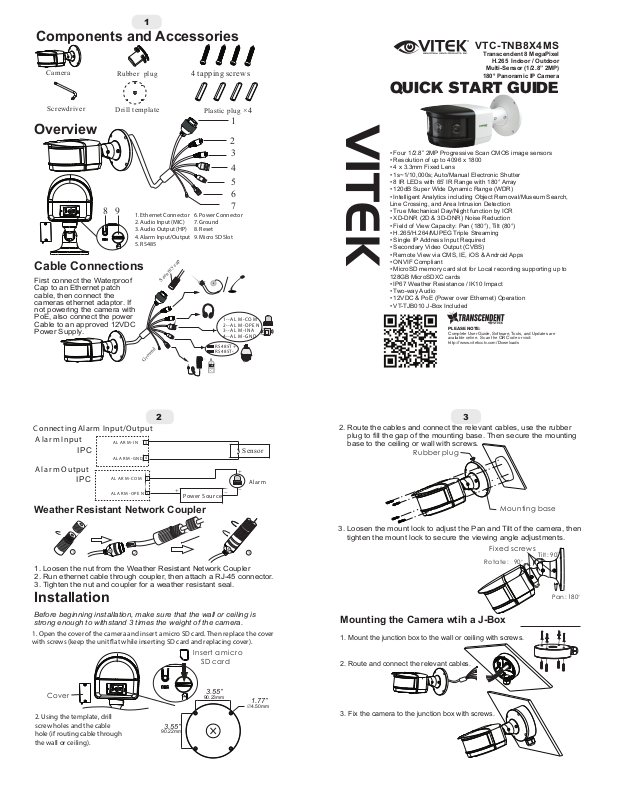

Vitek VTC-TNB8X4MS Quick Start Guide

VITEK

Components and Accessories

Camera

Rubber

plug

4 tappi ng screws

VTC-TNB8X4MS

Transcendent 8 MegaPixel

H.265 Indoor / Outdoor

Multi-Sensor (1/2.8” 2MP)

180° Panoramic IP Camera

QUICK START GUIDE

Screwdri ver

Drill temp lat e

Overview

Cable Connections

First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply.

1. Ethernet Connector

2. Audio Input (MIC)

3. Audio Output (HP)

4. Alarm Input/Output

5. RS485

Gro und

Sec urity c ap

M R A

4 3 2 1

5 8

S R 4

Plastic

plug ×4

ALA

4 3 2 1

+ S R 4

5 6

6. Power Connector

7. Ground

8. Reset

9. Micro SD Slot

1-- A L M -C O M 2-- A L M -O PE N 3-- A L M -I NA 4-- A L M -G ND

R S4 85T + R S4 85T -

VITEK

• Four 1/2.8” 2MP Progressive Scan CMOS image sensors

• Resolution of up to 4096 x 1800

• 4 x 3.3mm Fixed Lens

• 1s~1/10,000s; Auto/Manual Electronic Shutter

• 8 IR LEDs with 65’ IR Range with 180° Array

• 120dB Super Wide Dynamic Range (WDR)

• Intelligent Analytics including Object Removal/Museum Search, Line Crossing, and Area Intrusion Detection

• True Mechanical Day/Night function by ICR

• XD-DNR (2D & 3D-DNR) Noise Reduction

• Field of View Capacity: Pan (180°), Tilt (80°)

• H.265/H.264/MJPEG Triple Streaming

• Single IP Address Input Required

• Secondary Video Output (CVBS)

• Remote View via CMS, IE, iOS & Android Apps

• ONVIF Compliant

• MicroSD memory card slot for Local recording supporting up to 128GB MicroSDXC cards

• IP67 Weather Resistance / IK10 Impact

• Two-way Audio

• 12VDC & PoE (Power over Ethernet) Operation

• VT-TJB010 J-Box Included

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are available online. Scan the QR Code or visit: http://www.vitekcctv.com/Downloads

C onnec ti ng Al ar m Input/Outp ut

A lar m Input

IPC

A L AR M -I N

A L AR M -G ND

A lar m O utput

IPC

A L AR M -C O M

A L AR M -O PE N

P ower S our ce

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Installation

Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.

1. Open the cover of the camera and insert a micro SD card. Then replace the cover with screws (keep the unit at while inserting SD card and replacing cover).

Inser t a micro SD card

Cover

2. Using the template, drill screw holes and the cable hole (if routing cable through the wall or ceiling).

3.55”

90.22mm

3.55”

90.23mm

2. Route the cables and connect the relevant cables, use the rubber plug to fill the gap of the mounting base. Then secure the mounting

Sensor

A lar m

base to the ceiling or wall with screws.

Rubbe r plug

Mount ing bas e

Loosen the mount lock to adjust the Pan and Tilt of the camera, then tighten the mount lock to secure the viewing angle adjustments.

Fixed s crews

Rot ate : 90

Til t: 90

Pan

: 18

Mounting the Camera wtih a J-Box

1. Mount the junction box to the wall or ceiling with screws.

2. Route and connect the relevant cables.

1.77”

∅4.50mm

3. Fix the camera to the junction box with screws.

LAN Configuration

Swi tch

N etwor k Ca ble N etwor k Ca ble

IPC

The camera can be accessed on the local network either using the IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www. ware/Transcendent-IPTool_v2.0.2.zip the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201. Click the information of the camera listed in the above table to show the network information on the right side. Modify the IP address and gateway of the camera and make sure its network address is in the same local network segment as the computer’s. Please modify the IP address of your device according to the practical situation.

For example, the IP address of your computer is 192.168.13.4. So the IP address of the camera shall be changed to 192.168.13.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting.

** Default admin password: “123456".

Rou ter

vitekcctv.com/Downloads/Soft-

, then install on the PC. Open

Com puter

4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below:

Input the user name and password to log in. Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below: IP address: 192.168.226.201 HTTP: 80 Subnet Mask: 255.255.255.0 Data Port: 9008 Gateway: 192.168.226.1 You may use the above default settings when you log in the camera for the first time.

1. Manually set the IP address of the PC. The network segment should be the same as the default settings of IP-CAM. Open the network and share center. Click “Local Area Connection” to pop up the following window.

Select “Properties” and then select Internet protocol according to the actual situation (for example: IPV4). Next, click “Properties” button to set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

3. Go to the router’s management interface through IE browser to forward the IP address and port of IP-CAM in the “Virtual Server”.

LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller.

The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.

The product must not have been tampered with in any way or the guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to products sold or purchased through unauthorized sales channels. Warranty support is available only if product is purchased through a VITEK Authorized Reseller.

4. Open the web browser and input its WAN IP and HTTP port to access the IP-CAM.

28492 CONSTELLATION ROAD VALENCIA, CA 91355

WWW.VITEKCCTV.COM

Version 1.0 Oct. 2019
