Vitamix Mix'n Machine-Wall Mount Parts List
1
2
3
4
6
7
8
9
11
12
13
14
17
16
22
21
5
23
12
19
20
24
26
25
27
29
28
15
10
18
30

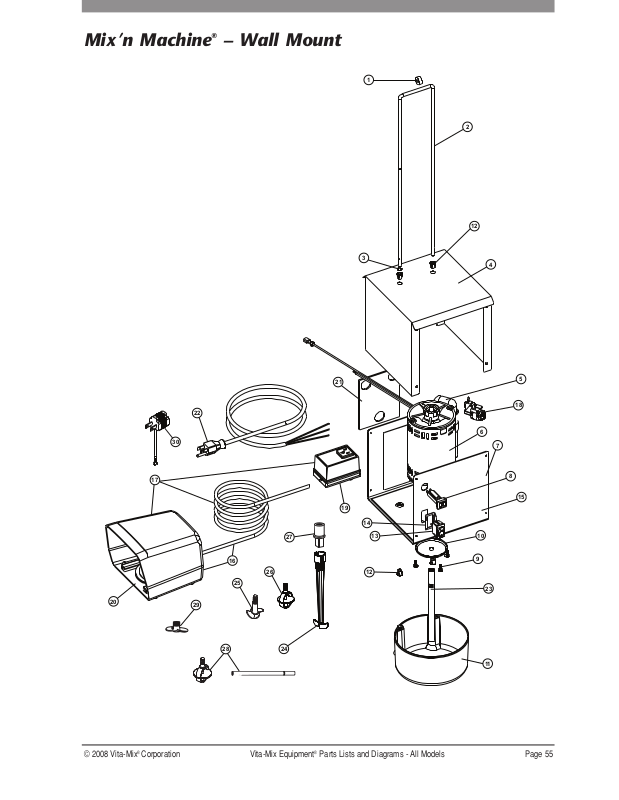

Mix’n Machine®– Wall Mount
© 2008 Vita-Mix®Corporation Vita-Mix Equipment®Parts Lists and Diagrams - All Models Page 55
Mix’n Machine®– Wall Mount – 100V (Japan), 120V,
120V (Taiwan), 220/240V
NO.
NEW
PART NO.
OLD
PART NO.
DESCRIPTION VOLTAGE
1 30024 RBB806 Travel Rod Bumper All 1
2 30025 ROD800 Splash Guard Travel Rod All 1
3 30026 FST825 Snap Ring All 1
4 30027 STM813 Hang-On Housing, Upper Half All 1
5 30008 CTL803 Capacitor 220/240V 1
5 30009 CTL802 Capacitor 100/120V 1
6 15688 ASY809 Induction Motor with Capacitor 220/240V 1
6 15687 ASY800 Induction Motor with Capacitor 120/100V 1
7 30028 ASY804 Hang-On Housing, Lower Half All 1
8 30012 CTL804 3 Amp Circuit Breaker 220/240V 1
8 30011 CTL801 5 Amp Circuit Breaker 100/120V 1
9 30013 FST800 Motor Mounting Screws (4) All 4
10 30014 DDR800 Slinger All 1
11 30029 PLS836 Moving Splash Guard All 1
12 30030 PLS822 Travel Rod Bushings (4) All 4
13 15785 CTL805 On/Off Switch (O/I) 220/240V 1
13 30021 CTL810 On/Off Switch (Unmarked)* 220/240V 1
13 15786 CTL800 On/Off Switch 100/120V 1
14 30022 STM805 Switch Guard All 1
15 LBL834 LBL834 Mix’n Machine Wall Mount Label All 1
16 30002 30002 Guarded Foot Control complete* 220/240V 1
17 30000 30000 Guarded Foot Control complete 100/120V 1
18 30031 CTL809 Controller Pressure Switch only 220/240V 1
19 30057 CTL807 Controller Foot Switch only 100/120V 1
20 30032 ASY853 Foot Pedal & Shroud only All 1
21 30033 RBB805 Vibration Damper All 1
22 By Country By Country Power Cord 220/240V 1
22 30016 WIR800 Power Cord 100/120V 1
23 30034 SCM807 Agitator Shaft (extended) All 1
24 30003 30003 Removable/Reusable Agitators (10) All 10
25 30018 STM817 Aggressive/Permanent Hard Ice Cream Agitator All 1
26 30019 PLS800 Permanent Soft Ice Cream Agitator All 1
27 80 SCM808 Conversion Kit (Perm. to Remov. Agitator) All 1
28 30004 30004 Conversion Kit (Remov. to Perm. Agitator) All 1
29 30005 30005
Conversion Kit (Remov. to Aggr./Perm. Agitator - use with #30034)
All 1
30 15745 CTL125 Japanese Adapter 100V 1
*For machines equipped with Foot Pedal frame access only.
QTY./
PACK
© 2008 Vita-Mix®Corporation Vita-Mix Equipment®Parts Lists and Diagrams - All Models Page 56
