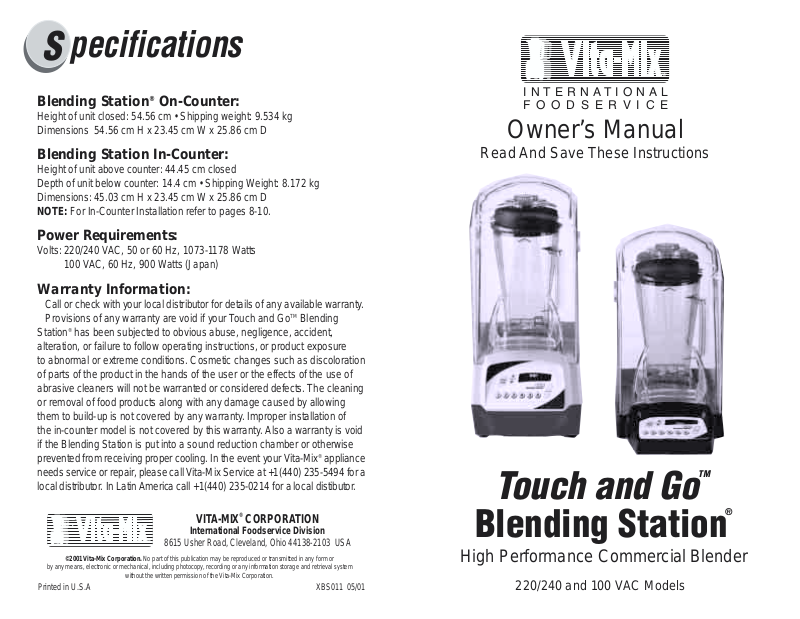

Vita-Mix 220-240, 100 VAC User Manual

220/240 and 100 VAC Models

Touch and Go

Blending Station

High Performance Commercial Blender

Owner’s Manual

Read And Save These Instructions

INTERNATIONAL FOODSERVICE

13. Always operate with the lid in place.

14. WARNING: When processing hot liquids:

• The 2-part latching lid must be securely in place. This allows steam to escape naturally, and will prevent the lid from coming off when the machine is turned on.

• Use caution with hot liquids. Spraying from under the lid plug can occur, or escaping steam may cause scalding.

• Do not process hot liquids with the non-latching lid.

15. Display window area will scratch when contacted with a scouring pad or sharp object. Use a soft cloth to wipe the control panel area clean.

16. The optional interlock switch on some 220/240 V AC Blending Stations

will prevent the machine from running unless the cover door is completely closed.

17. The Blending Station cannot be cleaned with a water jet.

SAVE THESE INSTRUCTIONS

2 3

1. Read all instructions.

2. To protect against risk of electrical shock, do not put motor base in water or other liquid.

3. Close adult supervision is necessary when appliance is used by or near children.

4. Unplug the power cord from the wall outlet when the Touch and Go

Blending Station®is not in use, before putting on or taking off parts, and before cleaning other than washing the container.

5. Never contact moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner.

For information on a local distributor call Vita-Mix Service at +1(

440)235-5494.For Latin America call +1(440)235-0214.

7. The use of attachments not recommended or sold by Vita-Mix Corporation may cause fire, shock, or injury.

8. Do not use outdoors.

9. Do not let the power cord hang over edge of table or counter, or touch hot surfaces.

10. Keep hands and utensils out of container while motor is running to prevent the possibility of severe personal injury and/or damage to the Blending Station.Arubber scraper may be used, but only when the Blending Station is not running.

11. CAUTION:Blade is sharp. Handle carefully.

•Never try to remove blade while container is sitting on the motor base.

• Do not operate with loose, knicked or damaged blades.

•To reduce the risk of personal injury, never place blade assembly on

motor base without blender container properly attached.

12. The maximum normal load is equivalent to the liters listed on the container, 2 L, 1.5 L, 1.25 Land substantially less with thick mixtures.

IMPORTANT SAFEGUARDS

Touch and GoTMBlending Station

ON/OFF switch -Located on the side of the Motor Base the ON/OFF switch controls the power to the machine. With the machine plugged in, switch the machine to ON to ready the machine for blending. START/ST OP button - Pressing START/STOPonce starts and runs the machine and turns the blades. Press the STAR T/STOPbutton again to stop the machine and the blades. (NOTE: Pressing one of the PRE-SET PROGRAM buttons, while the motor is running, will also stop the machine.)

SPEED CONTROL button - Press the ▲ button to gradually increase the speed of the blades in increments of 1%, up to 100%. Press the ▼ button to gradually decrease the speed of the blades in increments of 1%, down to 7%. SPEED CONTROL is used to set the blending speed of the PULSE buttons (See Instructions, pg.15) and the START/STOPbutton (See Instructions, pg. 15). NOTE:These settings will reset if the power is shut off.

PRE-SET PROGRAMbuttons - These buttons, numbered 1 thru 6, are pre-programmed blending cycles designed for the most commonly made drinks. Depending on the viscosity of the drink you are creating, pressing one of the six PRE-SETPROGRAM buttons will run the machine for a full cycle. The machine will stop by itself when the cycle is complete. Acycle varies in speed and length, see the Instructions on page 14 for a complete description of the range of each PRE-SETbutton.

Start/Stop

Speed Control

Six Factory Pre-Set

Programs

Owner Controls

High/Low Pulse

Display Window

ontrol Panel

Due to the difference of recipes, your results may vary . See page 6 for information on Custom Programming these six buttons.

DISPLAY WINDOW-This area depending on what button is pressed,

displays a variety of operation messages. A‘Ready’ message appears when there is power to the machine.

OWNER CONTROLS - Acontrol panel accessible by pressing the Vita-Mix logo.

• Press once to reveal the mode message. Press button

6 7

4. Within 10 seconds the SIX PRE-SET buttons will be re-programmed and the DISPLAYWINDOW will read ‘Saved’then ‘Ready’. If nothing happens when the programming chip is fully inserted, turn the chip in the opposite direction and try again.

3. Remove the programming chip and return it to the original package.

5. Press one of the six PRE-SETbuttons to reveal, in the DISPLAYWINDOW , the name of the program/drink.

6. Carefully place the Blending Station motor back into the hole in the counter.

NOTE: If for any reason the programmed times are incorrect, they can be reset to the original factory settings following the instructions below.

Resetting the PRE-SET buttons to the original factory settings

WARNING: Reverting your PRE-SET PROGRAM buttons to the original factory setting, will erase any programming installed with a custom program chip.

1. Enter the OWNER CONTROLS (press the Vita-Mix Logo) and press the PRE-SETbuttons 1 and 6 when the DISPLAYWINDOW says ‘Mode’.

2. Press the Vita-Mix Logo two more times to reveal the instructions on resetting the PRE-SETbuttons.

3. Press and hold the #4 button until the DISPLA YWINDOWreads ‘Restoring Please Wait’. The PRE-SETbuttons are now reset to the original factory settings.
