Visonic NEXT PG2, NEXT-K9 PG2 User Manual
NEXT PG2, NEXT-K9 PG2
Wireless, PowerG, Digital PIR / Pet Immune PIR Detectors
1. INTRODUCTION
The Next PG2 and Next-K9 PG2 are 2-way, microprocessorcontrolled, wireless digital PIR detectors.
The detectors features are as follows:
• Combined Fresnel and cylindrical optics, up to 15 meters (49 ft).
• The Next PG2 includes wall creep zone protection.
• In Next PG2 and Next-K9 PG2, Target Specific Imaging™
(TSI) technology is used for distinction between human beings
and pets weighing up to 38 kg (85lb).
• Includes a fully supervised PowerG transceiver.
• The advanced True Motion Recognition™ algorithm (patented)
allows distinguishing between the true motion of an intruder and
any other disturbances which may cause false alarms.
• Sophisticated frequency domain digital signal processing.
• No vertical adjustment is needed.
• Motion event counter determines
whether 1 or 2 consecutive motion
events will trigger an alarm.
• Automatic termination of walk-test
after 15 minutes.
• Microprocessor-controlled temperature
compensation.
• Sealed chamber protects the optical
system.
• Front cover and back tamper switches,
for improved tamper protection.
• White light protection.
2. SPECIFICATIONS
GENERAL
Detector Type: Dual element low-noise pyroelectric sensor
Lens Data: No. of Curtain Beams / curtains:
Next PG2: 18 far, 18 mid, 10 close.
Next-K9 PG2: 18 far, 18 mid, 18 close
Max. Coverage: 15 x 15 m, (49 x 49 ft) / 90°
10m
32.8ft
90°
5m
A
16.4ft
0
5m
16.4ft
10m
32.8ft
0
5
16.4
2.1 m
B
(6.9 ft)
0
C
A. HORIZONTAL VIEW
B. VERTICAL VIEW
C. Next PG2: 0.5-4m, Next-K9 PG2: 2-4m
Fig. 2. Coverage Pattern & Walk-test
Pet Immunity (Next-K9 PG2 only): Up to 38 kg (85 lb).
ELECTRICAL
Internal Battery
Note: For UL installations use Panasonic, Sanyo, GP or Varta
only. Use only the above battery. Dispose of used battery
according to the manufacturer's instructions.
Nominal Battery Capacity: 1450 mA/h
Battery Life (for typical use): 6 years
FUNCTIONAL
True Motion Event Verification: 2 remote selections - 1 (OFF)
or 2 (ON) motion events
Alarm Period: 2 seconds
: 3V Lithium battery, type CR-123A or equivalent.
32.8
51015 m
16.4 32.8 49.2 ft
15 m
10
49.2 ft
WIRELESS
Frequency Band (MHz): Europe: 433, 868, USA: 915
Modulation: GFSK
Antenna: Built-in helical antenna
Communication Protocol: PowerG
Supervision: Signaling at 4-min. intervals
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored
MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft). For Next PG2, the recommended
height is up to 2.1 m (7 ft)
Installation Options: Surface or corner
ACCESSORIES
BR-1: Surface mounted swivel bracket, adjustable 30° down and
45° left/45° right.
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
ENVIRONMENTAL
RFI Protection: >20 V/m up to 2000 MHz, excluding inband
frequencies
Operating Temperatures: -10
Storage Temperatures: -20
Compliance with Standards:
Europe: EN 300220, EN 50131-1 Grade 2, Class II. EN 301489,
EN 50130-4, EN 60950, EN 50131-2-2
USA: CFR47 Part 15
Canada: RSS 210
PHYSICAL
Size (H x W x D): 94.5 x 63.5 x 53.0 mm (3-11/16 x 2-1/2 x 2-
1/16”).
Weight (with battery): 70 g (2.5 oz).
Color: White
PATENTS
U.S. Patents 5,693,943 z 6,211,522 z D445,709 (another patent
pending)
Installation
Instructions
A
B
A. LED
B. Lens
Figure 1:
External View
°C to 50°C (14°F to 122°F) indoor
°C to 60°C (-4°F to 140°F).
D-302413 1
3. ENROLLMENT
A
D
N
D
E
L
E
A
D
L
Refer to the PowerMaster-10 Installer Guide for the device enrollment procedure.
4. MODIFY DEVICE SETTINGS
This section describes how to configure the parameters of the PIR detector from the PowerMaster-10 control panel
To Modify the PIR Detector Device Settings
Refer to the PowerMaster-10 Installer Guide and perform the procedure for Adding A Wireless Device (section 4.5.2), or, Modifying a
Device (section 4.5.5). Then continue below to modify the device settings.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
EV SETTINGS
larm LED
ED ON
or
larm LED
vent Counter
ED Sensitive
or
vent Counter
ISARM Activity
OT Active
or
ISARM Activity
Here you determine whether or not the alarm LED indication will be activated.
Select between "LED ON" and "LED OFF".
Here you determine whether an alarm will be activated upon continued motion (low
sensitivity) or upon a single alarm event (high sensitivity).
Select between "LOW sensitive" and "HIGH sensitive".
Here you set the activity time during disarm.
Select between "NOT Active", "YES – no delay", "YES + 5s delay", "YES + 15s
delay", "YES + 30s delay", "YES + 1m delay", "YES + 2m delay", "YES + 5m delay",
"YES + 10m delay", "YES + 20m delay" and "YES + 60m delay".
When exiting "
devices that need to be updated, as follows: DEV UPDATING NNN.
For detailed instructions on Adding Devices, Deleting Devices, Replacing Devices and
Defining Defaults see the PowerMaster-10 Installer Guide.
ZONES / DEVICES
" menu, the PowerMaster-10 system displays the number of
5. LOCAL DIAGNOSTICS TEST

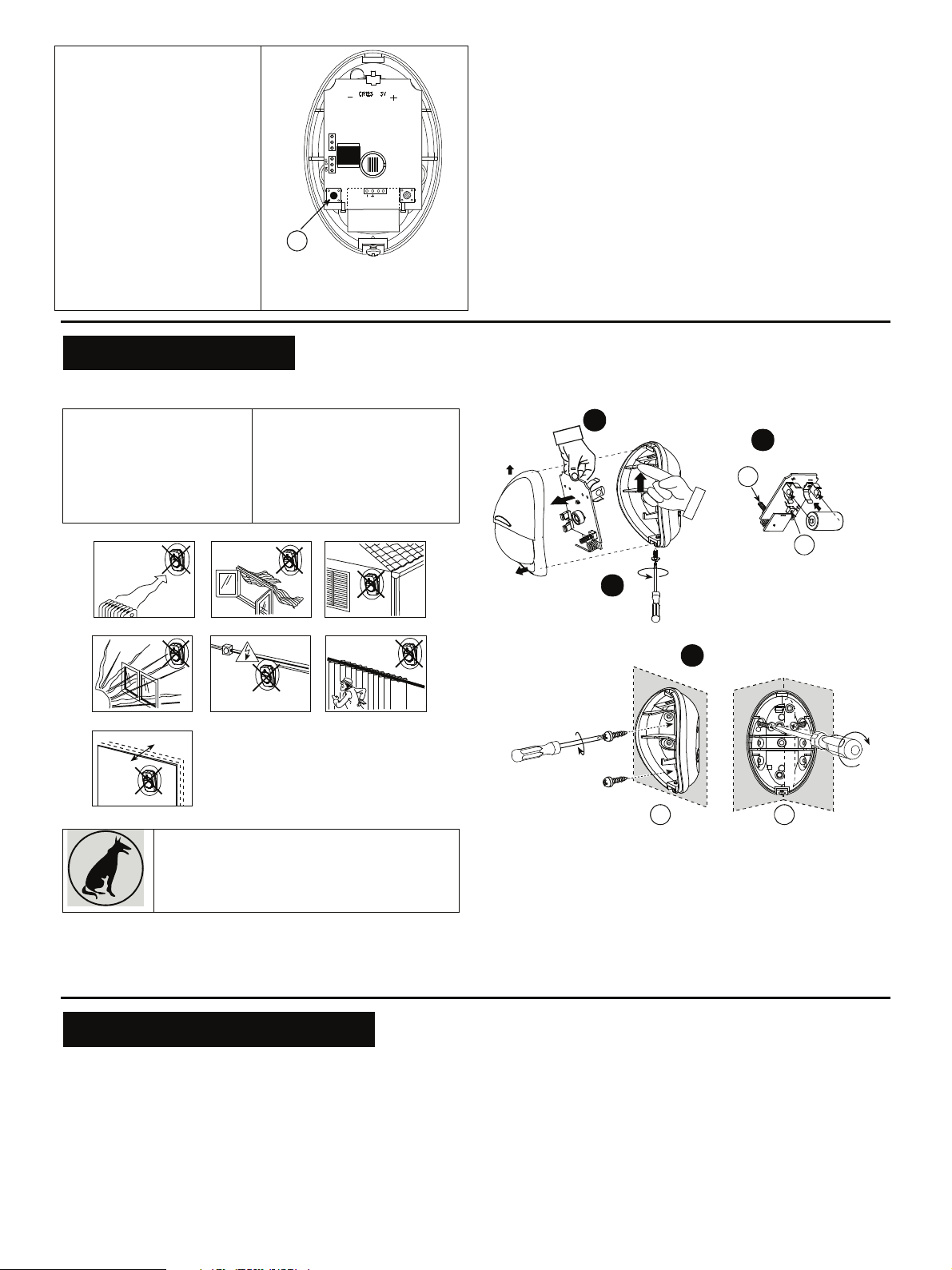

A. Separate the base from the cover (see Fig. 5).
B. Put back the cover to return the tamper switch to its normal
(undisturbed) position, and then secure the front cover to the
base with the case closure screw.
C. Walk-test the coverage area - see Fig. 2. Walk across the far
end of coverage pattern in both directions, The red LED lights
each time your motion is detected followed by 3 LED blinks.
The following table indicates received signal strength
indication.
2 D-302413
LED response Reception
Green LED blinks Strong
Orange LED blinks Good
Red LED blinks Poor
No blinks No communication
